MSC PANAYA
9217565 | D5WF5 | 9217565 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:MSC PANAYA
IMO Code:9217565
Call Sign:D5WF5
Line Operator:9217565
Class Name for Sister Ships:YML
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):171.94
LOA (Length Overall):184.70
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,730
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

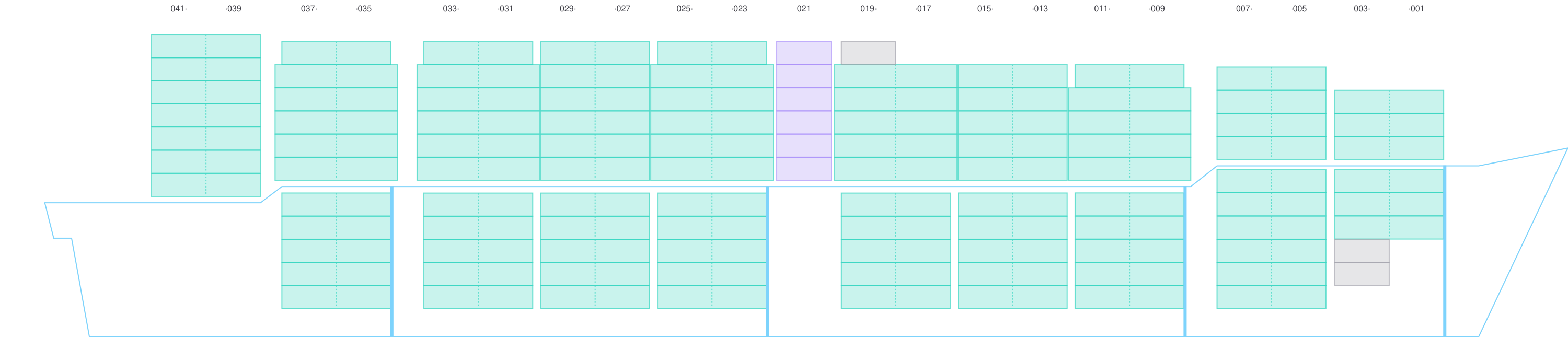

Side View

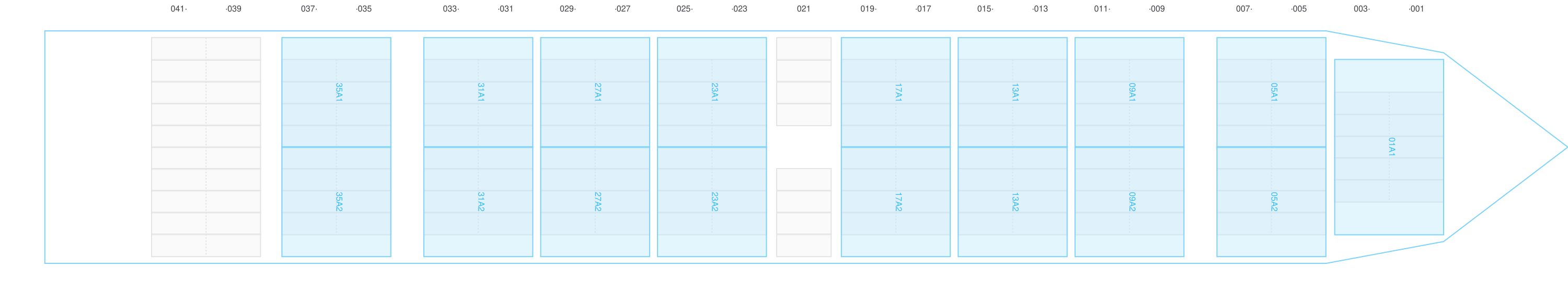

Hatch-Covers View

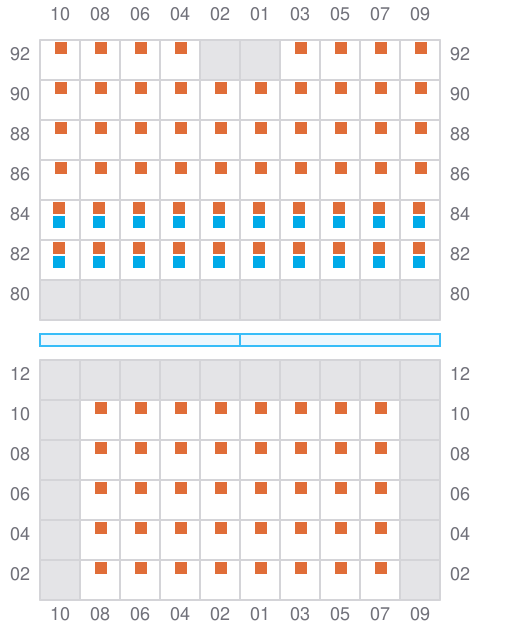

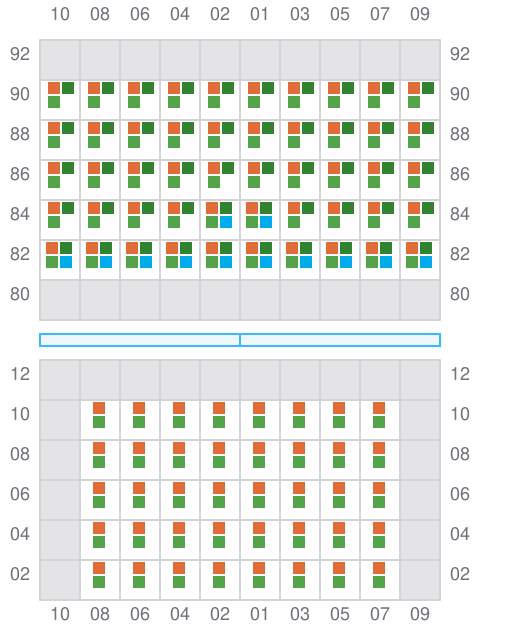

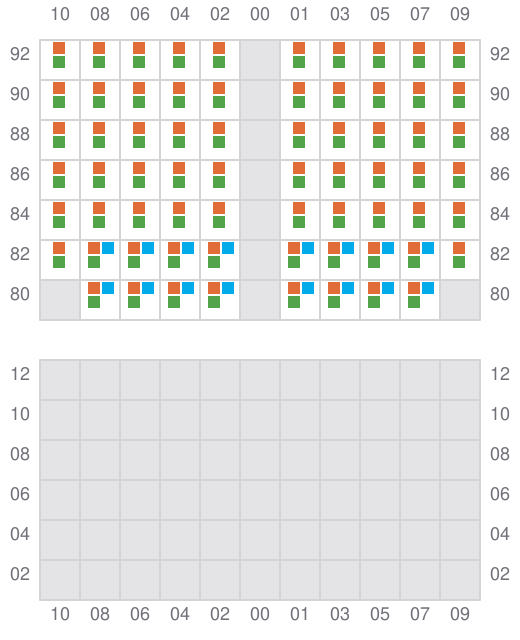

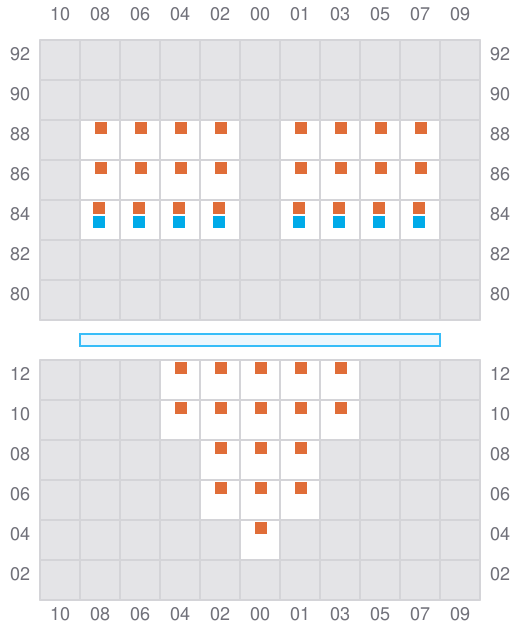

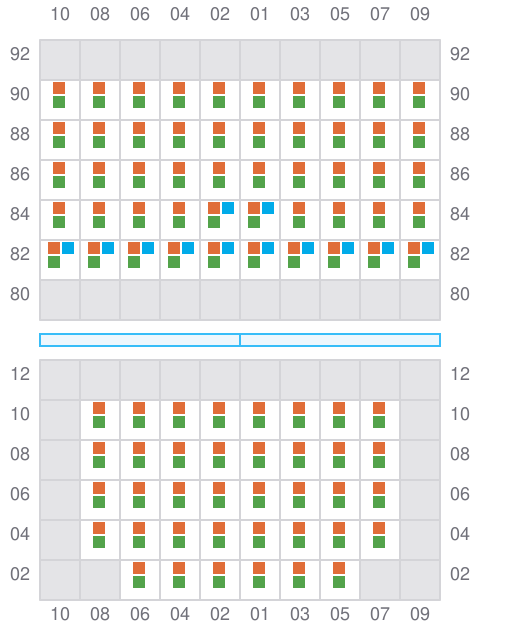

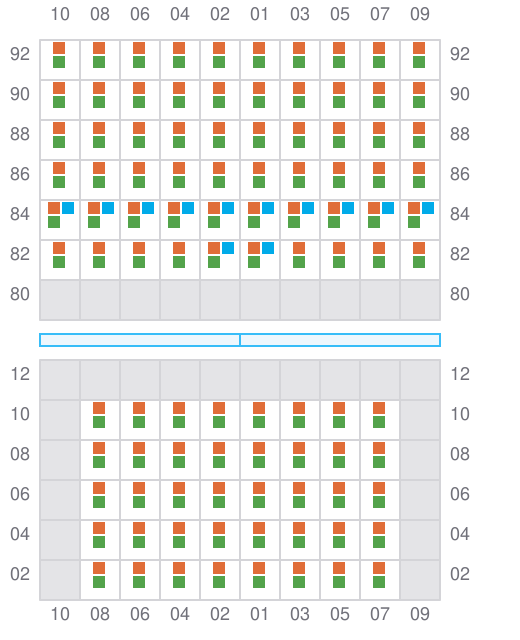

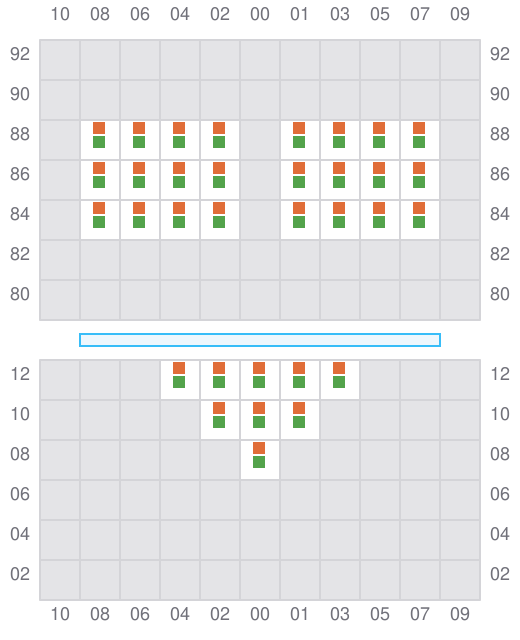

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
- → / ?

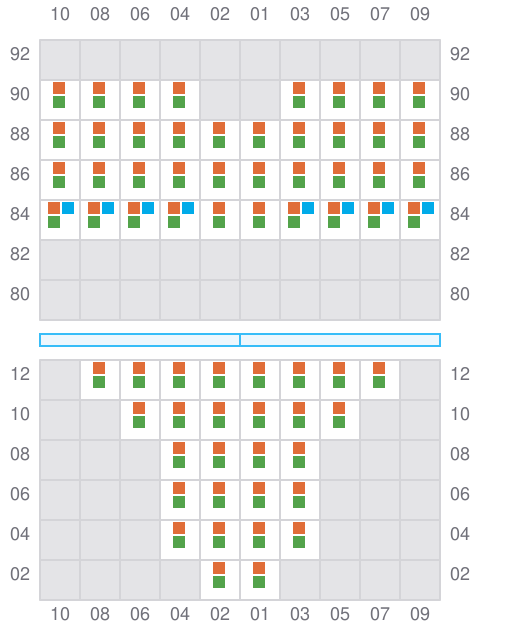

005 (006)
- →
- ← / ?

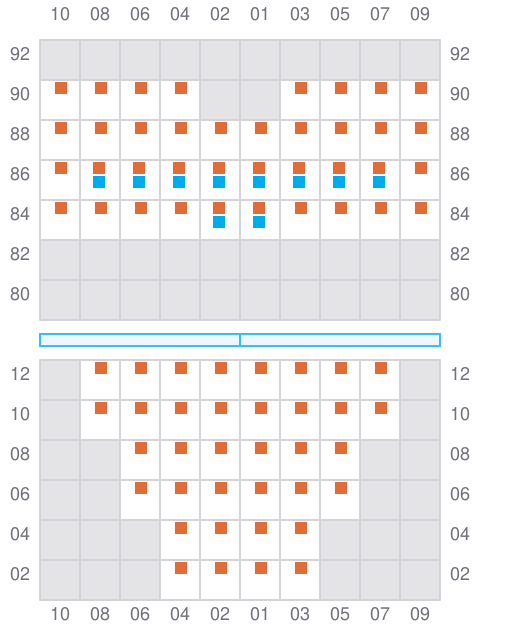

007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?
013 (014)
- →
- ← / ?

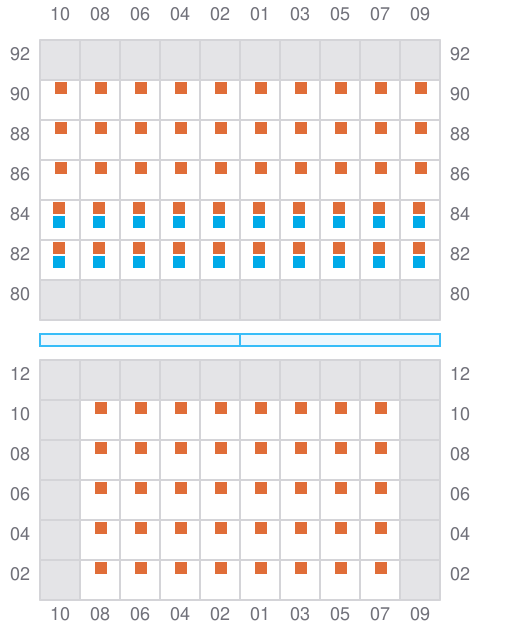

015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- → / ?

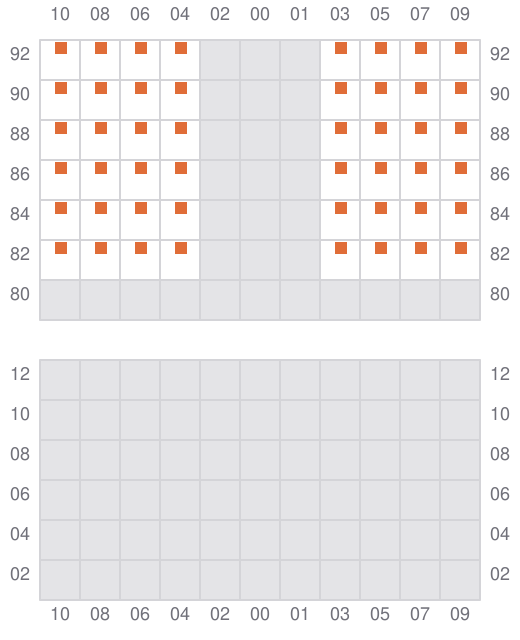

021

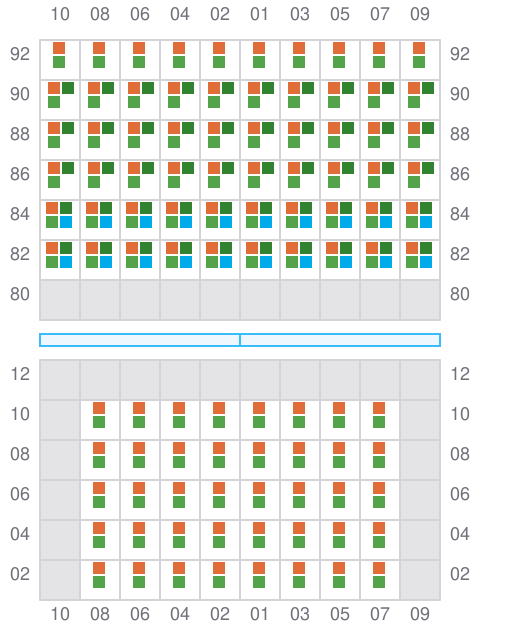

023 (024)
- →
- ← / ?

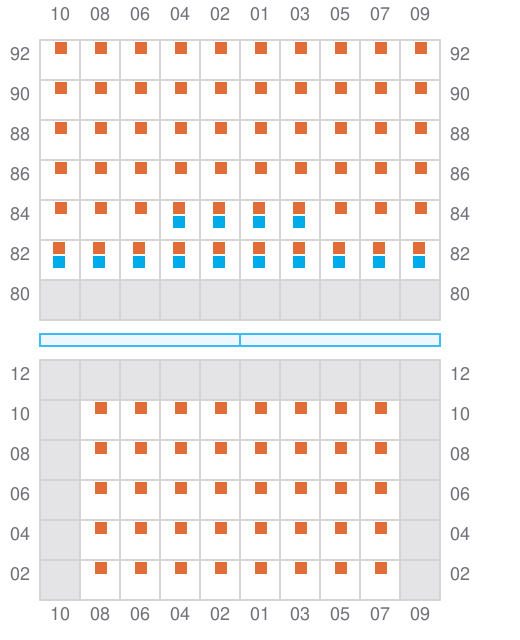

025
- ←
- → / ?
027 (028)
- →
- ← / ?

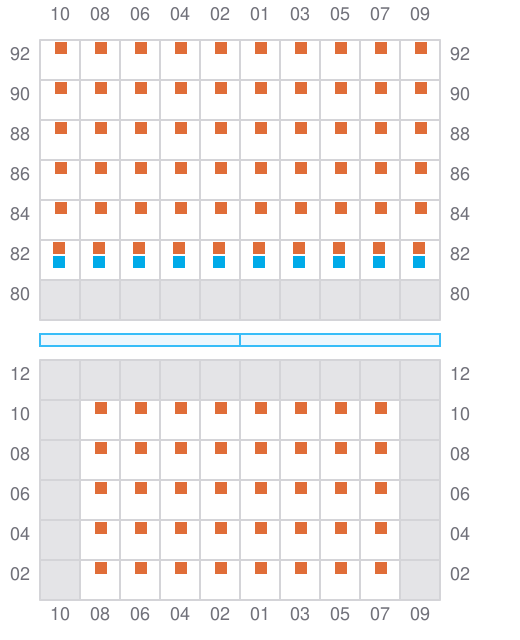

029
- ←
- → / ?

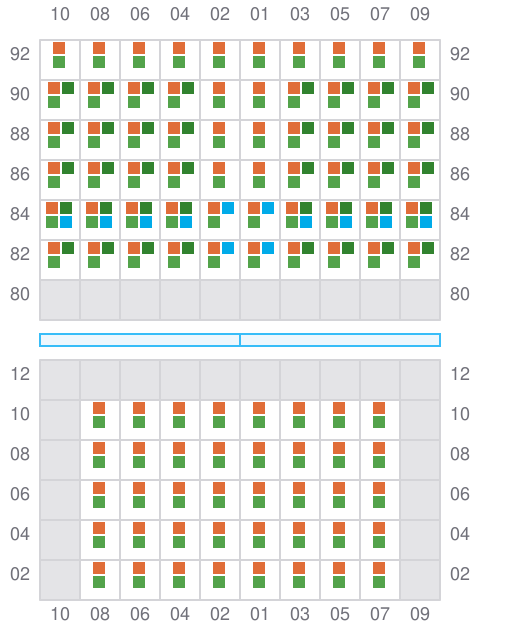

031 (032)
- →
- ← / ?
033
- ←
- → / ?
035 (036)
- →
- ← / ?
037
- ←
- → / ?
039 (040)
- → / ?
- ← / ?

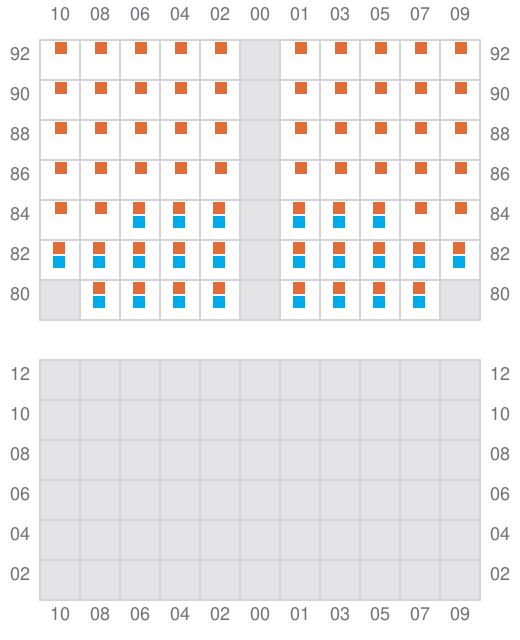

041
- ← / ?
- → / ?
