MSC PASSION III
9399765 | D5YV3 | 9399765 by ********* Last update: Sun Mar 24 2024

General Info

Ship Name:MSC PASSION III
IMO Code:9399765
Call Sign:D5YV3
Line Operator:9399765
Class Name for Sister Ships:94R
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,848

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC PASSION III

Hatch-Covers View

Deck view of MSC PASSION III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • → / ?

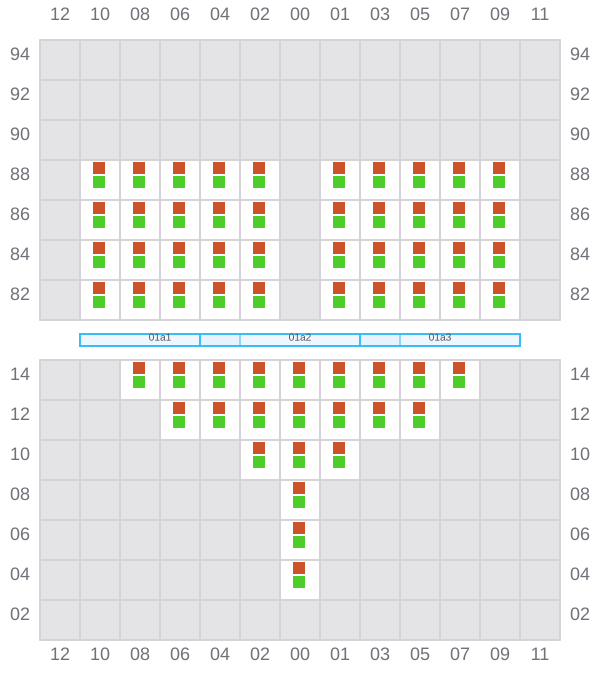

Bay 001 view and slots of MSC PASSION III

003

  • ←
  • → / ?

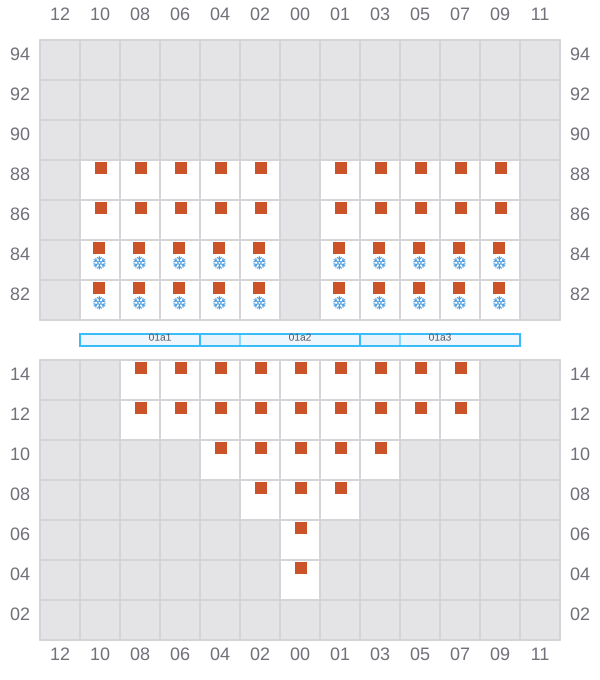

Bay 003 view and slots of MSC PASSION III

005 (006)

  • →

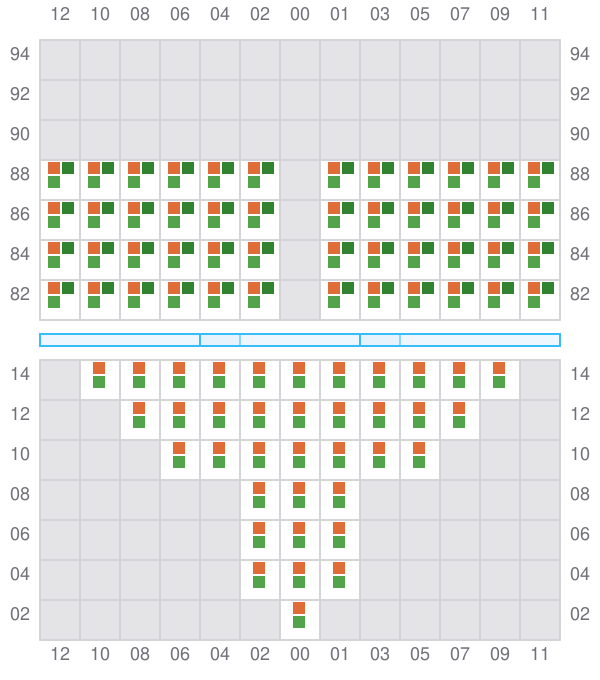

Bay 005 view and slots of MSC PASSION III

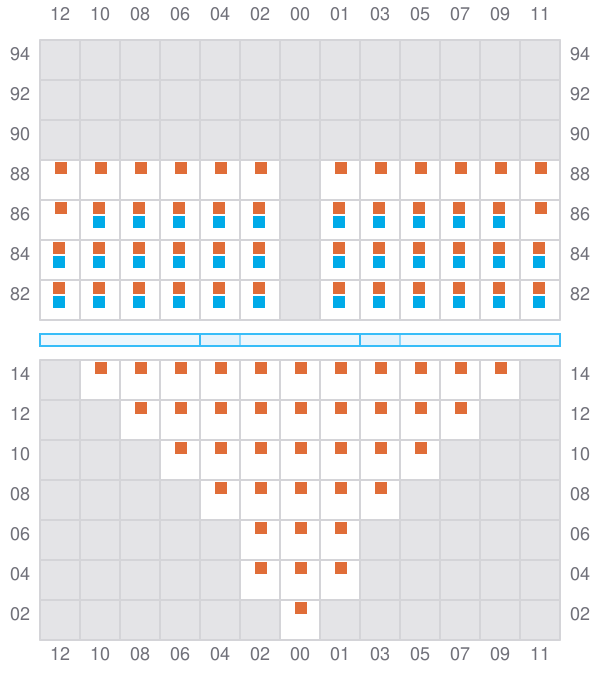

007

  • ←
  • → / ?
Bay 007 view and slots of MSC PASSION III

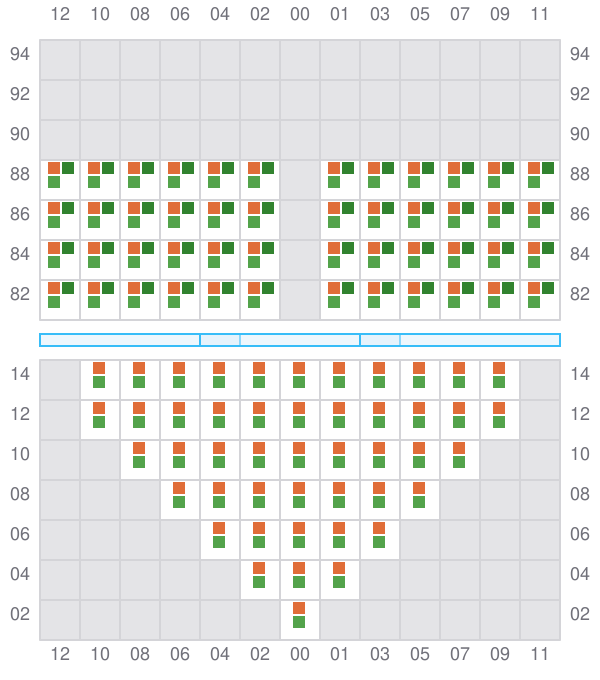

009 (010)

  • →
Bay 009 view and slots of MSC PASSION III

011

  • ←
  • →

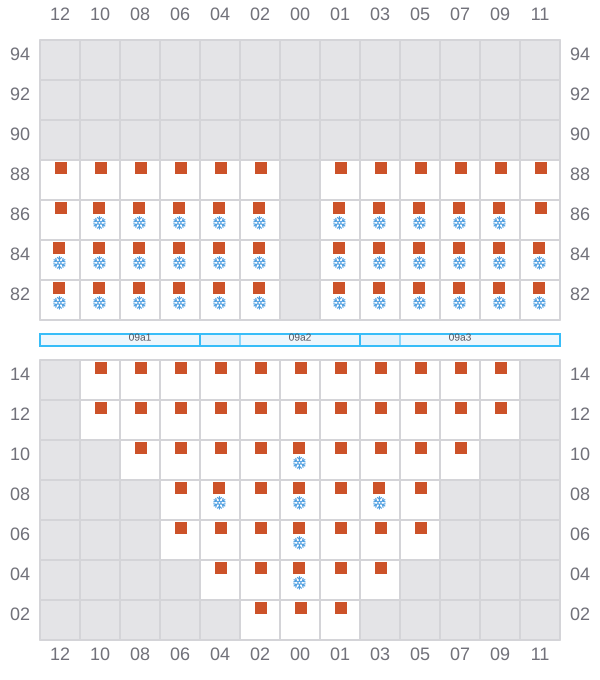

Bay 011 view and slots of MSC PASSION III

013 (014)

  • →
  • ? / ←

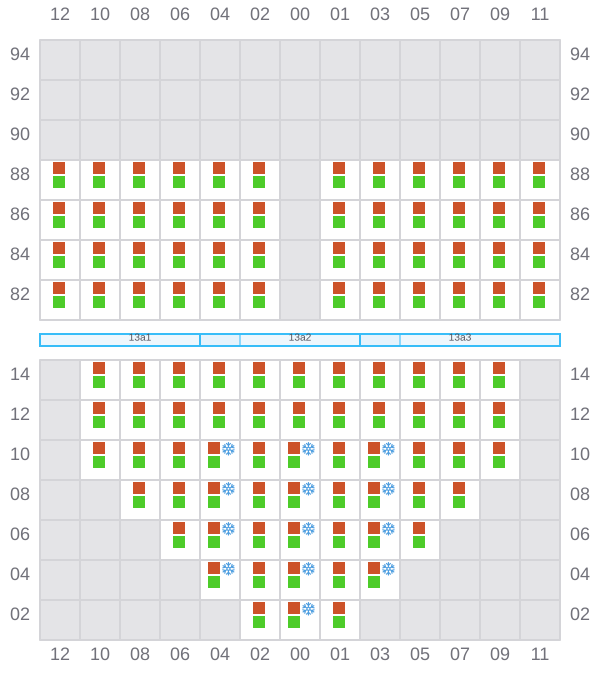

Bay 013 view and slots of MSC PASSION III

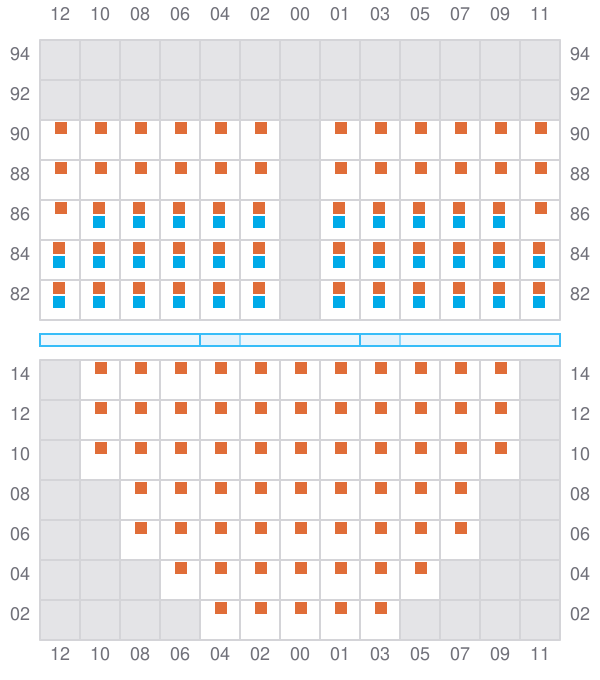

015

  • ←
  • → / ?
Bay 015 view and slots of MSC PASSION III

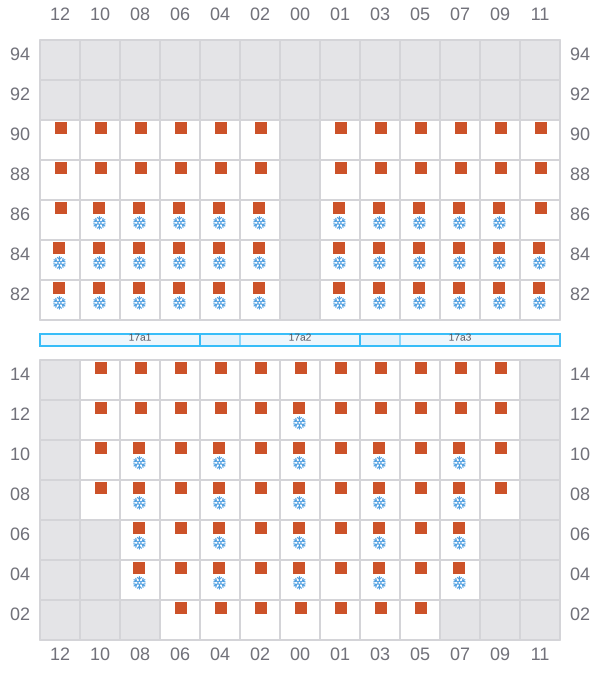

017 (018)

  • →

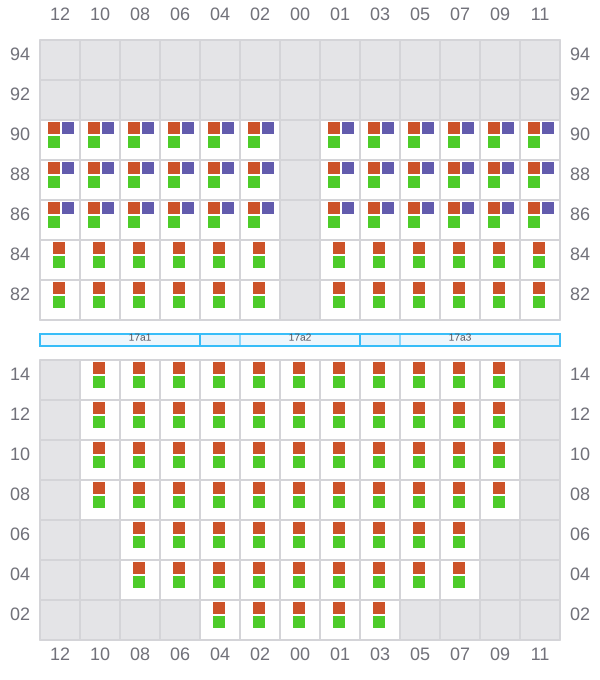

Bay 017 view and slots of MSC PASSION III

019

  • ←
  • →
Bay 019 view and slots of MSC PASSION III

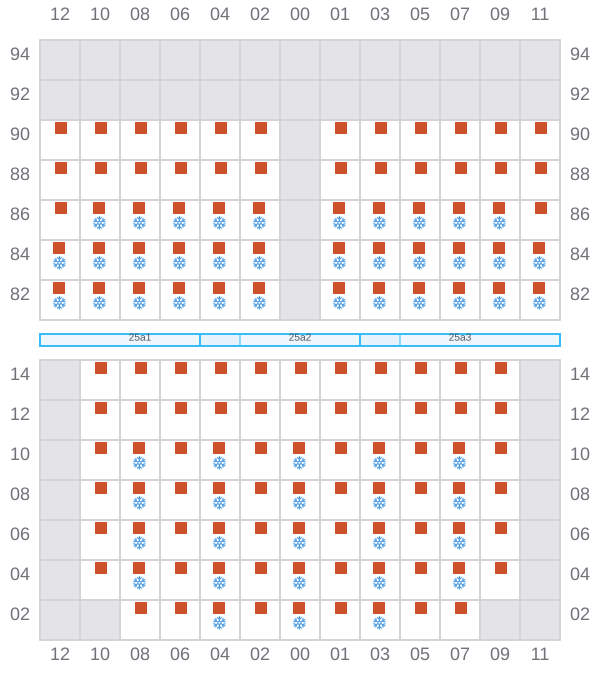

021 (022)

  • →
  • ? / ←

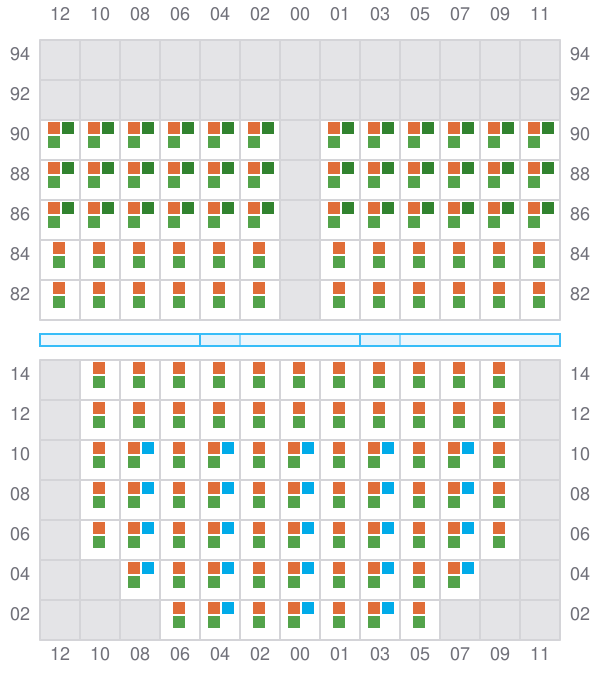

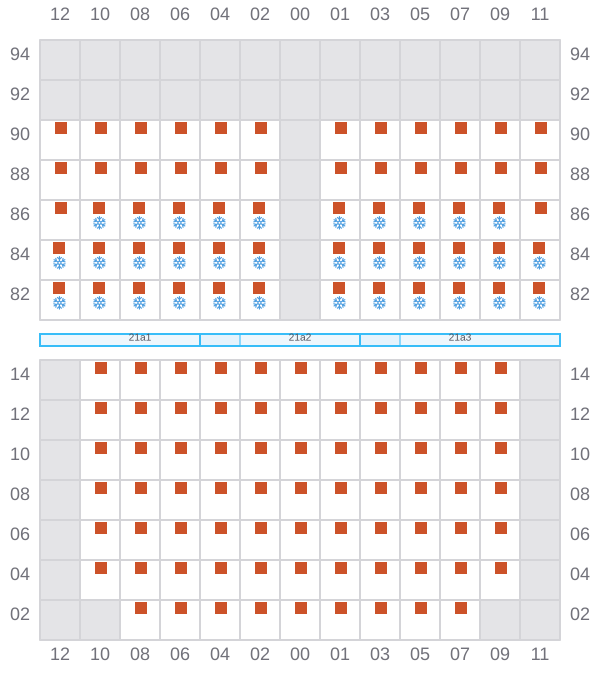

Bay 021 view and slots of MSC PASSION III

023

  • ←
  • → / ?
Bay 023 view and slots of MSC PASSION III

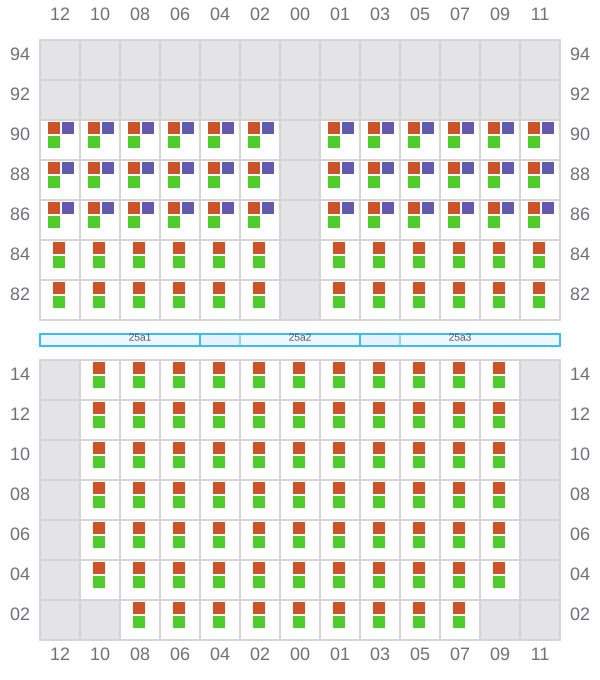

025 (026)

  • →
Bay 025 view and slots of MSC PASSION III

027

  • ←
  • →
Bay 027 view and slots of MSC PASSION III

029 (030)

  • →
  • ? / ←

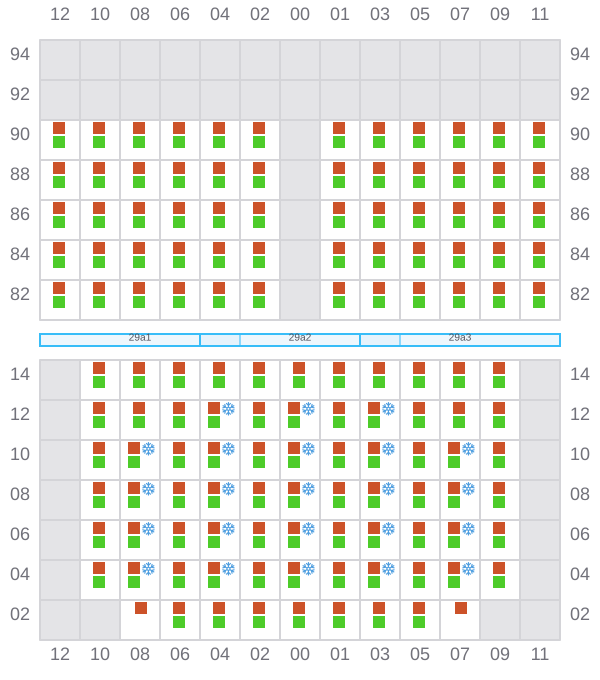

Bay 029 view and slots of MSC PASSION III

031

  • ←
  • → / ?

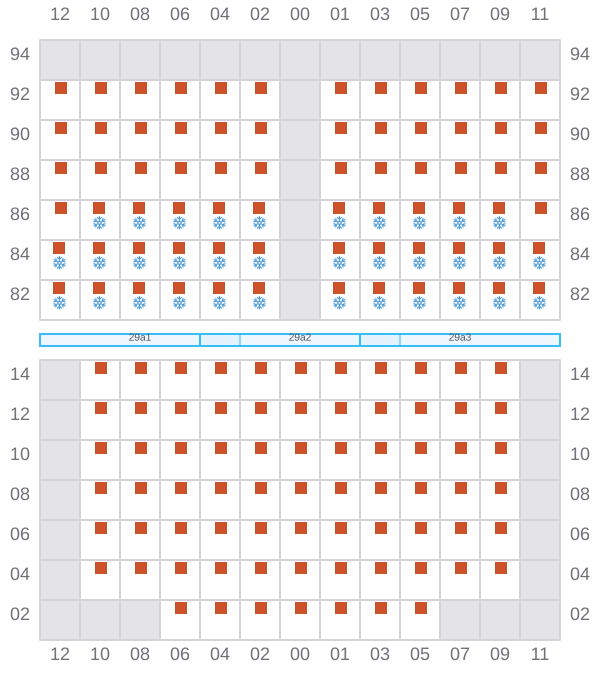

Bay 031 view and slots of MSC PASSION III

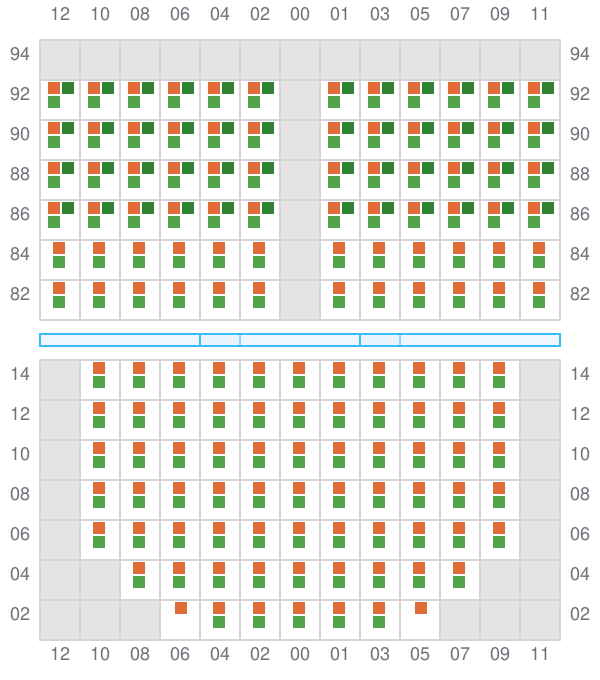

033 (034)

  • →
Bay 033 view and slots of MSC PASSION III

035

  • ←
  • →
Bay 035 view and slots of MSC PASSION III

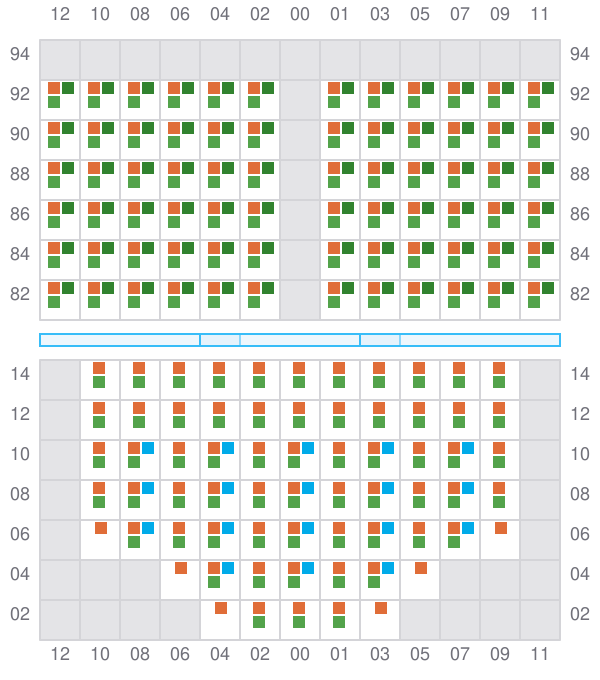

037 (038)

  • →
  • ? / ←
Bay 037 view and slots of MSC PASSION III

039

  • ←
  • → / ?
Bay 039 view and slots of MSC PASSION III

041 (042)

  • →

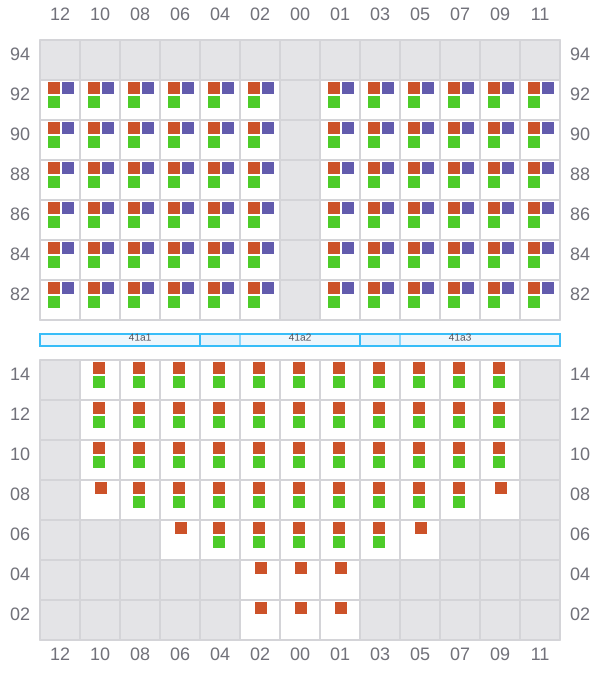

Bay 041 view and slots of MSC PASSION III

043

  • ←
  • →

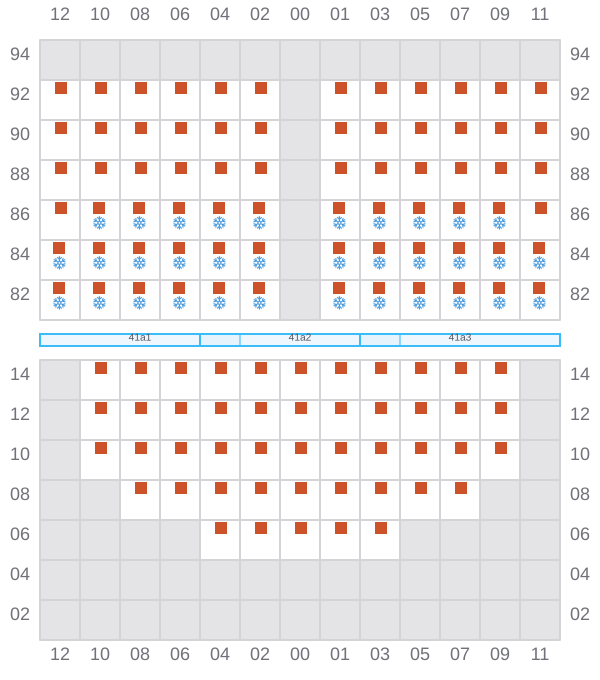

Bay 043 view and slots of MSC PASSION III

045

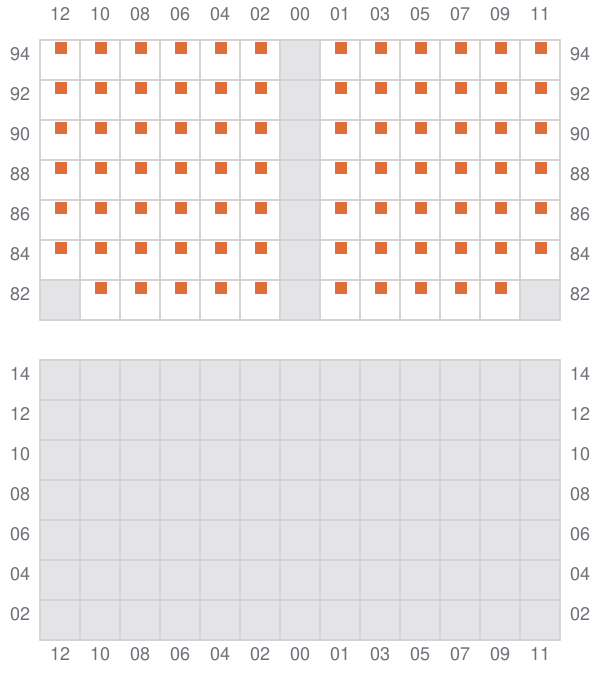

Bay 045 view and slots of MSC PASSION III

047 (048)

  • → / ?

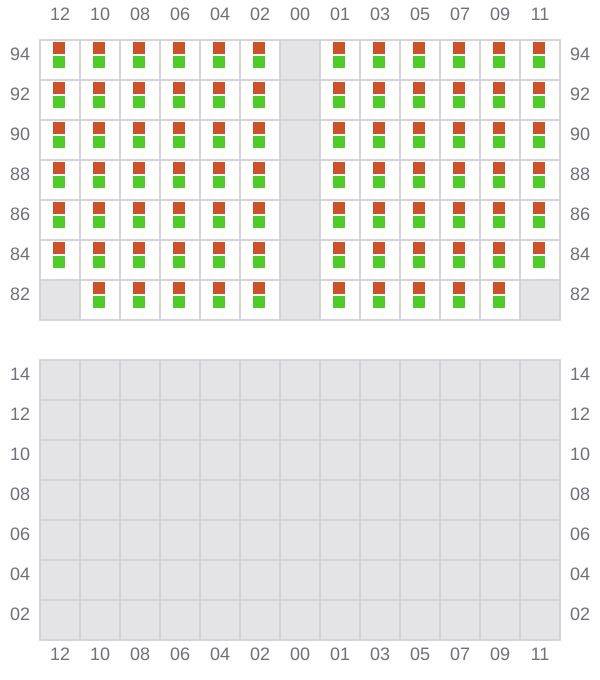

Bay 047 view and slots of MSC PASSION III

049

  • ← / ?
  • → / ?

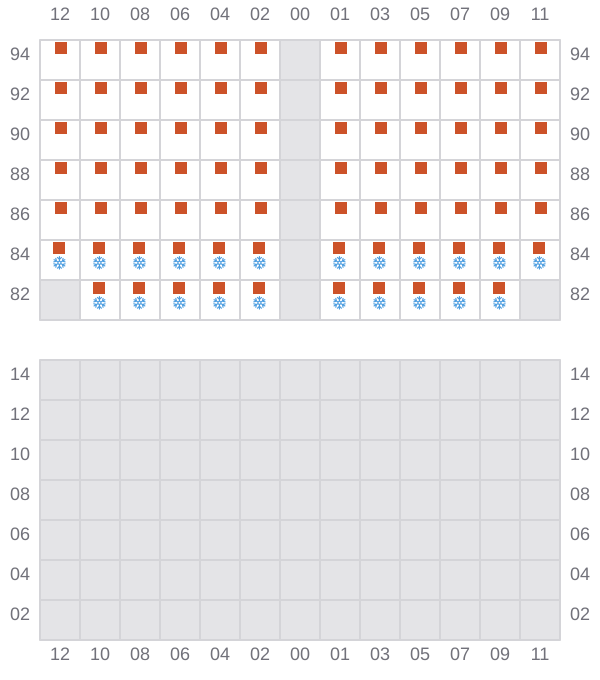

Bay 049 view and slots of MSC PASSION III
