MSC PATNAREE III
9240328 | D5NK9 | 9240328 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:MSC PATNAREE III
IMO Code:9240328
Call Sign:D5NK9
Line Operator:9240328
Class Name for Sister Ships:90E
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,750

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

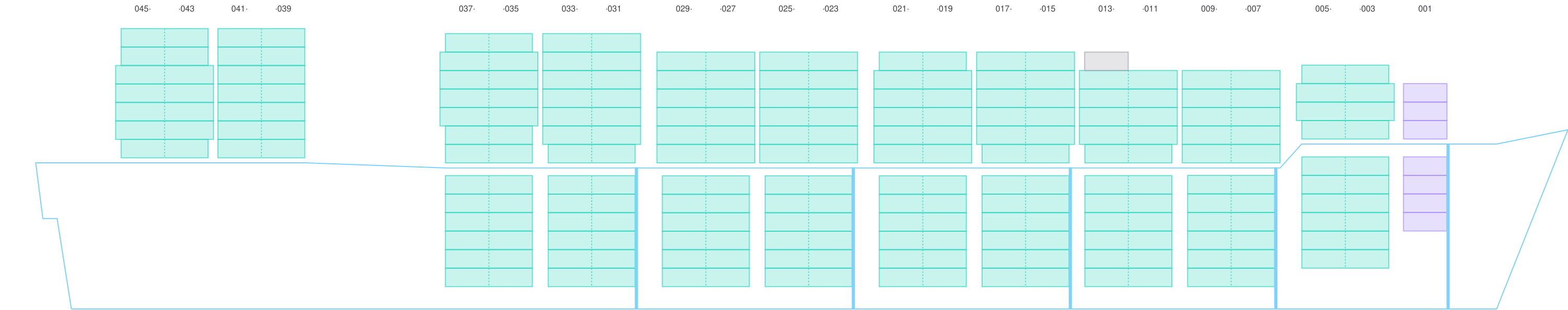

Side view of MSC PATNAREE III

Hatch-Covers View

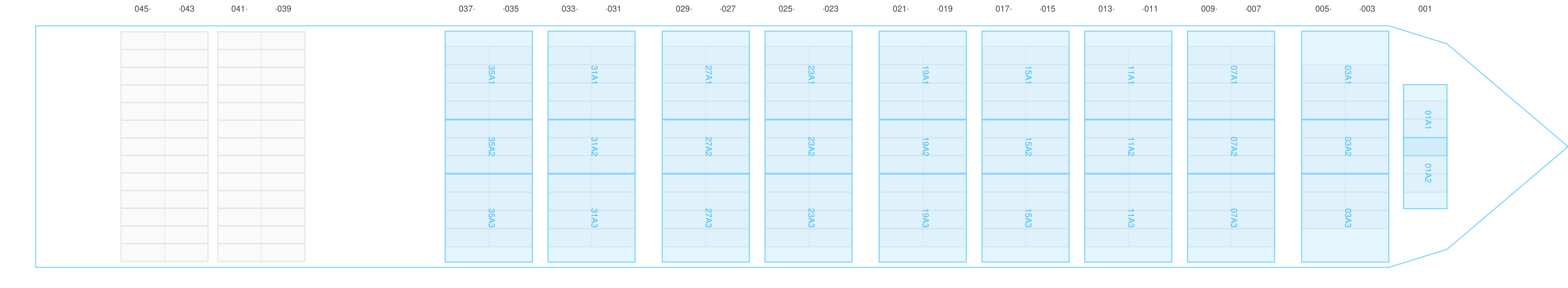

Deck view of MSC PATNAREE III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

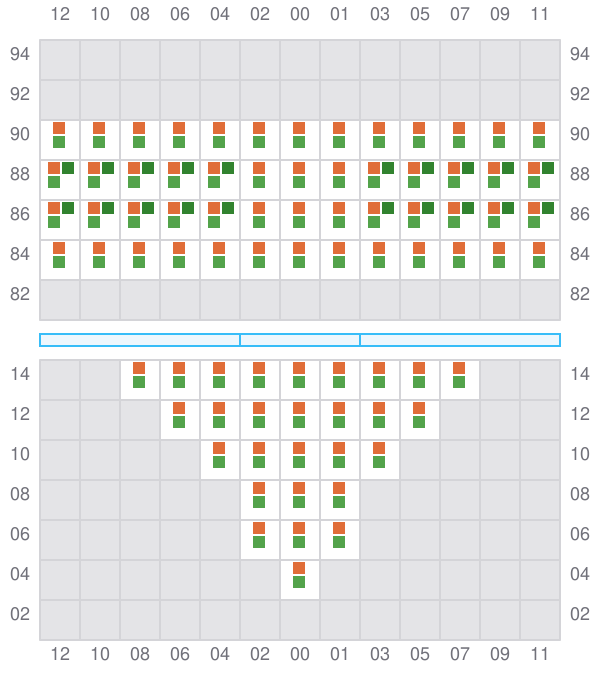

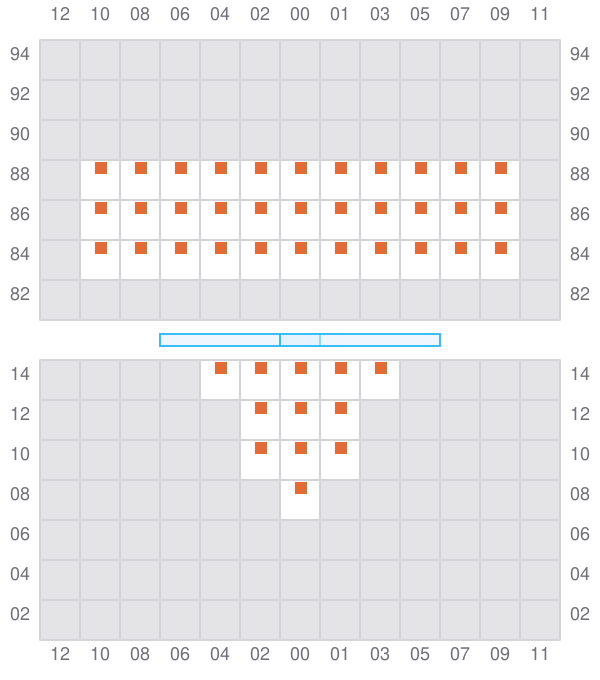

Bay 001 view and slots of MSC PATNAREE III

003 (004)

  • →
Bay 003 view and slots of MSC PATNAREE III

005

  • ←
  • → / ?

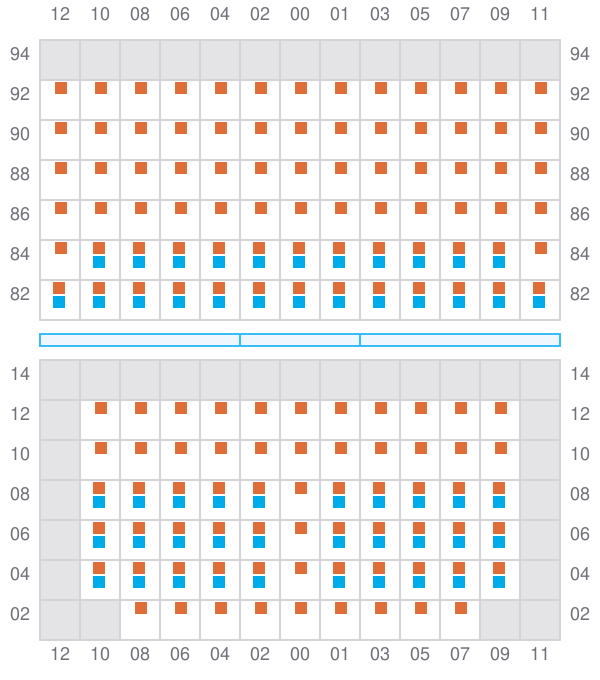

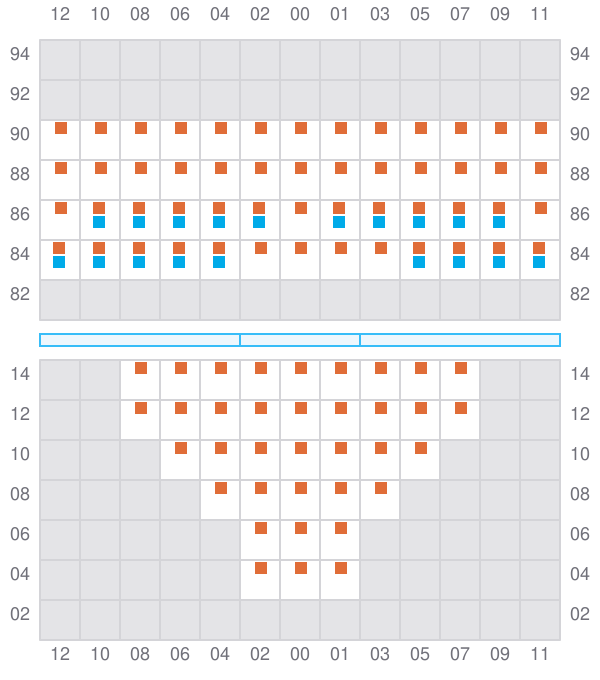

Bay 005 view and slots of MSC PATNAREE III

007 (008)

  • →

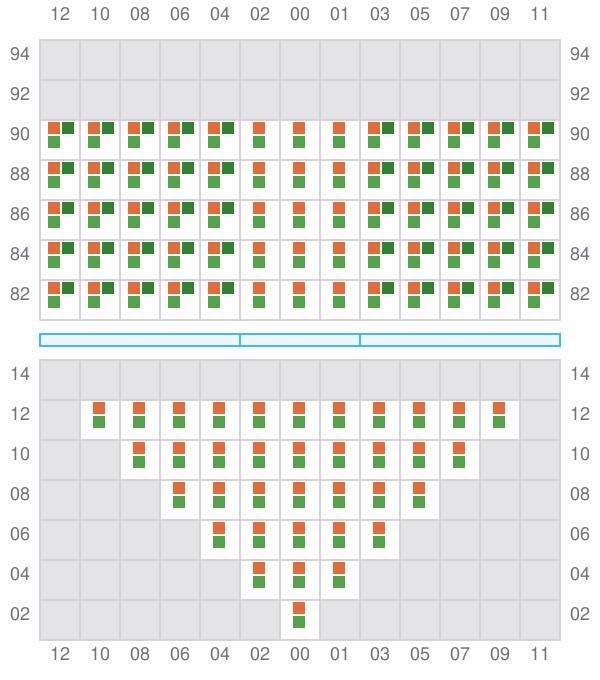

Bay 007 view and slots of MSC PATNAREE III

009

  • ←
  • → / ?

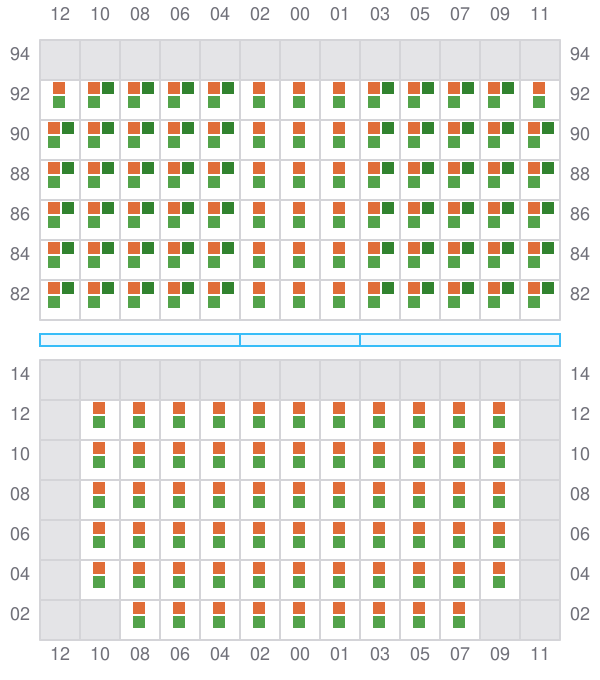

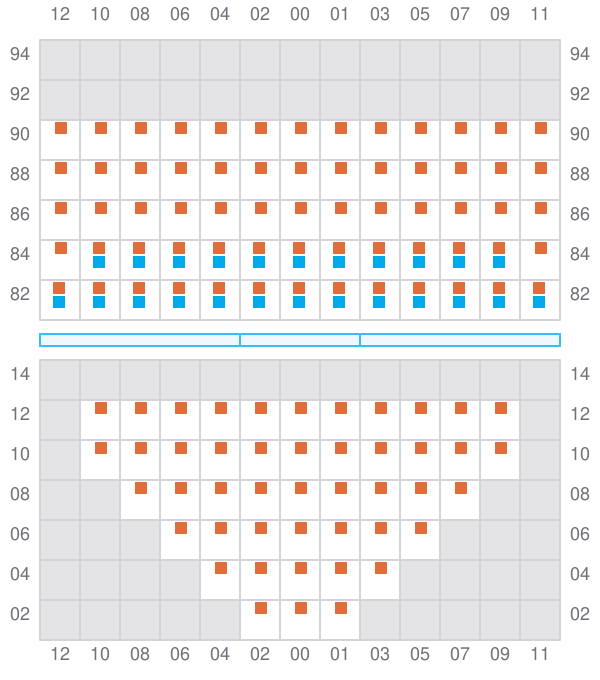

Bay 009 view and slots of MSC PATNAREE III

011 (012)

  • →
  • ? / ←

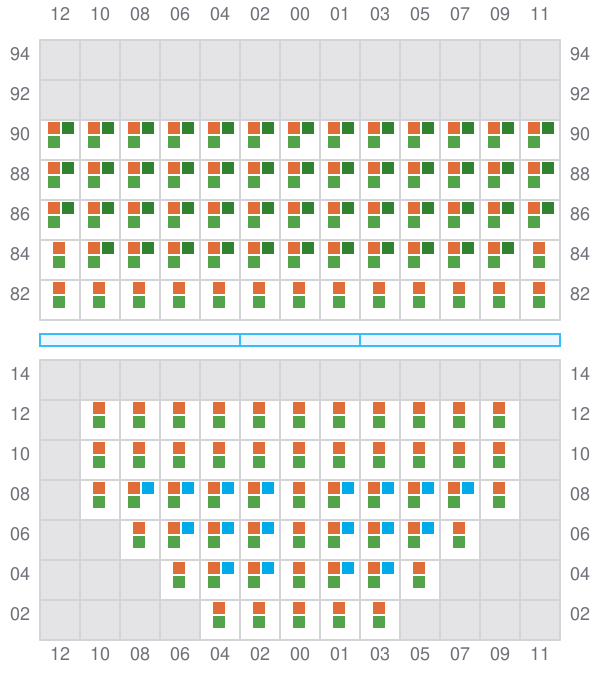

Bay 011 view and slots of MSC PATNAREE III

013

  • ←
  • → / ?

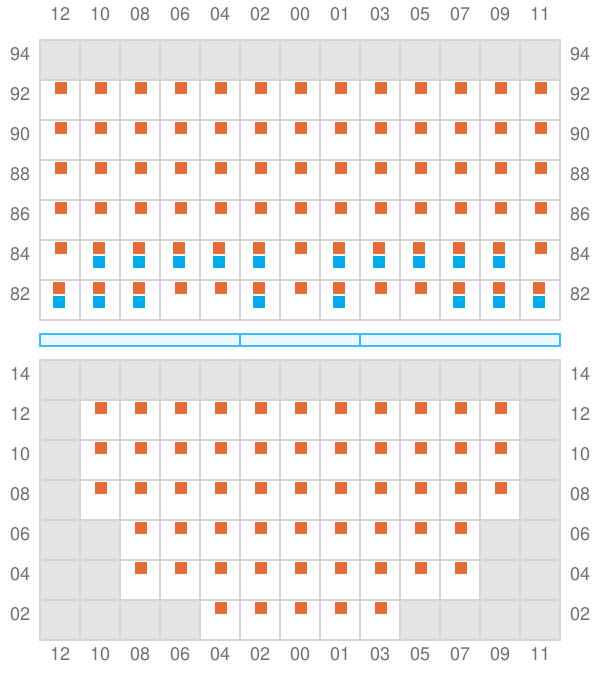

Bay 013 view and slots of MSC PATNAREE III

015 (016)

  • →

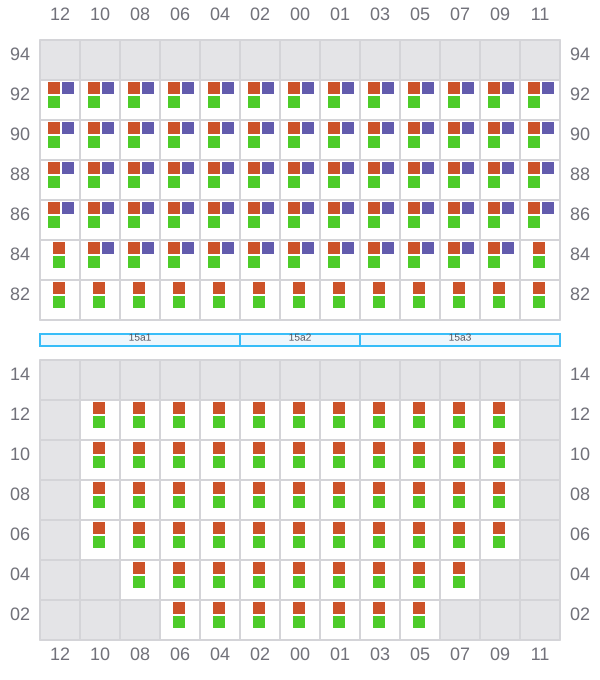

Bay 015 view and slots of MSC PATNAREE III

017

  • ←
  • → / ?

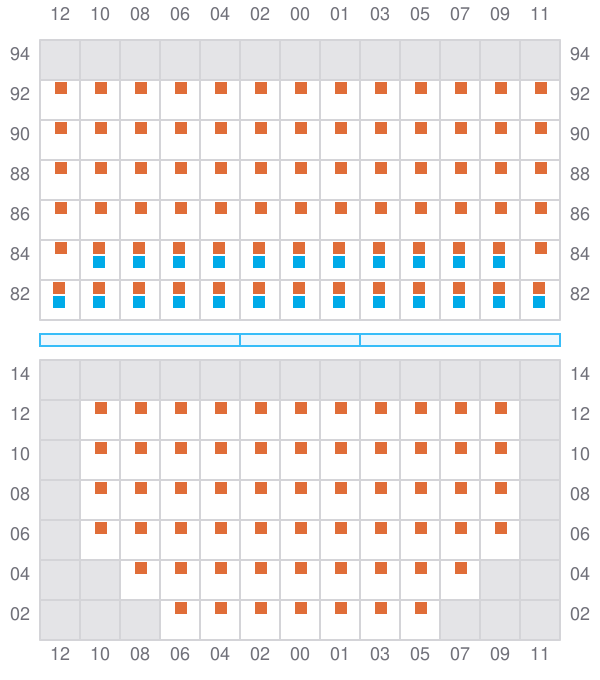

Bay 017 view and slots of MSC PATNAREE III

019 (020)

  • →
  • ? / ←

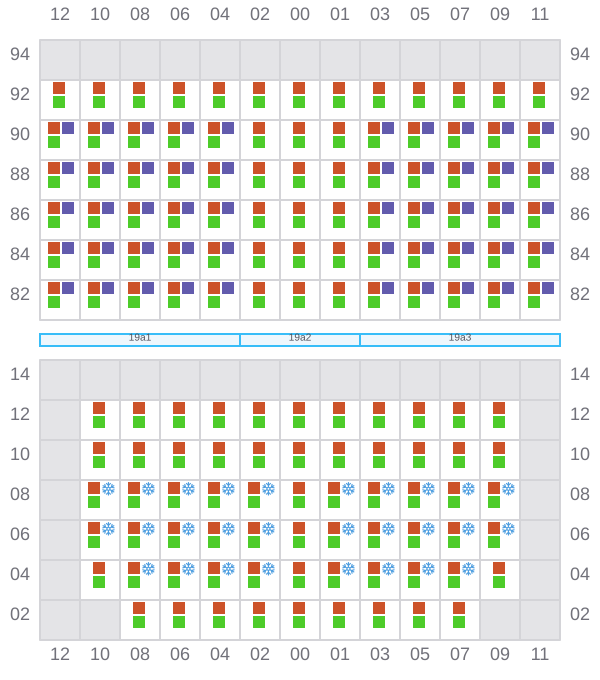

Bay 019 view and slots of MSC PATNAREE III

021

  • ←
  • → / ?

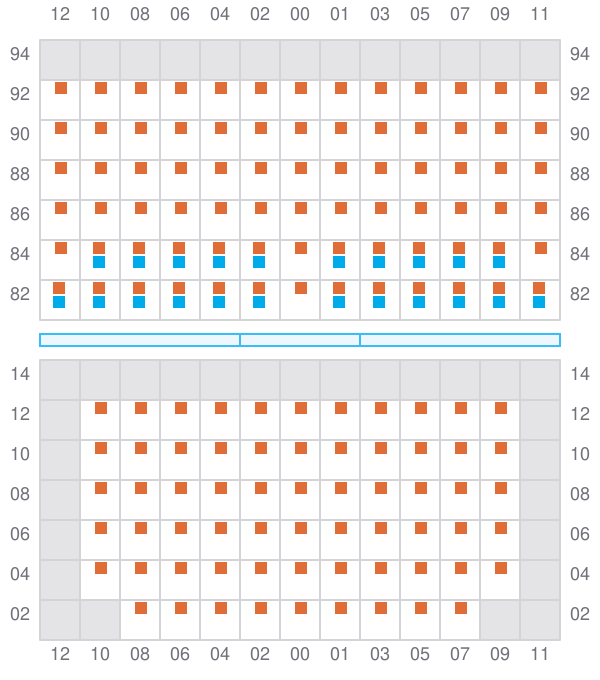

Bay 021 view and slots of MSC PATNAREE III

023 (024)

  • →
Bay 023 view and slots of MSC PATNAREE III

025

  • ←
  • →

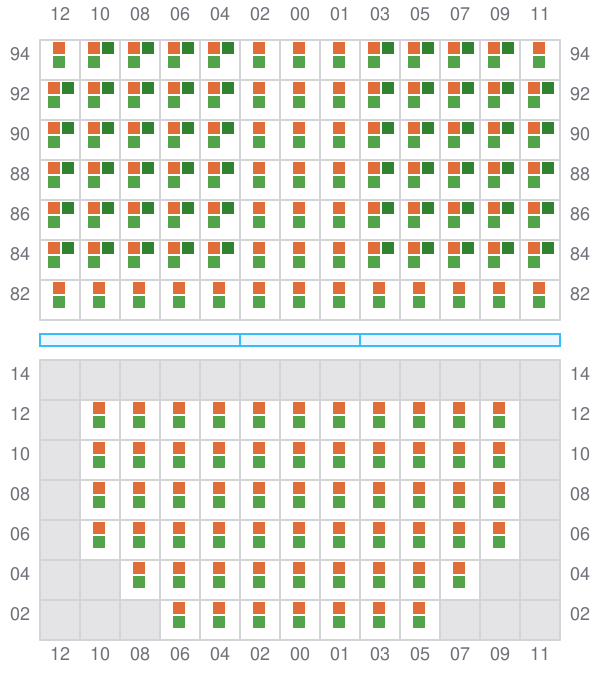

Bay 025 view and slots of MSC PATNAREE III

027 (028)

  • →
Bay 027 view and slots of MSC PATNAREE III

029

  • ←
  • → / ?

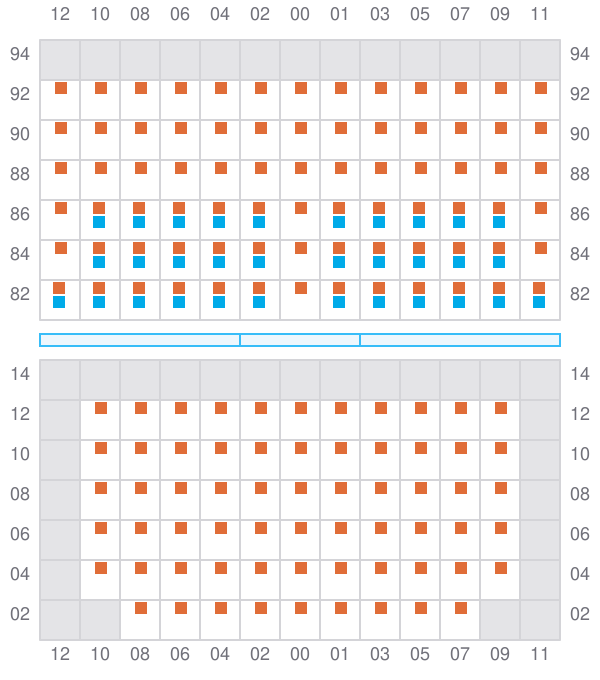

Bay 029 view and slots of MSC PATNAREE III

031 (032)

  • →
Bay 031 view and slots of MSC PATNAREE III

033

  • ←
  • →
Bay 033 view and slots of MSC PATNAREE III

035 (036)

  • →

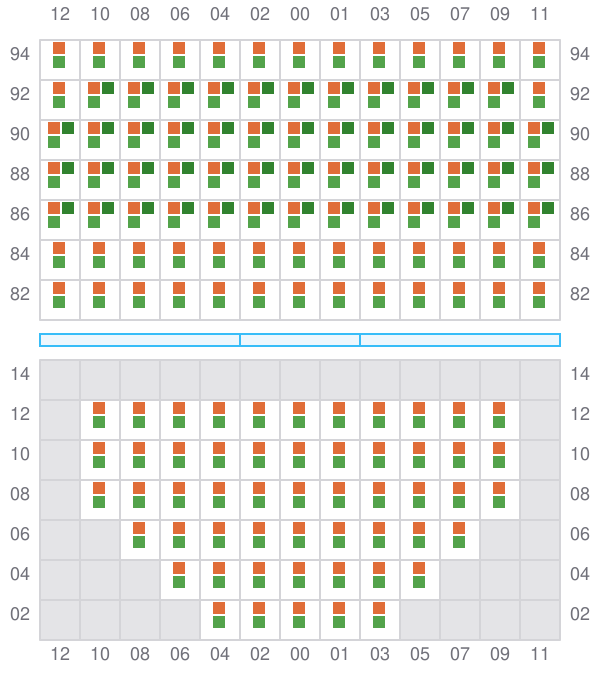

Bay 035 view and slots of MSC PATNAREE III

037

  • ←
  • → / ?

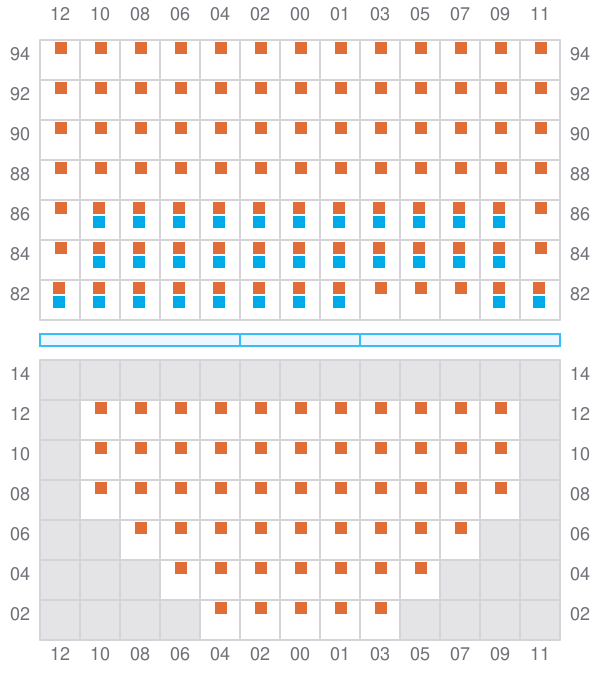

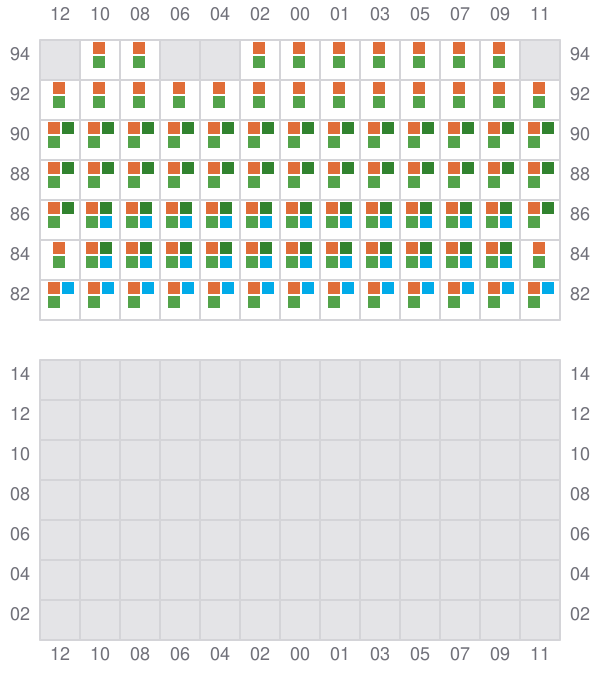

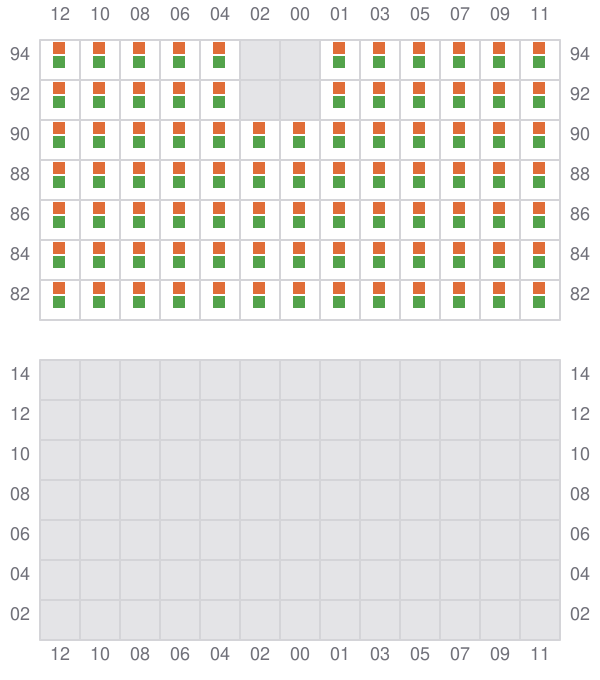

Bay 037 view and slots of MSC PATNAREE III

039 (040)

  • → / ?
Bay 039 view and slots of MSC PATNAREE III

041

  • ← / ?
  • → / ?

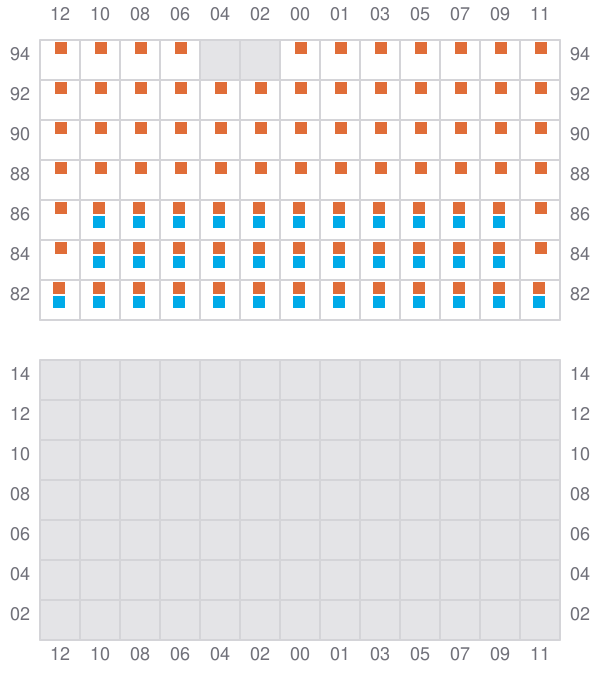

Bay 041 view and slots of MSC PATNAREE III

043 (044)

  • → / ?
  • ← / ?
Bay 043 view and slots of MSC PATNAREE III

045

  • ← / ?

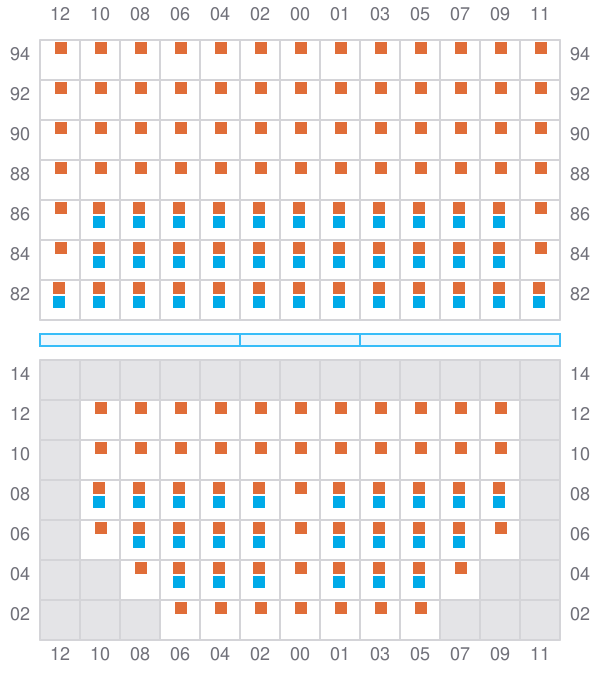

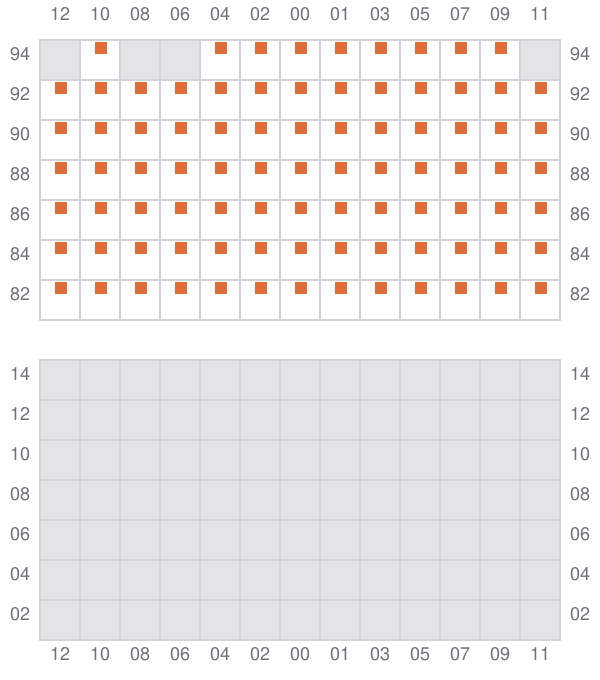

Bay 045 view and slots of MSC PATNAREE III
