MSC PEGASUS
9267637 | D5HF9 | 9267637 by ********* Last update: Tue May 14 2024

General Info

Ship Name:MSC PEGASUS

IMO Code:9267637

Call Sign:D5HF9

Line Operator:9267637

Class Name for Sister Ships:NYKPEGASUS

Year Built:2003

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):287.00

LOA (Length Overall):299.95

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:071

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:6,586

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of MSC PEGASUS

Hatch-Covers View

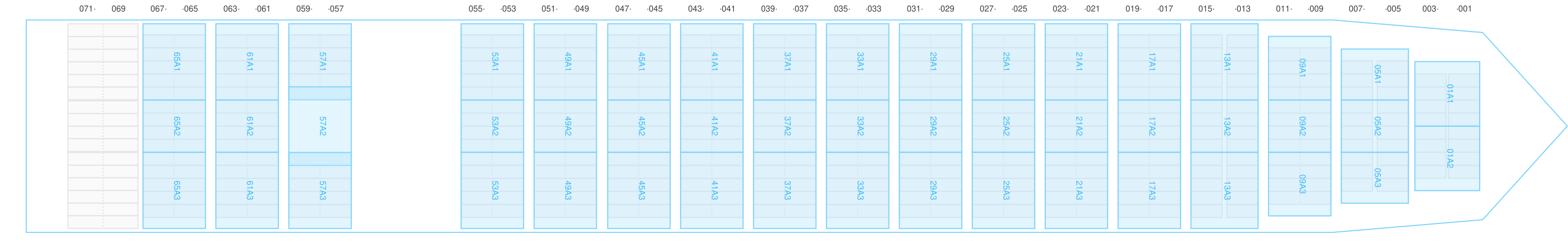

Deck view of MSC PEGASUS

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

^→ / _?

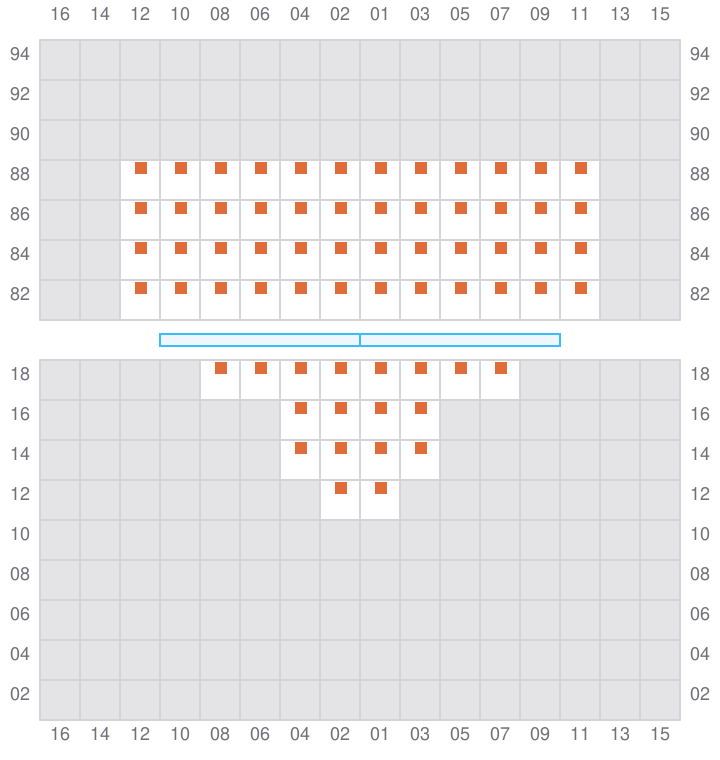

Bay 001 view and slots of MSC PEGASUS

003 (002)

^← / _?

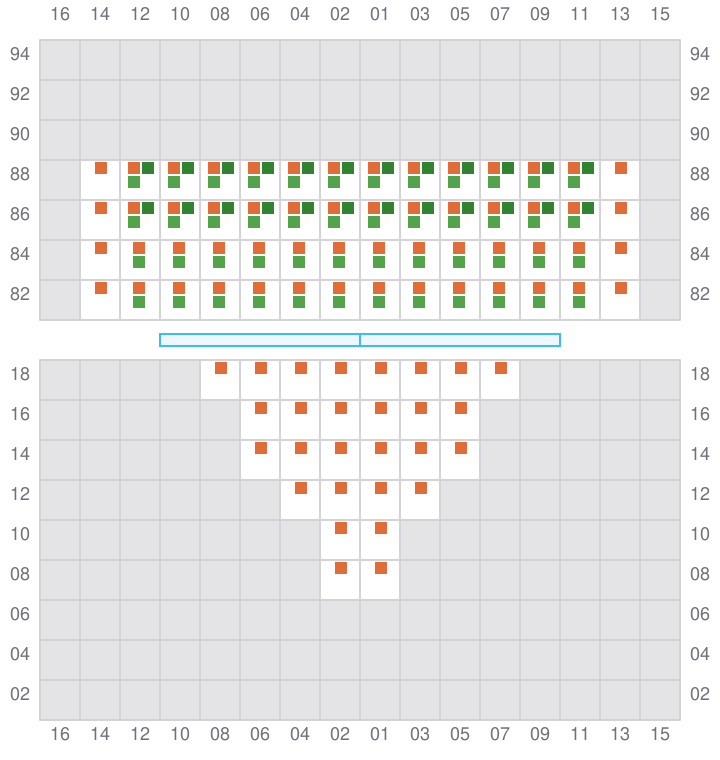

Bay 003 view and slots of MSC PEGASUS

005

^→ / _?

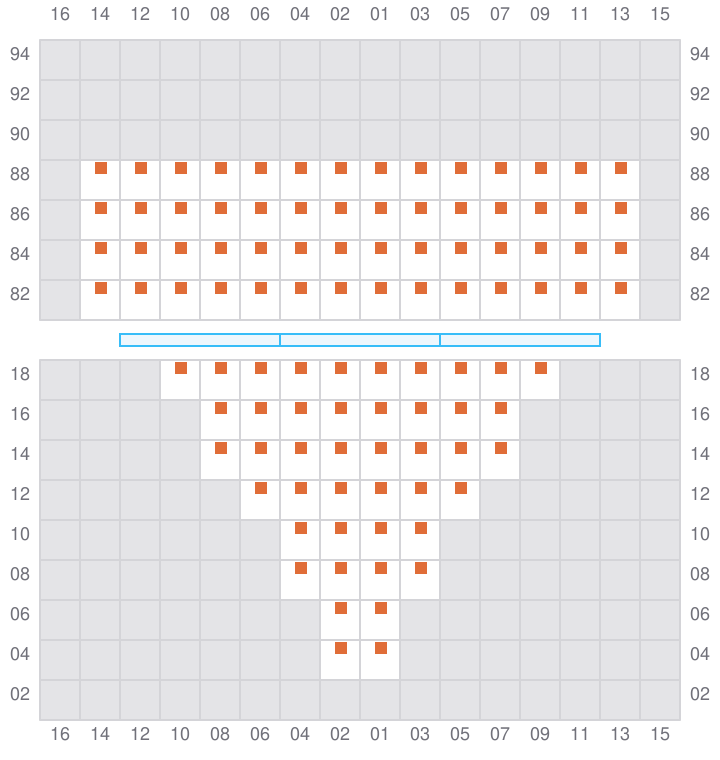

Bay 005 view and slots of MSC PEGASUS

007 (006)

^← / _?

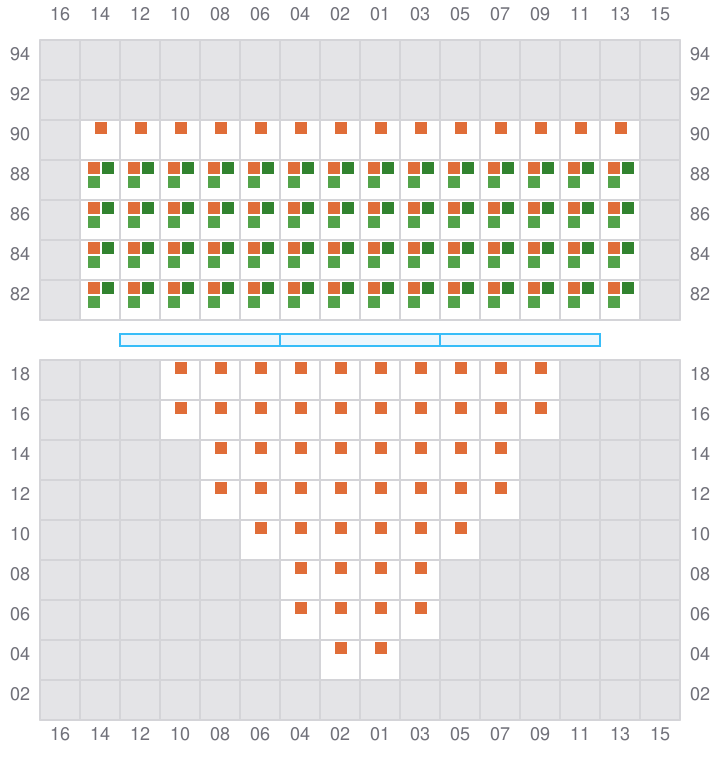

Bay 007 view and slots of MSC PEGASUS

009

→

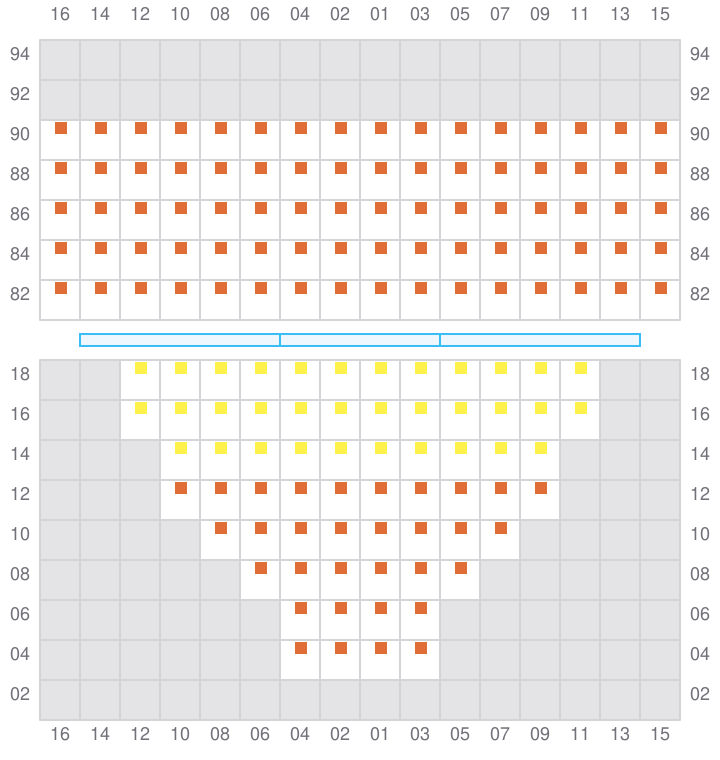

Bay 009 view and slots of MSC PEGASUS

011 (010)

←
^→ / _?

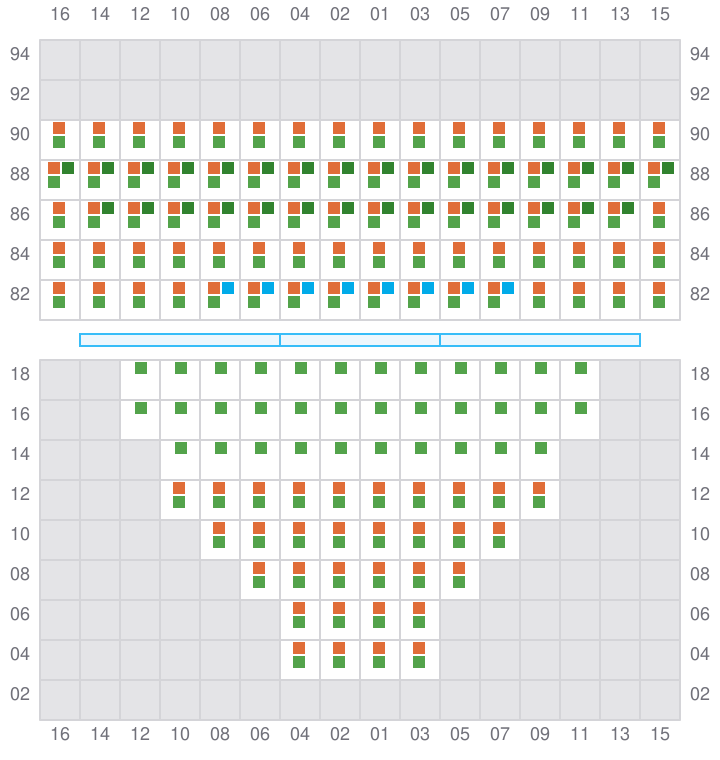

Bay 011 view and slots of MSC PEGASUS

013

^→ / _?
^← / _?

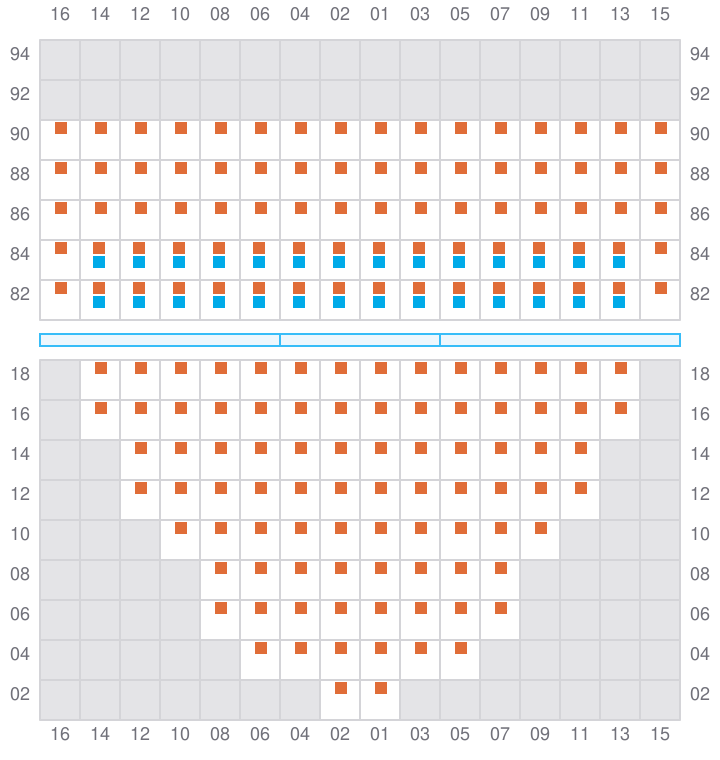

Bay 013 view and slots of MSC PEGASUS

015 (014)

^← / _?

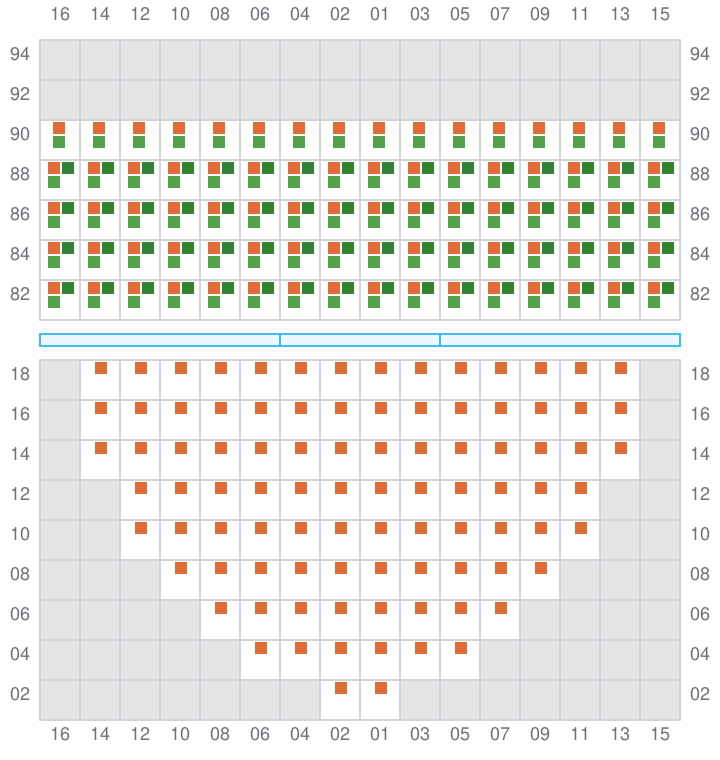

Bay 015 view and slots of MSC PEGASUS

017

→

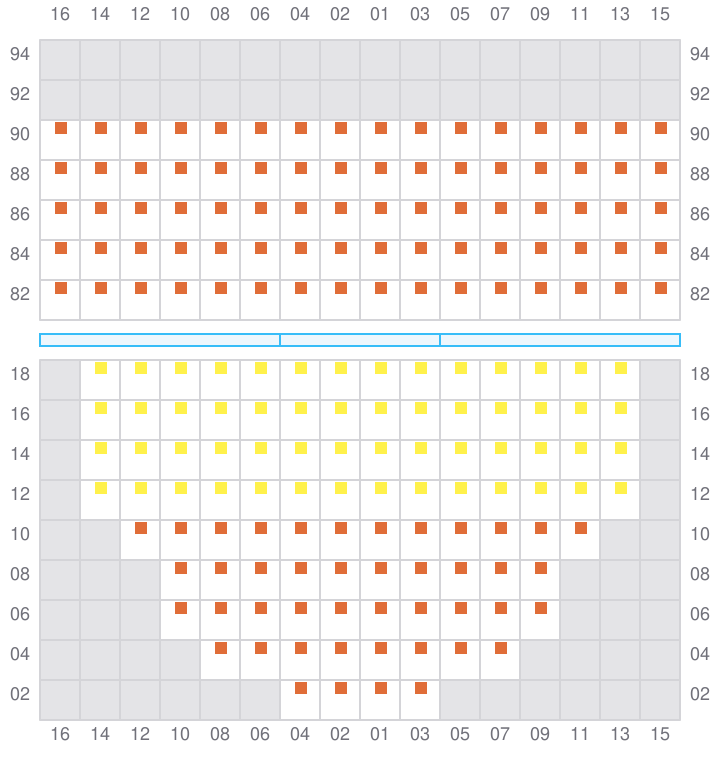

Bay 017 view and slots of MSC PEGASUS

019 (018)

←
^→ / _?

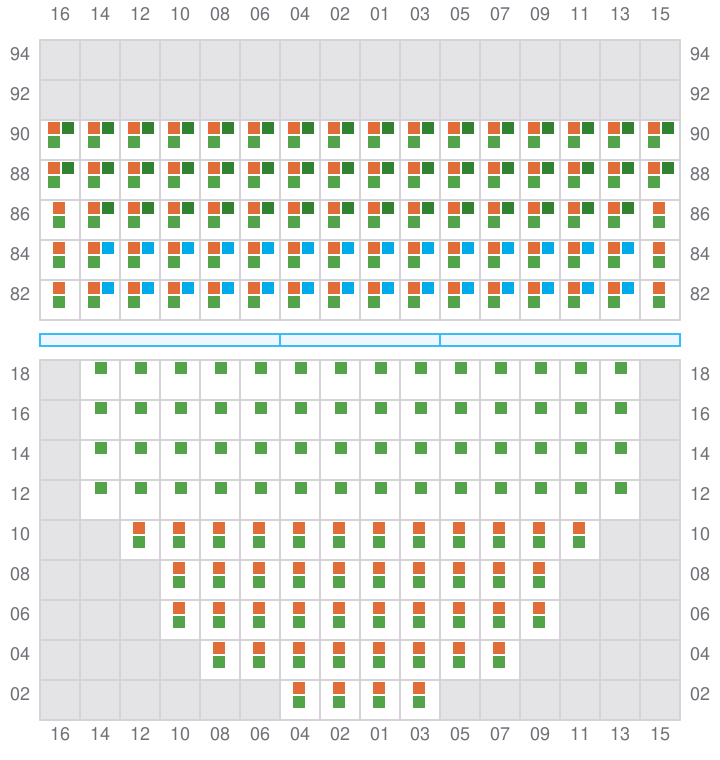

Bay 019 view and slots of MSC PEGASUS

021

→
^← / _?

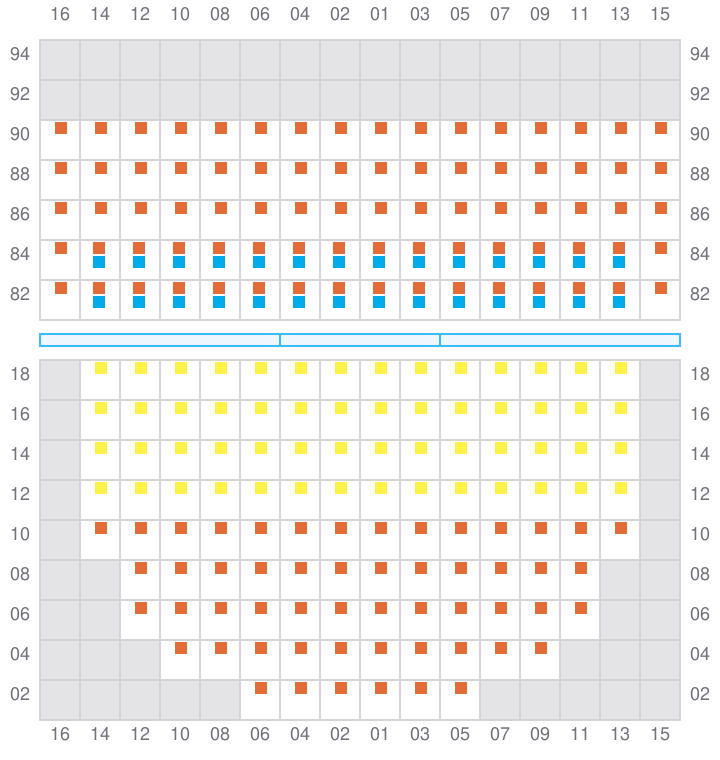

Bay 021 view and slots of MSC PEGASUS

023 (022)

←

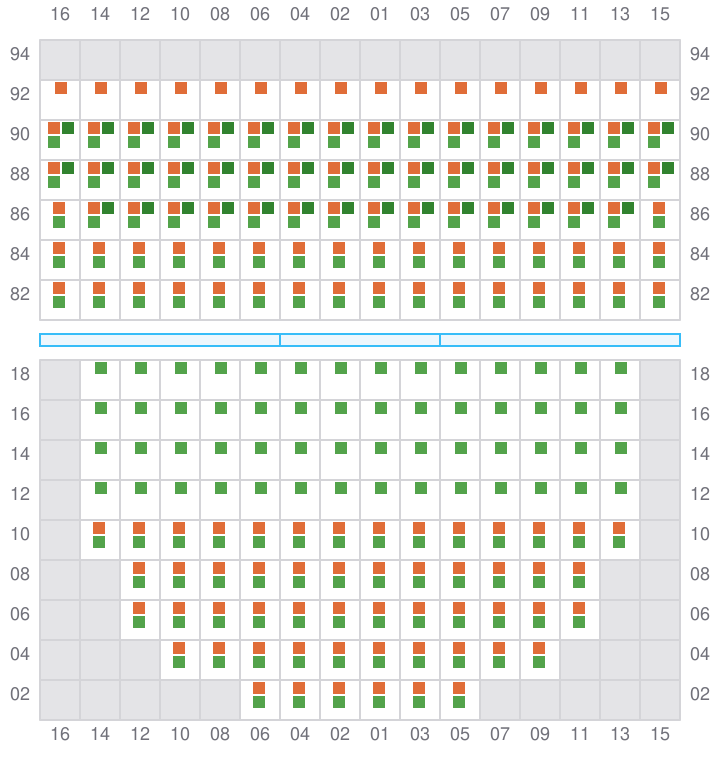

Bay 023 view and slots of MSC PEGASUS

025

→

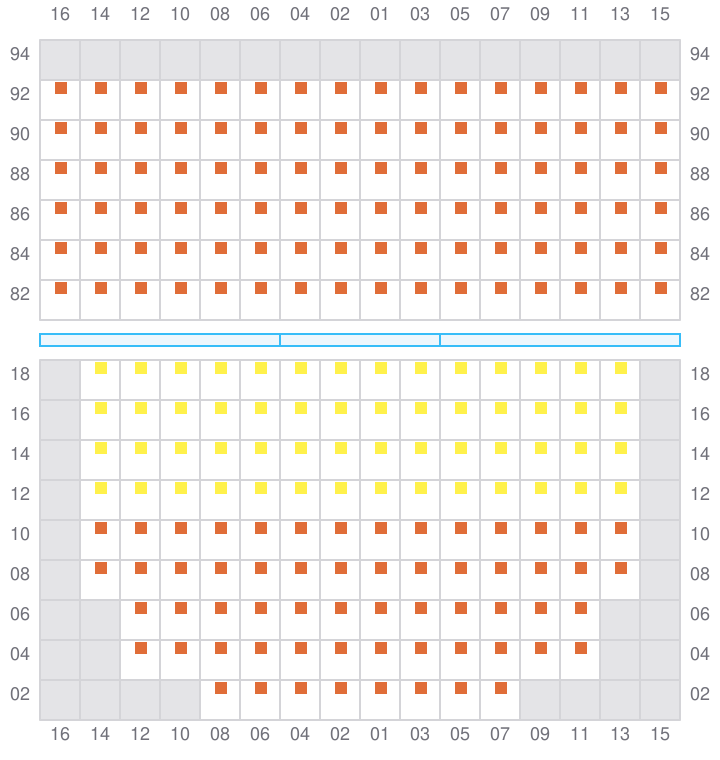

Bay 025 view and slots of MSC PEGASUS

027 (026)

←
^→ / _?

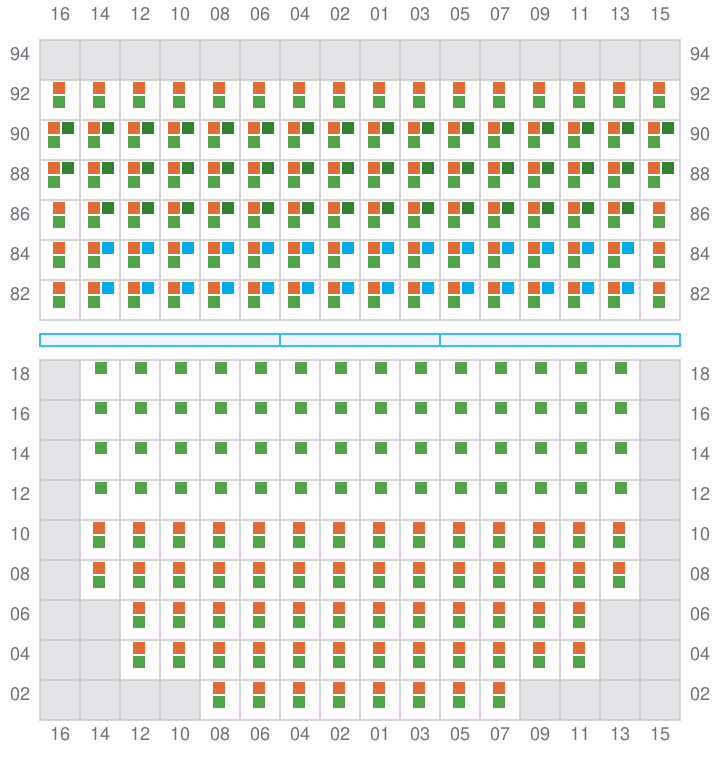

Bay 027 view and slots of MSC PEGASUS

029

→
^← / _?

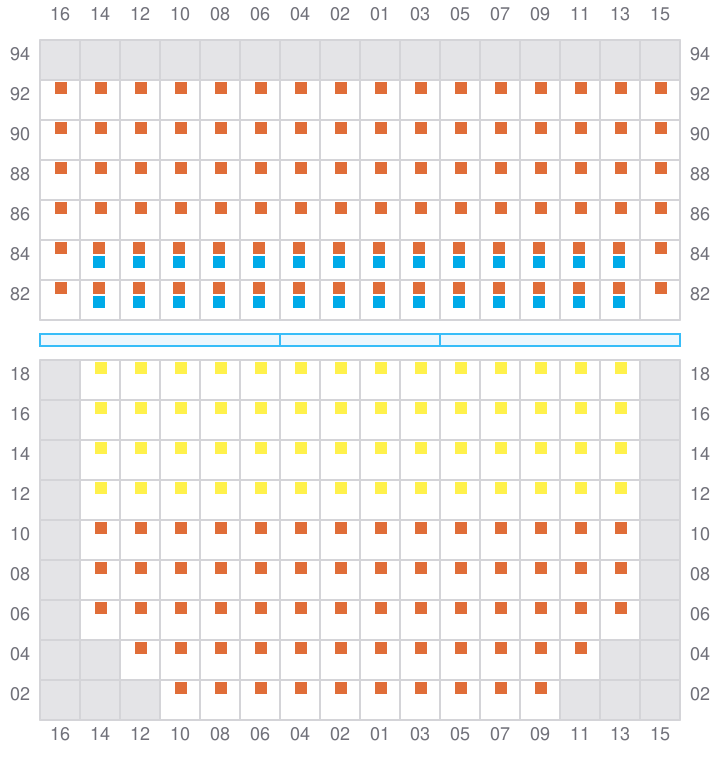

Bay 029 view and slots of MSC PEGASUS

031 (030)

←

Bay 031 view and slots of MSC PEGASUS

033

→

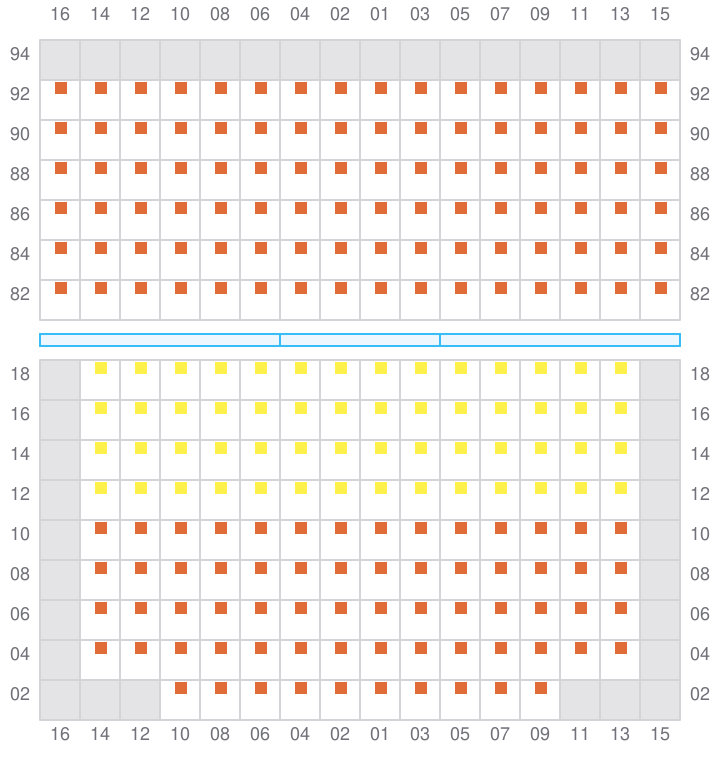

Bay 033 view and slots of MSC PEGASUS

035 (034)

←
^→ / _?

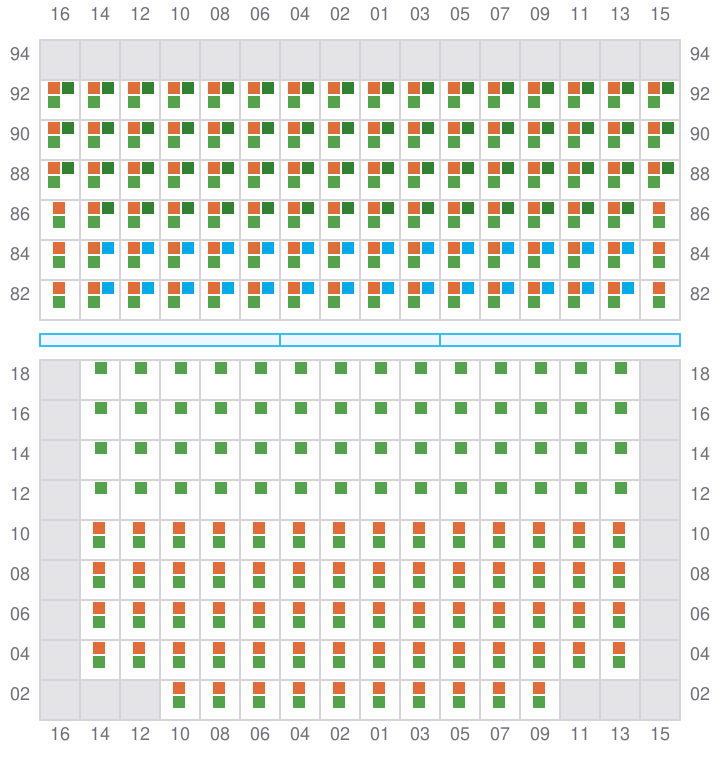

Bay 035 view and slots of MSC PEGASUS

037

→
^← / _?

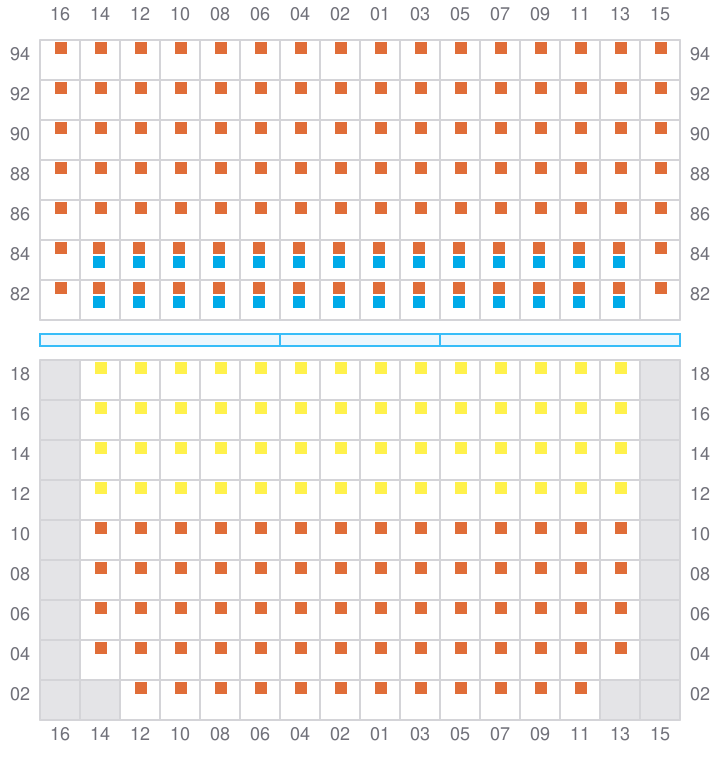

Bay 037 view and slots of MSC PEGASUS

039 (038)

←

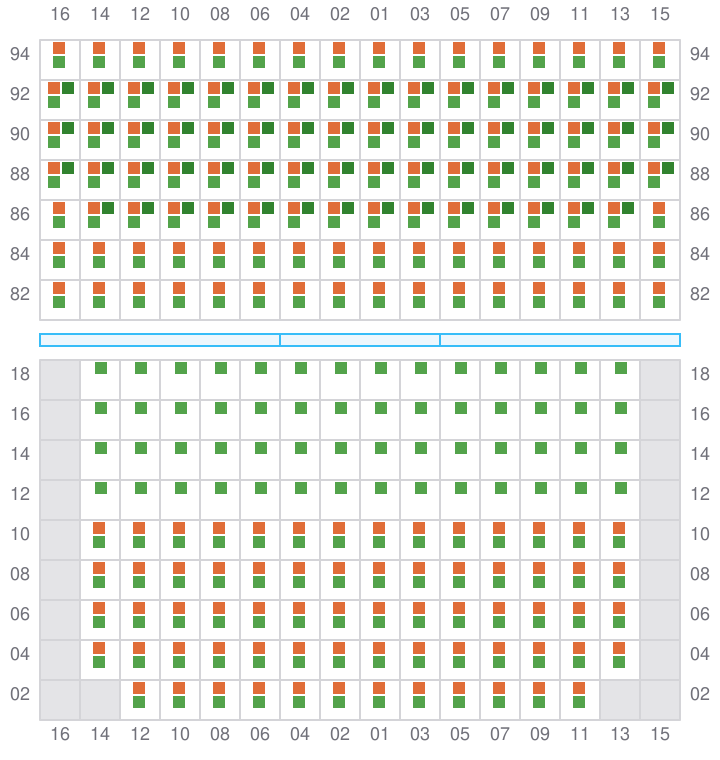

Bay 039 view and slots of MSC PEGASUS

041

→

Bay 041 view and slots of MSC PEGASUS

043 (042)

←
^→ / _?

Bay 043 view and slots of MSC PEGASUS

045

→
^← / _?

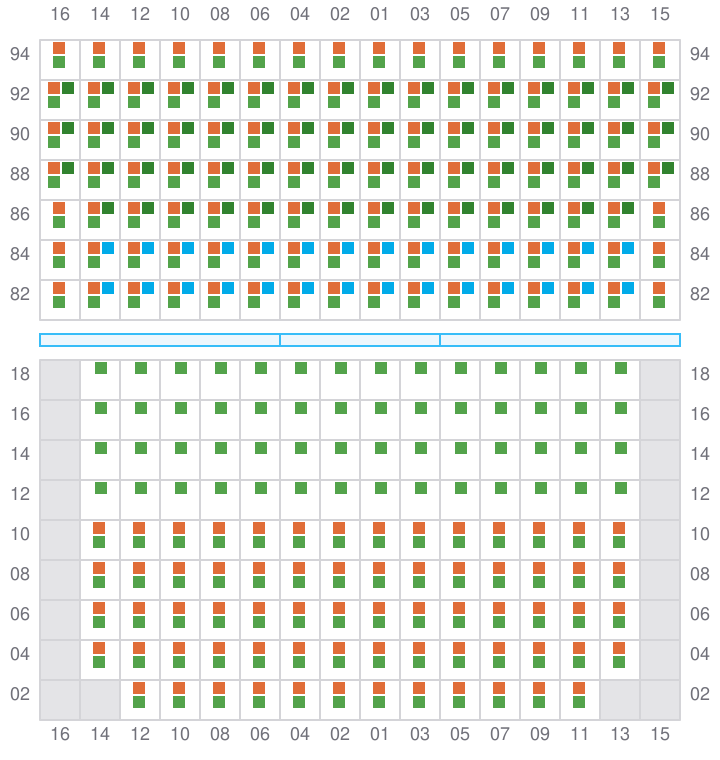

Bay 045 view and slots of MSC PEGASUS

047 (046)

←
^? / _→

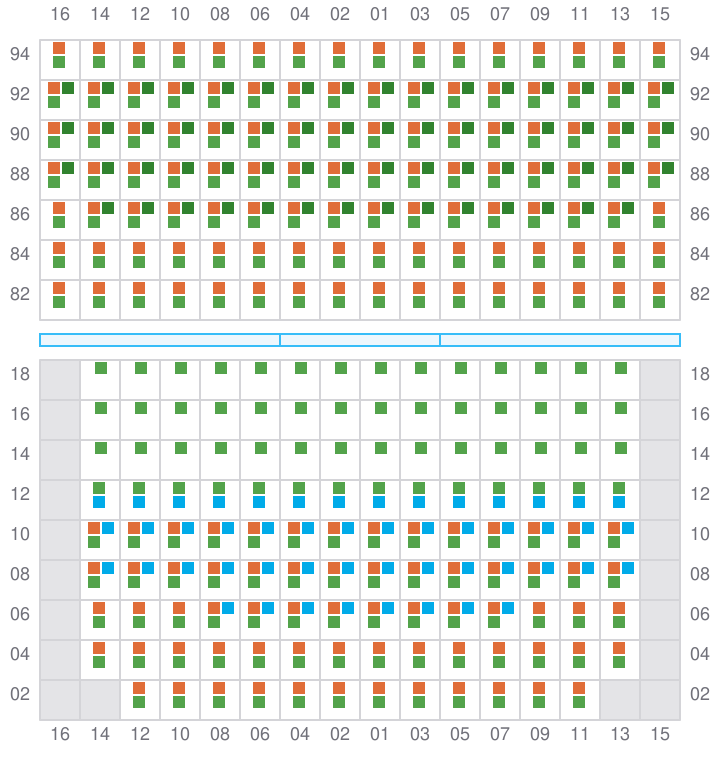

Bay 047 view and slots of MSC PEGASUS

049

→

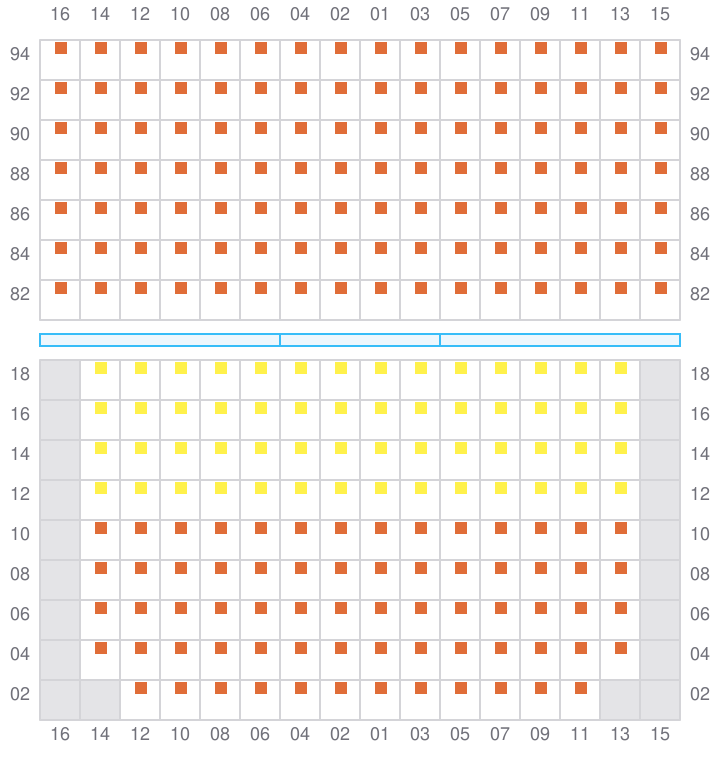

Bay 049 view and slots of MSC PEGASUS

051 (050)

←
^→ / _?

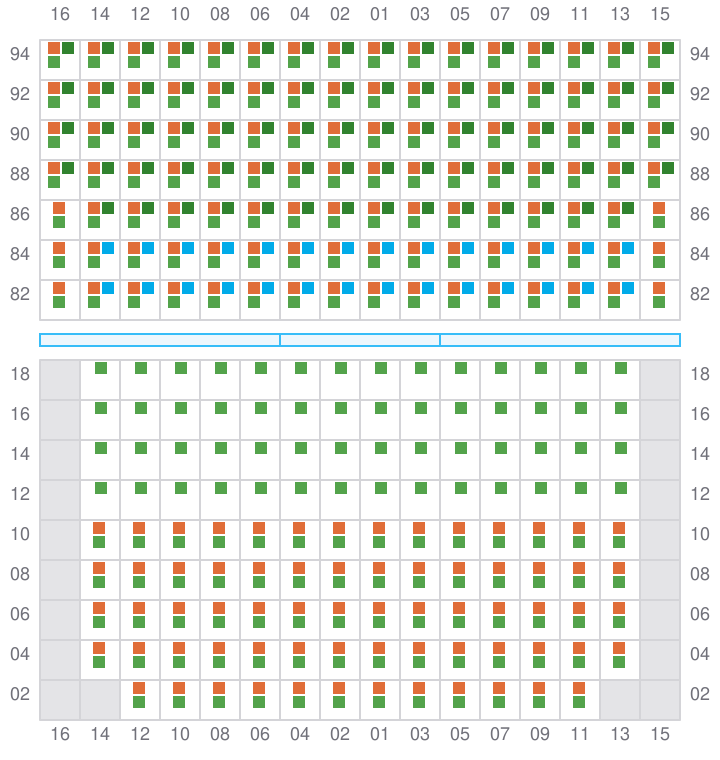

Bay 051 view and slots of MSC PEGASUS

053

→
^← / _?

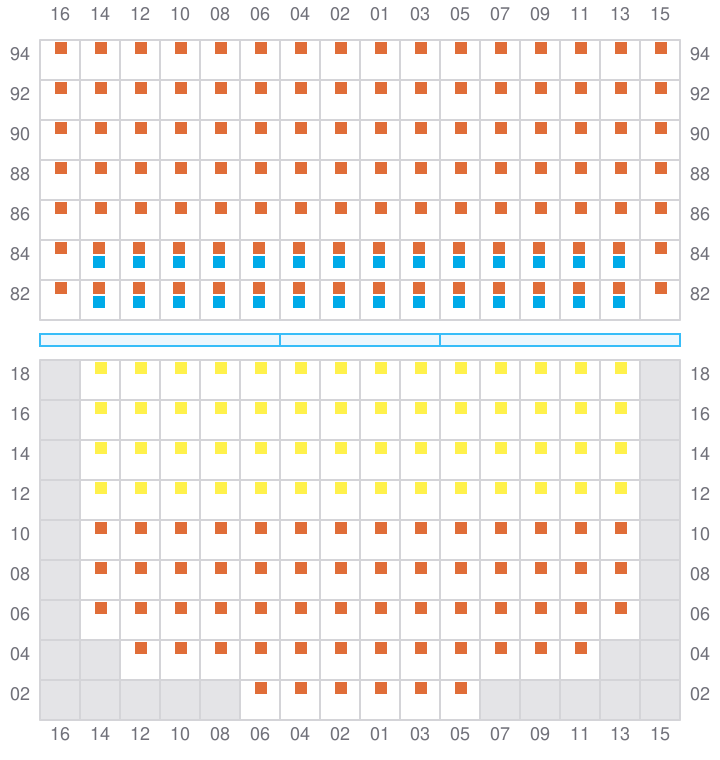

Bay 053 view and slots of MSC PEGASUS

055 (054)

←
^? / _→

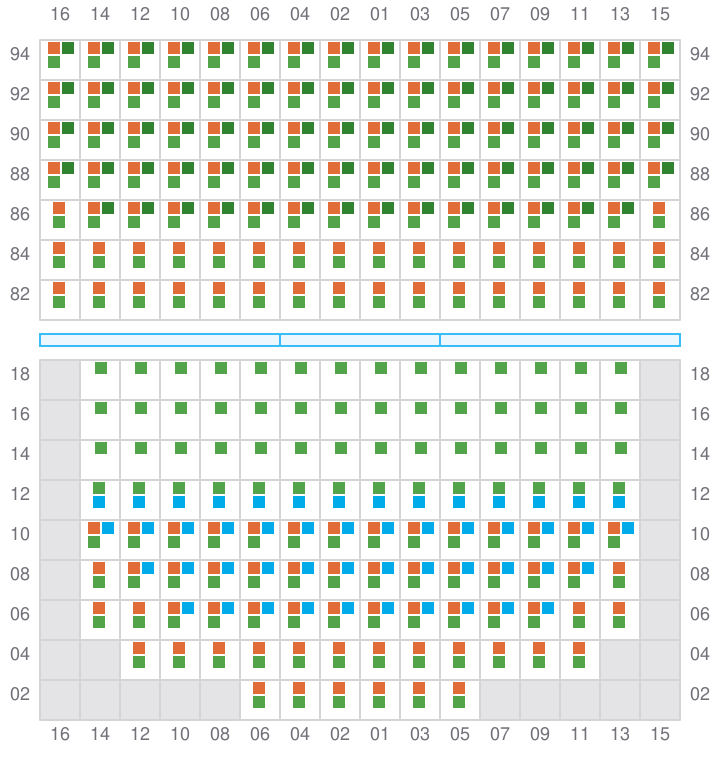

Bay 055 view and slots of MSC PEGASUS

057

→

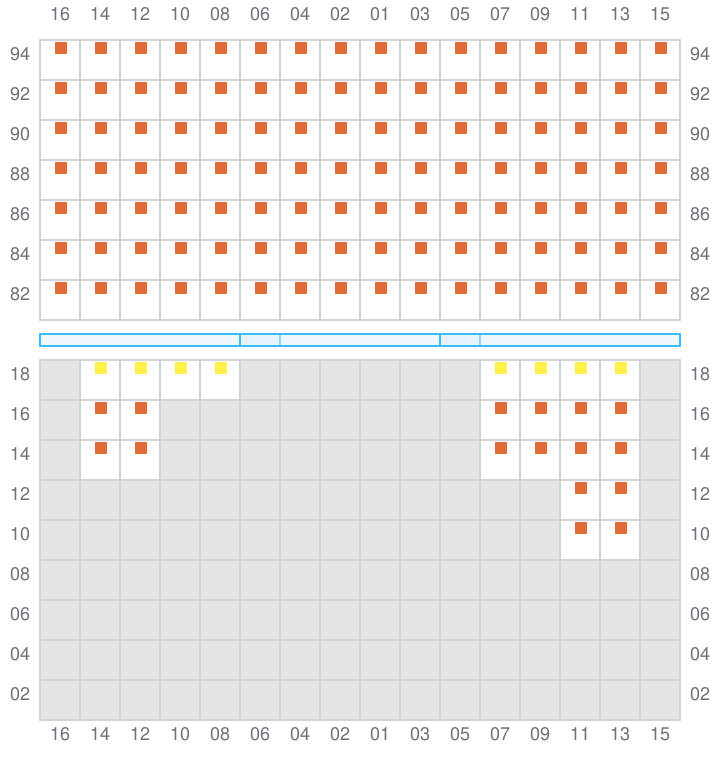

Bay 057 view and slots of MSC PEGASUS

059 (058)

←
^→ / _?

Bay 059 view and slots of MSC PEGASUS

061

→
^← / _?

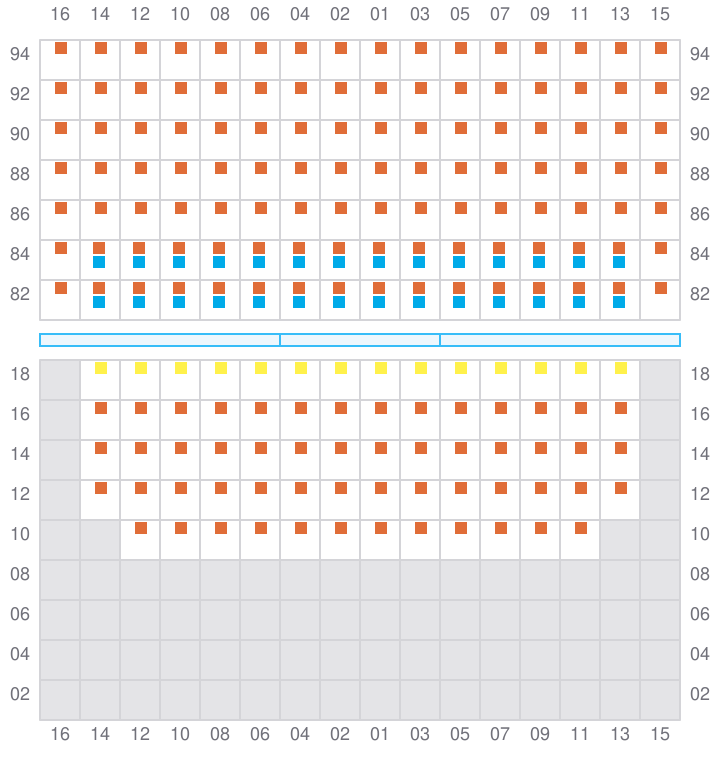

Bay 061 view and slots of MSC PEGASUS

063 (062)

←

Bay 063 view and slots of MSC PEGASUS

065

→

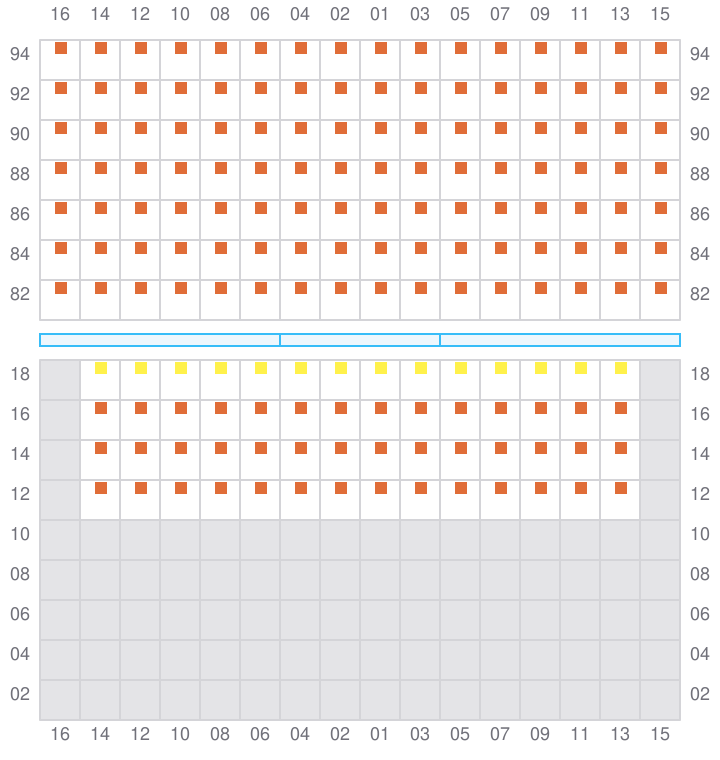

Bay 065 view and slots of MSC PEGASUS

067 (066)

←
^→ / _?

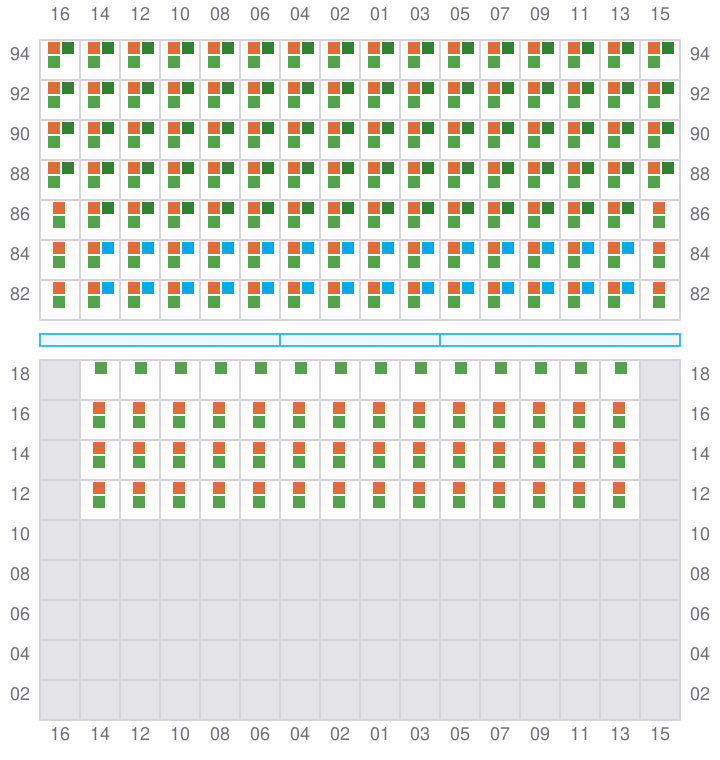

Bay 067 view and slots of MSC PEGASUS

069

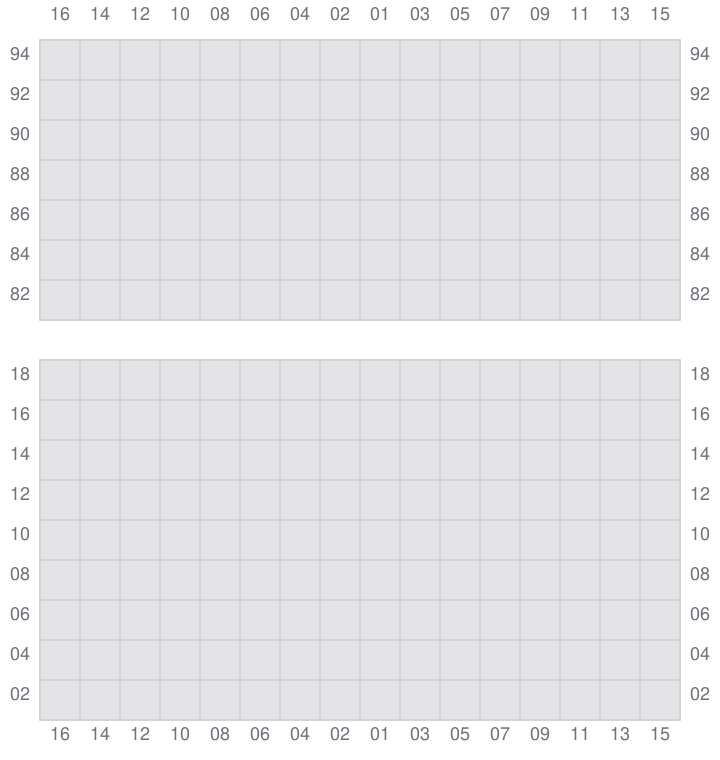

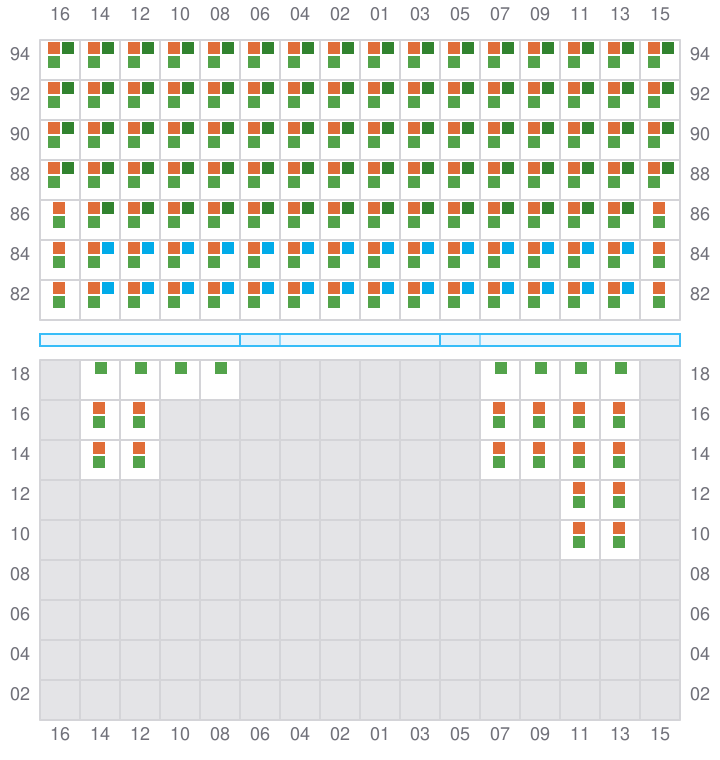

Bay 069 view and slots of MSC PEGASUS

071 (070)

^← / _?

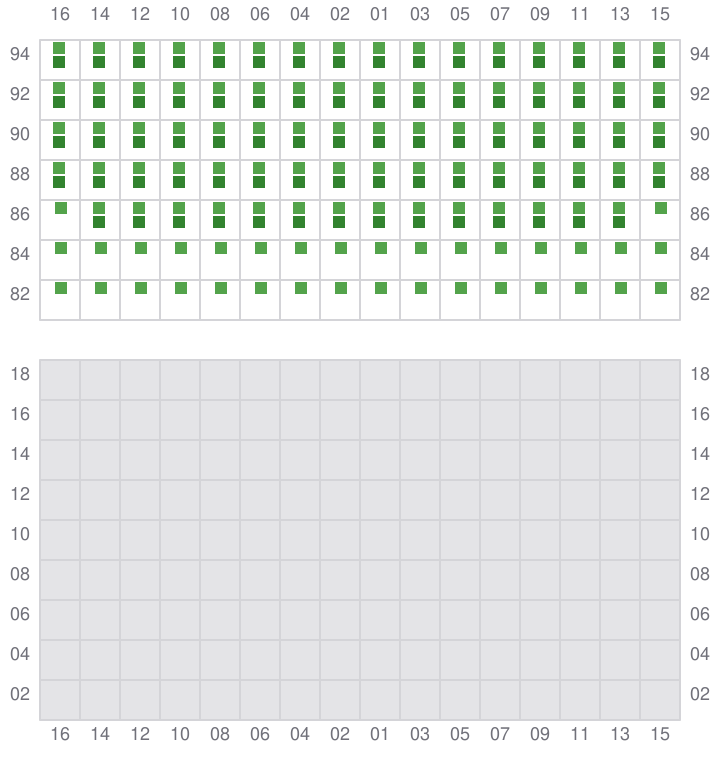

Bay 071 view and slots of MSC PEGASUS
