MSC PETRA
9222302 | A8VP5 | MSC by ************************** Last update: Thu Jun 22 2023

General Info

Ship Name:MSC PETRA

IMO Code:9222302

Call Sign:A8VP5

Line Operator:MSC

Class Name for Sister Ships:MPT

Year Built:2001

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):282.00

LOA (Length Overall):299.95

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:6,627

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

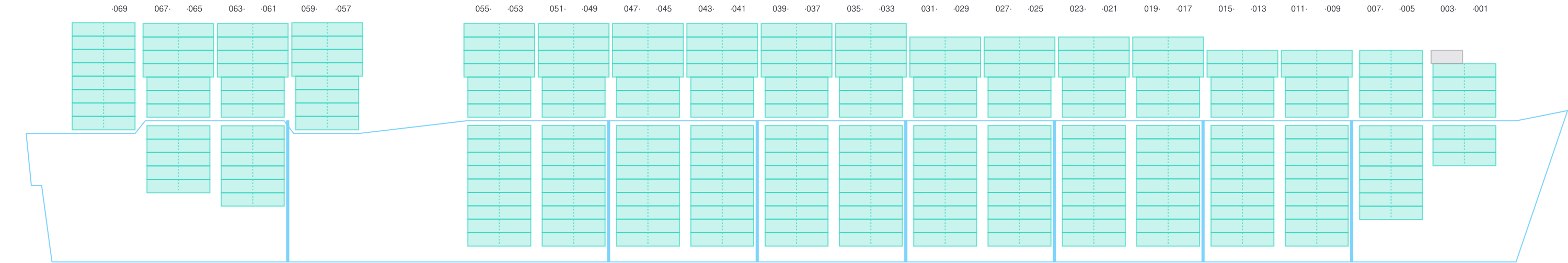

Side view of MSC PETRA

Hatch-Covers View

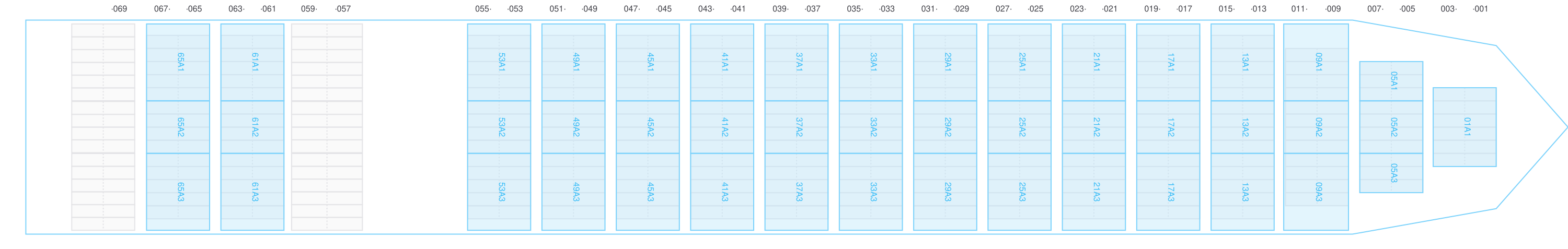

Deck view of MSC PETRA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

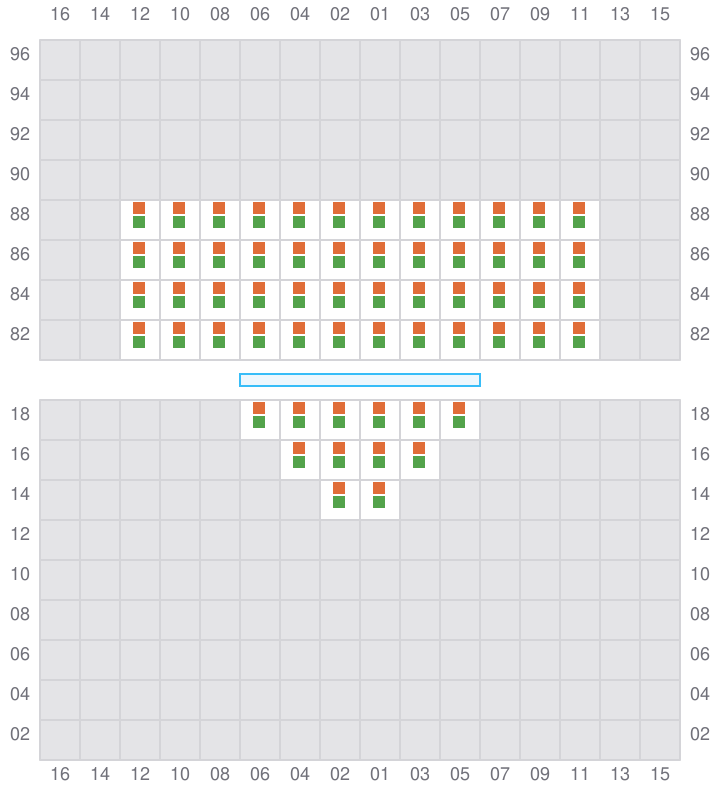

Bay 001 view and slots of MSC PETRA

003

←

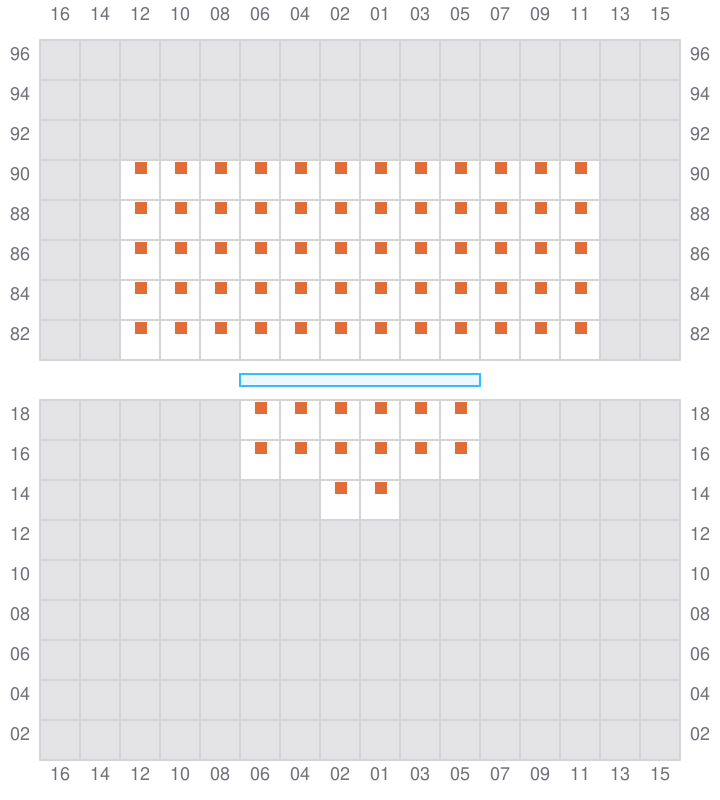

Bay 003 view and slots of MSC PETRA

005 (006)

→

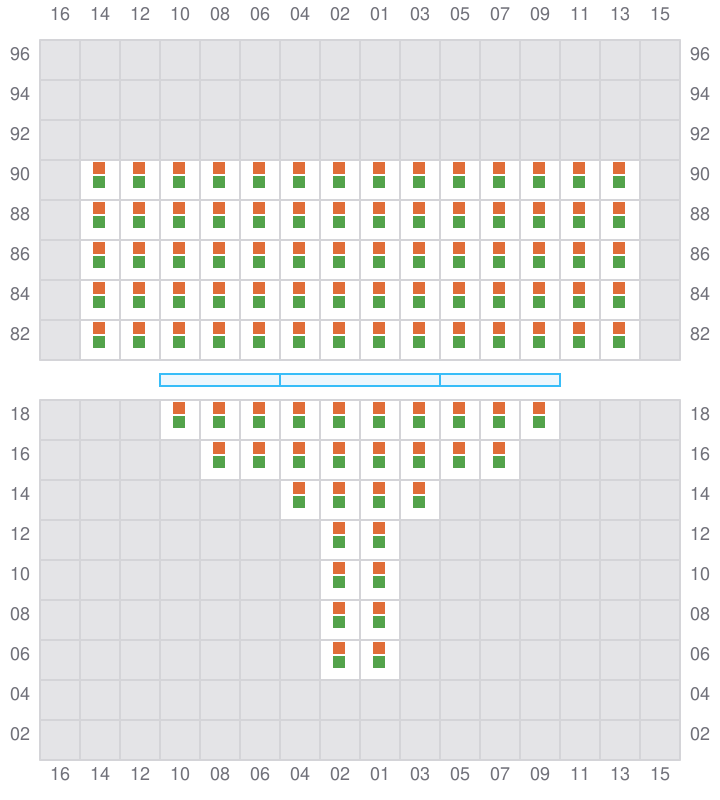

Bay 005 view and slots of MSC PETRA

007

←

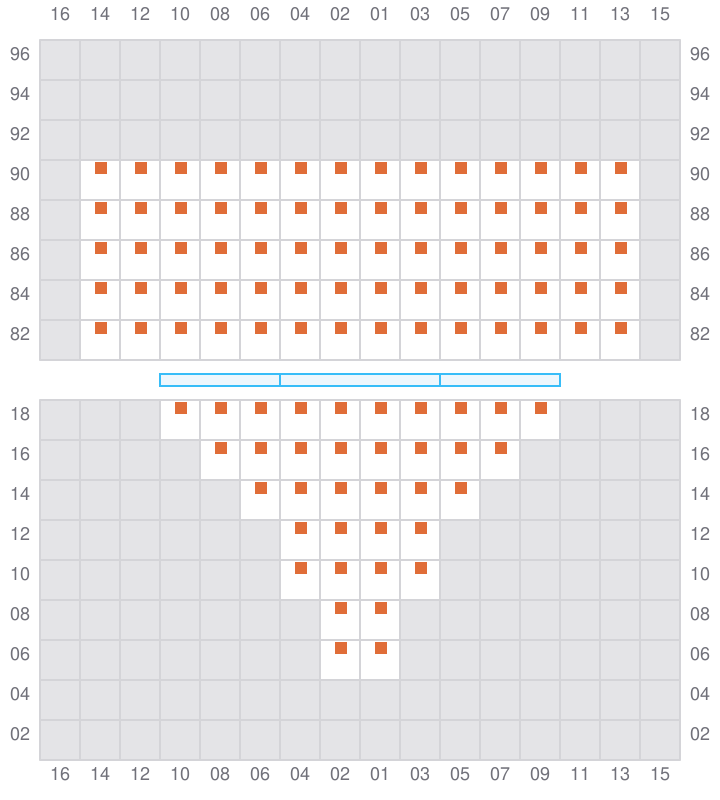

Bay 007 view and slots of MSC PETRA

009 (010)

→

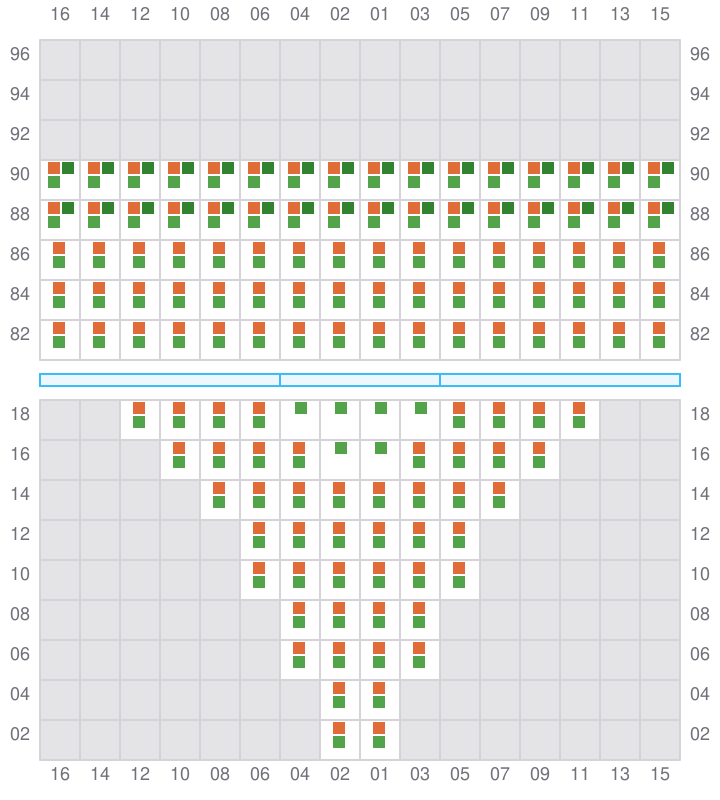

Bay 009 view and slots of MSC PETRA

011

←

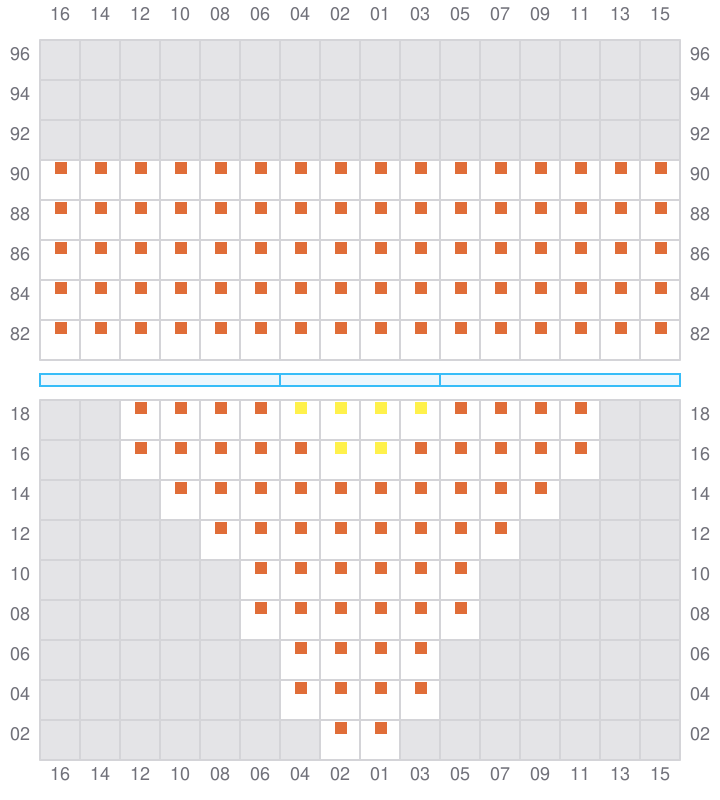

Bay 011 view and slots of MSC PETRA

013 (014)

→

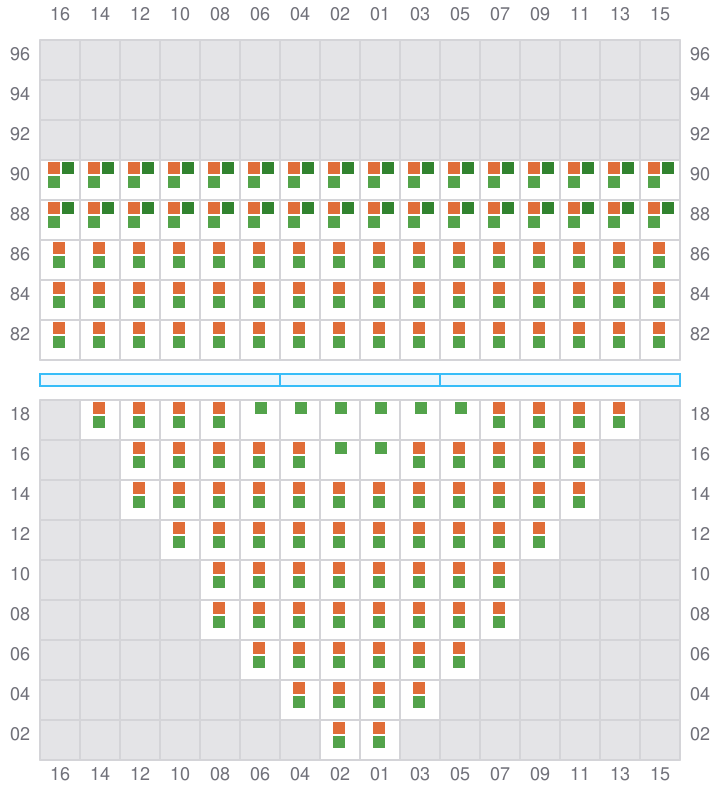

Bay 013 view and slots of MSC PETRA

015

←

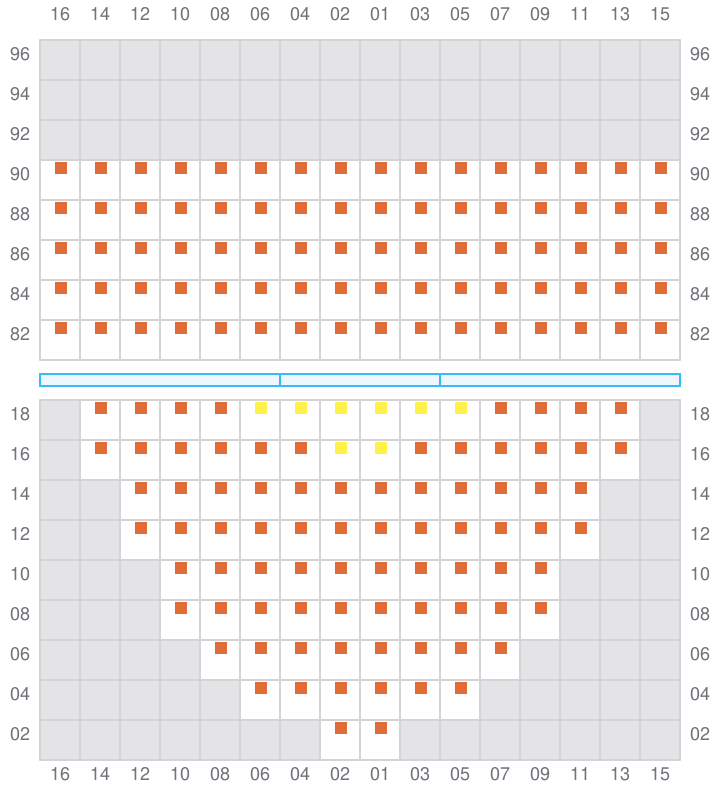

Bay 015 view and slots of MSC PETRA

017 (018)

→

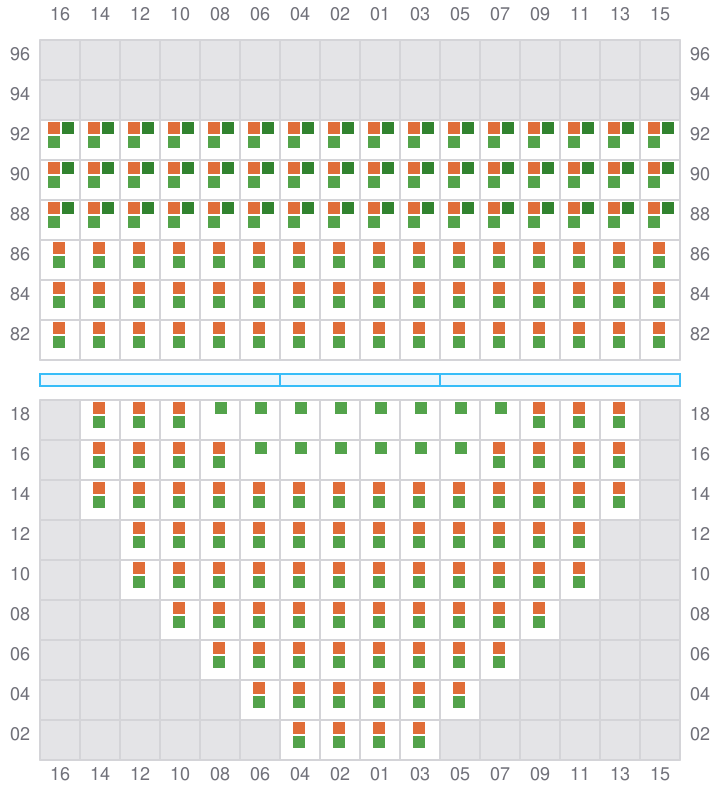

Bay 017 view and slots of MSC PETRA

019

←
^→ / _?

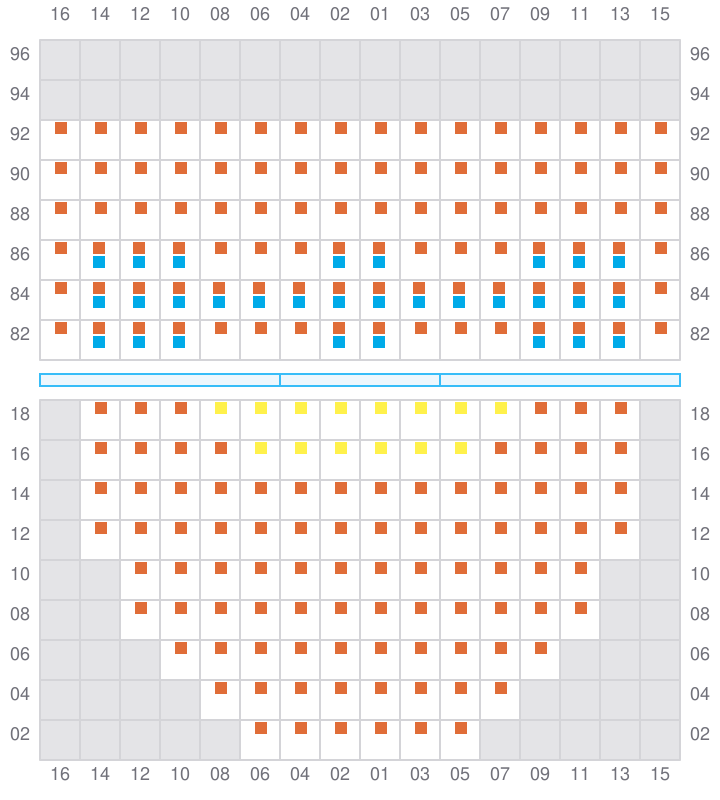

Bay 019 view and slots of MSC PETRA

021 (022)

→

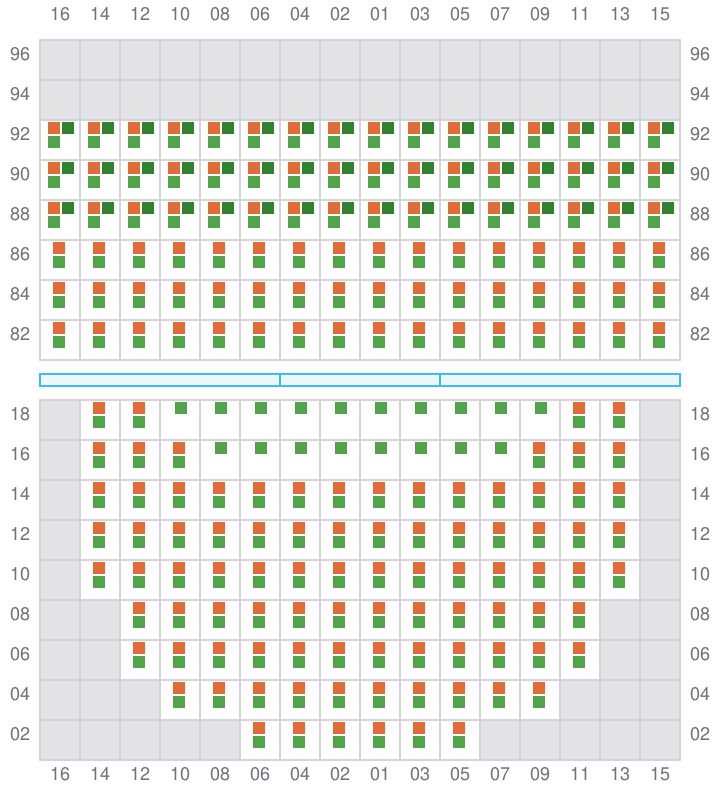

Bay 021 view and slots of MSC PETRA

023

←
^→ / _?

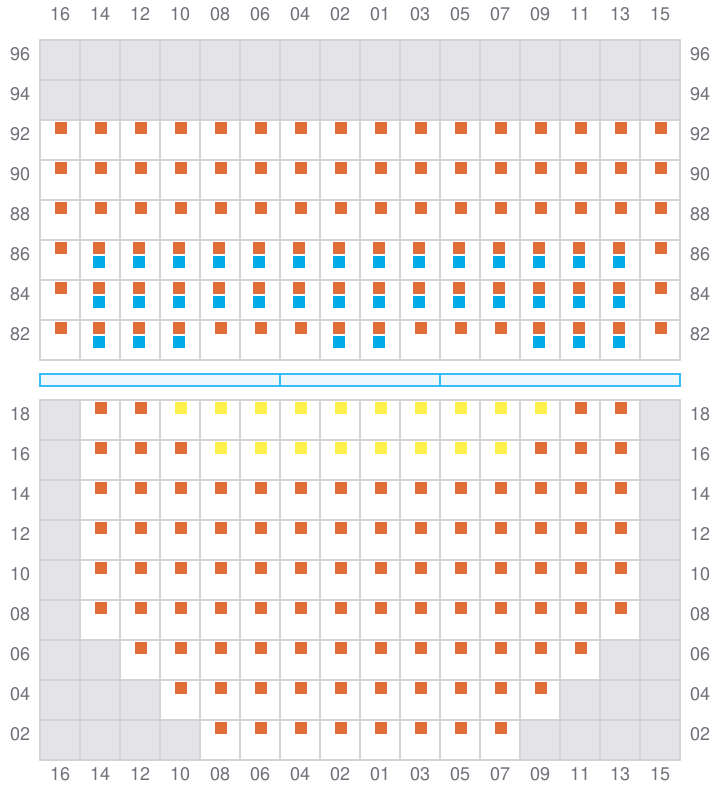

Bay 023 view and slots of MSC PETRA

025 (026)

→

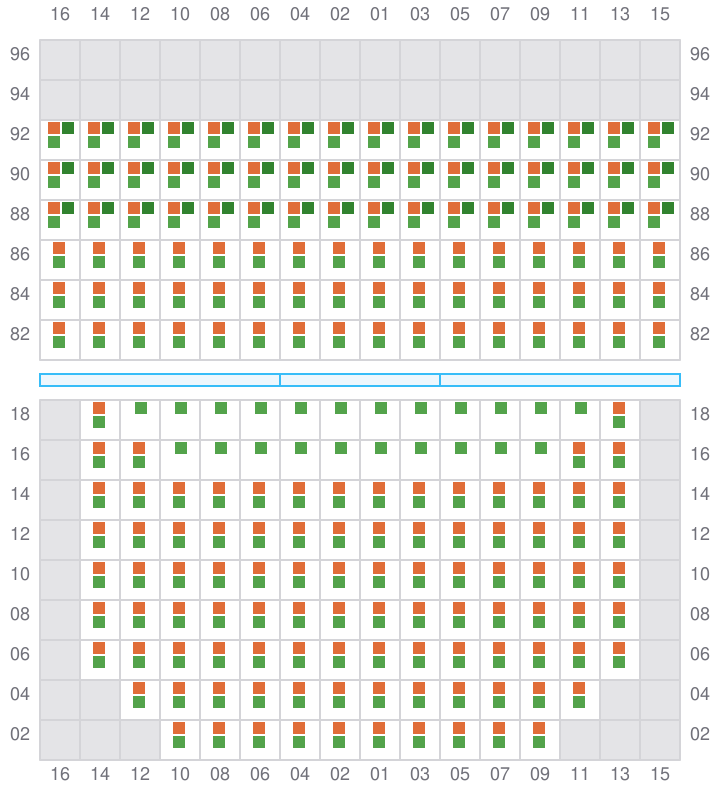

Bay 025 view and slots of MSC PETRA

027

←
^→ / _?

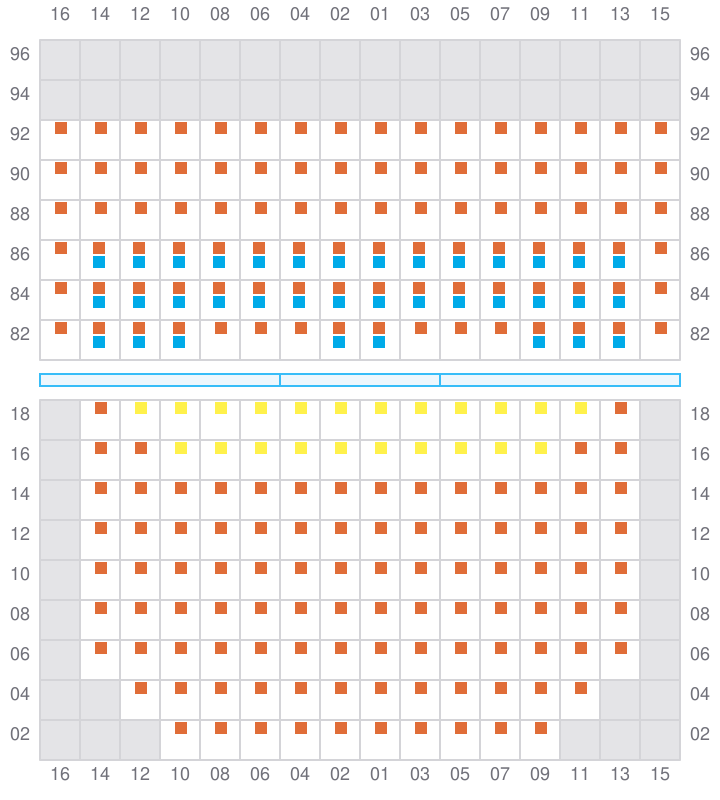

Bay 027 view and slots of MSC PETRA

029 (030)

→

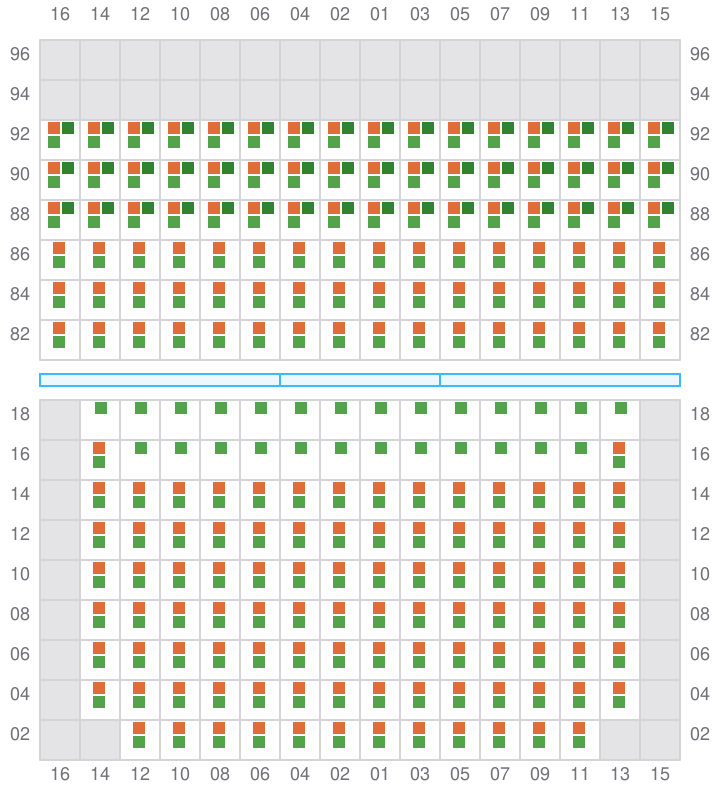

Bay 029 view and slots of MSC PETRA

031

←
^→ / _?

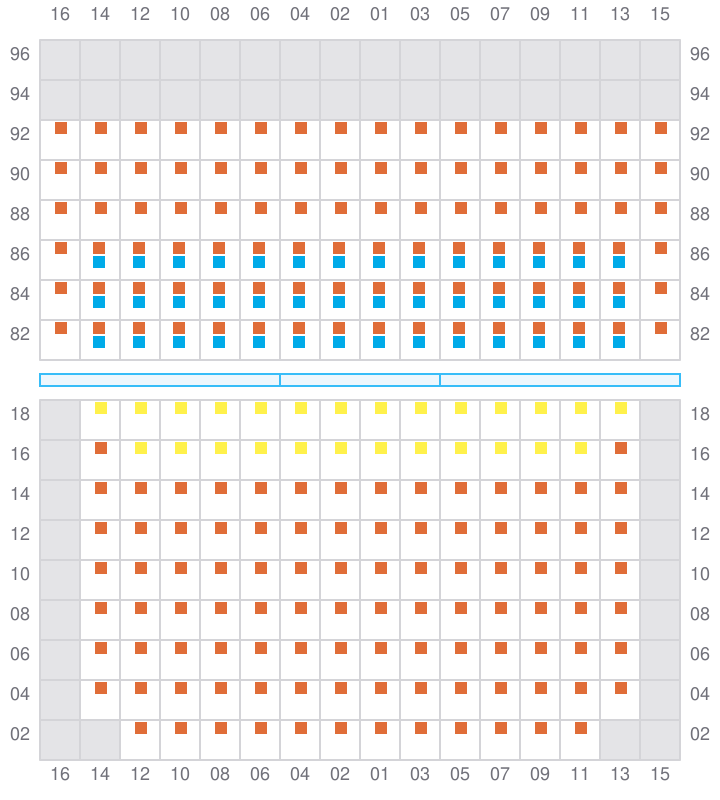

Bay 031 view and slots of MSC PETRA

033 (034)

→

Bay 033 view and slots of MSC PETRA

035

←
^→ / _?

Bay 035 view and slots of MSC PETRA

037 (038)

→

Bay 037 view and slots of MSC PETRA

039

←
^→ / _?

Bay 039 view and slots of MSC PETRA

041 (042)

→

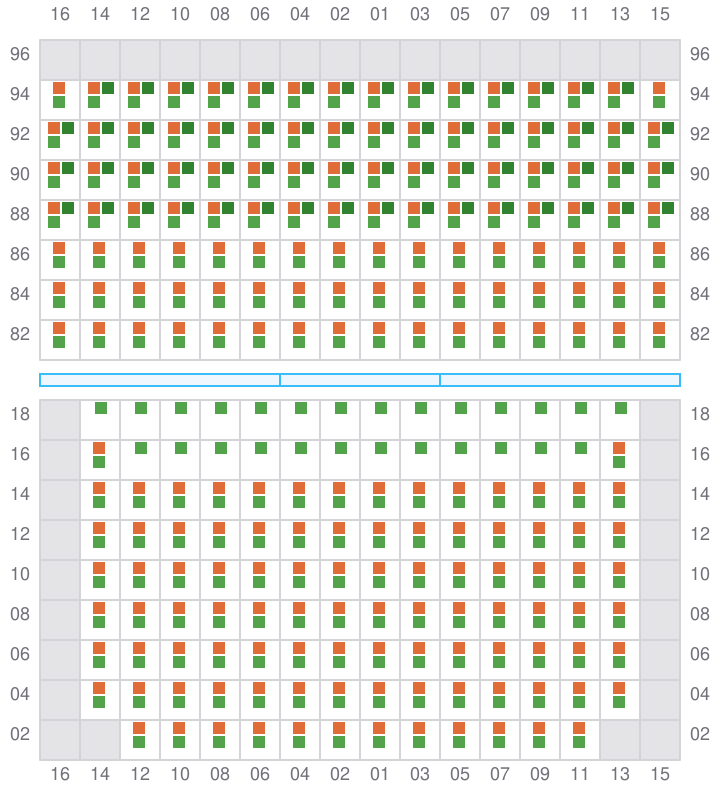

Bay 041 view and slots of MSC PETRA

043

←
^→ / _?

Bay 043 view and slots of MSC PETRA

045 (046)

→

Bay 045 view and slots of MSC PETRA

047

←
^→ / _?

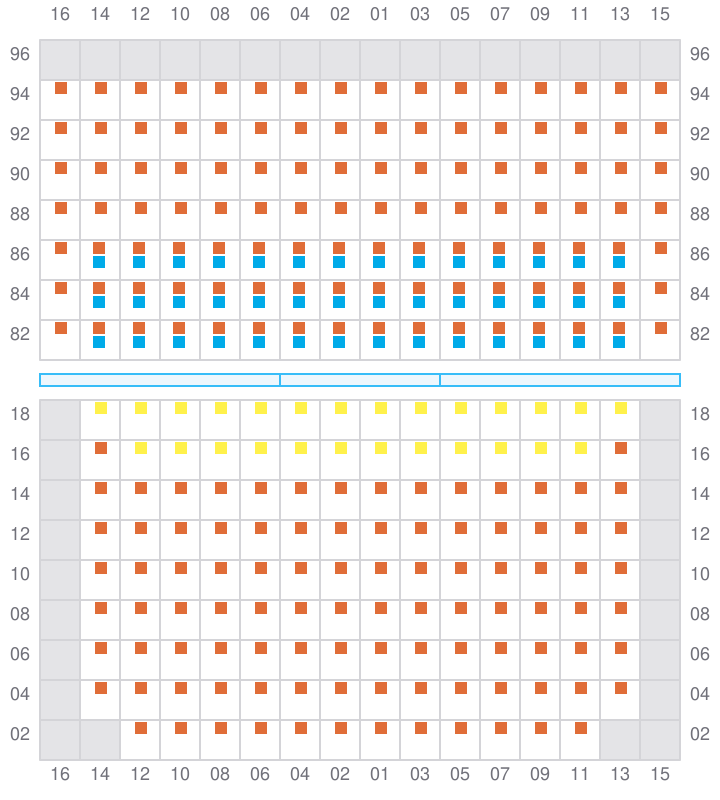

Bay 047 view and slots of MSC PETRA

049 (050)

→

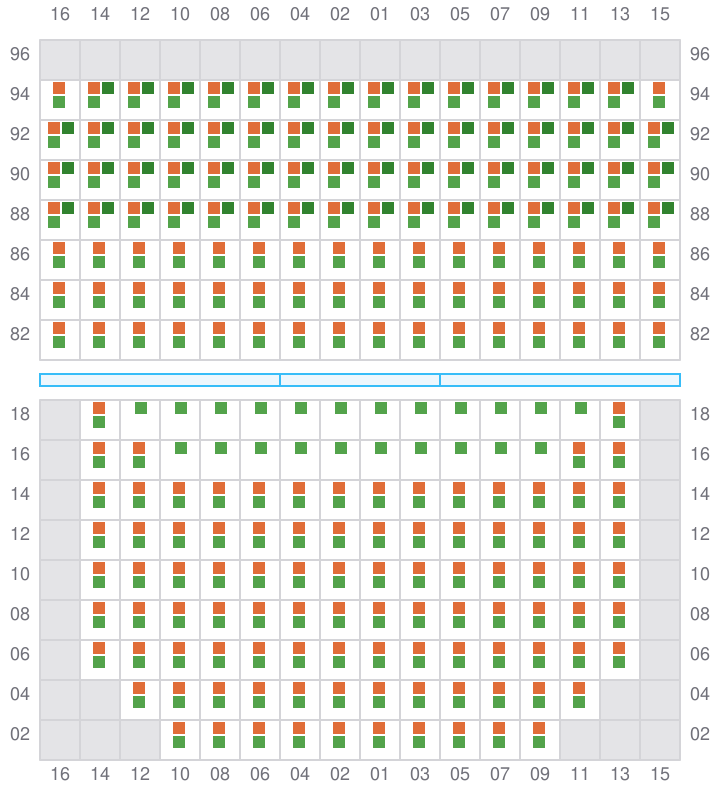

Bay 049 view and slots of MSC PETRA

051

←
^→ / _?

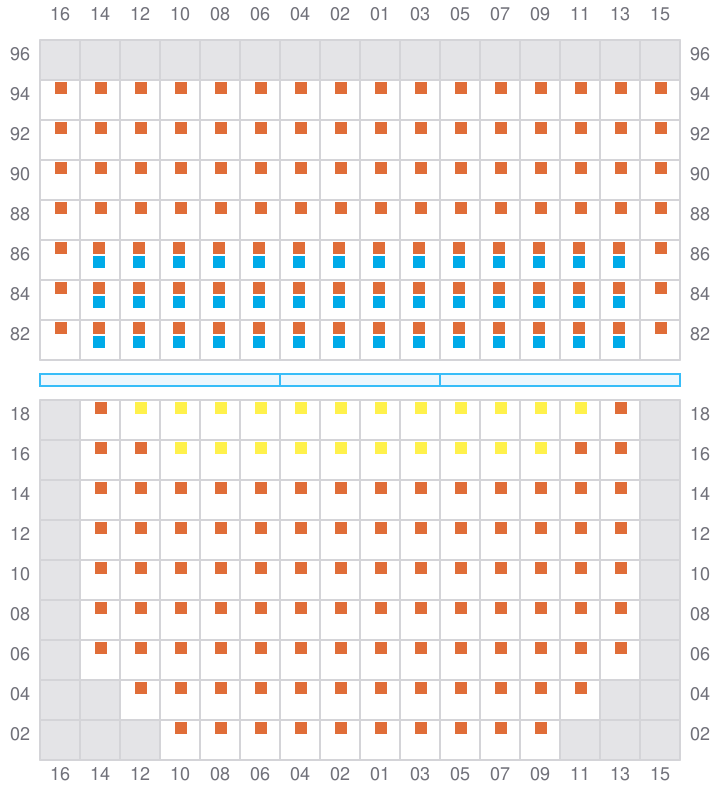

Bay 051 view and slots of MSC PETRA

053 (054)

→

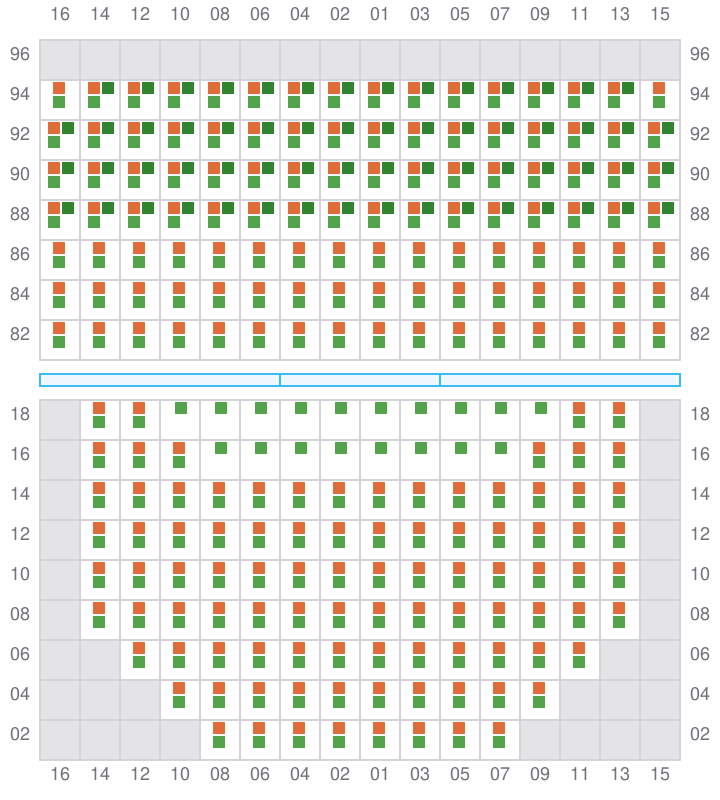

Bay 053 view and slots of MSC PETRA

055

←
^→ / _?

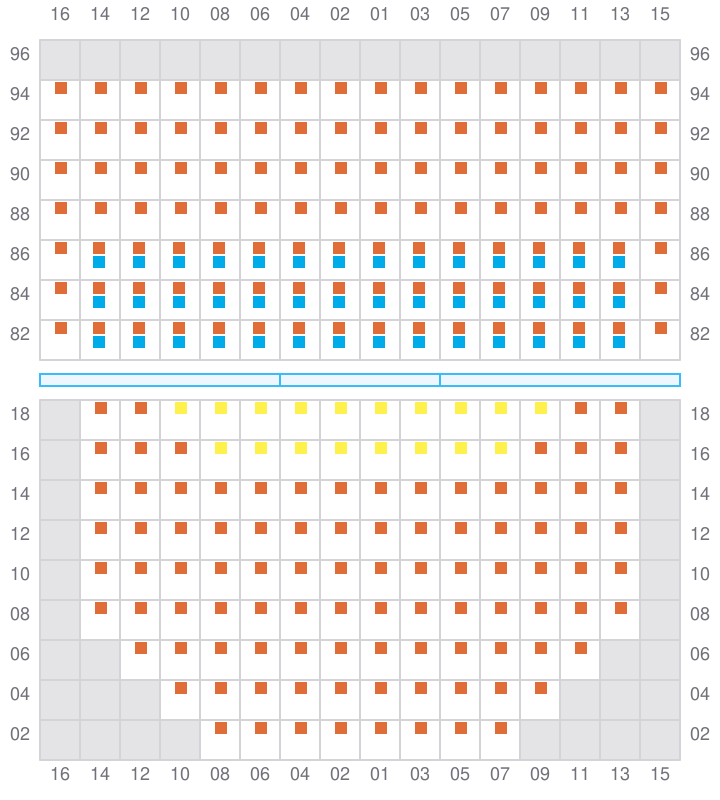

Bay 055 view and slots of MSC PETRA

057 (058)

^→ / _?

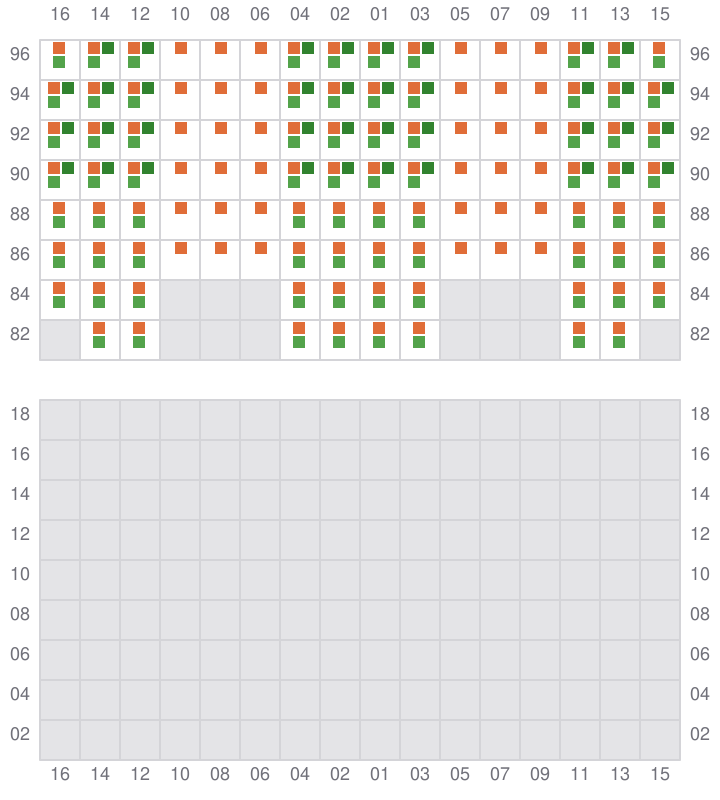

Bay 057 view and slots of MSC PETRA

059

^← / _?
^→ / _?

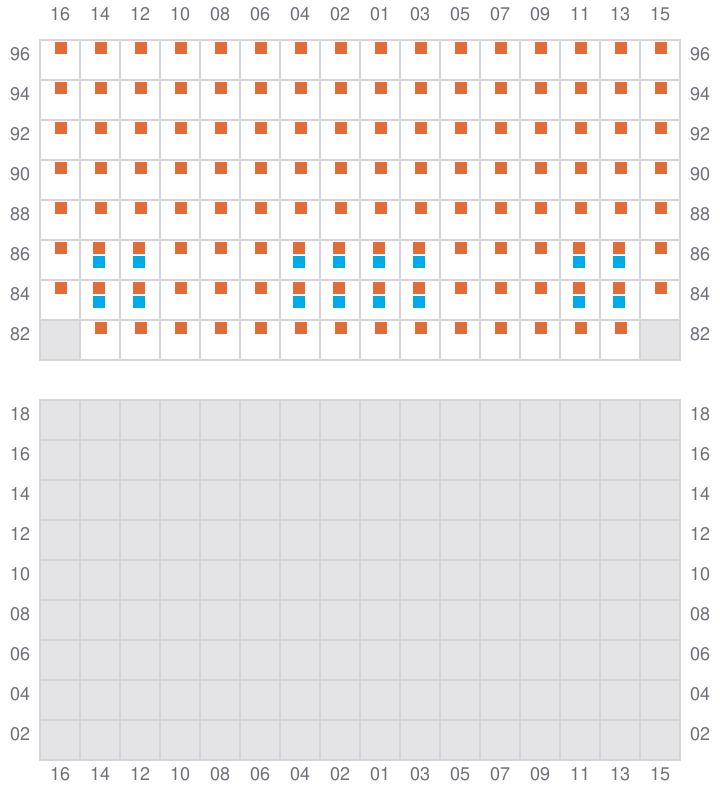

Bay 059 view and slots of MSC PETRA

061 (062)

→

Bay 061 view and slots of MSC PETRA

063

←
^→ / _?

Bay 063 view and slots of MSC PETRA

065 (066)

→

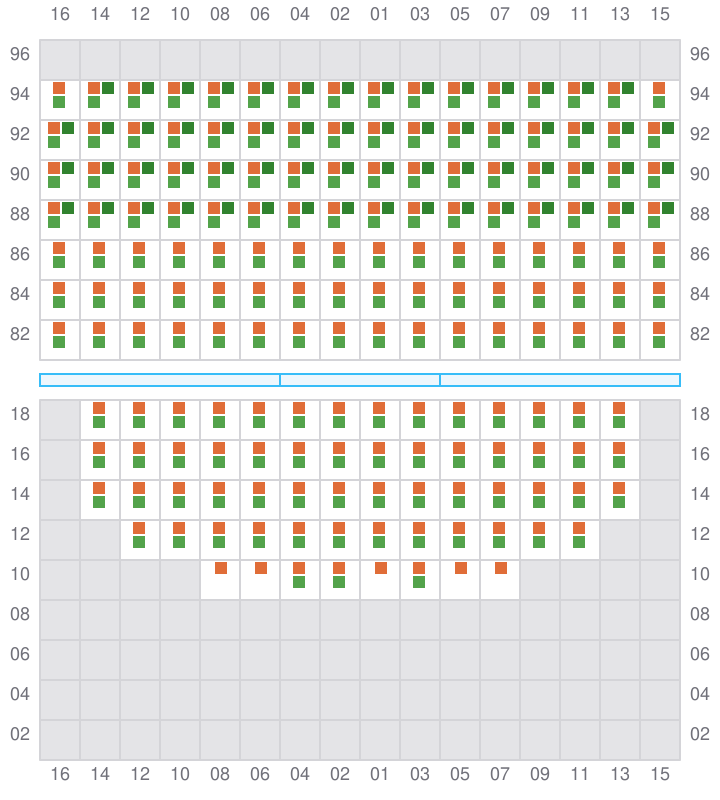

Bay 065 view and slots of MSC PETRA

067

←
^→ / _?

Bay 067 view and slots of MSC PETRA

069 (070)

^→ / _?

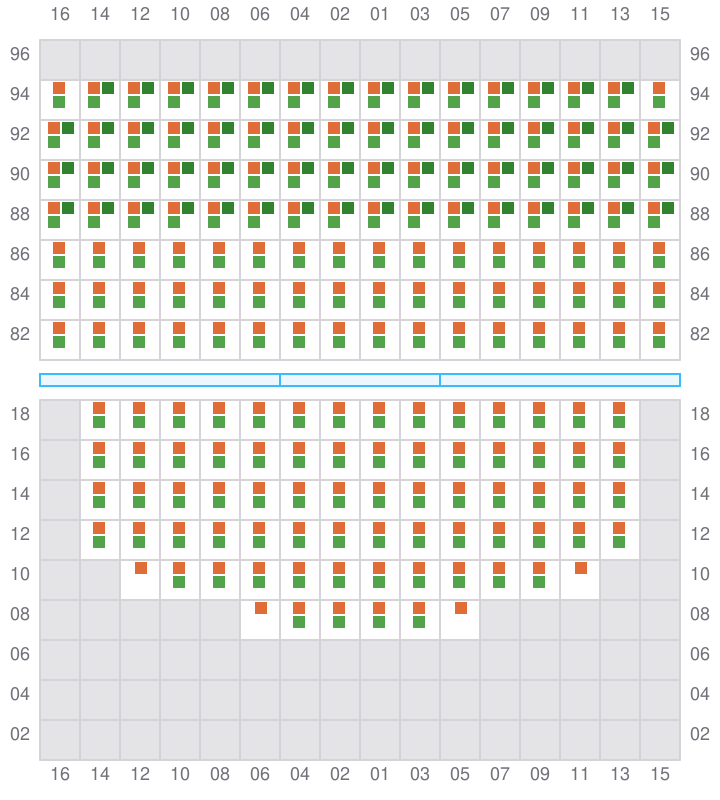

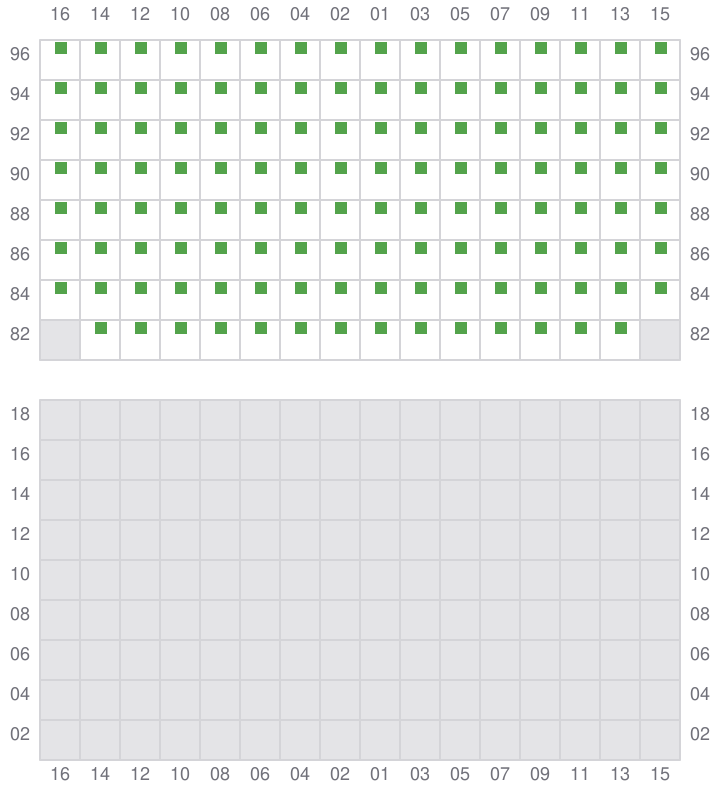

Bay 069 view and slots of MSC PETRA
