MSC PHOENIX
9267649 | D5HF8 | MSC by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:MSC PHOENIX
IMO Code:9267649
Call Sign:D5HF8
Line Operator:MSC
Class Name for Sister Ships:PHOE
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):287.00
LOA (Length Overall):299.95
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,586
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

Hatch-Covers View

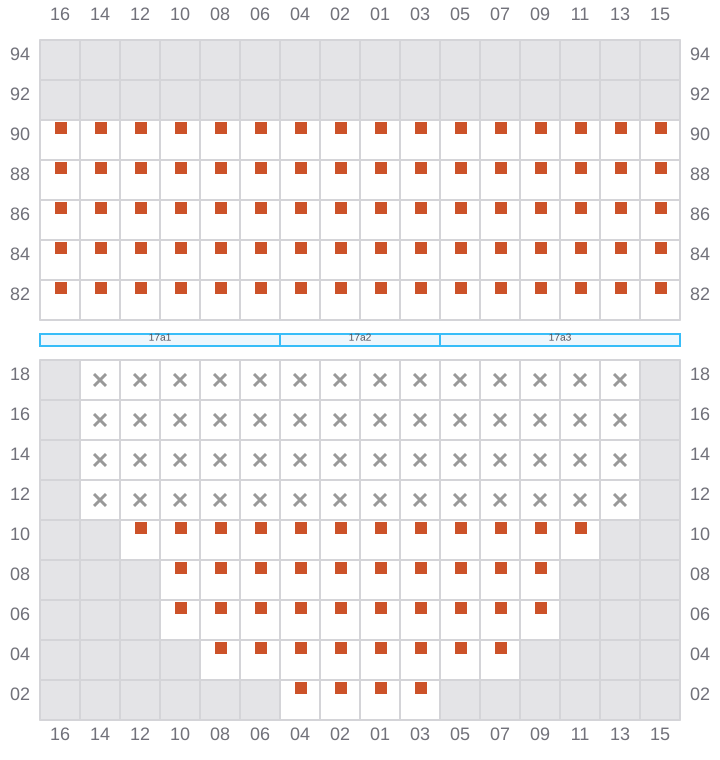

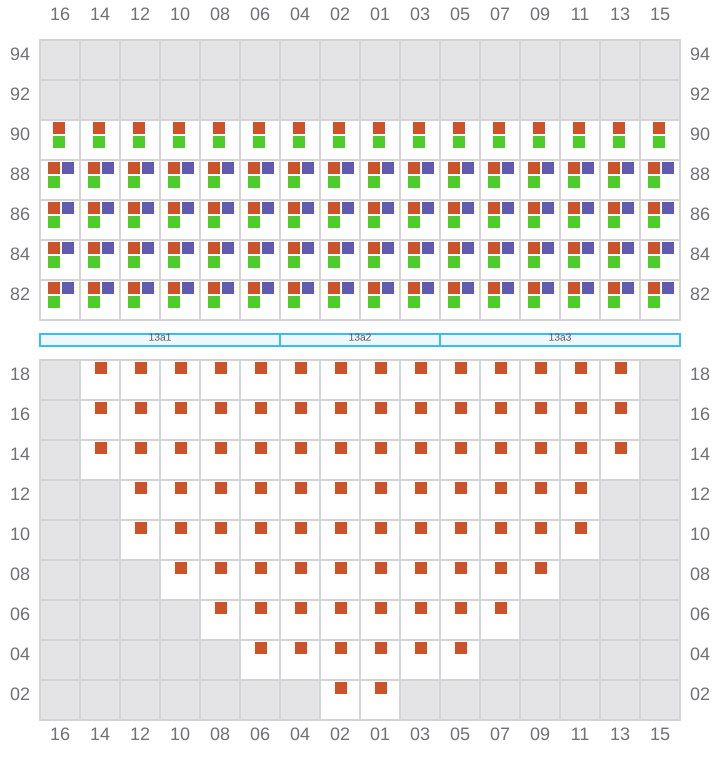

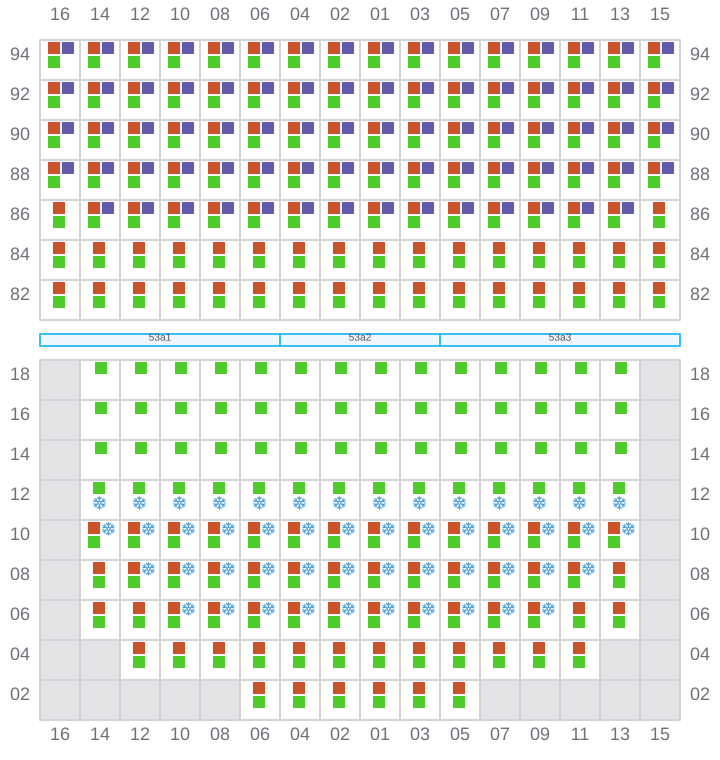

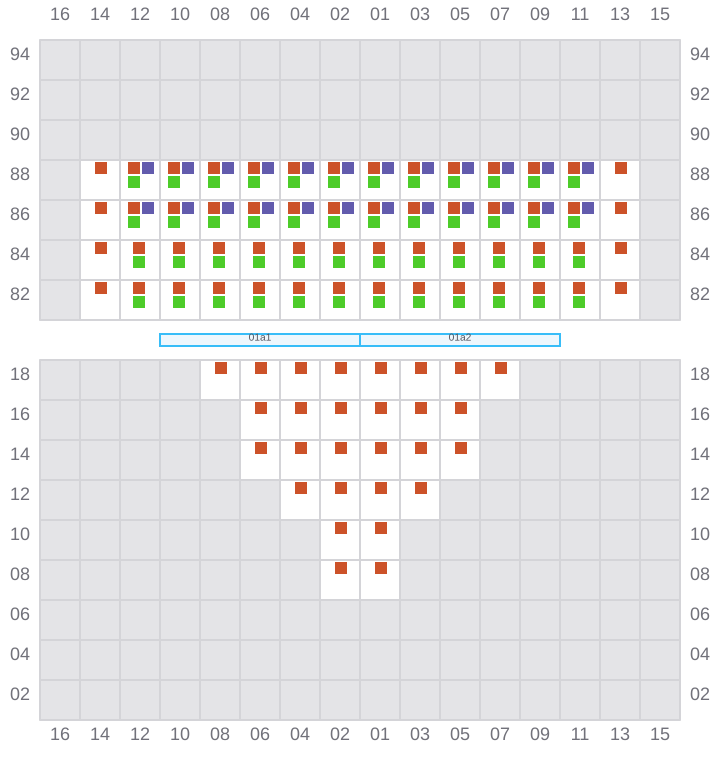

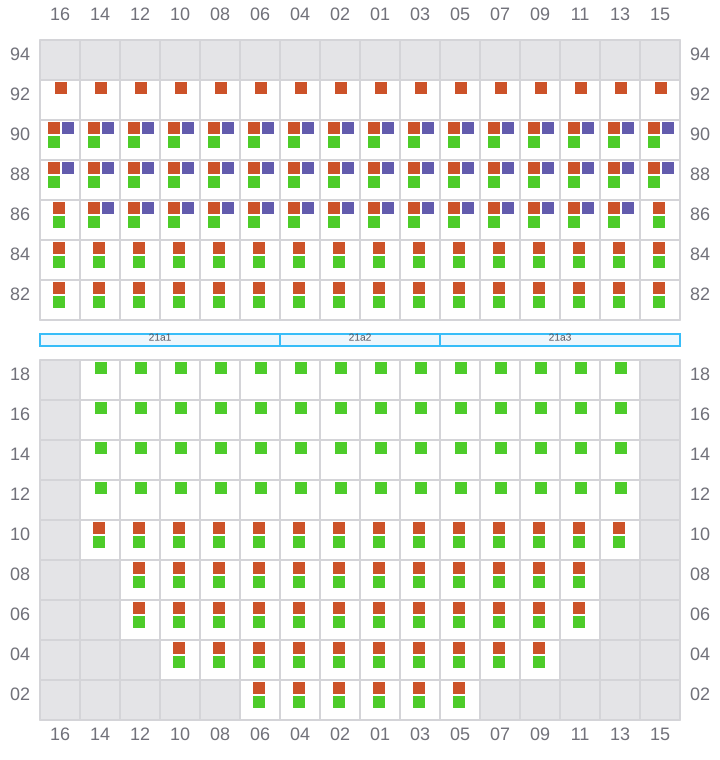

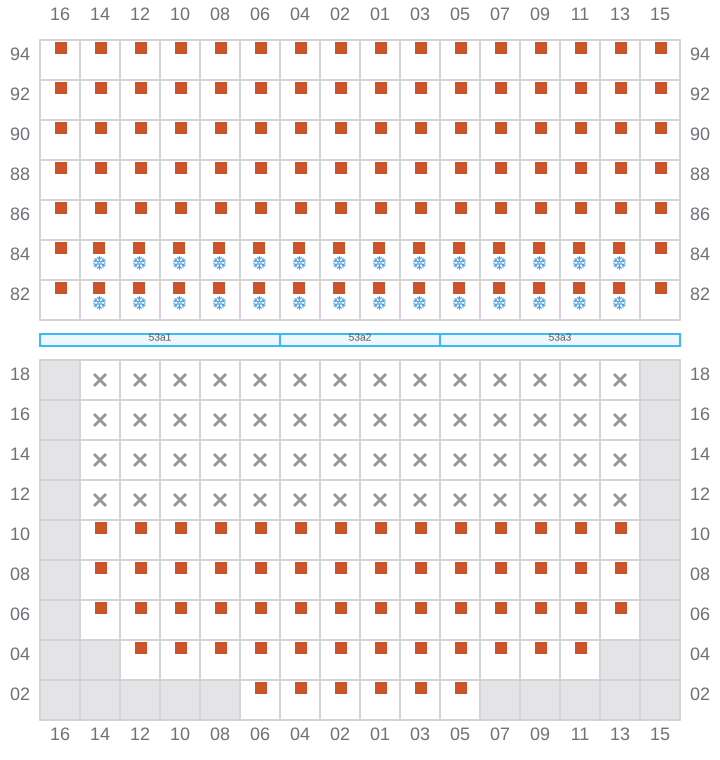

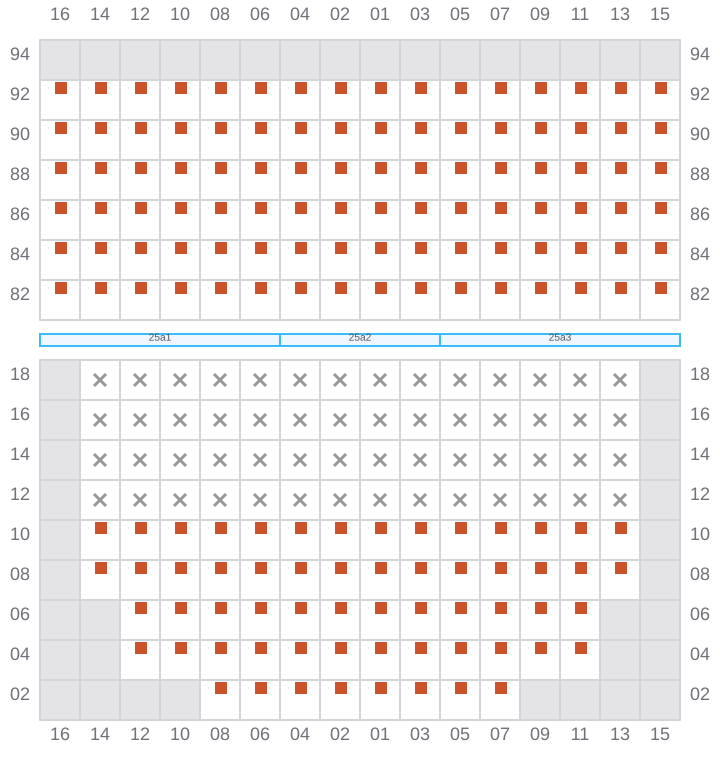

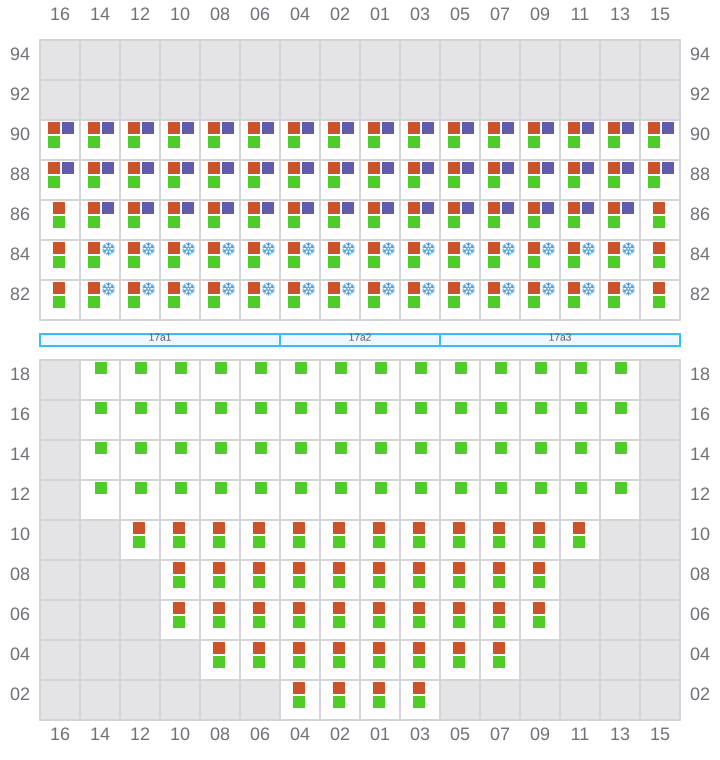

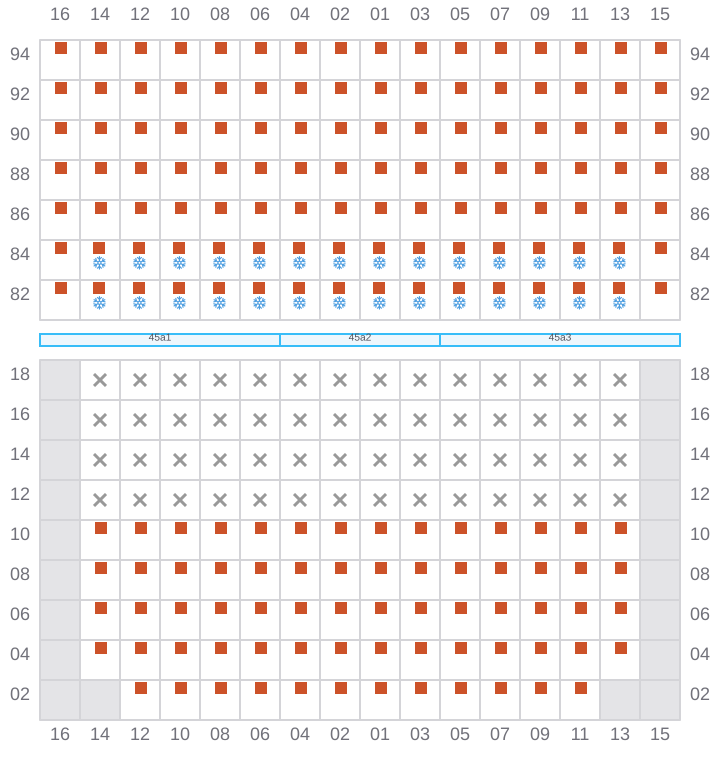

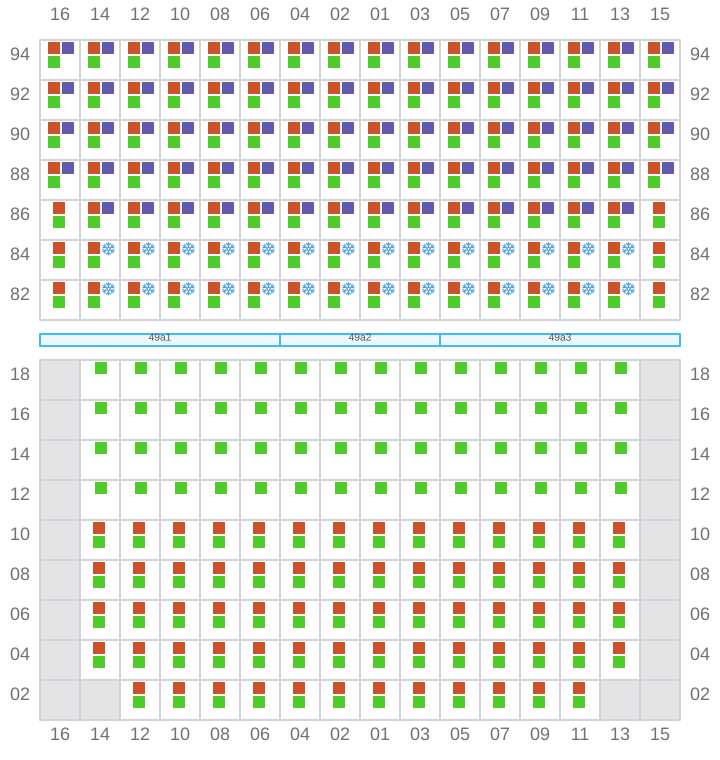

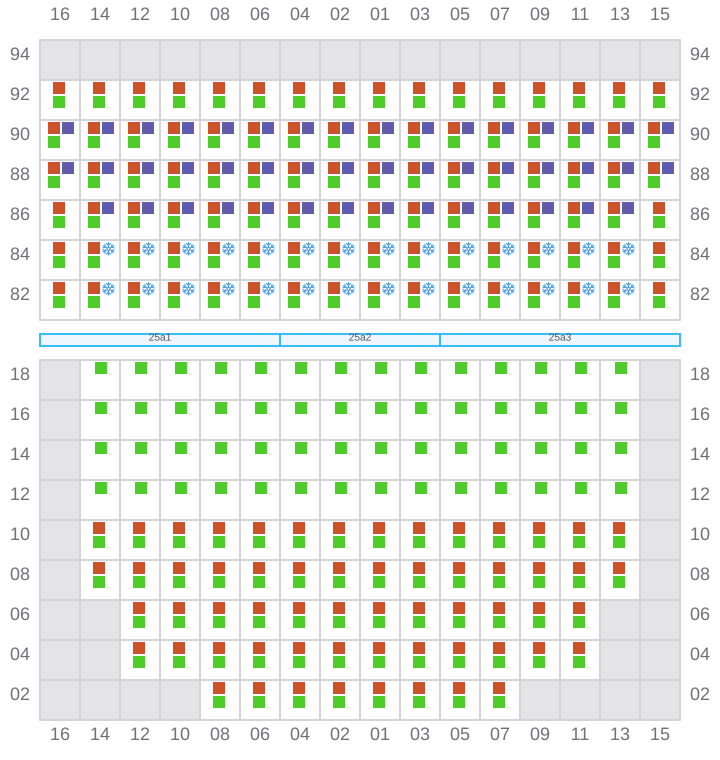

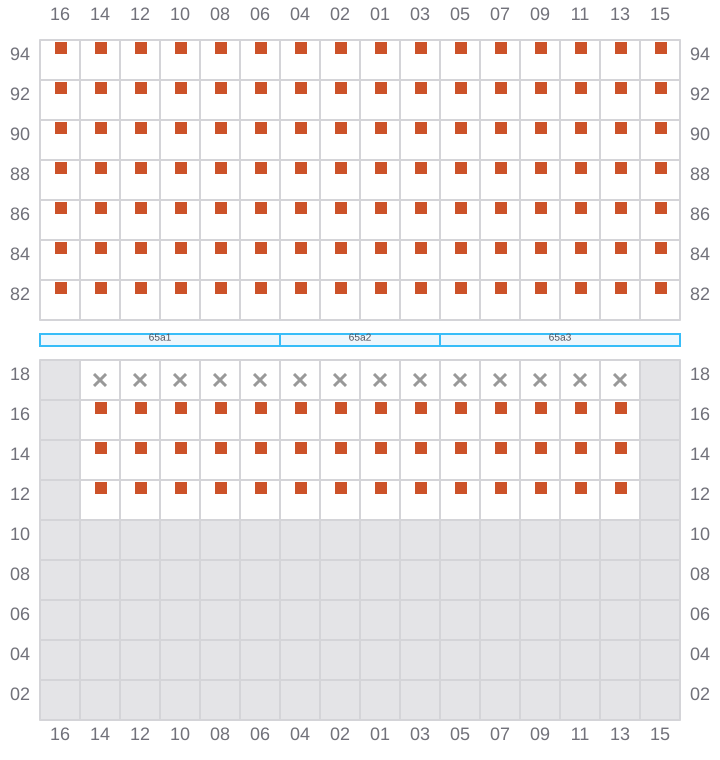

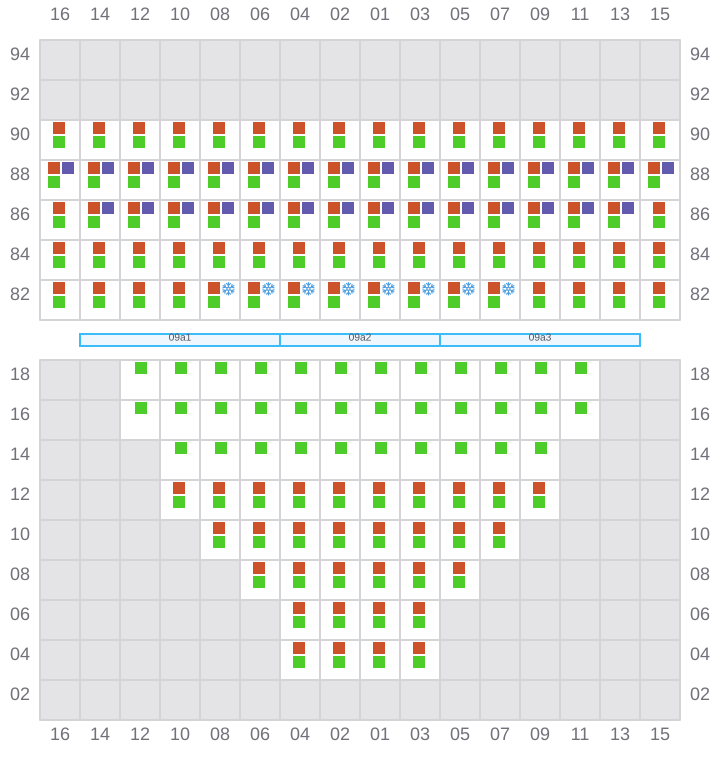

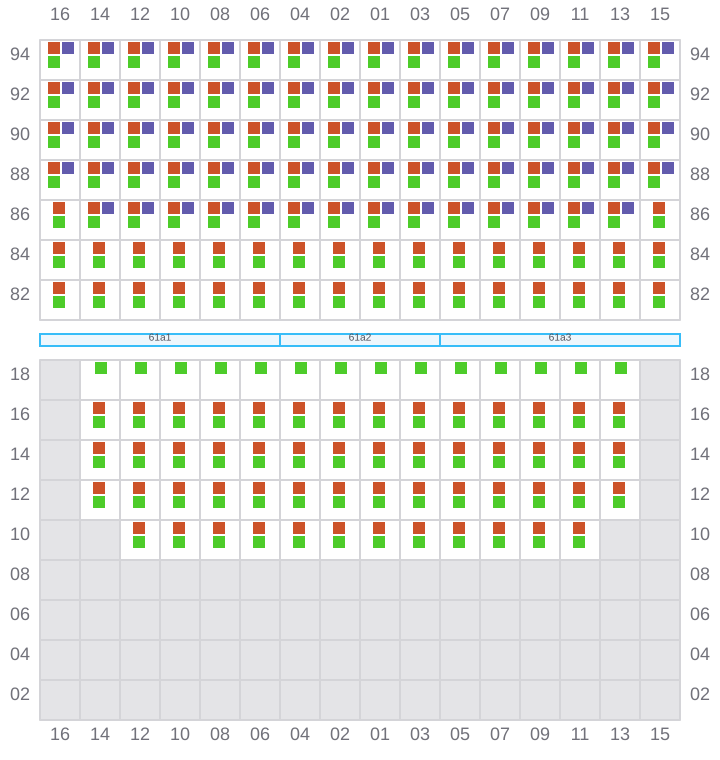

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

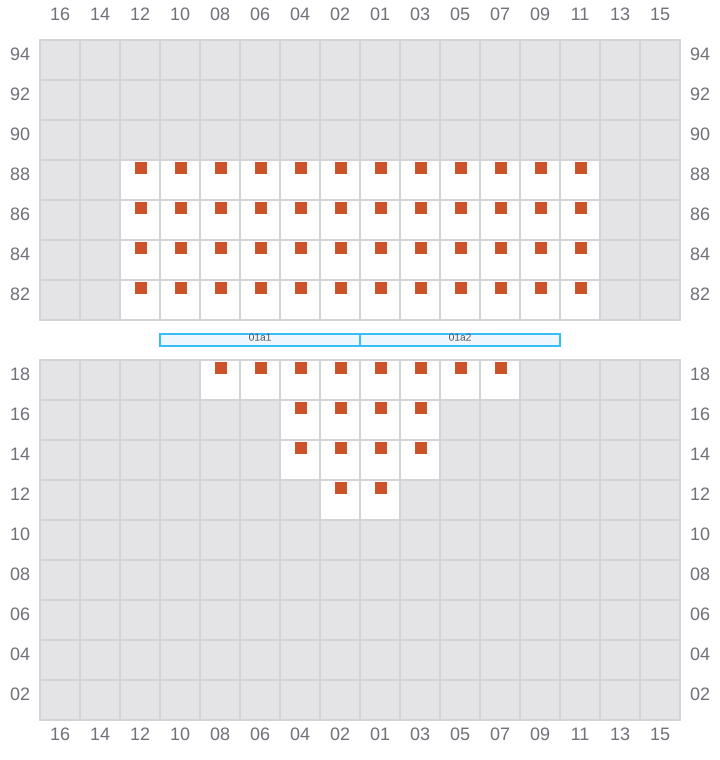

001
- → / ?

003 (002)
- ← / ?

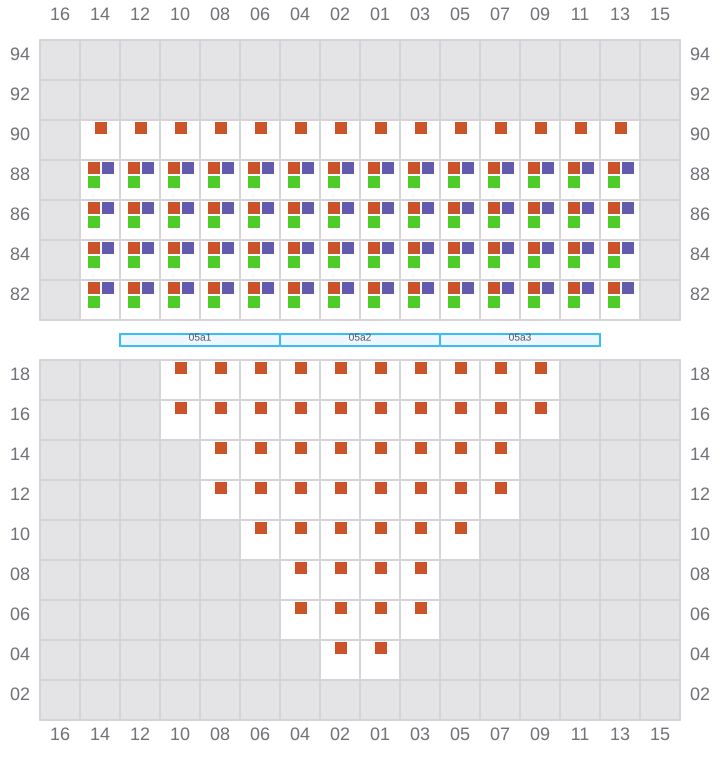

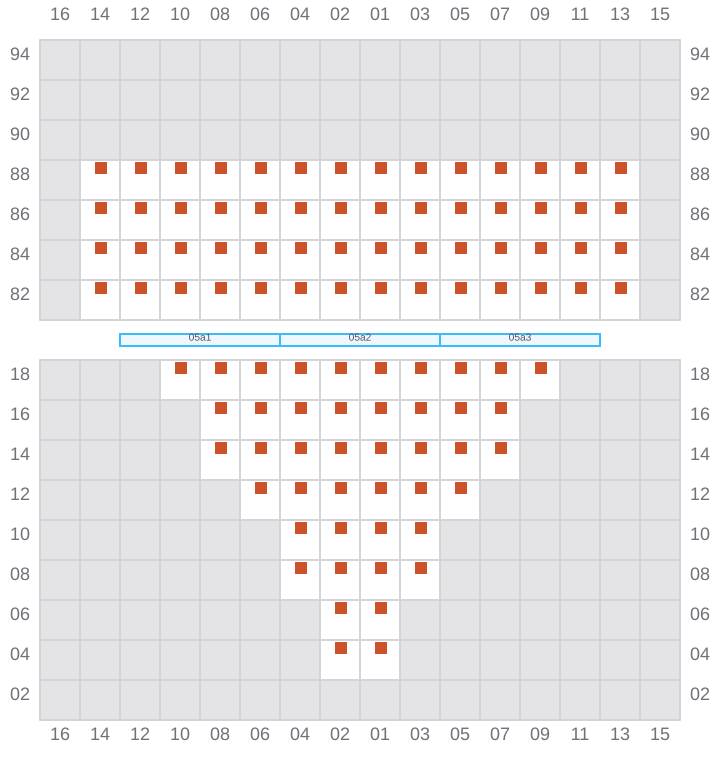

005
- → / ?

007 (006)
- ← / ?

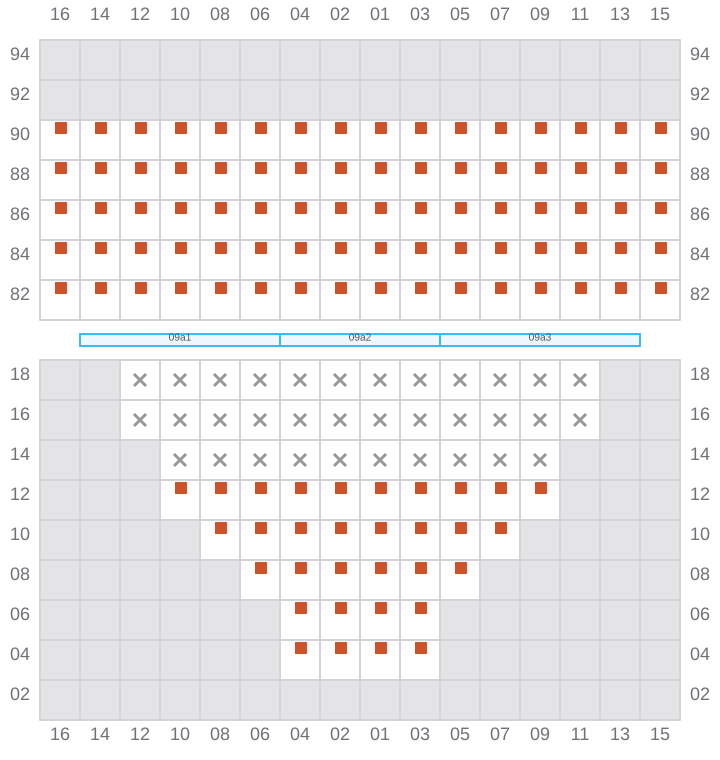

009
- →

011 (010)
- ←

013
- → / ?

015 (014)
- ← / ?

017
- →

019 (018)
- ←

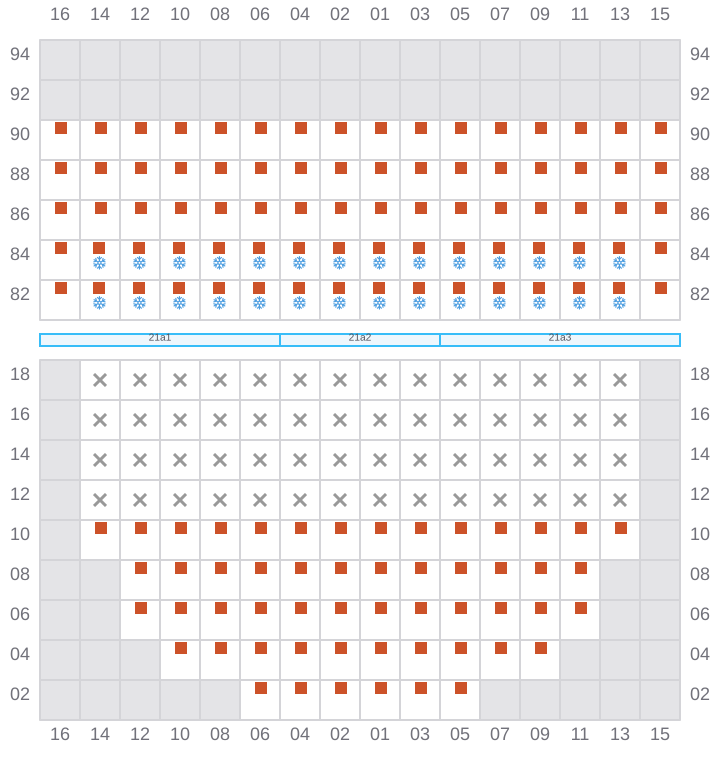

021
- →

023 (022)
- ←

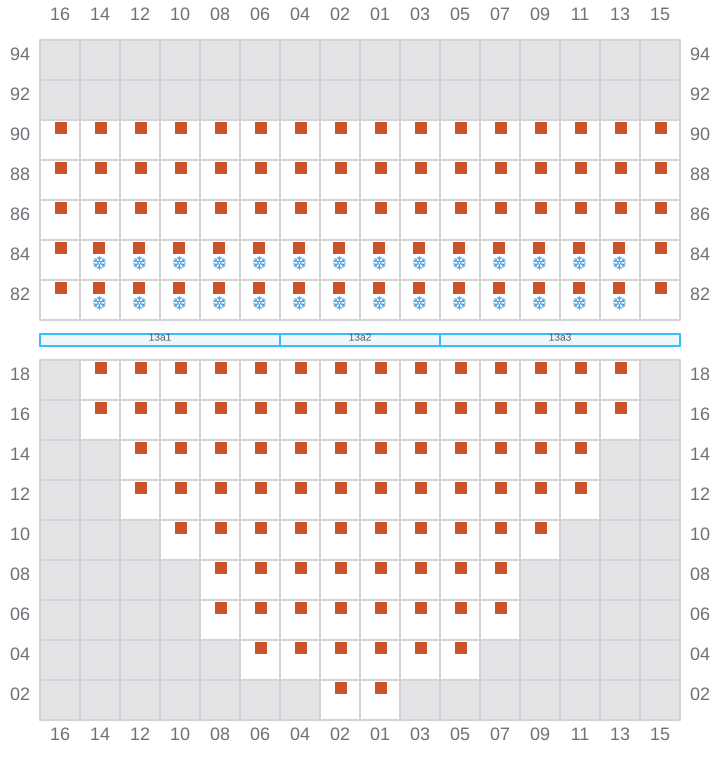

025
- →

027 (026)
- ←

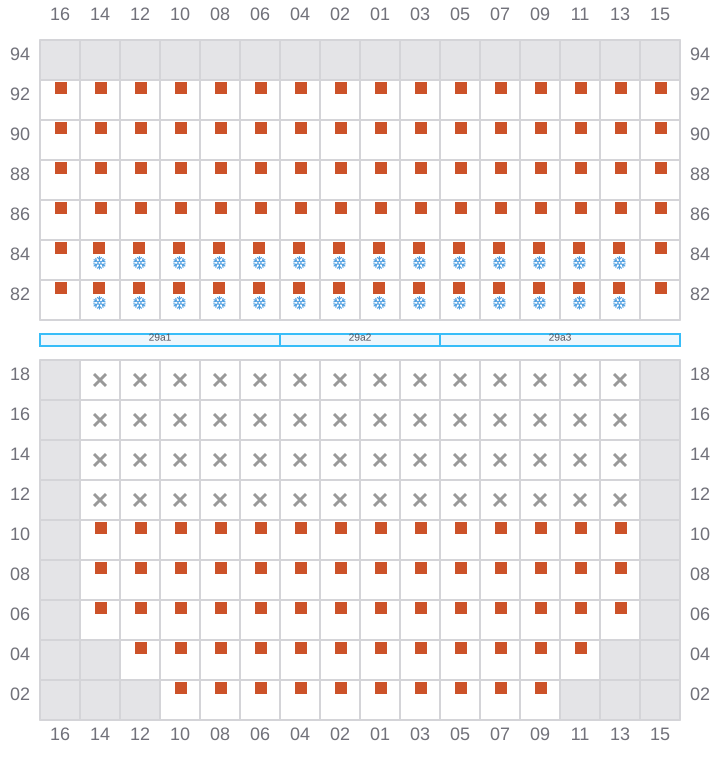

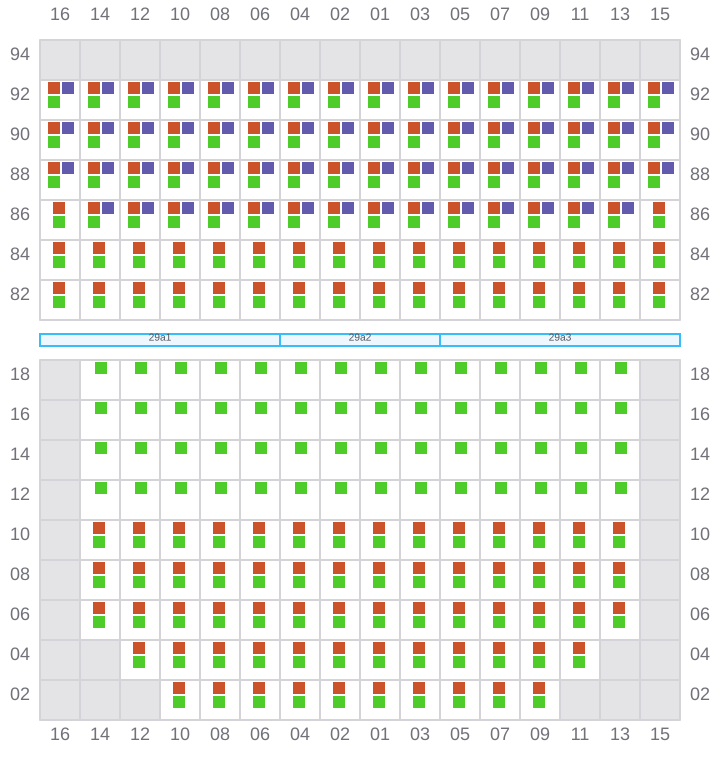

029
- →

031 (030)
- ←

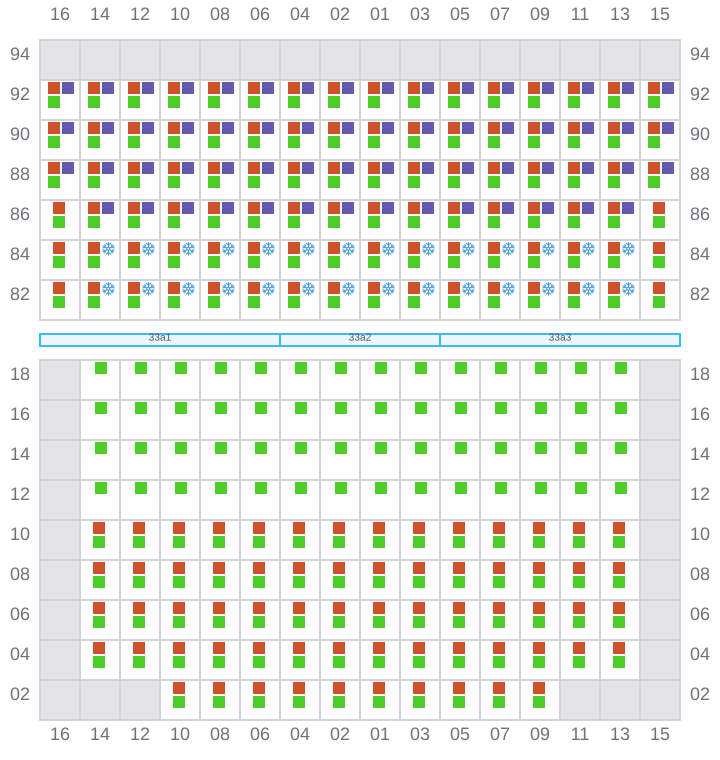

033
- →

035 (034)
- ←

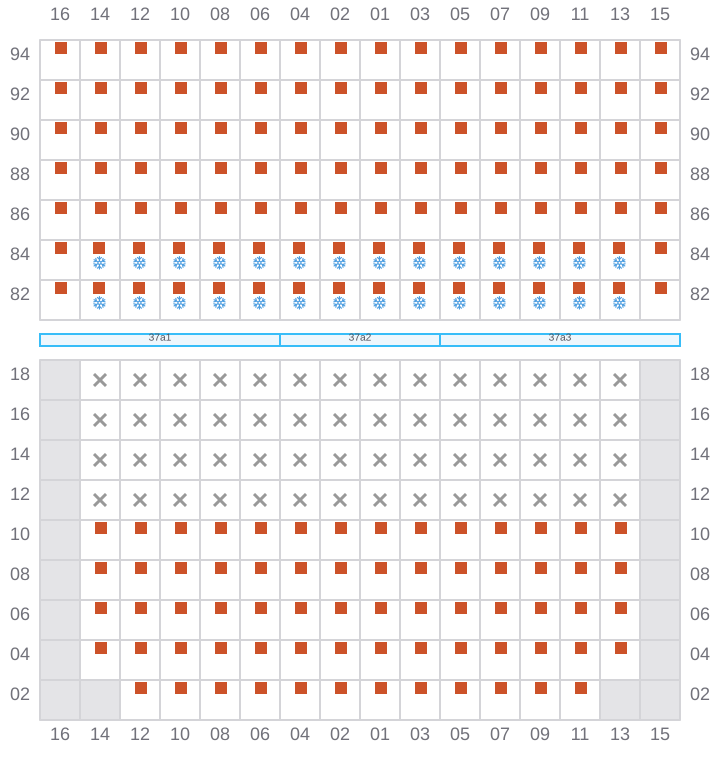

037
- →

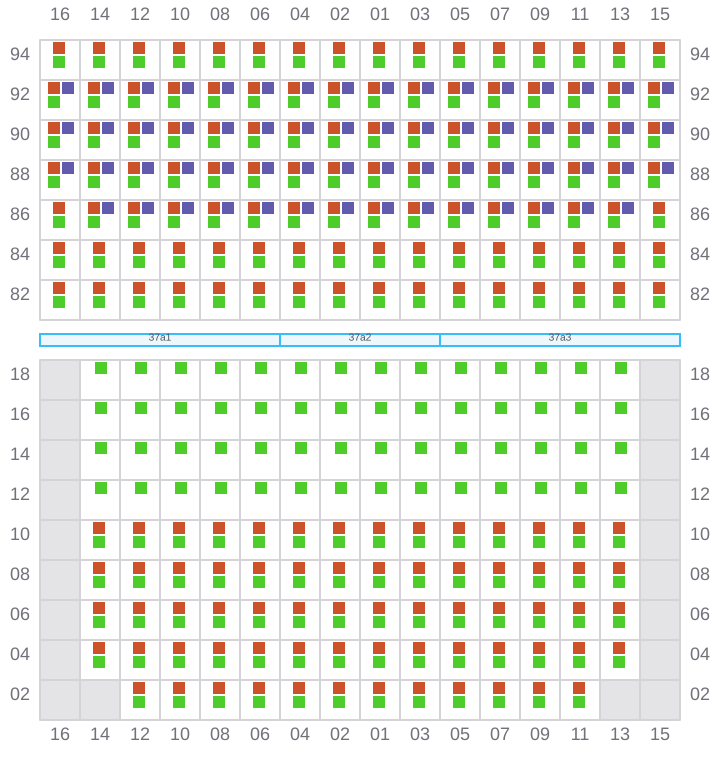

039 (038)
- ←

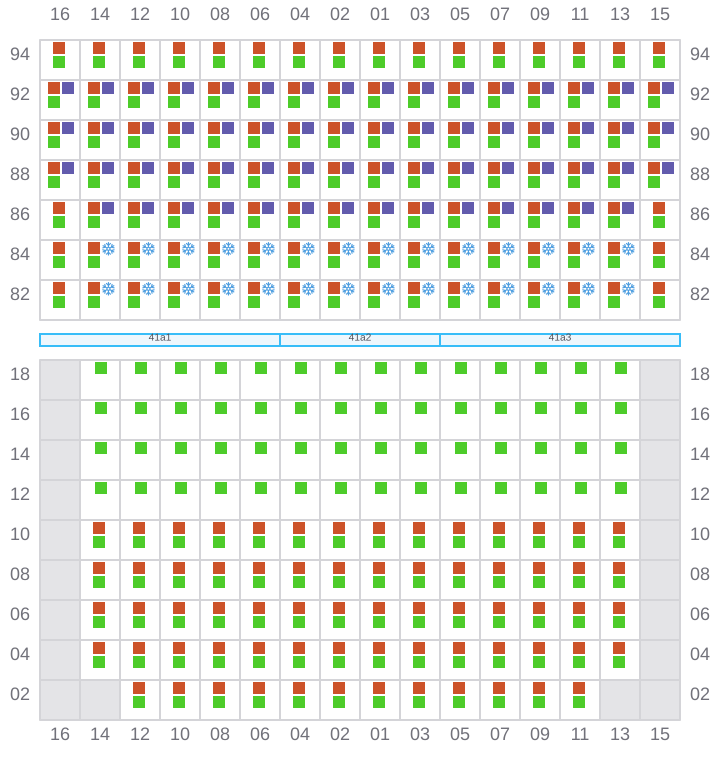

041
- →

043 (042)
- ←

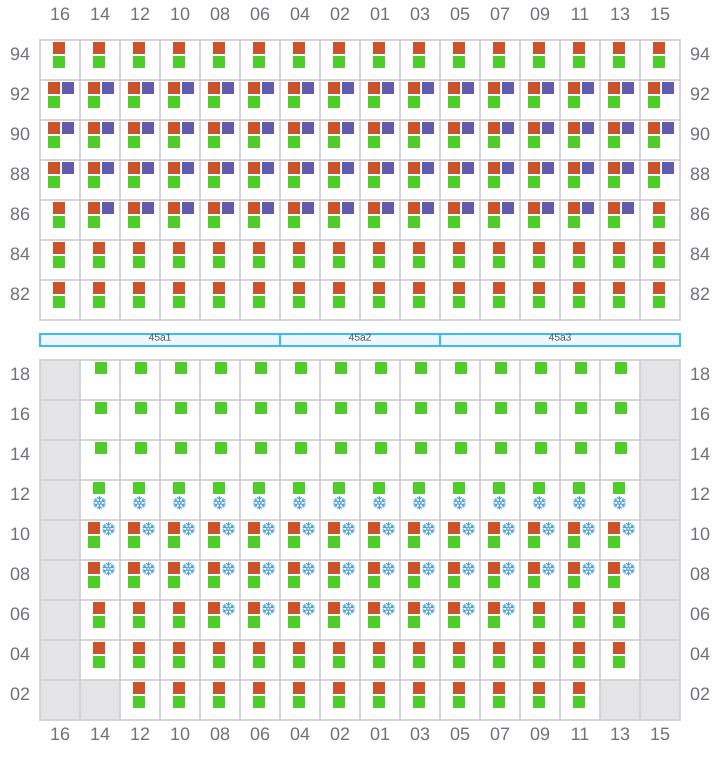

045
- →

047 (046)
- ←

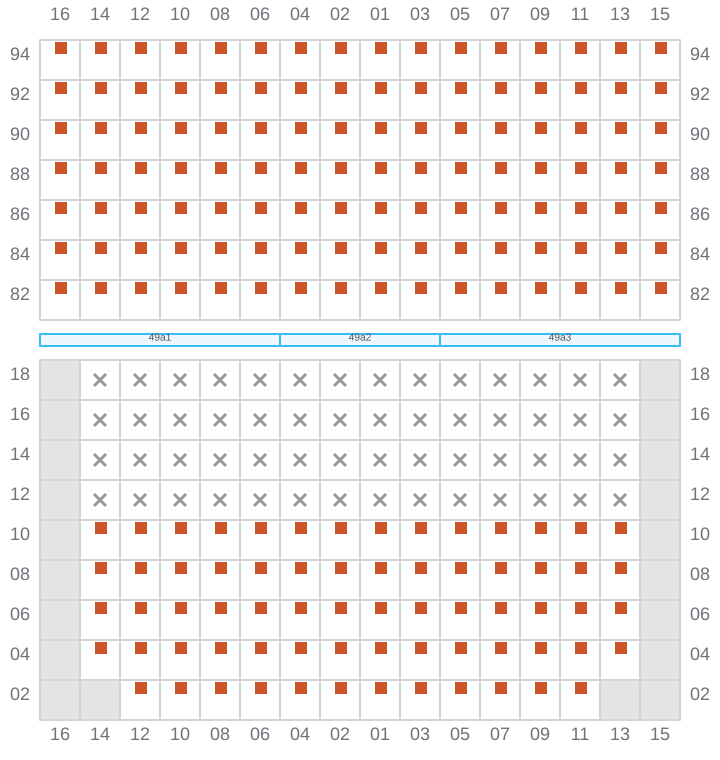

049
- →

051 (050)
- ←

053
- →

055 (054)
- ←

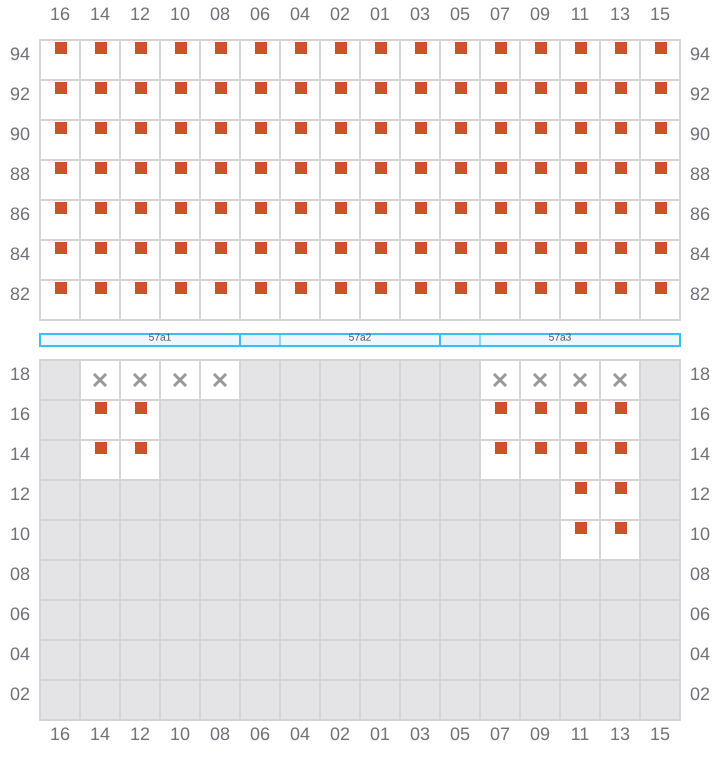

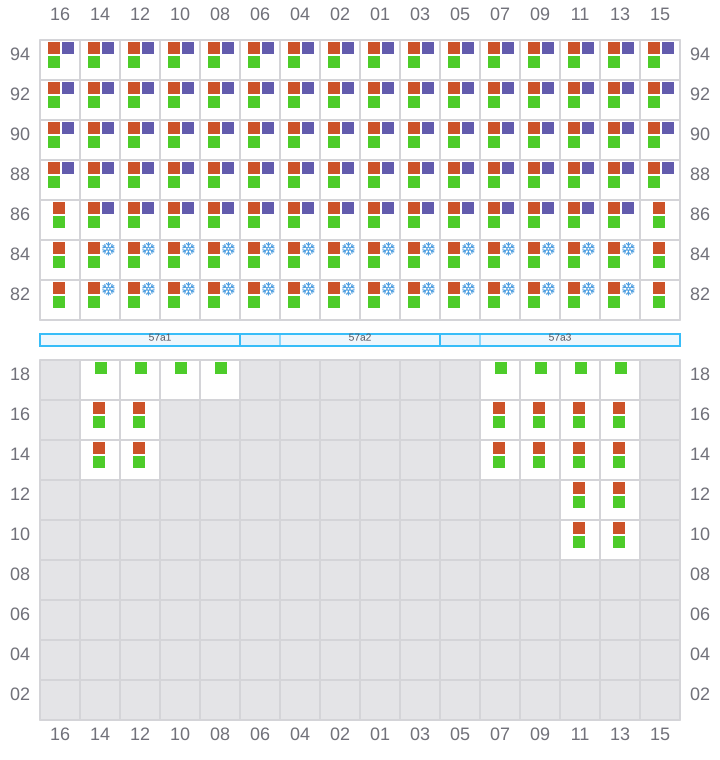

057
- →

059 (058)
- ←

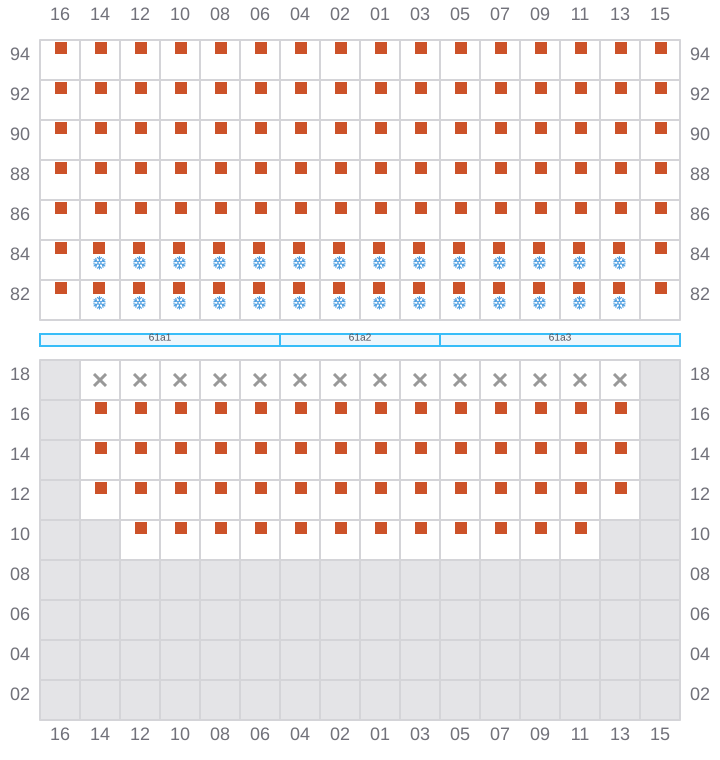

061
- →

063 (062)
- ←

065
- →

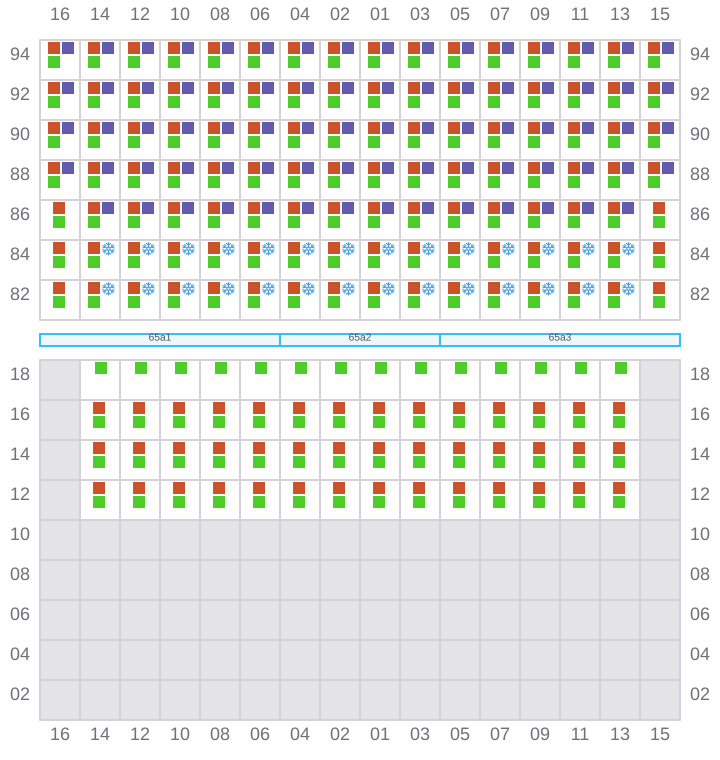

067 (066)
- ←

069

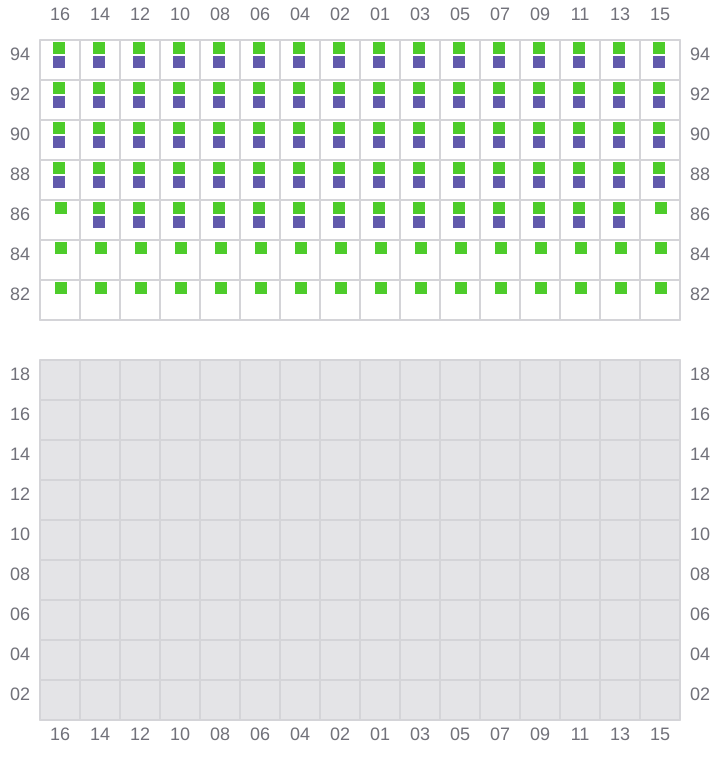

071 (070)
- ← / ?
