MSC PILAR VI
9248148 | 5LLT8 | 9248148 by ********* Last update: Wed May 08 2024

General Info

Ship Name:MSC PILAR VI
IMO Code:9248148
Call Sign:5LLT8
Line Operator:9248148
Class Name for Sister Ships:HANJIN LISBON
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,766

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

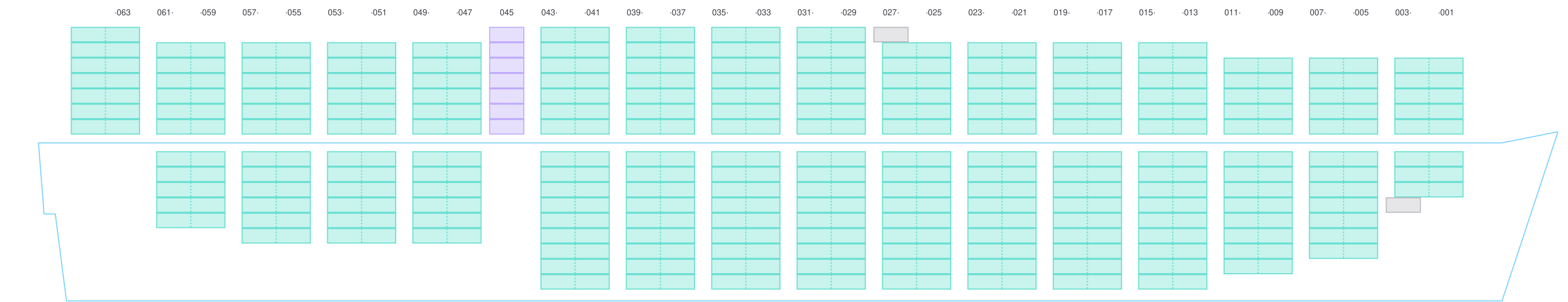

Side view of MSC PILAR VI

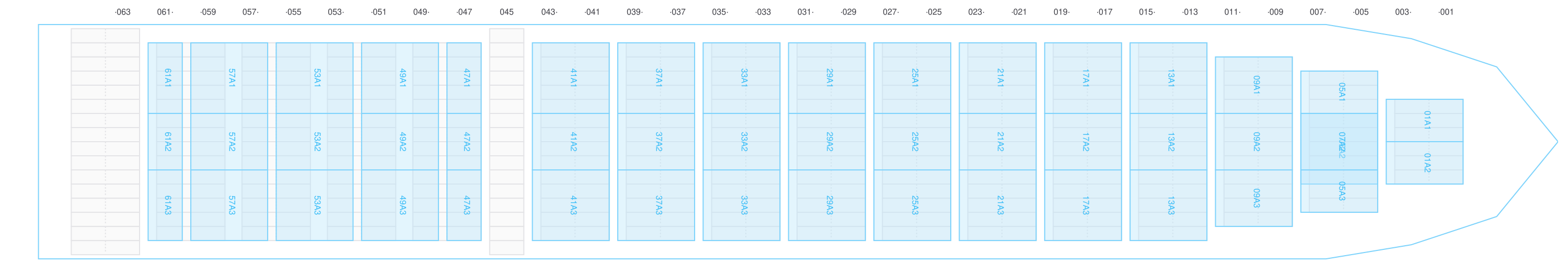

Hatch-Covers View

Deck view of MSC PILAR VI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

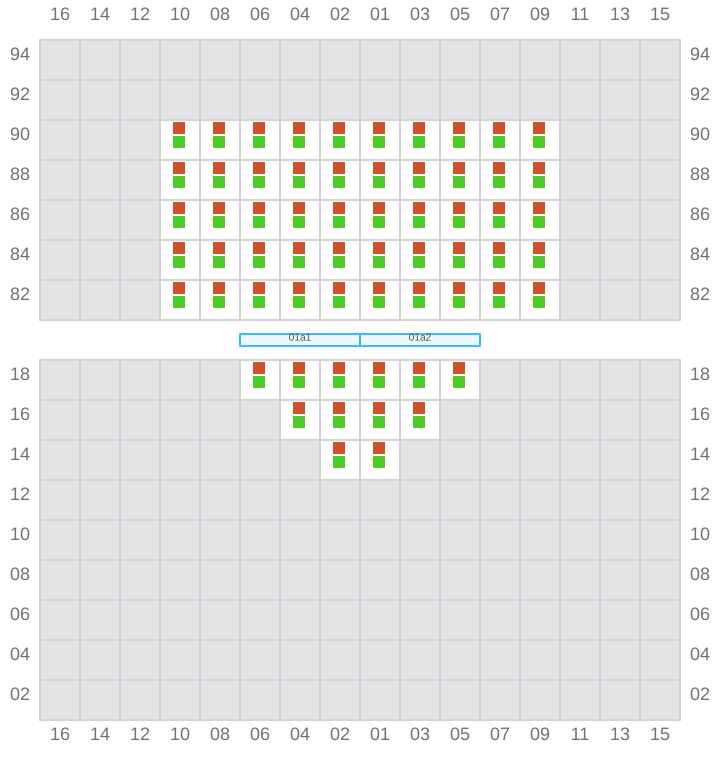

Bay 001 view and slots of MSC PILAR VI

003

  • ←

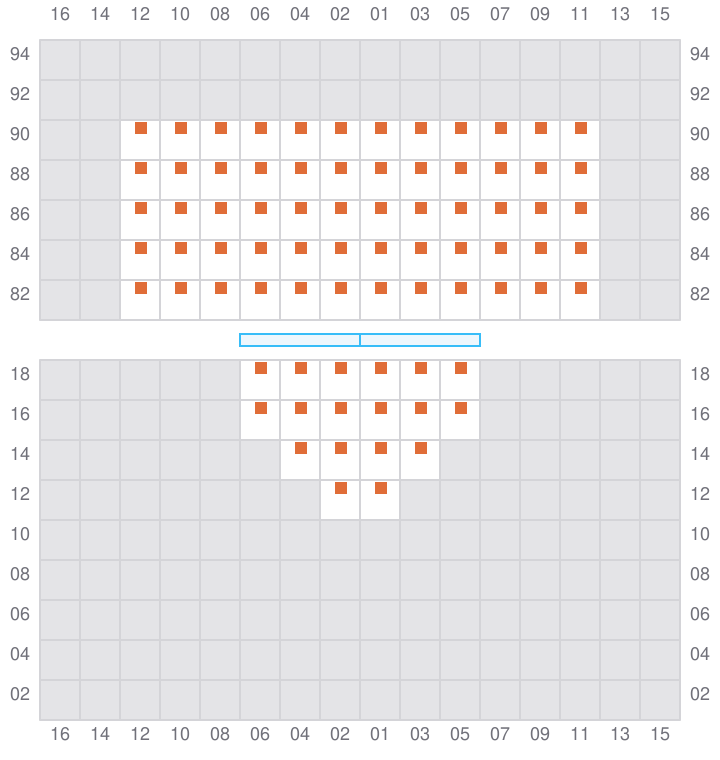

Bay 003 view and slots of MSC PILAR VI

005 (006)

  • →

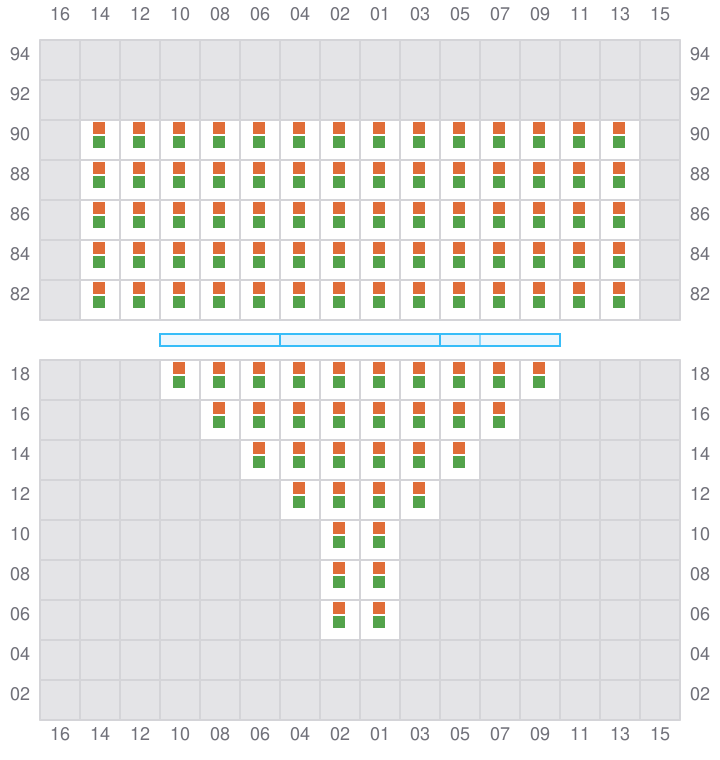

Bay 005 view and slots of MSC PILAR VI

007

  • ←
Bay 007 view and slots of MSC PILAR VI

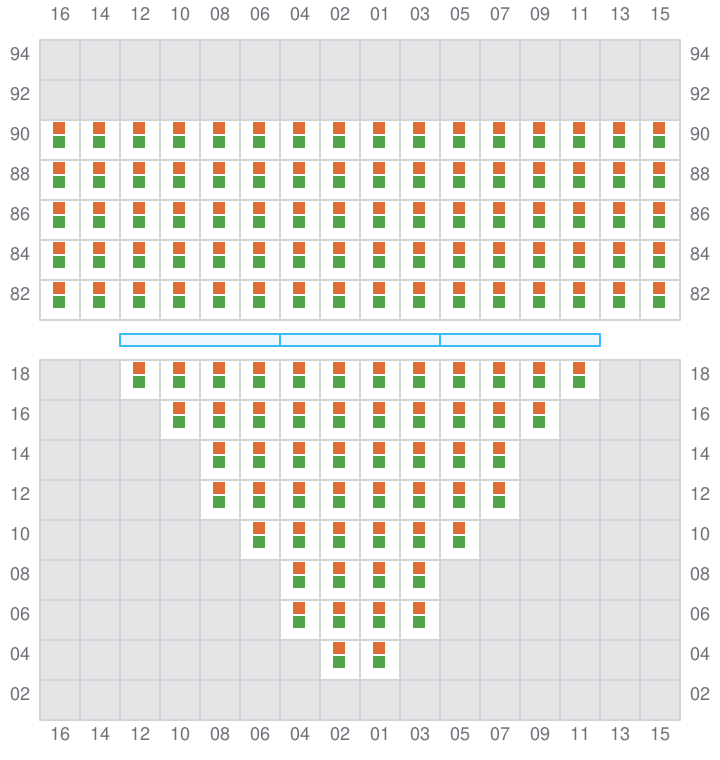

009 (010)

  • →

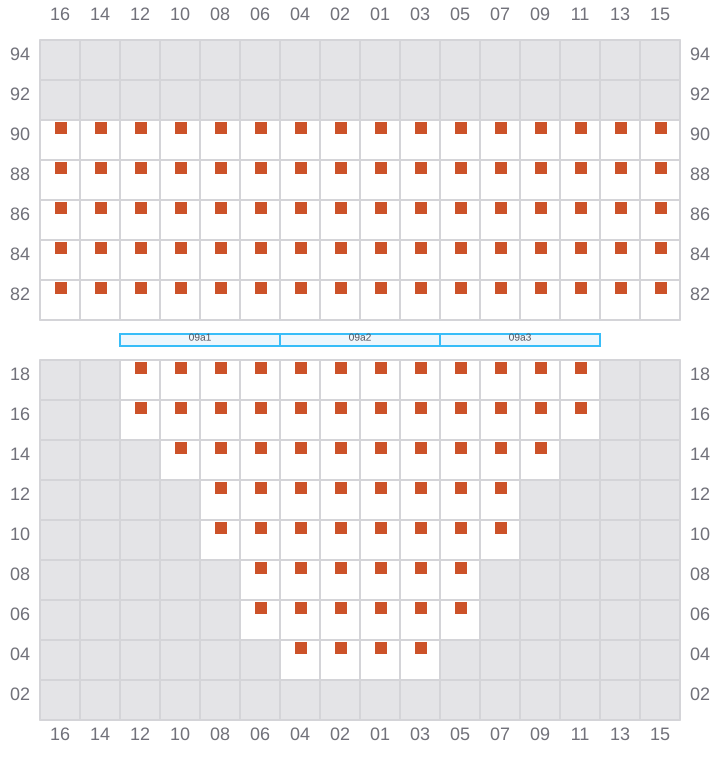

Bay 009 view and slots of MSC PILAR VI

011

  • ←
Bay 011 view and slots of MSC PILAR VI

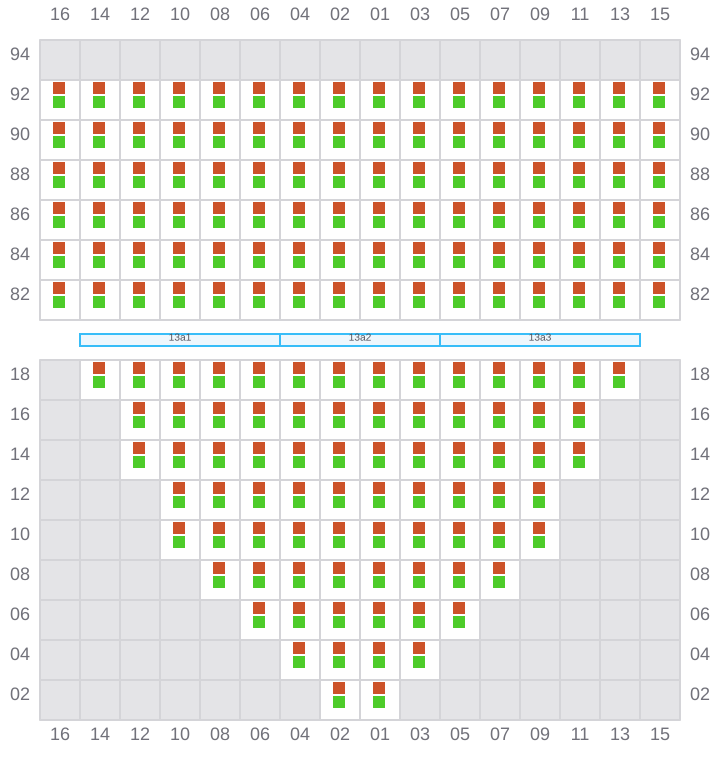

013 (014)

  • →
Bay 013 view and slots of MSC PILAR VI

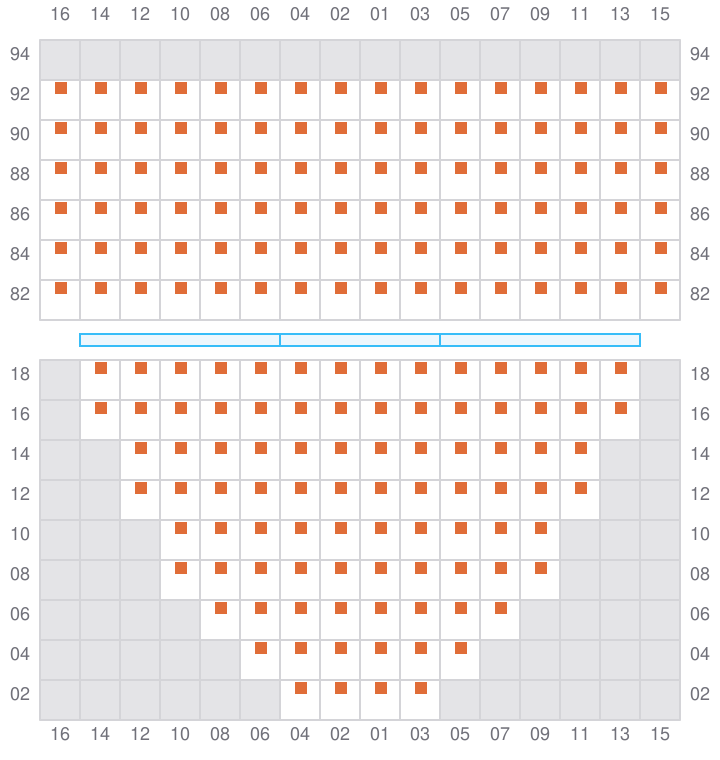

015

  • ←
Bay 015 view and slots of MSC PILAR VI

017 (018)

  • →

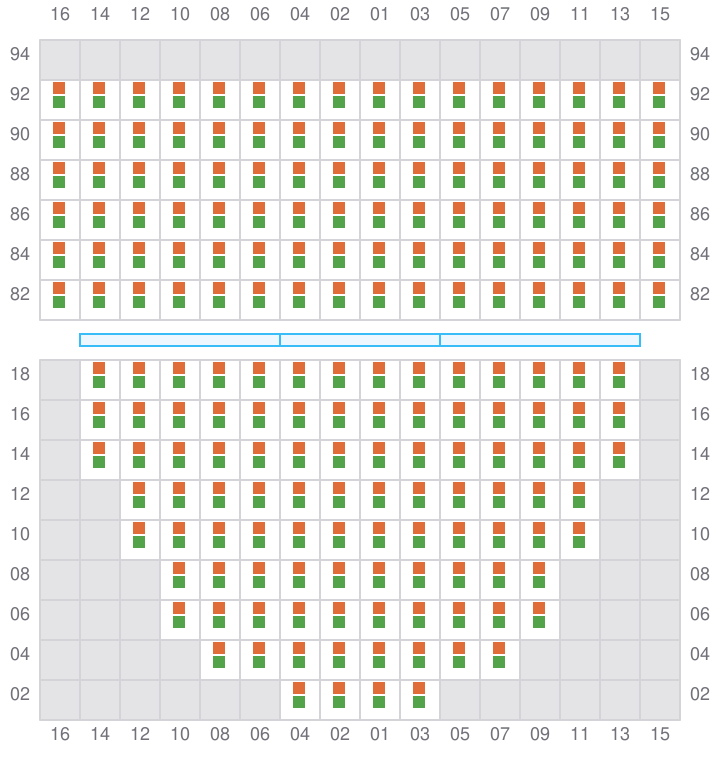

Bay 017 view and slots of MSC PILAR VI

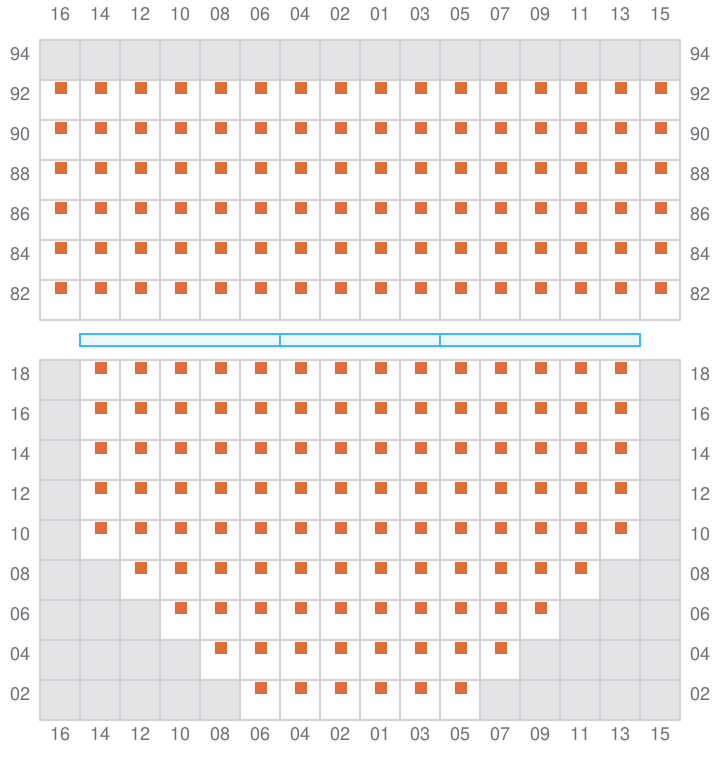

019

  • ←
Bay 019 view and slots of MSC PILAR VI

021 (022)

  • →

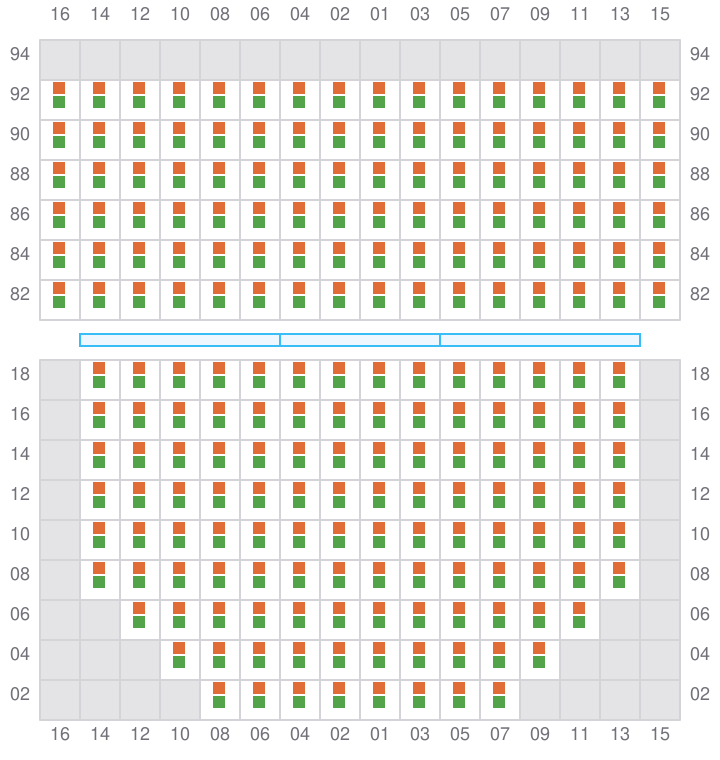

Bay 021 view and slots of MSC PILAR VI

023

  • ←

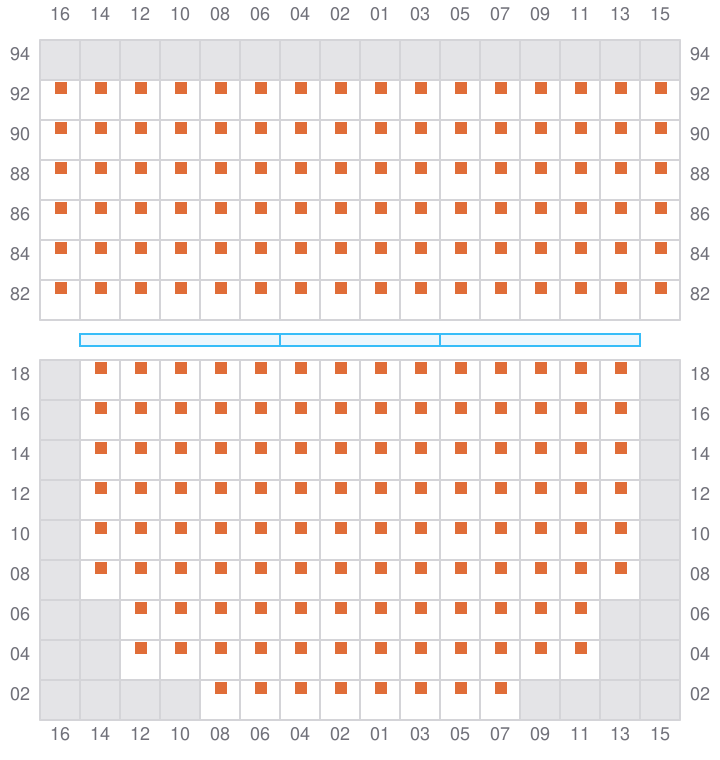

Bay 023 view and slots of MSC PILAR VI

025 (026)

  • →

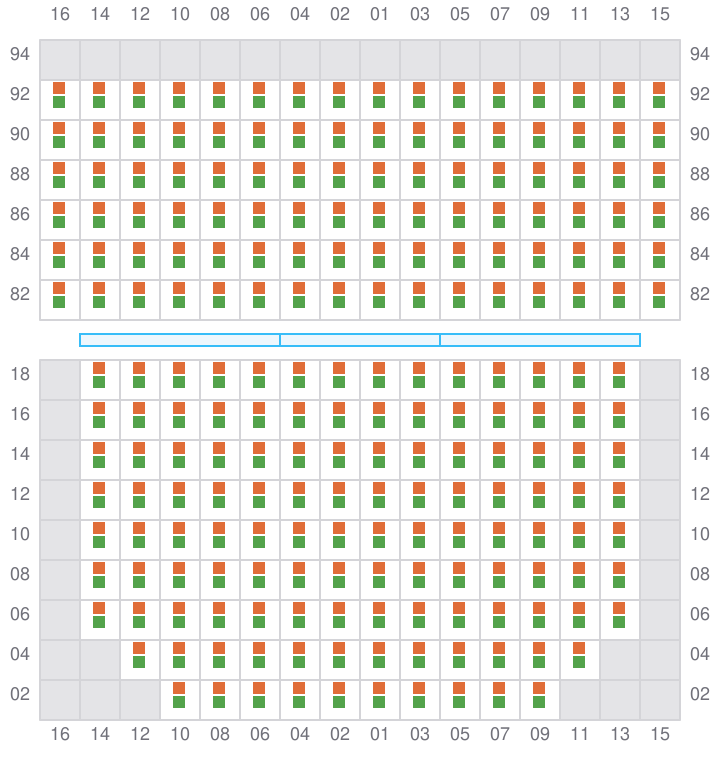

Bay 025 view and slots of MSC PILAR VI

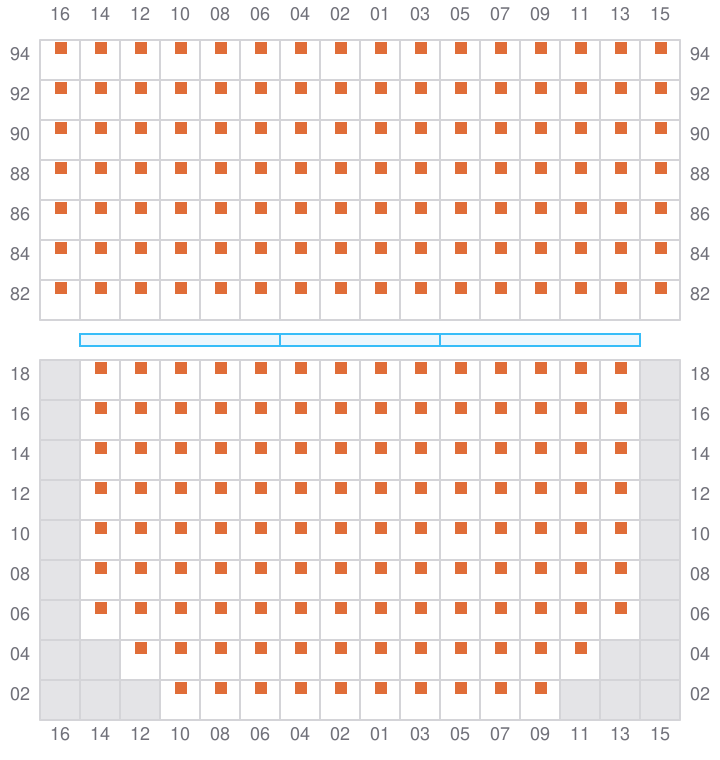

027

  • ←
Bay 027 view and slots of MSC PILAR VI

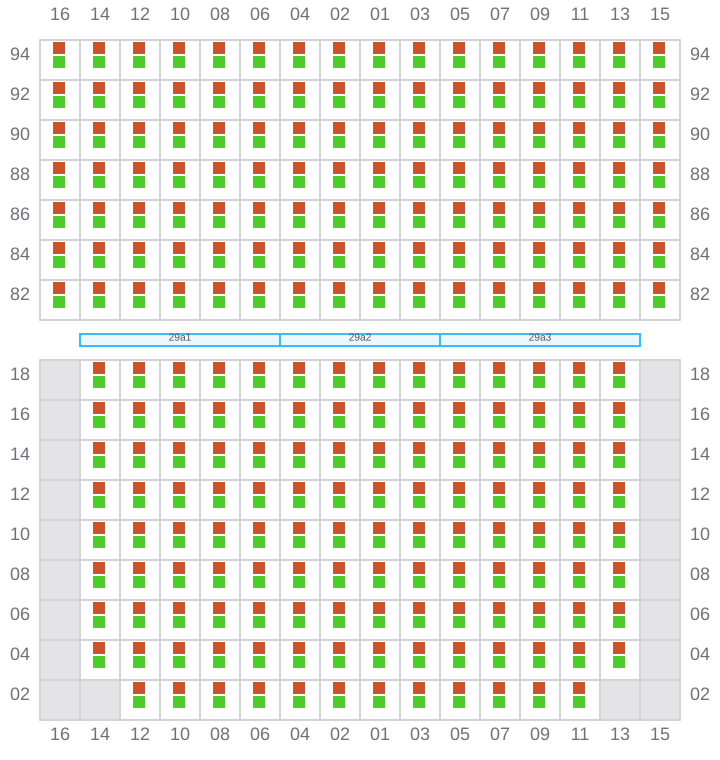

029 (030)

  • →

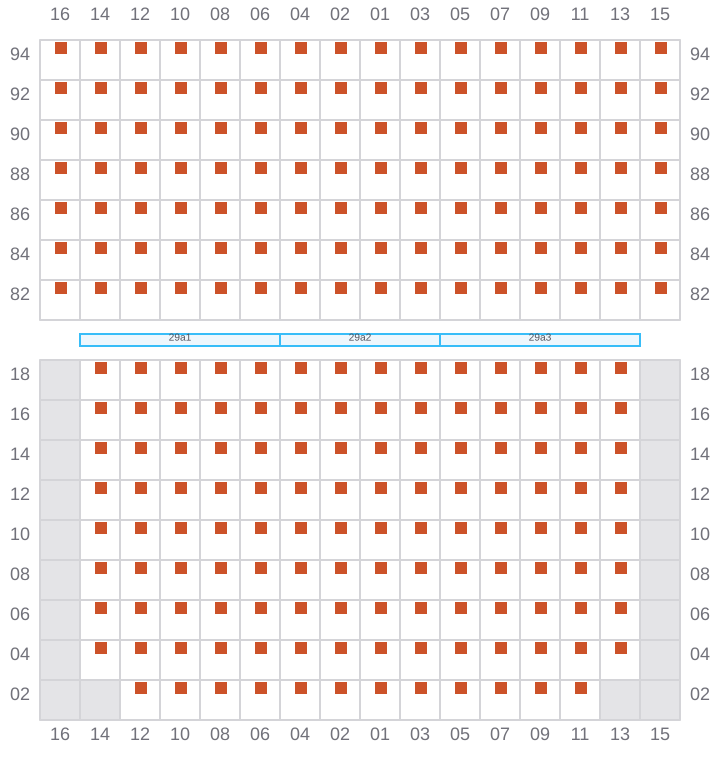

Bay 029 view and slots of MSC PILAR VI

031

  • ←
Bay 031 view and slots of MSC PILAR VI

033 (034)

  • →

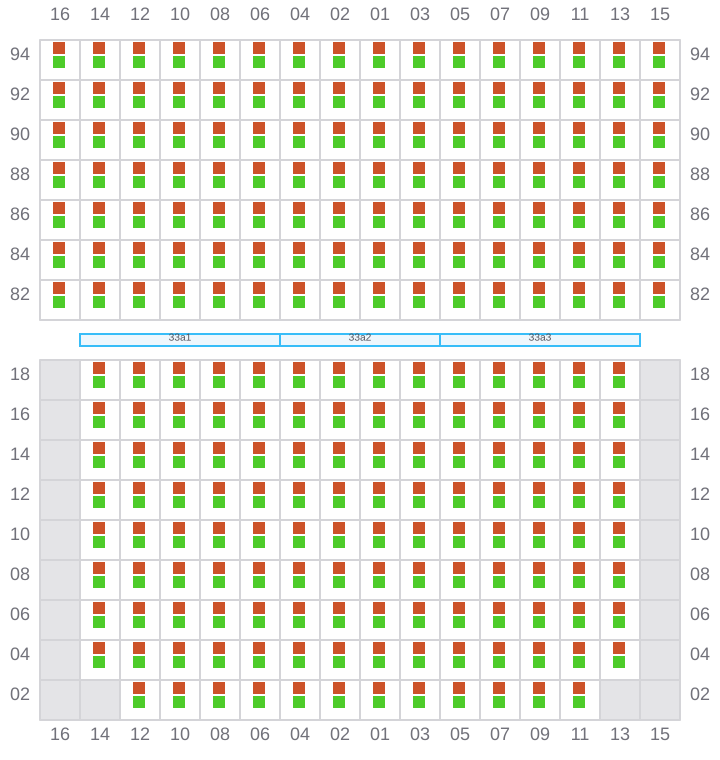

Bay 033 view and slots of MSC PILAR VI

035

  • ←
Bay 035 view and slots of MSC PILAR VI

037 (038)

  • →
Bay 037 view and slots of MSC PILAR VI

039

  • ←

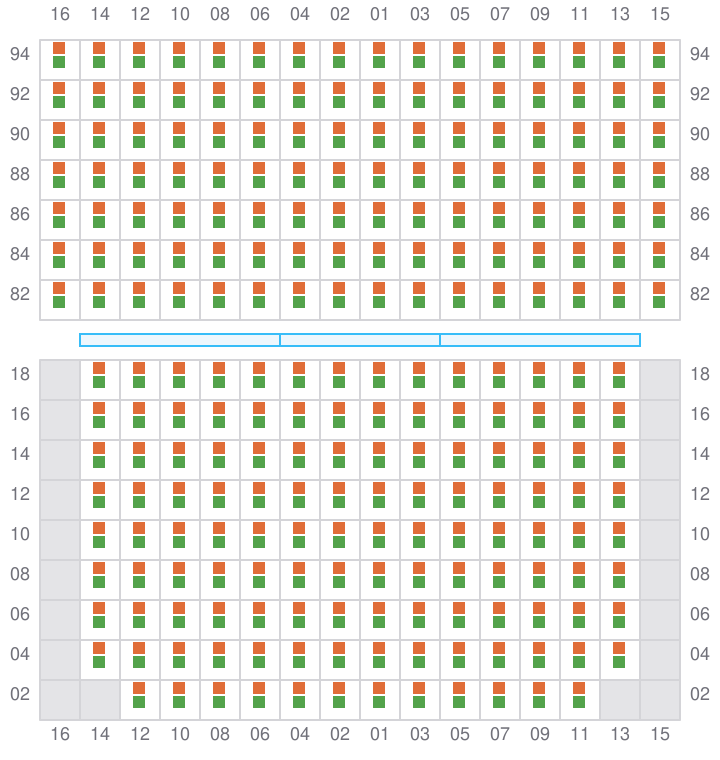

Bay 039 view and slots of MSC PILAR VI

041 (042)

  • →

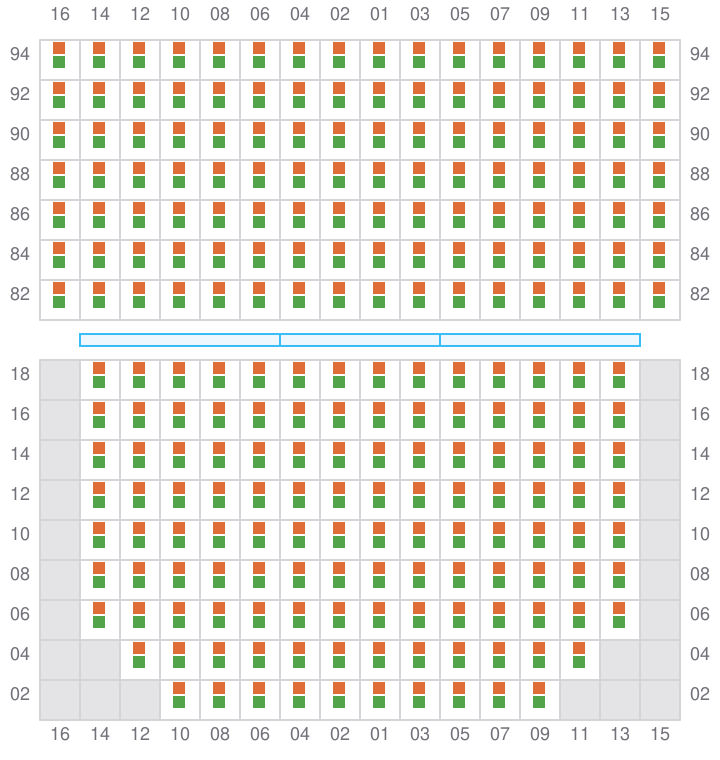

Bay 041 view and slots of MSC PILAR VI

043

  • ←

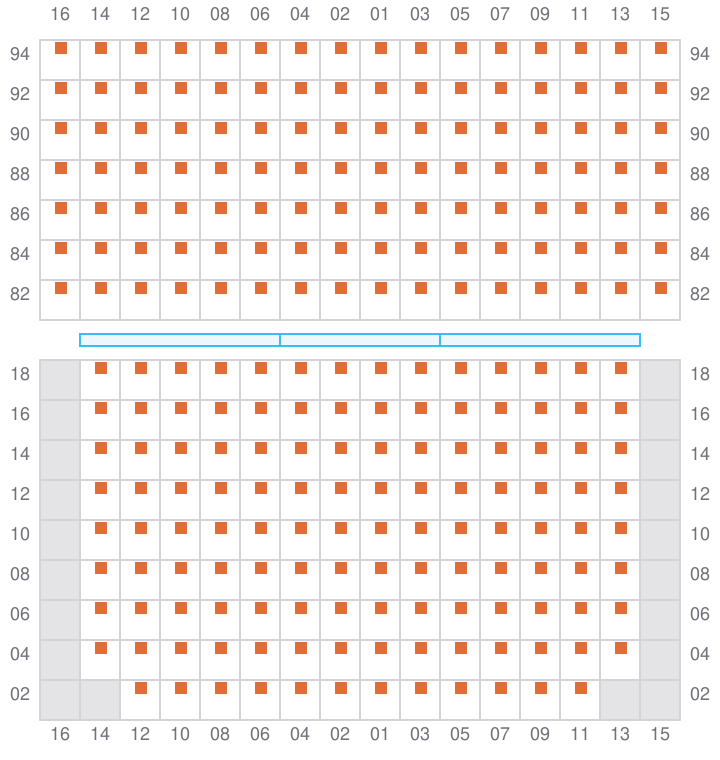

Bay 043 view and slots of MSC PILAR VI

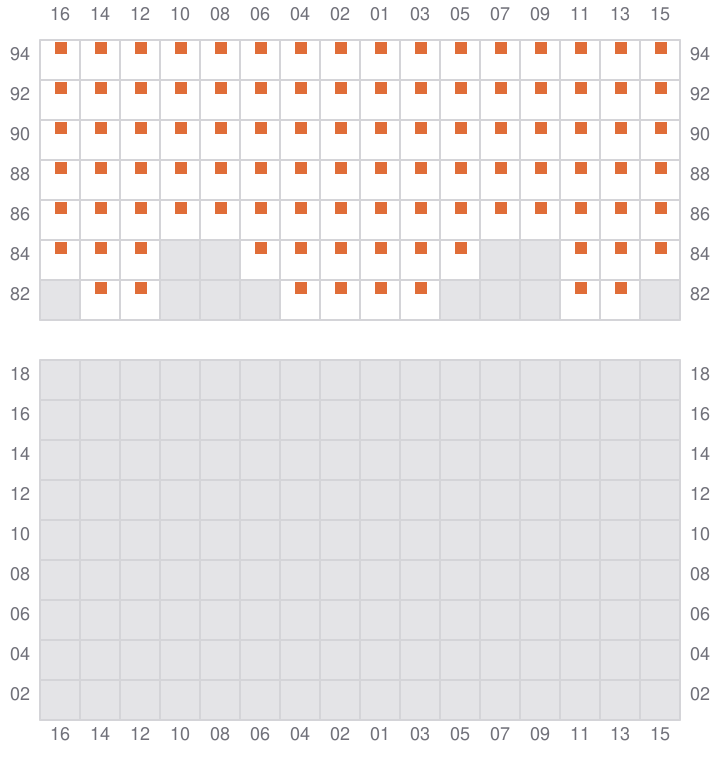

045

Bay 045 view and slots of MSC PILAR VI

047 (048)

  • →

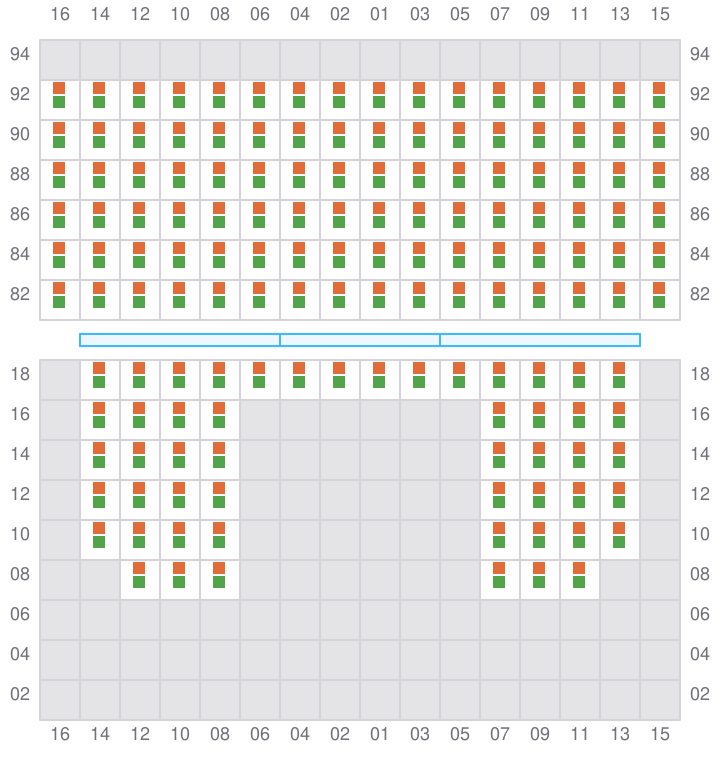

Bay 047 view and slots of MSC PILAR VI

049

  • ←

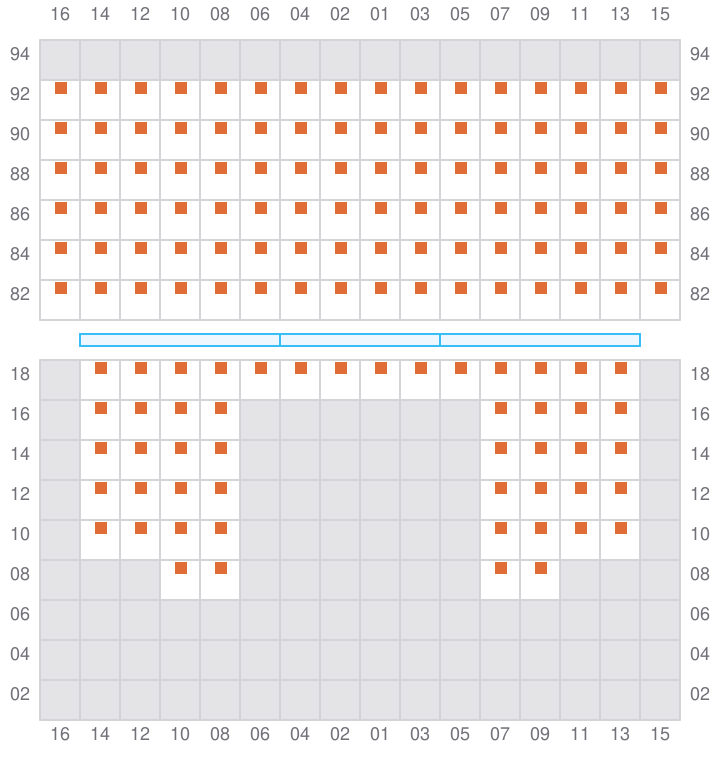

Bay 049 view and slots of MSC PILAR VI

051 (052)

  • →

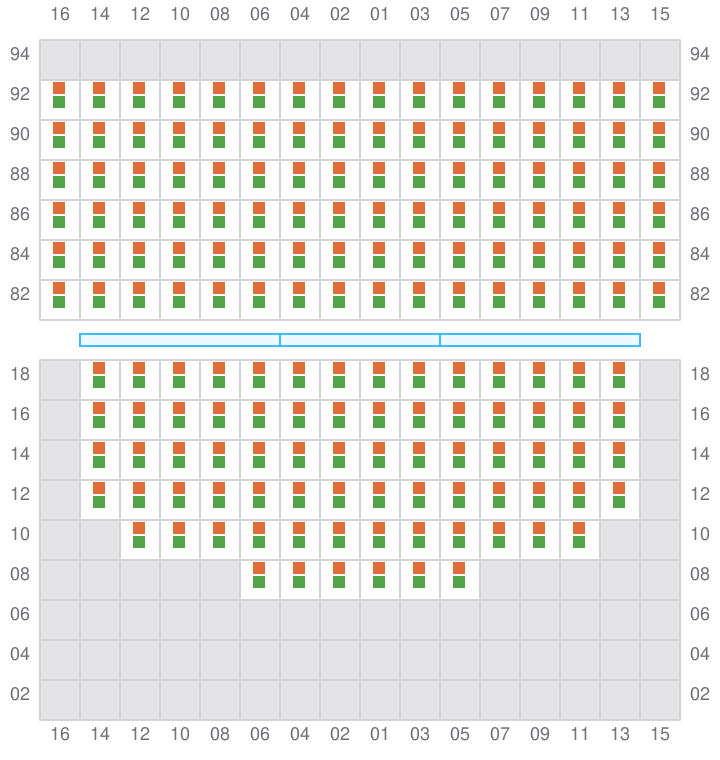

Bay 051 view and slots of MSC PILAR VI

053

  • ←
Bay 053 view and slots of MSC PILAR VI

055 (056)

  • →

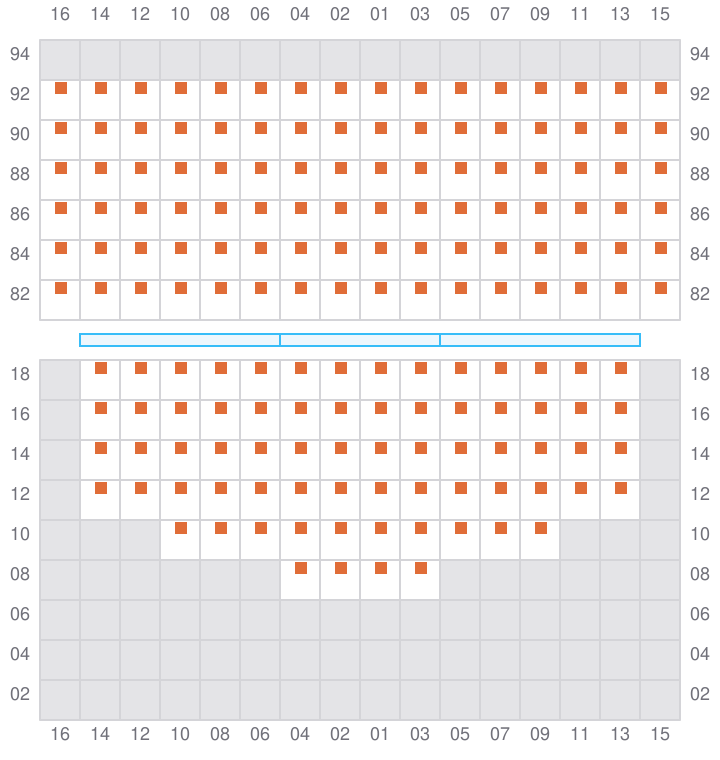

Bay 055 view and slots of MSC PILAR VI

057

  • ←
Bay 057 view and slots of MSC PILAR VI

059 (060)

  • →

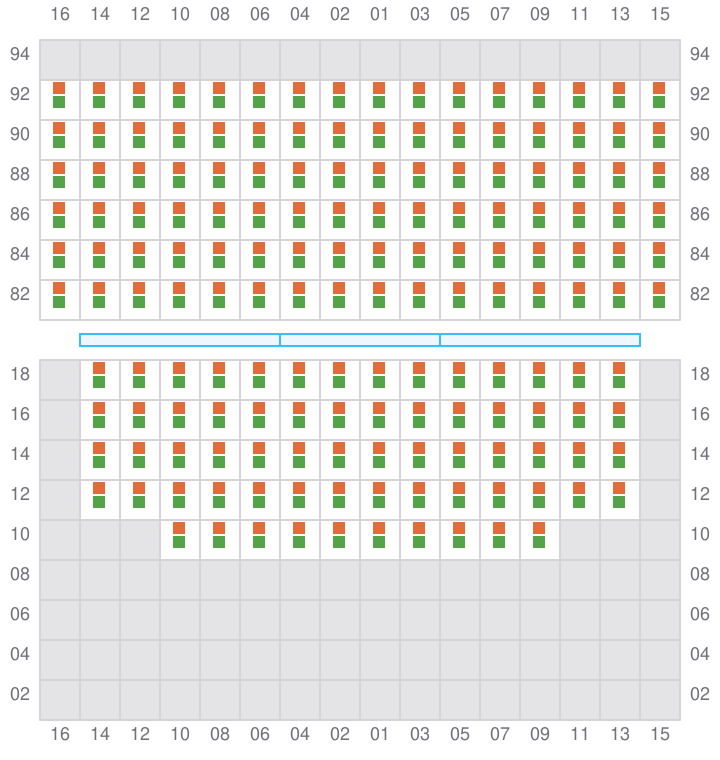

Bay 059 view and slots of MSC PILAR VI

061

  • ←

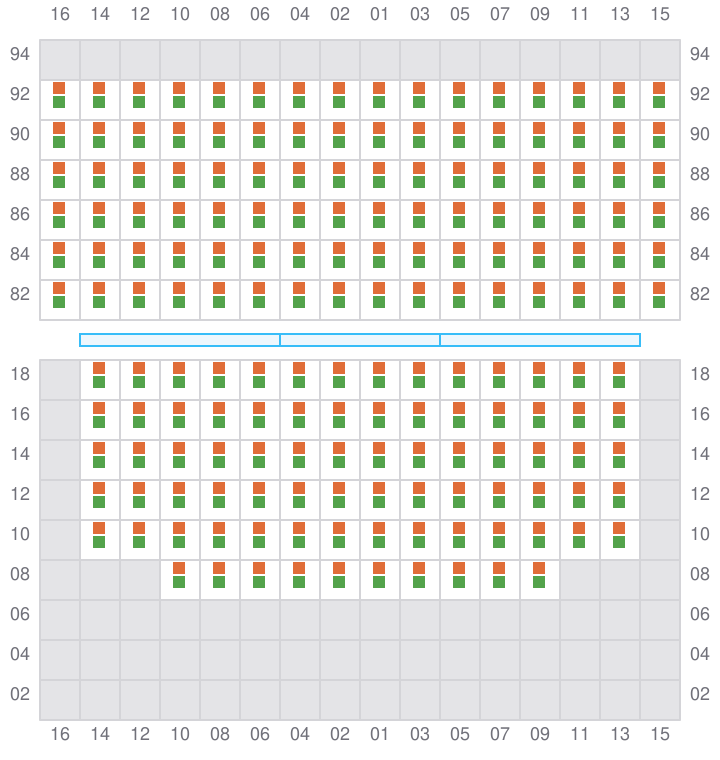

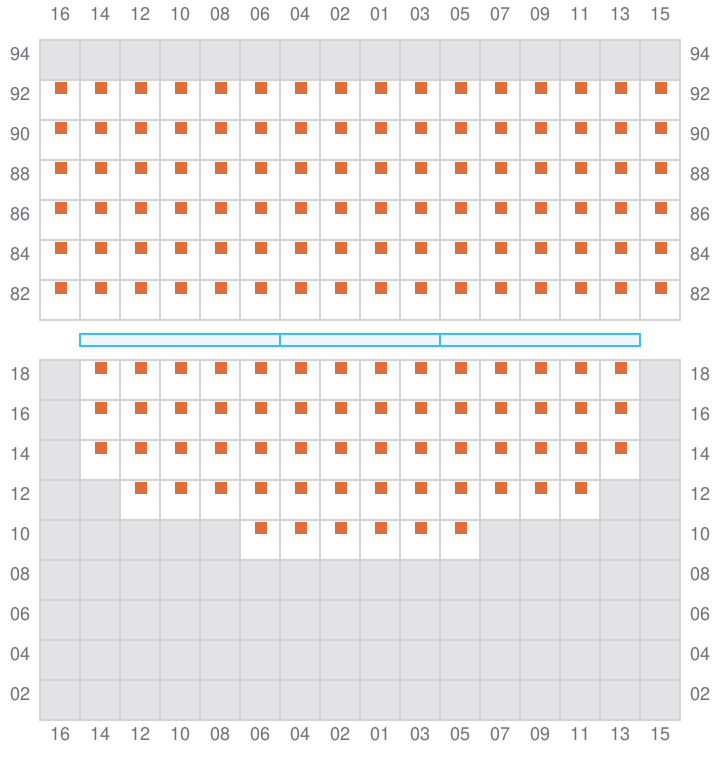

Bay 061 view and slots of MSC PILAR VI

063 (064)

  • → / ?
Bay 063 view and slots of MSC PILAR VI
