MSC POLARIS
9074042 | D5EF8 | 9074042 by ********* Last update: Fri May 17 2024
General Info
Ship Name:MSC POLARIS
IMO Code:9074042
Call Sign:D5EF8
Line Operator:9074042
Class Name for Sister Ships:MSC MESSINA
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):299.95
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,826
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

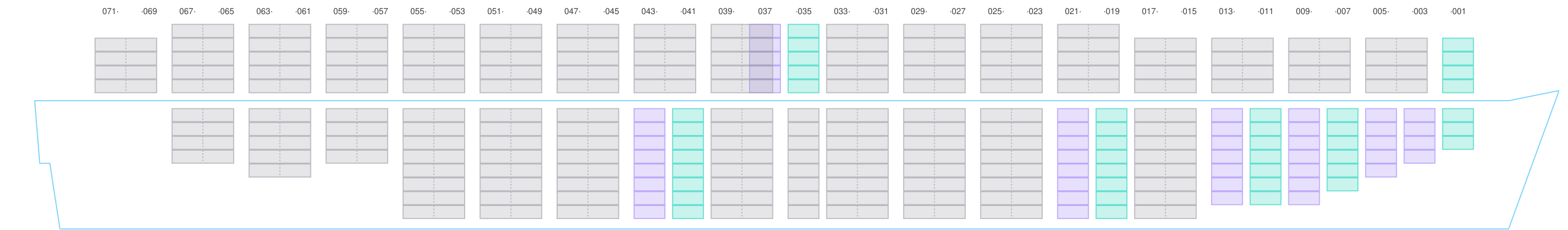

Side View
Hatch-Covers View

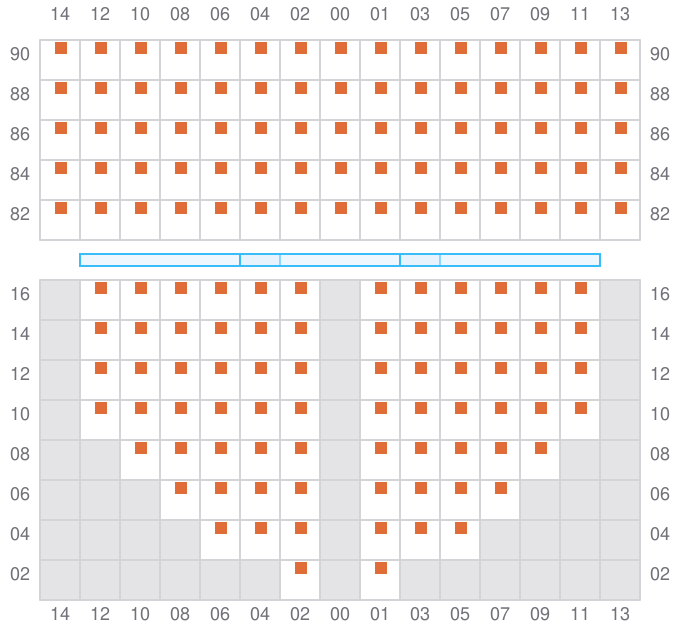

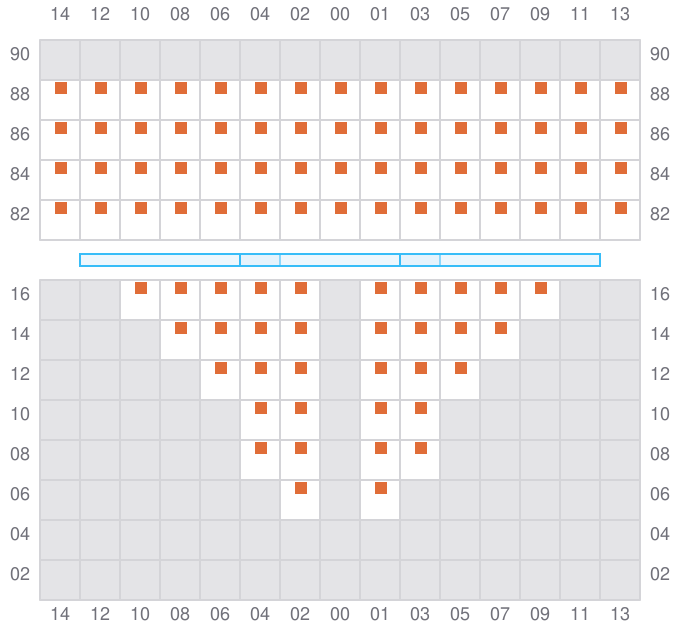

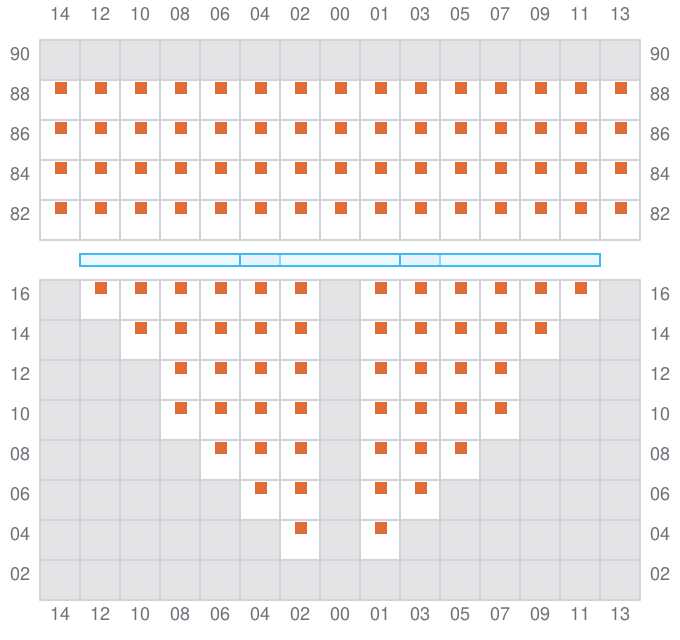

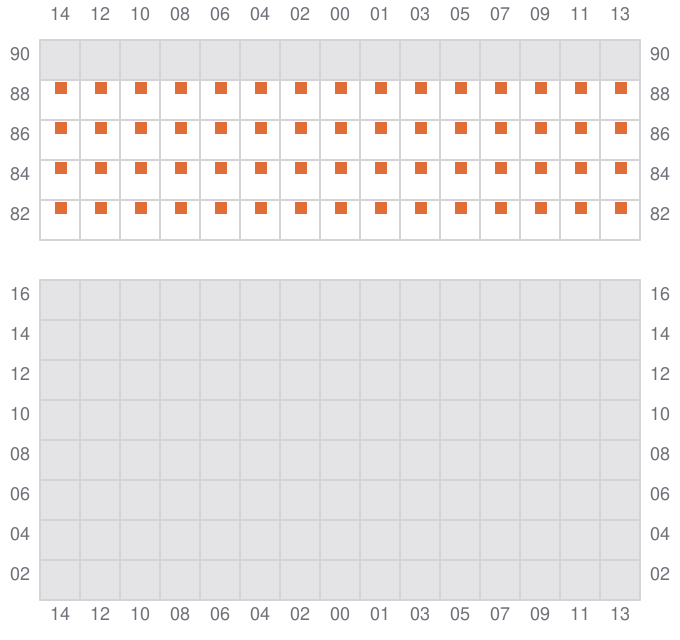

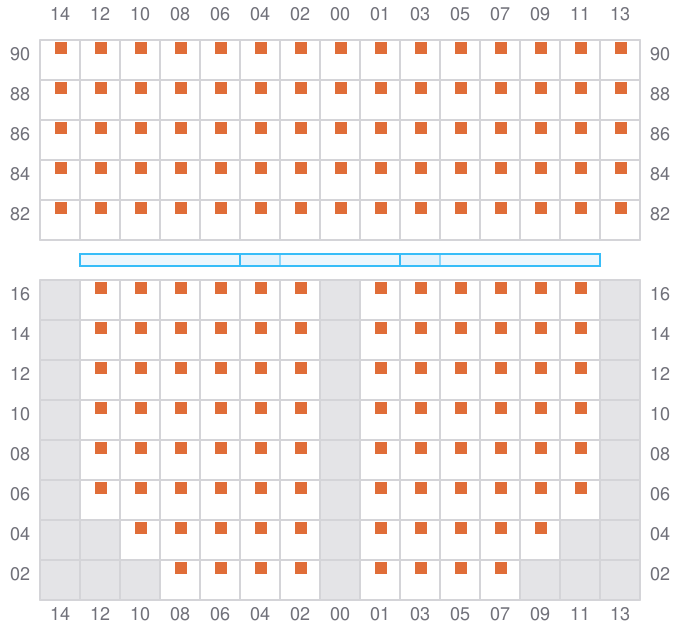

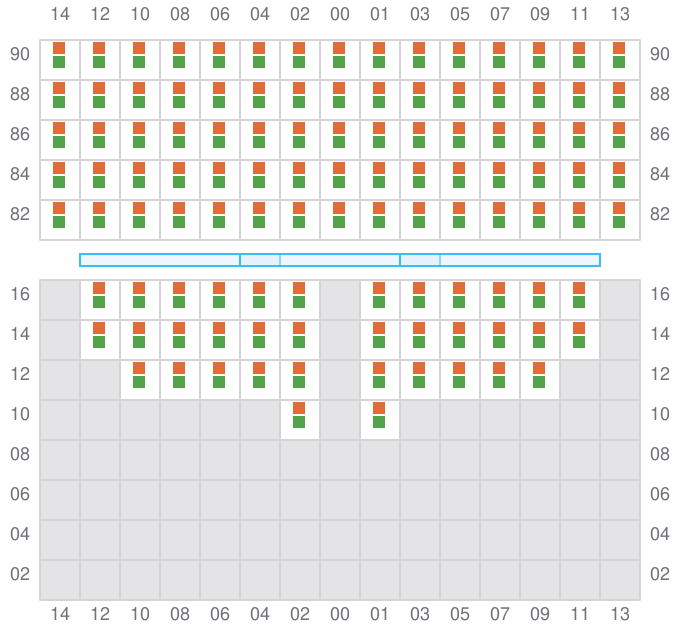

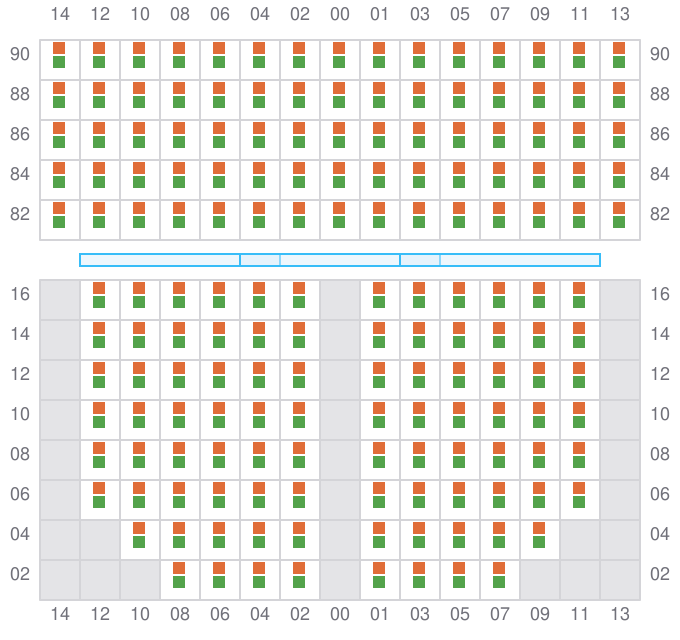

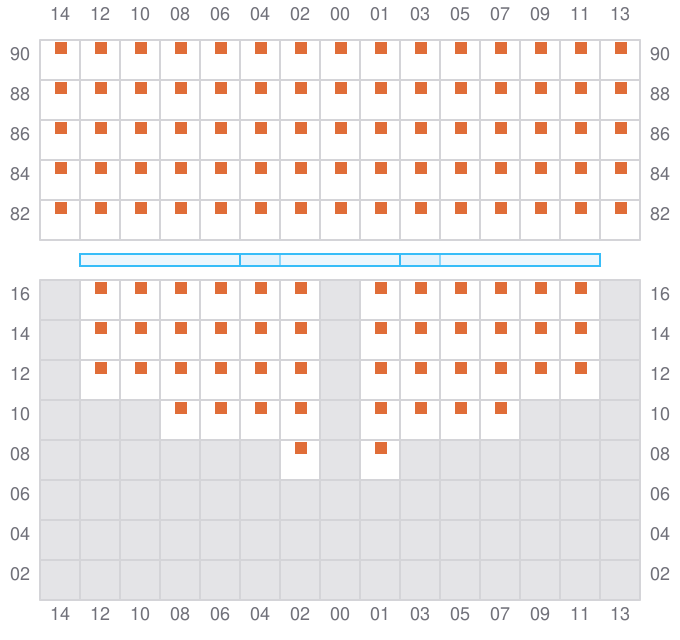

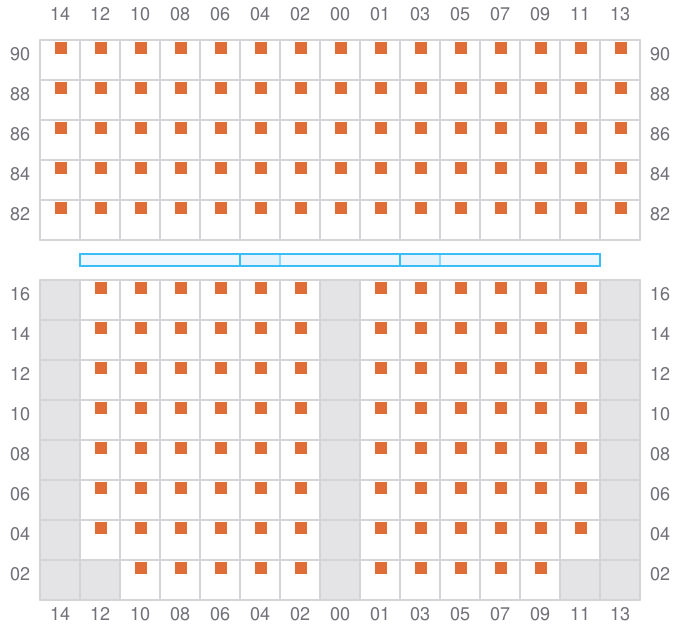

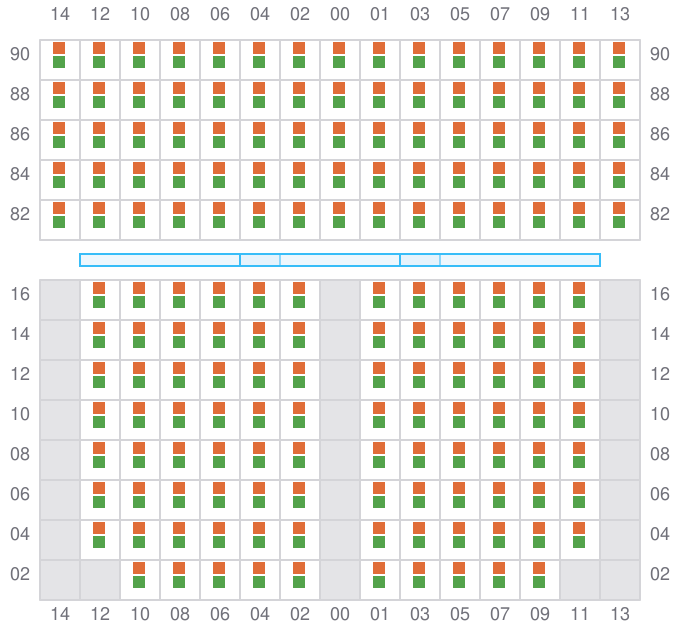

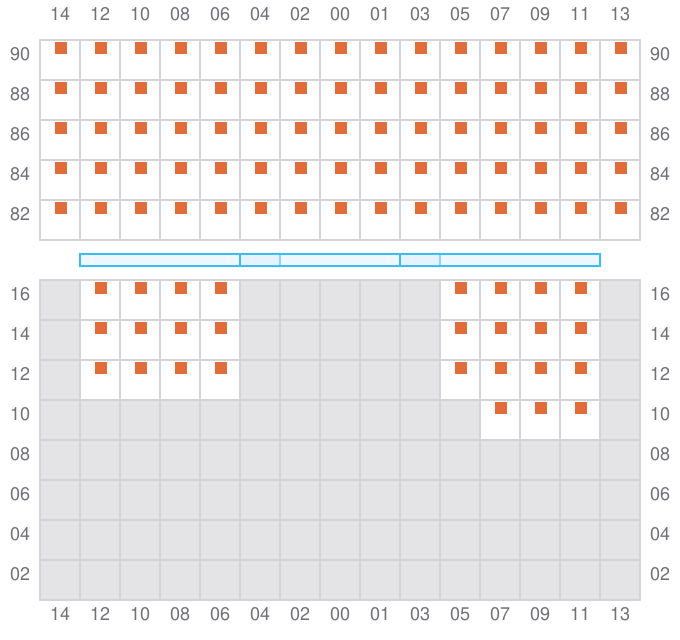

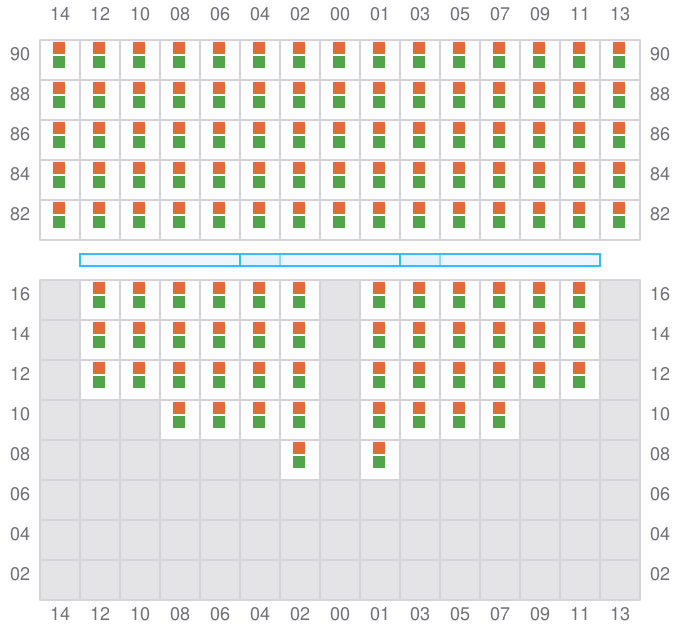

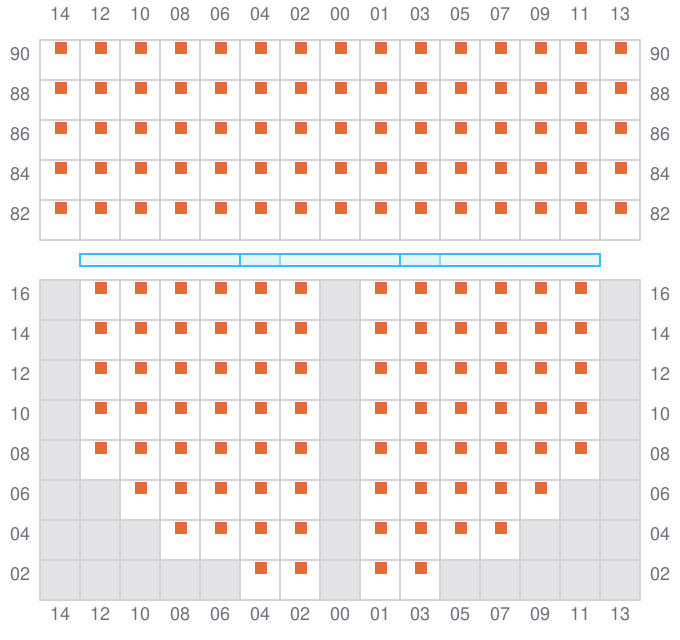

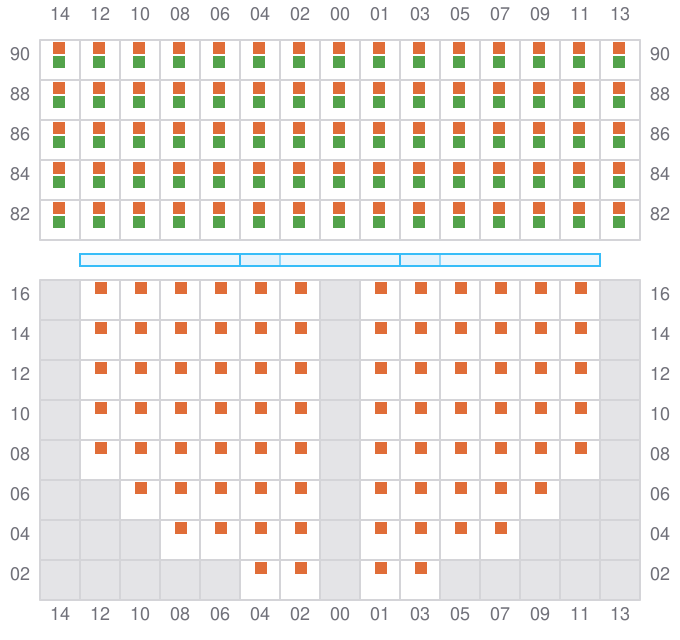

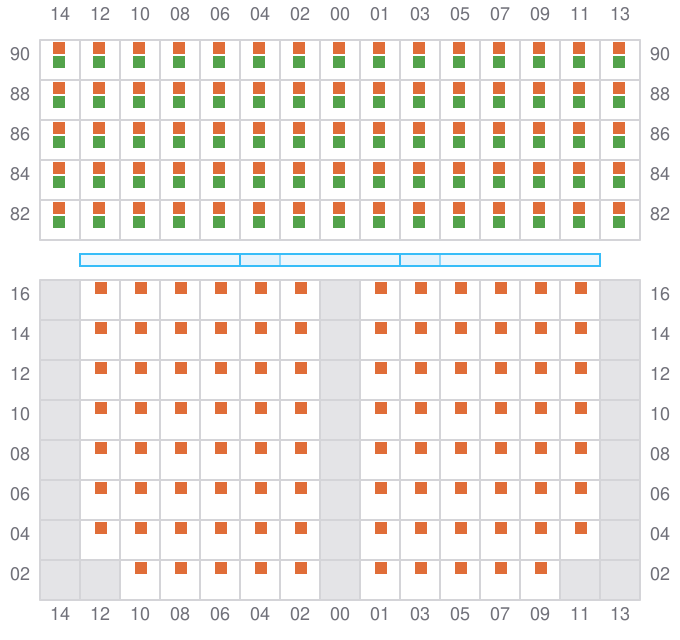

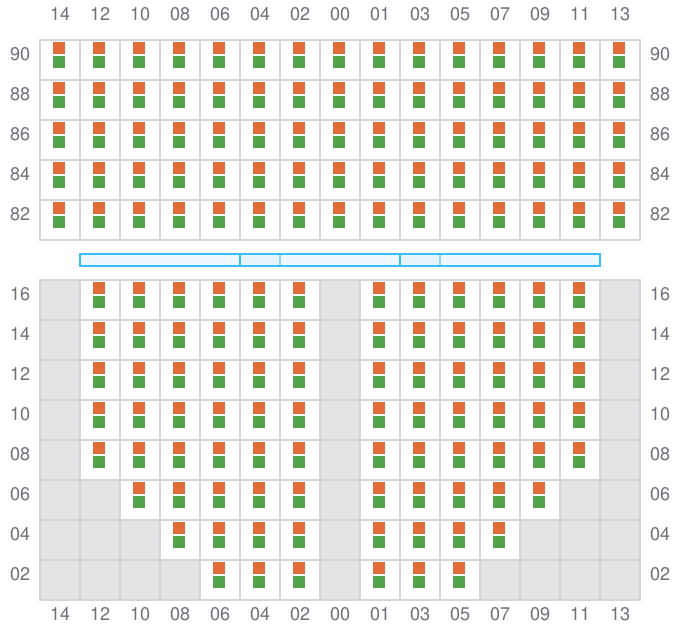

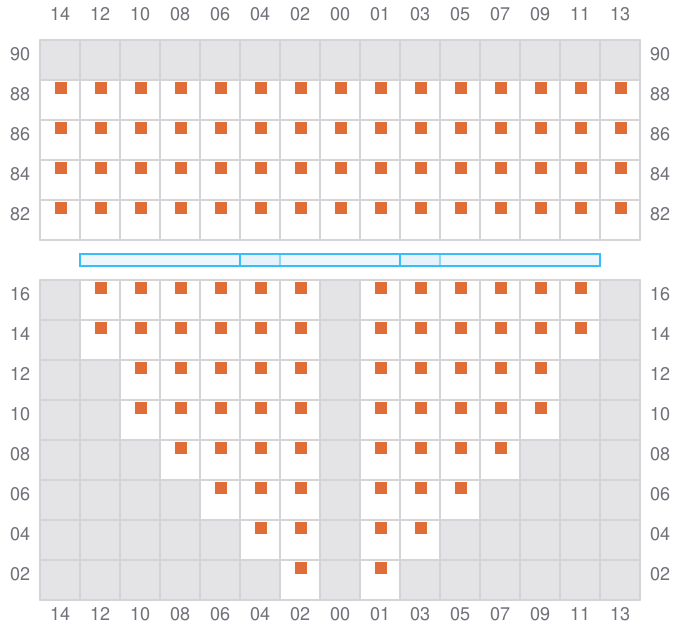

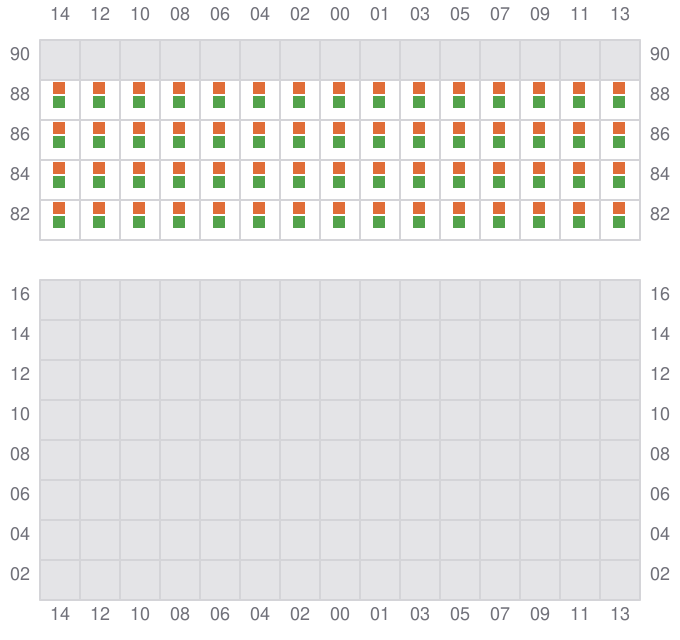

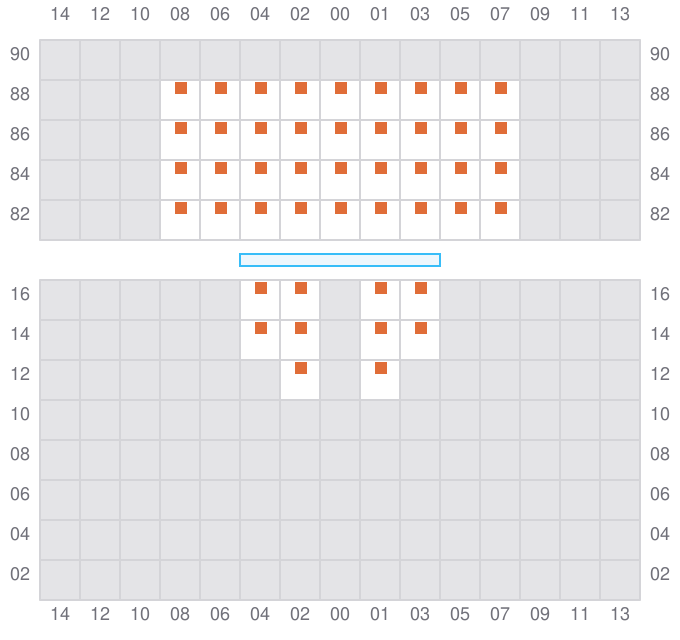

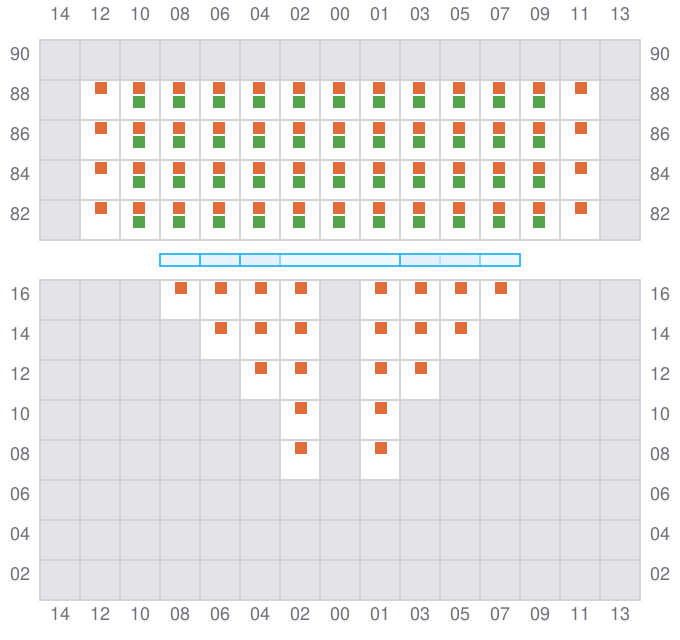

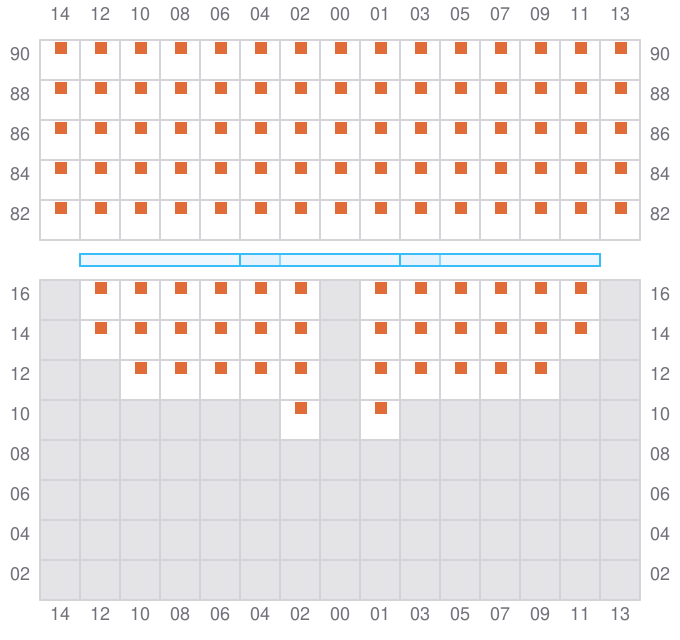

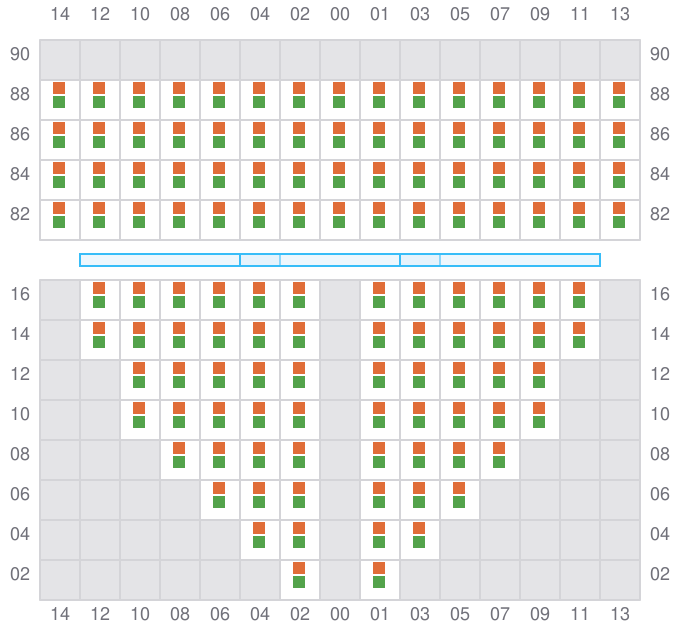

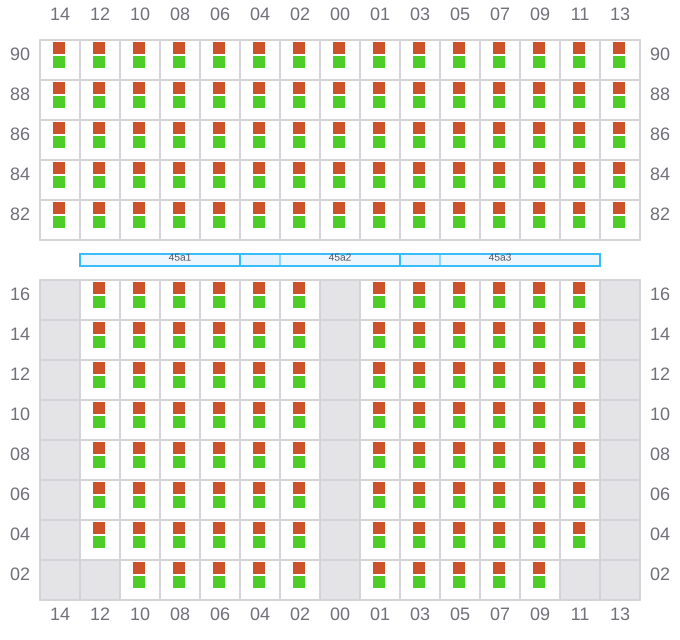

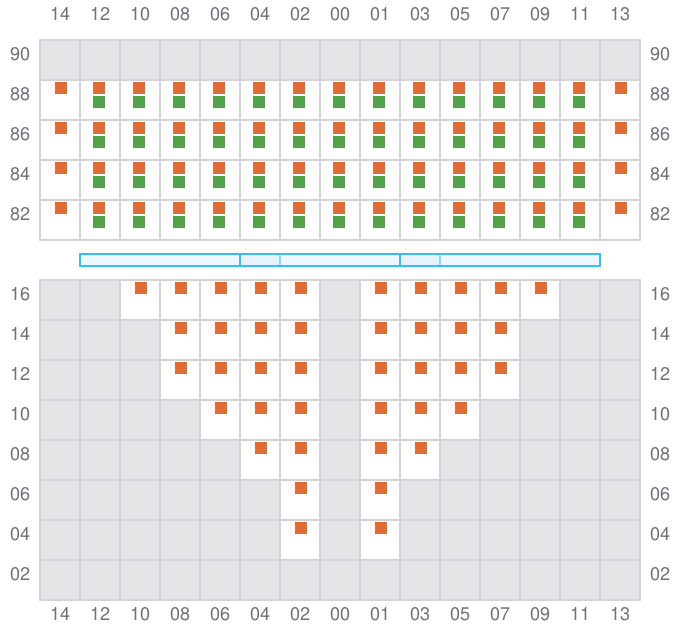

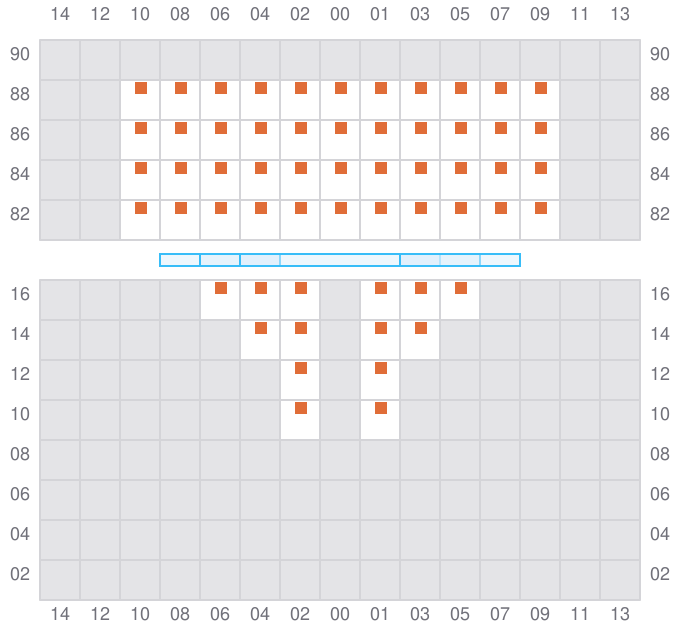

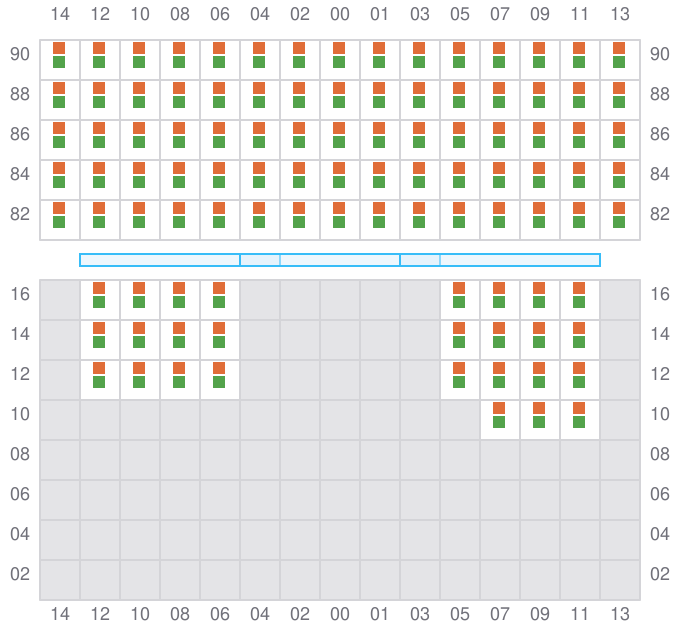

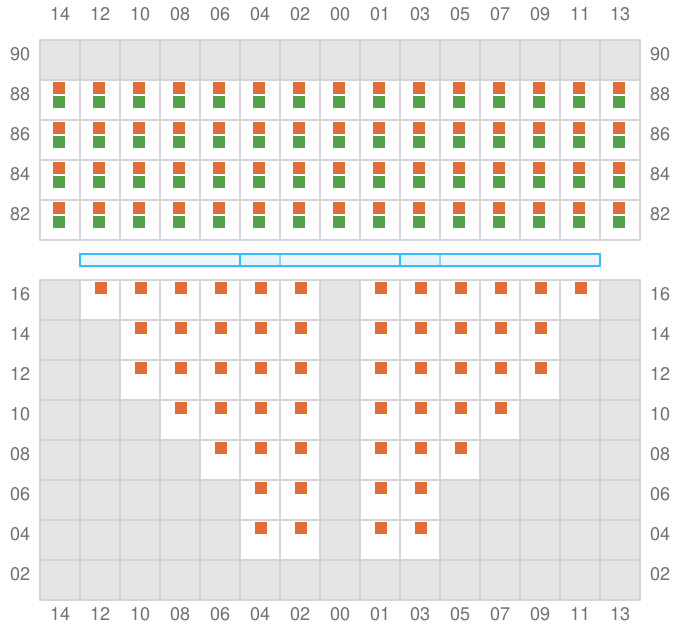

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- →
003
- → / ?
005 (004)
- ← / ?
007
- →
009 (008)
- ← / ?
011
- →
013 (012)
- ← / ?
015
- →
017 (016)
- ←
019
- →
021 (020)
- ← / ?
023
- →
025 (024)
- ←
027
- →
029 (028)
- ←
031
- →
033 (032)
- ←
035
- → / ←
037
- ? / →
039 (038)
- ←
041
- →
043 (042)
- ← / ?
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←
057
- →
059 (058)
- ←
061
- →
063 (062)
- ←
065
- →
067 (066)
- ←
069
- → / ?
071 (070)
- ← / ?
