MSC PORTO III
9299020 | A8IY9 | 9299020 by ********* Last update: Thu Jun 20 2024

General Info

Ship Name:MSC PORTO III
IMO Code:9299020
Call Sign:A8IY9
Line Operator:9299020
Class Name for Sister Ships:COL
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,360

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

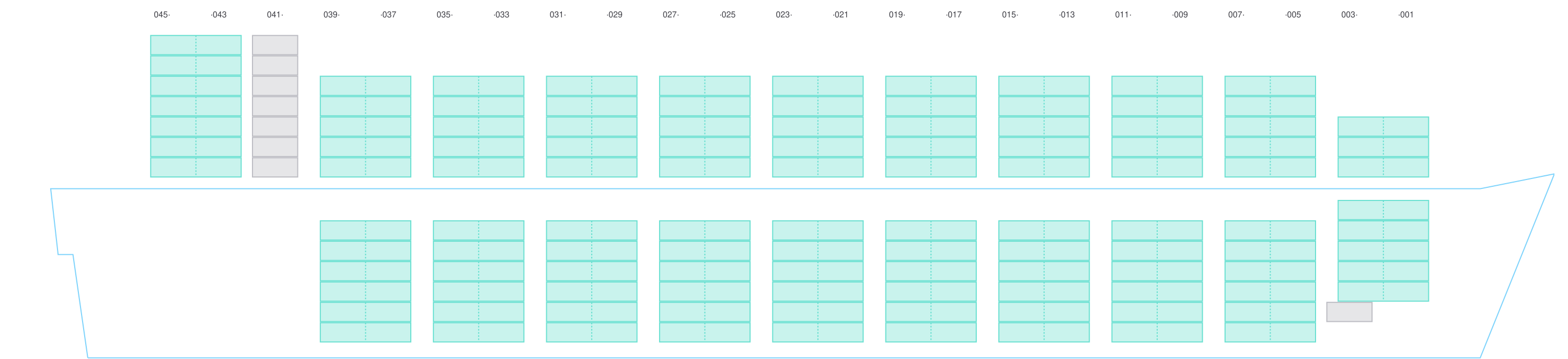

Side view of MSC PORTO III

Hatch-Covers View

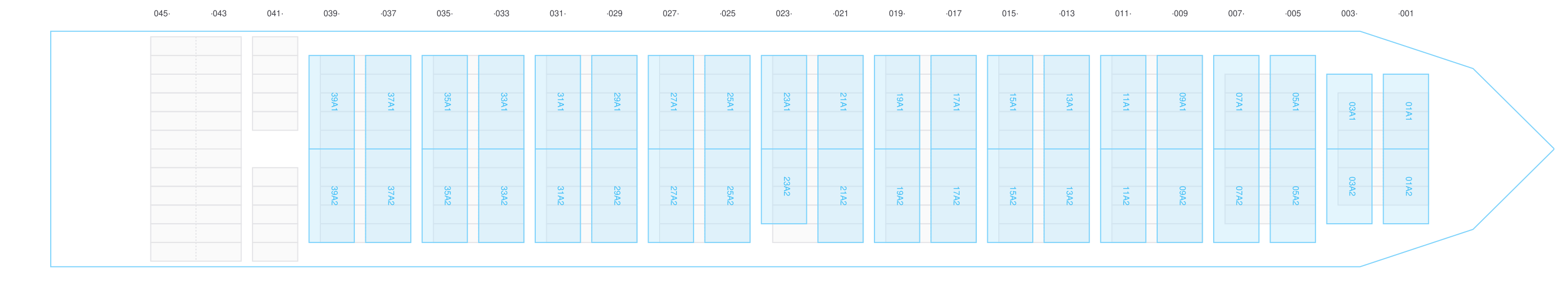

Deck view of MSC PORTO III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

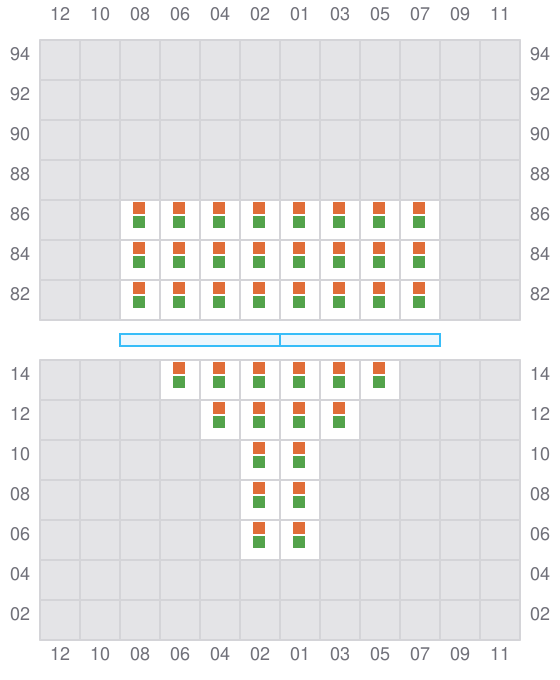

Bay 001 view and slots of MSC PORTO III

003

  • ←

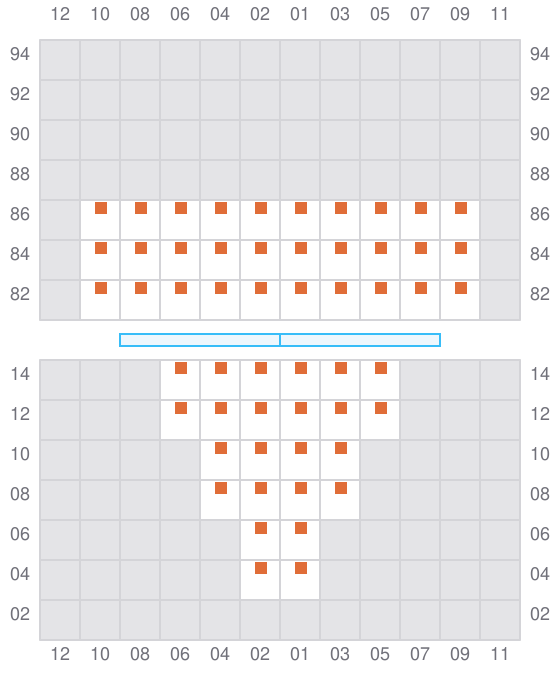

Bay 003 view and slots of MSC PORTO III

005 (006)

  • →
Bay 005 view and slots of MSC PORTO III

007

  • ←

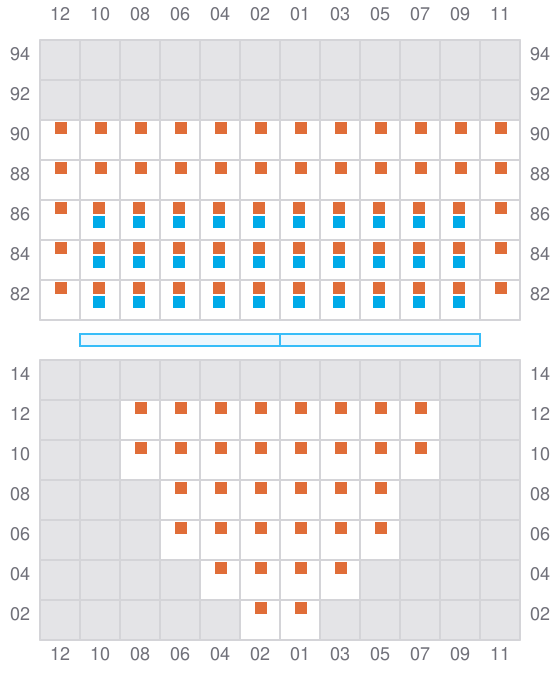

Bay 007 view and slots of MSC PORTO III

009 (010)

  • →

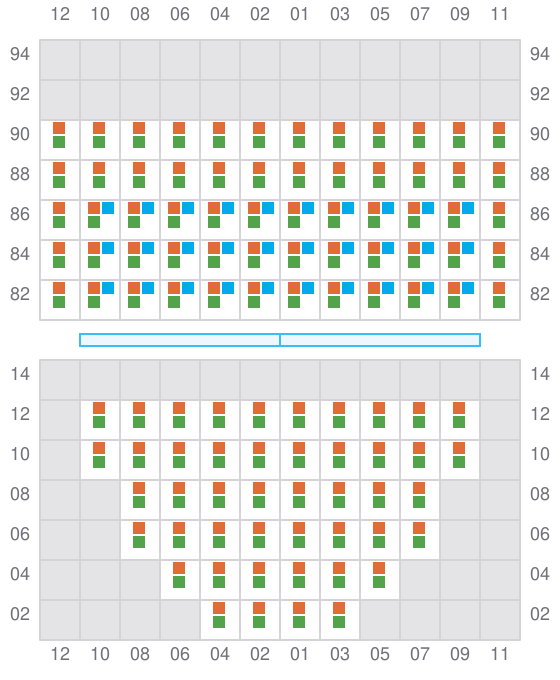

Bay 009 view and slots of MSC PORTO III

011

  • ←
Bay 011 view and slots of MSC PORTO III

013 (014)

  • →

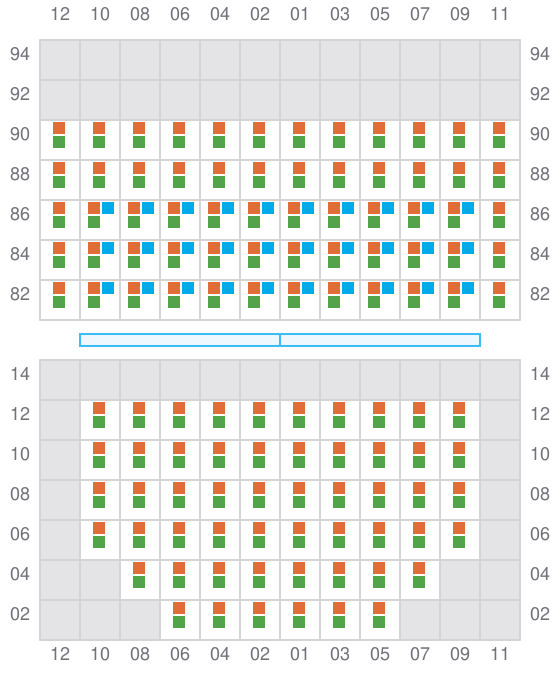

Bay 013 view and slots of MSC PORTO III

015

  • ←

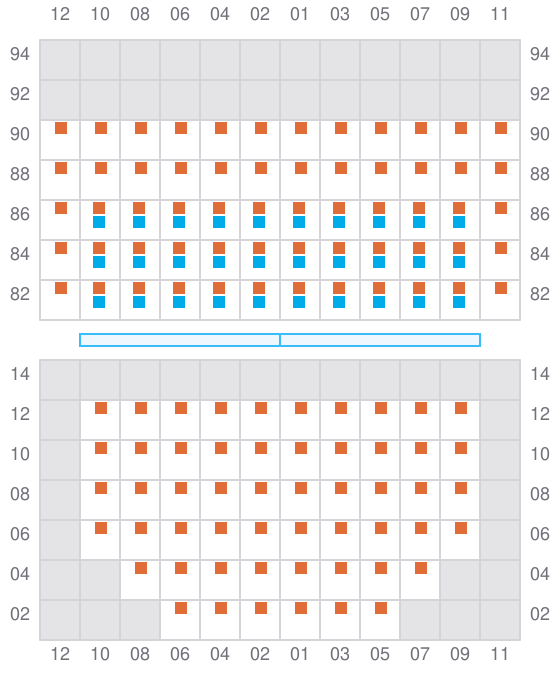

Bay 015 view and slots of MSC PORTO III

017 (018)

  • →

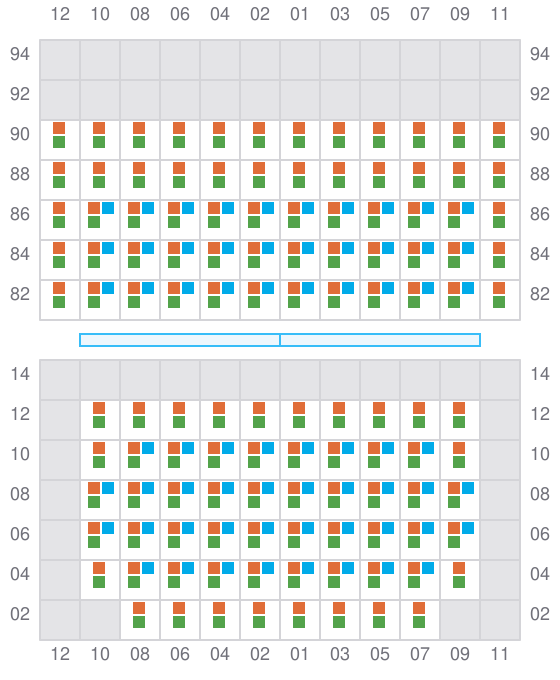

Bay 017 view and slots of MSC PORTO III

019

  • ←

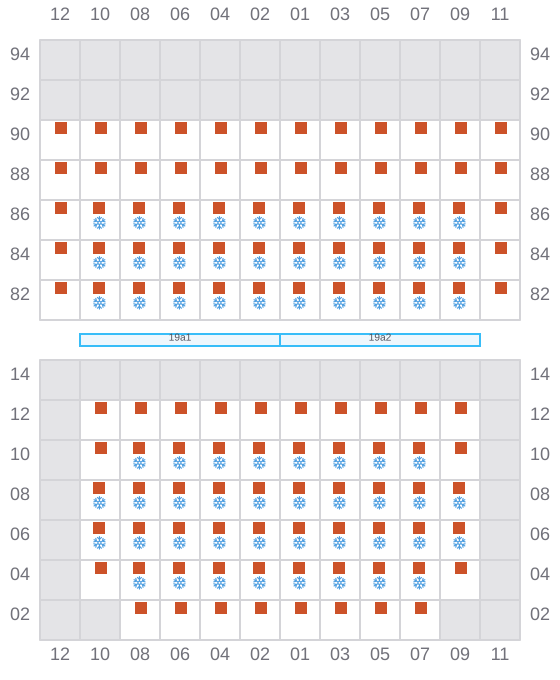

Bay 019 view and slots of MSC PORTO III

021 (022)

  • →

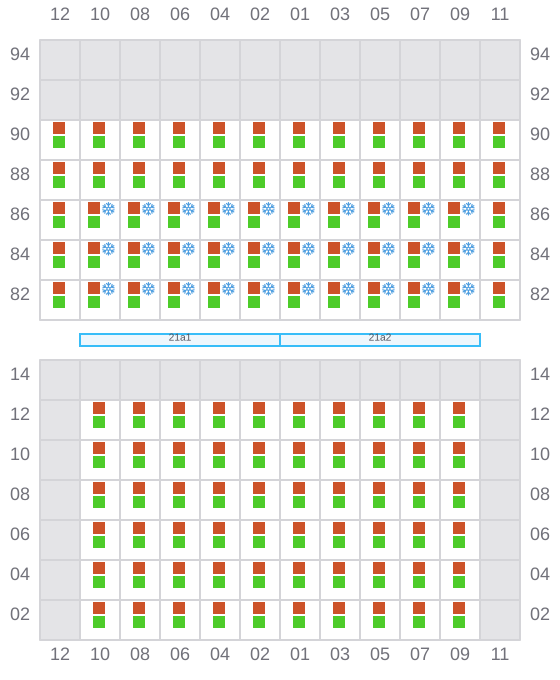

Bay 021 view and slots of MSC PORTO III

023

  • ←

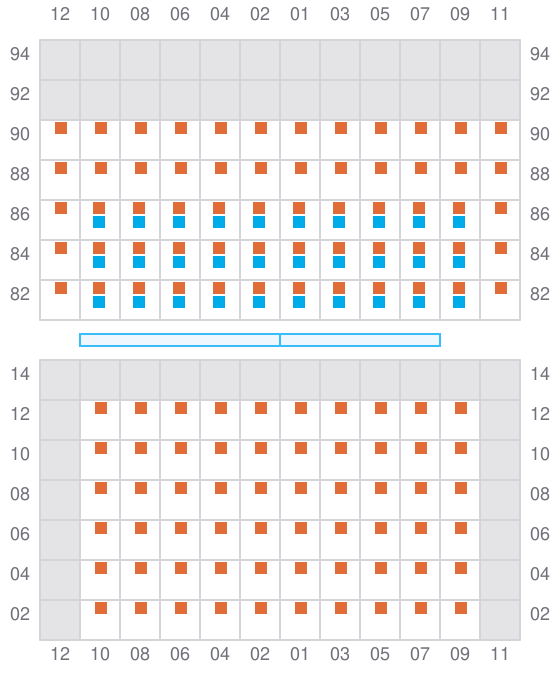

Bay 023 view and slots of MSC PORTO III

025 (026)

  • →

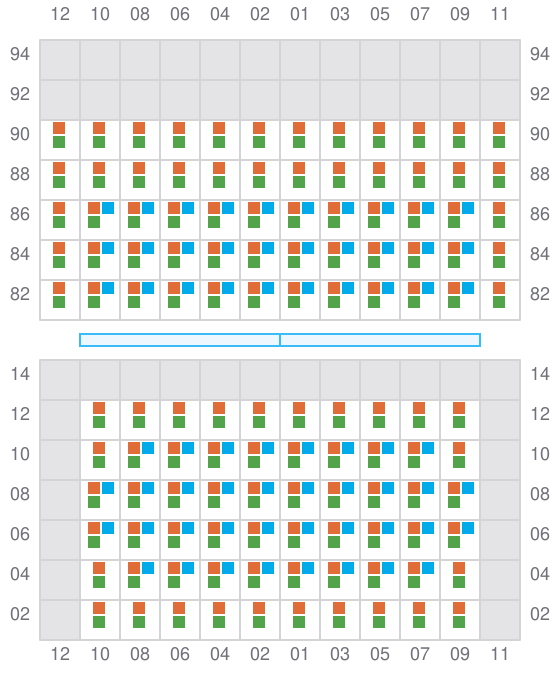

Bay 025 view and slots of MSC PORTO III

027

  • ←

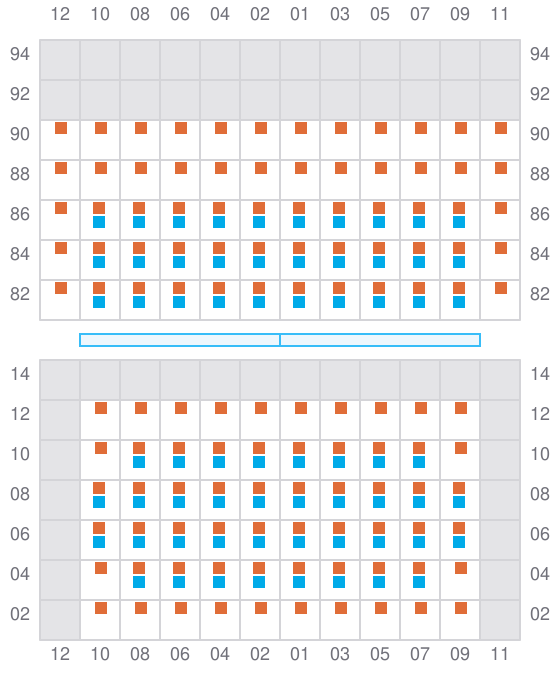

Bay 027 view and slots of MSC PORTO III

029 (030)

  • →

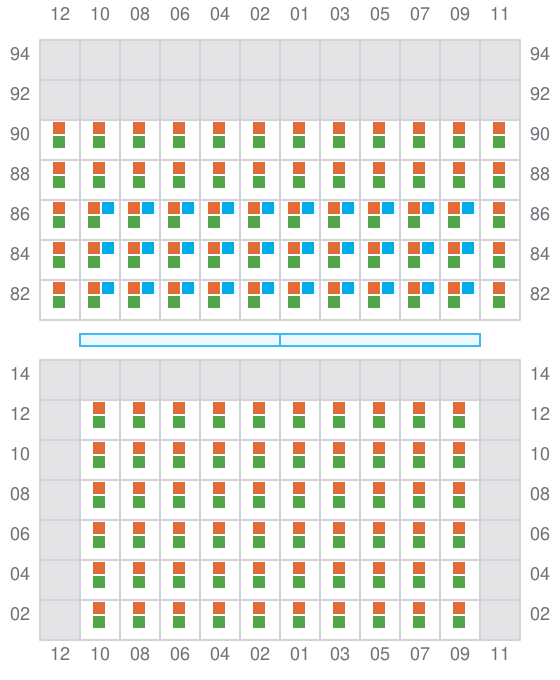

Bay 029 view and slots of MSC PORTO III

031

  • ←

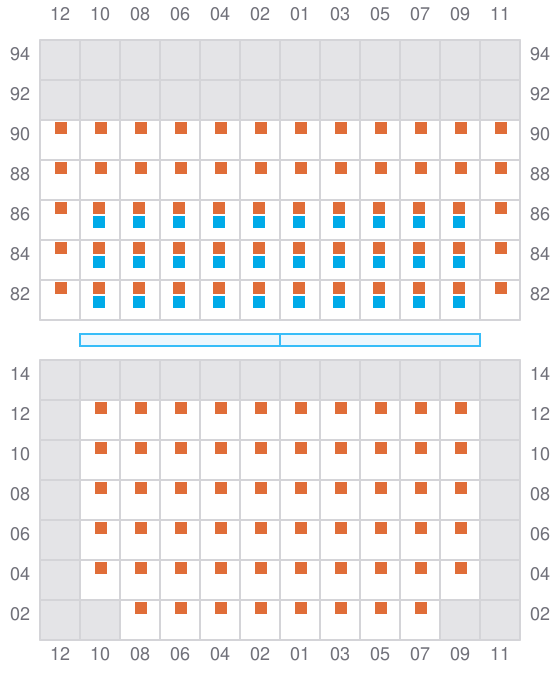

Bay 031 view and slots of MSC PORTO III

033 (034)

  • →

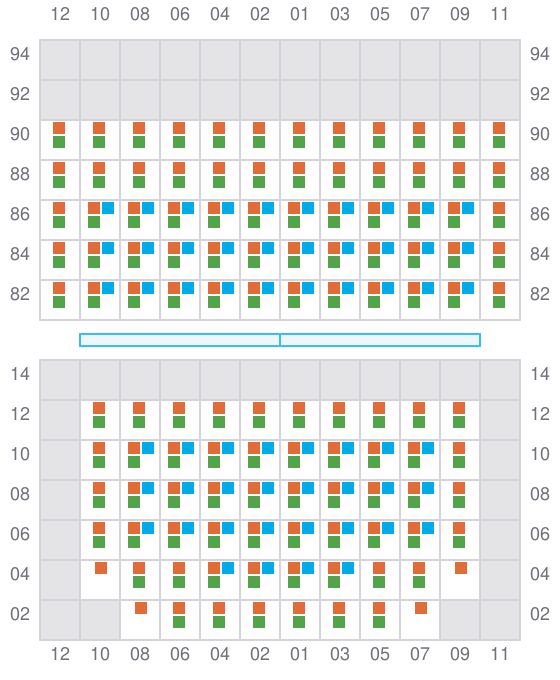

Bay 033 view and slots of MSC PORTO III

035

  • ←

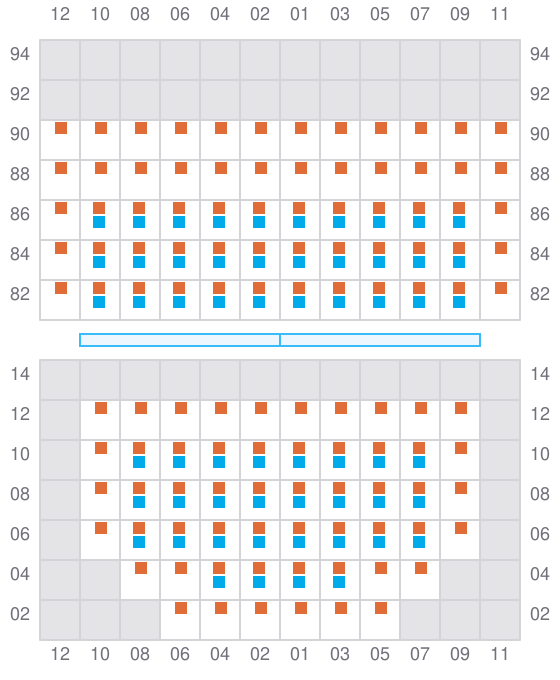

Bay 035 view and slots of MSC PORTO III

037 (038)

  • →

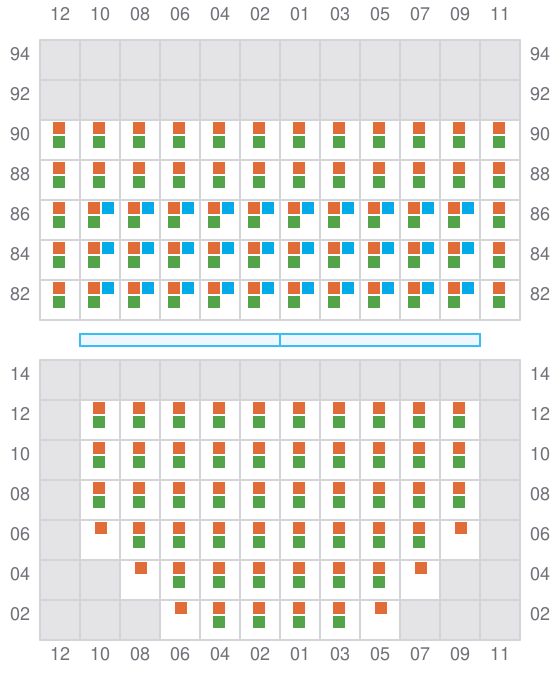

Bay 037 view and slots of MSC PORTO III

039

  • ←

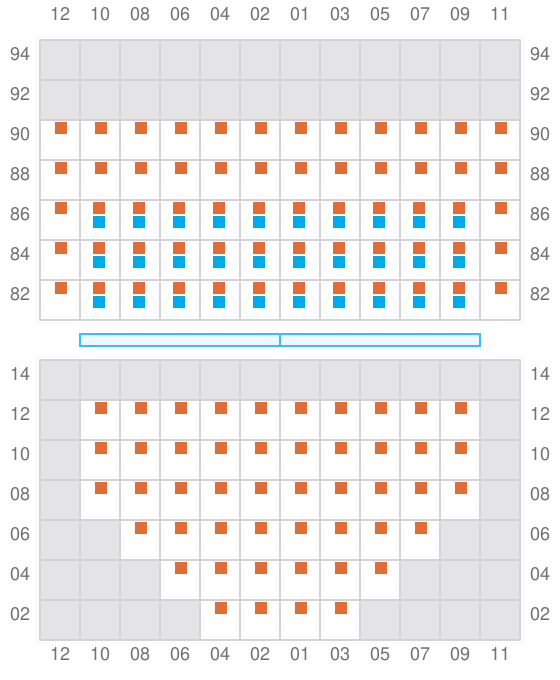

Bay 039 view and slots of MSC PORTO III

041

  • ← / ?

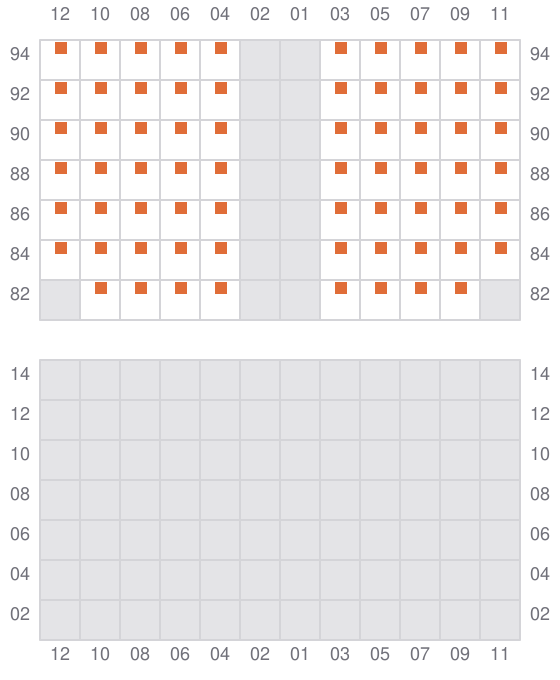

Bay 041 view and slots of MSC PORTO III

043 (044)

  • → / ?

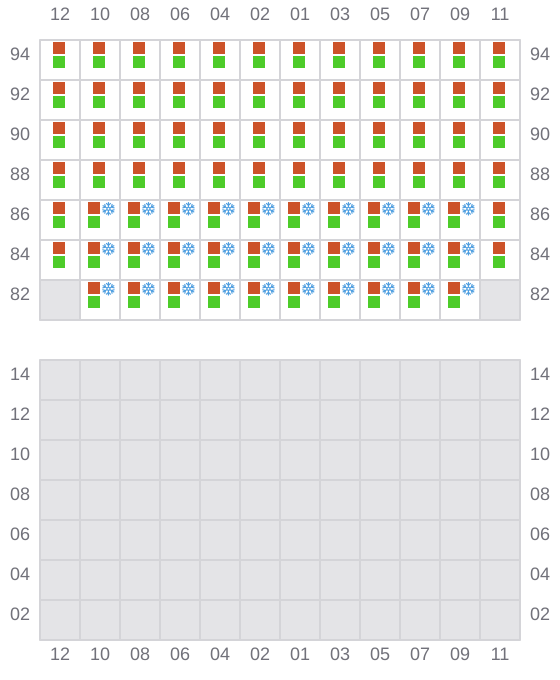

Bay 043 view and slots of MSC PORTO III

045

  • ← / ?

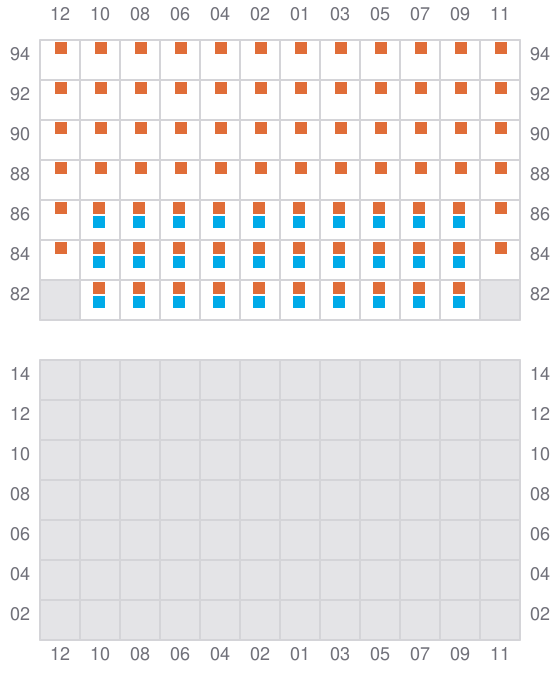

Bay 045 view and slots of MSC PORTO III
