MSC RAFAELA
9129885 | 3FWG6 | MSC by ************************** Last update: Mon Jun 19 2023
General Info
Ship Name:MSC RAFAELA
IMO Code:9129885
Call Sign:3FWG6
Line Operator:MSC
Class Name for Sister Ships:RAF
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,377
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

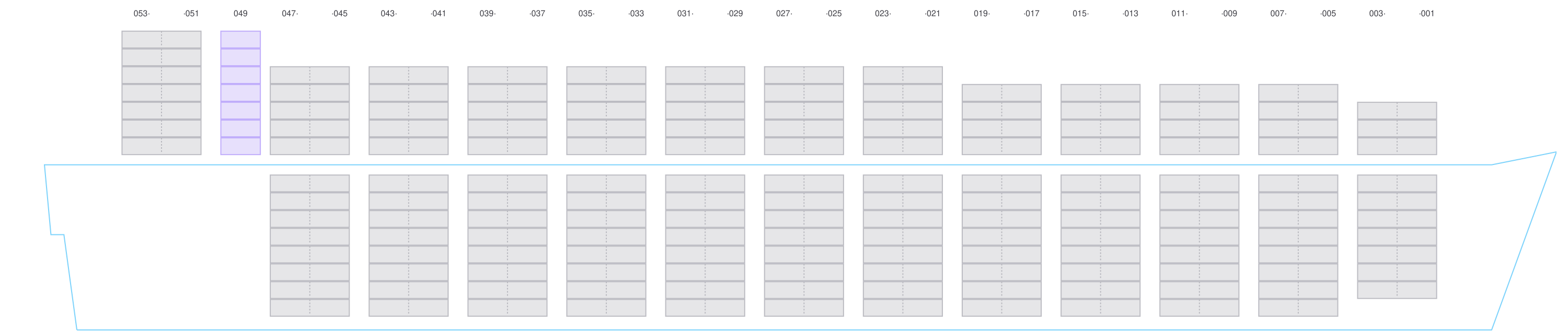

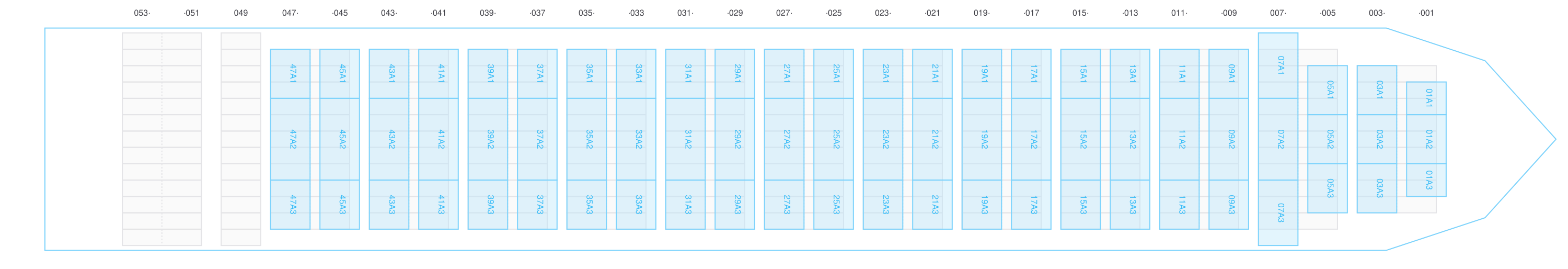

Side View
Hatch-Covers View

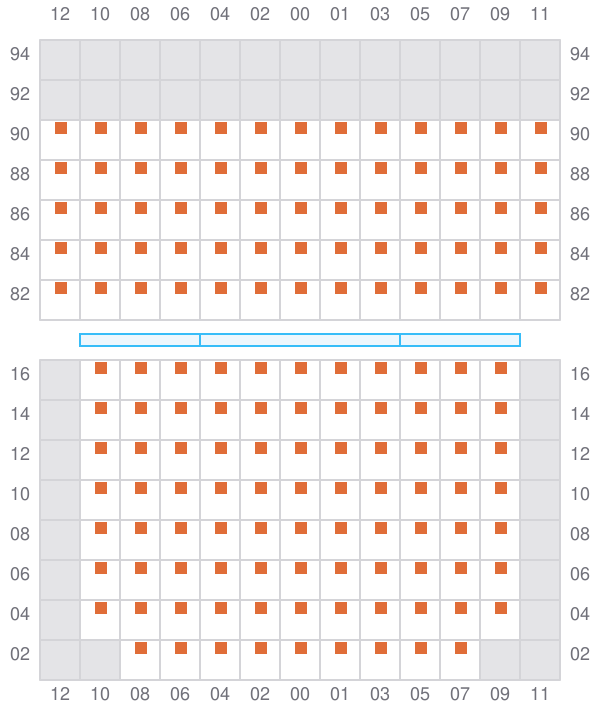

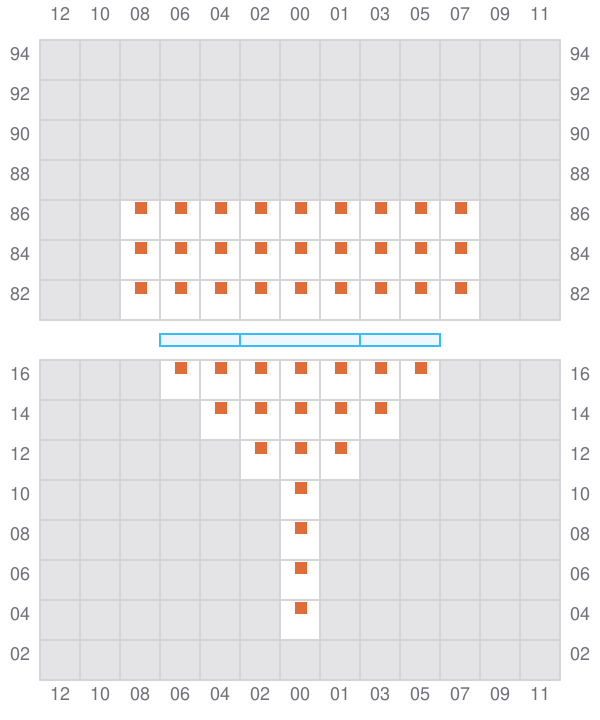

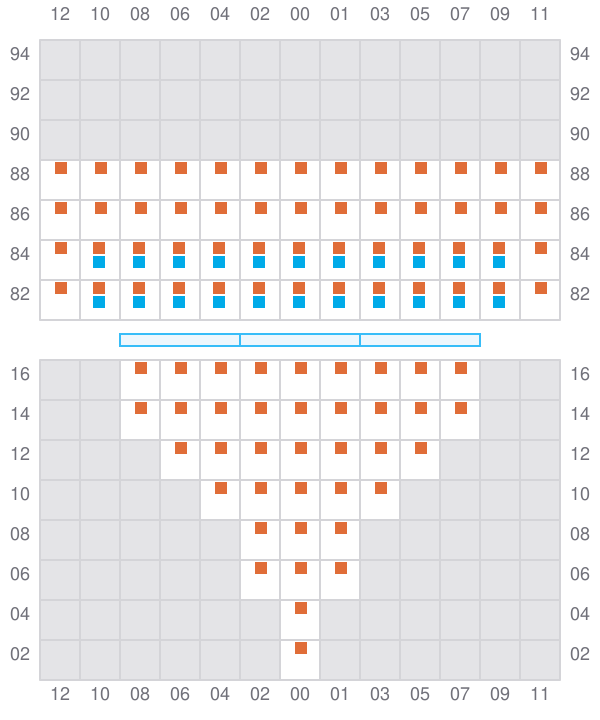

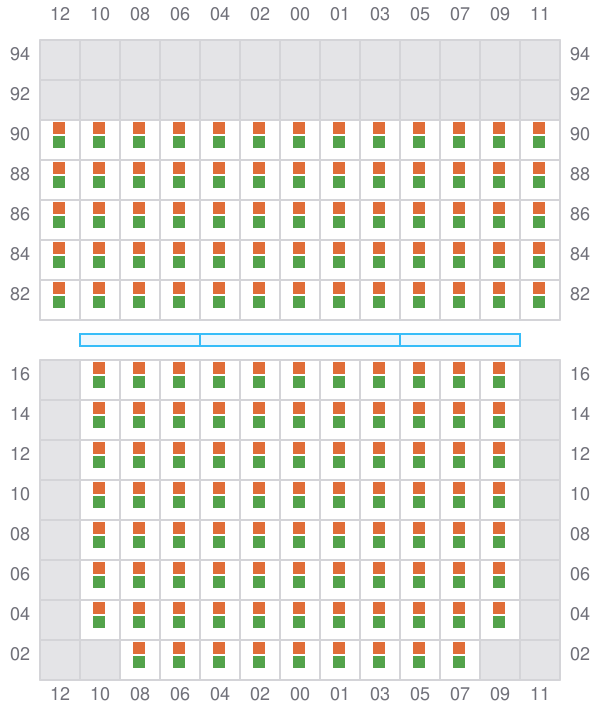

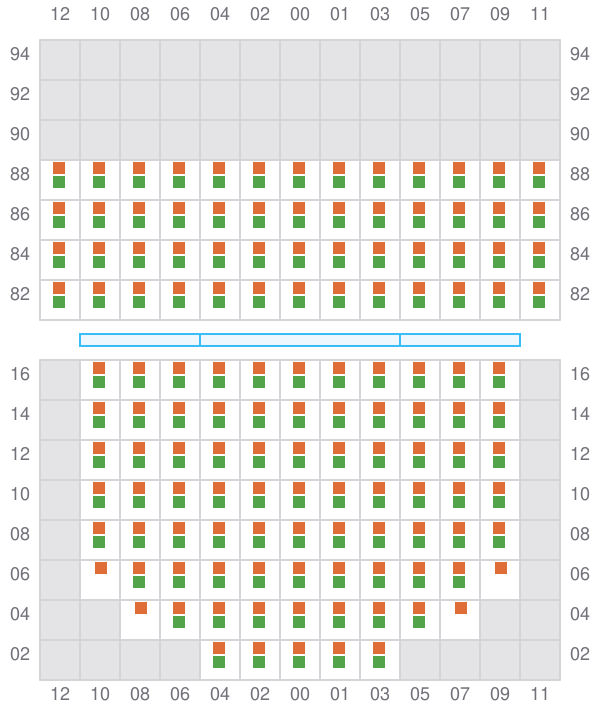

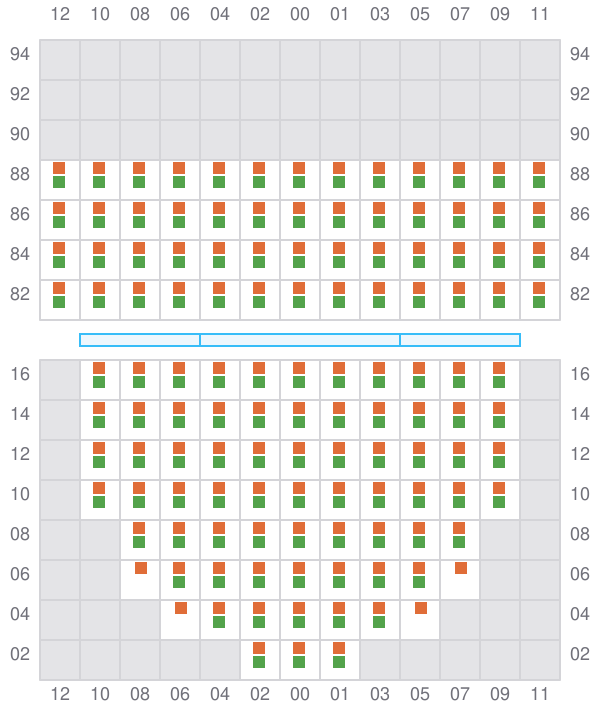

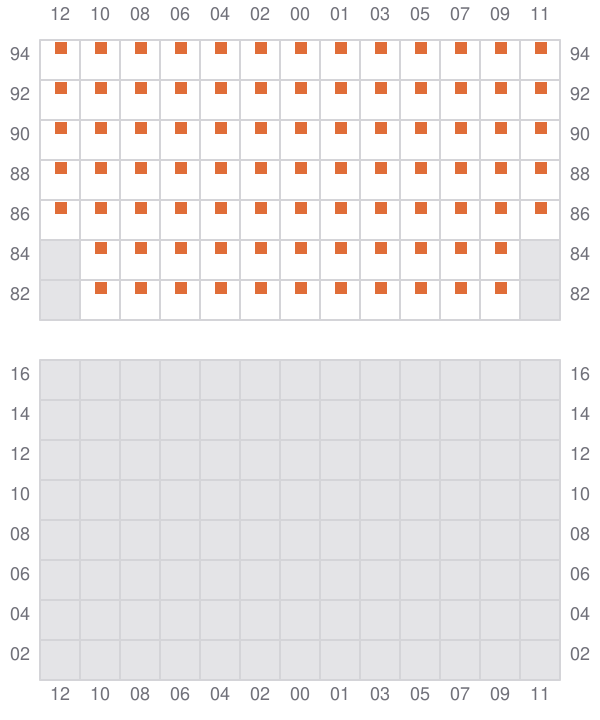

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →

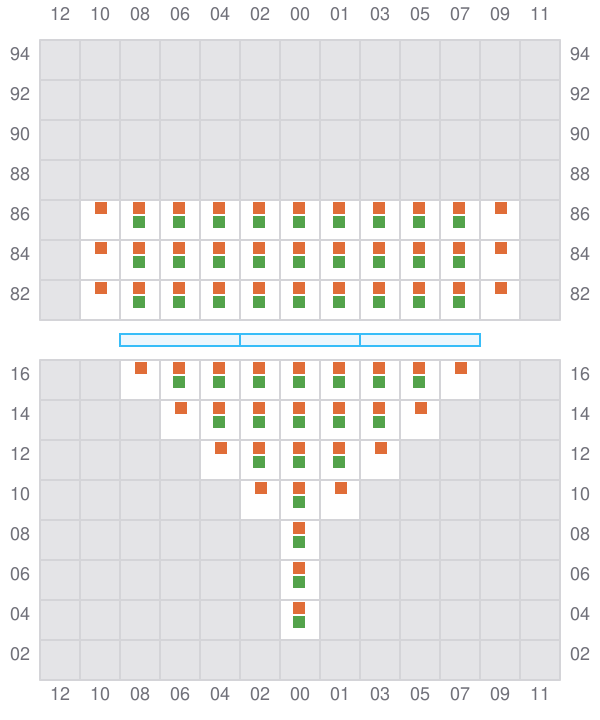

003 (002)
- ←
005
- →

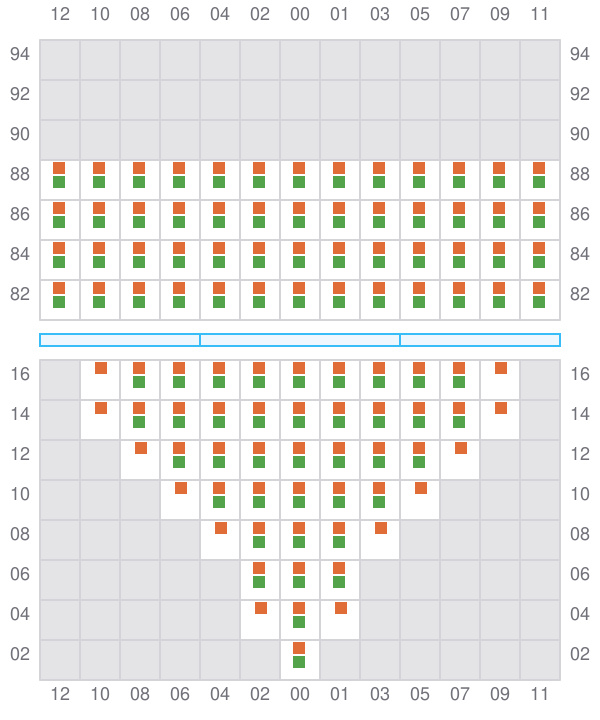

007 (006)
- ←
009
- →

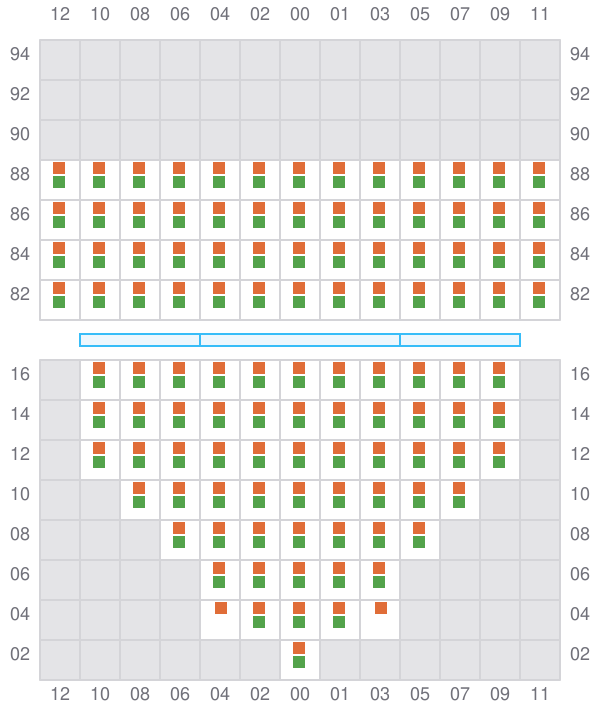

011 (010)
- ←
013
- →
015 (014)
- ←

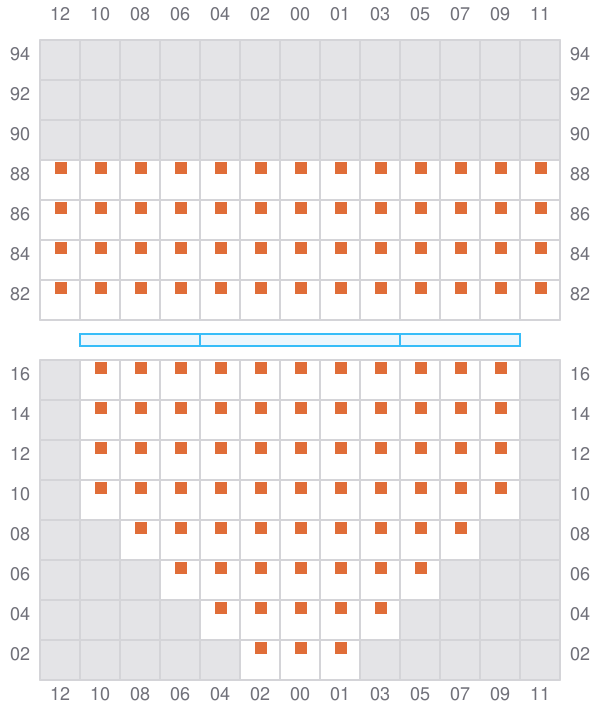

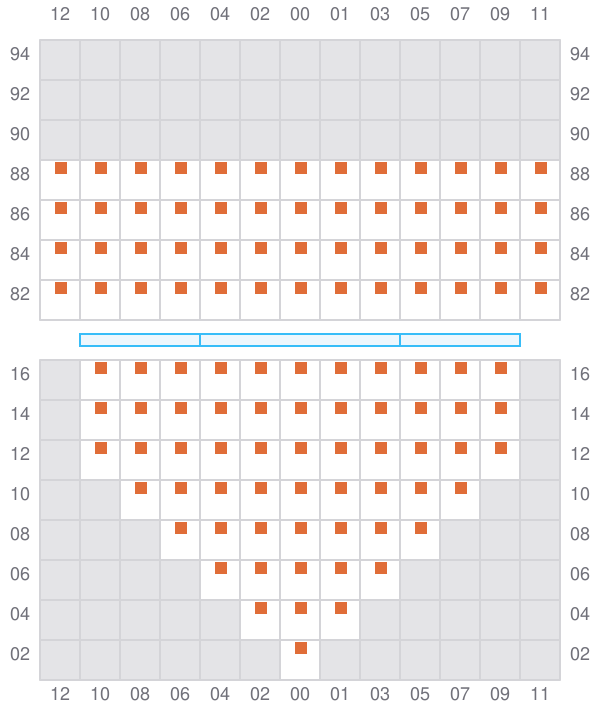

017
- →
019 (018)
- ←

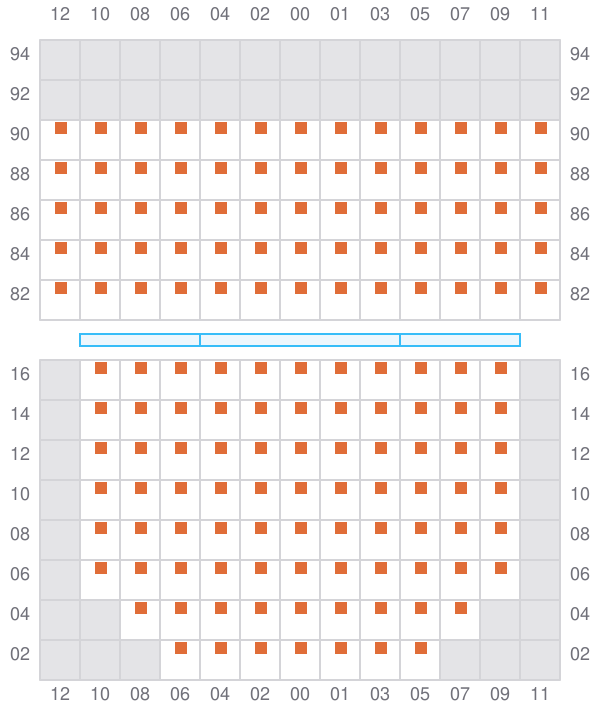

021
- →

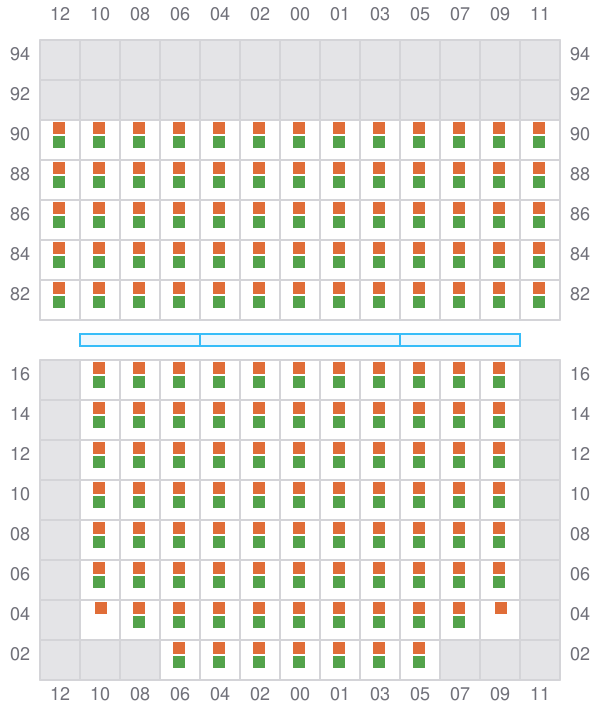

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →

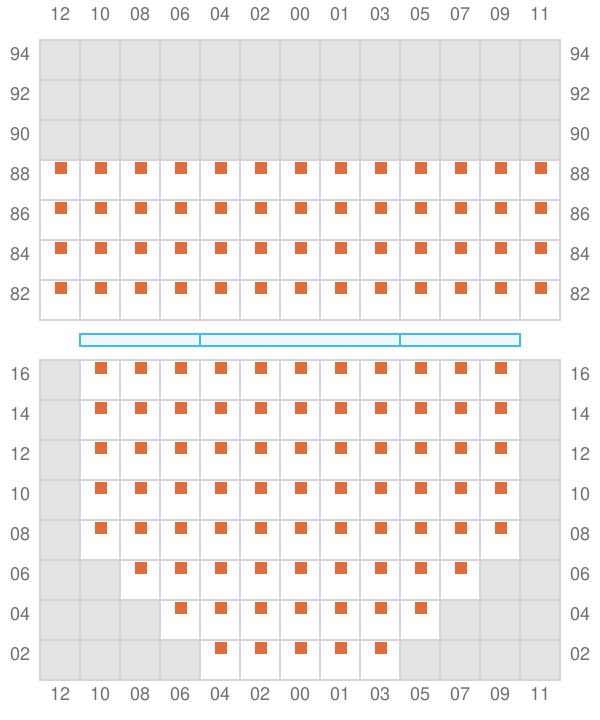

035 (034)
- ←
037
- →
039 (038)
- ←
041
- →

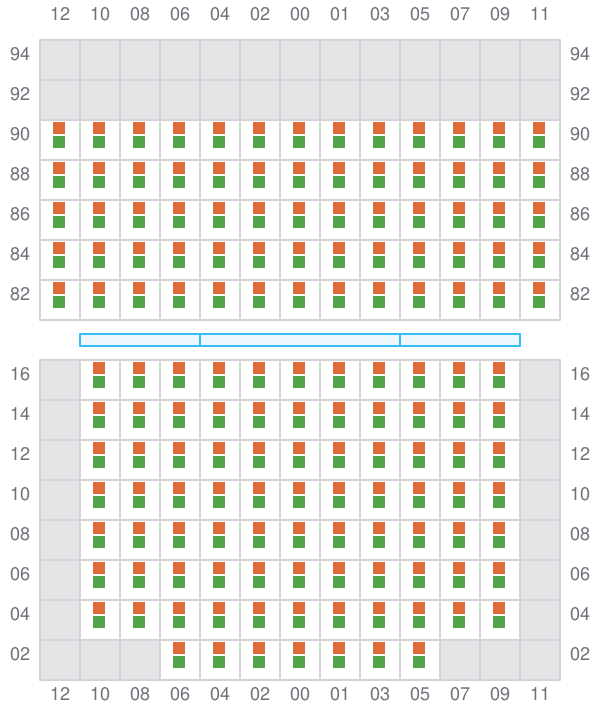

043 (042)
- ←
045
- →

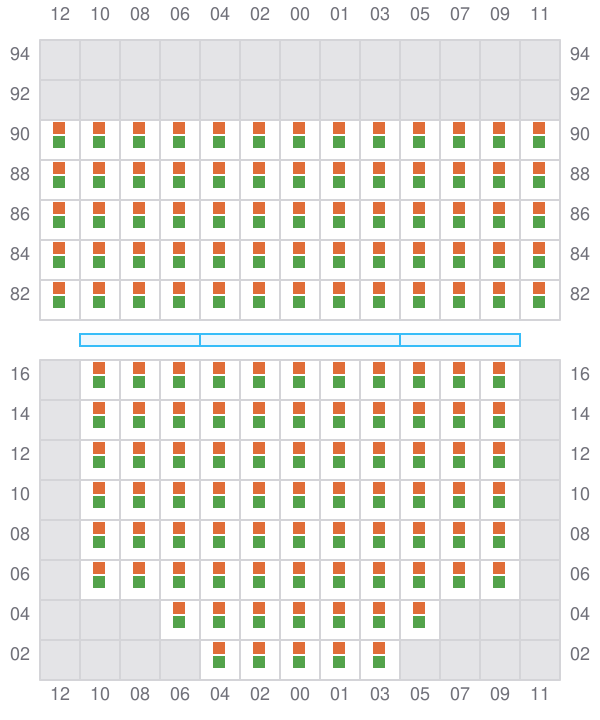

047 (046)
- ←
049
051
- → / ?

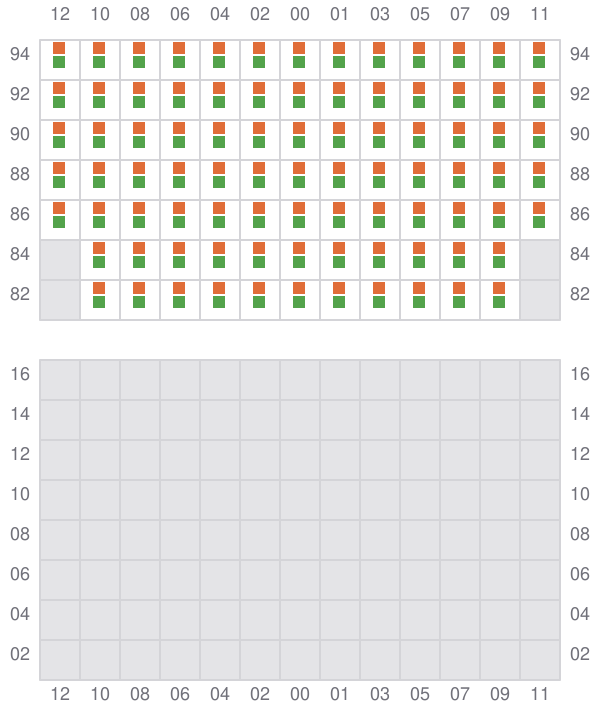

053 (052)
- ← / ?
