MSC REEF
9754965 | D5LQ2 | 9754965 by ********* Last update: Tue May 21 2024

General Info

Ship Name:MSC REEF

IMO Code:9754965

Call Sign:D5LQ2

Line Operator:9754965

Class Name for Sister Ships:MSC REEF

Year Built:2016

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:095

Max ISO Row:22

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:76

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:19,232

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

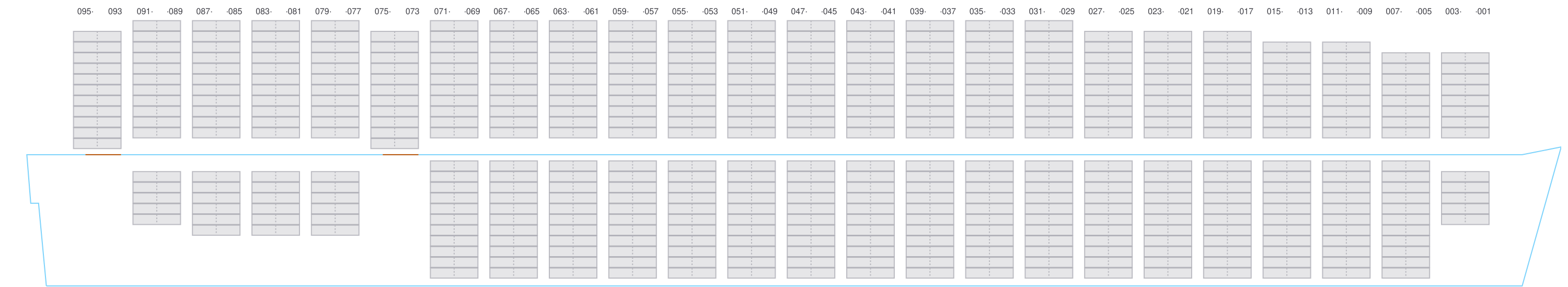

Side view of MSC REEF

Hatch-Covers View

Deck view of MSC REEF

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

Bay 001 view and slots of MSC REEF

003 (002)

←

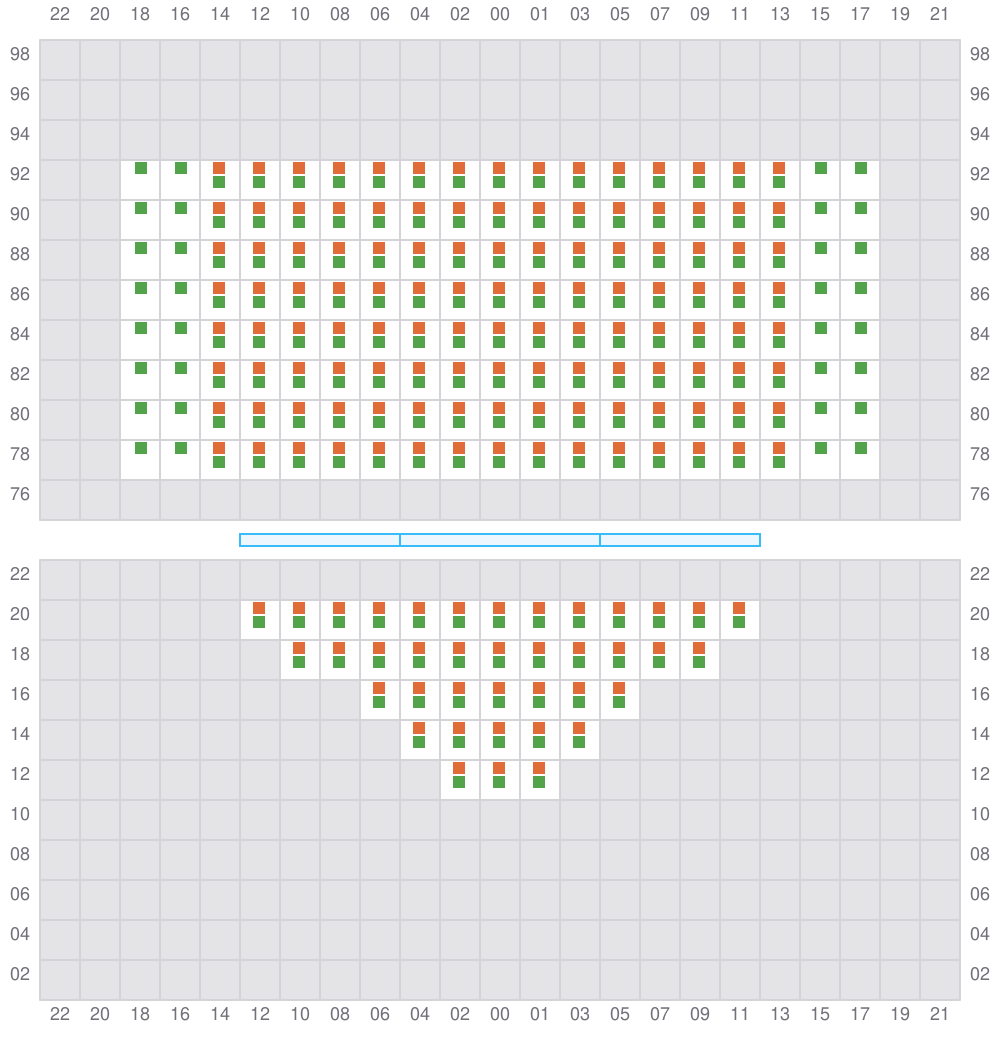

Bay 003 view and slots of MSC REEF

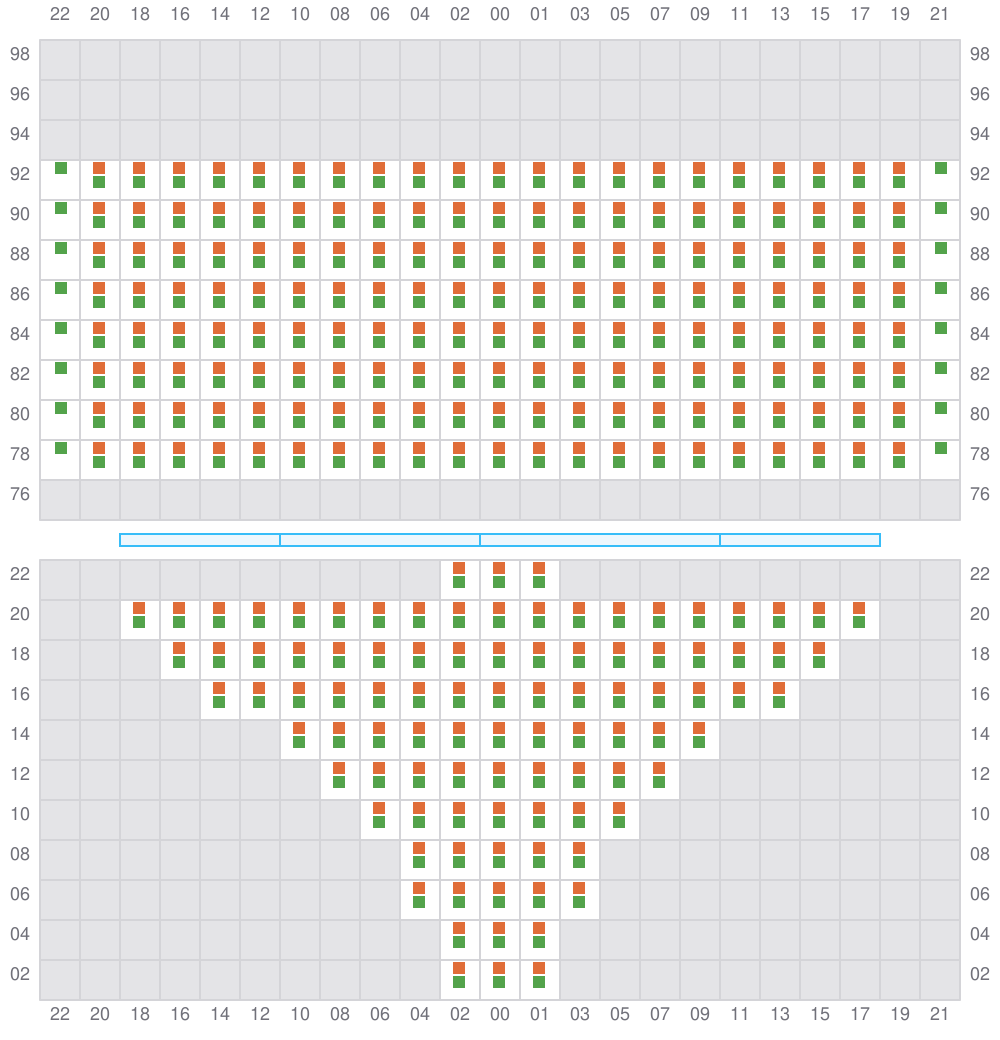

005

→

Bay 005 view and slots of MSC REEF

007 (006)

←

Bay 007 view and slots of MSC REEF

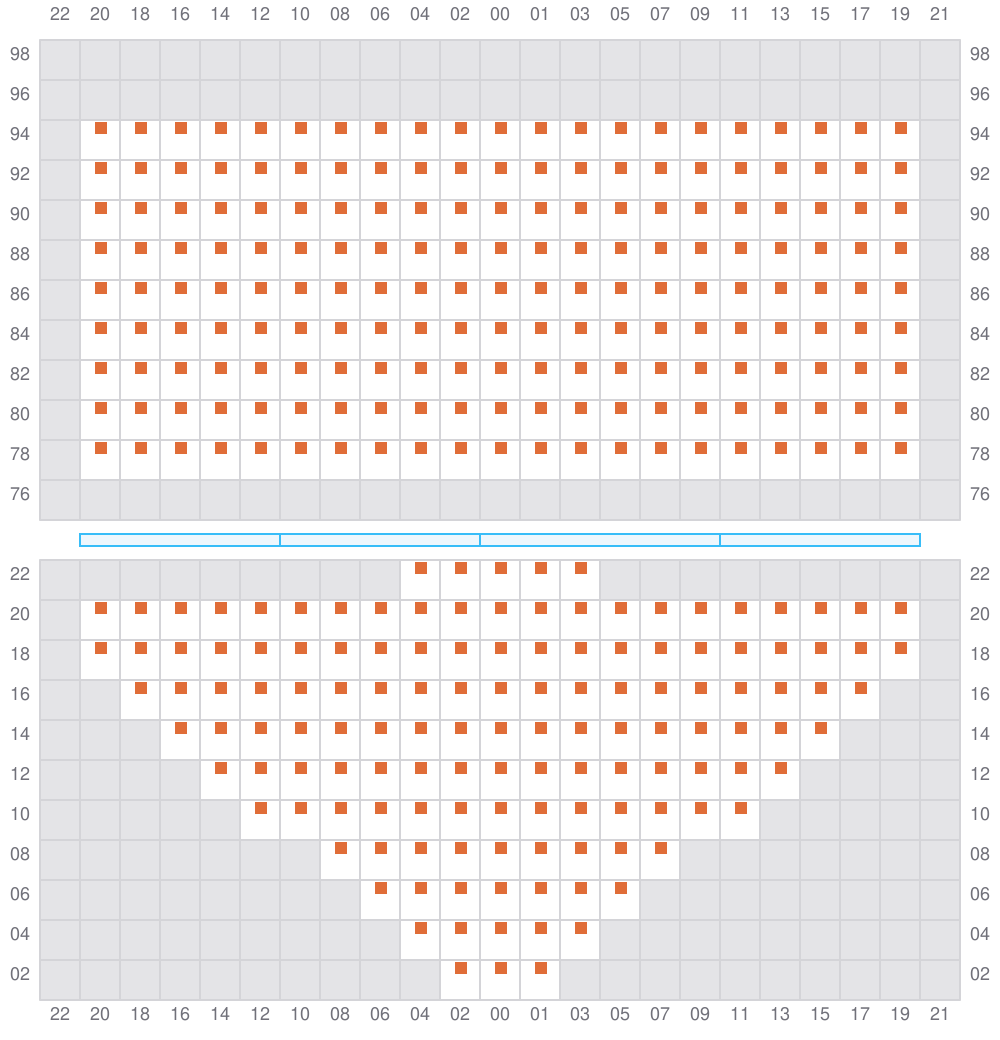

009

→

Bay 009 view and slots of MSC REEF

011 (010)

←

Bay 011 view and slots of MSC REEF

013

→

Bay 013 view and slots of MSC REEF

015 (014)

←

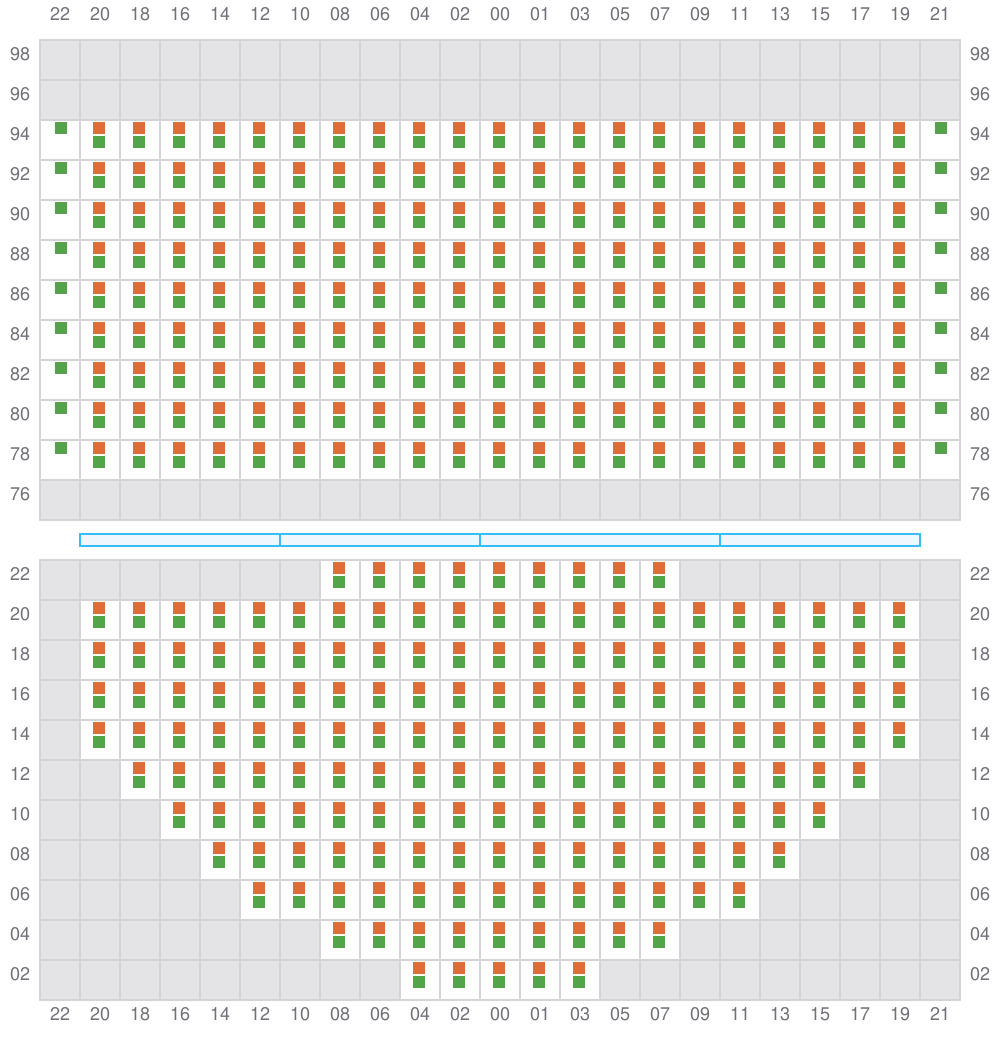

Bay 015 view and slots of MSC REEF

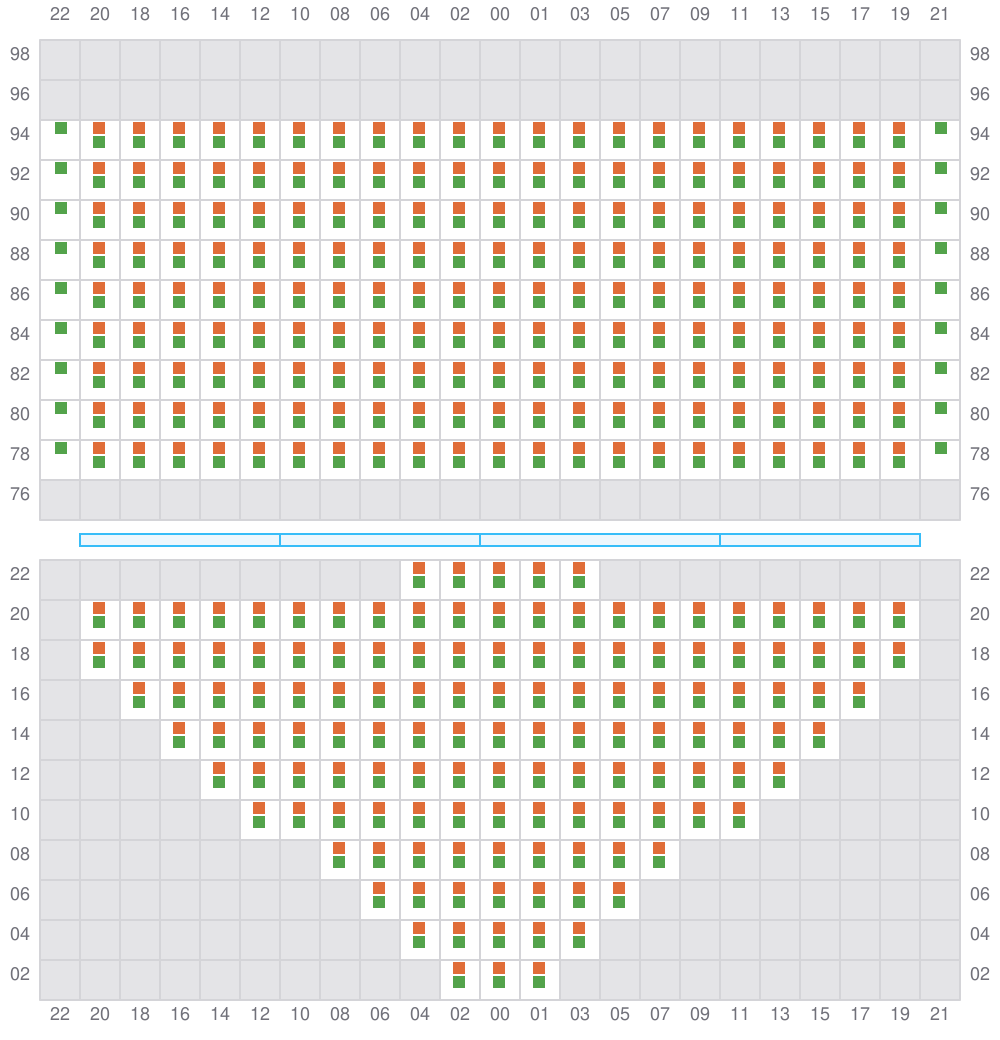

017

→

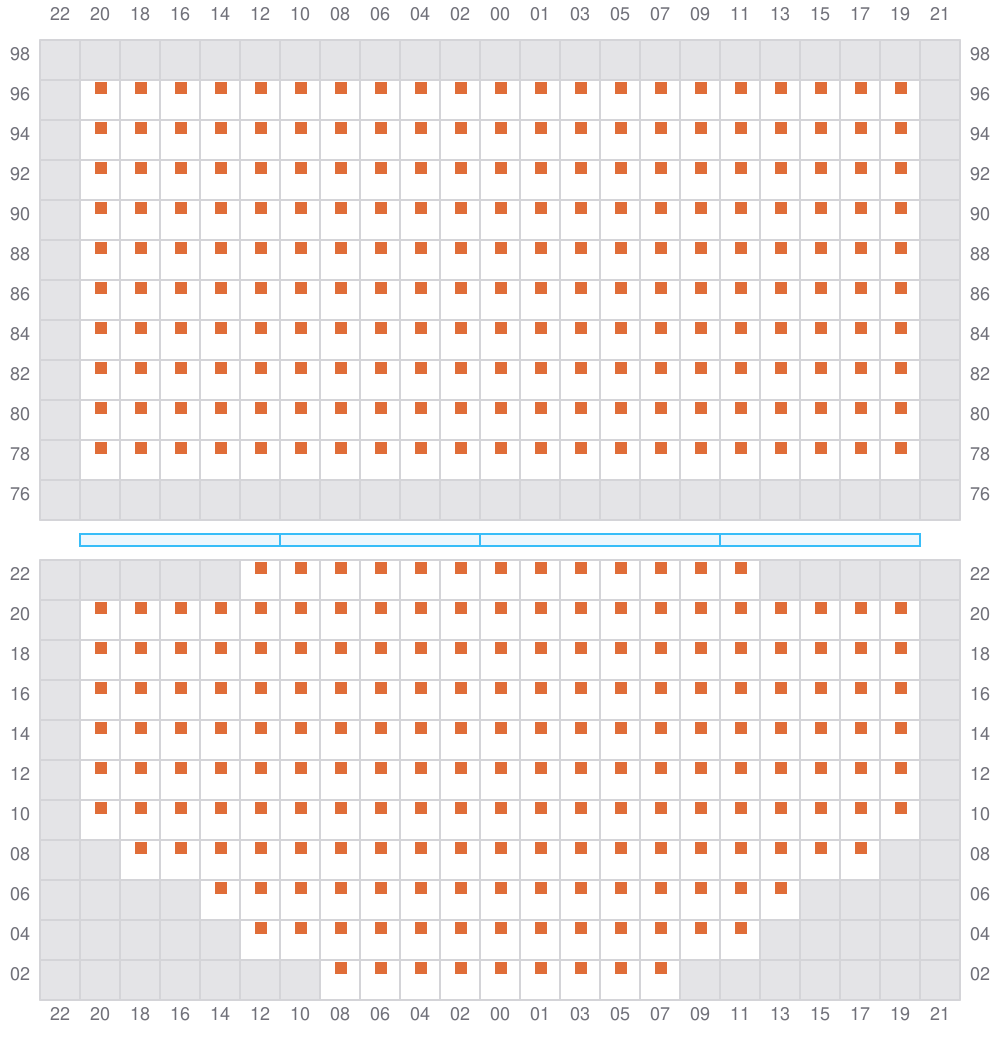

Bay 017 view and slots of MSC REEF

019 (018)

←

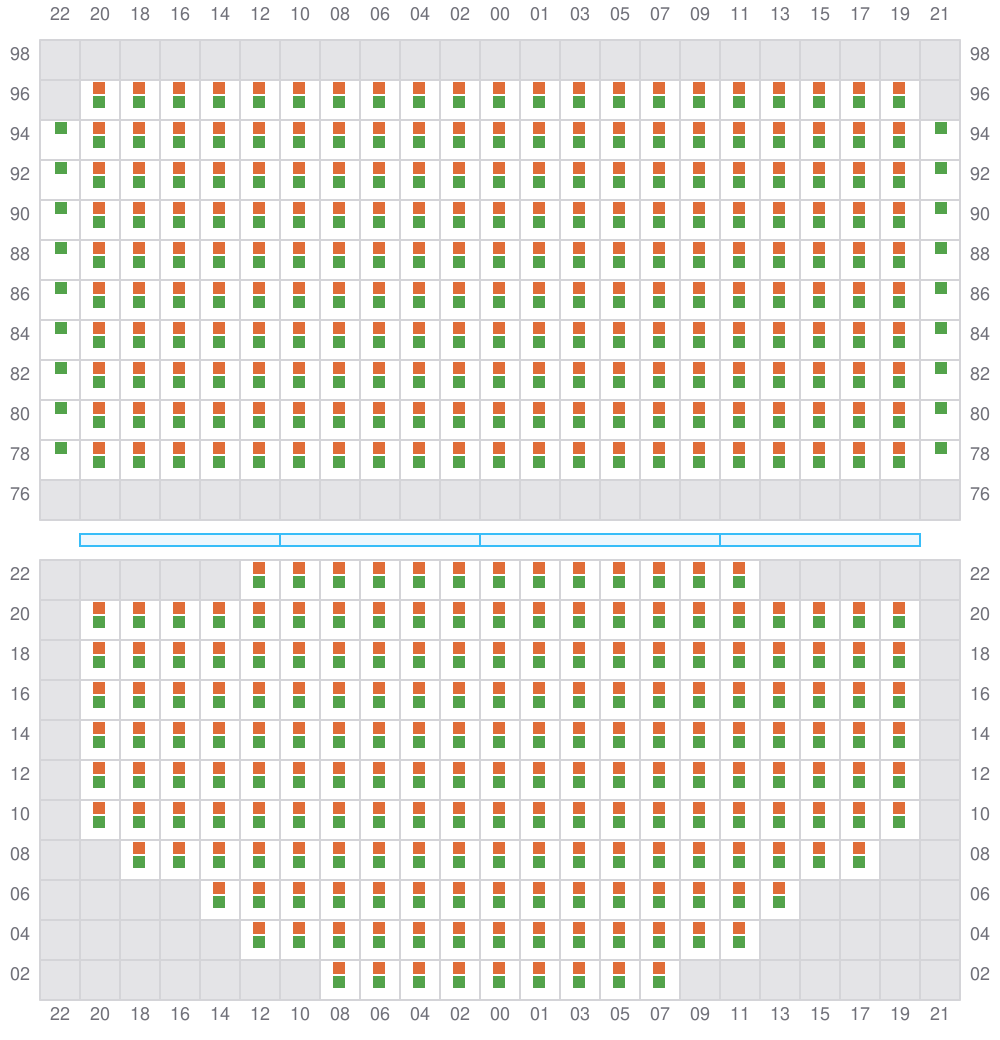

Bay 019 view and slots of MSC REEF

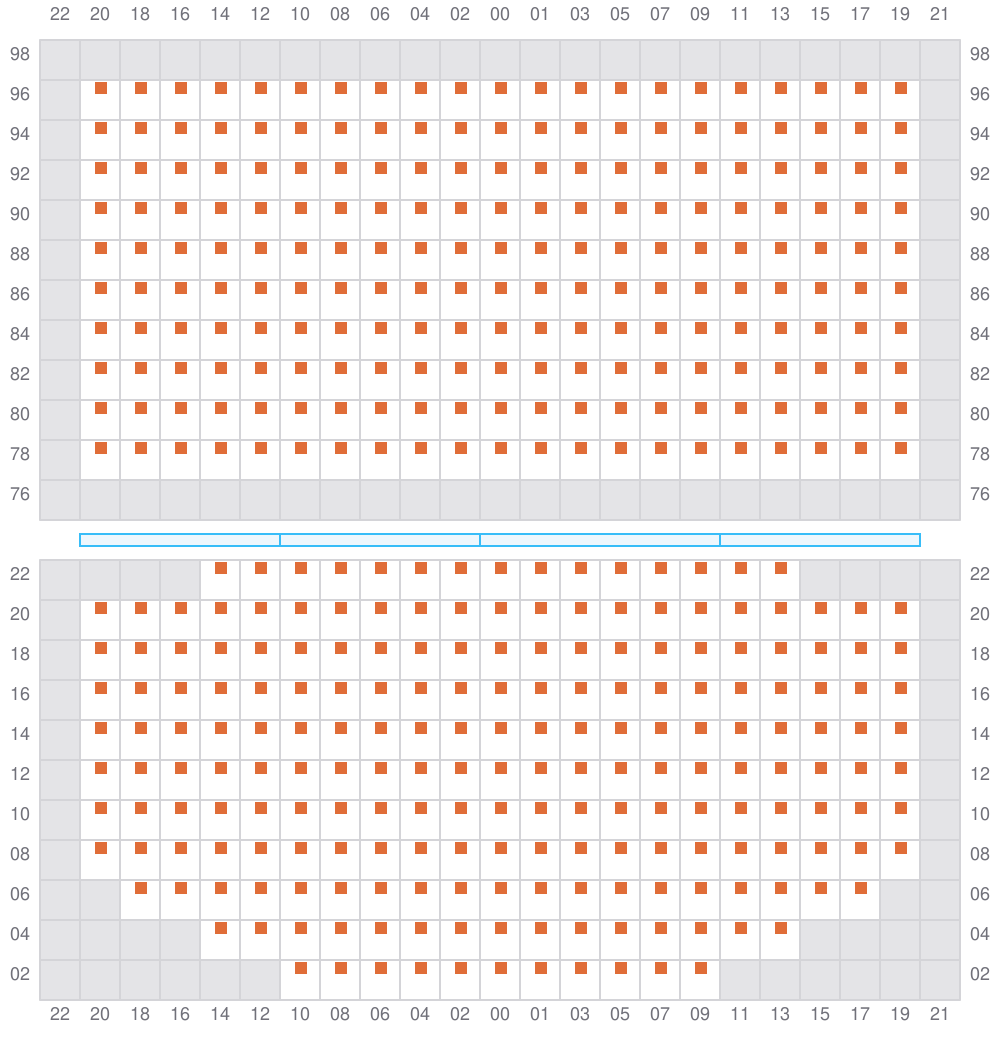

021

→

Bay 021 view and slots of MSC REEF

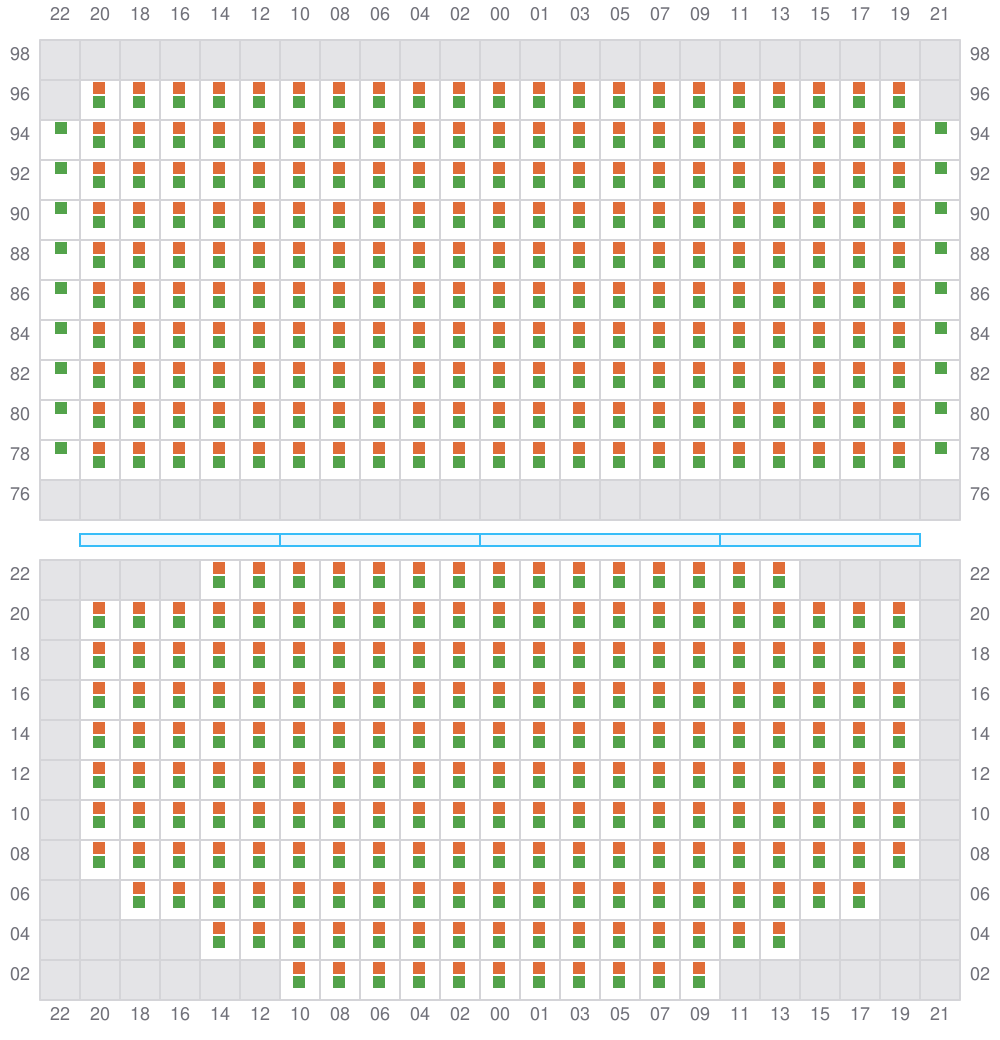

023 (022)

←

Bay 023 view and slots of MSC REEF

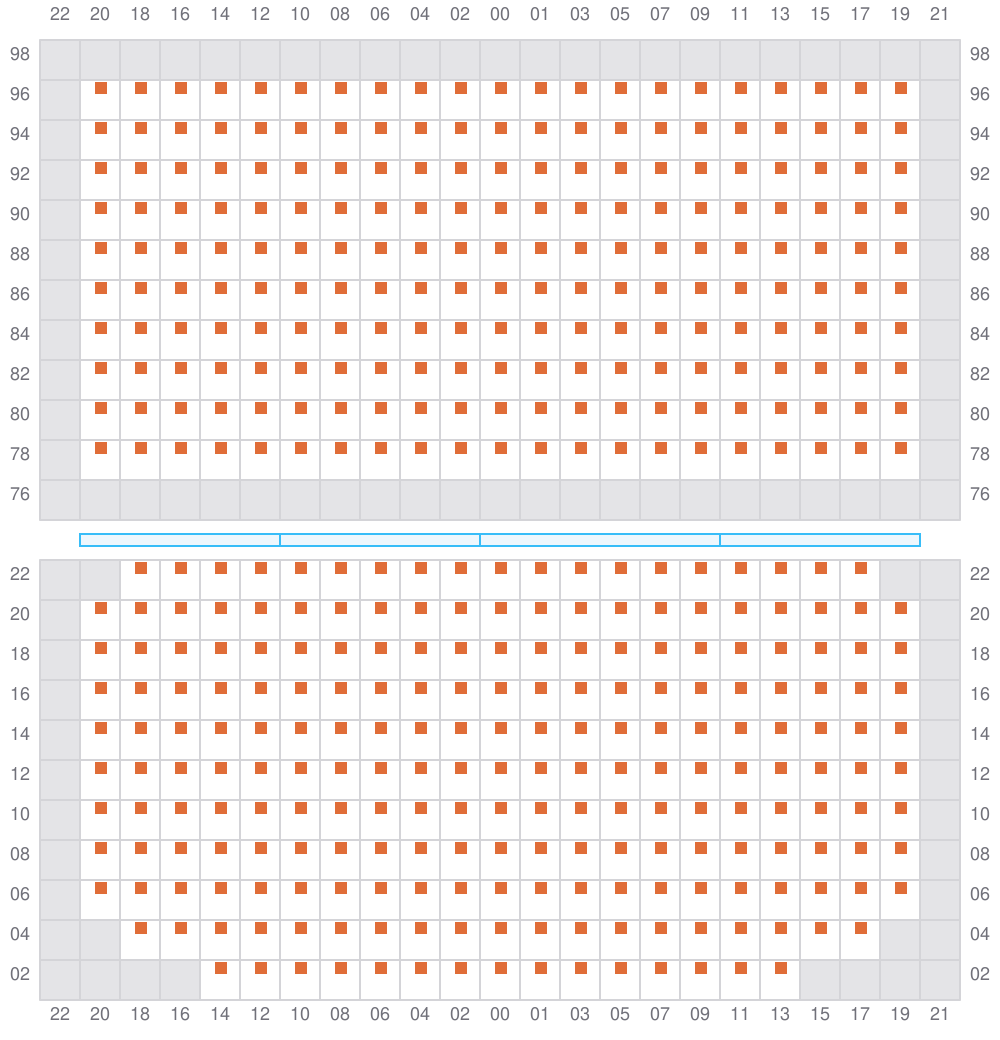

025

→

Bay 025 view and slots of MSC REEF

027 (026)

←

Bay 027 view and slots of MSC REEF

029

→

Bay 029 view and slots of MSC REEF

031 (030)

←

Bay 031 view and slots of MSC REEF

033

→

Bay 033 view and slots of MSC REEF

035 (034)

←

Bay 035 view and slots of MSC REEF

037

→

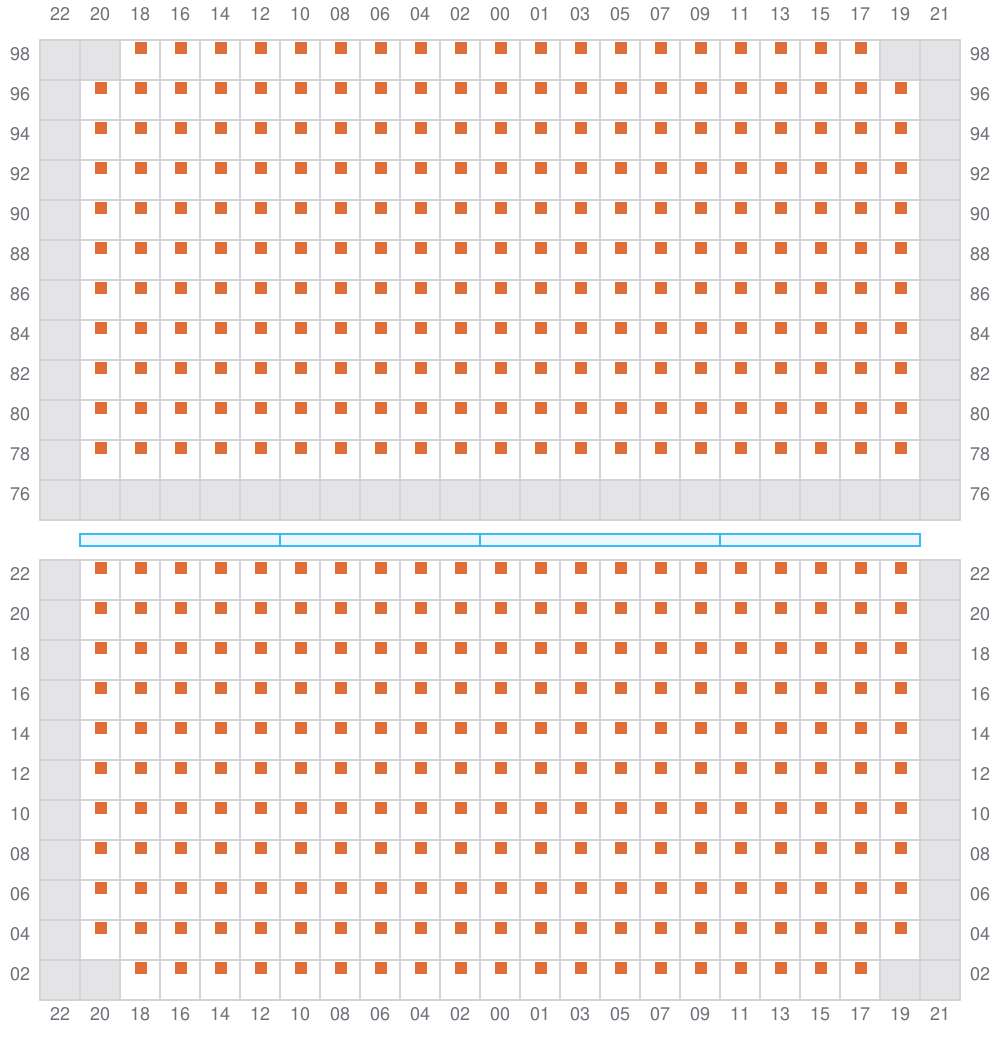

Bay 037 view and slots of MSC REEF

039 (038)

←

Bay 039 view and slots of MSC REEF

041

→

Bay 041 view and slots of MSC REEF

043 (042)

←

Bay 043 view and slots of MSC REEF

045

→

Bay 045 view and slots of MSC REEF

047 (046)

←

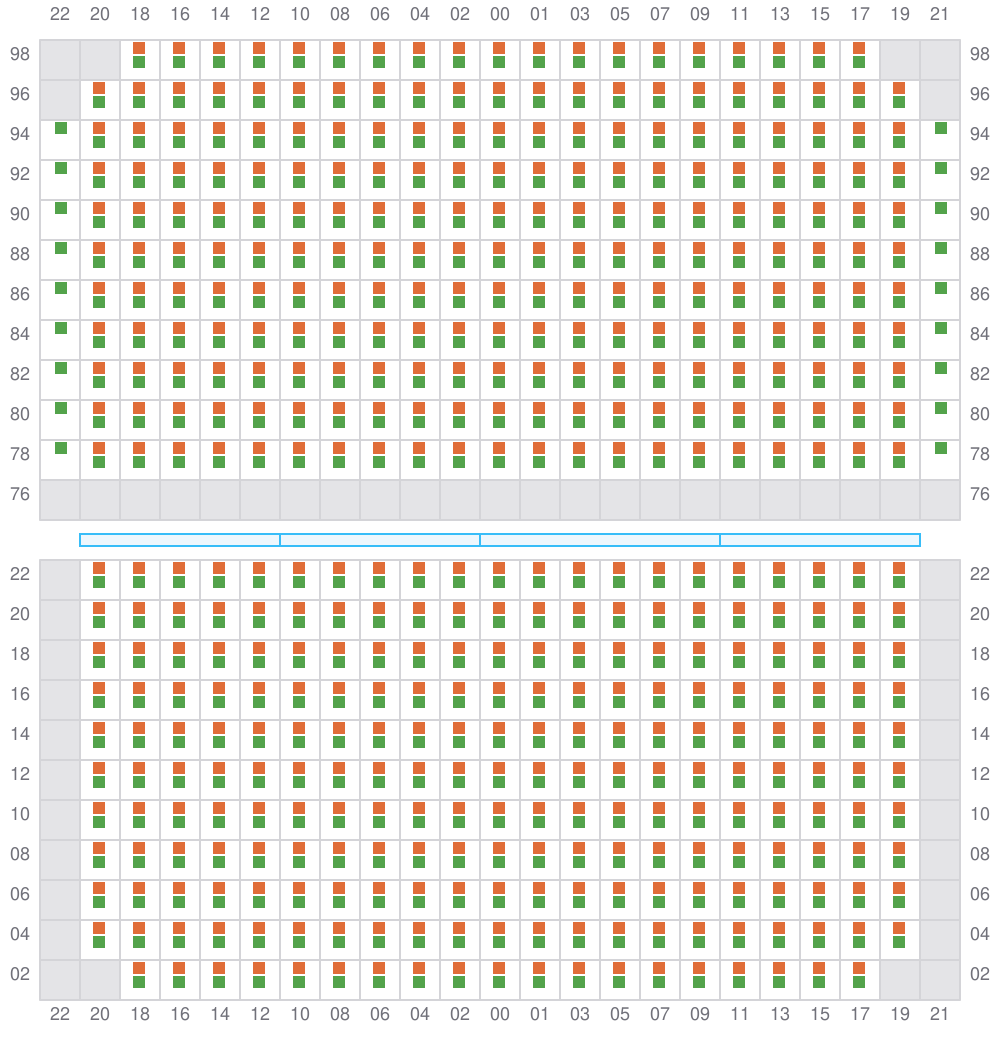

Bay 047 view and slots of MSC REEF

049

→

Bay 049 view and slots of MSC REEF

051 (050)

←

Bay 051 view and slots of MSC REEF

053

→

Bay 053 view and slots of MSC REEF

055 (054)

←

Bay 055 view and slots of MSC REEF

057

→

Bay 057 view and slots of MSC REEF

059 (058)

←

Bay 059 view and slots of MSC REEF

061

→

Bay 061 view and slots of MSC REEF

063 (062)

←

Bay 063 view and slots of MSC REEF

065

→

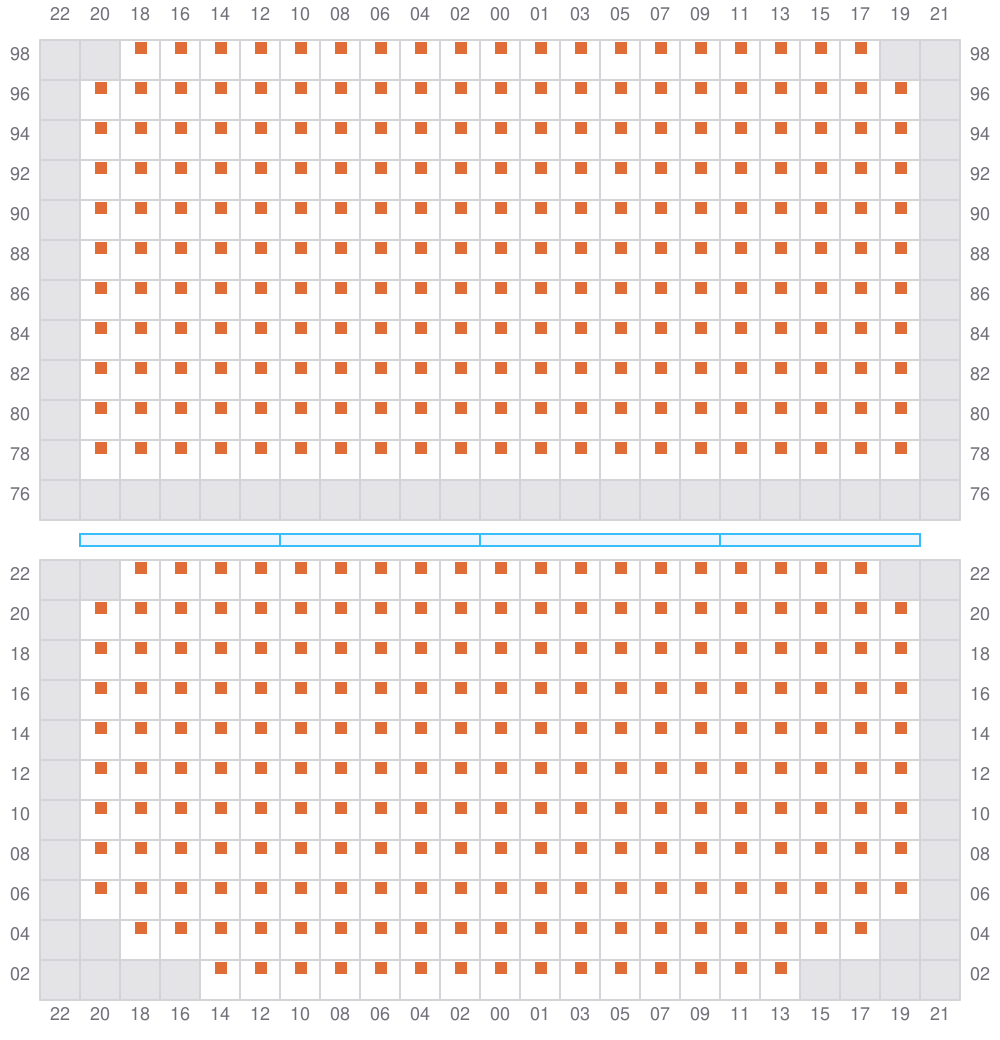

Bay 065 view and slots of MSC REEF

067 (066)

←

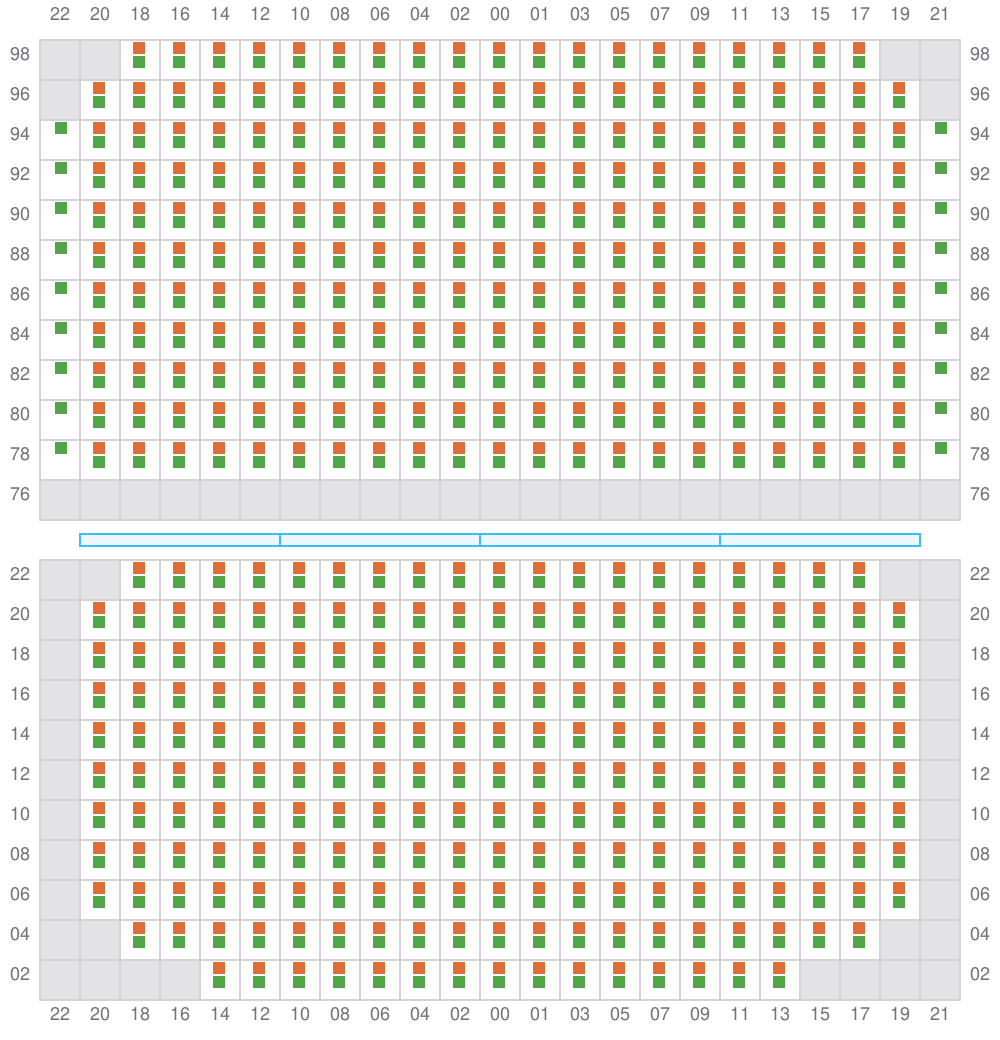

Bay 067 view and slots of MSC REEF

069

→

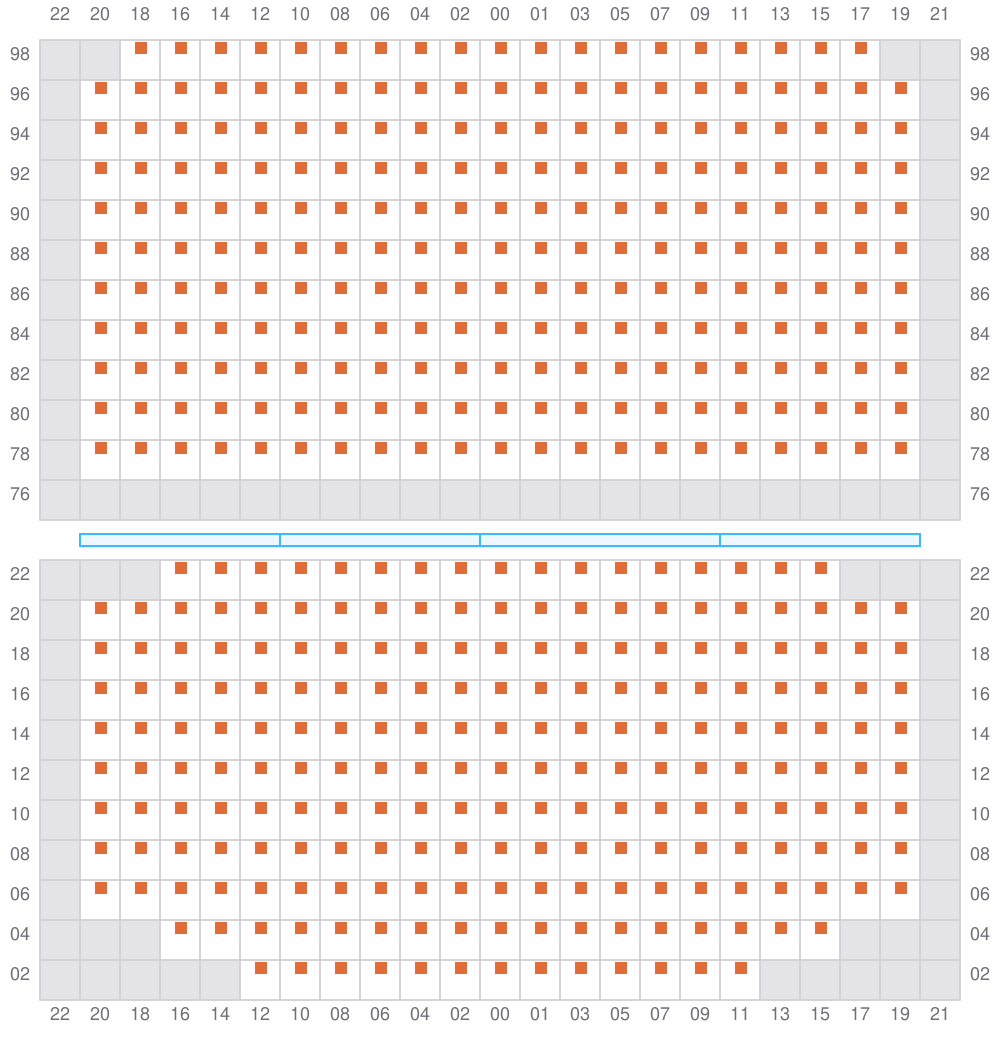

Bay 069 view and slots of MSC REEF

071 (070)

←

Bay 071 view and slots of MSC REEF

073

Bay 073 view and slots of MSC REEF

075 (074)

^← / _?

Bay 075 view and slots of MSC REEF

077

→

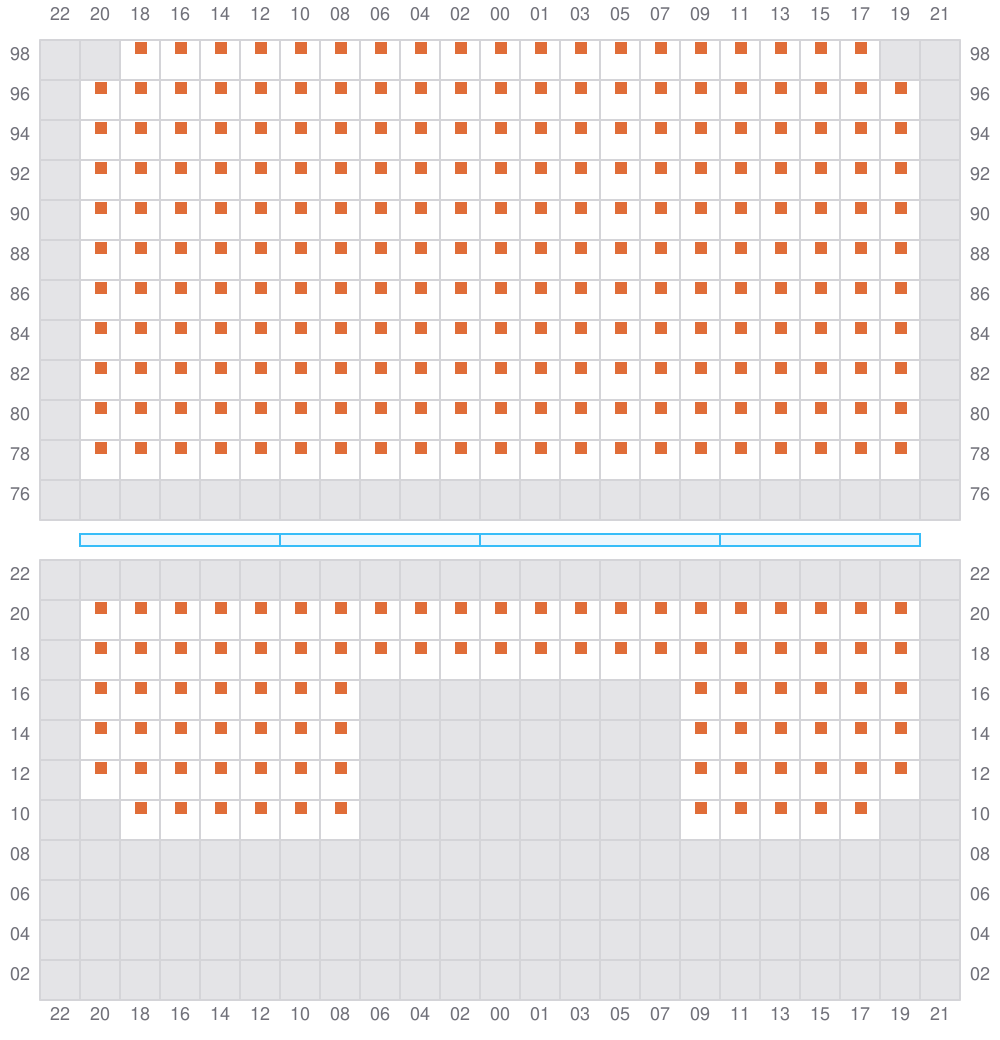

Bay 077 view and slots of MSC REEF

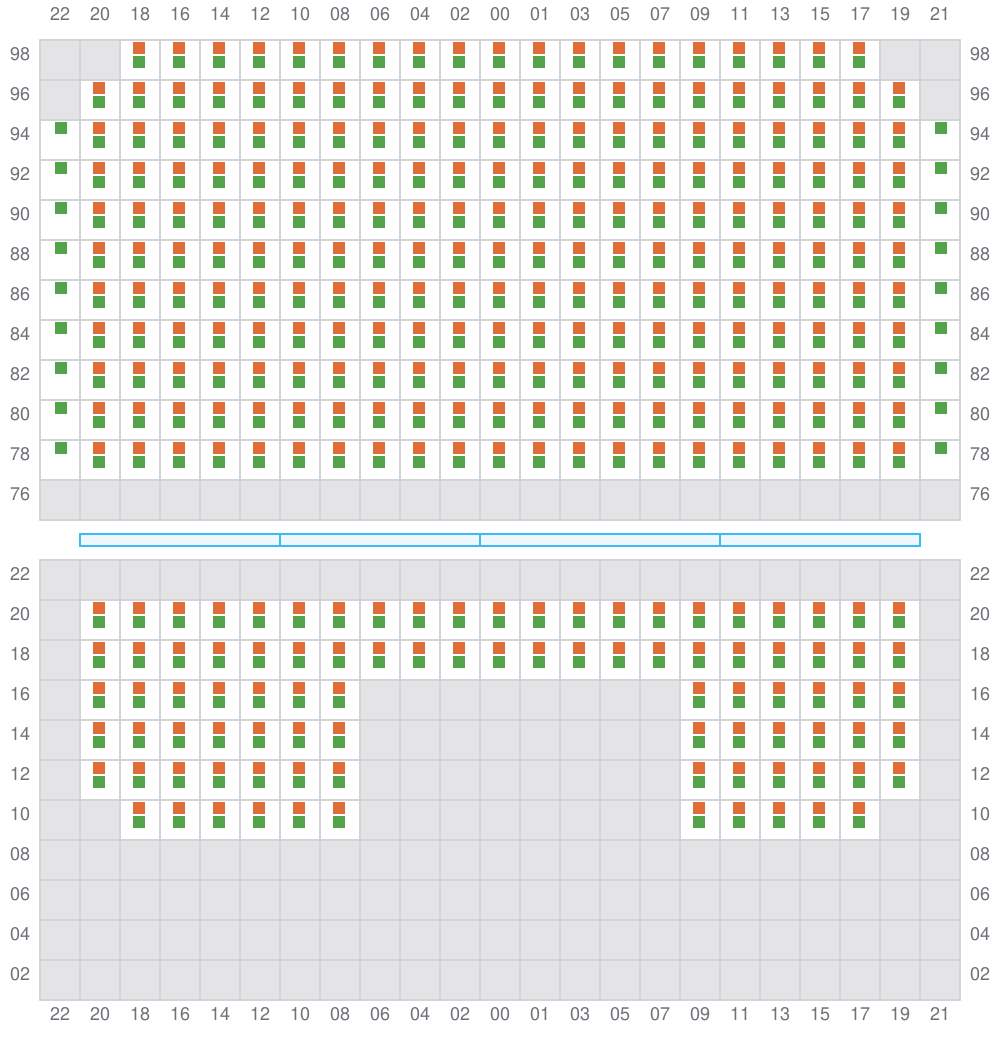

079 (078)

←

Bay 079 view and slots of MSC REEF

081

→

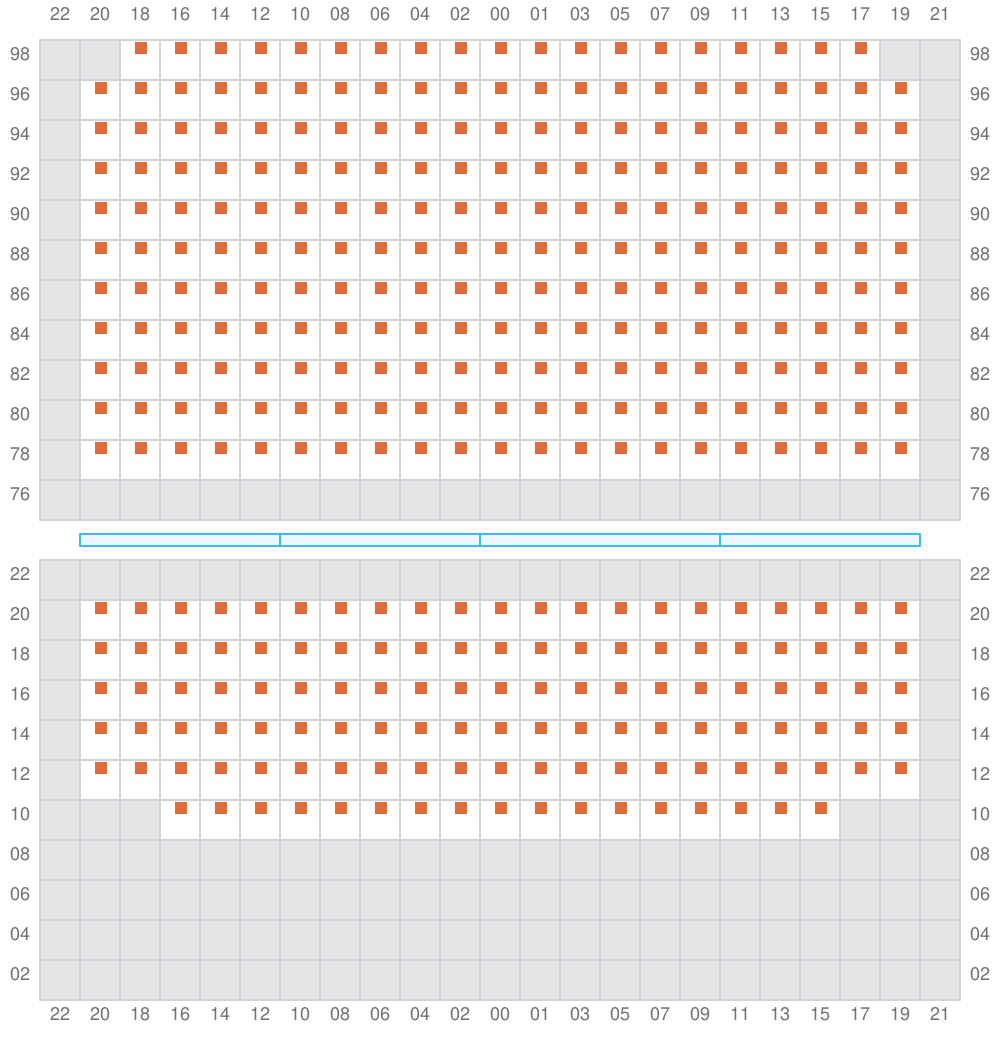

Bay 081 view and slots of MSC REEF

083 (082)

←

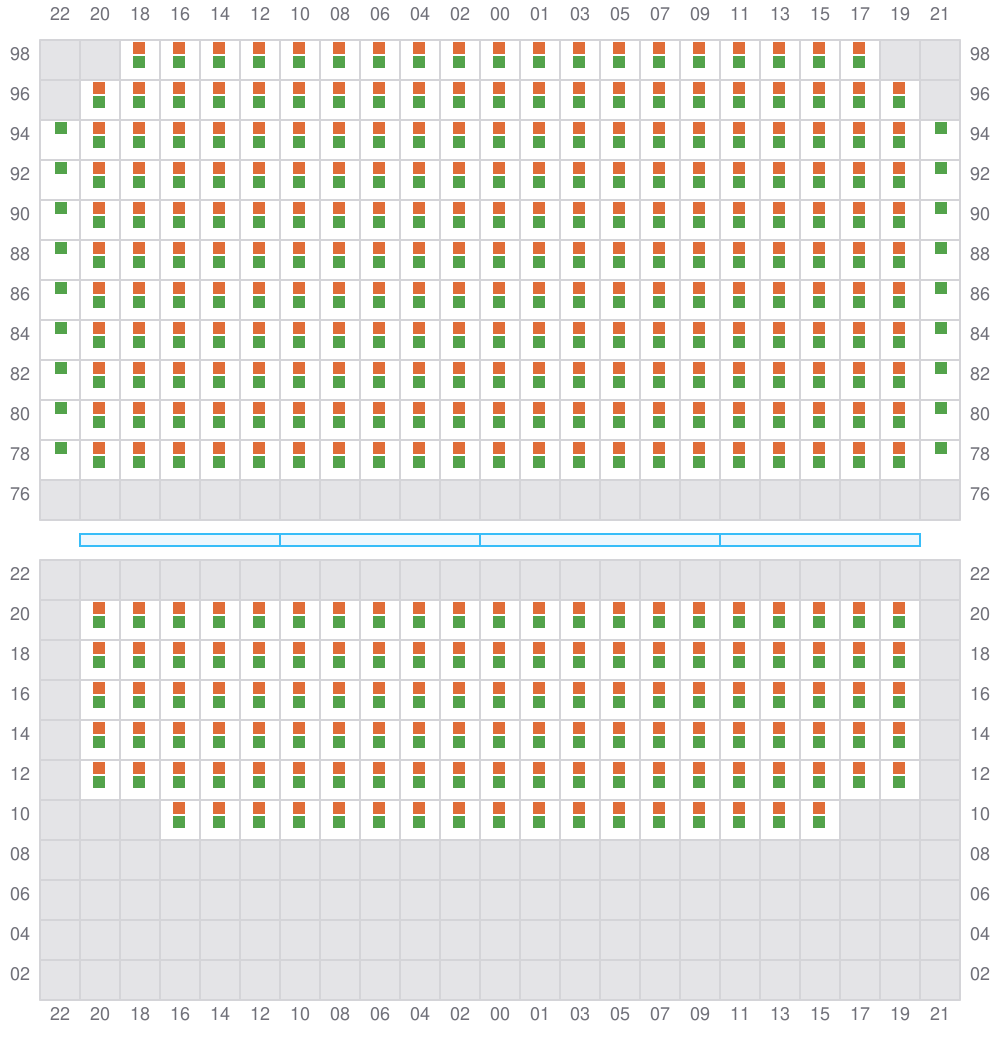

Bay 083 view and slots of MSC REEF

085

→

Bay 085 view and slots of MSC REEF

087 (086)

←

Bay 087 view and slots of MSC REEF

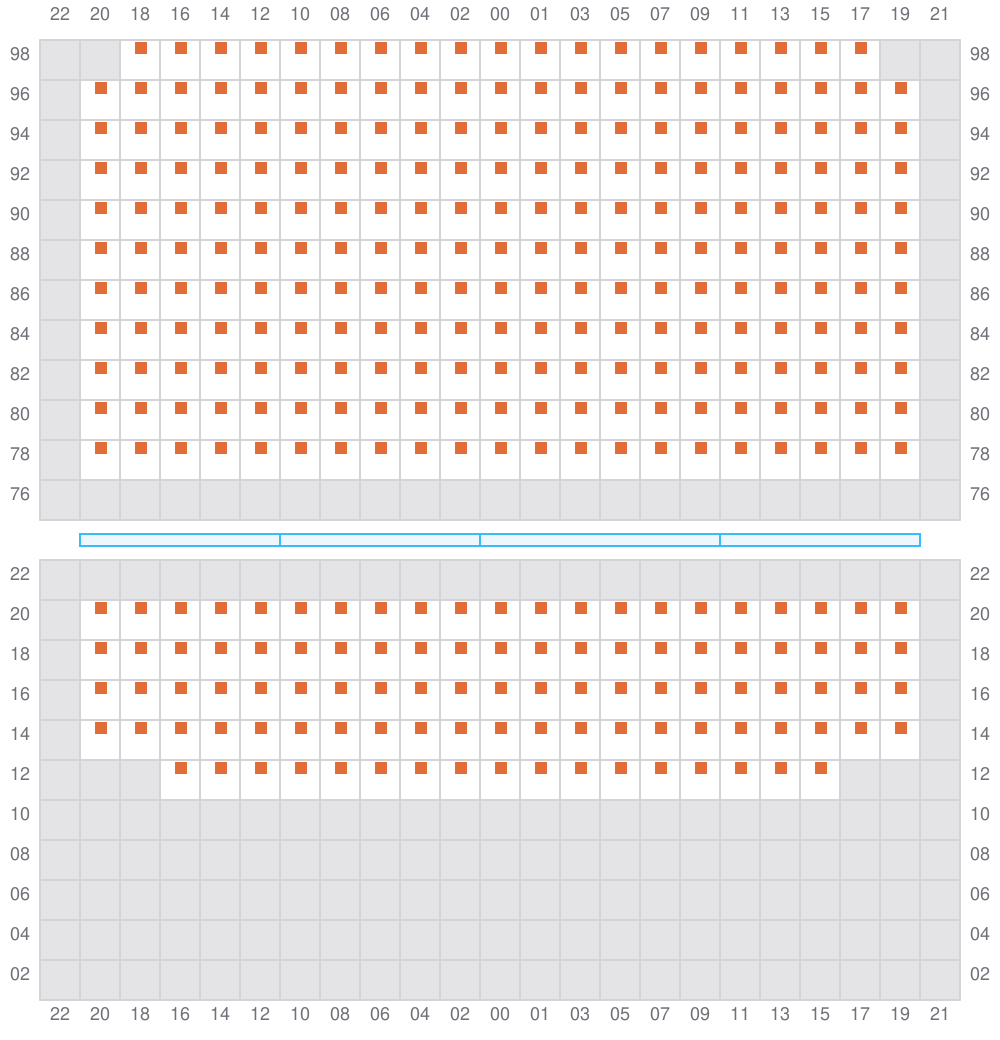

089

→

Bay 089 view and slots of MSC REEF

091 (090)

←

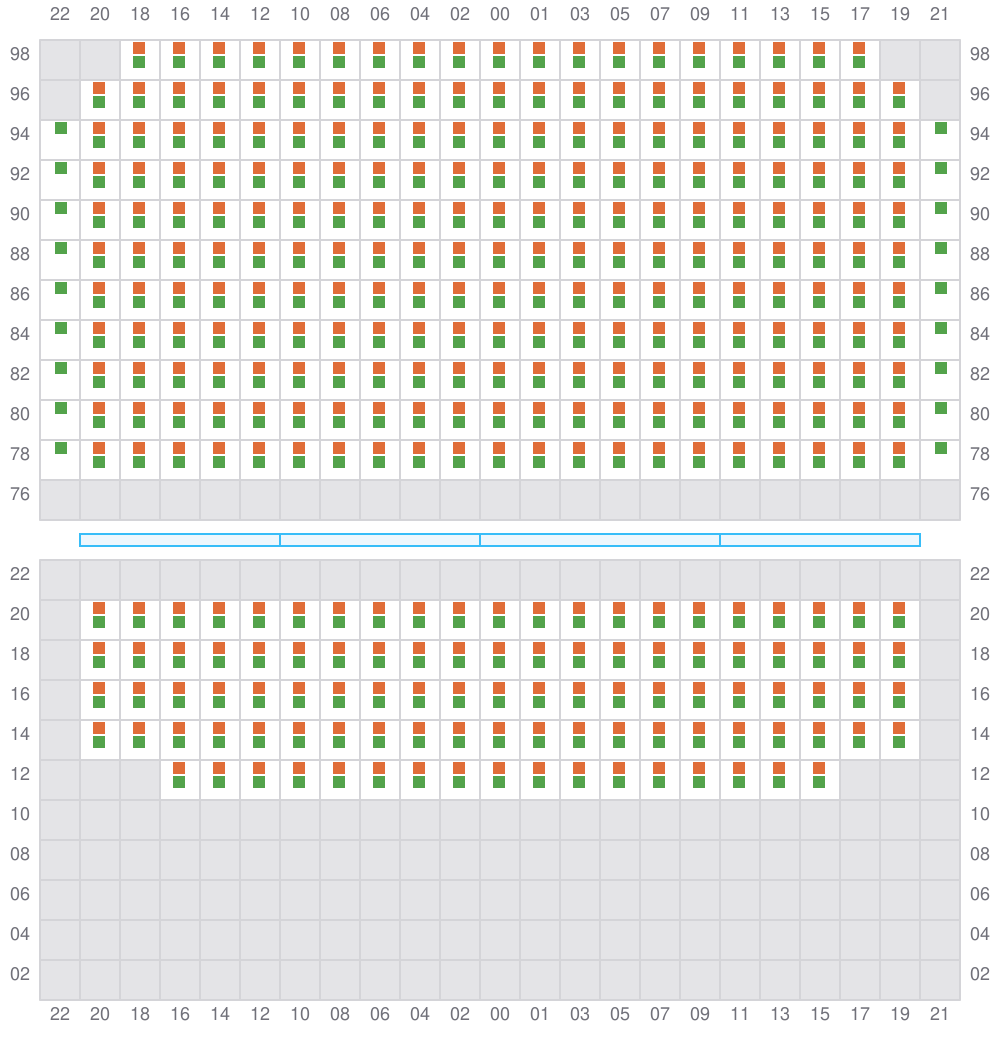

Bay 091 view and slots of MSC REEF

093

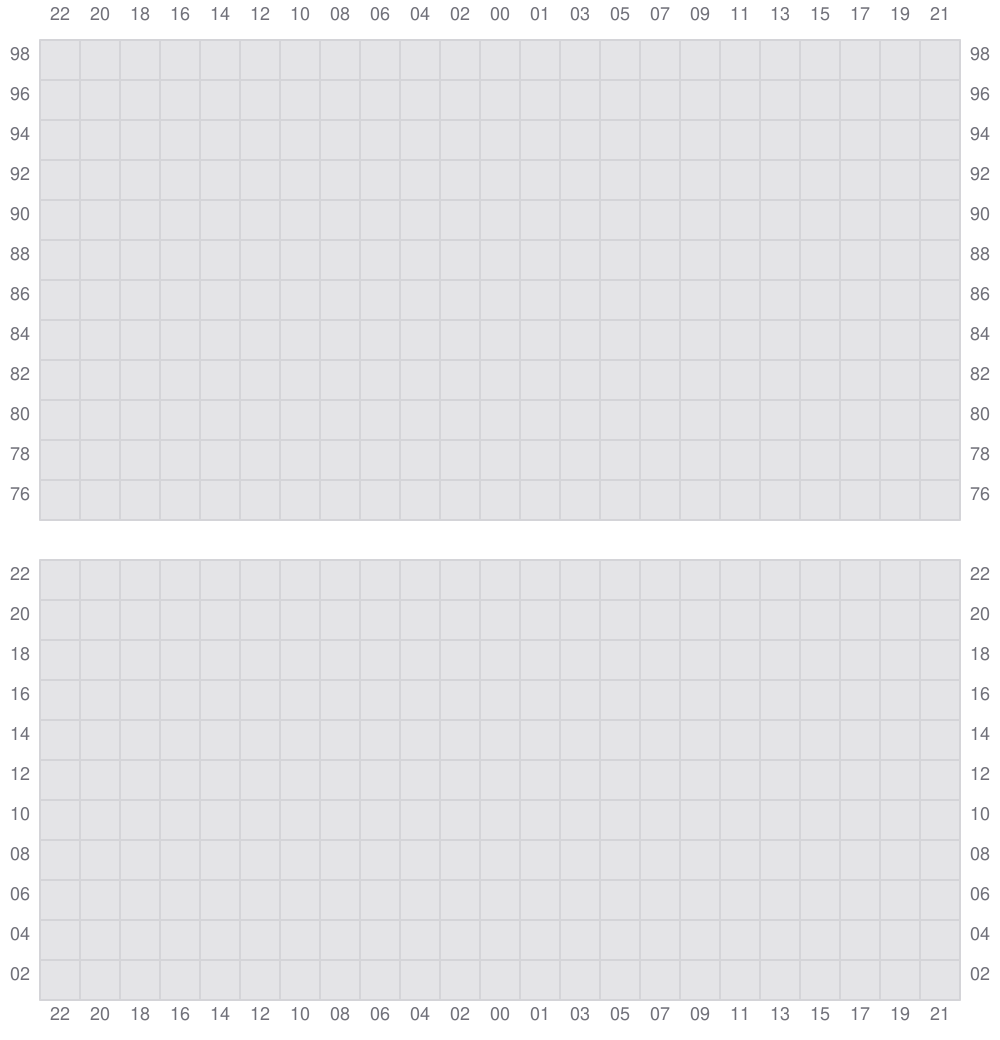

Bay 093 view and slots of MSC REEF

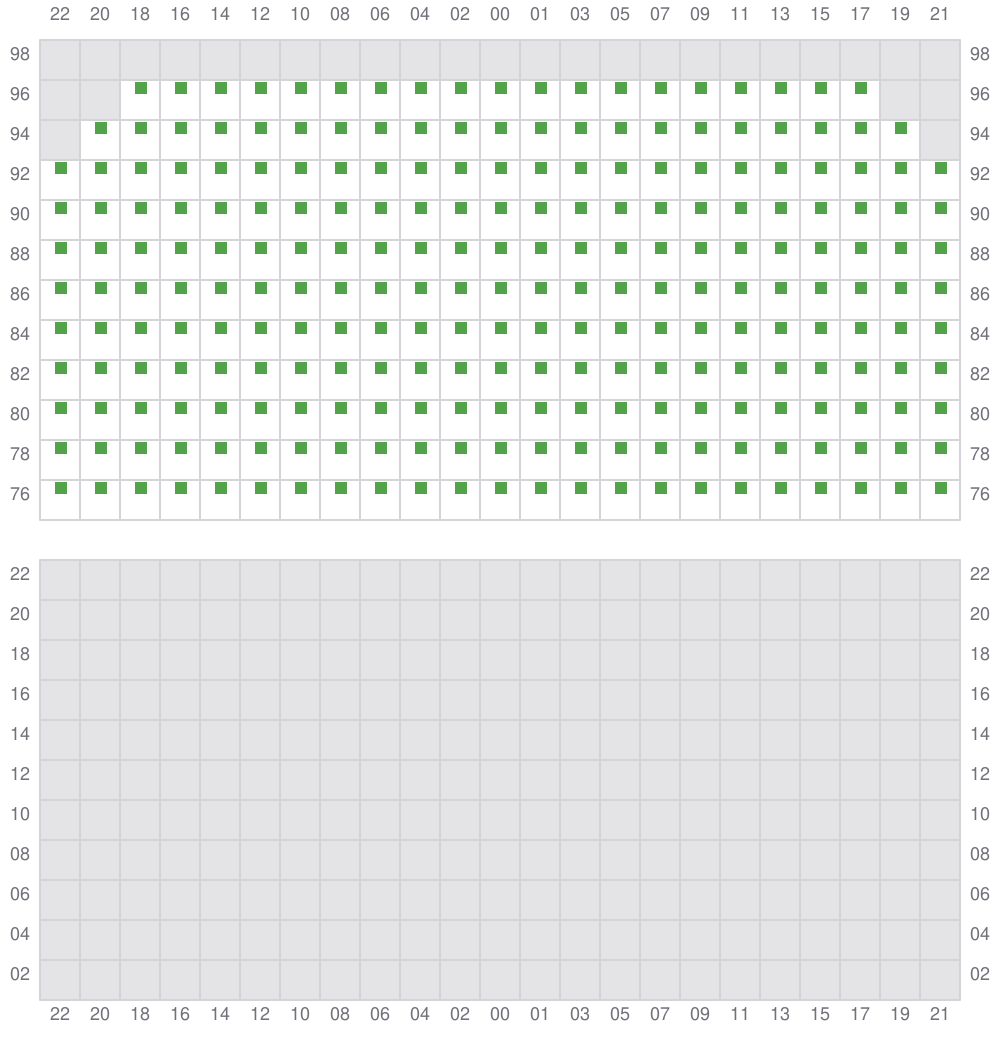

095 (094)

^← / _?

Bay 095 view and slots of MSC REEF
