MSC RESILIENT III
9240873 | D5UN9 | MSC by ************************** Last update: Thu Jun 15 2023
General Info
Ship Name:MSC RESILIENT III
IMO Code:9240873
Call Sign:D5UN9
Line Operator:MSC
Class Name for Sister Ships:BOM
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,648
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

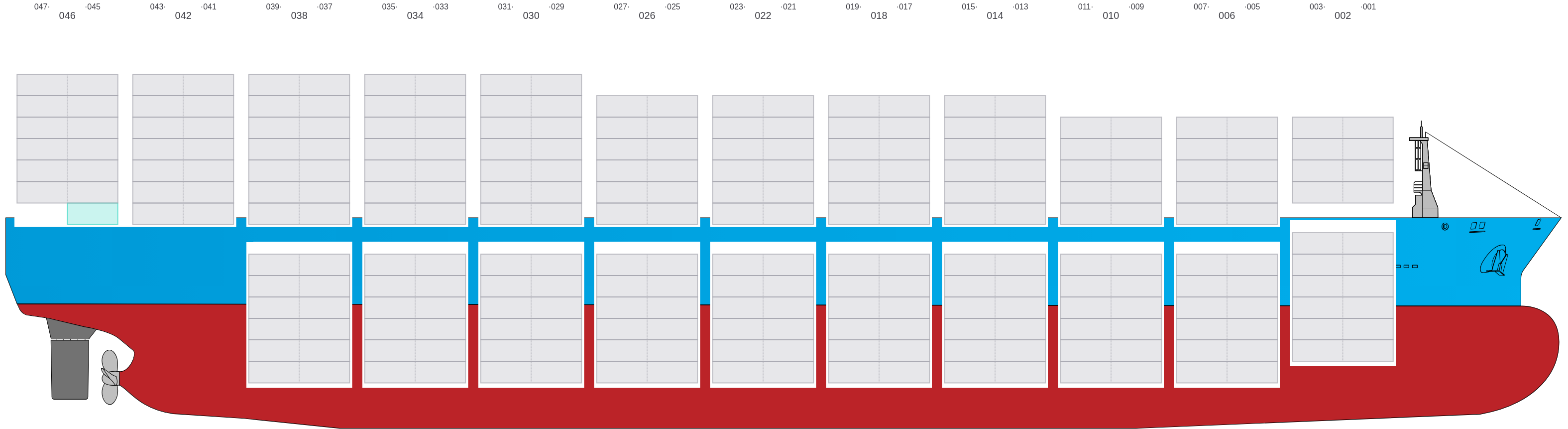

Side View
![Side view of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-sideView.png?v=1686862051520)
Hatch-Covers View
![Deck view of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-deckView.png?v=1686862051520)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

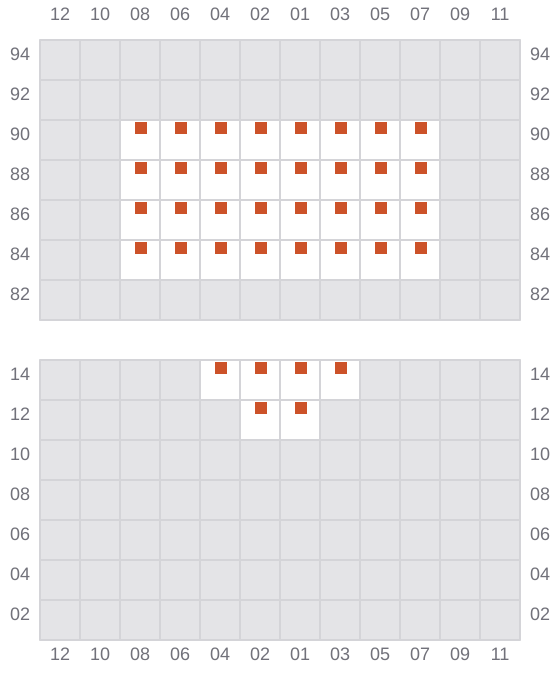

001
- →
![Bay 001 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b001.png?v=1686862051520)

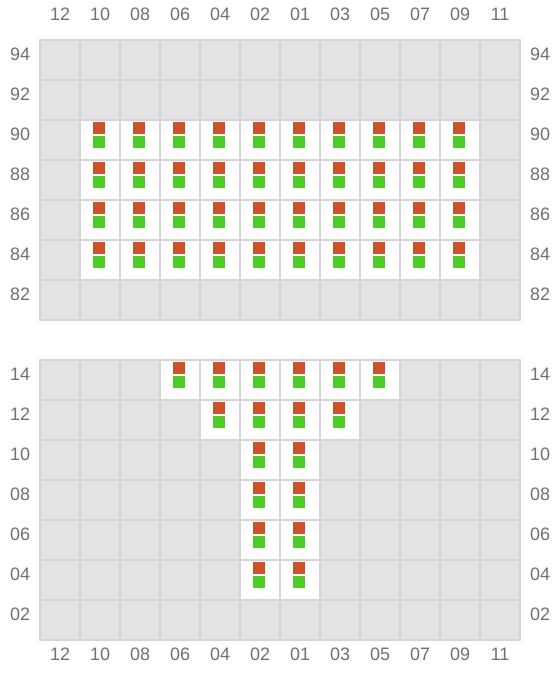

003 (002)
- ←
![Bay 003 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b003.png?v=1686862051520)

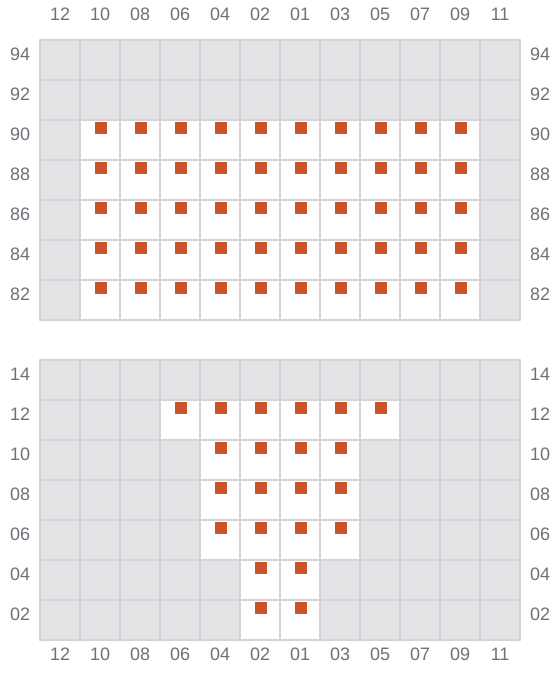

005
- →
![Bay 005 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b005.png?v=1686862051520)

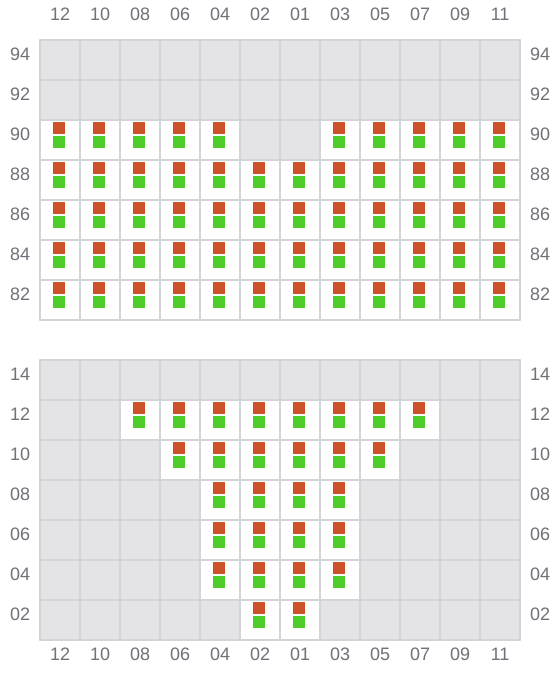

007 (006)
- ←
![Bay 007 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b007.png?v=1686862051520)
009
- →
![Bay 009 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b009.png?v=1686862051520)

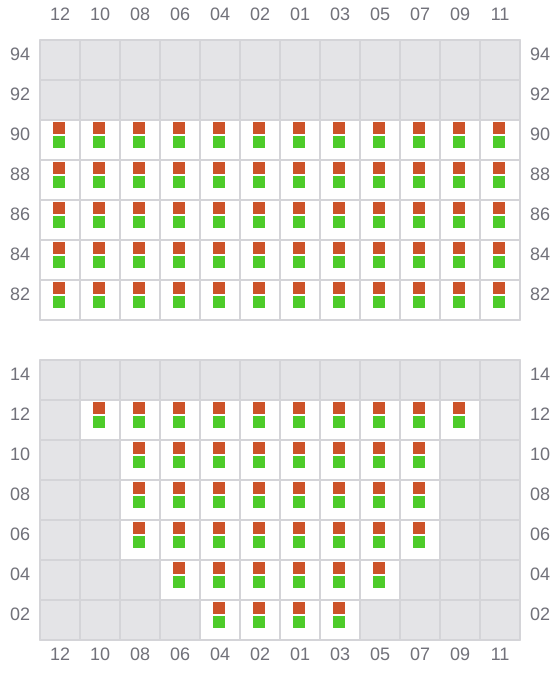

011 (010)
- ←
![Bay 011 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b011.png?v=1686862051520)

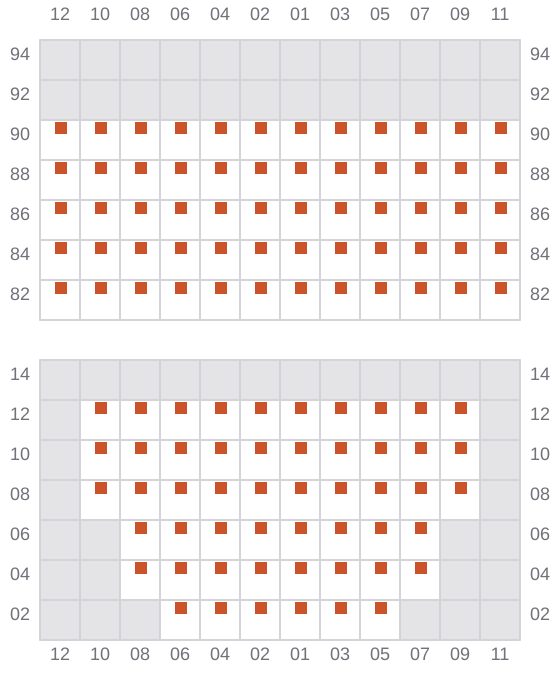

013
- →
![Bay 013 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b013.png?v=1686862051520)

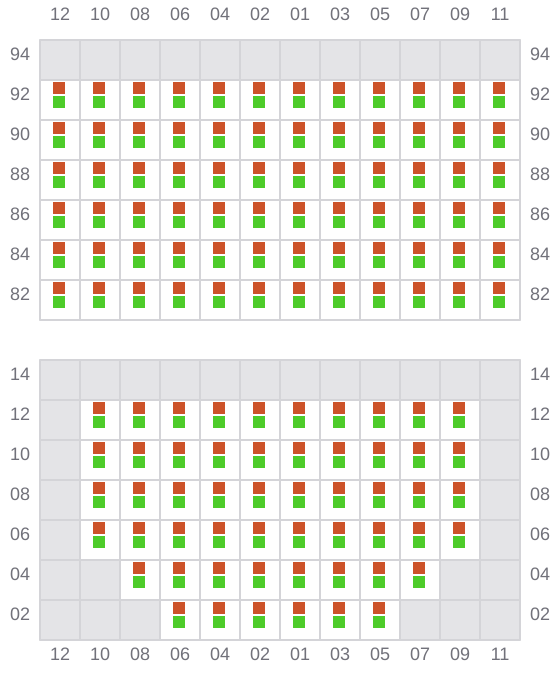

015 (014)
- ←
![Bay 015 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b015.png?v=1686862051520)

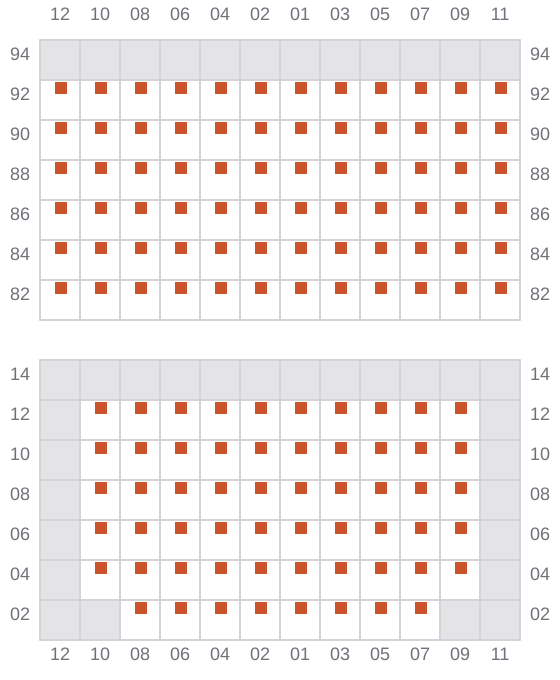

017
- →
![Bay 017 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b017.png?v=1686862051520)
019 (018)
- ←
![Bay 019 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b019.png?v=1686862051520)
021
- →
![Bay 021 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b021.png?v=1686862051520)

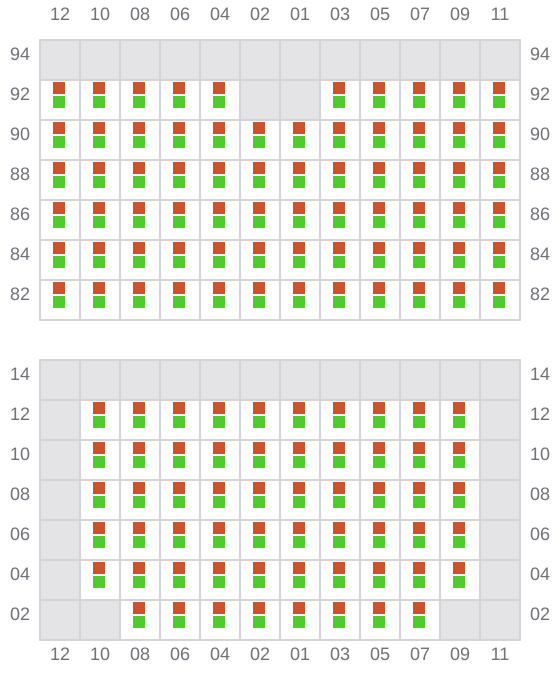

023 (022)
- ←
![Bay 023 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b023.png?v=1686862051520)

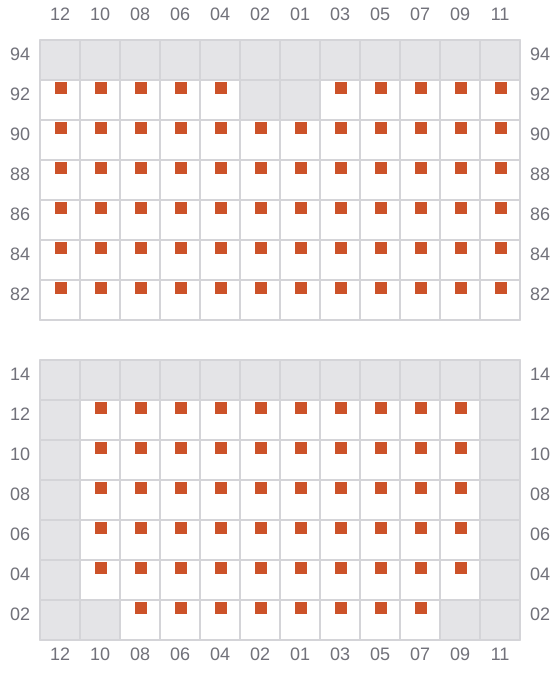

025
- →
![Bay 025 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b025.png?v=1686862051520)

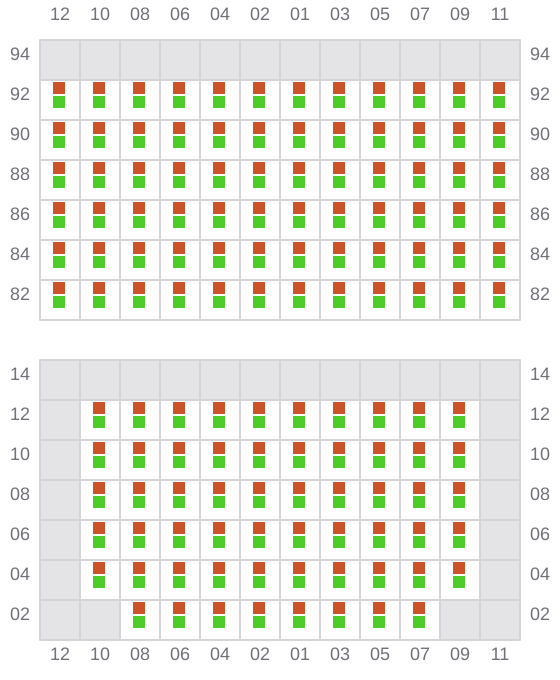

027 (026)
- ←
![Bay 027 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b027.png?v=1686862051520)
029
- →
![Bay 029 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b029.png?v=1686862051520)

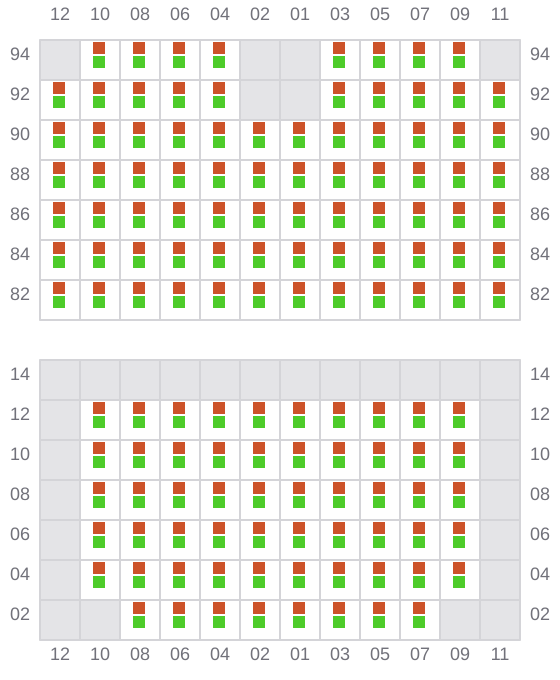

031 (030)
- ←
![Bay 031 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b031.png?v=1686862051520)

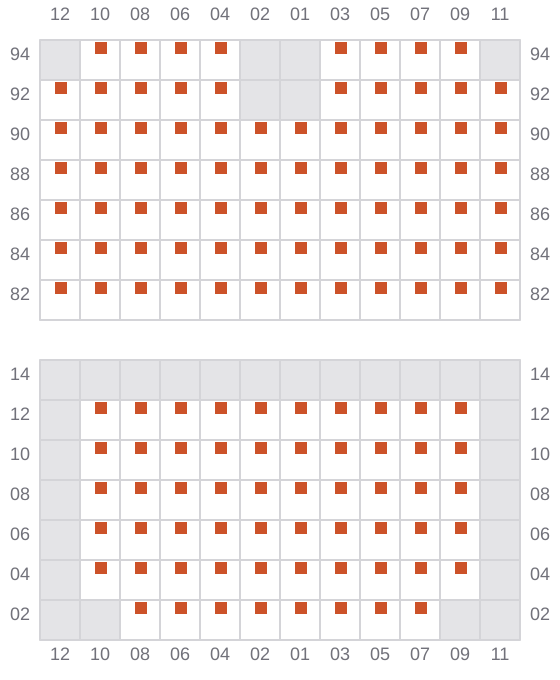

033
- →
![Bay 033 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b033.png?v=1686862051520)

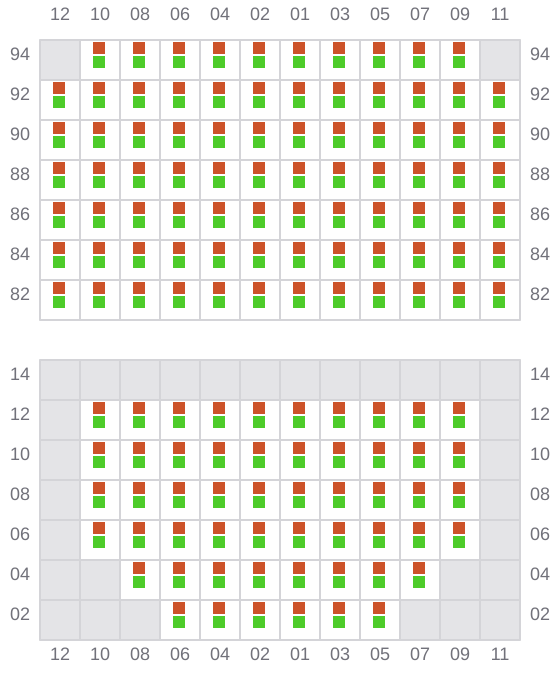

035 (034)
- ←
![Bay 035 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b035.png?v=1686862051520)

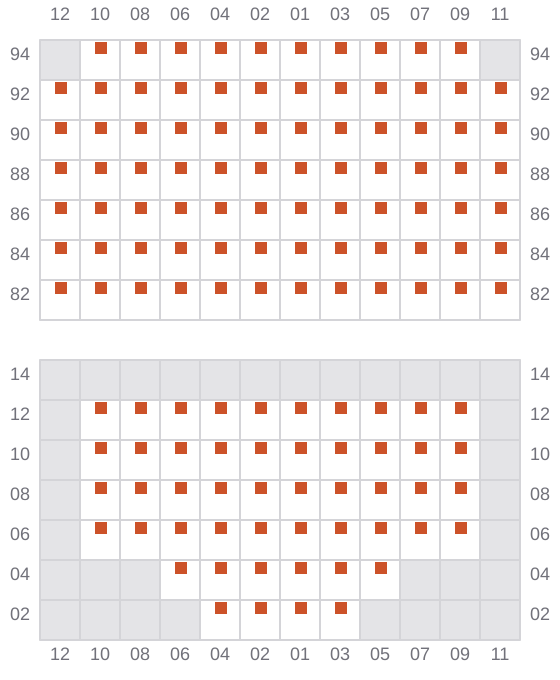

037
- →
![Bay 037 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b037.png?v=1686862051520)

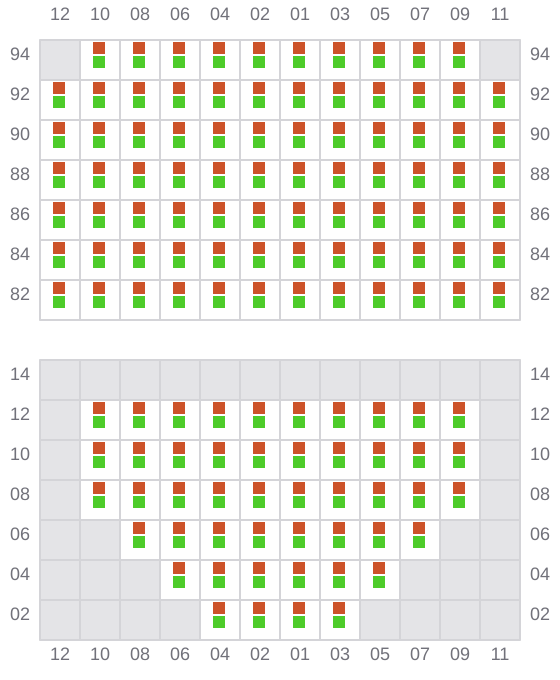

039 (038)
- ←
![Bay 039 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b039.png?v=1686862051520)

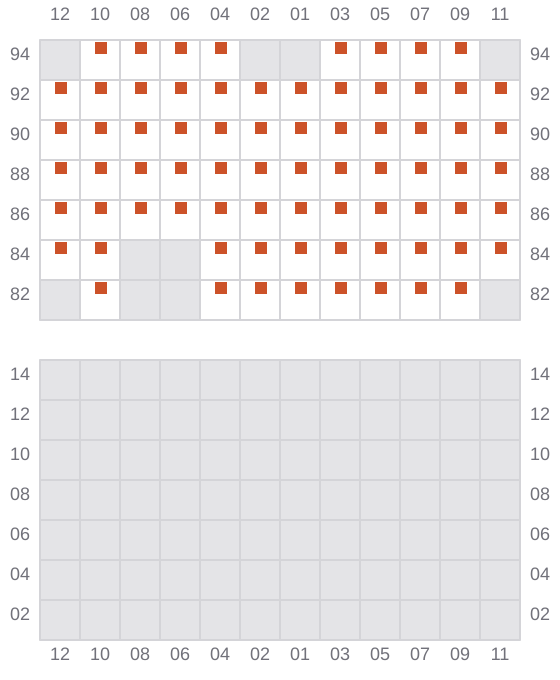

041
- → / ?
![Bay 041 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b041.png?v=1686862051520)

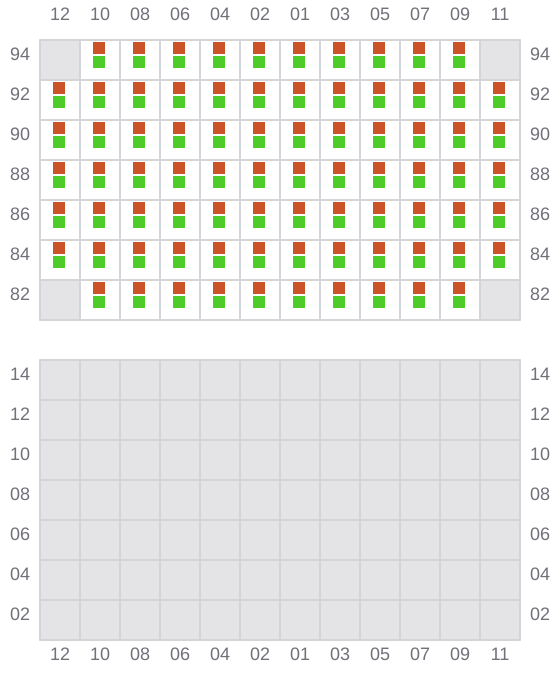

043 (042)
- ← / ?
![Bay 043 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b043.png?v=1686862051520)

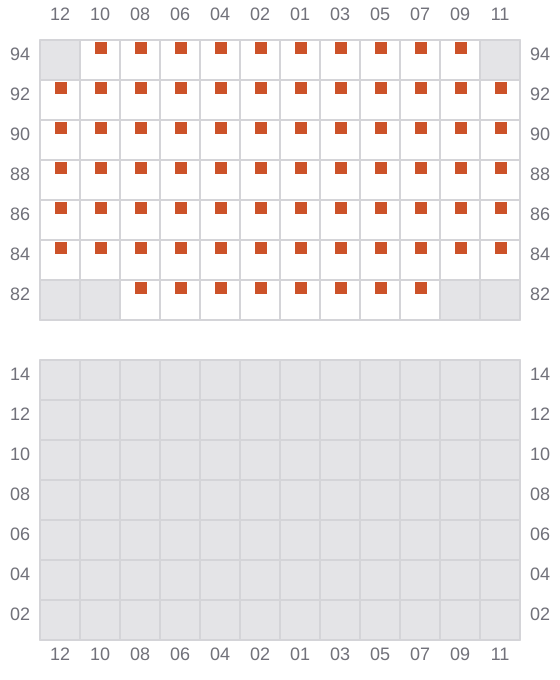

045
- → / ?
![Bay 045 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b045.png?v=1686862051520)

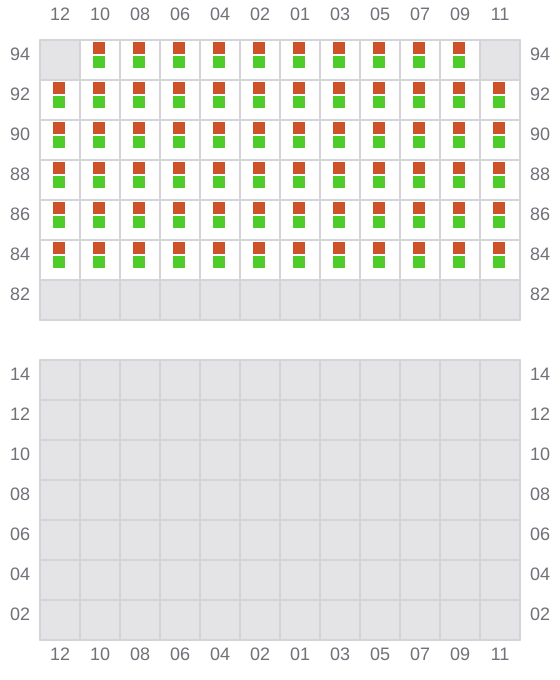

047 (046)
- ← / ?
![Bay 047 view and slots of MSC RESILIENT III](/vessel-images/080790e5-dc91-496d-8b1c-0bb67b926f2f-b047.png?v=1686862051520)
