MSC RIDA
9393307 | CQRD | MSC by ************************** Last update: Thu Jun 22 2023

General Info

Ship Name:MSC RIDA

IMO Code:9393307

Call Sign:CQRD

Line Operator:MSC

Class Name for Sister Ships:VBA

Year Built:2009

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:079

Max ISO Row:18

Center Line Row:No

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,566

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

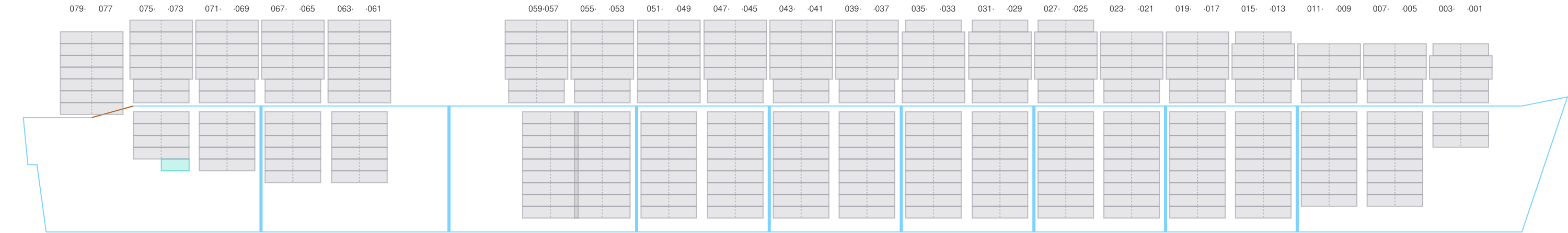

Side View

Side view of MSC RIDA

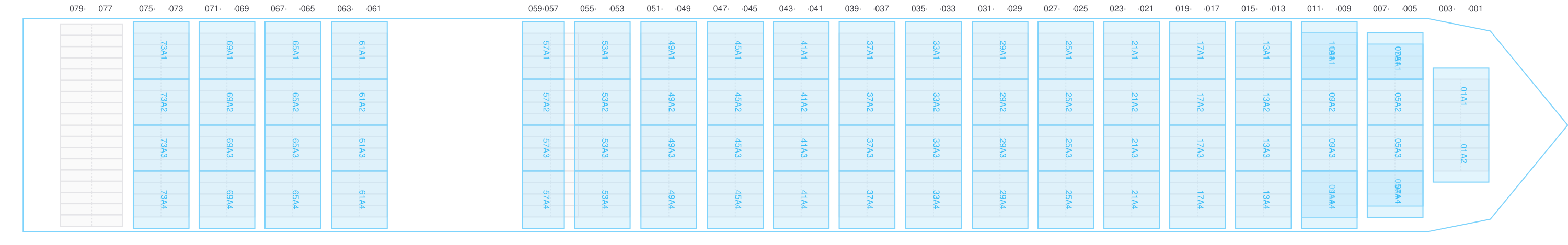

Hatch-Covers View

Deck view of MSC RIDA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→
→

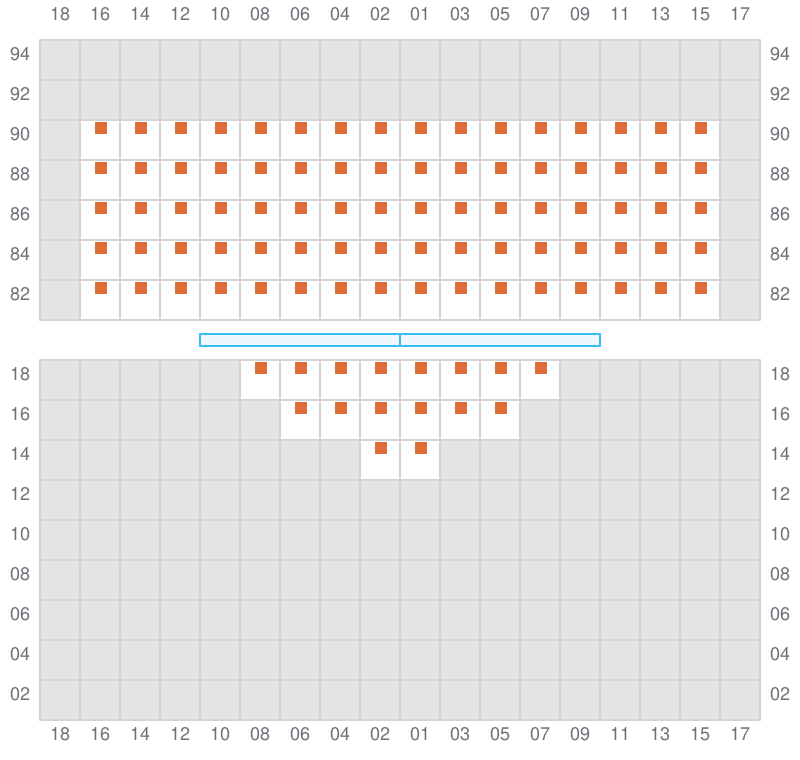

Bay 001 view and slots of MSC RIDA

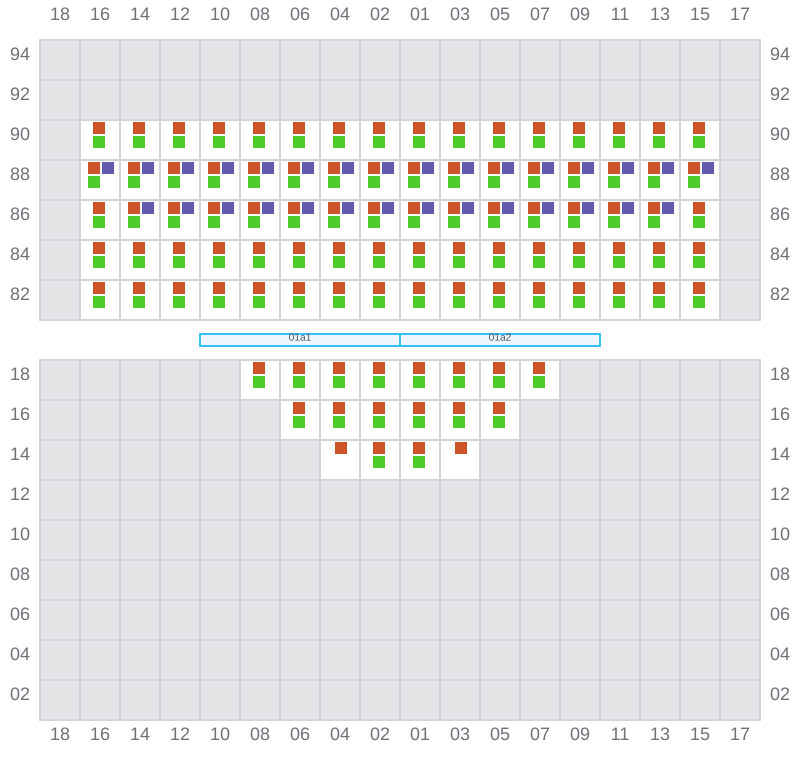

003 (002)

←
→

Bay 003 view and slots of MSC RIDA

005

→
→

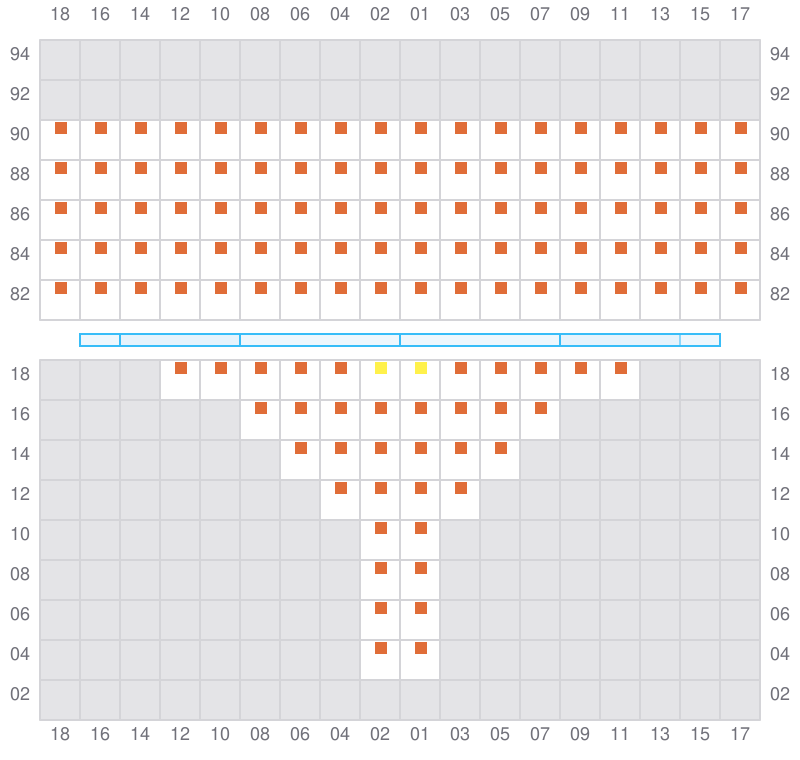

Bay 005 view and slots of MSC RIDA

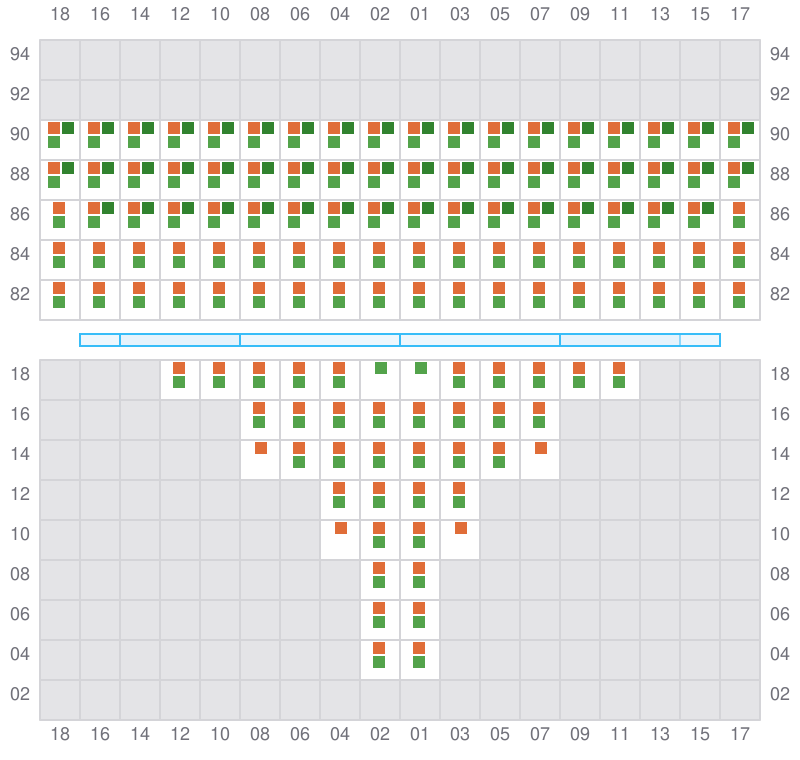

007 (006)

←
→

Bay 007 view and slots of MSC RIDA

009

→
→

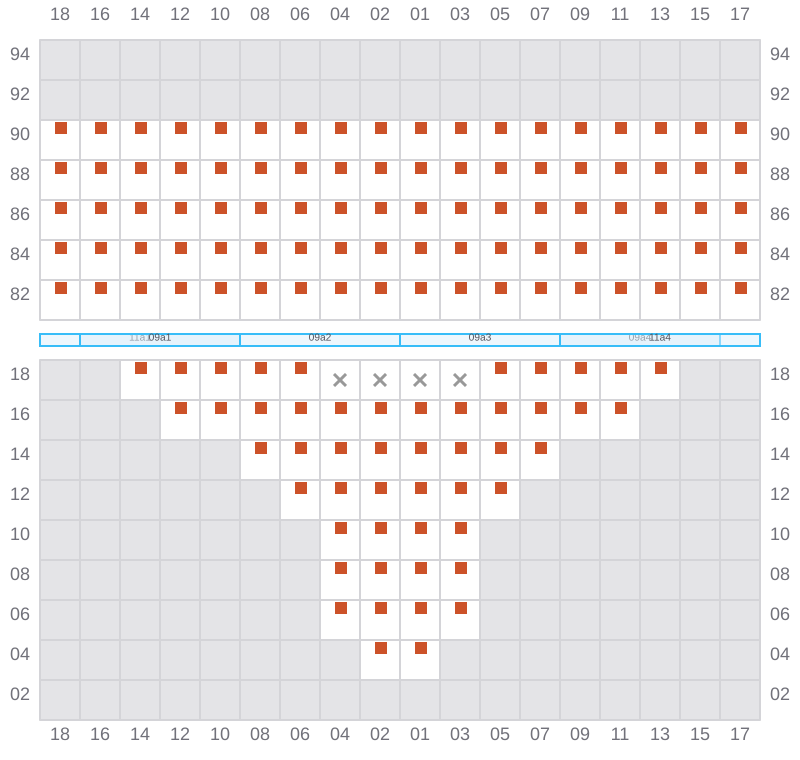

Bay 009 view and slots of MSC RIDA

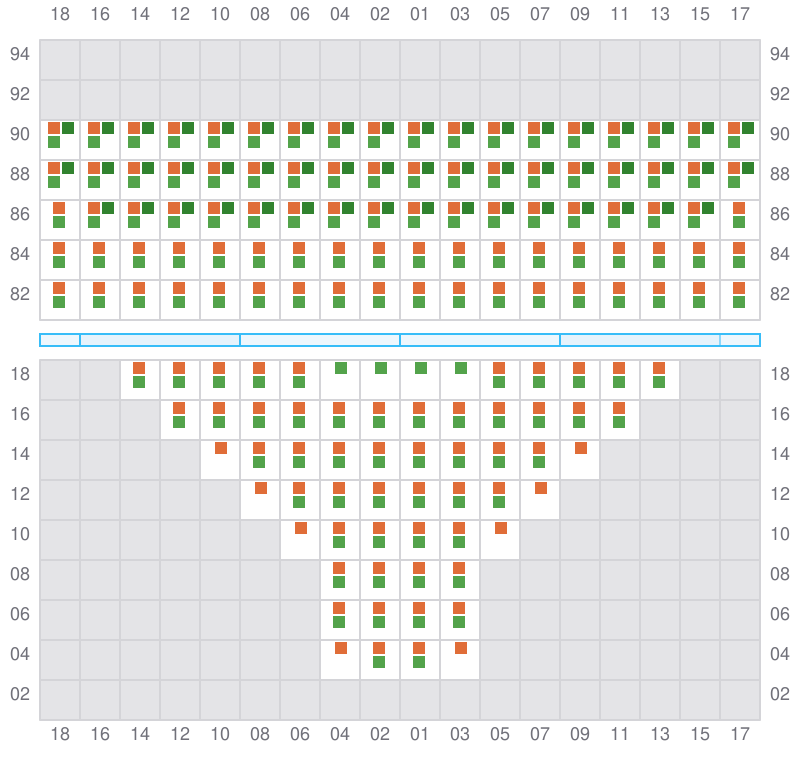

011 (010)

←
→

Bay 011 view and slots of MSC RIDA

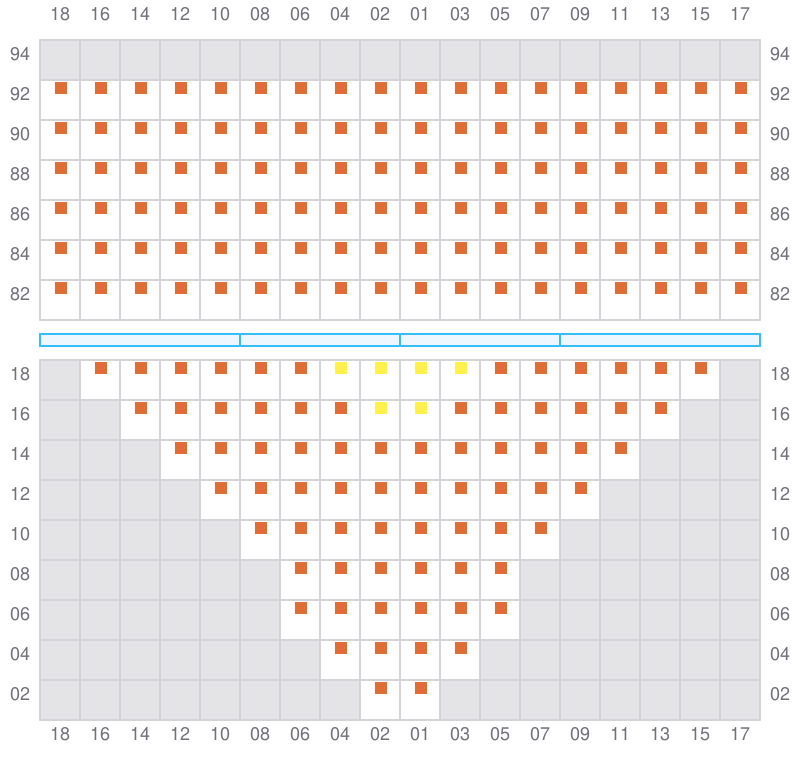

013

→
→

Bay 013 view and slots of MSC RIDA

015 (014)

←
^→ / _?
→

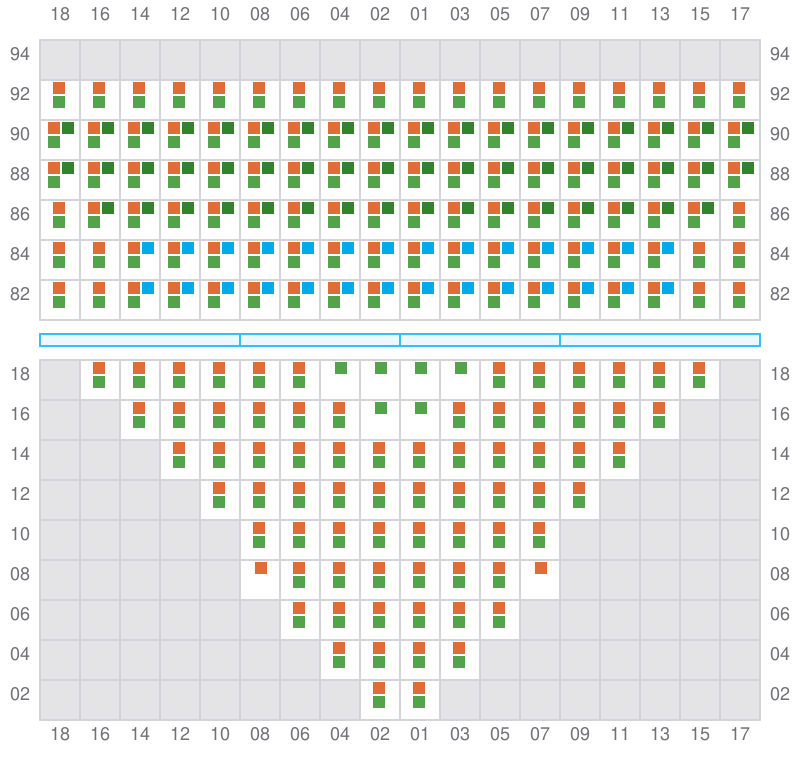

Bay 015 view and slots of MSC RIDA

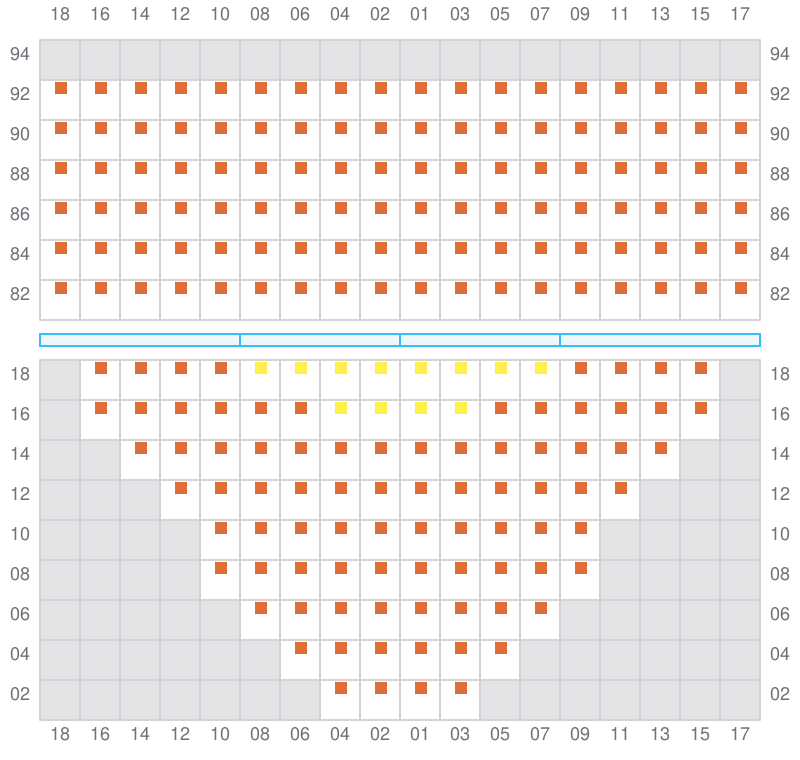

017

→
→

Bay 017 view and slots of MSC RIDA

019 (018)

←
^→ / _?
→

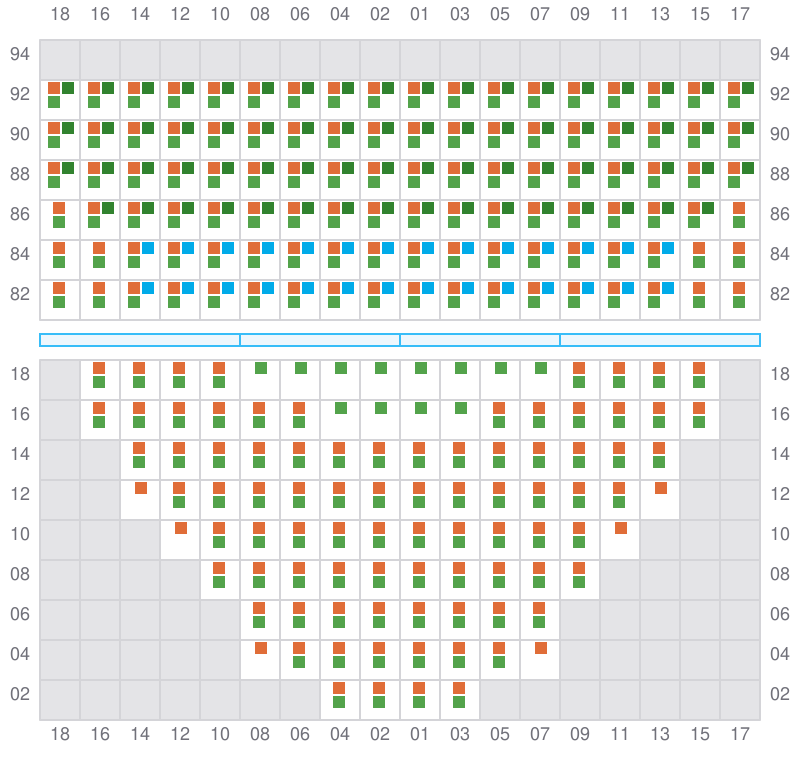

Bay 019 view and slots of MSC RIDA

021

→
→

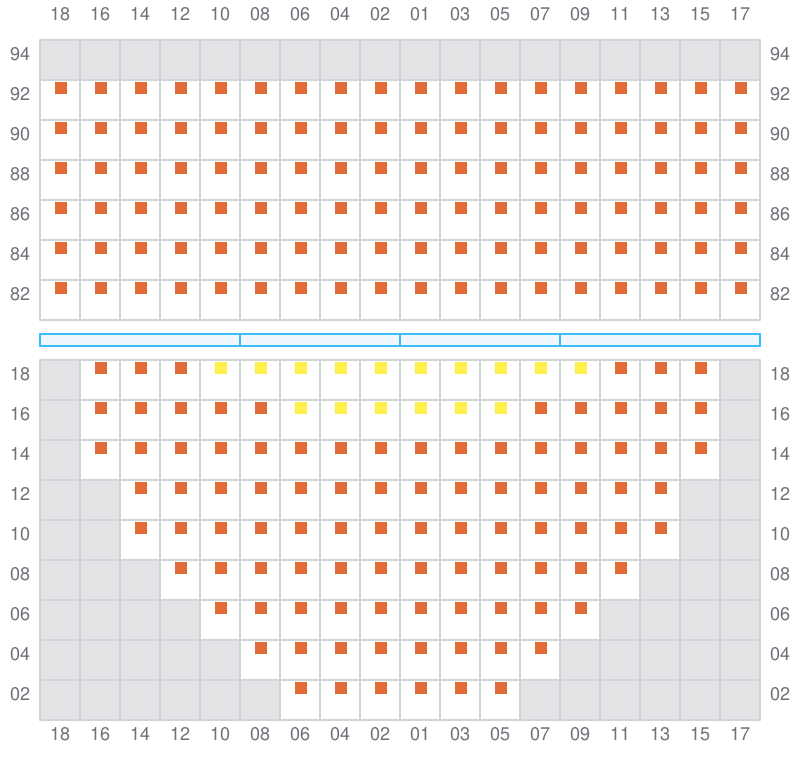

Bay 021 view and slots of MSC RIDA

023 (022)

←
^→ / _?
→

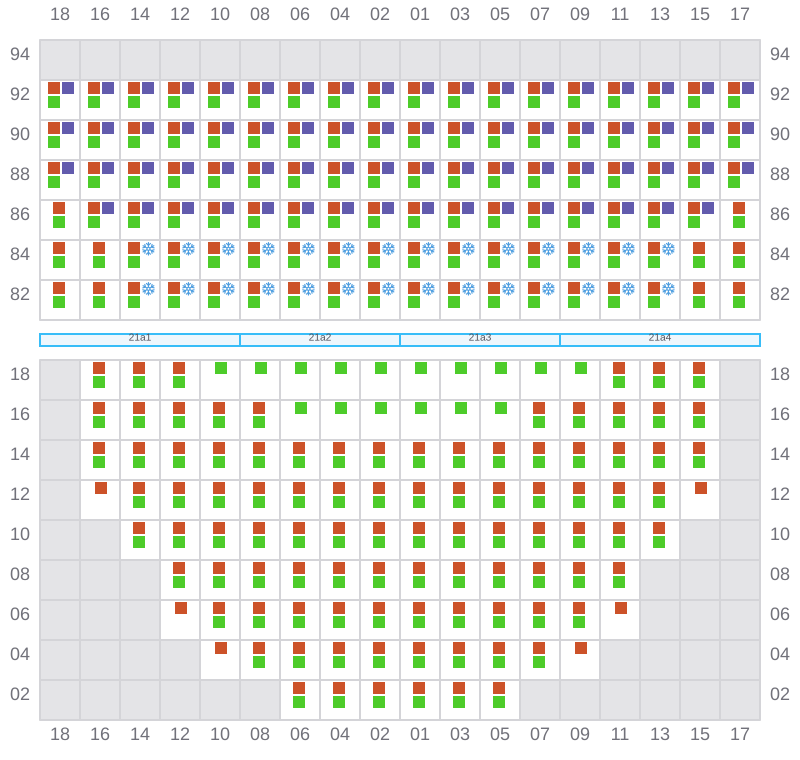

Bay 023 view and slots of MSC RIDA

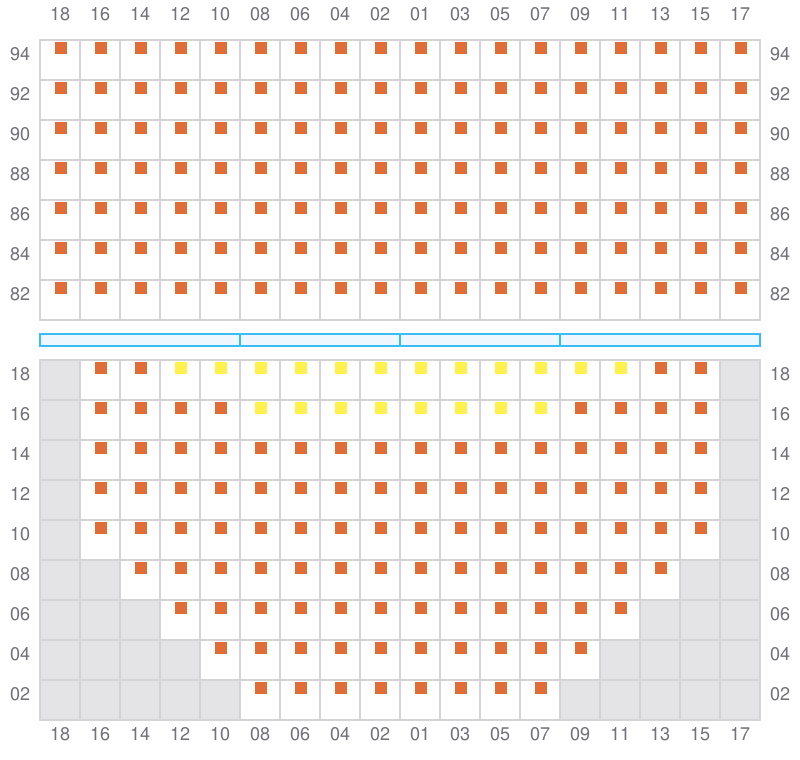

025

→
→

Bay 025 view and slots of MSC RIDA

027 (026)

←
^→ / _?
→

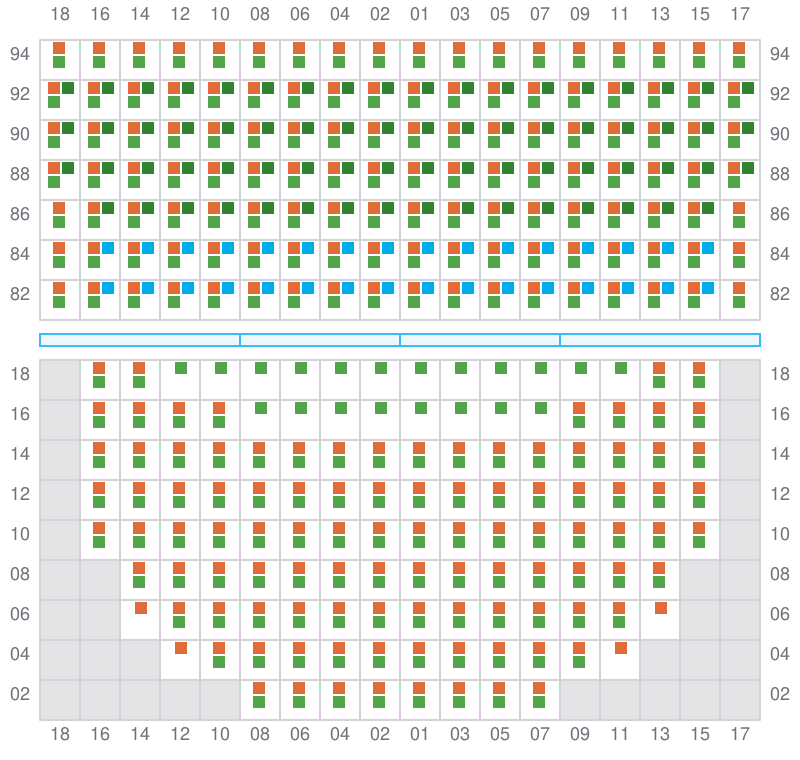

Bay 027 view and slots of MSC RIDA

029

→
→

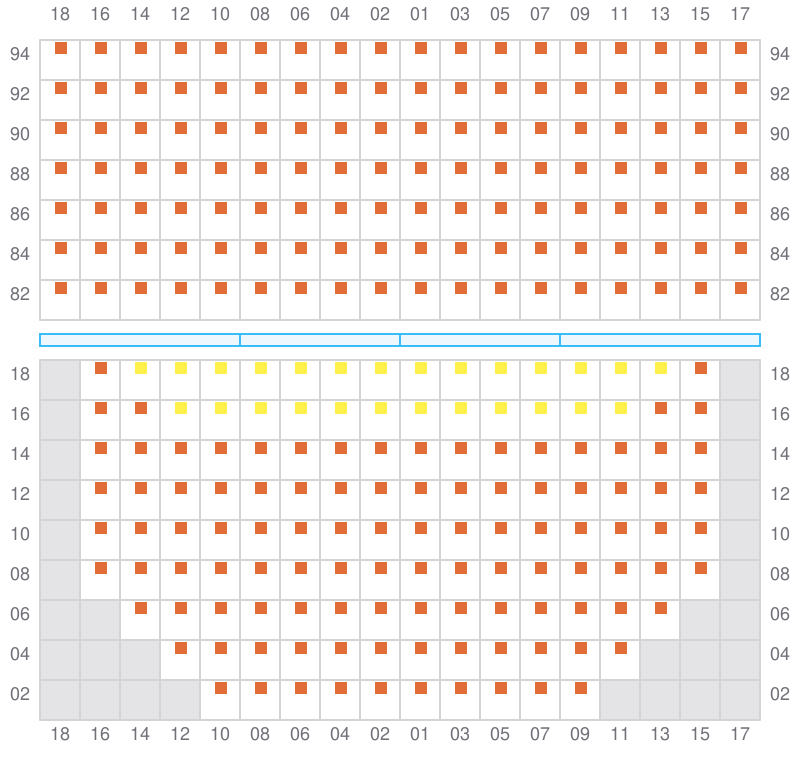

Bay 029 view and slots of MSC RIDA

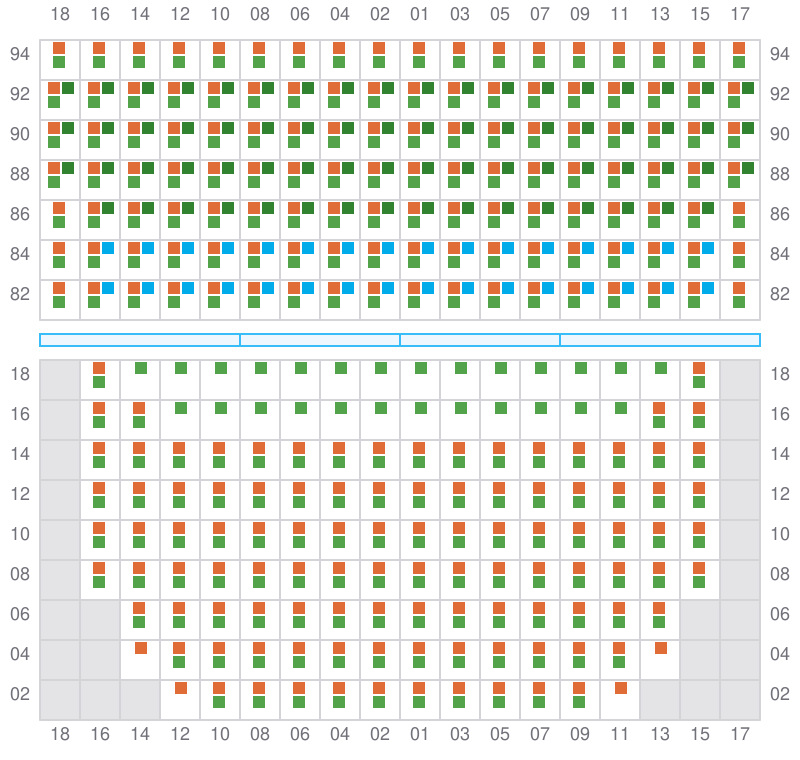

031 (030)

←
^→ / _?
→

Bay 031 view and slots of MSC RIDA

033

→
→

Bay 033 view and slots of MSC RIDA

035 (034)

←
^→ / _?
→

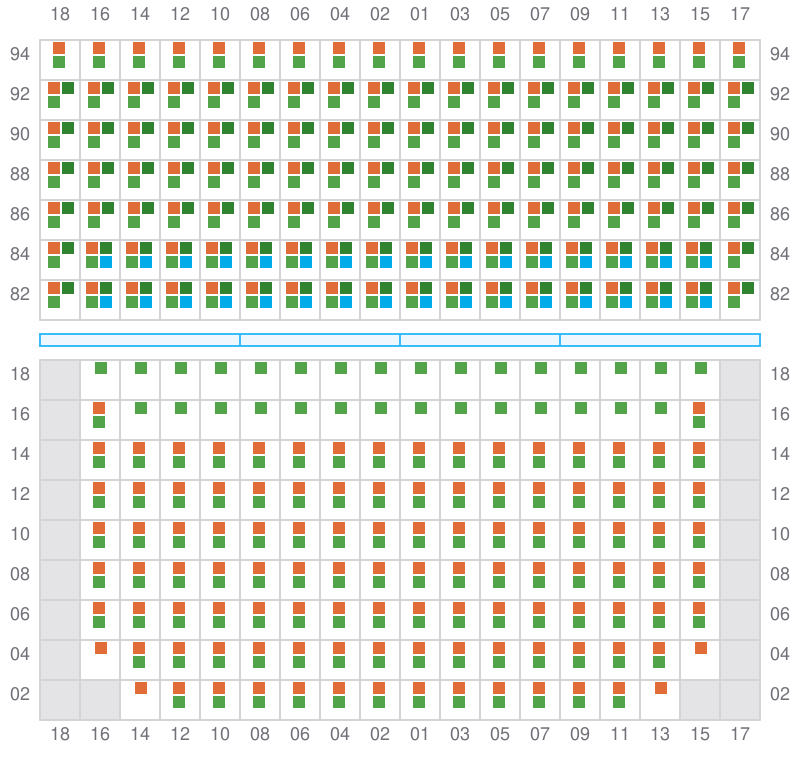

Bay 035 view and slots of MSC RIDA

037

→
→

Bay 037 view and slots of MSC RIDA

039 (038)

←
→
→

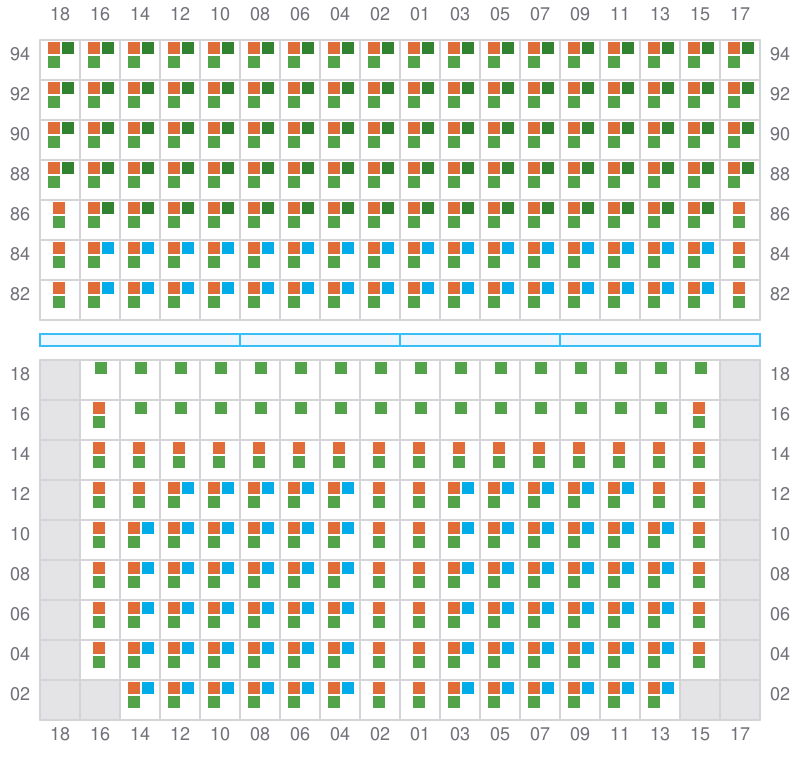

Bay 039 view and slots of MSC RIDA

041

→
→

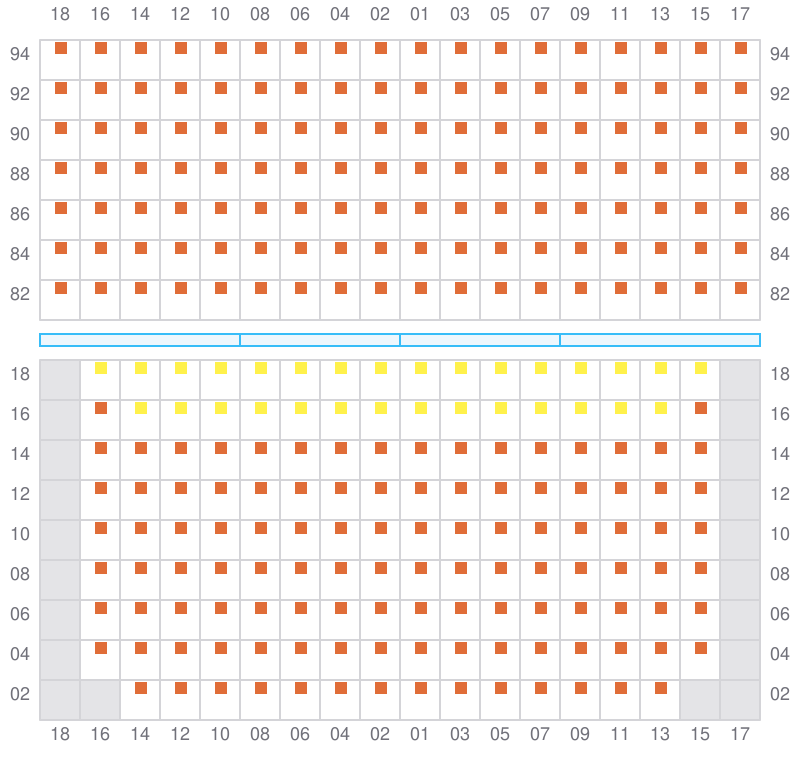

Bay 041 view and slots of MSC RIDA

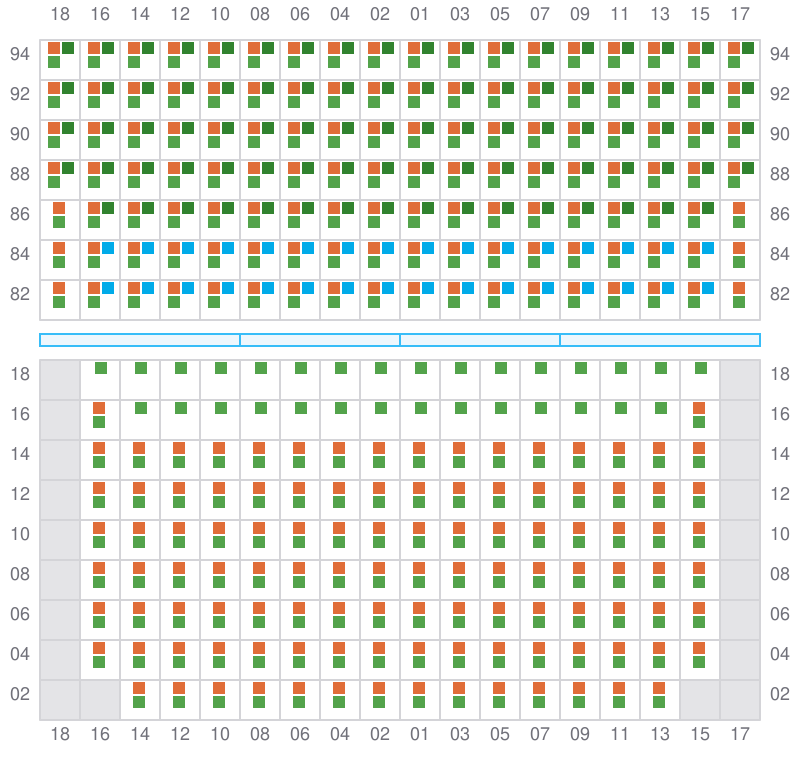

043 (042)

←
^→ / _?
→

Bay 043 view and slots of MSC RIDA

045

→
→

Bay 045 view and slots of MSC RIDA

047 (046)

←
→
→

Bay 047 view and slots of MSC RIDA

049

→
→

Bay 049 view and slots of MSC RIDA

051 (050)

←
^→ / _?
→

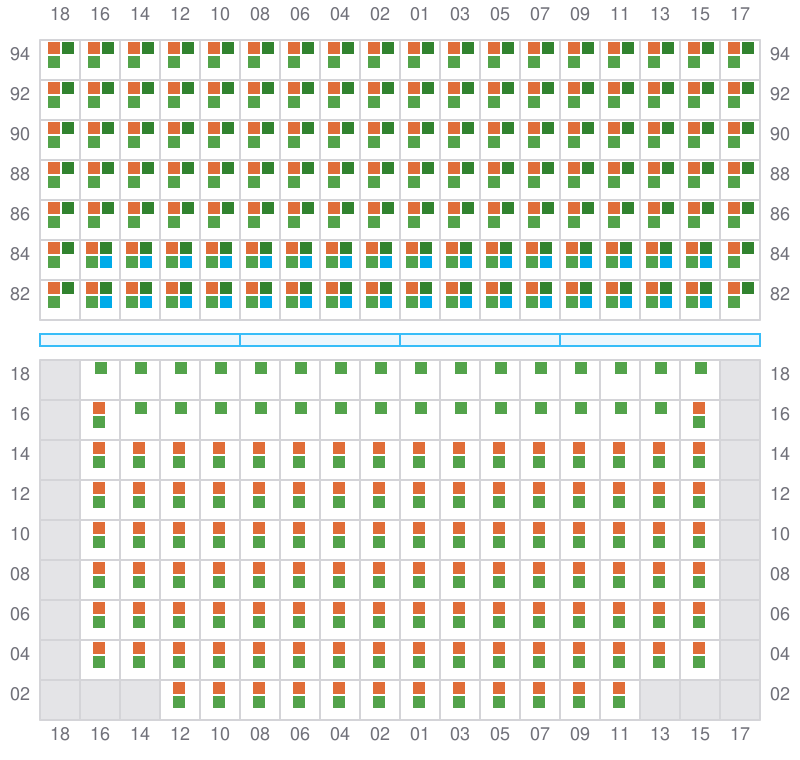

Bay 051 view and slots of MSC RIDA

053

→
→

Bay 053 view and slots of MSC RIDA

055 (054)

←
→
→

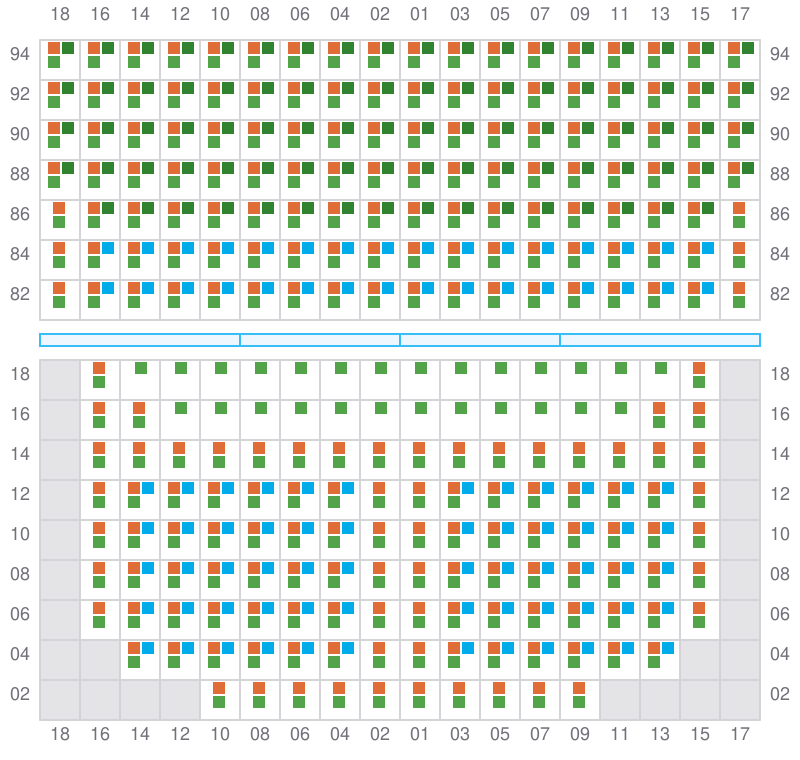

Bay 055 view and slots of MSC RIDA

057

→
→

Bay 057 view and slots of MSC RIDA

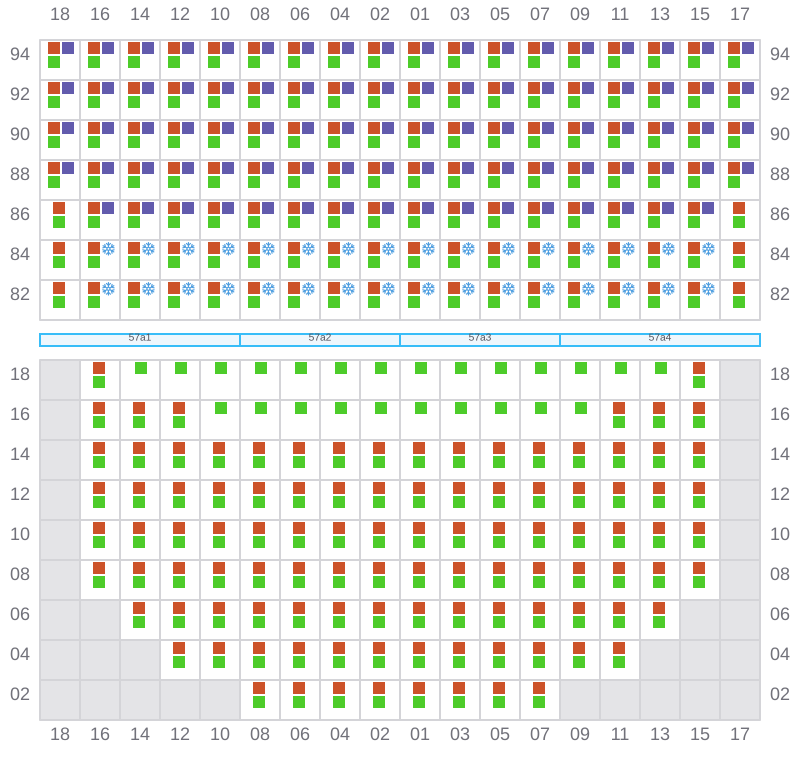

059 (058)

←
^→ / _?
→

Bay 059 view and slots of MSC RIDA

061

→
→

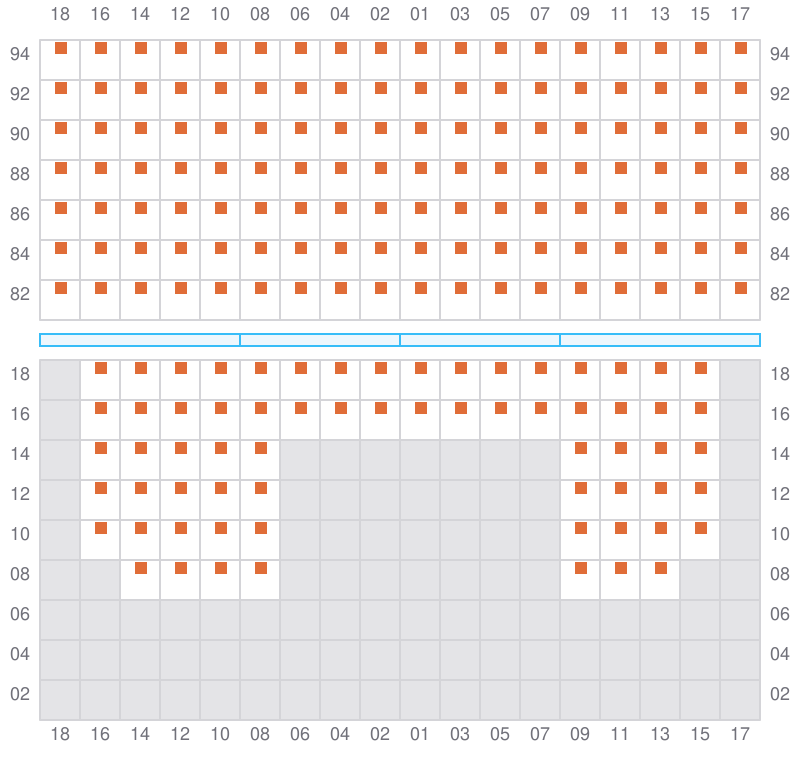

Bay 061 view and slots of MSC RIDA

063 (062)

←
^→ / _?
→

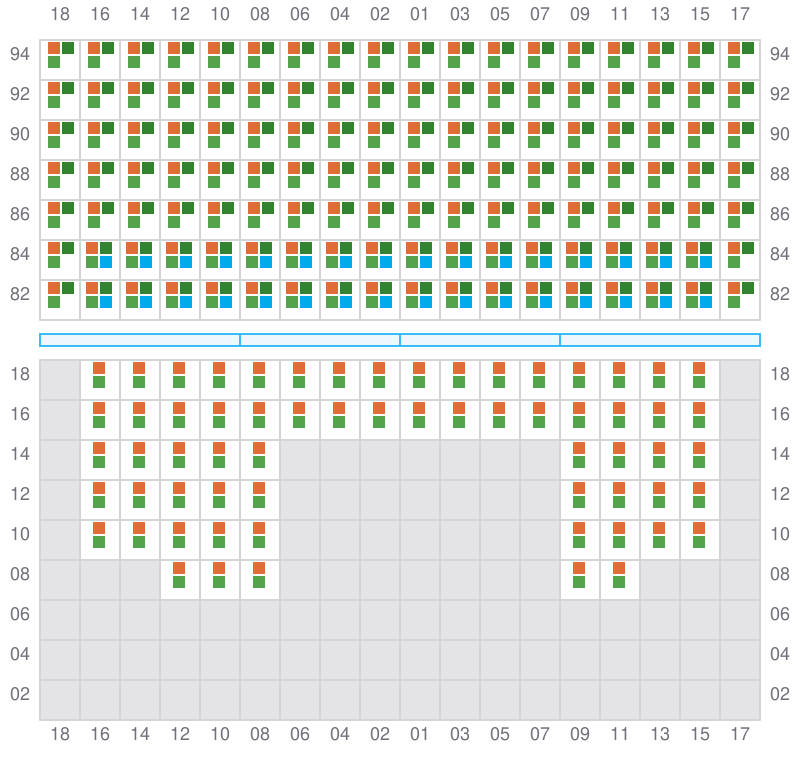

Bay 063 view and slots of MSC RIDA

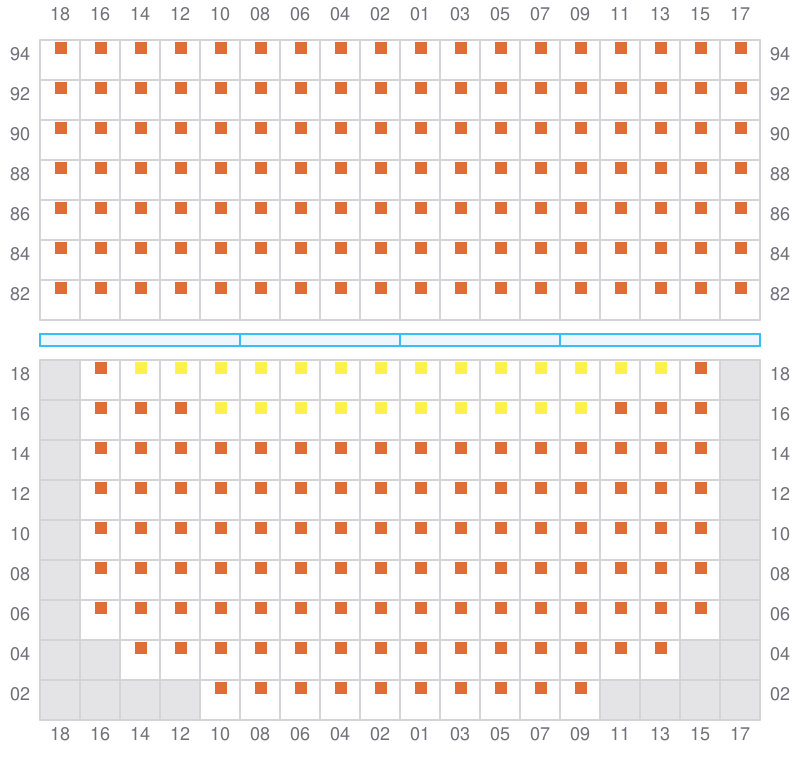

065

→
→

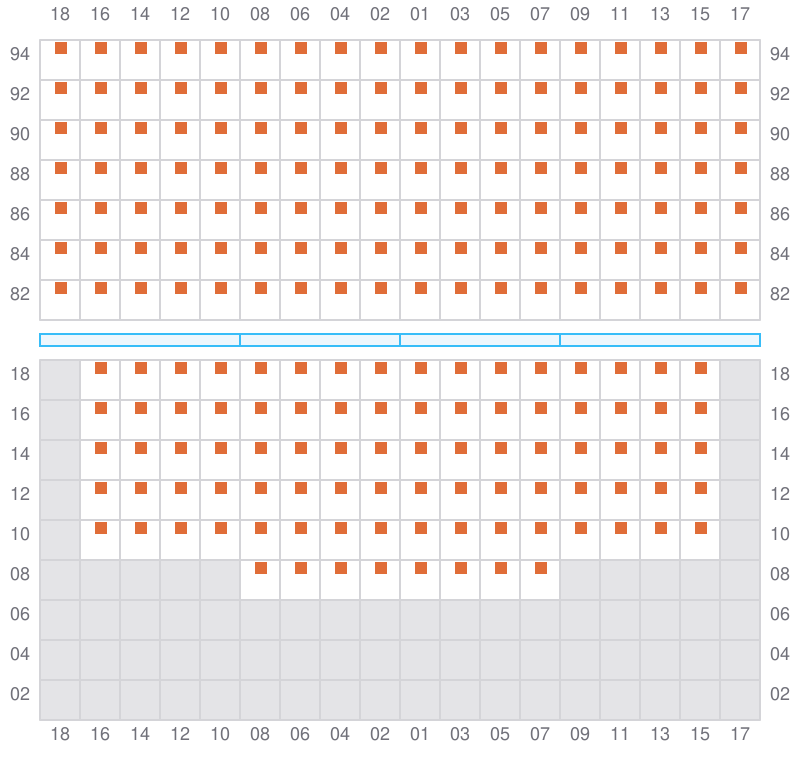

Bay 065 view and slots of MSC RIDA

067 (066)

←
^→ / _?
→

Bay 067 view and slots of MSC RIDA

069

→
→

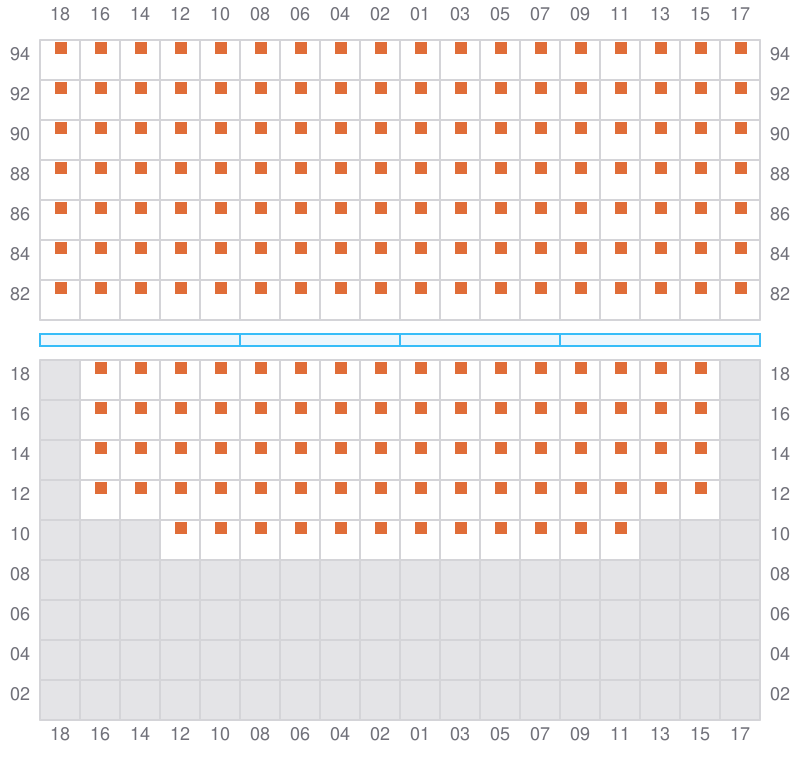

Bay 069 view and slots of MSC RIDA

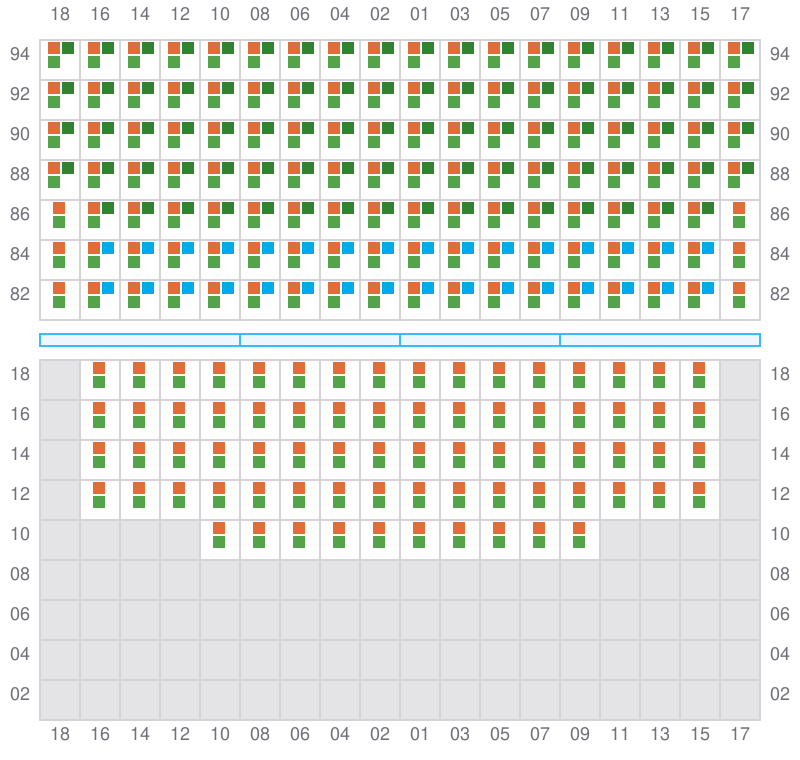

071 (070)

←
^→ / _?
→

Bay 071 view and slots of MSC RIDA

073

→
→

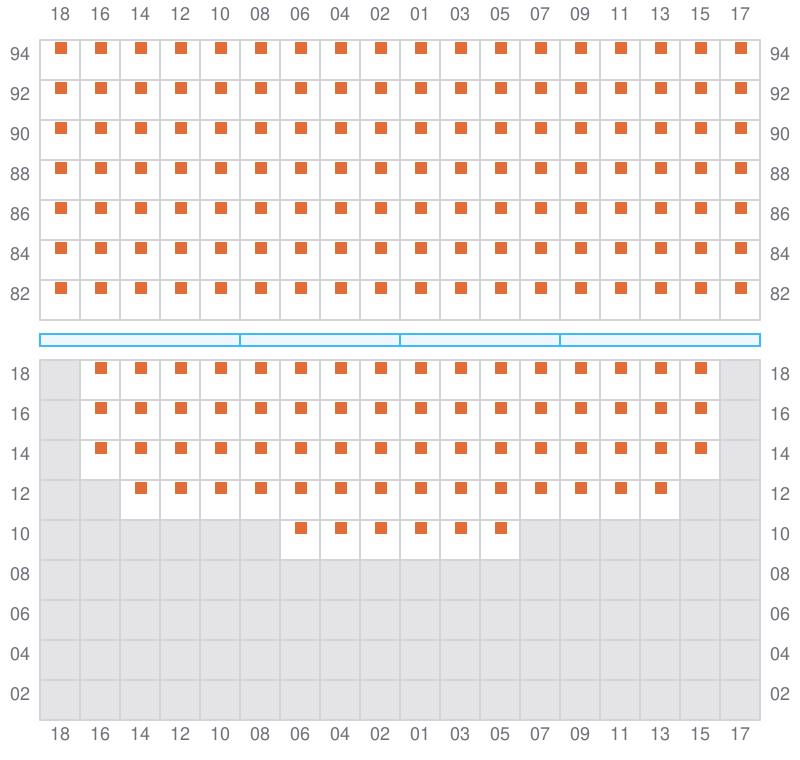

Bay 073 view and slots of MSC RIDA

075 (074)

←
^→ / _?
→

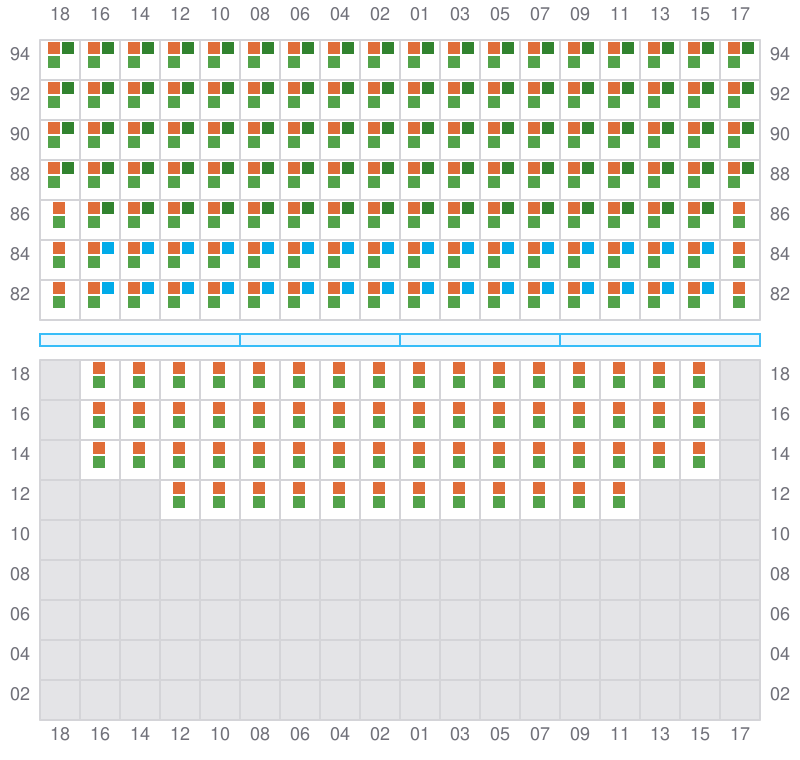

Bay 075 view and slots of MSC RIDA

077

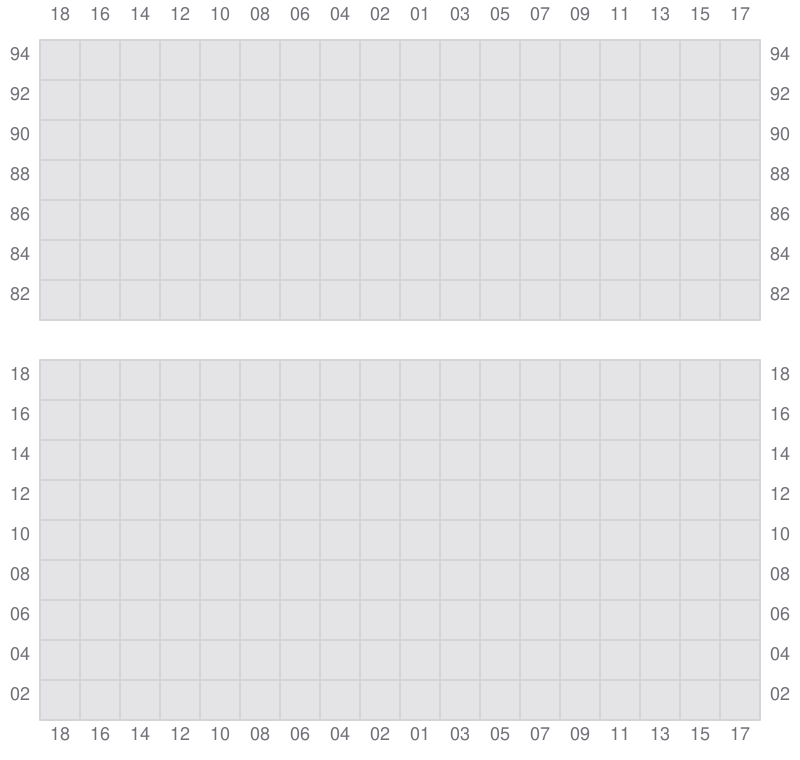

Bay 077 view and slots of MSC RIDA

079 (078)

^← / _?
^→ / _?

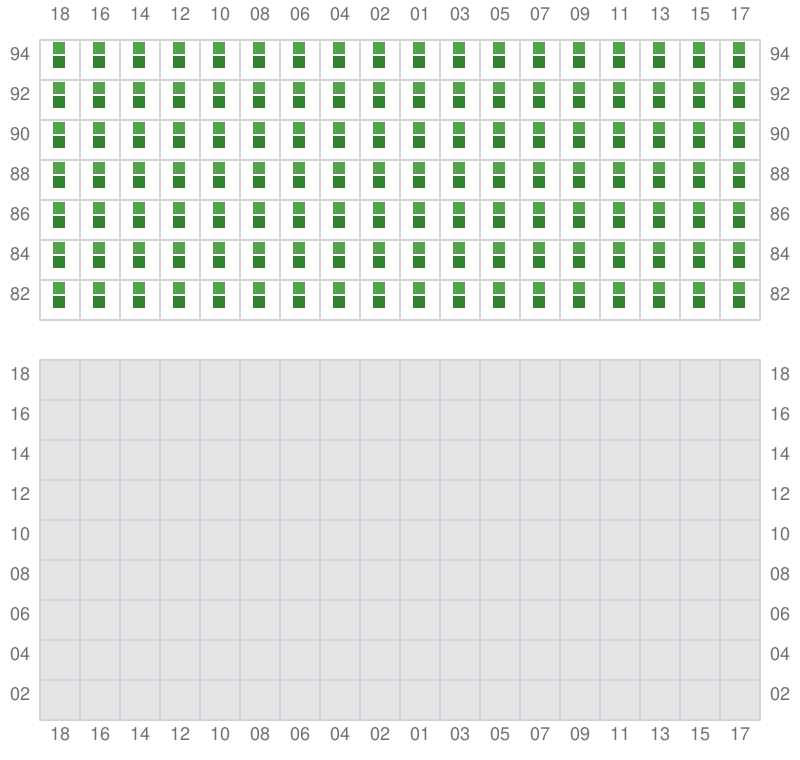

Bay 079 view and slots of MSC RIDA
