MSC RIKKU
9393319 | CQRB | MSC by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MSC RIKKU
IMO Code:9393319
Call Sign:CQRB
Line Operator:MSC
Class Name for Sister Ships:DNV
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,562

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

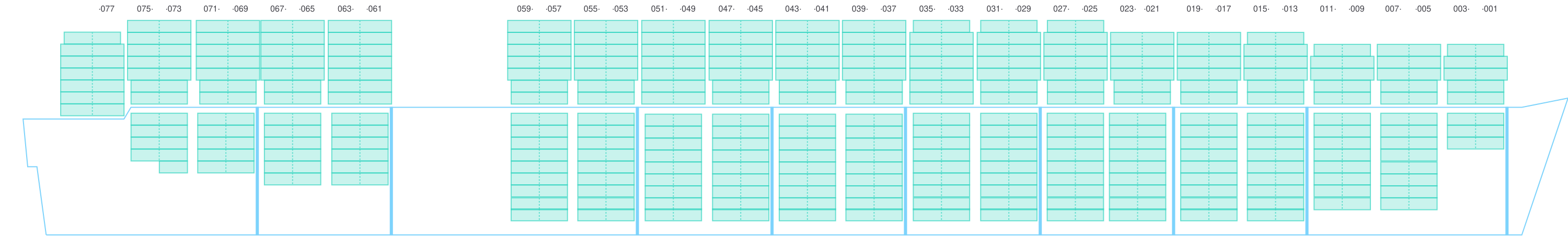

Side View

Side view of MSC RIKKU

Hatch-Covers View

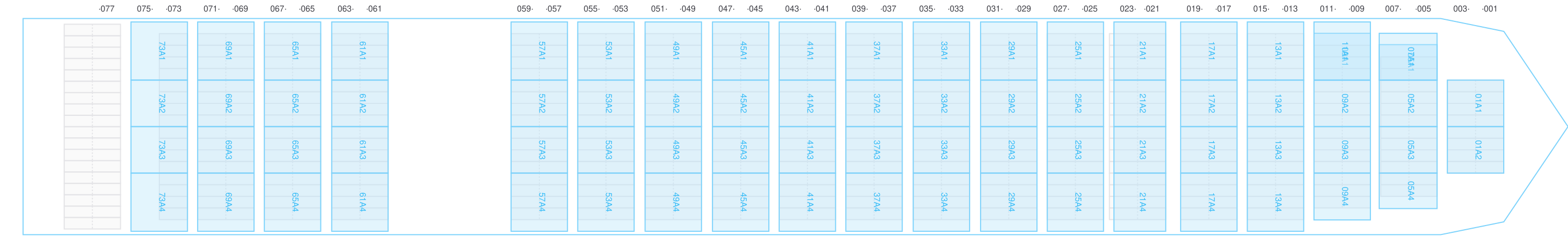

Deck view of MSC RIKKU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

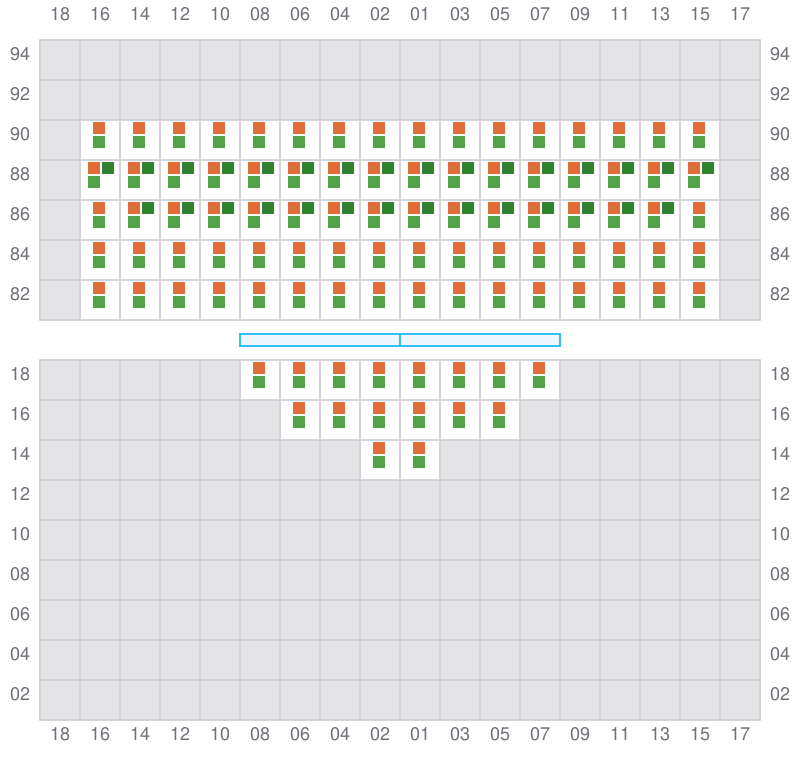

Bay 001 view and slots of MSC RIKKU

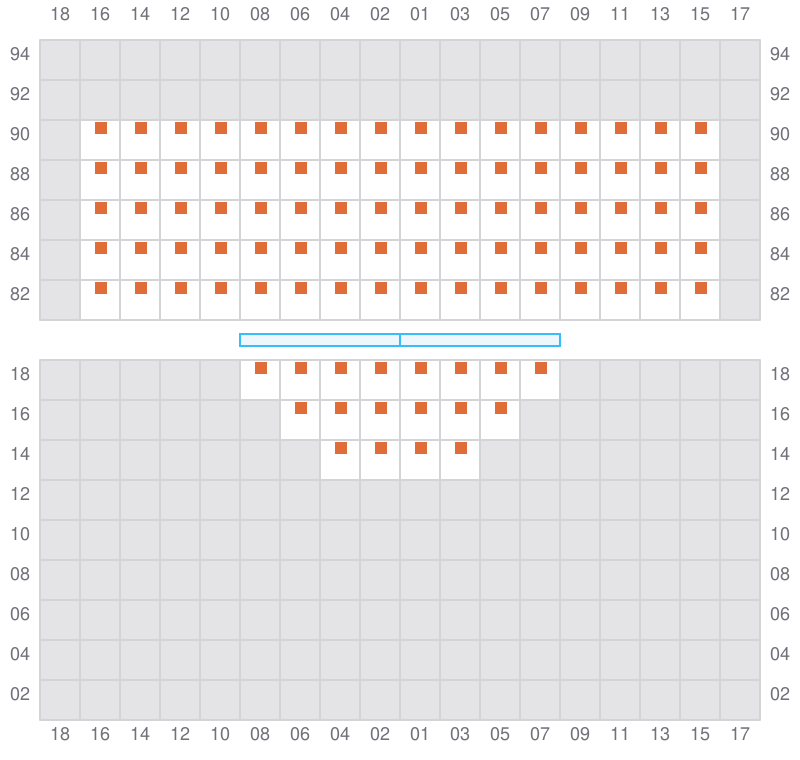

003

  • ←
  • → / ?
Bay 003 view and slots of MSC RIKKU

005 (006)

  • →

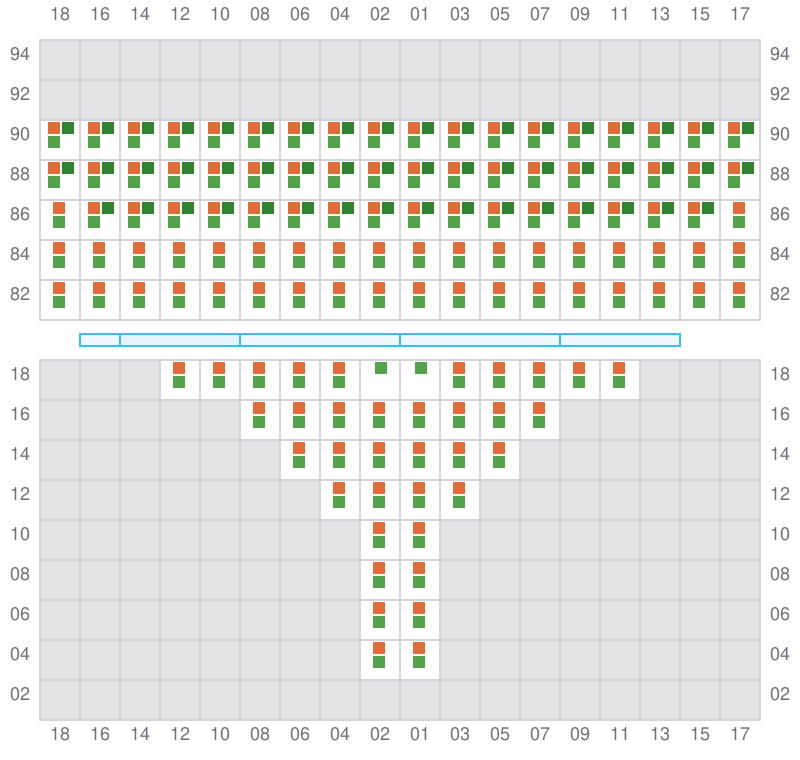

Bay 005 view and slots of MSC RIKKU

007

  • ←
  • → / ?

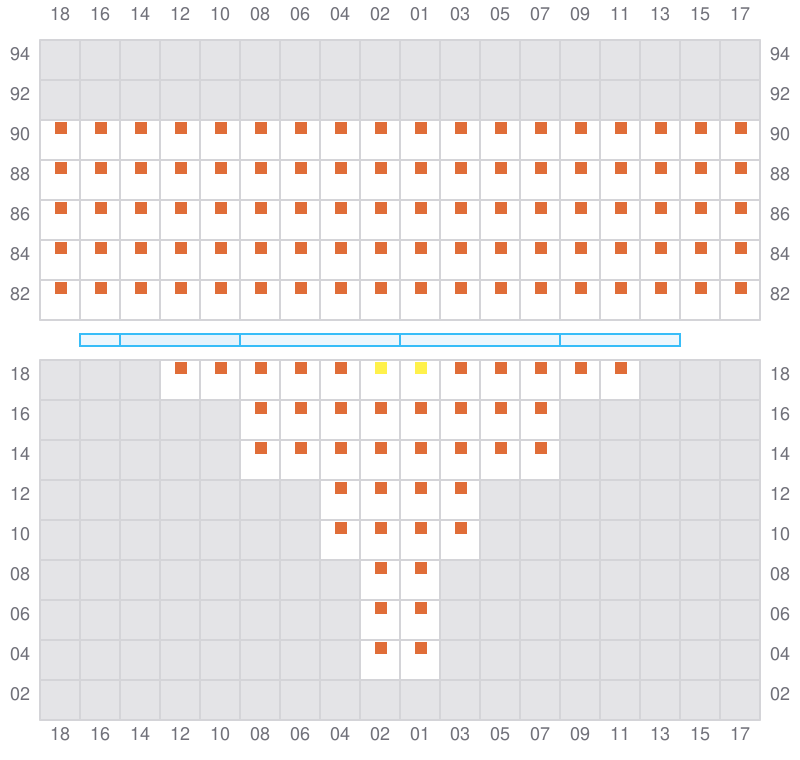

Bay 007 view and slots of MSC RIKKU

009 (010)

  • →

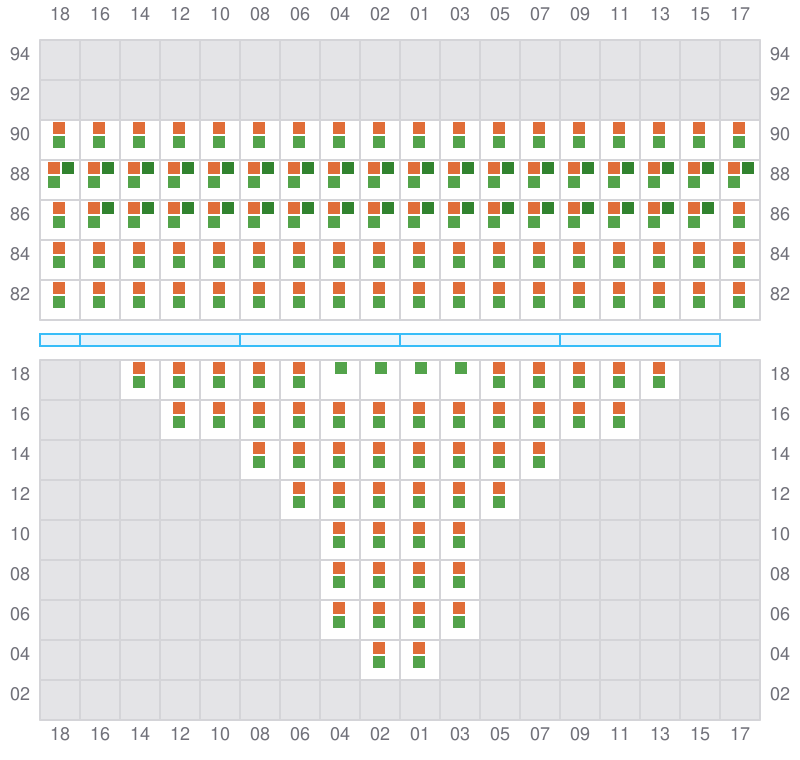

Bay 009 view and slots of MSC RIKKU

011

  • ←
  • → / ?

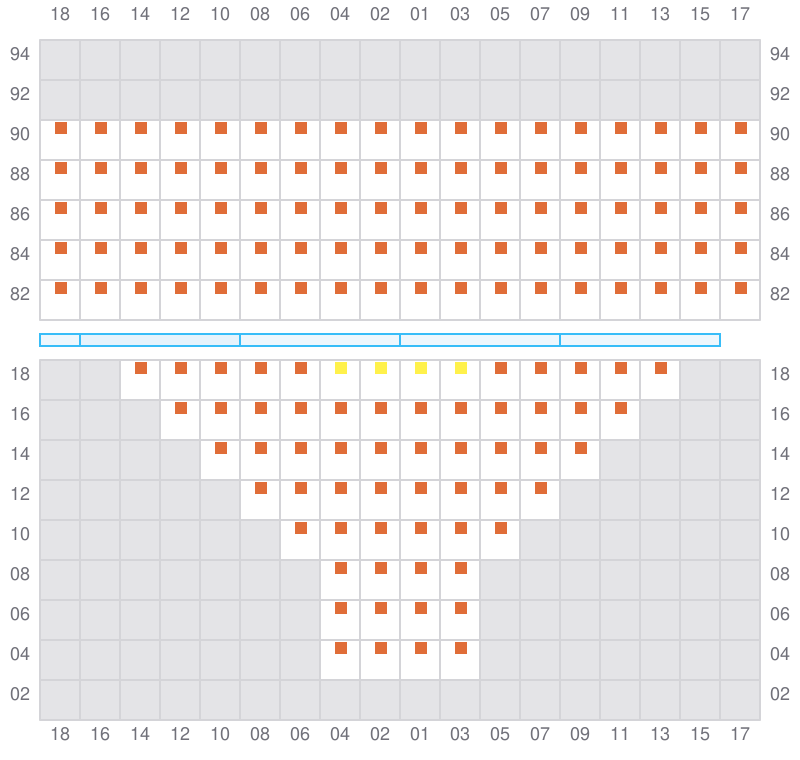

Bay 011 view and slots of MSC RIKKU

013 (014)

  • →

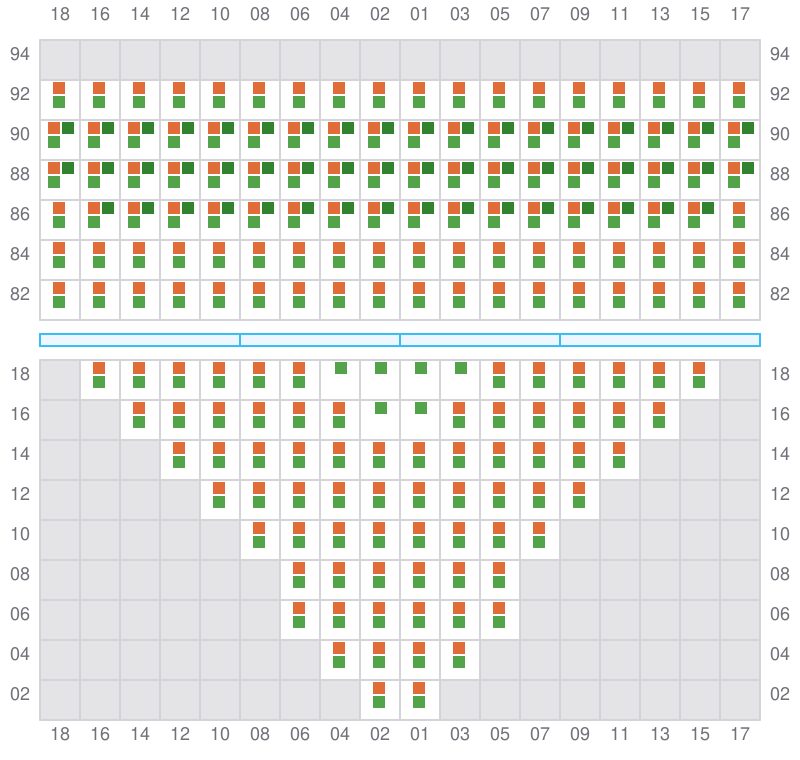

Bay 013 view and slots of MSC RIKKU

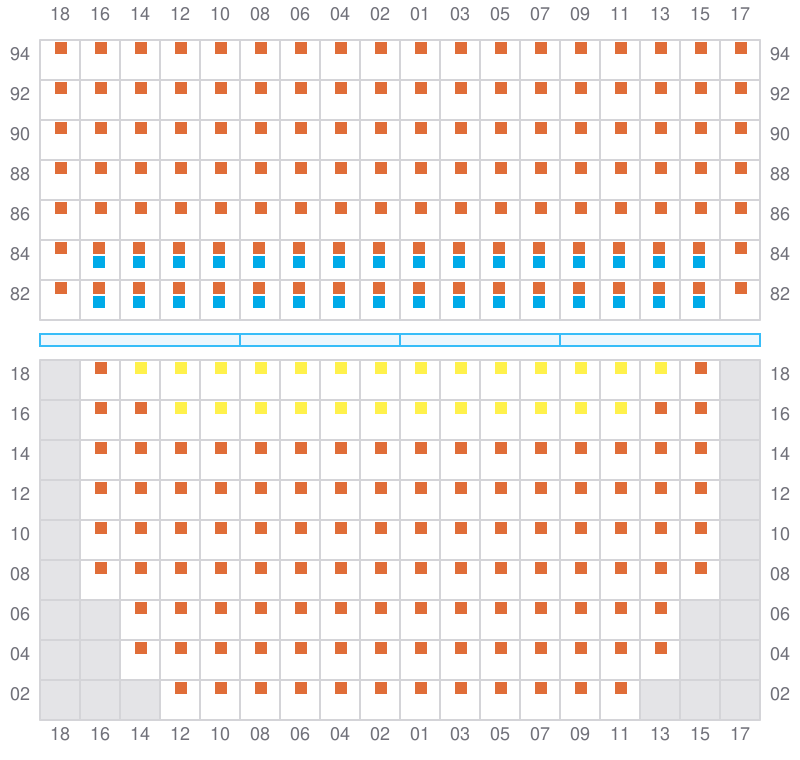

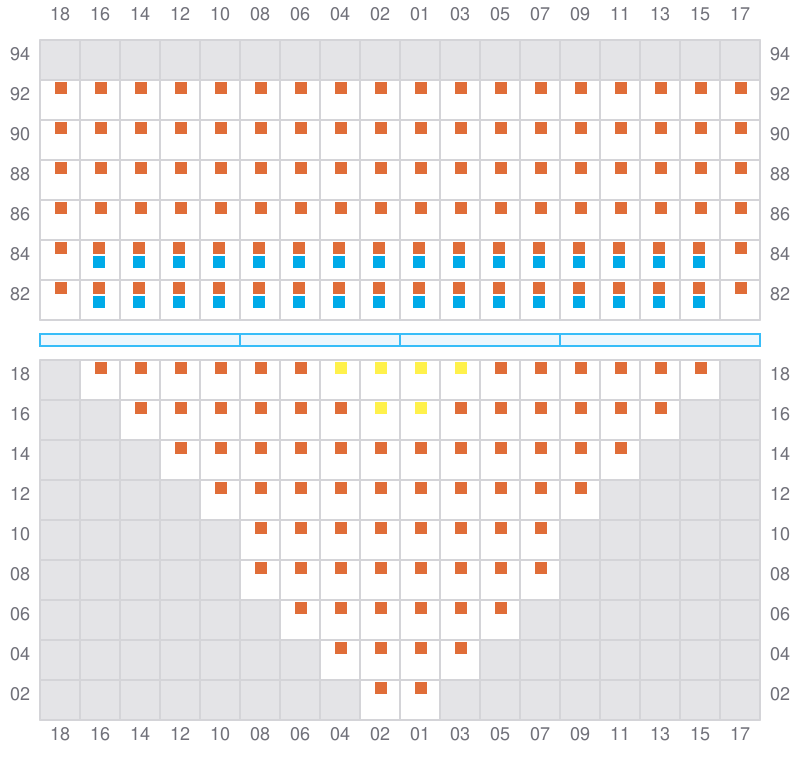

015

  • ←
  • → / ?
Bay 015 view and slots of MSC RIKKU

017 (018)

  • →

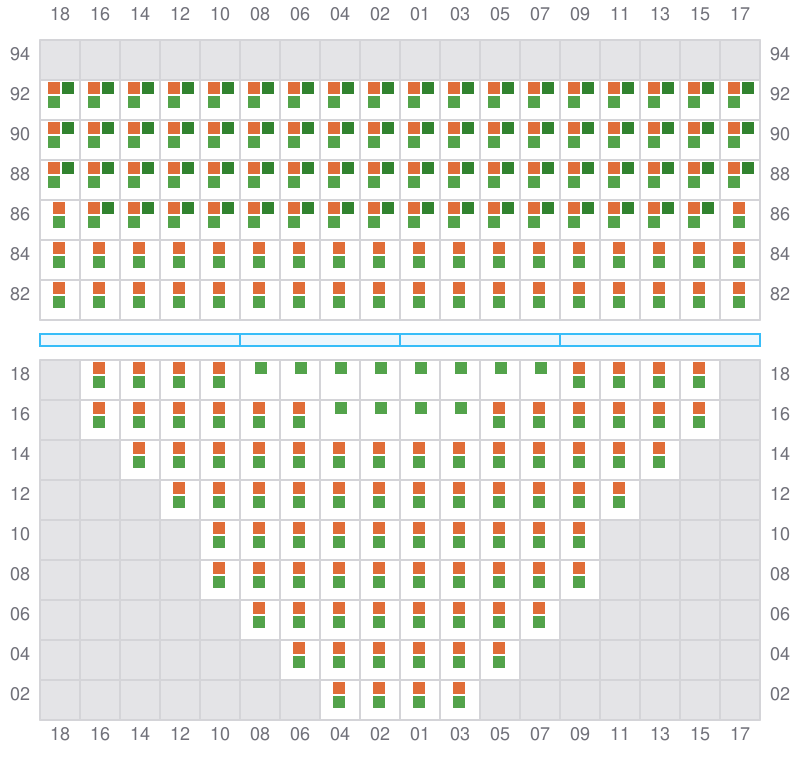

Bay 017 view and slots of MSC RIKKU

019

  • ←
  • → / ?

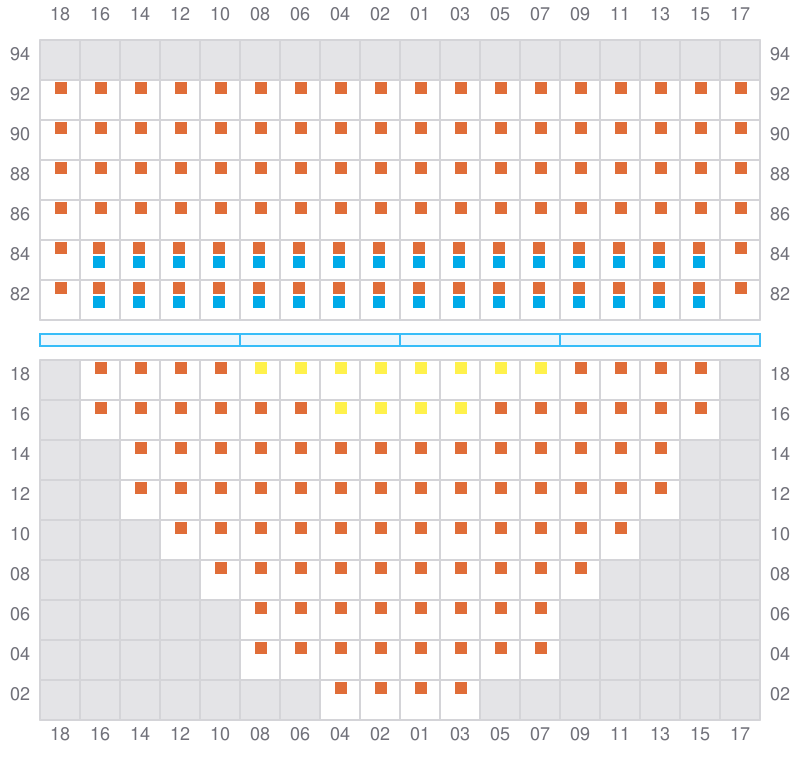

Bay 019 view and slots of MSC RIKKU

021 (022)

  • →

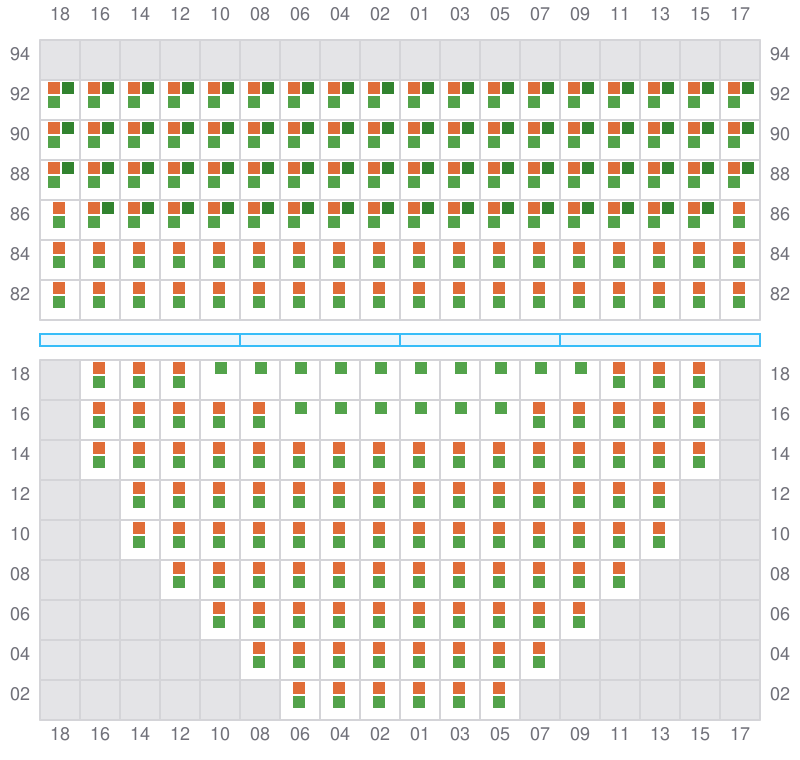

Bay 021 view and slots of MSC RIKKU

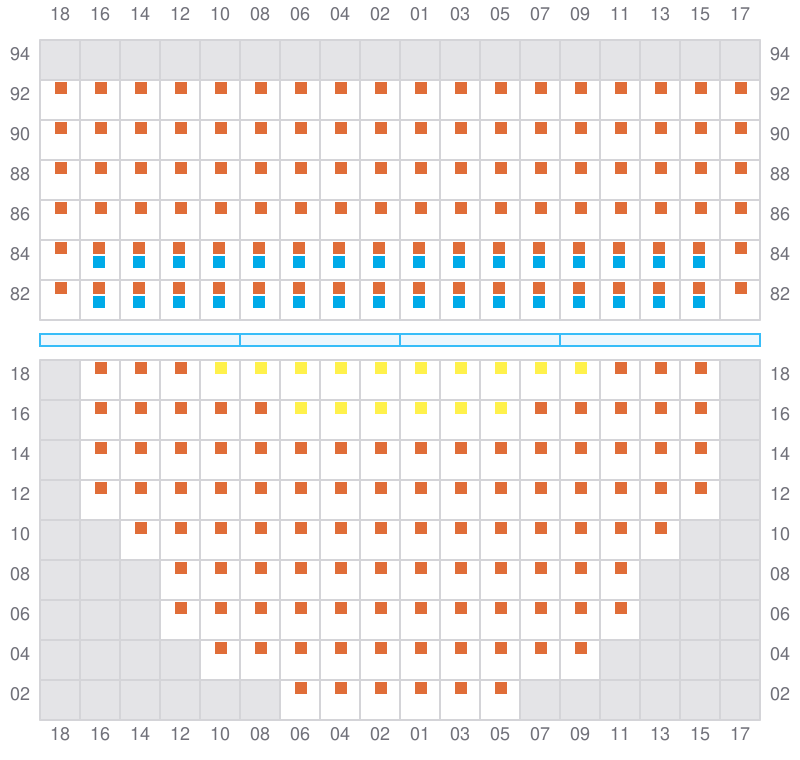

023

  • ←
  • → / ?
Bay 023 view and slots of MSC RIKKU

025 (026)

  • →

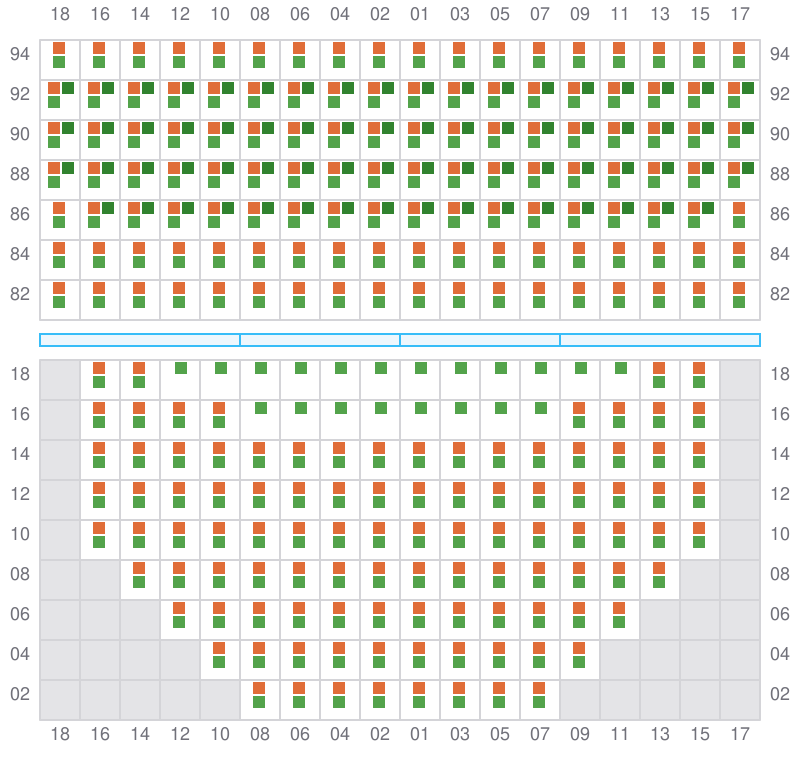

Bay 025 view and slots of MSC RIKKU

027

  • ←
  • → / ?

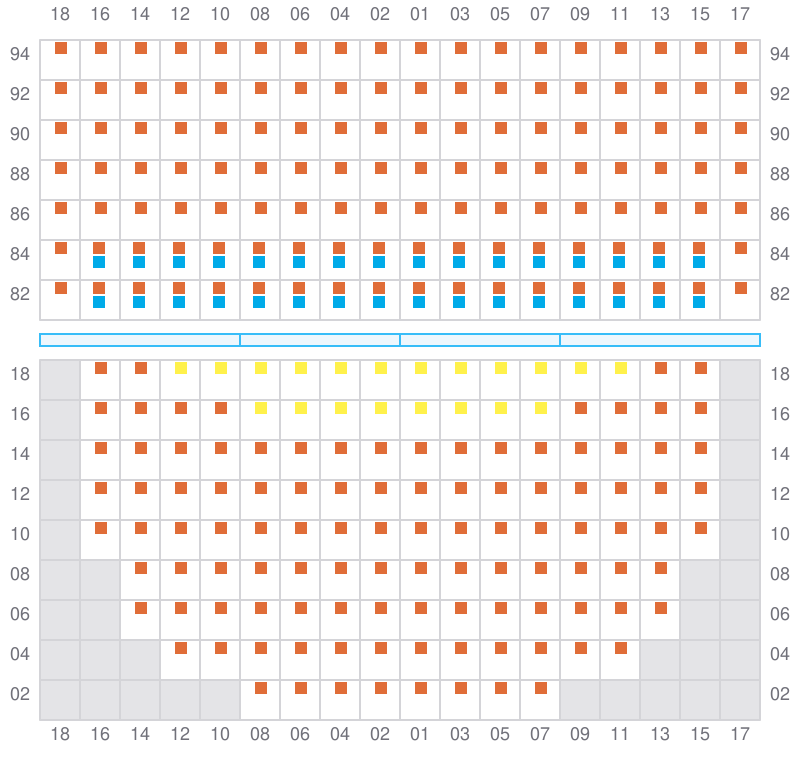

Bay 027 view and slots of MSC RIKKU

029 (030)

  • →

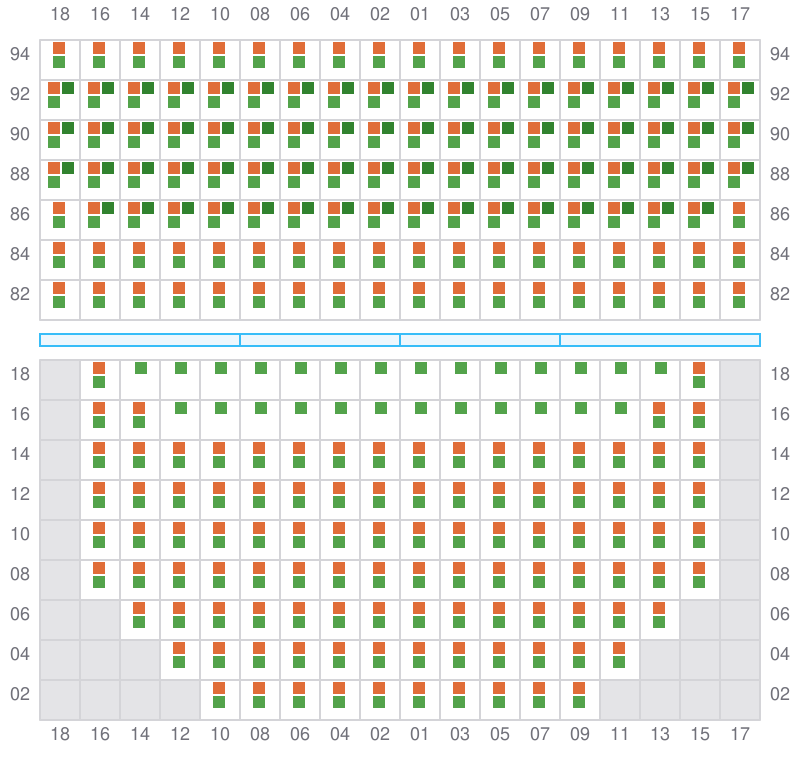

Bay 029 view and slots of MSC RIKKU

031

  • ←
  • → / ?
Bay 031 view and slots of MSC RIKKU

033 (034)

  • →
Bay 033 view and slots of MSC RIKKU

035

  • ←
  • → / ?
Bay 035 view and slots of MSC RIKKU

037 (038)

  • →

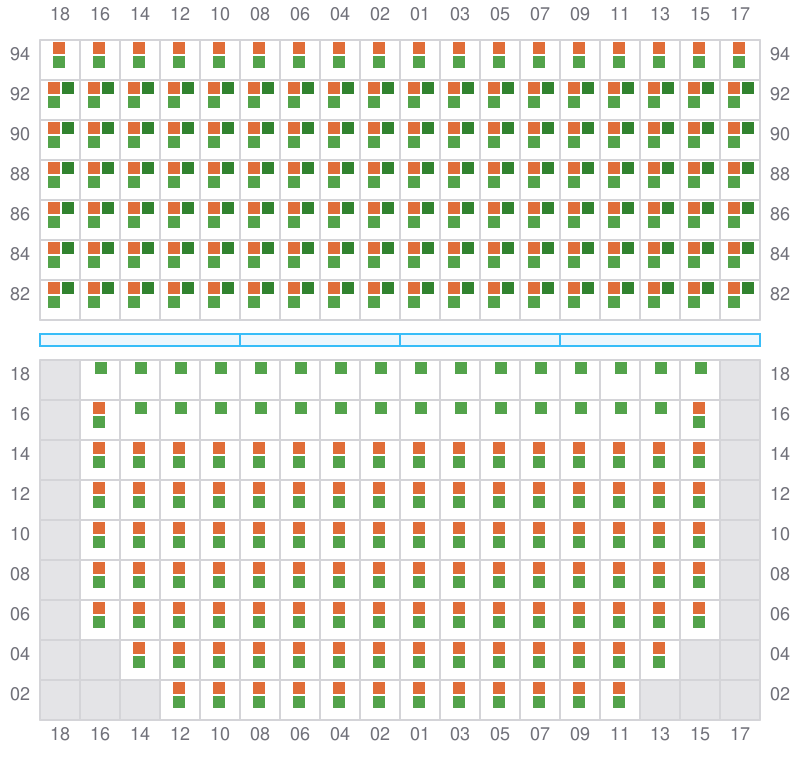

Bay 037 view and slots of MSC RIKKU

039

  • ←
  • →
Bay 039 view and slots of MSC RIKKU

041 (042)

  • →
Bay 041 view and slots of MSC RIKKU

043

  • ←
  • → / ?
Bay 043 view and slots of MSC RIKKU

045 (046)

  • →

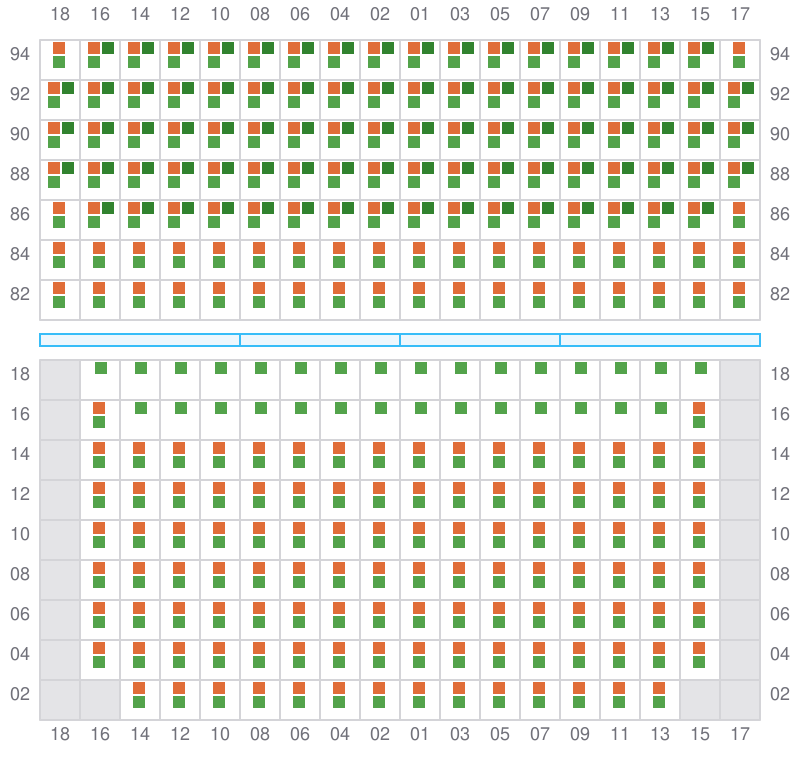

Bay 045 view and slots of MSC RIKKU

047

  • ←
  • →

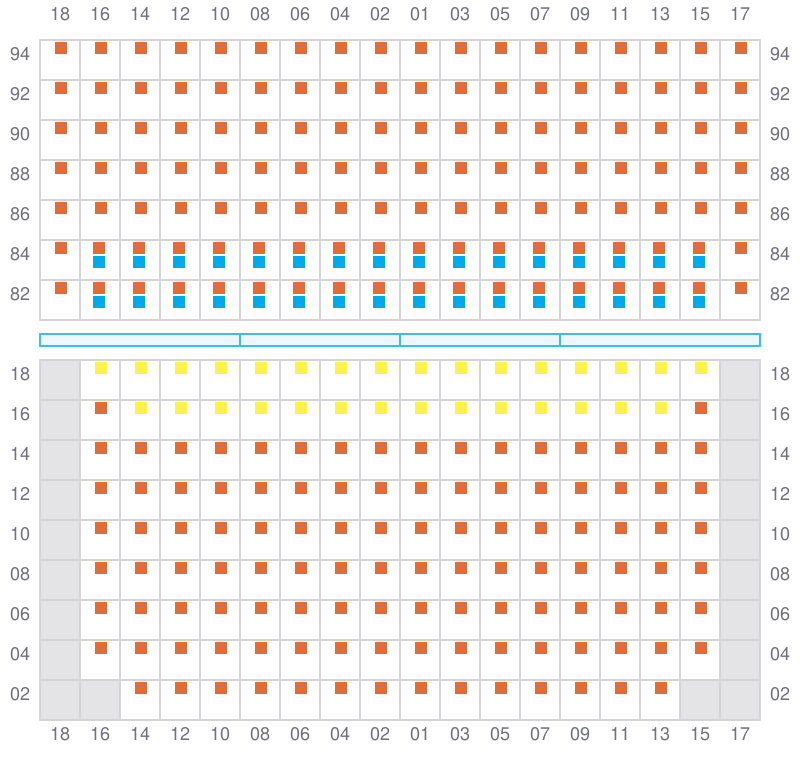

Bay 047 view and slots of MSC RIKKU

049 (050)

  • →

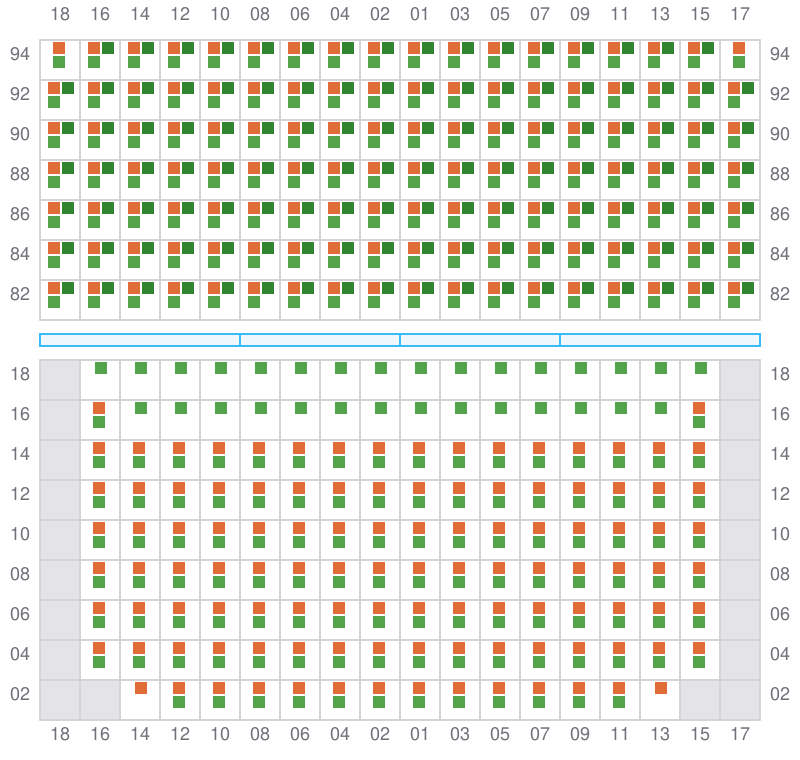

Bay 049 view and slots of MSC RIKKU

051

  • ←
  • → / ?
Bay 051 view and slots of MSC RIKKU

053 (054)

  • →
Bay 053 view and slots of MSC RIKKU

055

  • ←
  • →

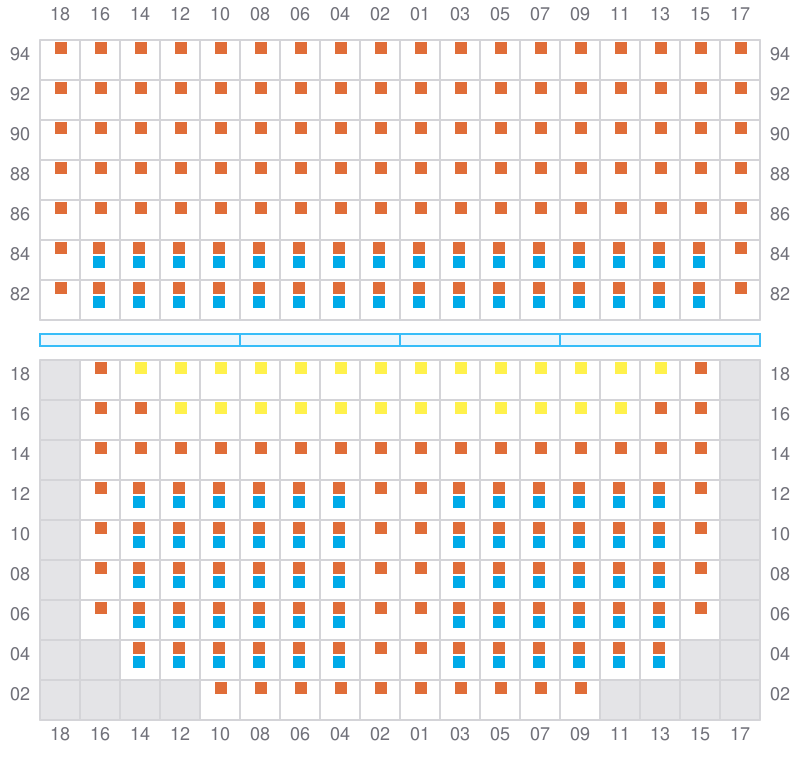

Bay 055 view and slots of MSC RIKKU

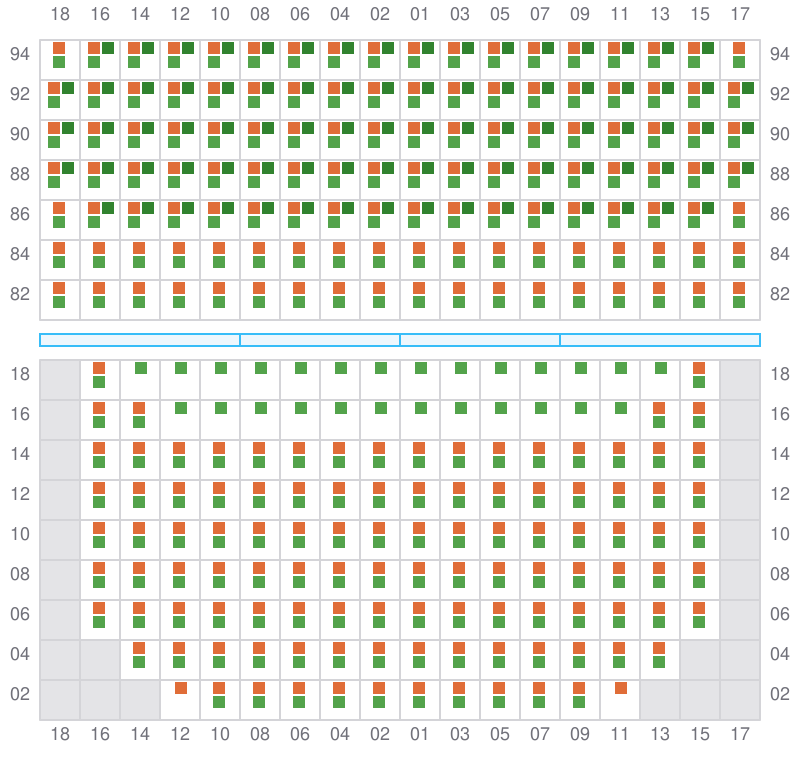

057 (058)

  • →

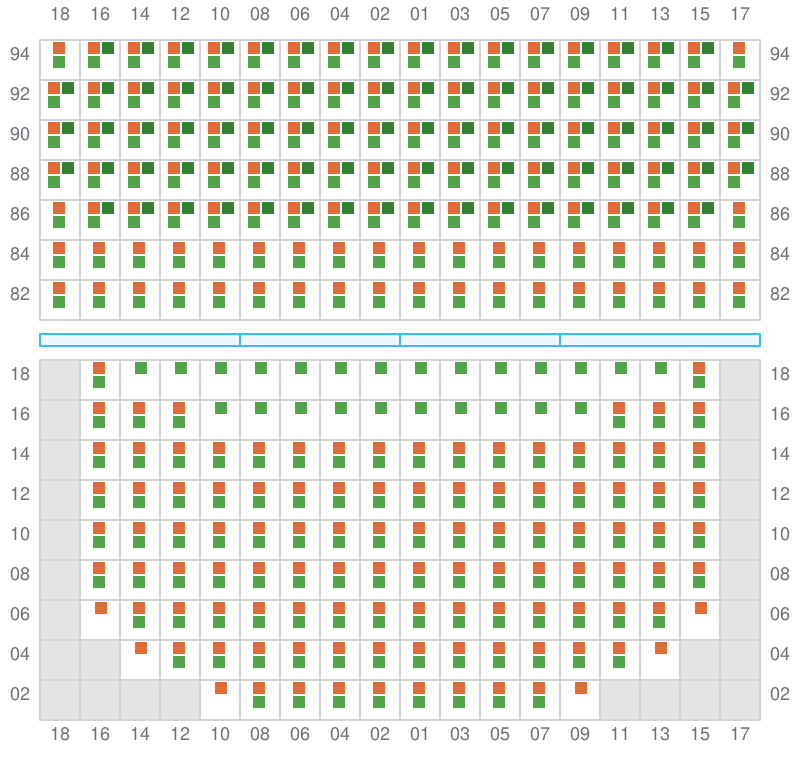

Bay 057 view and slots of MSC RIKKU

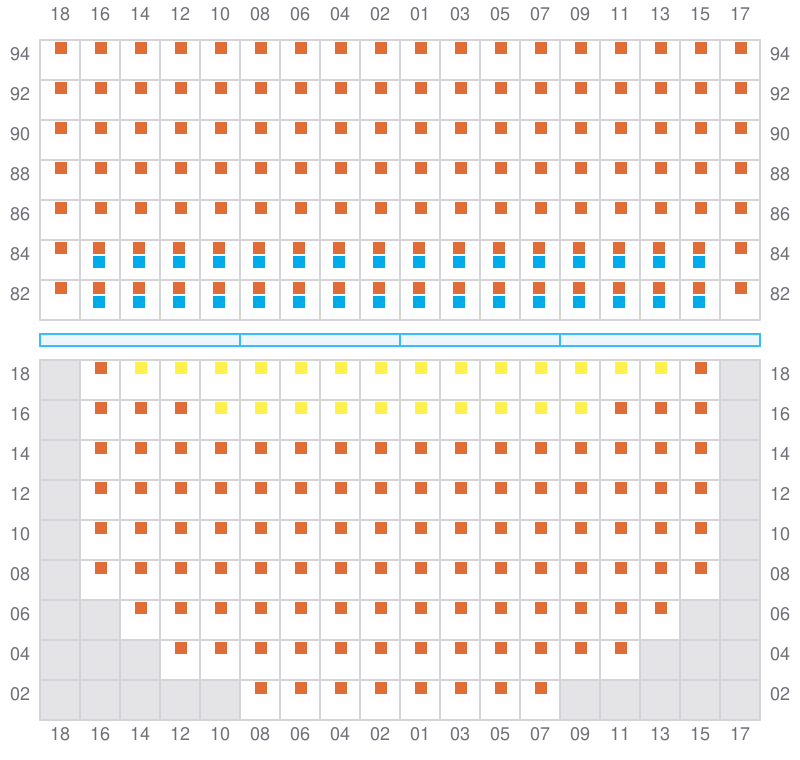

059

  • ←
  • → / ?
Bay 059 view and slots of MSC RIKKU

061 (062)

  • →

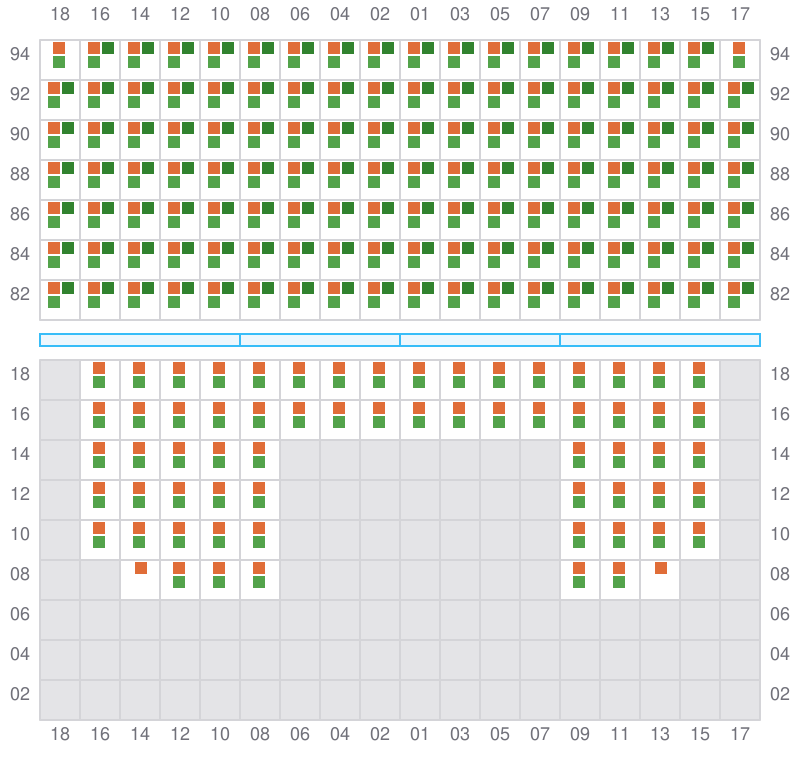

Bay 061 view and slots of MSC RIKKU

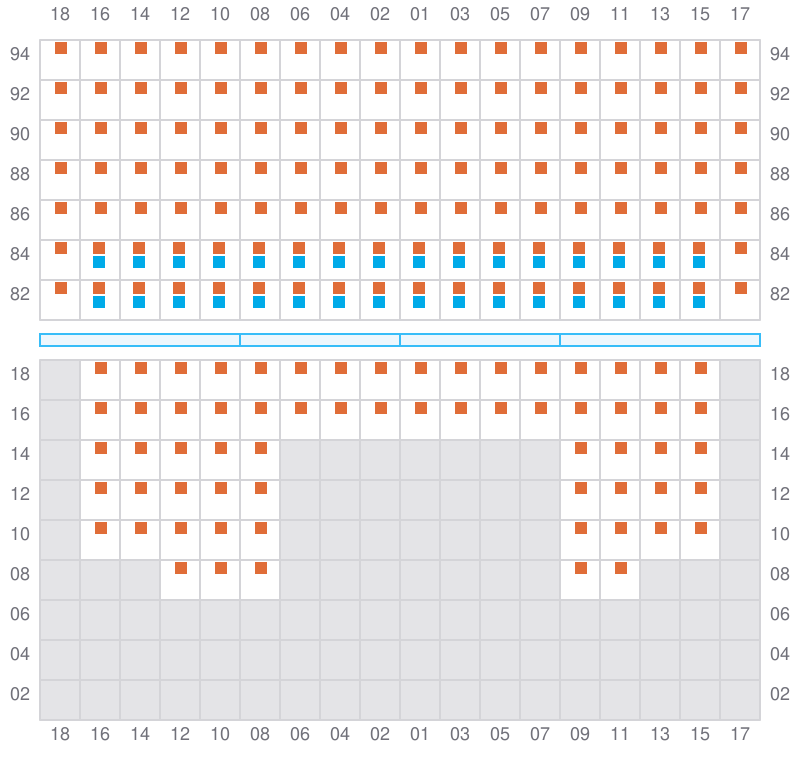

063

  • ←
  • → / ?
Bay 063 view and slots of MSC RIKKU

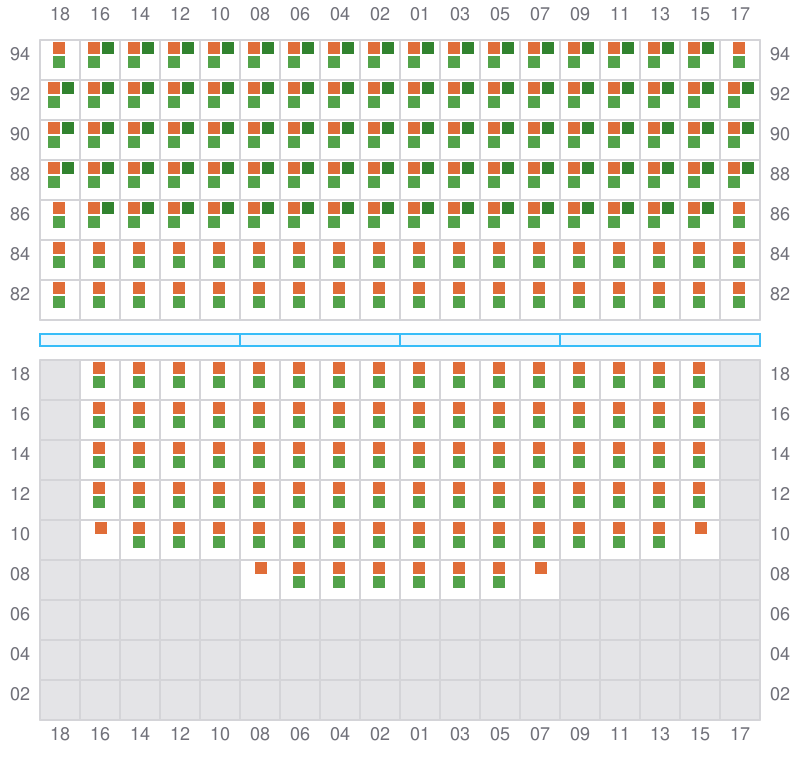

065 (066)

  • →
Bay 065 view and slots of MSC RIKKU

067

  • ←
  • → / ?

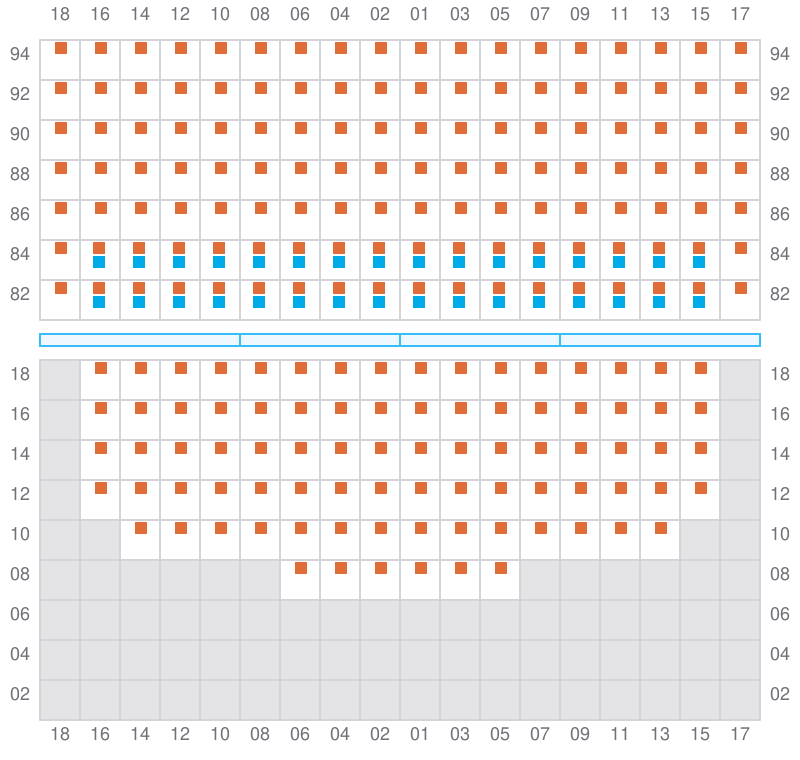

Bay 067 view and slots of MSC RIKKU

069 (070)

  • →

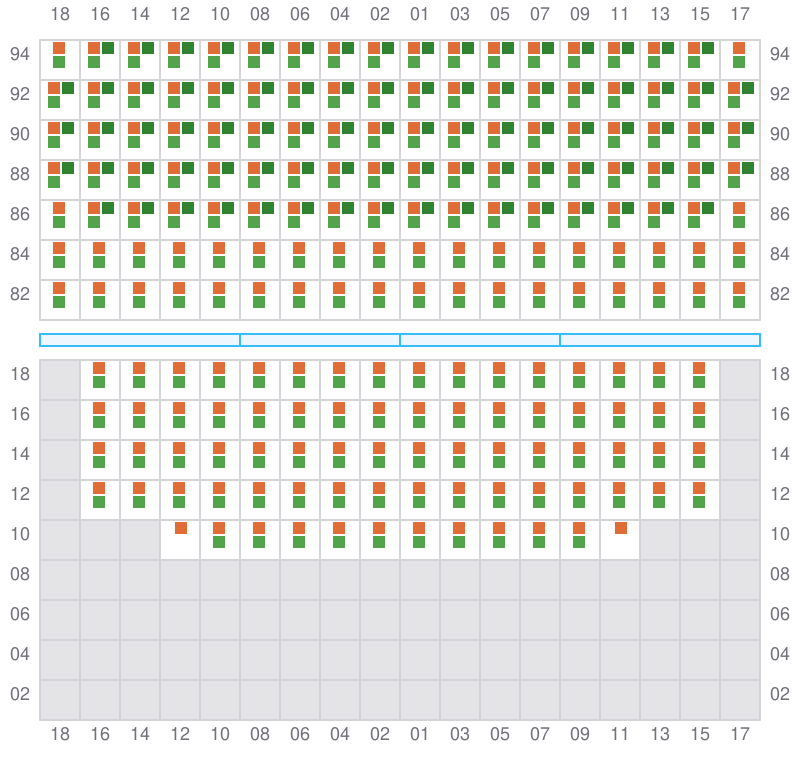

Bay 069 view and slots of MSC RIKKU

071

  • ←
  • → / ?

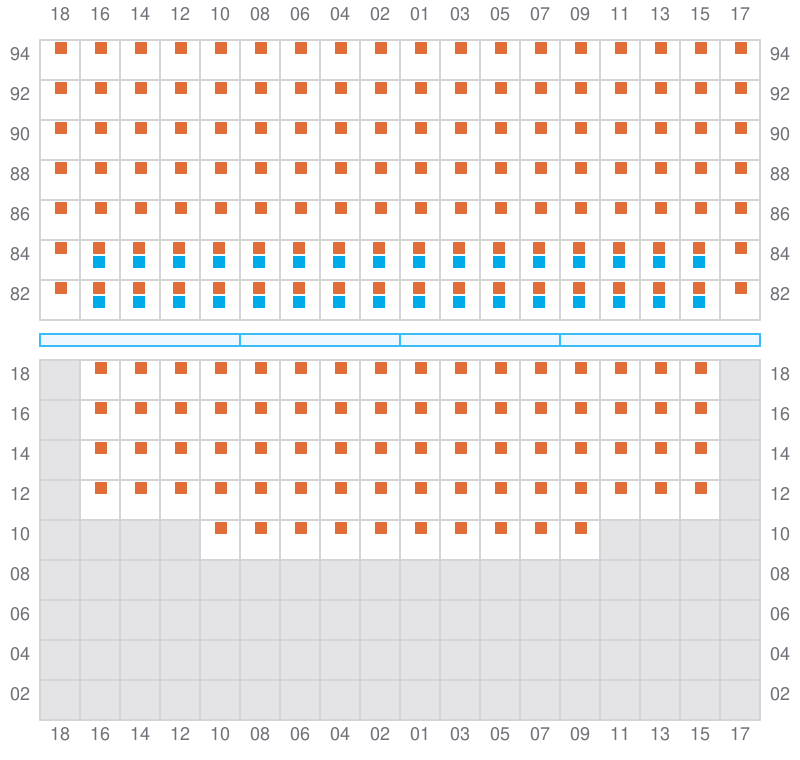

Bay 071 view and slots of MSC RIKKU

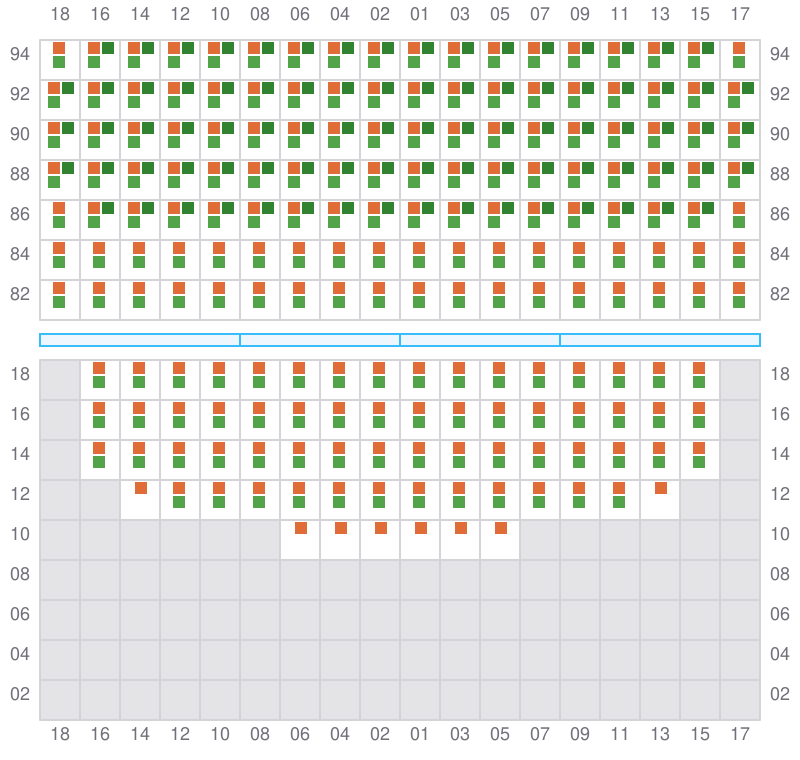

073 (074)

  • →
Bay 073 view and slots of MSC RIKKU

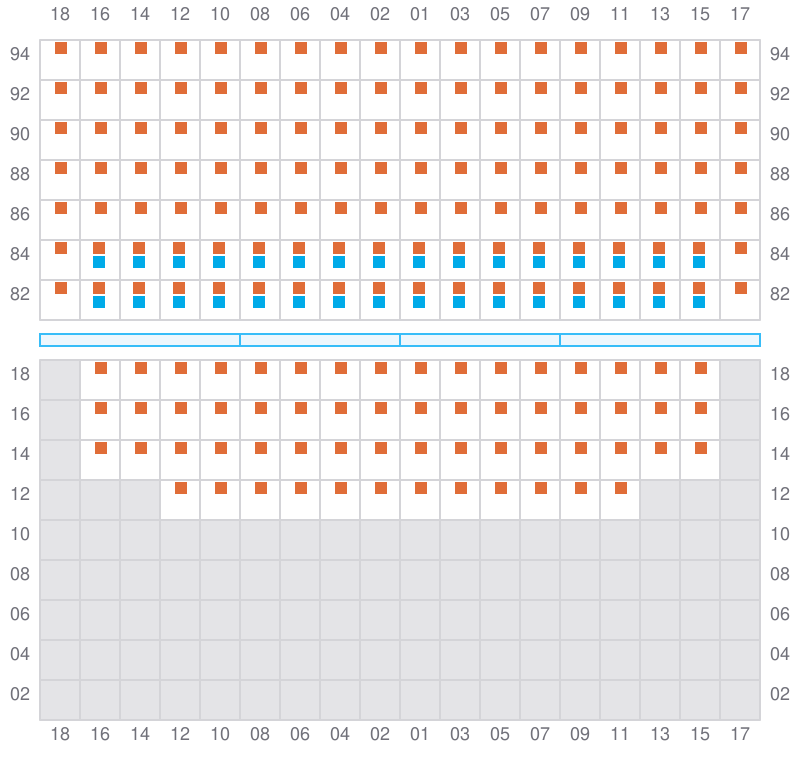

075

  • ←
  • → / ?
Bay 075 view and slots of MSC RIKKU

077 (078)

  • → / ?

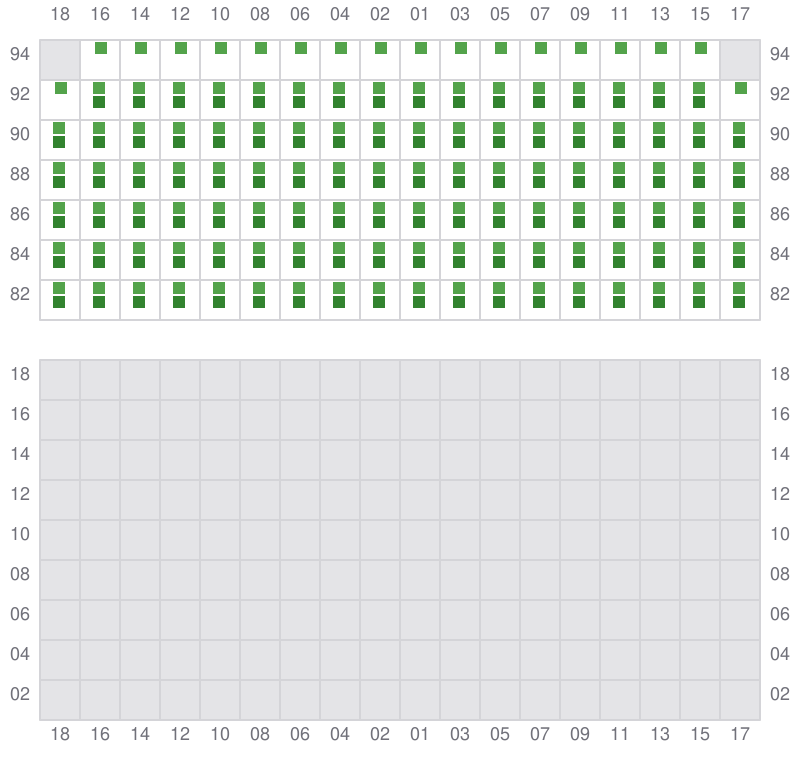

Bay 077 view and slots of MSC RIKKU
