MSC RINI III
9419644 | 5LBU8 | 9419644 by ********* Last update: Fri Jun 21 2024

General Info

Ship Name:MSC RINI III
IMO Code:9419644
Call Sign:5LBU8
Line Operator:9419644
Class Name for Sister Ships:MCC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):198.80
LOA (Length Overall):210.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,582

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

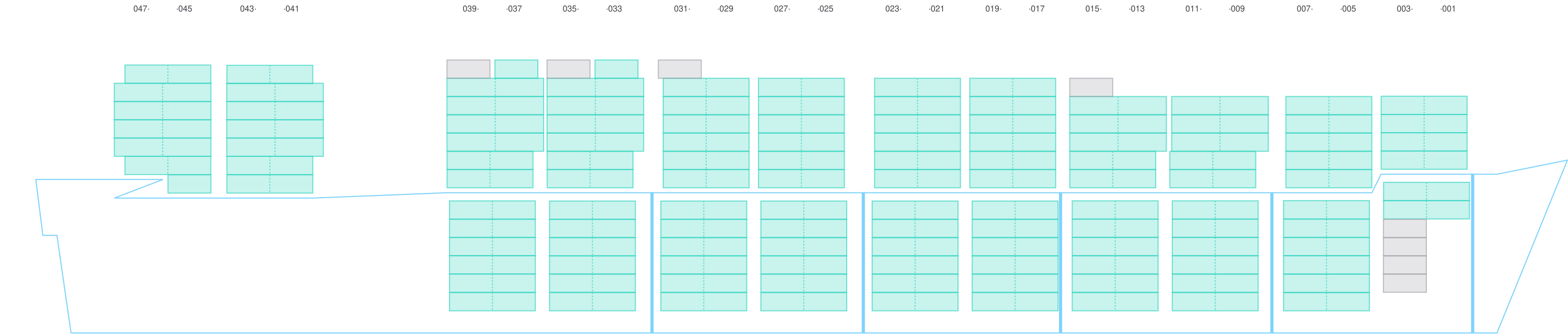

Side View

Side view of MSC RINI III

Hatch-Covers View

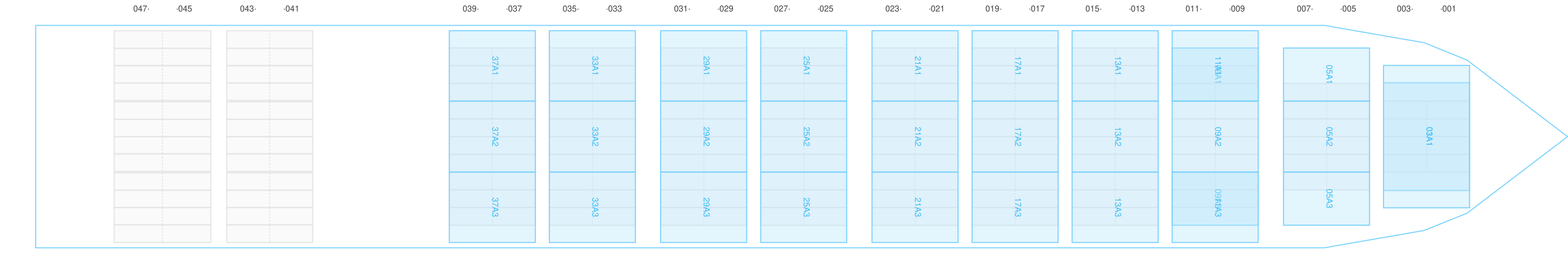

Deck view of MSC RINI III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

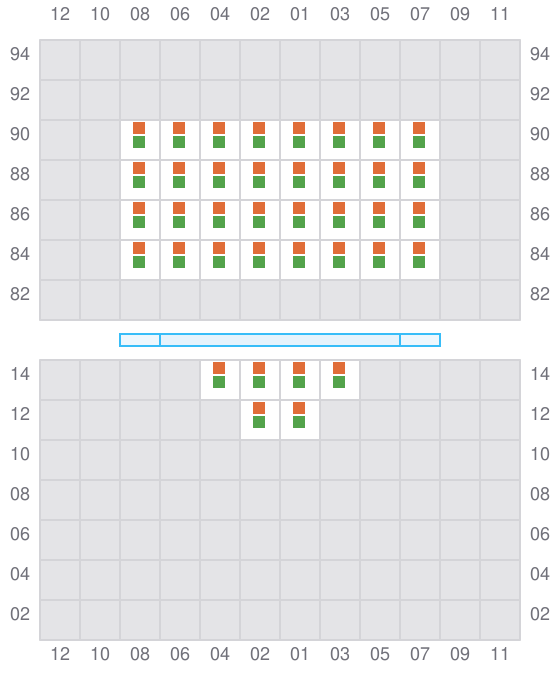

Bay 001 view and slots of MSC RINI III

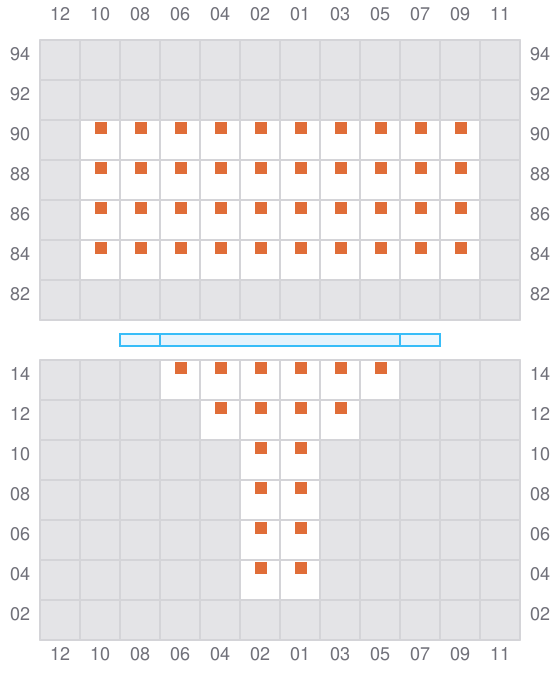

003

  • ←
Bay 003 view and slots of MSC RINI III

005 (006)

  • →
  • ← / ?

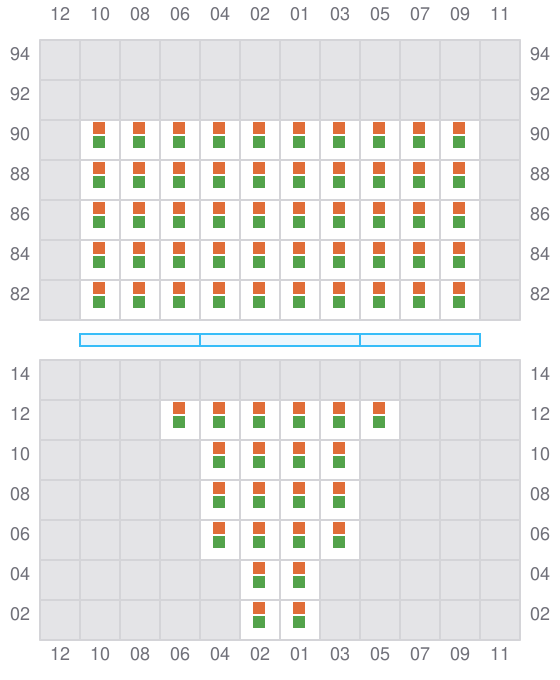

Bay 005 view and slots of MSC RINI III

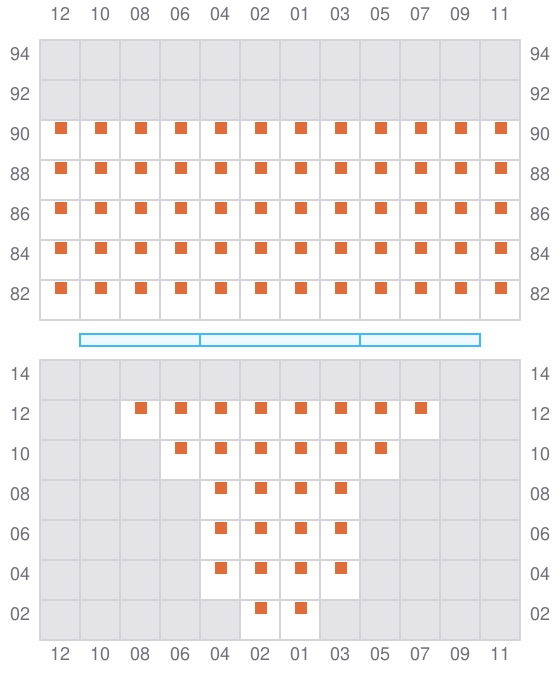

007

  • ←
  • ? / →
Bay 007 view and slots of MSC RINI III

009 (010)

  • →
Bay 009 view and slots of MSC RINI III

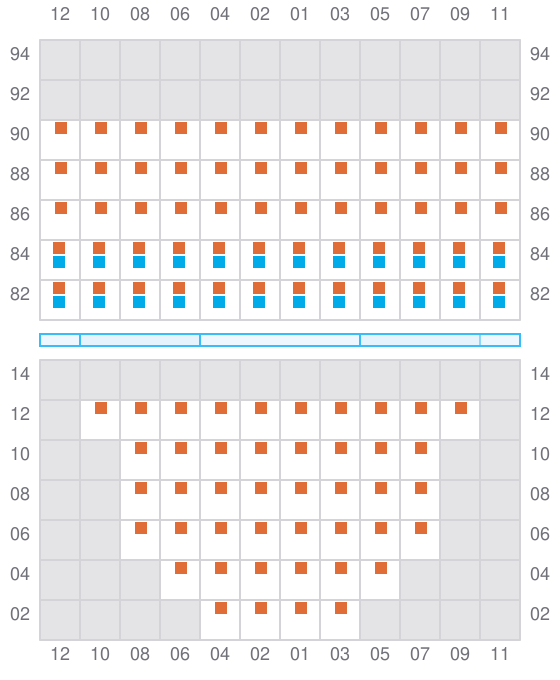

011

  • ←
  • →
Bay 011 view and slots of MSC RINI III

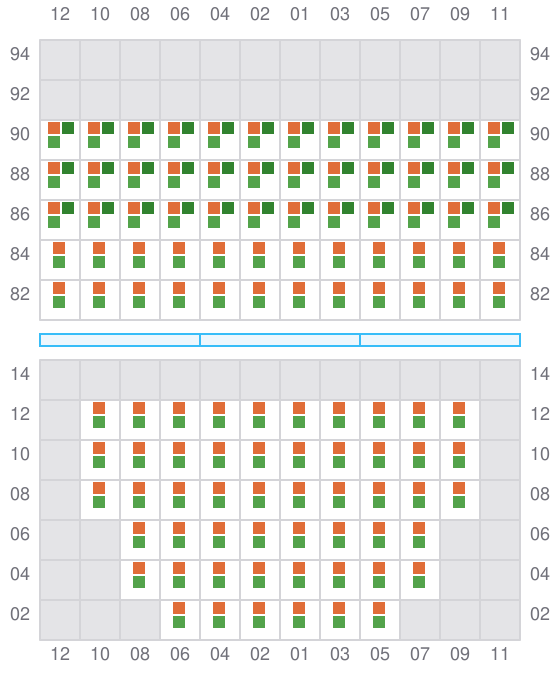

013 (014)

  • →
Bay 013 view and slots of MSC RINI III

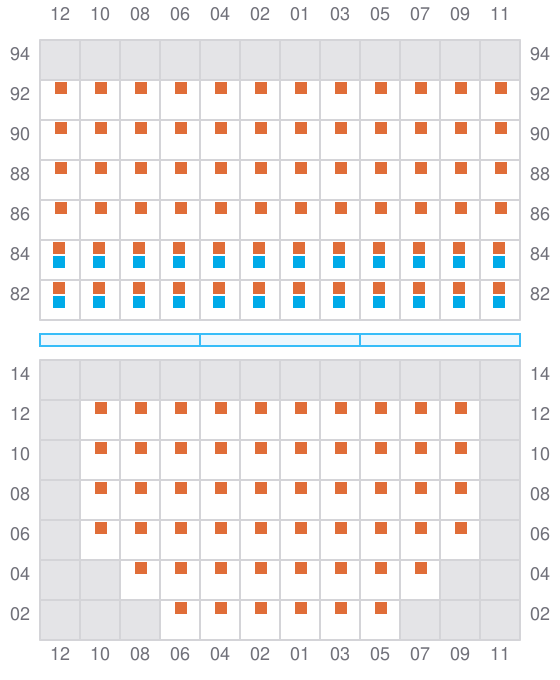

015

  • ←
  • →
Bay 015 view and slots of MSC RINI III

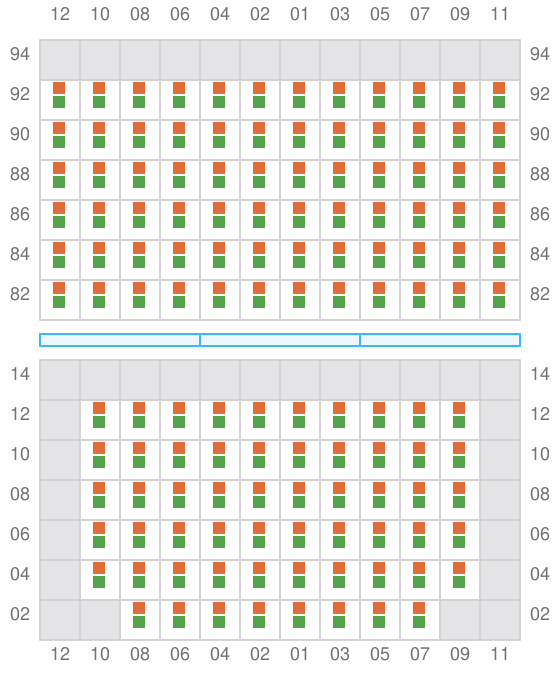

017 (018)

  • →
Bay 017 view and slots of MSC RINI III

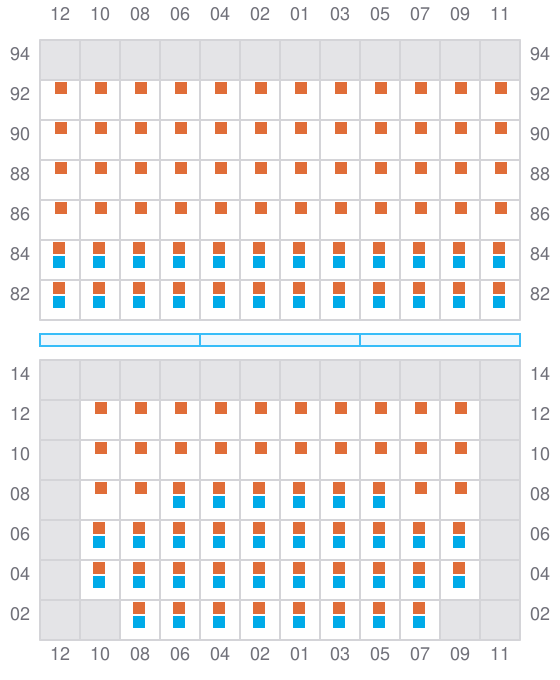

019

  • ←
  • →
Bay 019 view and slots of MSC RINI III

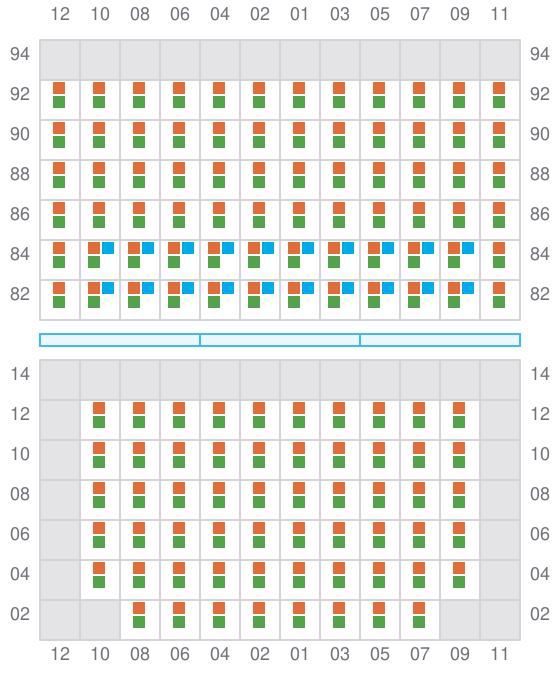

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of MSC RINI III

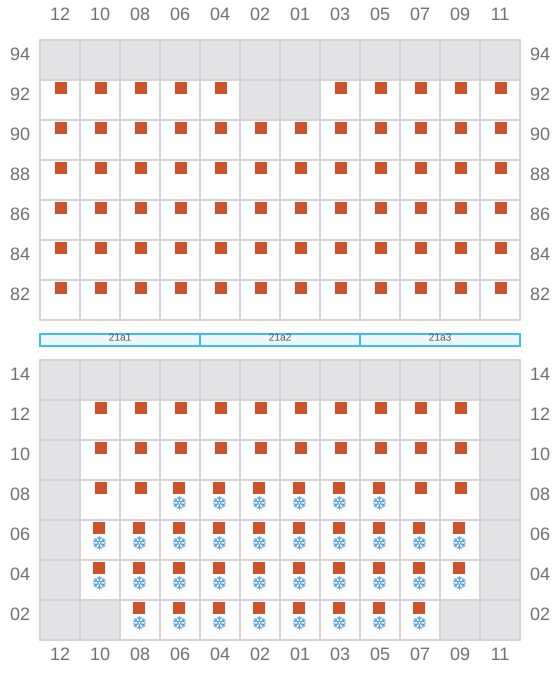

023

  • ←
  • ? / →
Bay 023 view and slots of MSC RINI III

025 (026)

  • →

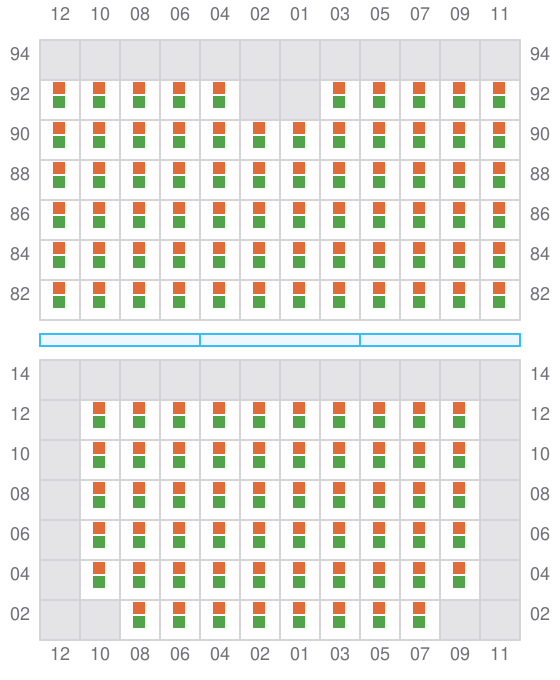

Bay 025 view and slots of MSC RINI III

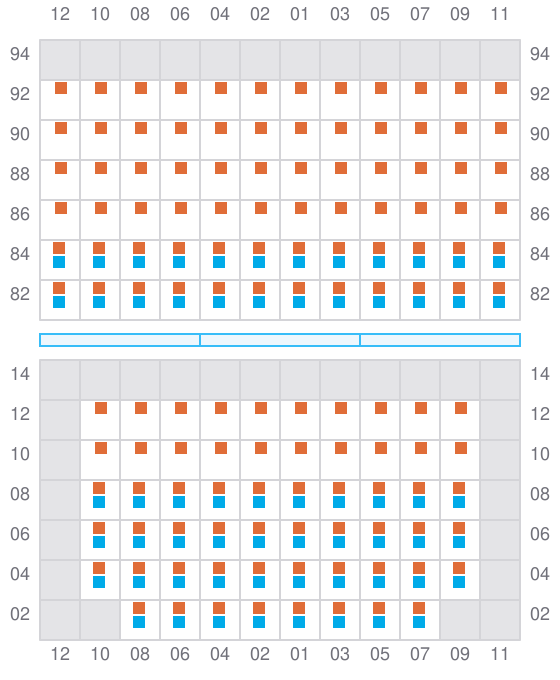

027

  • ←
  • →
Bay 027 view and slots of MSC RINI III

029 (030)

  • →
  • ← / ?

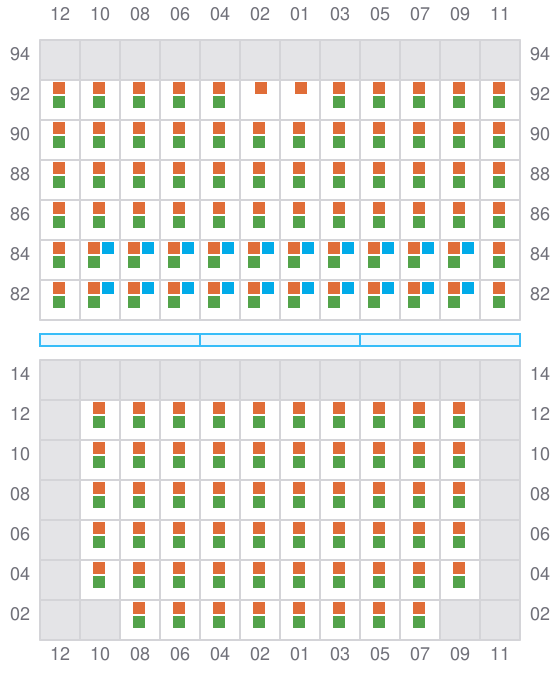

Bay 029 view and slots of MSC RINI III

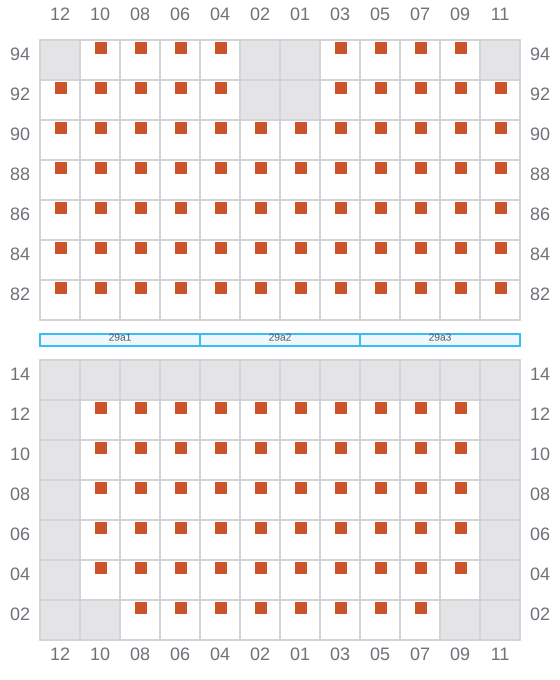

031

  • ←
  • ? / →
Bay 031 view and slots of MSC RINI III

033 (034)

  • →

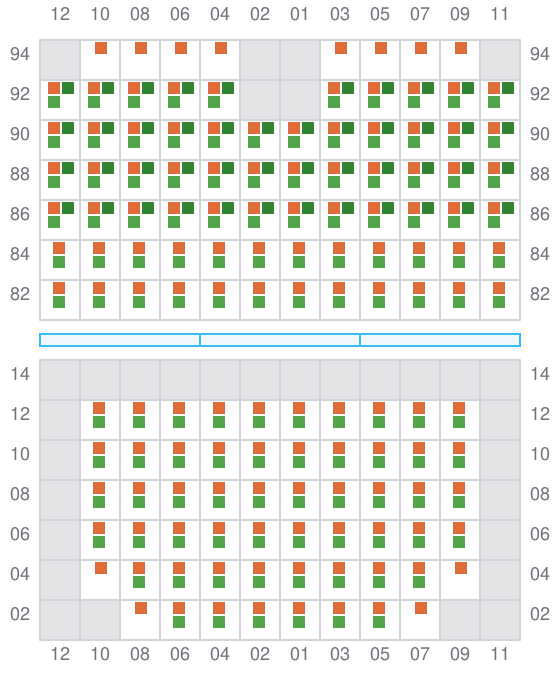

Bay 033 view and slots of MSC RINI III

035

  • ←
  • →

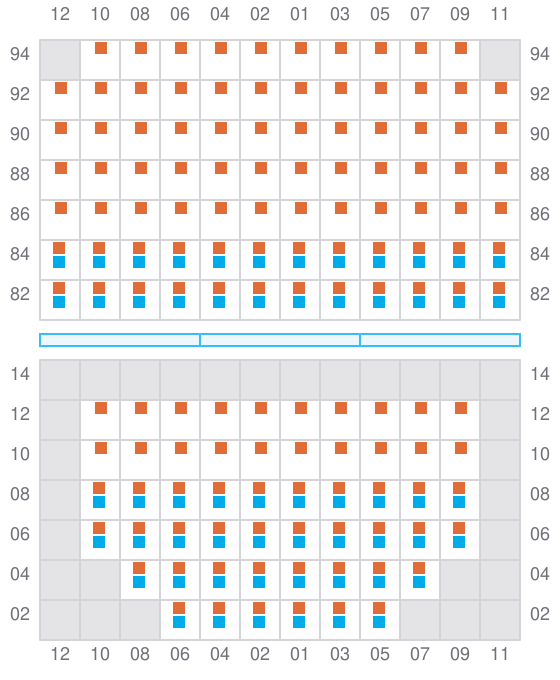

Bay 035 view and slots of MSC RINI III

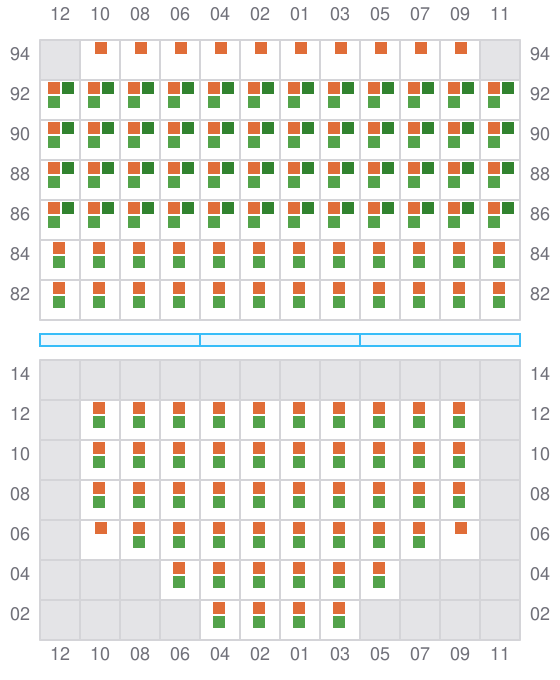

037 (038)

  • →
Bay 037 view and slots of MSC RINI III

039

  • ←
  • →

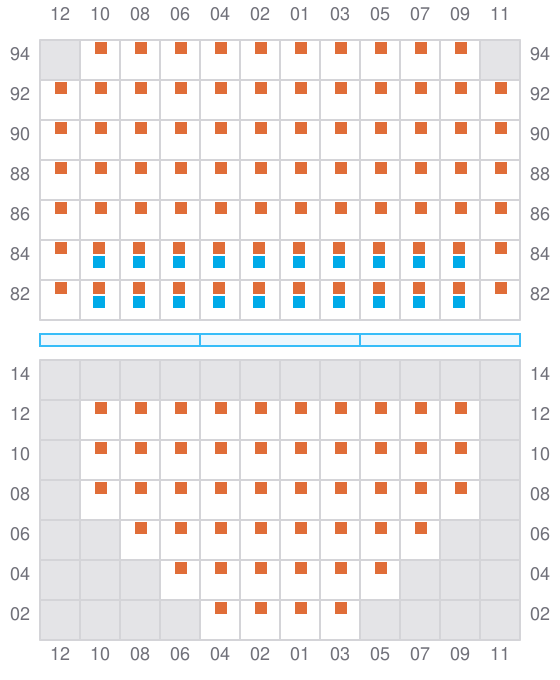

Bay 039 view and slots of MSC RINI III

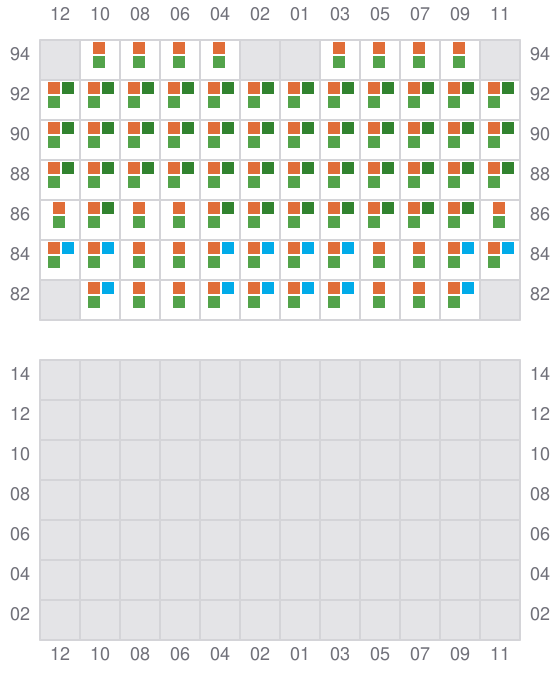

041 (042)

  • → / ?
  • ← / ?
Bay 041 view and slots of MSC RINI III

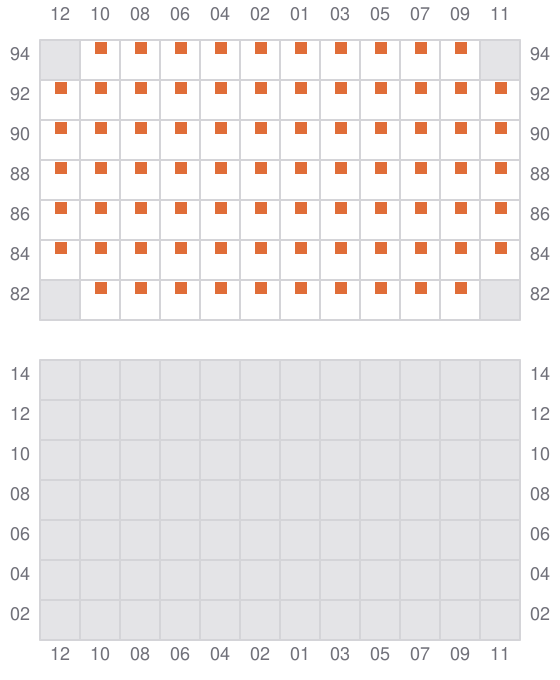

043

  • ← / ?
Bay 043 view and slots of MSC RINI III

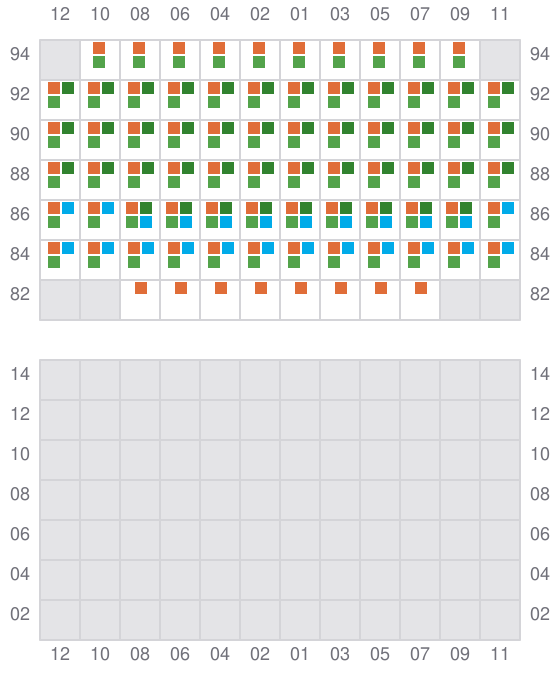

045 (046)

  • → / ?
  • ← / ?
Bay 045 view and slots of MSC RINI III

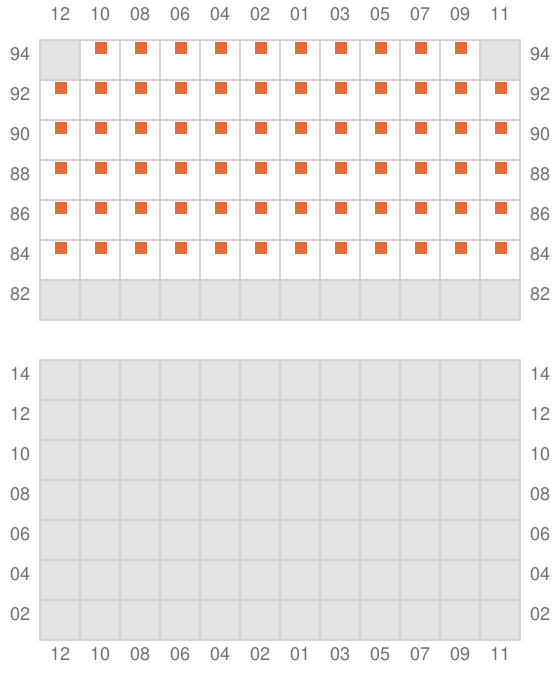

047

  • ← / ?
Bay 047 view and slots of MSC RINI III
