MSC RITA
9289116 | 3EBW6 | MSC by ************************** Last update: Sun May 28 2023
General Info
Ship Name:MSC RITA
IMO Code:9289116
Call Sign:3EBW6
Line Operator:MSC
Class Name for Sister Ships:MSRT
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:075
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,186
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

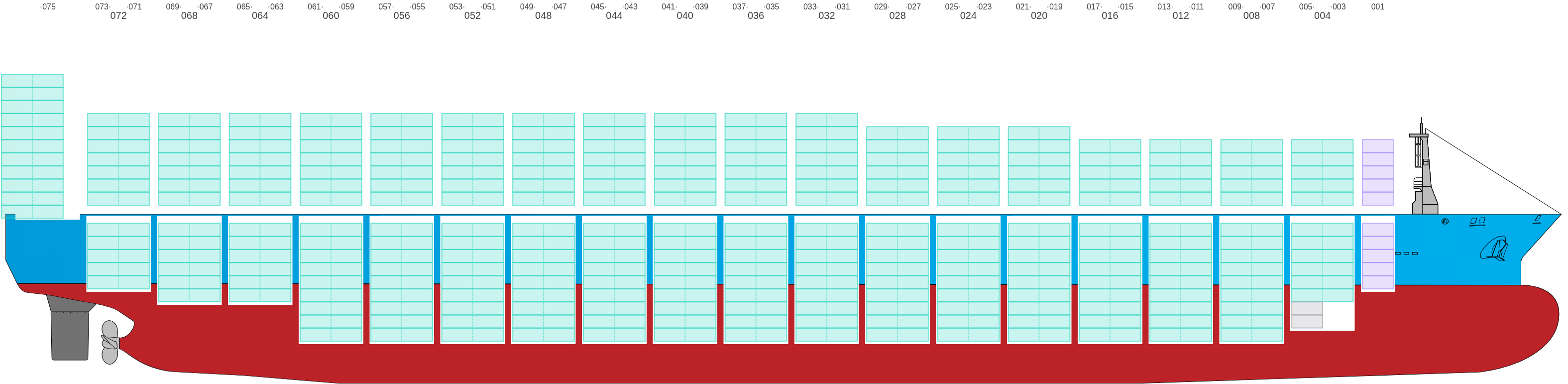

Side View
![Side view of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-sideView.png?v=1685306679649)
Hatch-Covers View
![Deck view of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-deckView.png?v=1685306679649)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

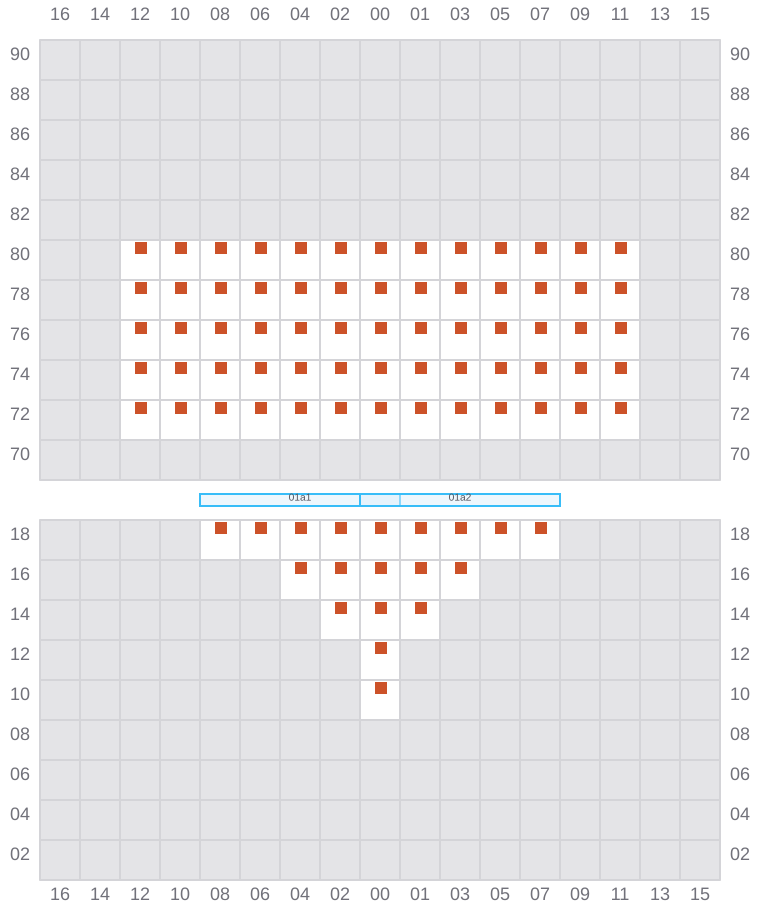

001
![Bay 001 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b001.png?v=1685306679649)

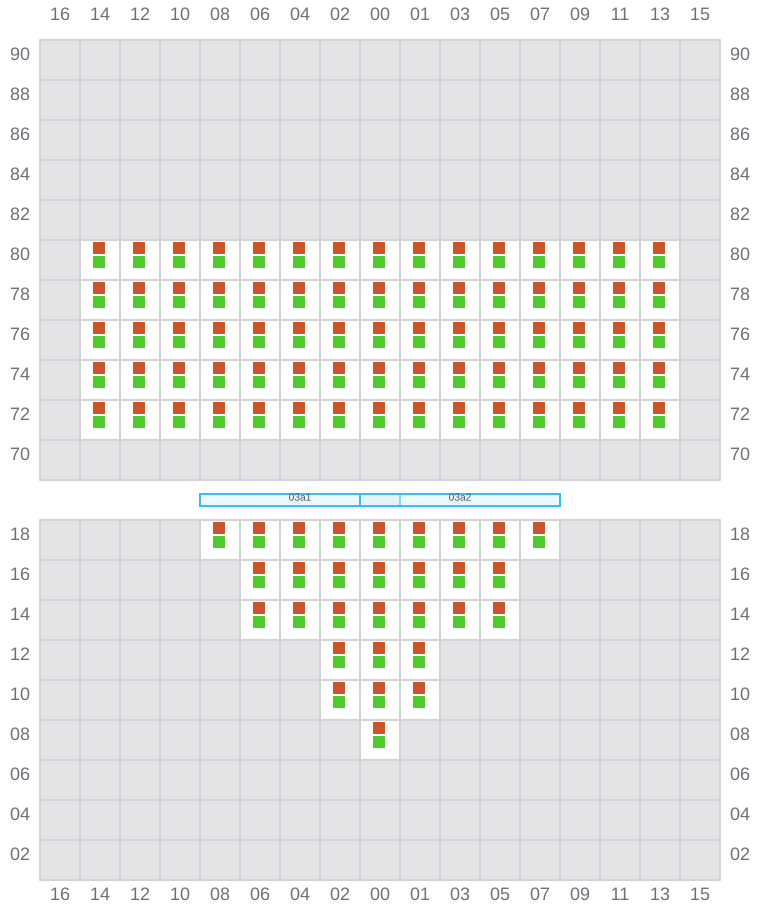

003 (004)
- →
![Bay 003 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b003.png?v=1685306679649)

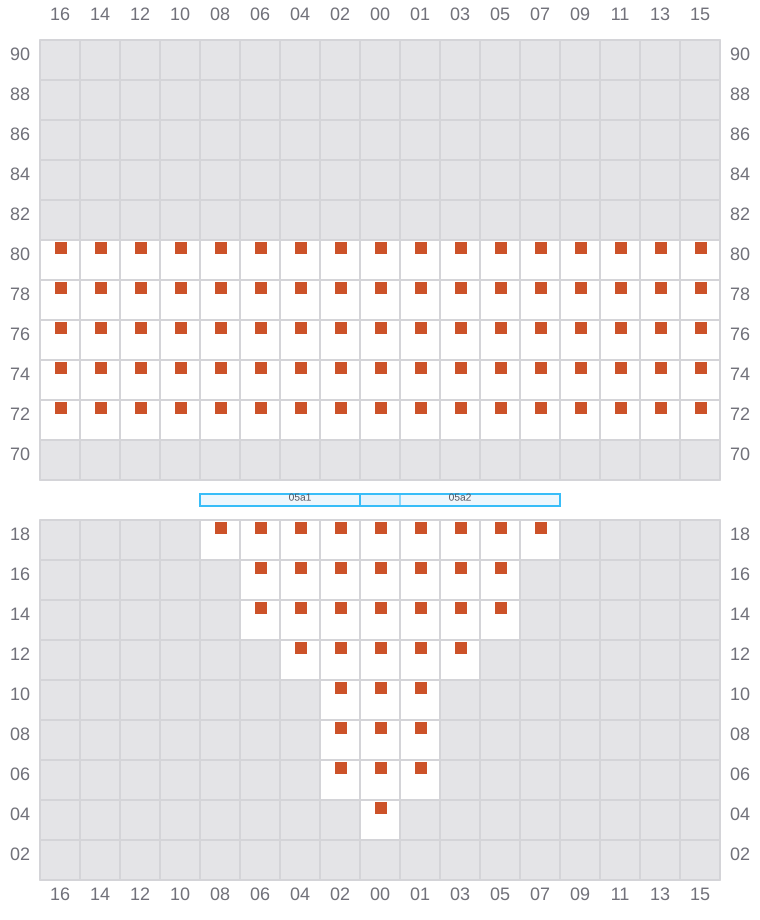

005
- ←
![Bay 005 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b005.png?v=1685306679649)

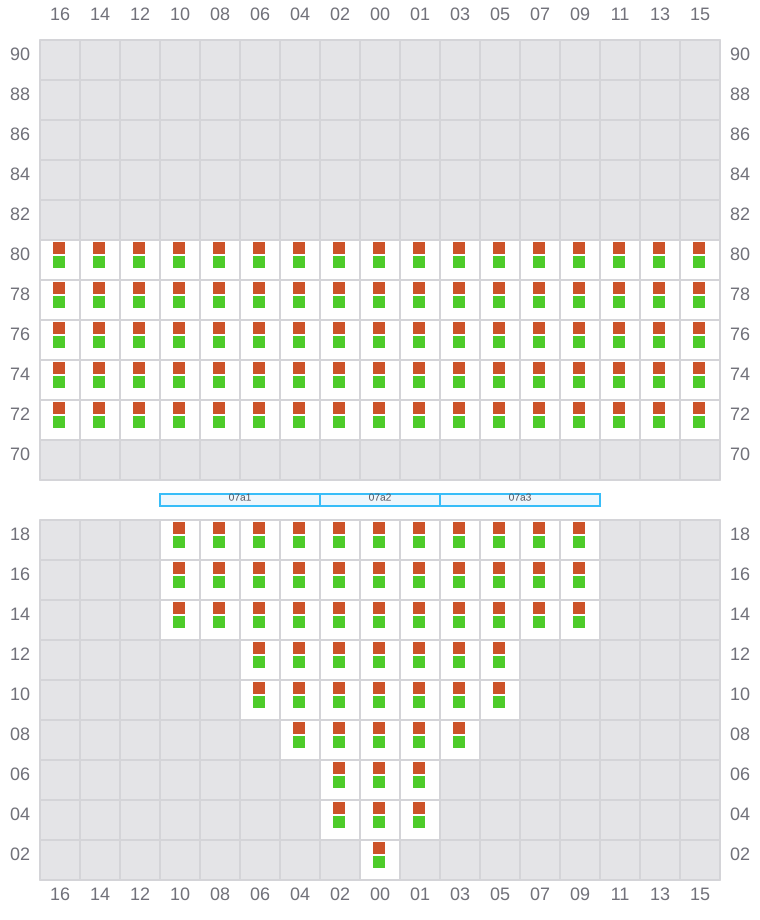

007 (008)
- →
![Bay 007 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b007.png?v=1685306679649)

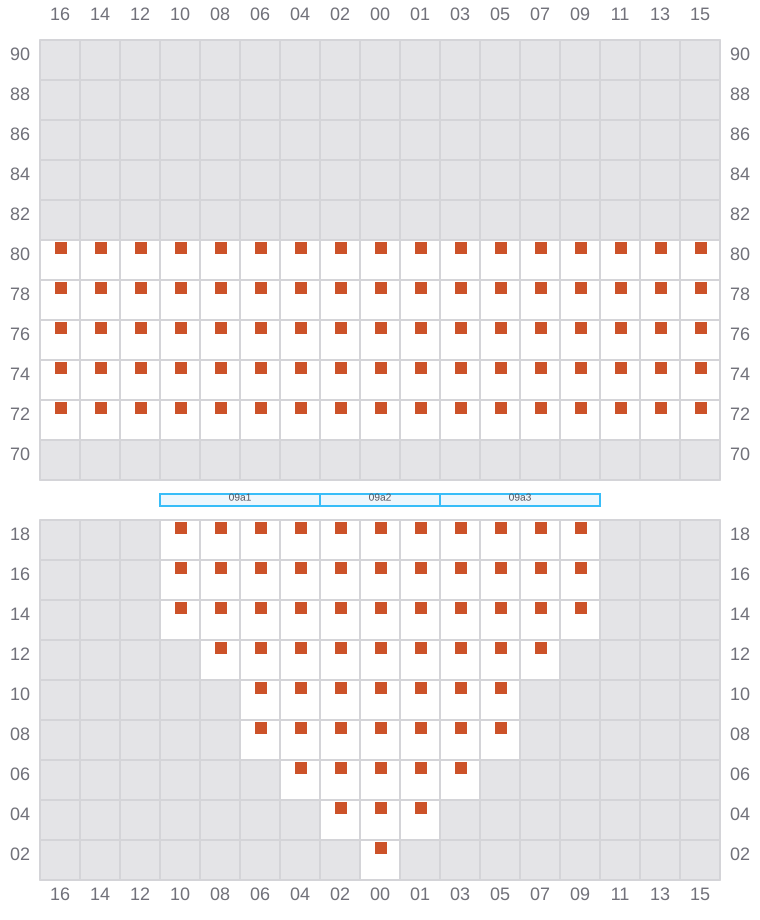

009
- ←
![Bay 009 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b009.png?v=1685306679649)

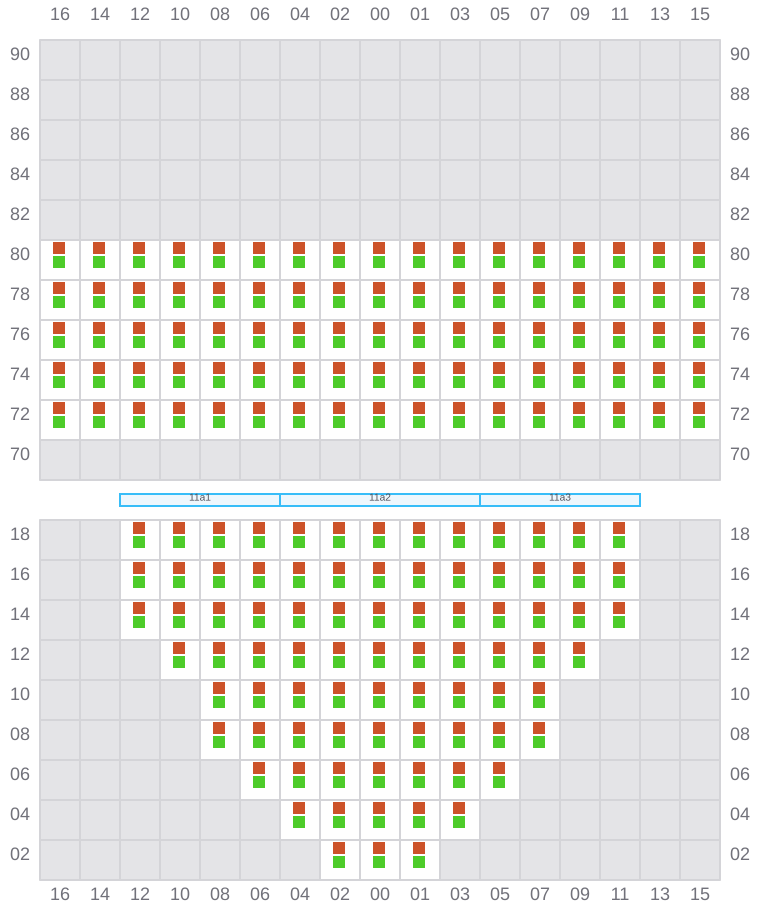

011 (012)
- →
![Bay 011 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b011.png?v=1685306679649)

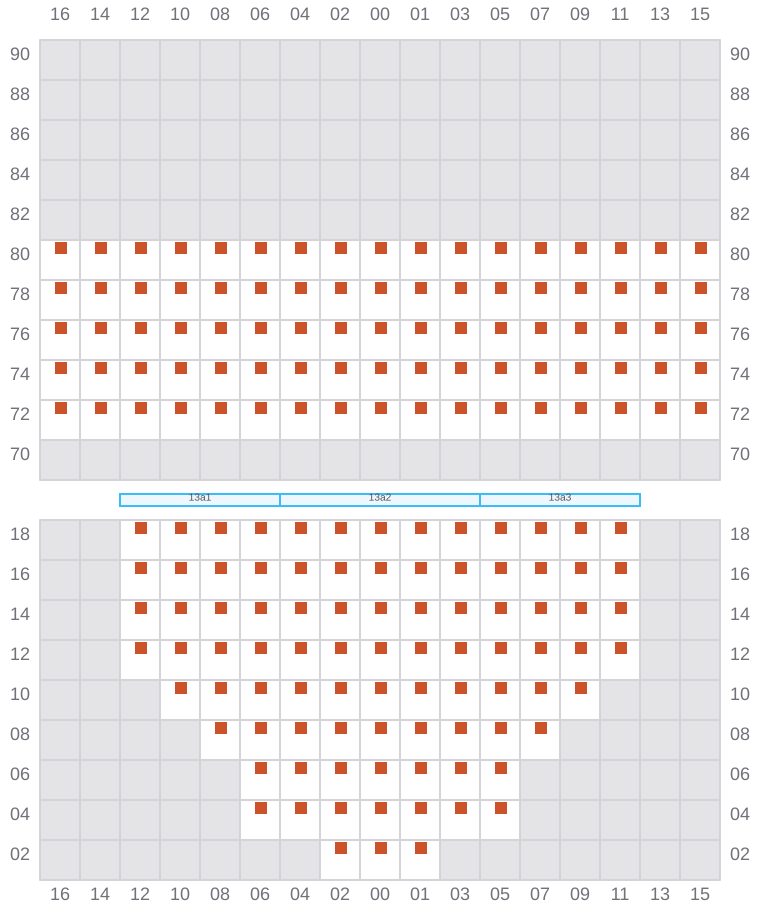

013
- ←
![Bay 013 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b013.png?v=1685306679649)

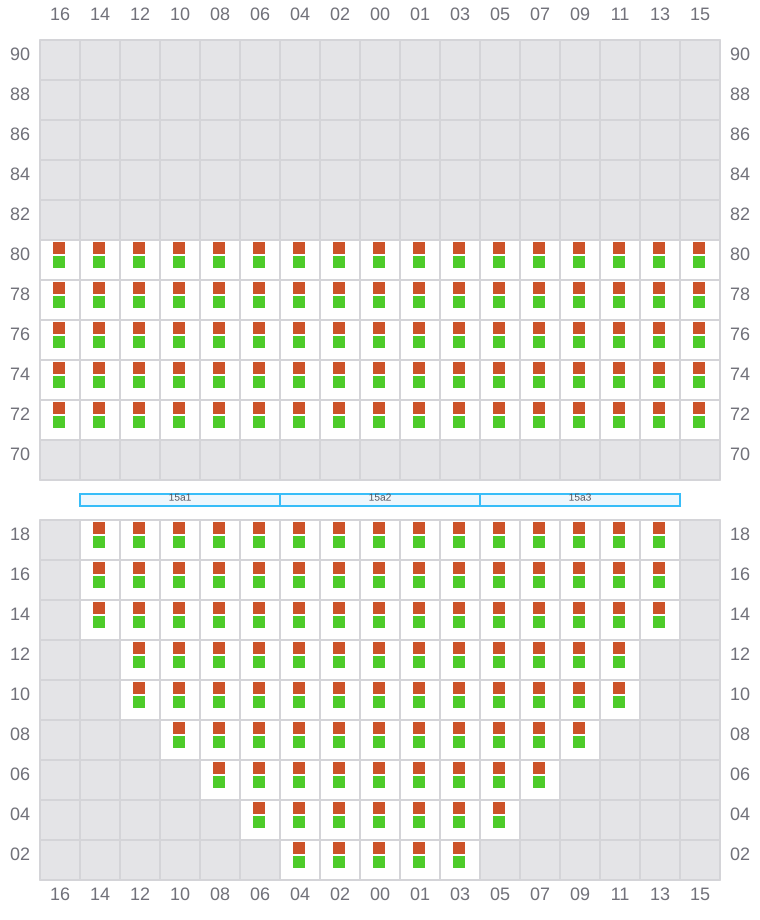

015 (016)
- →
![Bay 015 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b015.png?v=1685306679649)

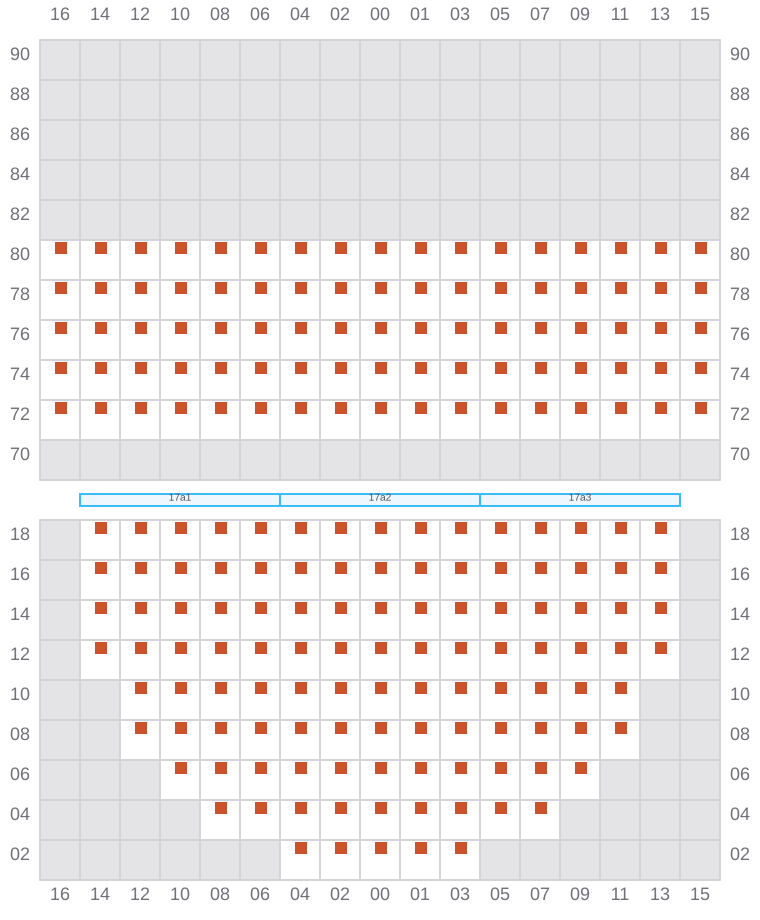

017
- ←
![Bay 017 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b017.png?v=1685306679649)
019 (020)
- →
![Bay 019 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b019.png?v=1685306679649)

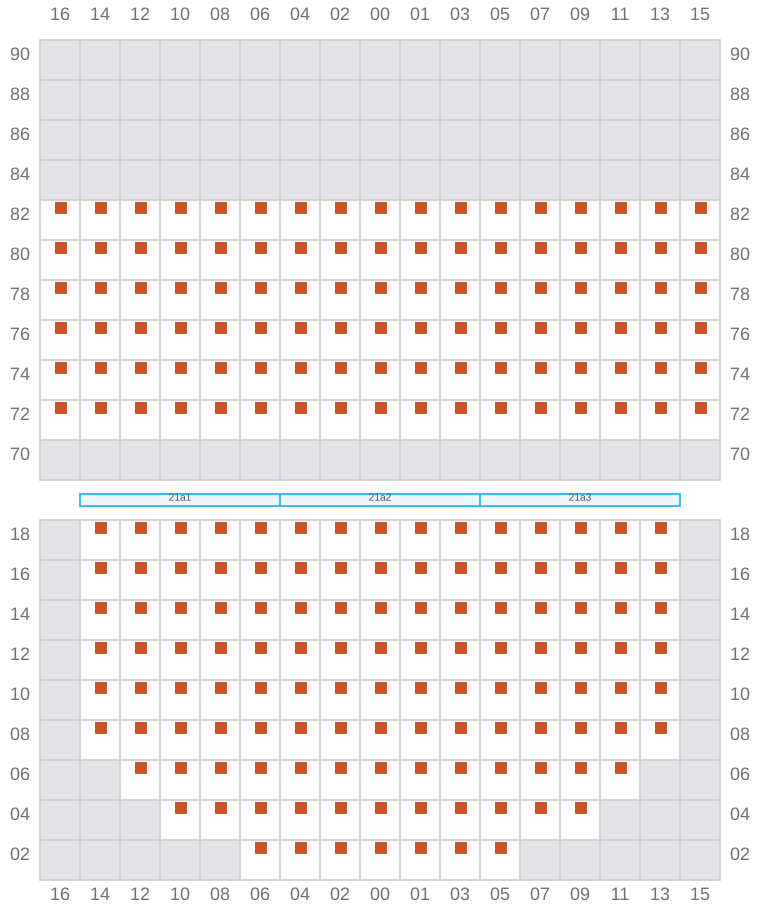

021
- ←
![Bay 021 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b021.png?v=1685306679649)

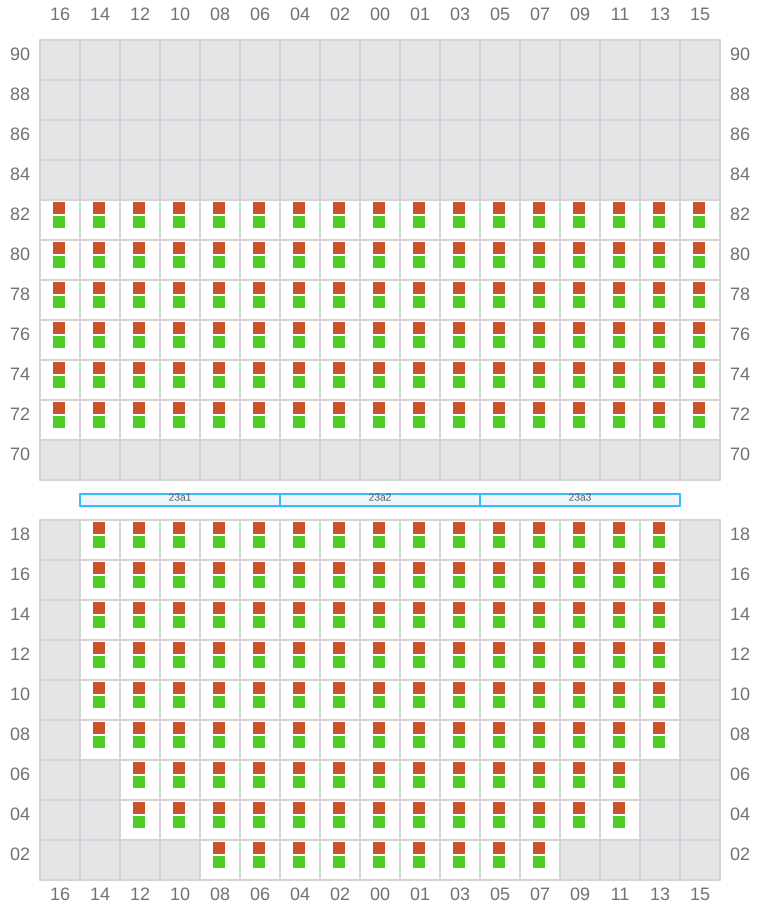

023 (024)
- →
![Bay 023 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b023.png?v=1685306679649)

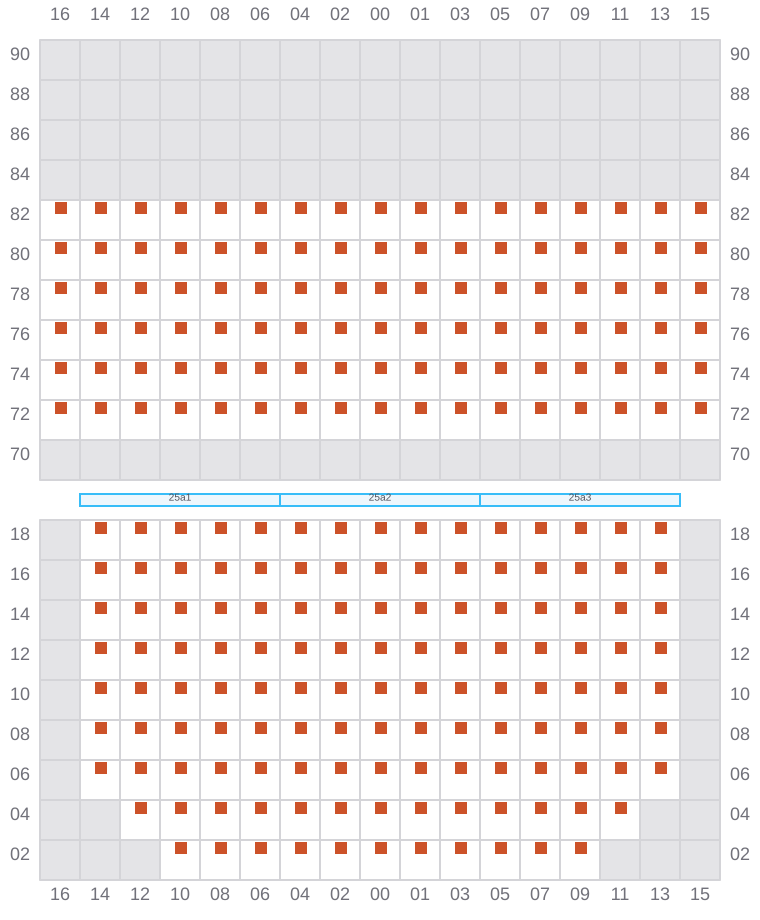

025
- ←
![Bay 025 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b025.png?v=1685306679649)

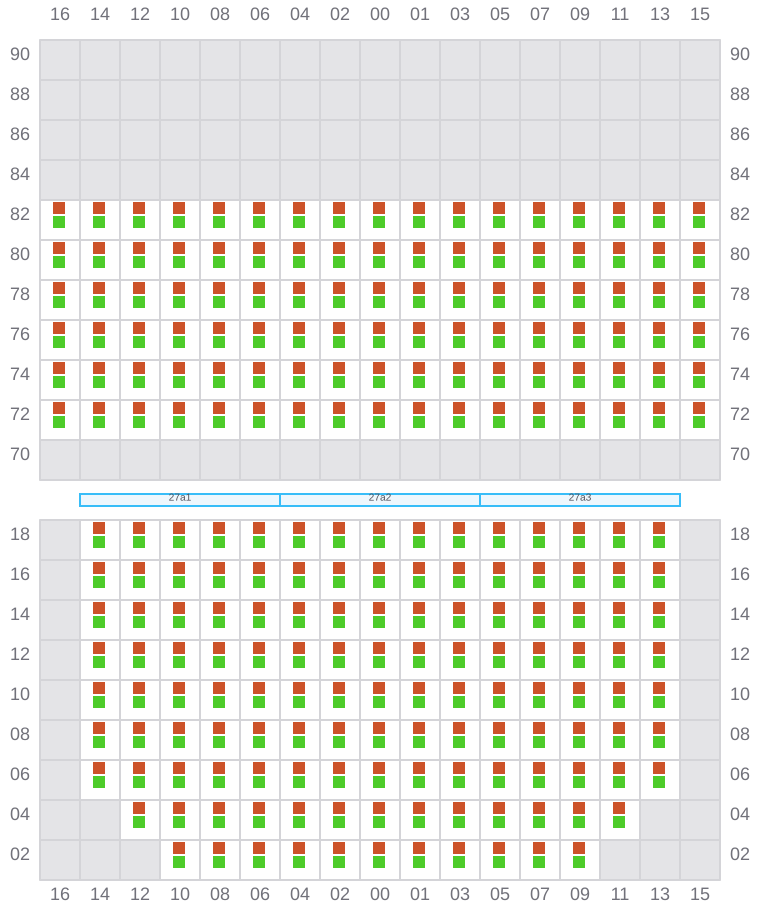

027 (028)
- →
![Bay 027 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b027.png?v=1685306679649)

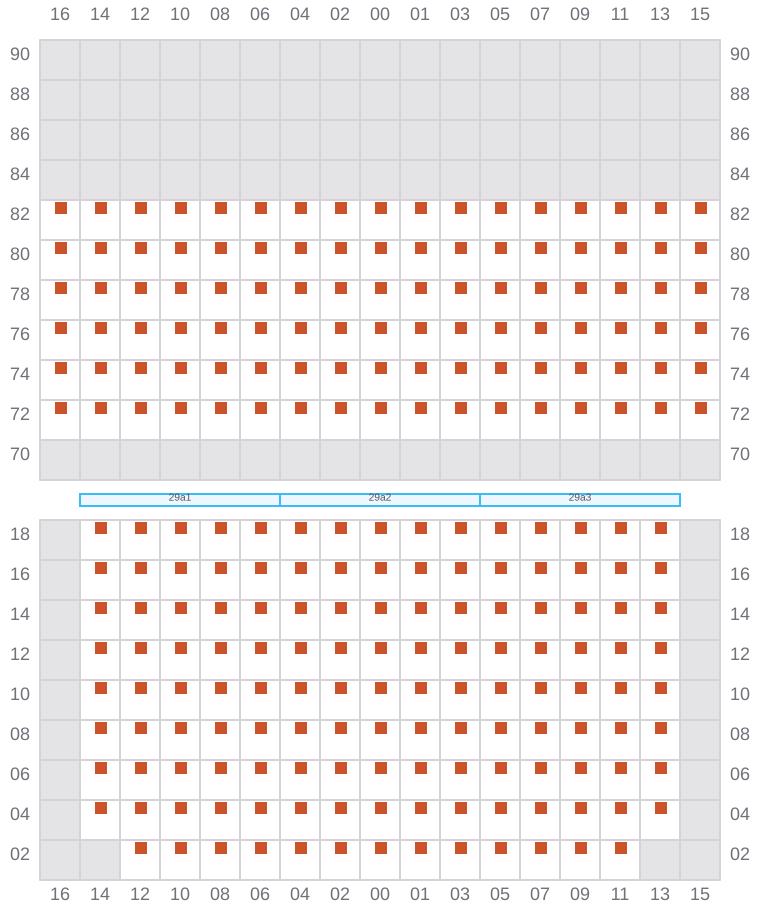

029
- ←
![Bay 029 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b029.png?v=1685306679649)
031 (032)
- →
![Bay 031 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b031.png?v=1685306679649)

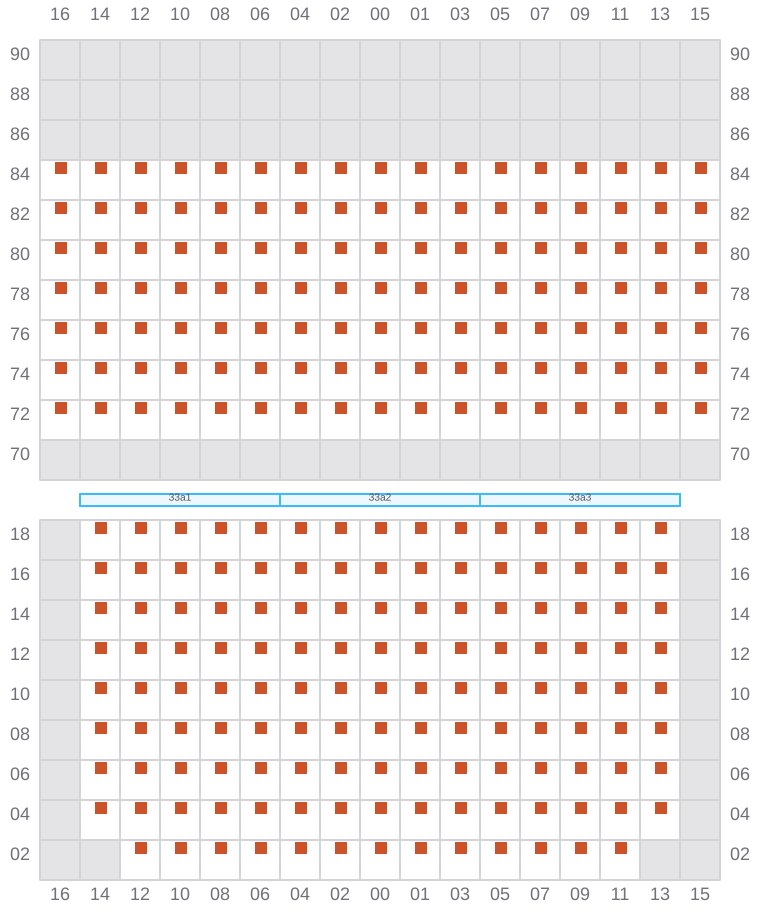

033
- ←
![Bay 033 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b033.png?v=1685306679649)
035 (036)
- →
![Bay 035 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b035.png?v=1685306679649)

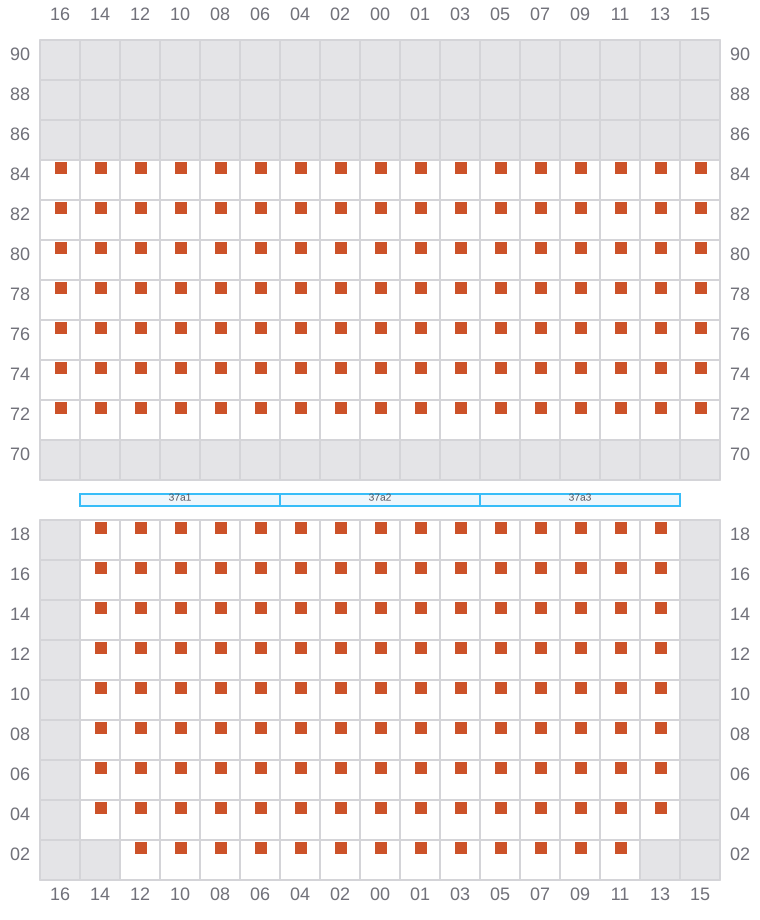

037
- ←
![Bay 037 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b037.png?v=1685306679649)
039 (040)
- →
![Bay 039 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b039.png?v=1685306679649)

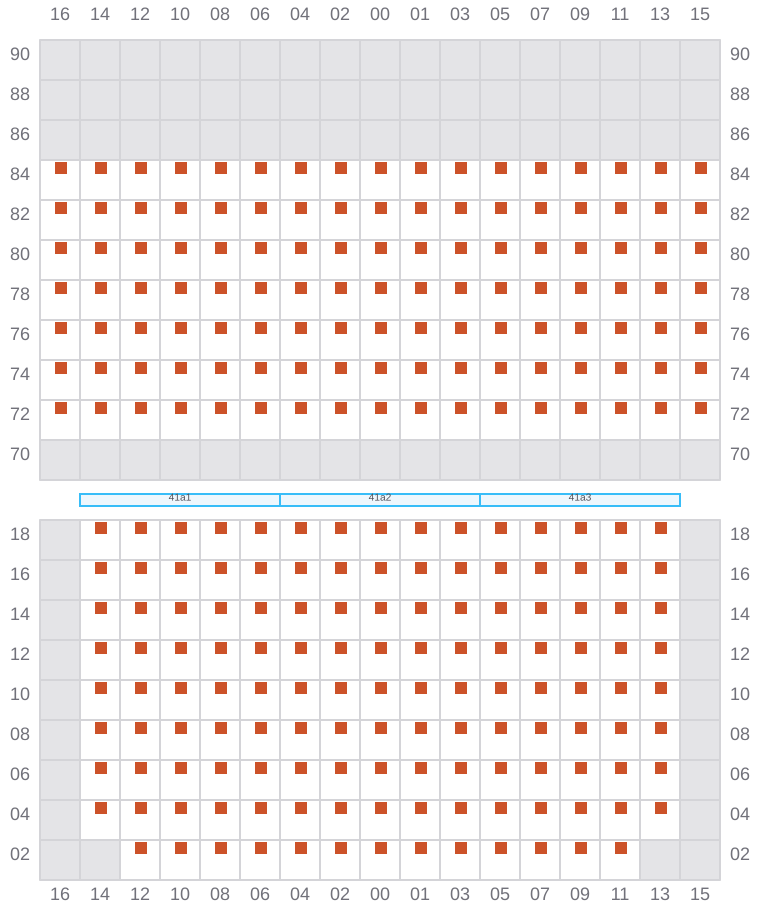

041
- ←
![Bay 041 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b041.png?v=1685306679649)

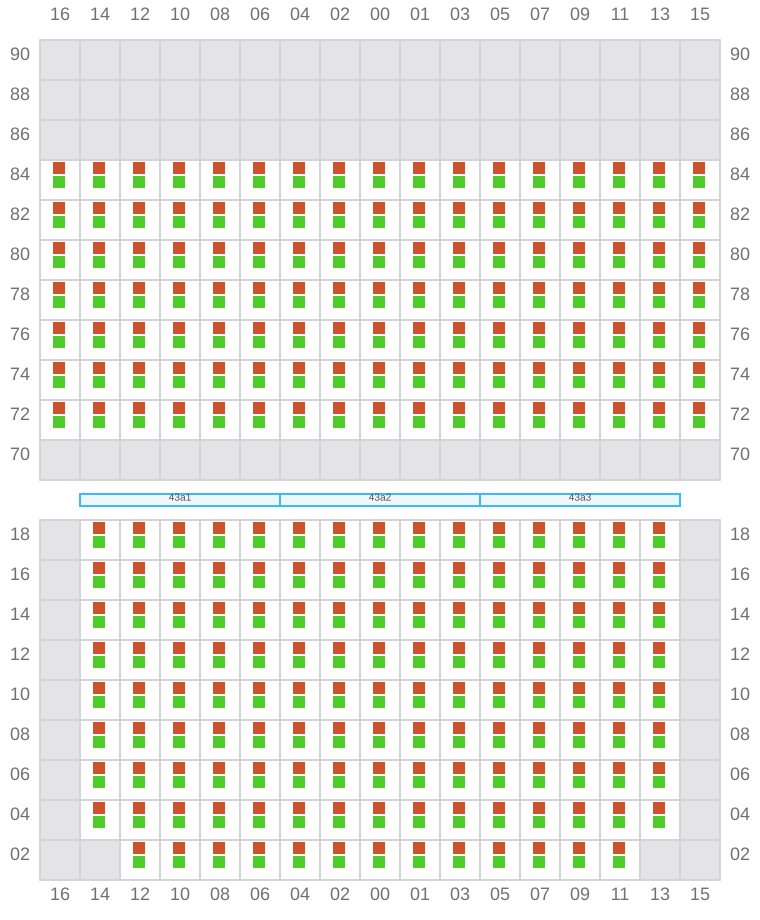

043 (044)
- →
![Bay 043 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b043.png?v=1685306679649)
045
- ←
![Bay 045 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b045.png?v=1685306679649)
047 (048)
- →
![Bay 047 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b047.png?v=1685306679649)
049
- ←
![Bay 049 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b049.png?v=1685306679649)
051 (052)
- →
![Bay 051 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b051.png?v=1685306679649)
053
- ←
![Bay 053 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b053.png?v=1685306679649)

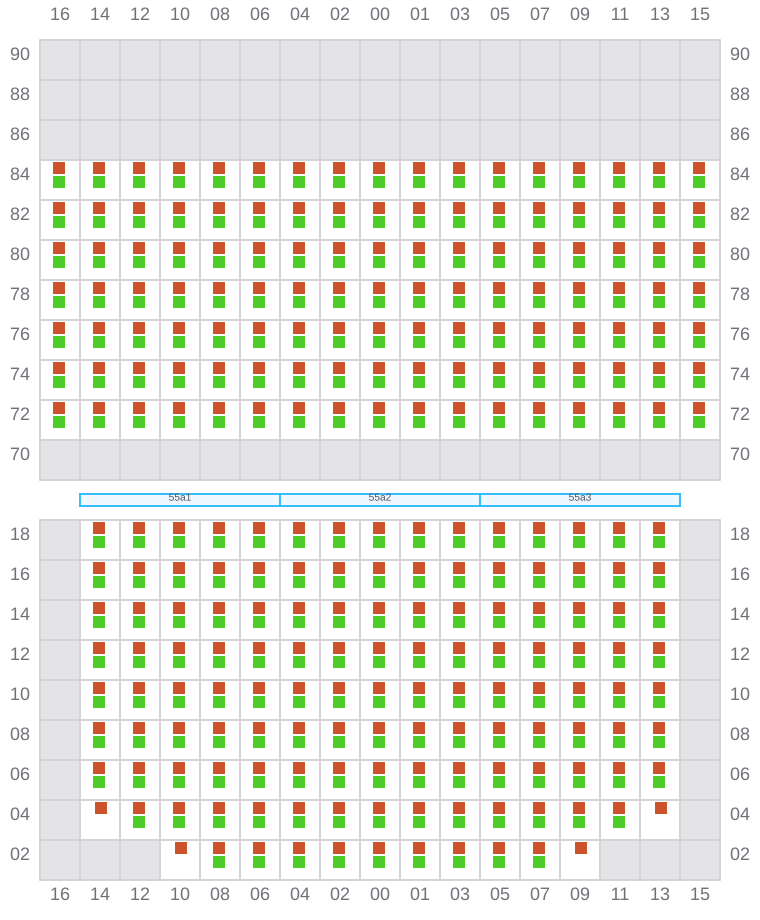

055 (056)
- →
![Bay 055 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b055.png?v=1685306679649)

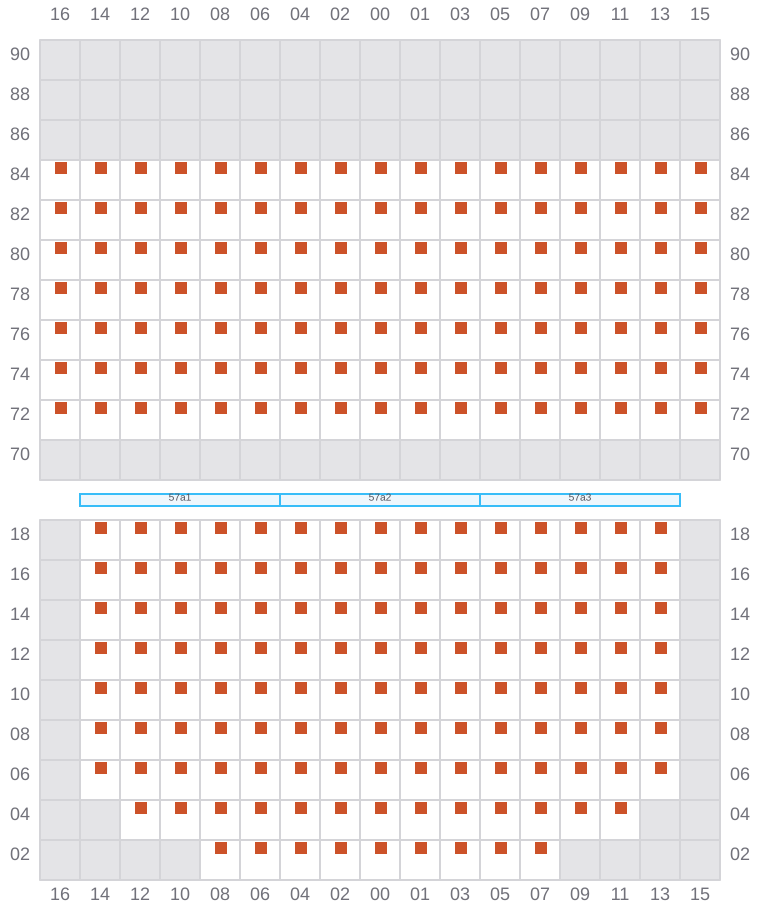

057
- ←
![Bay 057 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b057.png?v=1685306679649)

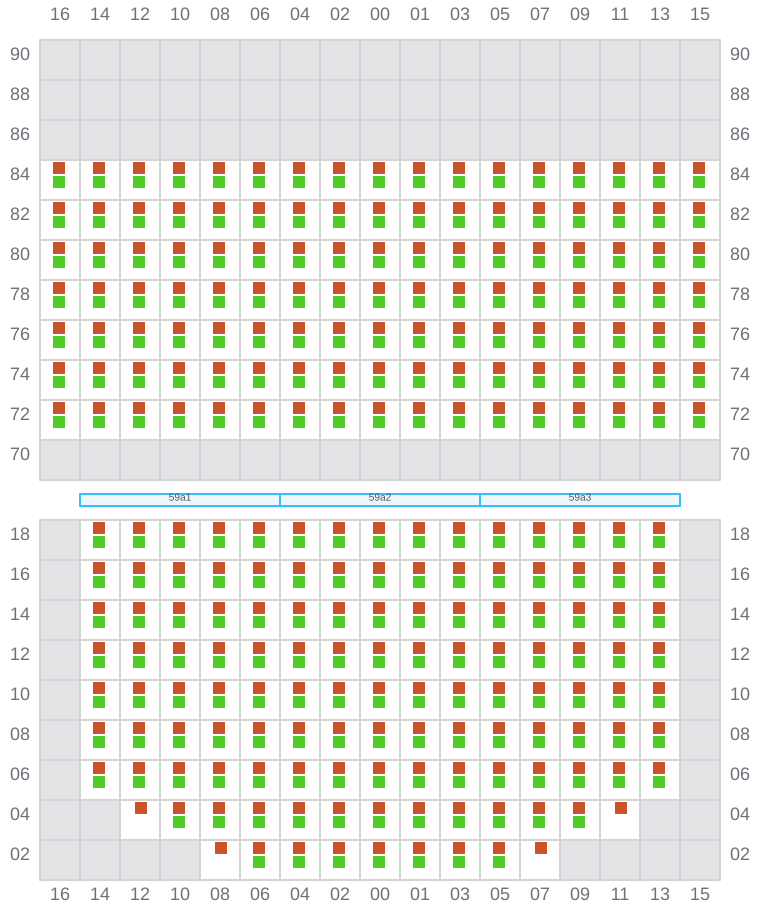

059 (060)
- →
![Bay 059 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b059.png?v=1685306679649)

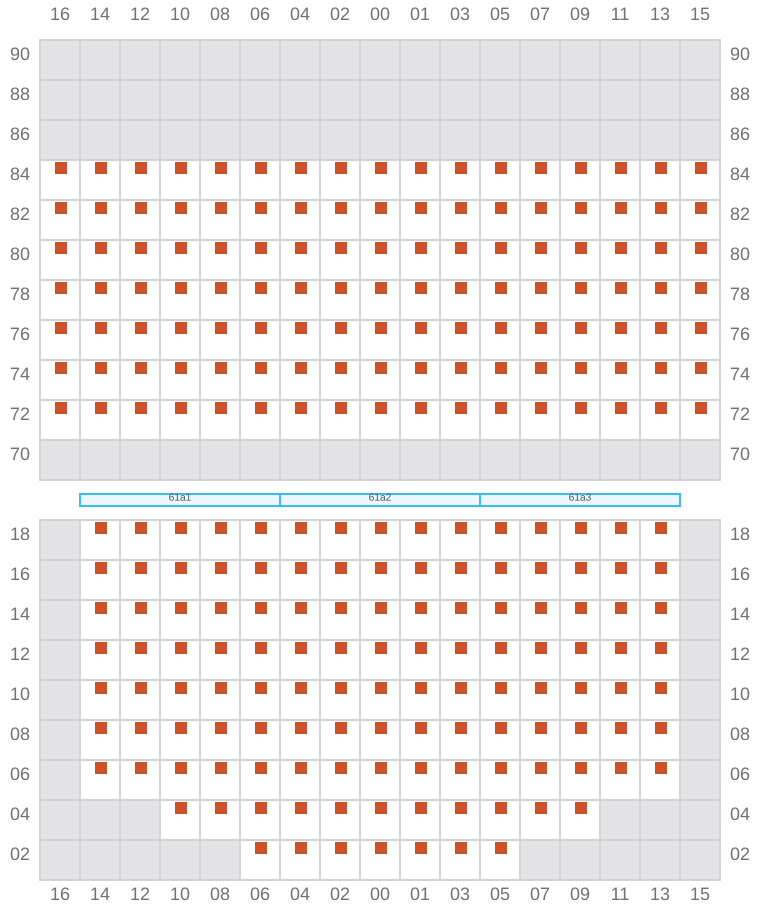

061
- ←
![Bay 061 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b061.png?v=1685306679649)

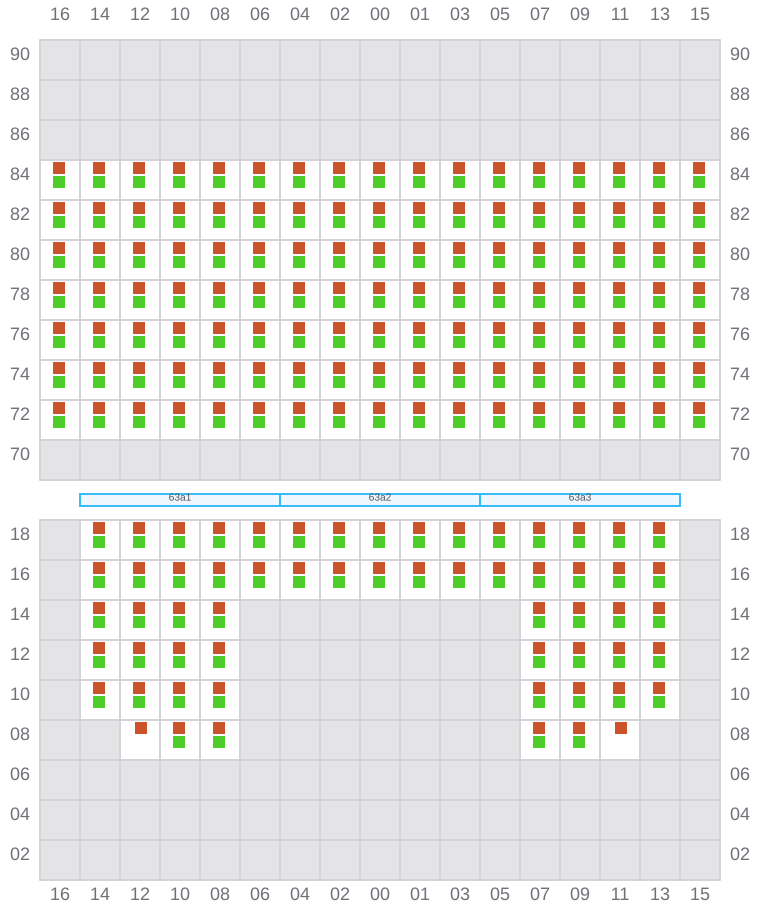

063 (064)
- →
![Bay 063 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b063.png?v=1685306679649)

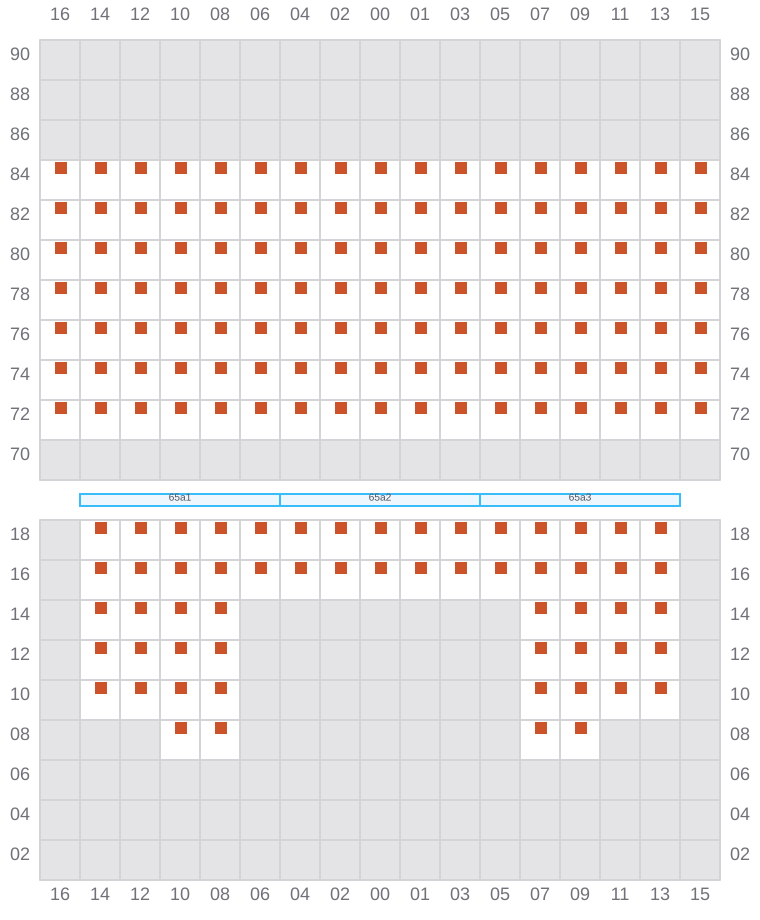

065
- ←
![Bay 065 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b065.png?v=1685306679649)

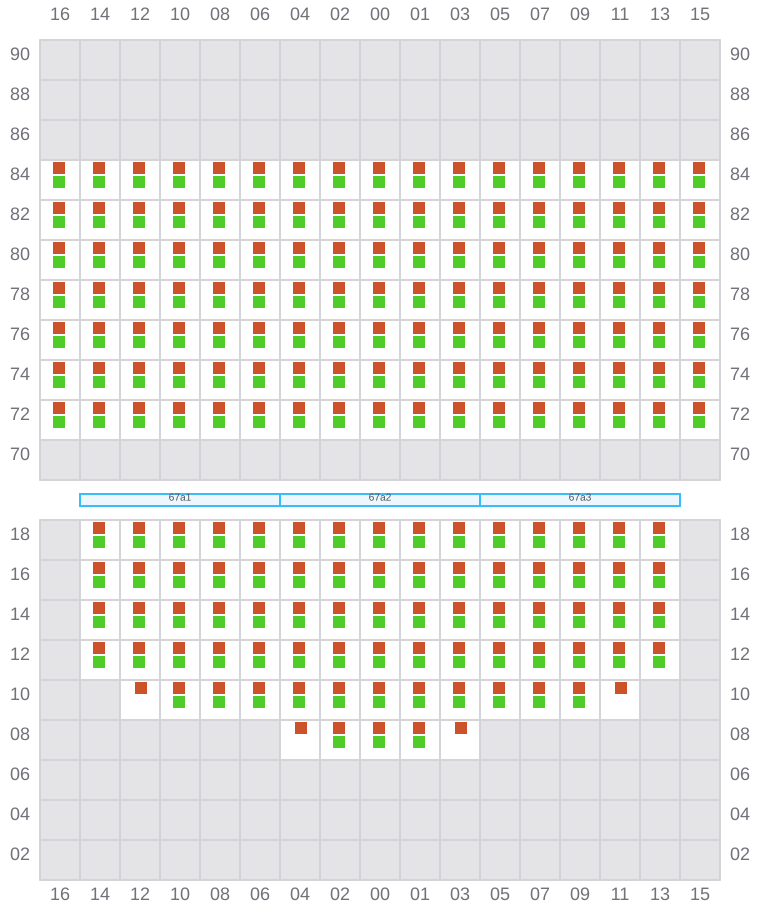

067 (068)
- →
![Bay 067 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b067.png?v=1685306679649)

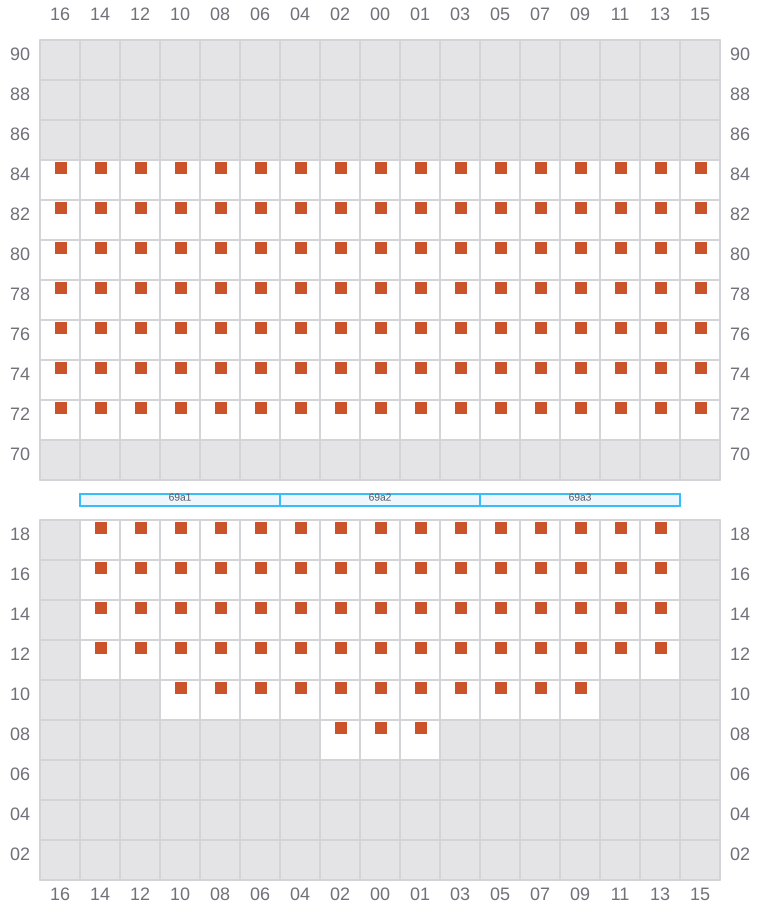

069
- ←
![Bay 069 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b069.png?v=1685306679649)
071 (072)
- →
![Bay 071 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b071.png?v=1685306679649)

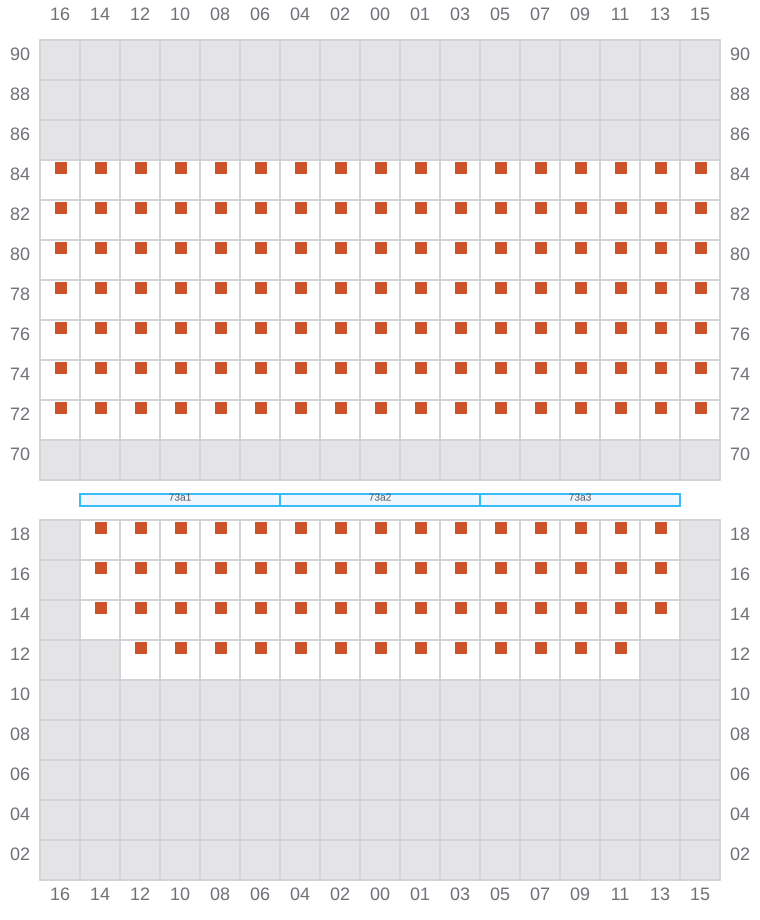

073
- ←
![Bay 073 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b073.png?v=1685306679649)

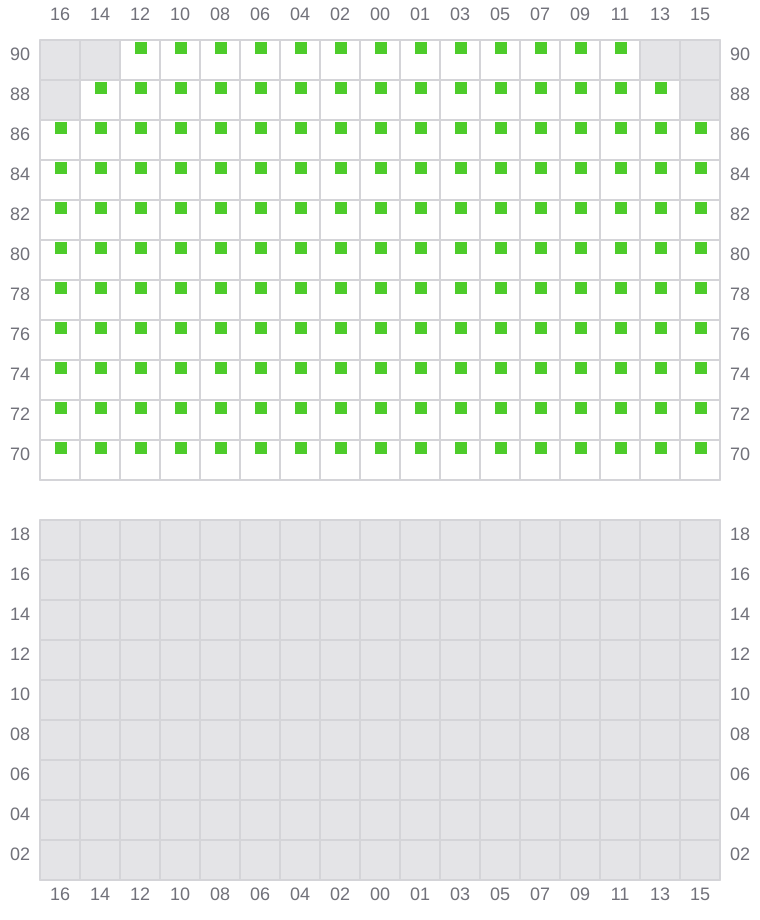

075 (076)
- → / ?
![Bay 075 view and slots of MSC RITA](/vessel-images/503af772-90e5-4d07-85b7-4a6f78ab23af-b075.png?v=1685306679649)
