MSC ROBERTA V
9038907 | D5IV9 | MSC by ************************** Last update: Sun May 28 2023

General Info

Ship Name:MSC ROBERTA V
IMO Code:9038907
Call Sign:D5IV9
Line Operator:MSC
Class Name for Sister Ships:MSRB
Year Built:1993
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,639

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

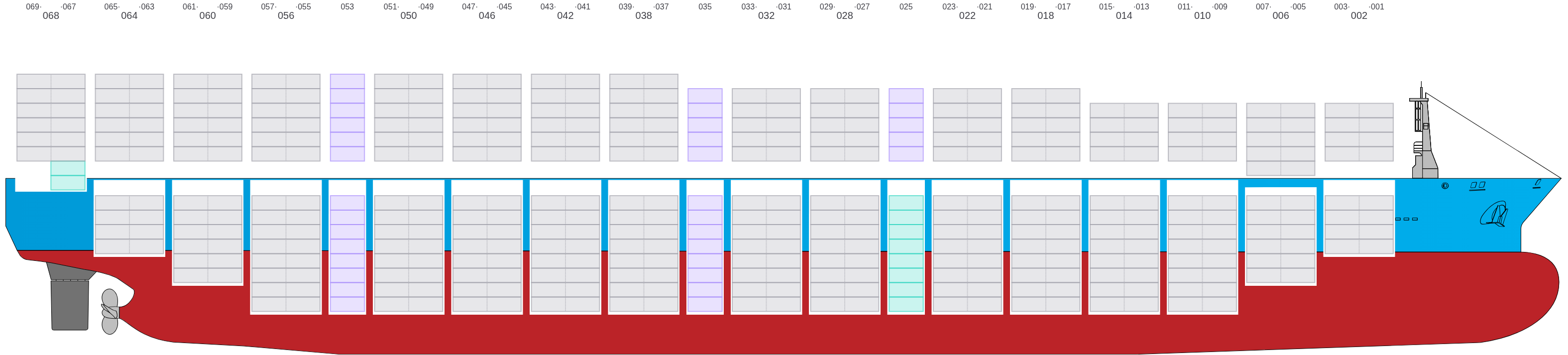

Side view of MSC ROBERTA V

Hatch-Covers View

Deck view of MSC ROBERTA V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

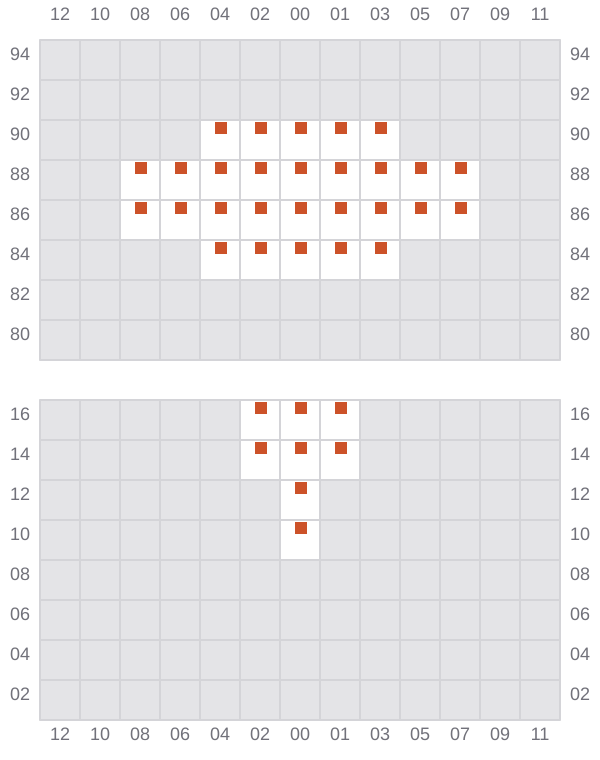

Bay 001 view and slots of MSC ROBERTA V

003 (002)

  • ←

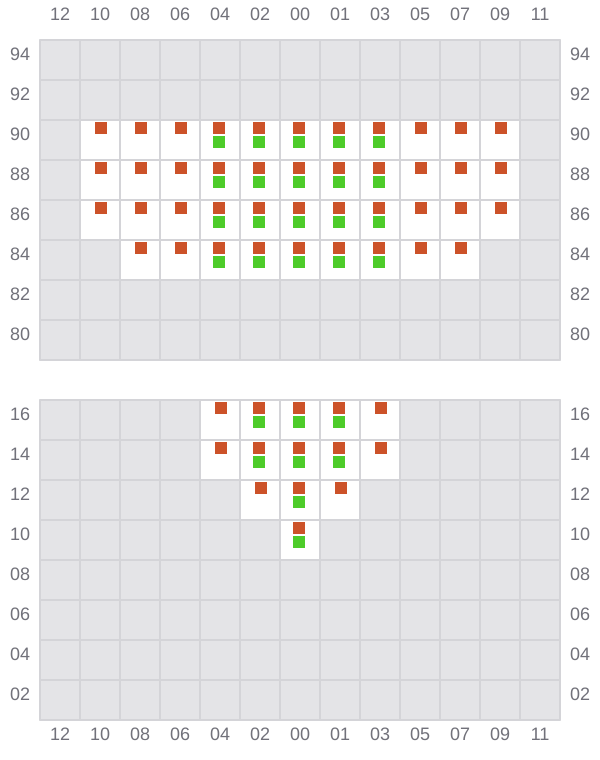

Bay 003 view and slots of MSC ROBERTA V

005

  • →

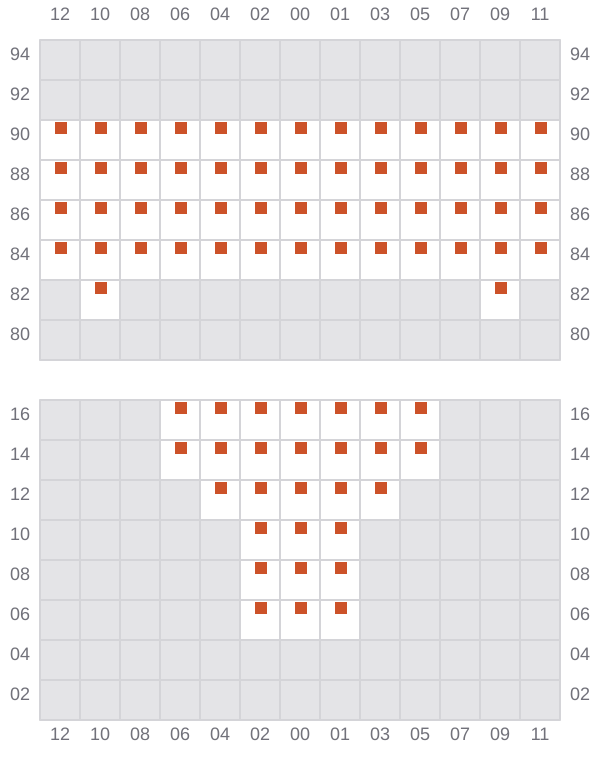

Bay 005 view and slots of MSC ROBERTA V

007 (006)

  • ←

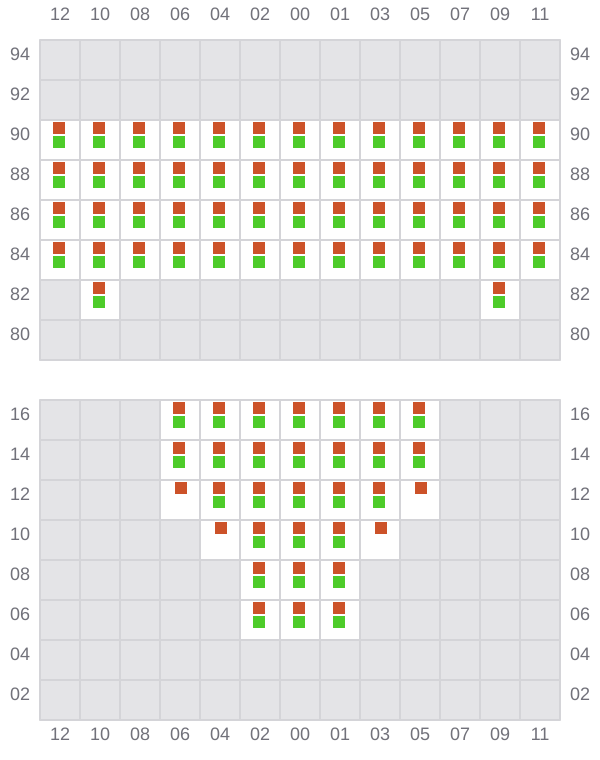

Bay 007 view and slots of MSC ROBERTA V

009

  • →

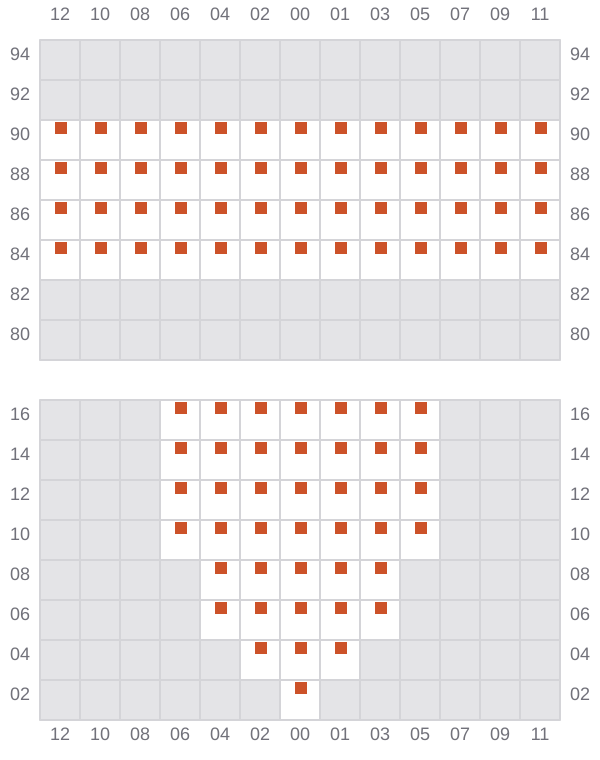

Bay 009 view and slots of MSC ROBERTA V

011 (010)

  • ←

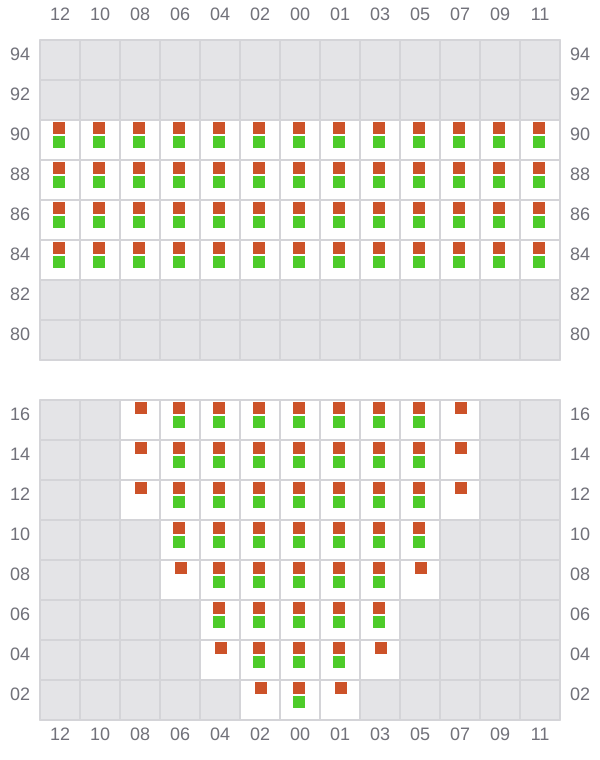

Bay 011 view and slots of MSC ROBERTA V

013

  • →

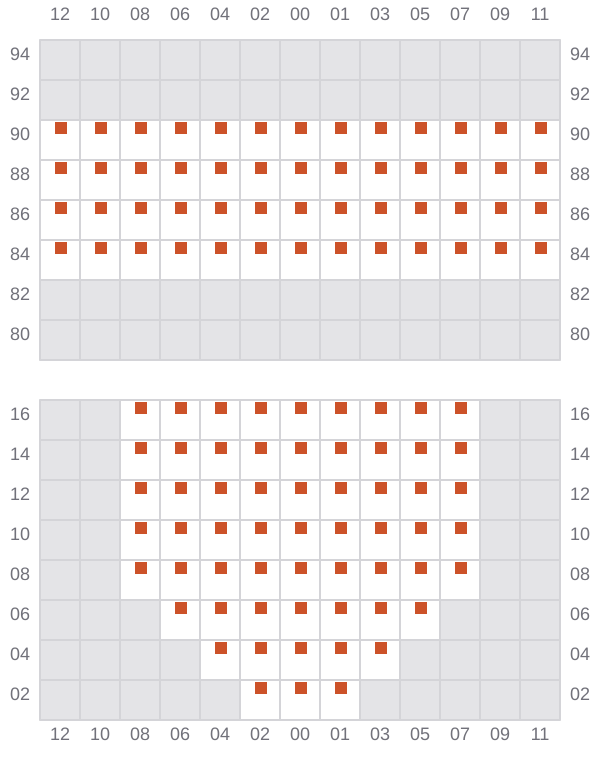

Bay 013 view and slots of MSC ROBERTA V

015 (014)

  • ←

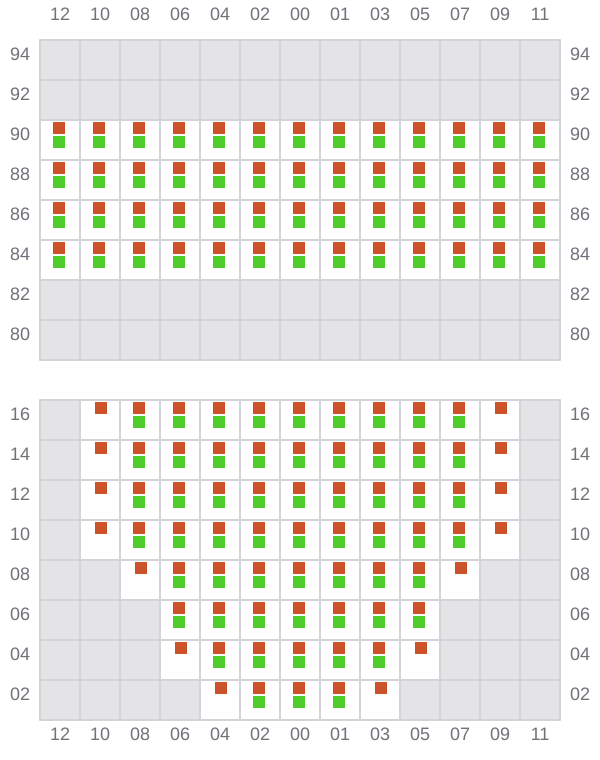

Bay 015 view and slots of MSC ROBERTA V

017

  • →

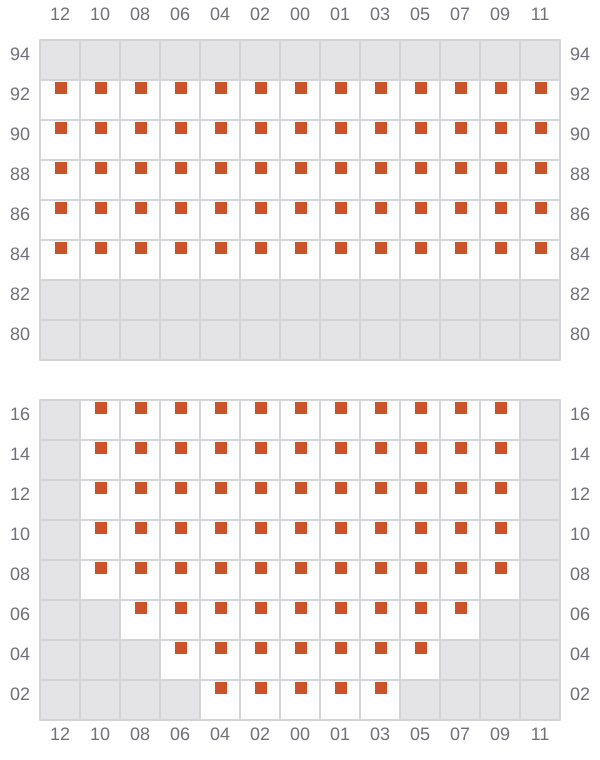

Bay 017 view and slots of MSC ROBERTA V

019 (018)

  • ←

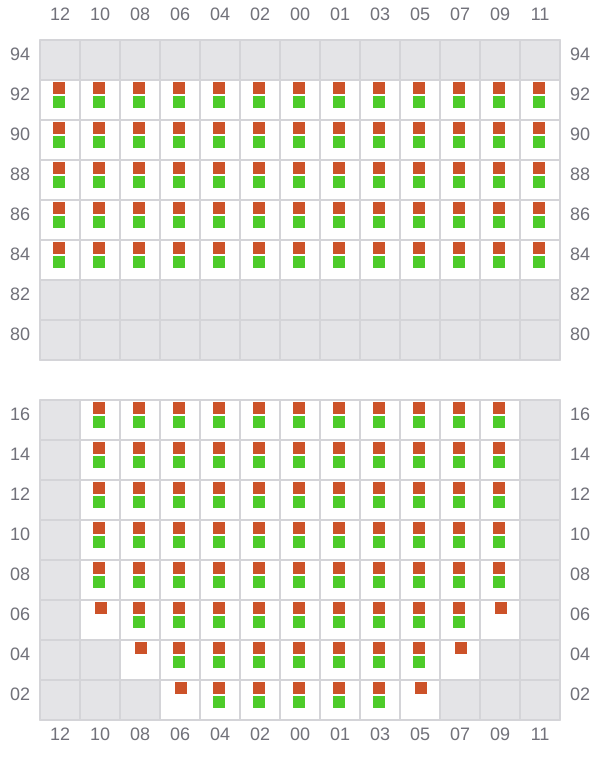

Bay 019 view and slots of MSC ROBERTA V

021

  • →

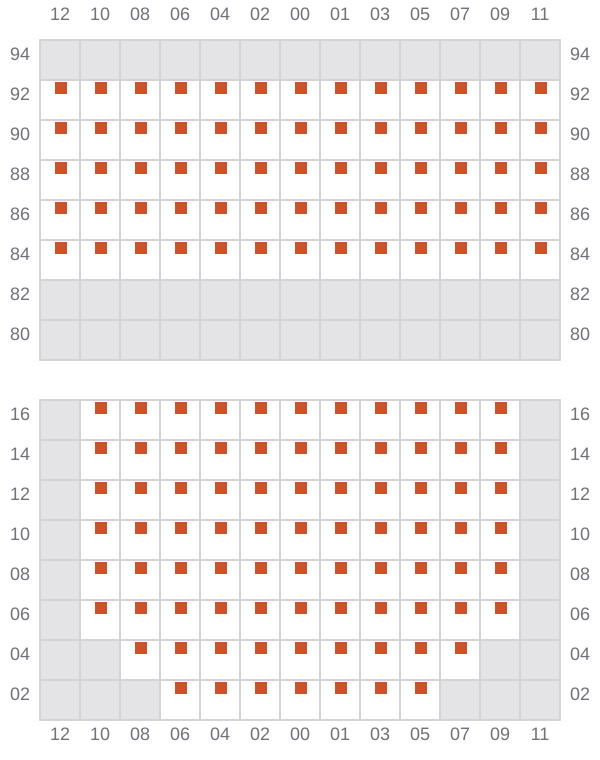

Bay 021 view and slots of MSC ROBERTA V

023 (022)

  • ←

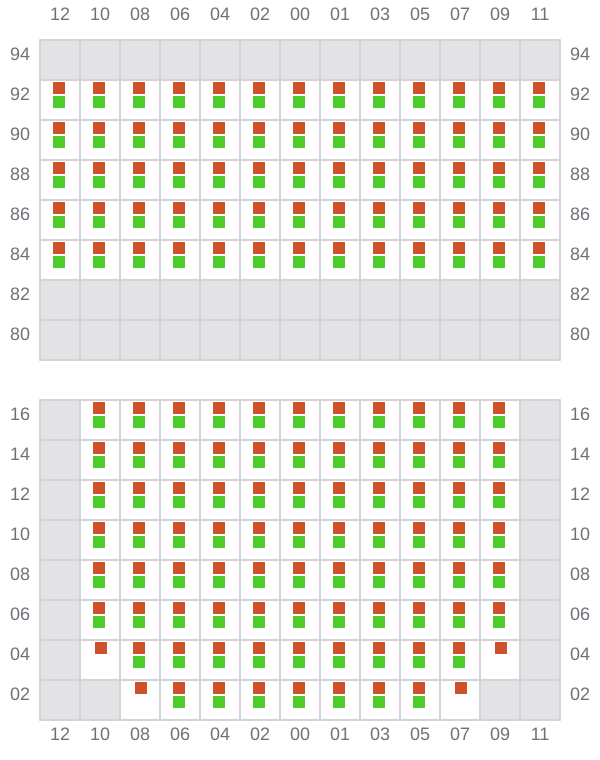

Bay 023 view and slots of MSC ROBERTA V

025

  • ? / →
Bay 025 view and slots of MSC ROBERTA V

027

  • →

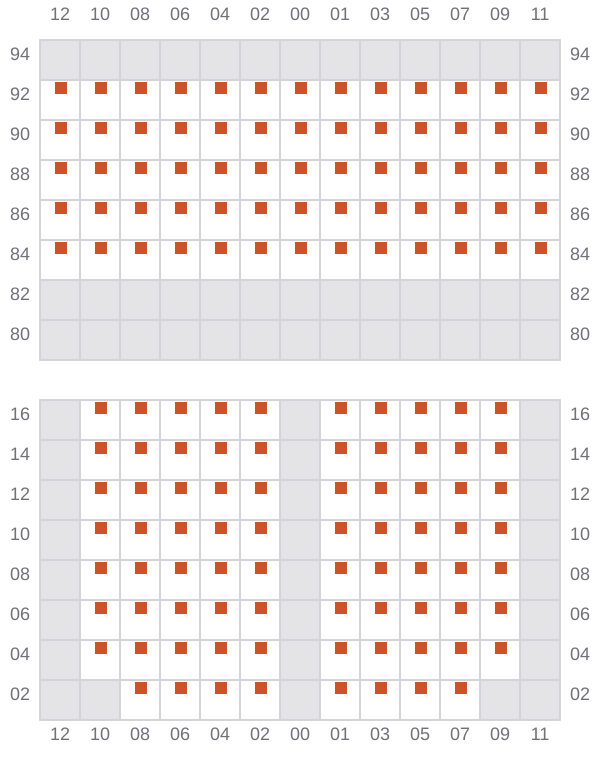

Bay 027 view and slots of MSC ROBERTA V

029 (028)

  • ←
Bay 029 view and slots of MSC ROBERTA V

031

  • →

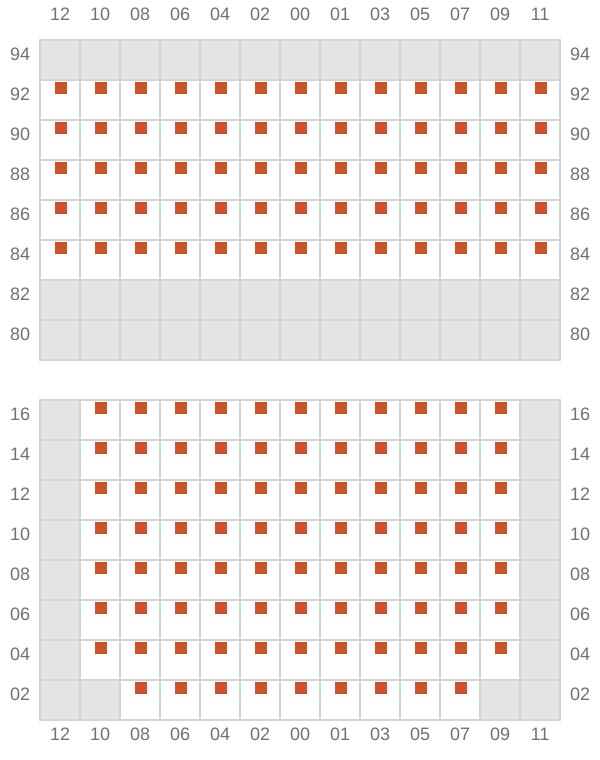

Bay 031 view and slots of MSC ROBERTA V

033 (032)

  • ←

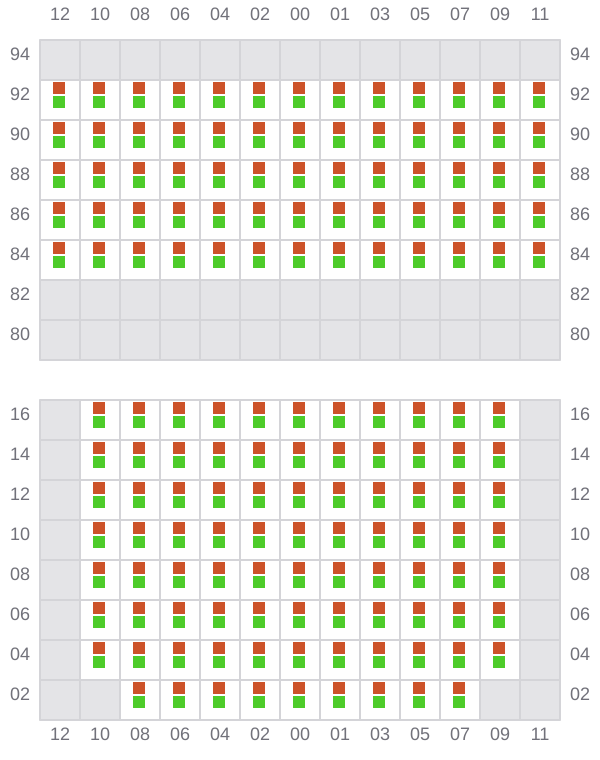

Bay 033 view and slots of MSC ROBERTA V

035

Bay 035 view and slots of MSC ROBERTA V

037

  • →
Bay 037 view and slots of MSC ROBERTA V

039 (038)

  • ←
Bay 039 view and slots of MSC ROBERTA V

041

  • →
Bay 041 view and slots of MSC ROBERTA V

043 (042)

  • ←
Bay 043 view and slots of MSC ROBERTA V

045

  • →
Bay 045 view and slots of MSC ROBERTA V

047 (046)

  • ←

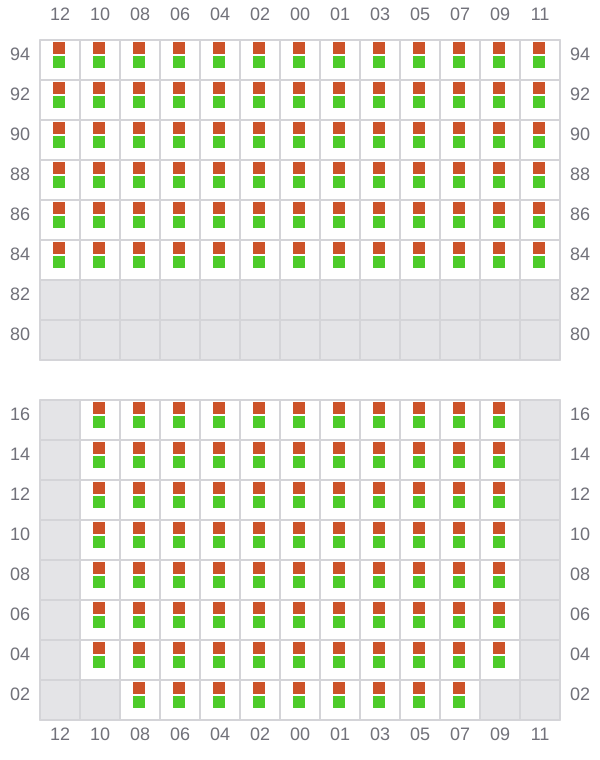

Bay 047 view and slots of MSC ROBERTA V

049

  • →

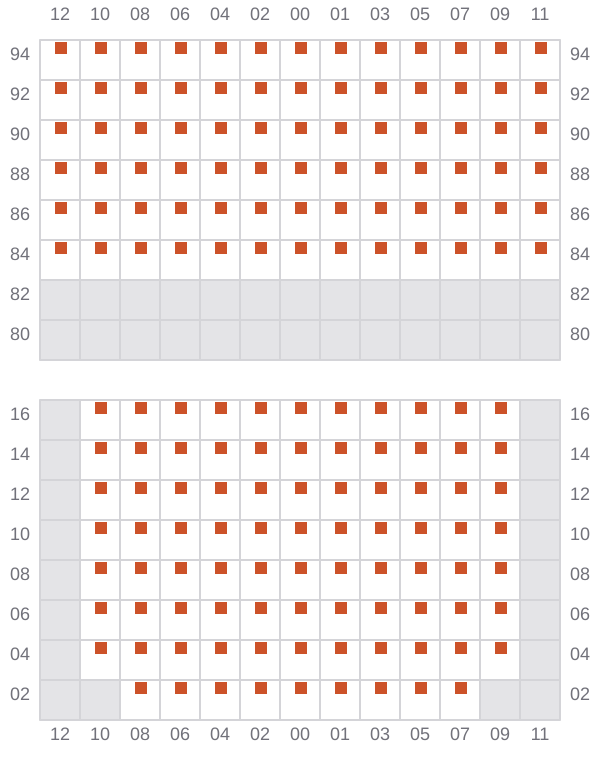

Bay 049 view and slots of MSC ROBERTA V

051 (050)

  • ←
Bay 051 view and slots of MSC ROBERTA V

053

Bay 053 view and slots of MSC ROBERTA V

055

  • →
Bay 055 view and slots of MSC ROBERTA V

057 (056)

  • ←

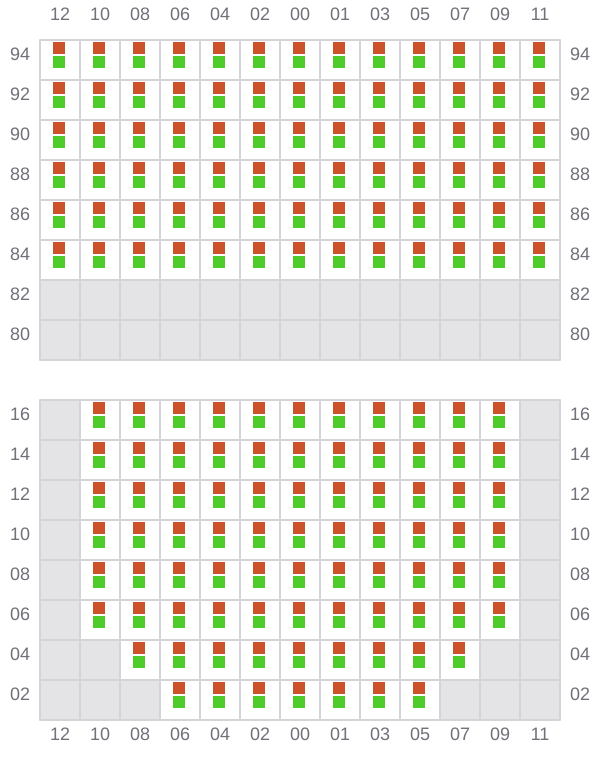

Bay 057 view and slots of MSC ROBERTA V

059

  • →

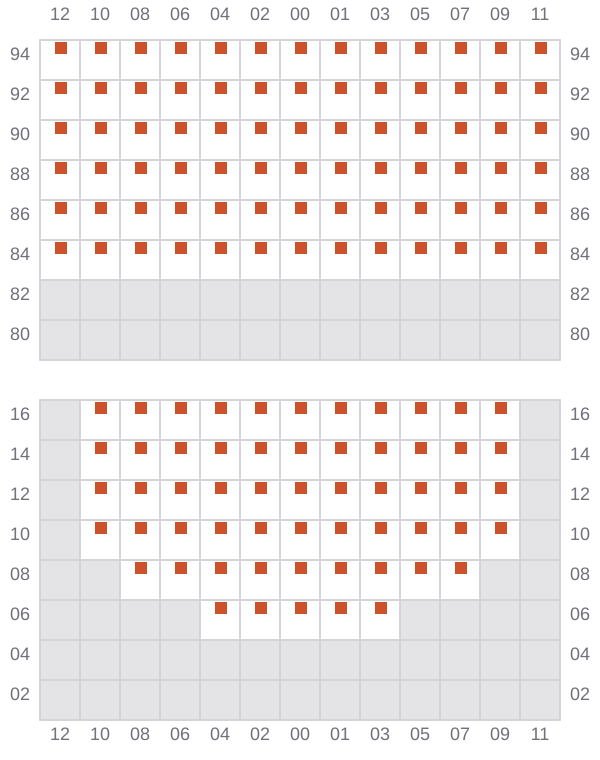

Bay 059 view and slots of MSC ROBERTA V

061 (060)

  • ←

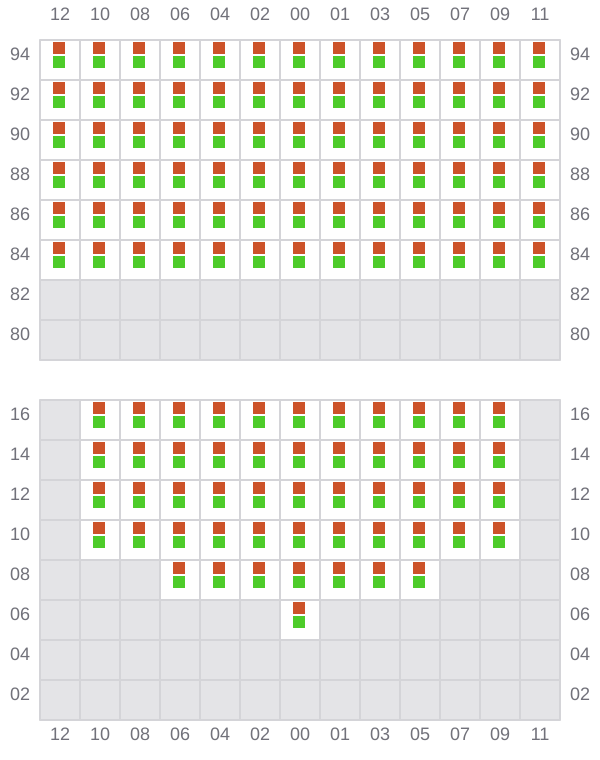

Bay 061 view and slots of MSC ROBERTA V

063

  • →

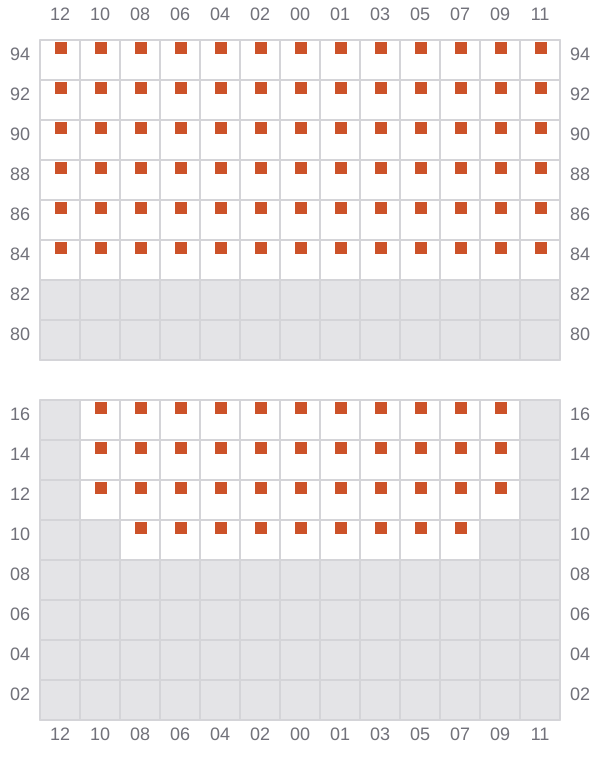

Bay 063 view and slots of MSC ROBERTA V

065 (064)

  • ←

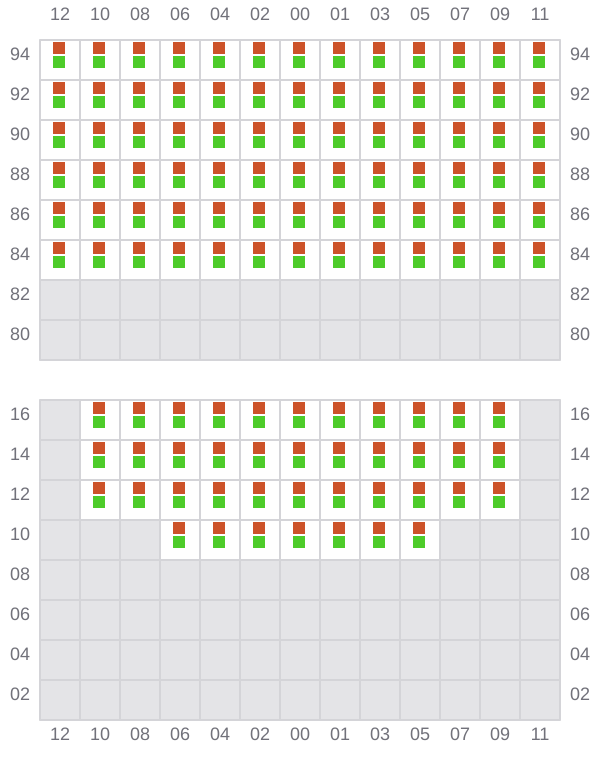

Bay 065 view and slots of MSC ROBERTA V

067

  • → / ?

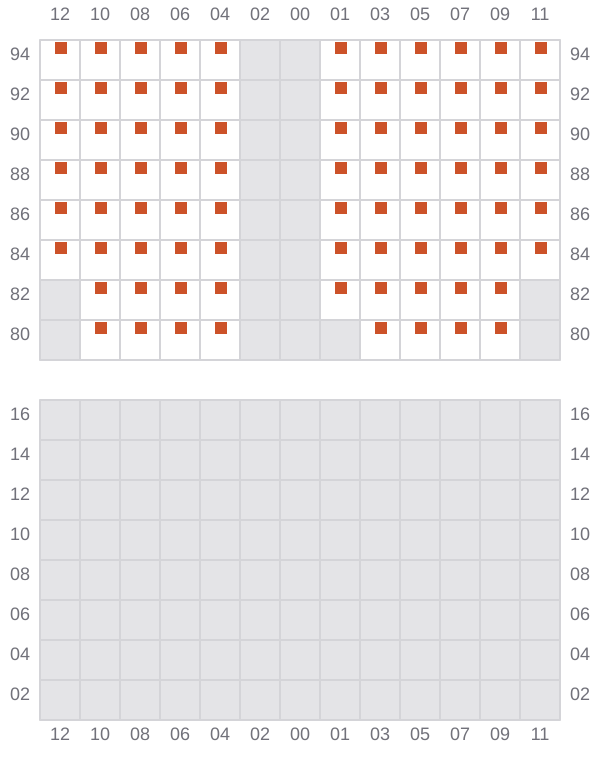

Bay 067 view and slots of MSC ROBERTA V

069 (068)

  • ← / ?

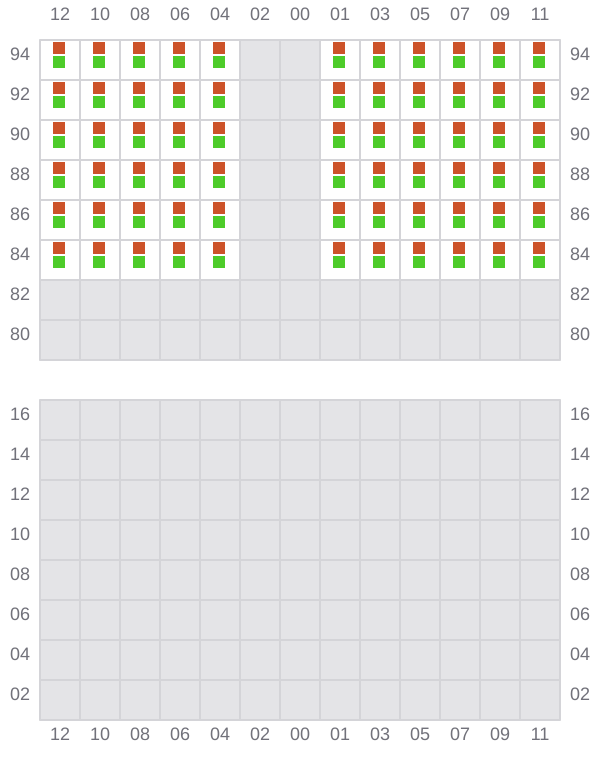

Bay 069 view and slots of MSC ROBERTA V
