MSC ROCHELLE
9141297 | D5GE9 | MSC by ************************** Last update: Mon Jun 19 2023

General Info

Ship Name:MSC ROCHELLE
IMO Code:9141297
Call Sign:D5GE9
Line Operator:MSC
Class Name for Sister Ships:ROC
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,033

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

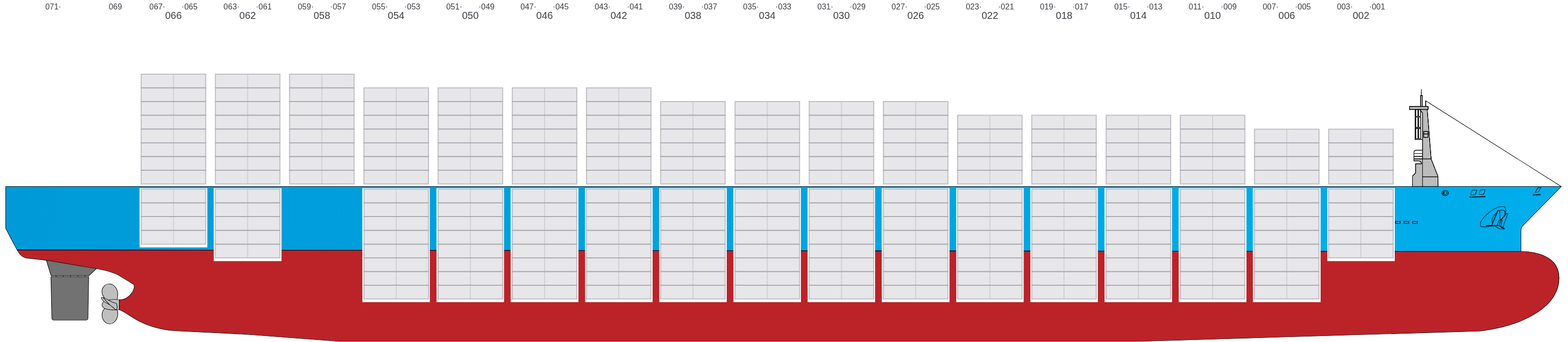

Side view of MSC ROCHELLE

Hatch-Covers View

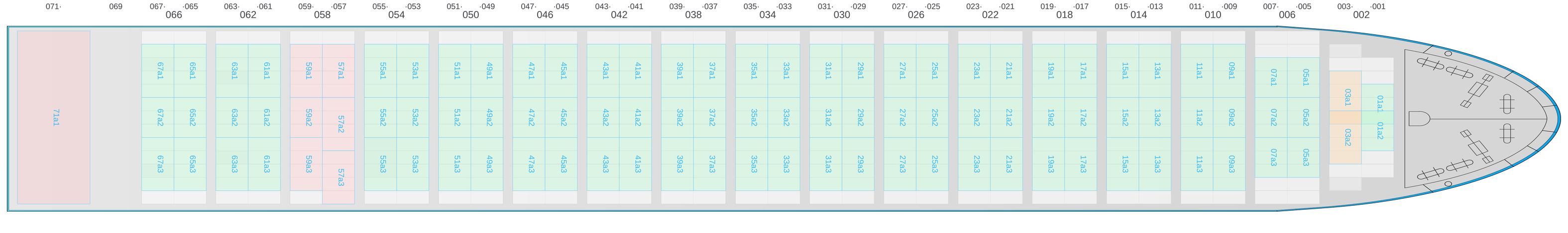

Deck view of MSC ROCHELLE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

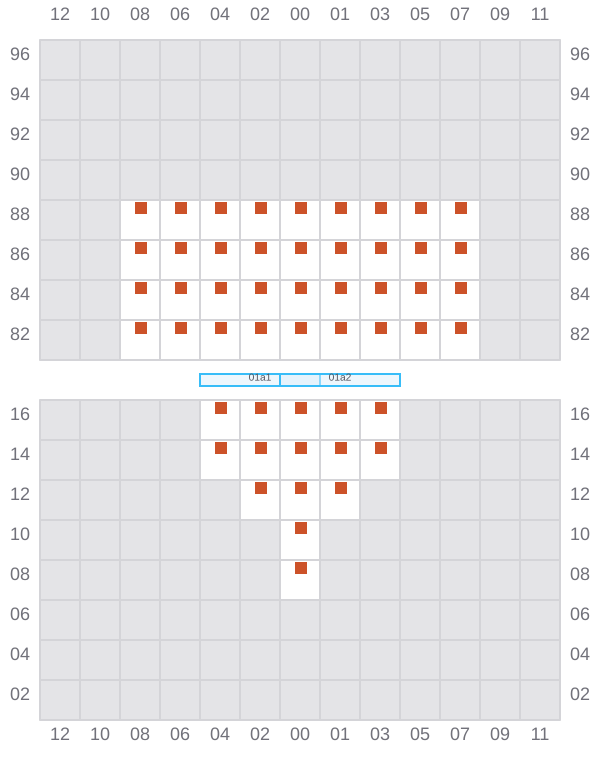

Bay 001 view and slots of MSC ROCHELLE

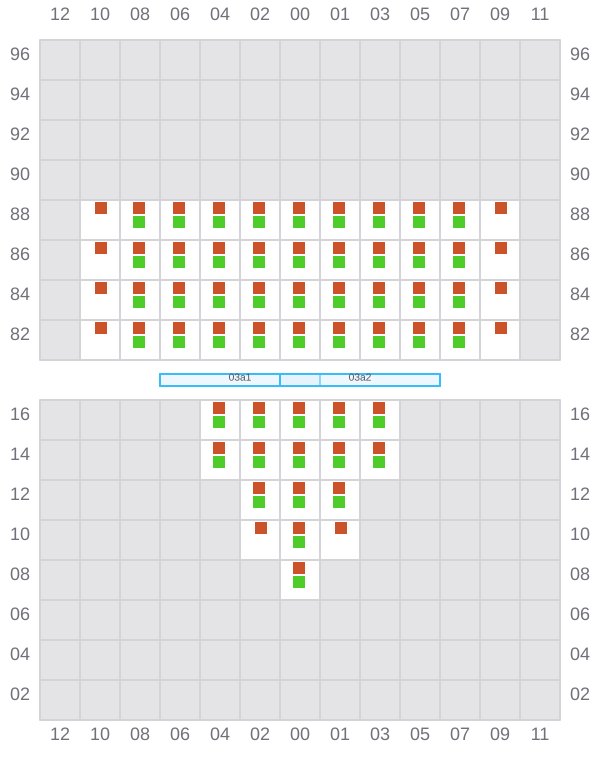

003 (002)

Bay 003 view and slots of MSC ROCHELLE

005

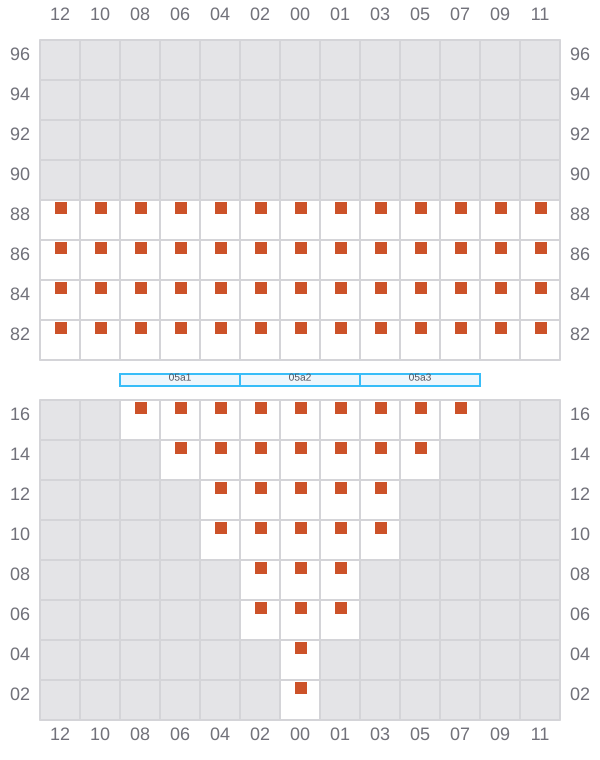

Bay 005 view and slots of MSC ROCHELLE

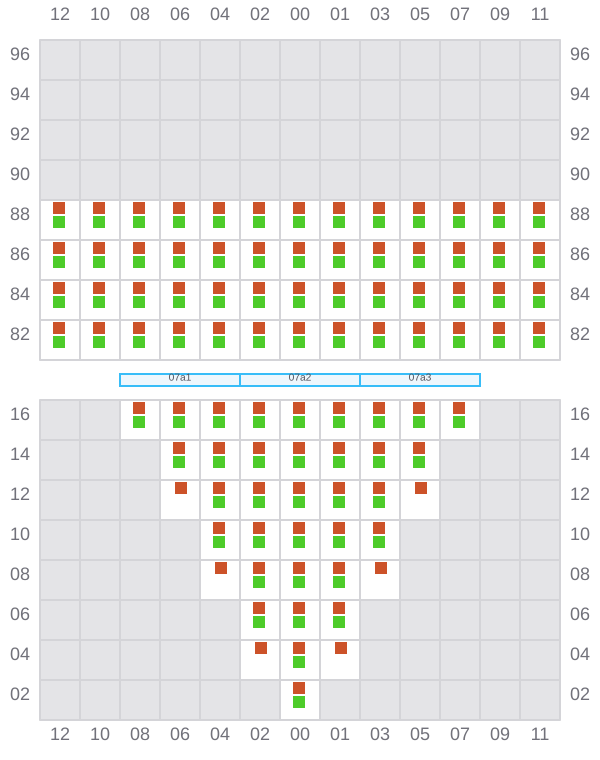

007 (006)

Bay 007 view and slots of MSC ROCHELLE

009

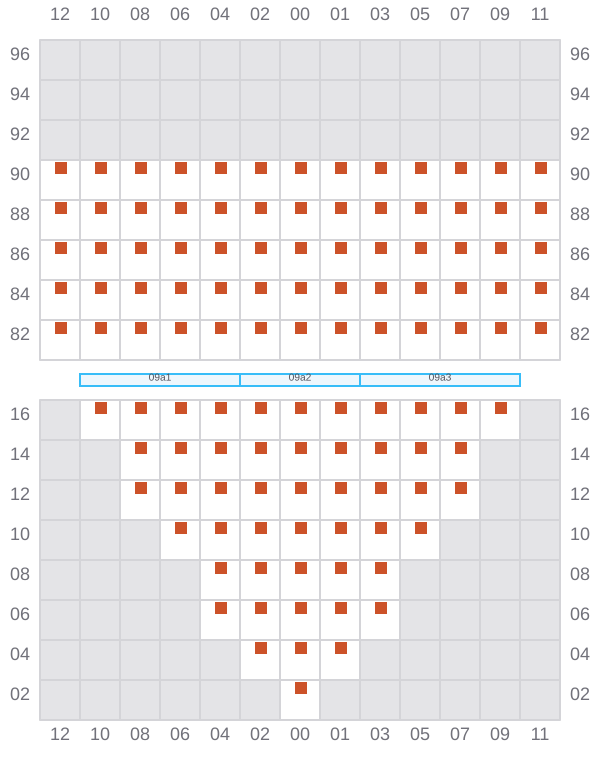

Bay 009 view and slots of MSC ROCHELLE

011 (010)

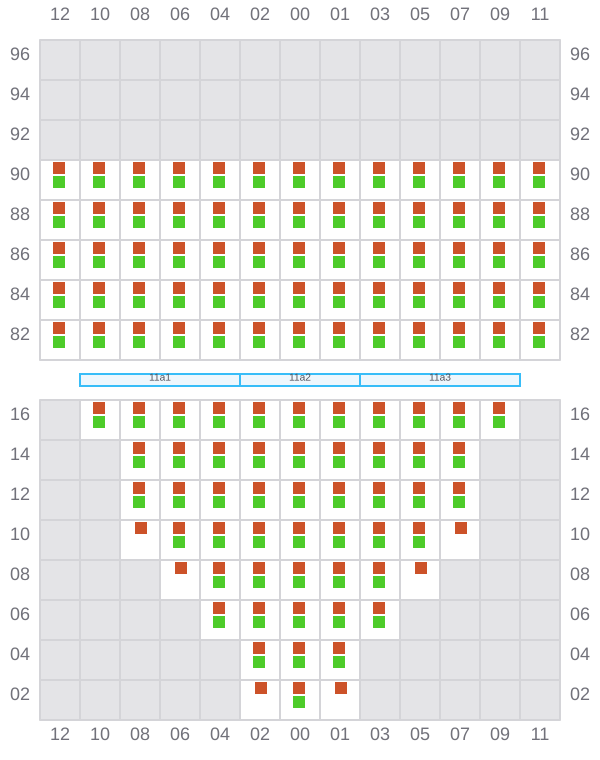

Bay 011 view and slots of MSC ROCHELLE

013

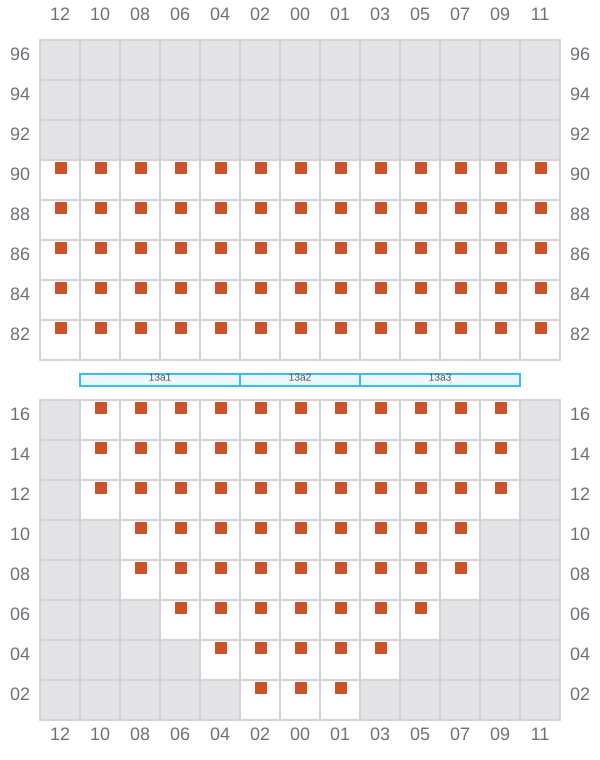

Bay 013 view and slots of MSC ROCHELLE

015 (014)

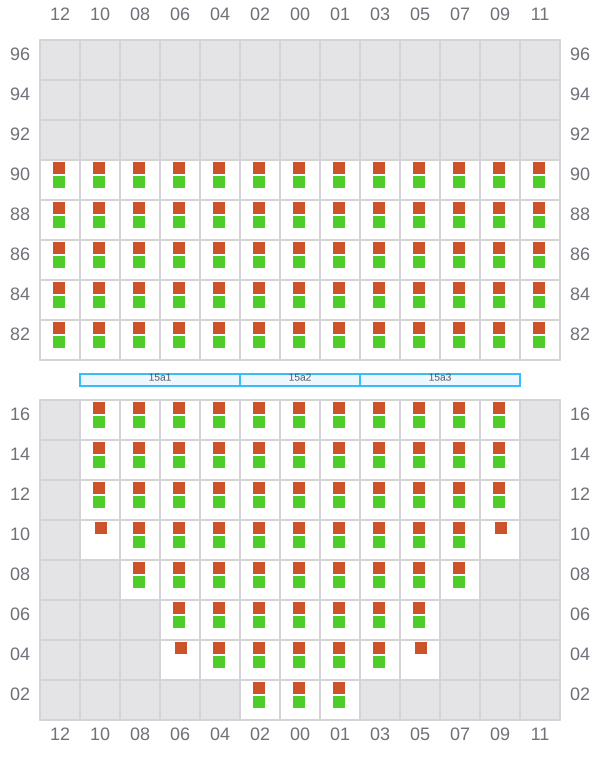

Bay 015 view and slots of MSC ROCHELLE

017

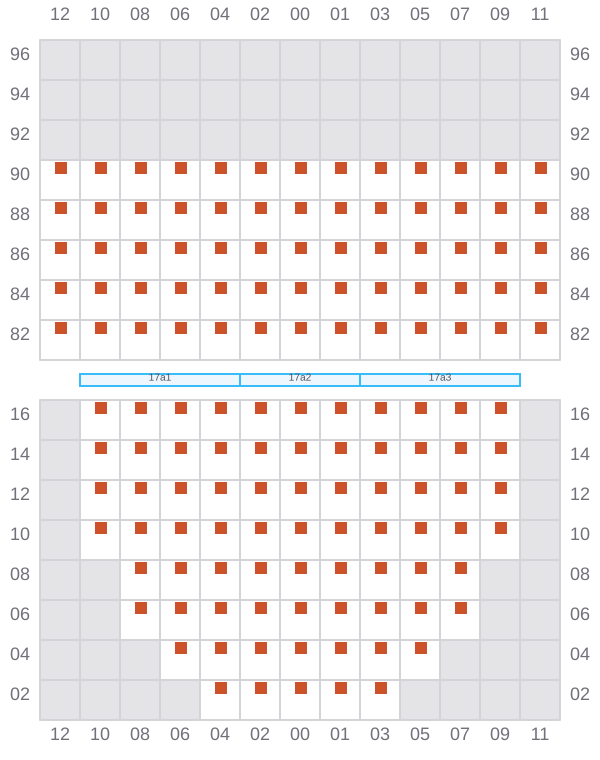

Bay 017 view and slots of MSC ROCHELLE

019 (018)

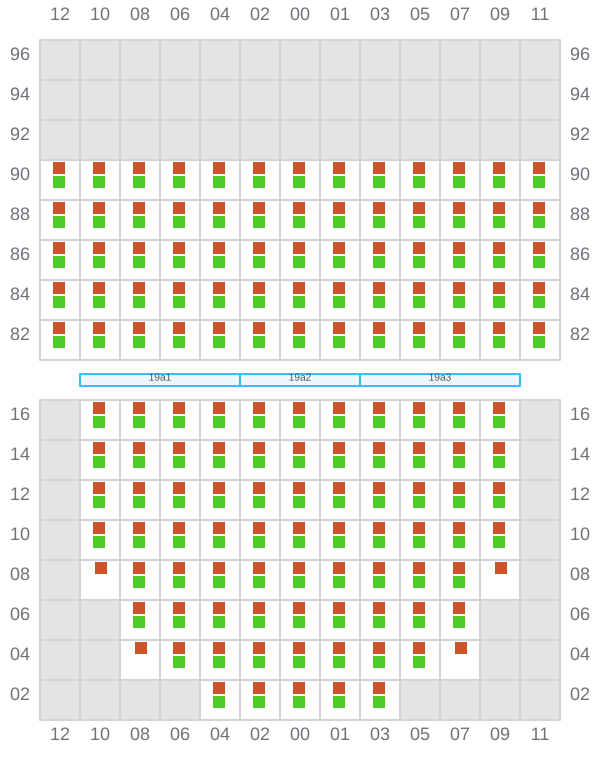

Bay 019 view and slots of MSC ROCHELLE

021

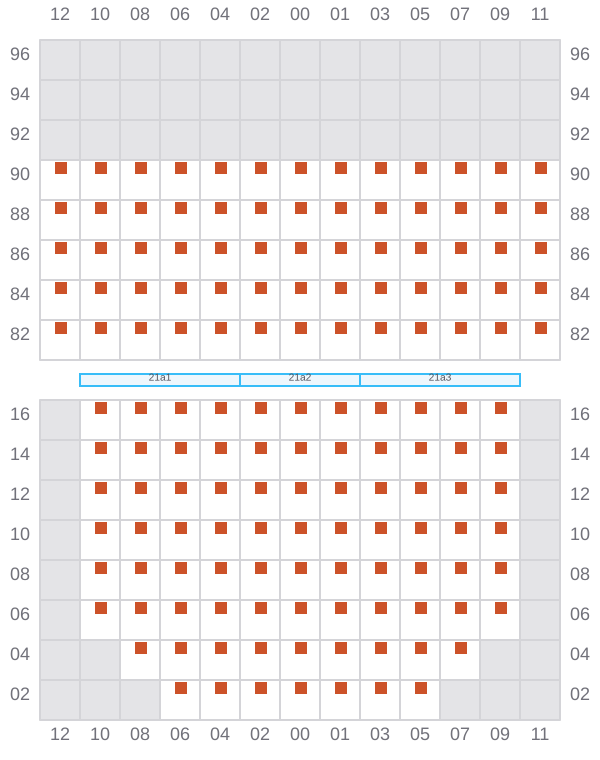

Bay 021 view and slots of MSC ROCHELLE

023 (022)

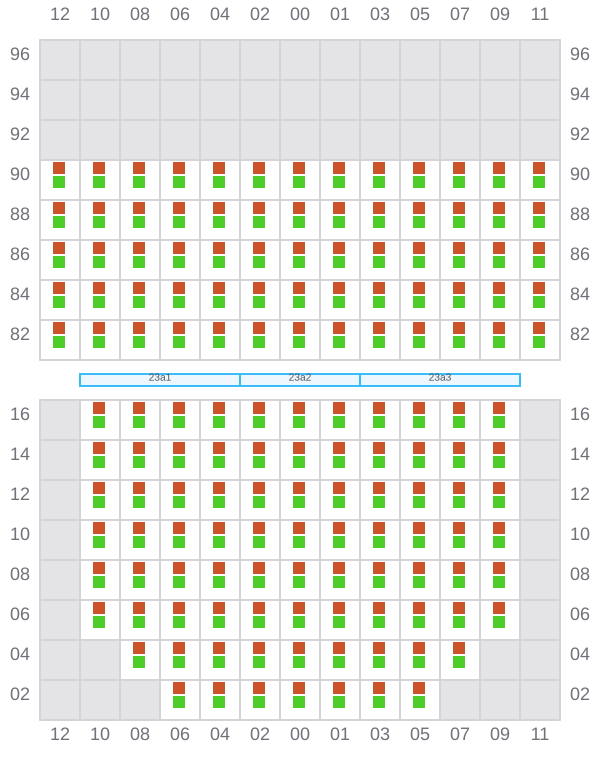

Bay 023 view and slots of MSC ROCHELLE

025

Bay 025 view and slots of MSC ROCHELLE

027 (026)

Bay 027 view and slots of MSC ROCHELLE

029

Bay 029 view and slots of MSC ROCHELLE

031 (030)

Bay 031 view and slots of MSC ROCHELLE

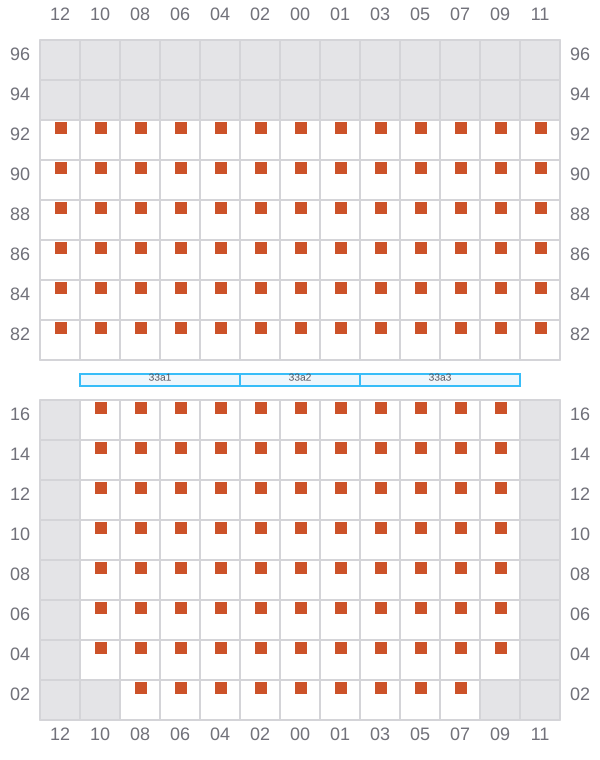

033

Bay 033 view and slots of MSC ROCHELLE

035 (034)

Bay 035 view and slots of MSC ROCHELLE

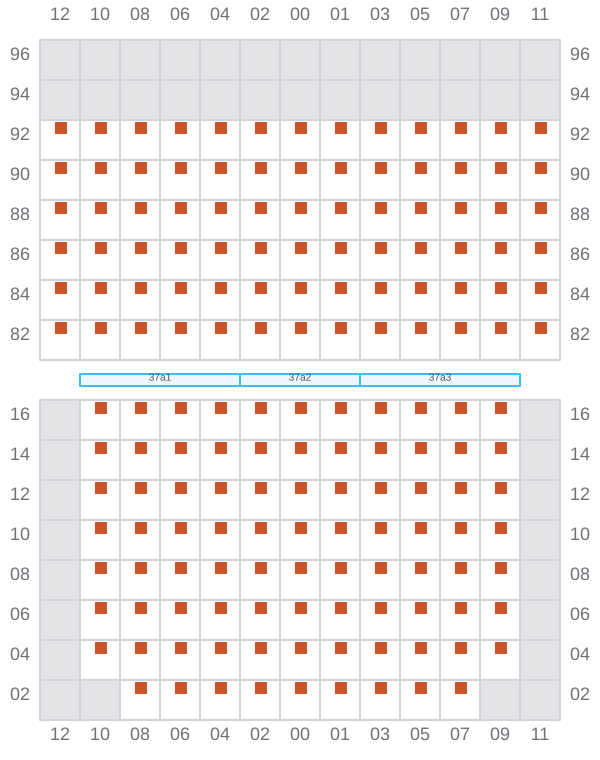

037

Bay 037 view and slots of MSC ROCHELLE

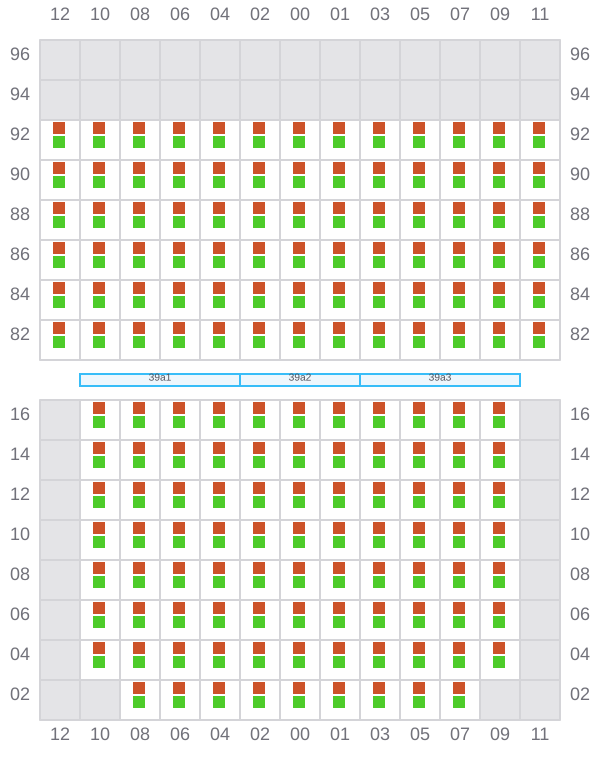

039 (038)

Bay 039 view and slots of MSC ROCHELLE

041

Bay 041 view and slots of MSC ROCHELLE

043 (042)

Bay 043 view and slots of MSC ROCHELLE

045

Bay 045 view and slots of MSC ROCHELLE

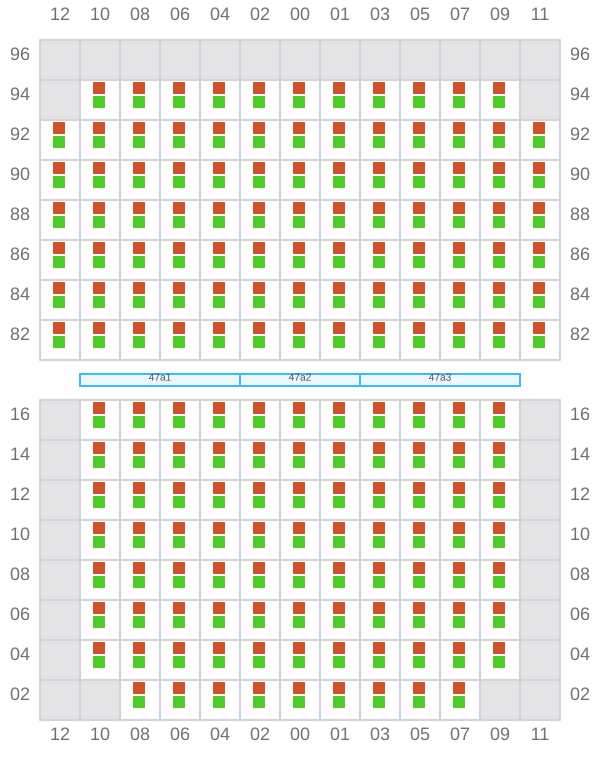

047 (046)

Bay 047 view and slots of MSC ROCHELLE

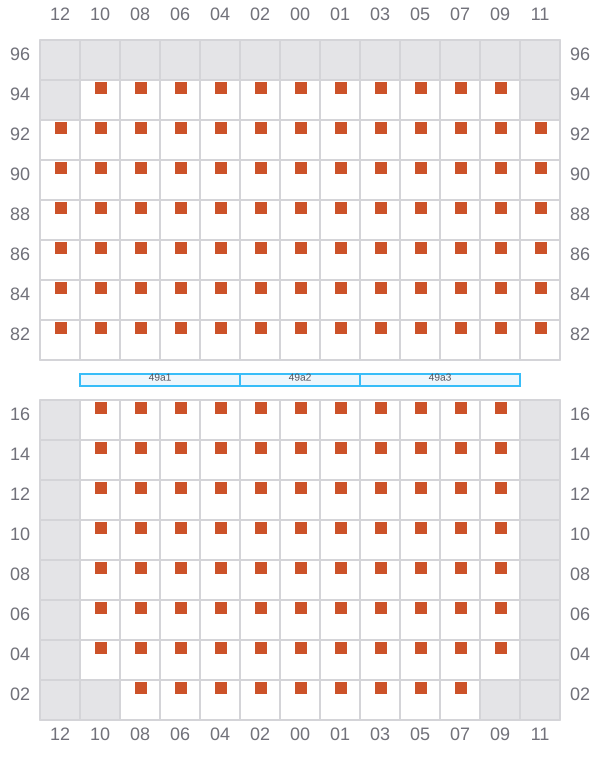

049

Bay 049 view and slots of MSC ROCHELLE

051 (050)

Bay 051 view and slots of MSC ROCHELLE

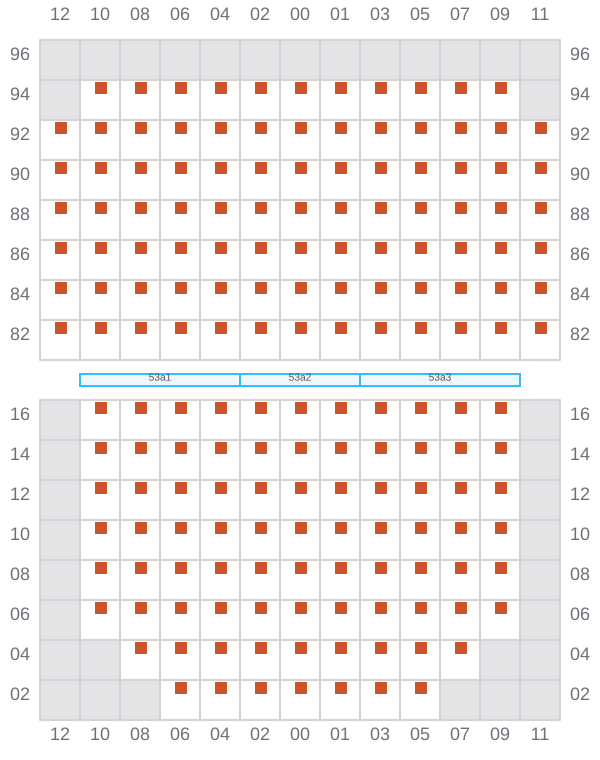

053

Bay 053 view and slots of MSC ROCHELLE

055 (054)

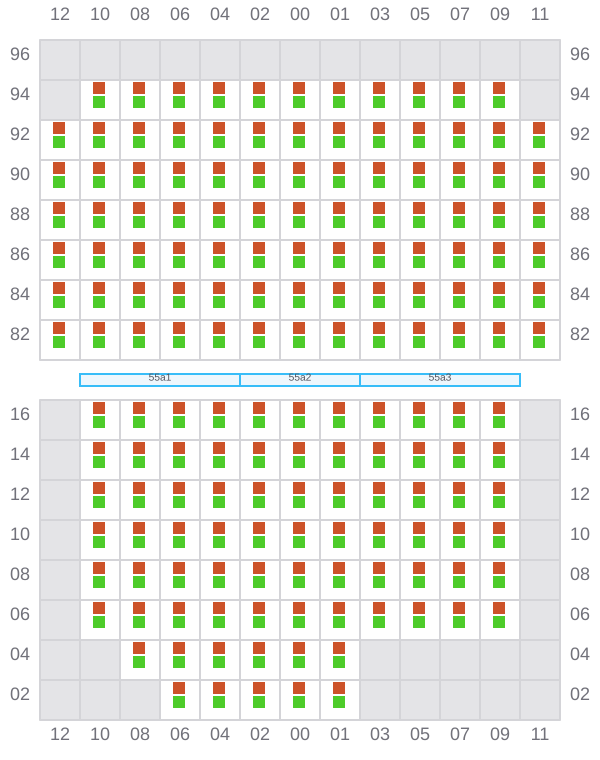

Bay 055 view and slots of MSC ROCHELLE

057

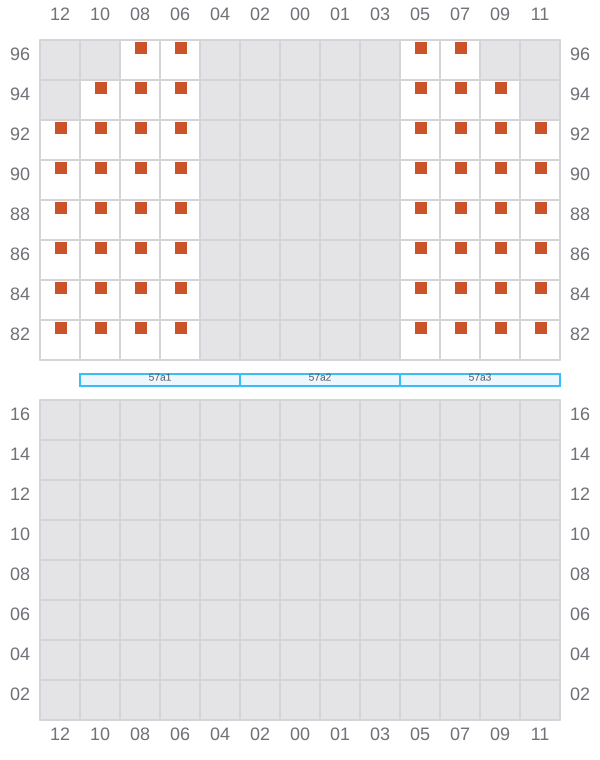

Bay 057 view and slots of MSC ROCHELLE

059 (058)

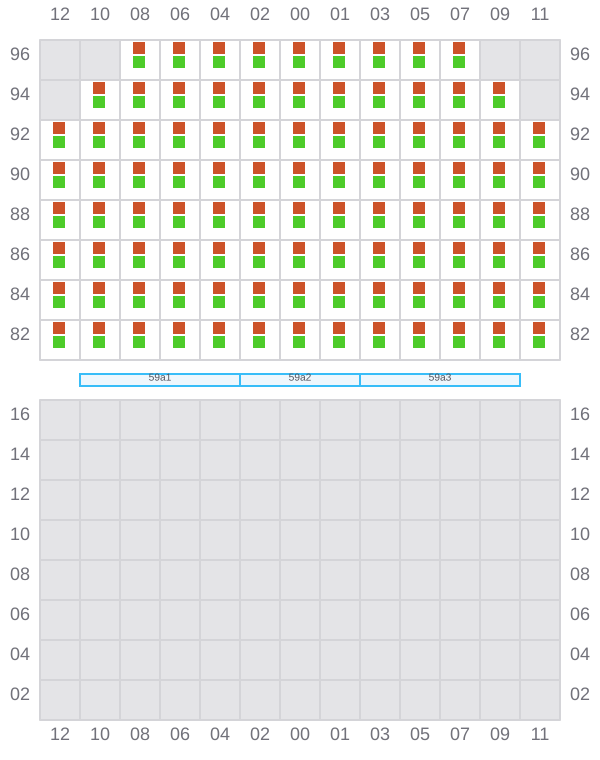

Bay 059 view and slots of MSC ROCHELLE

061

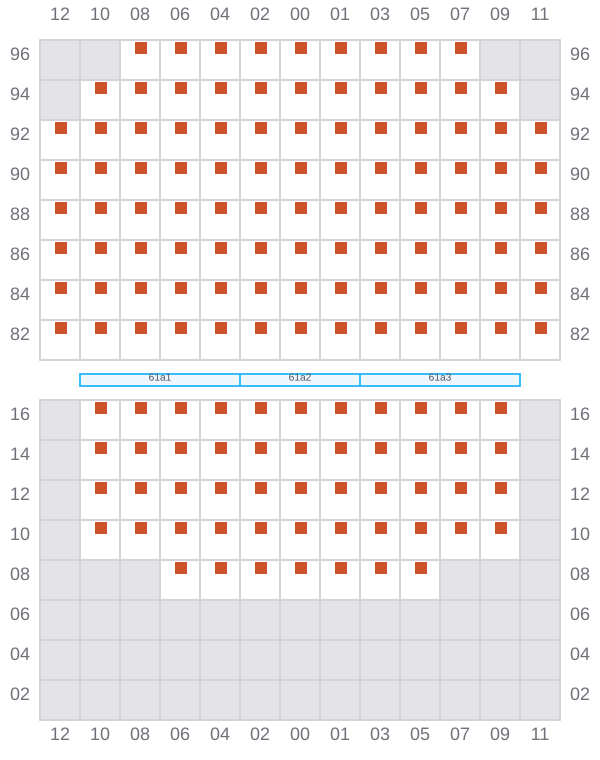

Bay 061 view and slots of MSC ROCHELLE

063 (062)

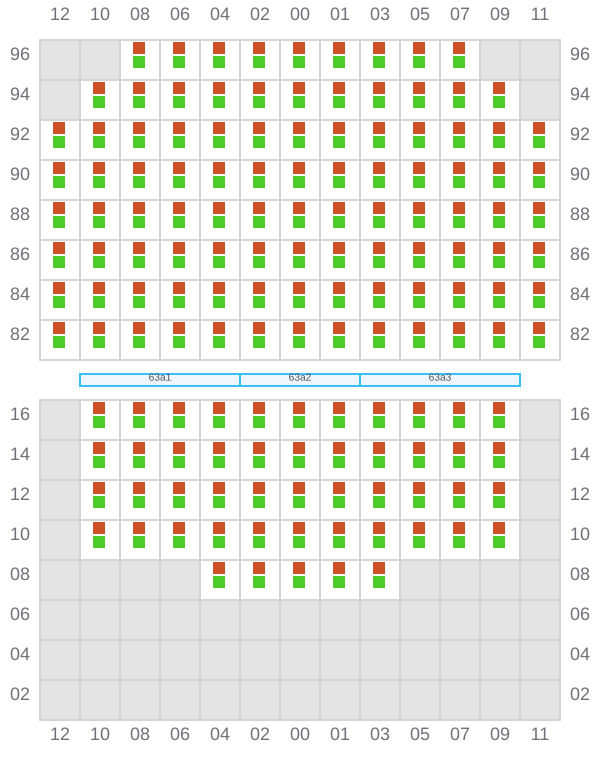

Bay 063 view and slots of MSC ROCHELLE

065

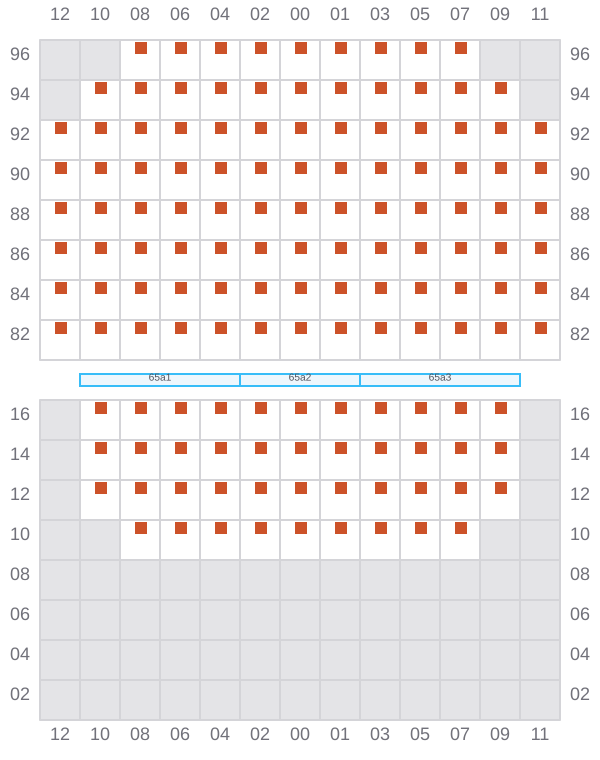

Bay 065 view and slots of MSC ROCHELLE

067 (066)

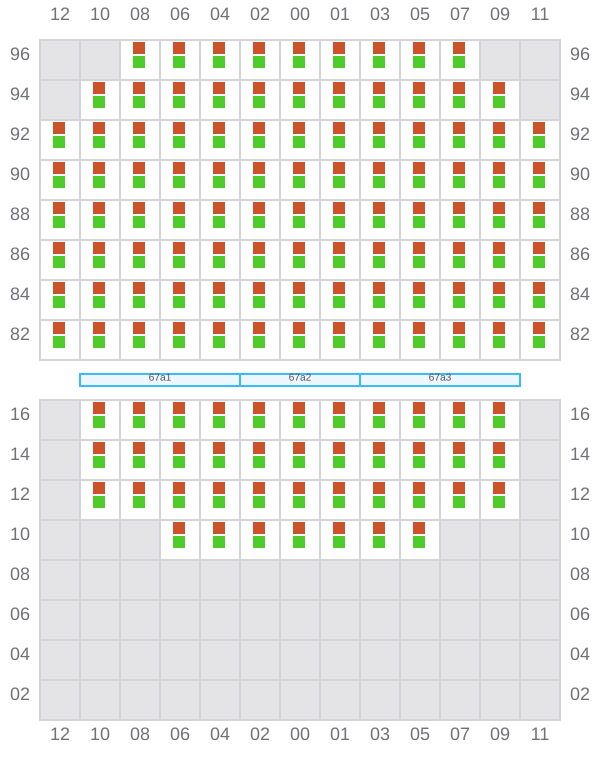

Bay 067 view and slots of MSC ROCHELLE

069

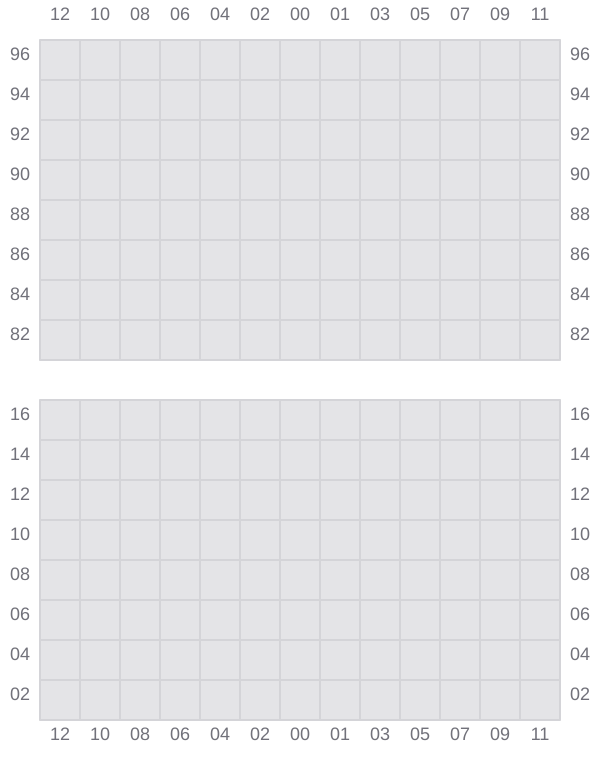

Bay 069 view and slots of MSC ROCHELLE

071 (070)

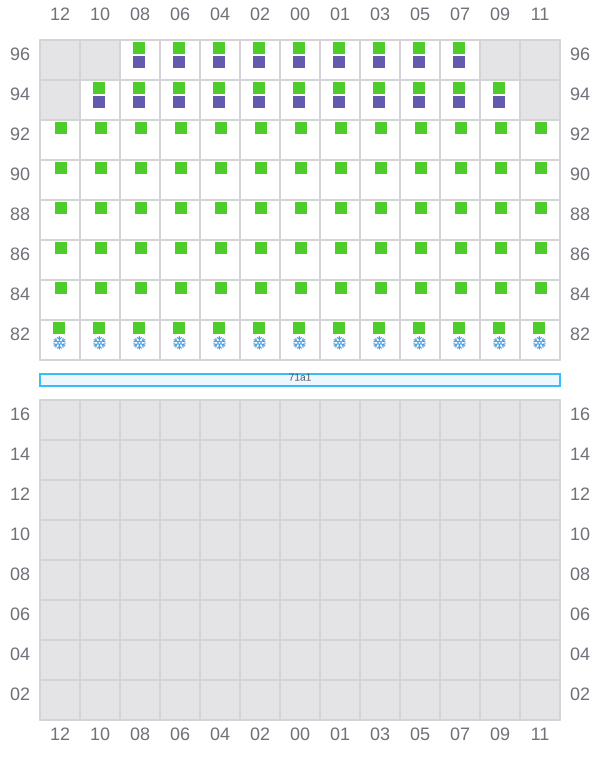

Bay 071 view and slots of MSC ROCHELLE
