MSC ROMA
9304447 | D5OB2 | MSC by ************************** Last update: Mon Jun 19 2023

General Info

Ship Name:MSC ROMA
IMO Code:9304447
Call Sign:D5OB2
Line Operator:MSC
Class Name for Sister Ships:RMA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,178

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

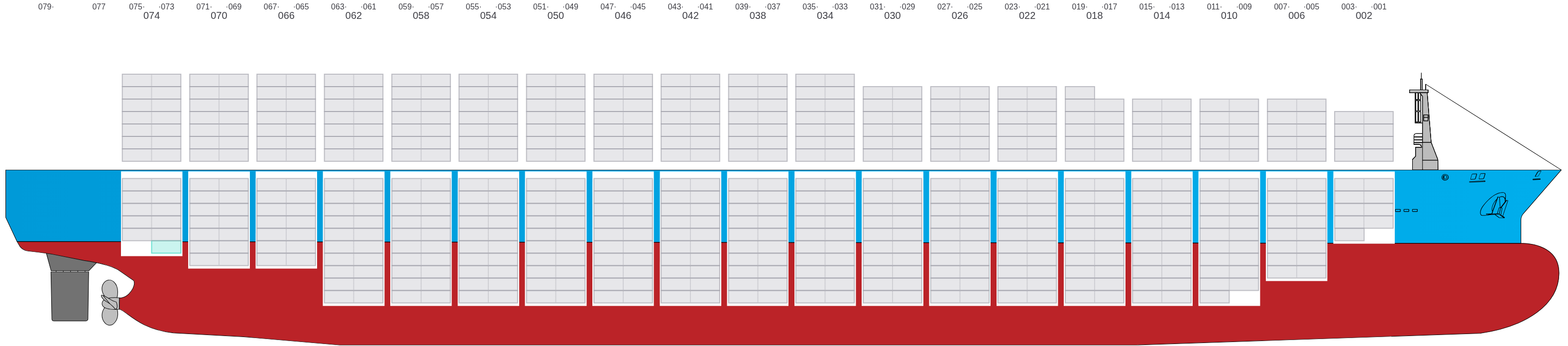

Side View

Side view of MSC ROMA

Hatch-Covers View

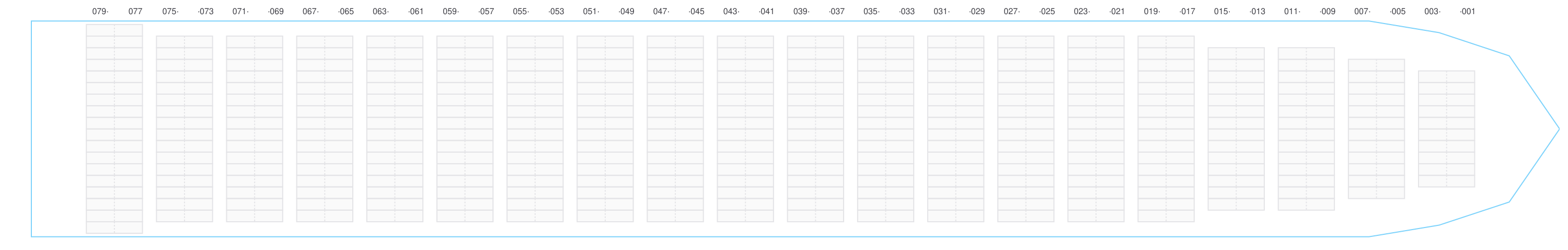

Deck view of MSC ROMA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

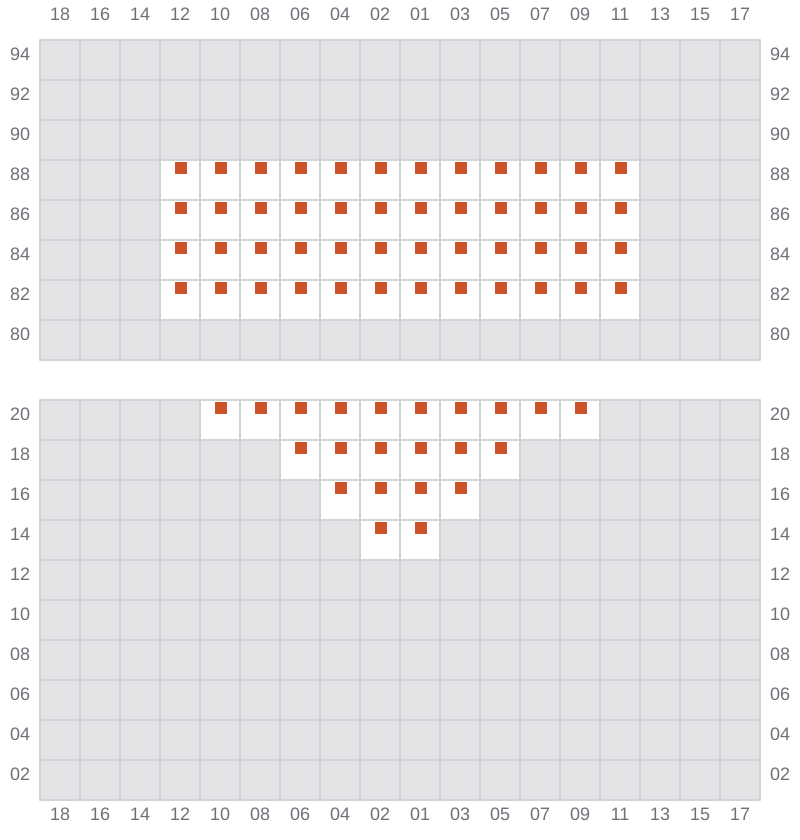

Bay 001 view and slots of MSC ROMA

003 (002)

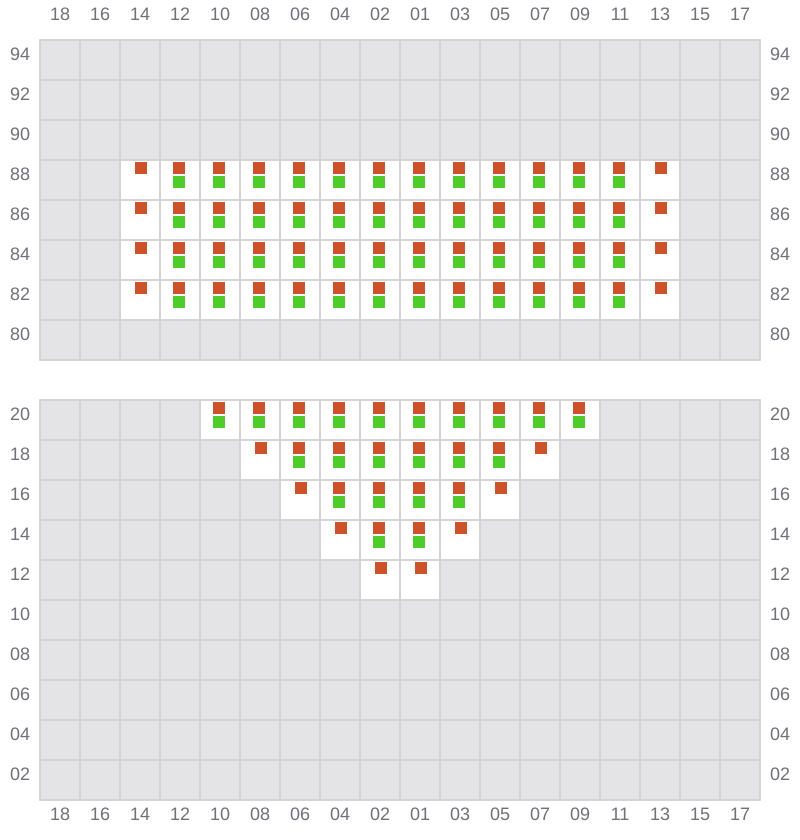

Bay 003 view and slots of MSC ROMA

005

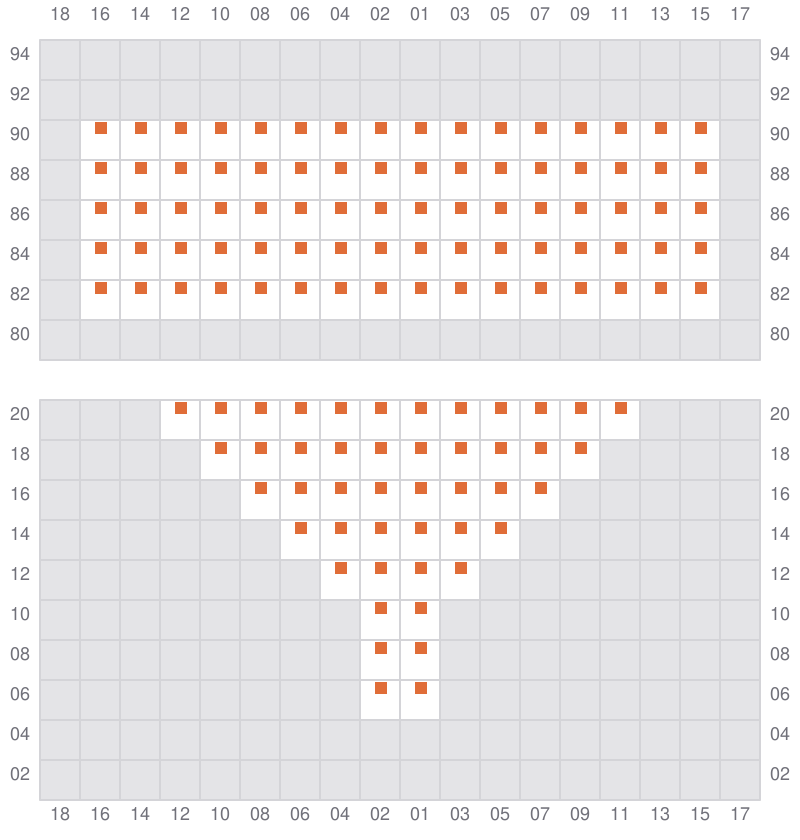

Bay 005 view and slots of MSC ROMA

007 (006)

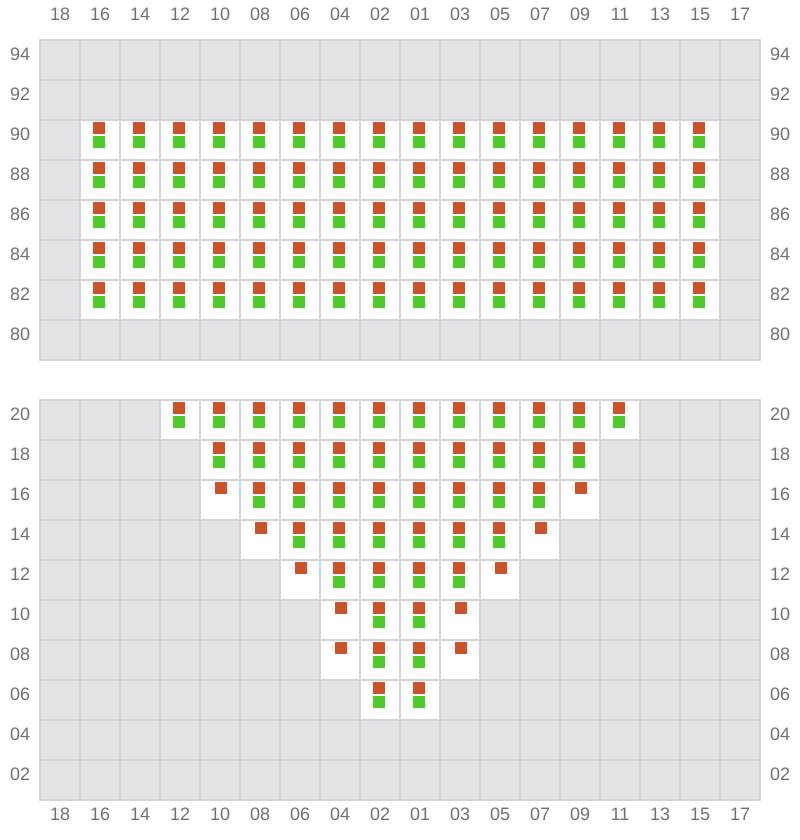

Bay 007 view and slots of MSC ROMA

009

Bay 009 view and slots of MSC ROMA

011 (010)

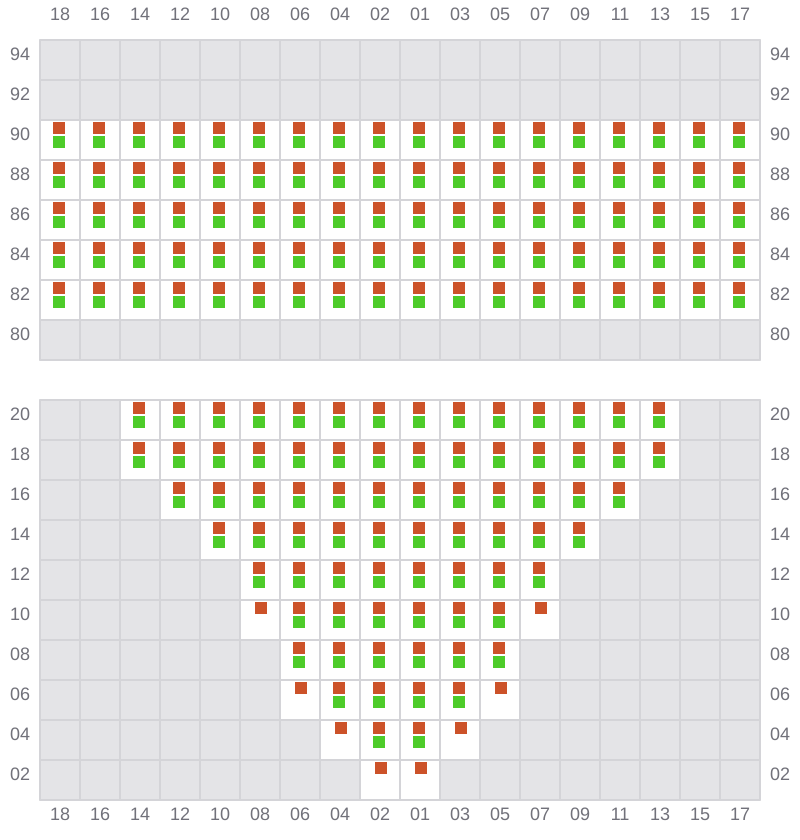

Bay 011 view and slots of MSC ROMA

013

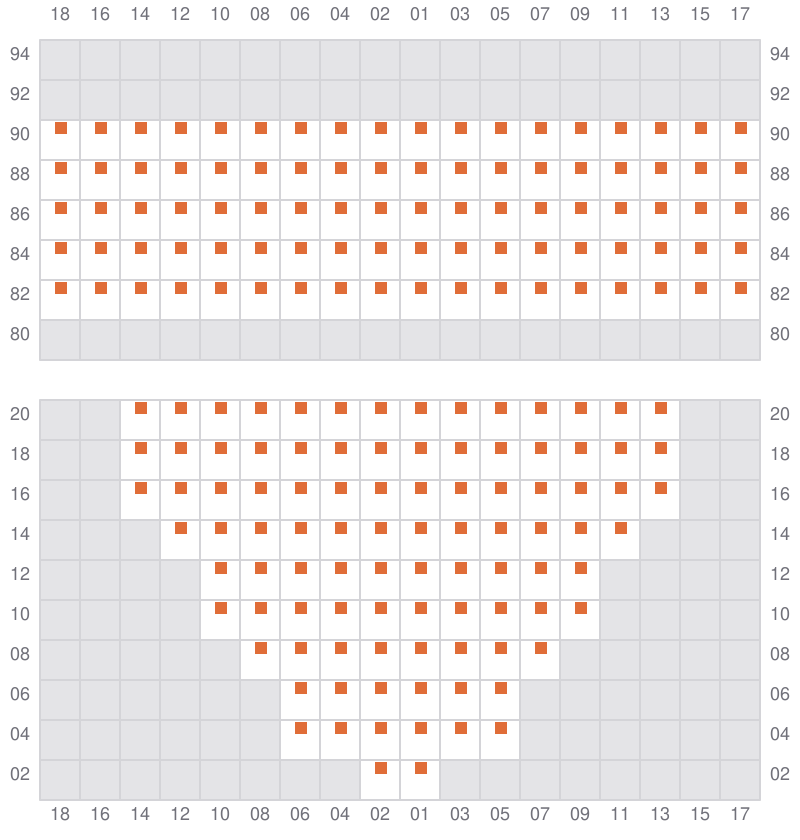

Bay 013 view and slots of MSC ROMA

015 (014)

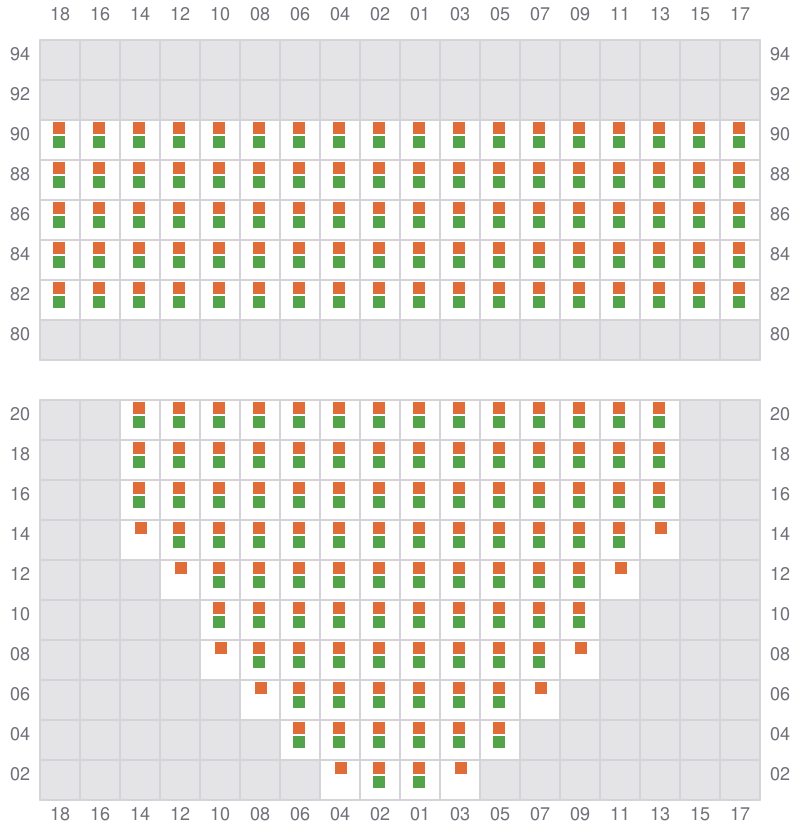

Bay 015 view and slots of MSC ROMA

017

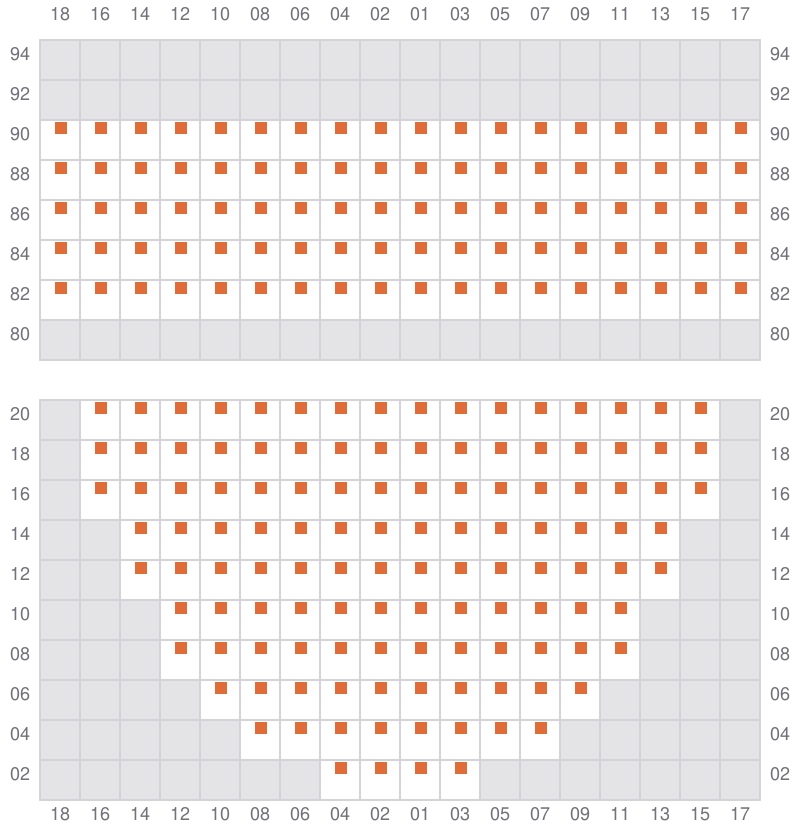

Bay 017 view and slots of MSC ROMA

019 (018)

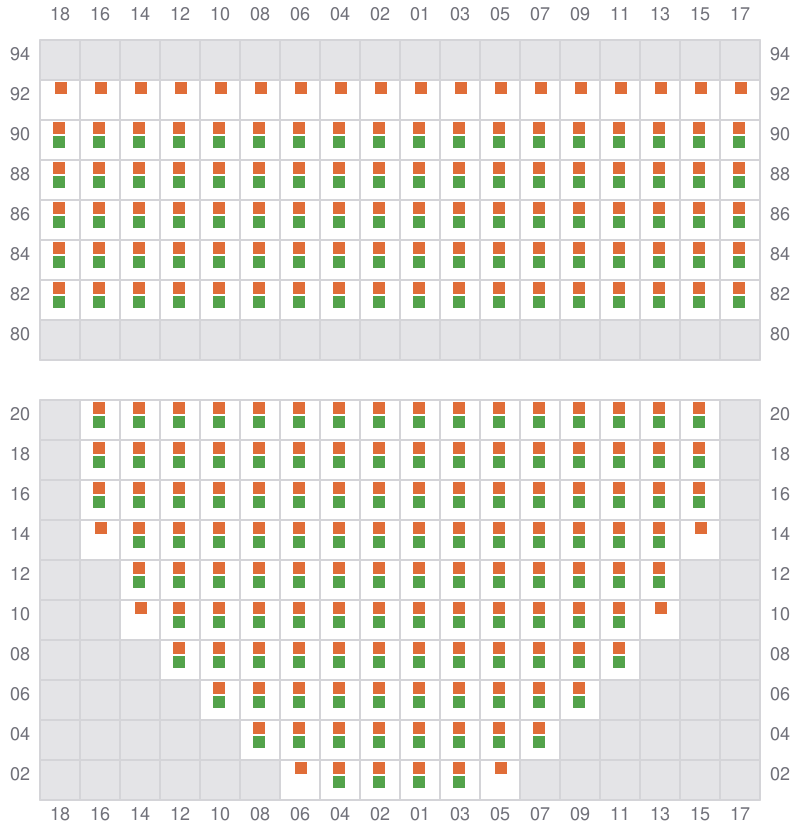

Bay 019 view and slots of MSC ROMA

021

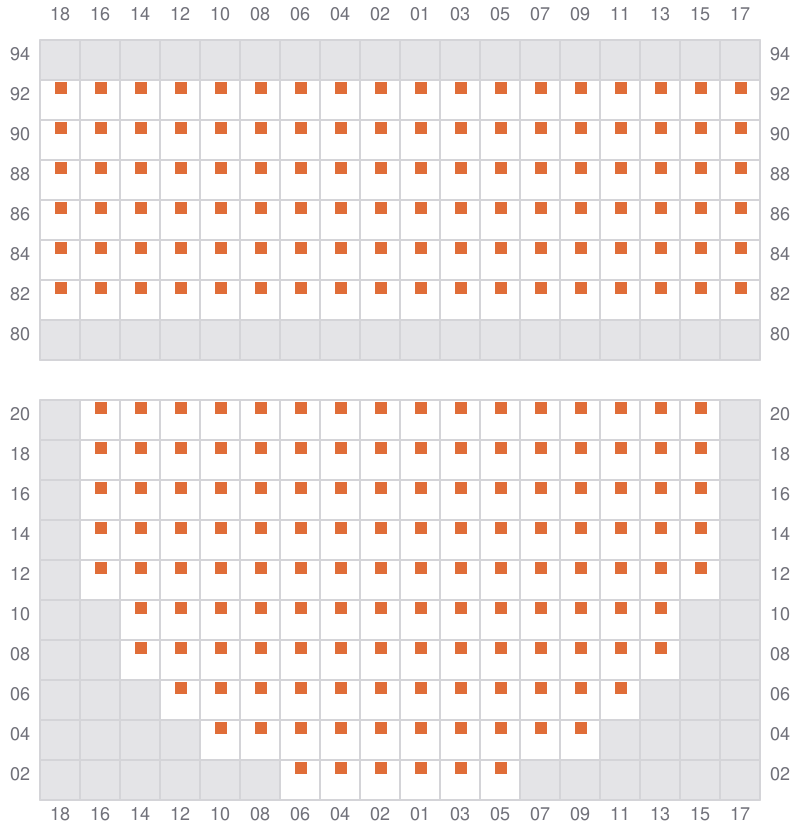

Bay 021 view and slots of MSC ROMA

023 (022)

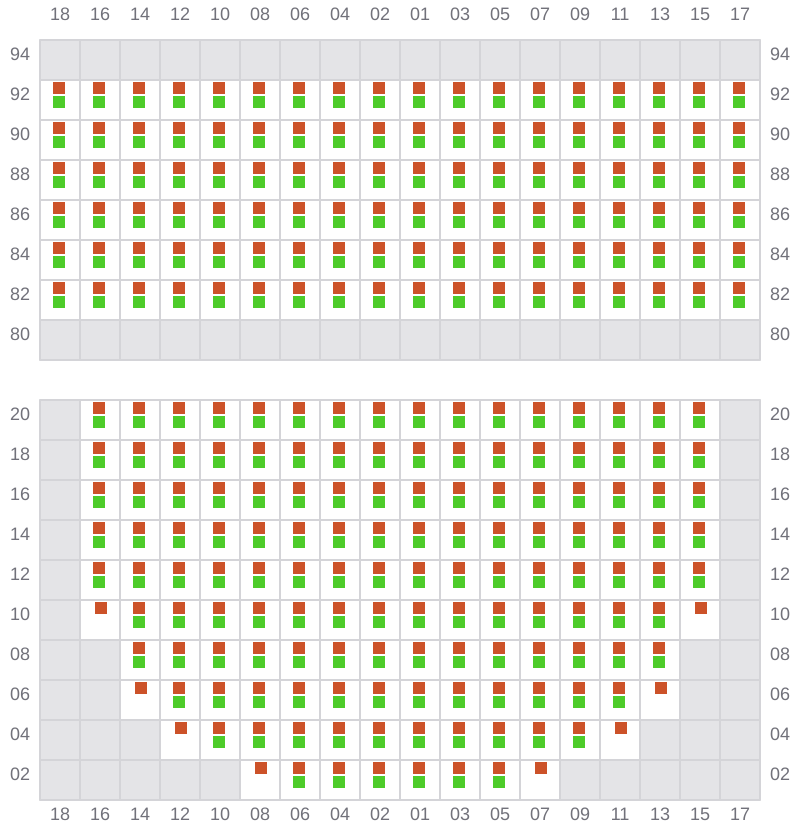

Bay 023 view and slots of MSC ROMA

025

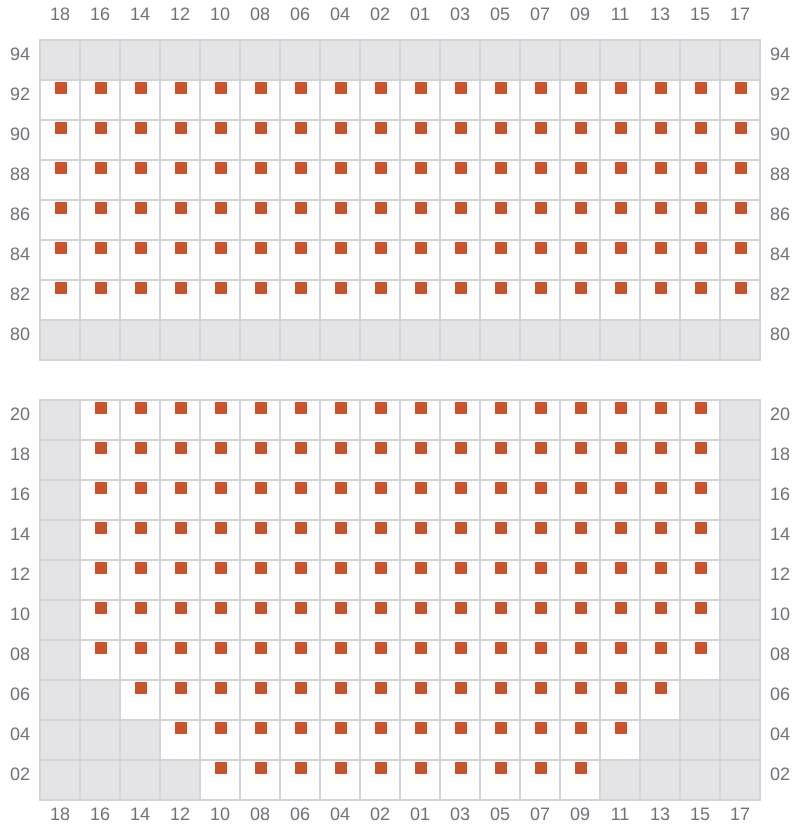

Bay 025 view and slots of MSC ROMA

027 (026)

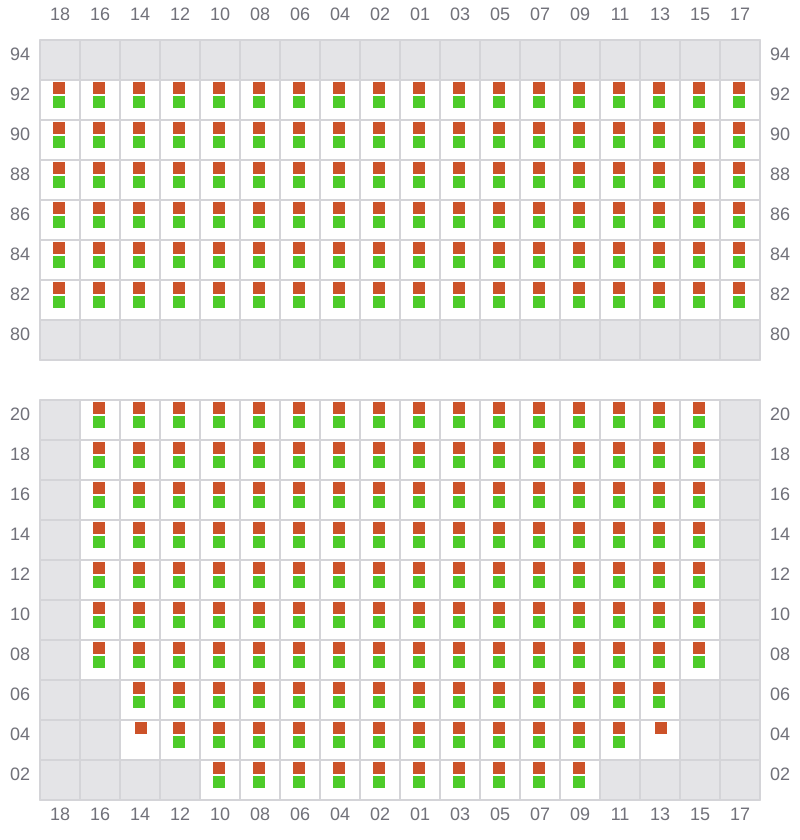

Bay 027 view and slots of MSC ROMA

029

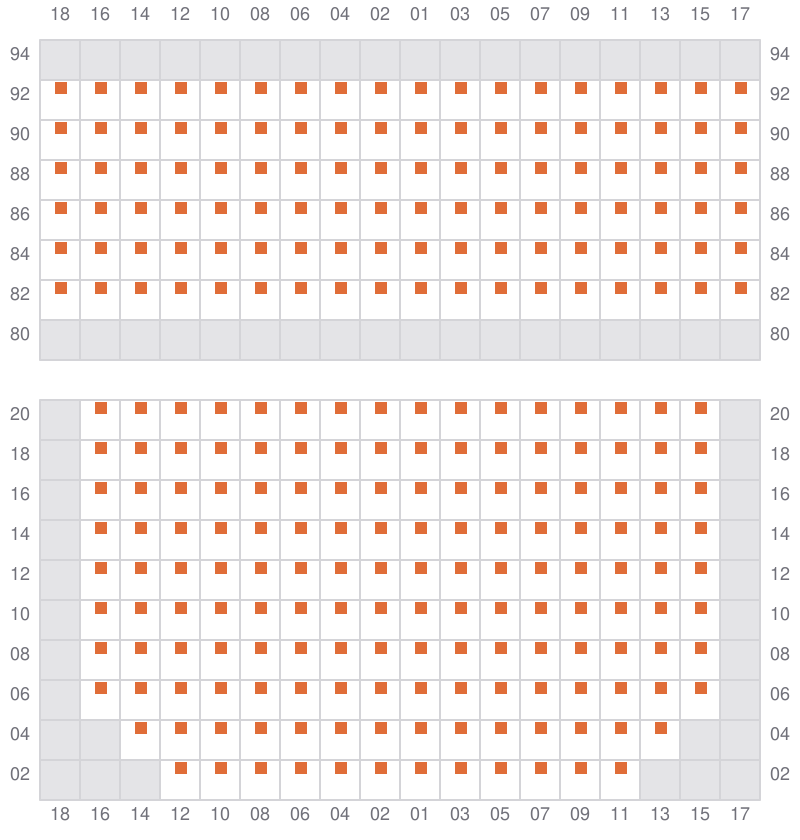

Bay 029 view and slots of MSC ROMA

031 (030)

Bay 031 view and slots of MSC ROMA

033

Bay 033 view and slots of MSC ROMA

035 (034)

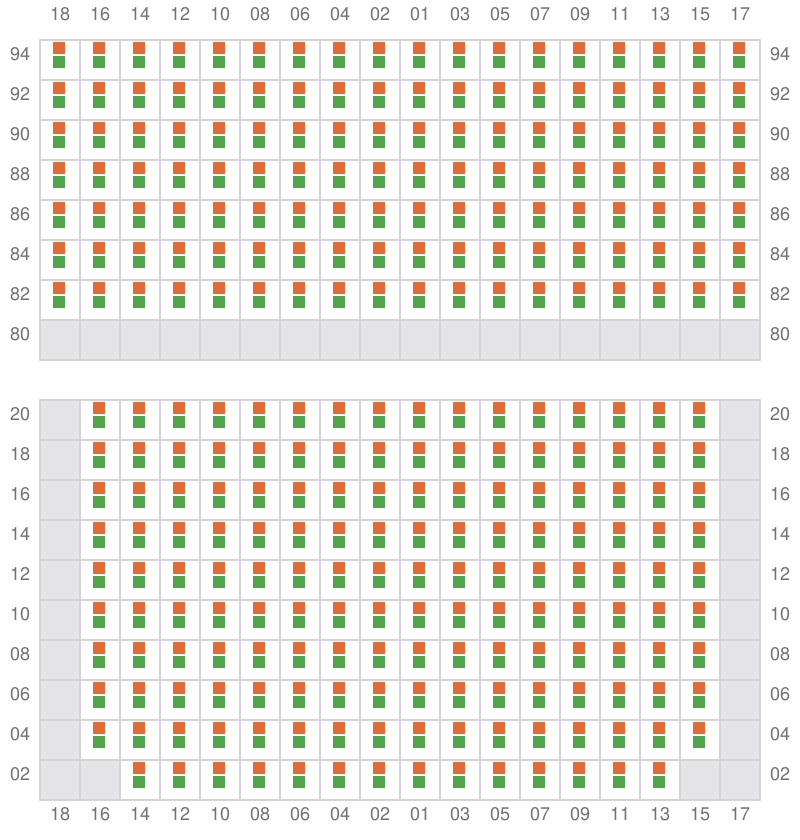

Bay 035 view and slots of MSC ROMA

037

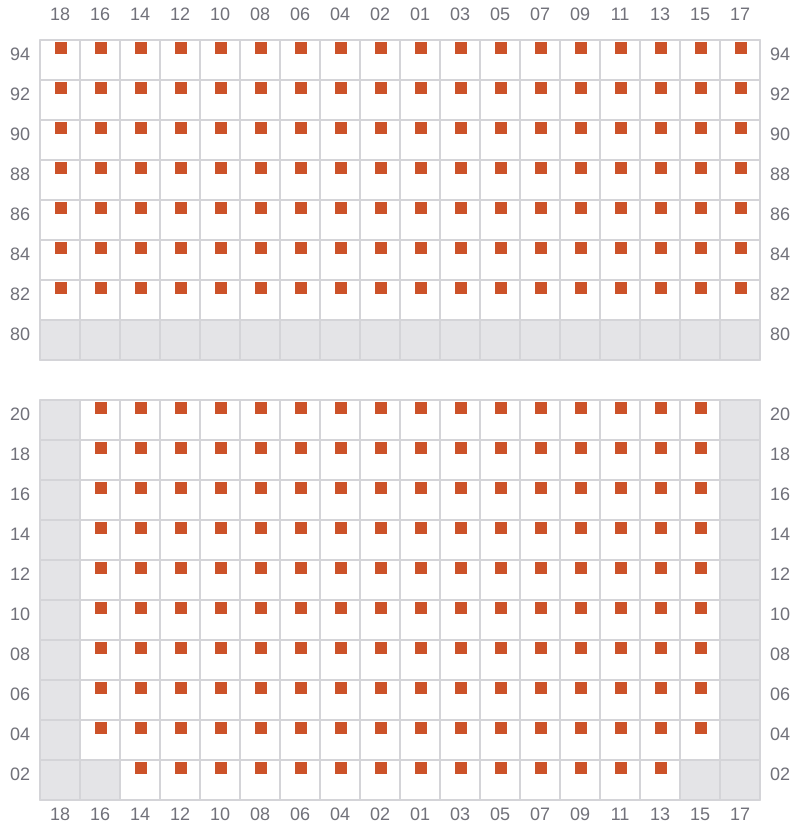

Bay 037 view and slots of MSC ROMA

039 (038)

Bay 039 view and slots of MSC ROMA

041

Bay 041 view and slots of MSC ROMA

043 (042)

Bay 043 view and slots of MSC ROMA

045

Bay 045 view and slots of MSC ROMA

047 (046)

Bay 047 view and slots of MSC ROMA

049

Bay 049 view and slots of MSC ROMA

051 (050)

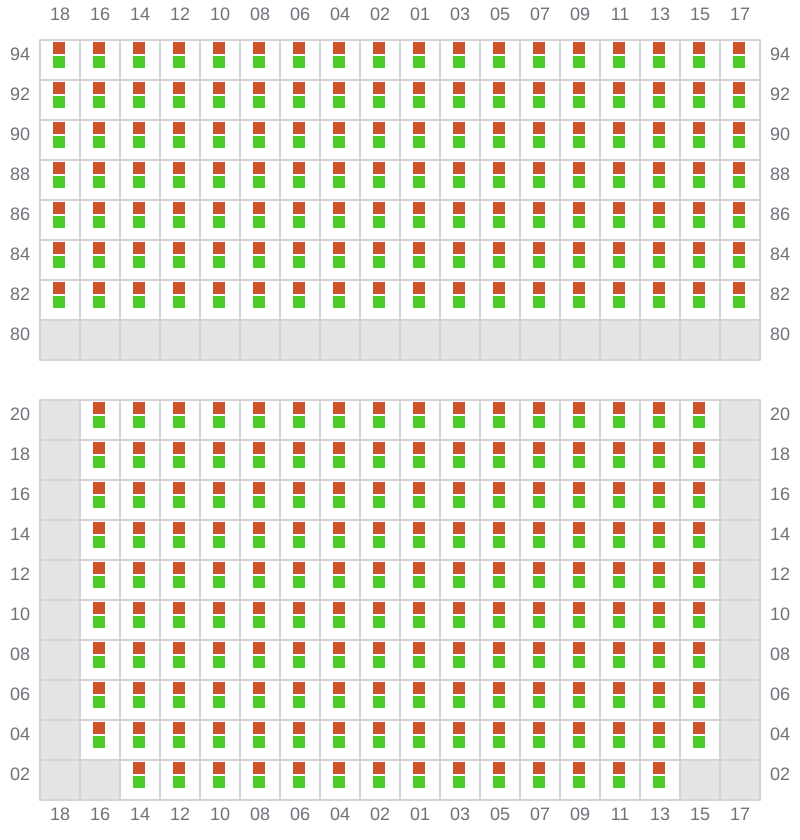

Bay 051 view and slots of MSC ROMA

053

Bay 053 view and slots of MSC ROMA

055 (054)

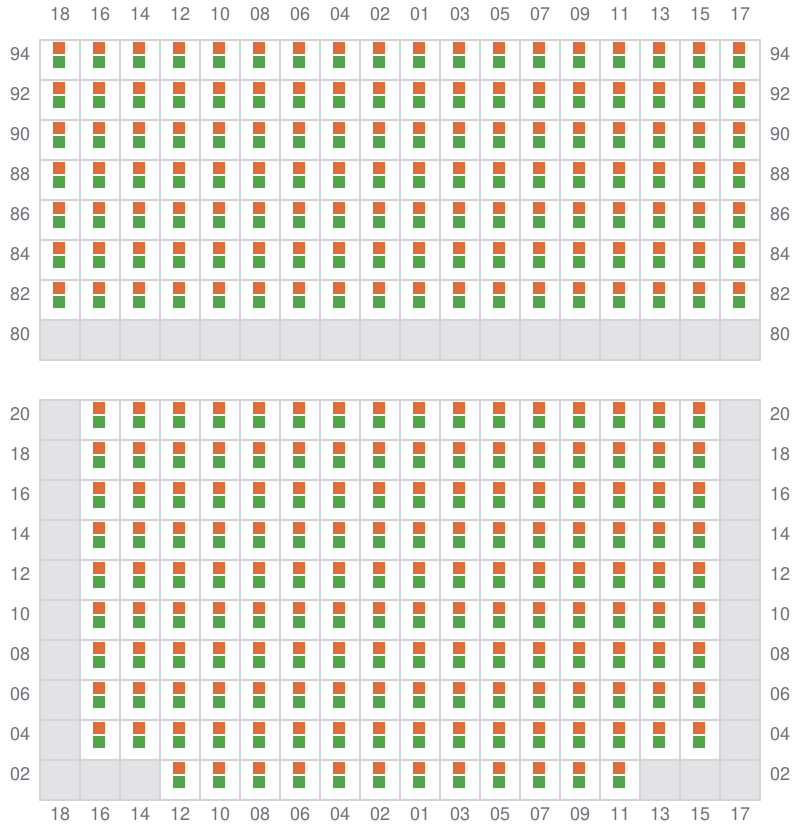

Bay 055 view and slots of MSC ROMA

057

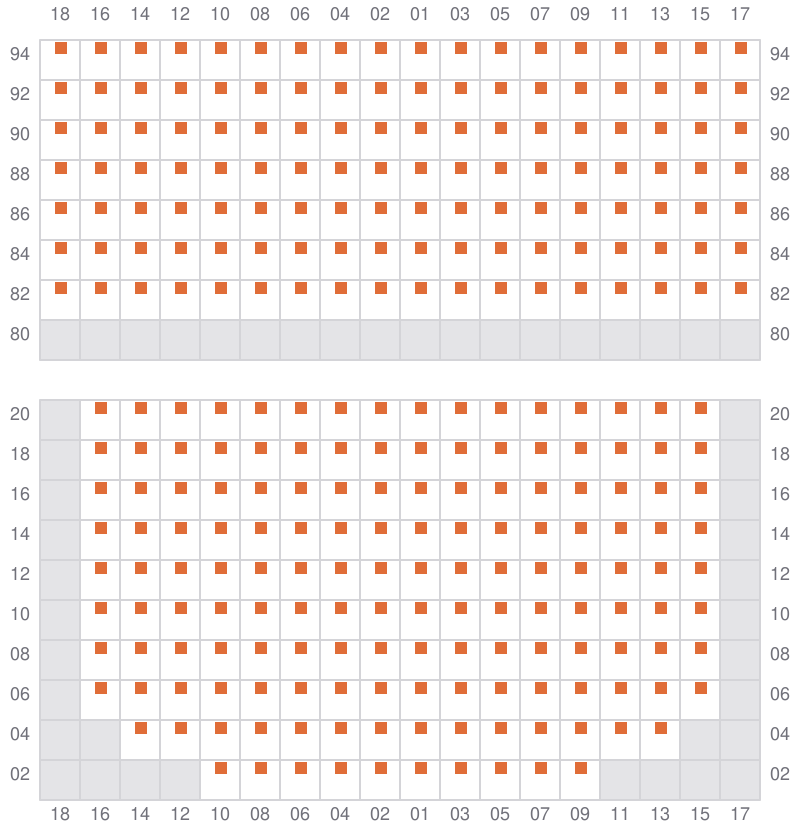

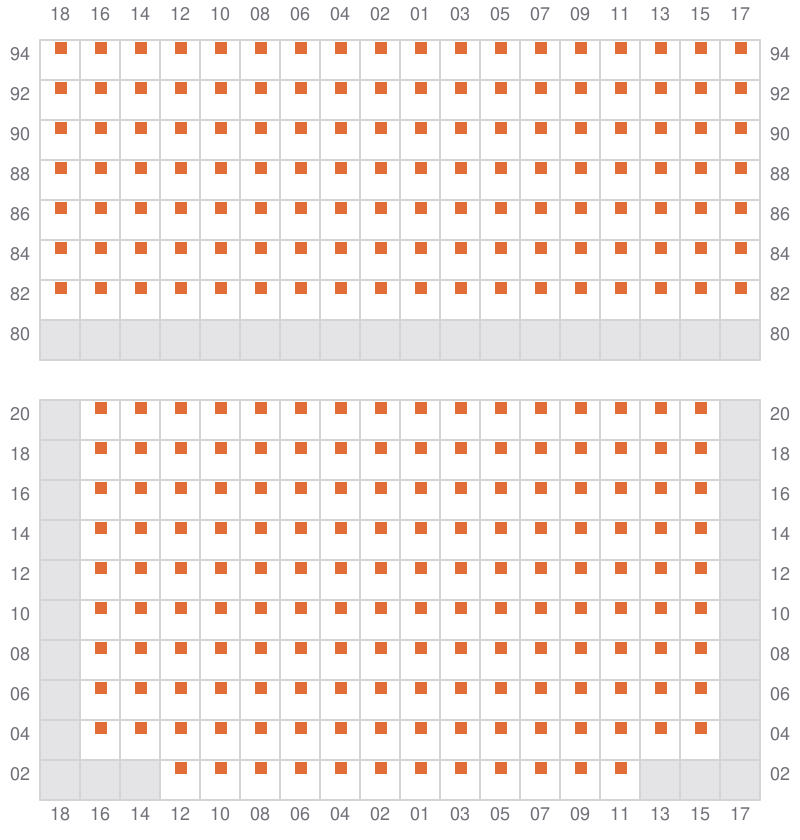

Bay 057 view and slots of MSC ROMA

059 (058)

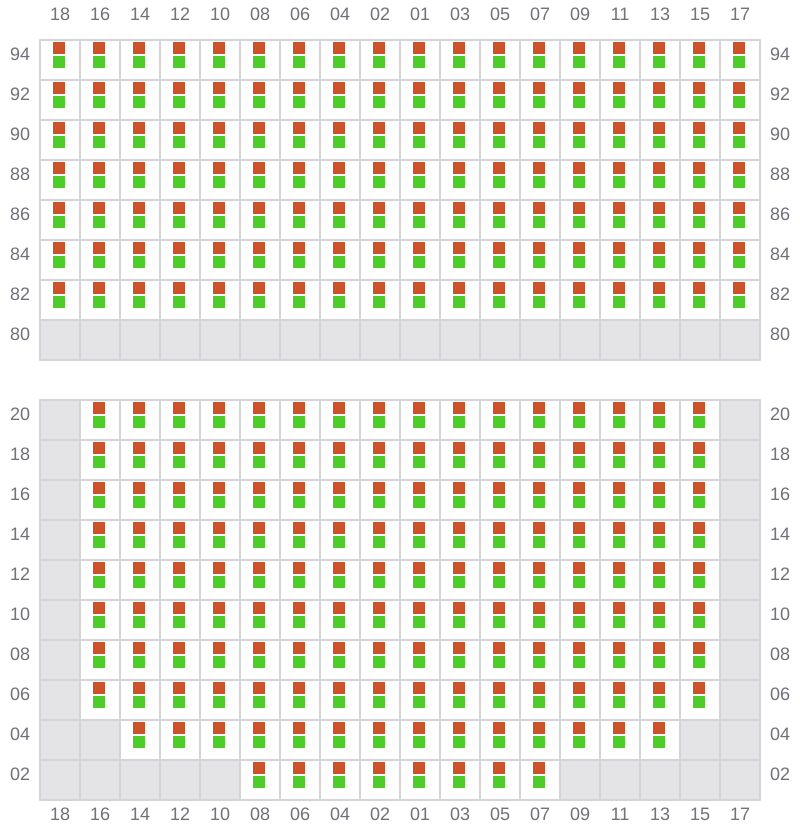

Bay 059 view and slots of MSC ROMA

061

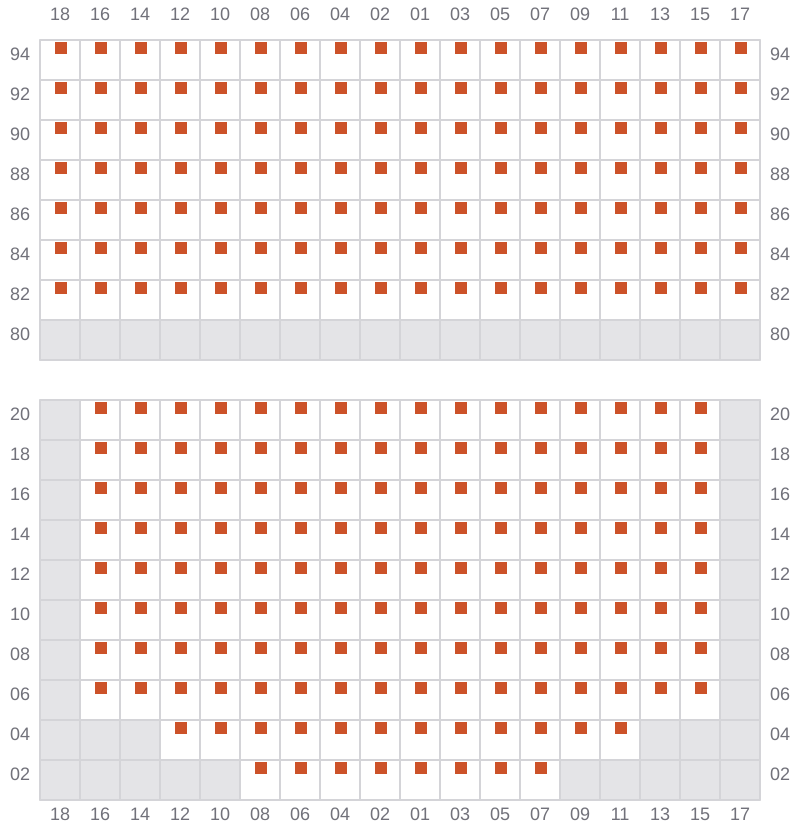

Bay 061 view and slots of MSC ROMA

063 (062)

Bay 063 view and slots of MSC ROMA

065

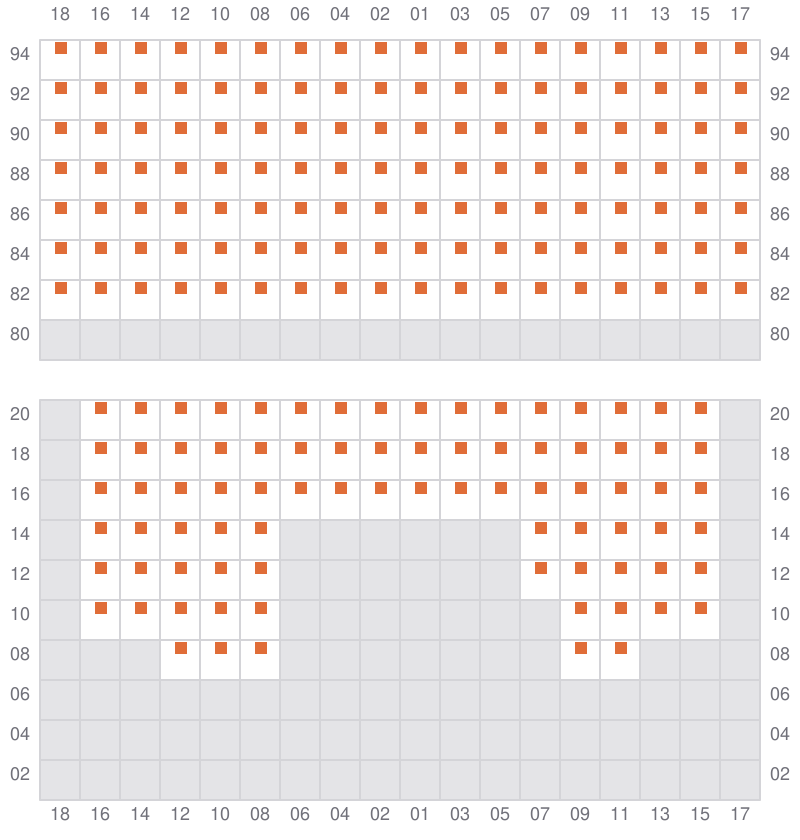

Bay 065 view and slots of MSC ROMA

067 (066)

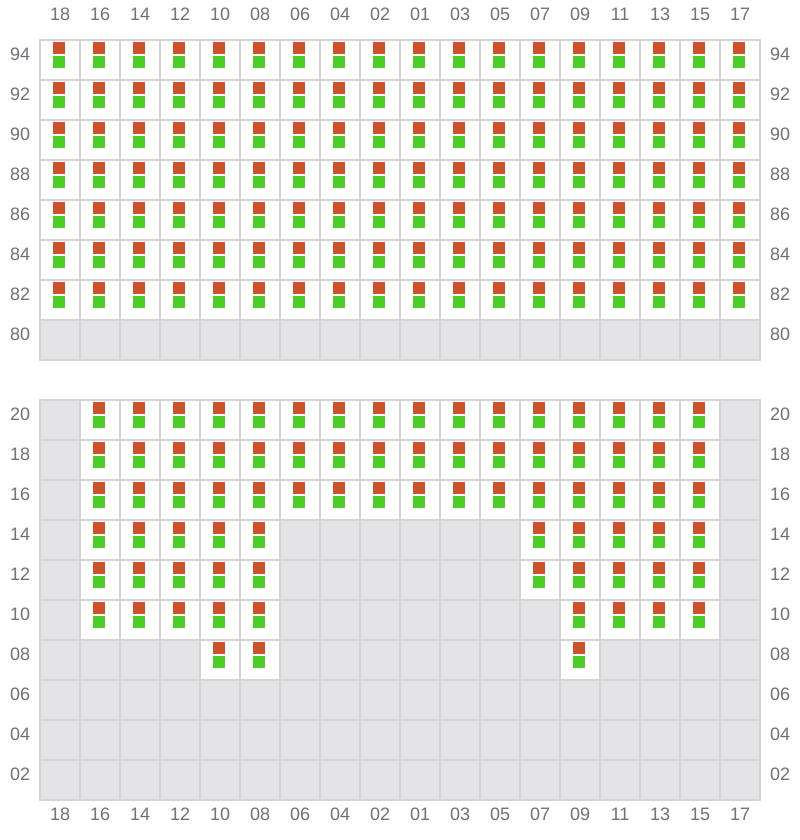

Bay 067 view and slots of MSC ROMA

069

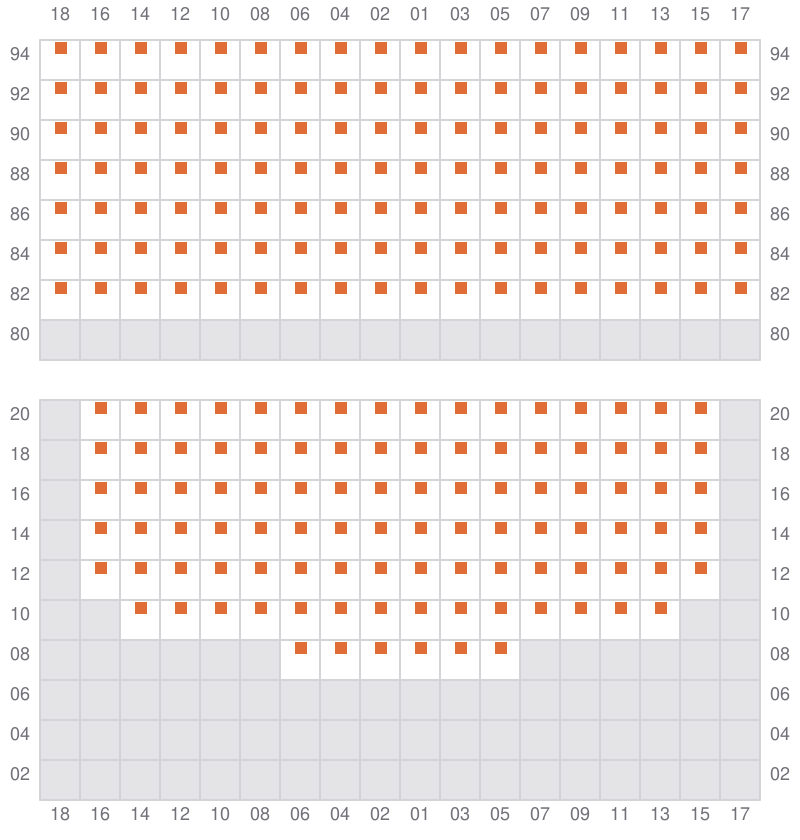

Bay 069 view and slots of MSC ROMA

071 (070)

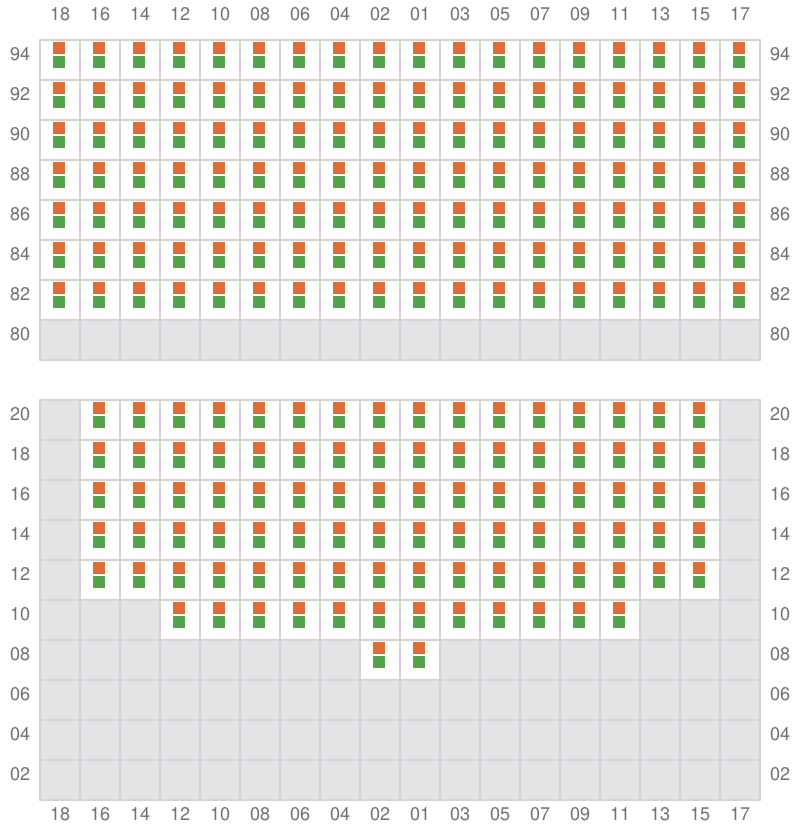

Bay 071 view and slots of MSC ROMA

073

Bay 073 view and slots of MSC ROMA

075 (074)

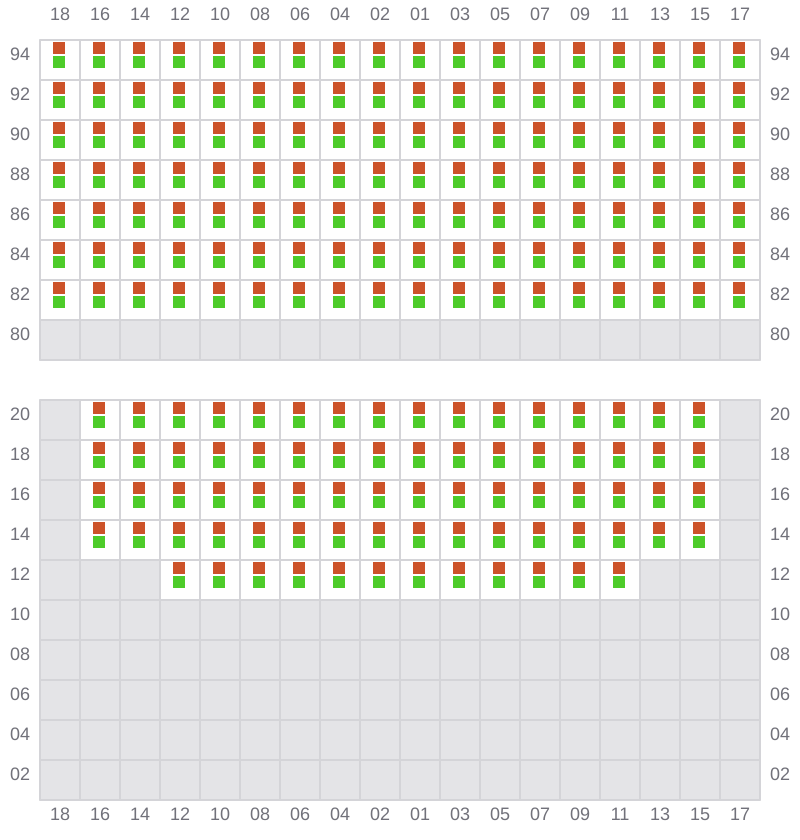

Bay 075 view and slots of MSC ROMA

077

Bay 077 view and slots of MSC ROMA

079 (078)

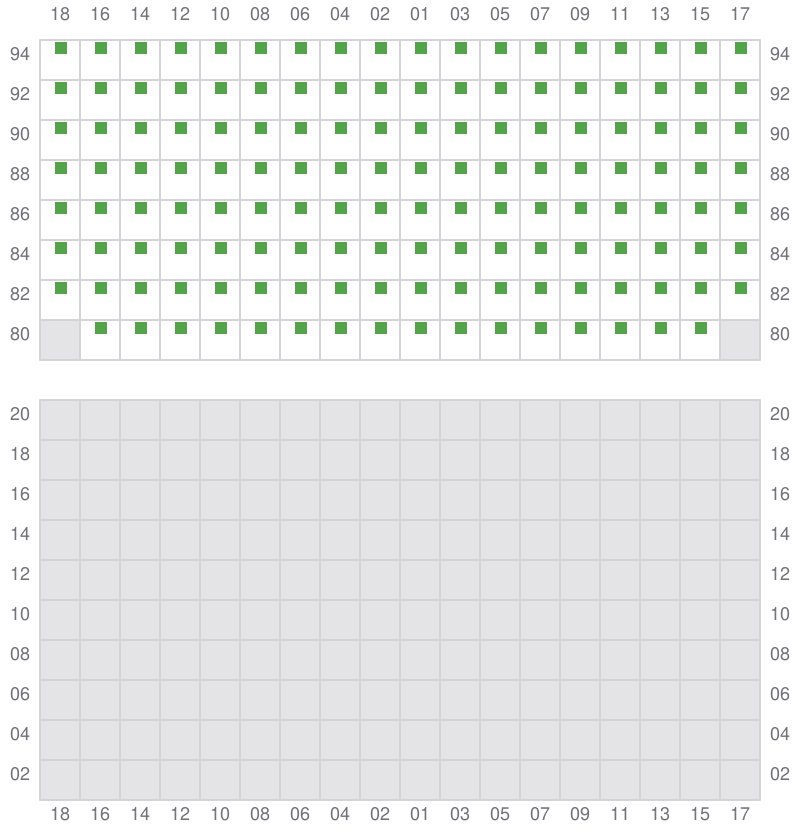

Bay 079 view and slots of MSC ROMA
