MSC ROMANE
9745653 | CQZN | MSC by ******************** Last update: Sun Feb 16 2025

General Info

Ship Name:MSC ROMANE

IMO Code:9745653

Call Sign:CQZN

Line Operator:MSC

Class Name for Sister Ships:MSRO

Year Built:2017

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):286.40

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:069

Max ISO Row:18

Center Line Row:Yes

Max Above ISO Tier:90

Min Above ISO Tier:72

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:10,362

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

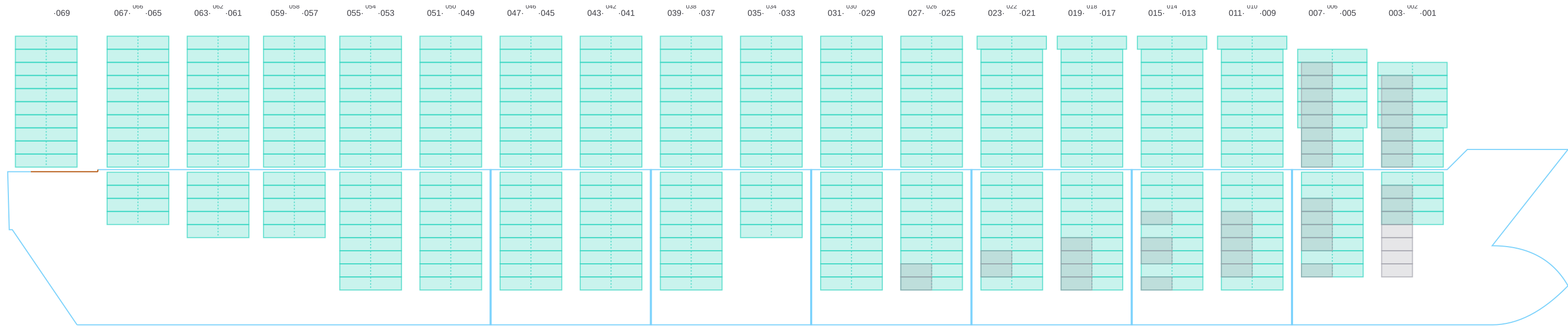

Side View

Side view of MSC ROMANE

Hatch-Covers View

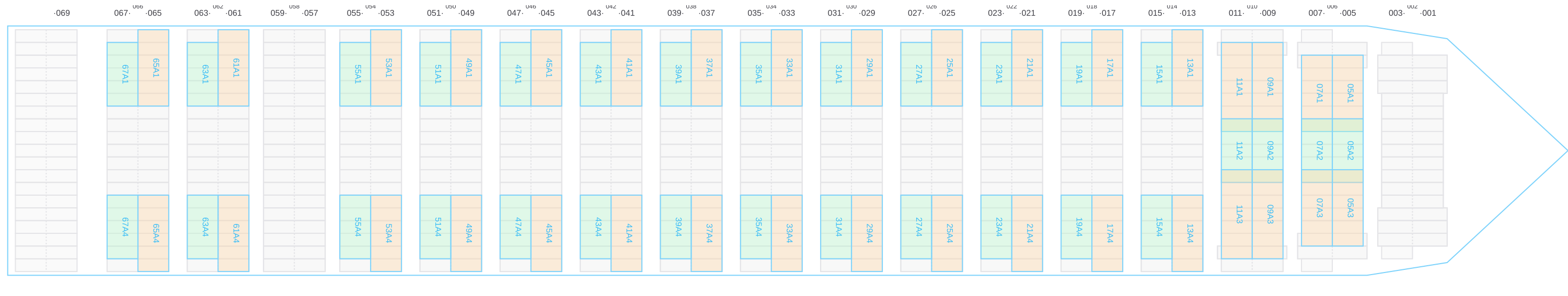

Deck view of MSC ROMANE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→

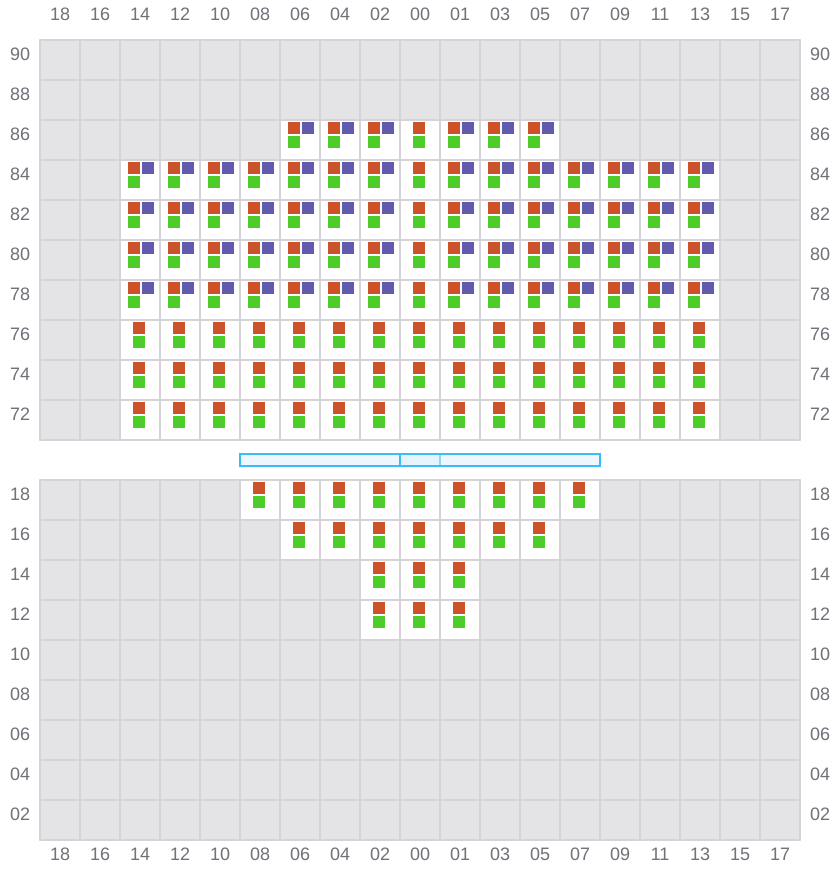

Bay 001 view and slots of MSC ROMANE

003

←
^→ / _?

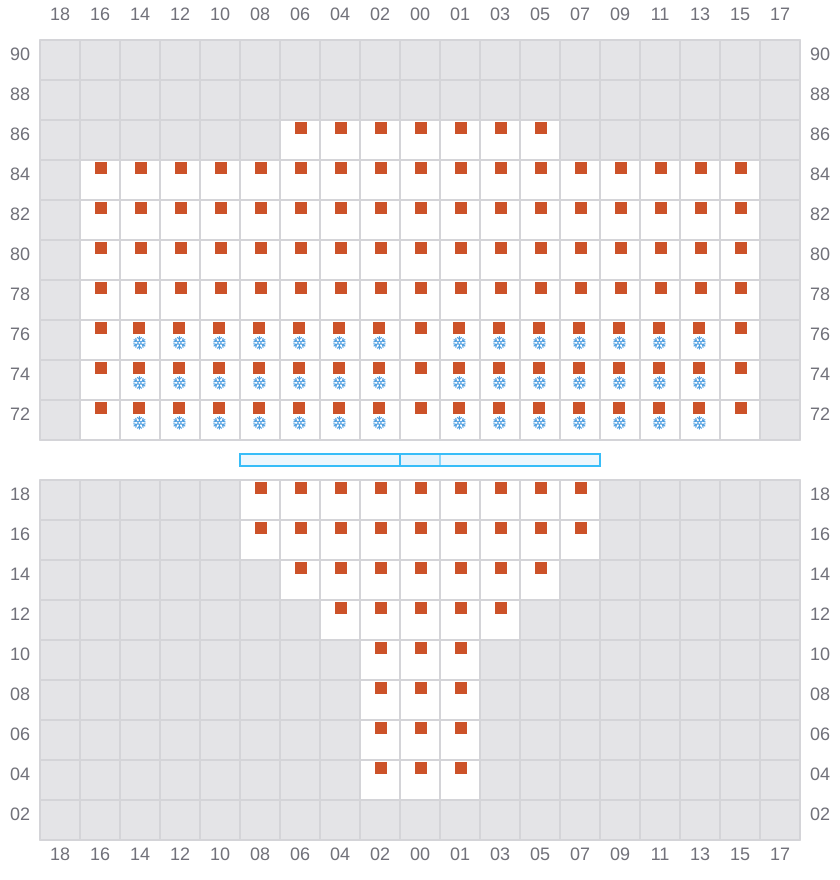

Bay 003 view and slots of MSC ROMANE

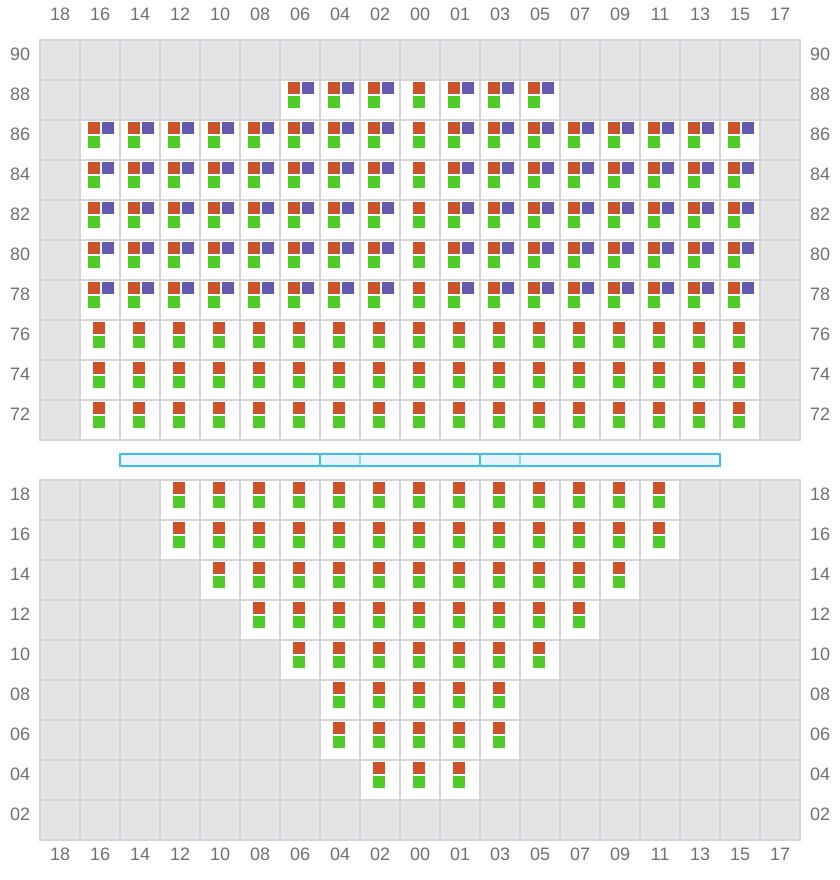

005 (006)

→

Bay 005 view and slots of MSC ROMANE

007

←
→

Bay 007 view and slots of MSC ROMANE

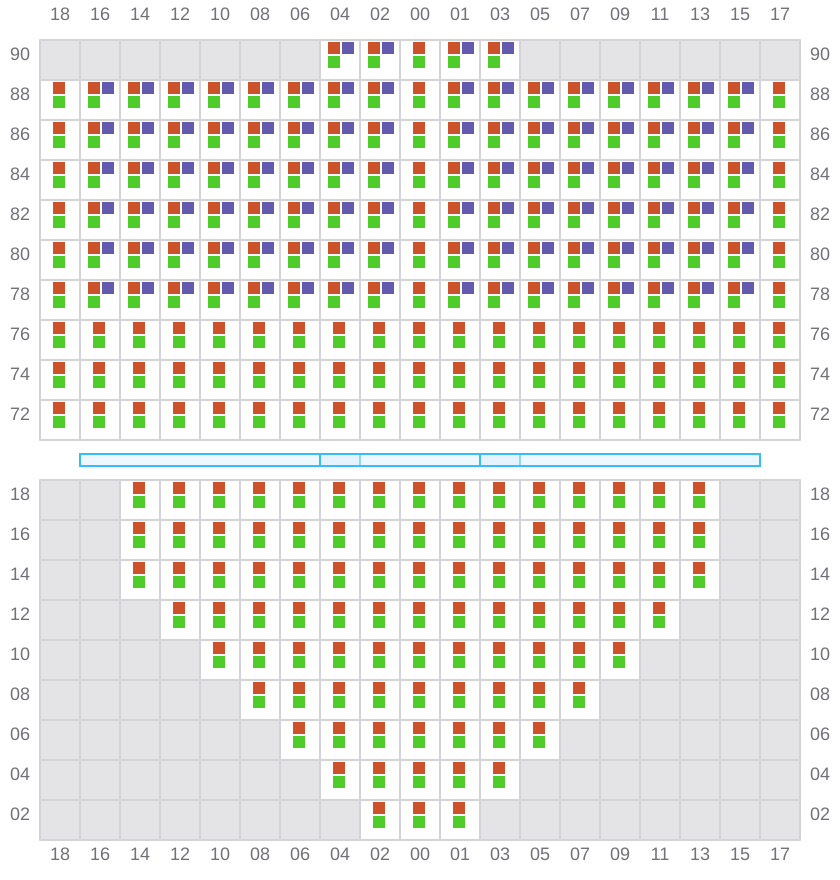

009 (010)

→
^→ / _?

Bay 009 view and slots of MSC ROMANE

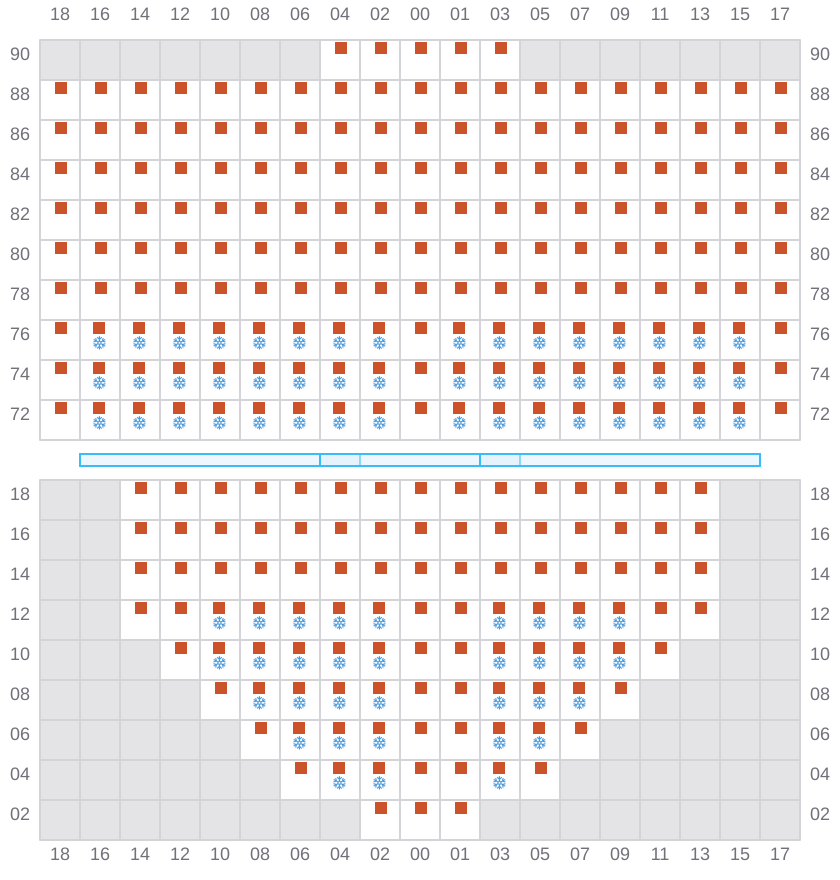

011

←
→

Bay 011 view and slots of MSC ROMANE

013 (014)

→
^→ / _?

Bay 013 view and slots of MSC ROMANE

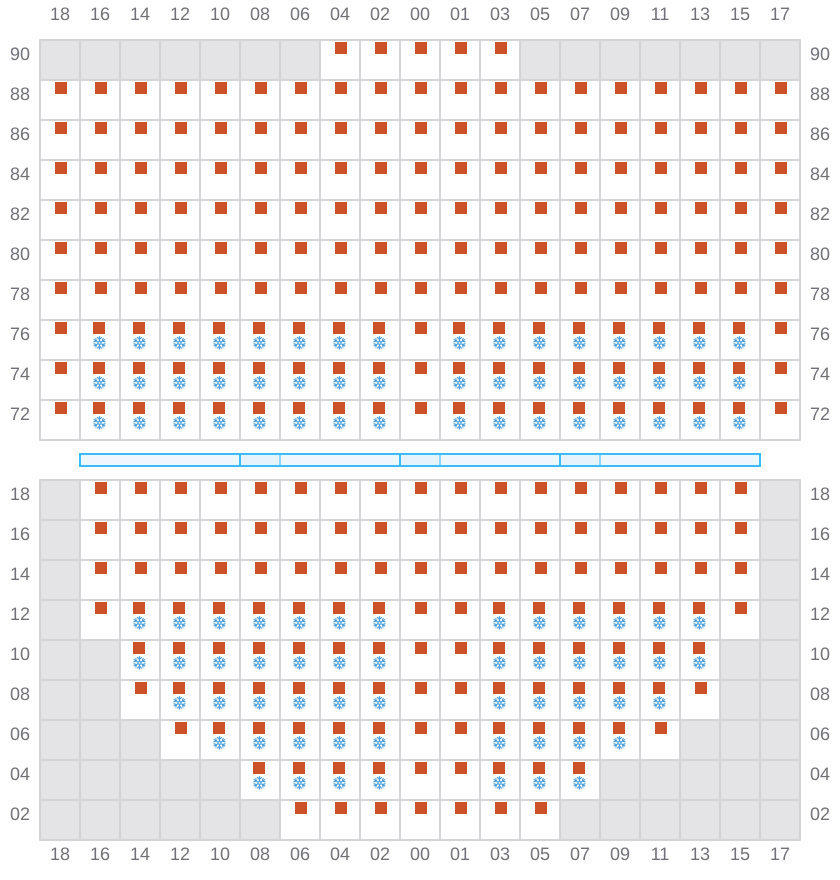

015

←
→

Bay 015 view and slots of MSC ROMANE

017 (018)

→
^→ / _?

Bay 017 view and slots of MSC ROMANE

019

←
→

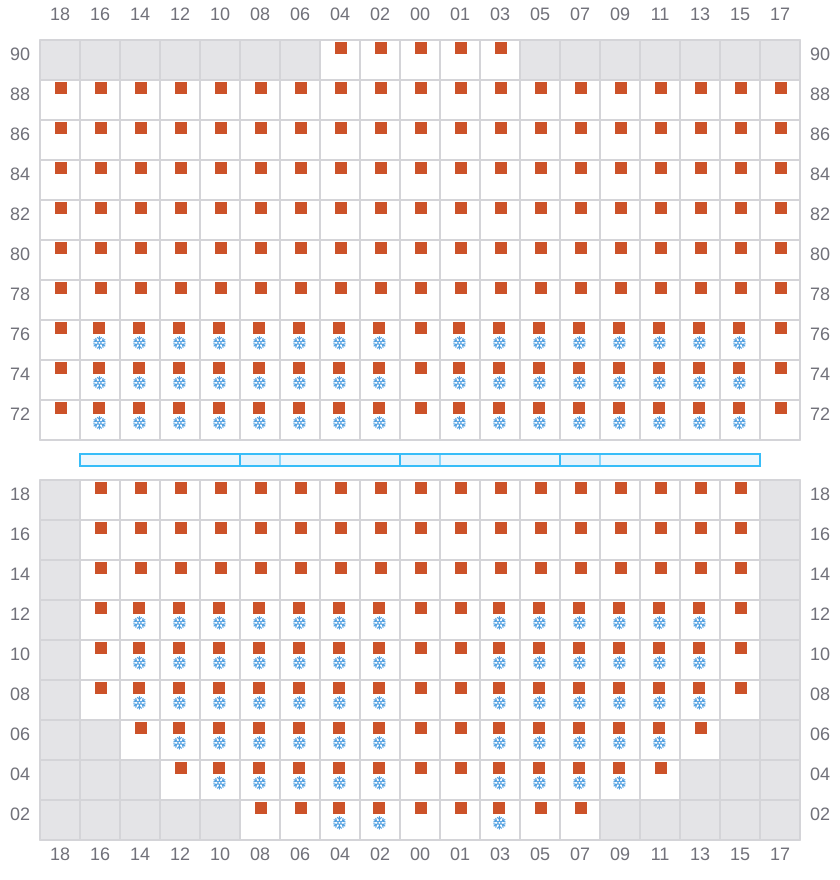

Bay 019 view and slots of MSC ROMANE

021 (022)

→
^→ / _?

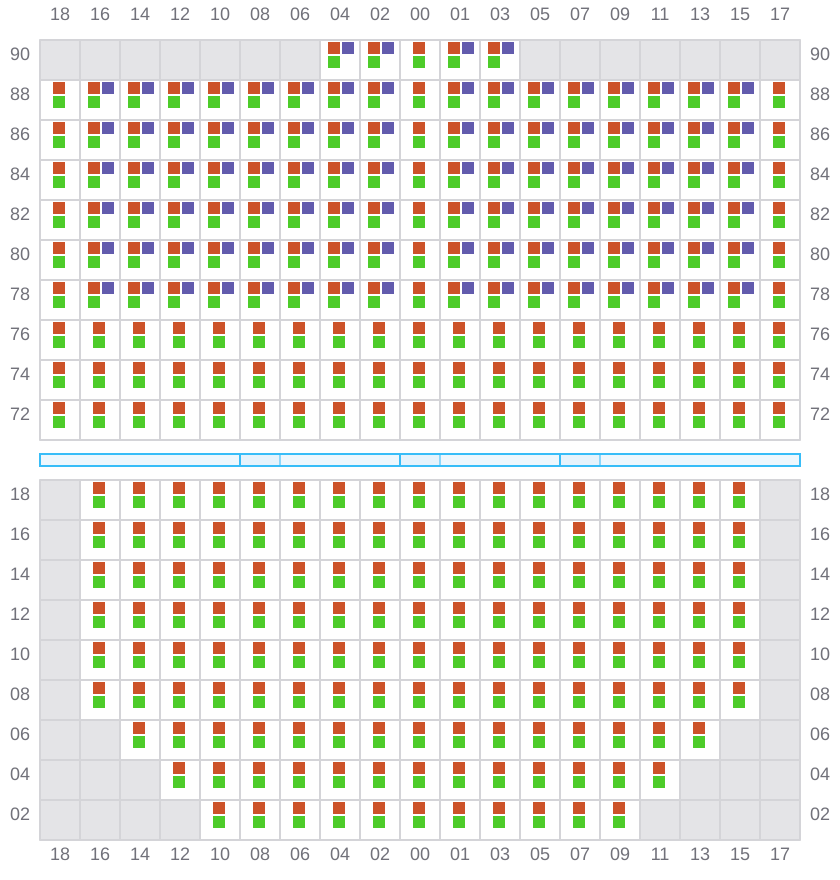

Bay 021 view and slots of MSC ROMANE

023

←
→

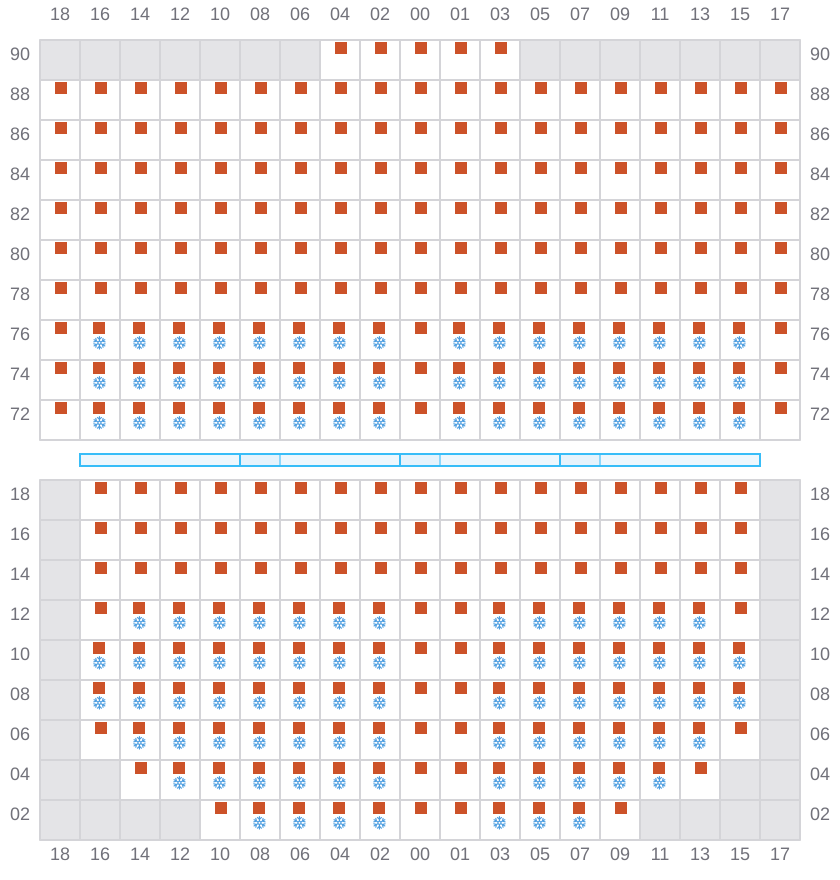

Bay 023 view and slots of MSC ROMANE

025 (026)

→
^→ / _?

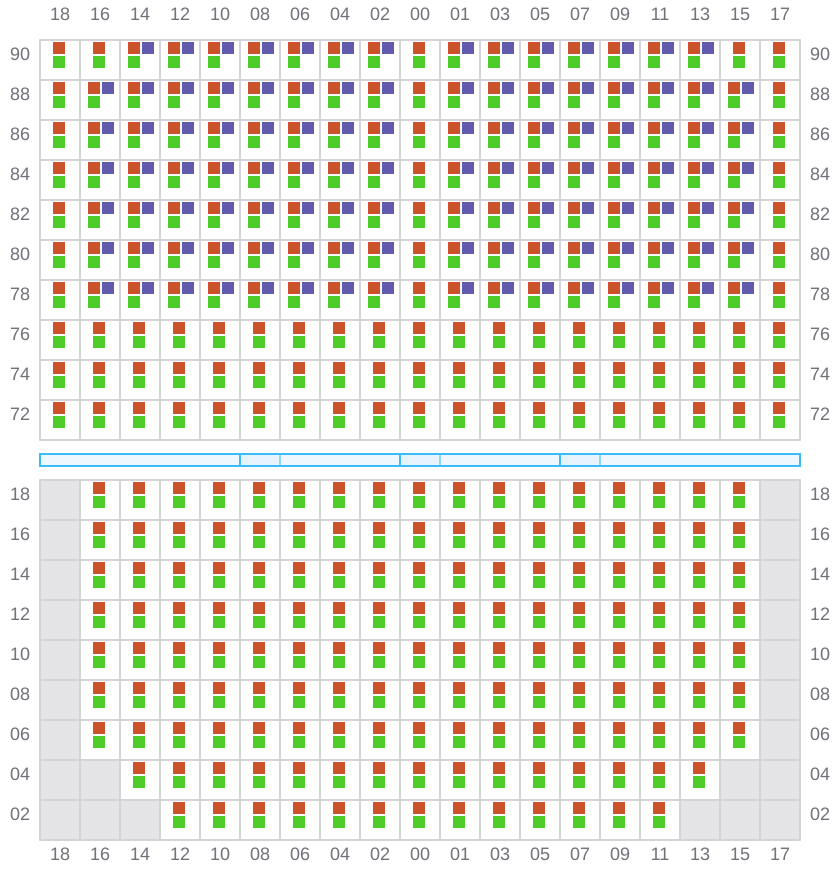

Bay 025 view and slots of MSC ROMANE

027

←
→

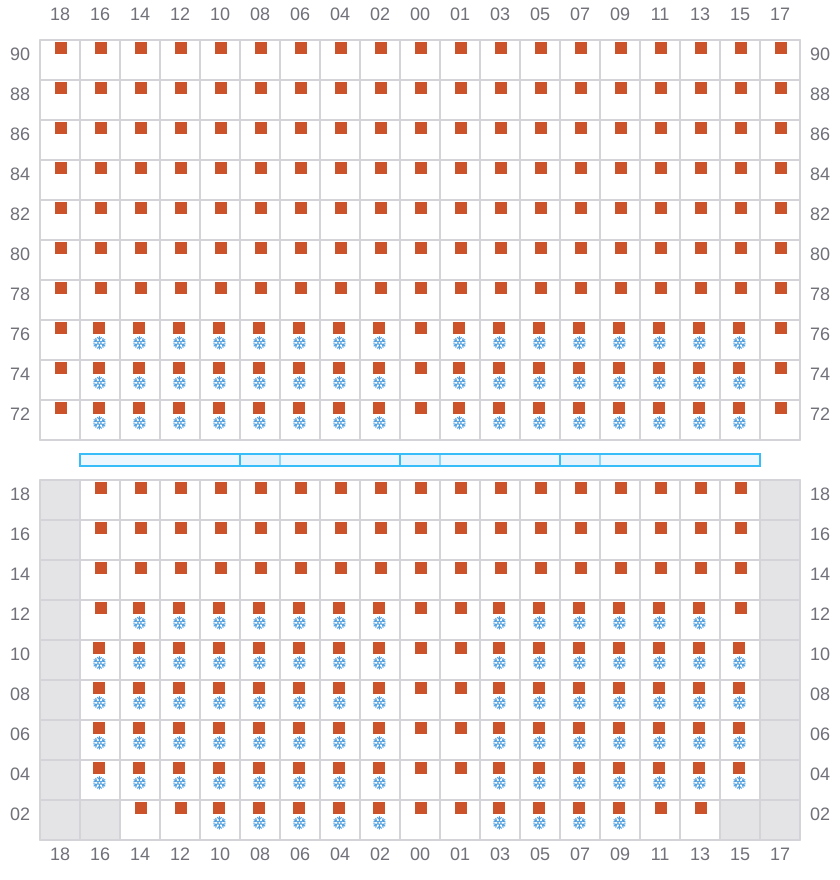

Bay 027 view and slots of MSC ROMANE

029 (030)

→
^→ / _?

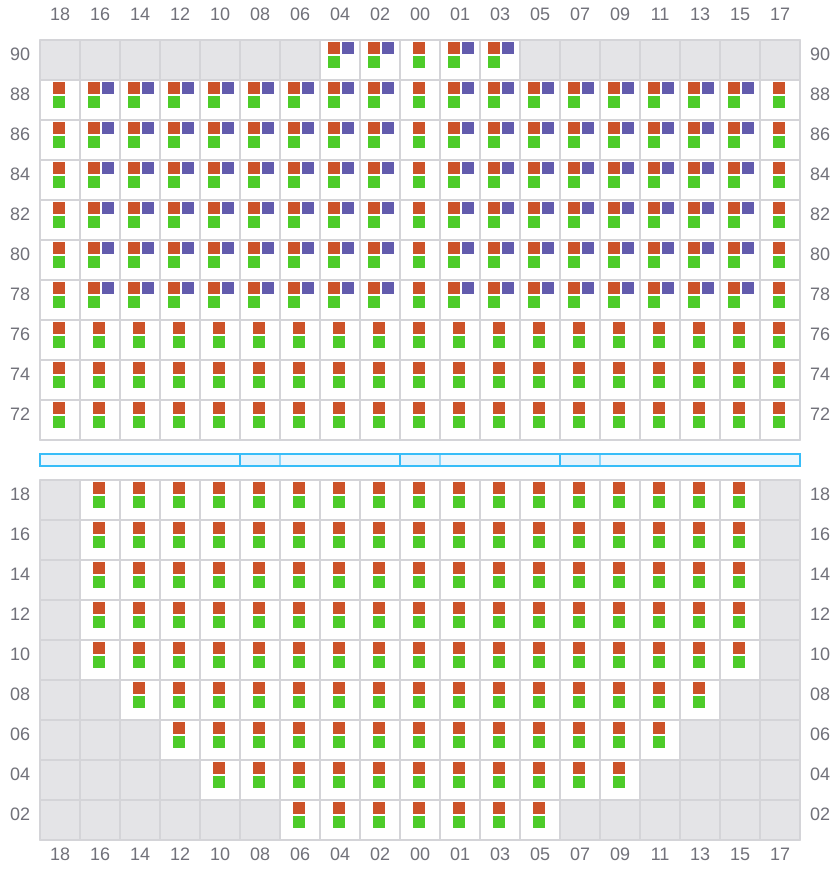

Bay 029 view and slots of MSC ROMANE

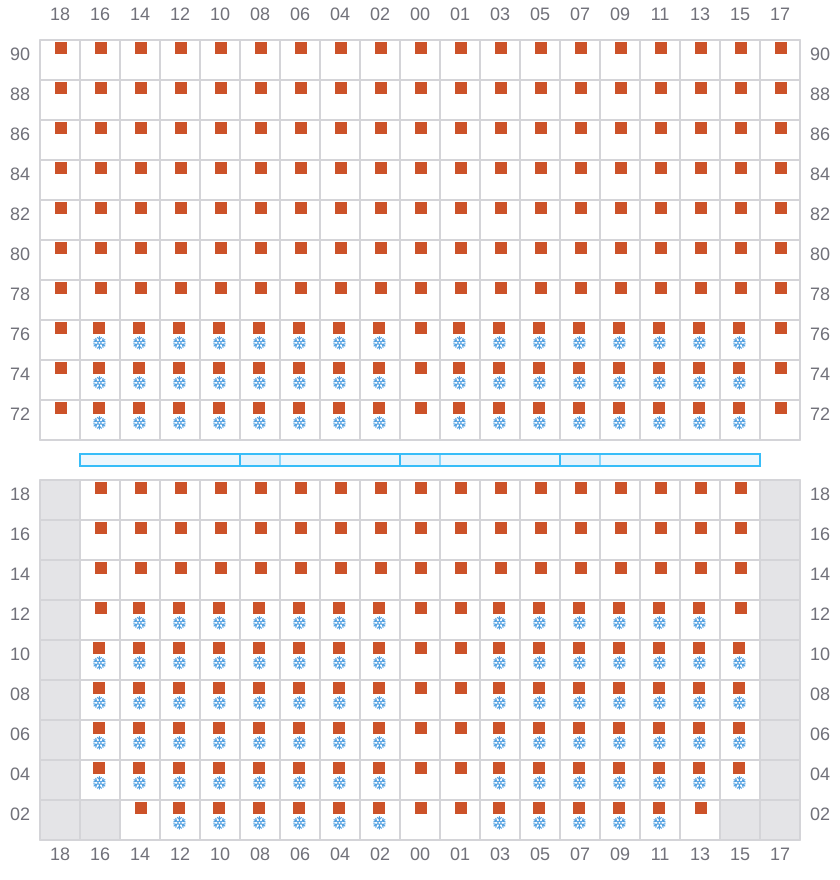

031

←
→

Bay 031 view and slots of MSC ROMANE

033 (034)

→
^→ / _?

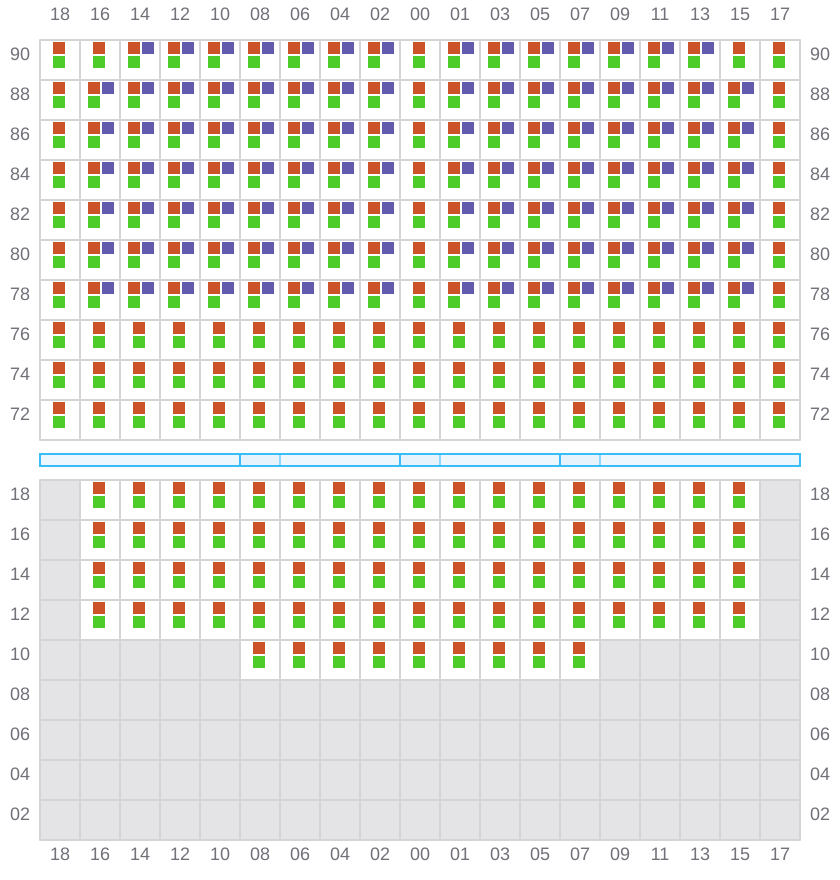

Bay 033 view and slots of MSC ROMANE

035

←
^→ / _?

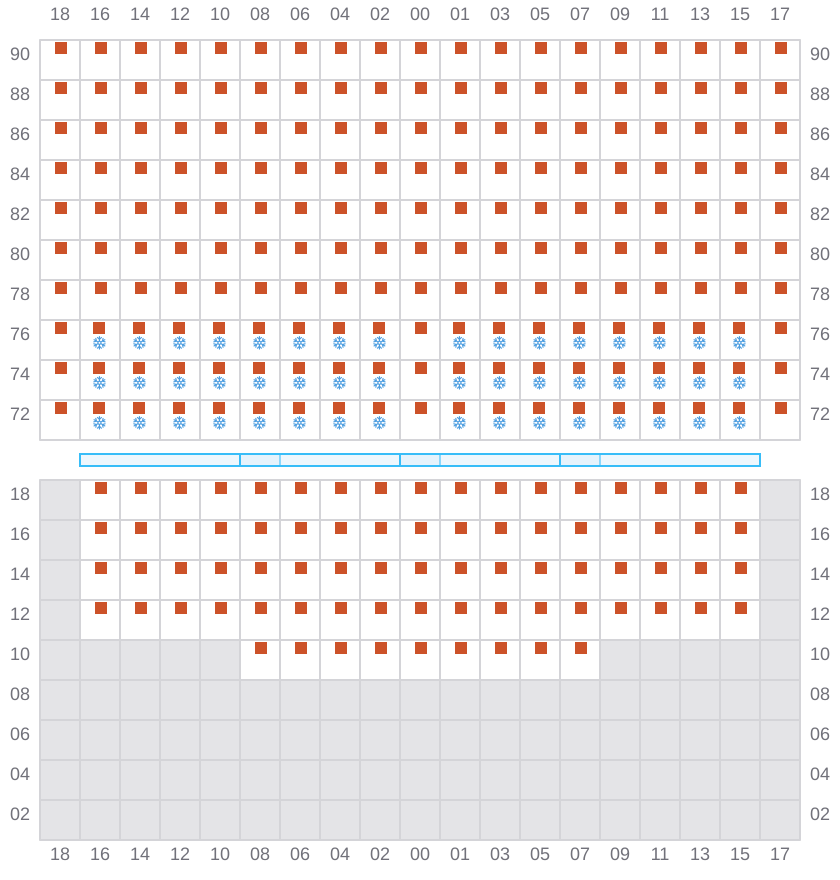

Bay 035 view and slots of MSC ROMANE

037 (038)

→
^→ / _?

Bay 037 view and slots of MSC ROMANE

039

←
→

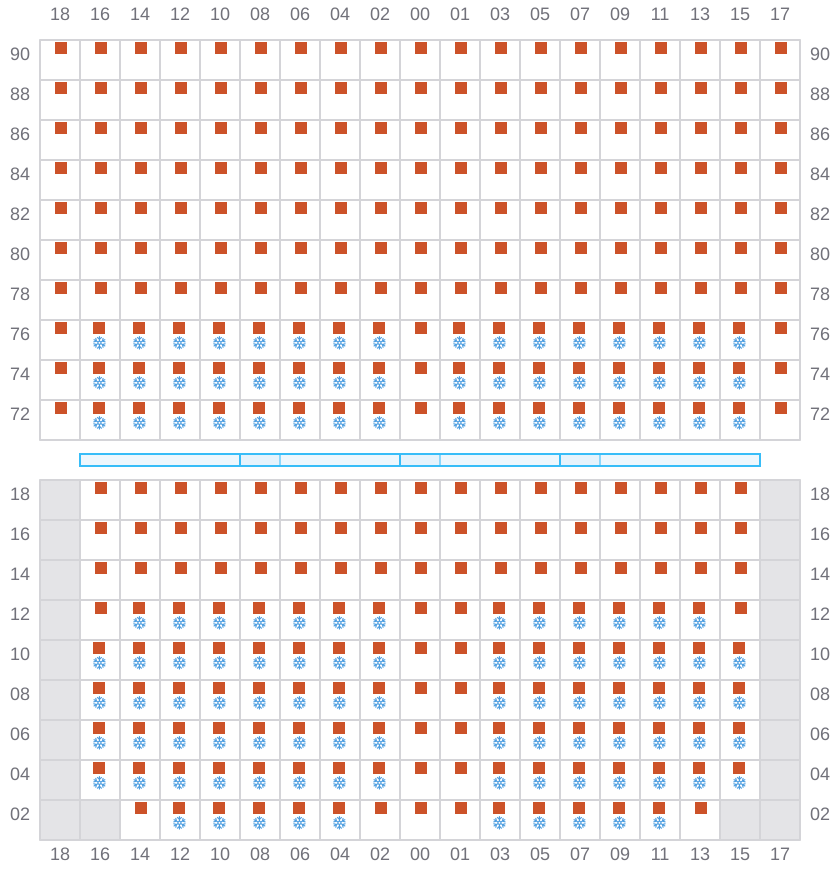

Bay 039 view and slots of MSC ROMANE

041 (042)

→
^→ / _?

Bay 041 view and slots of MSC ROMANE

043

←
→

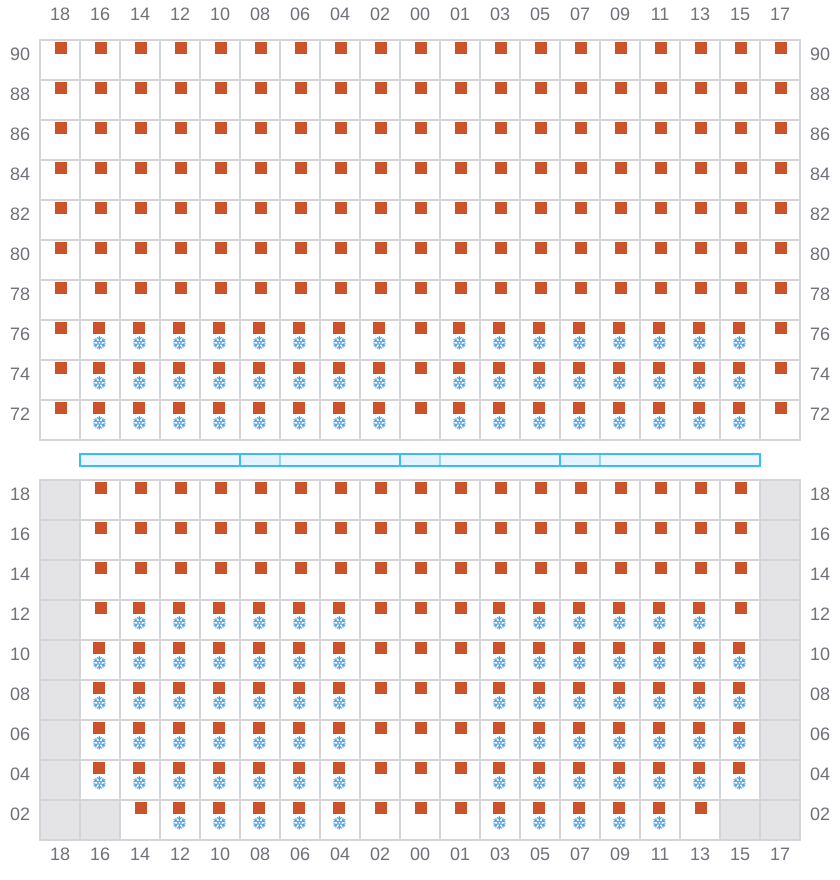

Bay 043 view and slots of MSC ROMANE

045 (046)

→
^→ / _?

Bay 045 view and slots of MSC ROMANE

047

←
→

Bay 047 view and slots of MSC ROMANE

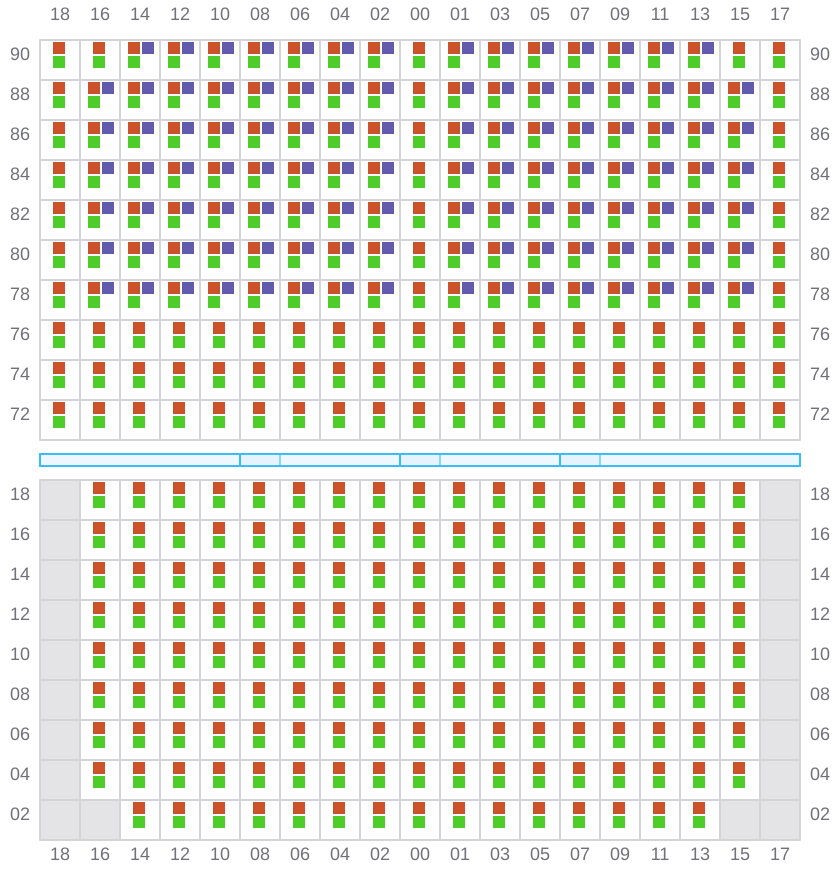

049 (050)

→
^→ / _?

Bay 049 view and slots of MSC ROMANE

051

←
→

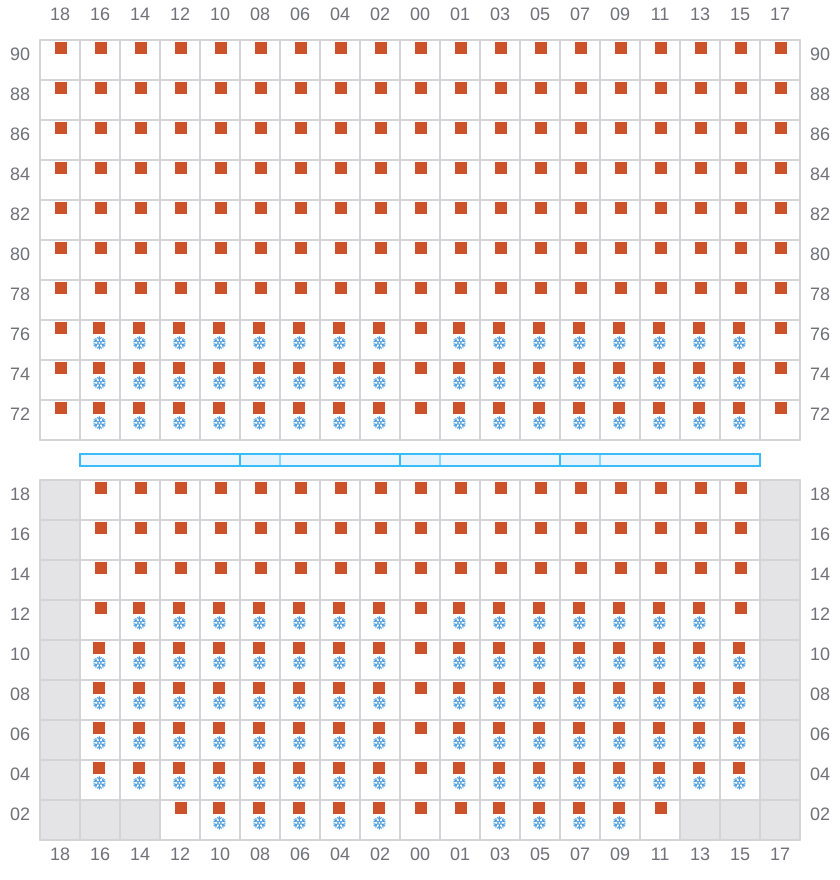

Bay 051 view and slots of MSC ROMANE

053 (054)

→
^→ / _?

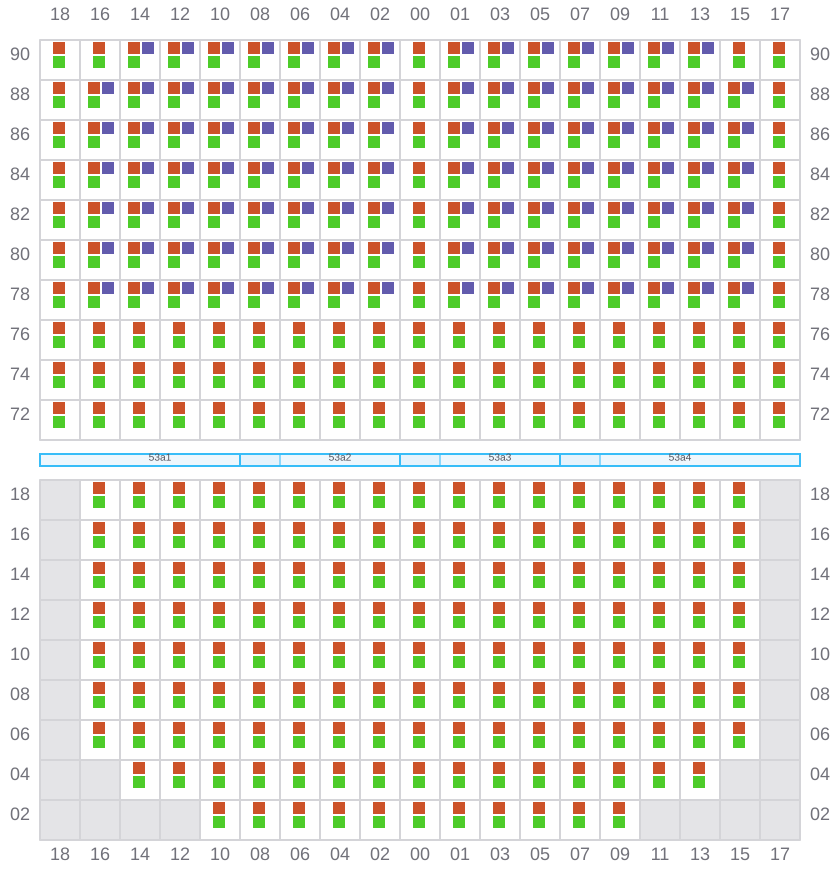

Bay 053 view and slots of MSC ROMANE

055

←
→

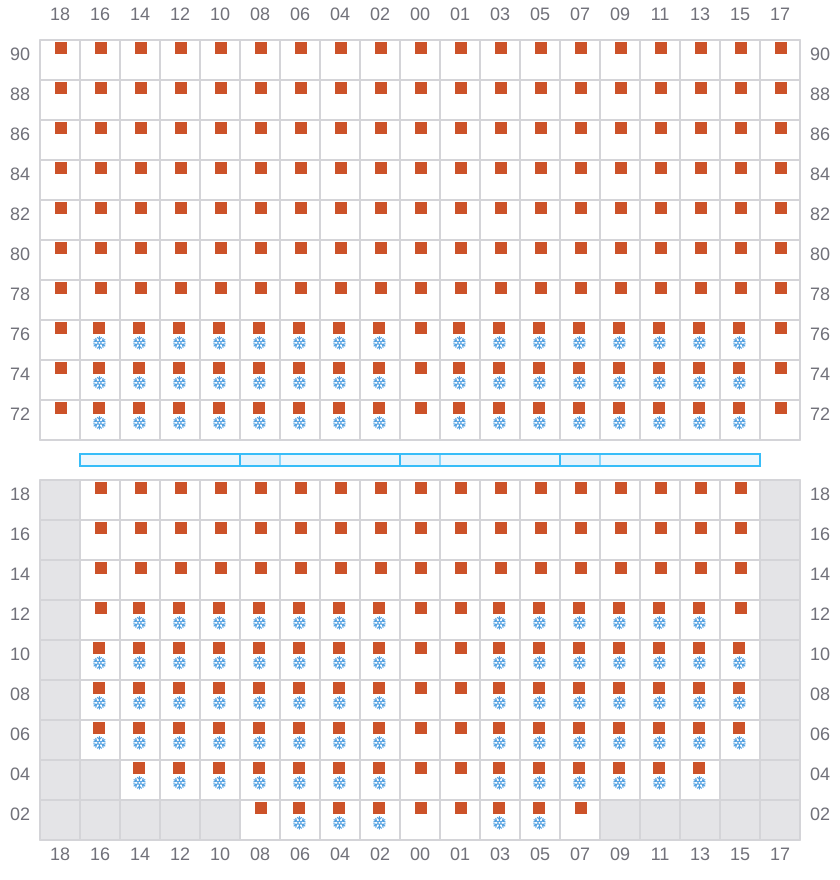

Bay 055 view and slots of MSC ROMANE

057 (058)

→
^← / _?

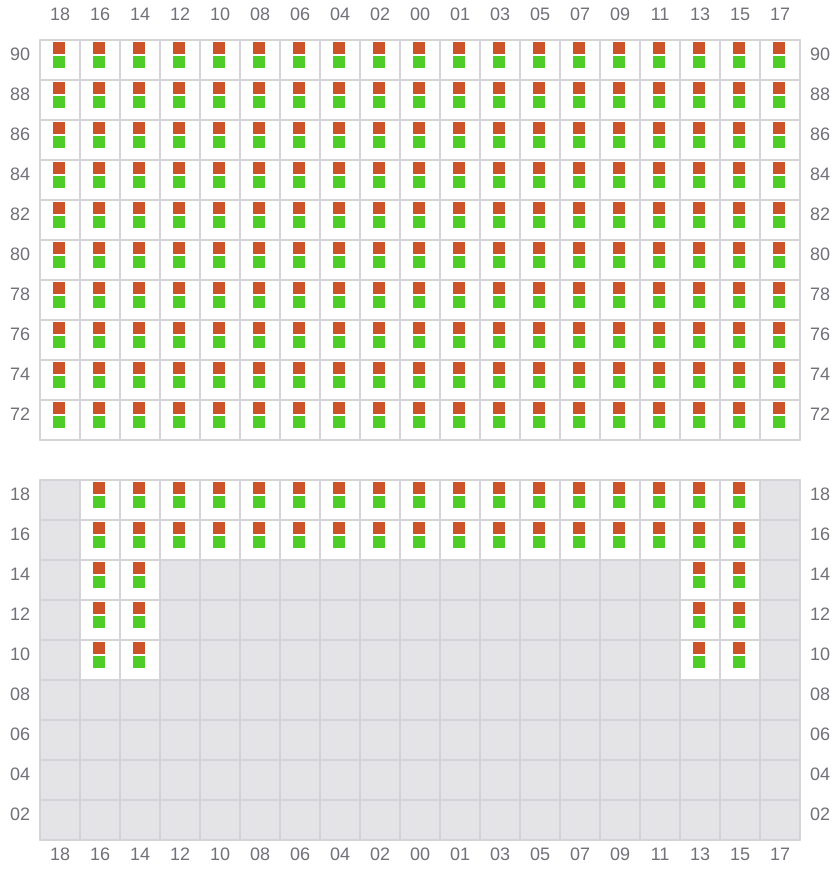

Bay 057 view and slots of MSC ROMANE

059

←

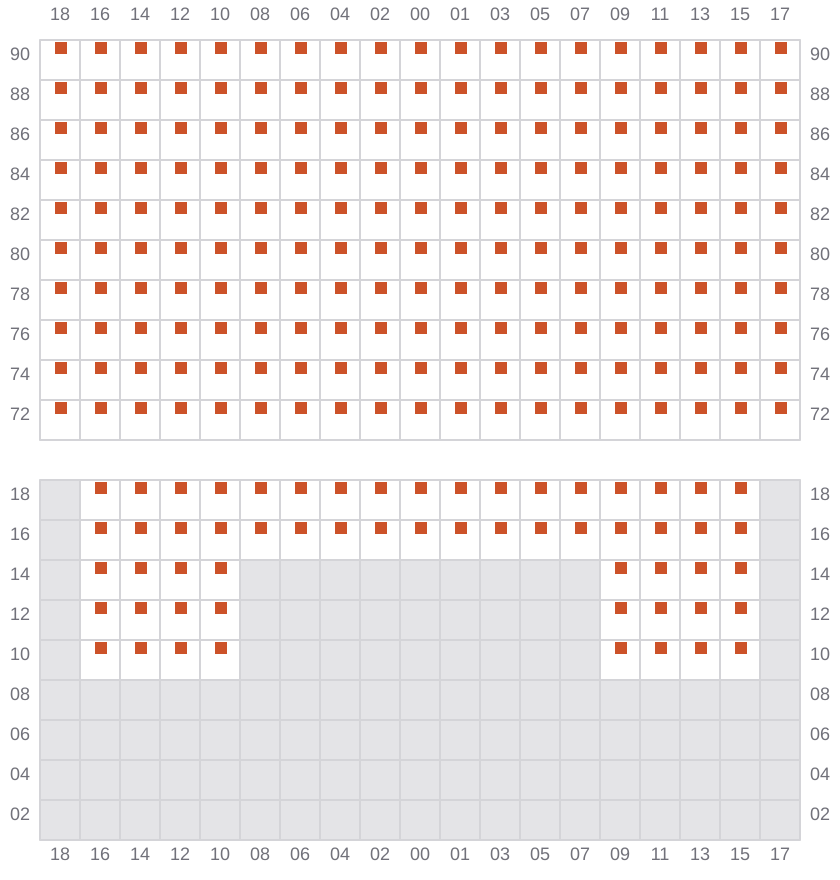

Bay 059 view and slots of MSC ROMANE

061 (062)

→
^← / _?

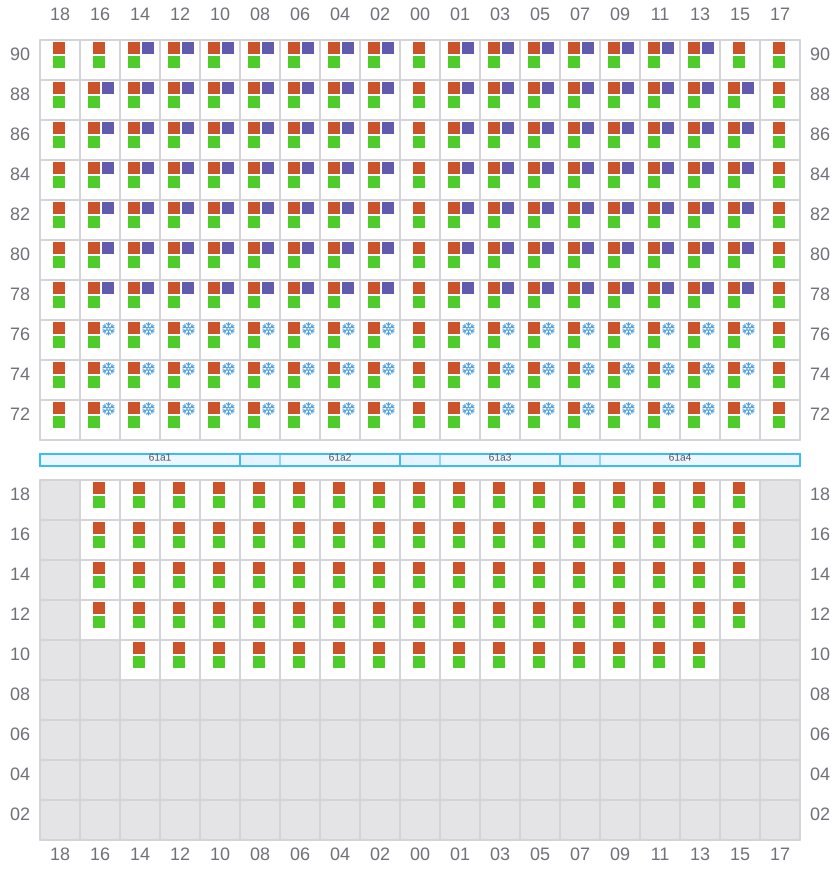

Bay 061 view and slots of MSC ROMANE

063

←
^? / _→

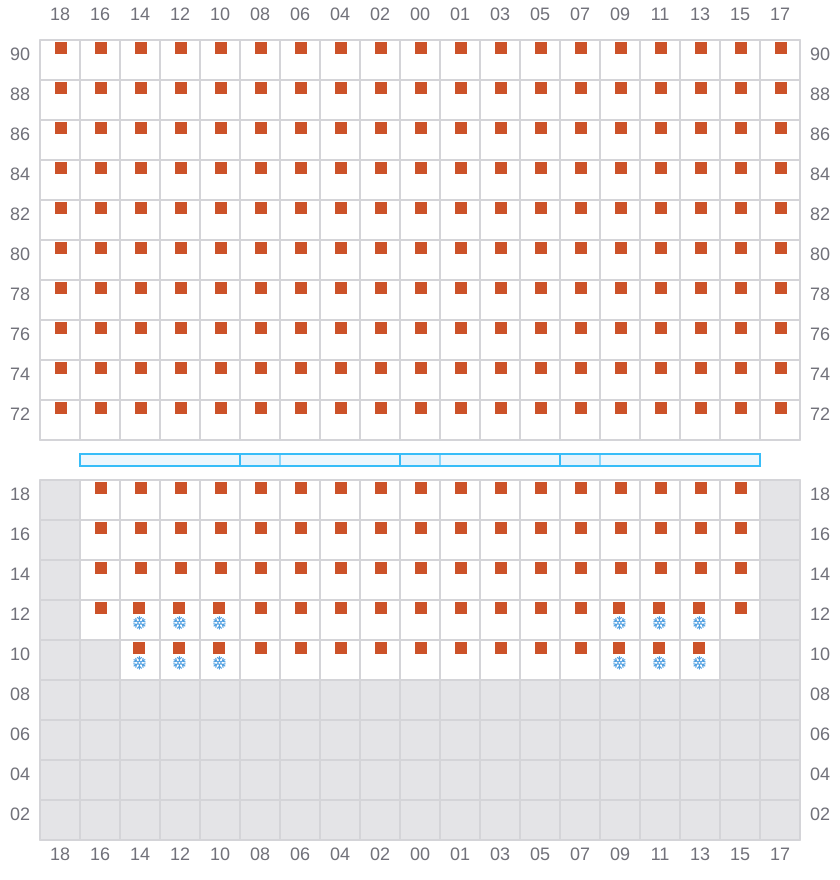

Bay 063 view and slots of MSC ROMANE

065 (066)

→
←

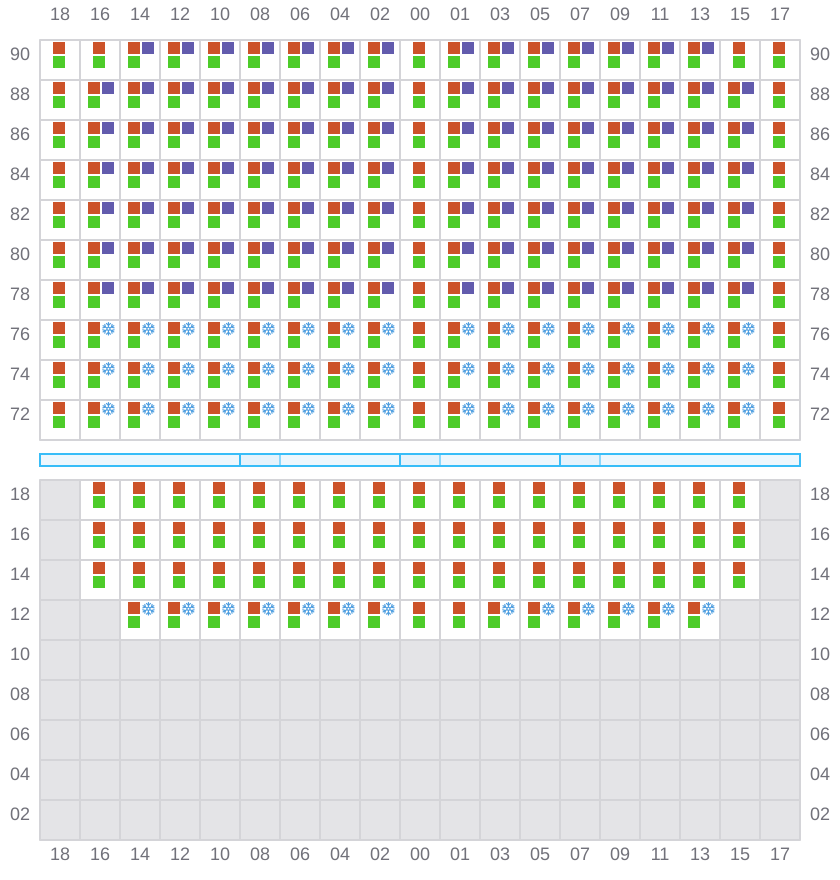

Bay 065 view and slots of MSC ROMANE

067

←

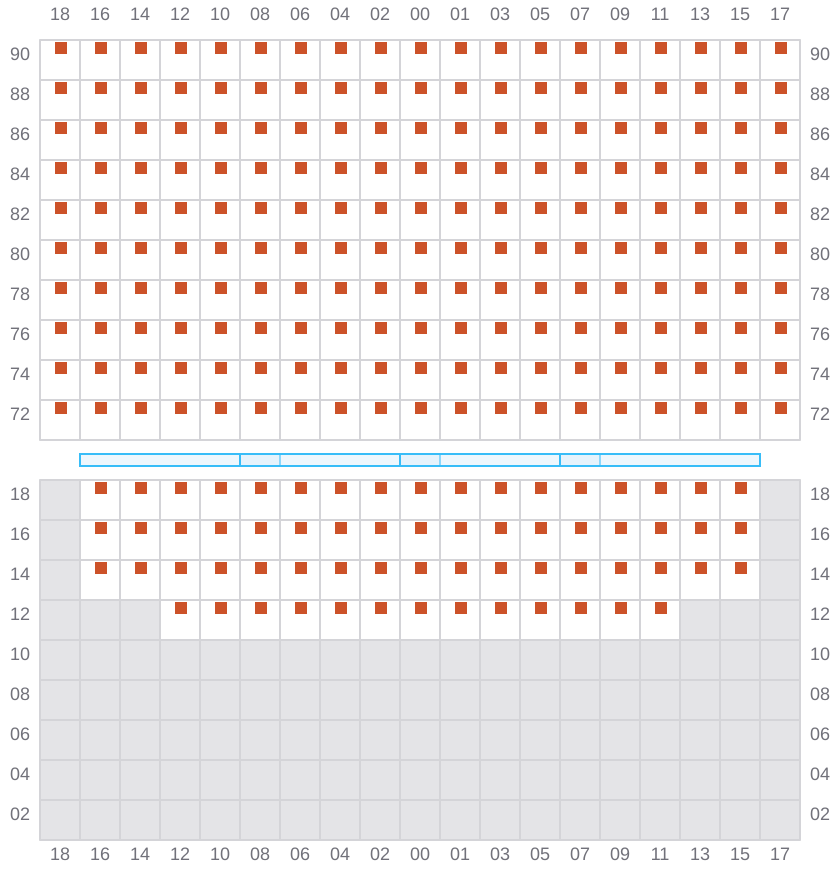

Bay 067 view and slots of MSC ROMANE

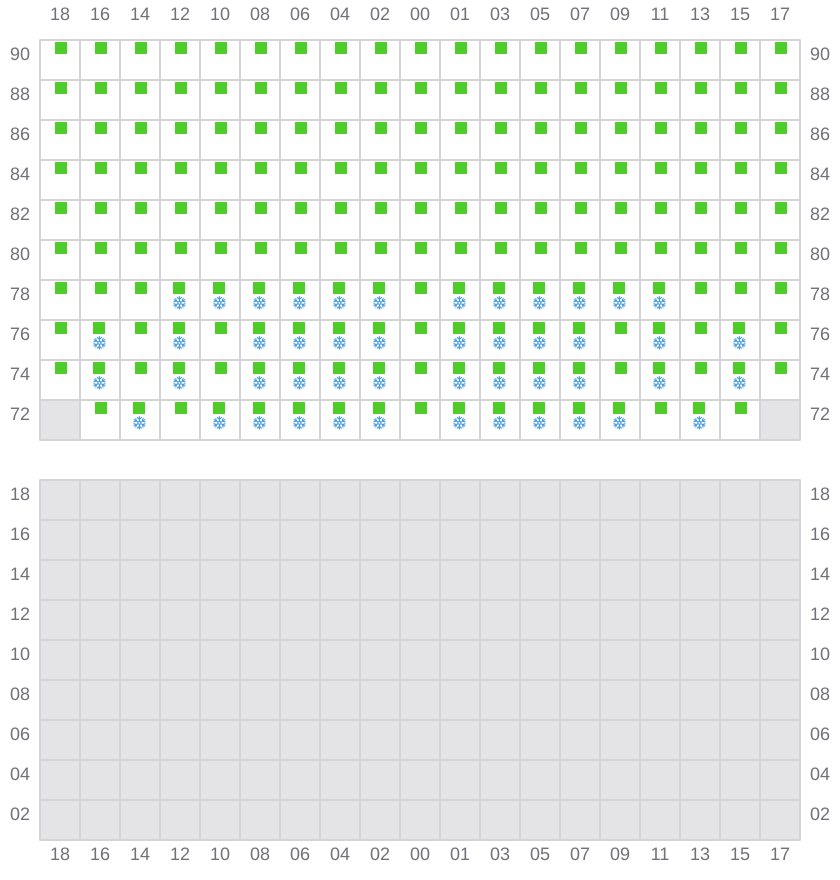

069 (070)

^→ / _?
^← / _?

Bay 069 view and slots of MSC ROMANE
