MSC RONIT R
9293167 | A8IX8 | CMA by *********************** Last update: Fri Jan 17 2025

General Info

Ship Name:MSC RONIT R
IMO Code:9293167
Call Sign:A8IX8
Line Operator:CMA
Class Name for Sister Ships:MOHU
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,939

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

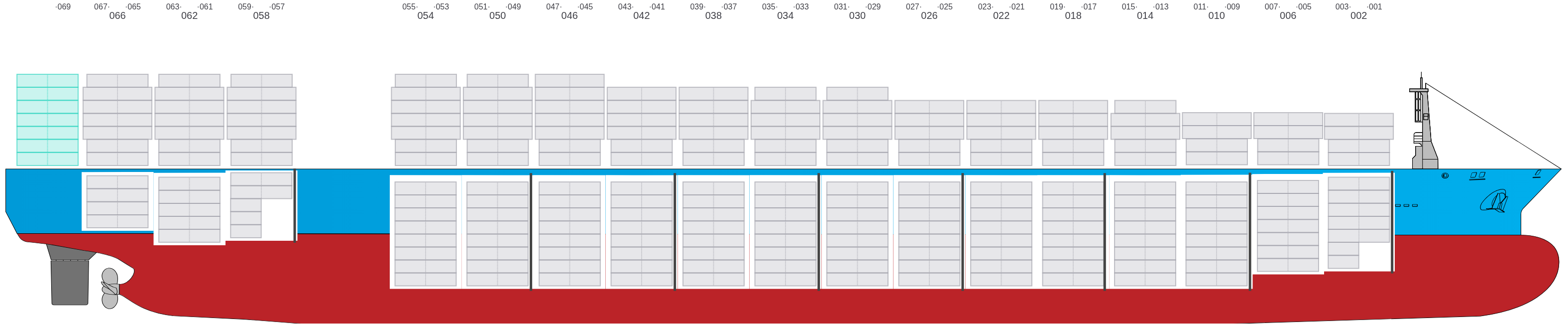

Side View

Side view of MSC RONIT R

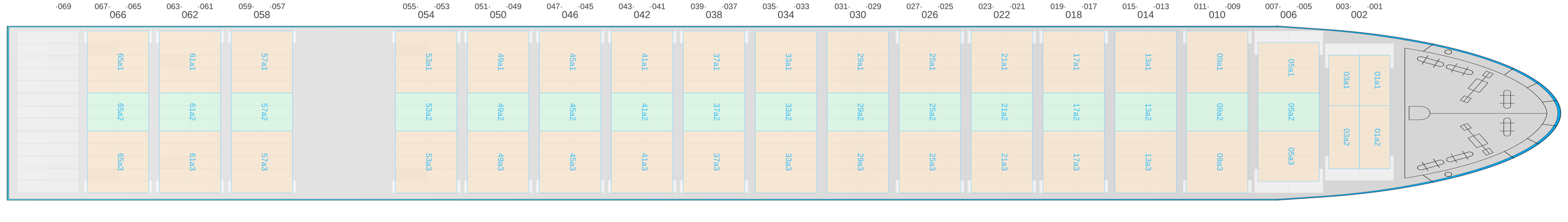

Hatch-Covers View

Deck view of MSC RONIT R

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

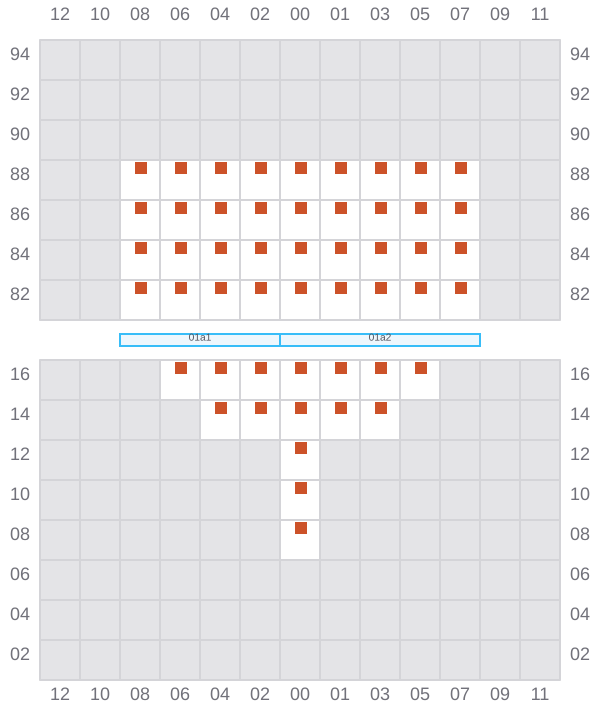

001

  • →
  • → / ?
  • →
Bay 001 view and slots of MSC RONIT R

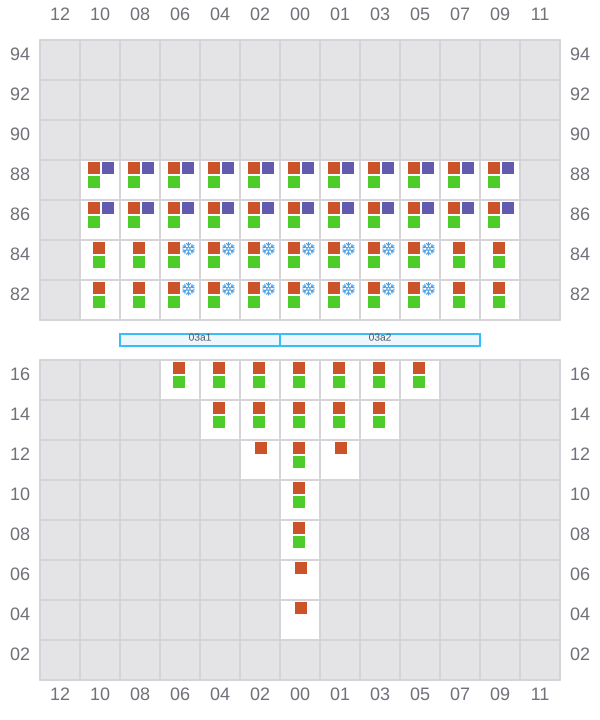

003 (002)

  • ←
  • → / ?
  • →

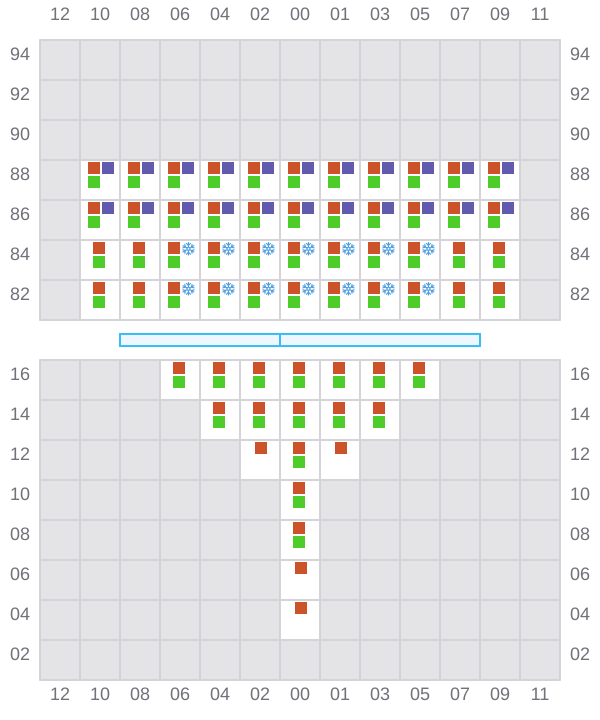

Bay 003 view and slots of MSC RONIT R

005

  • →
  • → / ?
  • →

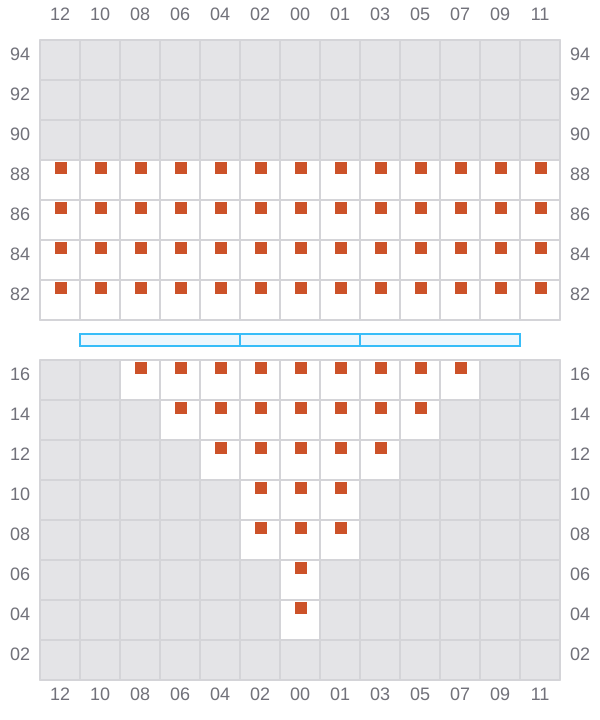

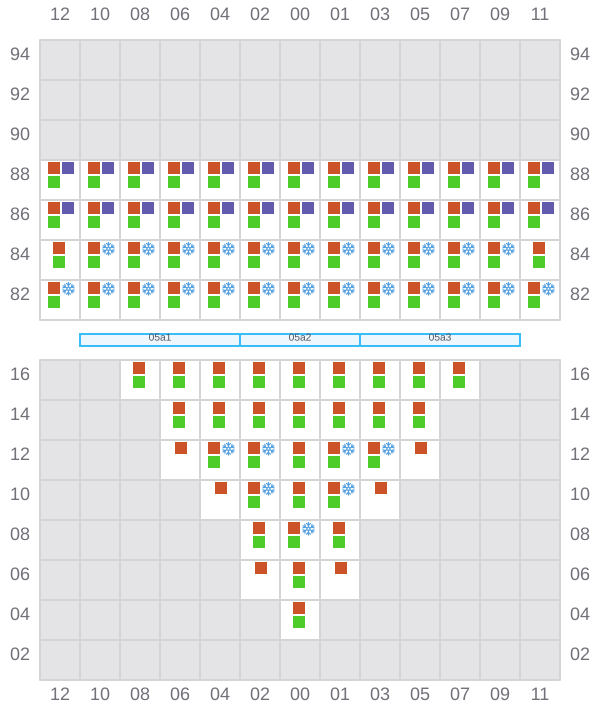

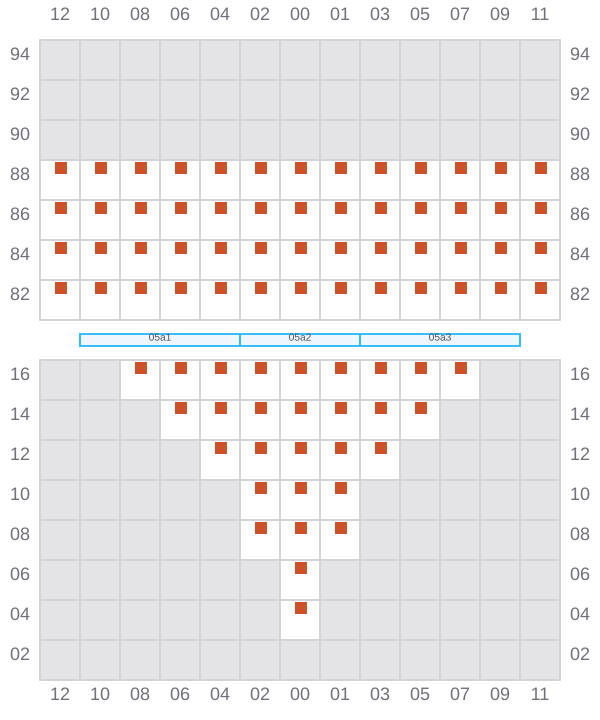

Bay 005 view and slots of MSC RONIT R

007 (006)

  • ←
  • →
  • →

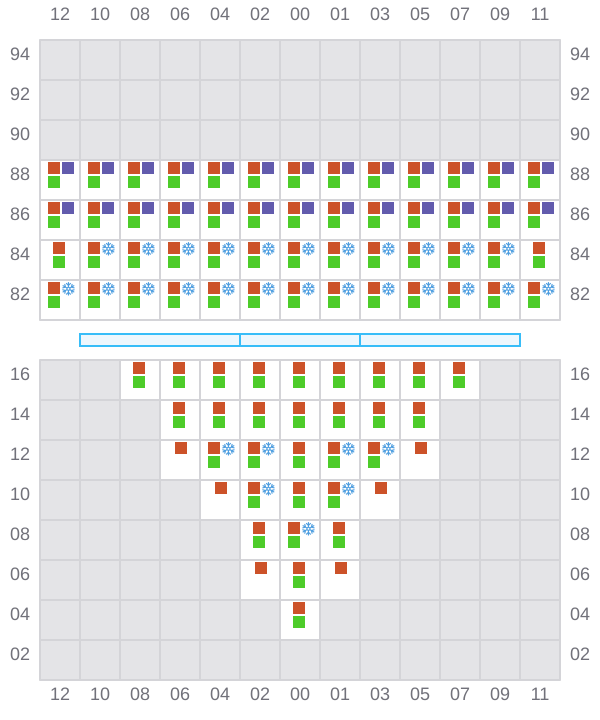

Bay 007 view and slots of MSC RONIT R

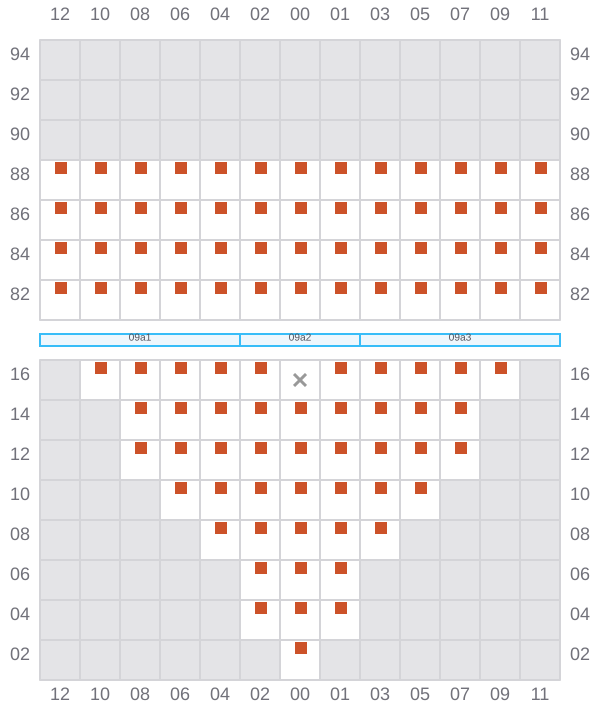

009

  • →
  • → / ?
  • →

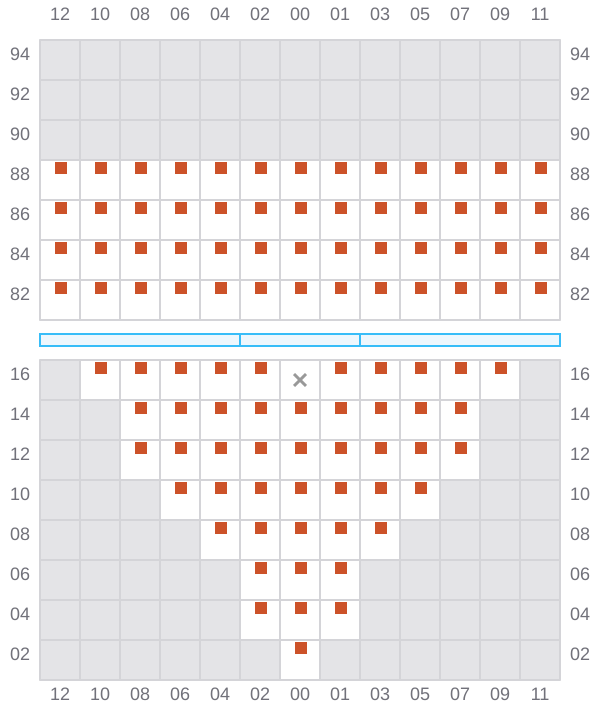

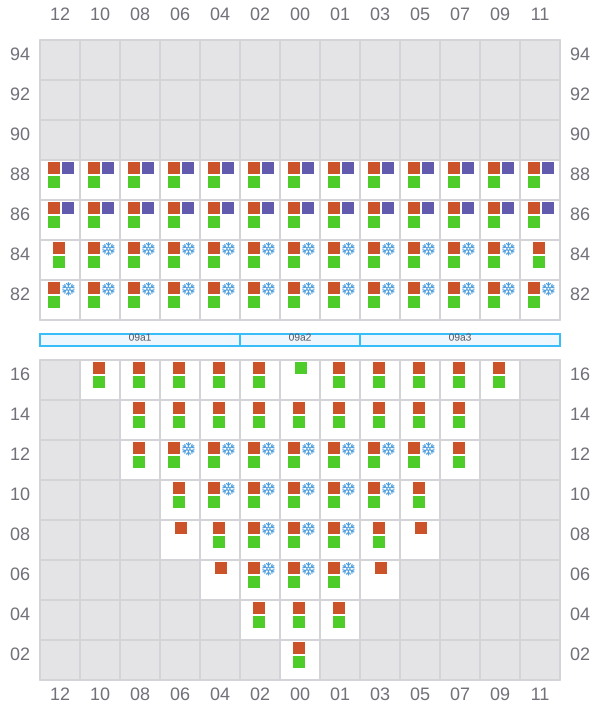

Bay 009 view and slots of MSC RONIT R

011 (010)

  • ←
  • →
  • →

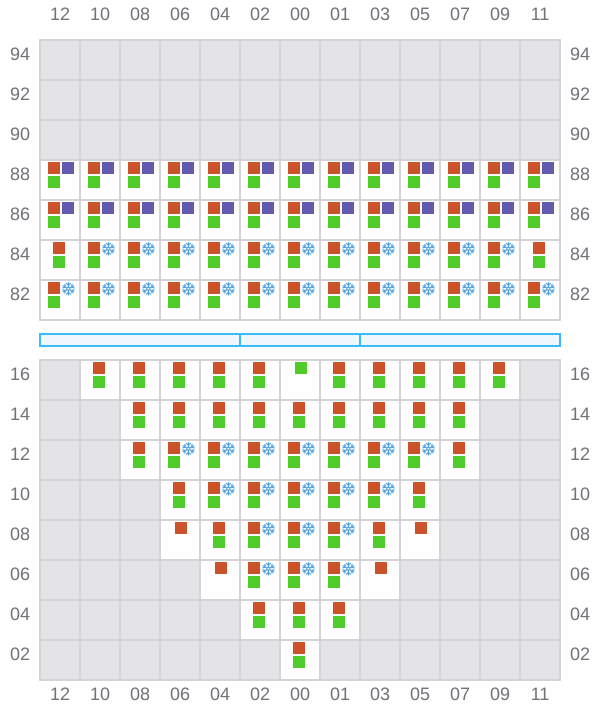

Bay 011 view and slots of MSC RONIT R

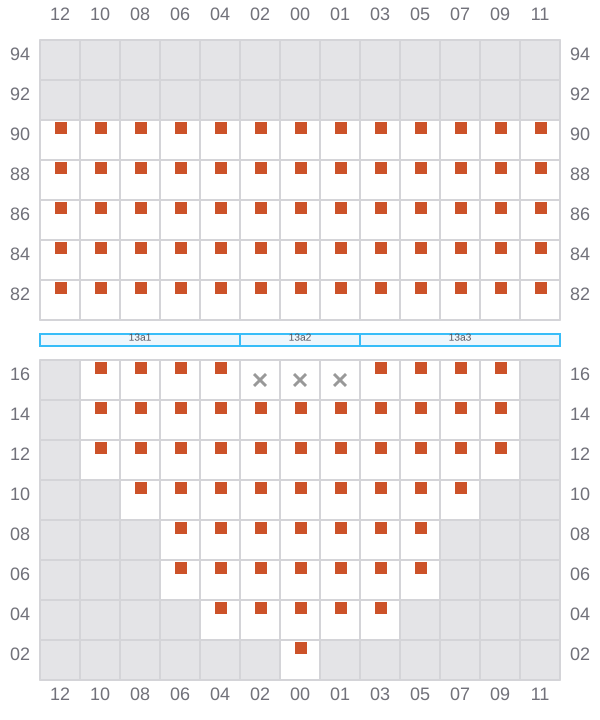

013

  • →
  • →

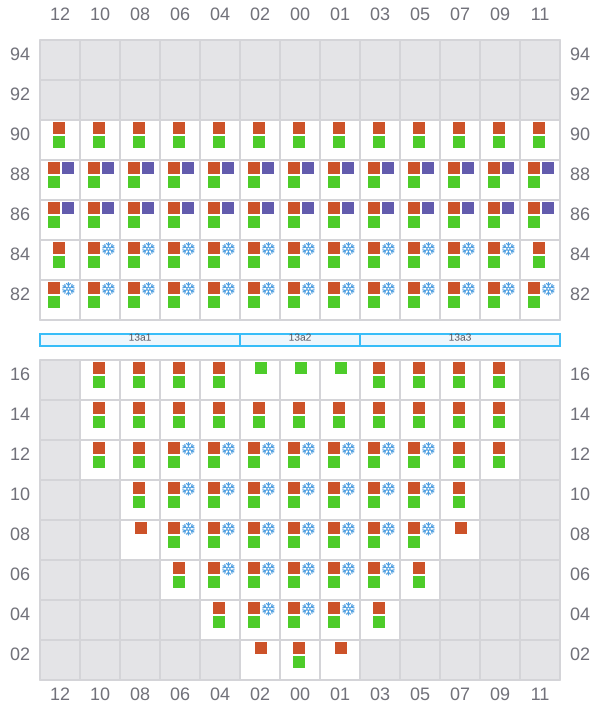

Bay 013 view and slots of MSC RONIT R

015 (014)

  • ←
  • →
  • →
Bay 015 view and slots of MSC RONIT R

017

  • →
  • →

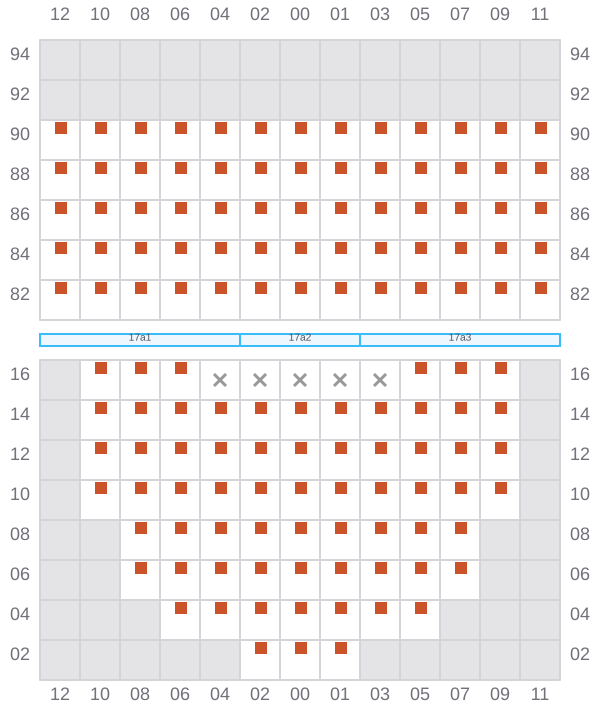

Bay 017 view and slots of MSC RONIT R

019 (018)

  • ←
  • →
  • →
Bay 019 view and slots of MSC RONIT R

021

  • →
  • →

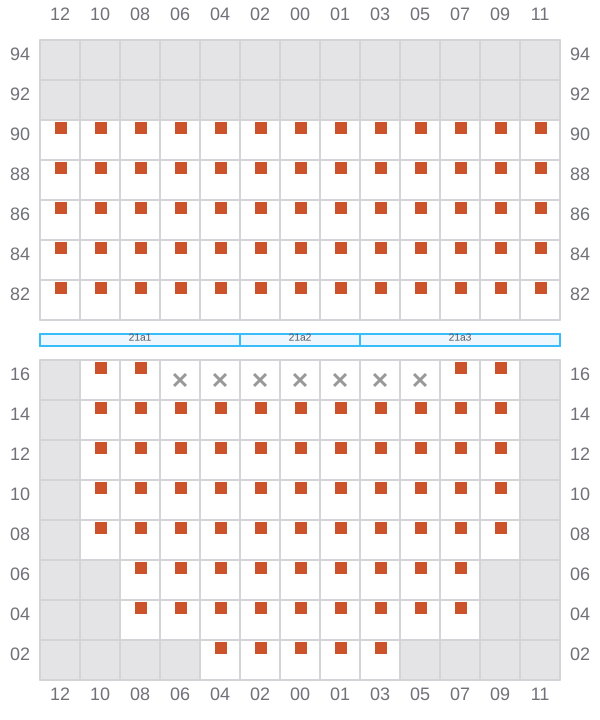

Bay 021 view and slots of MSC RONIT R

023 (022)

  • ←
  • →
  • →
Bay 023 view and slots of MSC RONIT R

025

  • →
  • ← / ?
  • →
Bay 025 view and slots of MSC RONIT R

027 (026)

  • ←
  • →
  • →
Bay 027 view and slots of MSC RONIT R

029

  • →
  • →

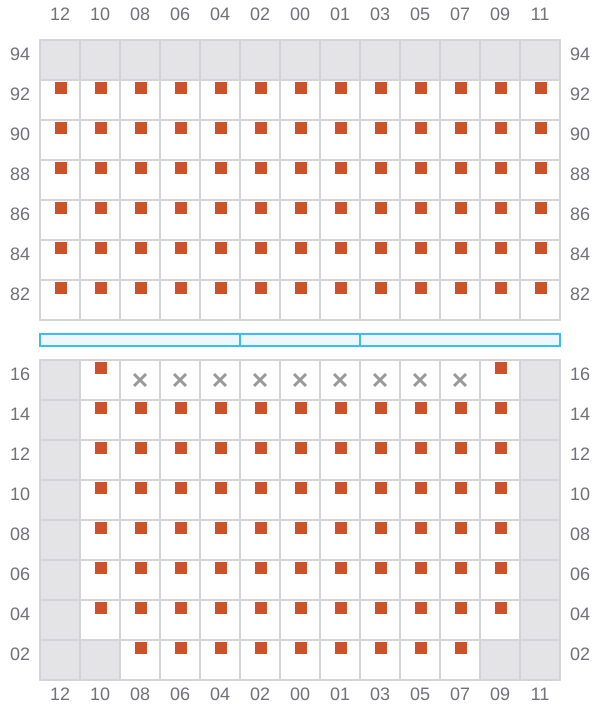

Bay 029 view and slots of MSC RONIT R

031 (030)

  • ←
  • →
  • →

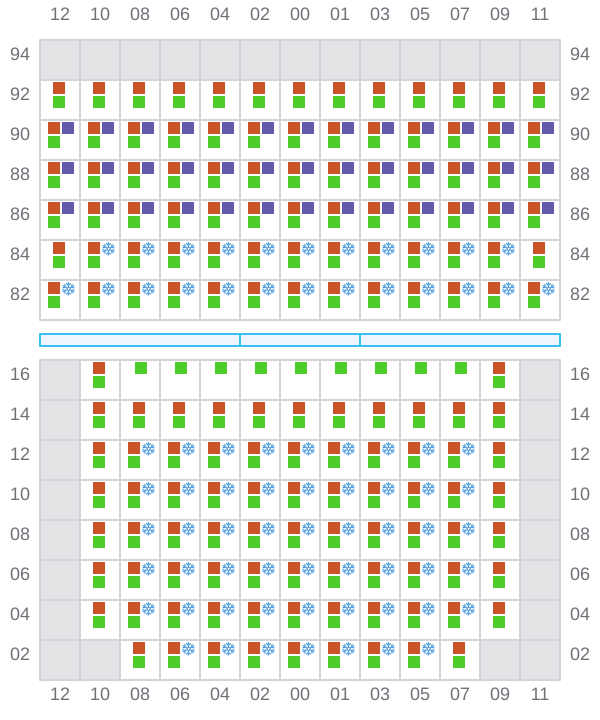

Bay 031 view and slots of MSC RONIT R

033

  • →
  • →
Bay 033 view and slots of MSC RONIT R

035 (034)

  • ←
  • →
  • →

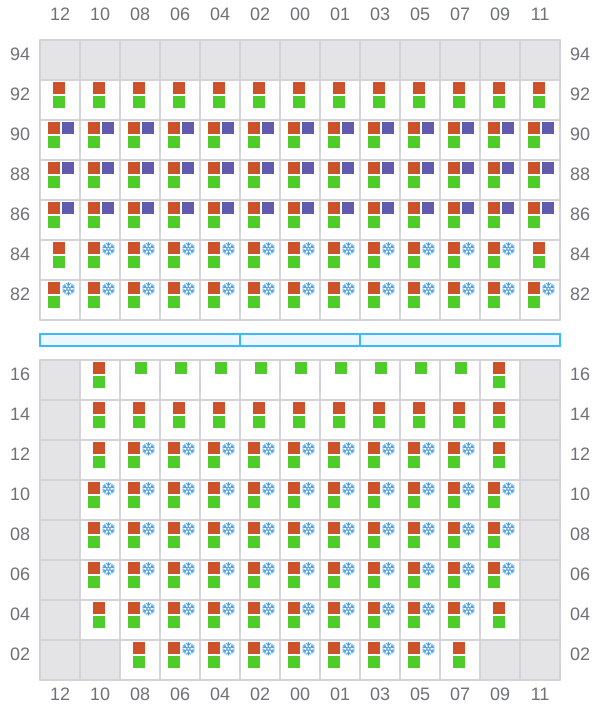

Bay 035 view and slots of MSC RONIT R

037

  • →
  • →
Bay 037 view and slots of MSC RONIT R

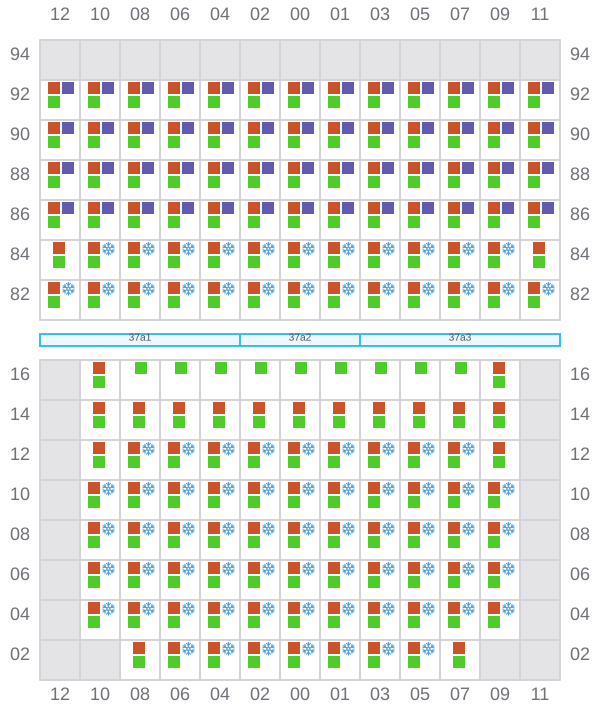

039 (038)

  • ←
  • →
  • →
Bay 039 view and slots of MSC RONIT R

041

  • →
  • →
Bay 041 view and slots of MSC RONIT R

043 (042)

  • ←
  • →
  • →
Bay 043 view and slots of MSC RONIT R

045

  • →
  • →
Bay 045 view and slots of MSC RONIT R

047 (046)

  • ←
  • →
  • →

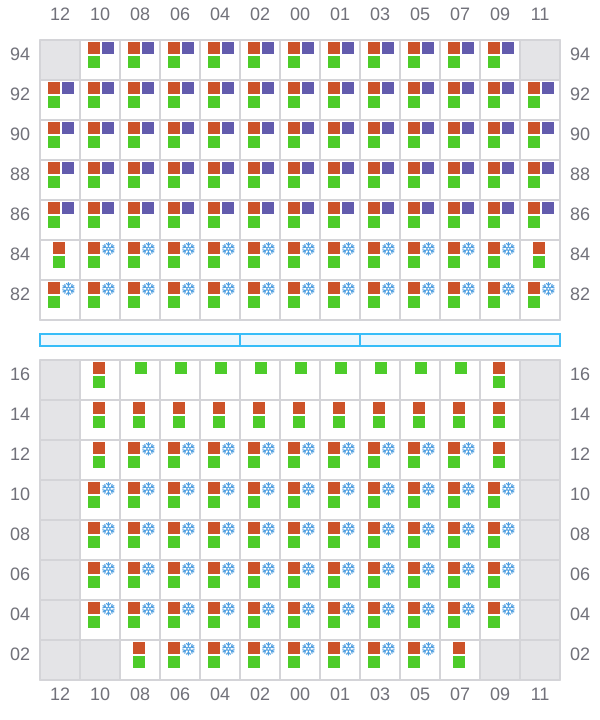

Bay 047 view and slots of MSC RONIT R

049

  • →
  • →
Bay 049 view and slots of MSC RONIT R

051 (050)

  • ←
  • →
  • →

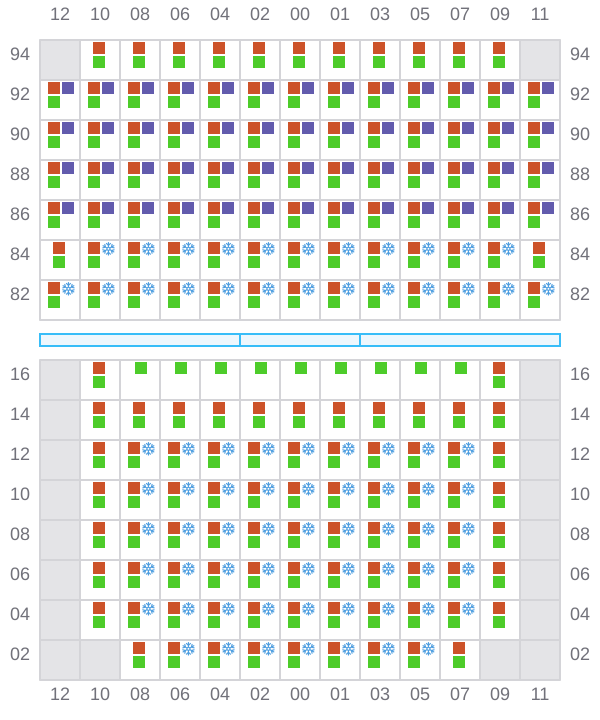

Bay 051 view and slots of MSC RONIT R

053

  • →
  • →

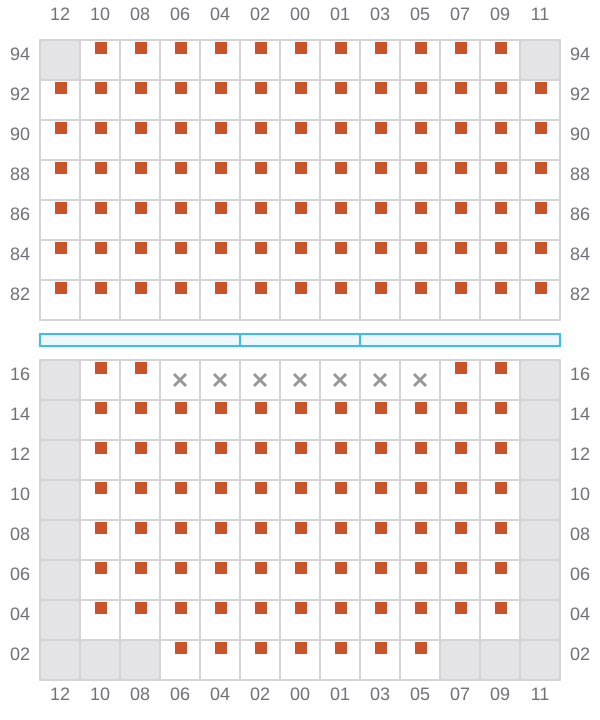

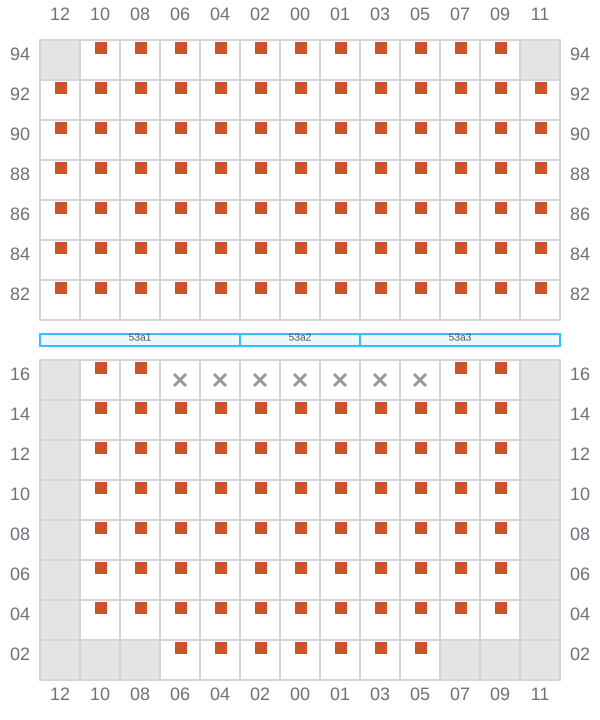

Bay 053 view and slots of MSC RONIT R

055 (054)

  • ←
  • →
  • →

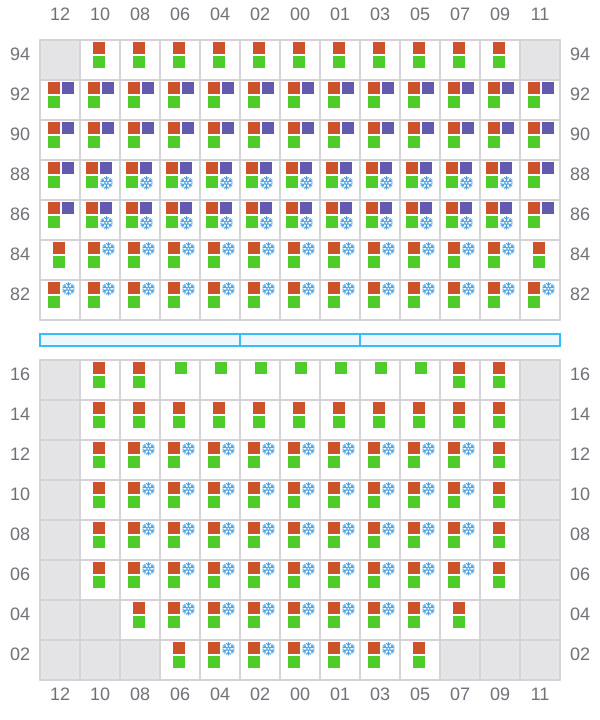

Bay 055 view and slots of MSC RONIT R

057

  • →
  • ← / ?
  • →

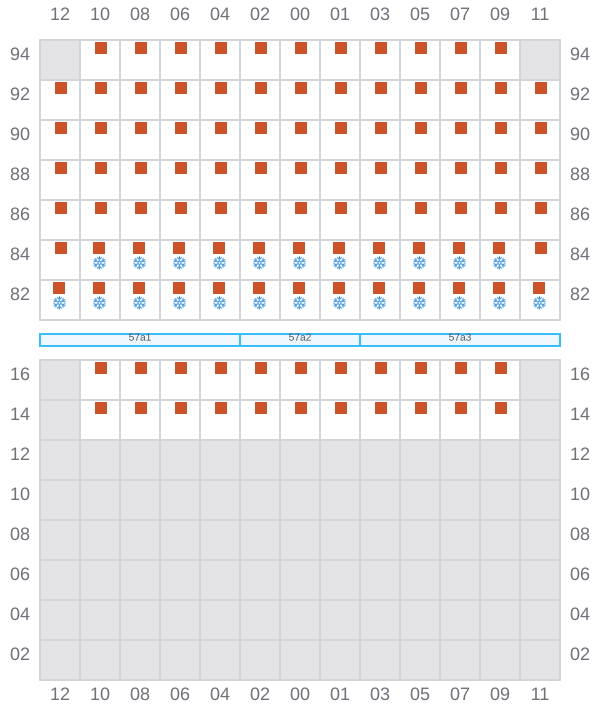

Bay 057 view and slots of MSC RONIT R

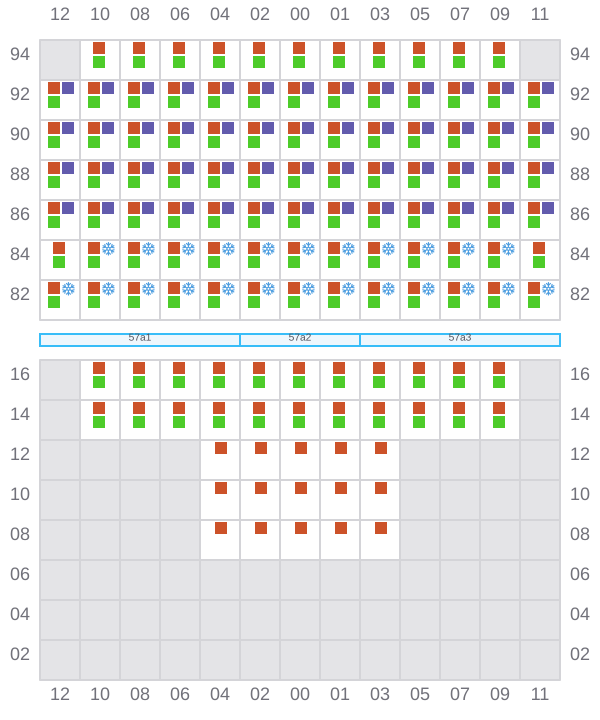

059 (058)

  • ←
  • ← / ?
  • →

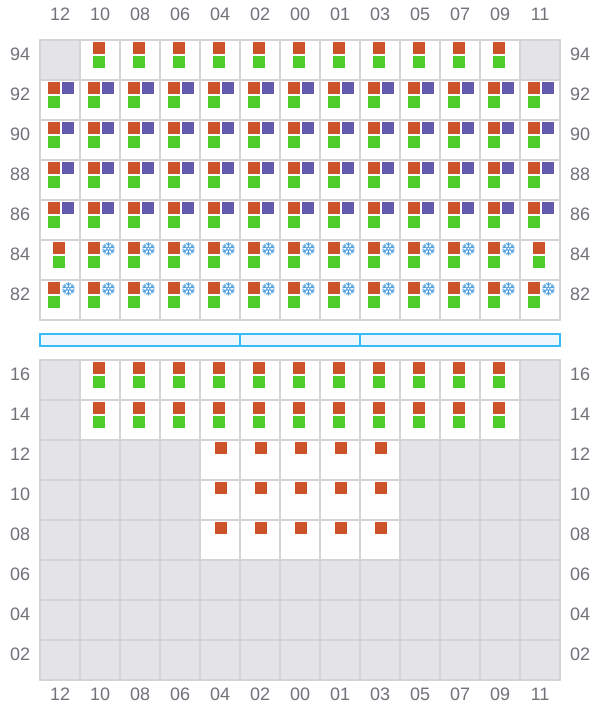

Bay 059 view and slots of MSC RONIT R

061

  • →
  • ←
  • →

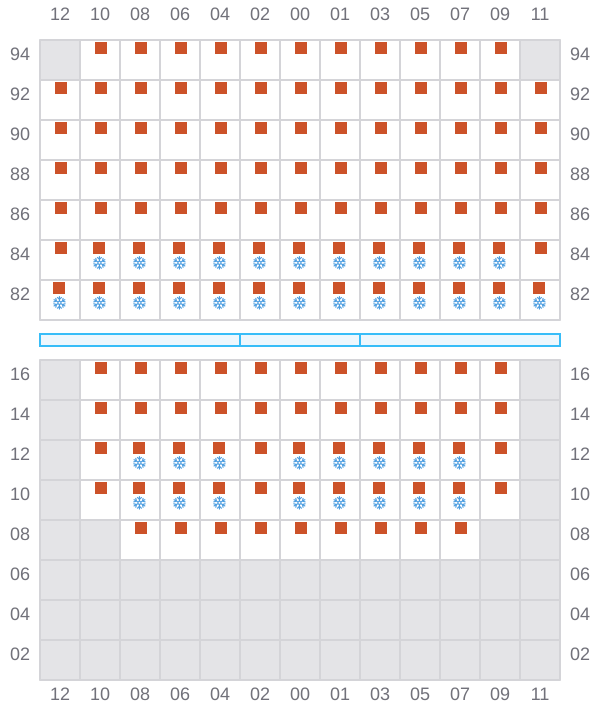

Bay 061 view and slots of MSC RONIT R

063 (062)

  • ←
  • ←
  • →

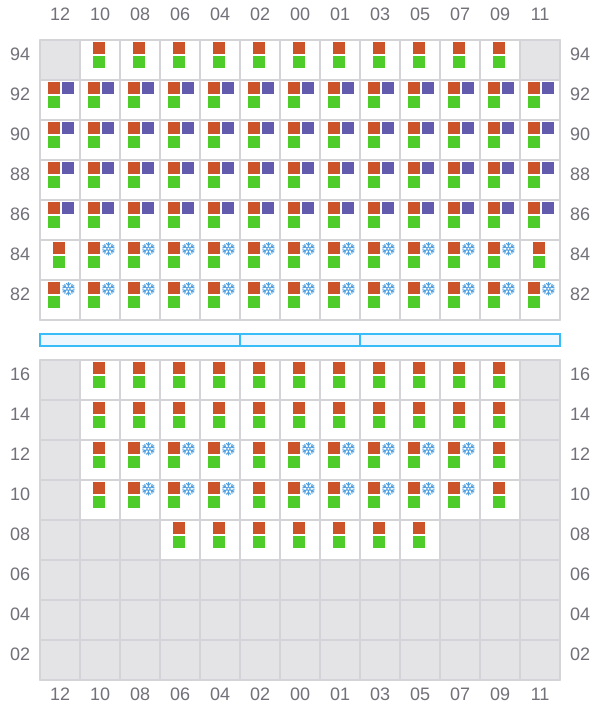

Bay 063 view and slots of MSC RONIT R

065

  • →
  • ←
  • →

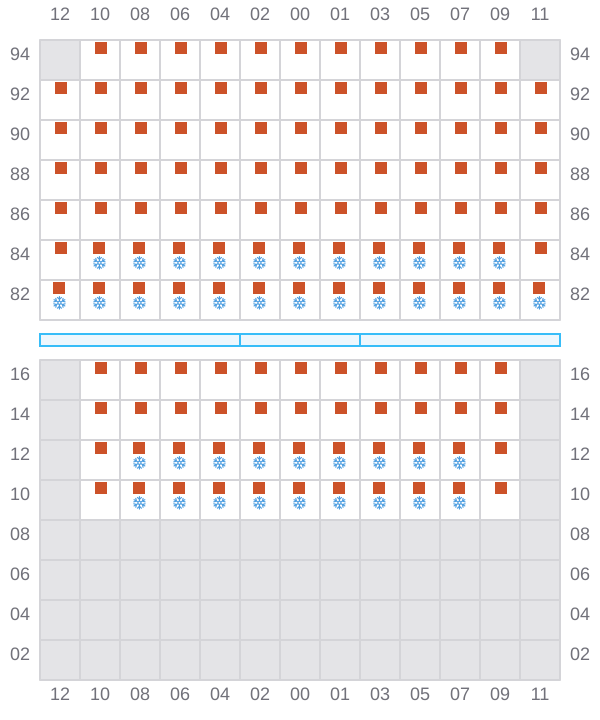

Bay 065 view and slots of MSC RONIT R

067 (066)

  • ←
  • ←
  • →

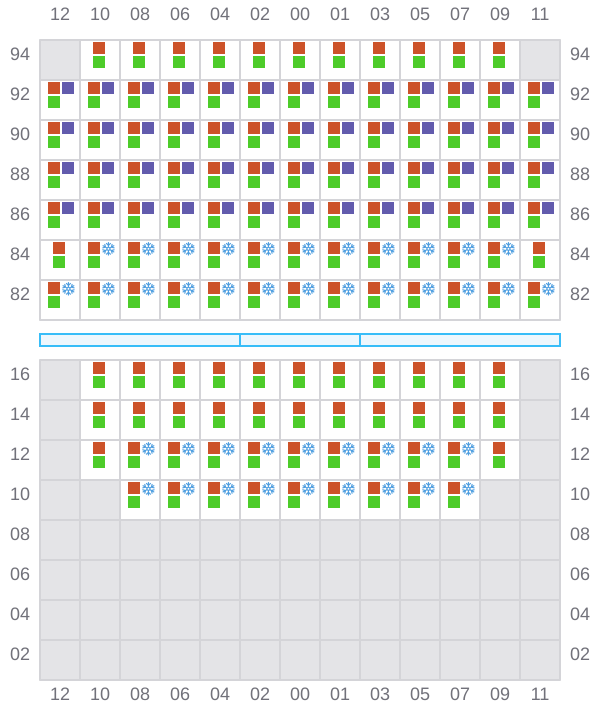

Bay 067 view and slots of MSC RONIT R

069 (070)

  • → / ?
  • ← / ?
  • → / ?

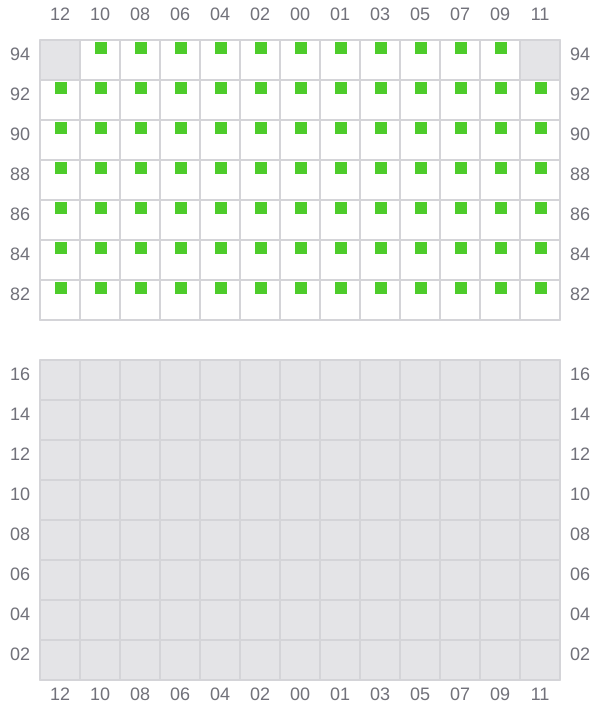

Bay 069 view and slots of MSC RONIT R
