MSC ROSHNEY V
9337676 | D5OO9 | NYK by *********************** Last update: Fri Jan 24 2025

General Info

Ship Name:MSC ROSHNEY V
IMO Code:9337676
Call Sign:D5OO9
Line Operator:NYK
Class Name for Sister Ships:NDEN
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,888

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

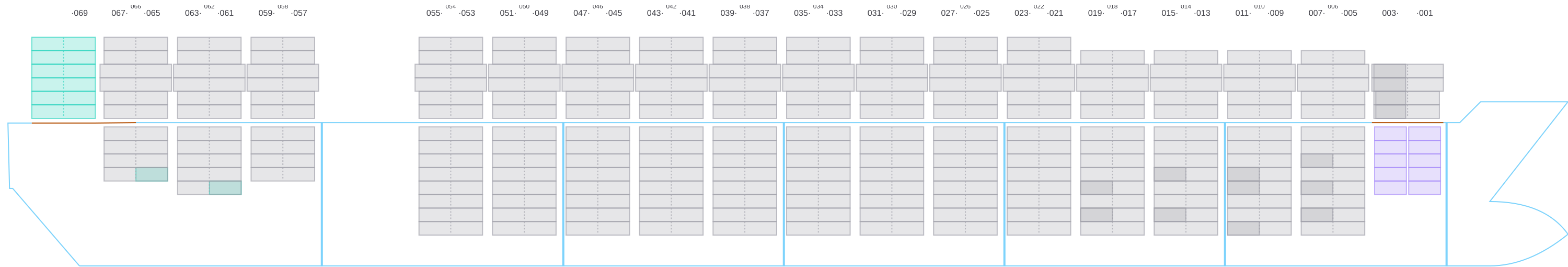

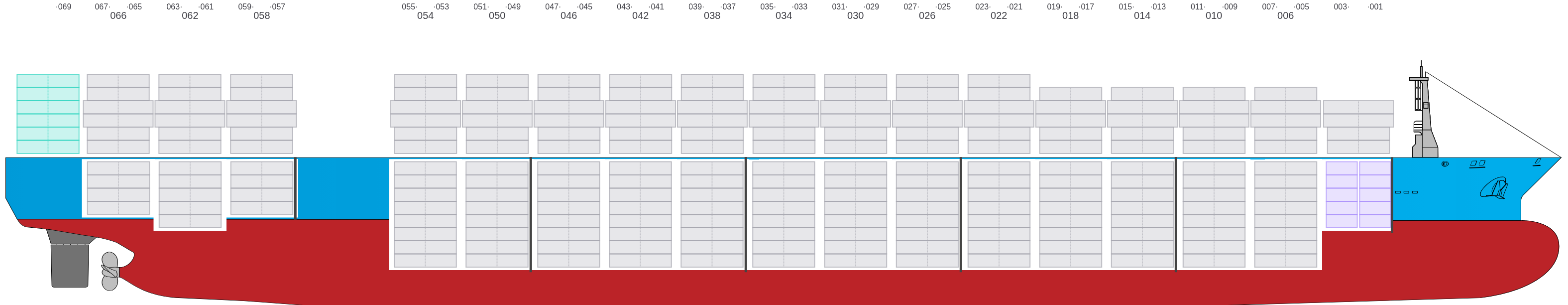

Side View

Side view of MSC ROSHNEY V

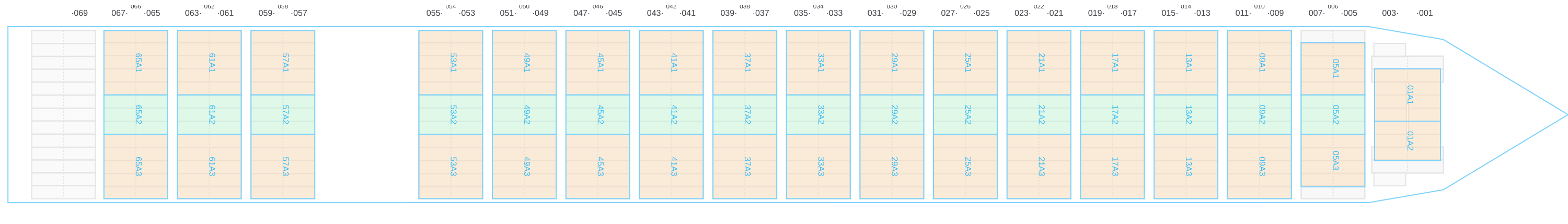

Hatch-Covers View

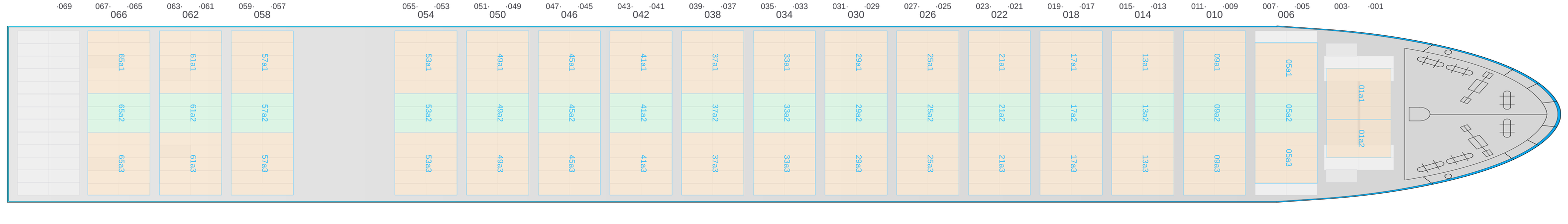

Deck view of MSC ROSHNEY V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • → / ?
  • →

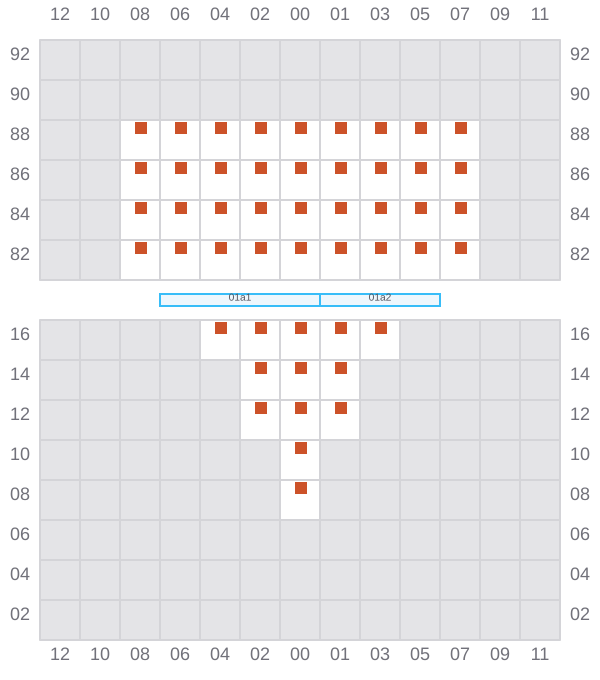

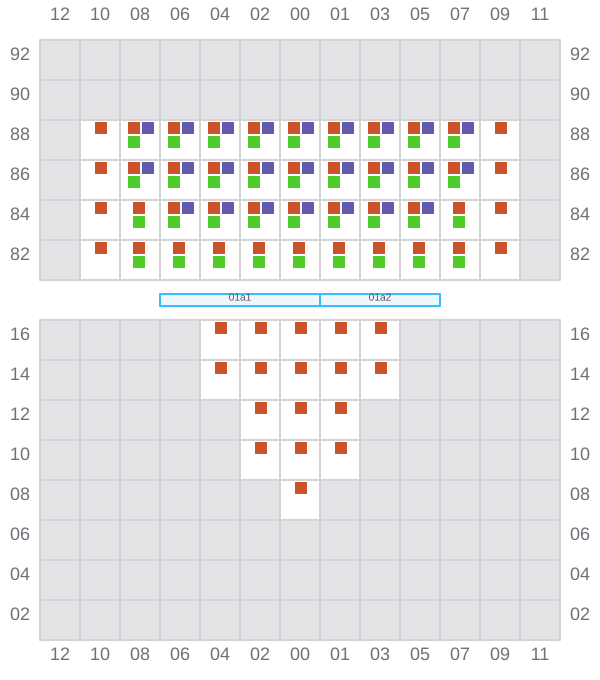

Bay 001 view and slots of MSC ROSHNEY V

003 (002)

  • ← / ?
  • →
Bay 003 view and slots of MSC ROSHNEY V

005

  • →
  • →

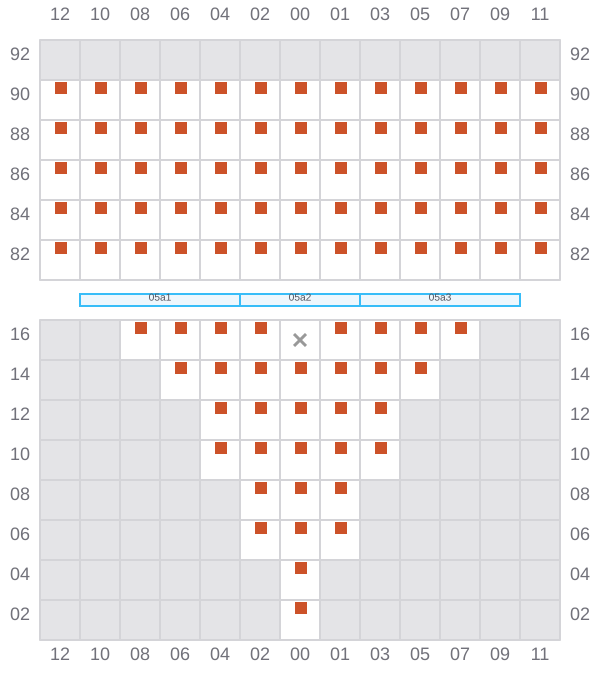

Bay 005 view and slots of MSC ROSHNEY V

007 (006)

  • ←
  • →
Bay 007 view and slots of MSC ROSHNEY V

009

  • →
  • ? / →

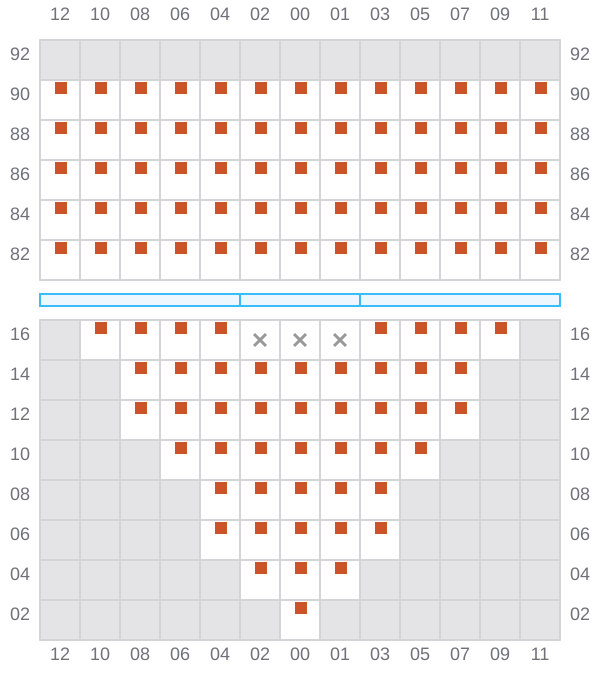

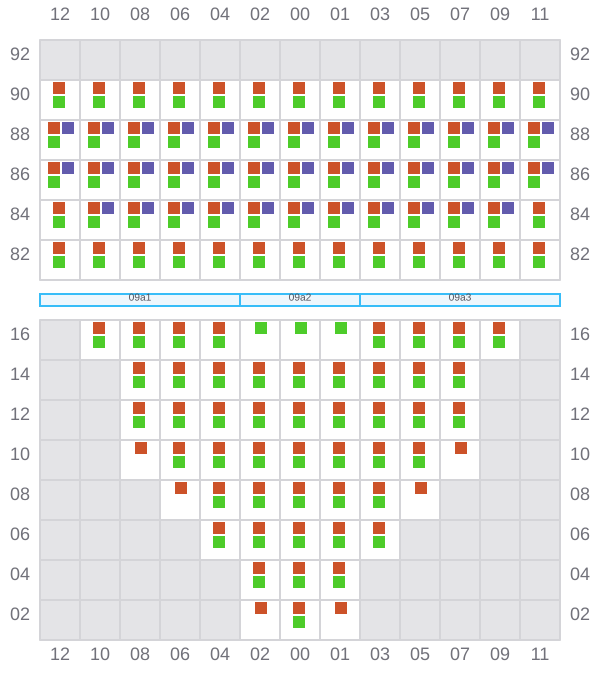

Bay 009 view and slots of MSC ROSHNEY V

011 (010)

  • ←
  • →

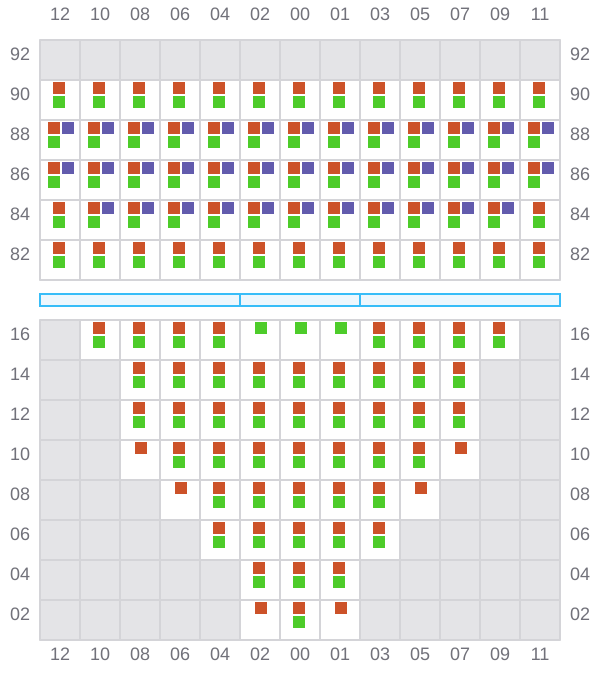

Bay 011 view and slots of MSC ROSHNEY V

013

  • →
  • ← / ?
  • → / ?

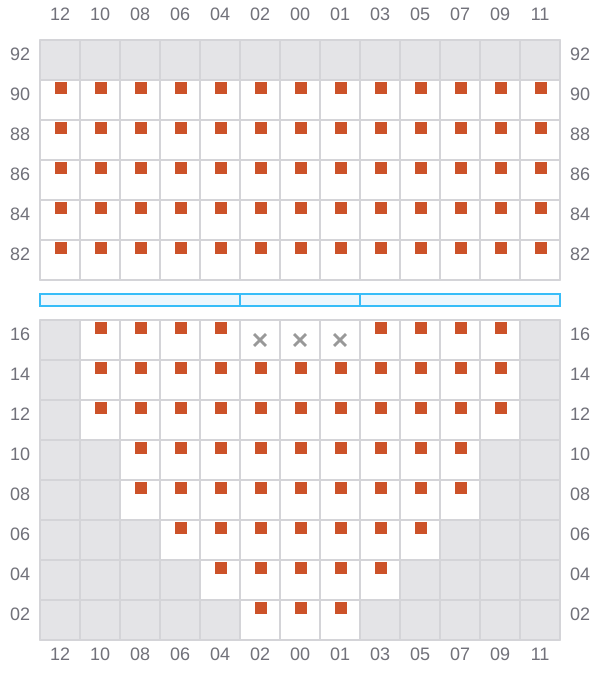

Bay 013 view and slots of MSC ROSHNEY V

015 (014)

  • ←
  • → / ?
  • → / ?

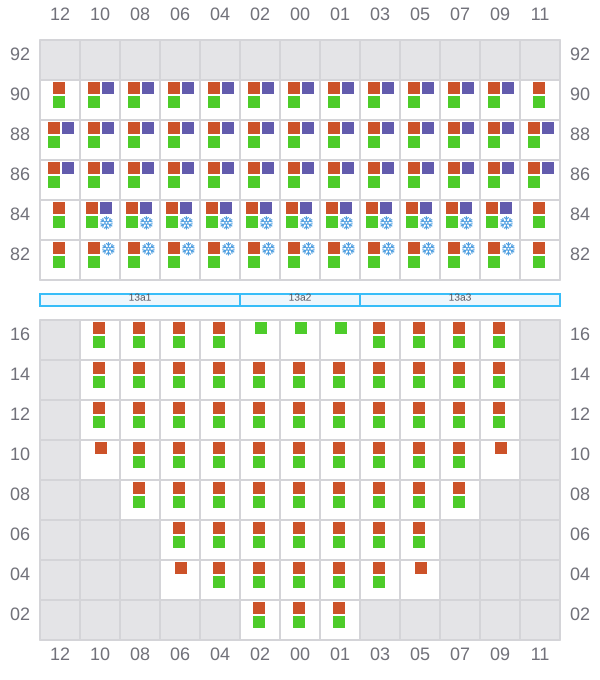

Bay 015 view and slots of MSC ROSHNEY V

017

  • →
  • ← / ?
  • →

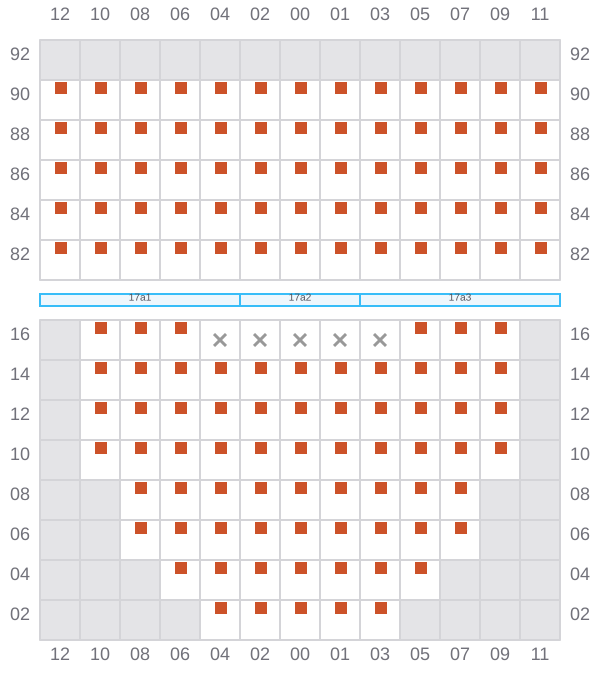

Bay 017 view and slots of MSC ROSHNEY V

019 (018)

  • ←
  • → / ?
  • →

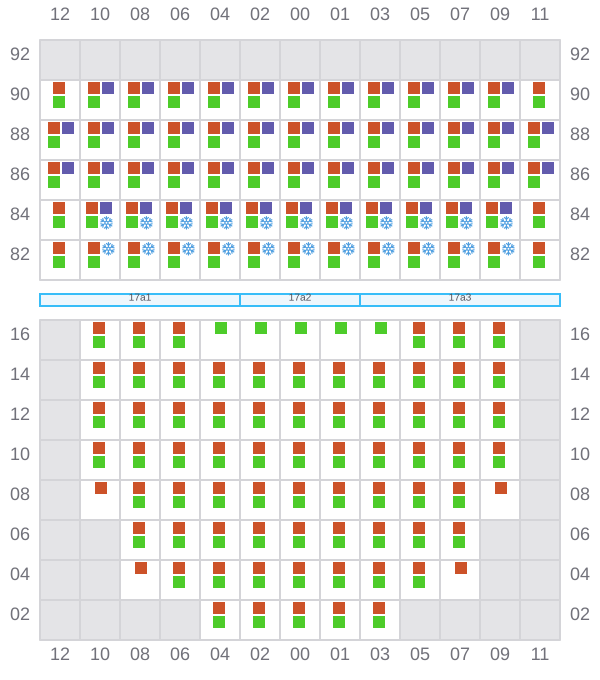

Bay 019 view and slots of MSC ROSHNEY V

021

  • →
  • ← / ?
  • →

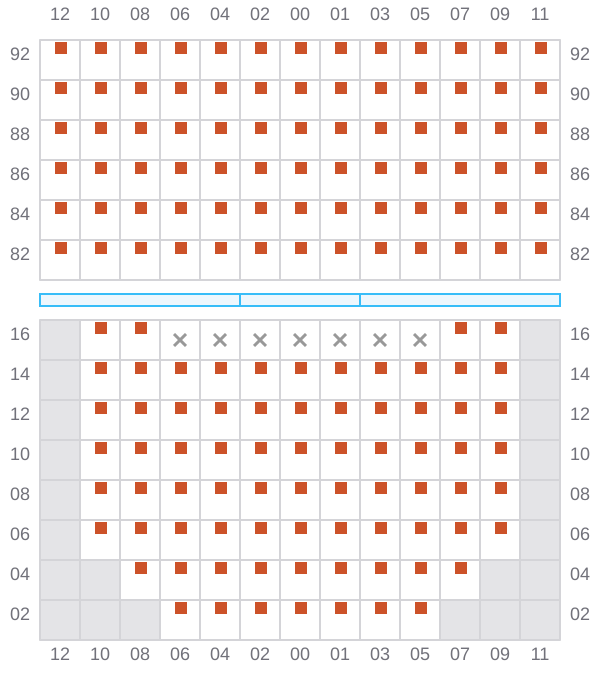

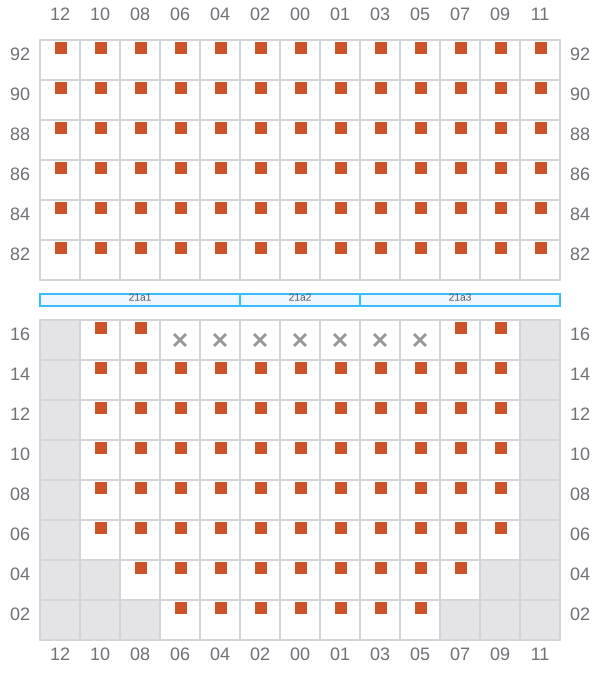

Bay 021 view and slots of MSC ROSHNEY V

023 (022)

  • ←
  • → / ?
  • →

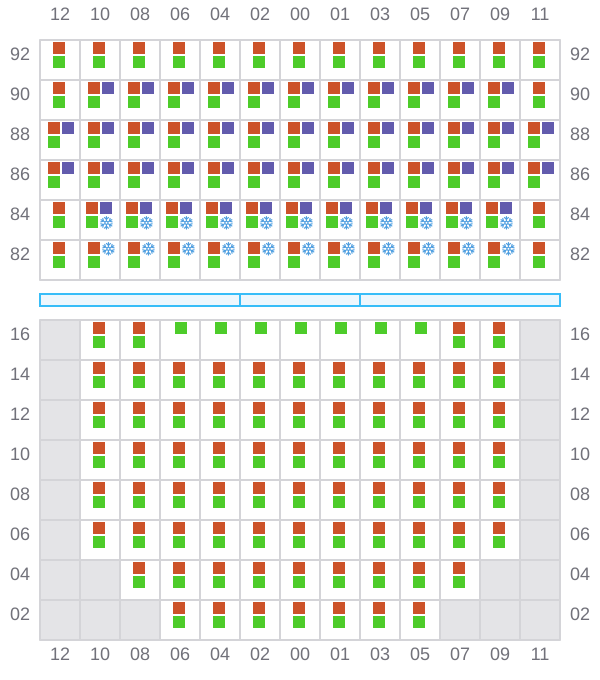

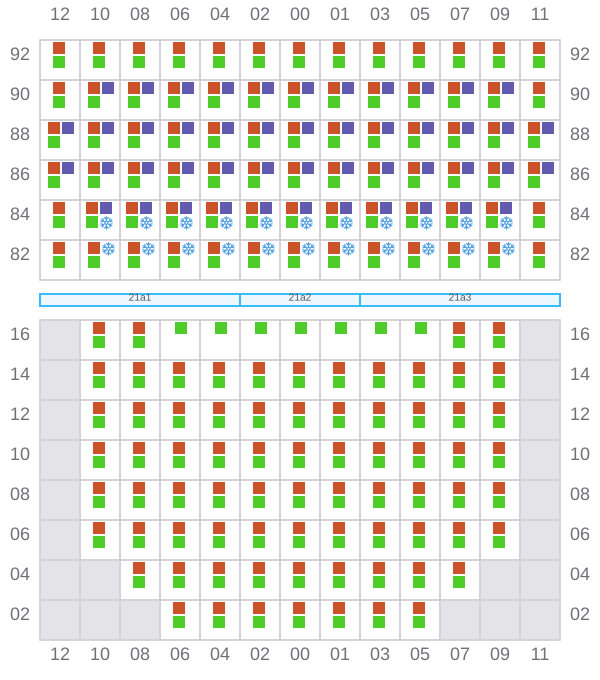

Bay 023 view and slots of MSC ROSHNEY V

025

  • →
  • ← / ?
  • →
Bay 025 view and slots of MSC ROSHNEY V

027 (026)

  • ←
  • → / ?
  • →

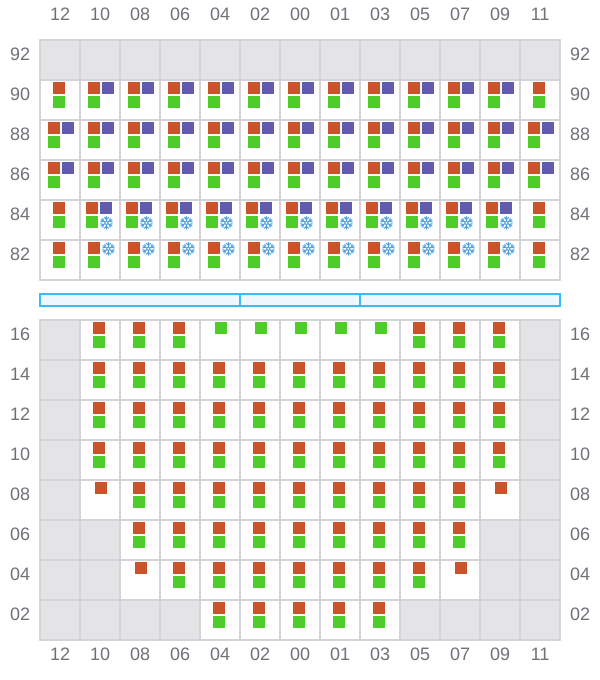

Bay 027 view and slots of MSC ROSHNEY V

029

  • →
  • ← / ?
  • →
Bay 029 view and slots of MSC ROSHNEY V

031 (030)

  • ←
  • → / ?
  • →

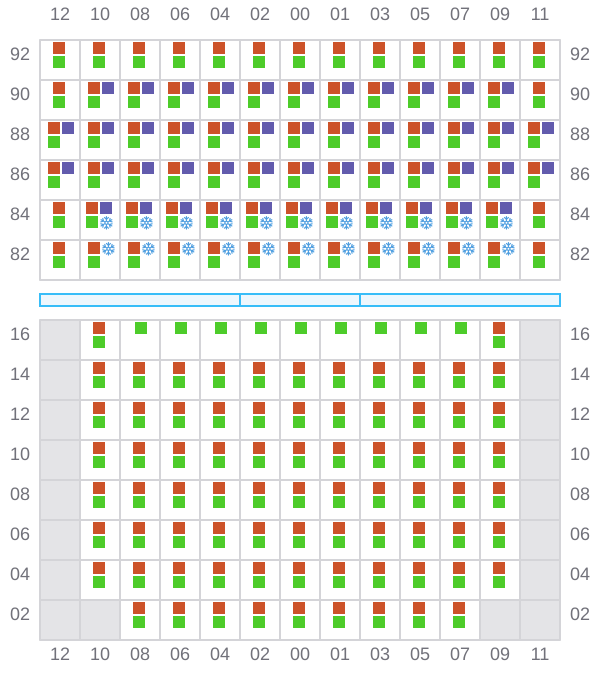

Bay 031 view and slots of MSC ROSHNEY V

033

  • →
  • ← / ?
  • →

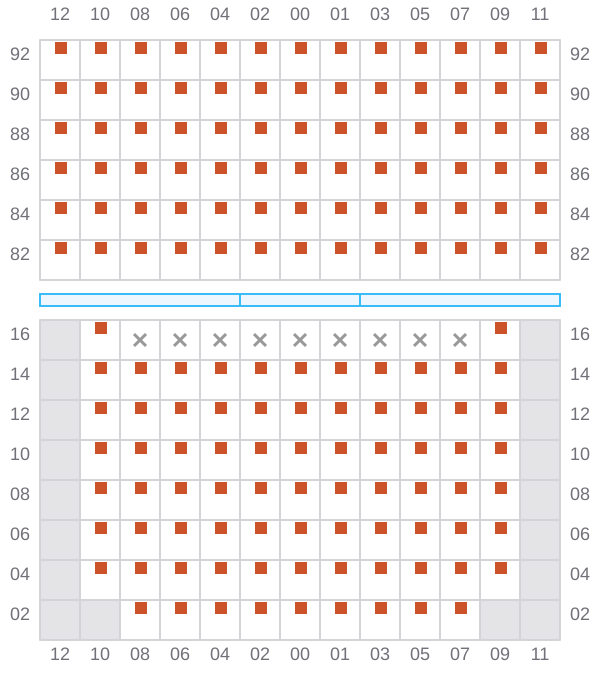

Bay 033 view and slots of MSC ROSHNEY V

035 (034)

  • ←
  • → / ?
  • →

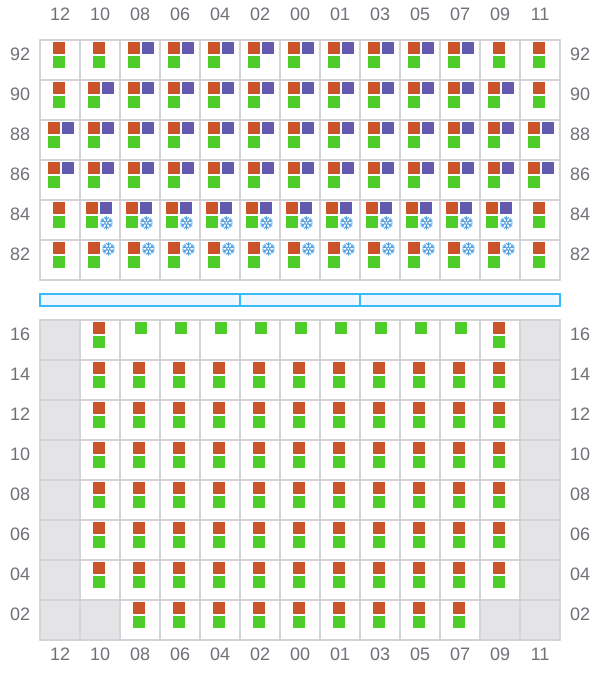

Bay 035 view and slots of MSC ROSHNEY V

037

  • →
  • ← / ?
  • →
Bay 037 view and slots of MSC ROSHNEY V

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of MSC ROSHNEY V

041

  • →
  • ← / ?
  • →
Bay 041 view and slots of MSC ROSHNEY V

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of MSC ROSHNEY V

045

  • →
  • ← / ?
  • →

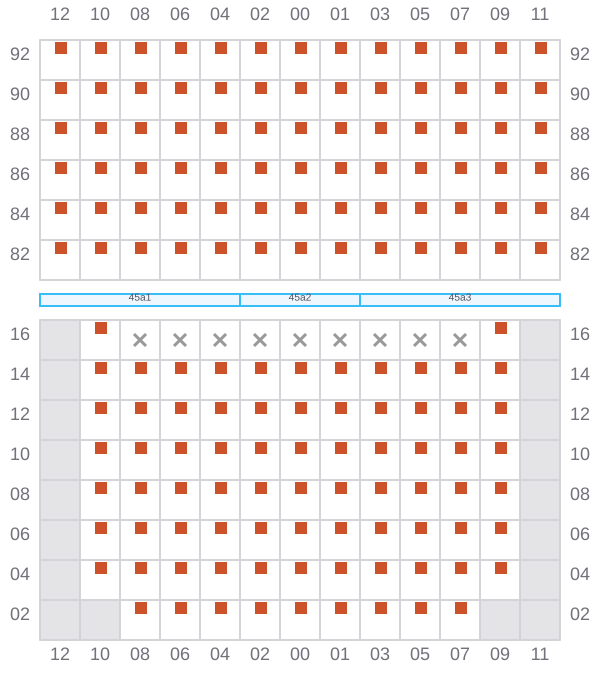

Bay 045 view and slots of MSC ROSHNEY V

047 (046)

  • ←
  • → / ?
  • →

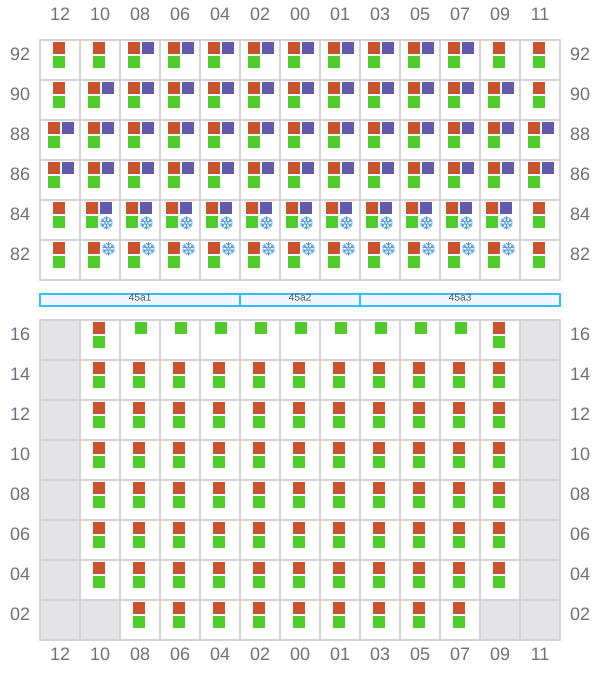

Bay 047 view and slots of MSC ROSHNEY V

049

  • →
  • ← / ?
  • →

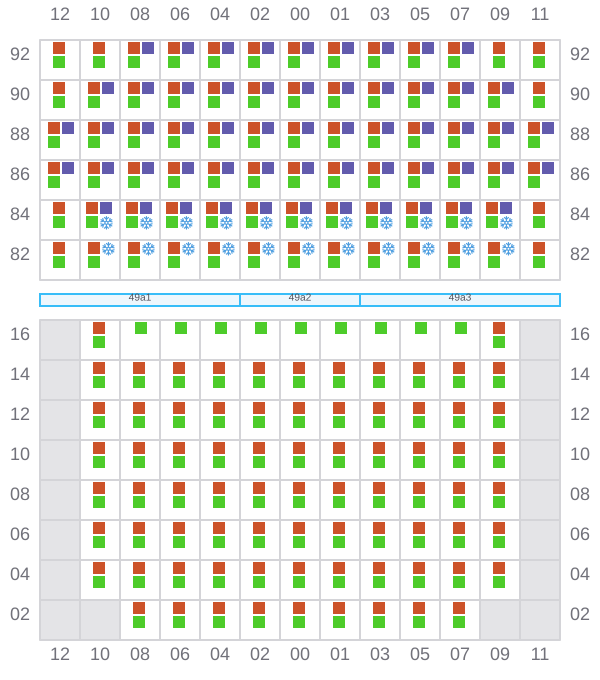

Bay 049 view and slots of MSC ROSHNEY V

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of MSC ROSHNEY V

053

  • →
  • ← / ?
  • →
Bay 053 view and slots of MSC ROSHNEY V

055 (054)

  • ←
  • → / ?
  • →

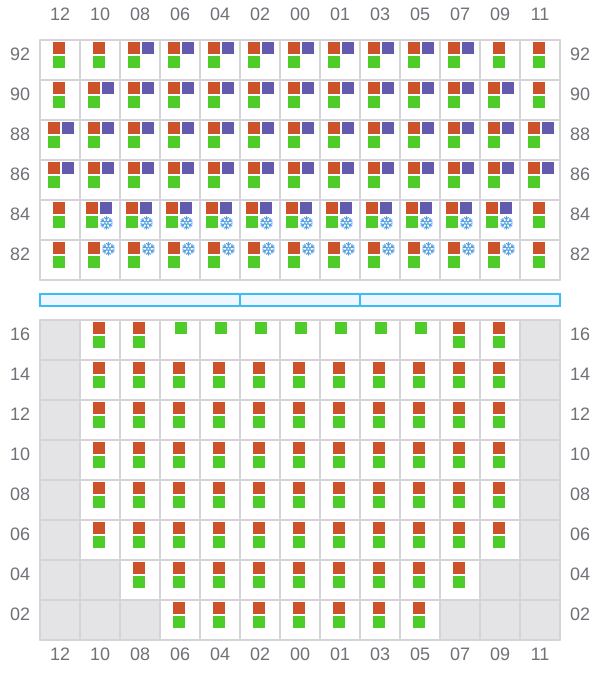

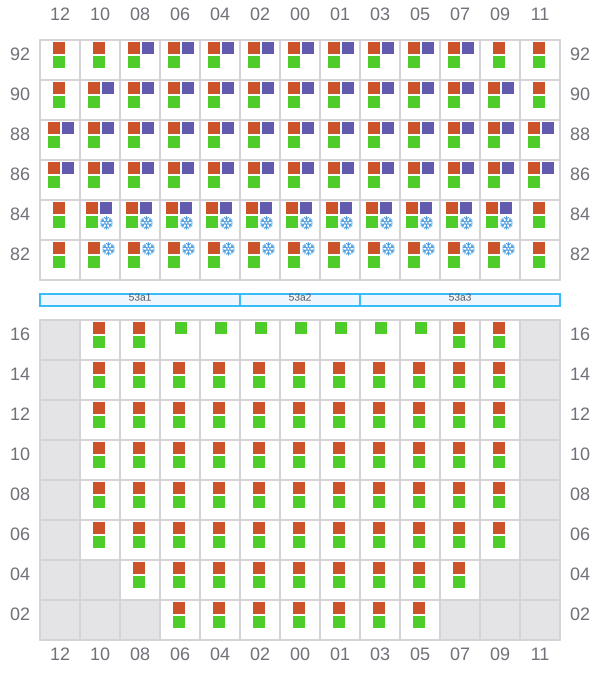

Bay 055 view and slots of MSC ROSHNEY V

057

  • →
  • ← / ?
  • →

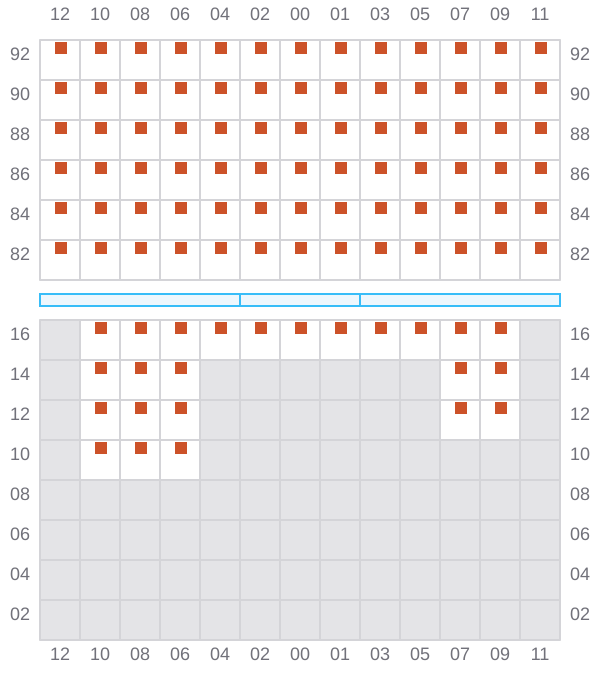

Bay 057 view and slots of MSC ROSHNEY V

059 (058)

  • ←
  • → / ?
  • →

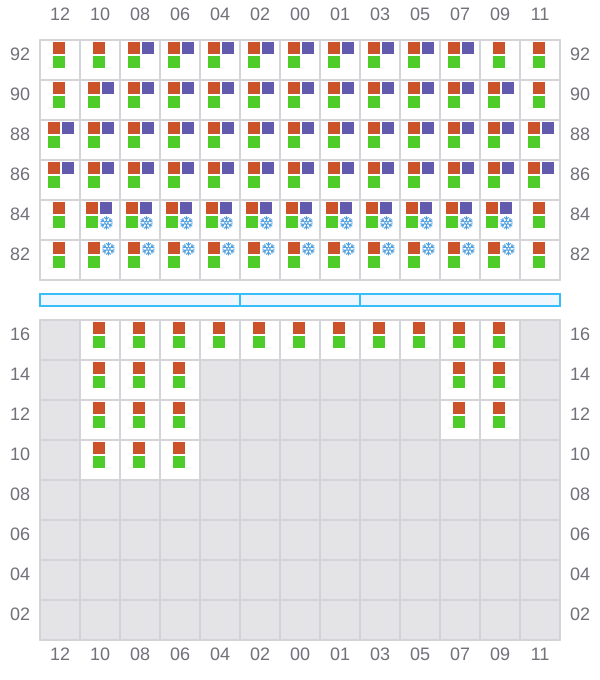

Bay 059 view and slots of MSC ROSHNEY V

061

  • →
  • ← / ?
  • →

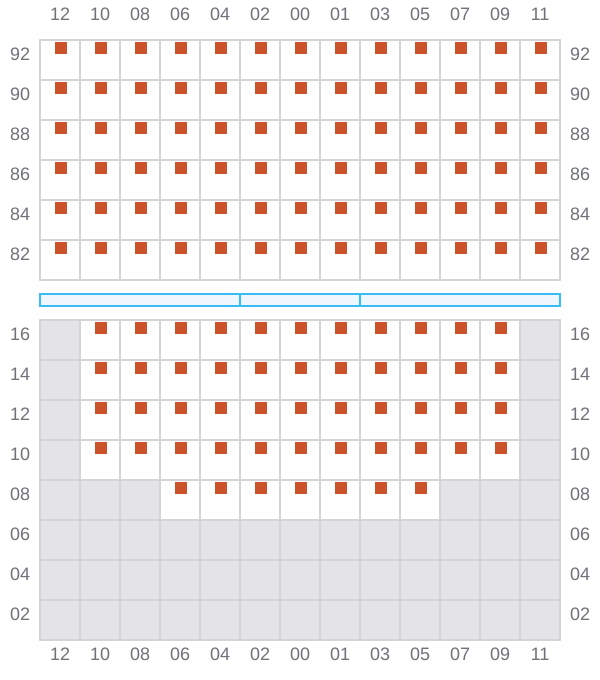

Bay 061 view and slots of MSC ROSHNEY V

063 (062)

  • ←
  • → / ?
  • →

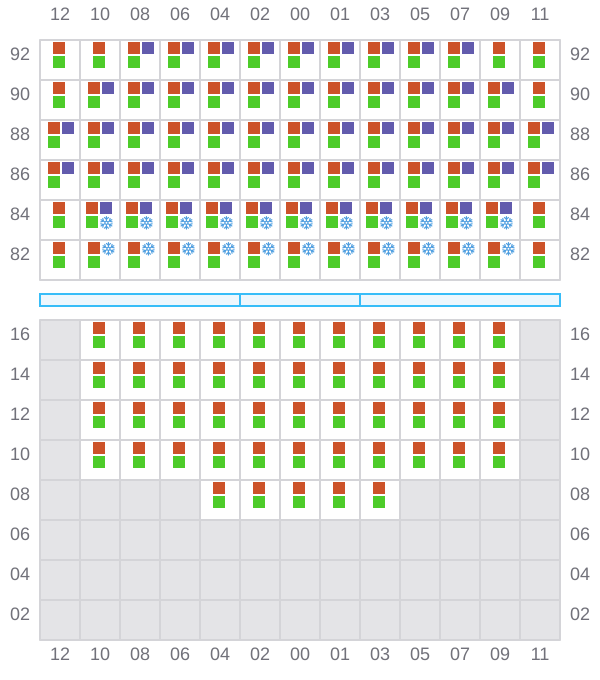

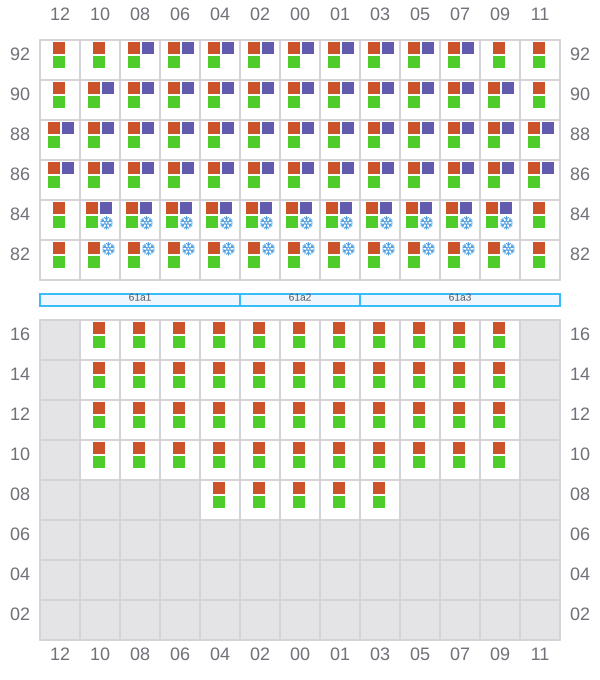

Bay 063 view and slots of MSC ROSHNEY V

065

  • →
  • ← / ?
  • →

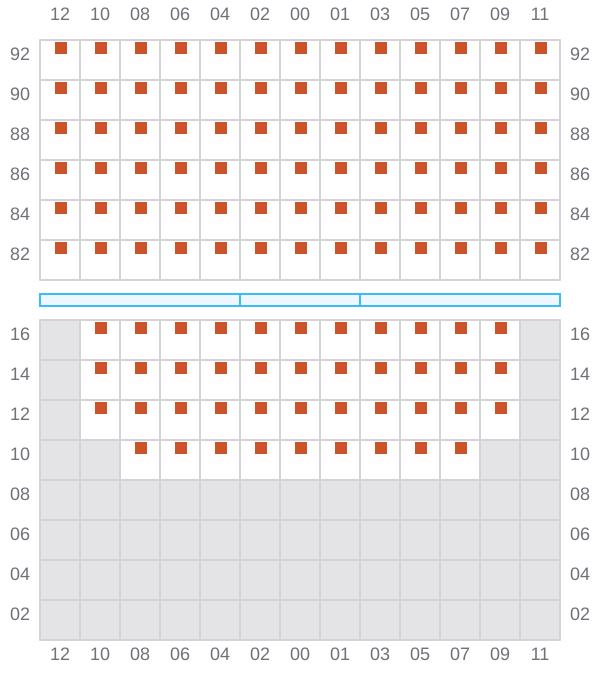

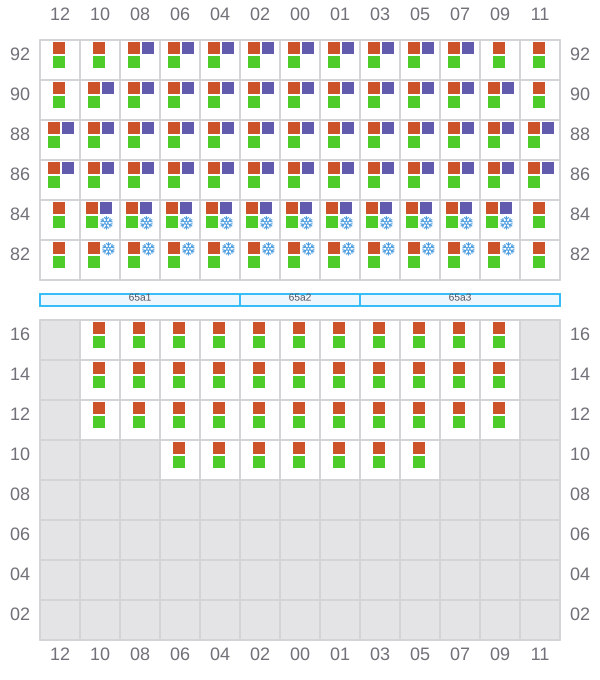

Bay 065 view and slots of MSC ROSHNEY V

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of MSC ROSHNEY V

069 (070)

  • → / ?
  • ← / ?
  • → / ?

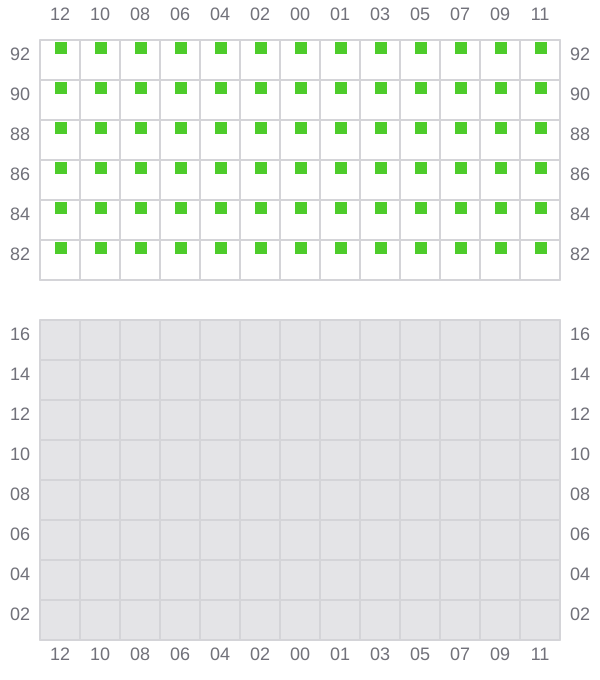

Bay 069 view and slots of MSC ROSHNEY V
