MSC SAMIRA III
9434462 | 5LBN8 | 9434462 by ********* Last update: Mon Mar 25 2024

General Info

Ship Name:MSC SAMIRA III
IMO Code:9434462
Call Sign:5LBN8
Line Operator:9434462
Class Name for Sister Ships:26C
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.86
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,568

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

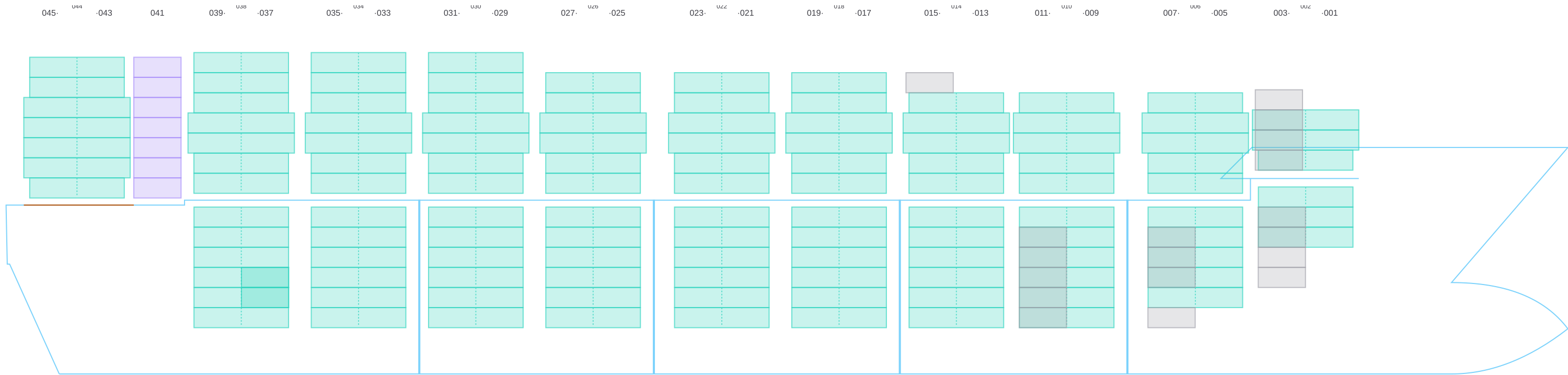

Side view of MSC SAMIRA III

Hatch-Covers View

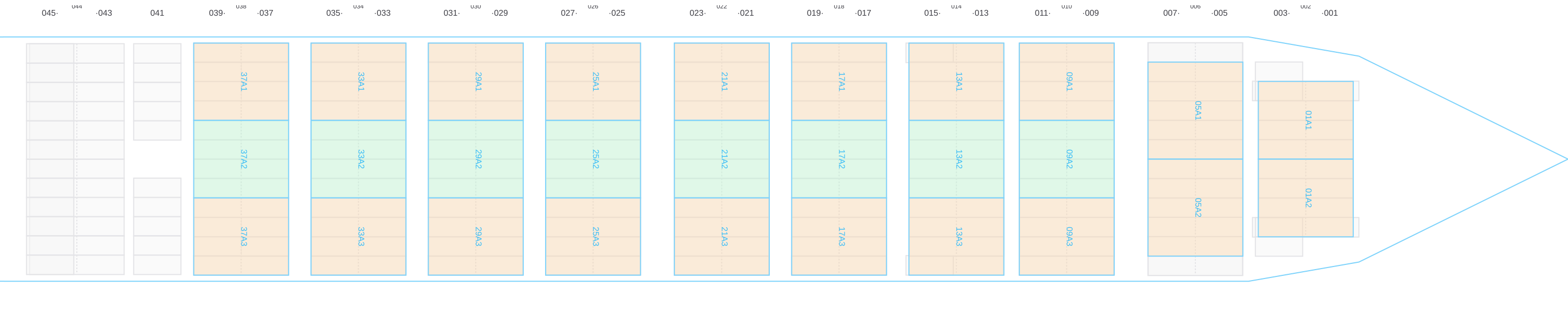

Deck view of MSC SAMIRA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

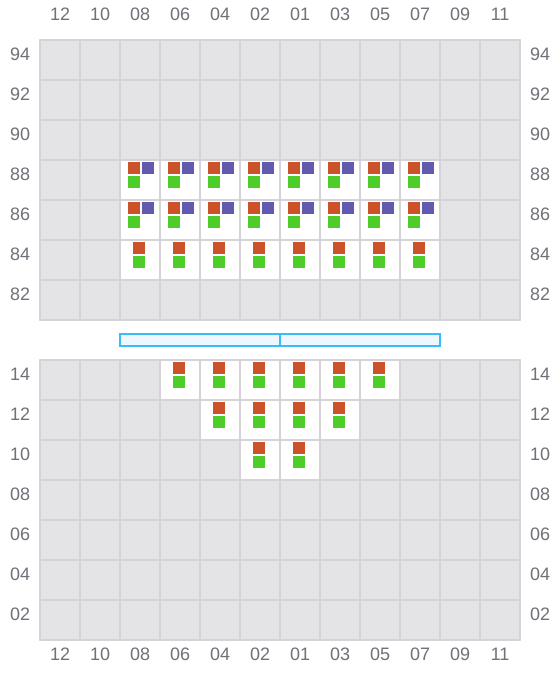

001 (002)

  • →
Bay 001 view and slots of MSC SAMIRA III

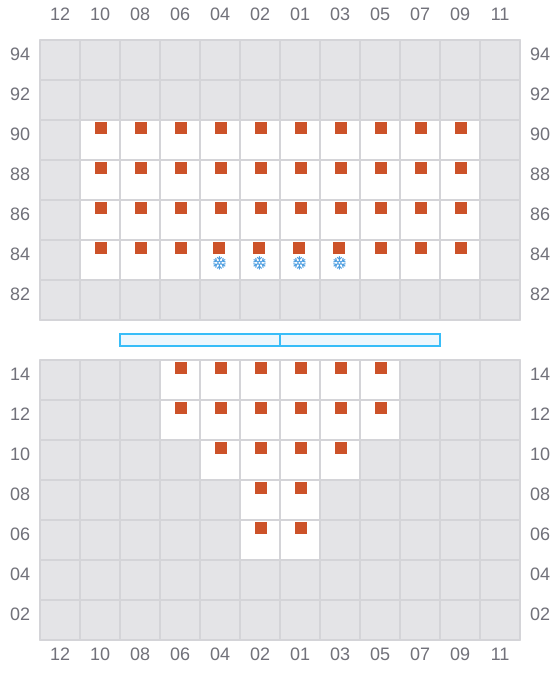

003

  • ←
  • → / ?
Bay 003 view and slots of MSC SAMIRA III

005 (006)

  • →

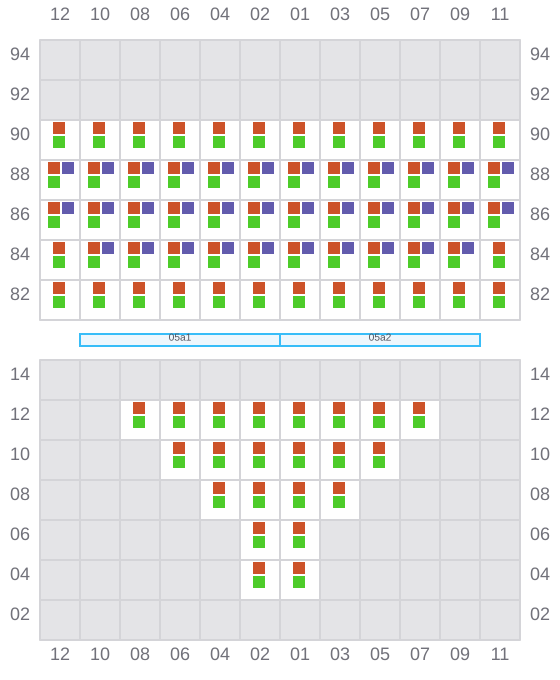

Bay 005 view and slots of MSC SAMIRA III

007

  • ←
  • → / ?

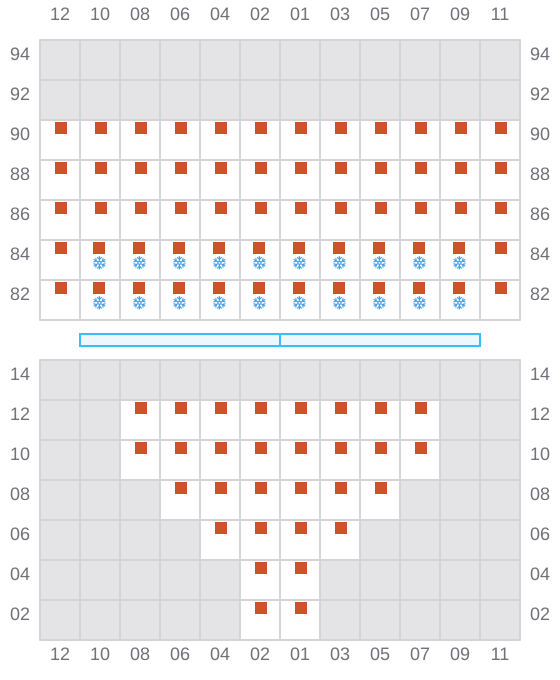

Bay 007 view and slots of MSC SAMIRA III

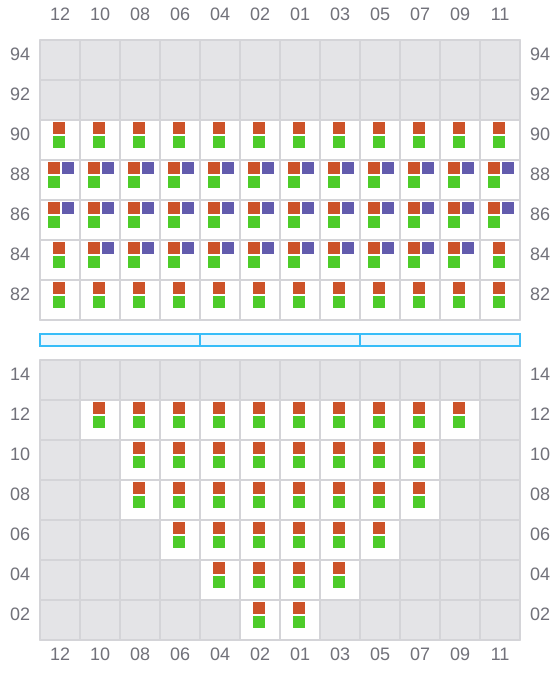

009 (010)

  • →
Bay 009 view and slots of MSC SAMIRA III

011

  • ←
  • → / ?

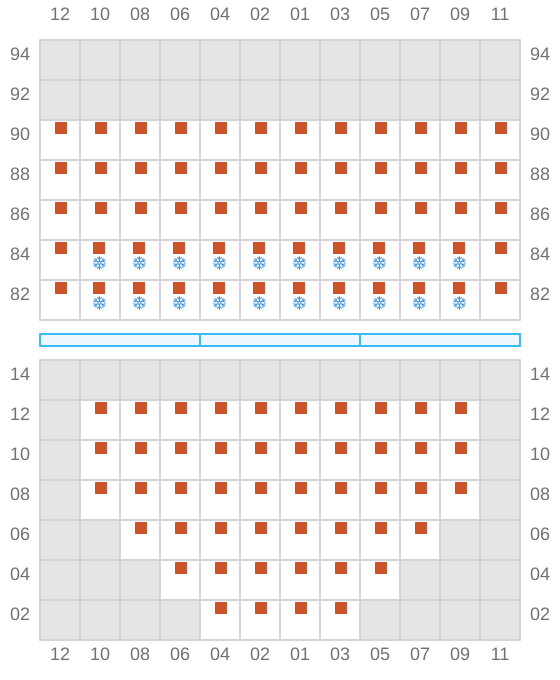

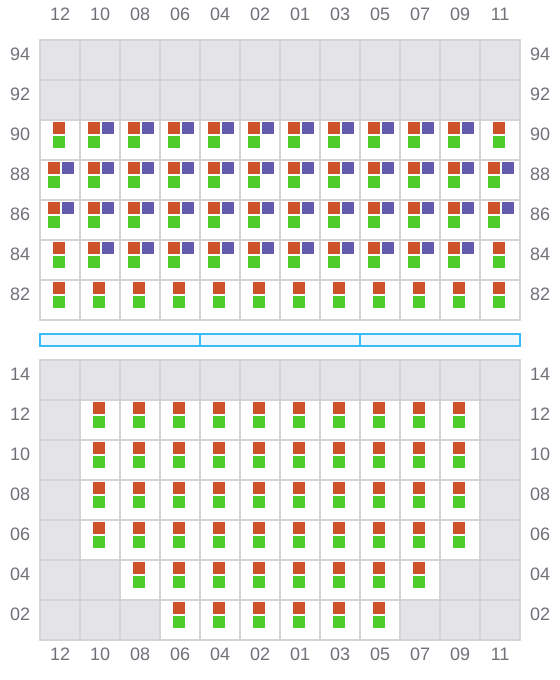

Bay 011 view and slots of MSC SAMIRA III

013 (014)

  • →

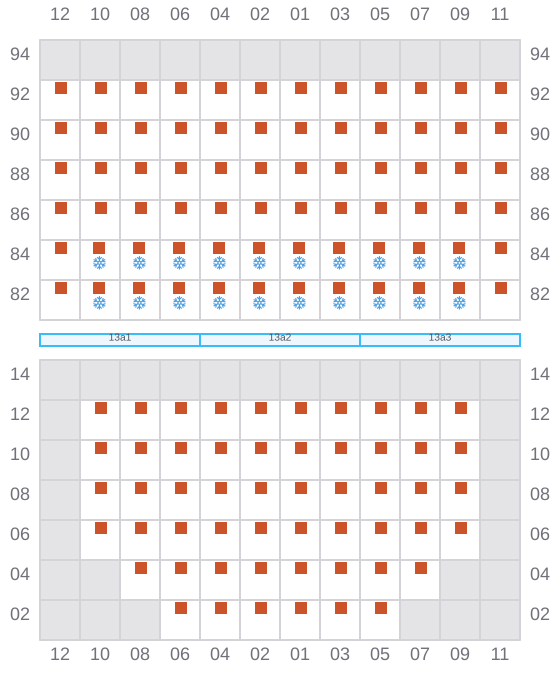

Bay 013 view and slots of MSC SAMIRA III

015

  • ←
  • → / ?
Bay 015 view and slots of MSC SAMIRA III

017 (018)

  • →
Bay 017 view and slots of MSC SAMIRA III

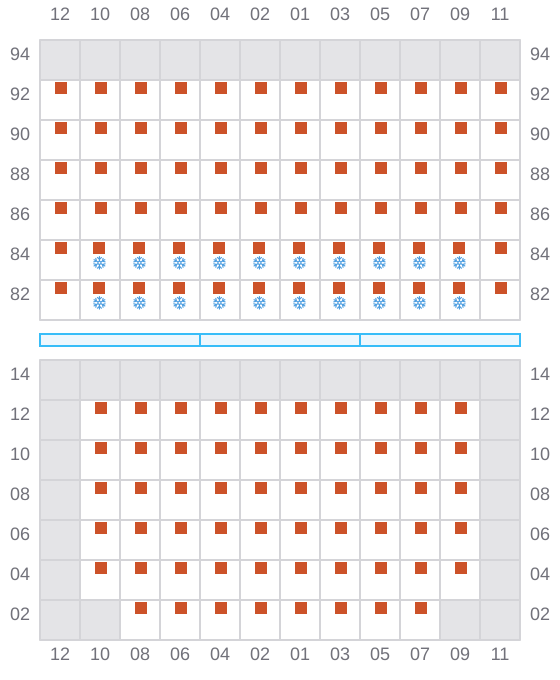

019

  • ←
  • → / ?
Bay 019 view and slots of MSC SAMIRA III

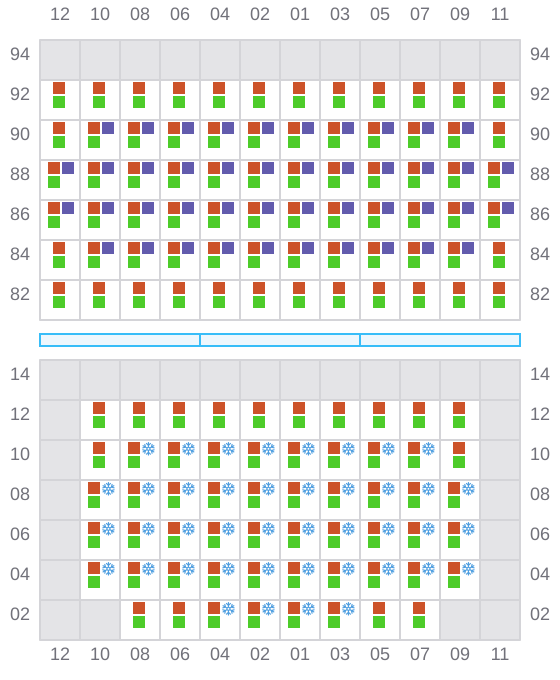

021 (022)

  • →
Bay 021 view and slots of MSC SAMIRA III

023

  • ←
  • → / ?
Bay 023 view and slots of MSC SAMIRA III

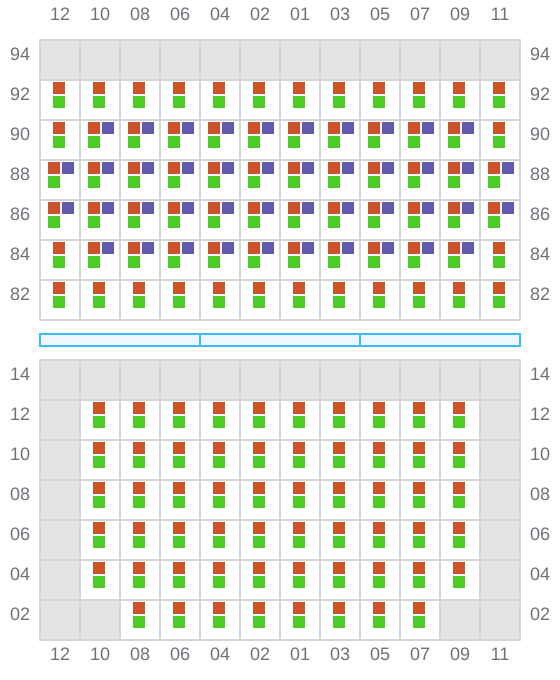

025 (026)

  • →
Bay 025 view and slots of MSC SAMIRA III

027

  • ←
  • → / ?
Bay 027 view and slots of MSC SAMIRA III

029 (030)

  • →

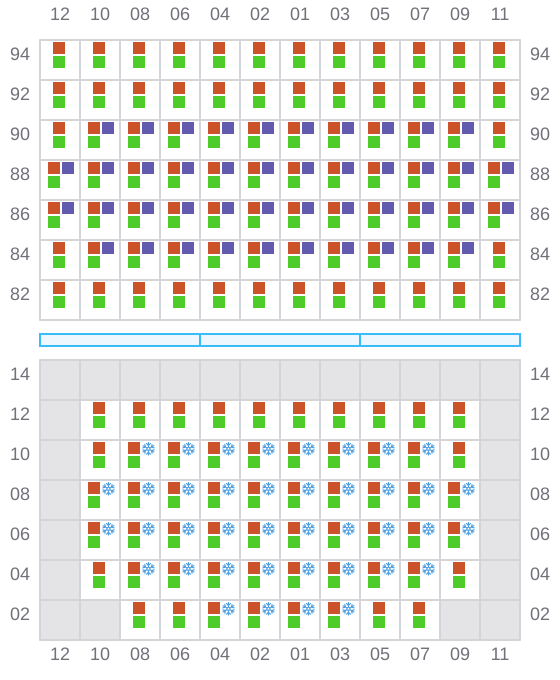

Bay 029 view and slots of MSC SAMIRA III

031

  • ←
  • → / ?

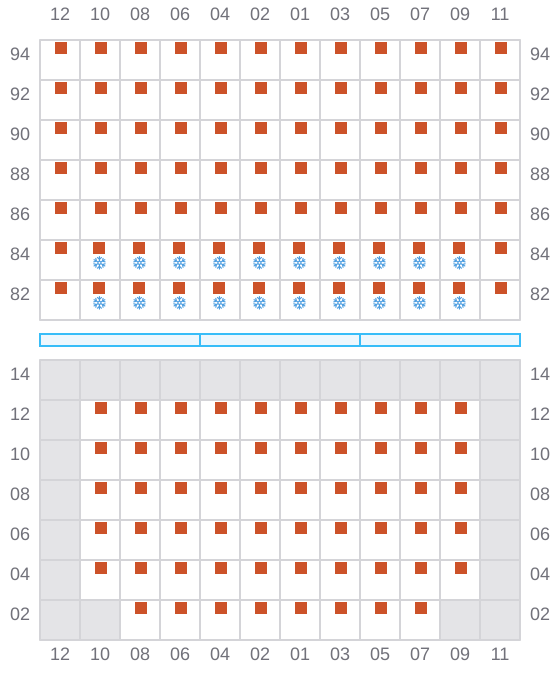

Bay 031 view and slots of MSC SAMIRA III

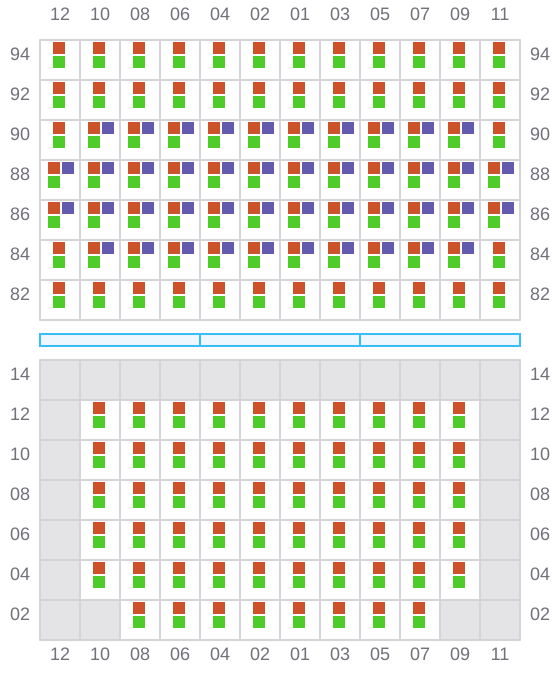

033 (034)

  • →
Bay 033 view and slots of MSC SAMIRA III

035

  • ←
  • → / ?

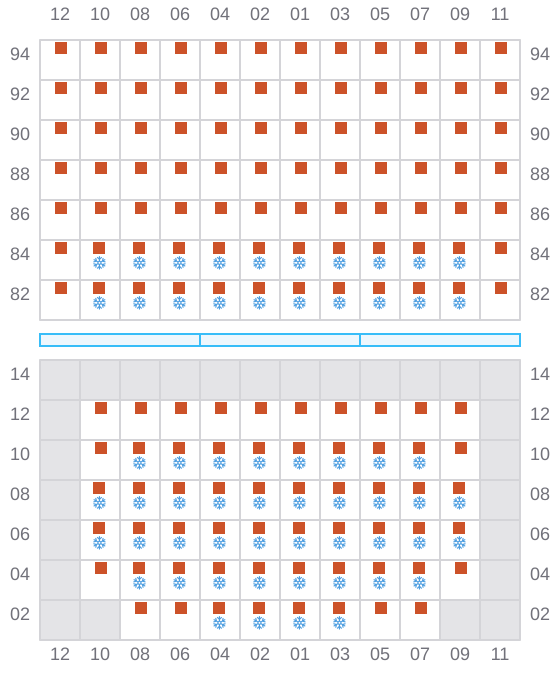

Bay 035 view and slots of MSC SAMIRA III

037 (038)

  • →

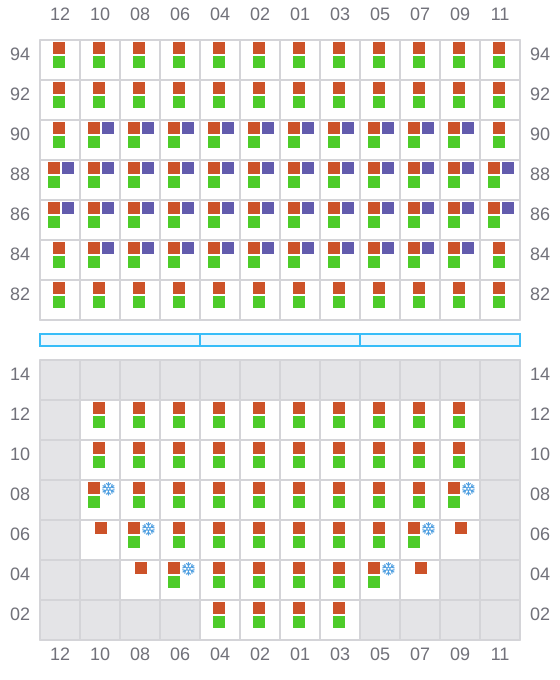

Bay 037 view and slots of MSC SAMIRA III

039

  • ←
  • → / ?

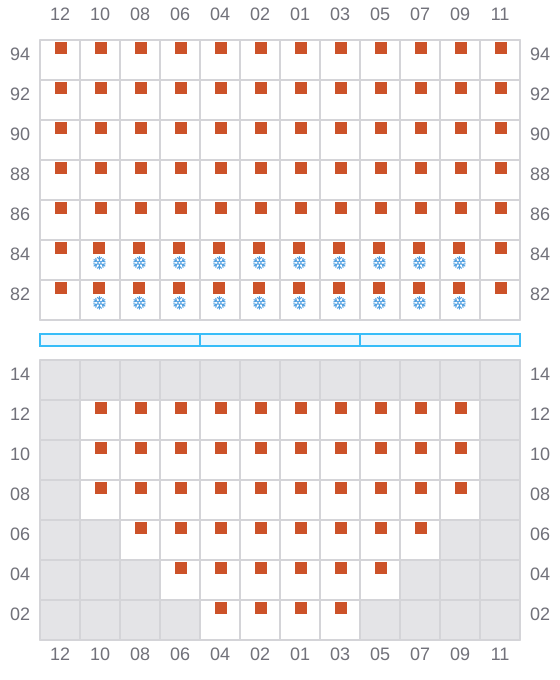

Bay 039 view and slots of MSC SAMIRA III

041

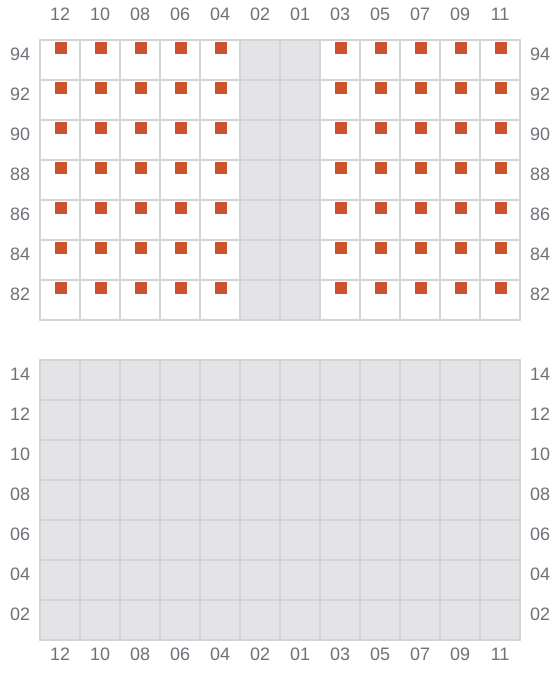

Bay 041 view and slots of MSC SAMIRA III

043 (044)

  • → / ?

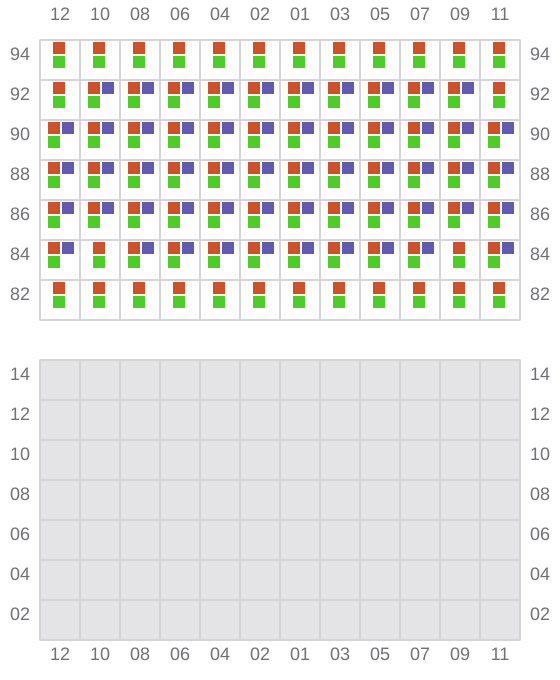

Bay 043 view and slots of MSC SAMIRA III

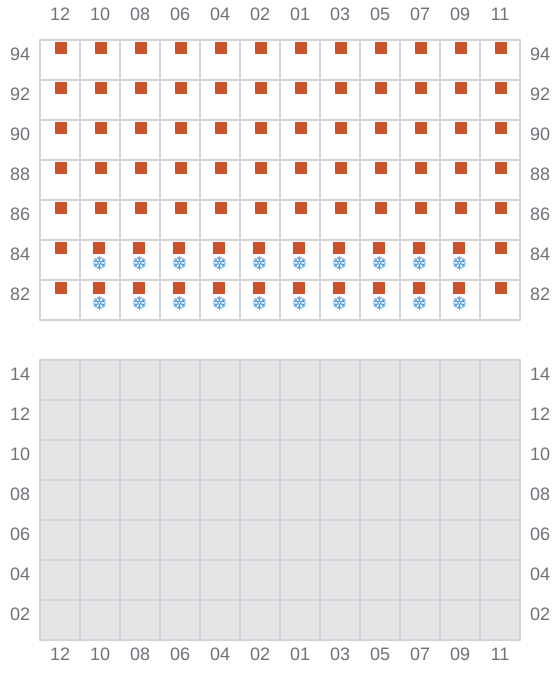

045

  • ← / ?
  • → / ?
Bay 045 view and slots of MSC SAMIRA III
