MSC SAMU
9222106 | A8CH2 | CHI by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MSC SAMU
IMO Code:9222106
Call Sign:A8CH2
Line Operator:CHI
Class Name for Sister Ships:WMR
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,767

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

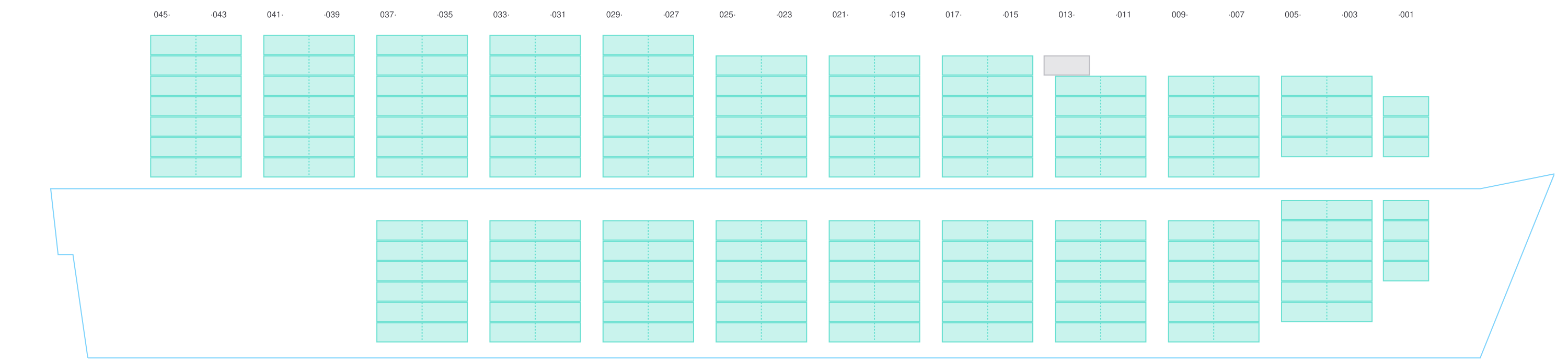

Side View

Side view of MSC SAMU

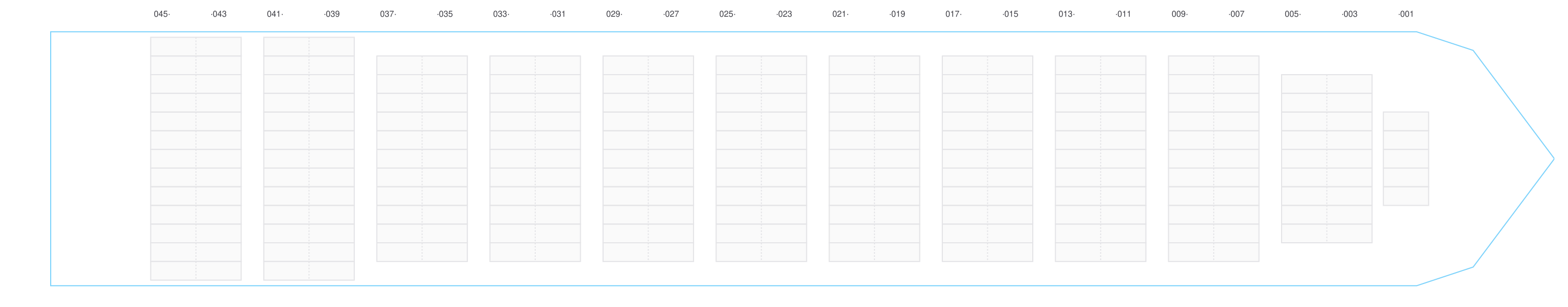

Hatch-Covers View

Deck view of MSC SAMU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →

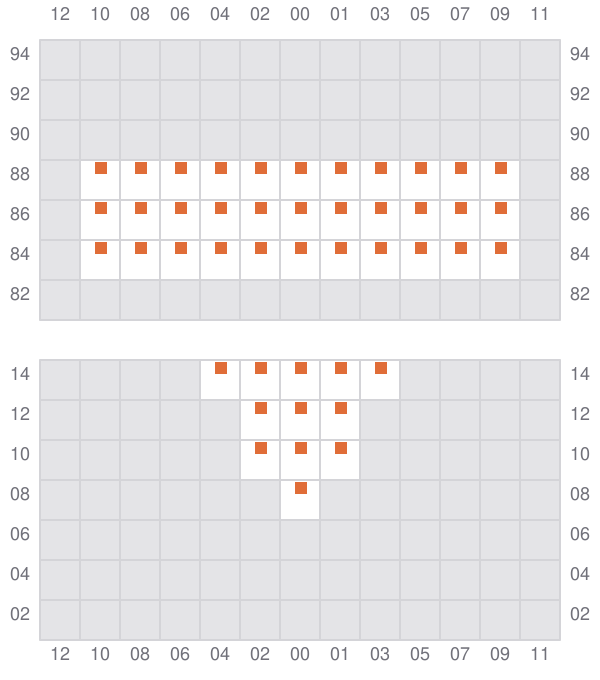

Bay 001 view and slots of MSC SAMU

003 (004)

  • →
Bay 003 view and slots of MSC SAMU

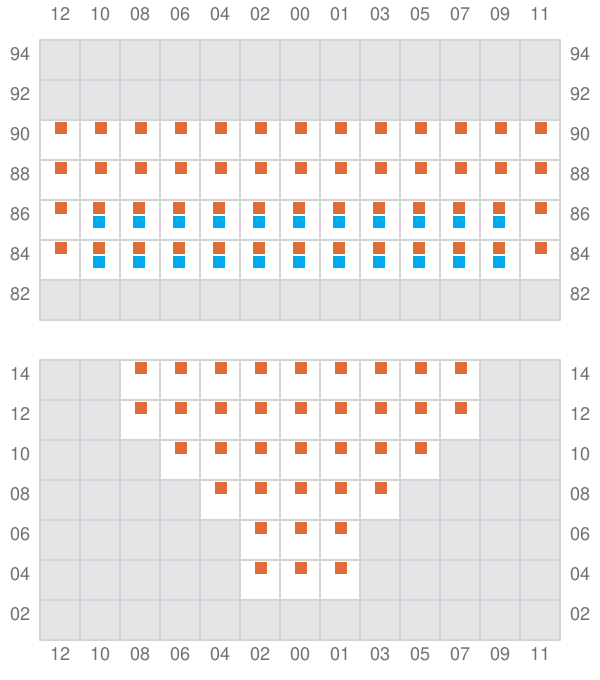

005

  • ←
Bay 005 view and slots of MSC SAMU

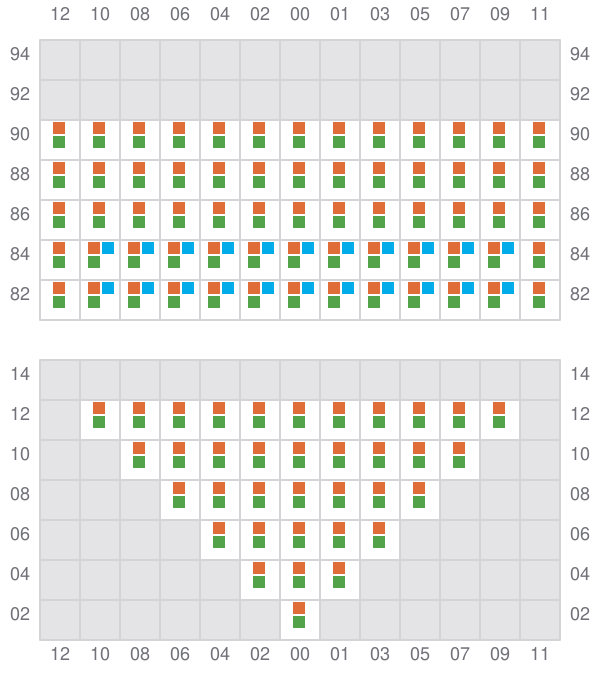

007 (008)

  • →
Bay 007 view and slots of MSC SAMU

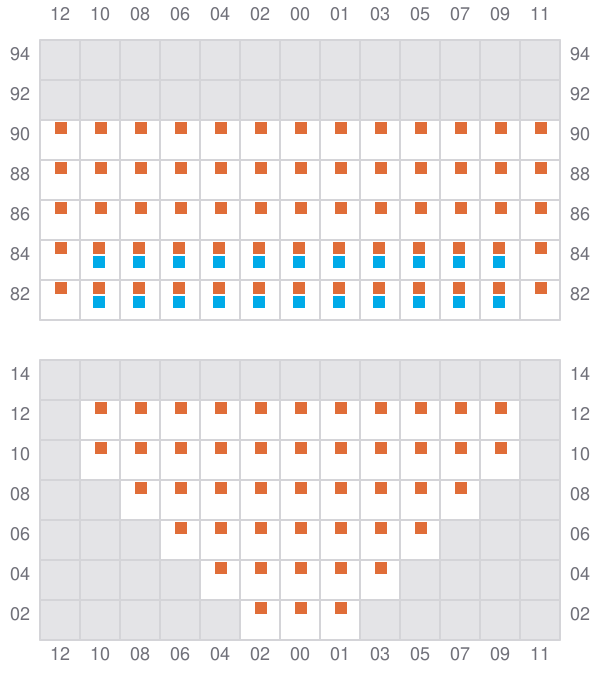

009

  • ←
Bay 009 view and slots of MSC SAMU

011 (012)

  • →

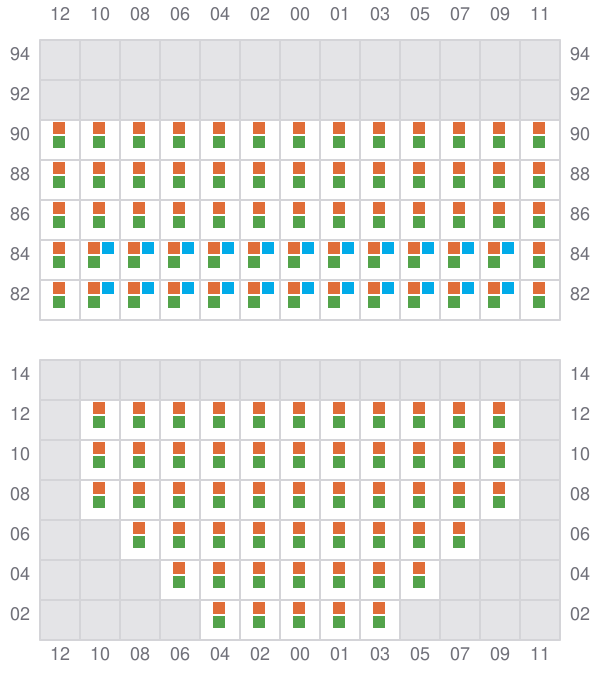

Bay 011 view and slots of MSC SAMU

013

  • ←

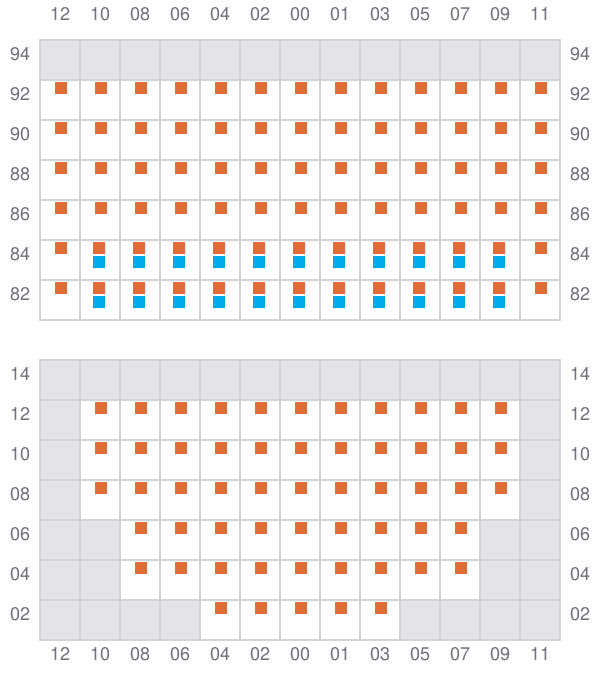

Bay 013 view and slots of MSC SAMU

015 (016)

  • →

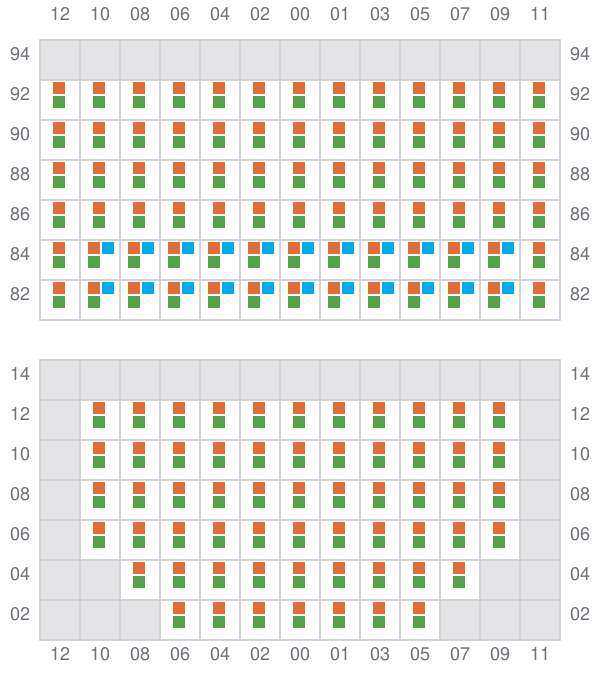

Bay 015 view and slots of MSC SAMU

017

  • ←
Bay 017 view and slots of MSC SAMU

019 (020)

  • →
Bay 019 view and slots of MSC SAMU

021

  • ←

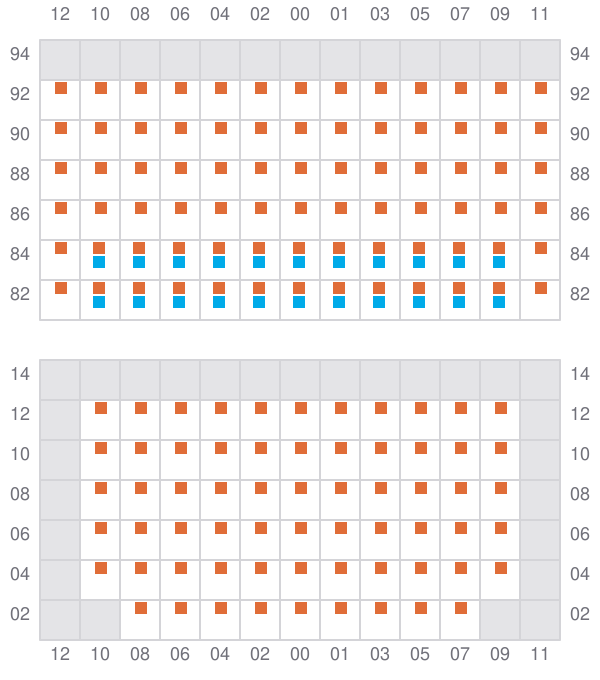

Bay 021 view and slots of MSC SAMU

023 (024)

  • →

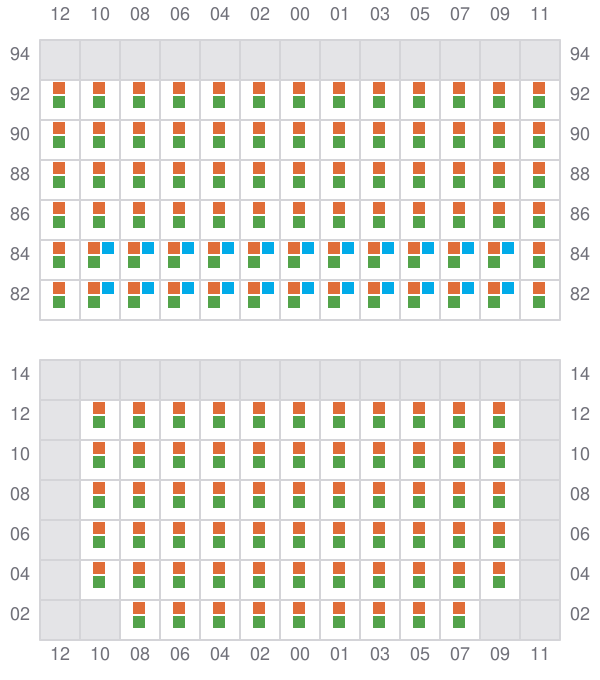

Bay 023 view and slots of MSC SAMU

025

  • ←
Bay 025 view and slots of MSC SAMU

027 (028)

  • →
Bay 027 view and slots of MSC SAMU

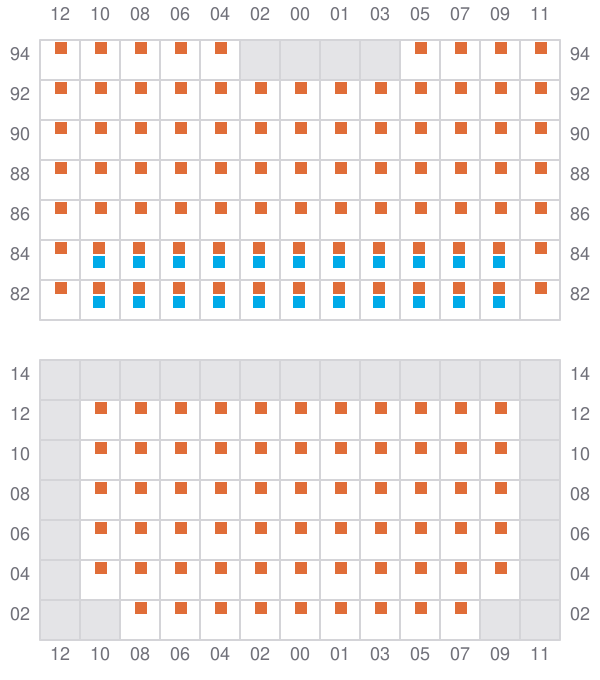

029

  • ←
Bay 029 view and slots of MSC SAMU

031 (032)

  • →

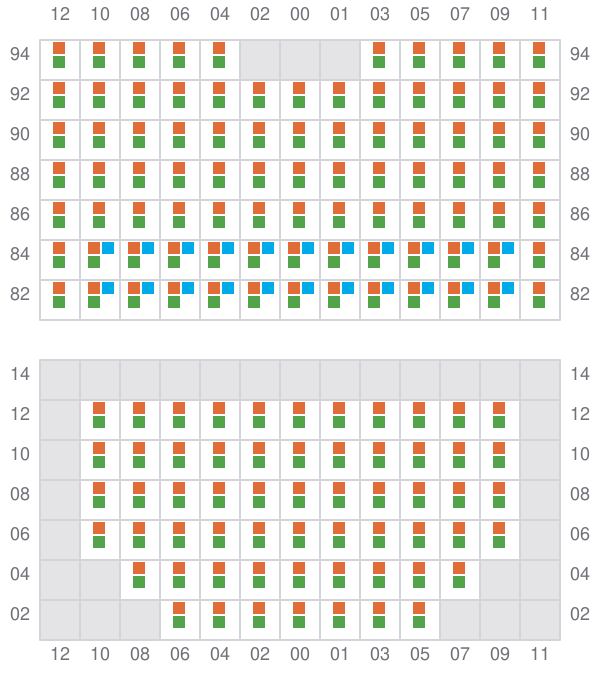

Bay 031 view and slots of MSC SAMU

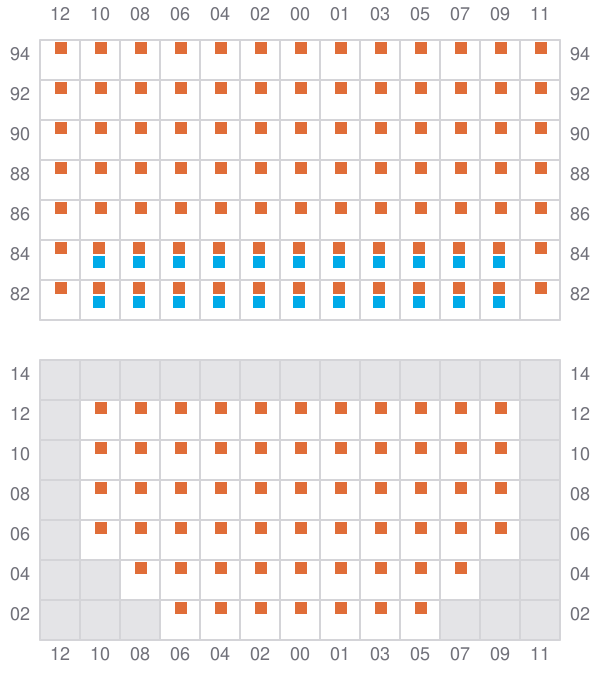

033

  • ←
Bay 033 view and slots of MSC SAMU

035 (036)

  • →

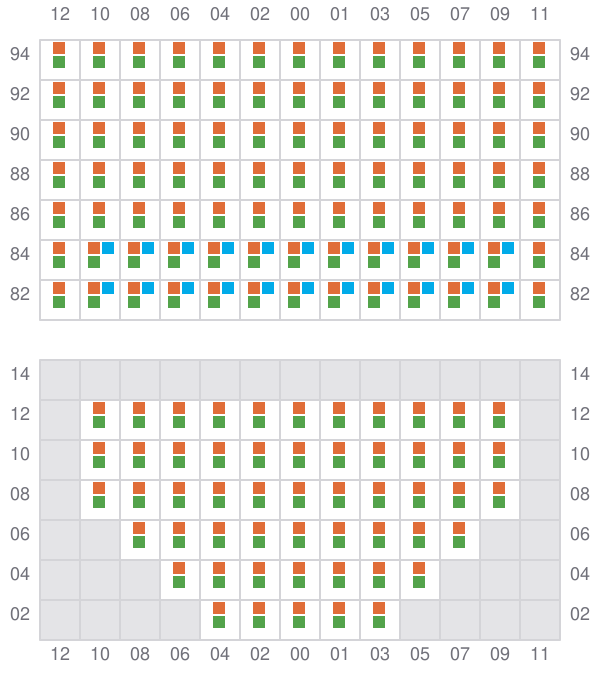

Bay 035 view and slots of MSC SAMU

037

  • ←

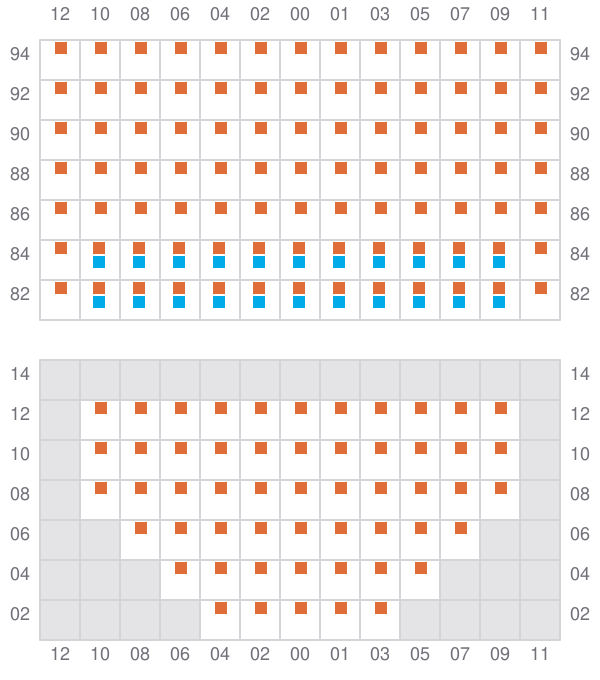

Bay 037 view and slots of MSC SAMU

039 (040)

  • → / ?

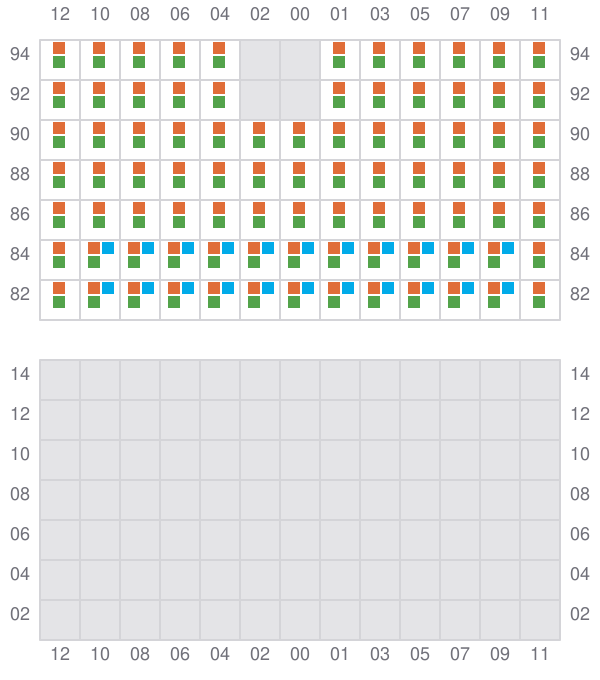

Bay 039 view and slots of MSC SAMU

041

  • ← / ?
Bay 041 view and slots of MSC SAMU

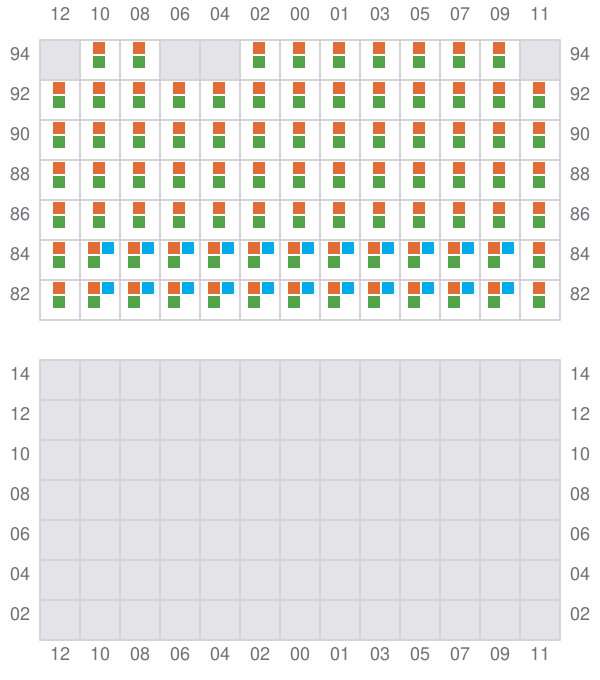

043 (044)

  • → / ?
Bay 043 view and slots of MSC SAMU

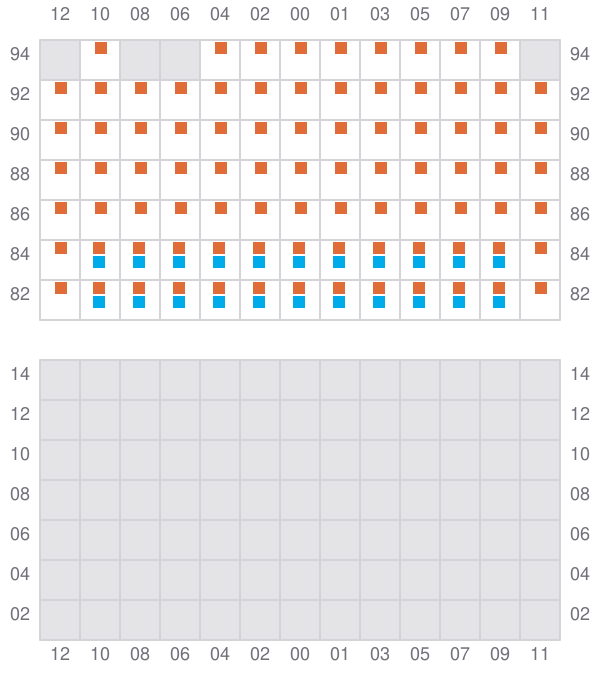

045

  • ← / ?
Bay 045 view and slots of MSC SAMU
