MSC SAMU
9222106 | A8CH2 | 9222106 by ********* Last update: Thu Mar 14 2024
General Info
Ship Name:MSC SAMU
IMO Code:9222106
Call Sign:A8CH2
Line Operator:9222106
Class Name for Sister Ships:4GG
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,750
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

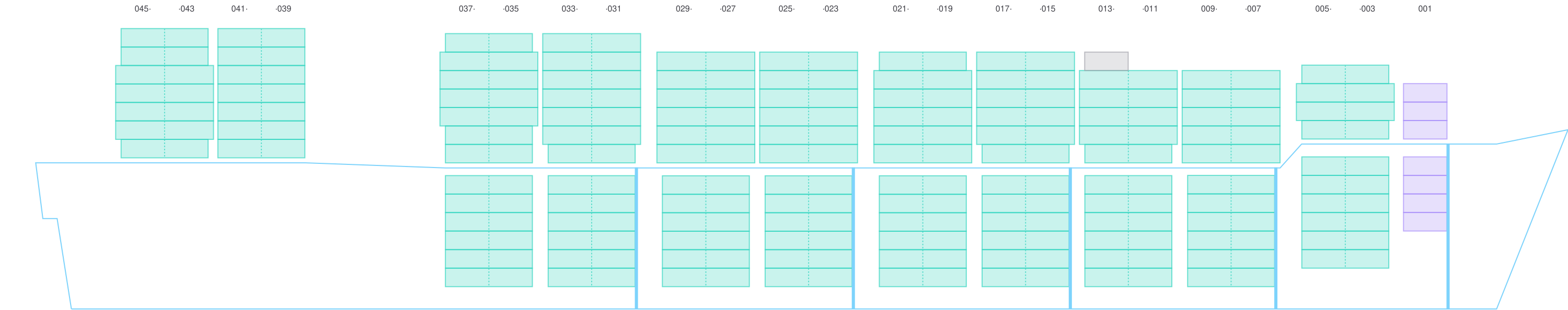

Side View

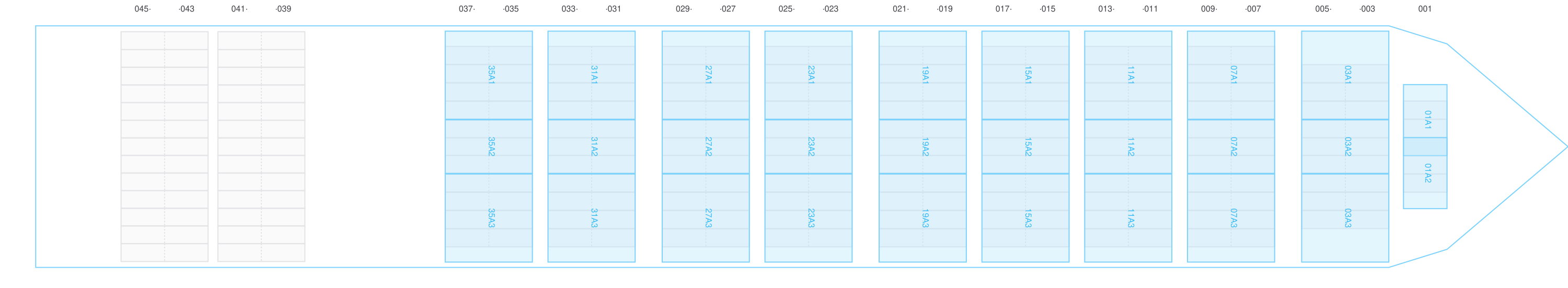

Hatch-Covers View

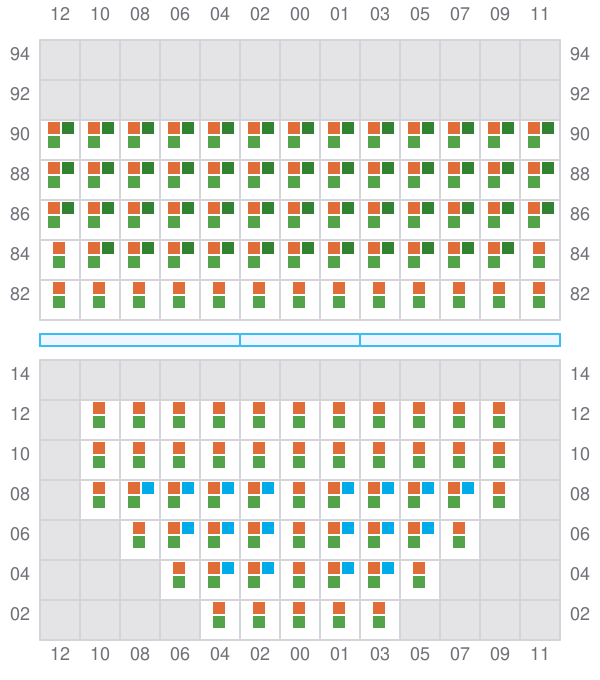

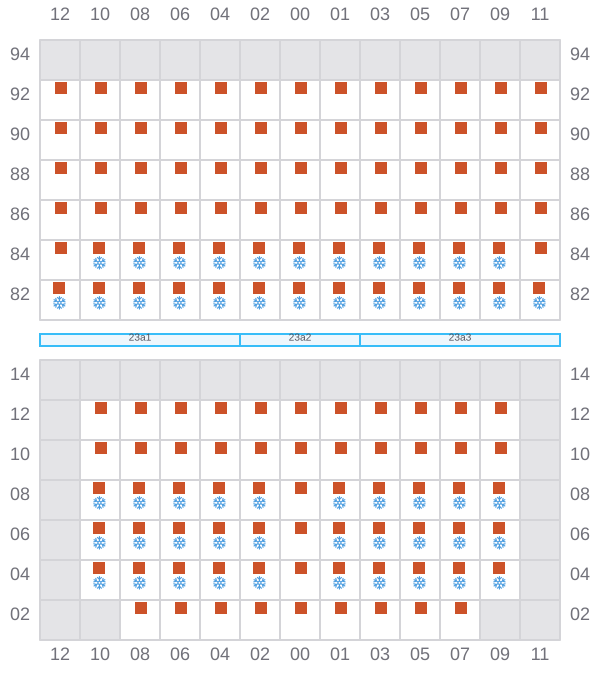

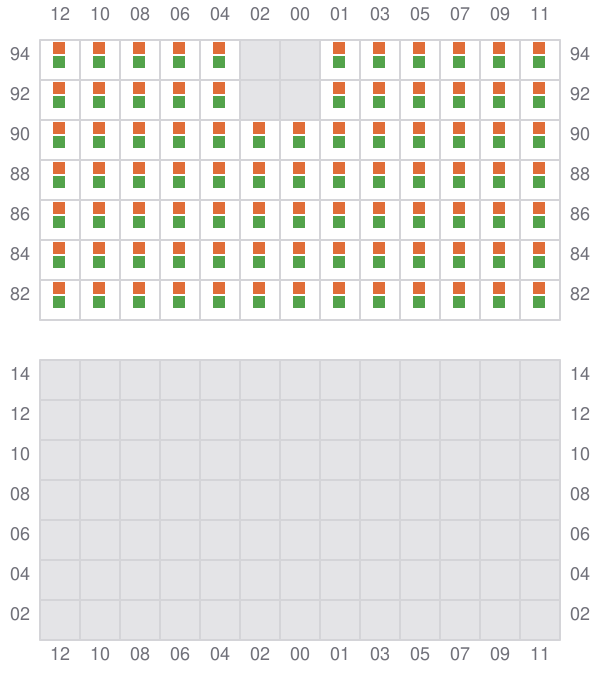

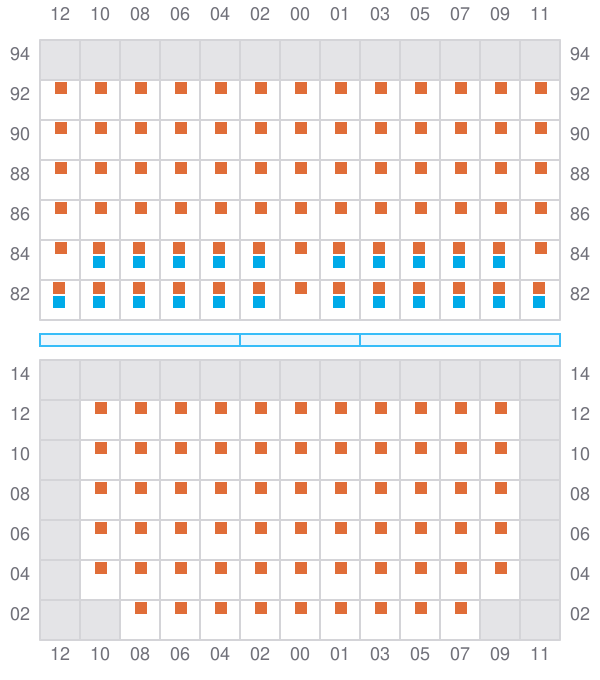

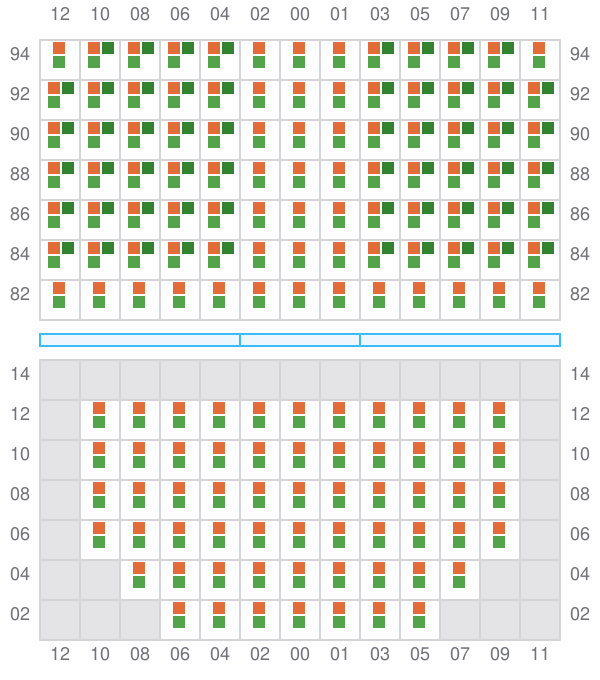

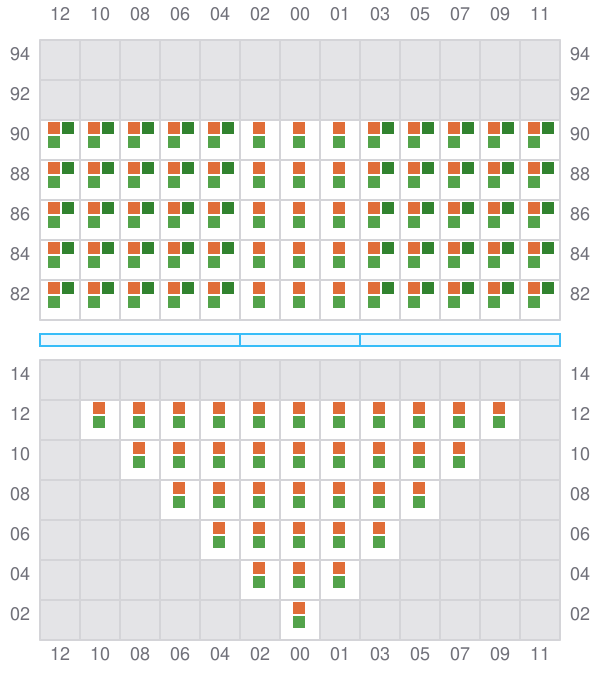

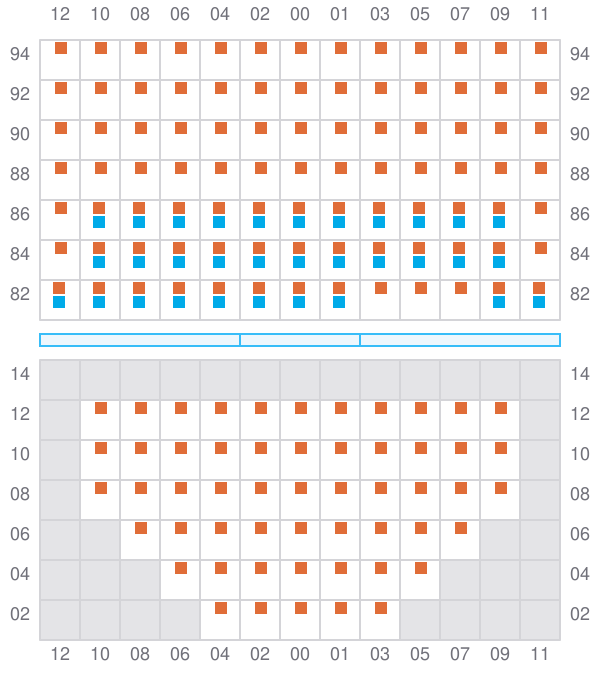

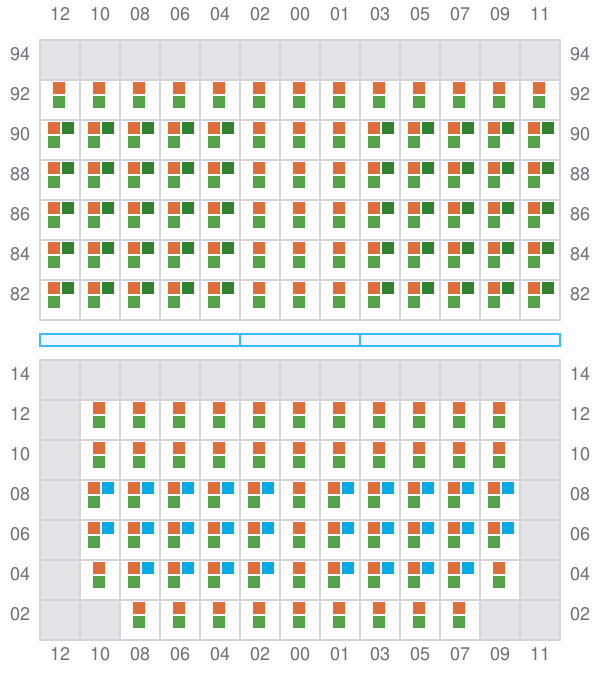

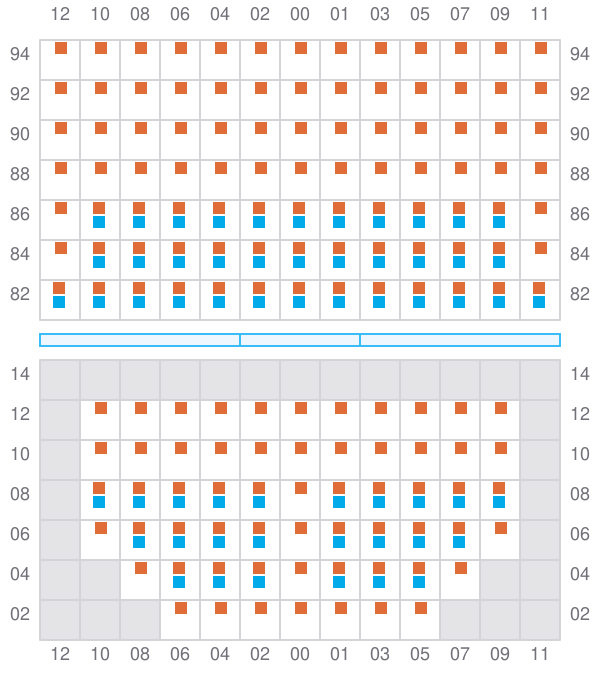

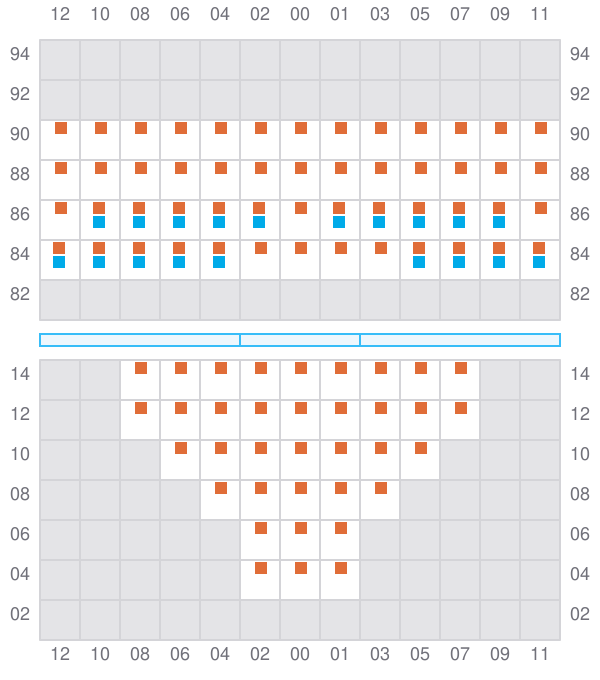

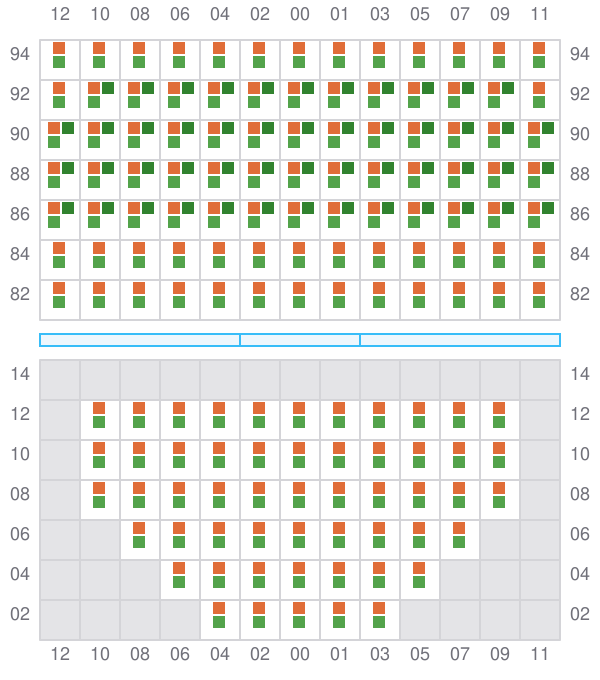

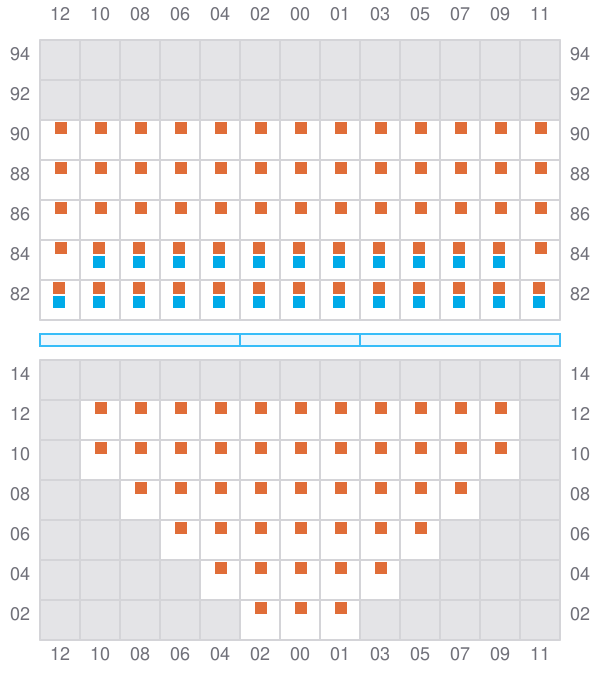

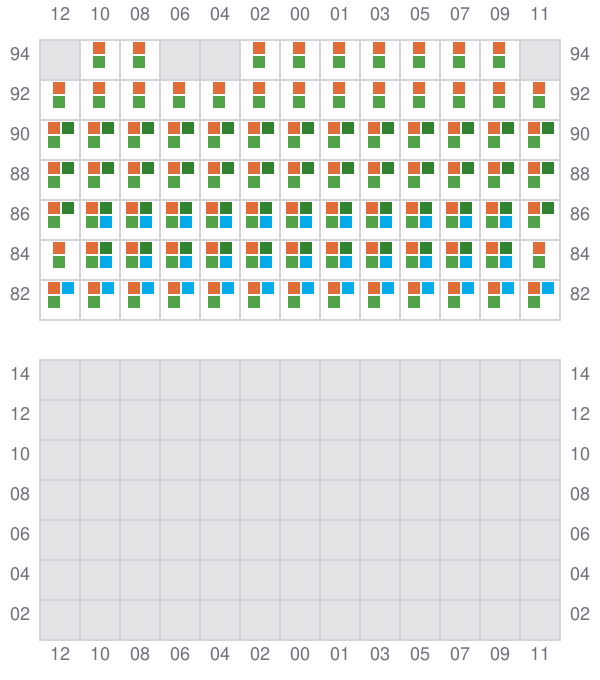

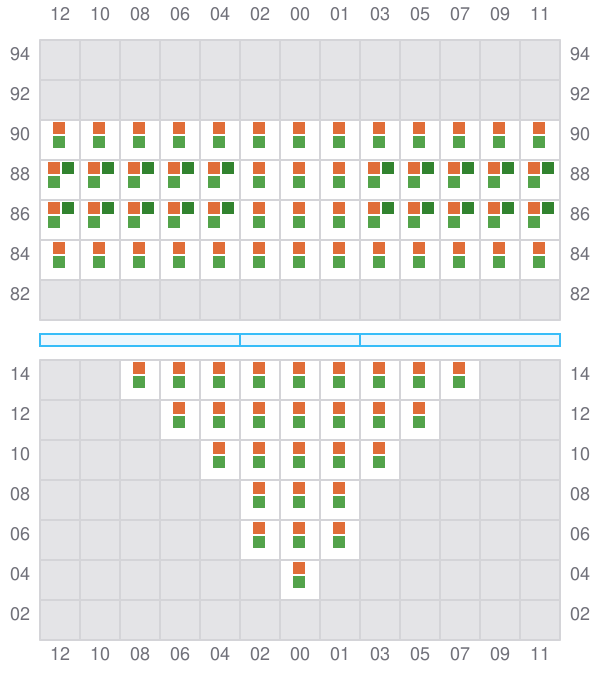

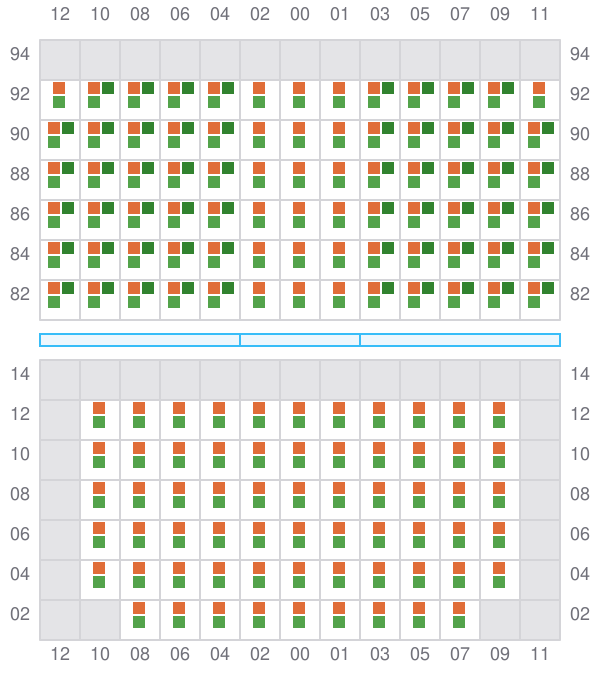

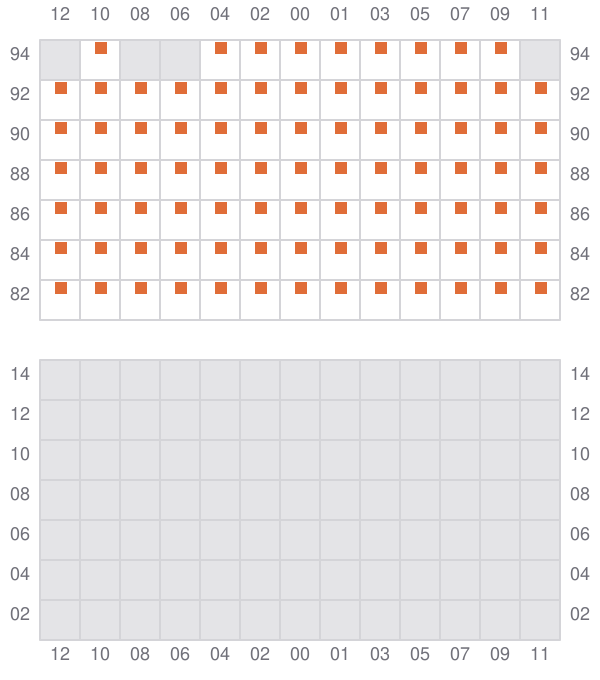

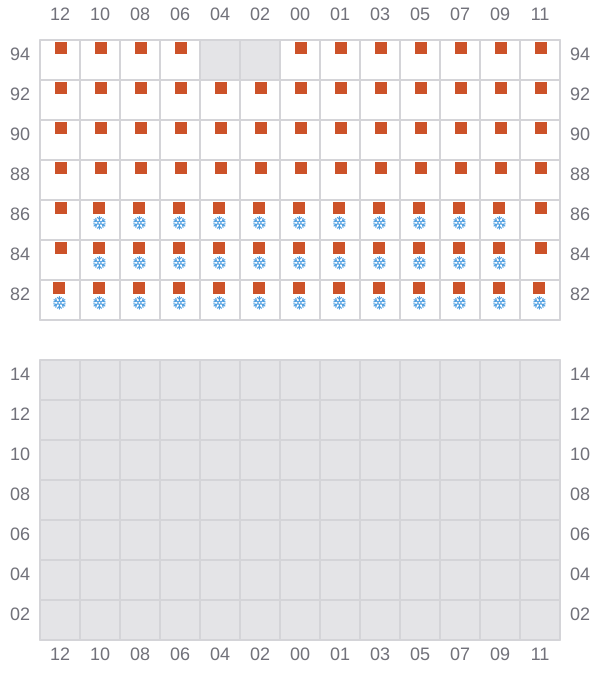

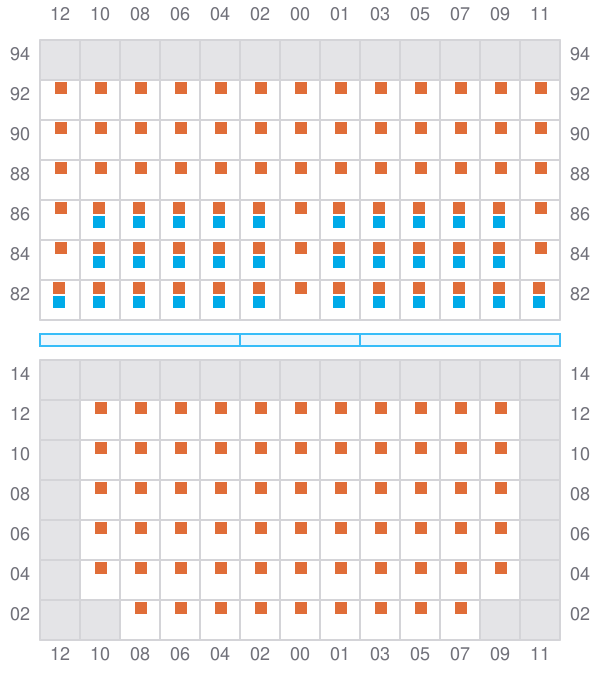

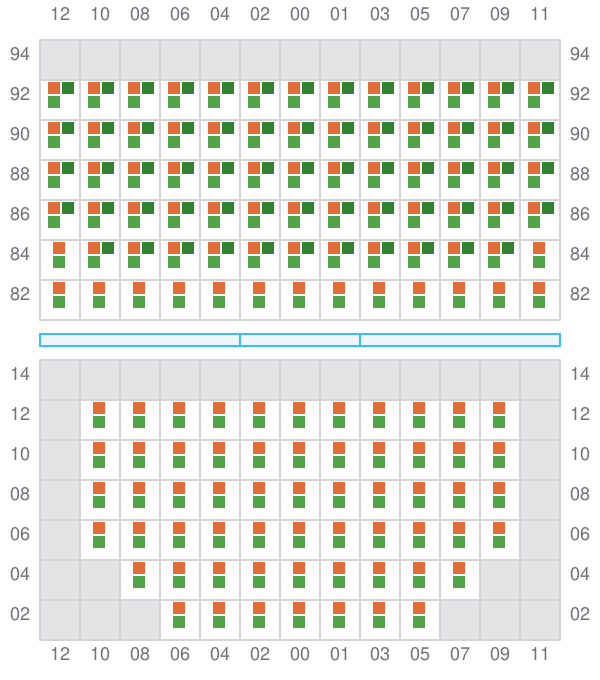

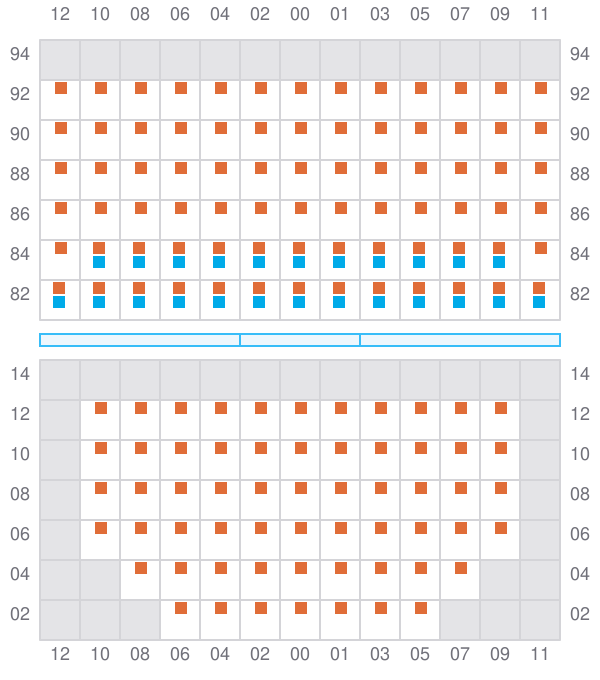

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
003 (004)
- →
005
- ←
- → / ?
007 (008)
- →
009
- ←
- → / ?
011 (012)
- →
- ? / ←
013
- ←
- → / ?
015 (016)
- →
017
- ←
- → / ?
019 (020)
- →
- ? / ←
021
- ←
- → / ?
023 (024)
- →
025
- ←
- →
027 (028)
- →
029
- ←
- → / ?
031 (032)
- →
033
- ←
- →
035 (036)
- →
037
- ←
- → / ?
039 (040)
- → / ?
041
- ← / ?
- → / ?
043 (044)
- → / ?
- ← / ?
045
- ← / ?
