MSC SANDY III
9239733 | 3E2076 | 9239733 by ********* Last update: Wed Apr 10 2024

General Info

Ship Name:MSC SANDY III
IMO Code:9239733
Call Sign:3E2076
Line Operator:9239733
Class Name for Sister Ships:CIELO D'AMERICA
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,456

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

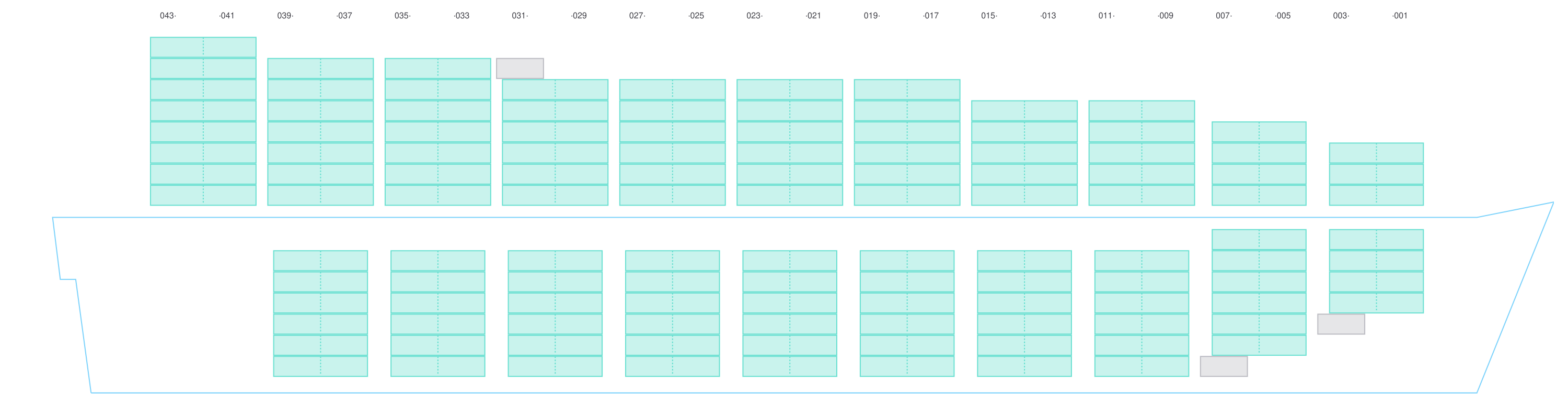

Side View

Side view of MSC SANDY III

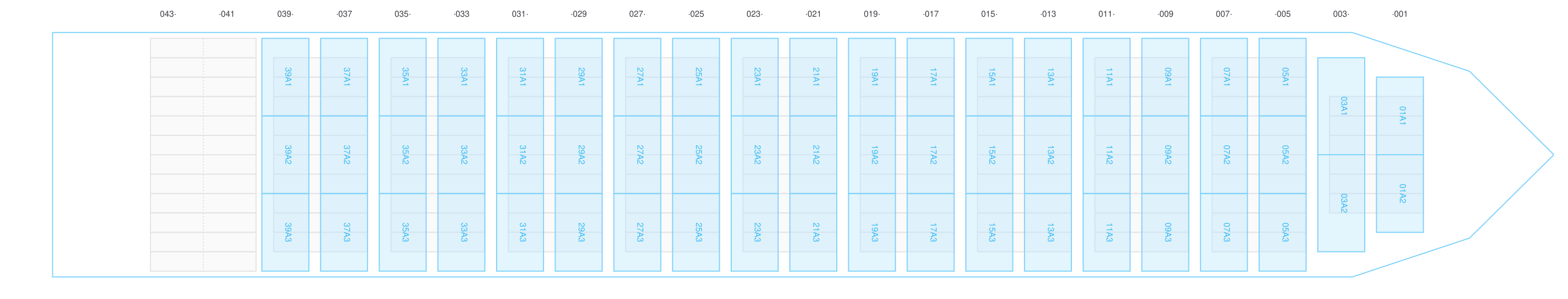

Hatch-Covers View

Deck view of MSC SANDY III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

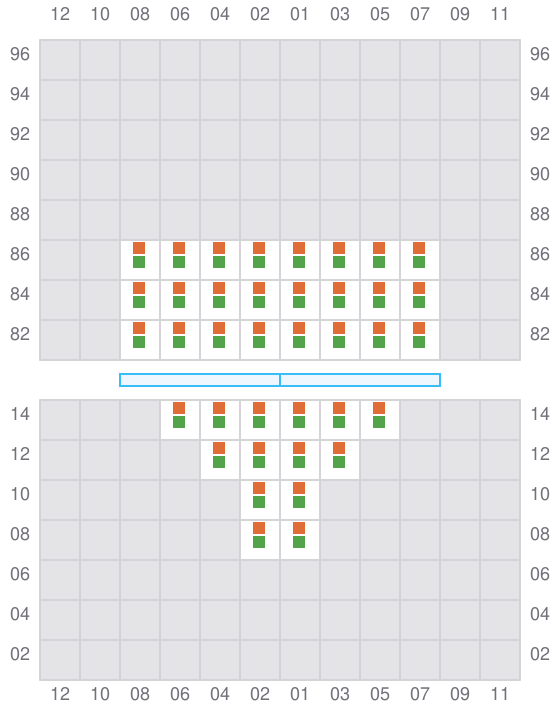

001 (002)

  • →
Bay 001 view and slots of MSC SANDY III

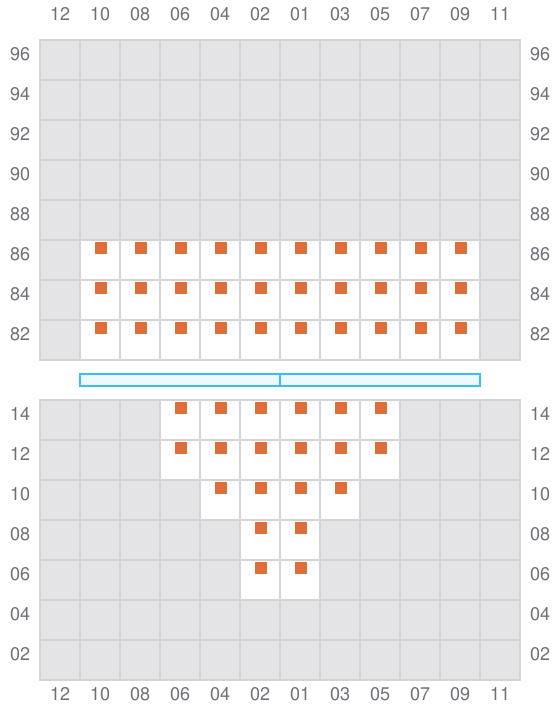

003

  • ←
Bay 003 view and slots of MSC SANDY III

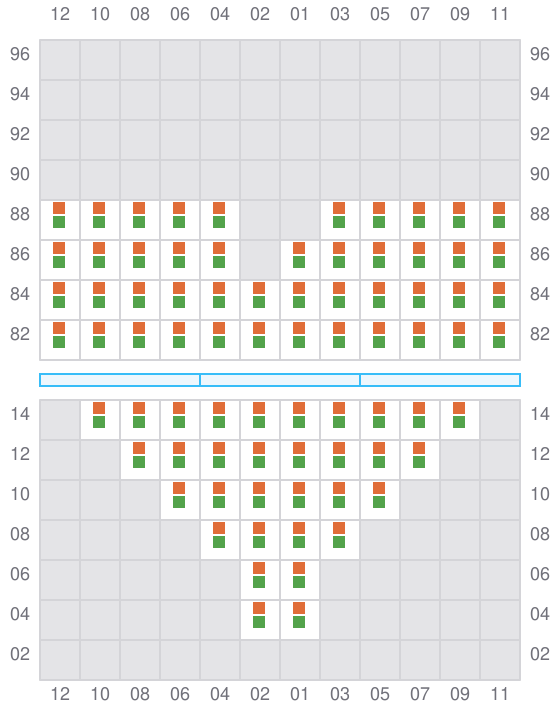

005 (006)

  • →
Bay 005 view and slots of MSC SANDY III

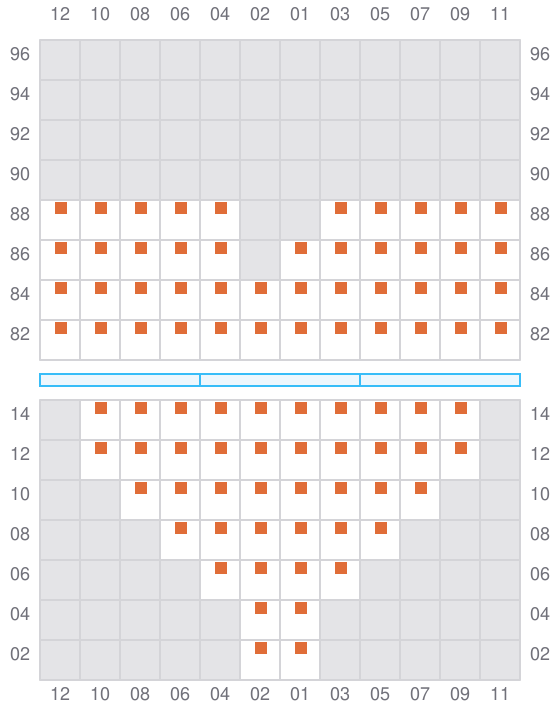

007

  • ←
Bay 007 view and slots of MSC SANDY III

009 (010)

  • →
Bay 009 view and slots of MSC SANDY III

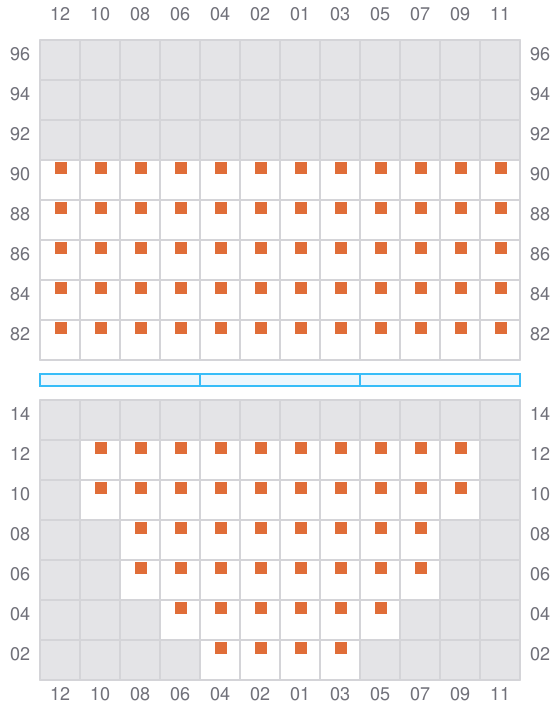

011

  • ←
Bay 011 view and slots of MSC SANDY III

013 (014)

  • →
Bay 013 view and slots of MSC SANDY III

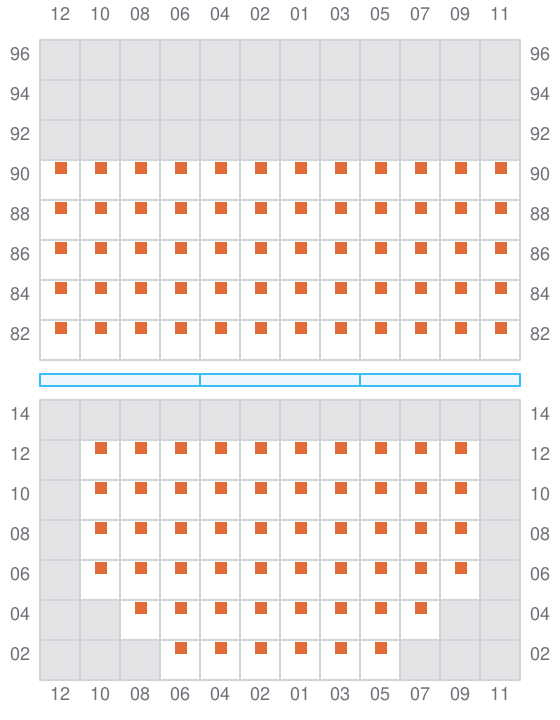

015

  • ←
Bay 015 view and slots of MSC SANDY III

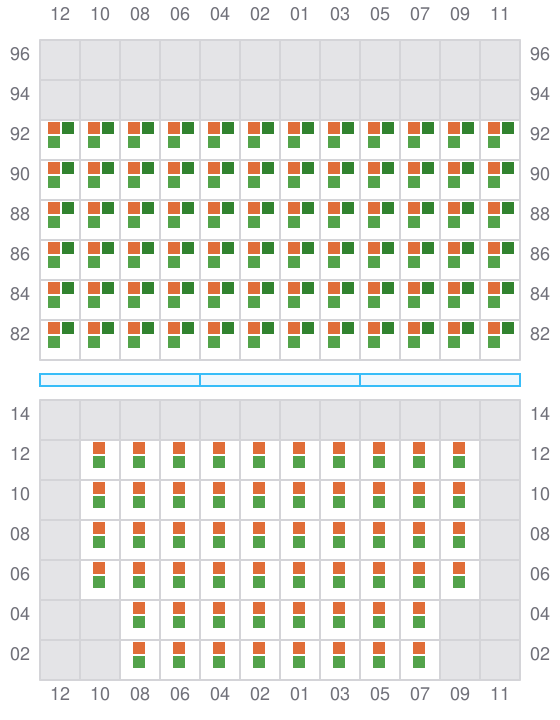

017 (018)

  • →
Bay 017 view and slots of MSC SANDY III

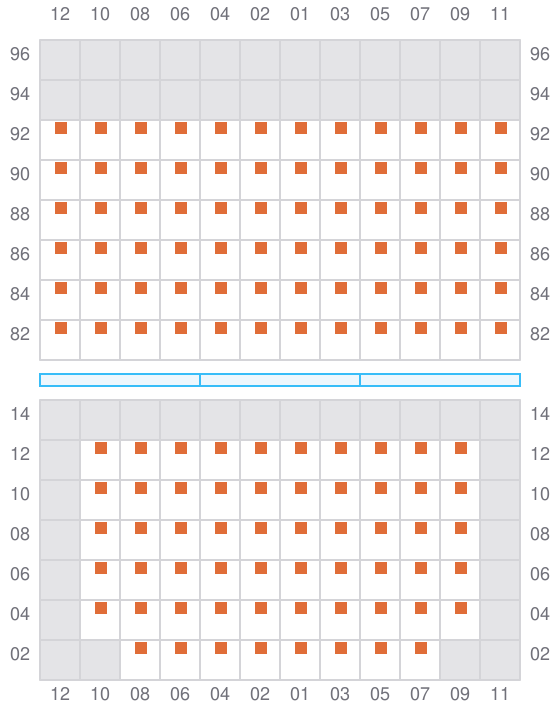

019

  • ←
Bay 019 view and slots of MSC SANDY III

021 (022)

  • →
Bay 021 view and slots of MSC SANDY III

023

  • ←
Bay 023 view and slots of MSC SANDY III

025 (026)

  • →
Bay 025 view and slots of MSC SANDY III

027

  • ←
Bay 027 view and slots of MSC SANDY III

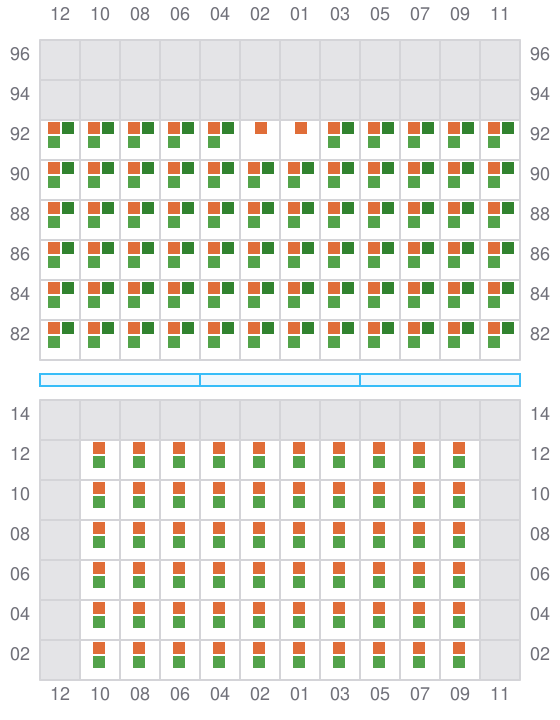

029 (030)

  • →
Bay 029 view and slots of MSC SANDY III

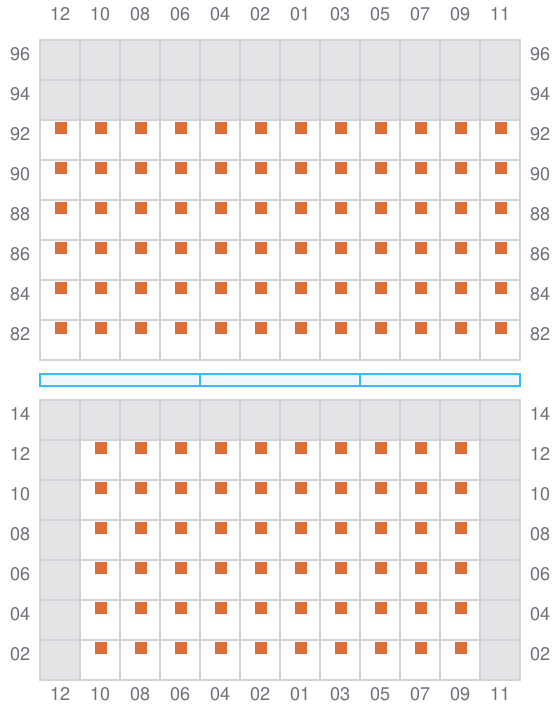

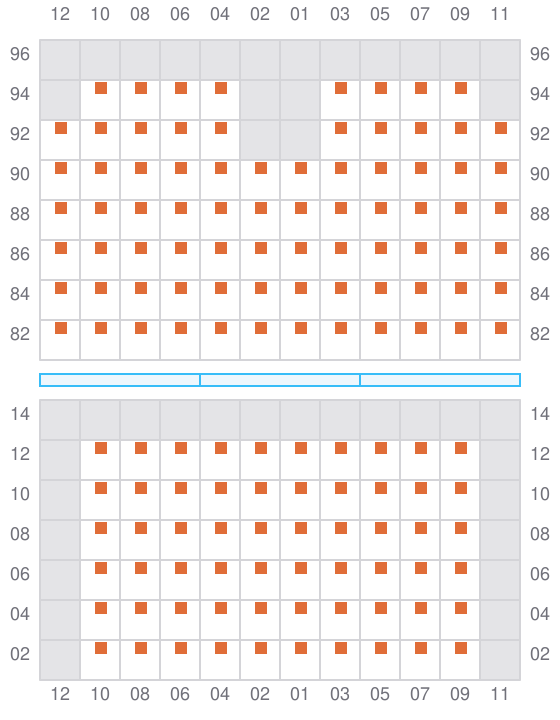

031

  • ←
Bay 031 view and slots of MSC SANDY III

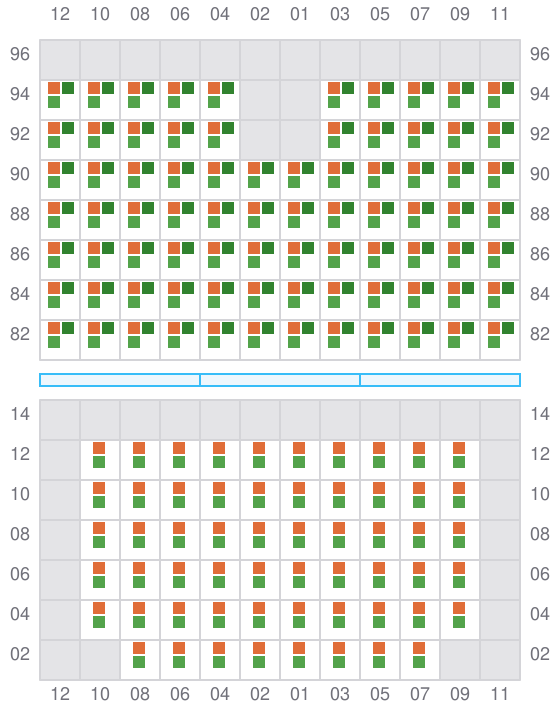

033 (034)

  • →
Bay 033 view and slots of MSC SANDY III

035

  • ←
Bay 035 view and slots of MSC SANDY III

037 (038)

  • →
Bay 037 view and slots of MSC SANDY III

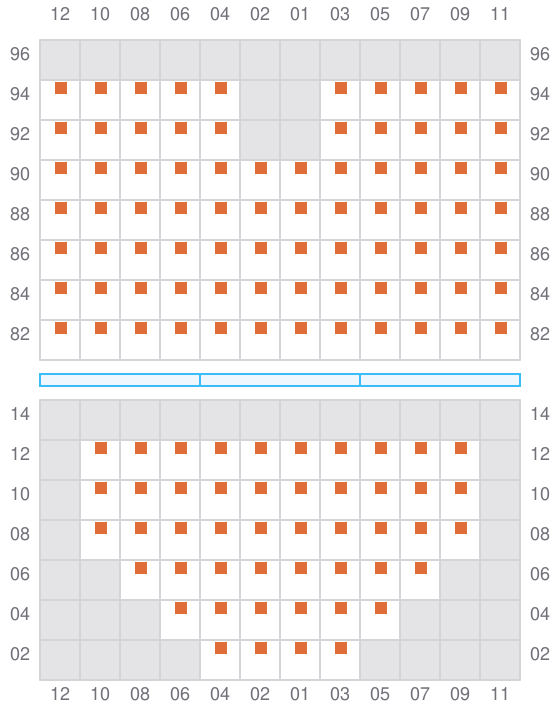

039

  • ←
Bay 039 view and slots of MSC SANDY III

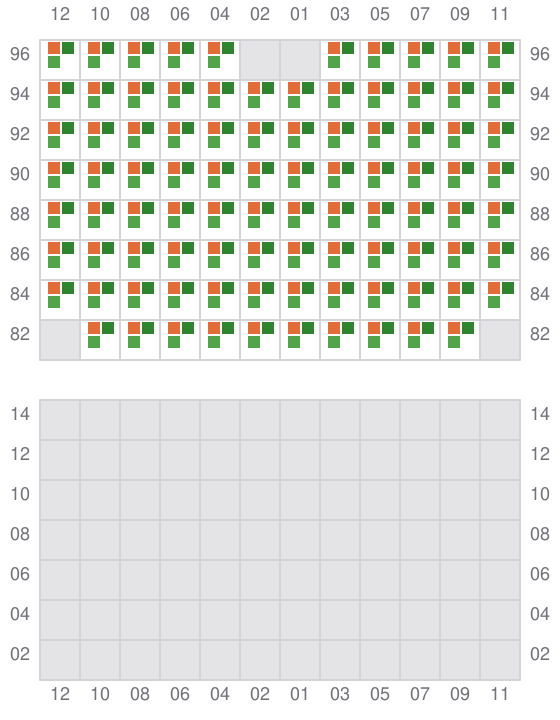

041 (042)

  • → / ?
Bay 041 view and slots of MSC SANDY III

043

  • ← / ?

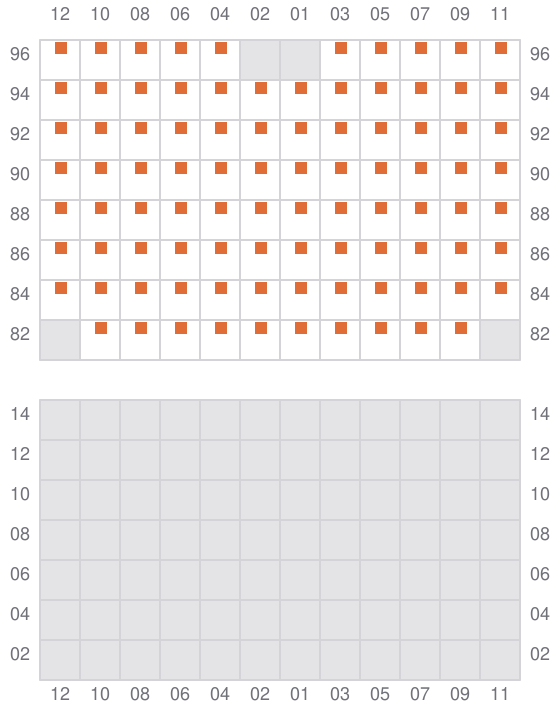

Bay 043 view and slots of MSC SANDY III
