MSC SANDY III
9239733 | 3E2076 | HLC by *********************** Last update: Wed Jan 15 2025
General Info
Ship Name:MSC SANDY III
IMO Code:9239733
Call Sign:3E2076
Line Operator:HLC
Class Name for Sister Ships:FMTR
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,472
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

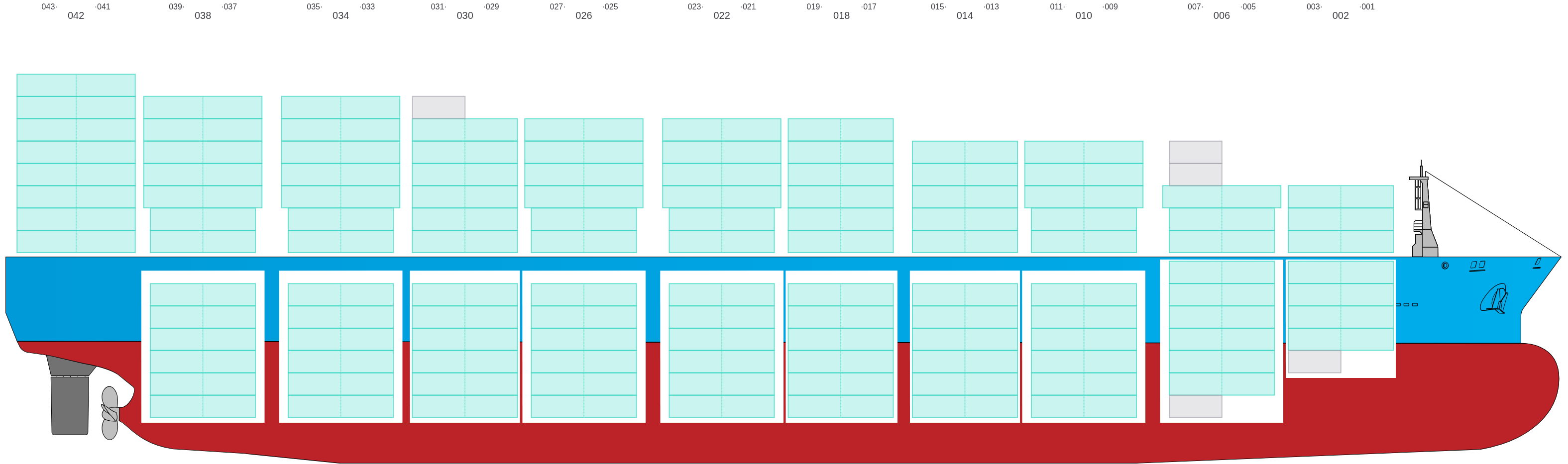

Side View

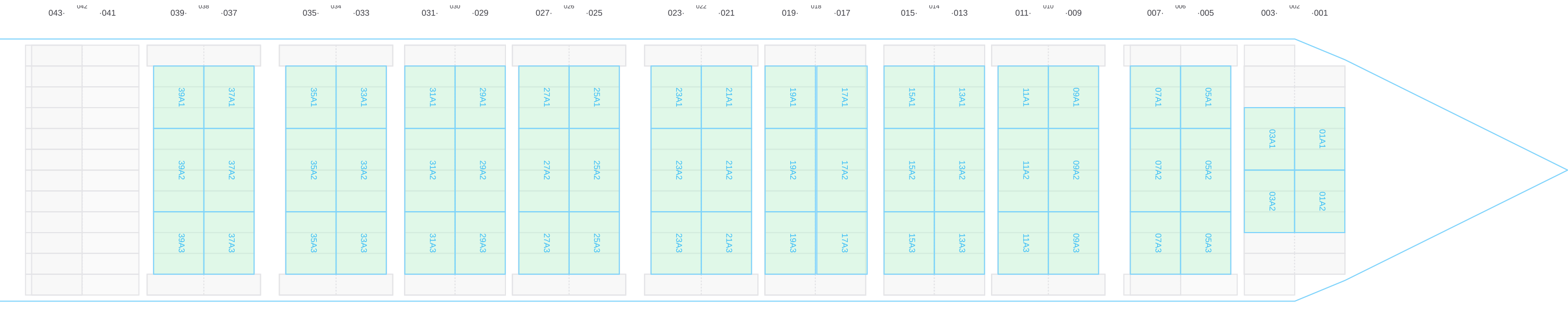

Hatch-Covers View

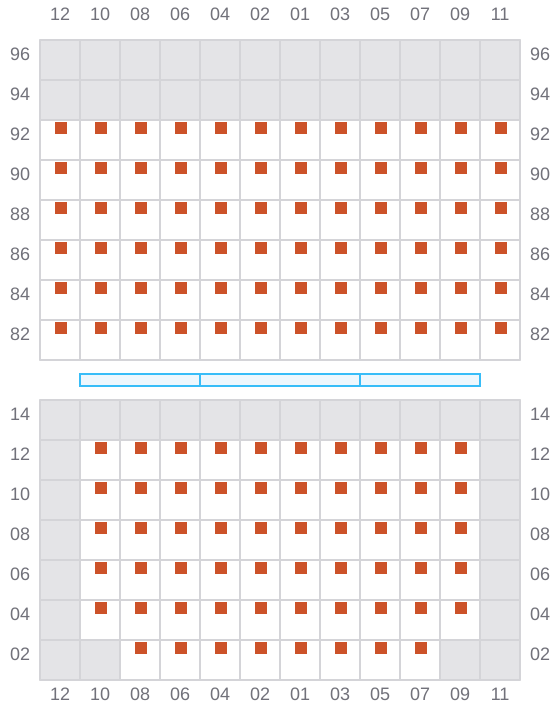

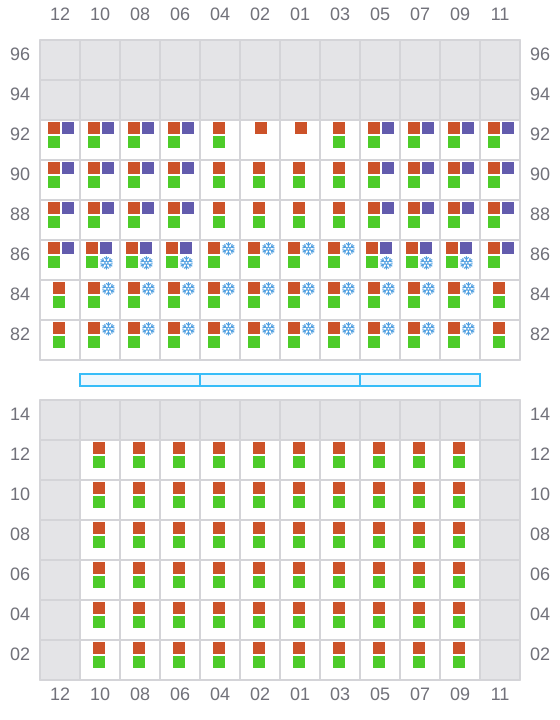

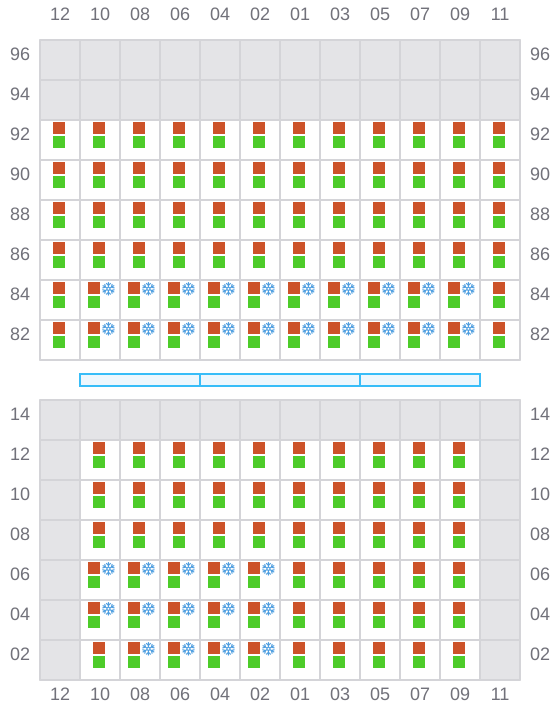

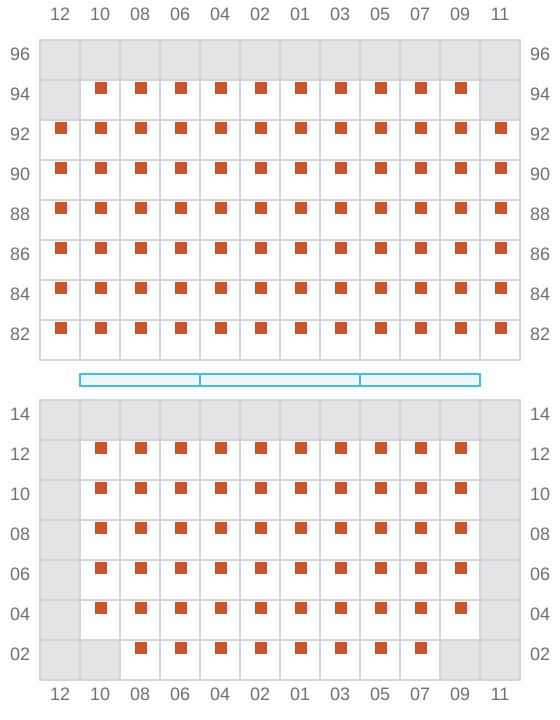

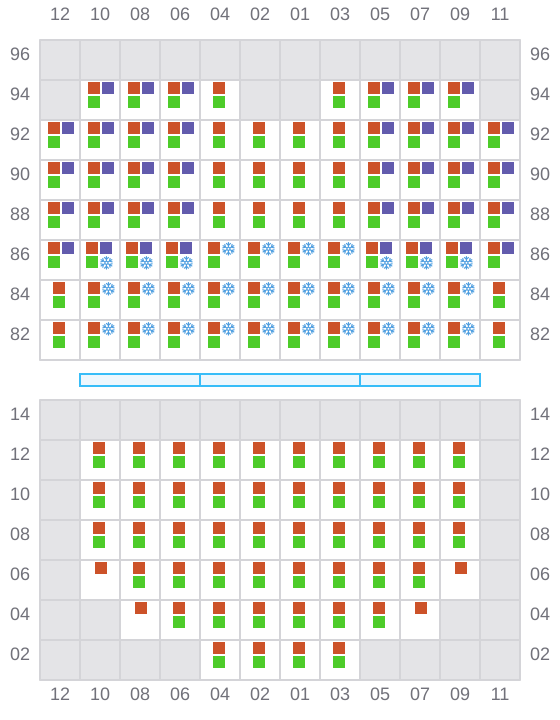

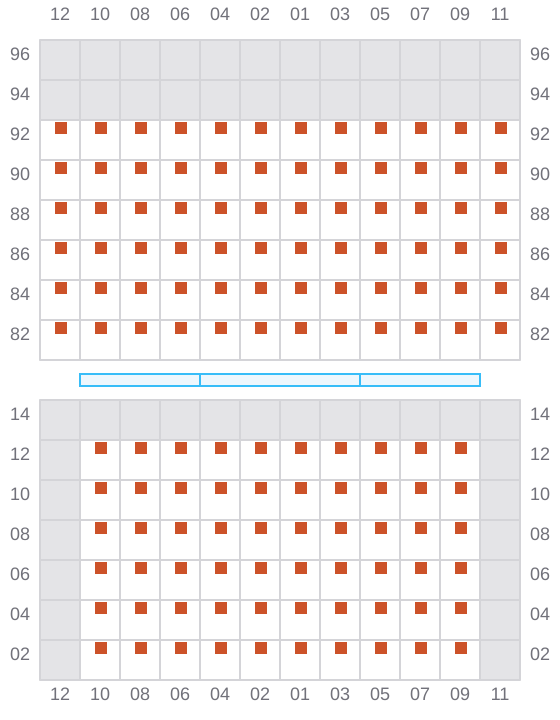

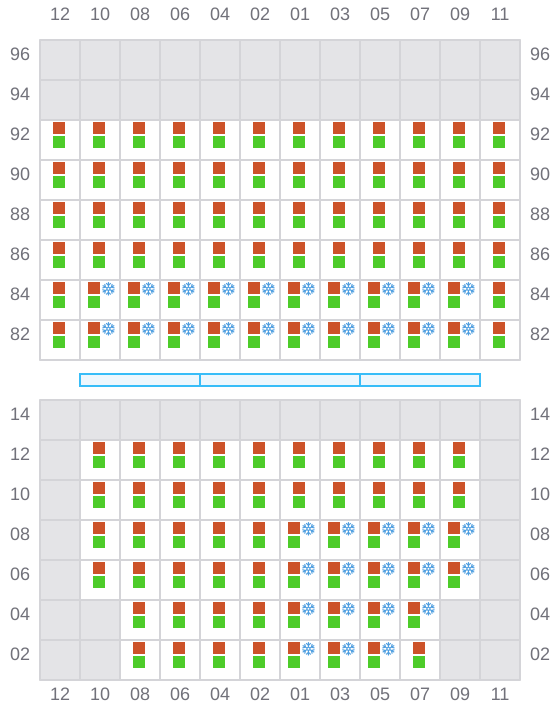

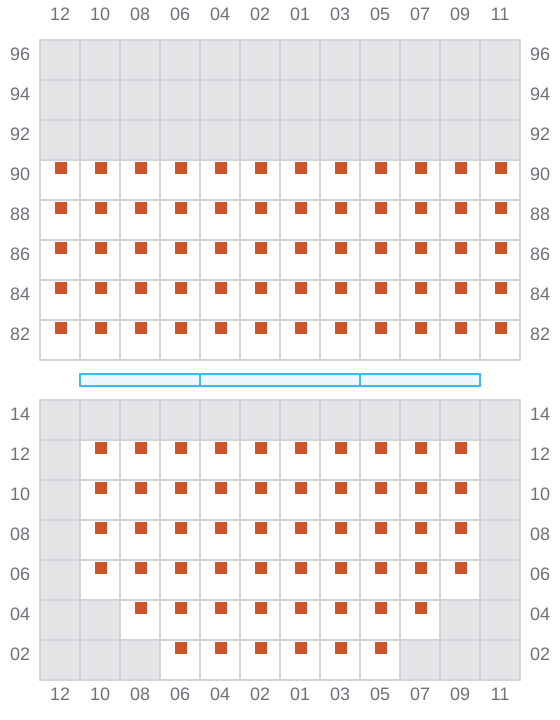

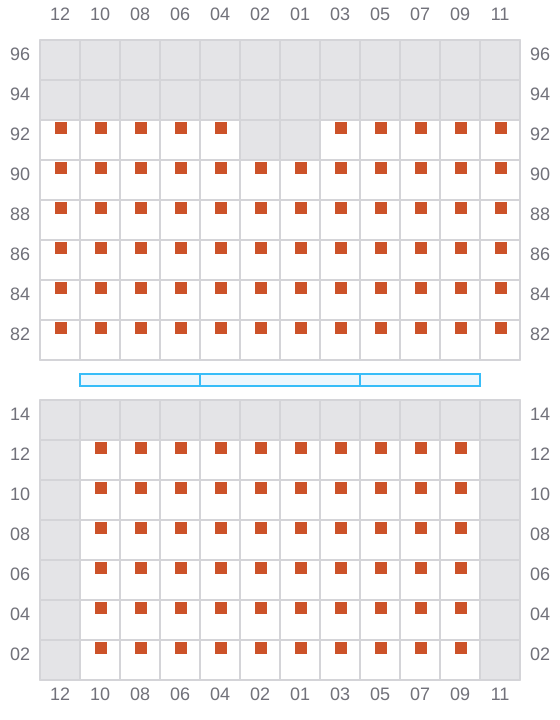

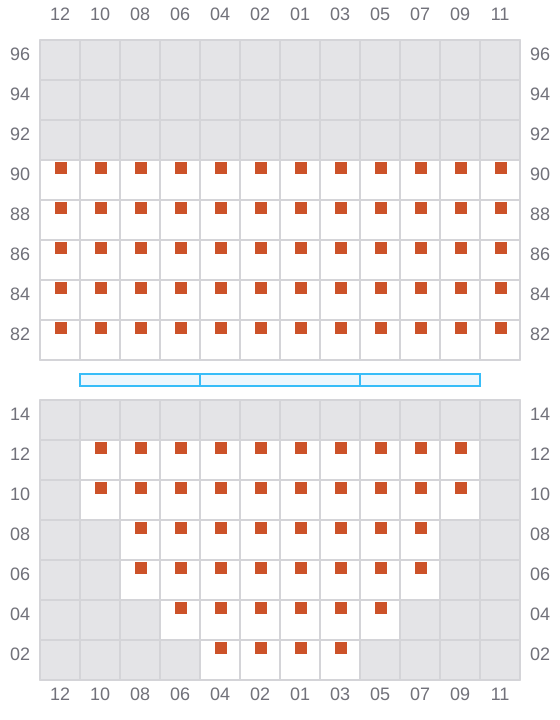

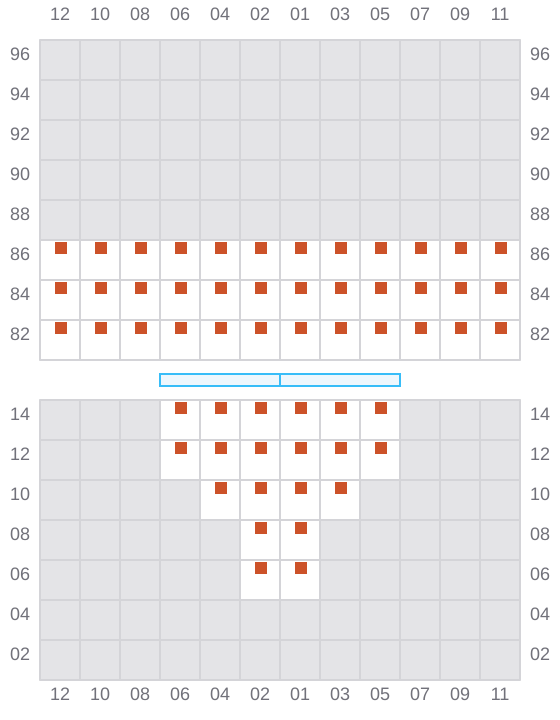

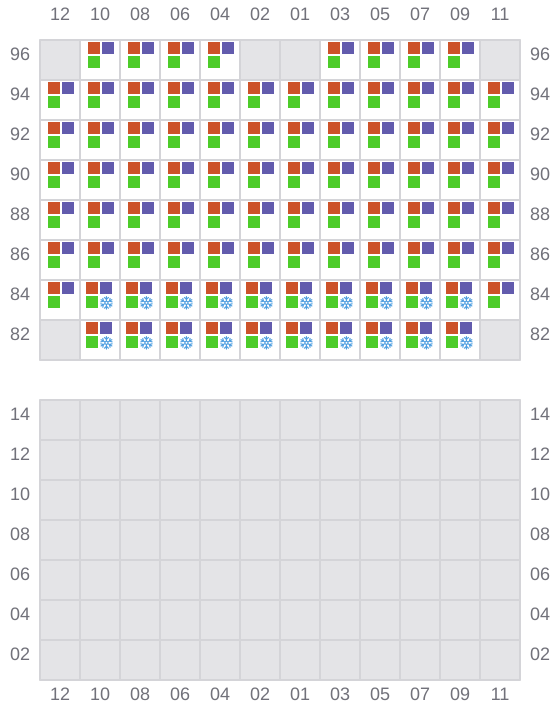

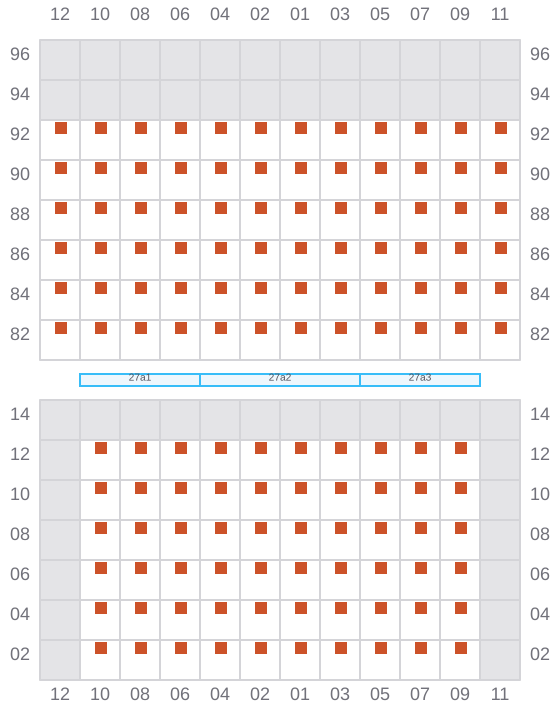

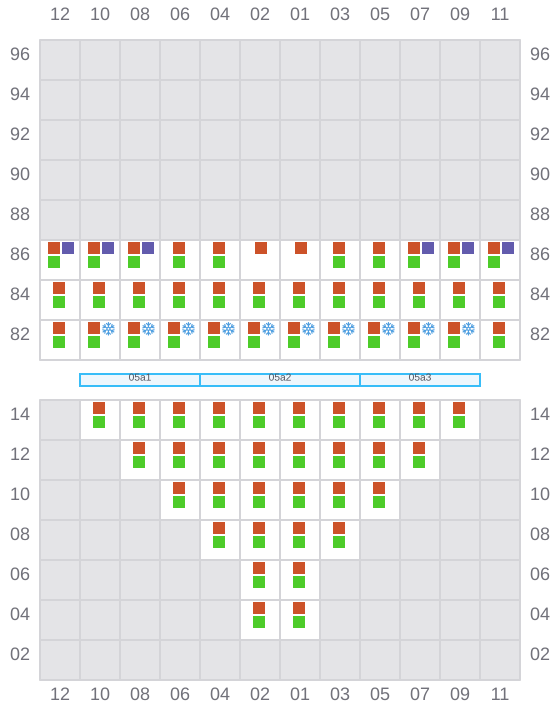

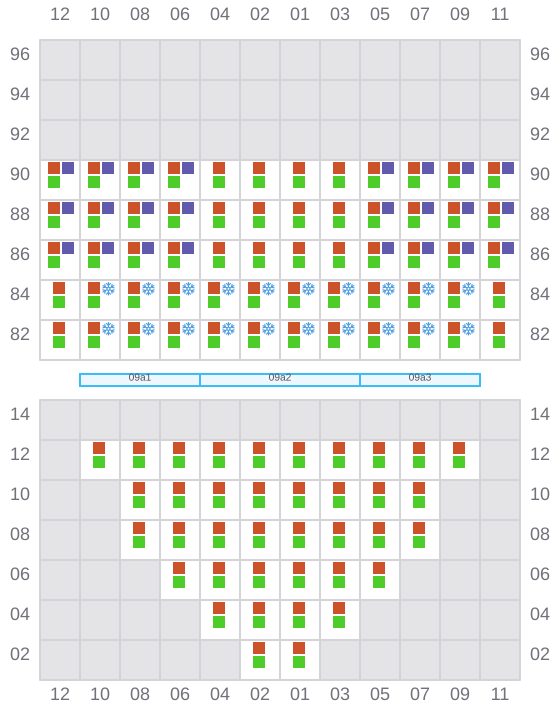

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

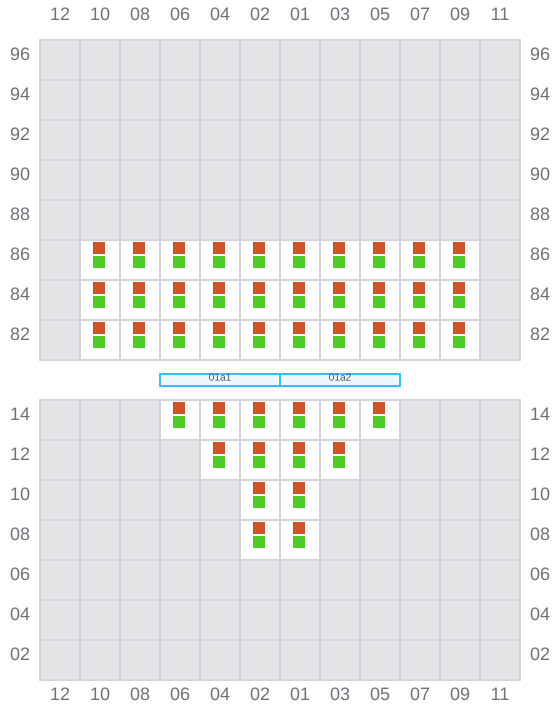

001 (002)
- →
- →
003
- ←
- →
005 (006)
- →
- → / ?
- →
007
- ←
- →
009 (010)
- →
- → / ?
- →
011
- ←
- →
013 (014)
- →
- →
- →
015
- ←
- ? / →
- →
017 (018)
- →
- → / ←
- →

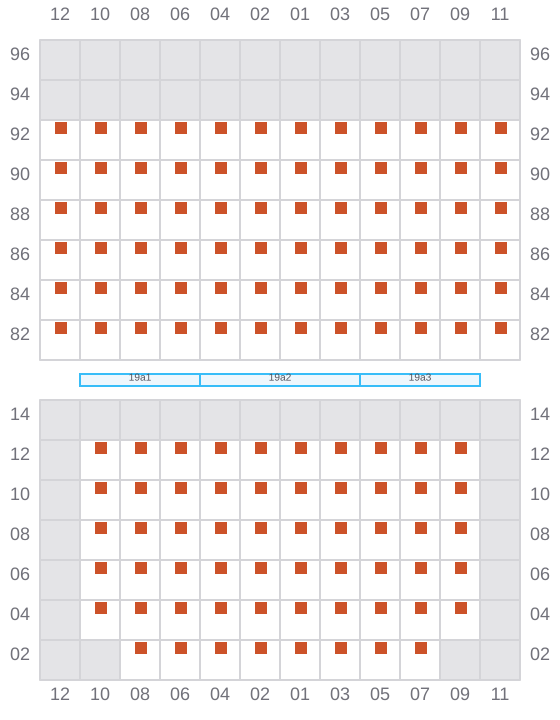

019
- ←
- →
021 (022)
- →
- → / ?
- →
023
- ←
- →
025 (026)
- →
- ← / ?
- →
027
- ←
- →
029 (030)
- →
- →
- →
031
- ←
- →

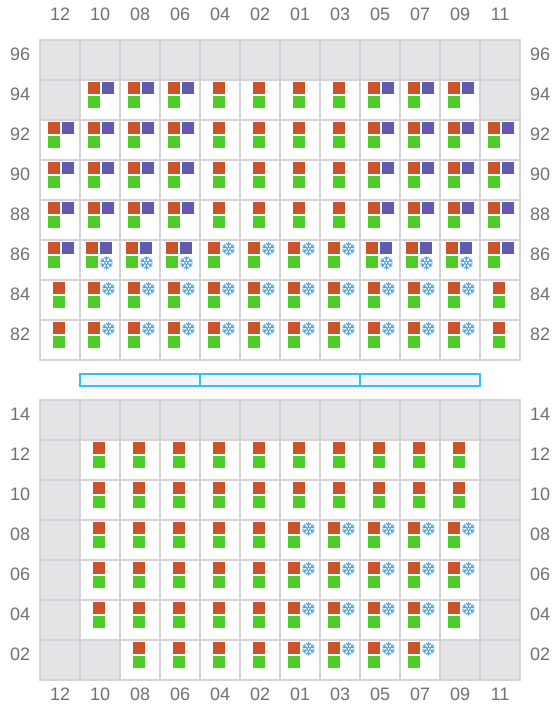

033 (034)
- →
- → / ←
- →
035
- ←
- →
037 (038)
- →
- ← / ?
- →

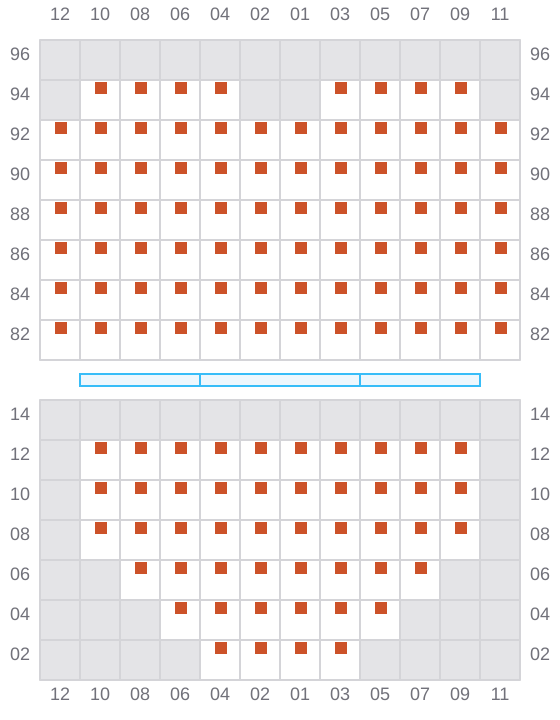

039
- ←
- →
041 (042)
- → / ?
- → / ?
- → / ?

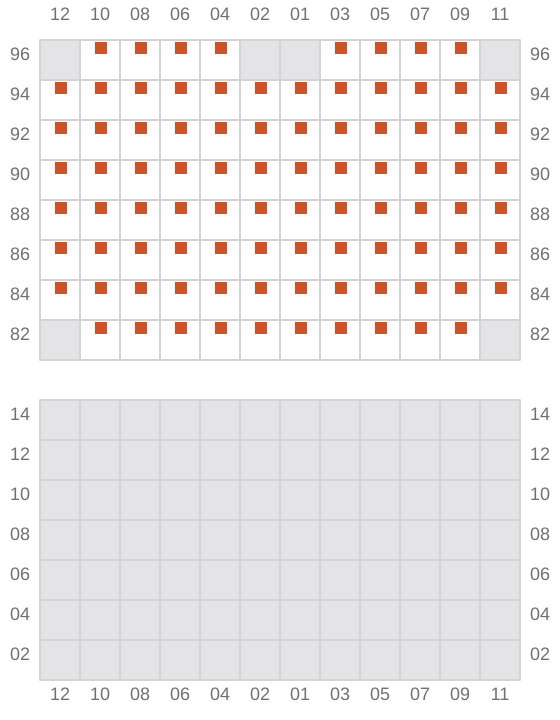

043
- ← / ?
- → / ?
