MSC SAO PAULO V
9147071 | D5GL3 | MSC by ************************** Last update: Mon Jun 19 2023
General Info
Ship Name:MSC SAO PAULO V
IMO Code:9147071
Call Sign:D5GL3
Line Operator:MSC
Class Name for Sister Ships:PYR
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,844
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

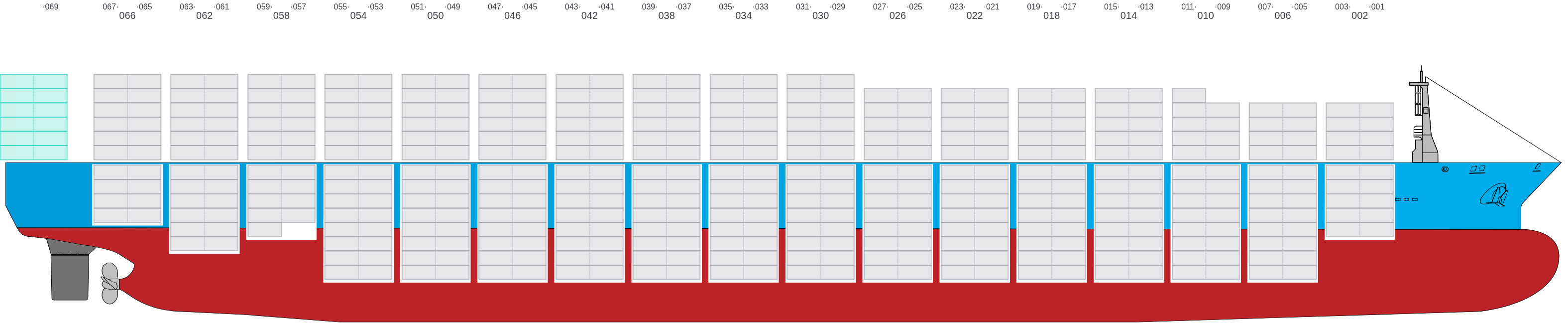

Side View
Hatch-Covers View

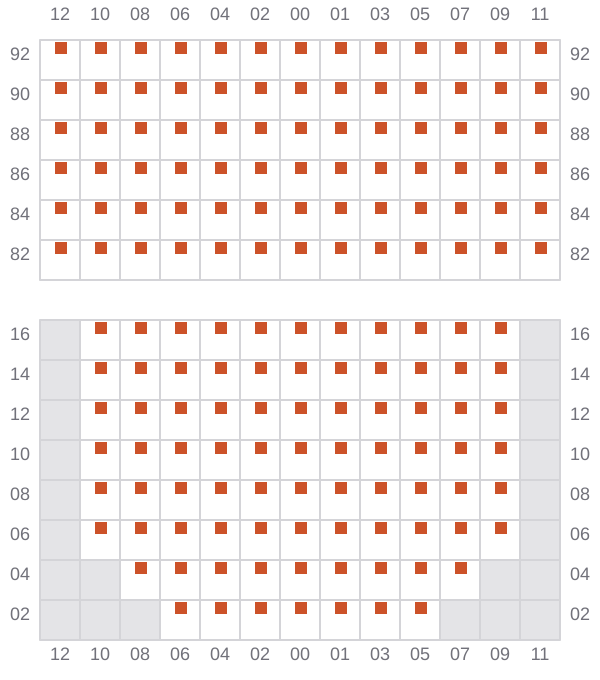

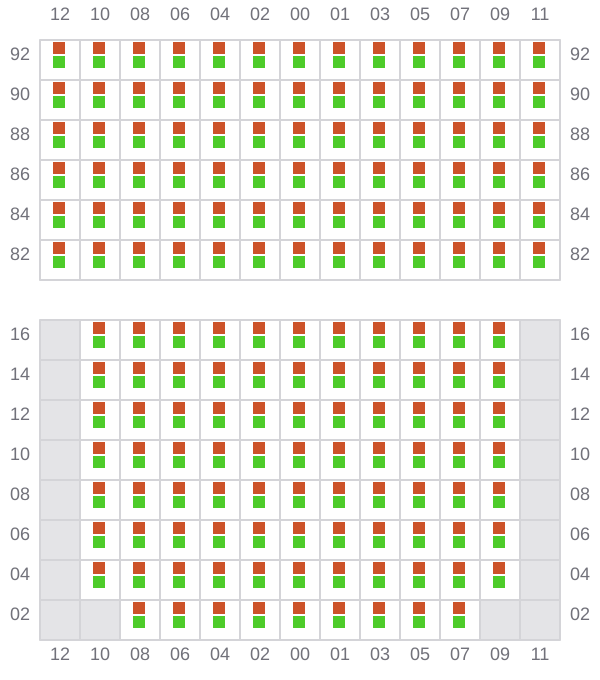

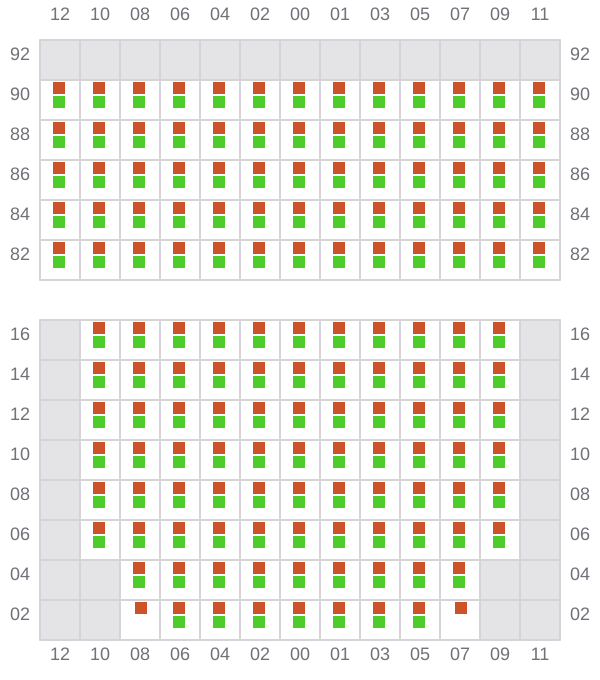

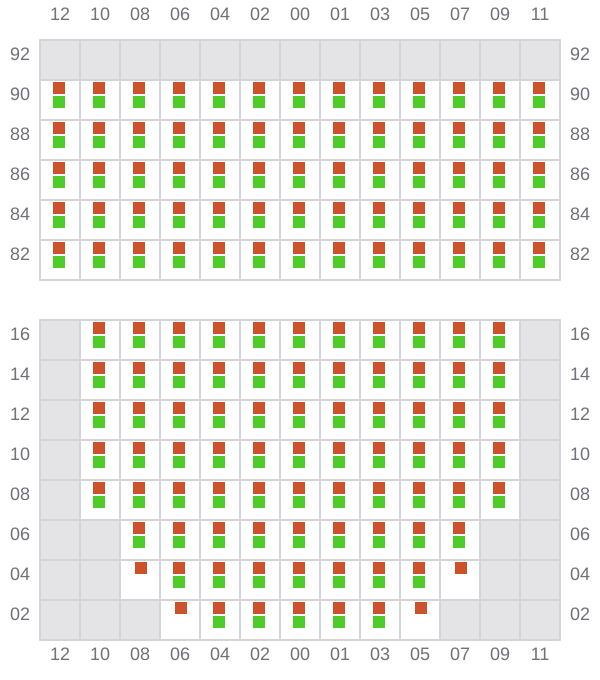

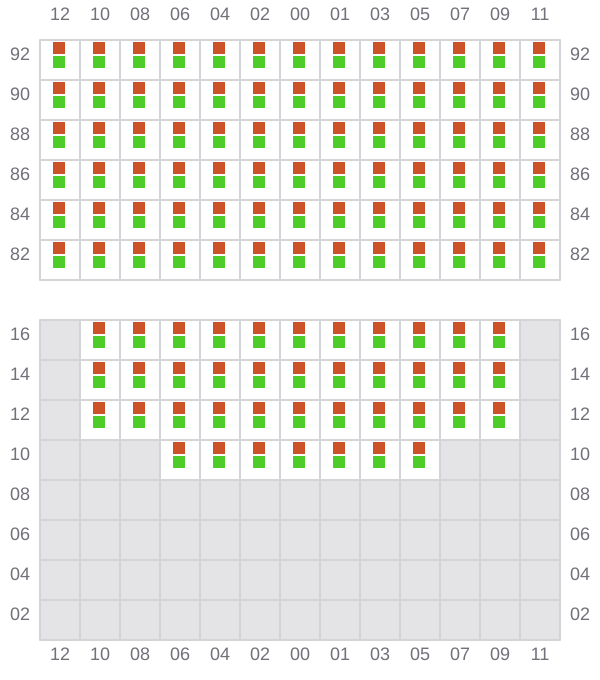

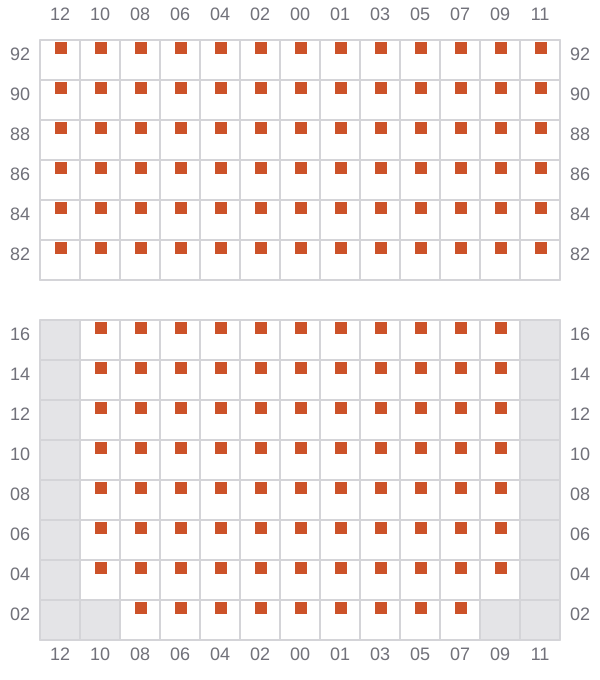

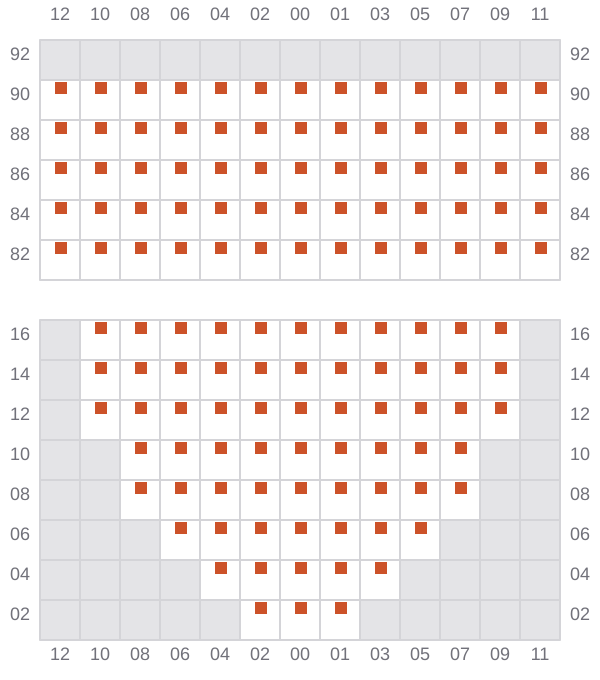

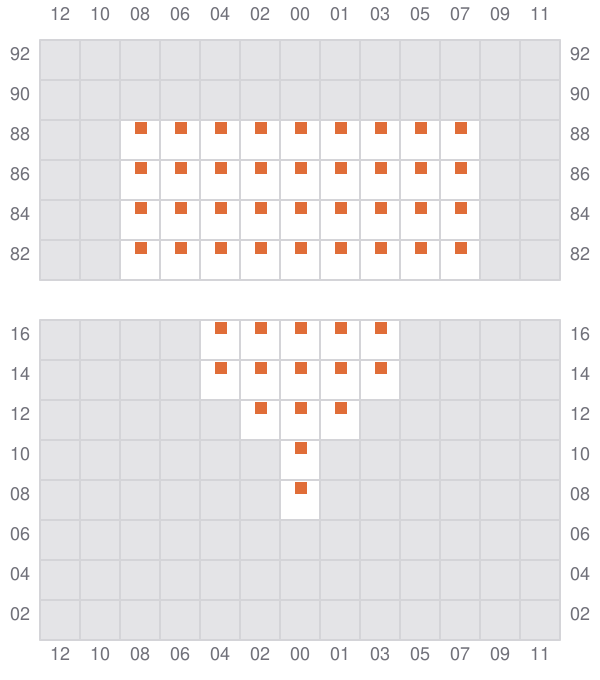

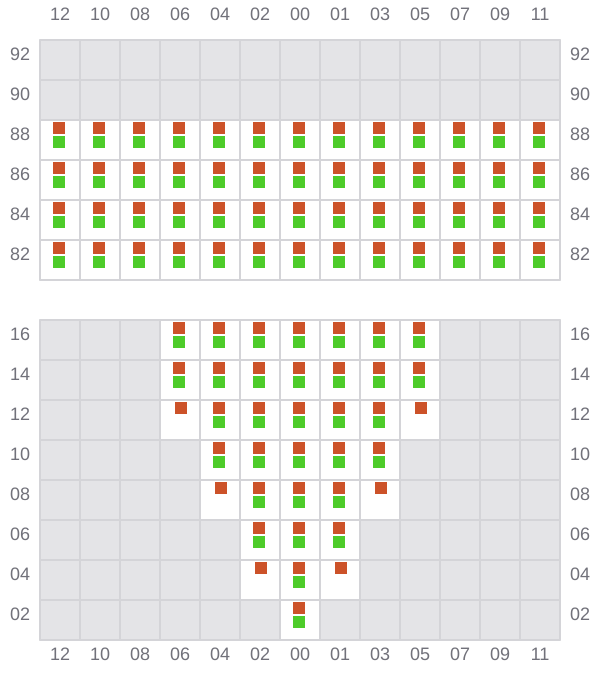

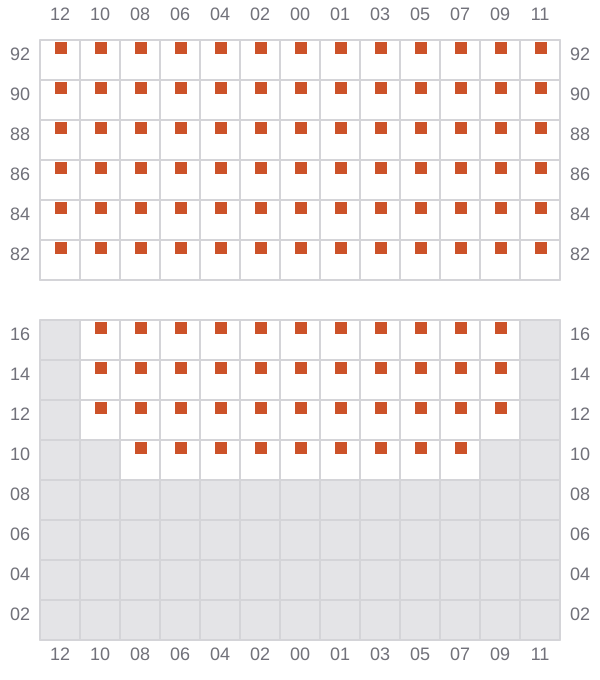

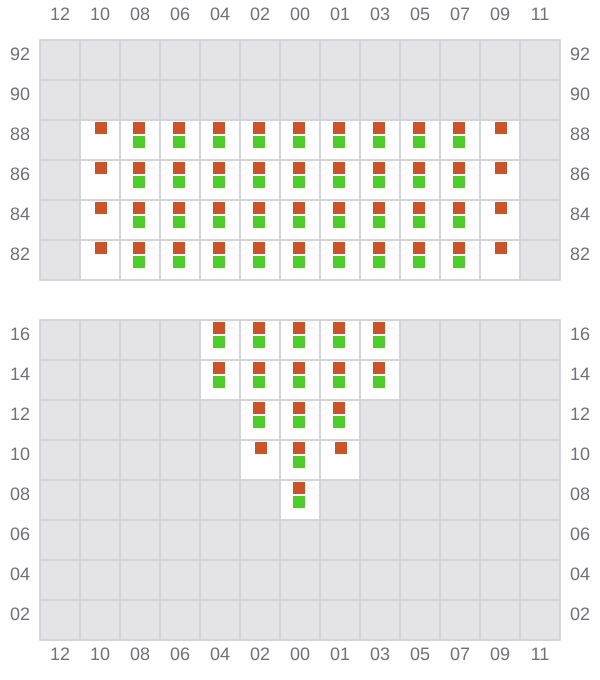

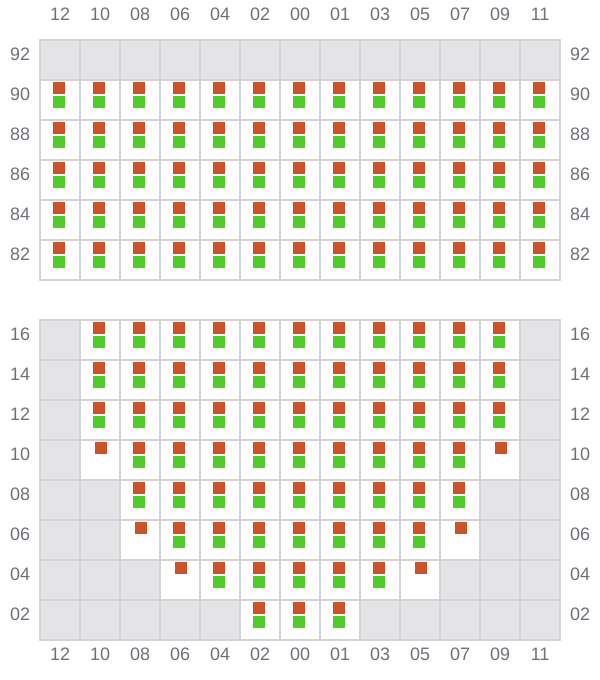

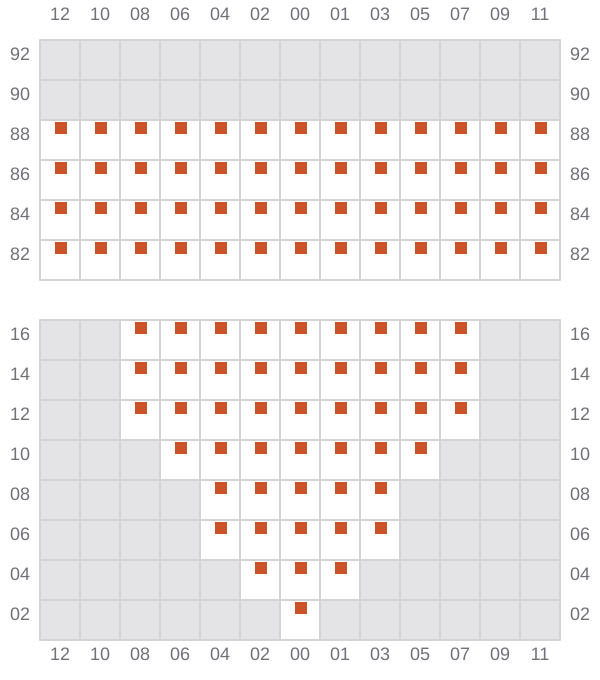

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←

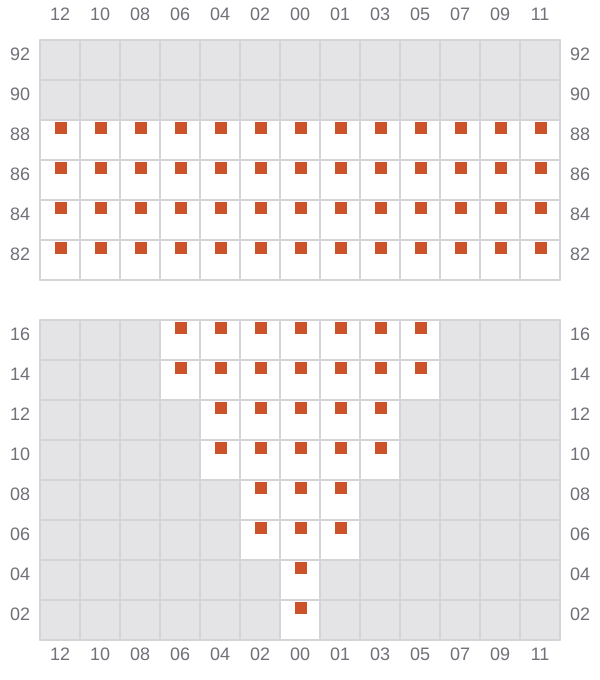

005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←

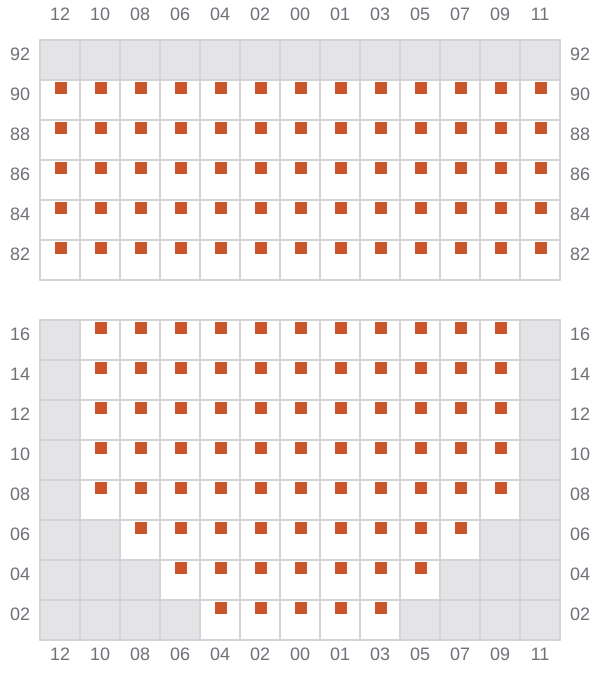

017
- →
019 (018)
- ←

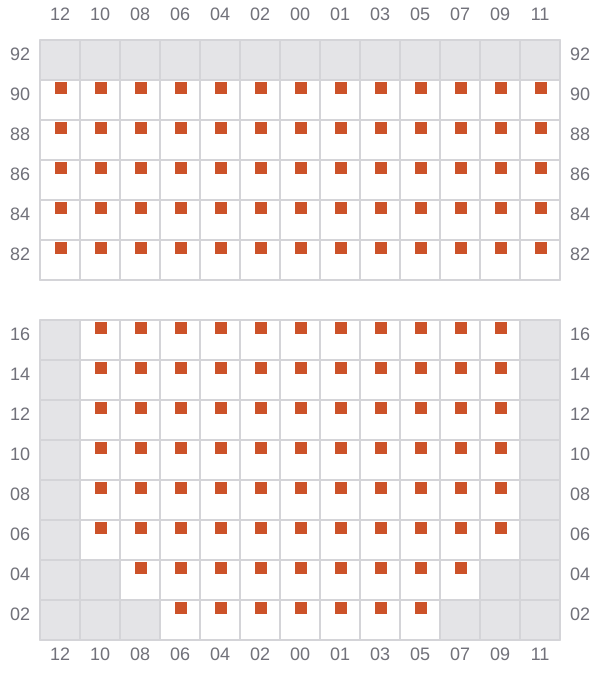

021
- →
023 (022)
- ←
025
- →

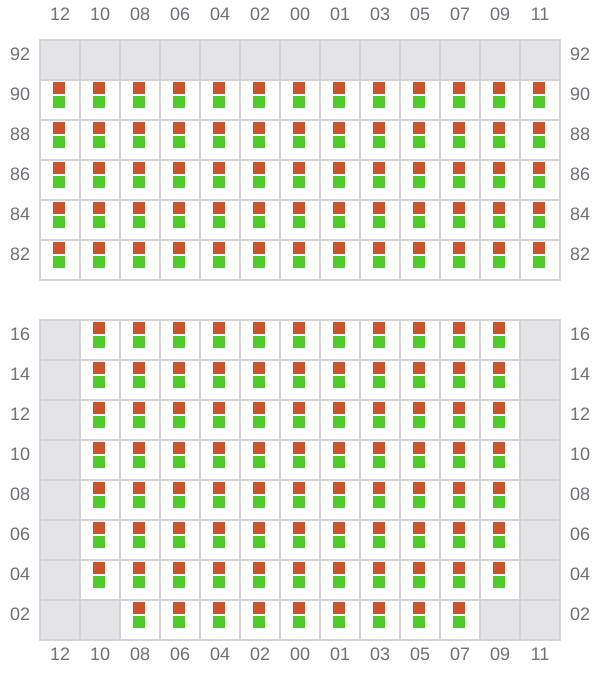

027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←
057
- →

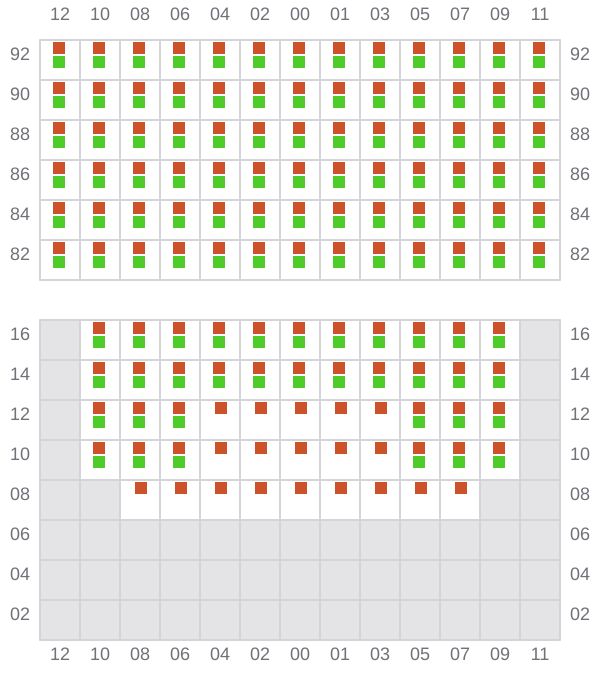

059 (058)
- ←

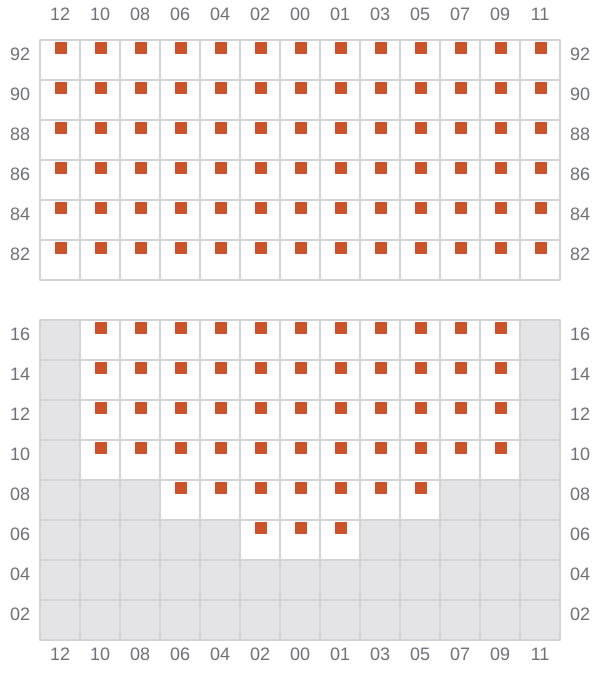

061
- →

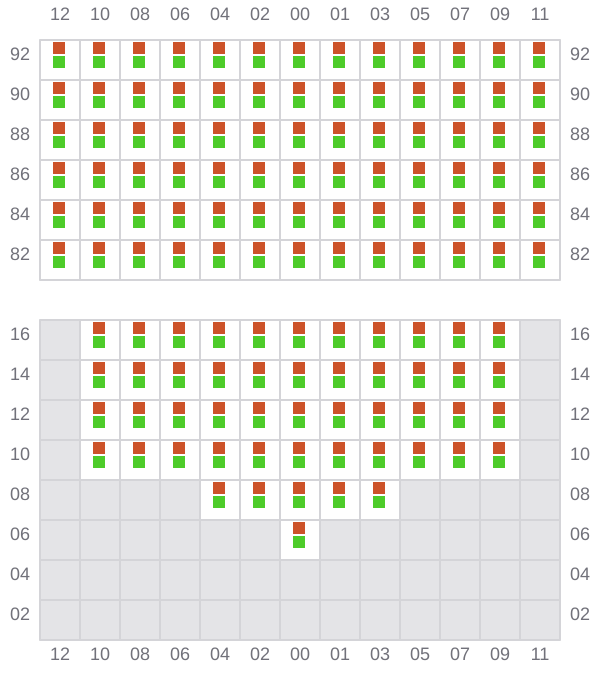

063 (062)
- ←
065
- →
067 (066)
- ←

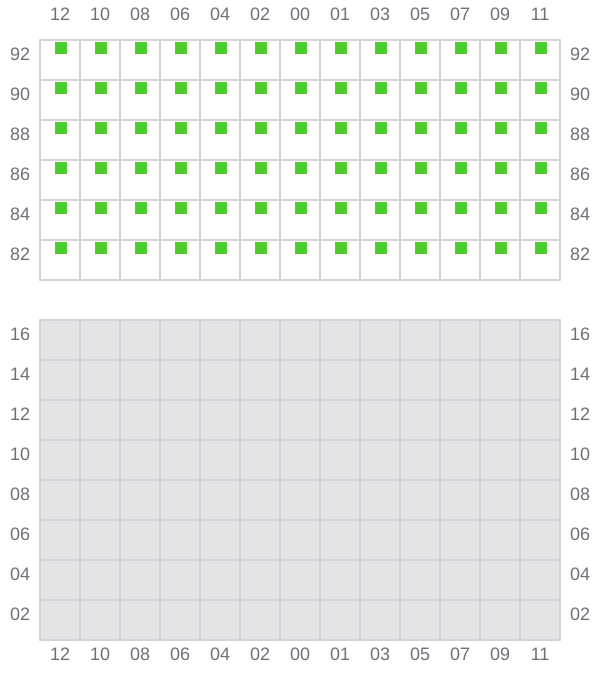

069 (070)
- → / ?
