MSC SARA ELENA
9702261 | CQEV8 | 9702261 by ********* Last update: Fri Mar 29 2024

General Info

Ship Name:MSC SARA ELENA
IMO Code:9702261
Call Sign:CQEV8
Line Operator:9702261
Class Name for Sister Ships:MS9
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:100
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,918

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

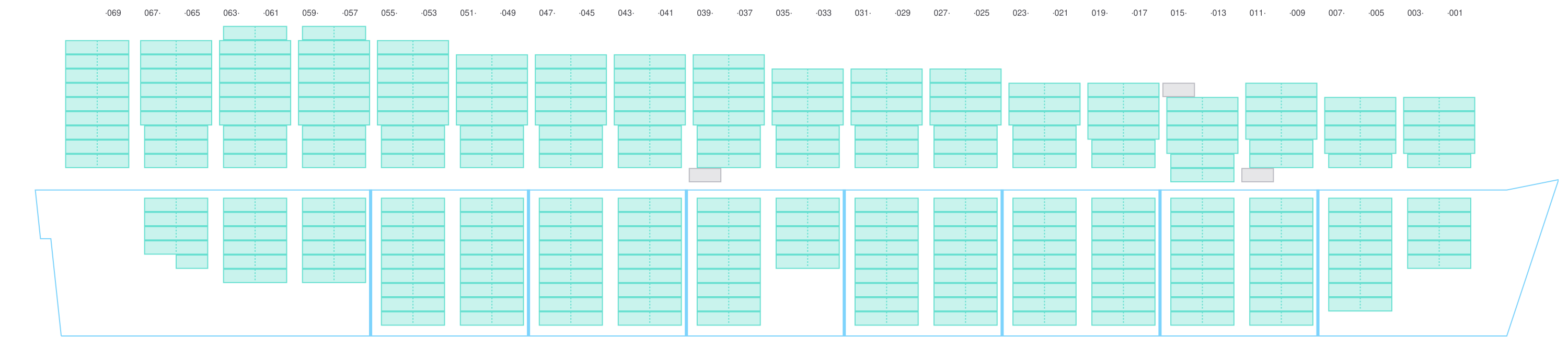

Side View

Side view of MSC SARA ELENA

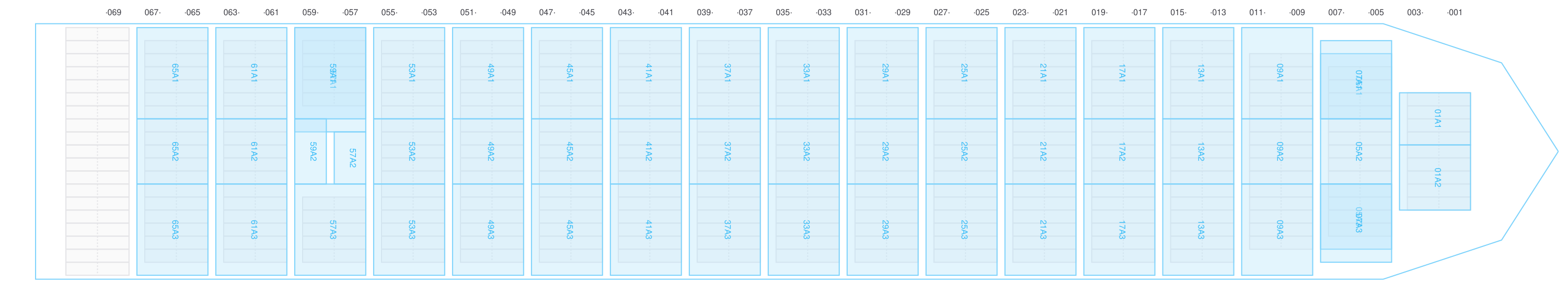

Hatch-Covers View

Deck view of MSC SARA ELENA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • ← / ?

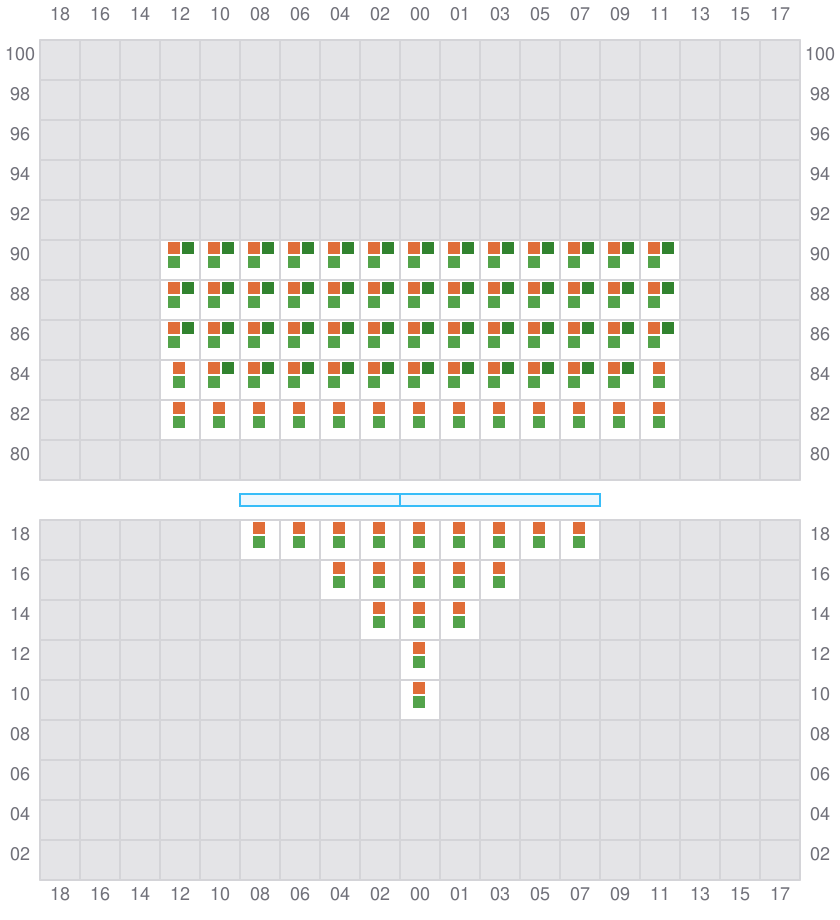

Bay 001 view and slots of MSC SARA ELENA

003

  • ←
  • → / ?

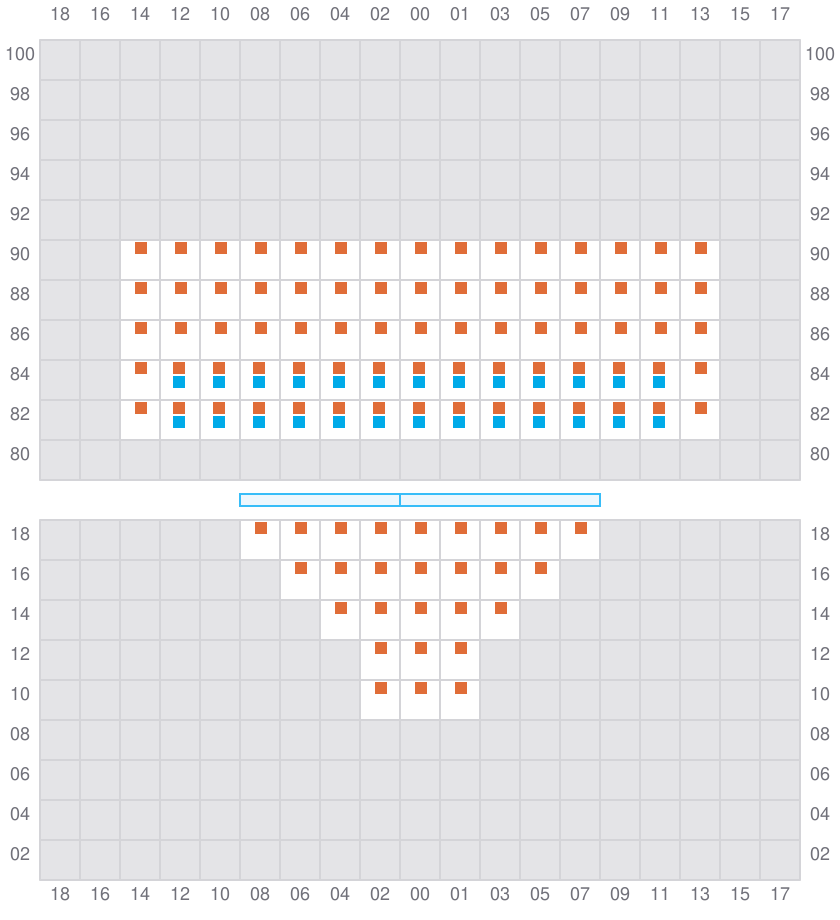

Bay 003 view and slots of MSC SARA ELENA

005 (006)

  • →
  • ← / ?
Bay 005 view and slots of MSC SARA ELENA

007

  • ←
  • → / ?

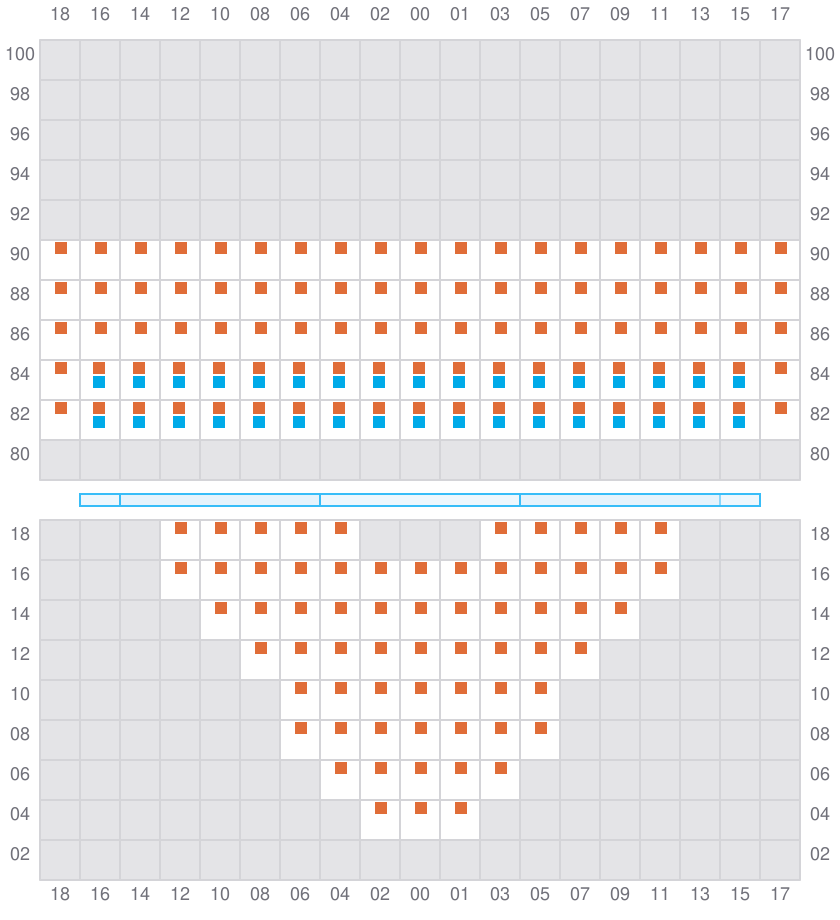

Bay 007 view and slots of MSC SARA ELENA

009 (010)

  • →
  • ← / ?

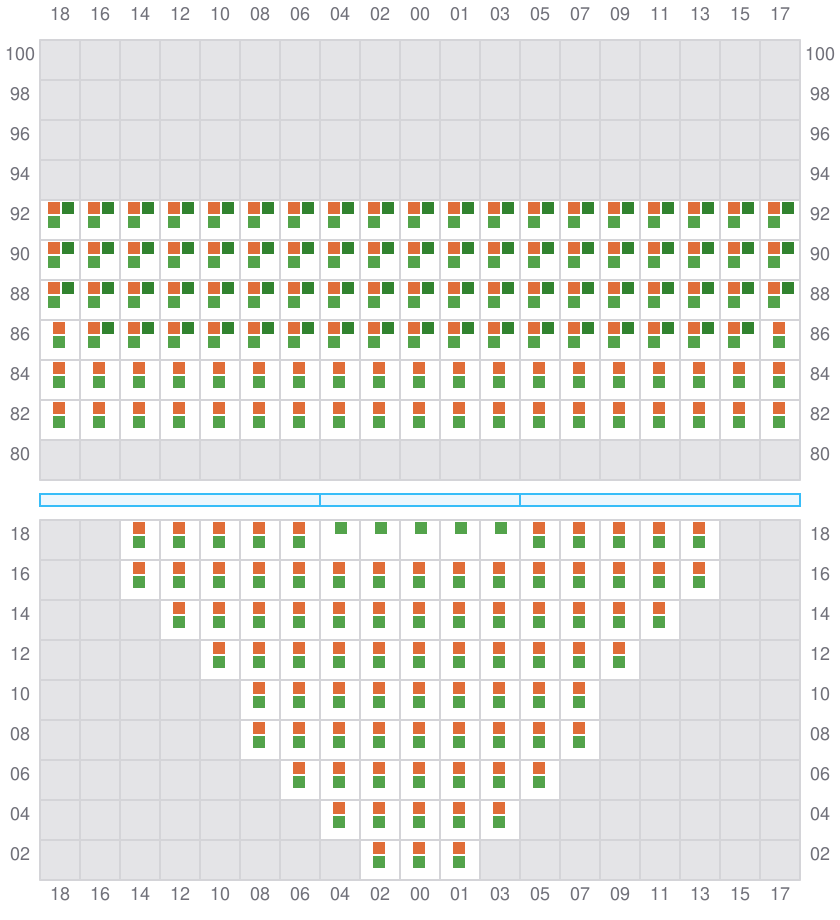

Bay 009 view and slots of MSC SARA ELENA

011

  • ←
  • → / ?

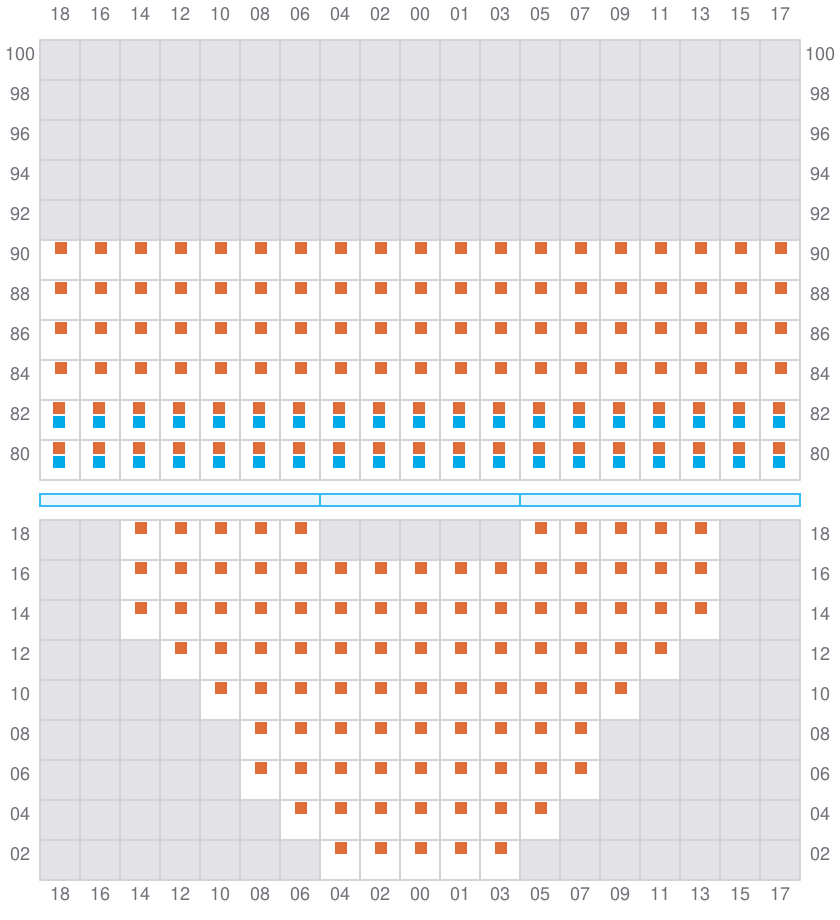

Bay 011 view and slots of MSC SARA ELENA

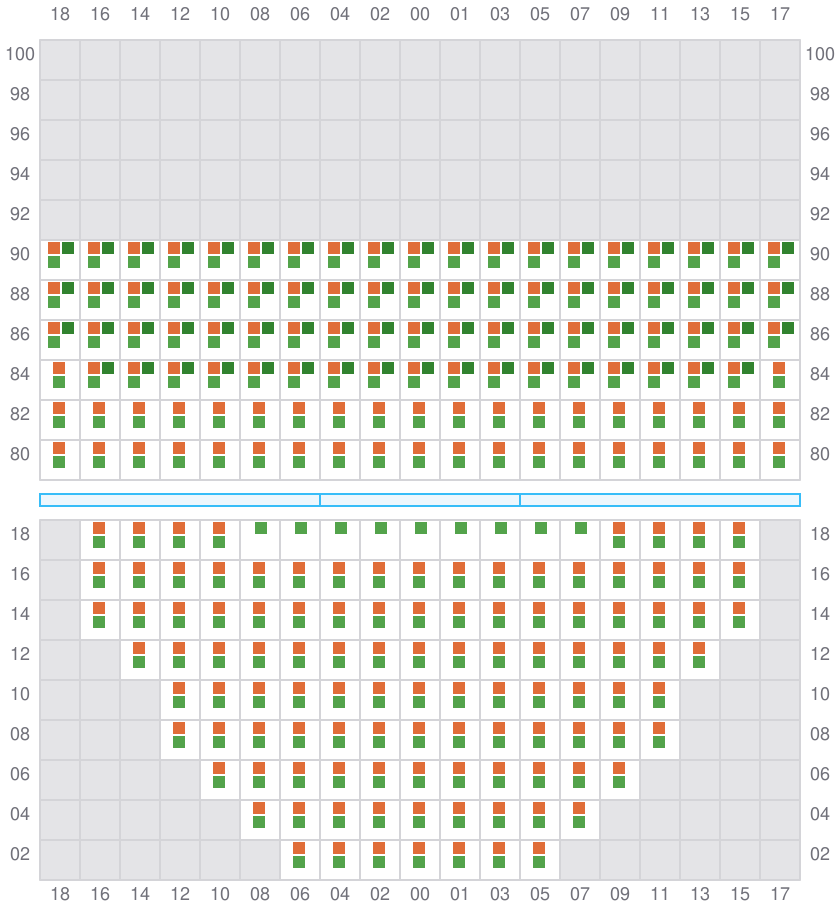

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of MSC SARA ELENA

015

  • ←
  • → / ?

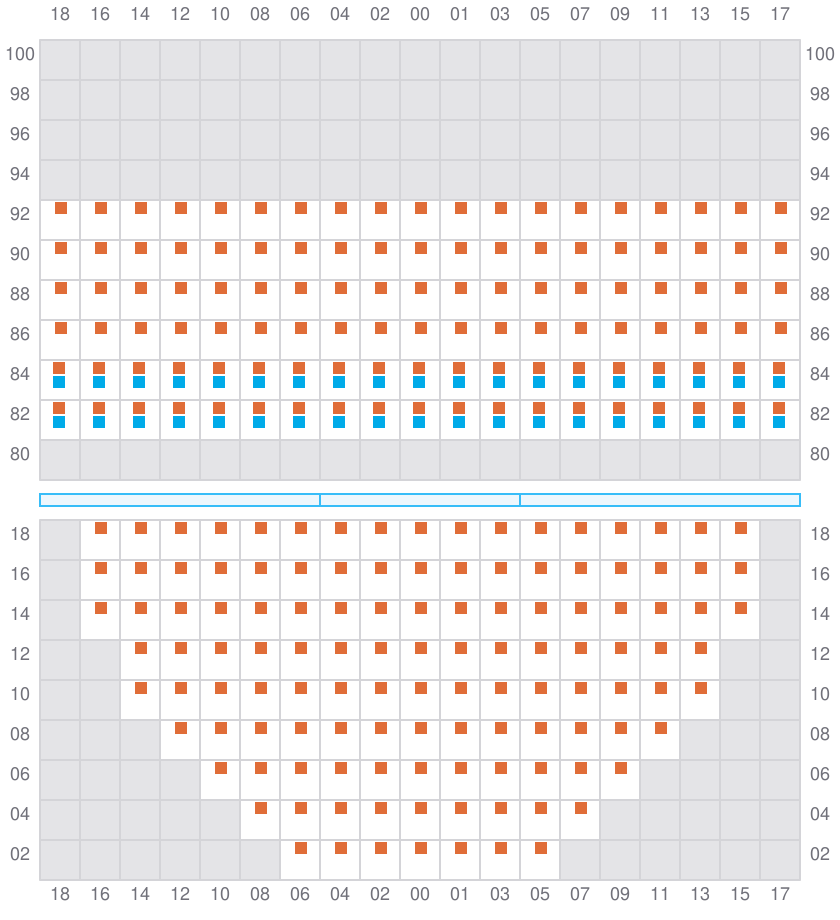

Bay 015 view and slots of MSC SARA ELENA

017 (018)

  • →
  • ← / ?

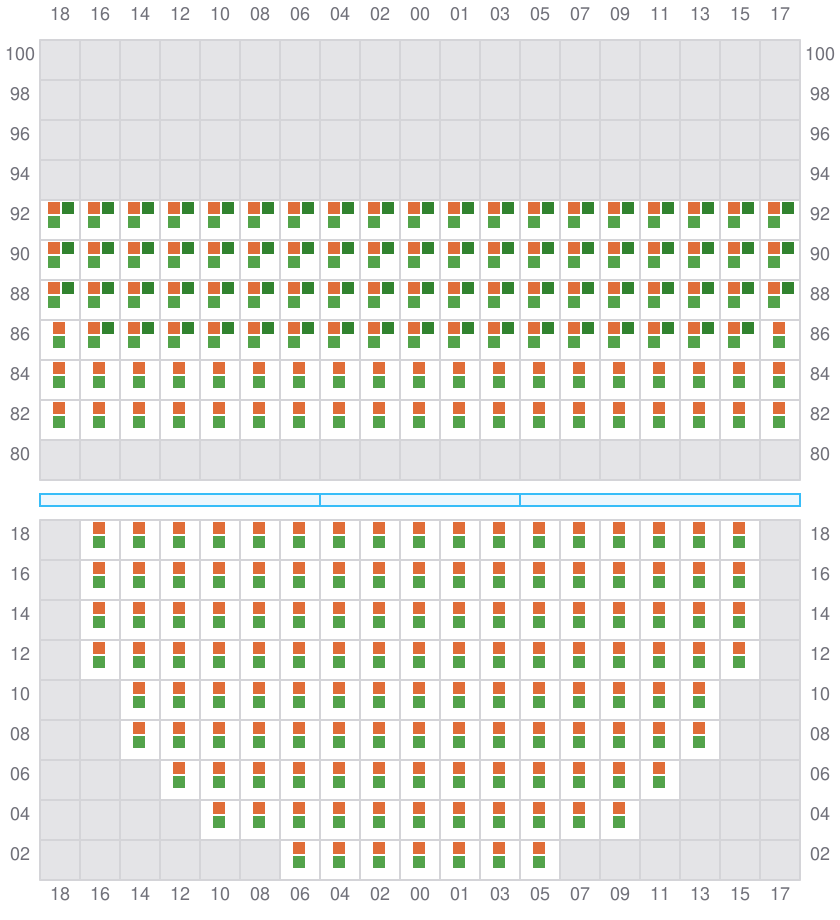

Bay 017 view and slots of MSC SARA ELENA

019

  • ←
  • → / ?

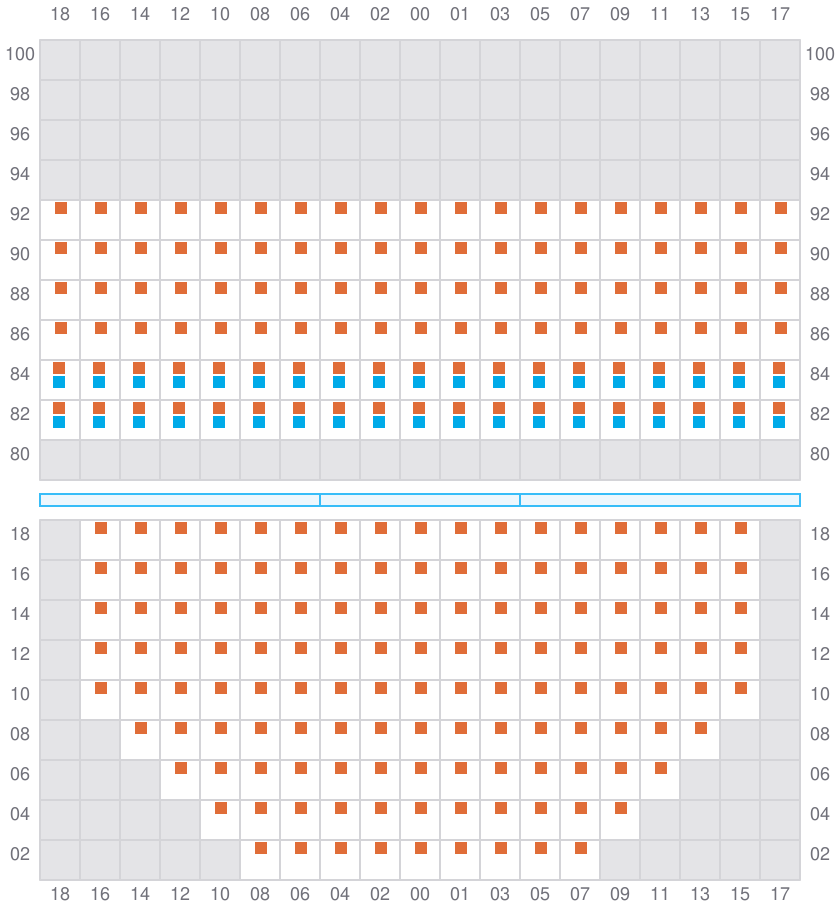

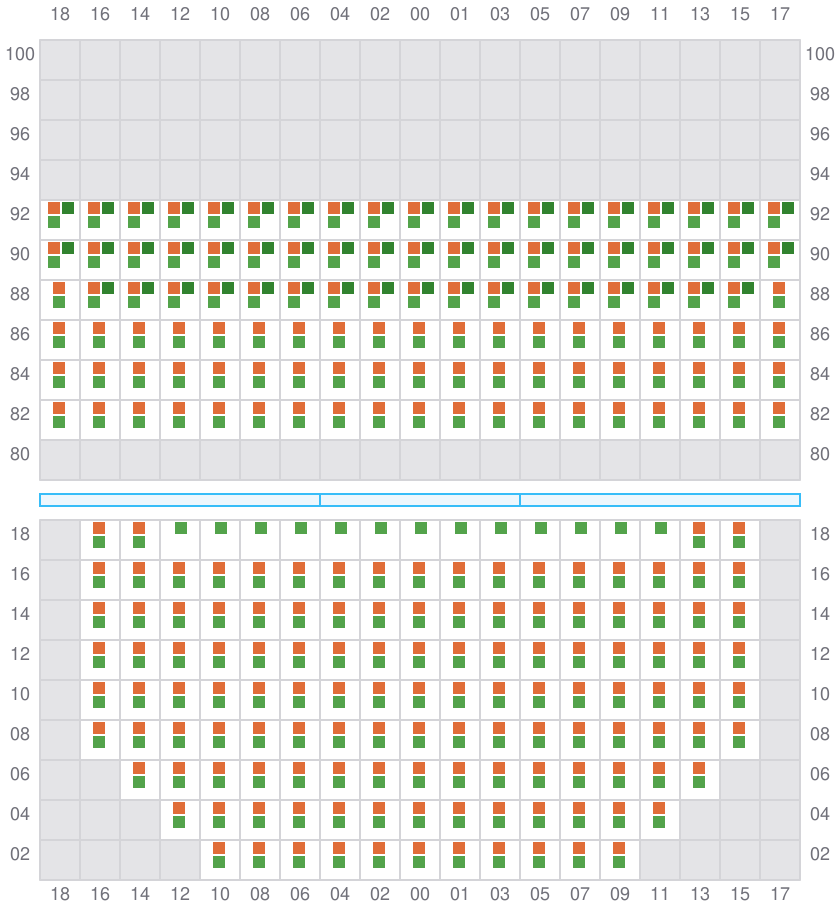

Bay 019 view and slots of MSC SARA ELENA

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of MSC SARA ELENA

023

  • ←
  • → / ?

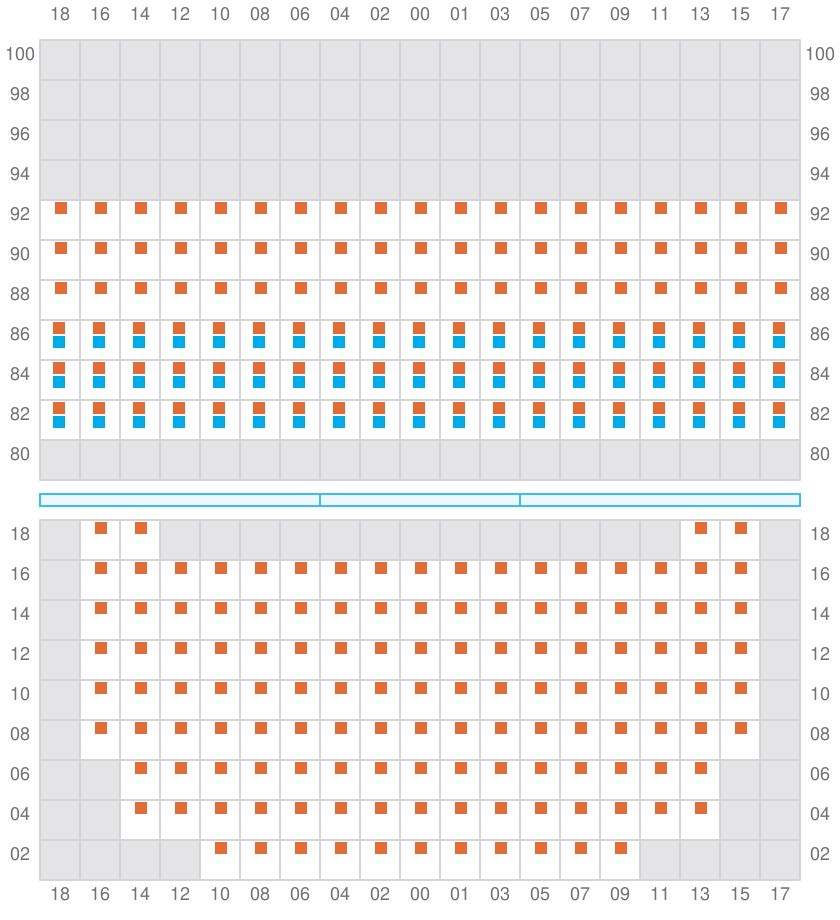

Bay 023 view and slots of MSC SARA ELENA

025 (026)

  • →
  • ←

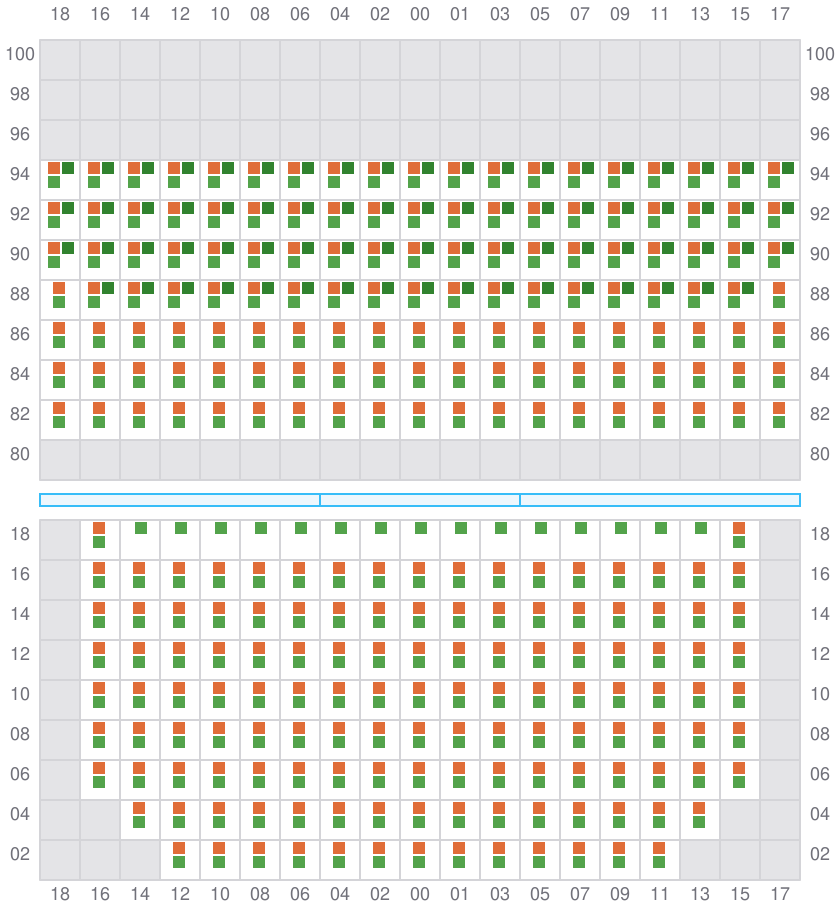

Bay 025 view and slots of MSC SARA ELENA

027

  • ←
  • →

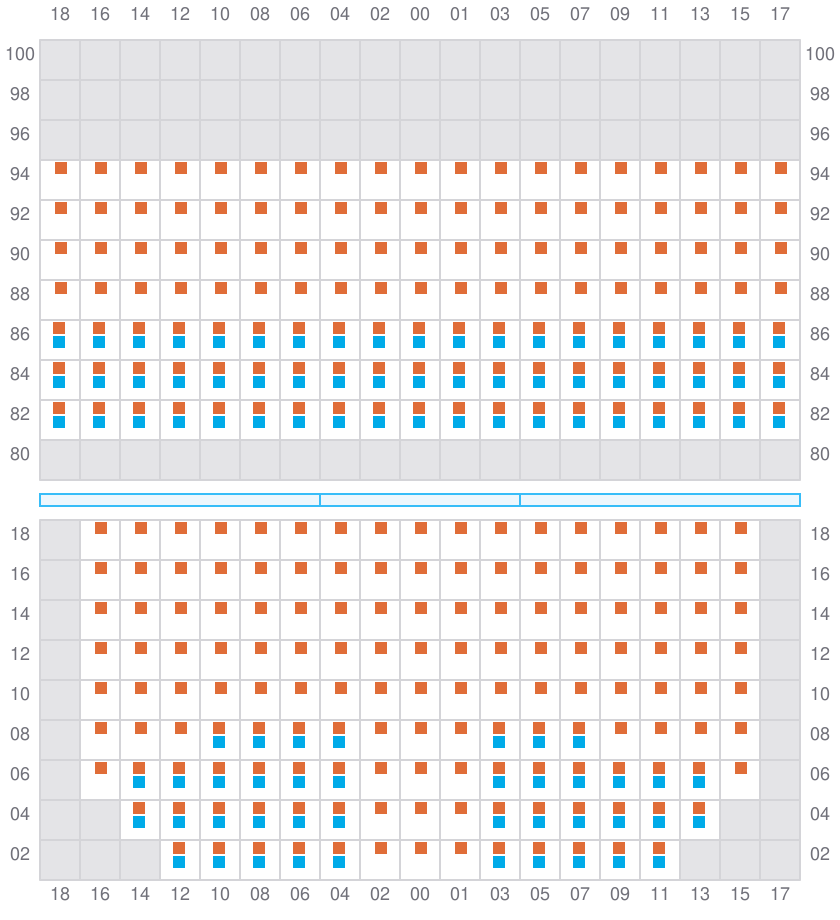

Bay 027 view and slots of MSC SARA ELENA

029 (030)

  • →
  • ← / ?

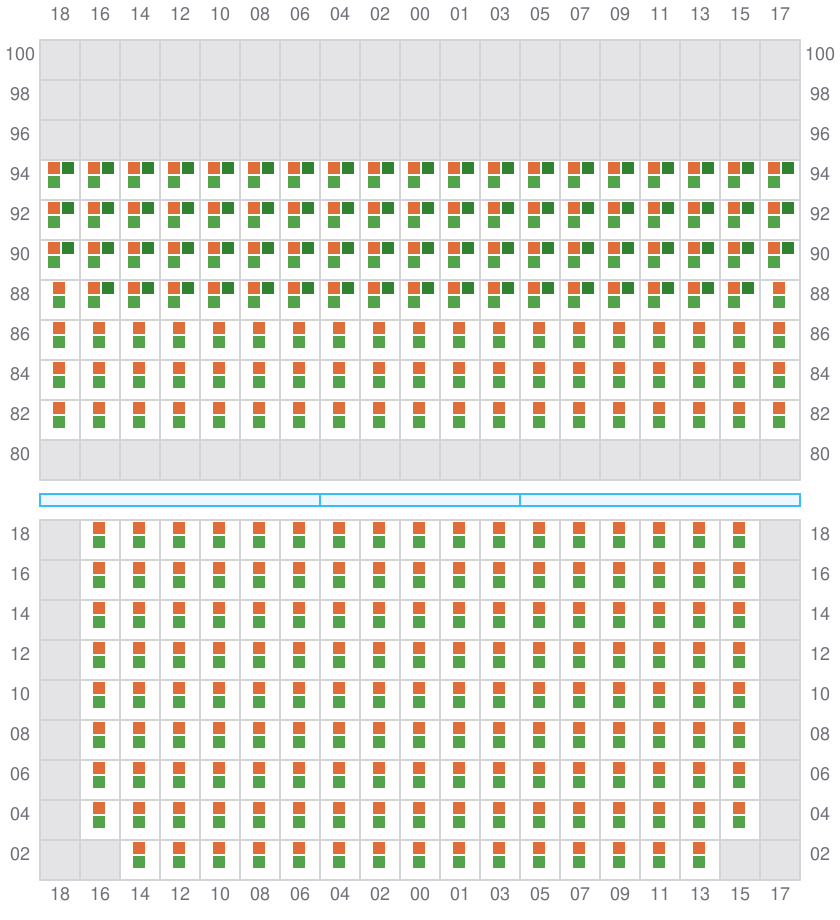

Bay 029 view and slots of MSC SARA ELENA

031

  • ←
  • → / ?

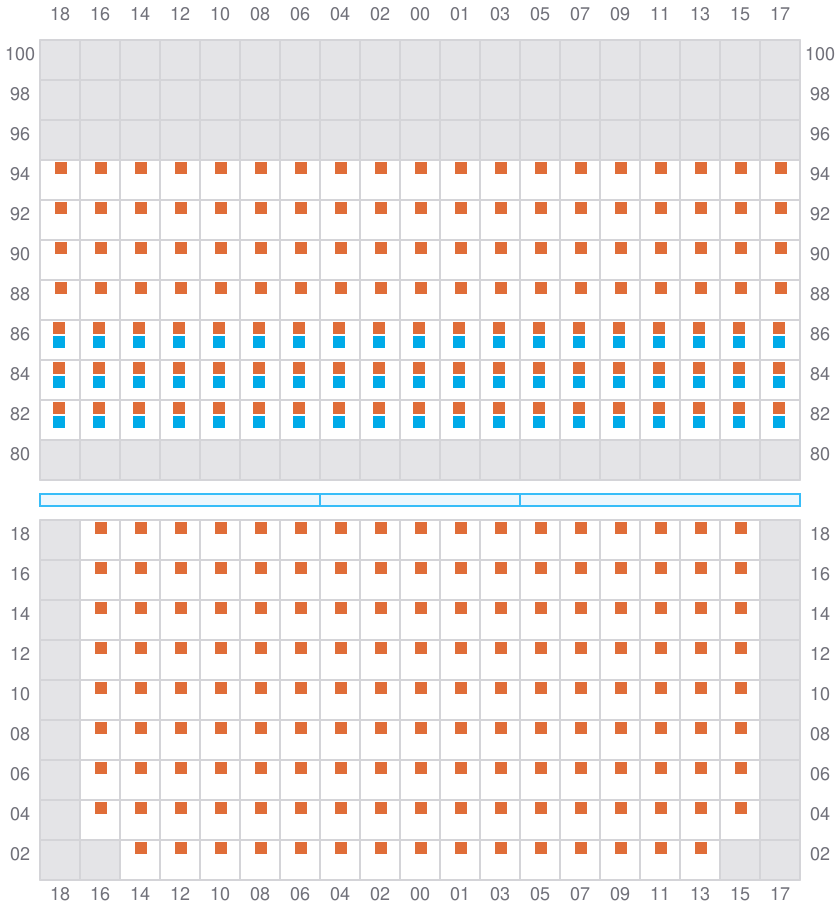

Bay 031 view and slots of MSC SARA ELENA

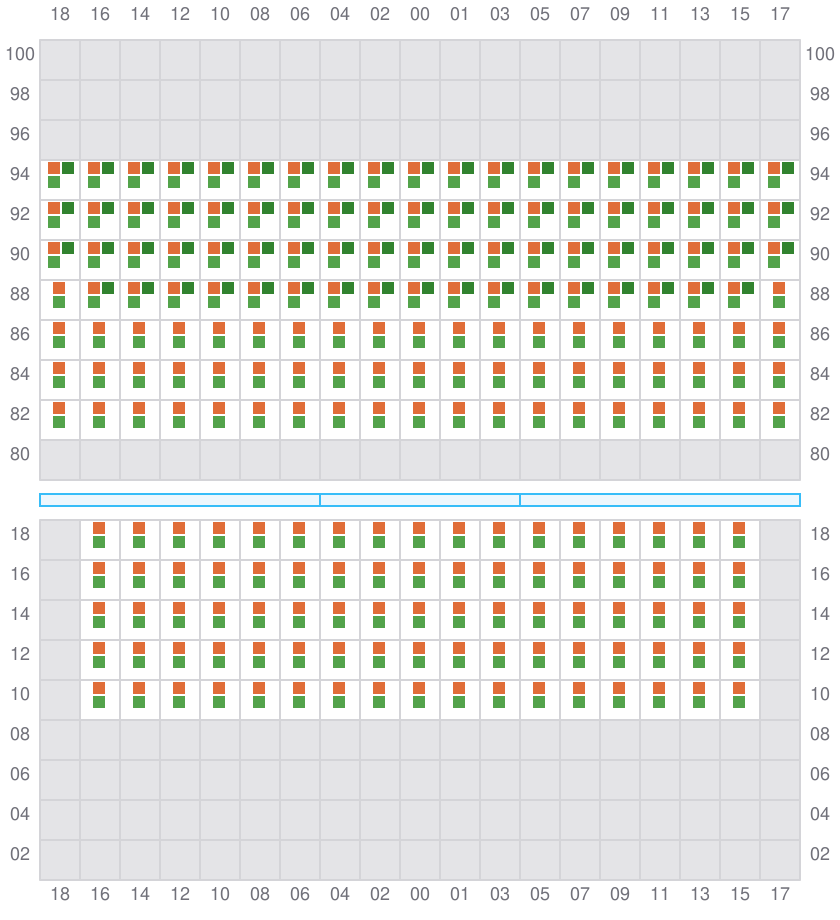

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of MSC SARA ELENA

035

  • ←
  • → / ?

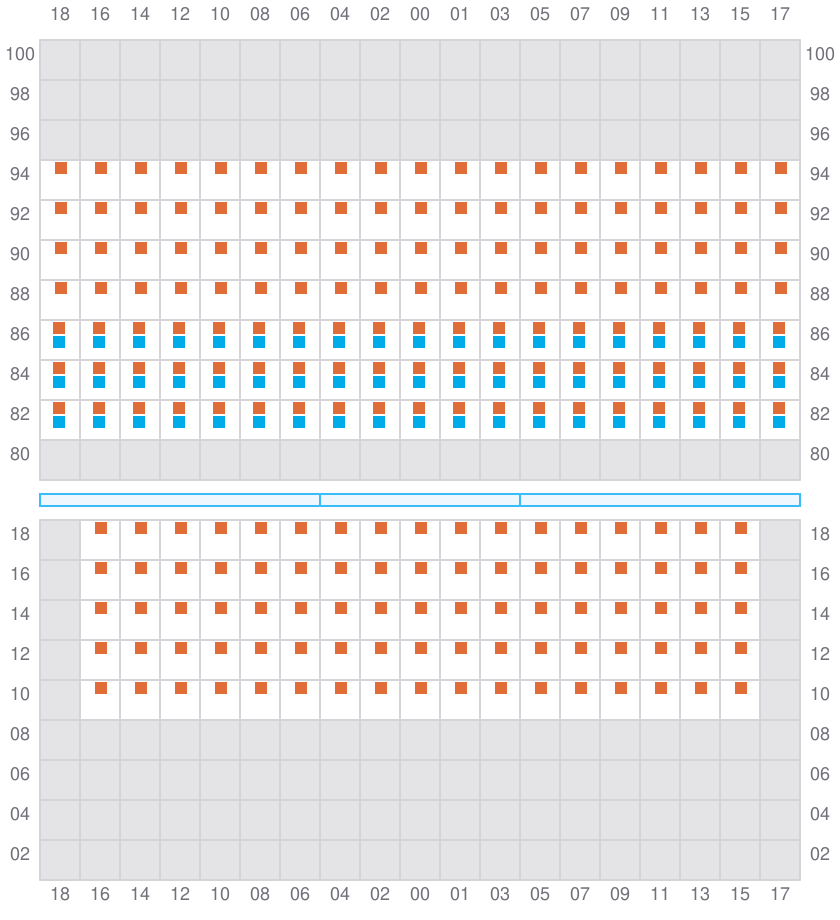

Bay 035 view and slots of MSC SARA ELENA

037 (038)

  • →
  • ← / ?
Bay 037 view and slots of MSC SARA ELENA

039

  • ←
  • → / ?

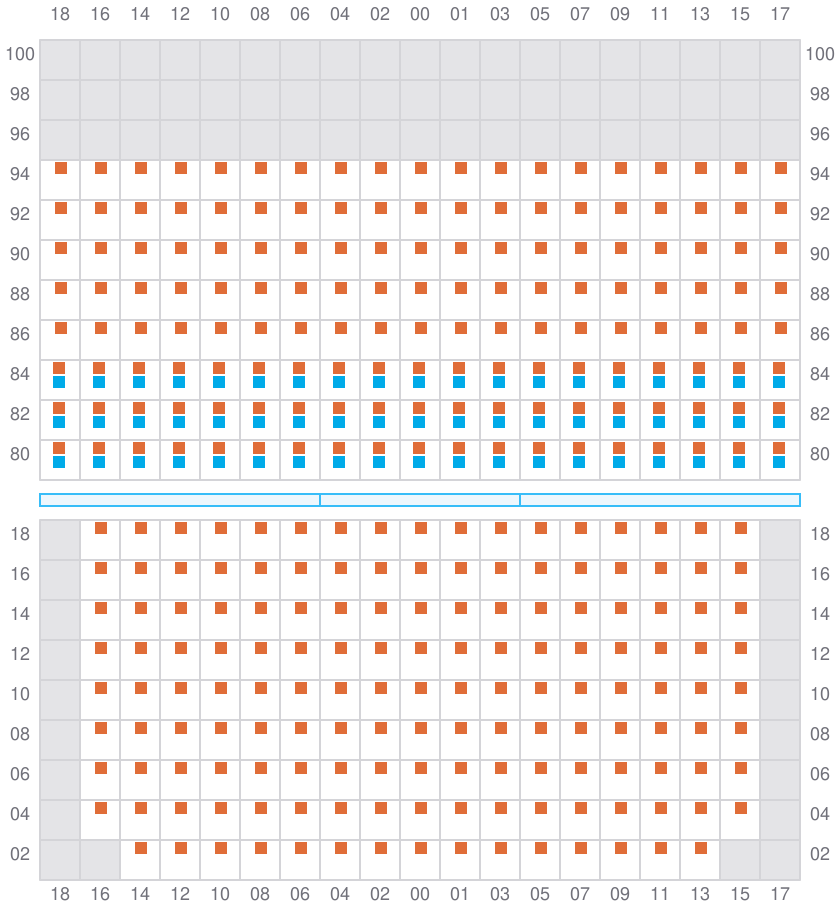

Bay 039 view and slots of MSC SARA ELENA

041 (042)

  • →
  • ←
Bay 041 view and slots of MSC SARA ELENA

043

  • ←
  • →

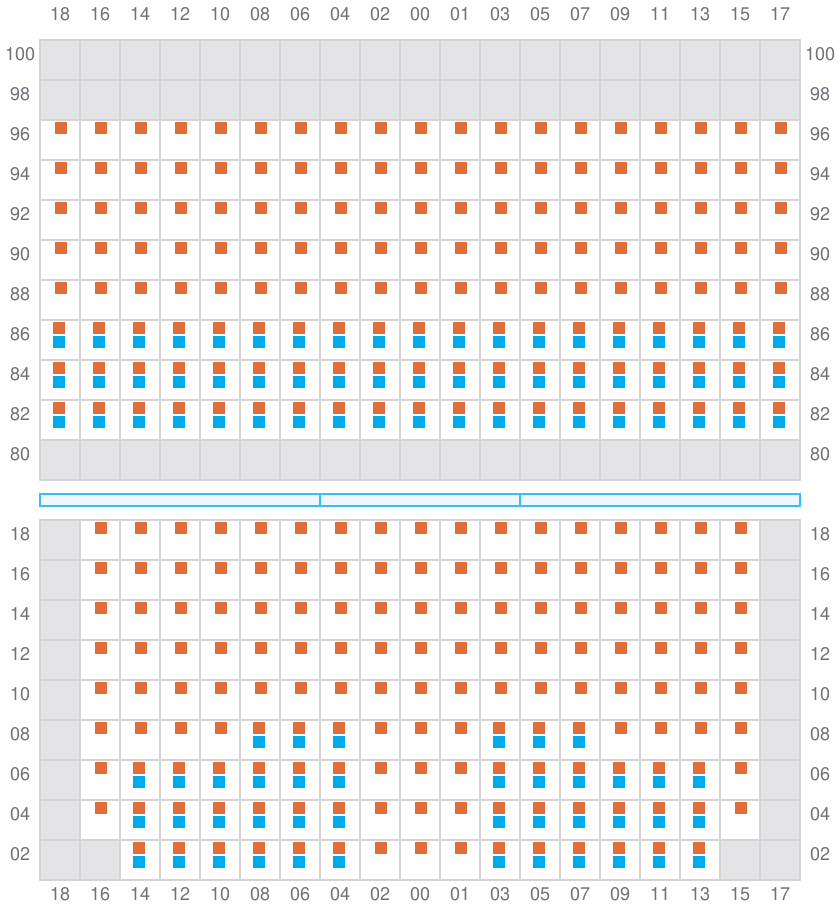

Bay 043 view and slots of MSC SARA ELENA

045 (046)

  • →
  • ← / ?
Bay 045 view and slots of MSC SARA ELENA

047

  • ←
  • → / ?

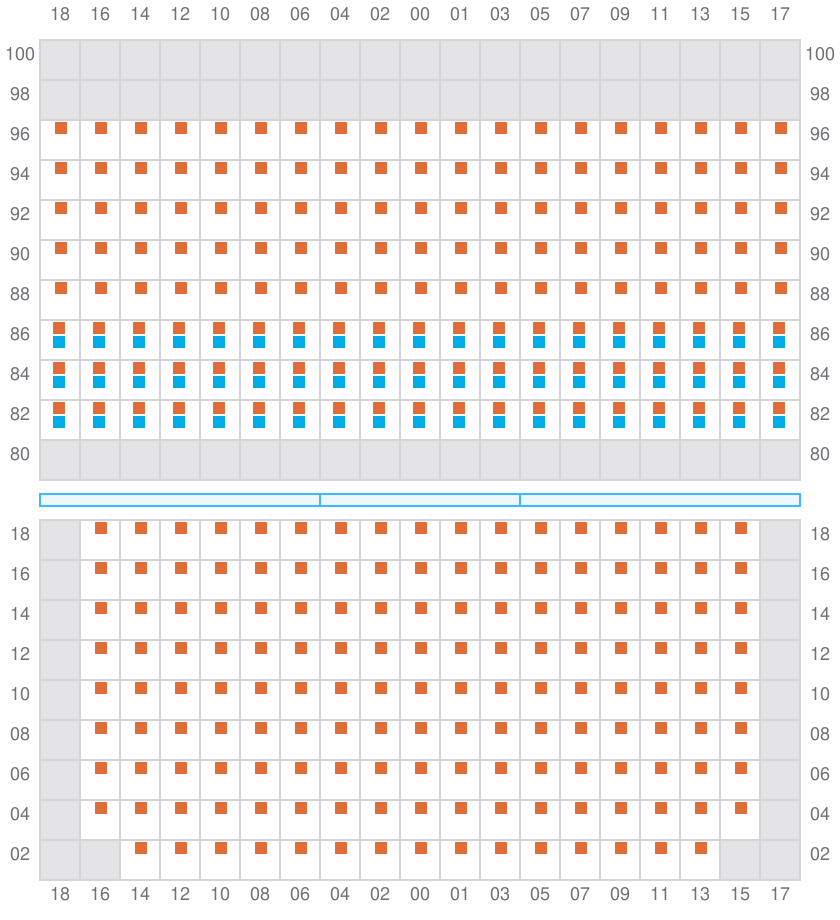

Bay 047 view and slots of MSC SARA ELENA

049 (050)

  • →
  • ← / ?

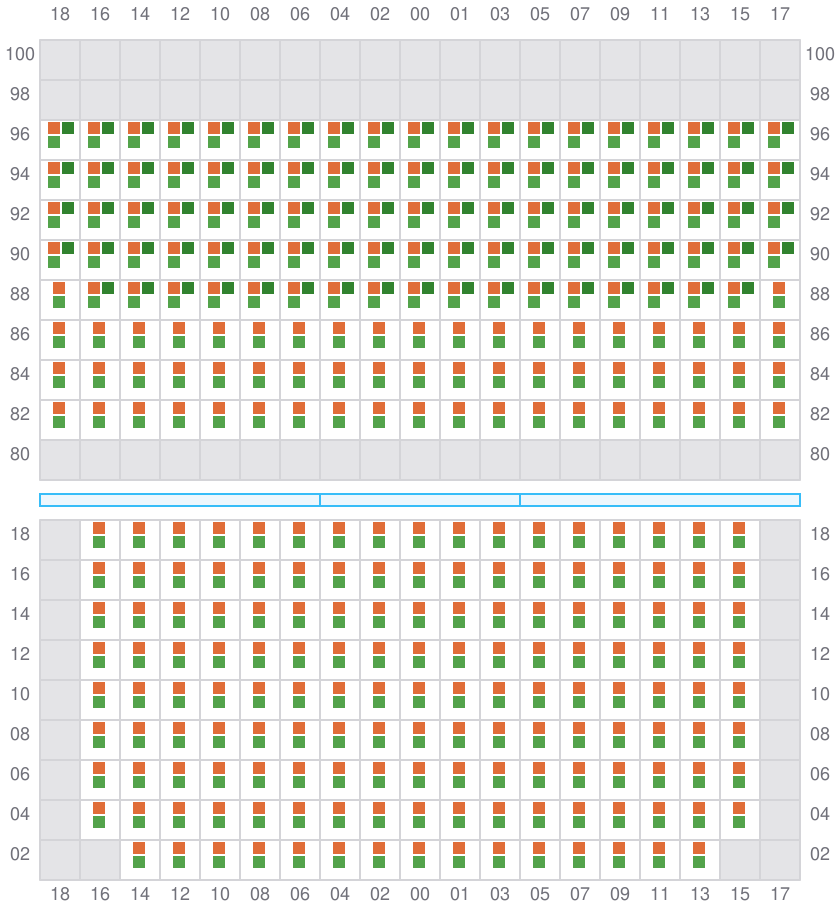

Bay 049 view and slots of MSC SARA ELENA

051

  • ←
  • → / ?
Bay 051 view and slots of MSC SARA ELENA

053 (054)

  • →
  • ← / ?

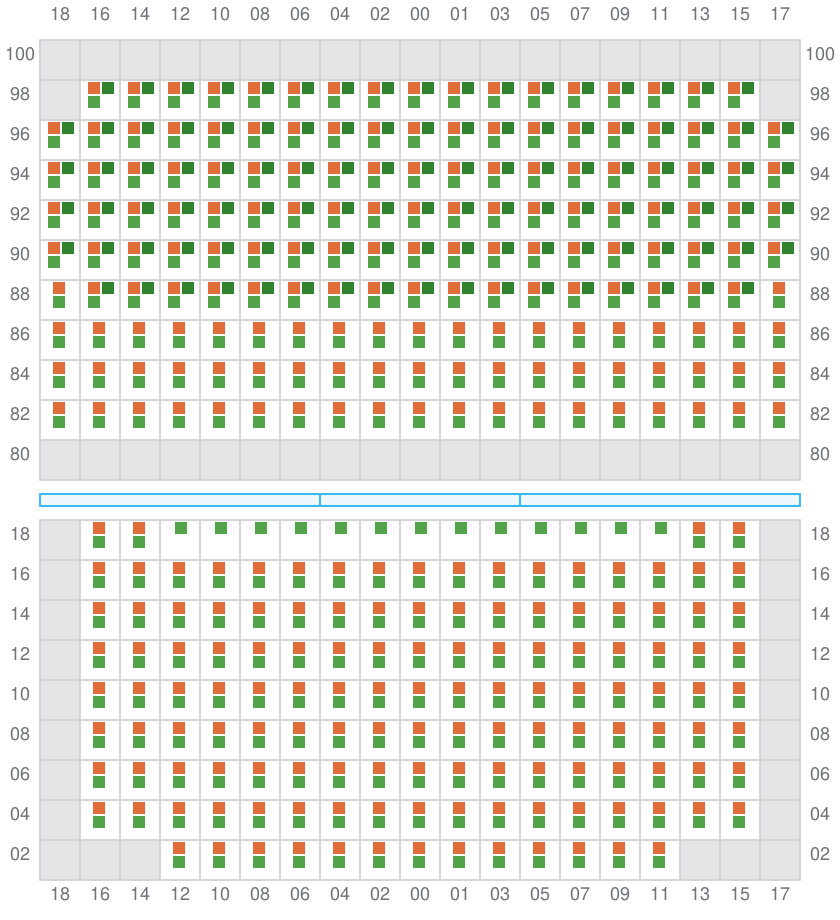

Bay 053 view and slots of MSC SARA ELENA

055

  • ←
  • → / ?

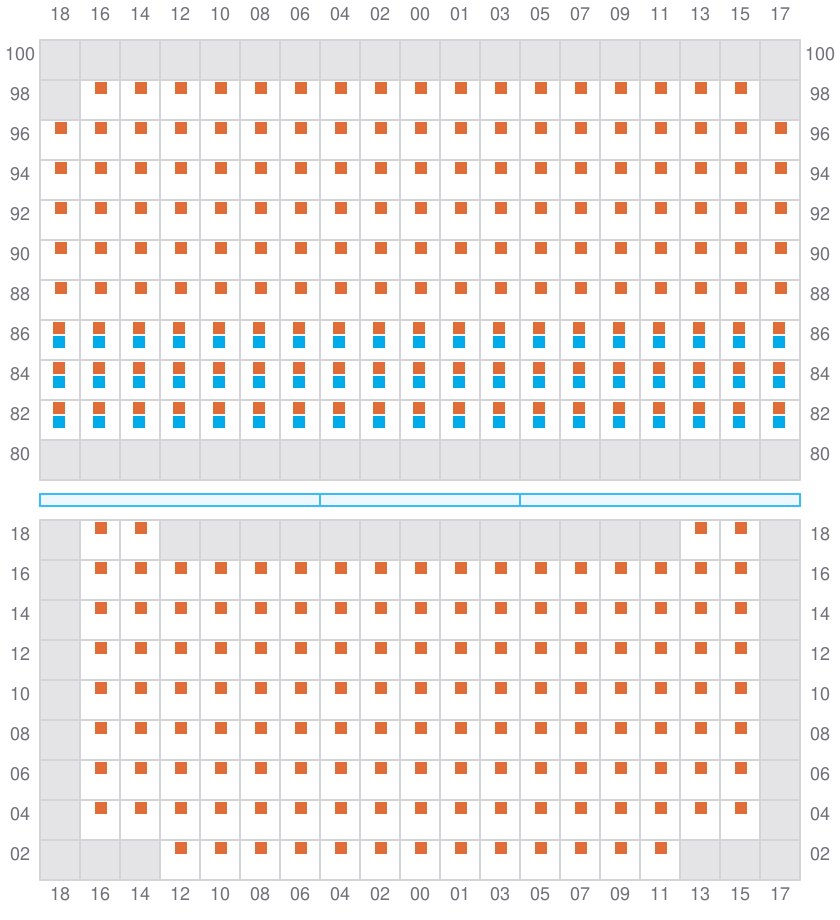

Bay 055 view and slots of MSC SARA ELENA

057 (058)

  • →
  • ← / ?

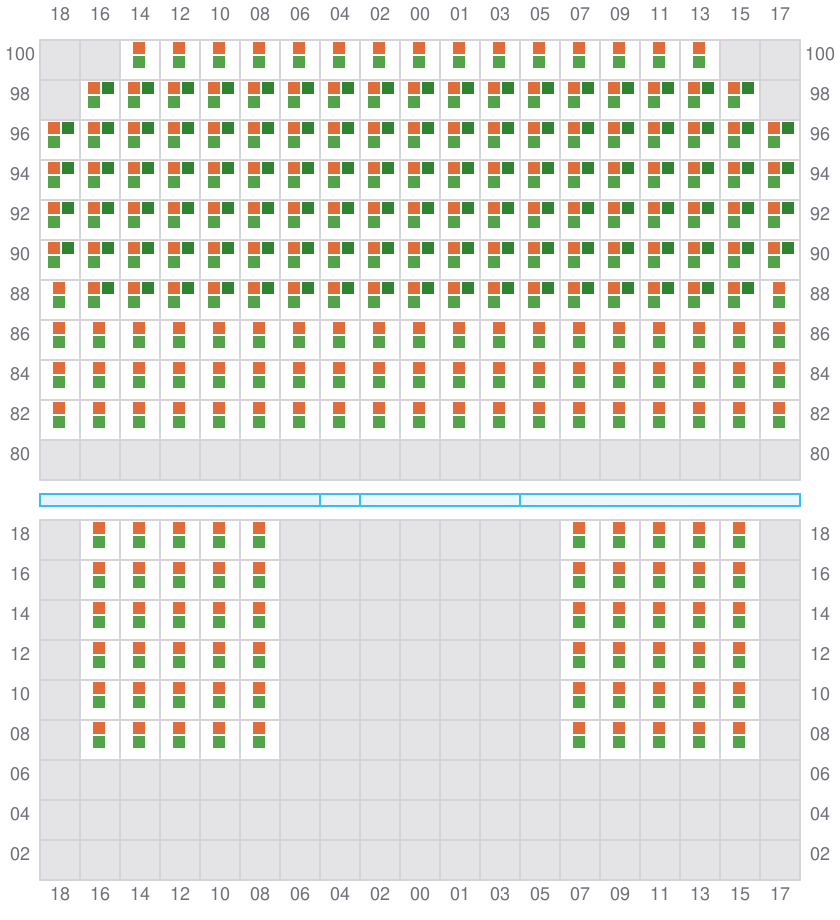

Bay 057 view and slots of MSC SARA ELENA

059

  • ←
  • → / ?

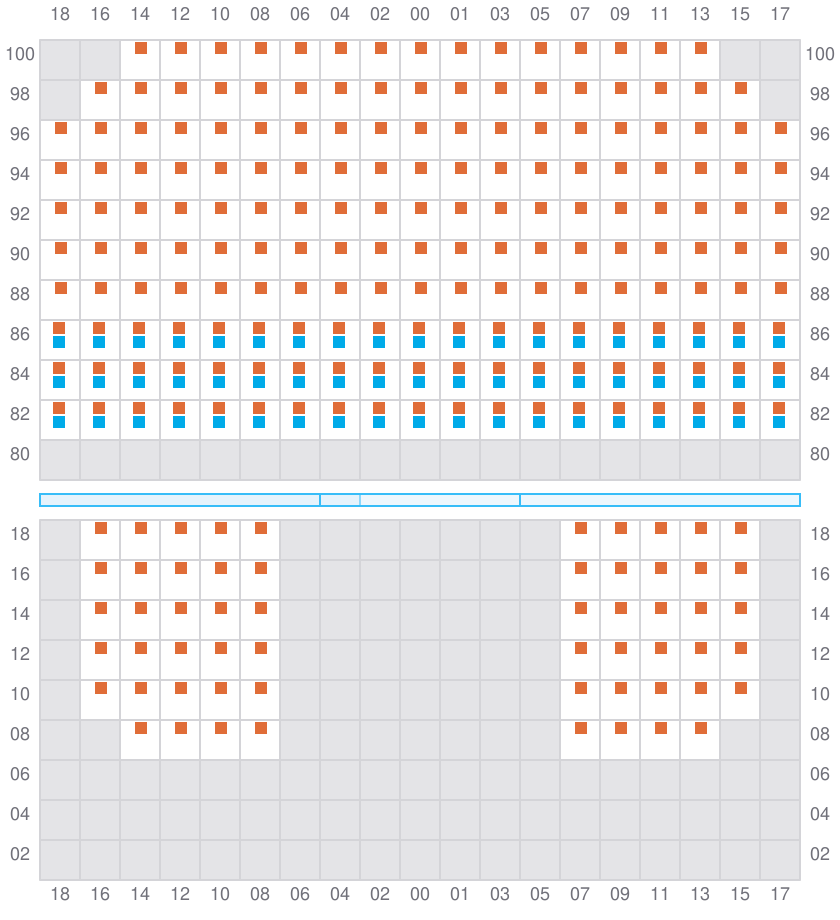

Bay 059 view and slots of MSC SARA ELENA

061 (062)

  • →
  • ← / ?

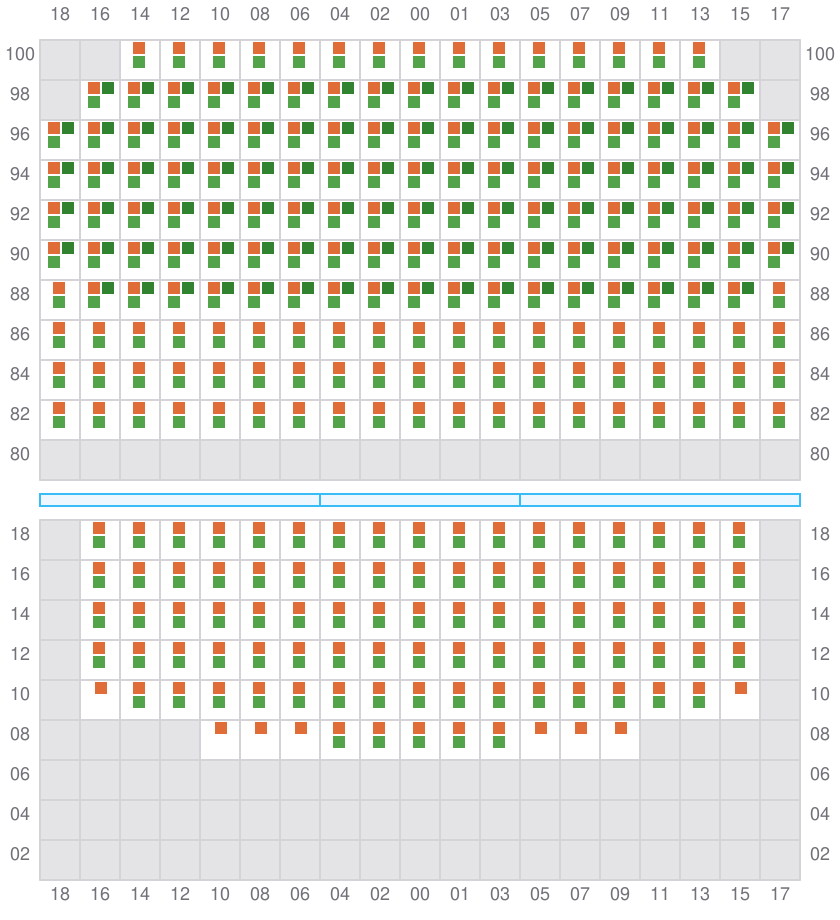

Bay 061 view and slots of MSC SARA ELENA

063

  • ←
  • → / ?

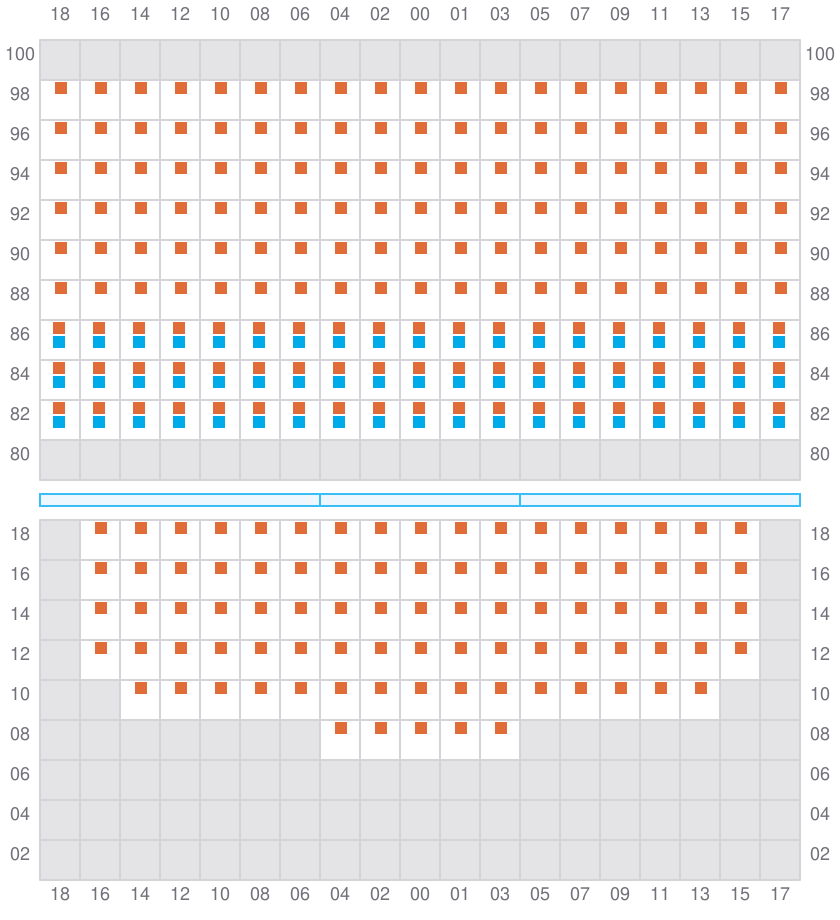

Bay 063 view and slots of MSC SARA ELENA

065 (066)

  • →
  • ← / ?

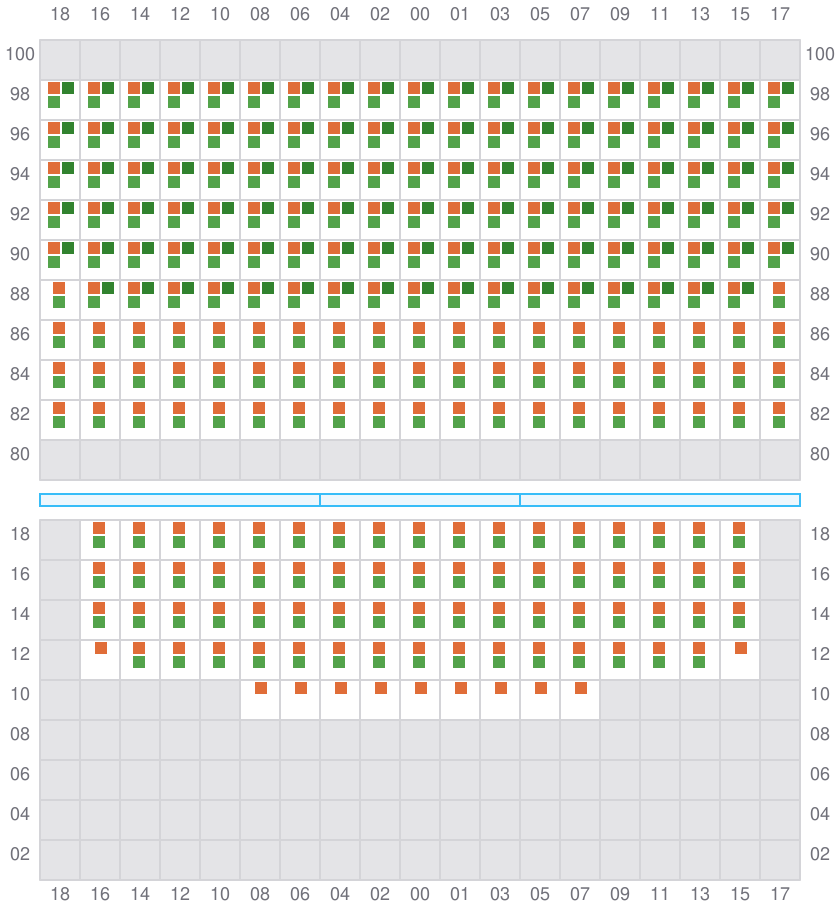

Bay 065 view and slots of MSC SARA ELENA

067

  • ←
  • → / ?

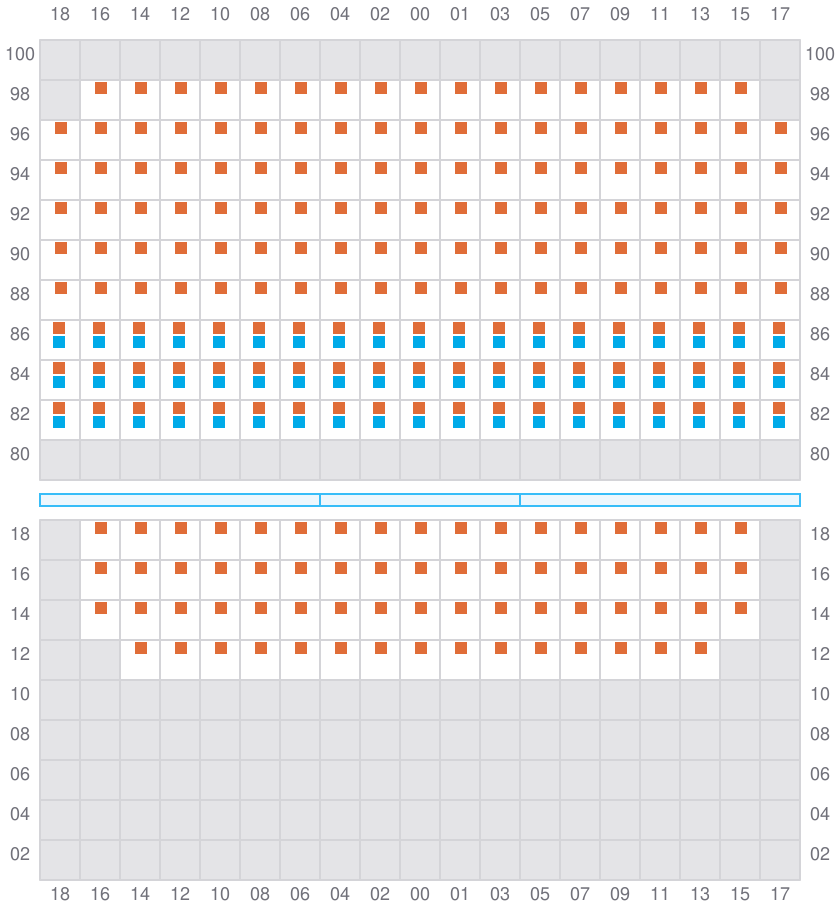

Bay 067 view and slots of MSC SARA ELENA

069 (070)

  • → / ?

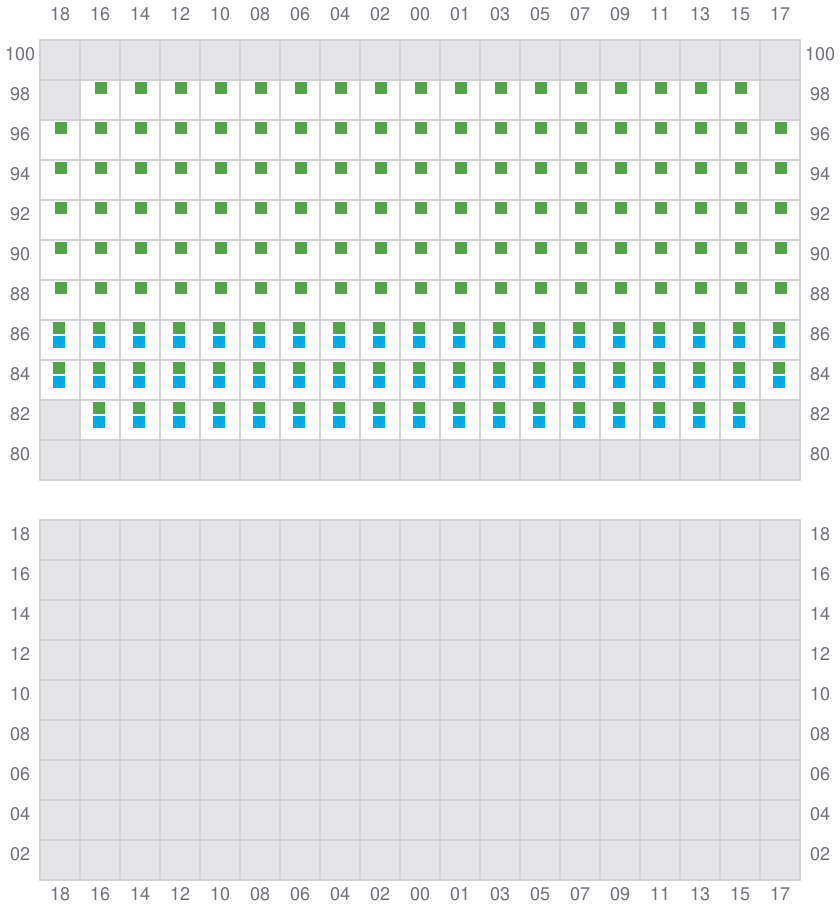

Bay 069 view and slots of MSC SARA ELENA
