MSC SARISKA V
8715857 | 3FIF9 | MSC by ************************** Last update: Wed Jun 21 2023

General Info

Ship Name:MSC SARISKA V

IMO Code:8715857

Call Sign:3FIF9

Line Operator:MSC

Class Name for Sister Ships:SKA

Year Built:1990

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:071

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,830

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

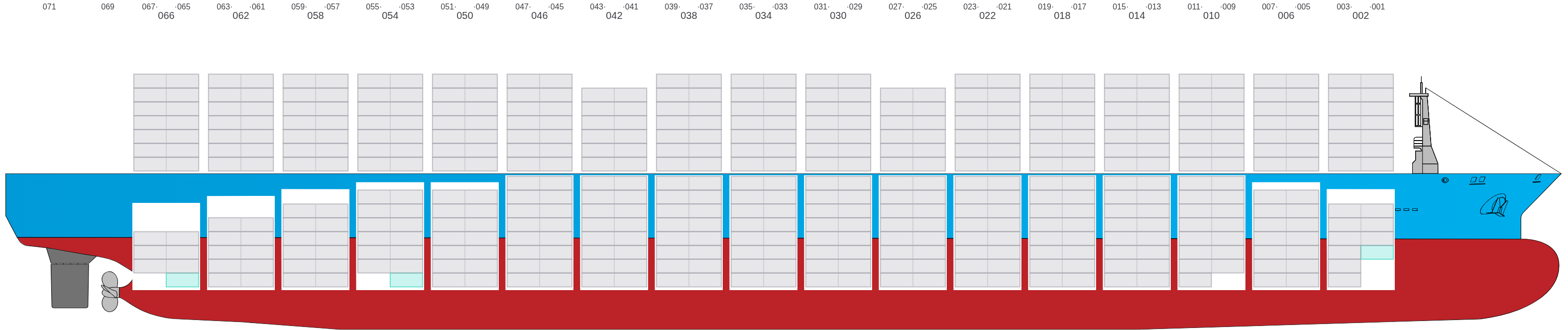

Side View

Side view of MSC SARISKA V

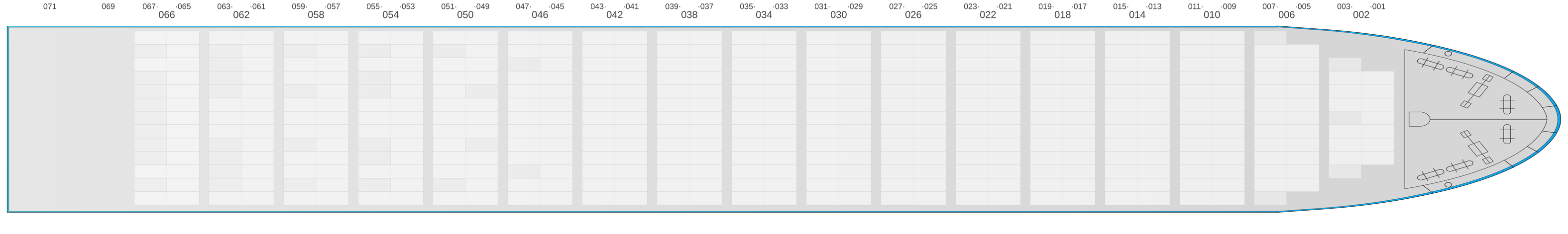

Hatch-Covers View

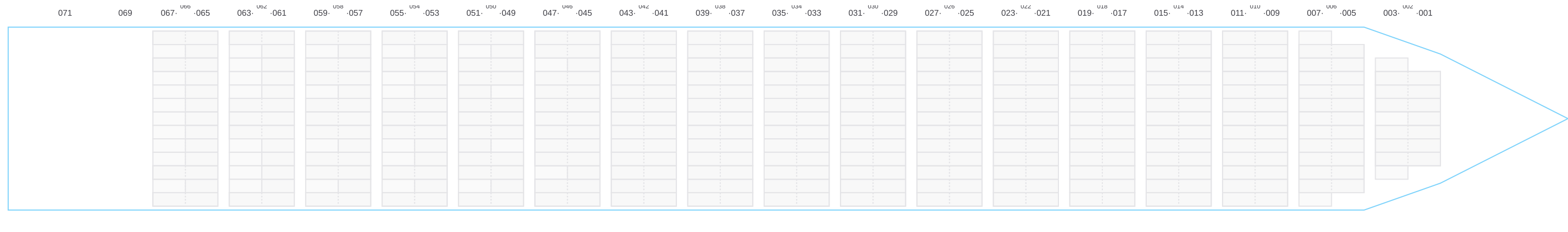

Deck view of MSC SARISKA V

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→

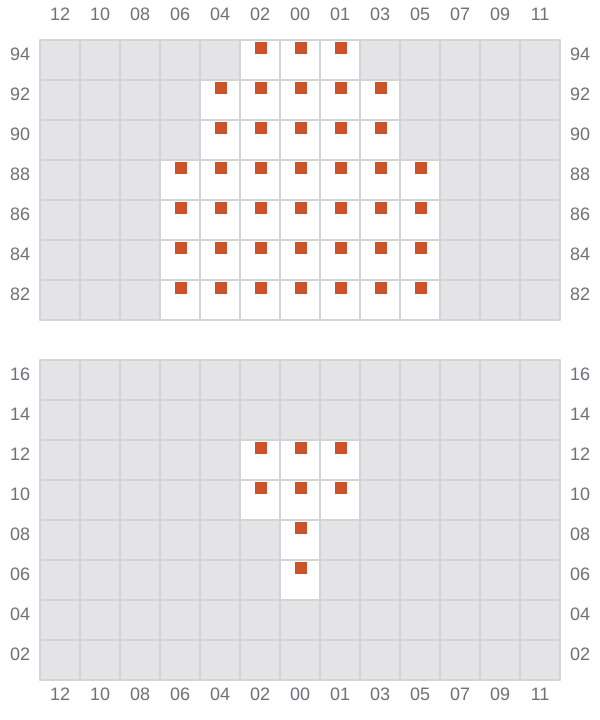

Bay 001 view and slots of MSC SARISKA V

003 (002)

←

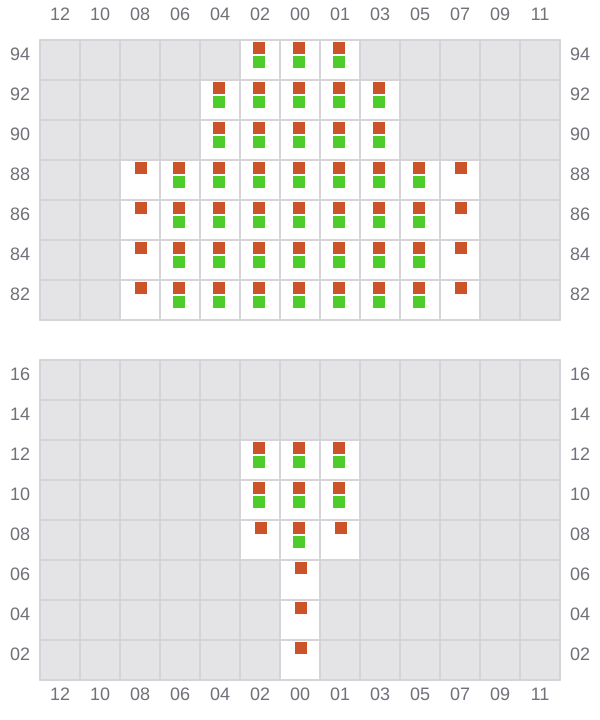

Bay 003 view and slots of MSC SARISKA V

005

→

Bay 005 view and slots of MSC SARISKA V

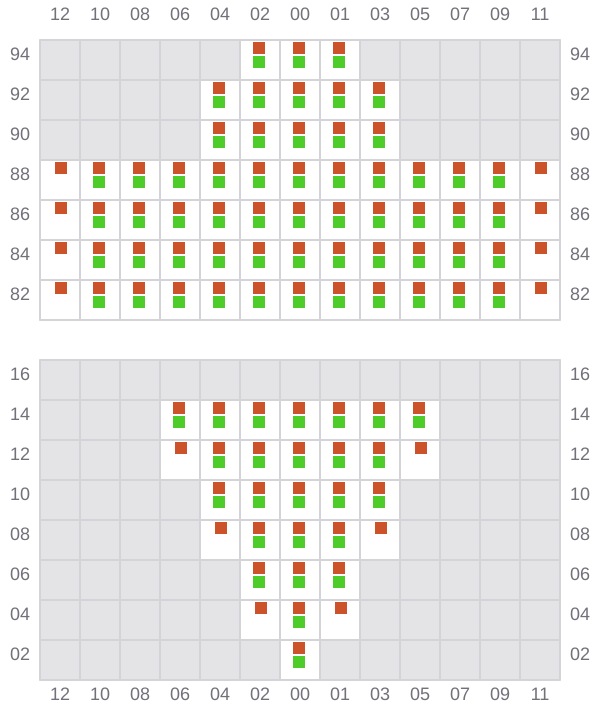

007 (006)

←

Bay 007 view and slots of MSC SARISKA V

009

→

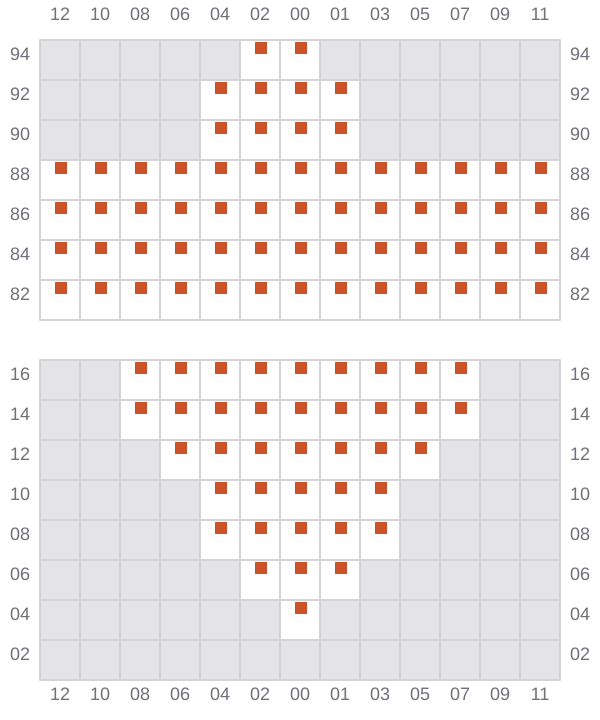

Bay 009 view and slots of MSC SARISKA V

011 (010)

←

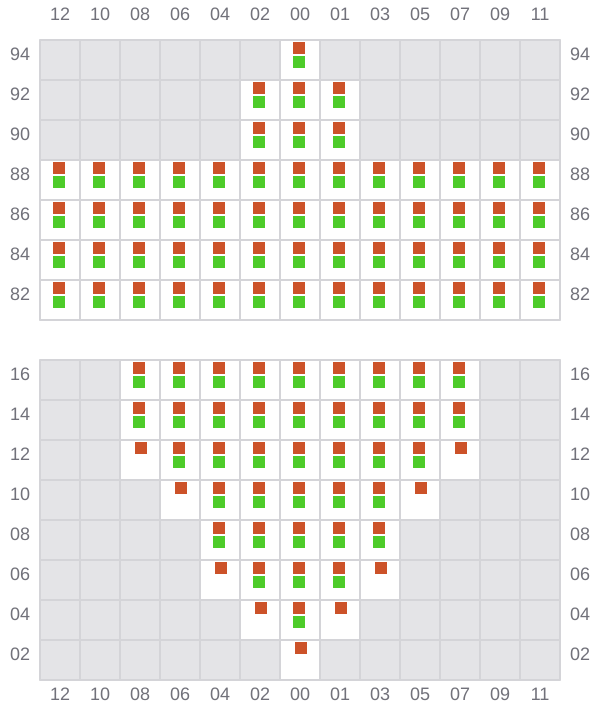

Bay 011 view and slots of MSC SARISKA V

013

→

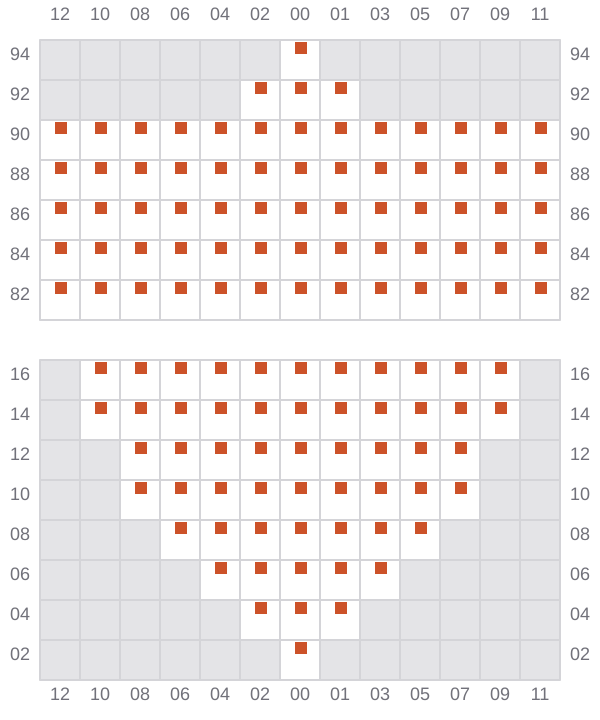

Bay 013 view and slots of MSC SARISKA V

015 (014)

←

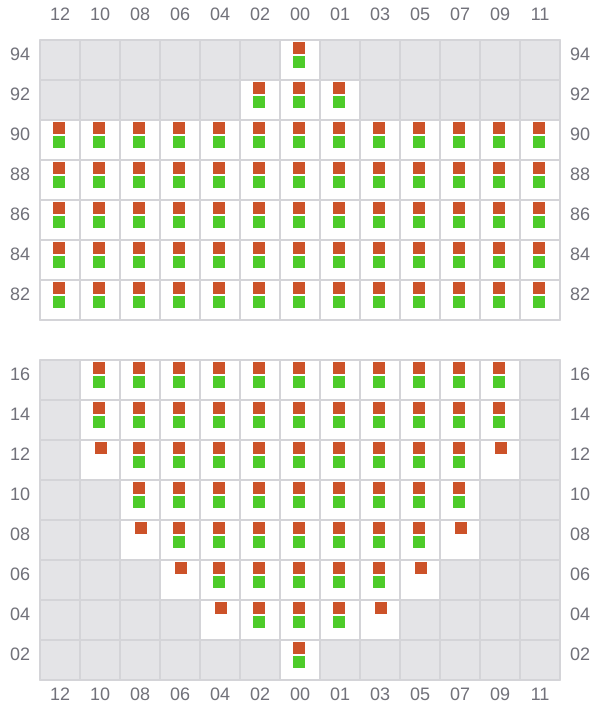

Bay 015 view and slots of MSC SARISKA V

017

→

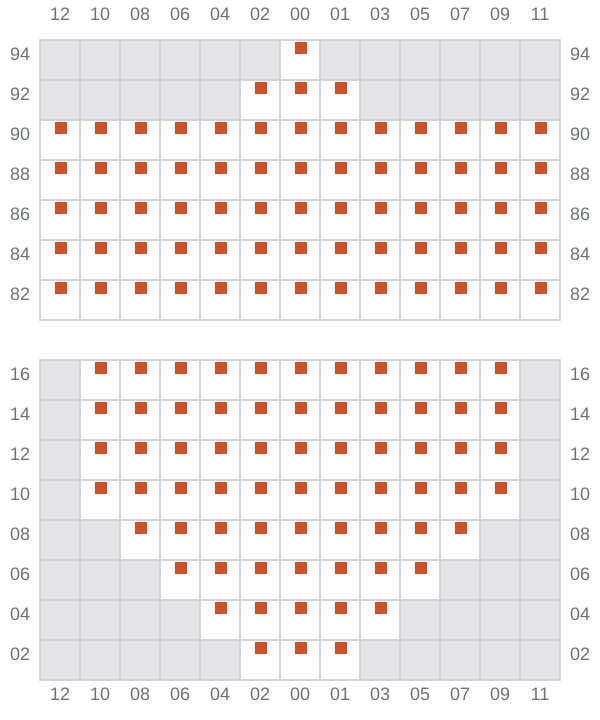

Bay 017 view and slots of MSC SARISKA V

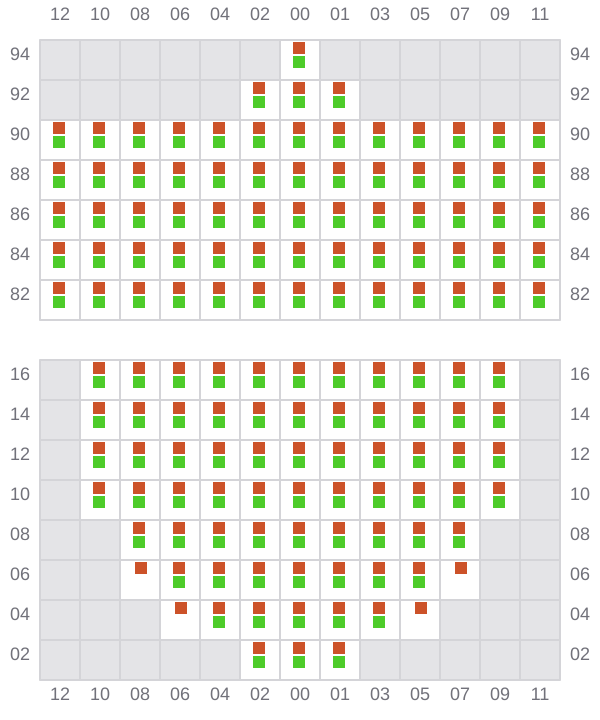

019 (018)

←

Bay 019 view and slots of MSC SARISKA V

021

→

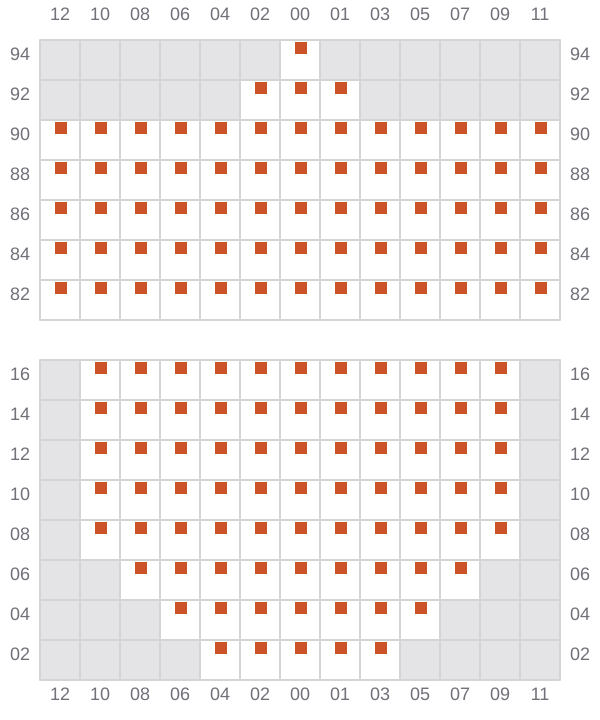

Bay 021 view and slots of MSC SARISKA V

023 (022)

←

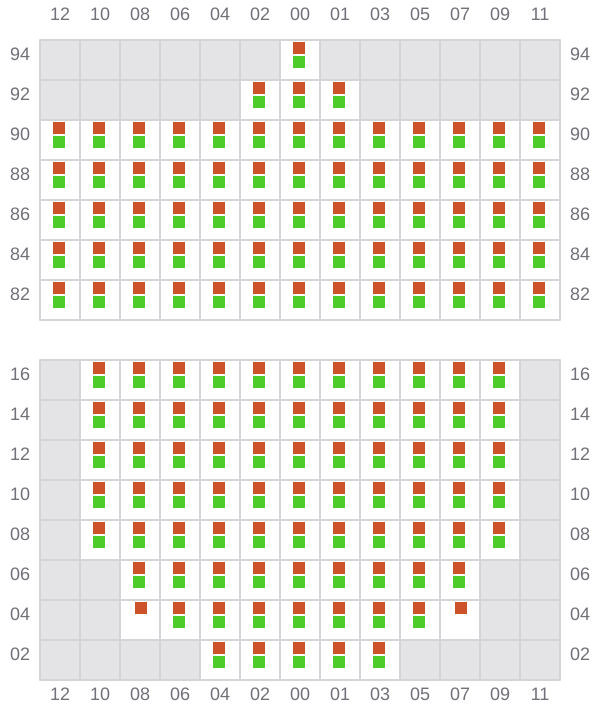

Bay 023 view and slots of MSC SARISKA V

025

→

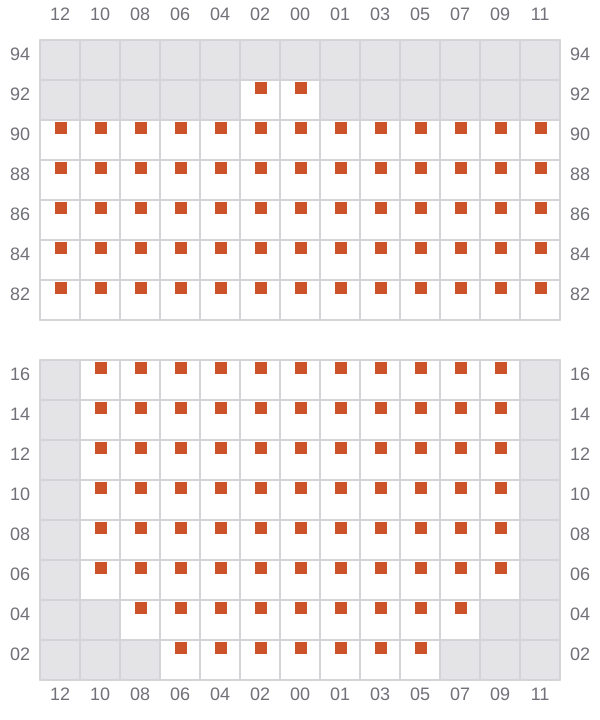

Bay 025 view and slots of MSC SARISKA V

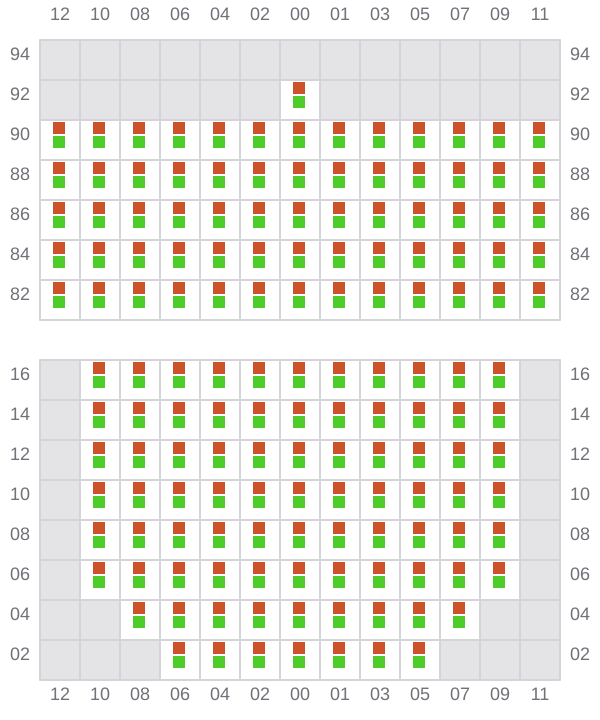

027 (026)

←

Bay 027 view and slots of MSC SARISKA V

029

→

Bay 029 view and slots of MSC SARISKA V

031 (030)

←

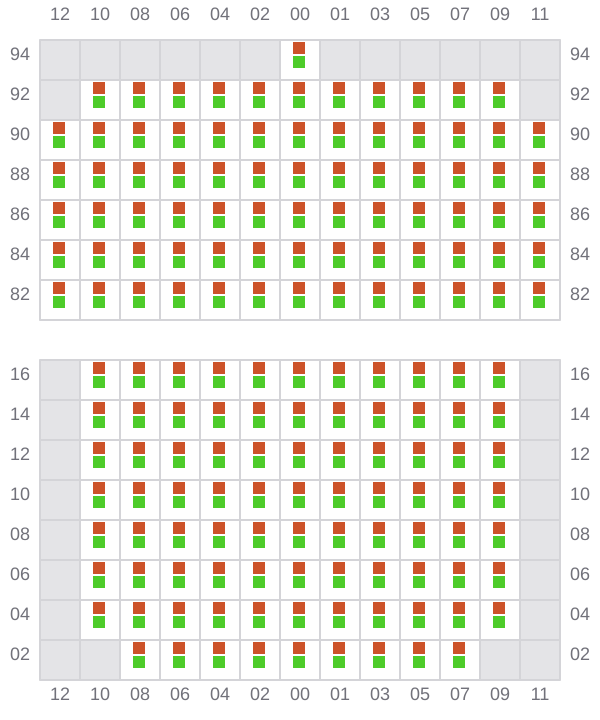

Bay 031 view and slots of MSC SARISKA V

033

→

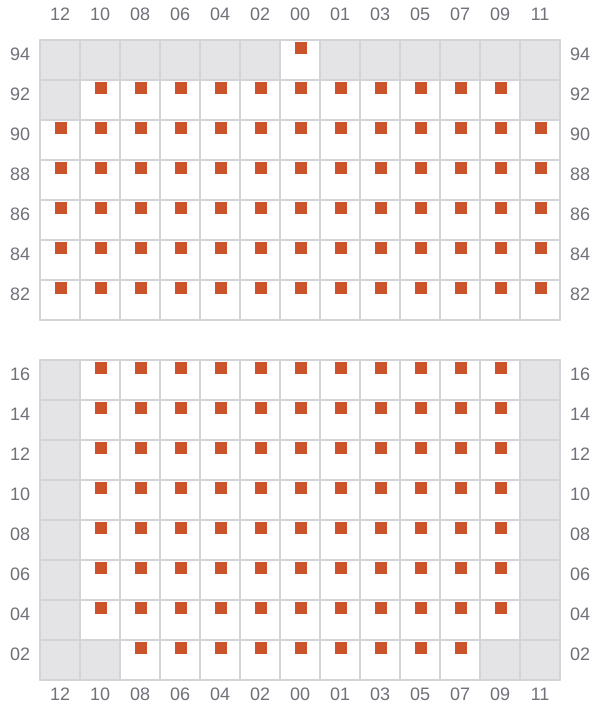

Bay 033 view and slots of MSC SARISKA V

035 (034)

←

Bay 035 view and slots of MSC SARISKA V

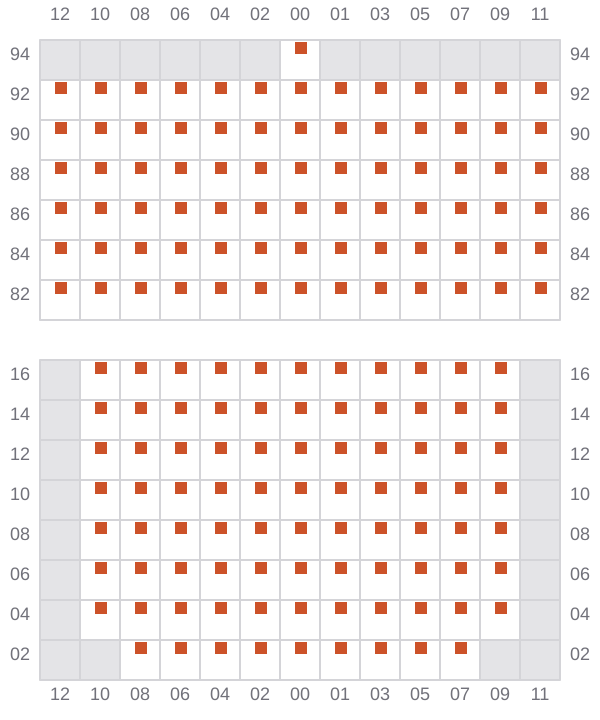

037

→

Bay 037 view and slots of MSC SARISKA V

039 (038)

←

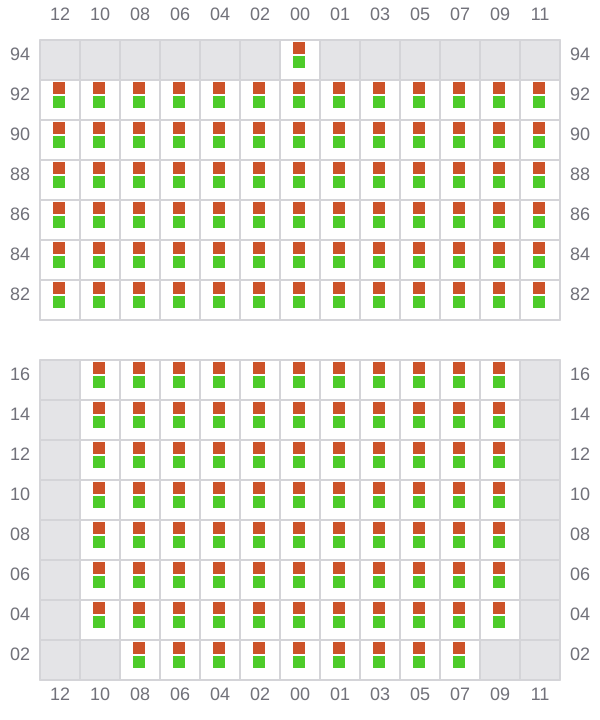

Bay 039 view and slots of MSC SARISKA V

041

→

Bay 041 view and slots of MSC SARISKA V

043 (042)

←

Bay 043 view and slots of MSC SARISKA V

045

→

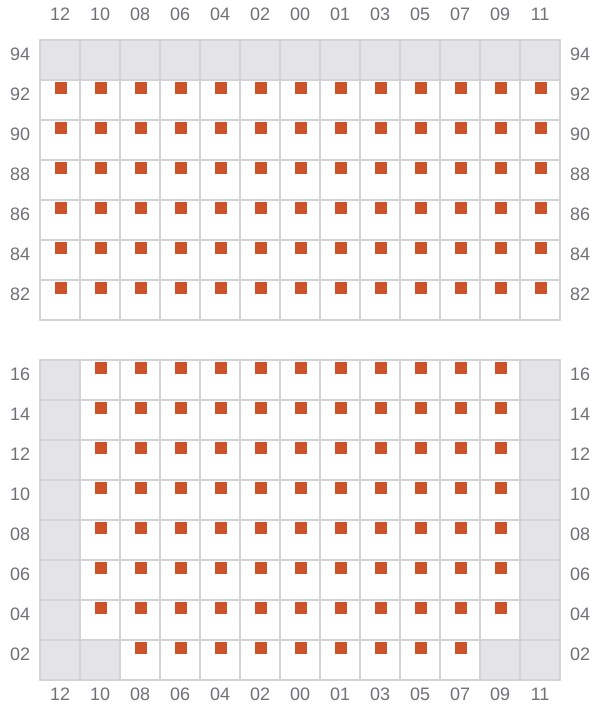

Bay 045 view and slots of MSC SARISKA V

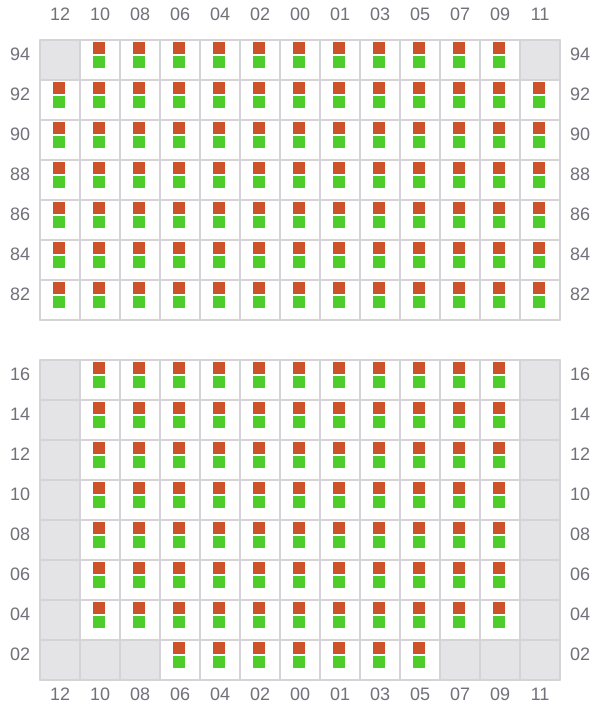

047 (046)

←

Bay 047 view and slots of MSC SARISKA V

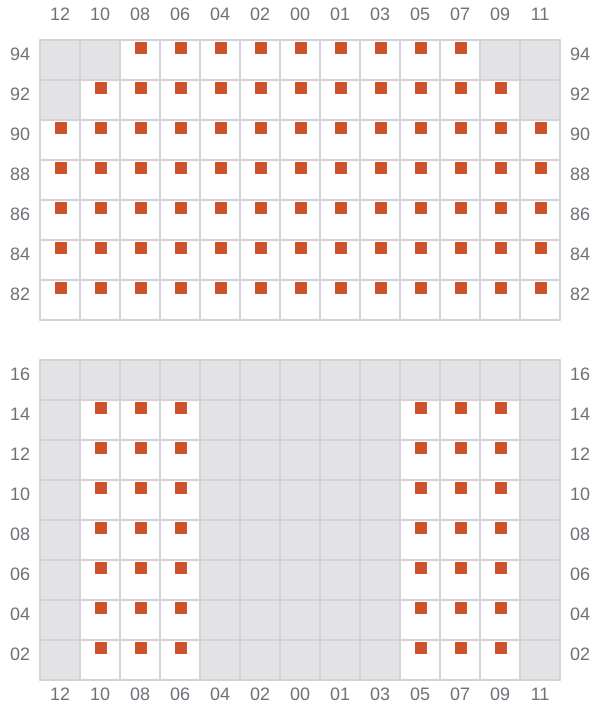

049

→

Bay 049 view and slots of MSC SARISKA V

051 (050)

←

Bay 051 view and slots of MSC SARISKA V

053

→

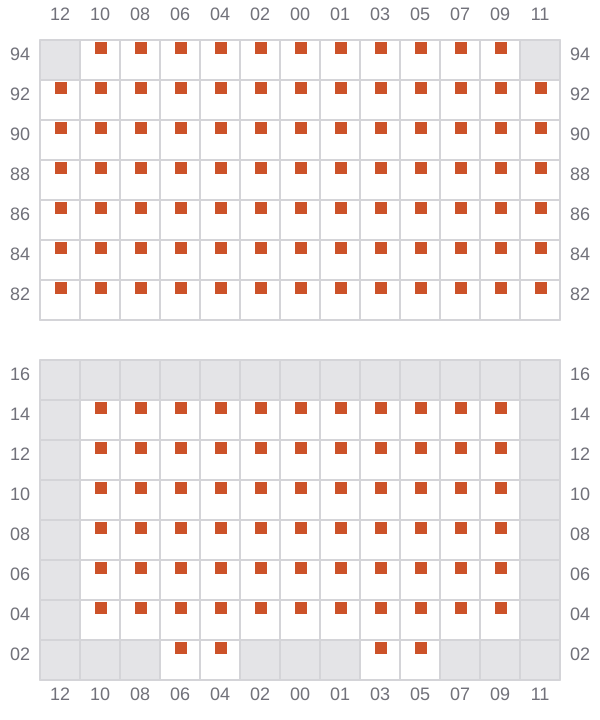

Bay 053 view and slots of MSC SARISKA V

055 (054)

←

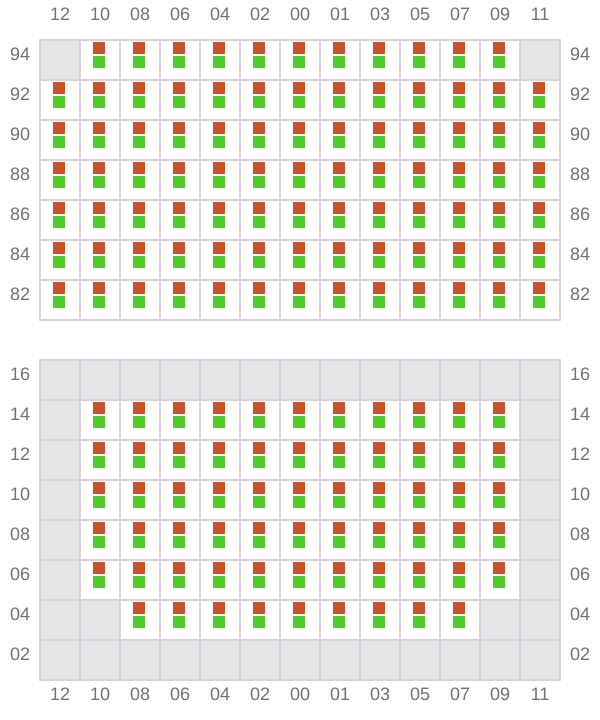

Bay 055 view and slots of MSC SARISKA V

057

→

Bay 057 view and slots of MSC SARISKA V

059 (058)

←

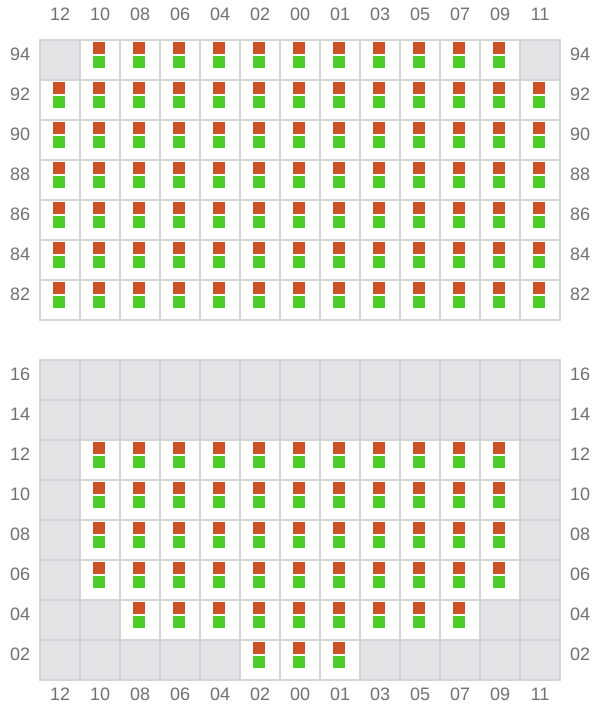

Bay 059 view and slots of MSC SARISKA V

061

→

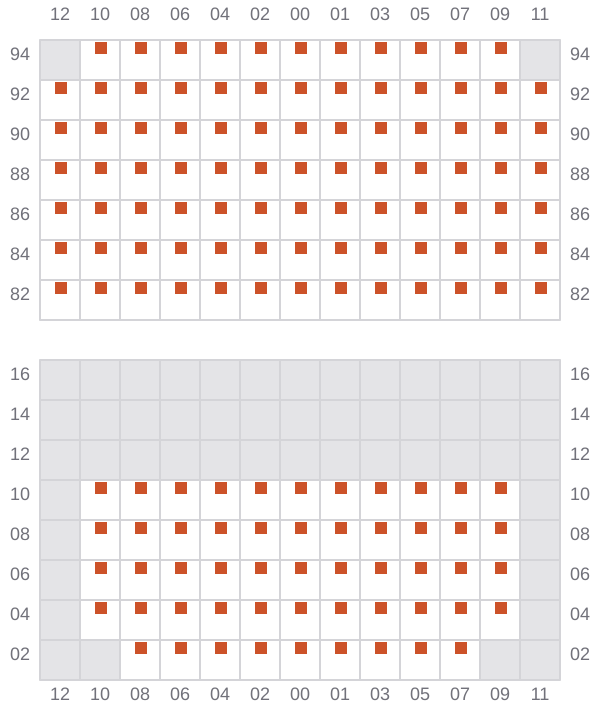

Bay 061 view and slots of MSC SARISKA V

063 (062)

←

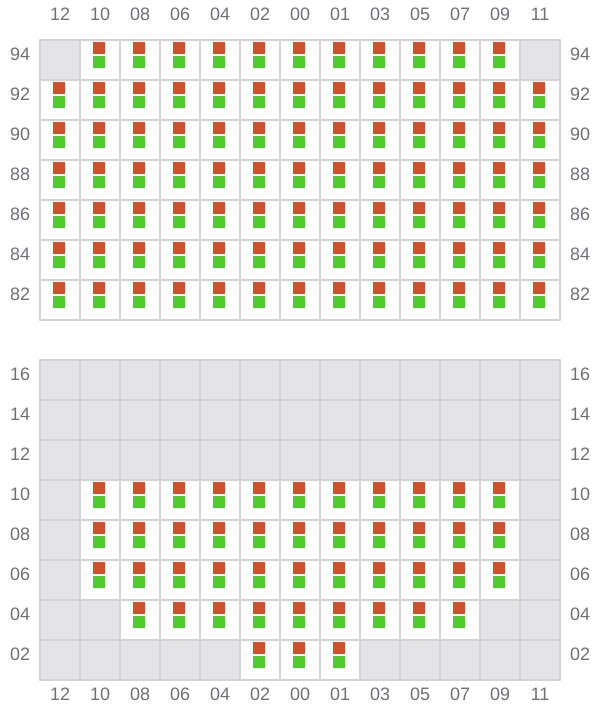

Bay 063 view and slots of MSC SARISKA V

065

→

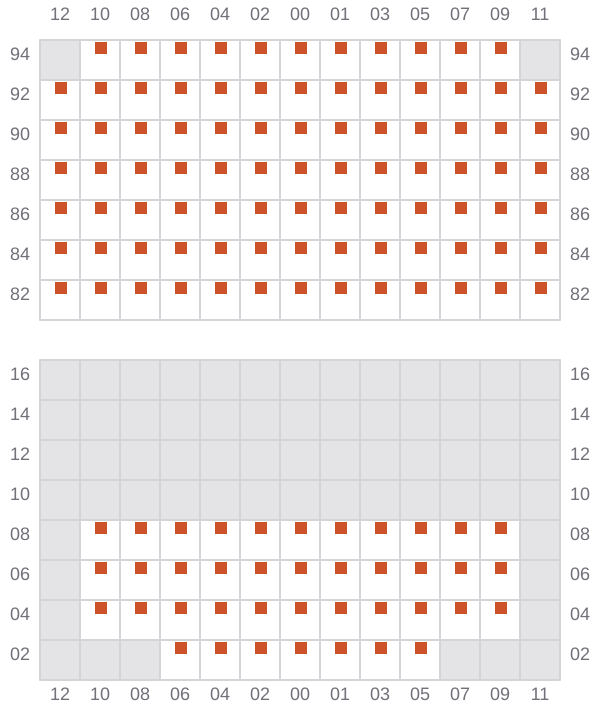

Bay 065 view and slots of MSC SARISKA V

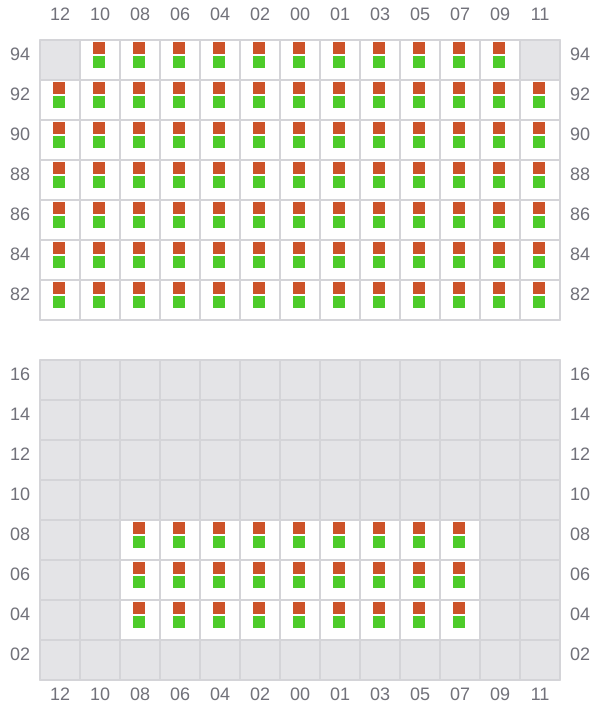

067 (066)

←

Bay 067 view and slots of MSC SARISKA V

069

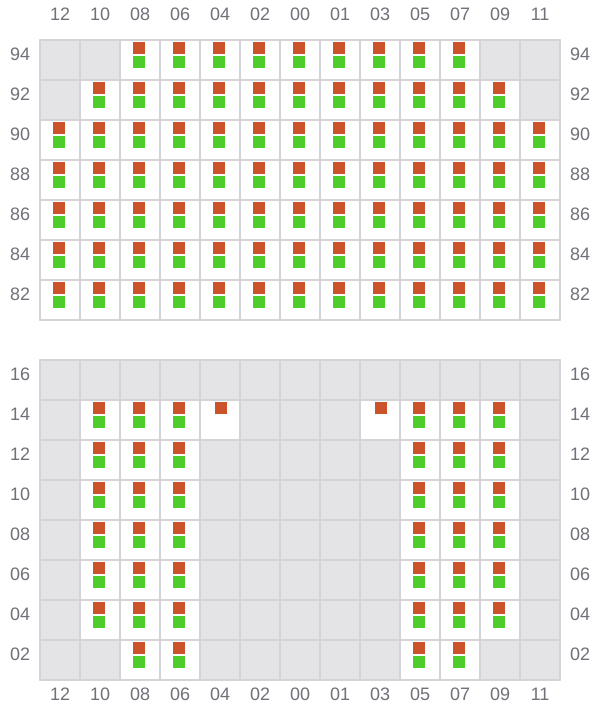

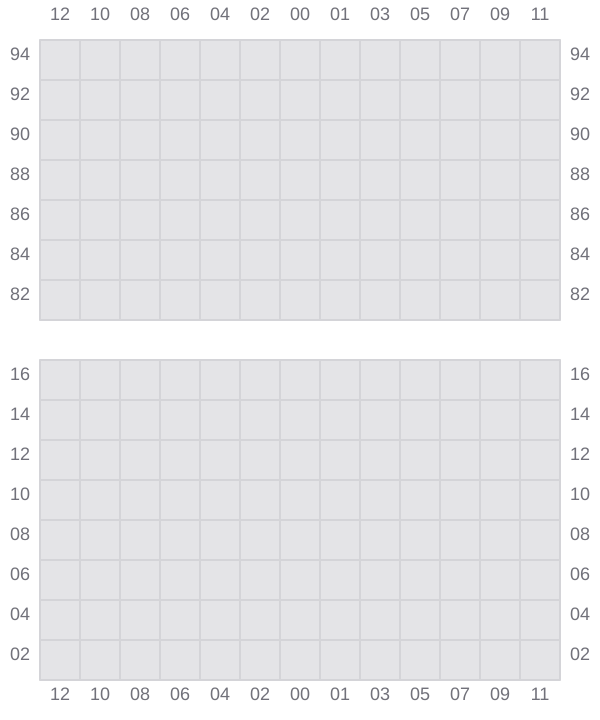

Bay 069 view and slots of MSC SARISKA V

071

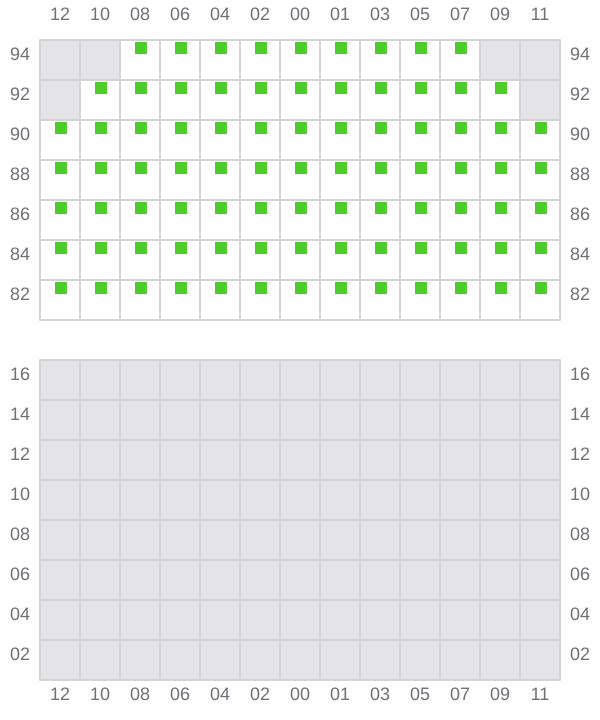

Bay 071 view and slots of MSC SARISKA V
