MSC SARISKA V
8715857 | 3FIF9 | 8715857 by *********** Last update: Sun Mar 03 2024

General Info

Ship Name:MSC SARISKA V

IMO Code:8715857

Call Sign:3FIF9

Line Operator:8715857

Class Name for Sister Ships:284

Year Built:1990

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,829

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

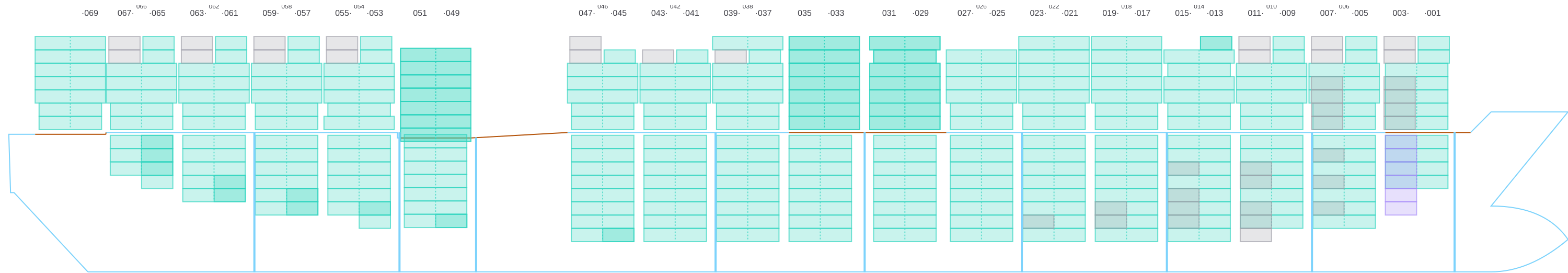

Side view of MSC SARISKA V

Hatch-Covers View

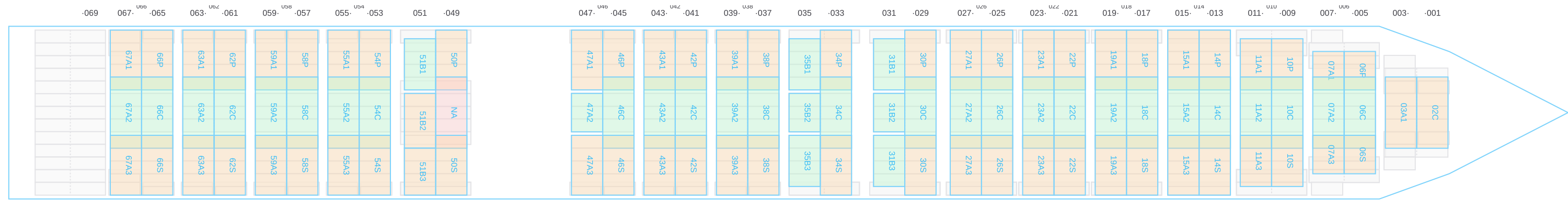

Deck view of MSC SARISKA V

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→

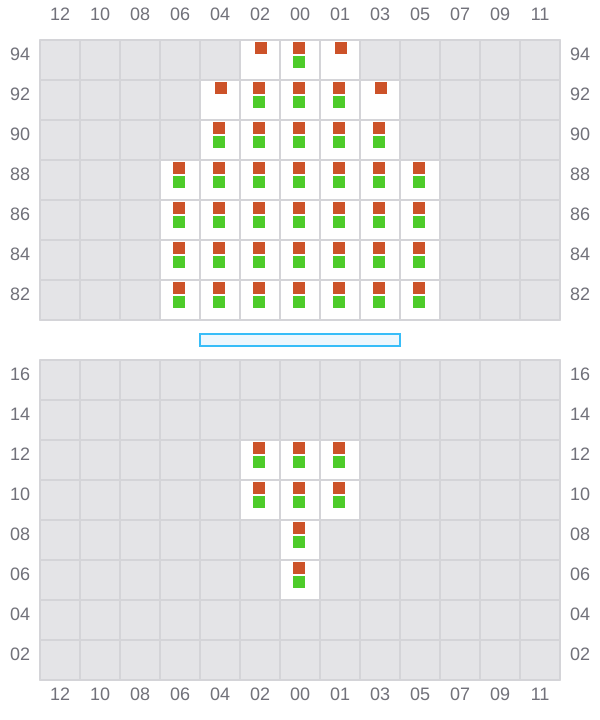

Bay 001 view and slots of MSC SARISKA V

003

^← / _?

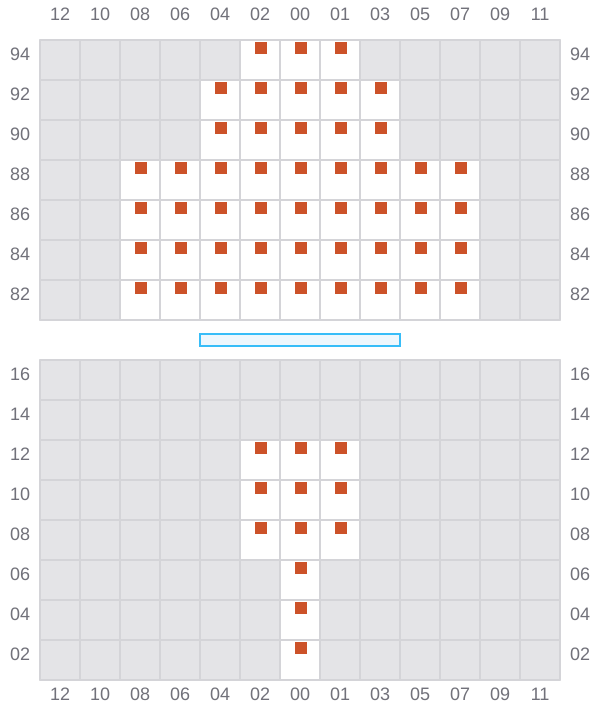

Bay 003 view and slots of MSC SARISKA V

005 (006)

→

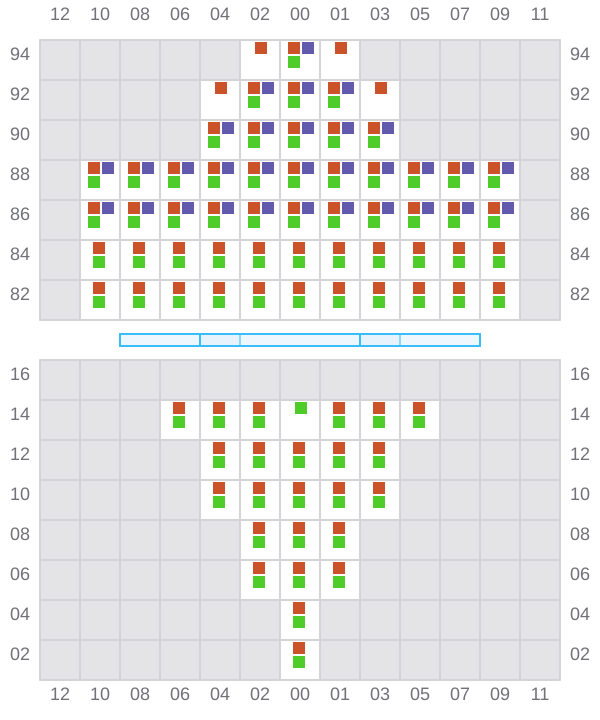

Bay 005 view and slots of MSC SARISKA V

007

←

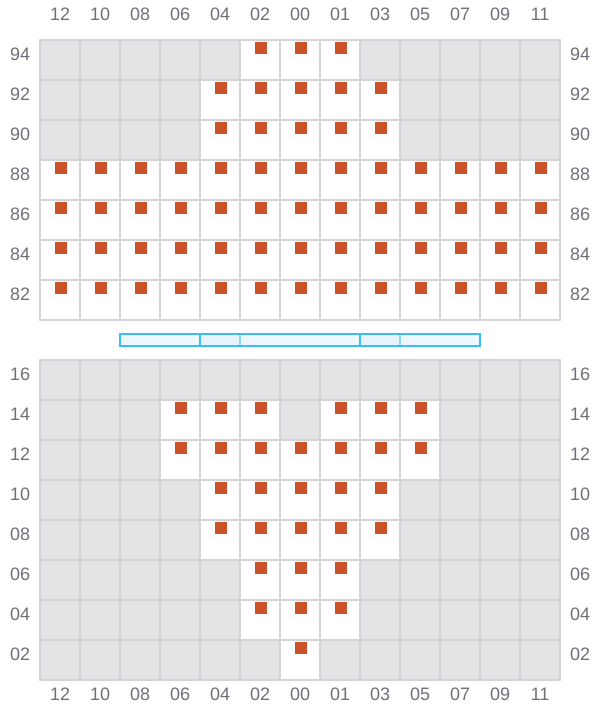

Bay 007 view and slots of MSC SARISKA V

009 (010)

→

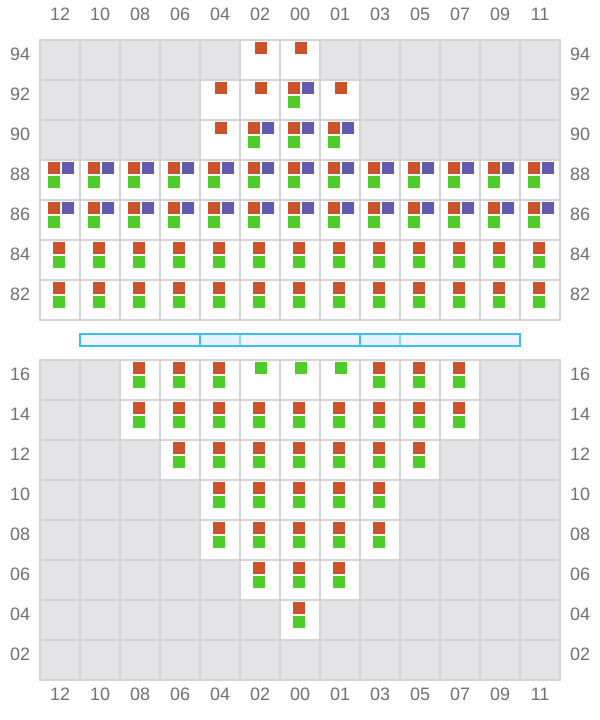

Bay 009 view and slots of MSC SARISKA V

011

←

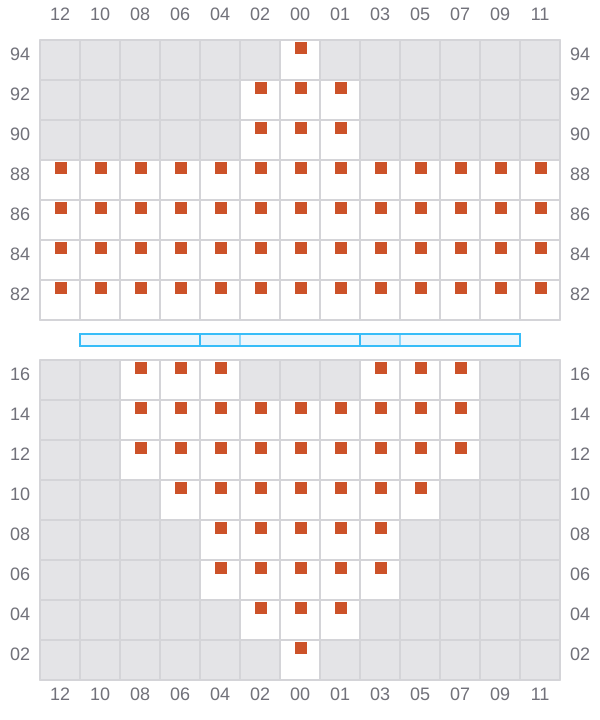

Bay 011 view and slots of MSC SARISKA V

013 (014)

→

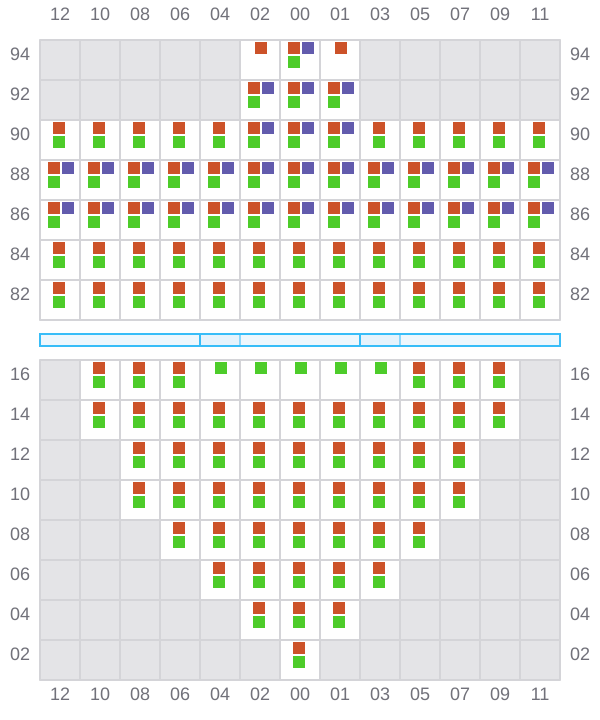

Bay 013 view and slots of MSC SARISKA V

015

←

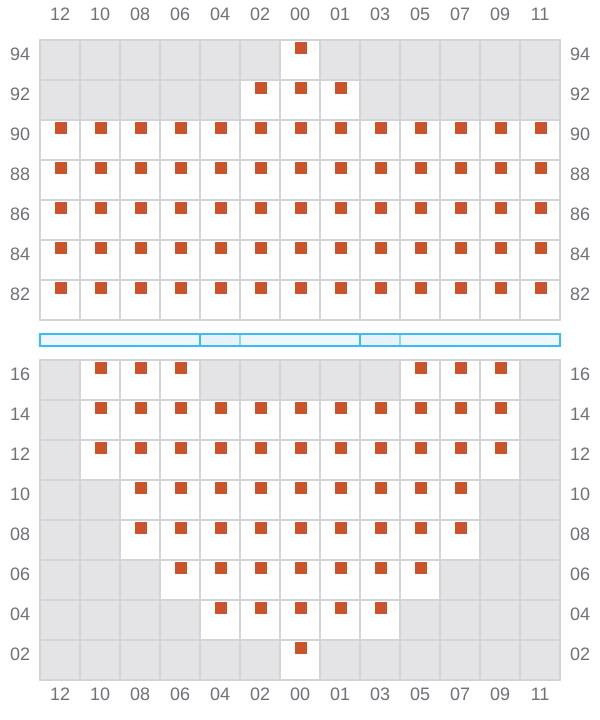

Bay 015 view and slots of MSC SARISKA V

017 (018)

→
^? / _→

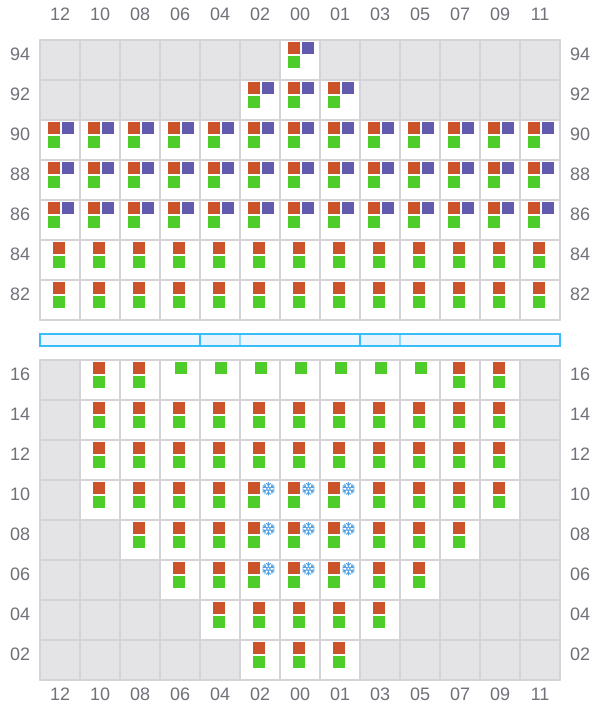

Bay 017 view and slots of MSC SARISKA V

019

←
→

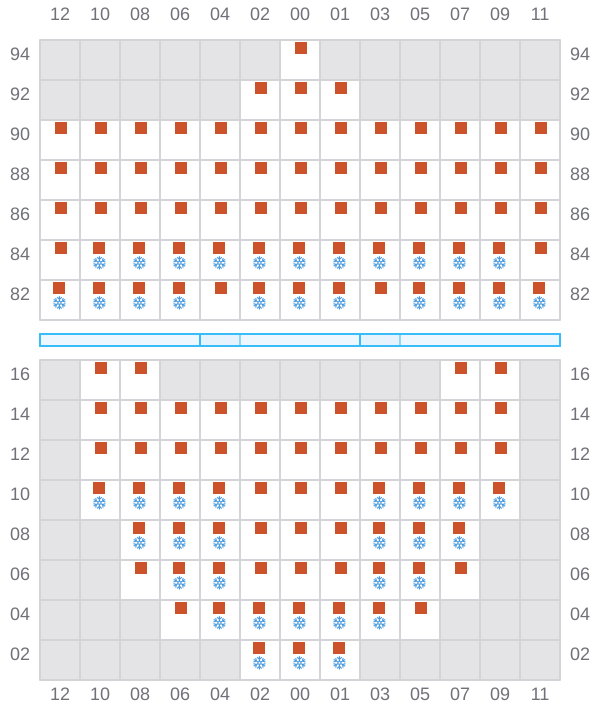

Bay 019 view and slots of MSC SARISKA V

021 (022)

→

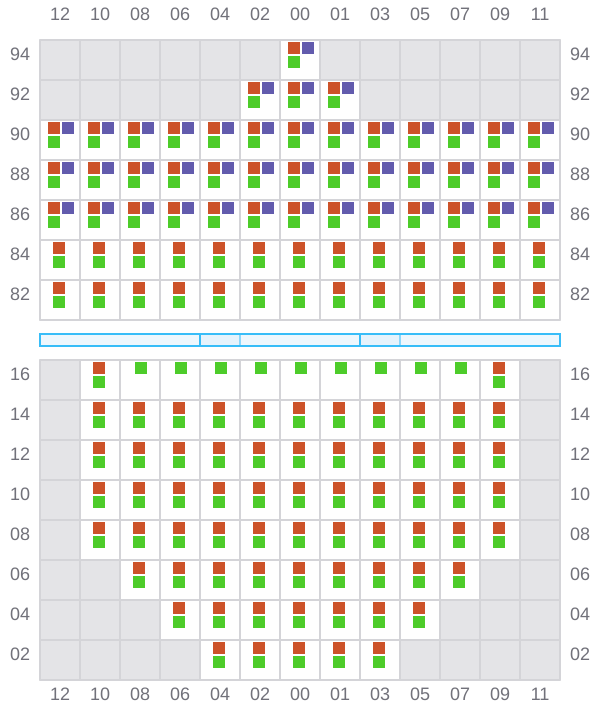

Bay 021 view and slots of MSC SARISKA V

023

←

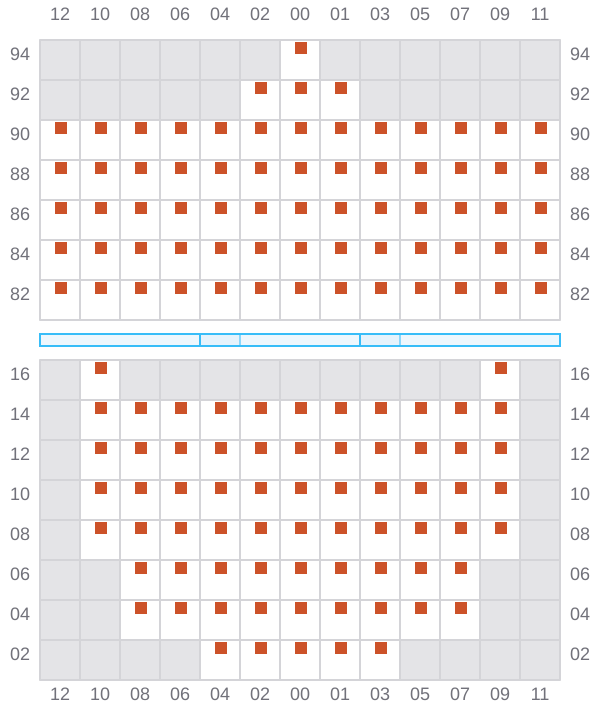

Bay 023 view and slots of MSC SARISKA V

025 (026)

→
^? / _→

Bay 025 view and slots of MSC SARISKA V

027

←
→

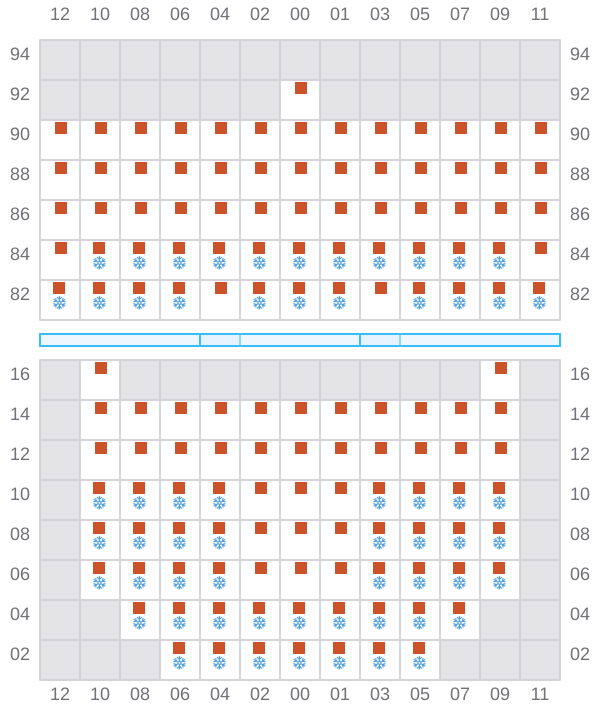

Bay 027 view and slots of MSC SARISKA V

029 (030)

→
^→ / _?

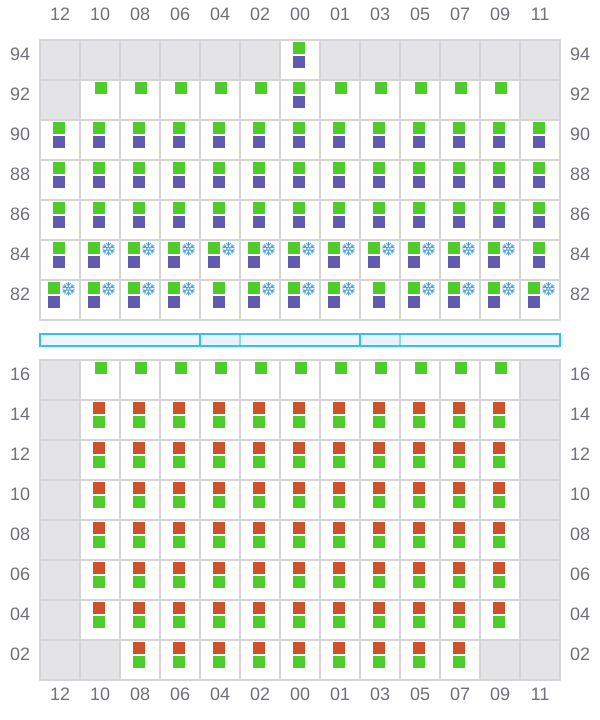

Bay 029 view and slots of MSC SARISKA V

031

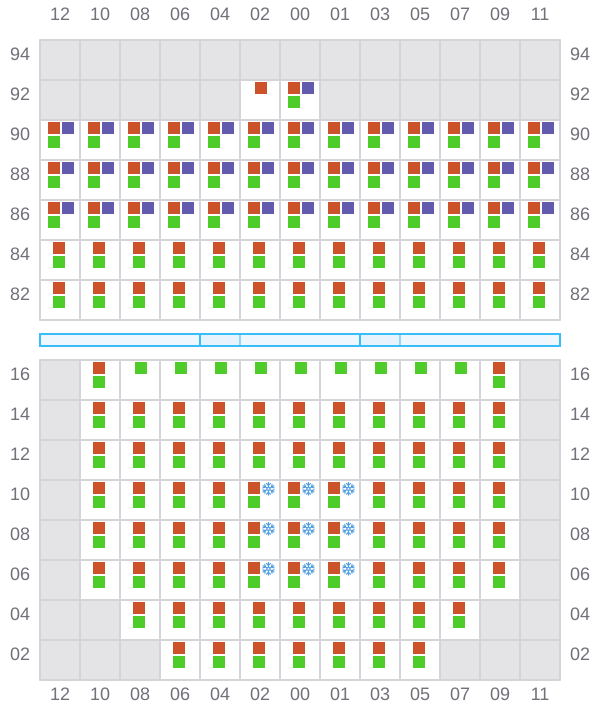

^? / _←

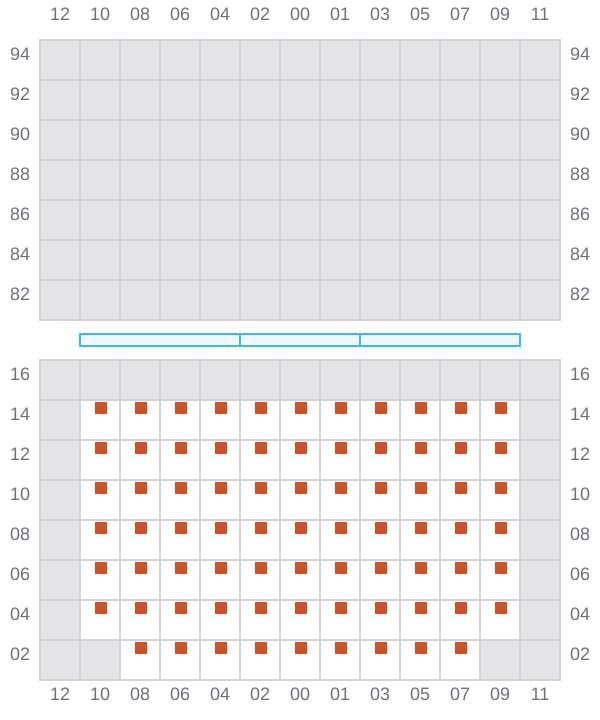

Bay 031 view and slots of MSC SARISKA V

033 (034)

→
→

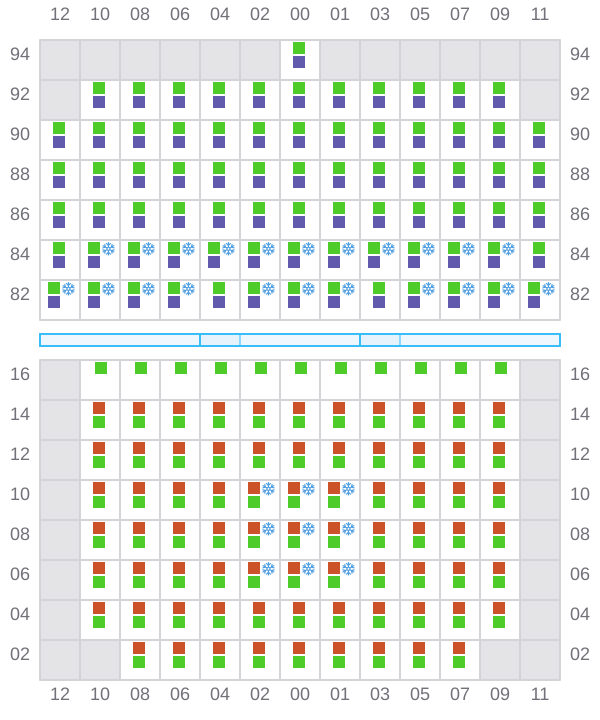

Bay 033 view and slots of MSC SARISKA V

035

^? / _←
^? / _→

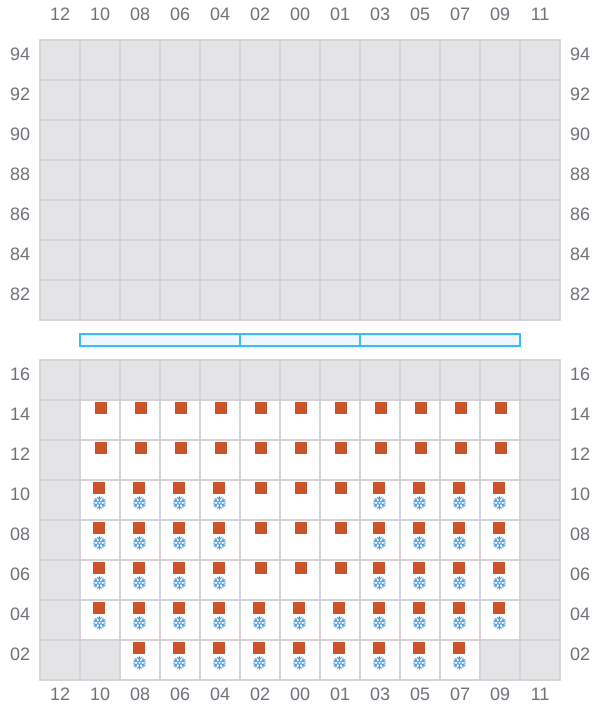

Bay 035 view and slots of MSC SARISKA V

037 (038)

→

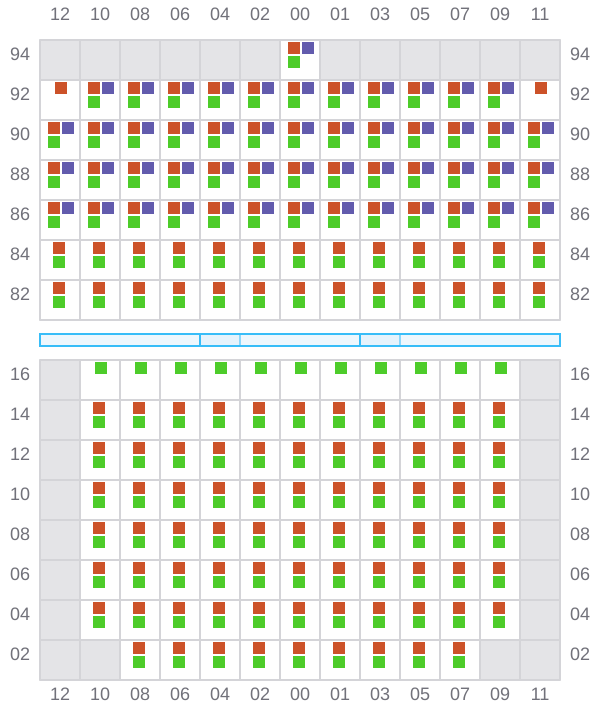

Bay 037 view and slots of MSC SARISKA V

039

←
^→ / _?

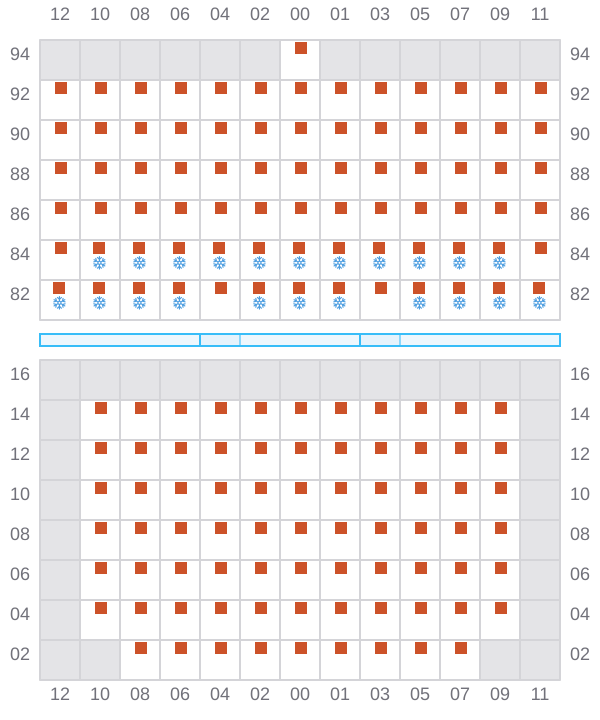

Bay 039 view and slots of MSC SARISKA V

041 (042)

→
^? / _→

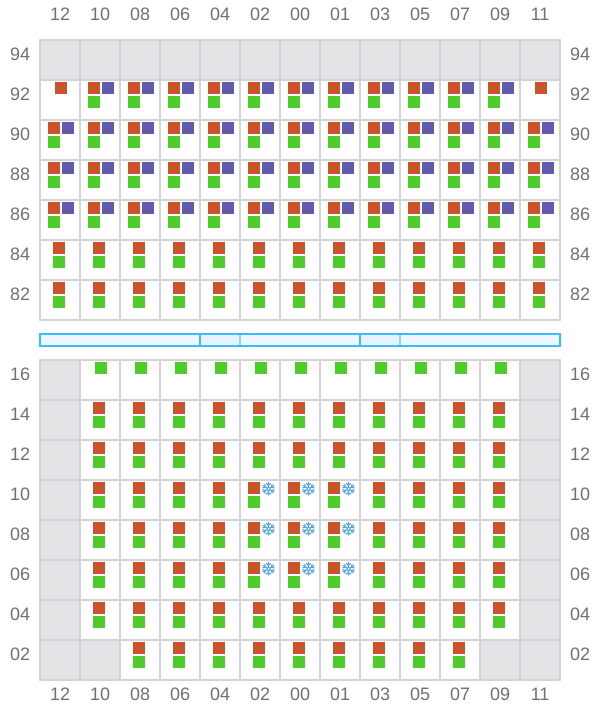

Bay 041 view and slots of MSC SARISKA V

043

←
→

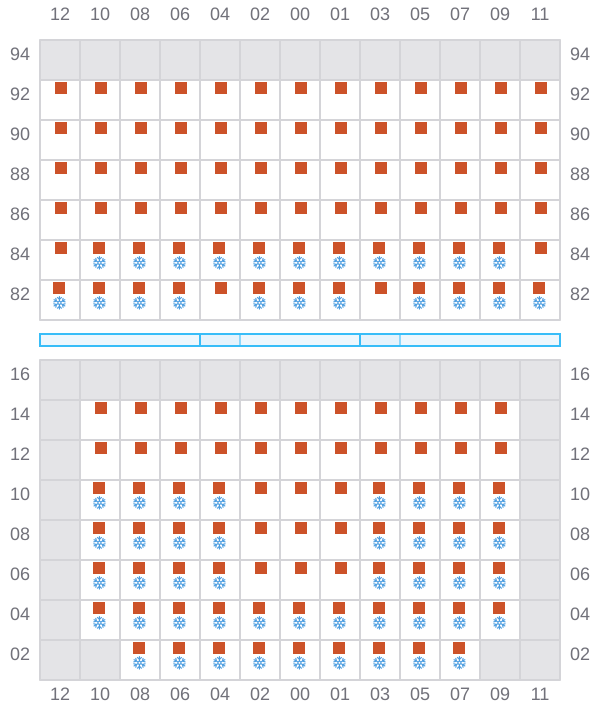

Bay 043 view and slots of MSC SARISKA V

045 (046)

→
^→ / _?

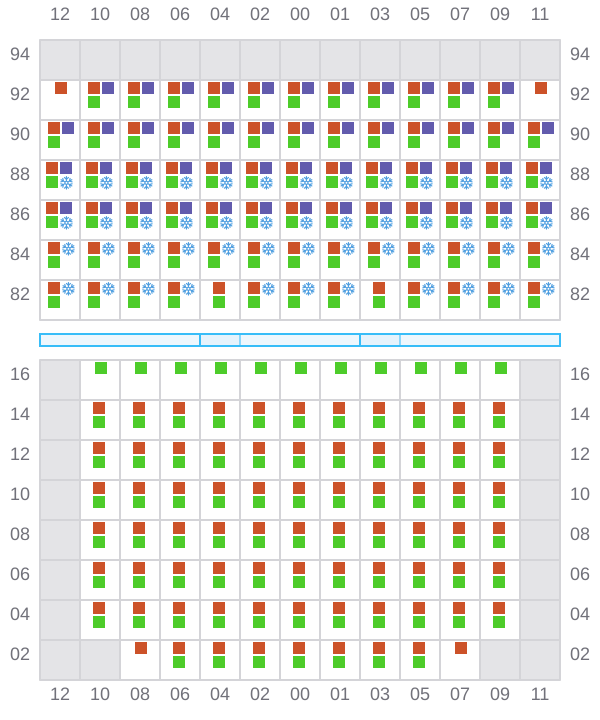

Bay 045 view and slots of MSC SARISKA V

047

←

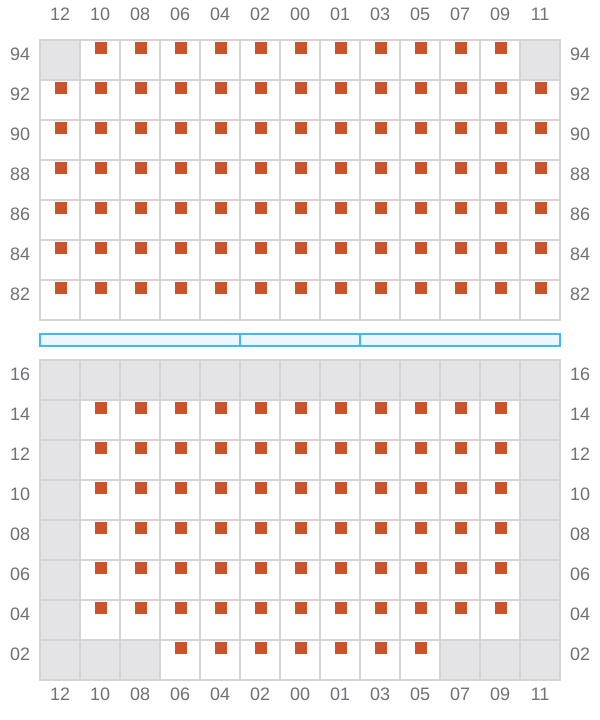

Bay 047 view and slots of MSC SARISKA V

049 (050)

→
^← / _?

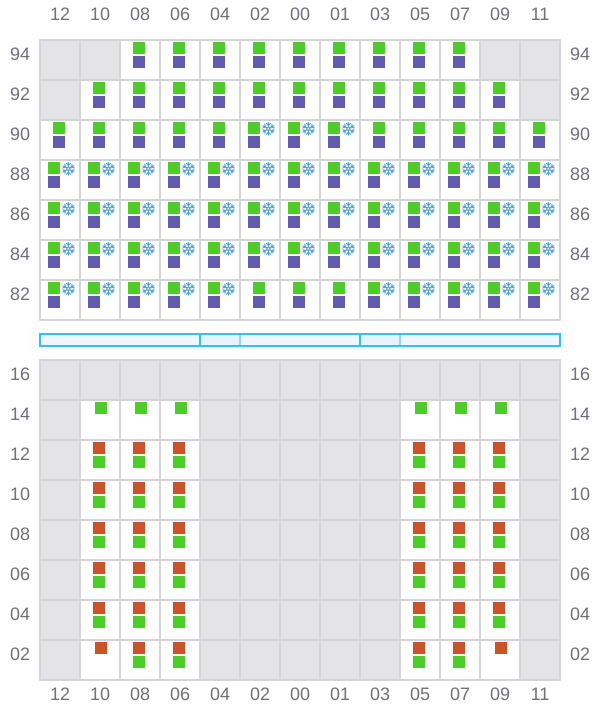

Bay 049 view and slots of MSC SARISKA V

051

^? / _←

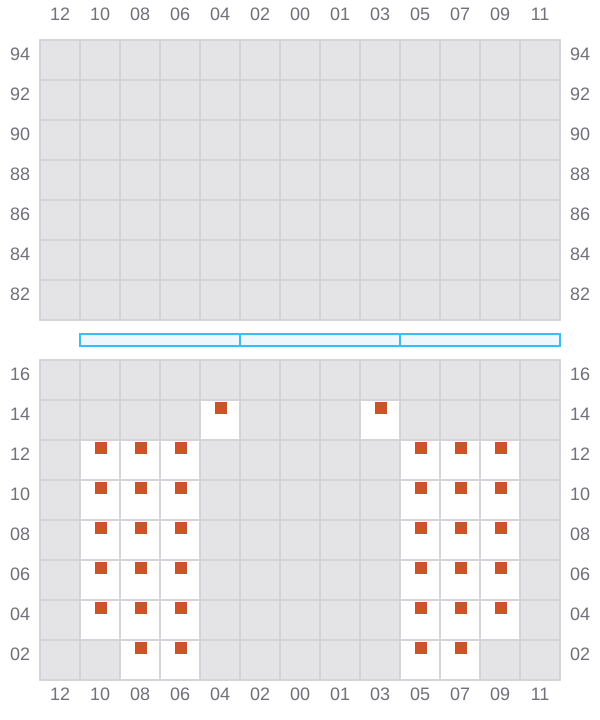

Bay 051 view and slots of MSC SARISKA V

053 (054)

→
^← / _→

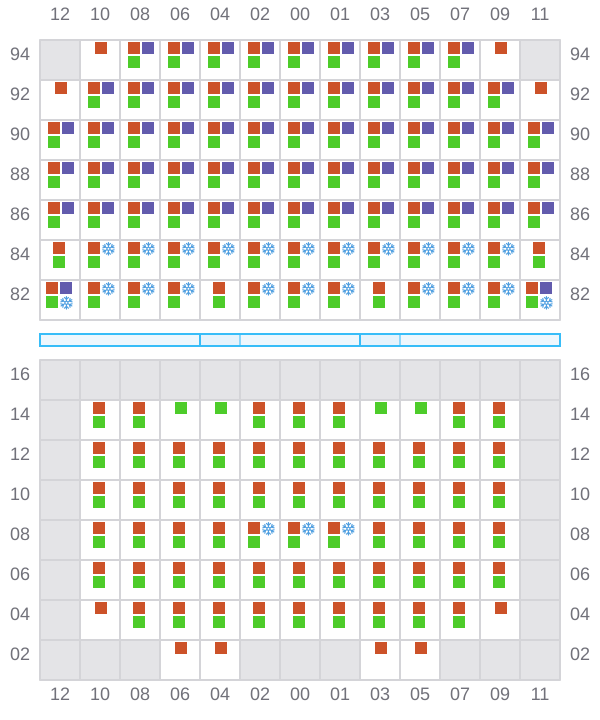

Bay 053 view and slots of MSC SARISKA V

055

←
^? / _→

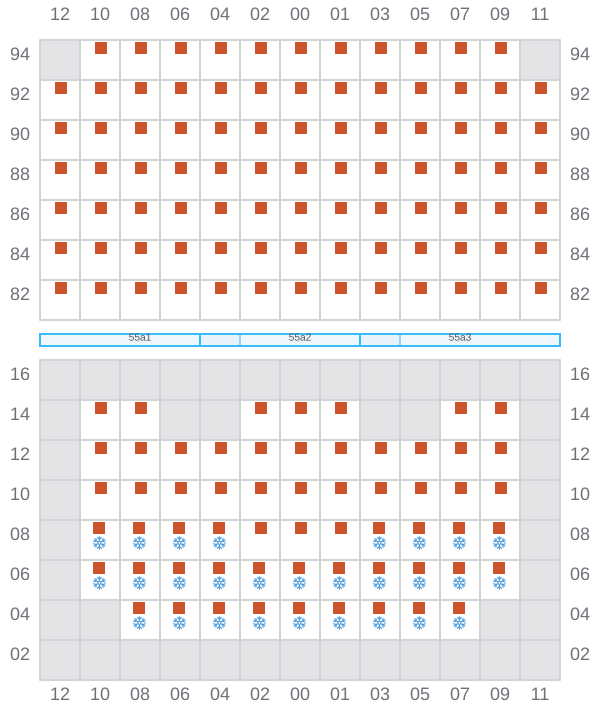

Bay 055 view and slots of MSC SARISKA V

057 (058)

→

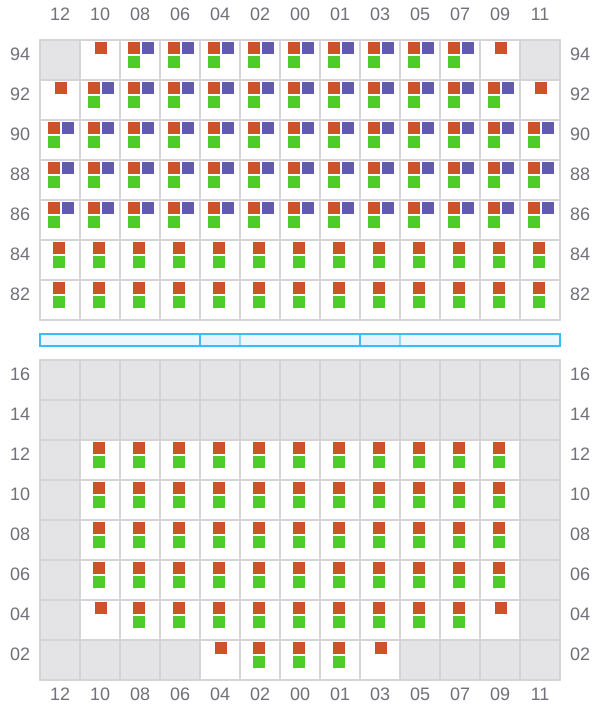

Bay 057 view and slots of MSC SARISKA V

059

←

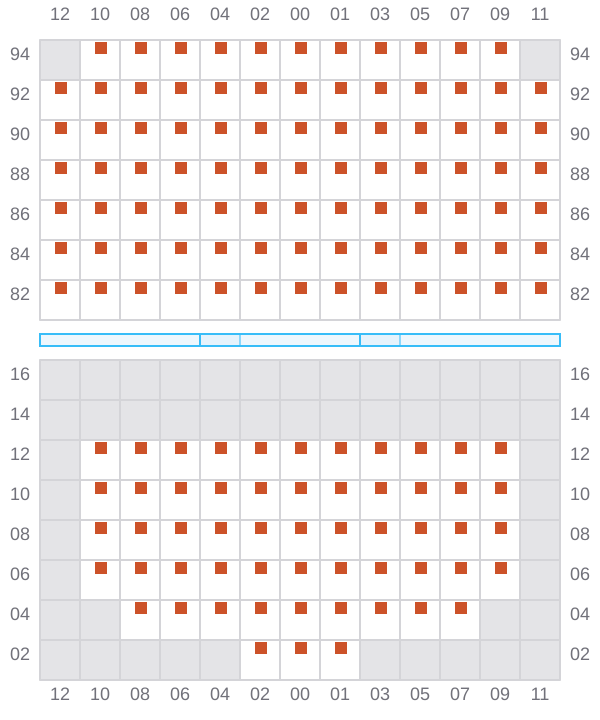

Bay 059 view and slots of MSC SARISKA V

061 (062)

→

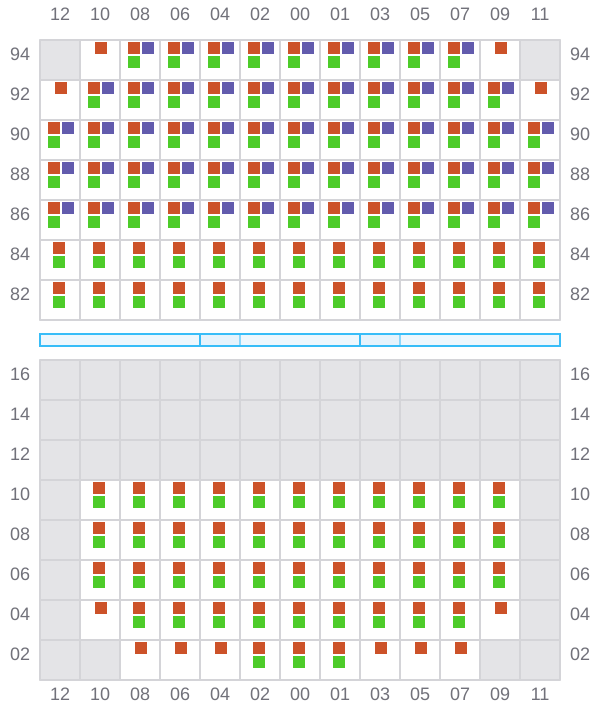

Bay 061 view and slots of MSC SARISKA V

063

←

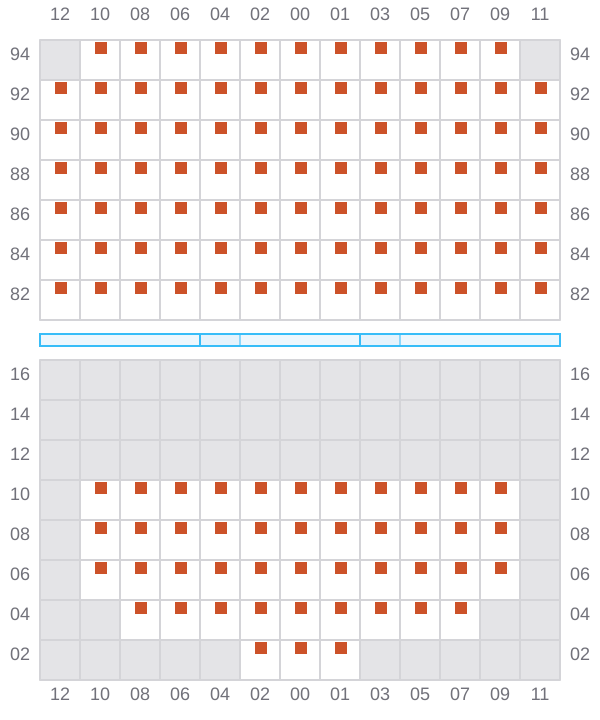

Bay 063 view and slots of MSC SARISKA V

065 (066)

→

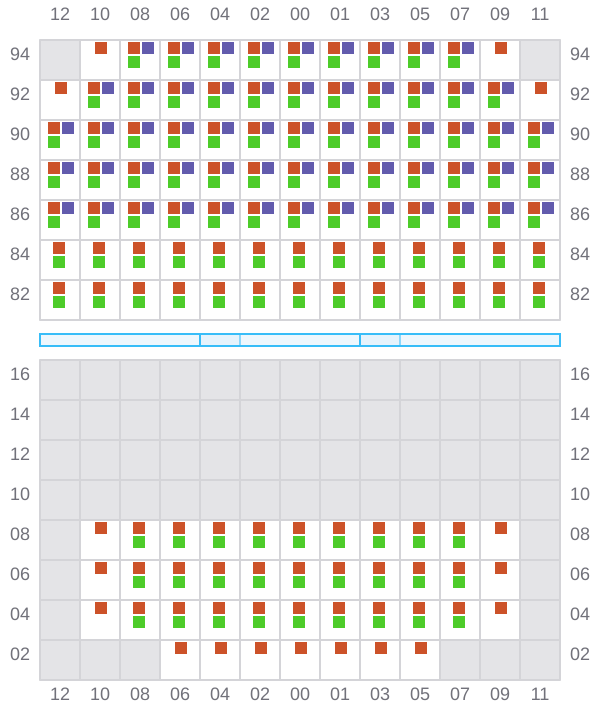

Bay 065 view and slots of MSC SARISKA V

067

←

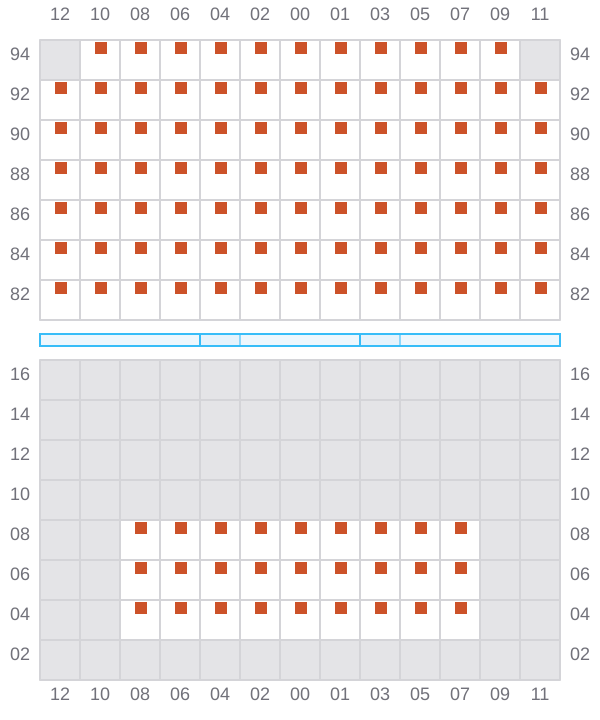

Bay 067 view and slots of MSC SARISKA V

069 (070)

^→ / _?

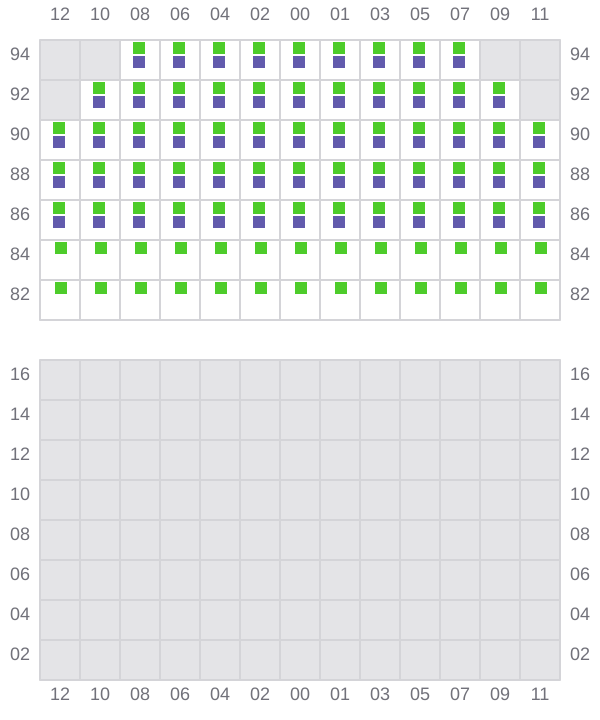

Bay 069 view and slots of MSC SARISKA V
