MSC SARYA III
9241451 | 5LEE9 | CLI by ************************** Last update: Wed Jun 14 2023

General Info

Ship Name:MSC SARYA III
IMO Code:9241451
Call Sign:5LEE9
Line Operator:CLI
Class Name for Sister Ships:NIT
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,482

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC SARYA III

Hatch-Covers View

Deck view of MSC SARYA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

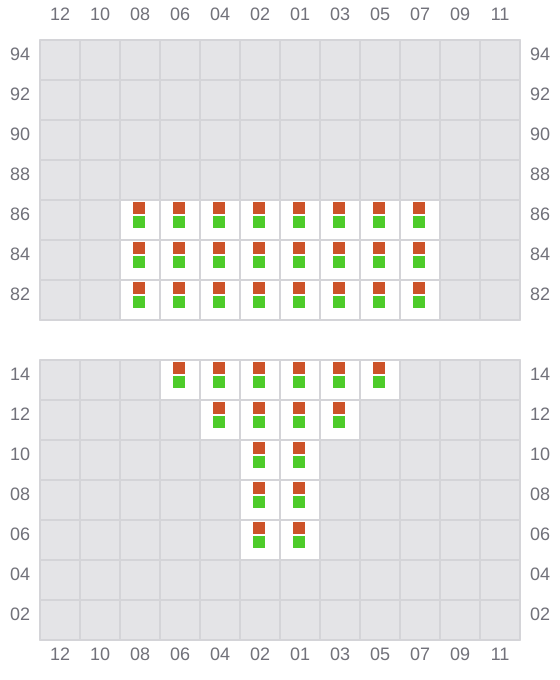

001 (002)

  • →
Bay 001 view and slots of MSC SARYA III

003

  • ←

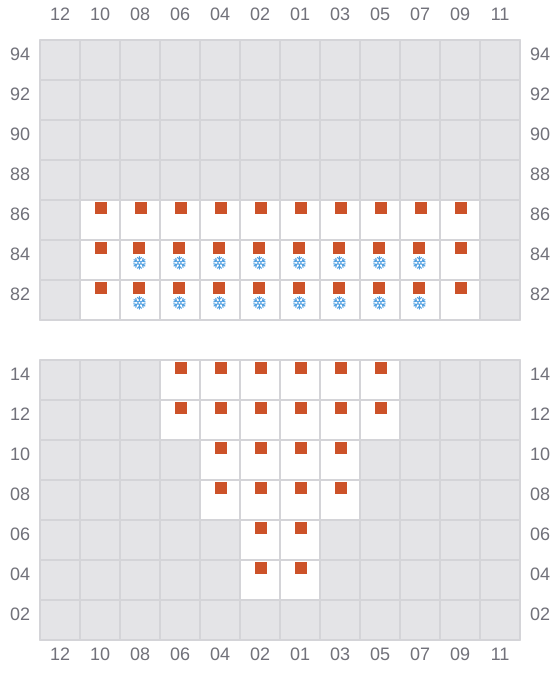

Bay 003 view and slots of MSC SARYA III

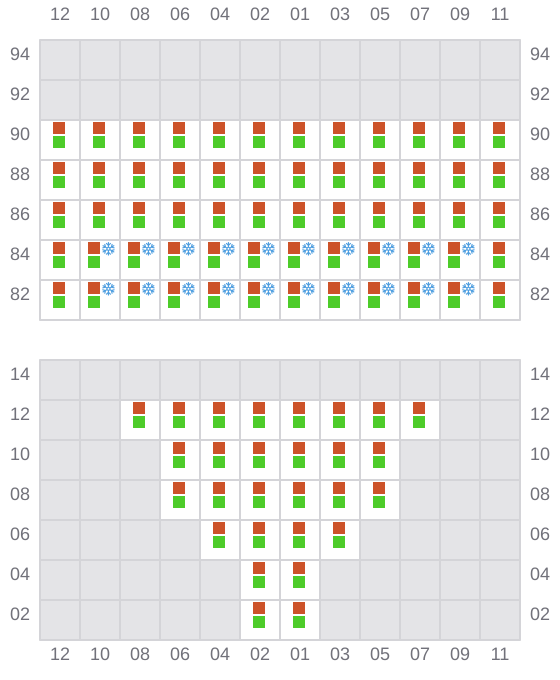

005 (006)

  • →
Bay 005 view and slots of MSC SARYA III

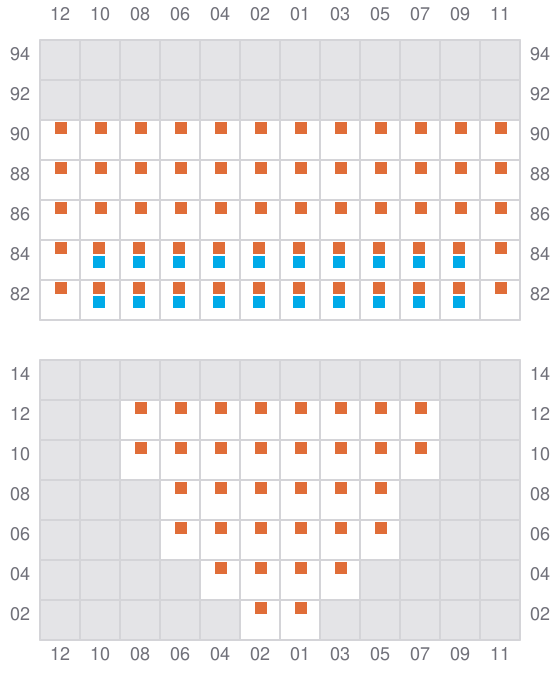

007

  • ←
Bay 007 view and slots of MSC SARYA III

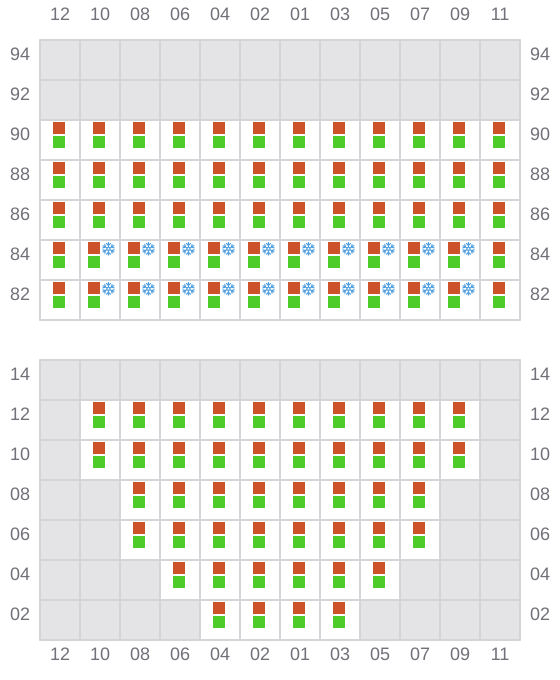

009 (010)

  • →
Bay 009 view and slots of MSC SARYA III

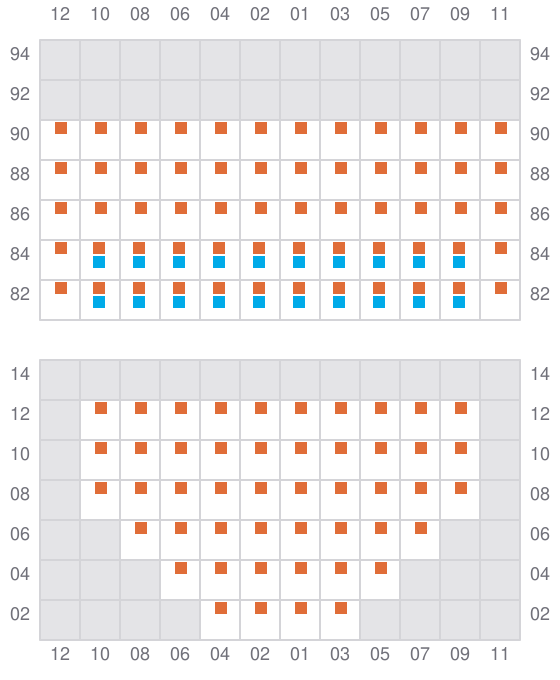

011

  • ←
Bay 011 view and slots of MSC SARYA III

013 (014)

  • →

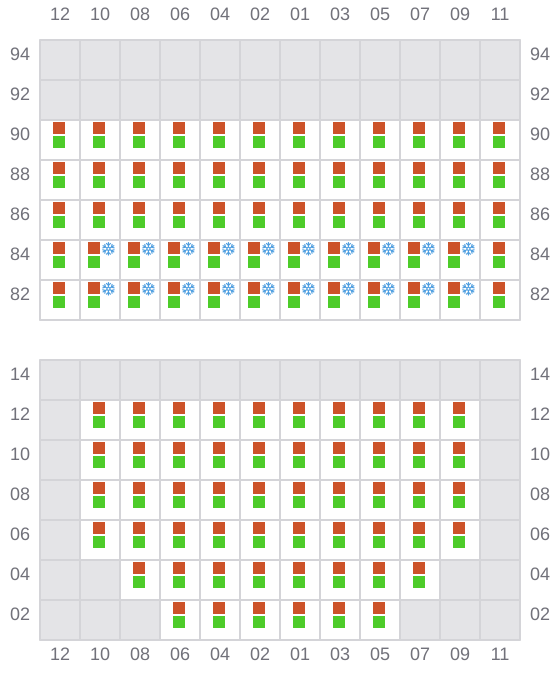

Bay 013 view and slots of MSC SARYA III

015

  • ←

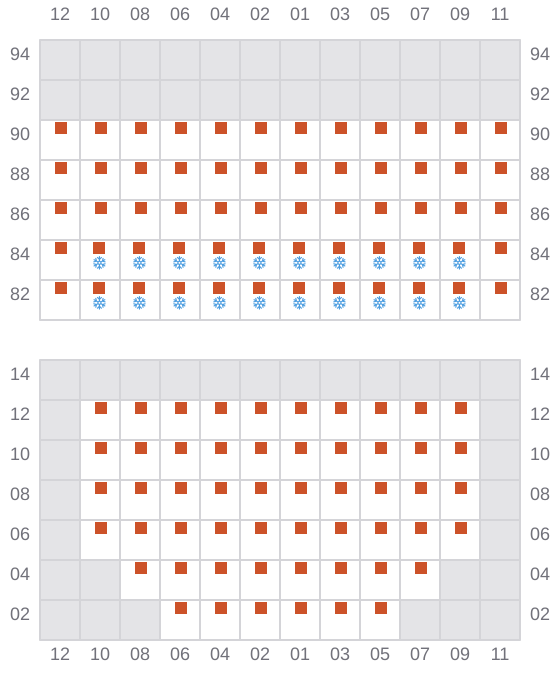

Bay 015 view and slots of MSC SARYA III

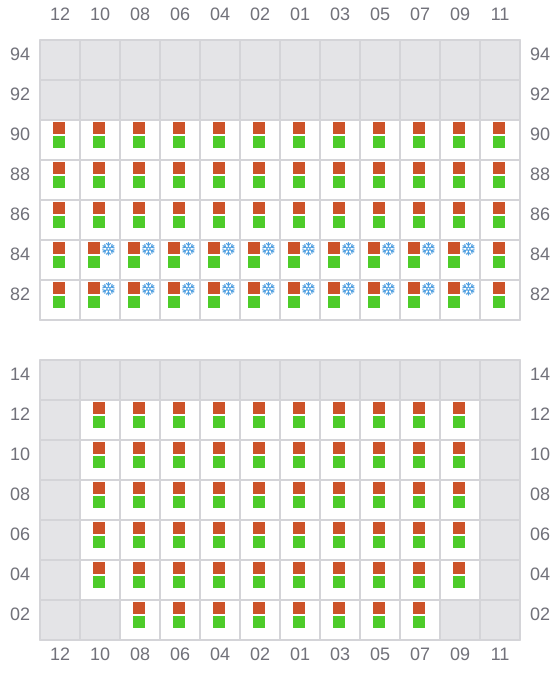

017 (018)

  • →
Bay 017 view and slots of MSC SARYA III

019

  • ←

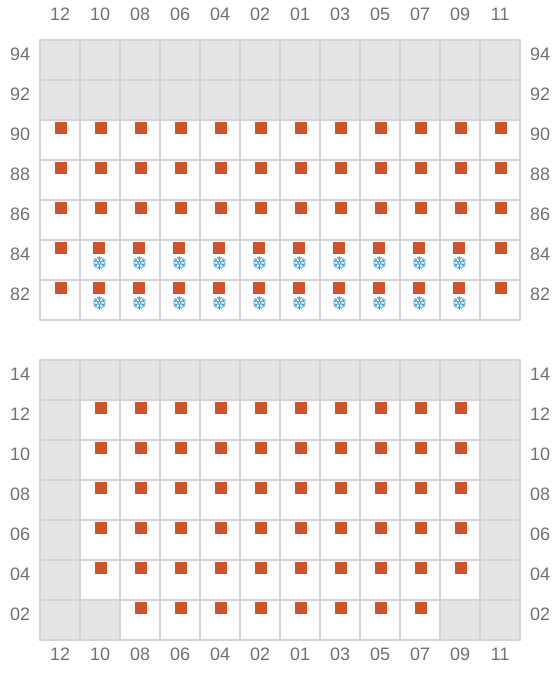

Bay 019 view and slots of MSC SARYA III

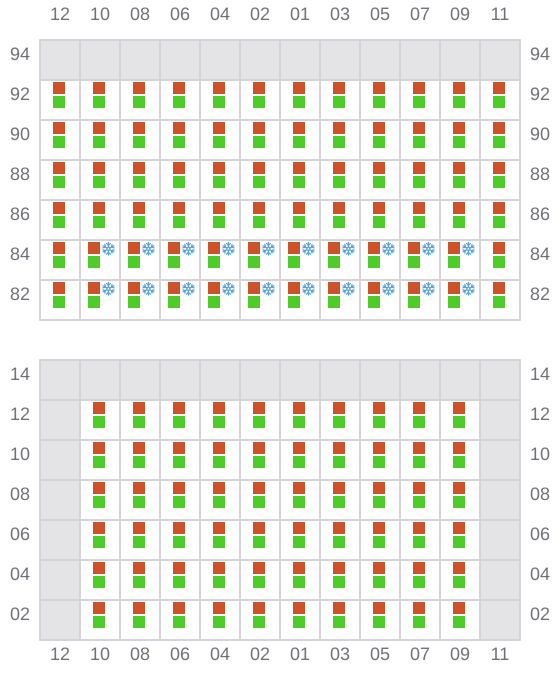

021 (022)

  • →
Bay 021 view and slots of MSC SARYA III

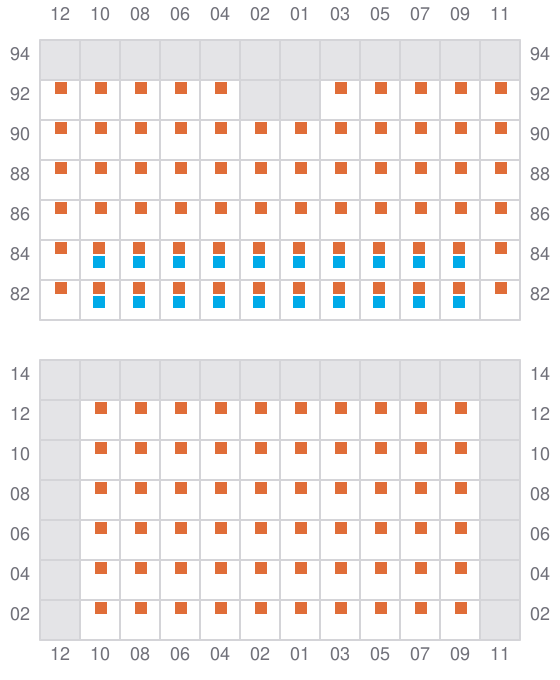

023

  • ←
Bay 023 view and slots of MSC SARYA III

025 (026)

  • →
Bay 025 view and slots of MSC SARYA III

027

  • ←

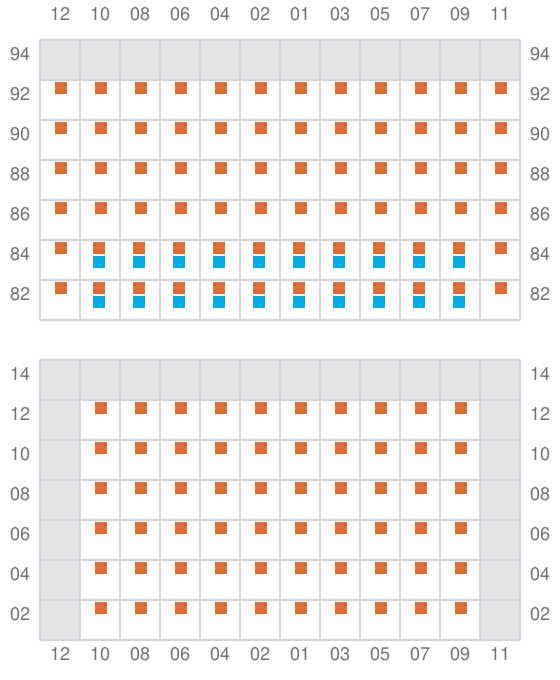

Bay 027 view and slots of MSC SARYA III

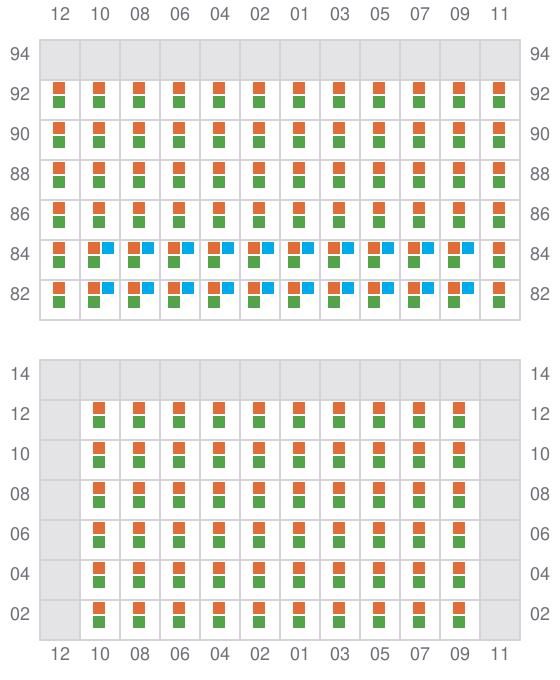

029 (030)

  • →
Bay 029 view and slots of MSC SARYA III

031

  • ←

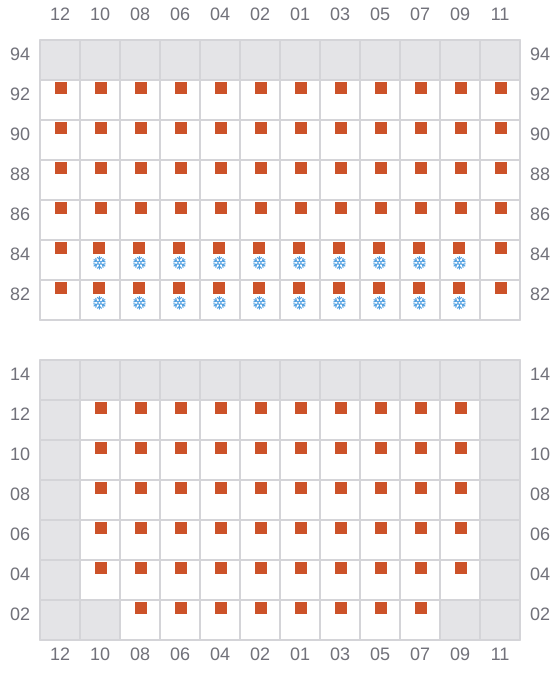

Bay 031 view and slots of MSC SARYA III

033 (034)

  • →

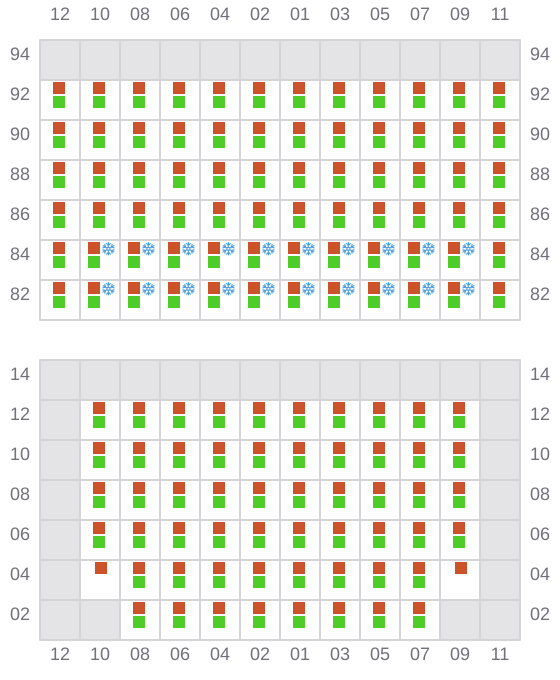

Bay 033 view and slots of MSC SARYA III

035

  • ←

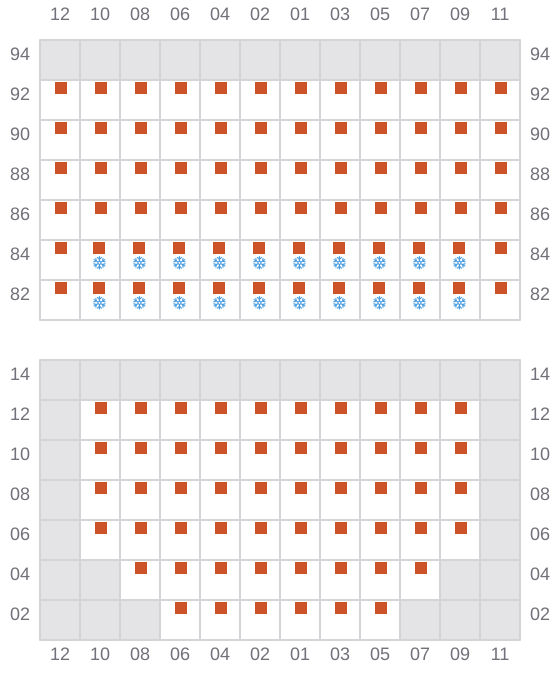

Bay 035 view and slots of MSC SARYA III

037 (038)

  • →
Bay 037 view and slots of MSC SARYA III

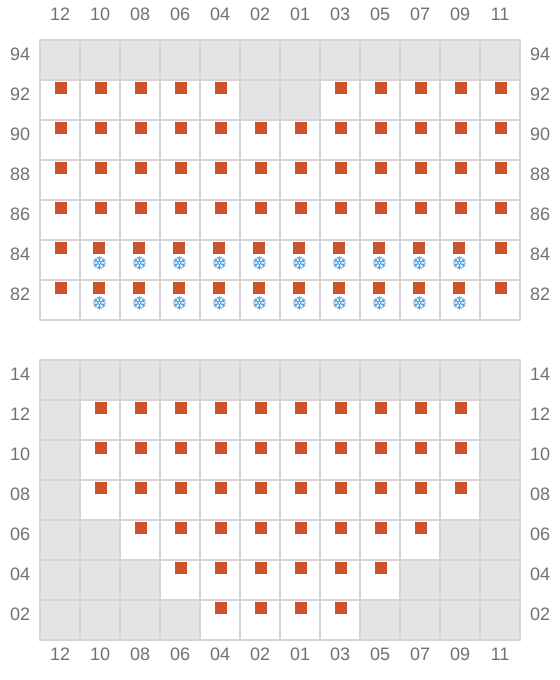

039

  • ←
Bay 039 view and slots of MSC SARYA III

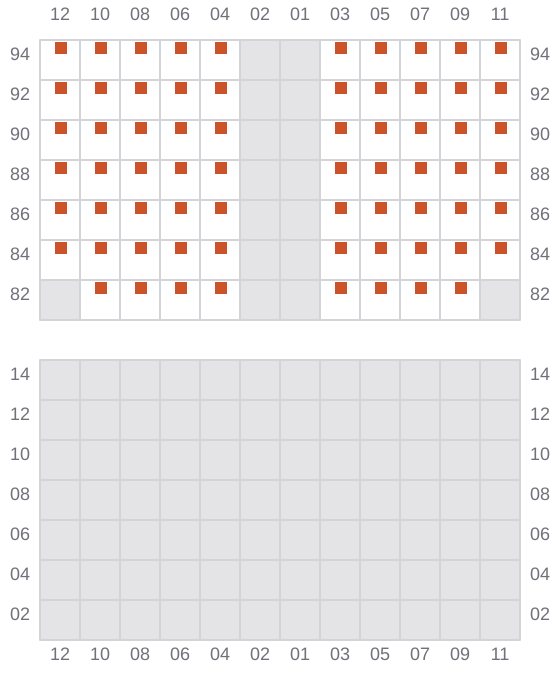

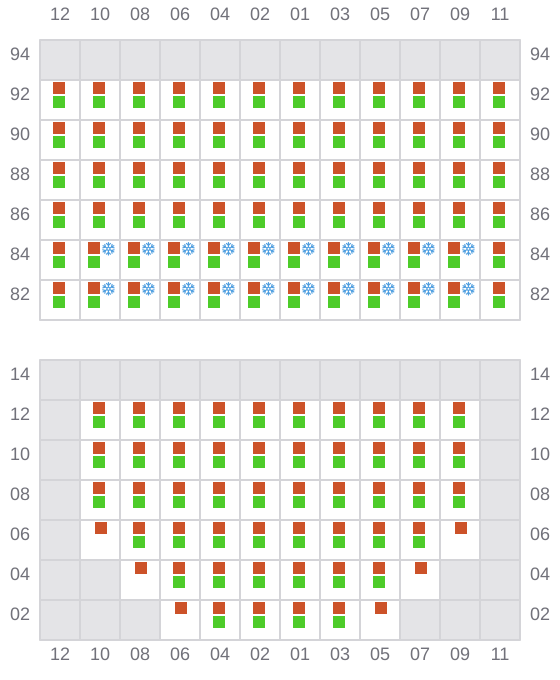

041

Bay 041 view and slots of MSC SARYA III

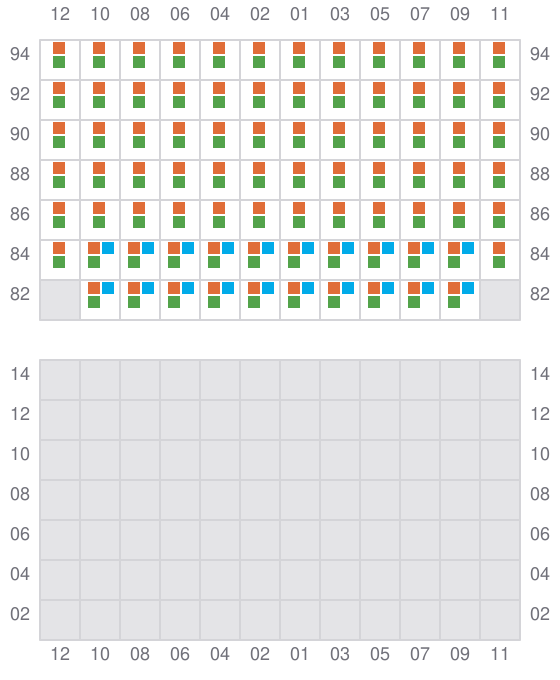

043 (044)

  • → / ?
Bay 043 view and slots of MSC SARYA III

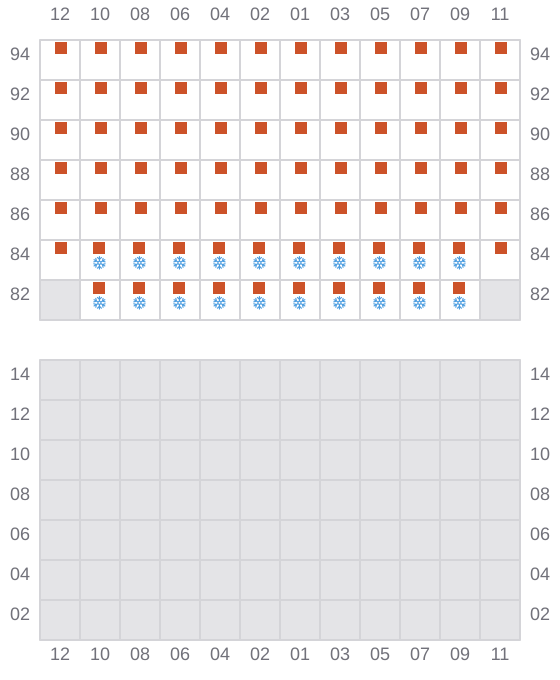

045

  • ← / ?
Bay 045 view and slots of MSC SARYA III
