MSC SARYA III
9241451 | 5LEE9 | 9241451 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:MSC SARYA III
IMO Code:9241451
Call Sign:5LEE9
Line Operator:9241451
Class Name for Sister Ships:LIBRA NITEROI
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):195.40
LOA (Length Overall):207.30
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,478
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

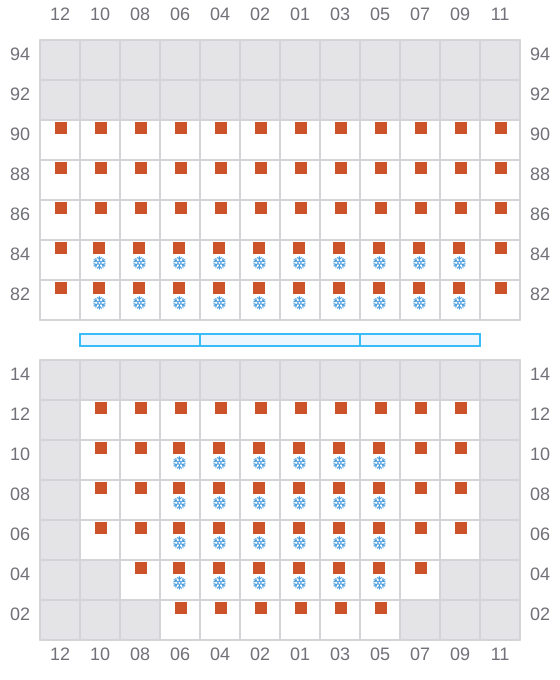

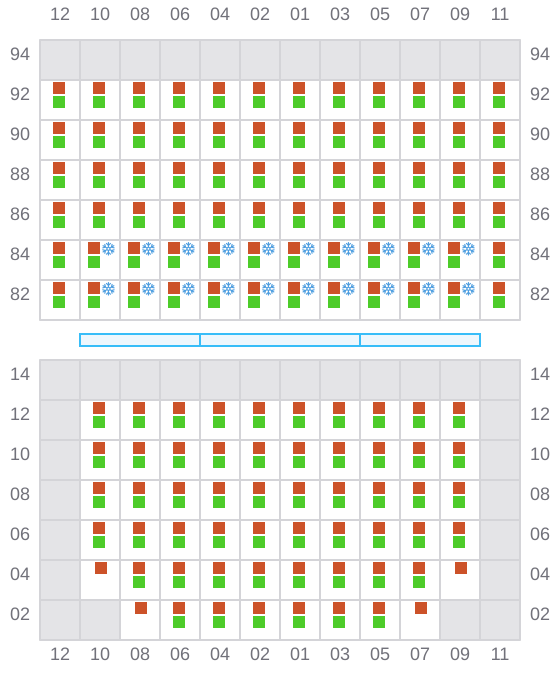

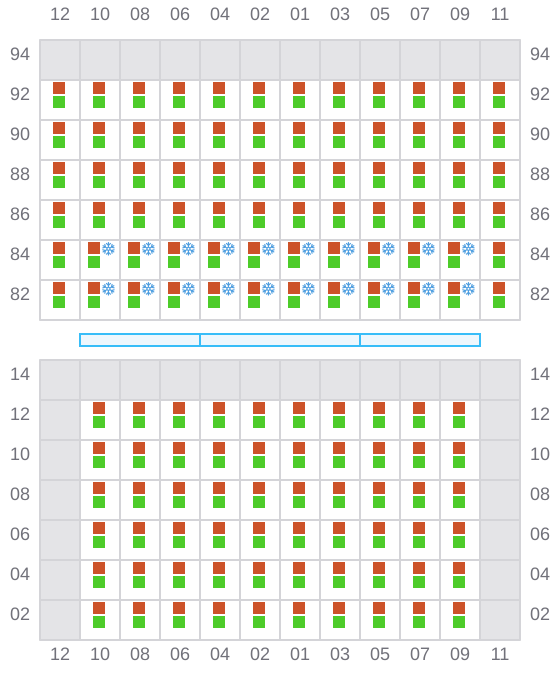

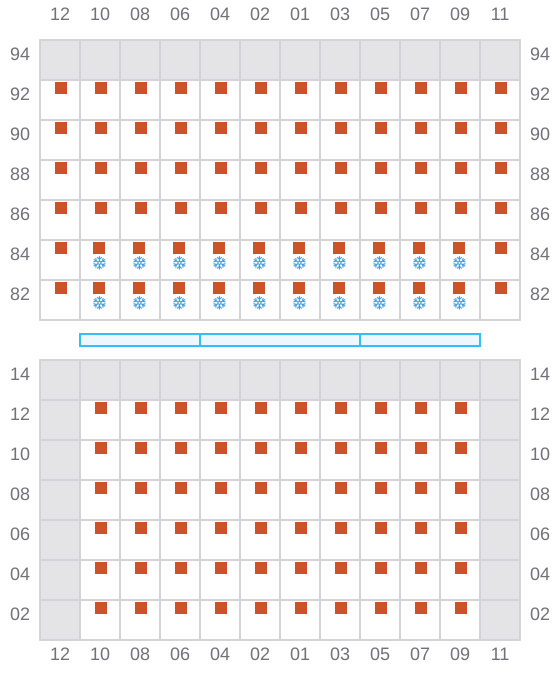

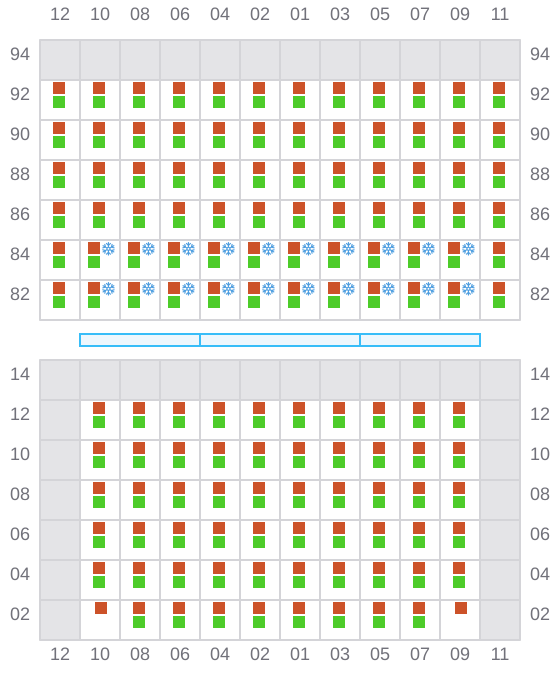

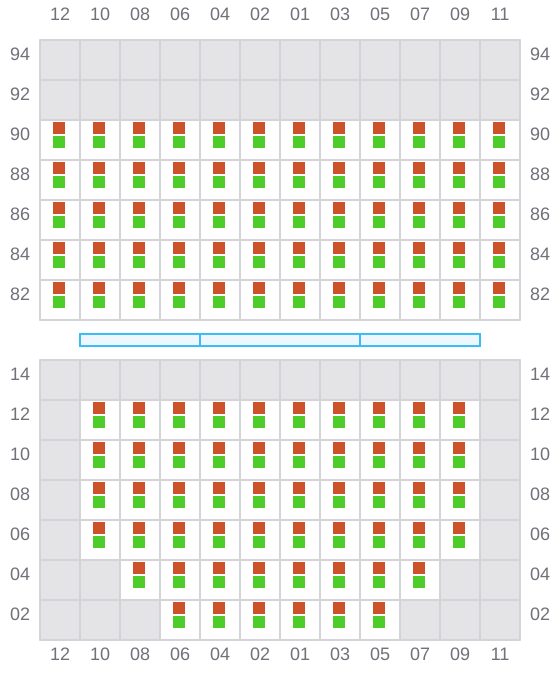

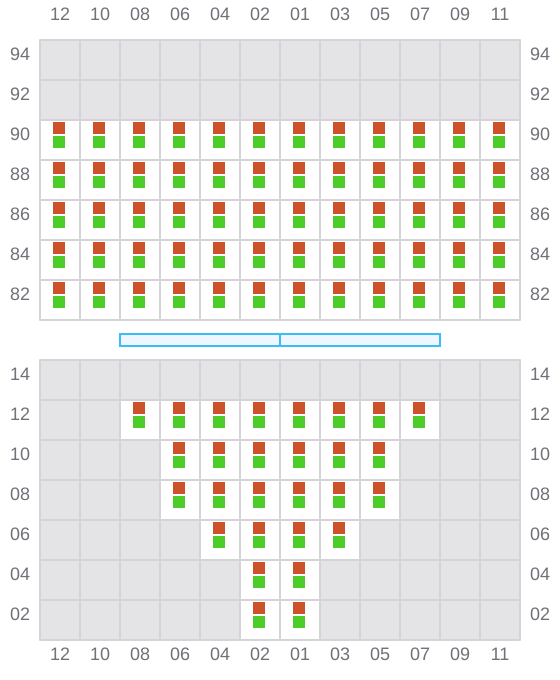

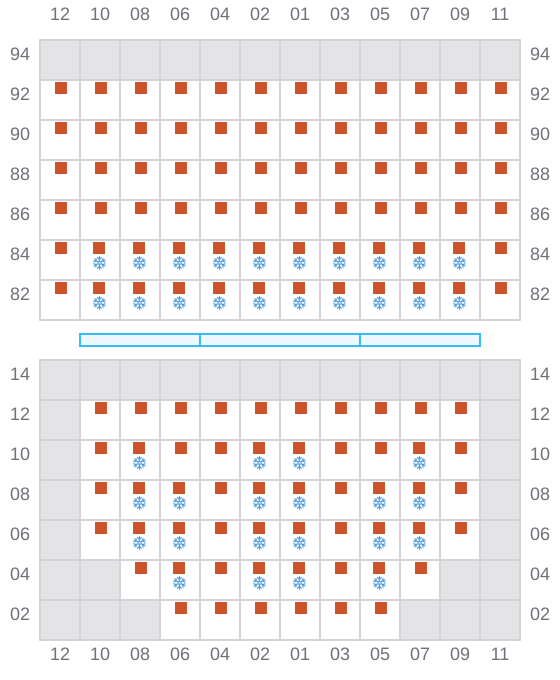

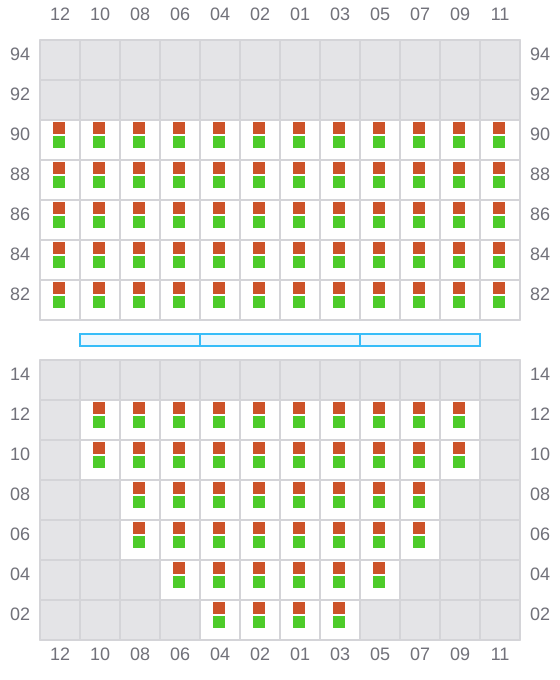

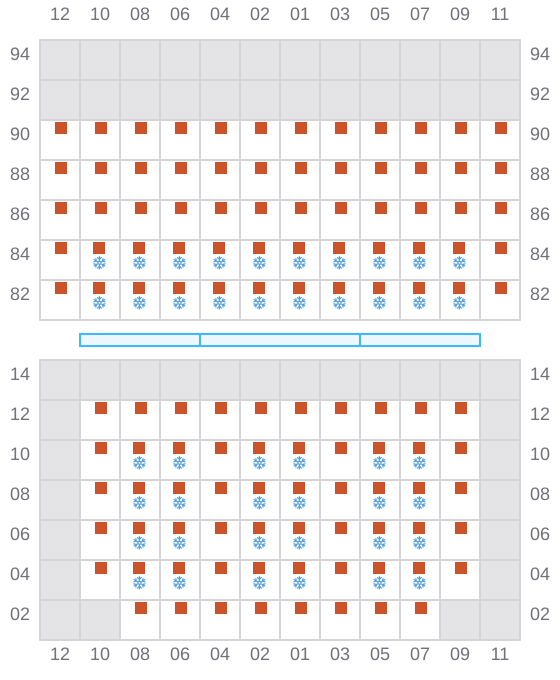

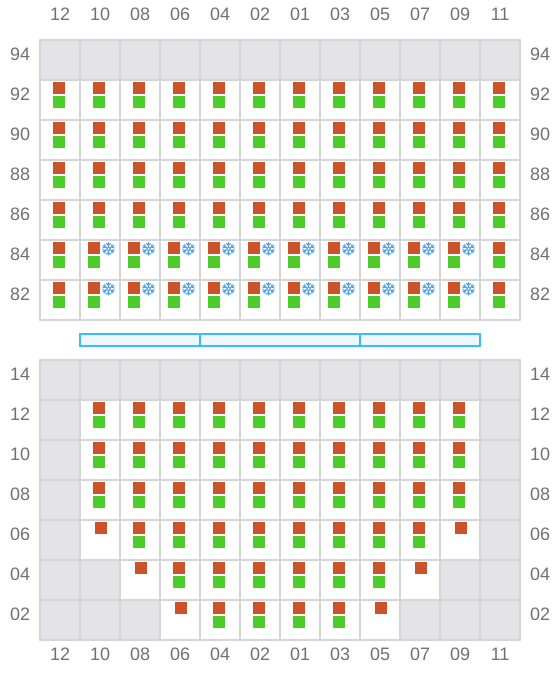

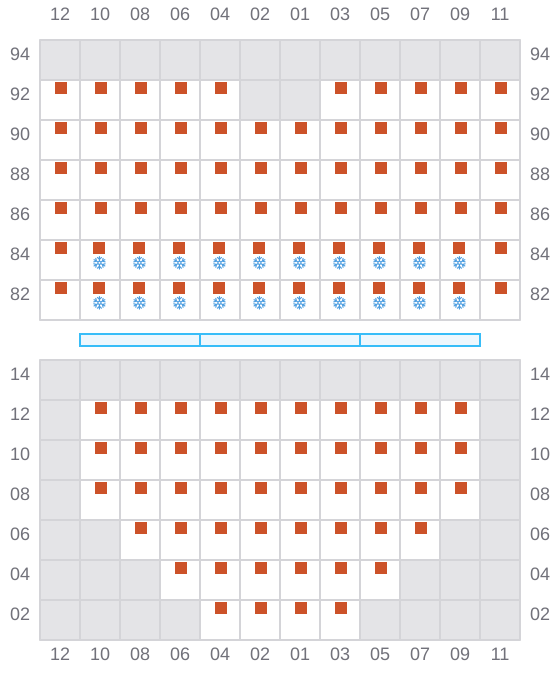

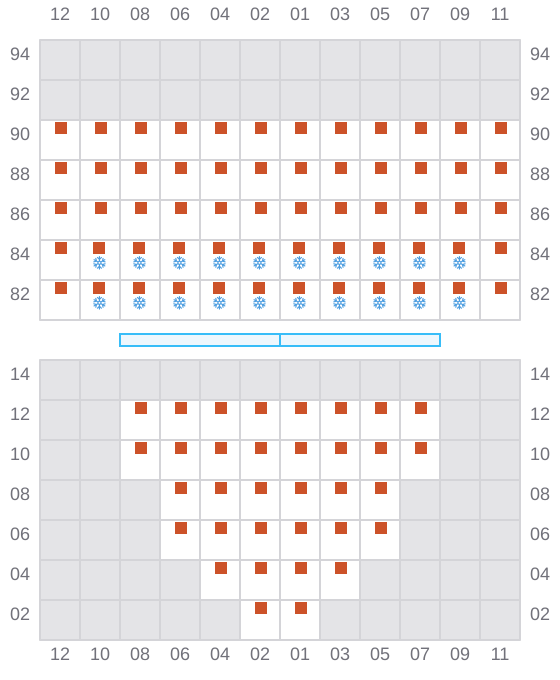

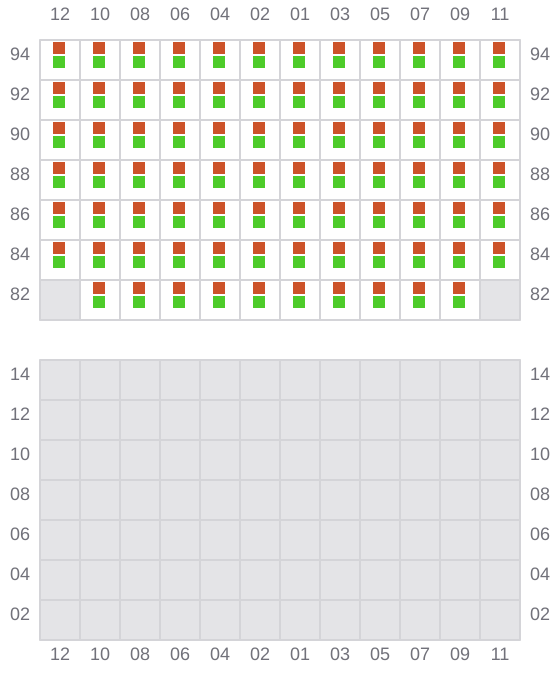

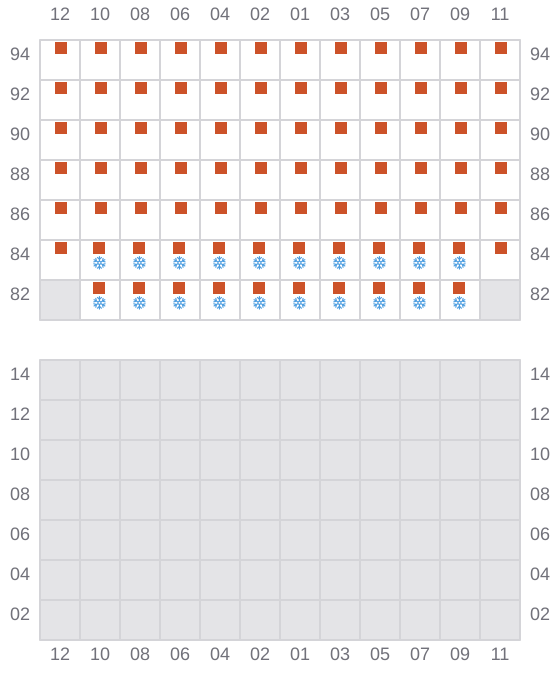

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

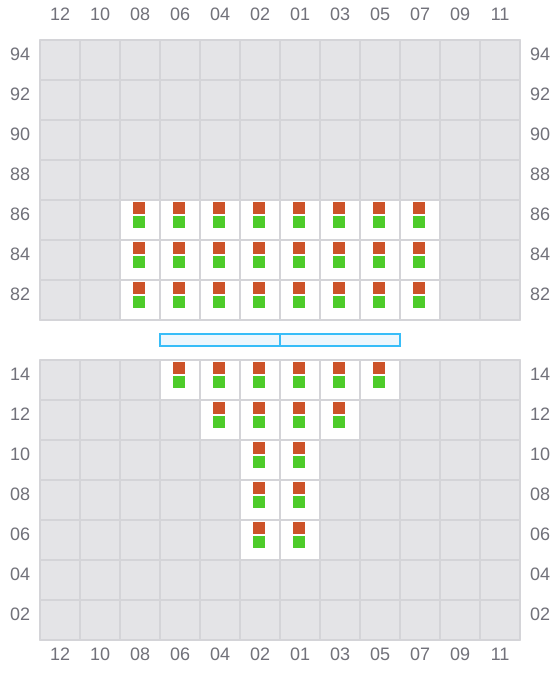

001 (002)
- →

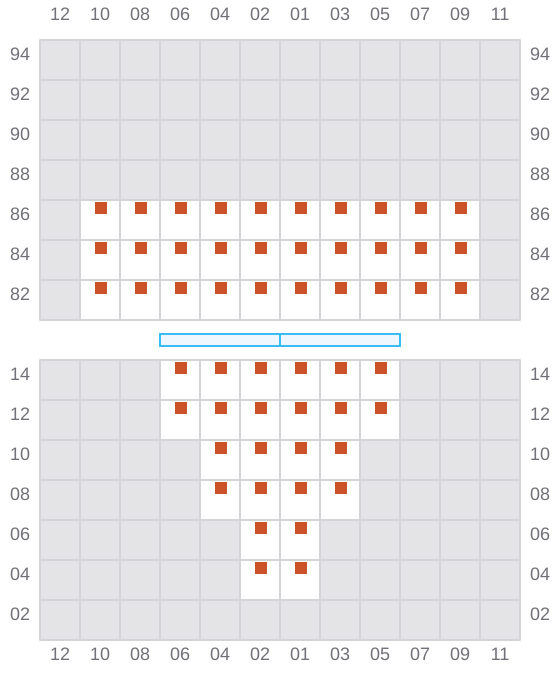

003
- ←
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →

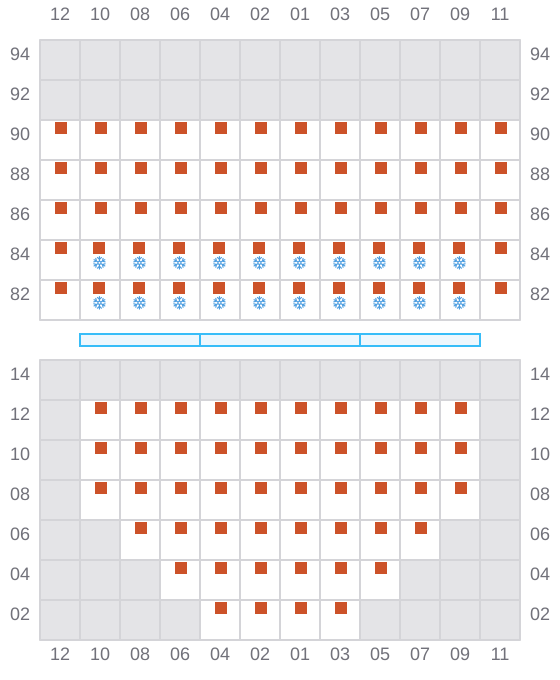

011
- ←
- → / ?
013 (014)
- →
015
- ←
- →

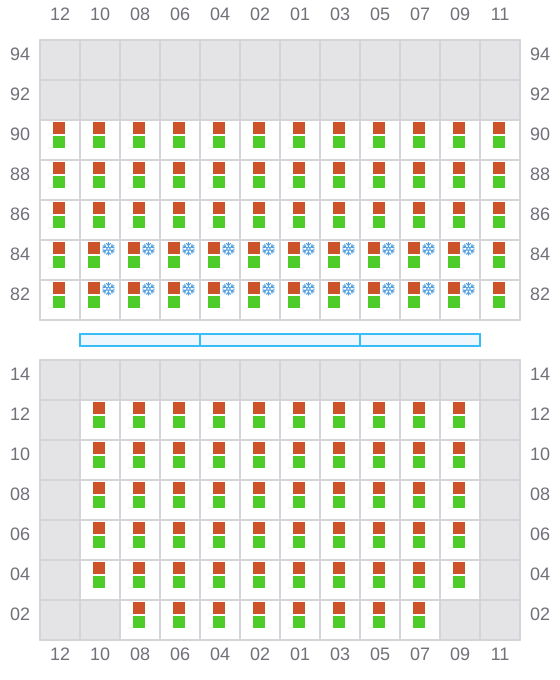

017 (018)
- →
- ← / ?
019
- ←
- →
021 (022)
- →
- ← / ?

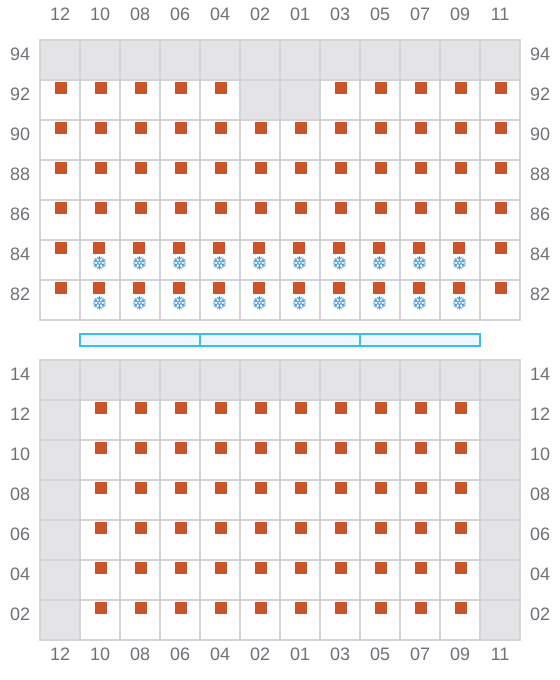

023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- → / ?
029 (030)
- →
- ← / ?
031
- ←
- →
033 (034)
- →
- ← / ?
035
- ←
- →
037 (038)
- →
- ← / ?
039
- ←
- → / ?

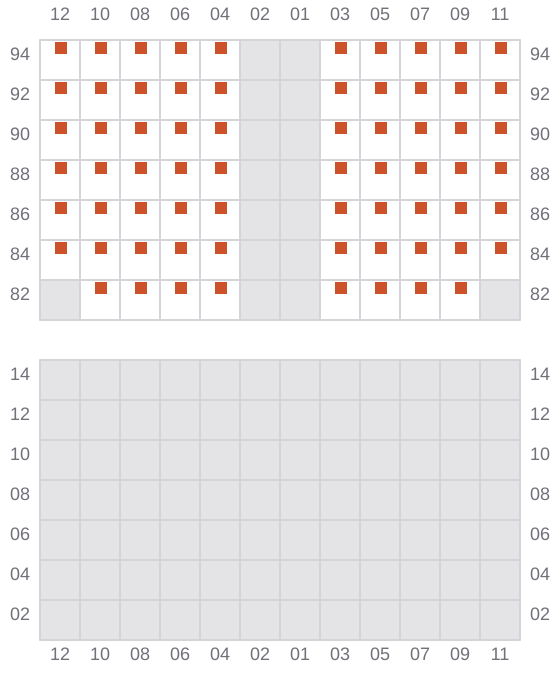

041
043 (044)
- → / ?
045
- ← / ?
- → / ?
