MSC SENA
9116369 | D5LQ7 | 9116369 by ********* Last update: Fri Apr 12 2024
General Info
Ship Name:MSC SENA
IMO Code:9116369
Call Sign:D5LQ7
Line Operator:9116369
Class Name for Sister Ships:CMA
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,708
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

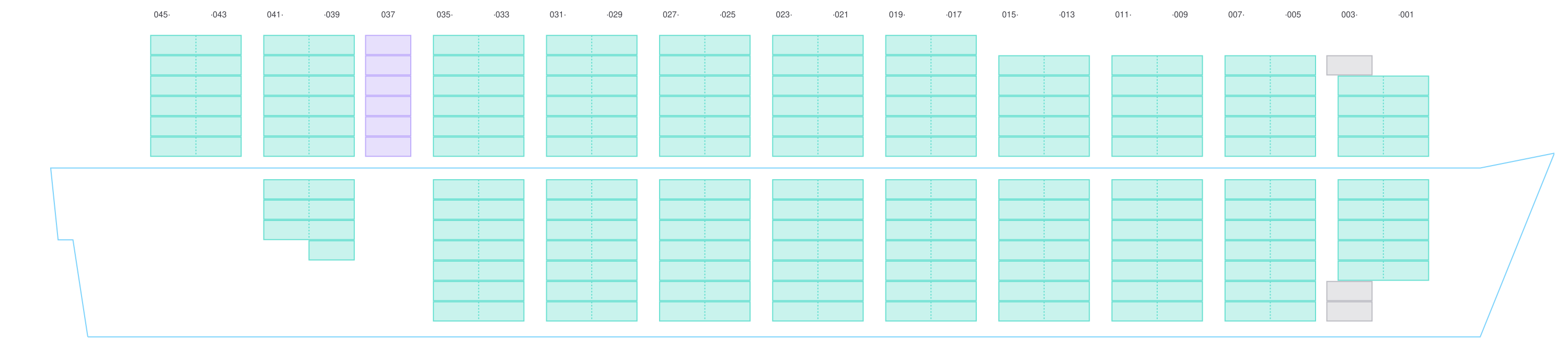

Side View
Hatch-Covers View

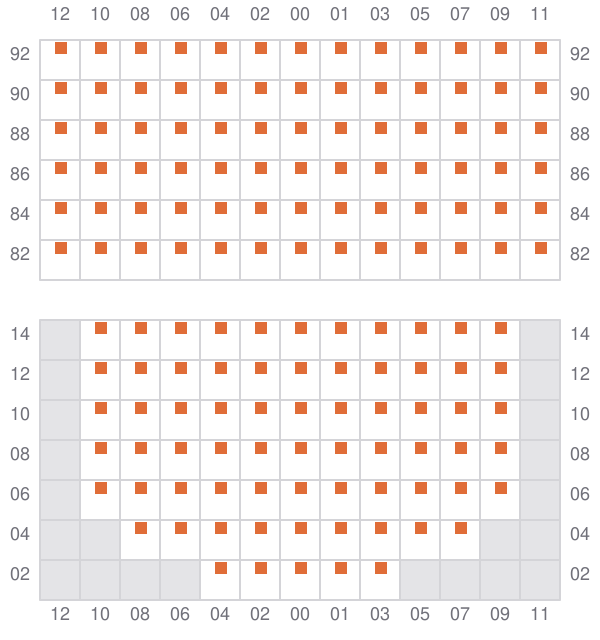

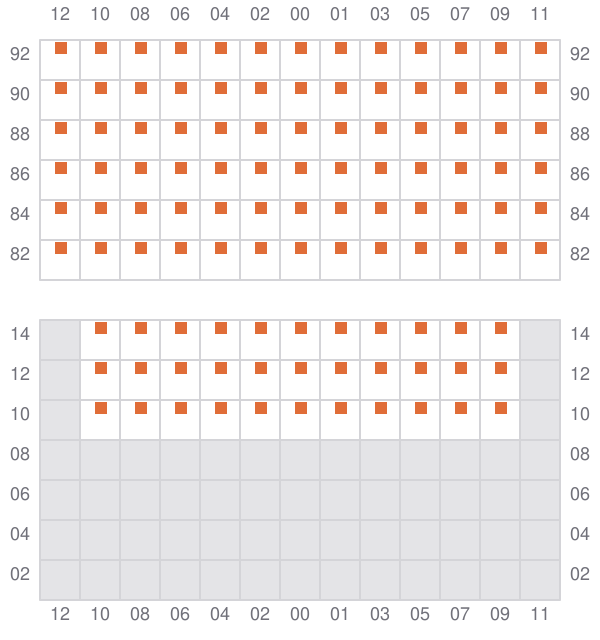

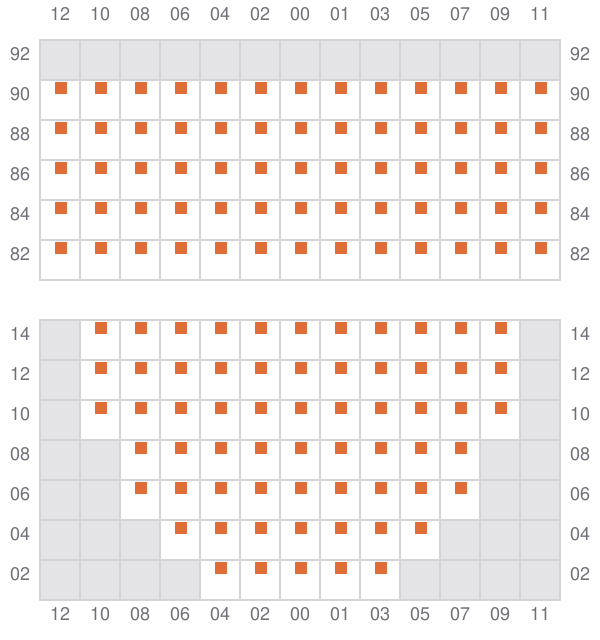

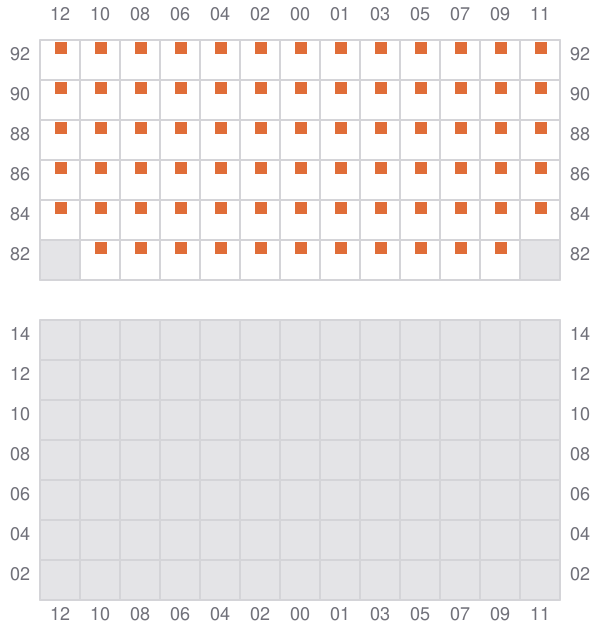

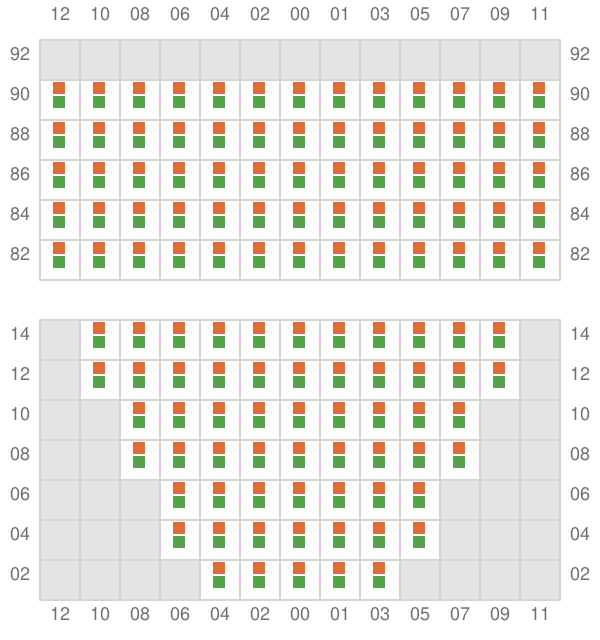

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

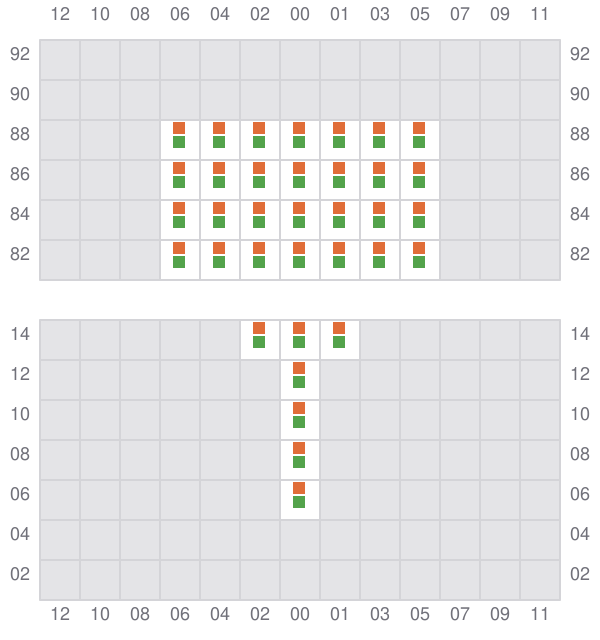

001 (002)
- →

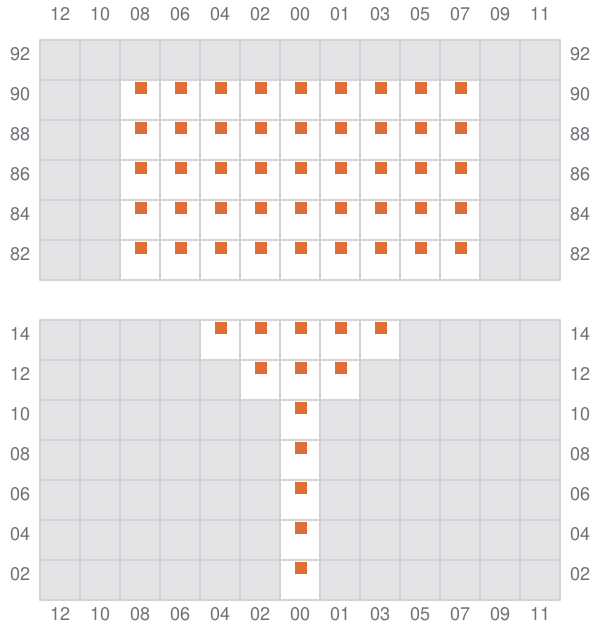

003
- ←

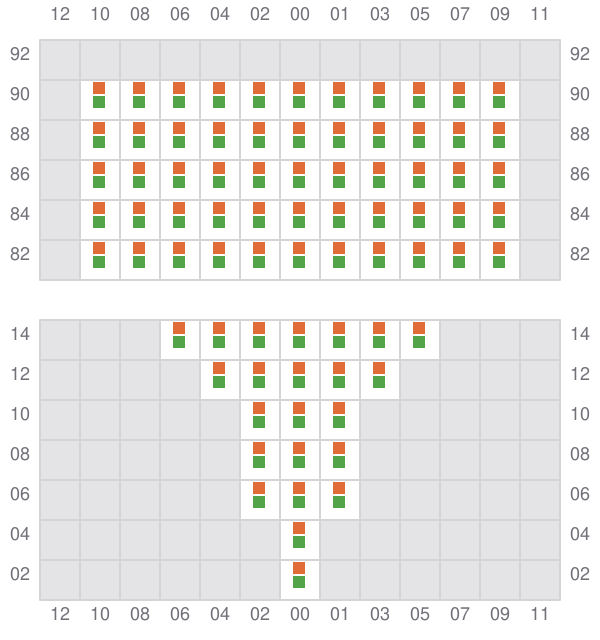

005 (006)
- →

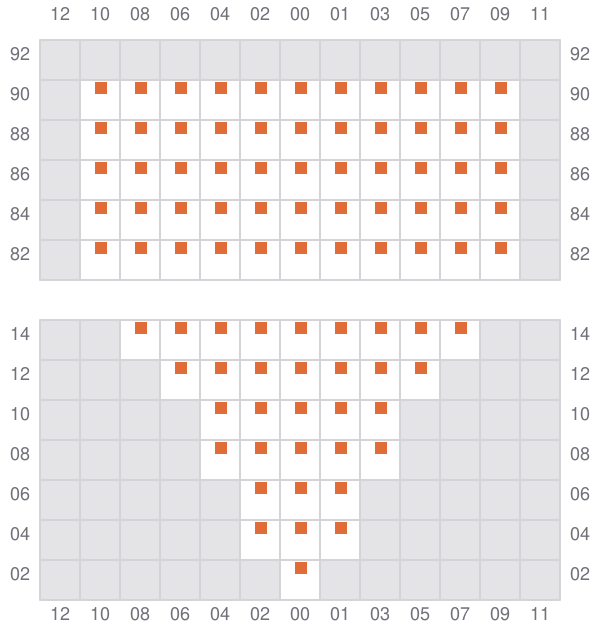

007
- ←

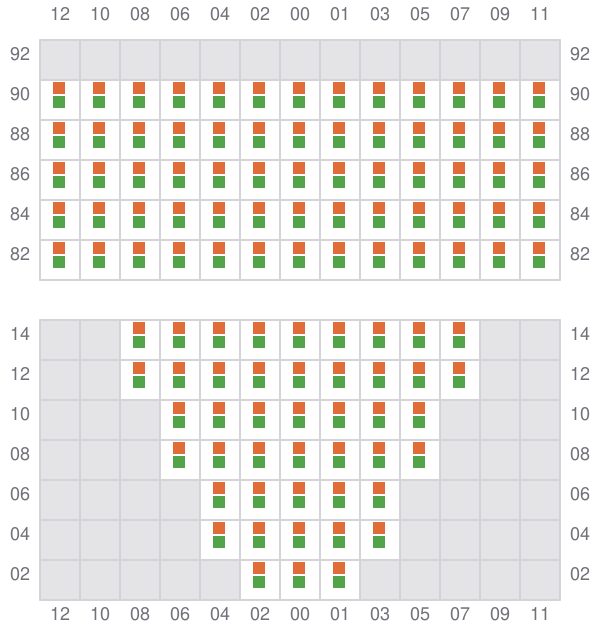

009 (010)
- →

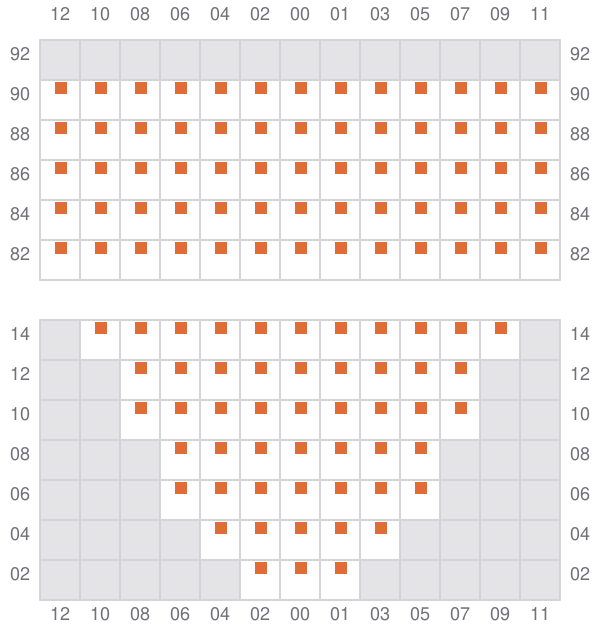

011
- ←
013 (014)
- →
015
- ←
017 (018)
- →

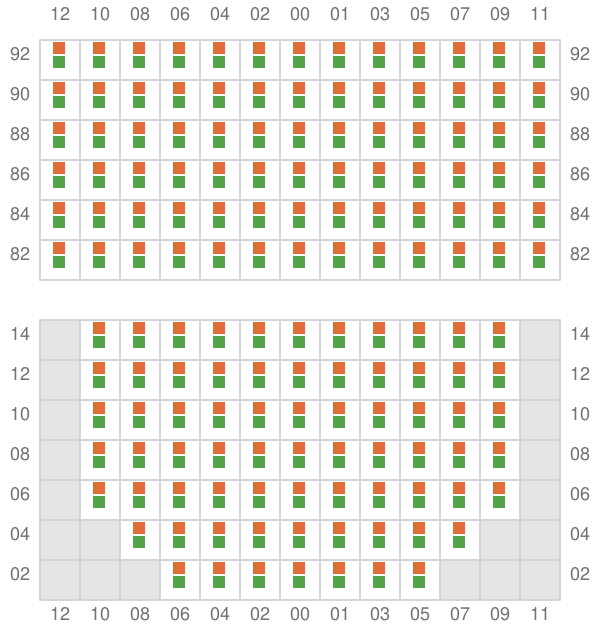

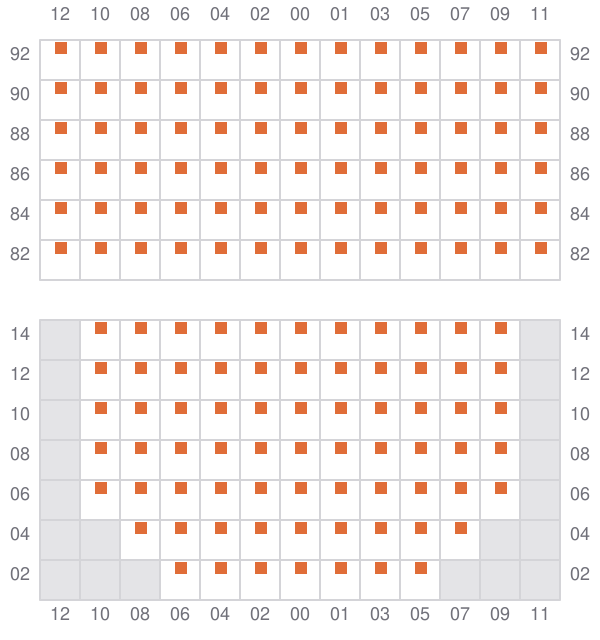

019
- ←
021 (022)
- →
023
- ←
025 (026)
- →

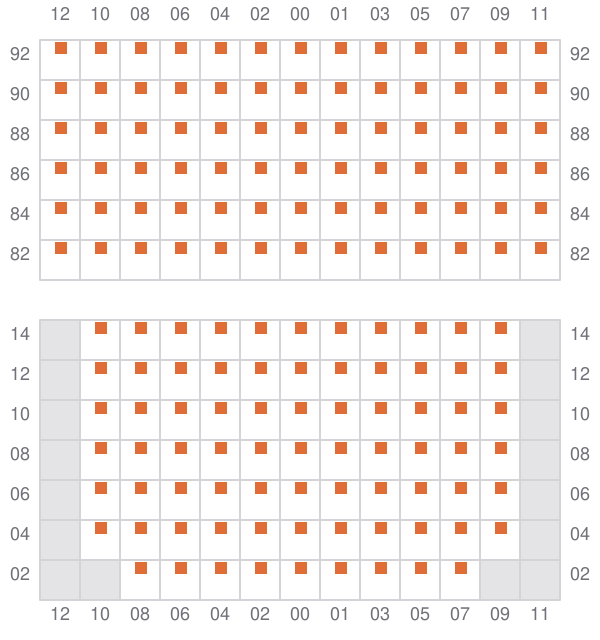

027
- ←

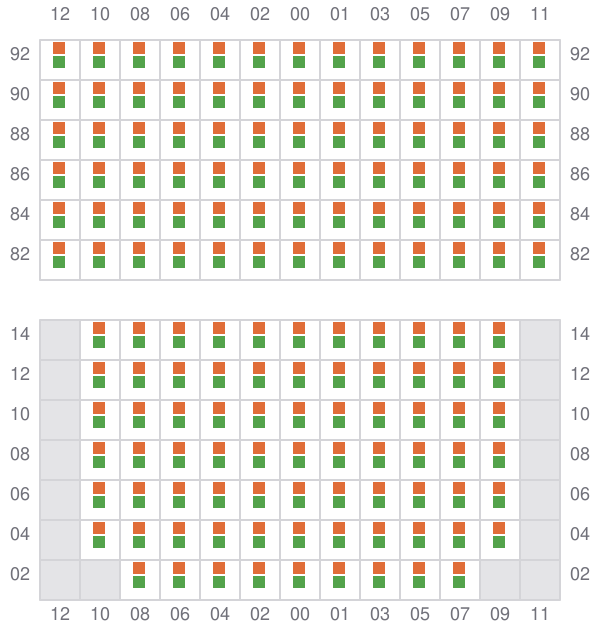

029 (030)
- →
031
- ←

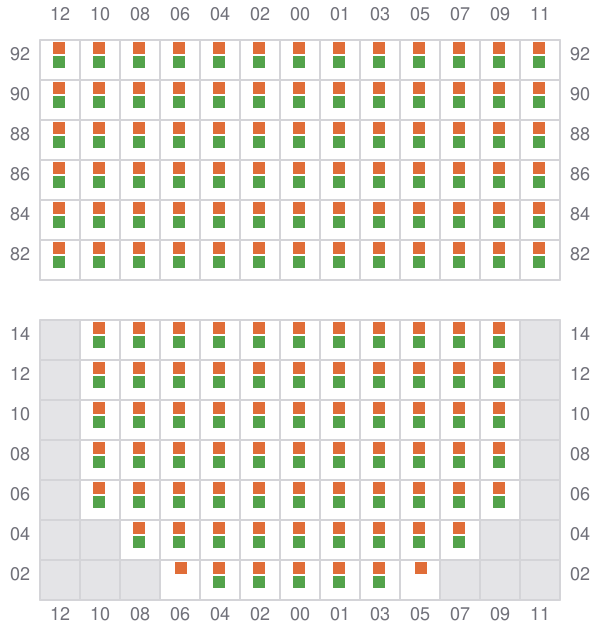

033 (034)
- →
035
- ←
037

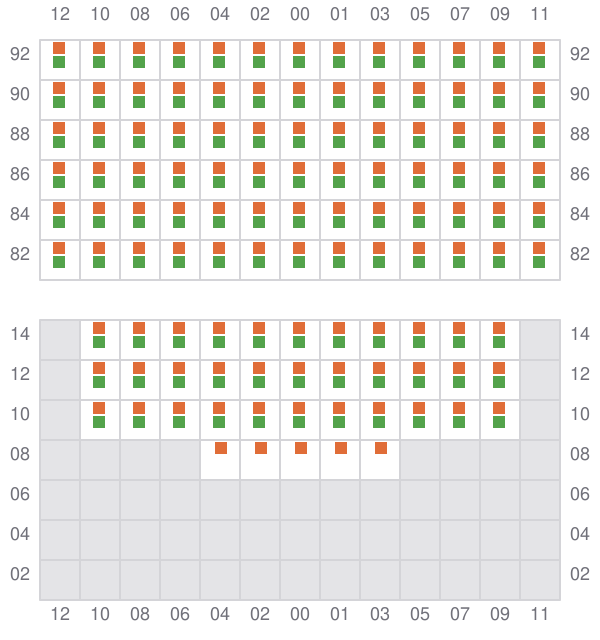

039 (040)
- →
041
- ←

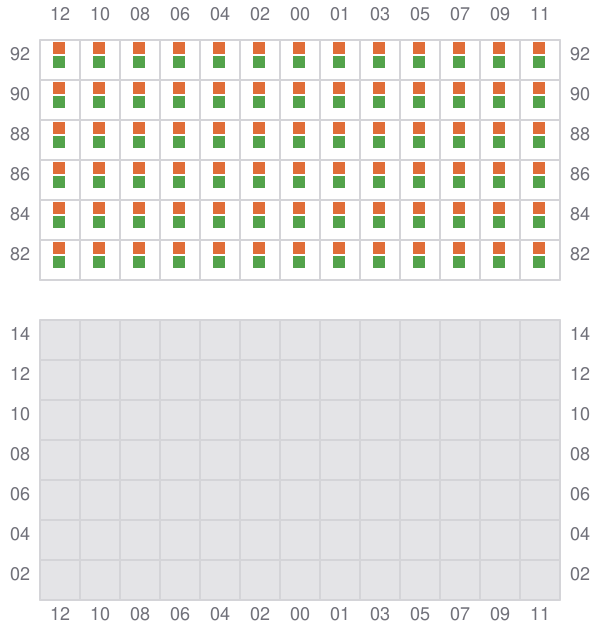

043 (044)
- → / ?

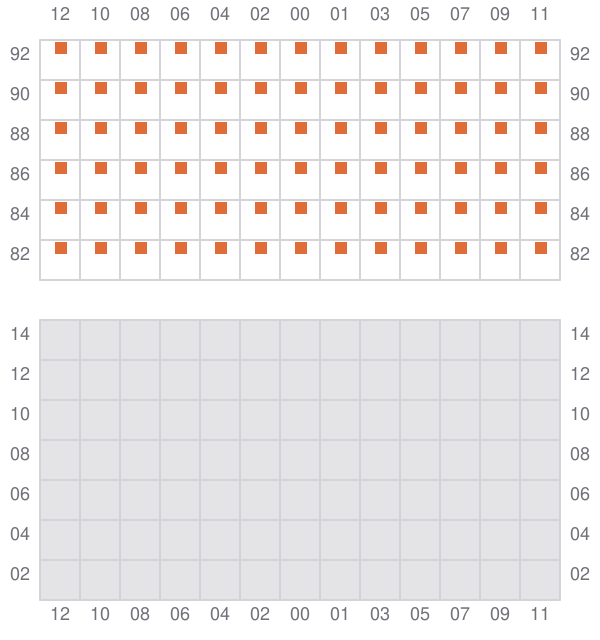

045
- ← / ?
