MSC SHANGHAI V
9231822 | 5LCO8 | MSC by ************************** Last update: Thu Jun 22 2023

General Info

Ship Name:MSC SHANGHAI V
IMO Code:9231822
Call Sign:5LCO8
Line Operator:MSC
Class Name for Sister Ships:SGH
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,926

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

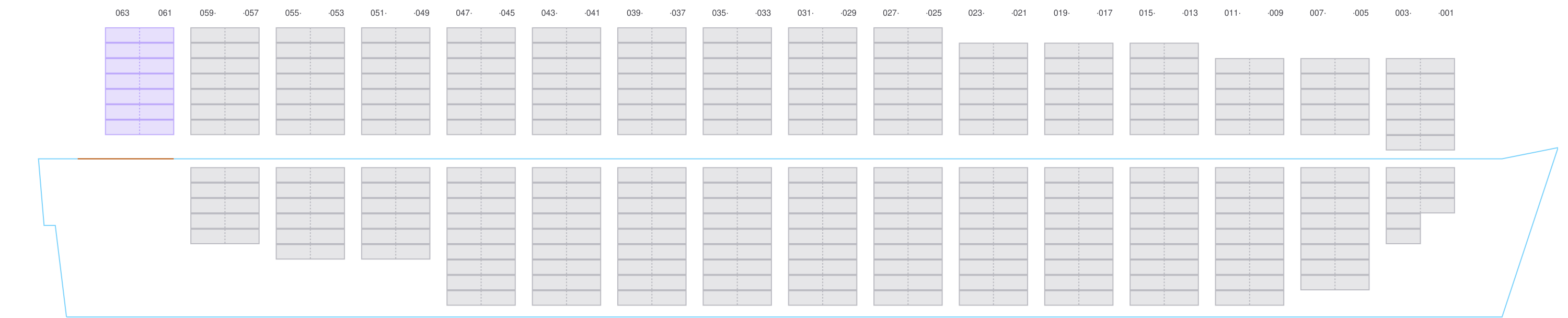

Side View

Side view of MSC SHANGHAI V

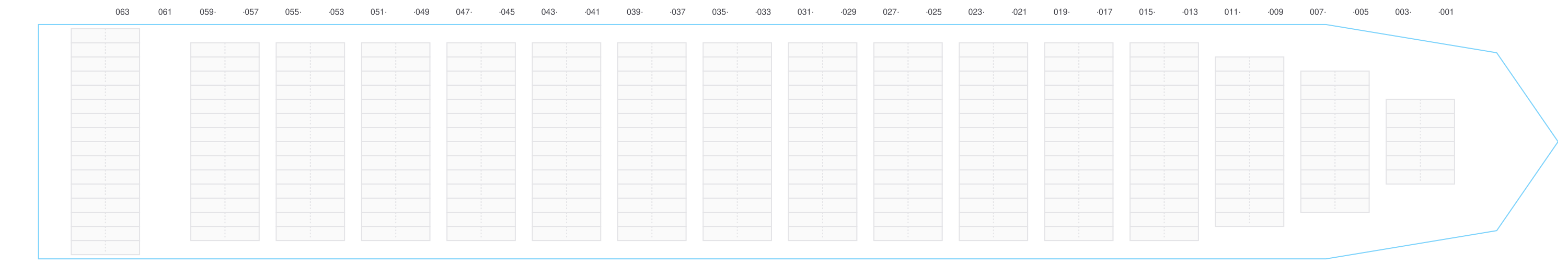

Hatch-Covers View

Deck view of MSC SHANGHAI V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

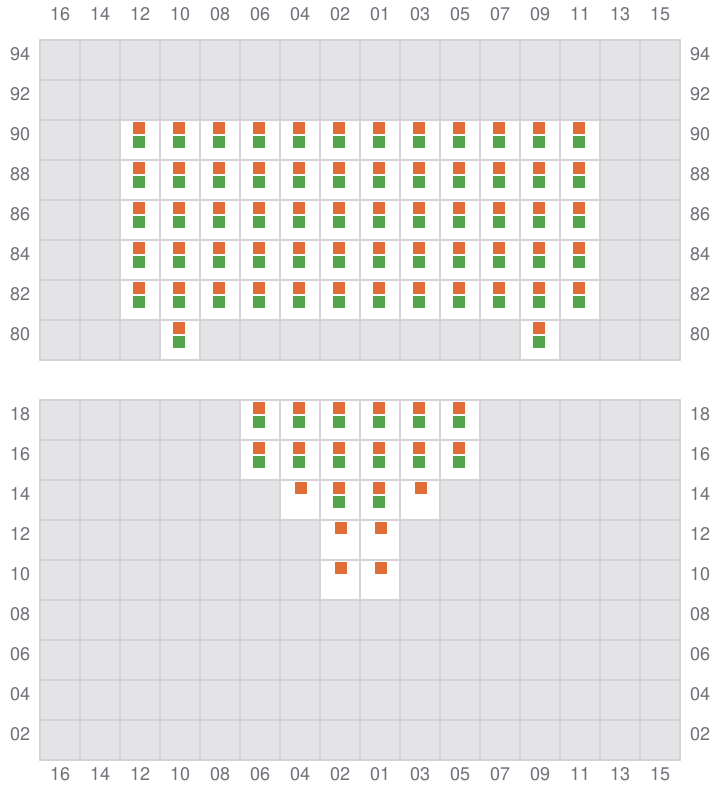

001

  • →

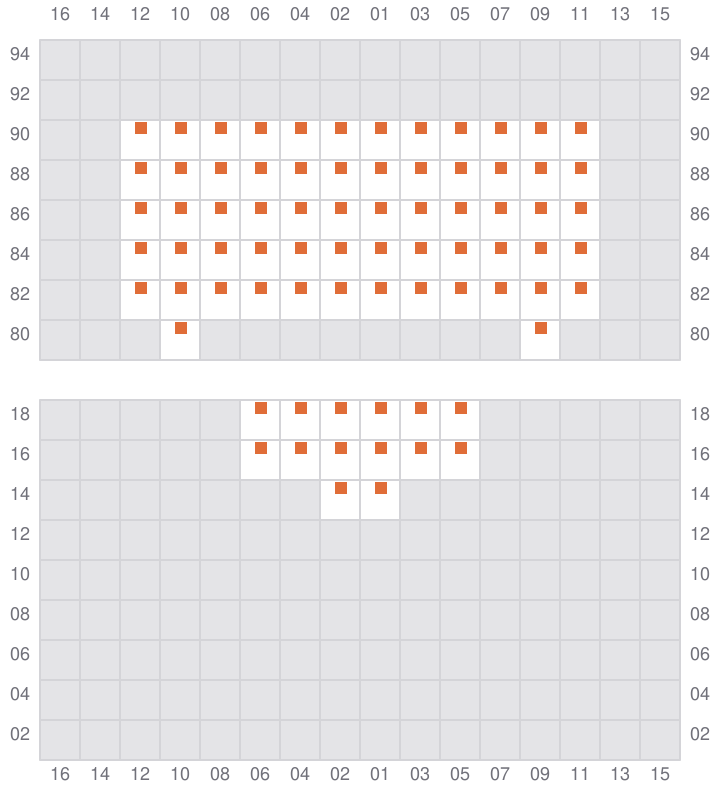

Bay 001 view and slots of MSC SHANGHAI V

003 (002)

  • ←
Bay 003 view and slots of MSC SHANGHAI V

005

  • →

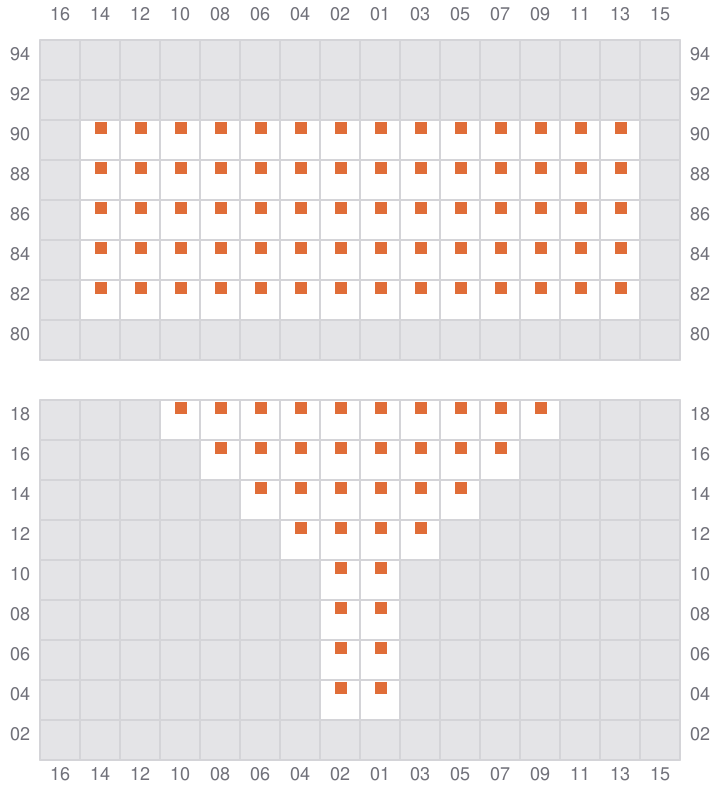

Bay 005 view and slots of MSC SHANGHAI V

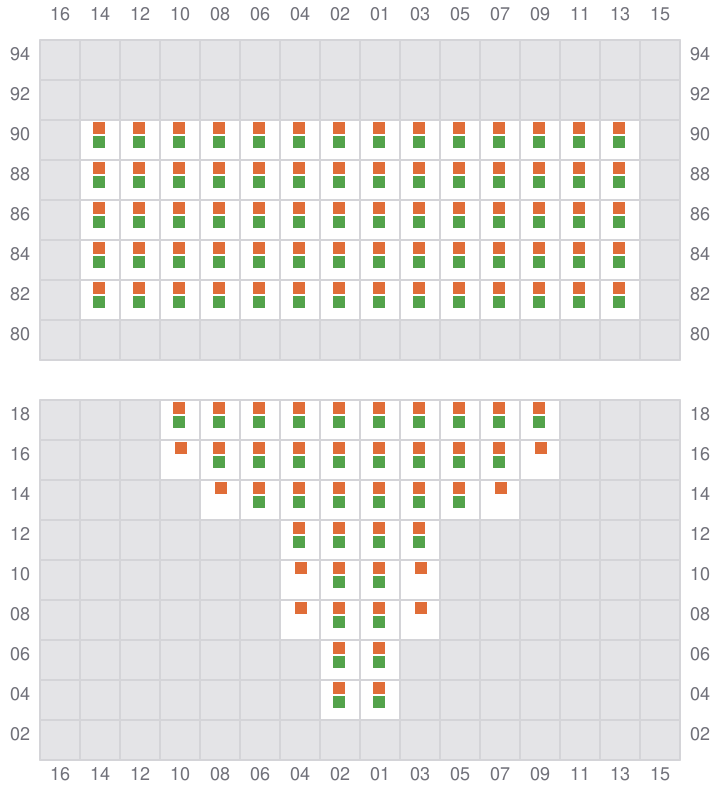

007 (006)

  • ←
Bay 007 view and slots of MSC SHANGHAI V

009

  • →

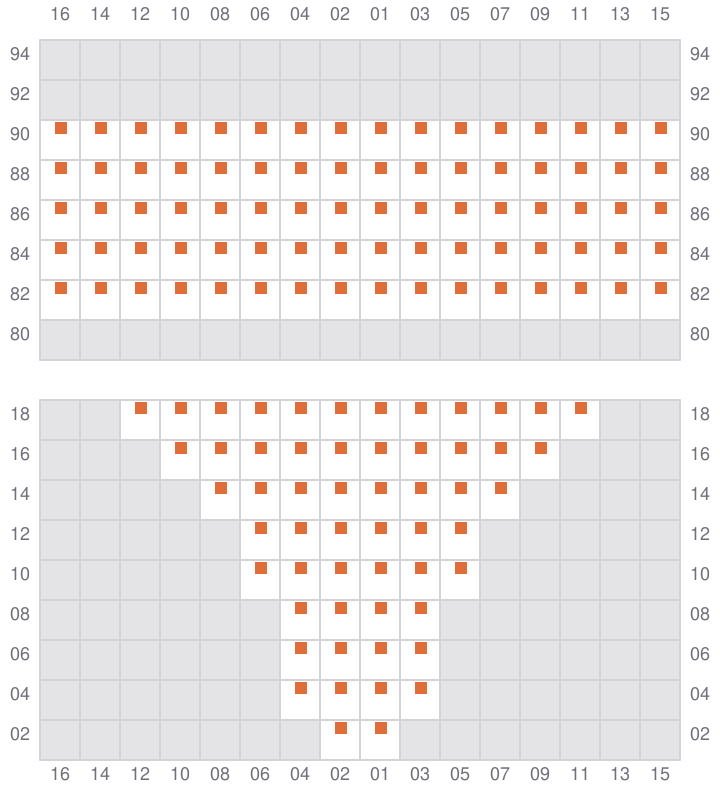

Bay 009 view and slots of MSC SHANGHAI V

011 (010)

  • ←

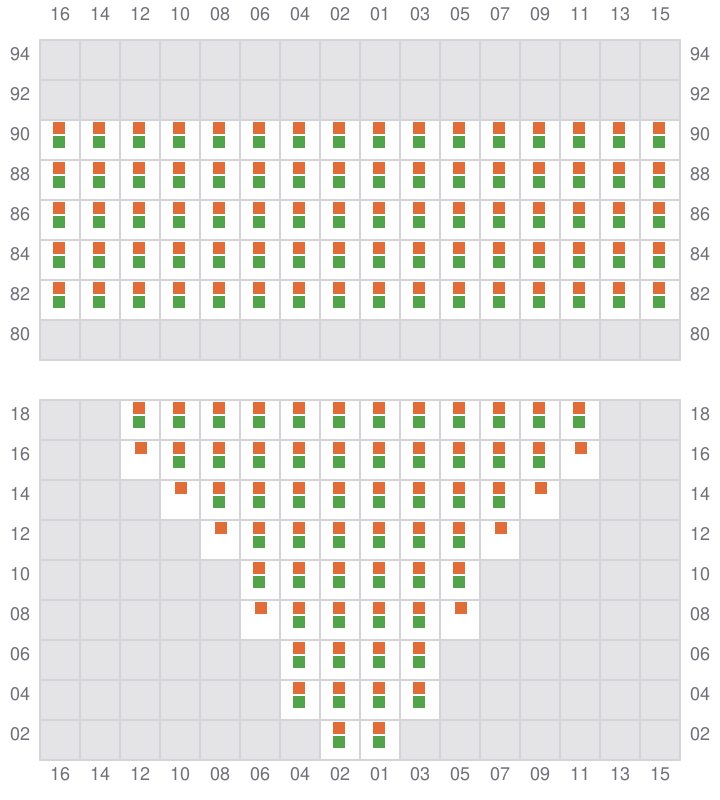

Bay 011 view and slots of MSC SHANGHAI V

013

  • →

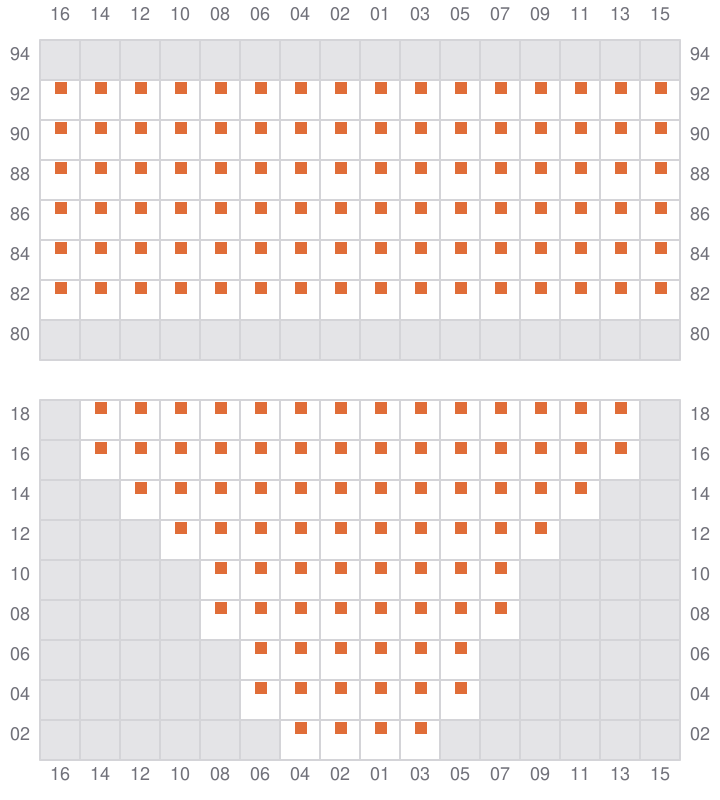

Bay 013 view and slots of MSC SHANGHAI V

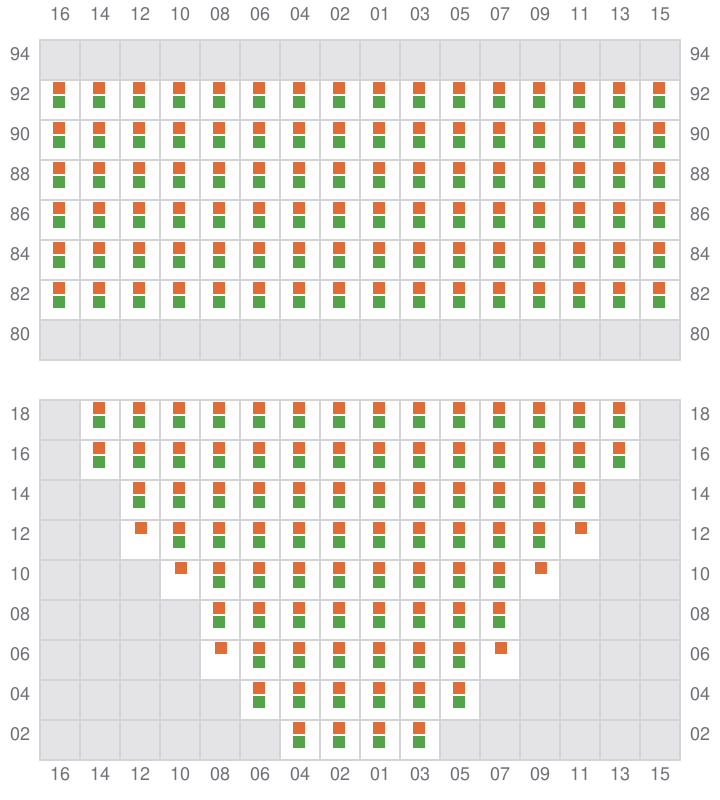

015 (014)

  • ←
Bay 015 view and slots of MSC SHANGHAI V

017

  • →

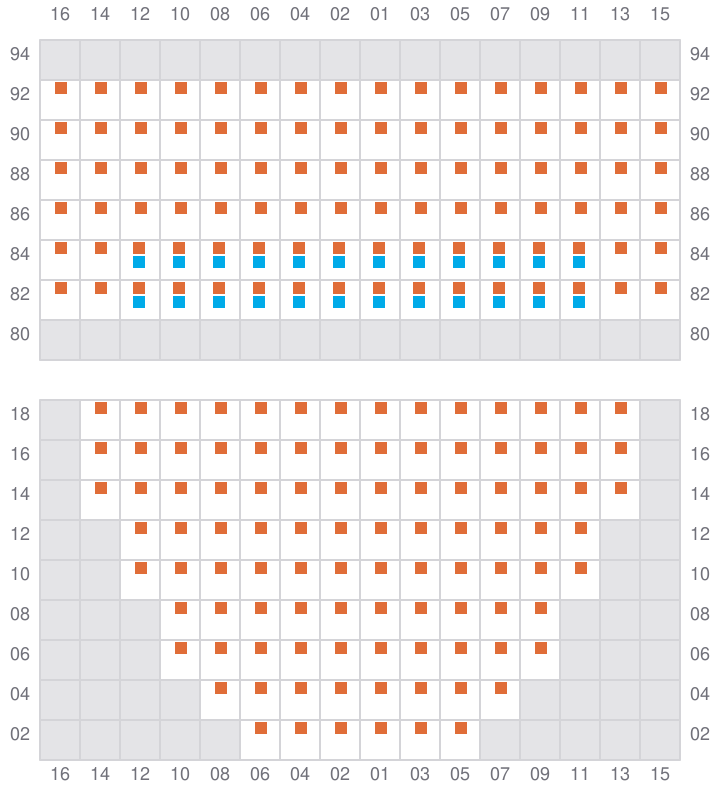

Bay 017 view and slots of MSC SHANGHAI V

019 (018)

  • ←

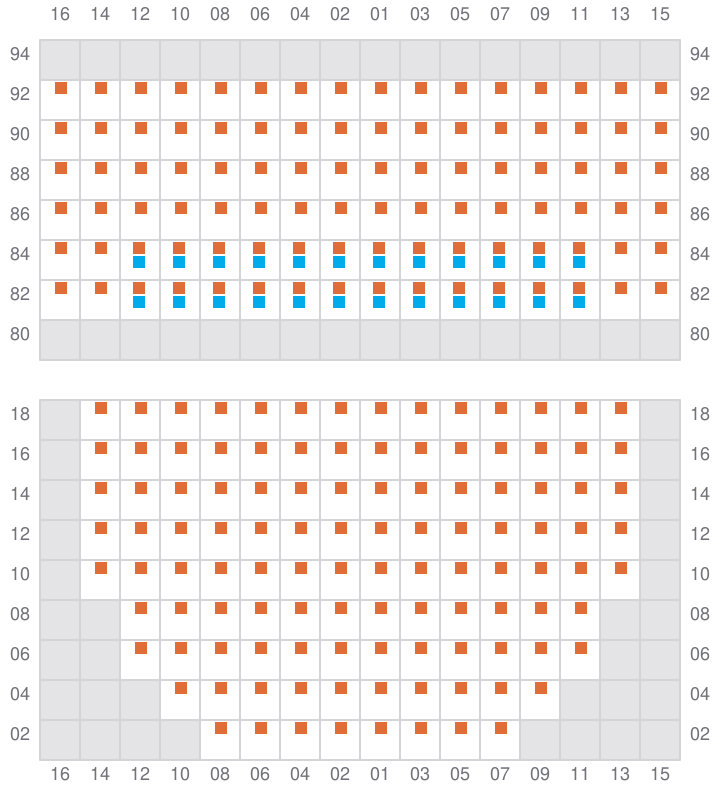

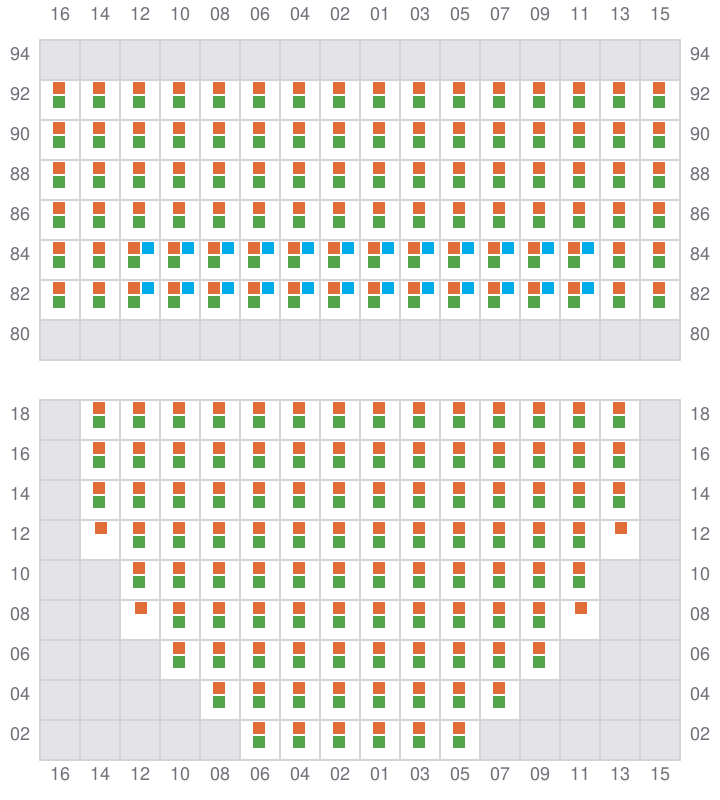

Bay 019 view and slots of MSC SHANGHAI V

021

  • →
Bay 021 view and slots of MSC SHANGHAI V

023 (022)

  • ←

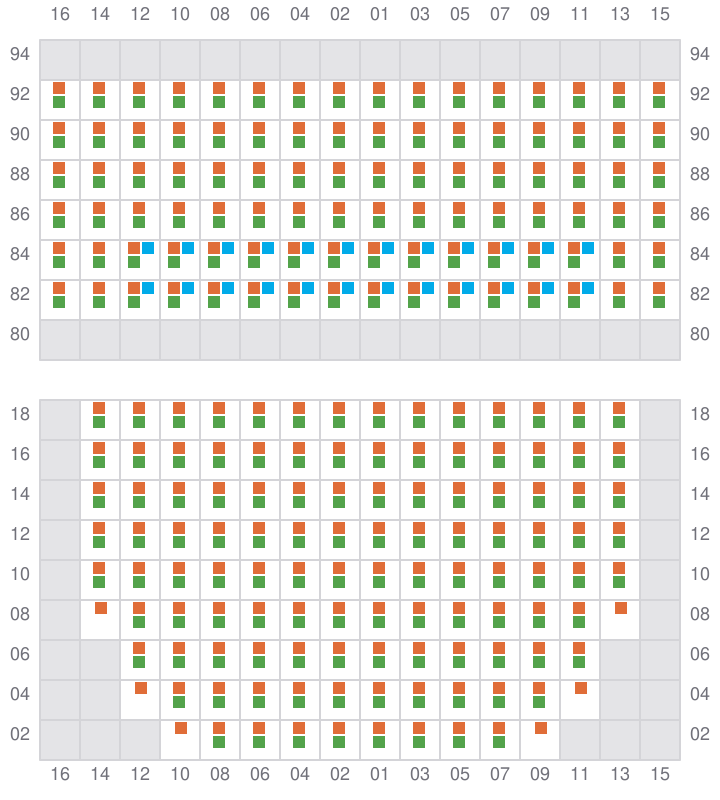

Bay 023 view and slots of MSC SHANGHAI V

025

  • →

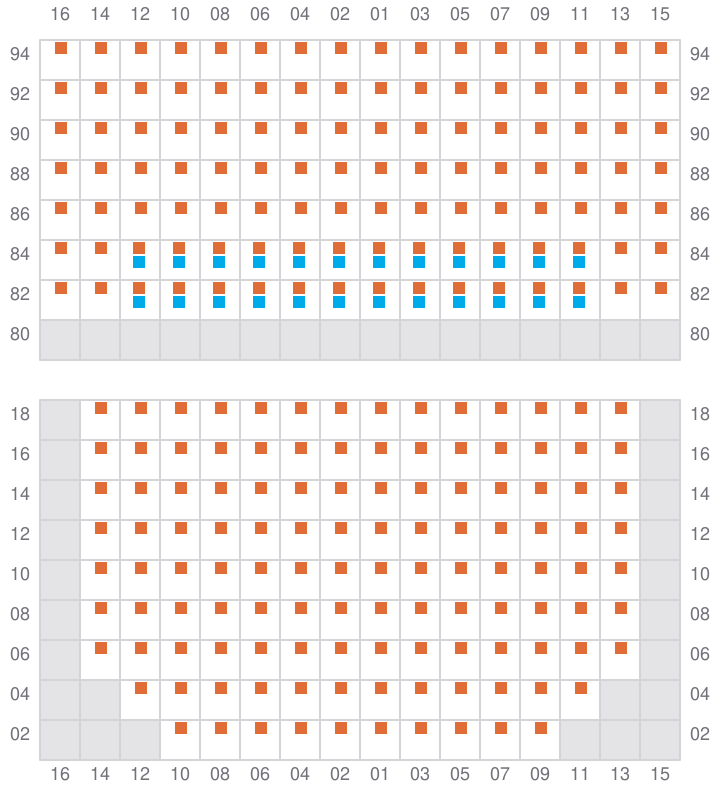

Bay 025 view and slots of MSC SHANGHAI V

027 (026)

  • ←

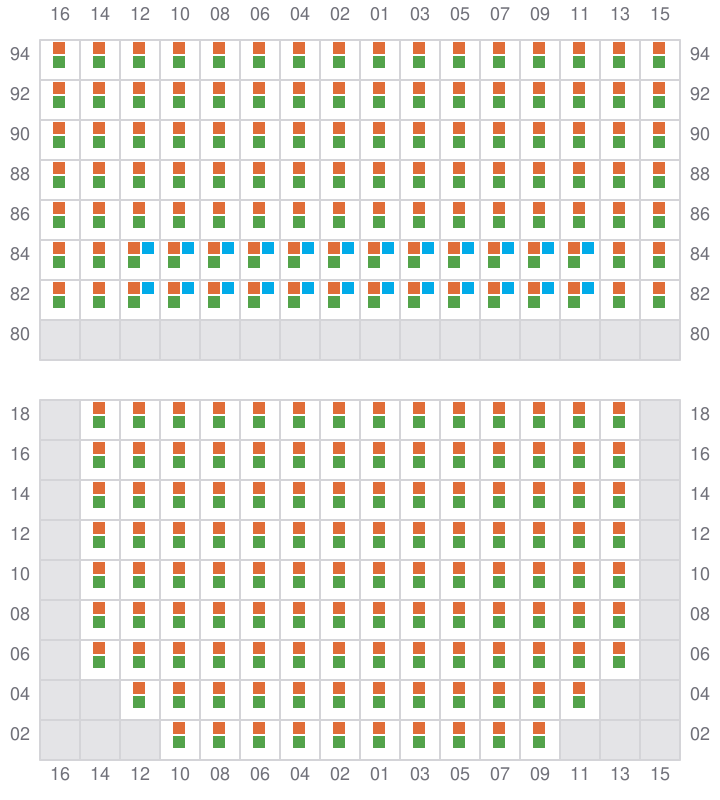

Bay 027 view and slots of MSC SHANGHAI V

029

  • →
Bay 029 view and slots of MSC SHANGHAI V

031 (030)

  • ←
Bay 031 view and slots of MSC SHANGHAI V

033

  • →

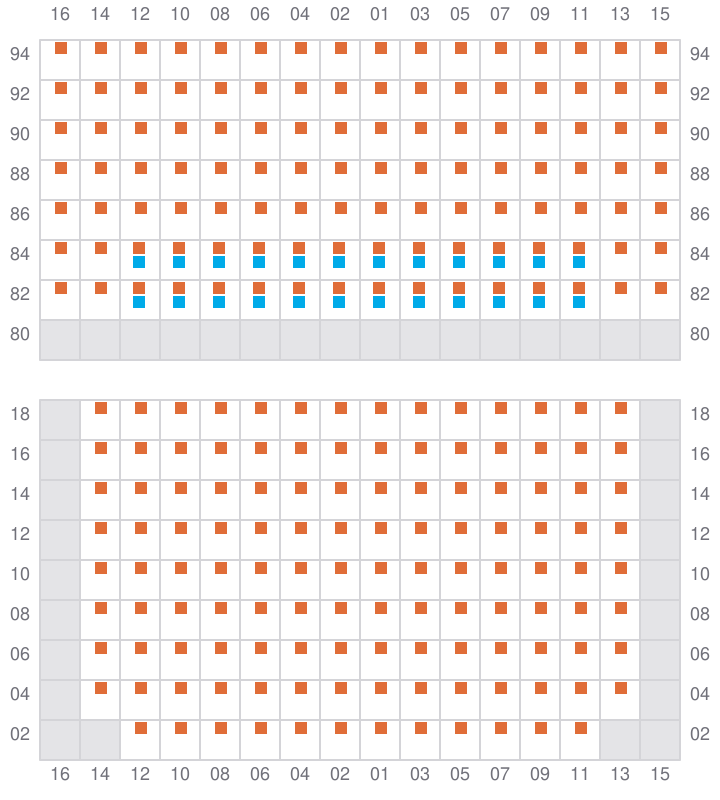

Bay 033 view and slots of MSC SHANGHAI V

035 (034)

  • ←
Bay 035 view and slots of MSC SHANGHAI V

037

  • →
Bay 037 view and slots of MSC SHANGHAI V

039 (038)

  • ←
Bay 039 view and slots of MSC SHANGHAI V

041

  • →

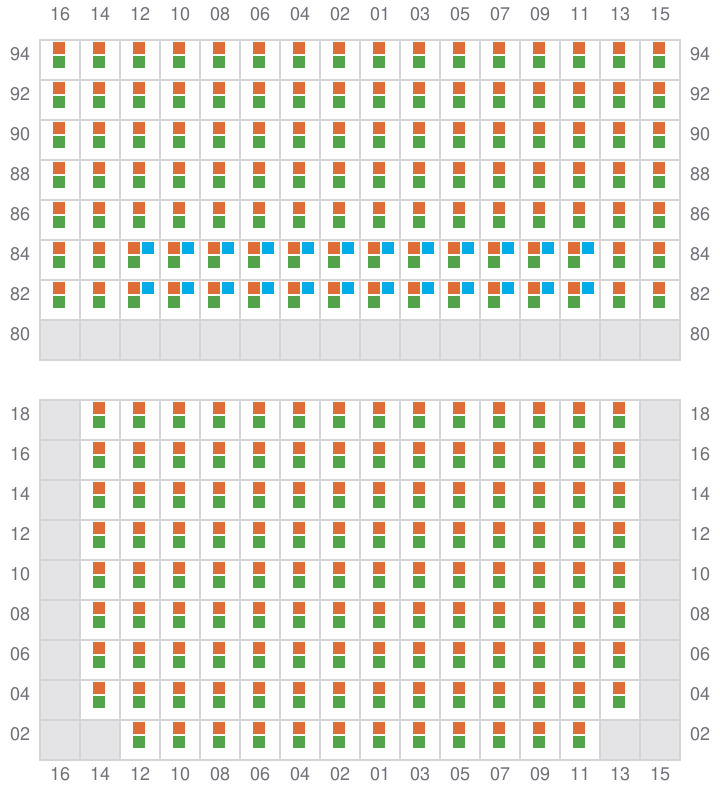

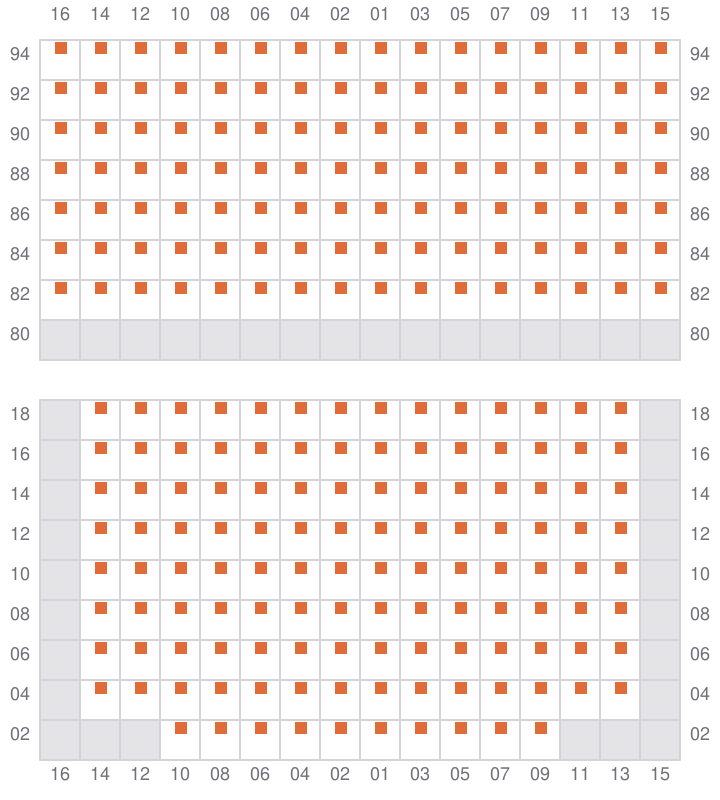

Bay 041 view and slots of MSC SHANGHAI V

043 (042)

  • ←

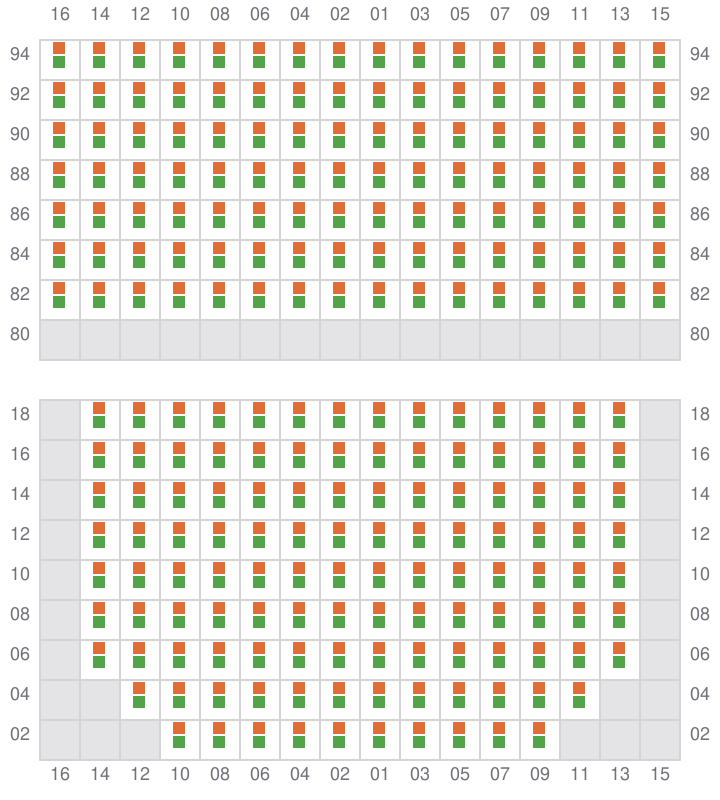

Bay 043 view and slots of MSC SHANGHAI V

045

  • →

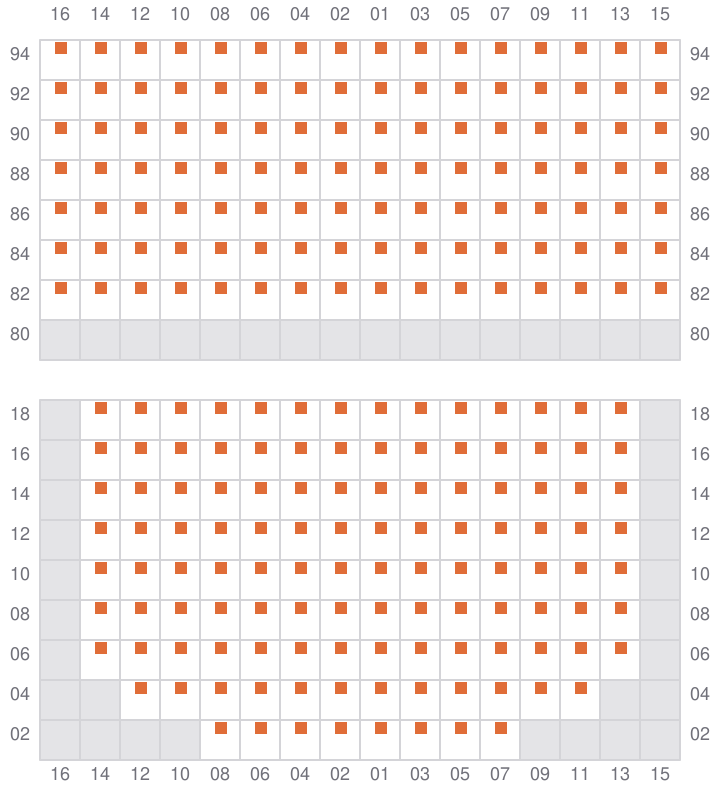

Bay 045 view and slots of MSC SHANGHAI V

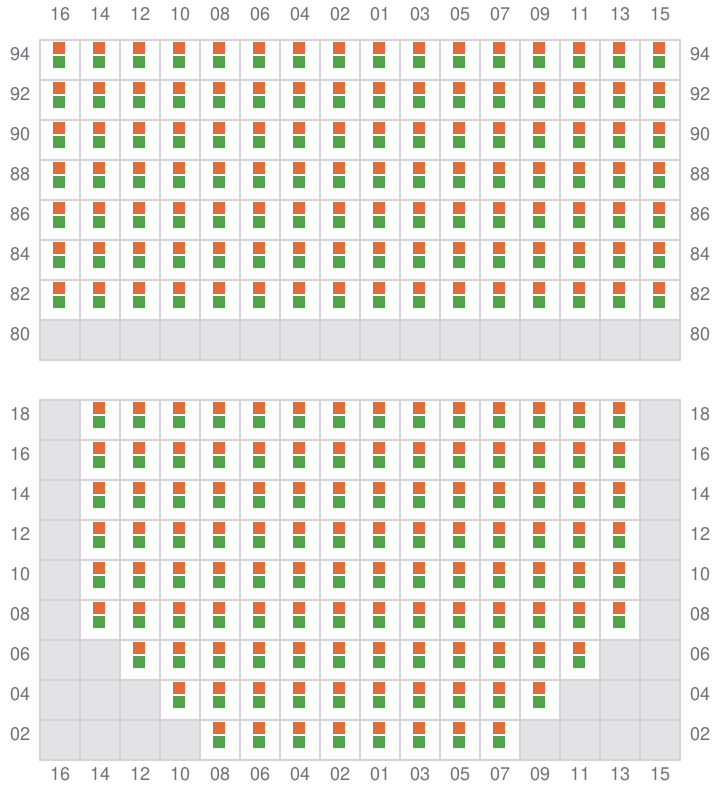

047 (046)

  • ←
Bay 047 view and slots of MSC SHANGHAI V

049

  • →

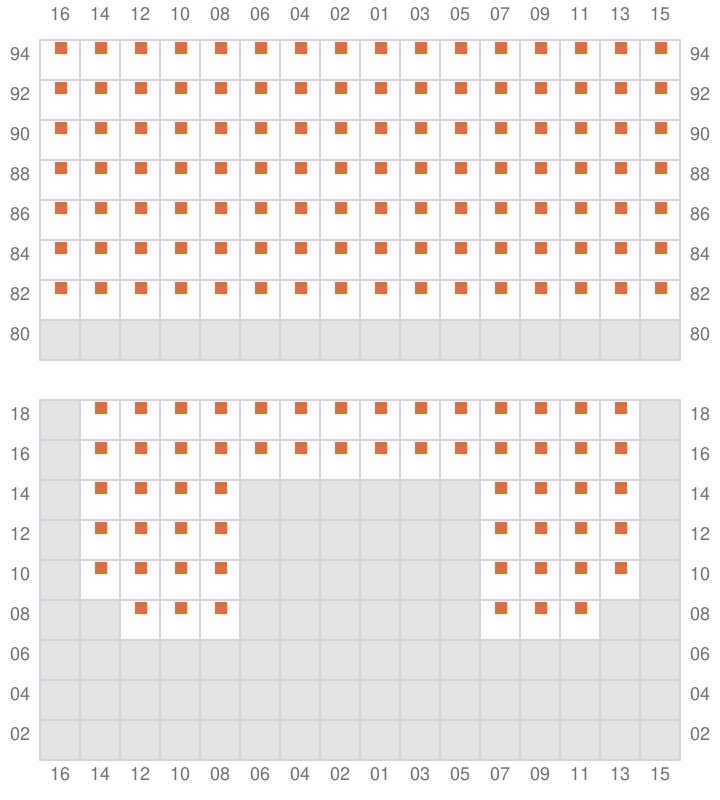

Bay 049 view and slots of MSC SHANGHAI V

051 (050)

  • ←

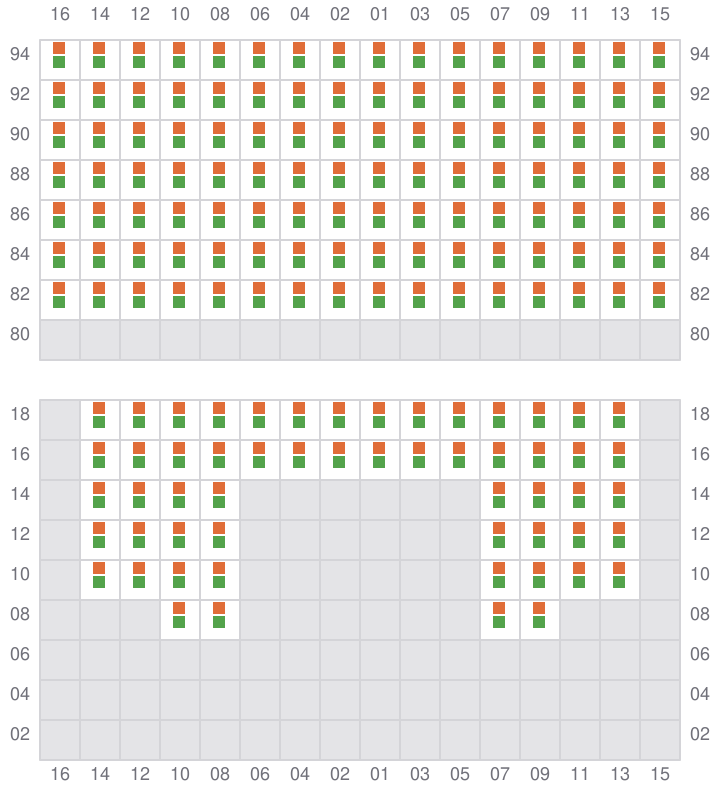

Bay 051 view and slots of MSC SHANGHAI V

053

  • →

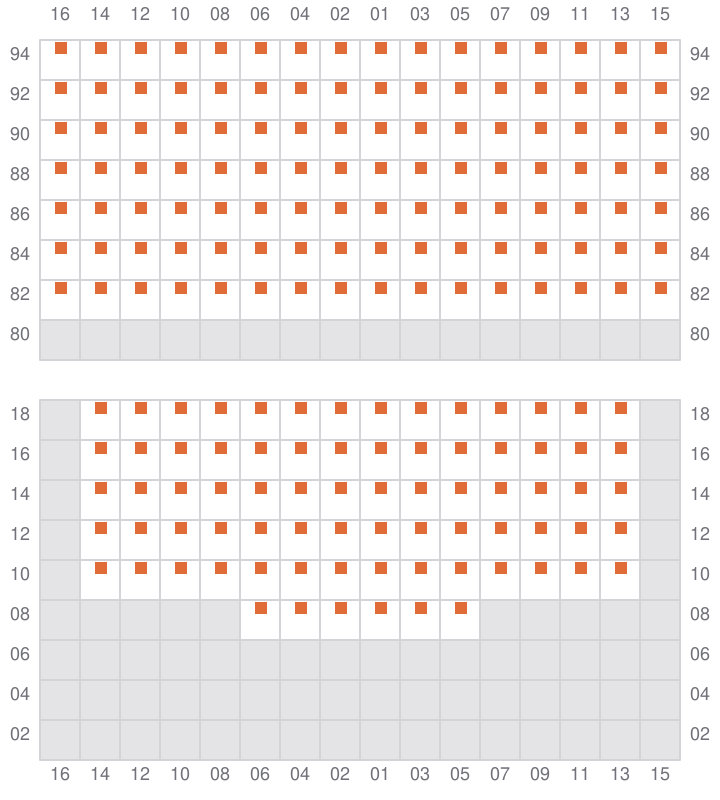

Bay 053 view and slots of MSC SHANGHAI V

055 (054)

  • ←

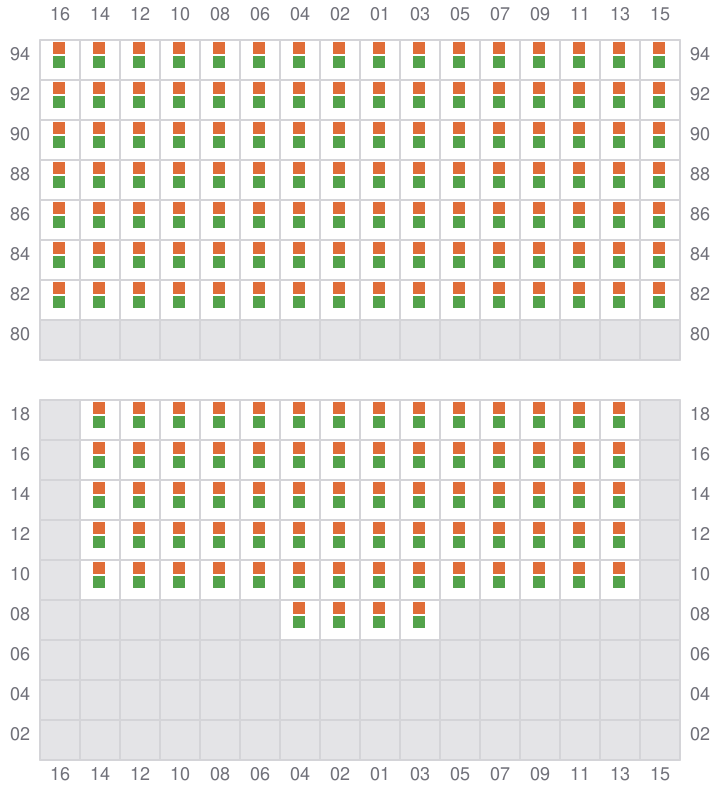

Bay 055 view and slots of MSC SHANGHAI V

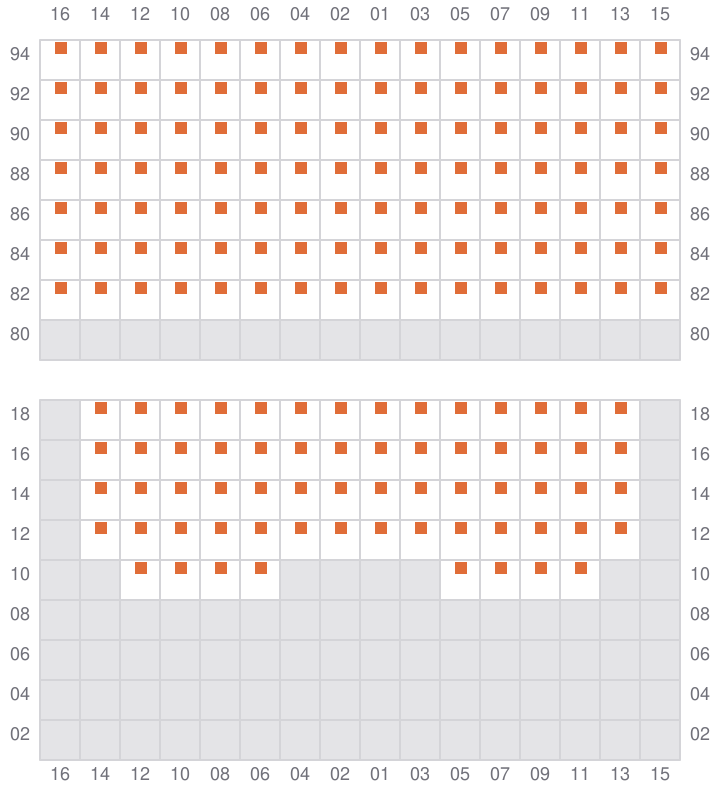

057

  • →
Bay 057 view and slots of MSC SHANGHAI V

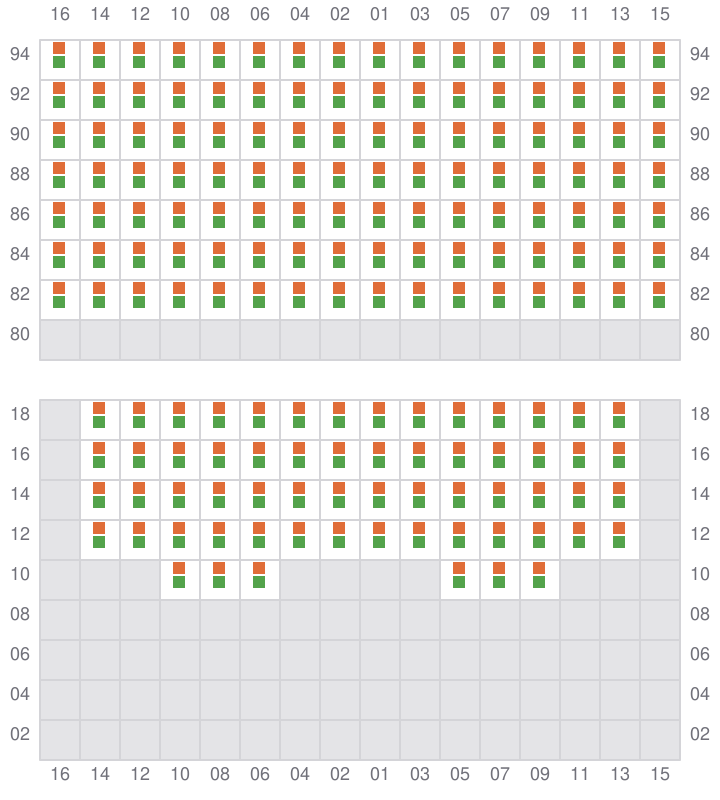

059 (058)

  • ←
Bay 059 view and slots of MSC SHANGHAI V

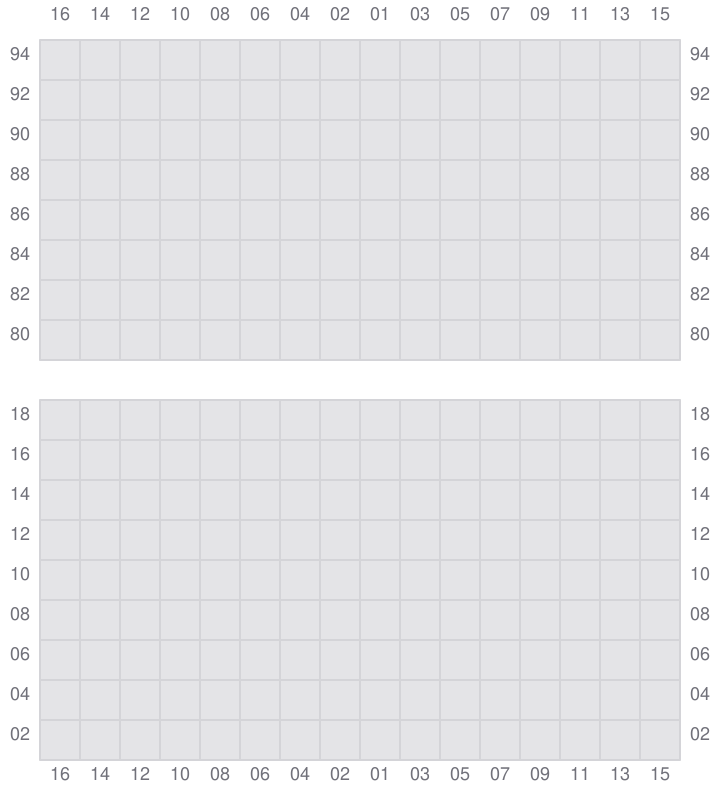

061

Bay 061 view and slots of MSC SHANGHAI V

063

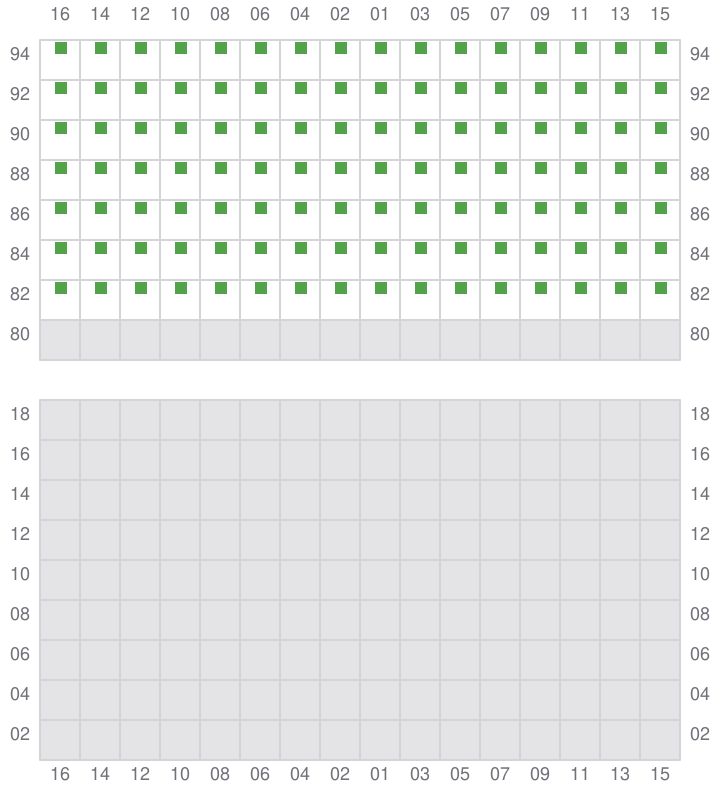

Bay 063 view and slots of MSC SHANGHAI V
