MSC SHANNON III
8913423 | HPRY | MSC by ************************** Last update: Wed Jun 21 2023

General Info

Ship Name:MSC SHANNON III
IMO Code:8913423
Call Sign:HPRY
Line Operator:MSC
Class Name for Sister Ships:SHA
Year Built:1991
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,053

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC SHANNON III

Hatch-Covers View

Deck view of MSC SHANNON III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • → / ?

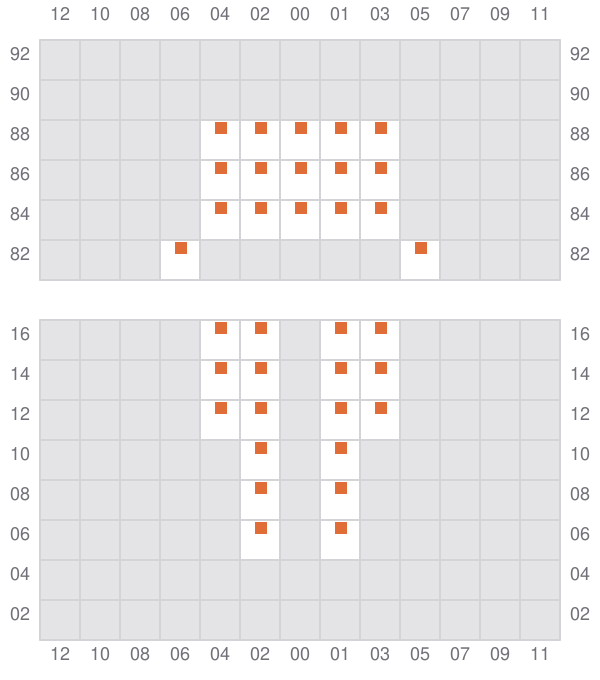

Bay 001 view and slots of MSC SHANNON III

003 (002)

  • ← / ?

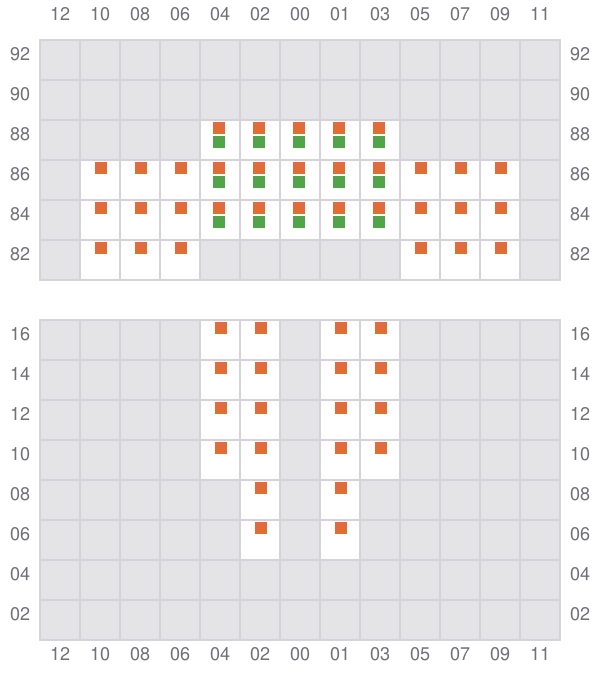

Bay 003 view and slots of MSC SHANNON III

005

  • →

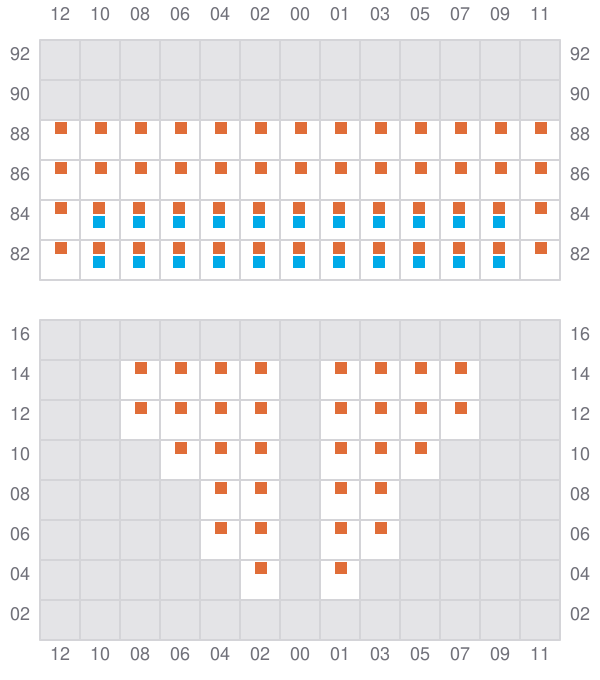

Bay 005 view and slots of MSC SHANNON III

007 (006)

  • ←
Bay 007 view and slots of MSC SHANNON III

009

  • →

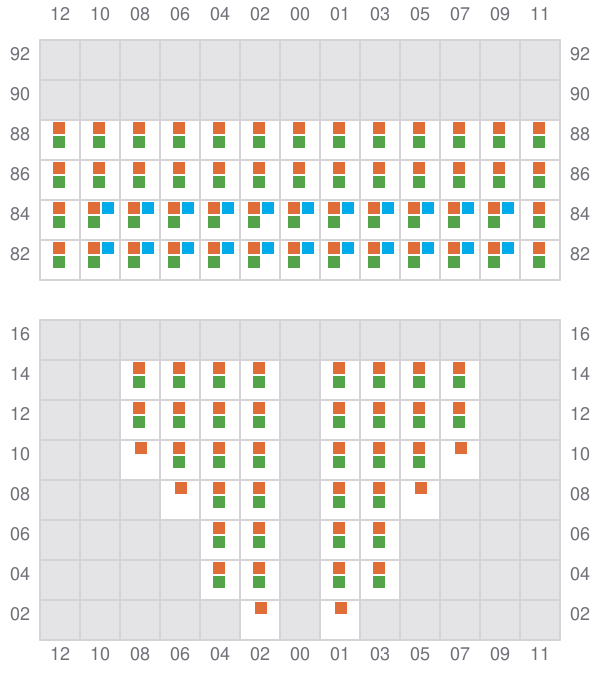

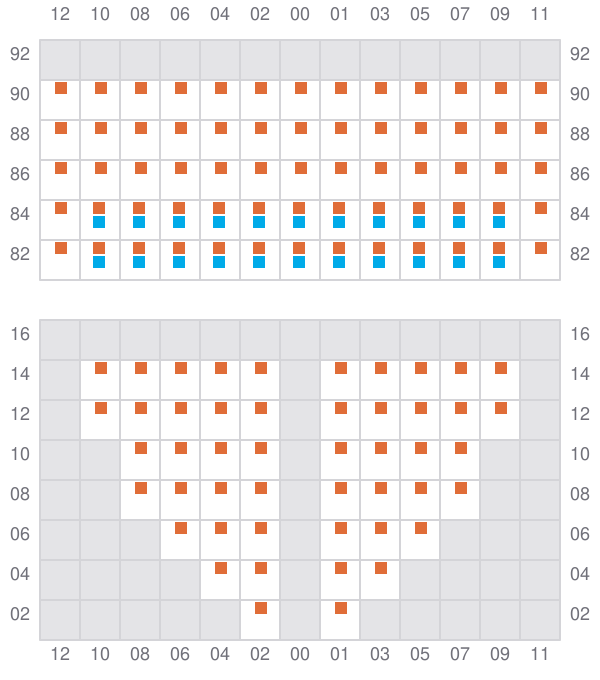

Bay 009 view and slots of MSC SHANNON III

011 (010)

  • ←

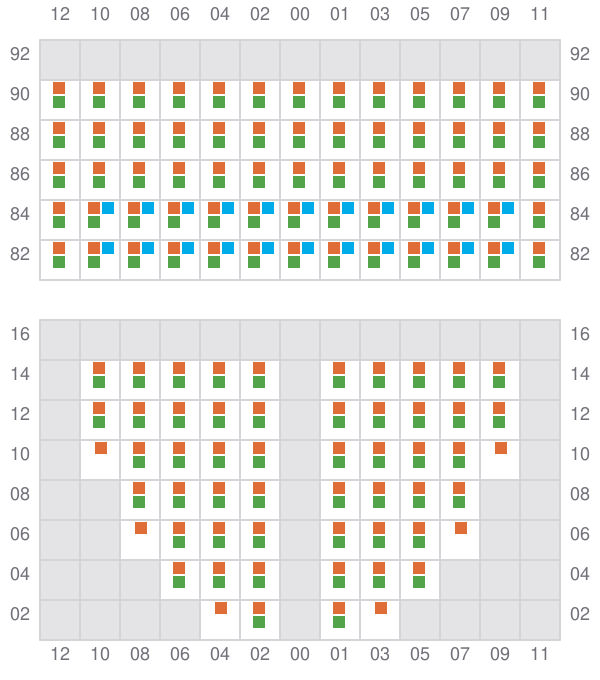

Bay 011 view and slots of MSC SHANNON III

013

  • →

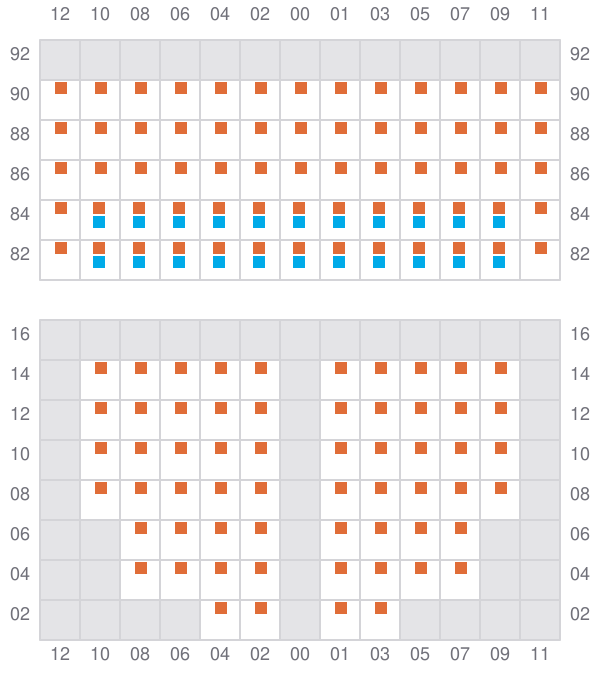

Bay 013 view and slots of MSC SHANNON III

015 (014)

  • ←

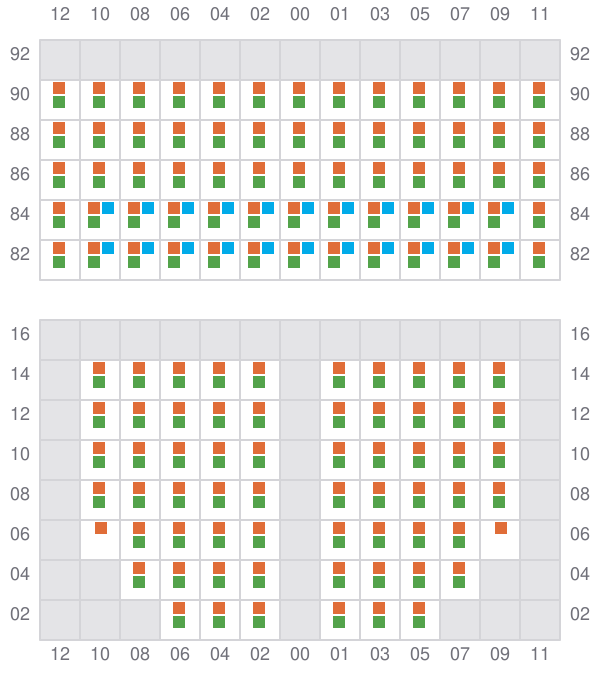

Bay 015 view and slots of MSC SHANNON III

017

  • →
Bay 017 view and slots of MSC SHANNON III

019 (018)

  • ←

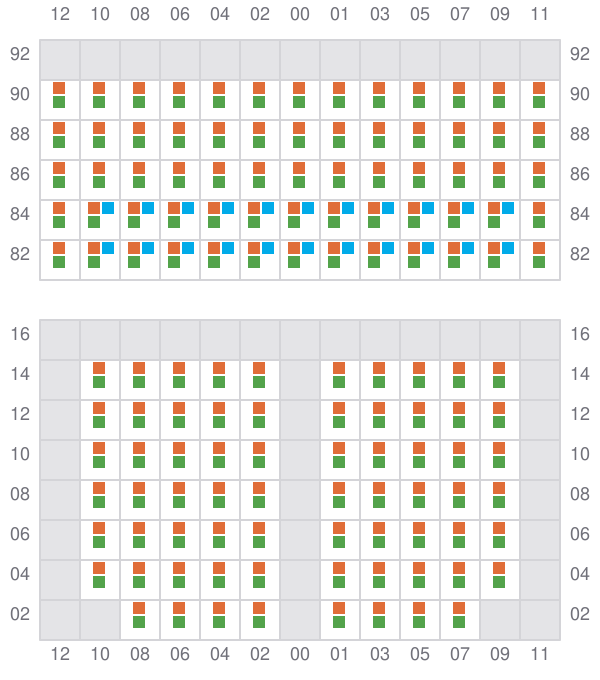

Bay 019 view and slots of MSC SHANNON III

021

  • →

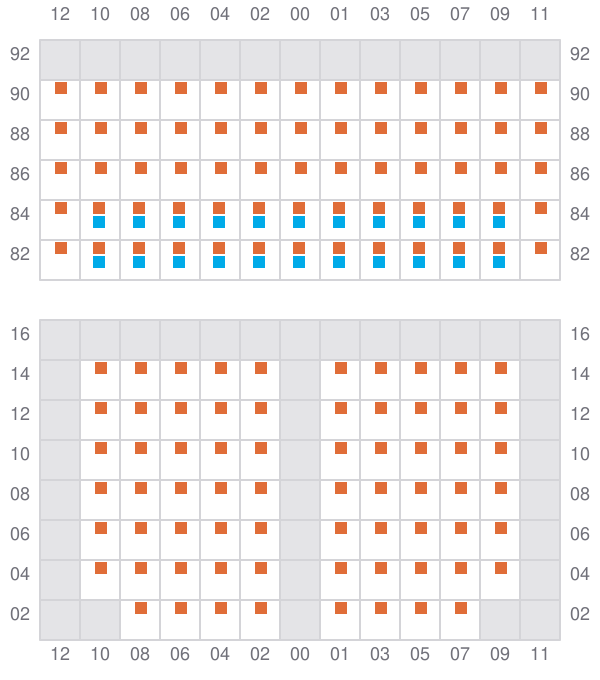

Bay 021 view and slots of MSC SHANNON III

023 (022)

  • ←
Bay 023 view and slots of MSC SHANNON III

025

  • →
Bay 025 view and slots of MSC SHANNON III

027 (026)

  • ←
Bay 027 view and slots of MSC SHANNON III

029

Bay 029 view and slots of MSC SHANNON III

031

  • →
Bay 031 view and slots of MSC SHANNON III

033 (032)

  • ←
Bay 033 view and slots of MSC SHANNON III

035

  • →
Bay 035 view and slots of MSC SHANNON III

037 (036)

  • ←

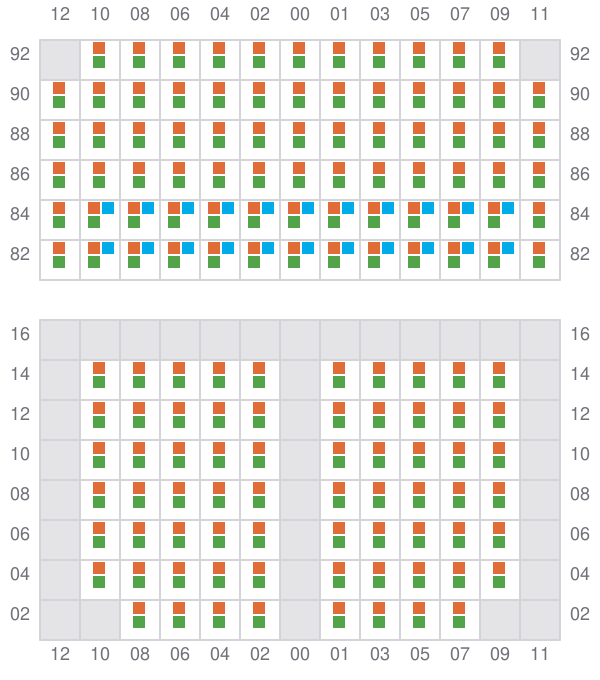

Bay 037 view and slots of MSC SHANNON III

039

  • →

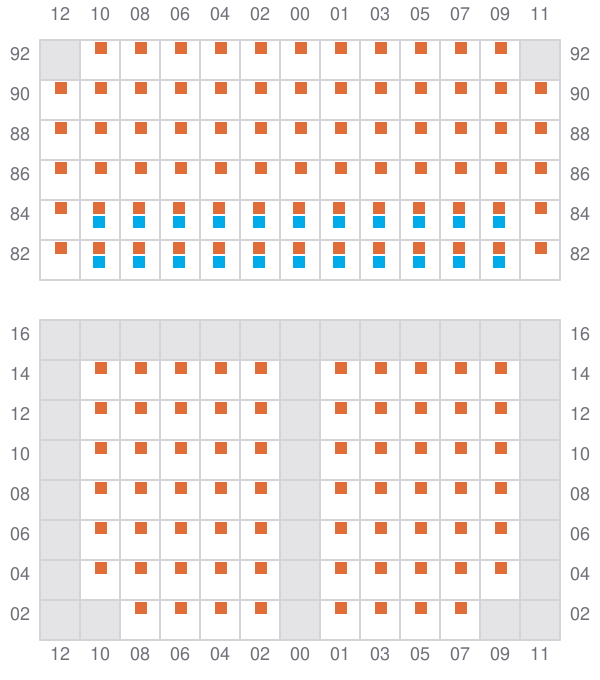

Bay 039 view and slots of MSC SHANNON III

041 (040)

  • ←
Bay 041 view and slots of MSC SHANNON III

043

  • →

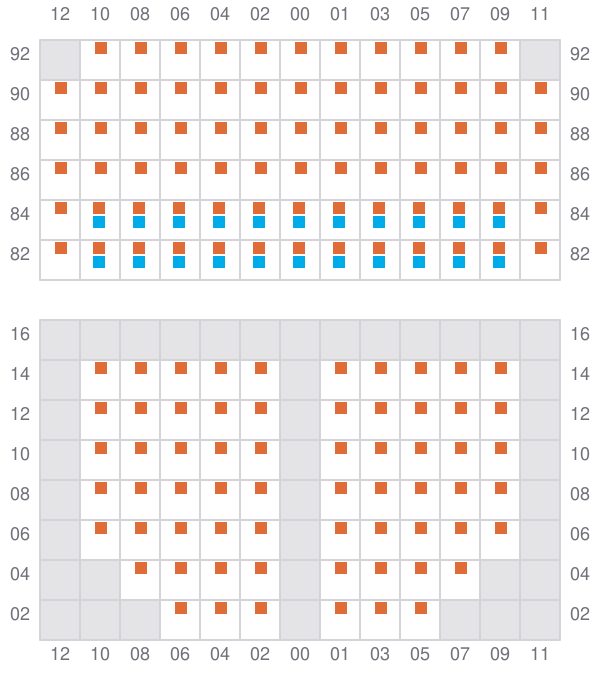

Bay 043 view and slots of MSC SHANNON III

045 (044)

  • ←

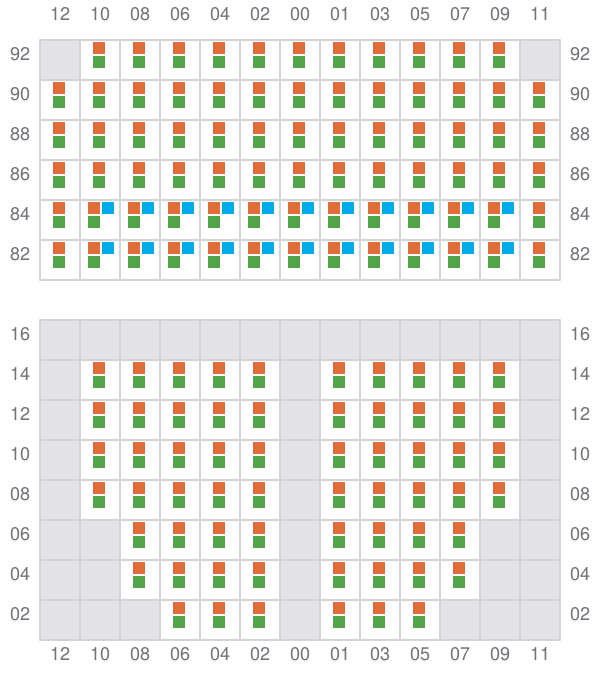

Bay 045 view and slots of MSC SHANNON III

047

  • →

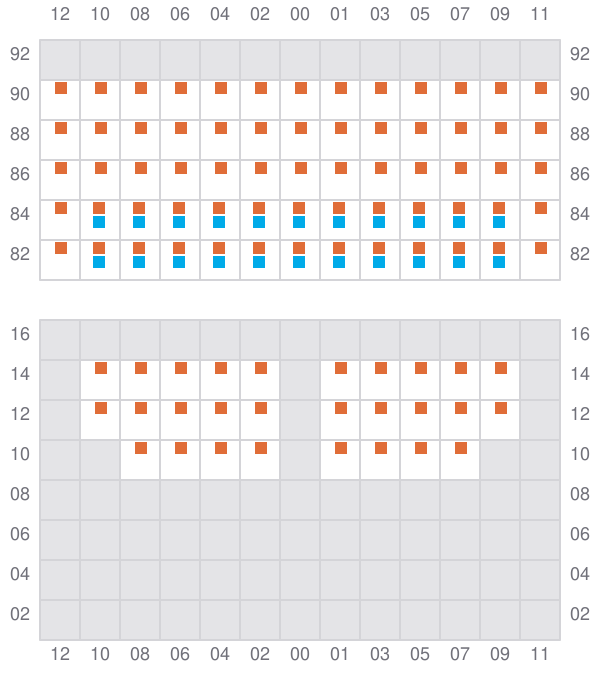

Bay 047 view and slots of MSC SHANNON III

049 (048)

  • ←

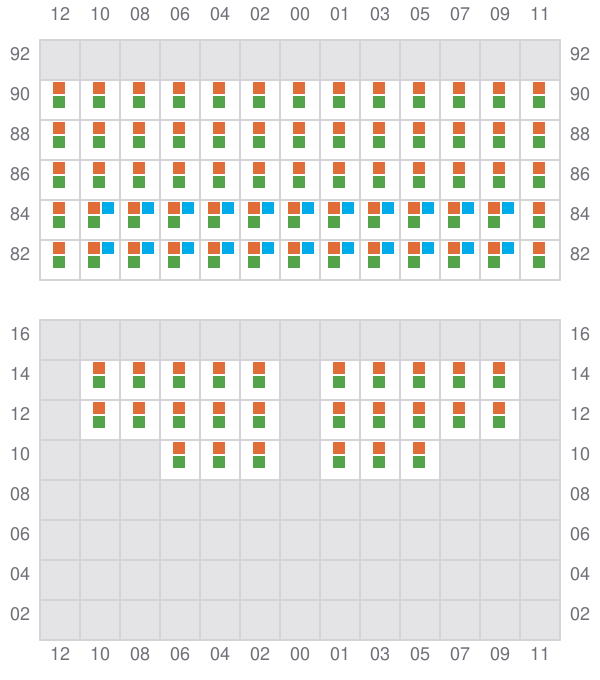

Bay 049 view and slots of MSC SHANNON III

051

Bay 051 view and slots of MSC SHANNON III

053

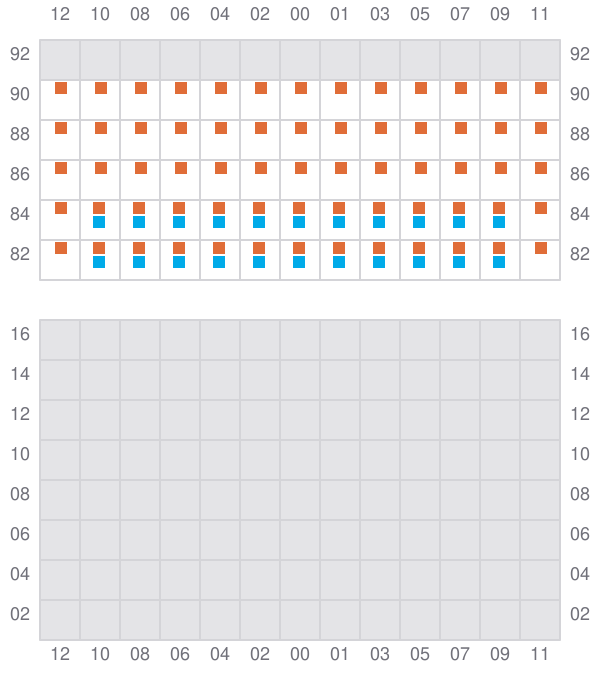

Bay 053 view and slots of MSC SHANNON III
