MSC SHAY
9393022 | 3EUT5 | MSC by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:MSC SHAY
IMO Code:9393022
Call Sign:3EUT5
Line Operator:MSC
Class Name for Sister Ships:SHY
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,562
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

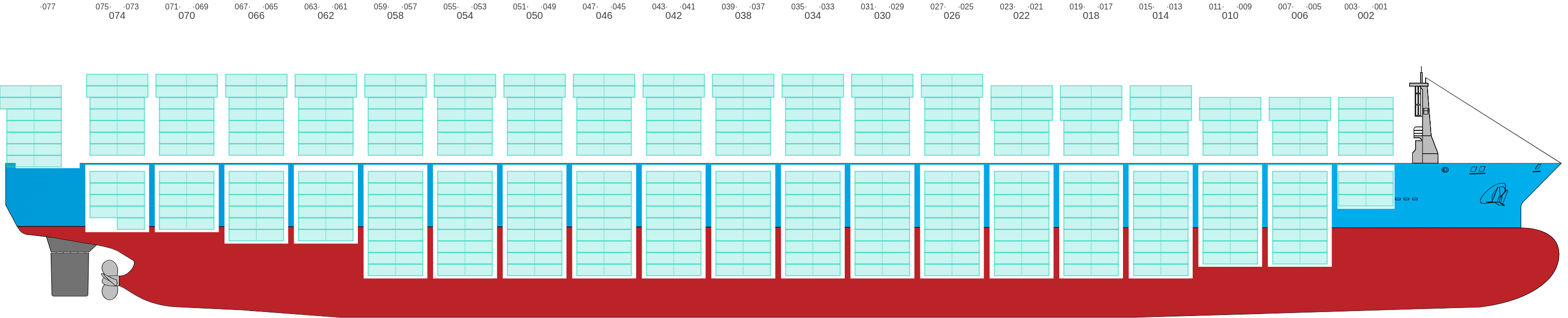

Side View
Hatch-Covers View

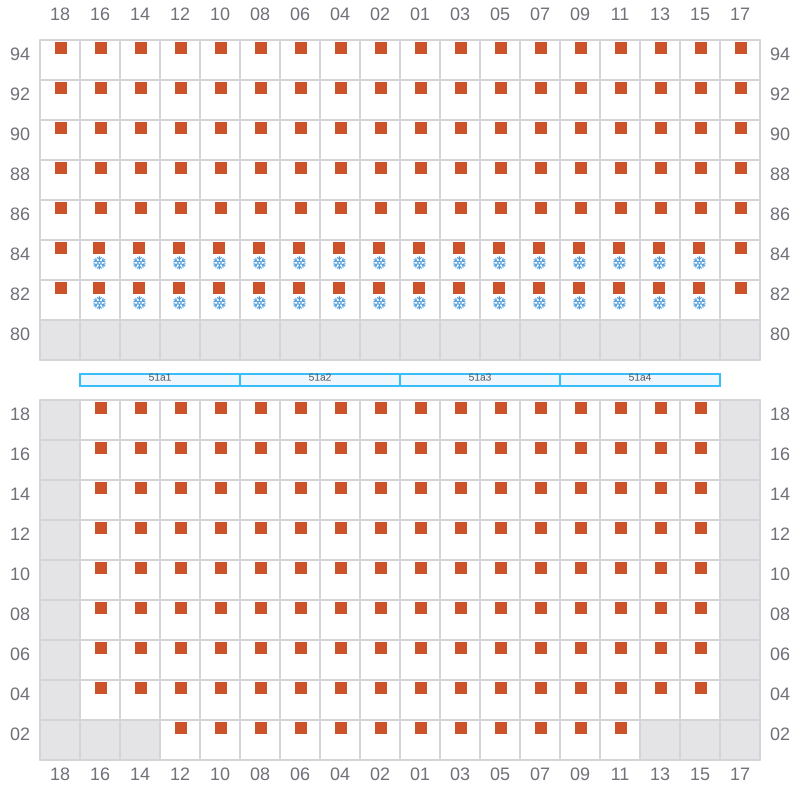

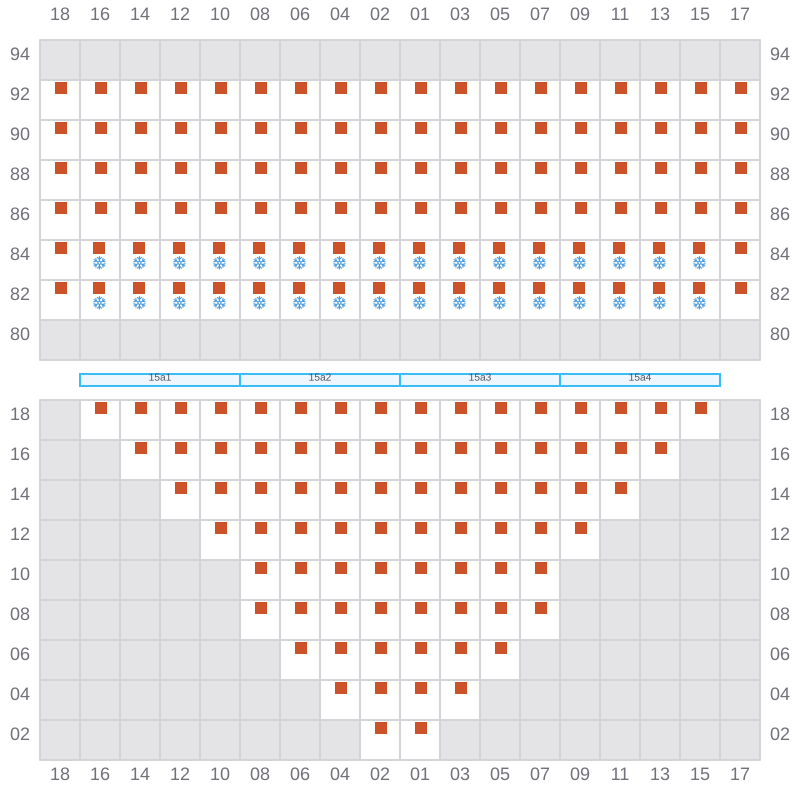

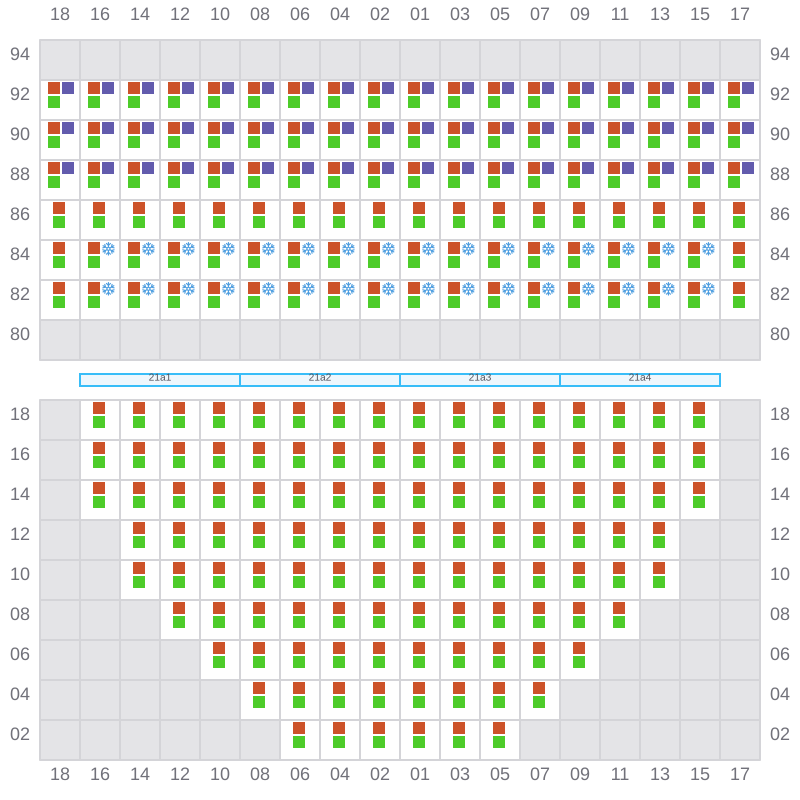

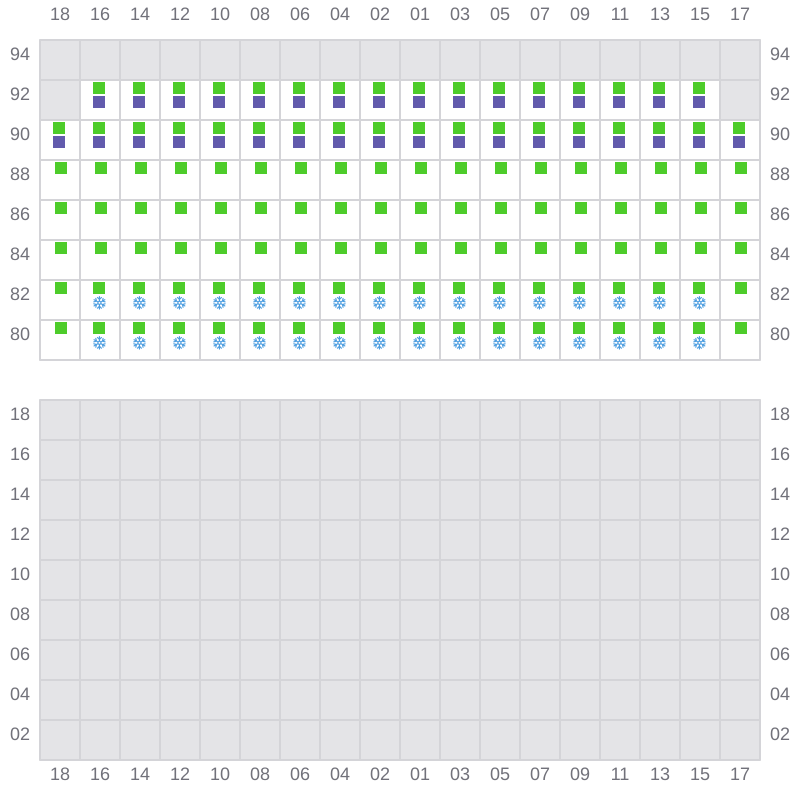

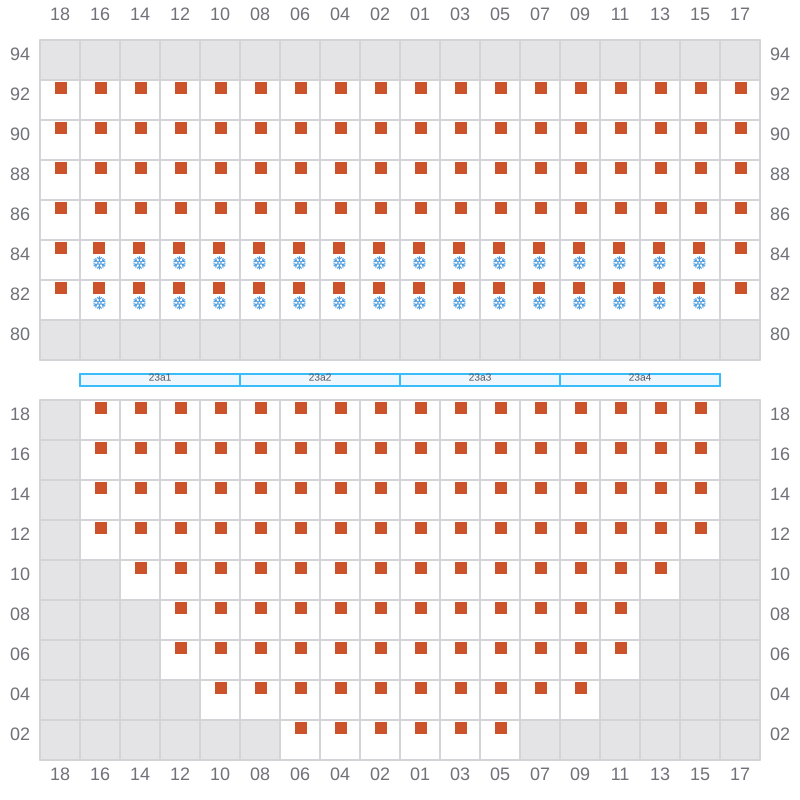

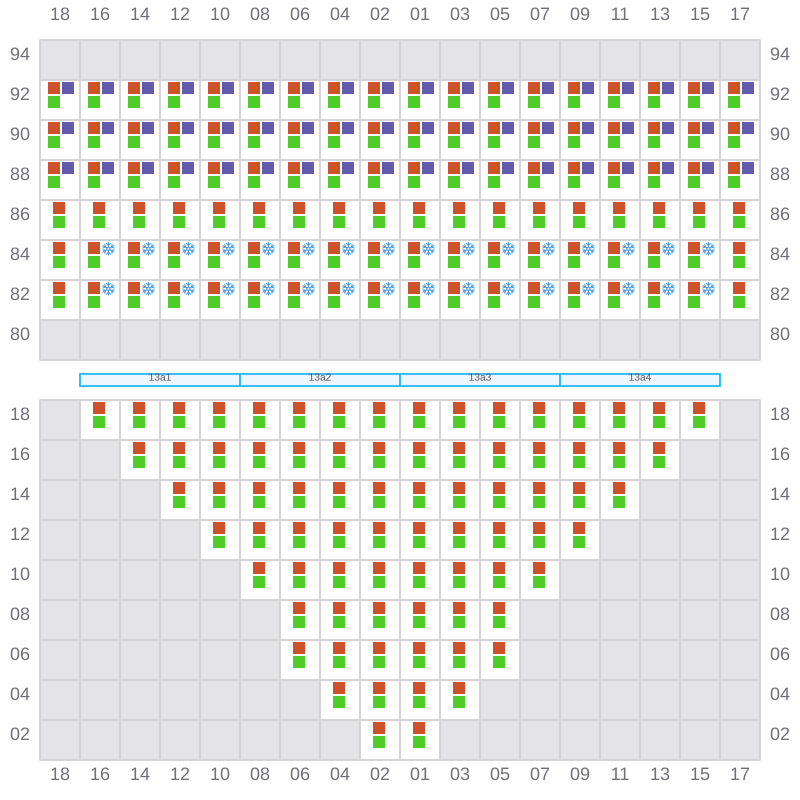

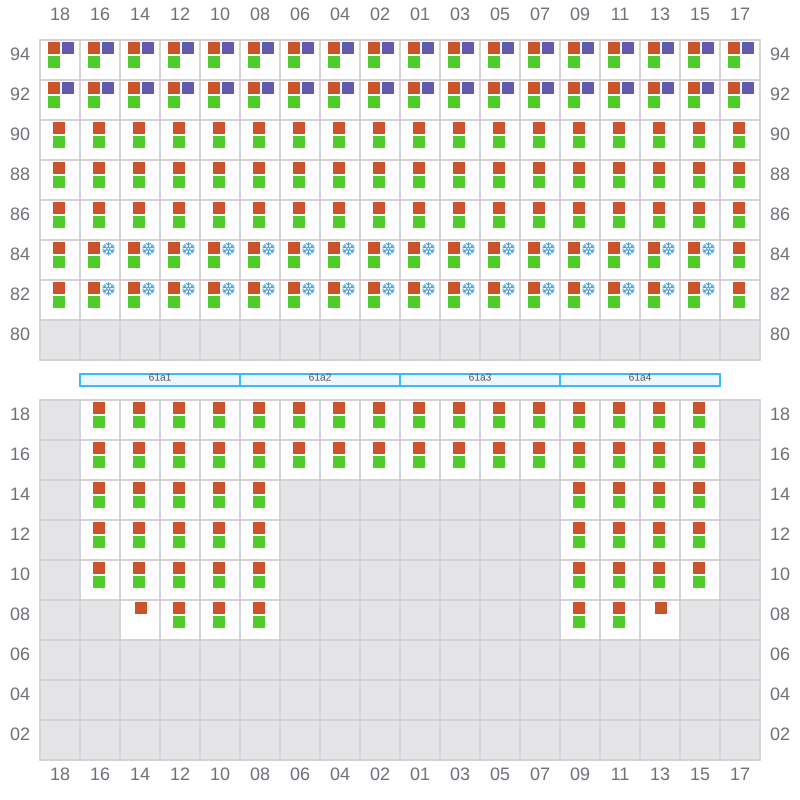

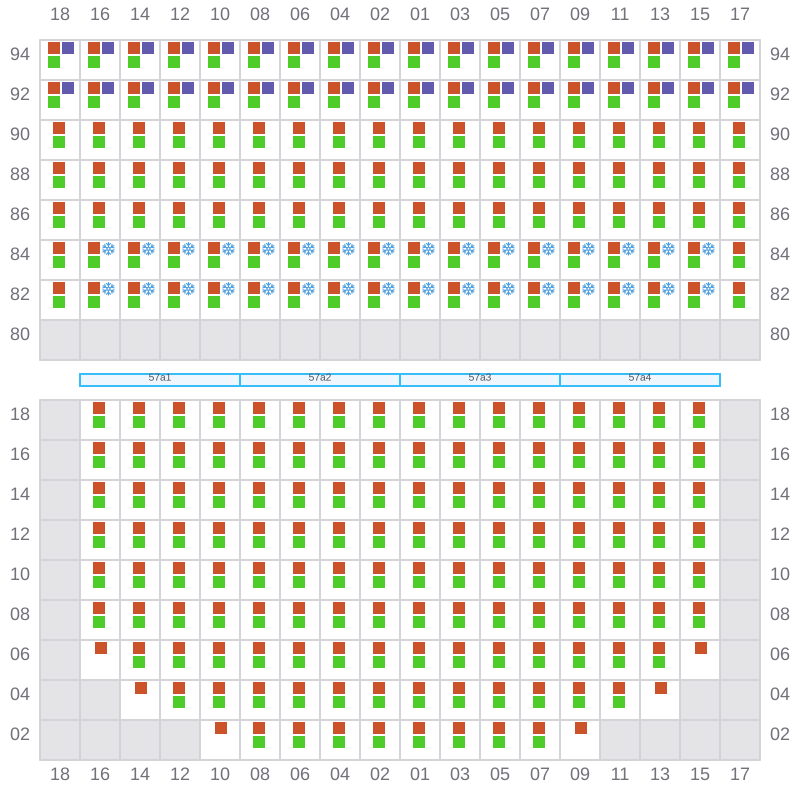

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

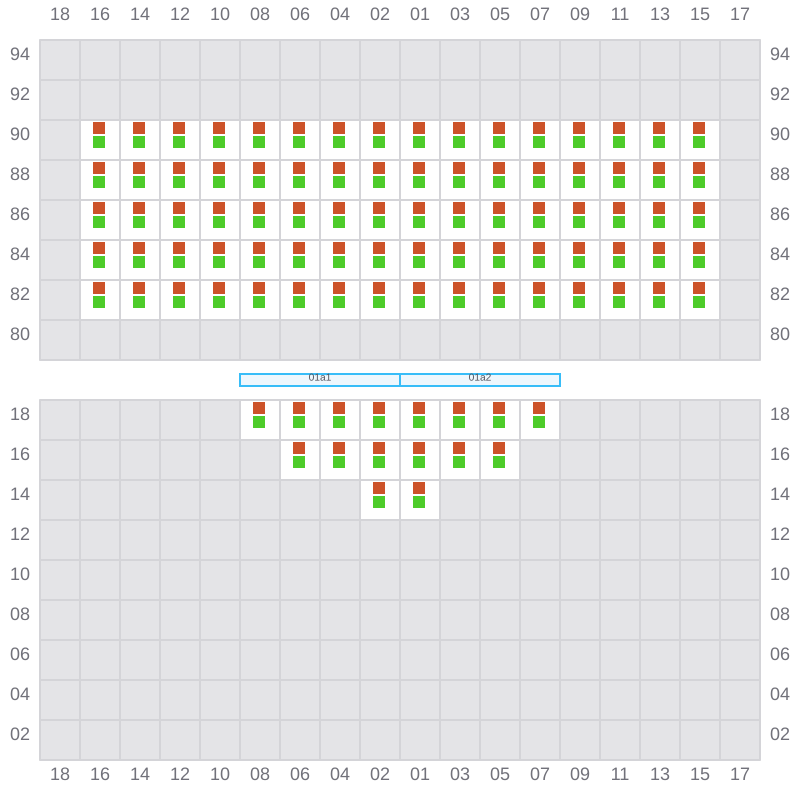

001 (002)
- →
003
- ←

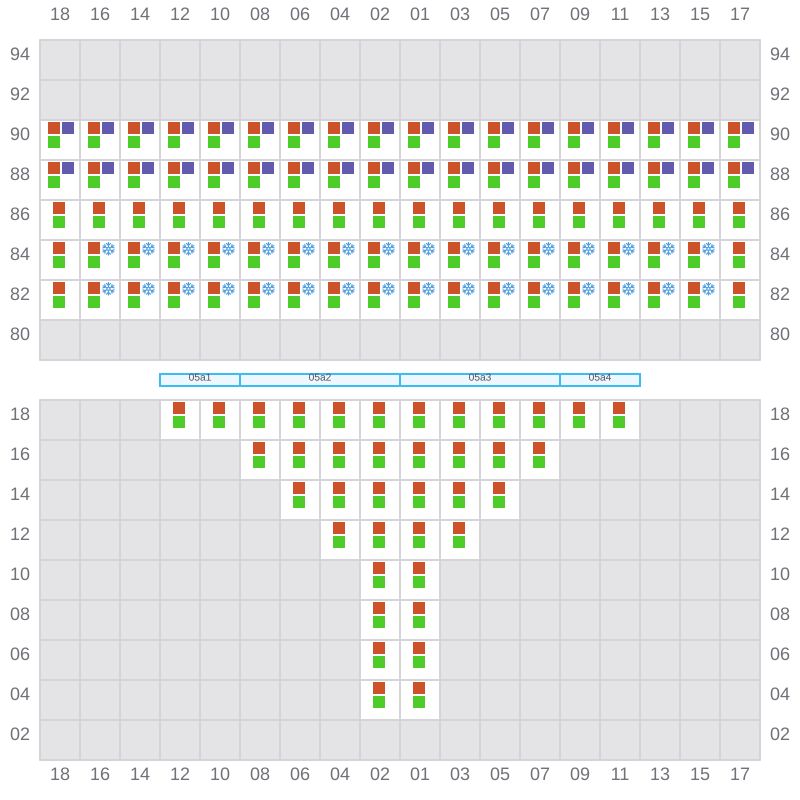

005 (006)
- →

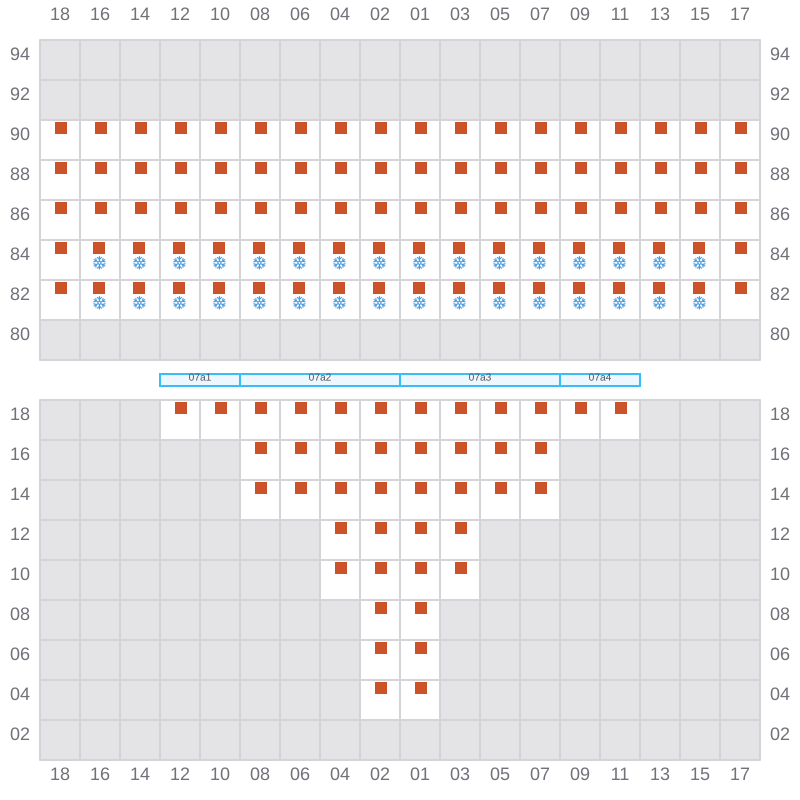

007
- ←

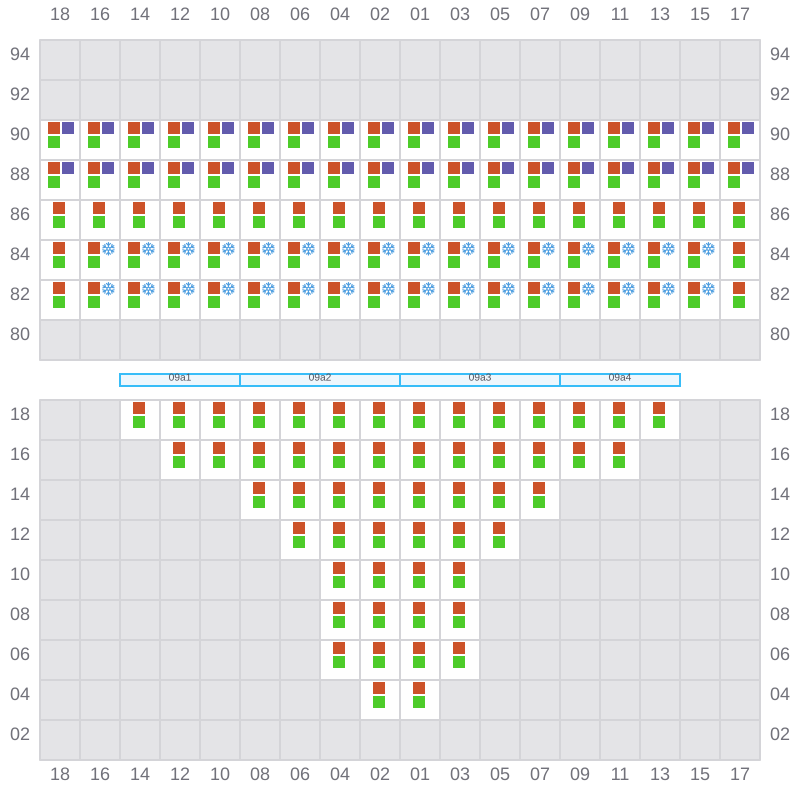

009 (010)
- →

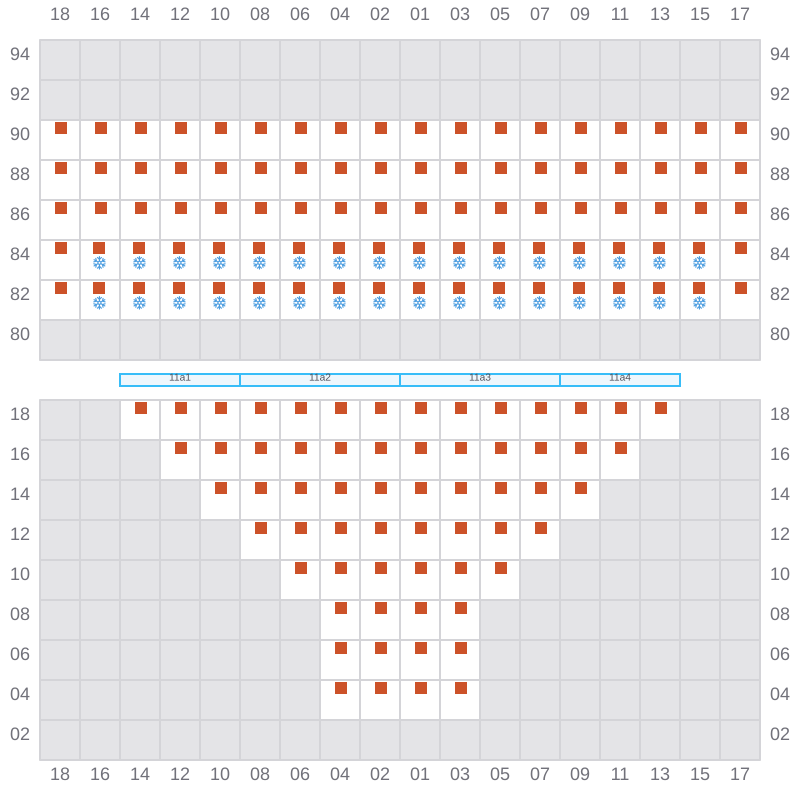

011
- ←
013 (014)
- →
015
- ←

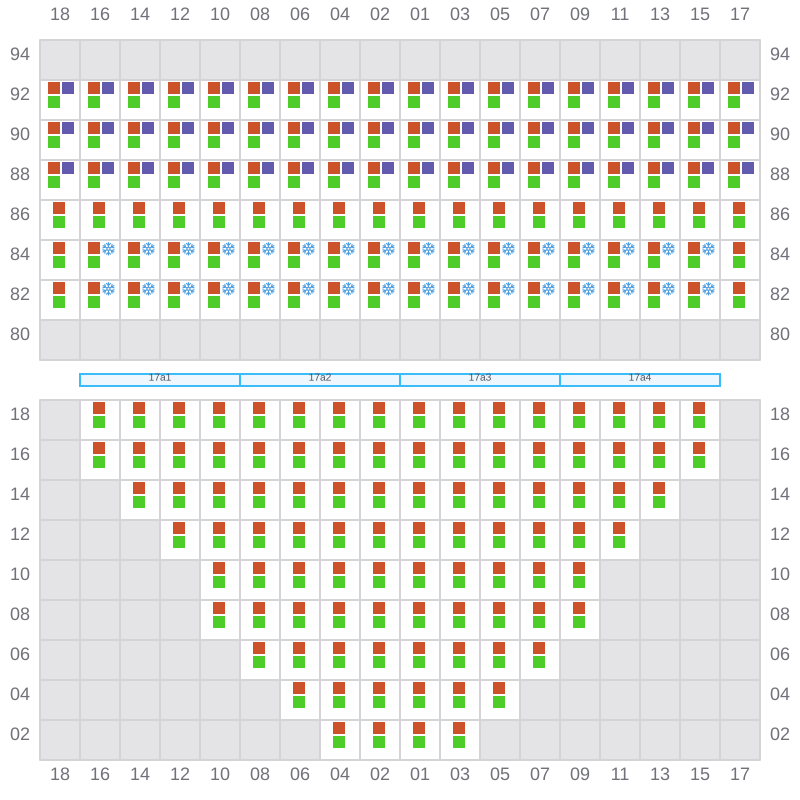

017 (018)
- →

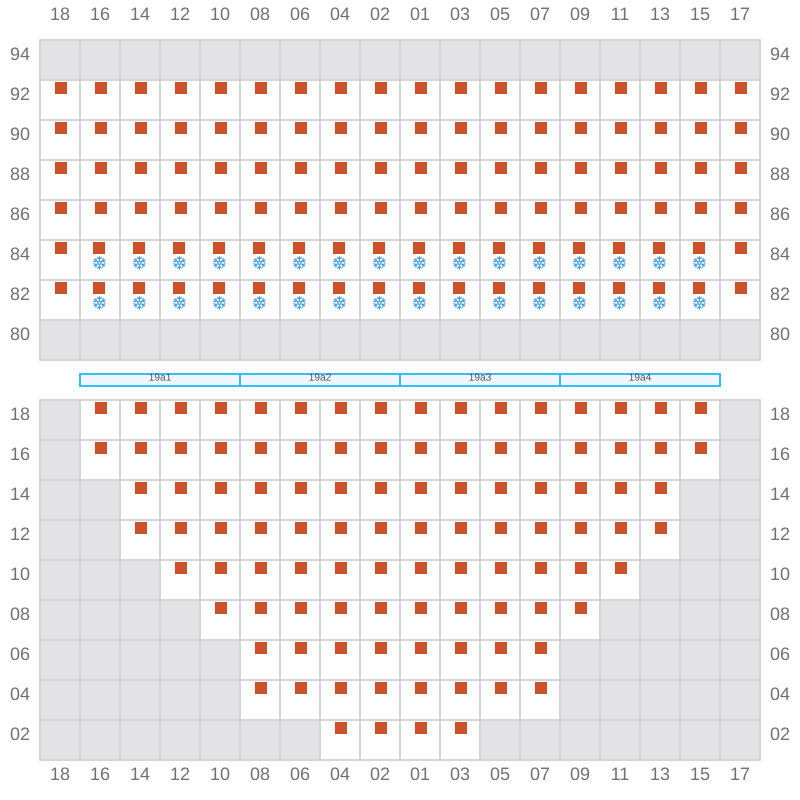

019
- ←
021 (022)
- →
023
- ←

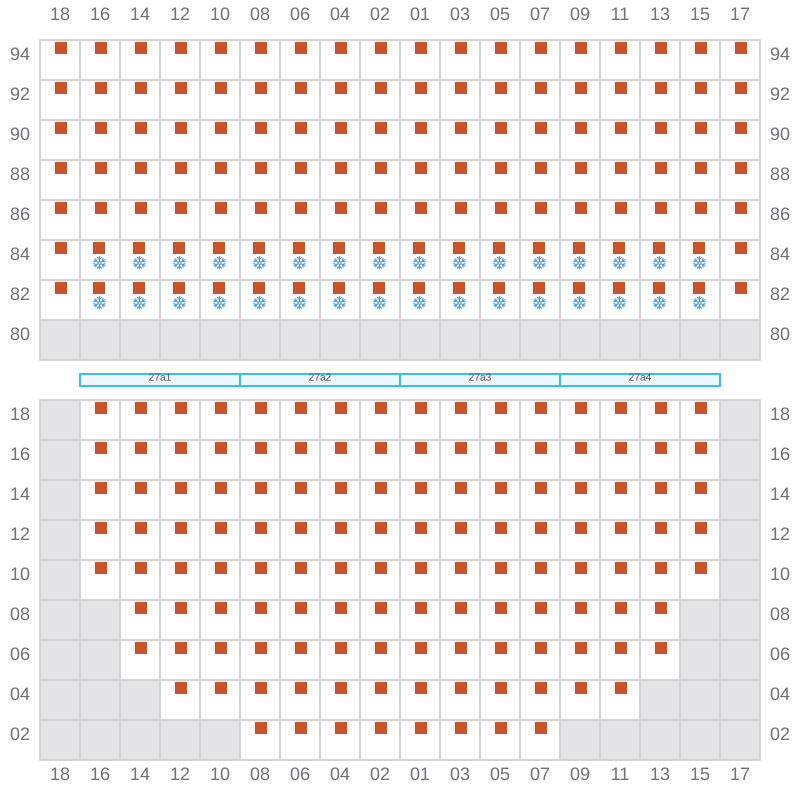

025 (026)
- →
027
- ←

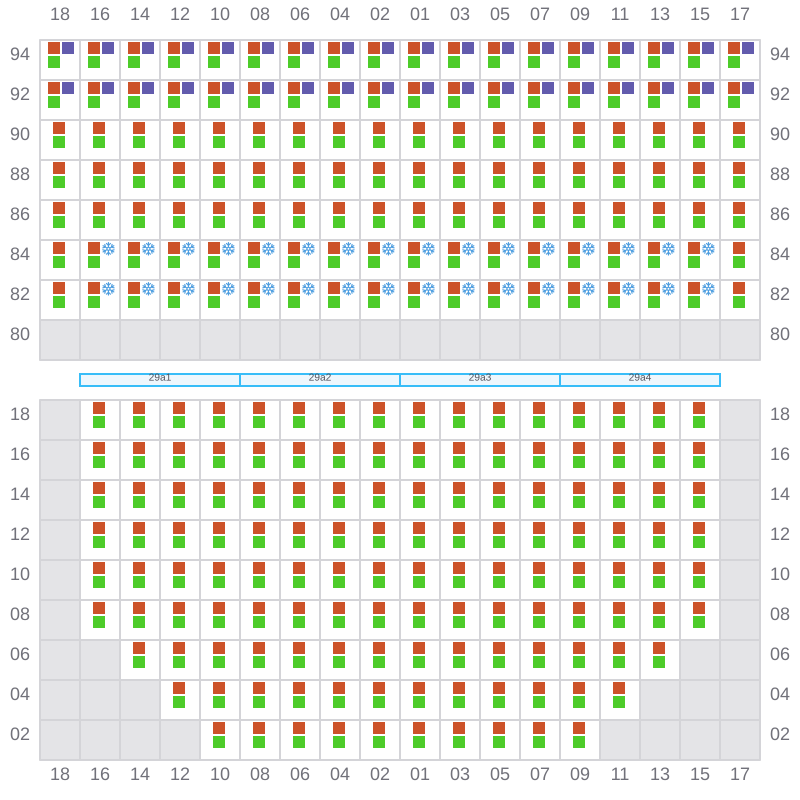

029 (030)
- →
031
- ←

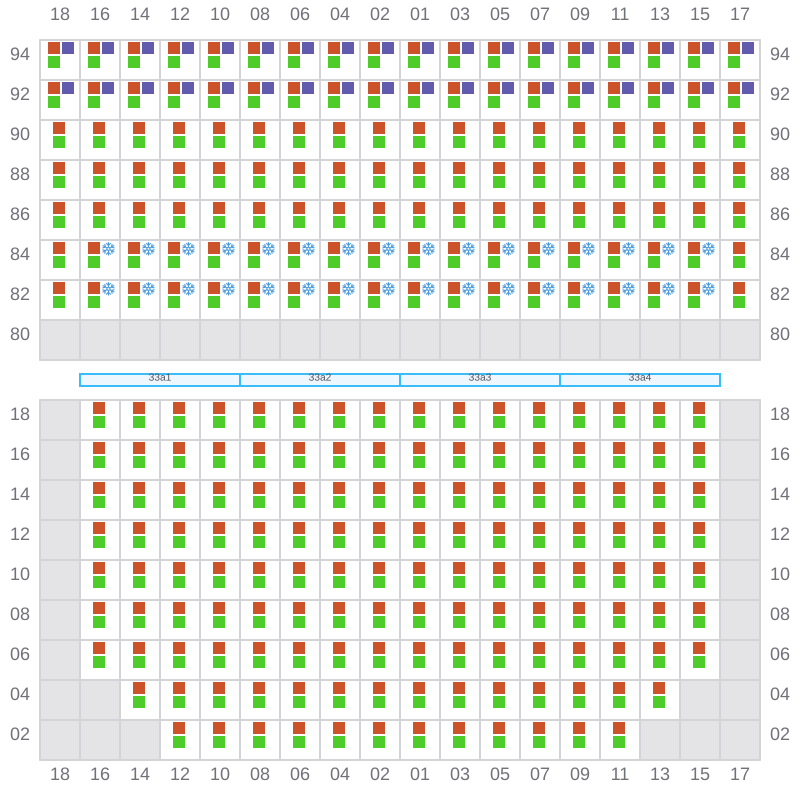

033 (034)
- →

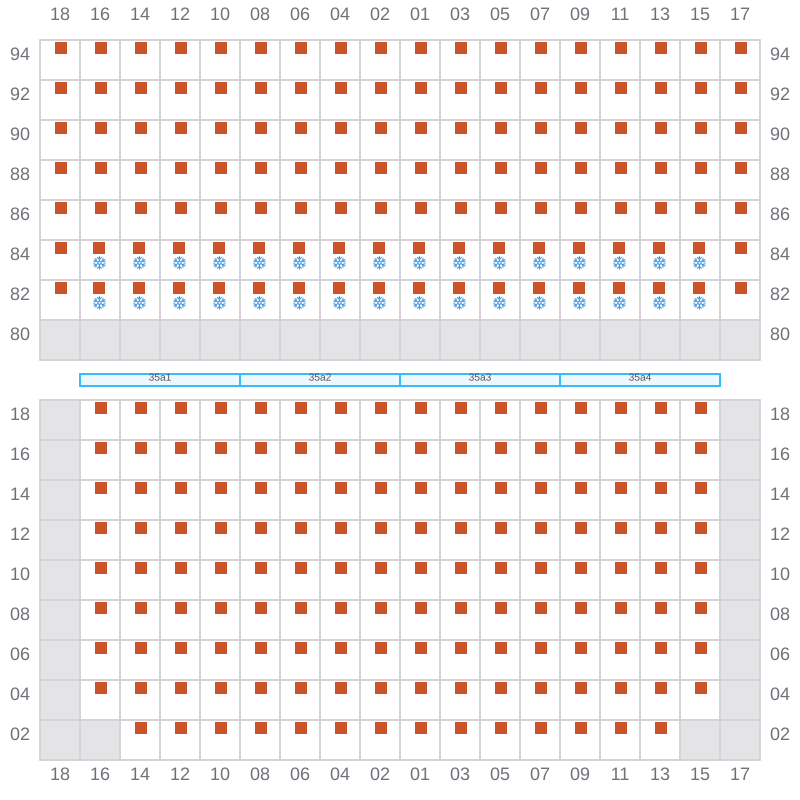

035
- ←

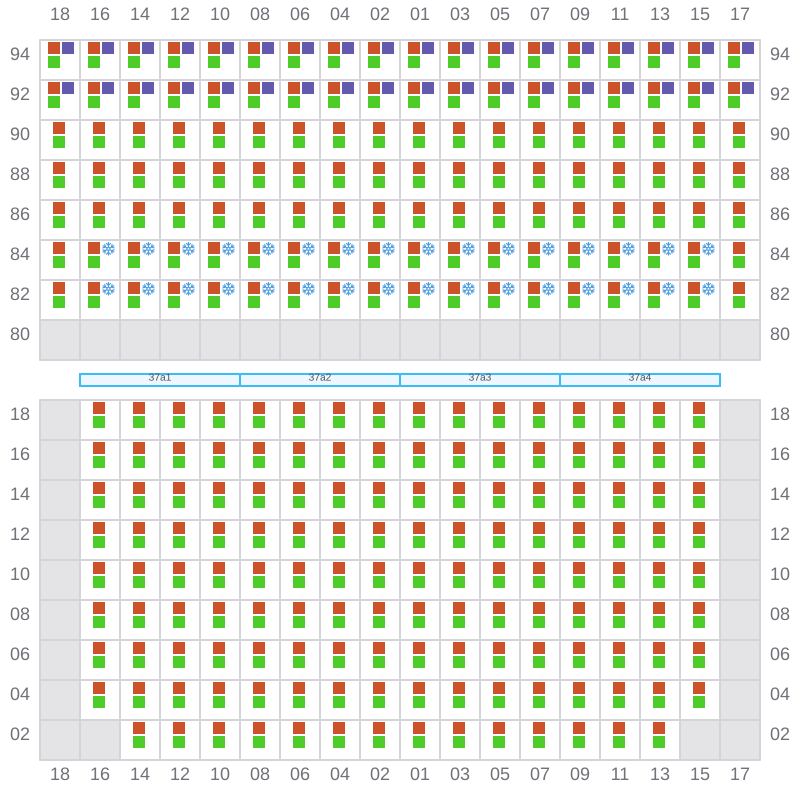

037 (038)
- →
039
- ←
041 (042)
- →

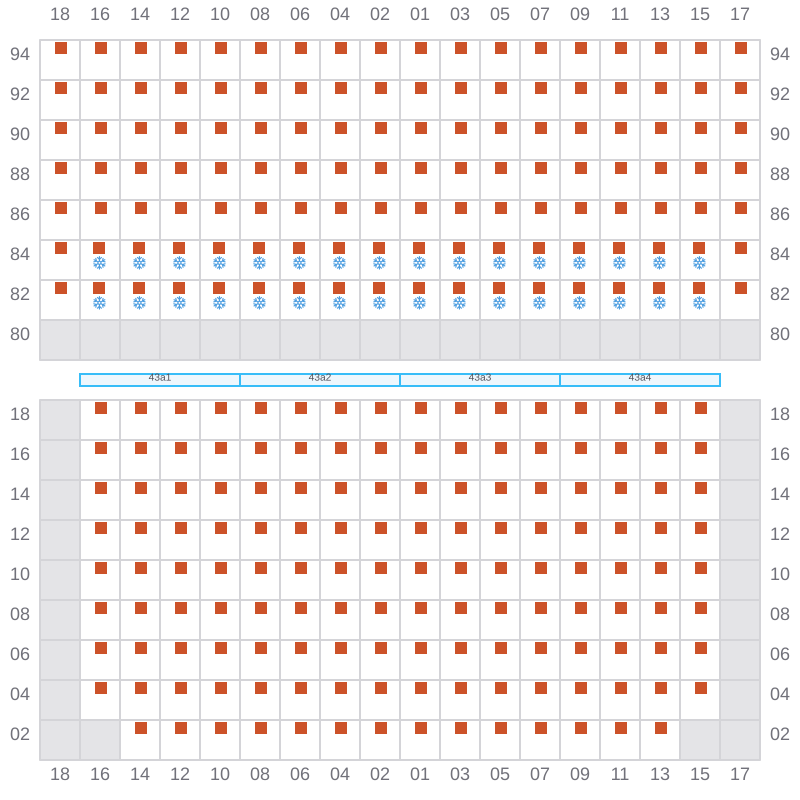

043
- ←

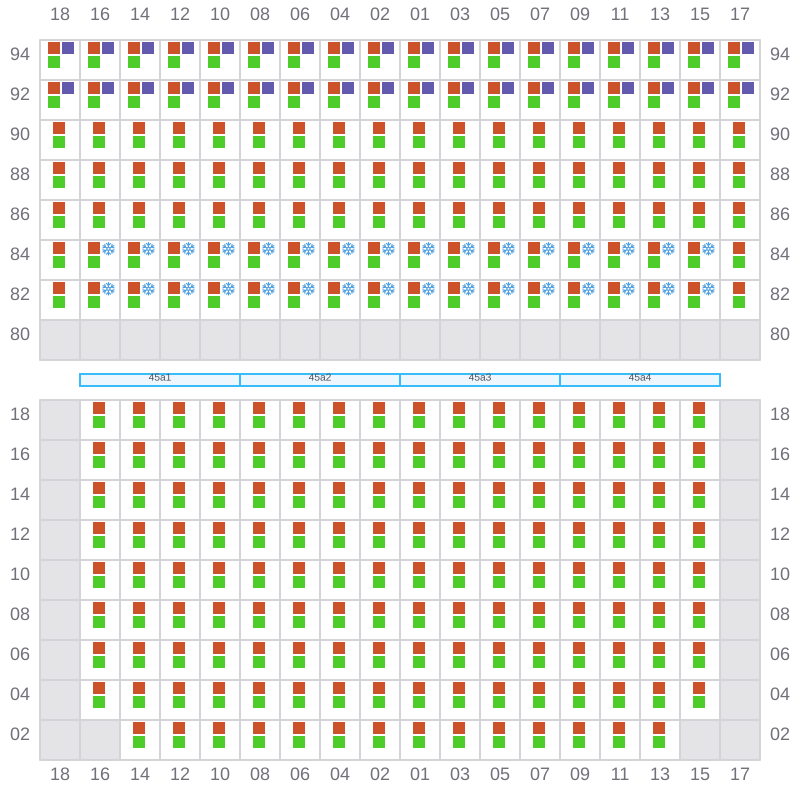

045 (046)
- →

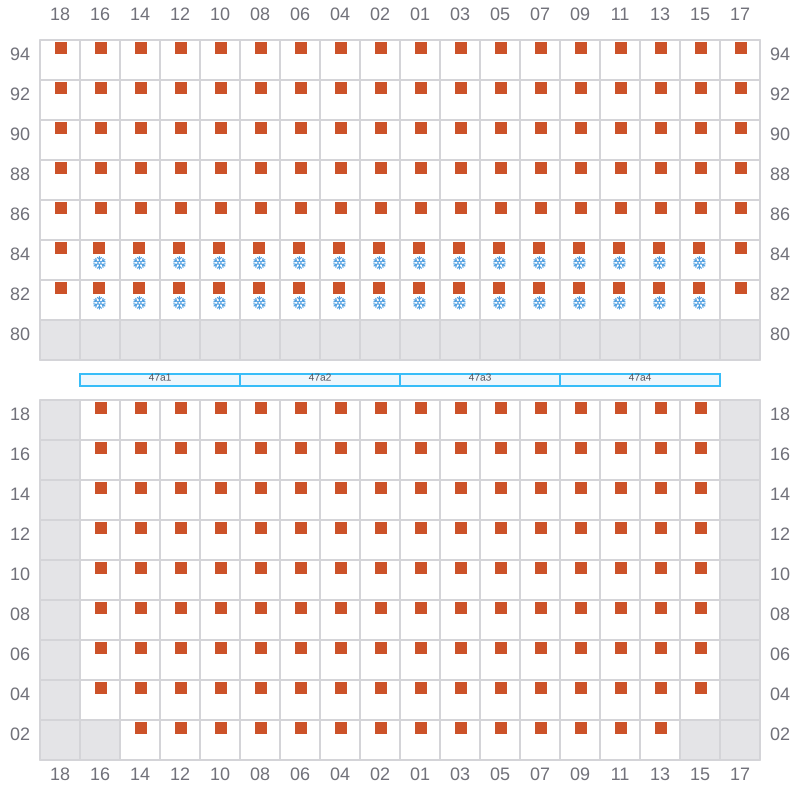

047
- ←
049 (050)
- →
051
- ←

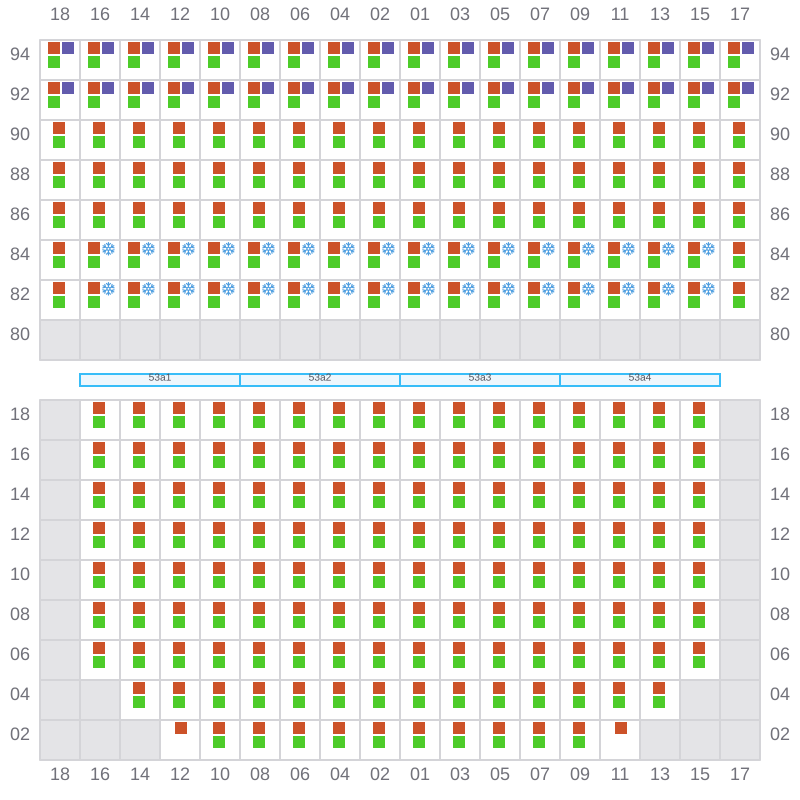

053 (054)
- →

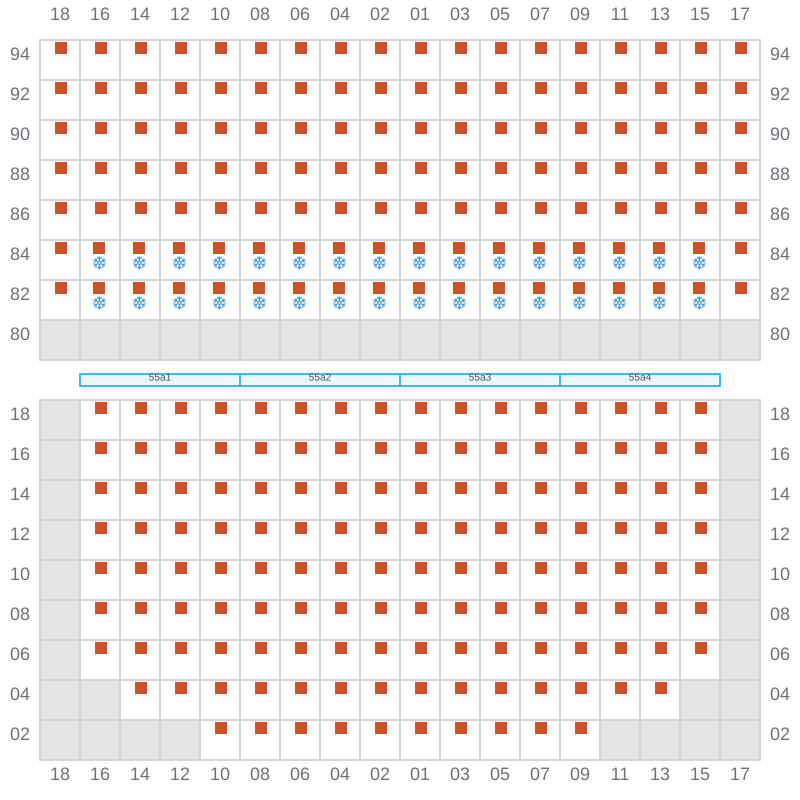

055
- ←
057 (058)
- →

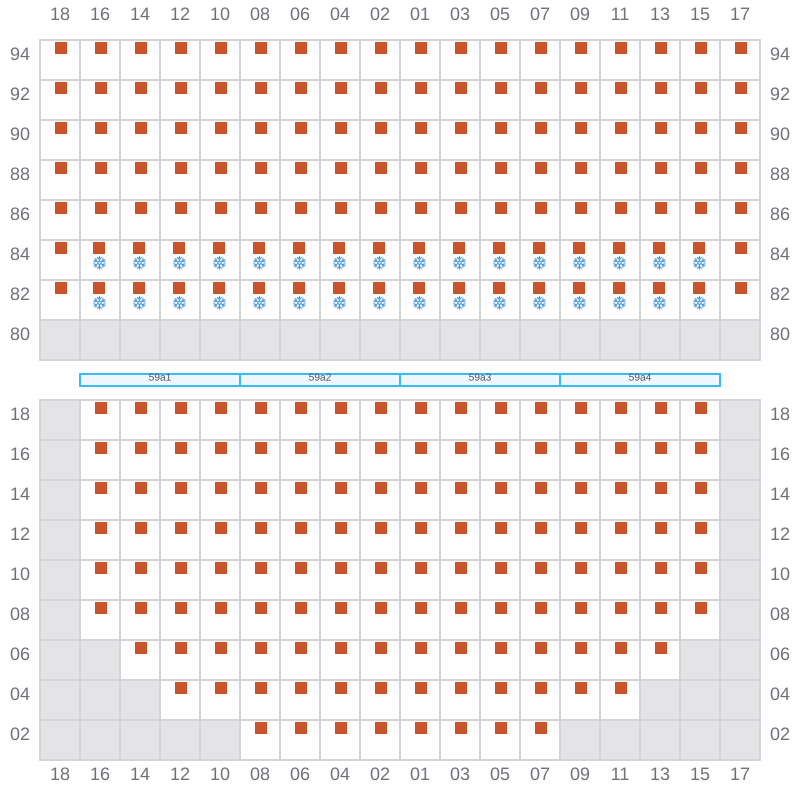

059
- ←
061 (062)
- →
063
- ←

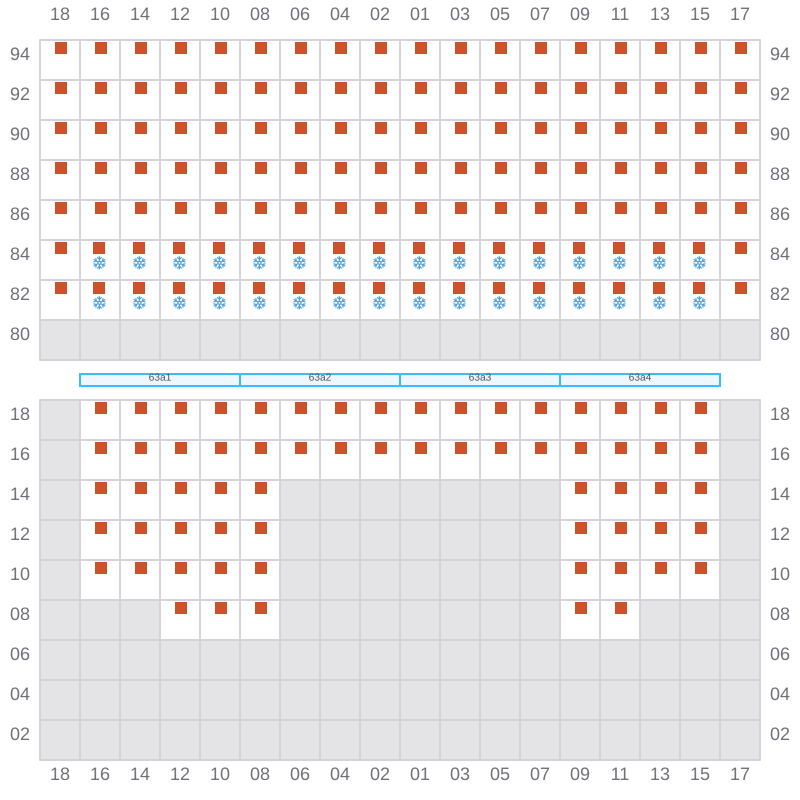

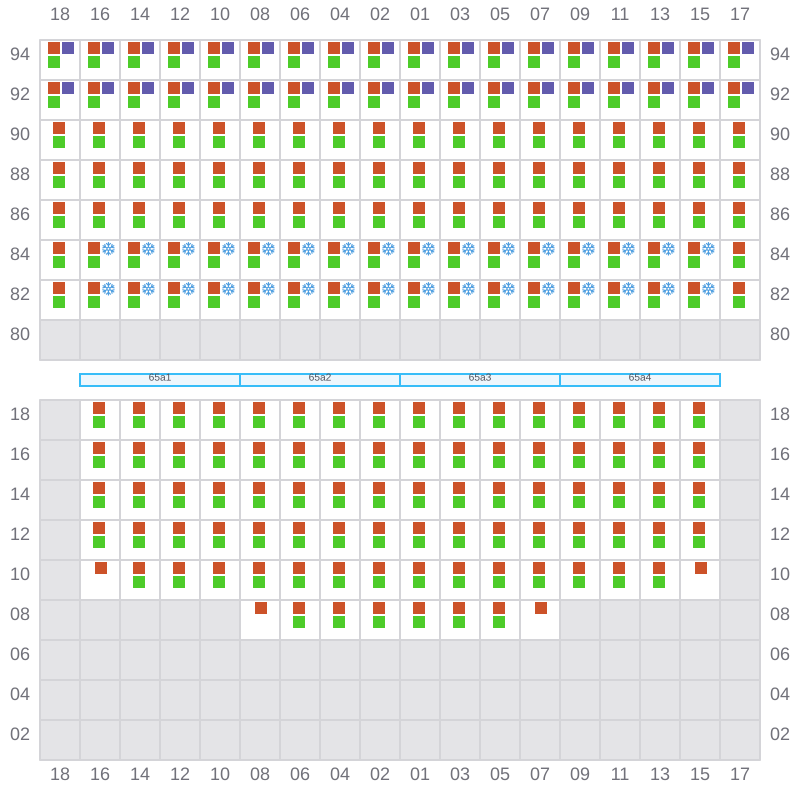

065 (066)
- →

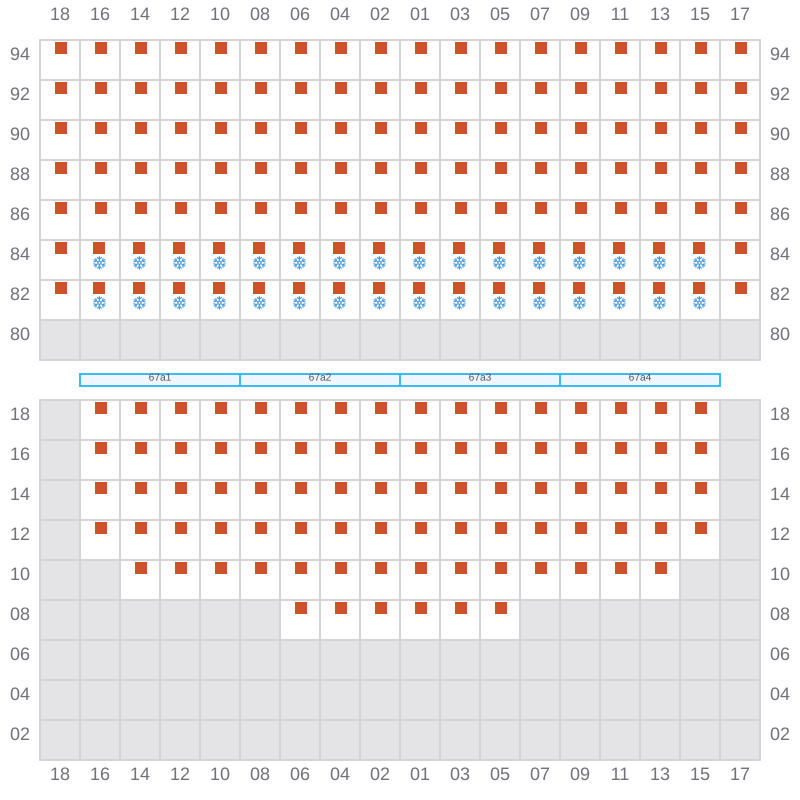

067
- ←

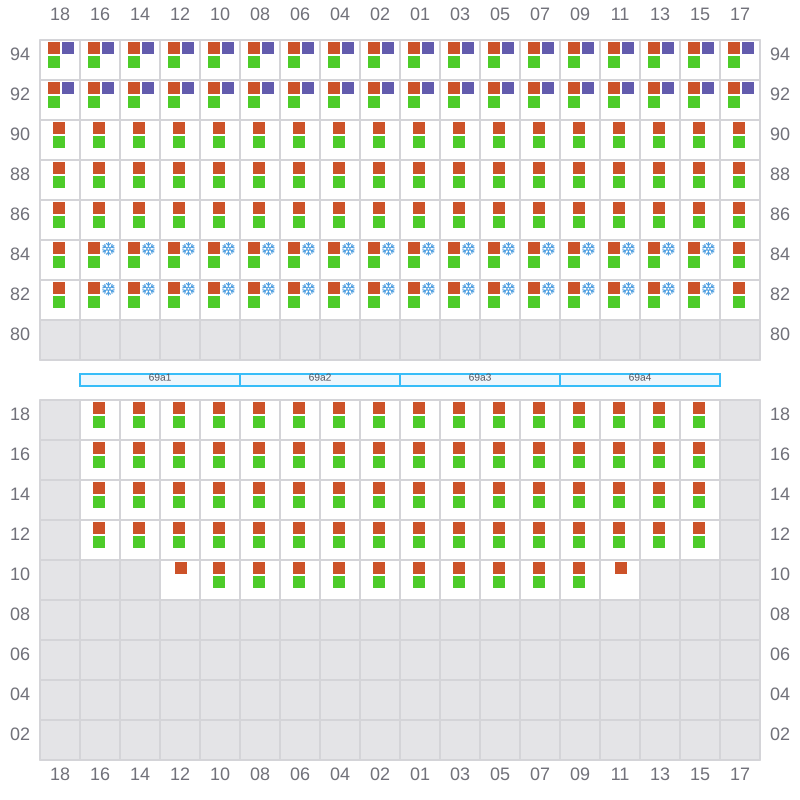

069 (070)
- →

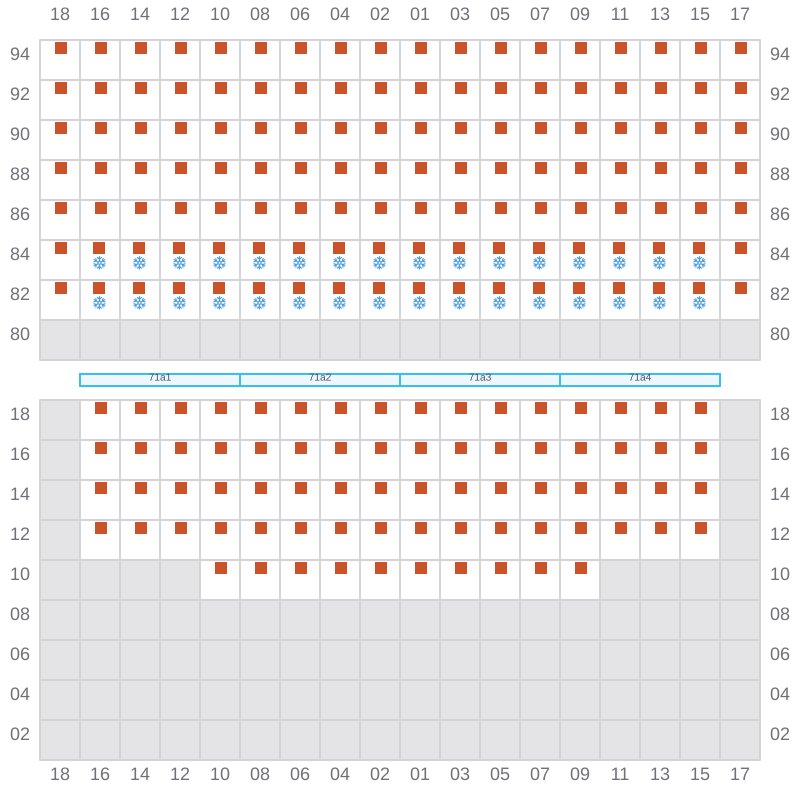

071
- ←

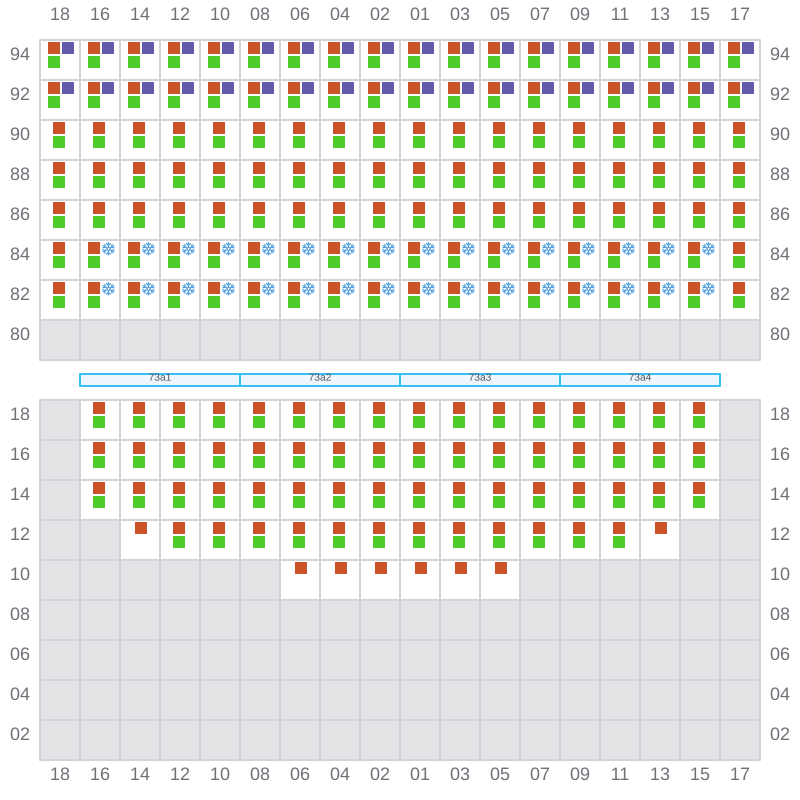

073 (074)
- →

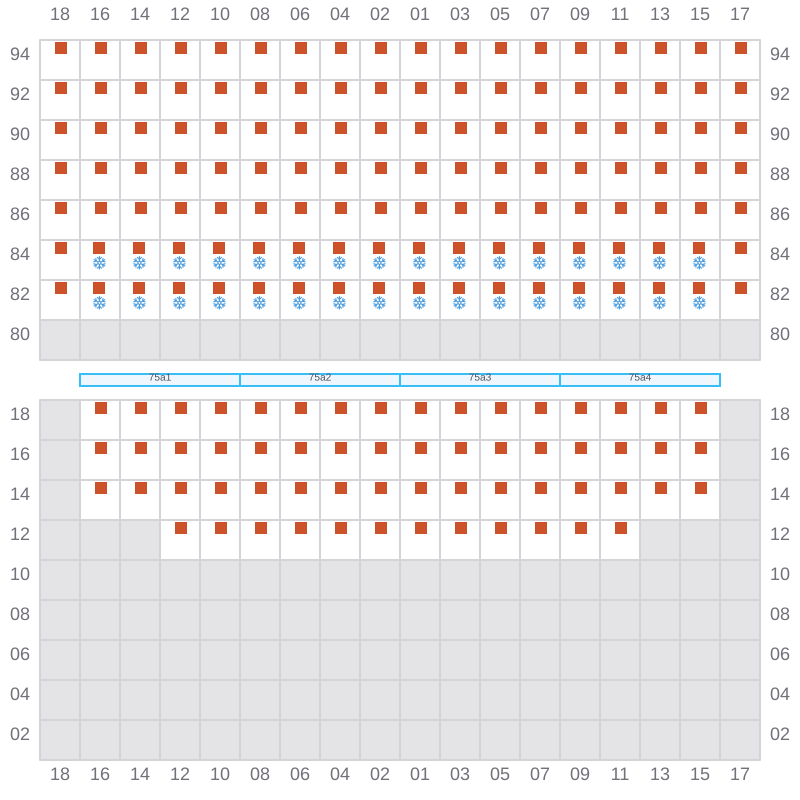

075
- ←
077 (078)
- → / ?
