MSC SHIRLEY
9224049 | D5IY3 | 9224049 by ********* Last update: Thu Mar 14 2024
General Info
Ship Name:MSC SHIRLEY
IMO Code:9224049
Call Sign:D5IY3
Line Operator:9224049
Class Name for Sister Ships:73Z
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,024
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

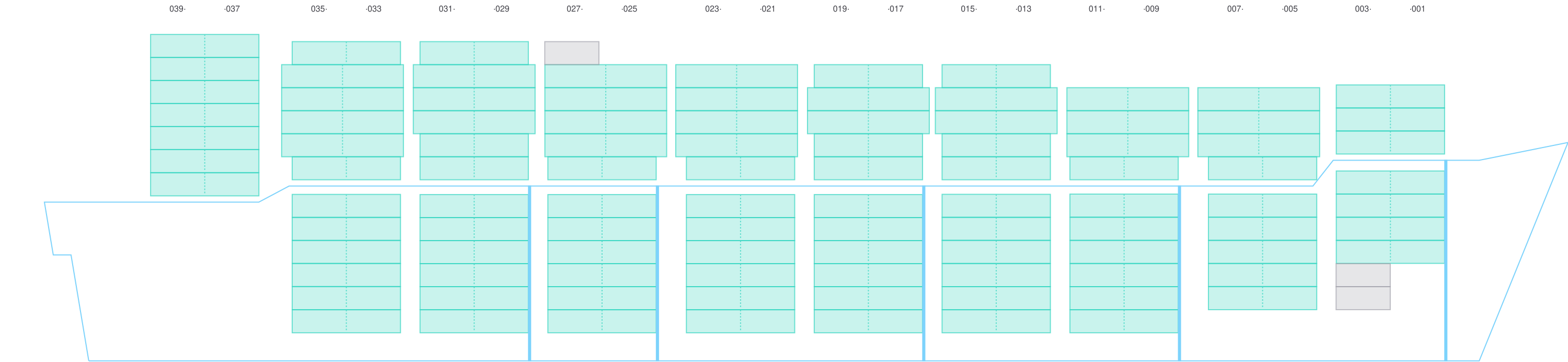

Side View
Hatch-Covers View

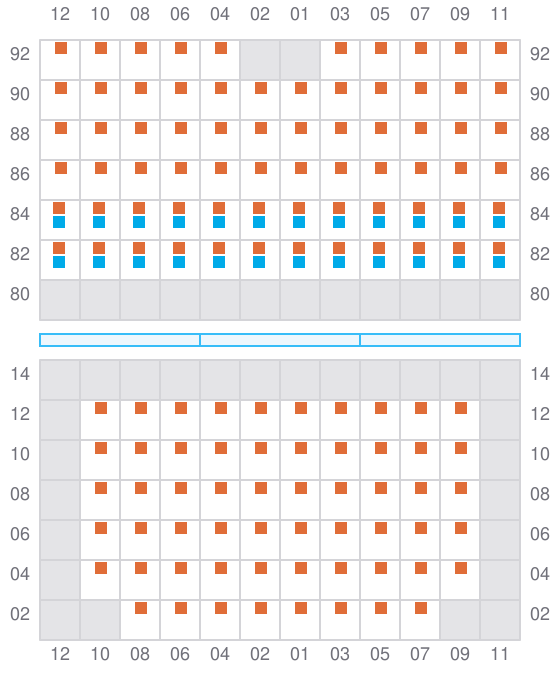

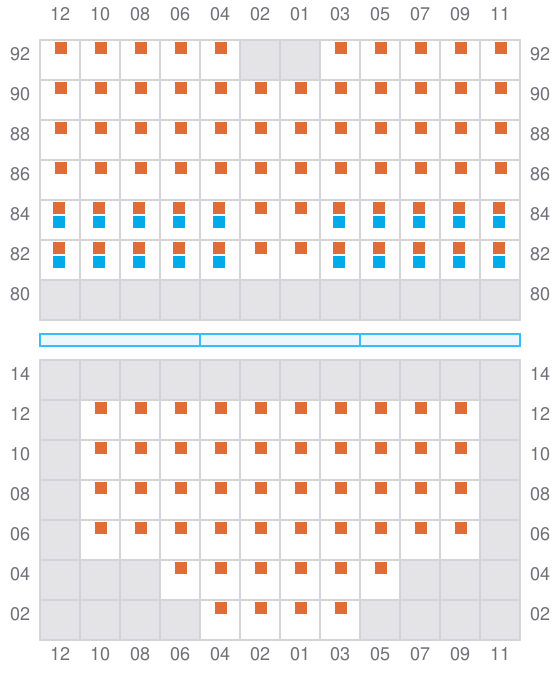

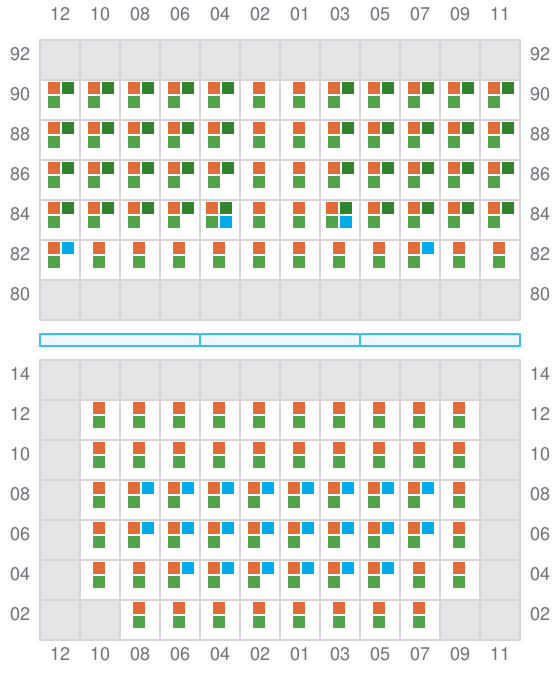

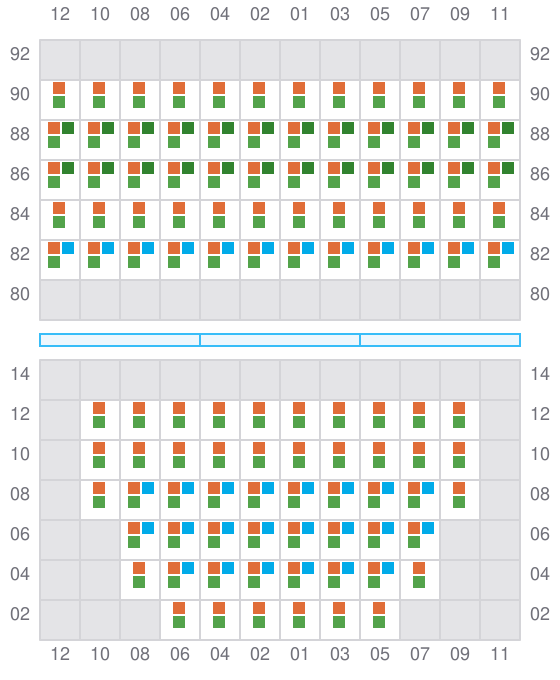

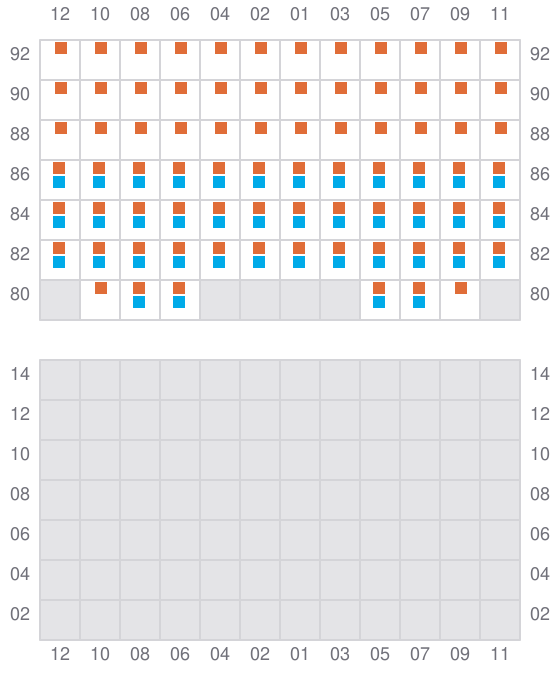

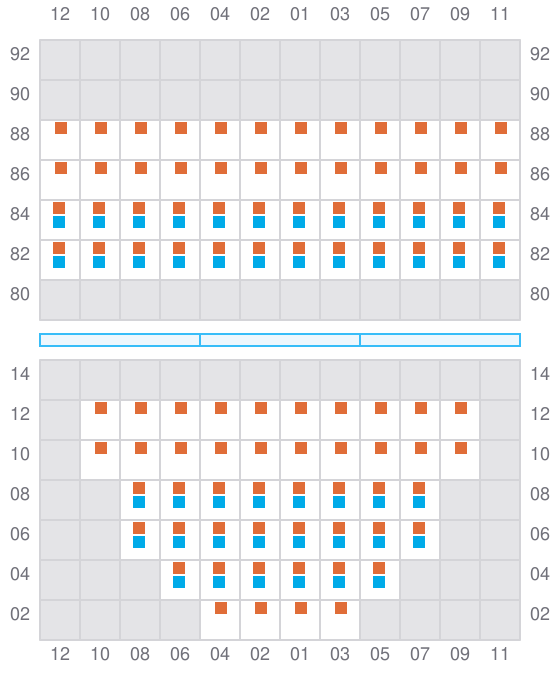

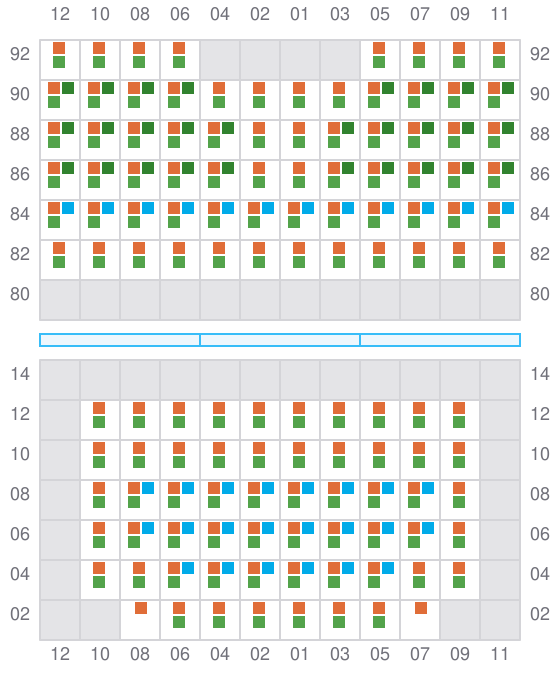

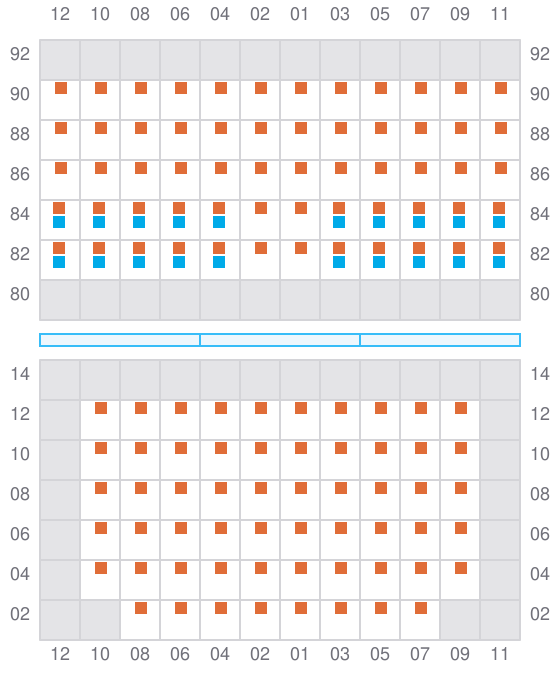

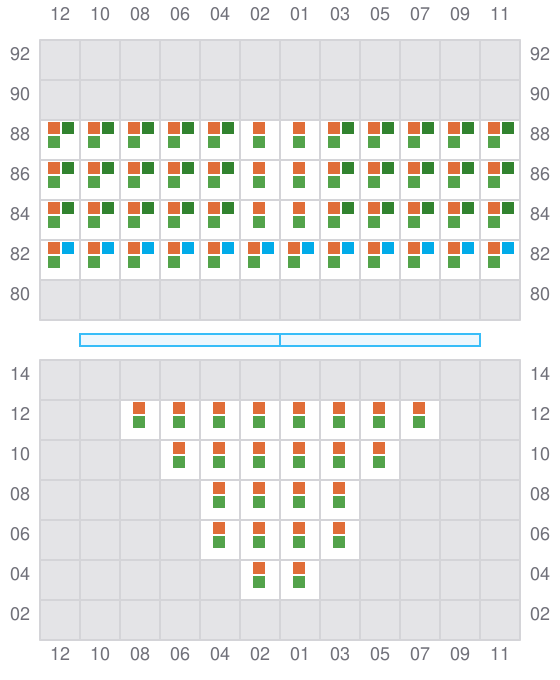

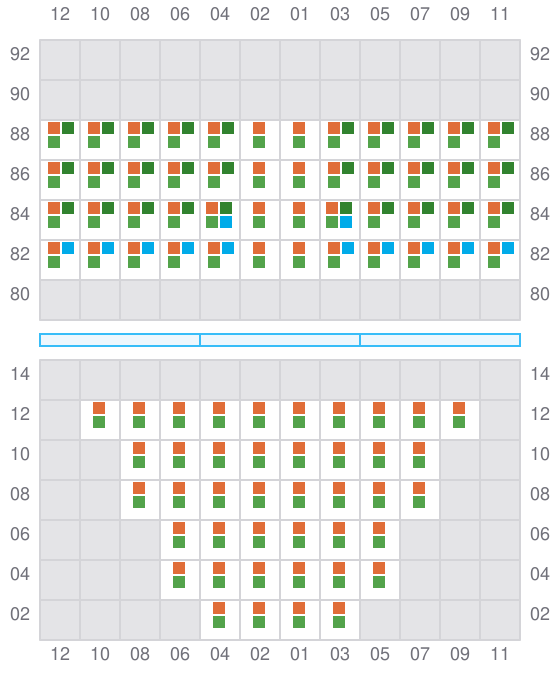

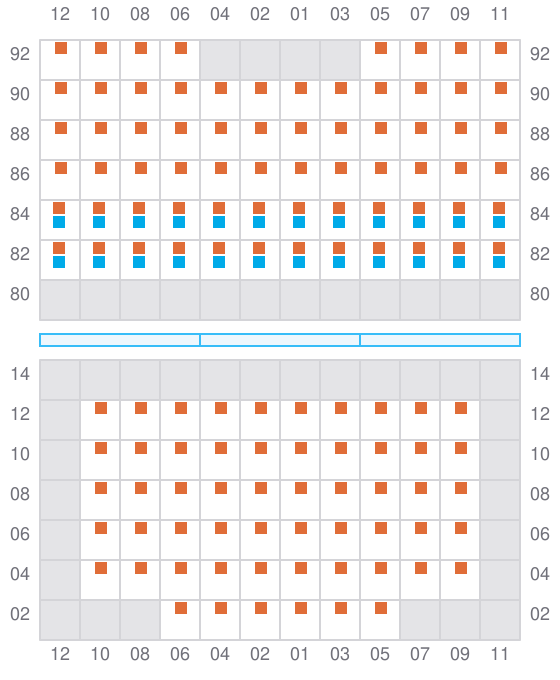

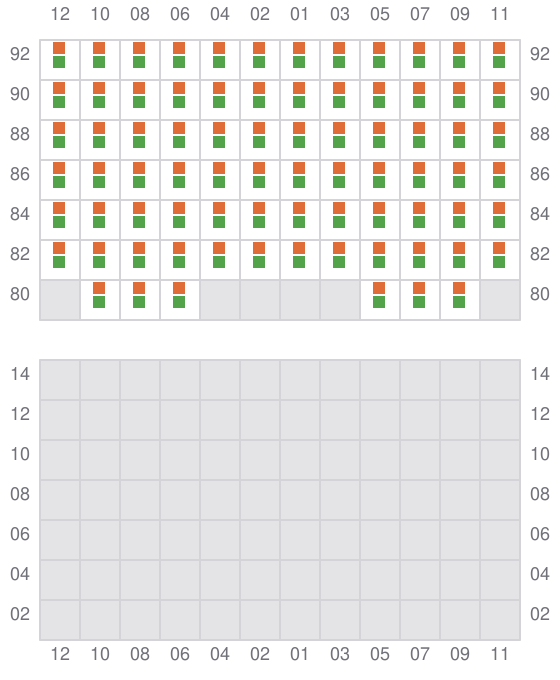

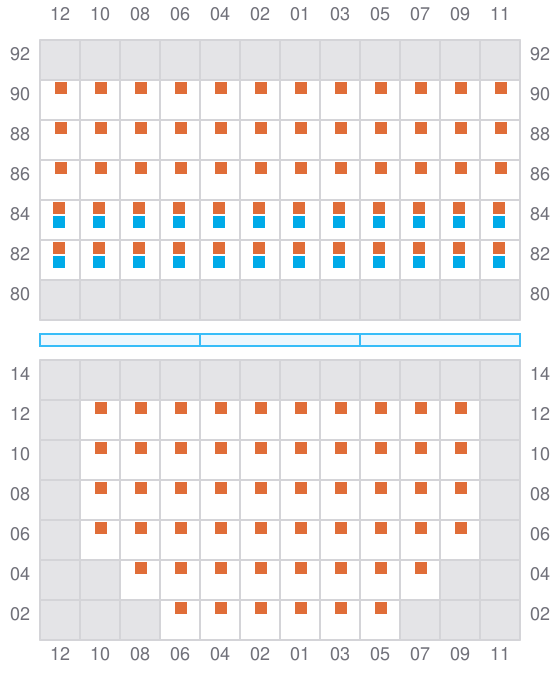

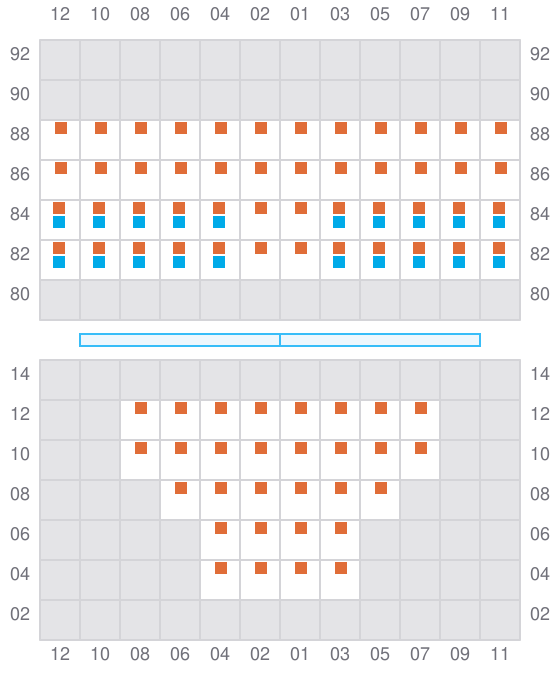

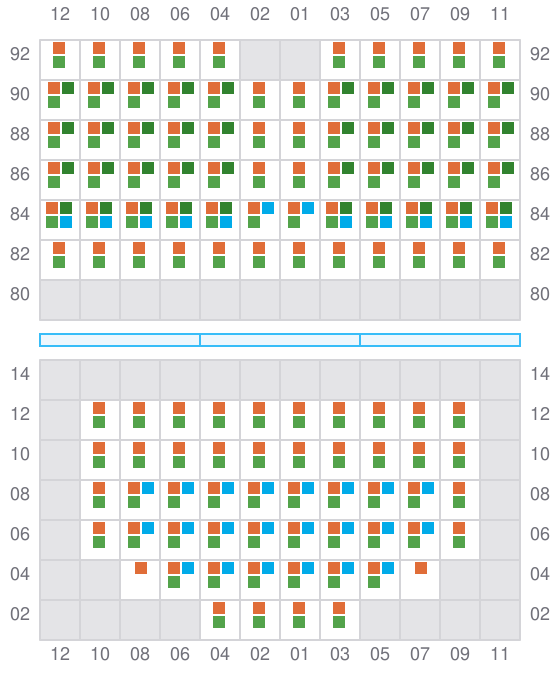

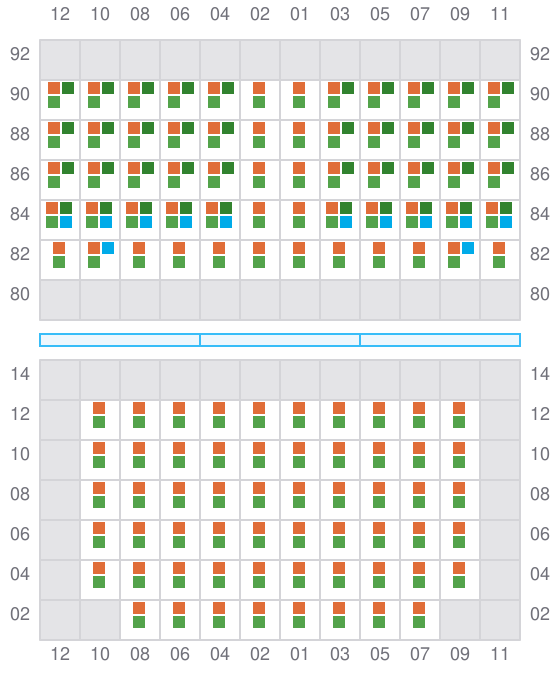

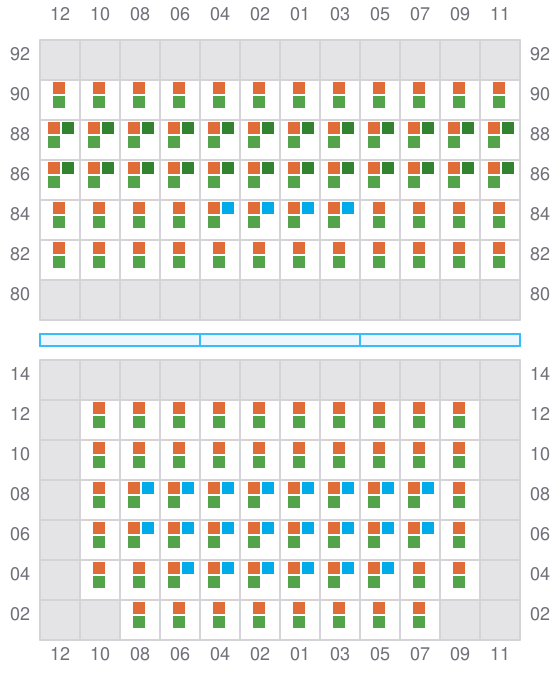

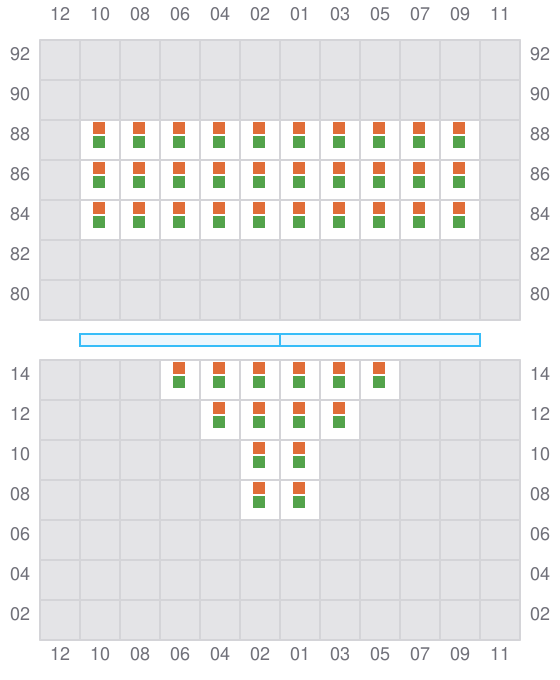

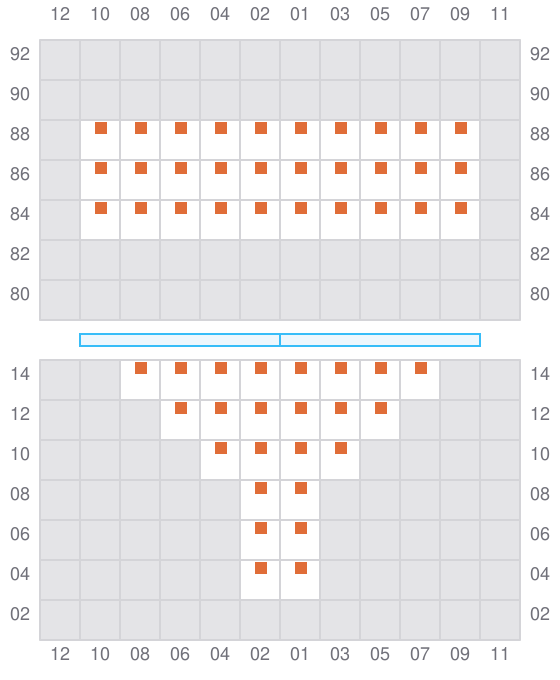

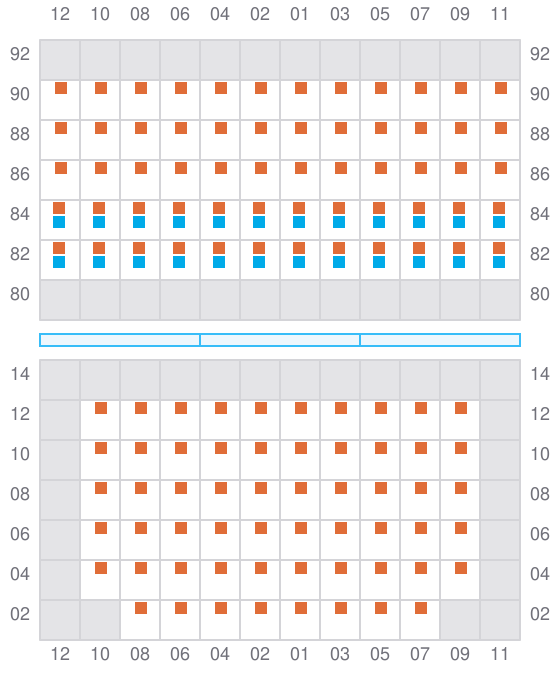

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
- ← / ?
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- →
013 (014)
- →
- ←
015
- ←
- → / ?
017 (018)
- →
- ←
019
- ←
- → / ?
021 (022)
- →
- ←
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- → / ?
029 (030)
- →
- ←
031
- ←
- → / ?
033 (034)
- →
- ←
035
- ←
- → / ?
037 (038)
- → / ?
039
- ← / ?
- → / ?
