MSC SHREYA B
9778105 | CQIP3 | MSC SHIPMANAGEMENT LTD by ************************** Last update: Tue Jun 17 2025

General Info

Ship Name:MSC SHREYA B
IMO Code:9778105
Call Sign:CQIP3
Line Operator:MSC SHIPMANAGEMENT LTD
Class Name for Sister Ships:
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):330.00
LOA (Length Overall):330.03
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:12,221

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

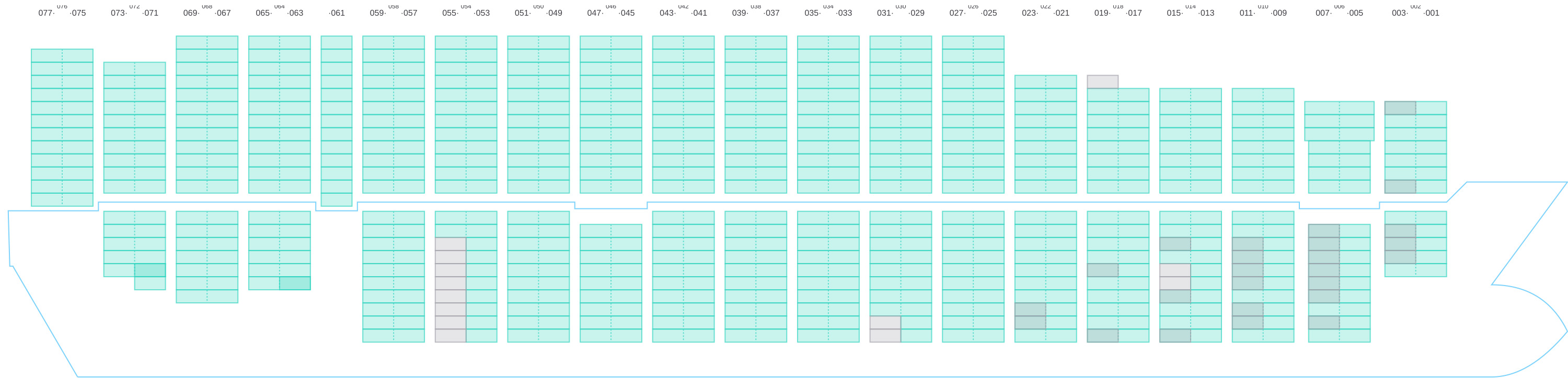

Side view of MSC SHREYA B

Hatch-Covers View

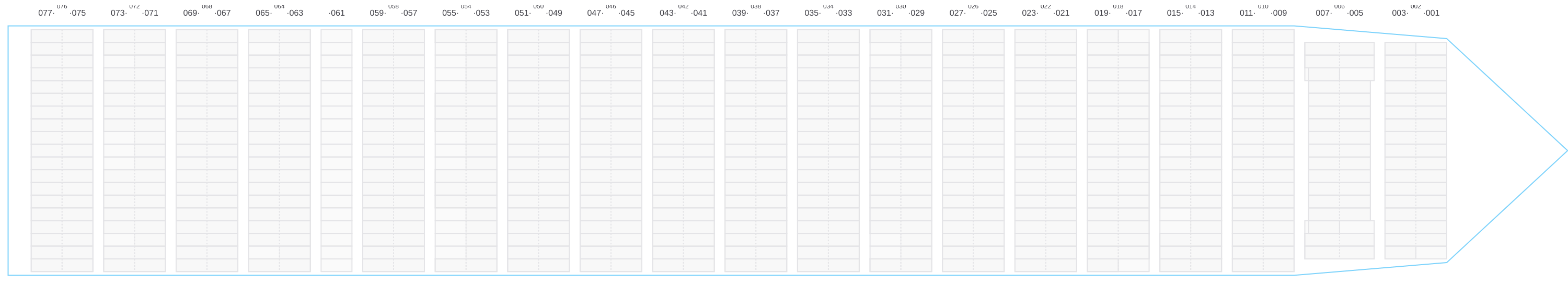

Deck view of MSC SHREYA B

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →

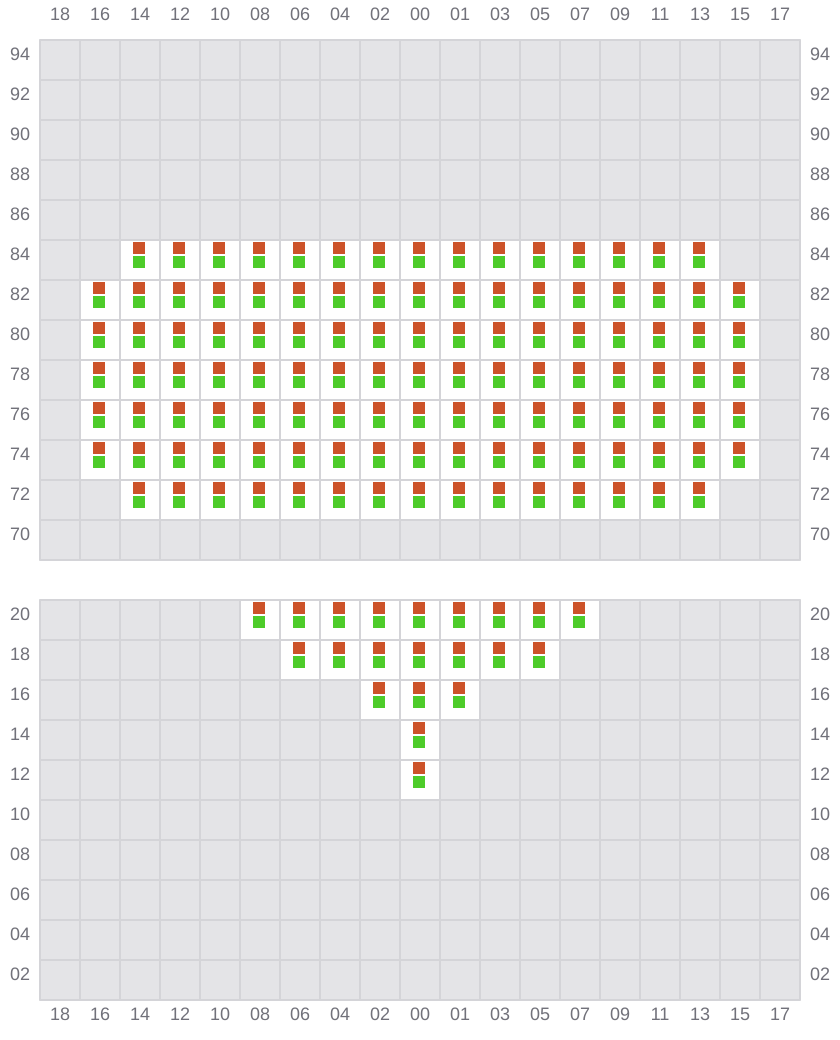

Bay 001 view and slots of MSC SHREYA B

003

  • ←

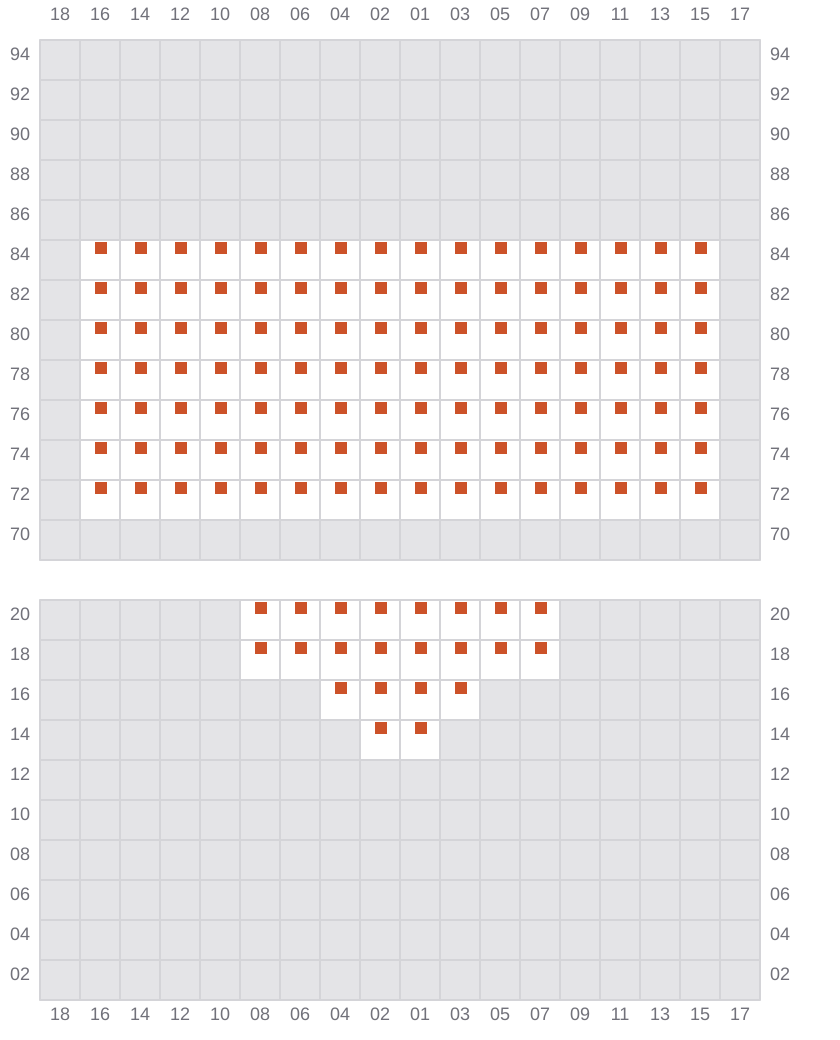

Bay 003 view and slots of MSC SHREYA B

005 (006)

  • →

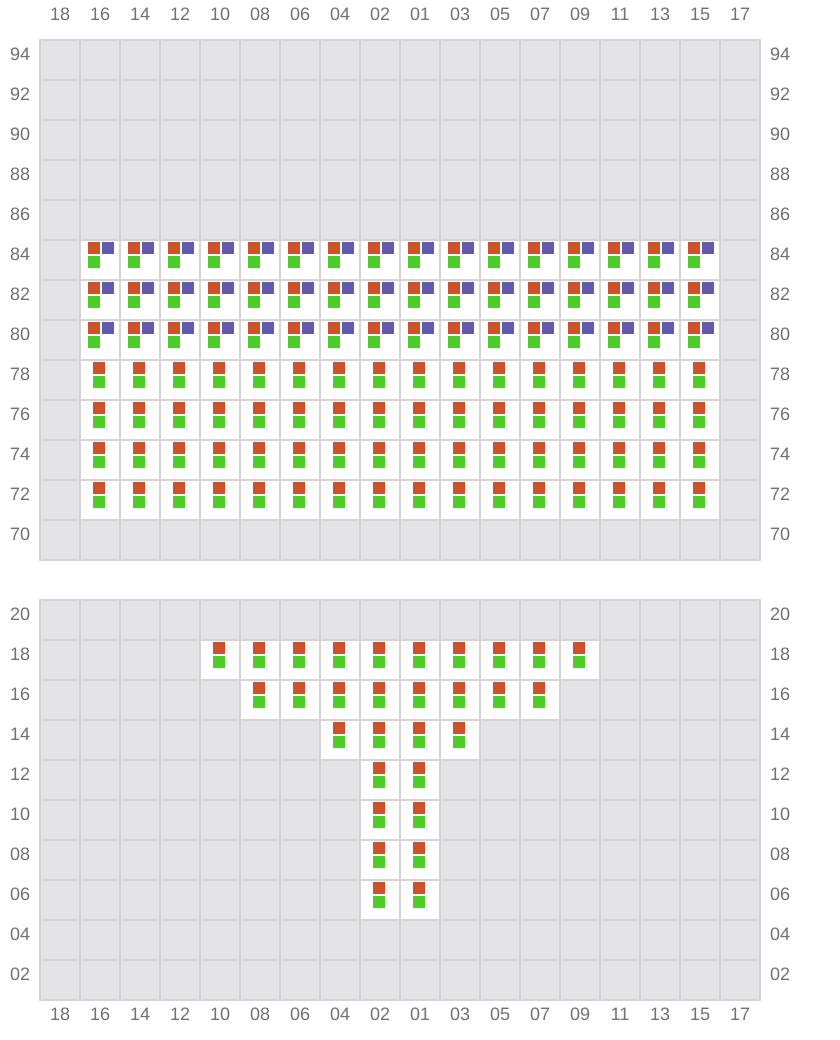

Bay 005 view and slots of MSC SHREYA B

007

  • ←

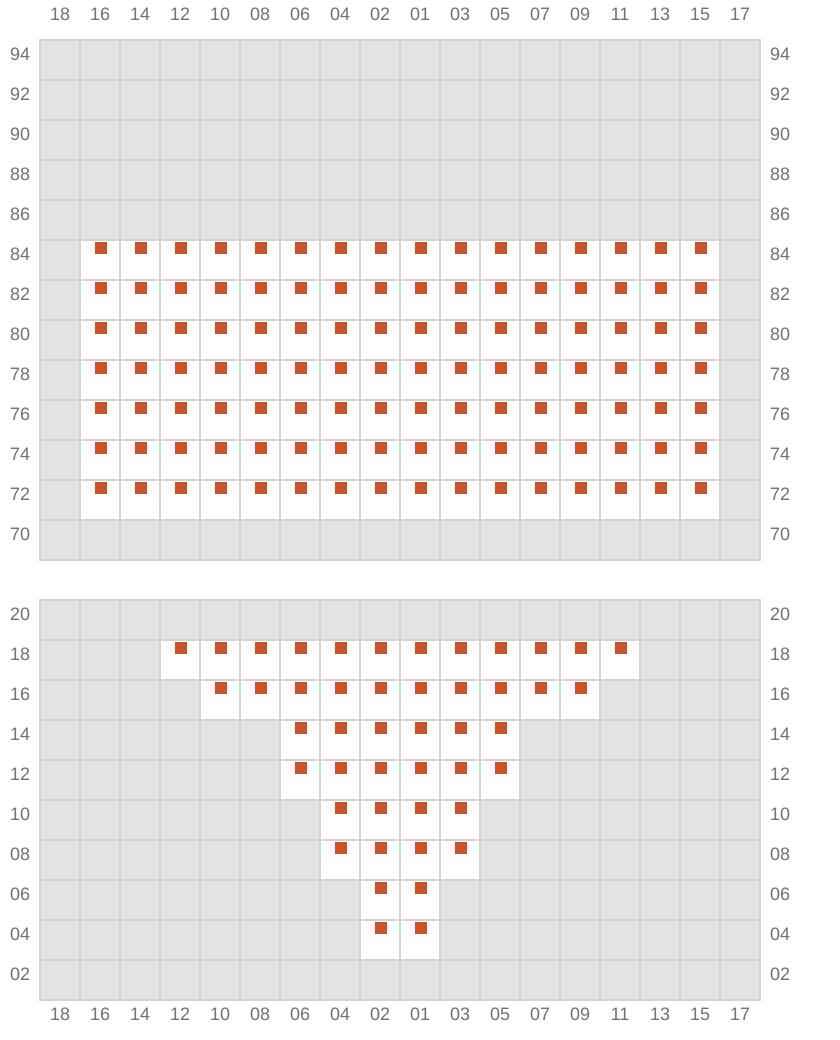

Bay 007 view and slots of MSC SHREYA B

009 (010)

  • →
Bay 009 view and slots of MSC SHREYA B

011

  • ←
Bay 011 view and slots of MSC SHREYA B

013 (014)

  • →
Bay 013 view and slots of MSC SHREYA B

015

  • ←
Bay 015 view and slots of MSC SHREYA B

017 (018)

  • →
Bay 017 view and slots of MSC SHREYA B

019

  • ←

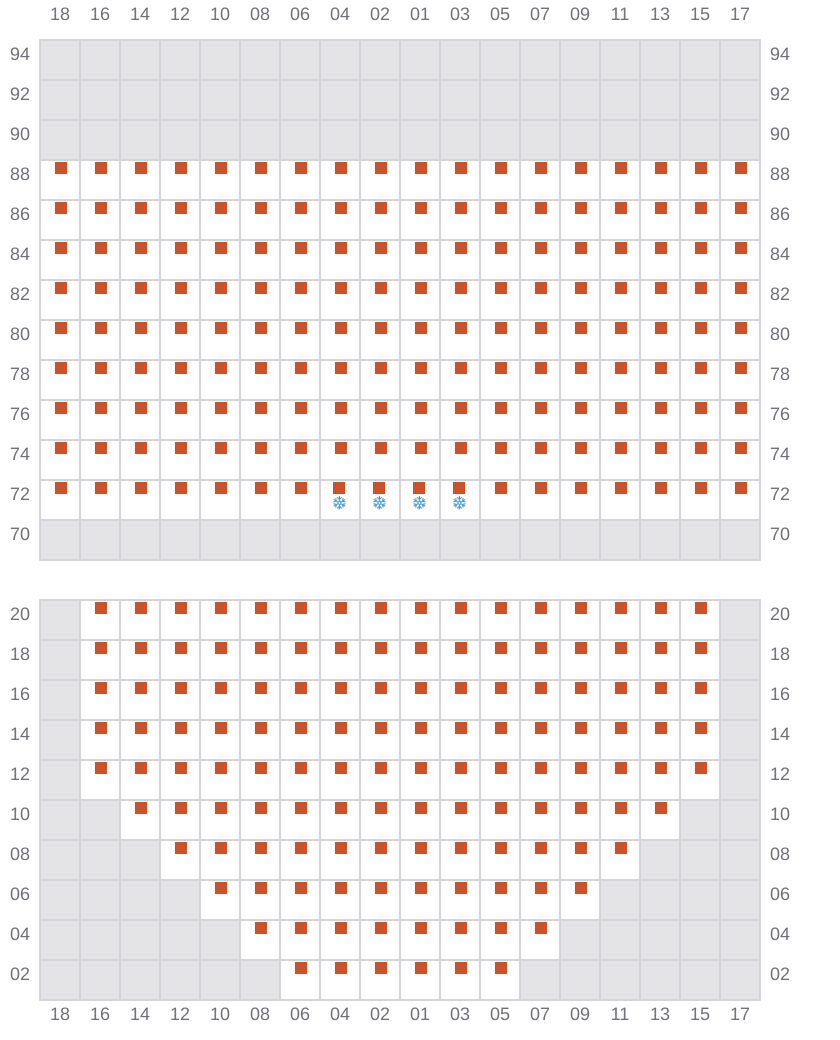

Bay 019 view and slots of MSC SHREYA B

021 (022)

  • →

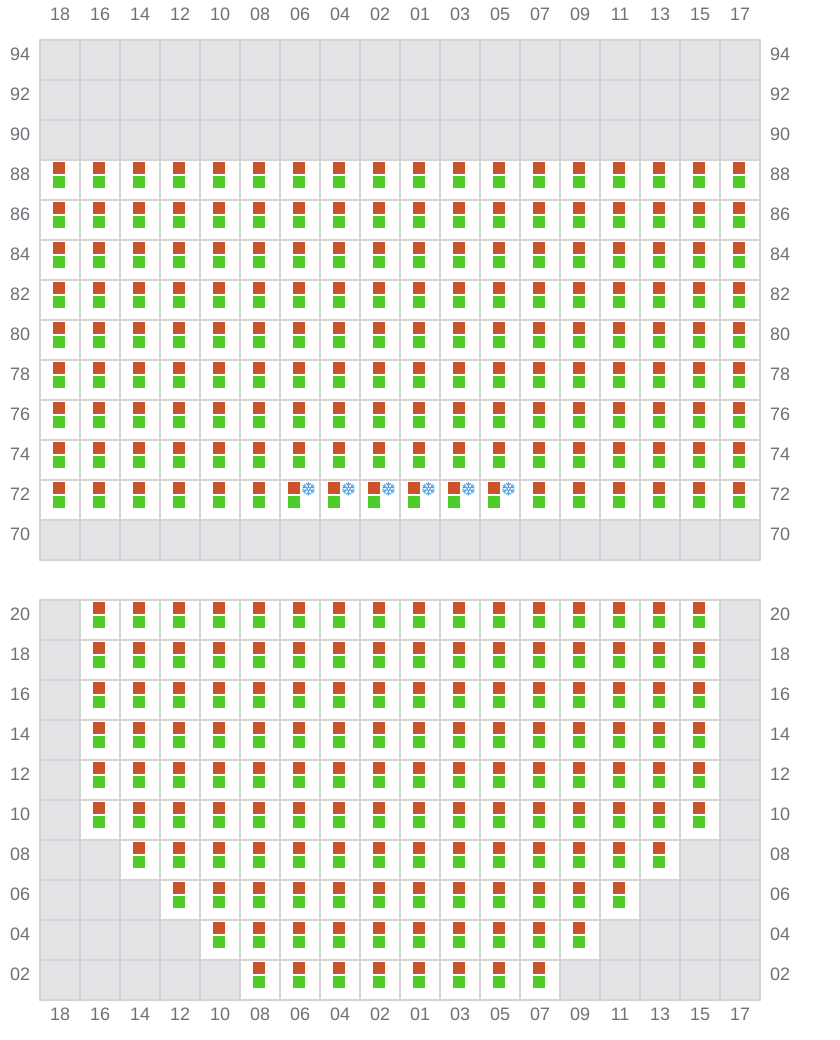

Bay 021 view and slots of MSC SHREYA B

023

  • ←

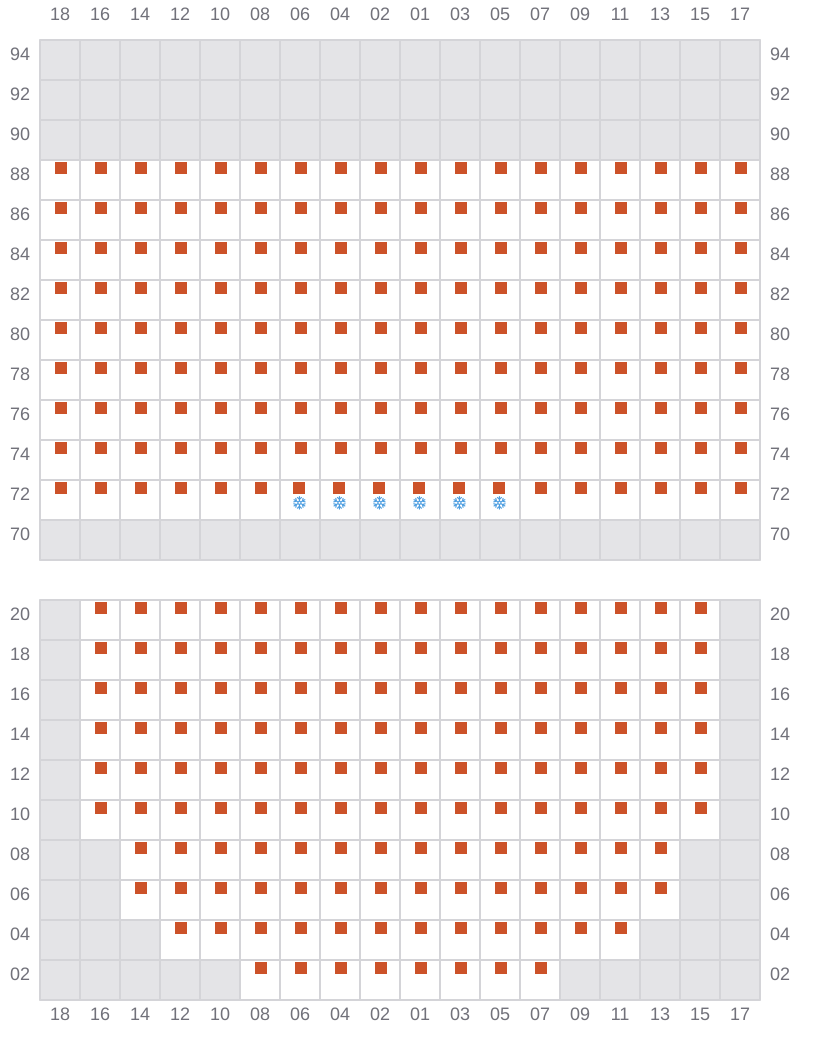

Bay 023 view and slots of MSC SHREYA B

025 (026)

  • →
Bay 025 view and slots of MSC SHREYA B

027

  • ←
Bay 027 view and slots of MSC SHREYA B

029 (030)

  • →

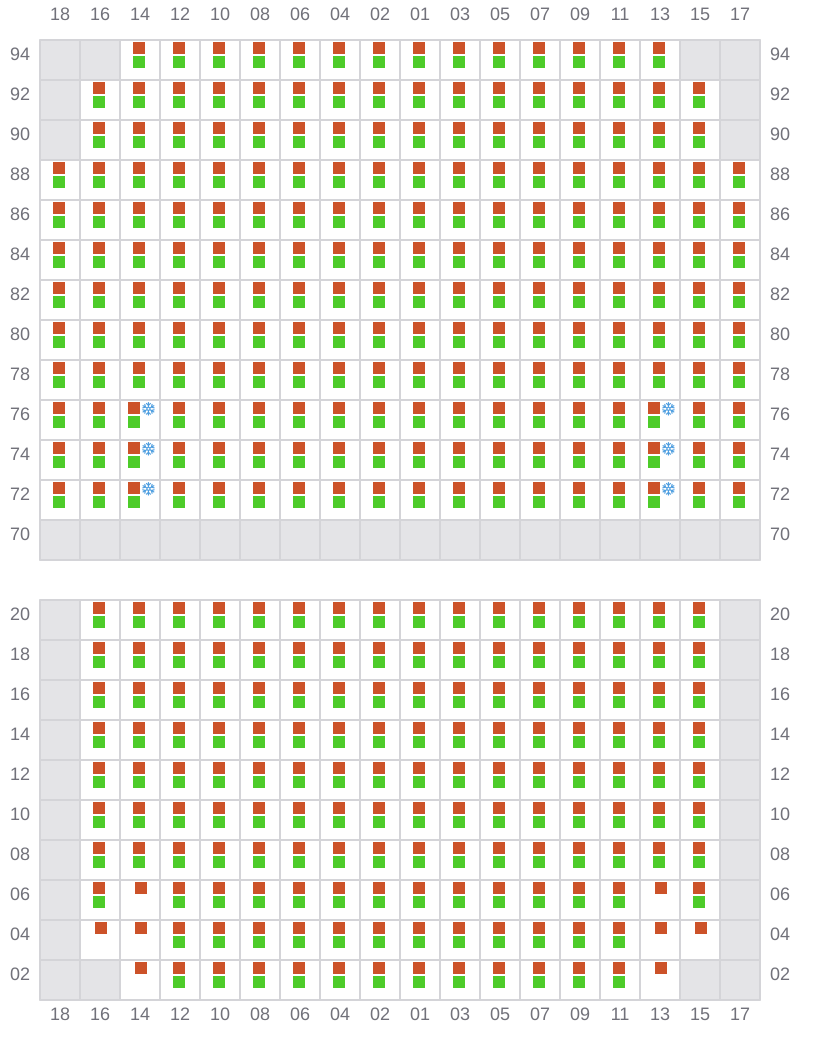

Bay 029 view and slots of MSC SHREYA B

031

  • ←

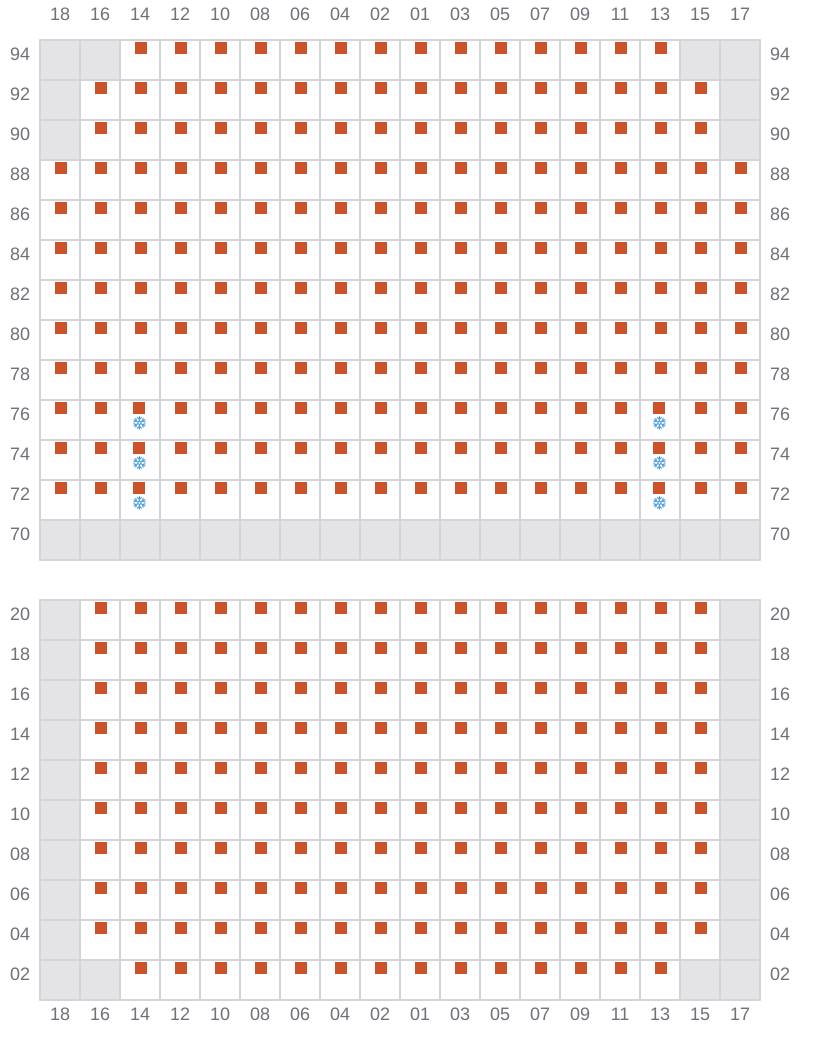

Bay 031 view and slots of MSC SHREYA B

033 (034)

  • →
Bay 033 view and slots of MSC SHREYA B

035

  • ←
Bay 035 view and slots of MSC SHREYA B

037 (038)

  • →

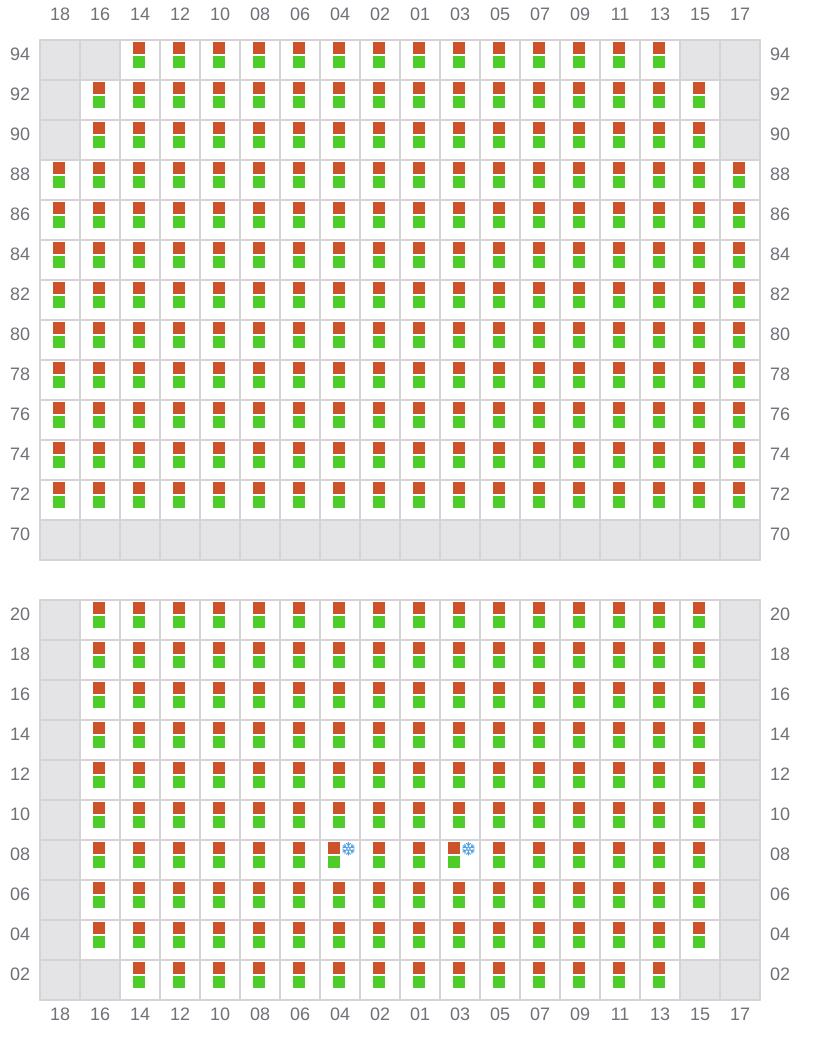

Bay 037 view and slots of MSC SHREYA B

039

  • ←
Bay 039 view and slots of MSC SHREYA B

041 (042)

  • →
Bay 041 view and slots of MSC SHREYA B

043

  • ←
Bay 043 view and slots of MSC SHREYA B

045 (046)

  • →
Bay 045 view and slots of MSC SHREYA B

047

  • ←
Bay 047 view and slots of MSC SHREYA B

049 (050)

  • →

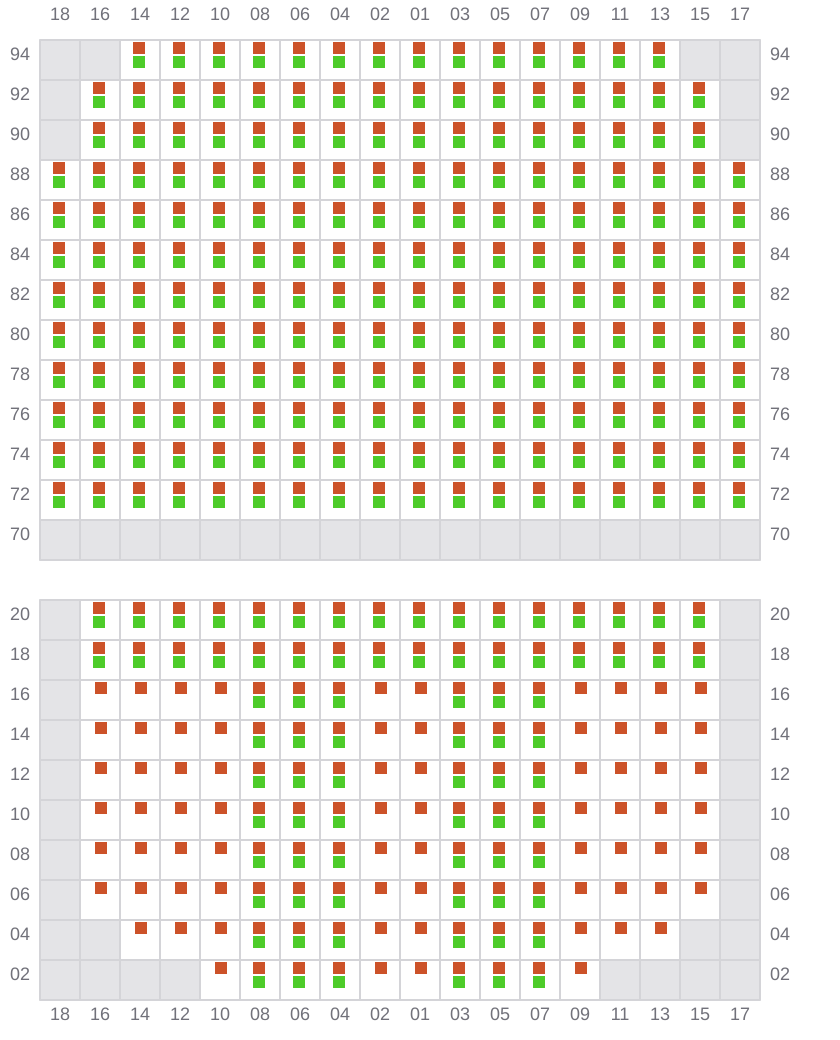

Bay 049 view and slots of MSC SHREYA B

051

  • ←

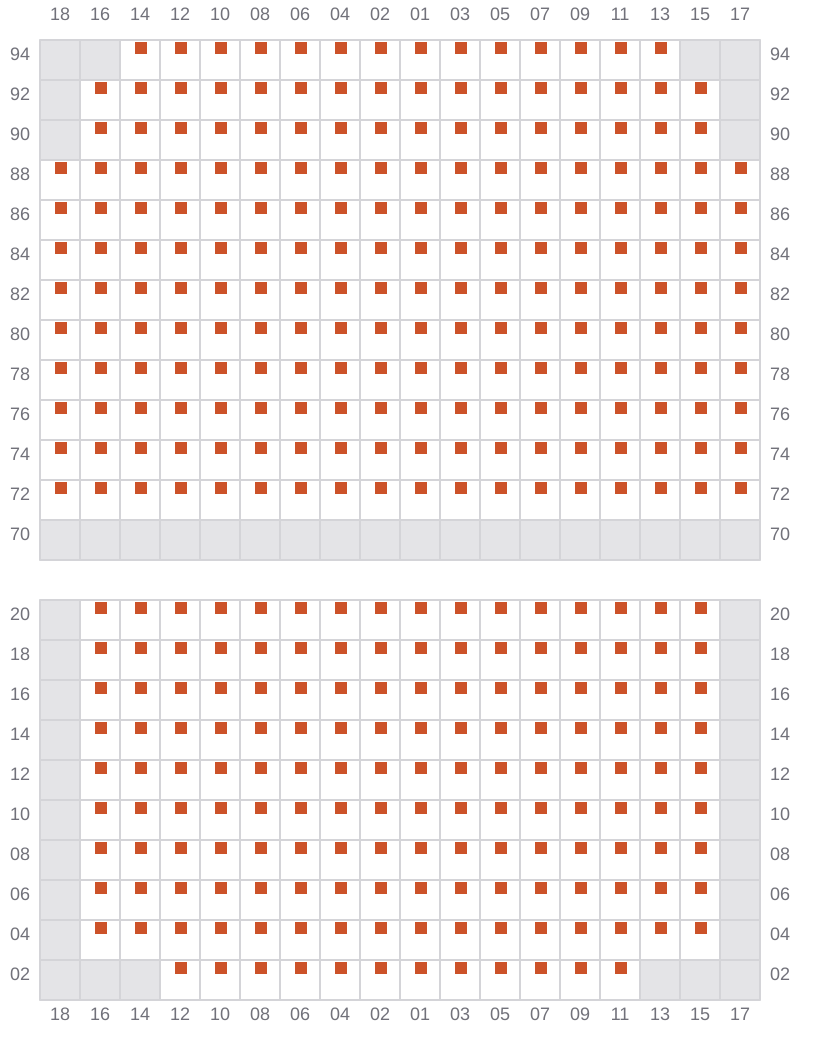

Bay 051 view and slots of MSC SHREYA B

053 (054)

  • →
Bay 053 view and slots of MSC SHREYA B

055

  • ←
Bay 055 view and slots of MSC SHREYA B

057 (058)

  • →
Bay 057 view and slots of MSC SHREYA B

059

  • ←

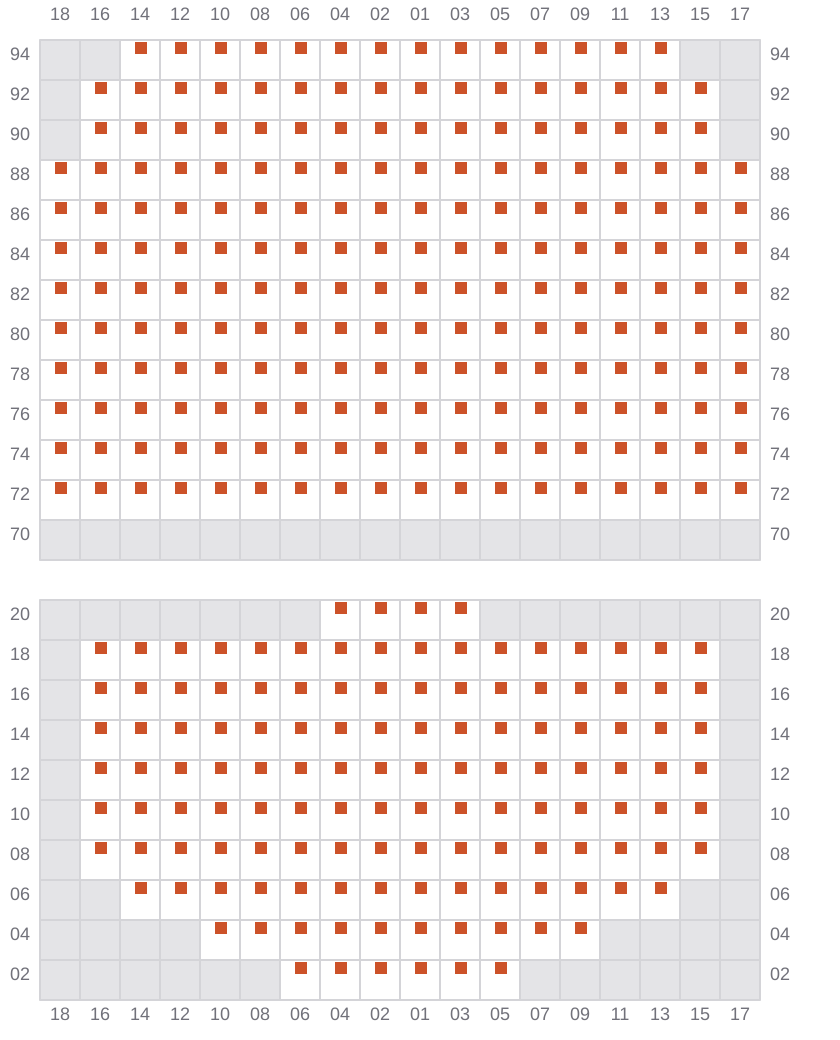

Bay 059 view and slots of MSC SHREYA B

061

  • → / ?

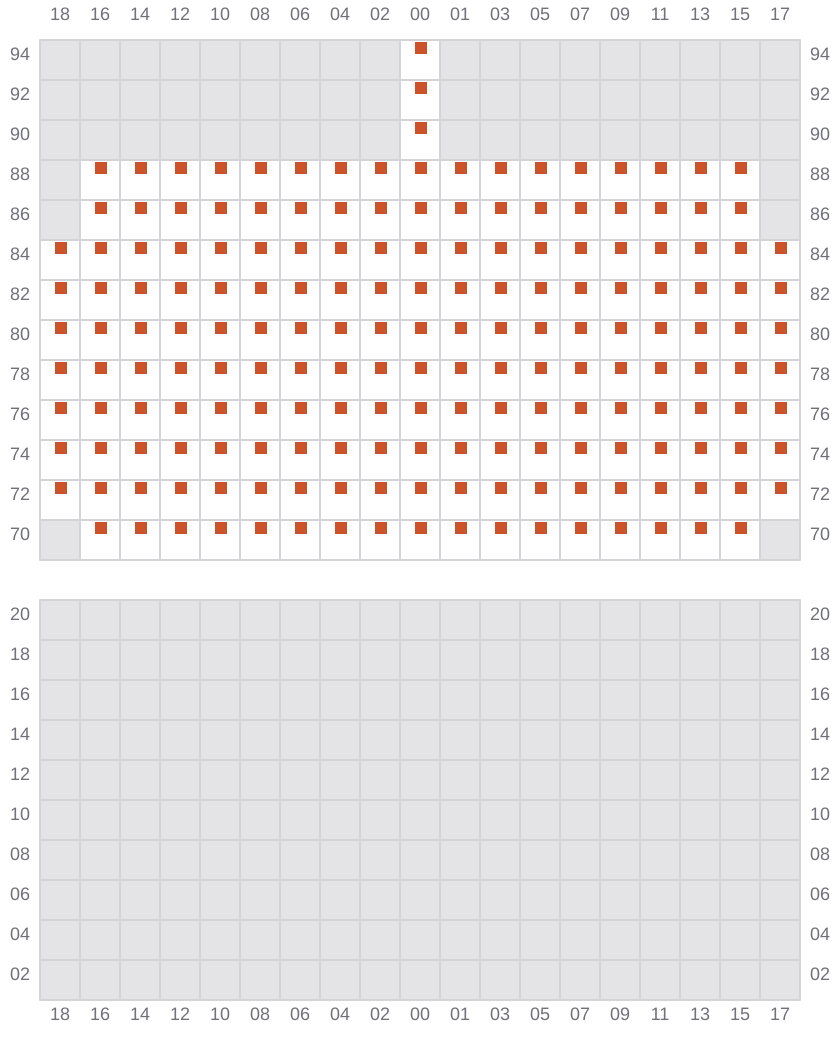

Bay 061 view and slots of MSC SHREYA B

063 (064)

  • →
Bay 063 view and slots of MSC SHREYA B

065

  • ←
Bay 065 view and slots of MSC SHREYA B

067 (068)

  • →
Bay 067 view and slots of MSC SHREYA B

069

  • ←

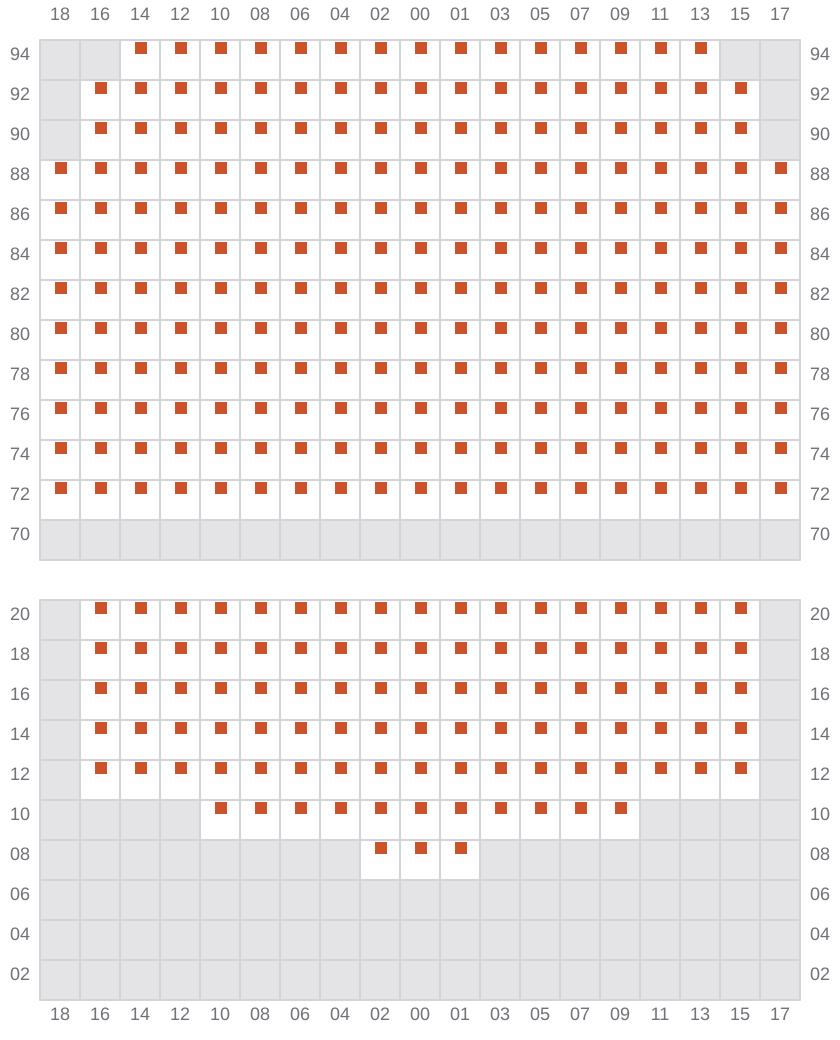

Bay 069 view and slots of MSC SHREYA B

071 (072)

  • →

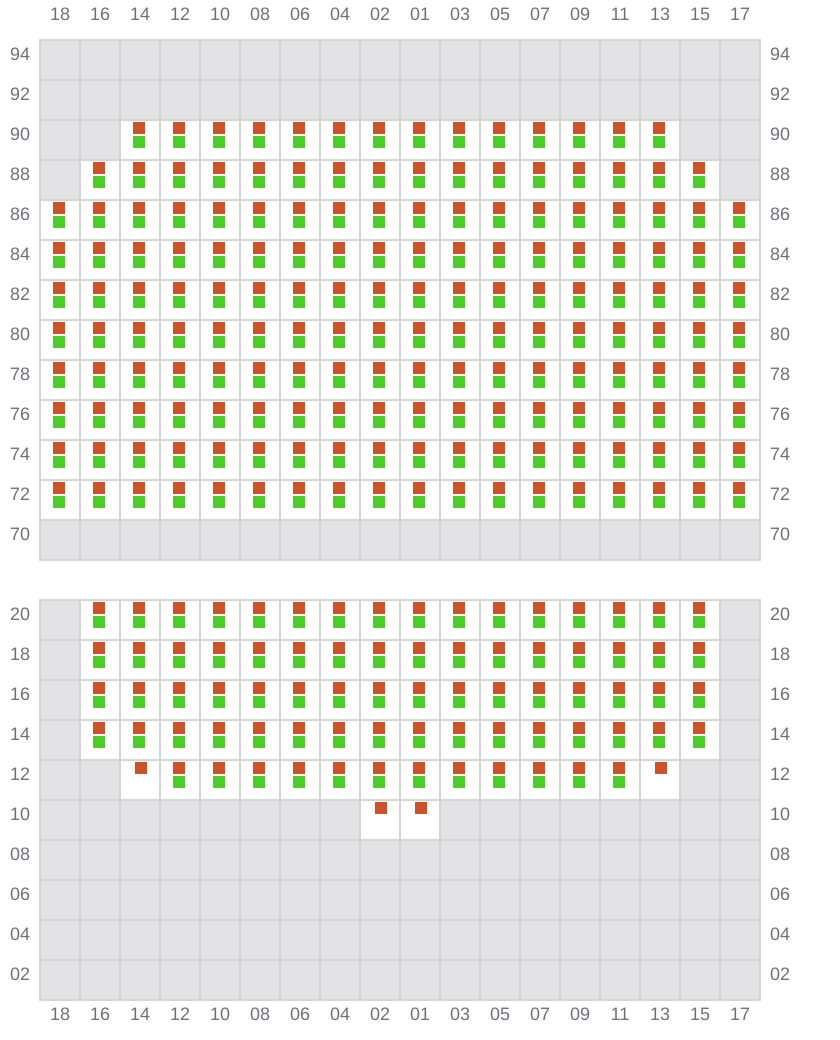

Bay 071 view and slots of MSC SHREYA B

073

  • ←

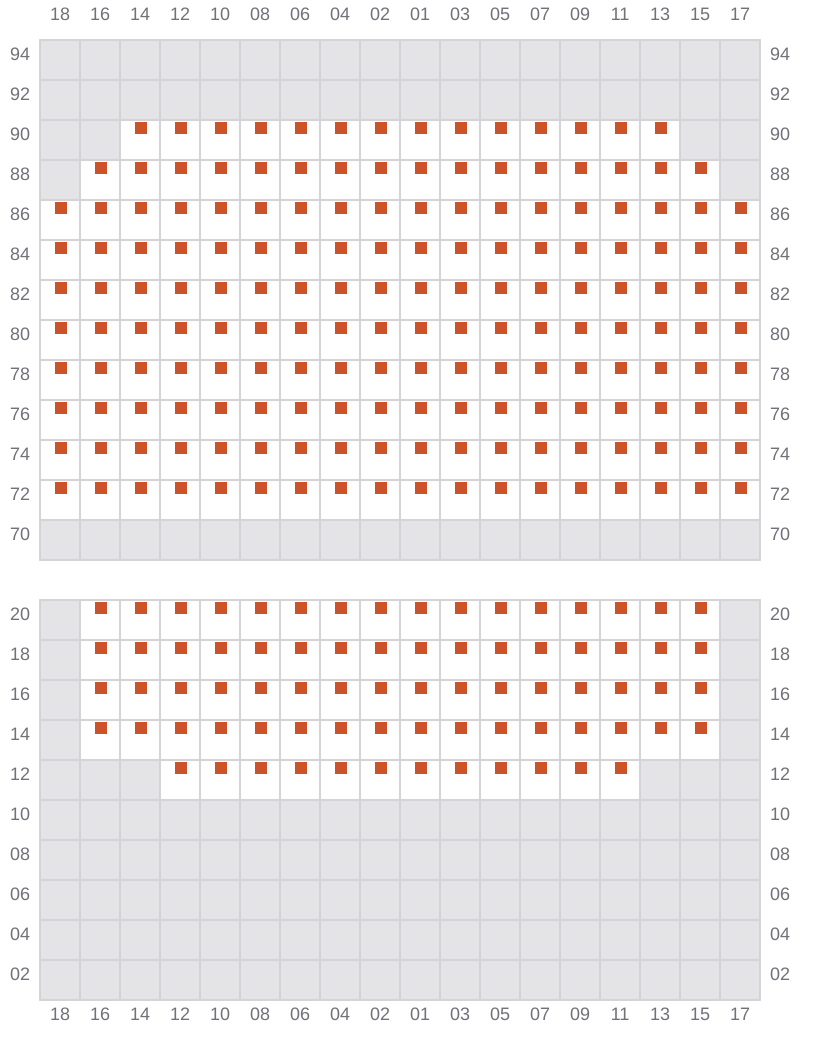

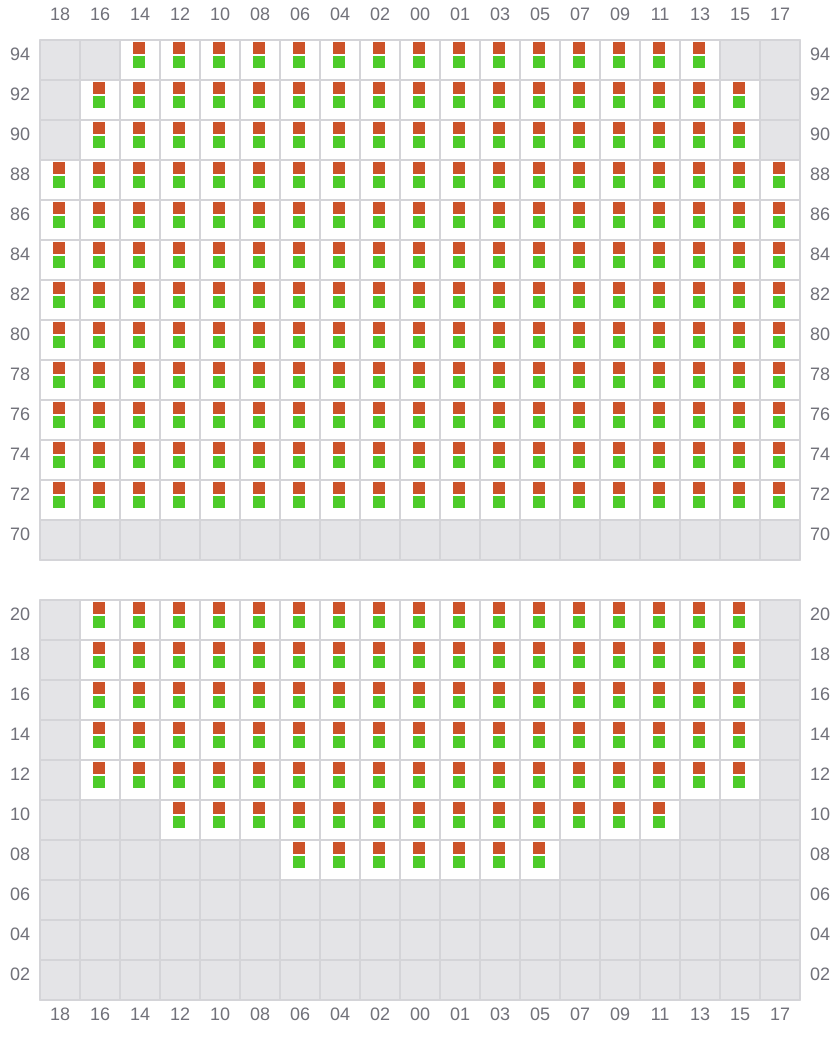

Bay 073 view and slots of MSC SHREYA B

075 (076)

  • →

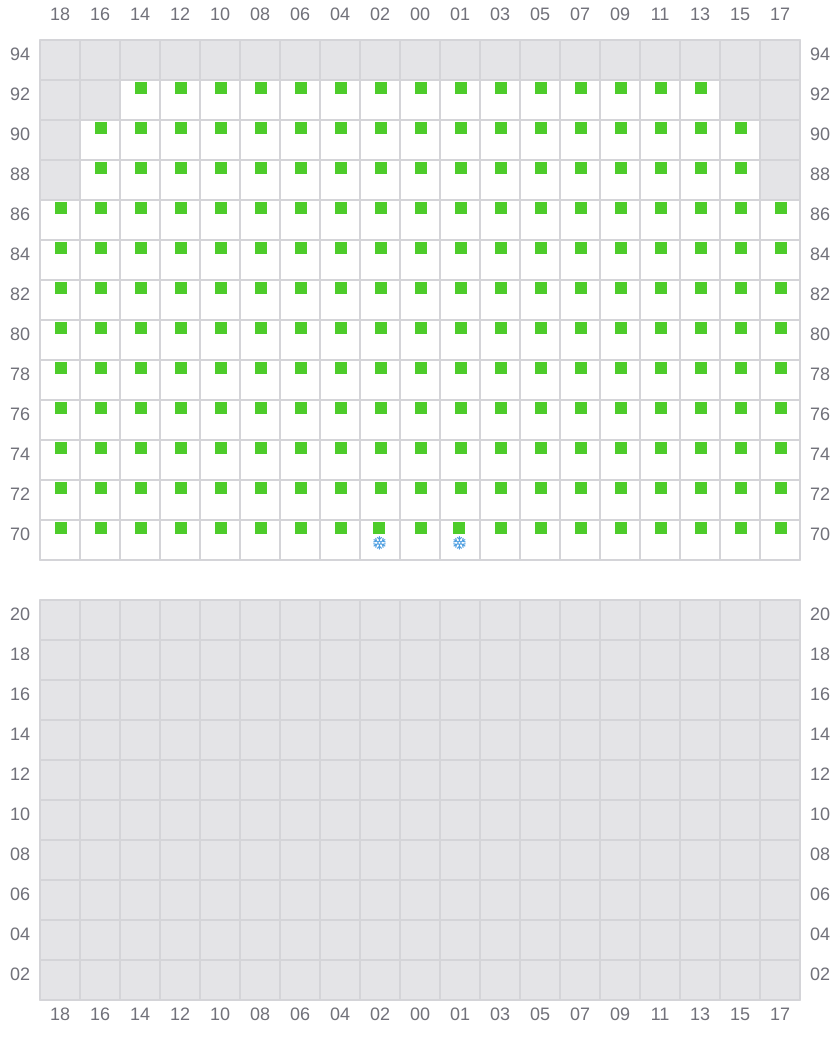

Bay 075 view and slots of MSC SHREYA B

077

  • ←

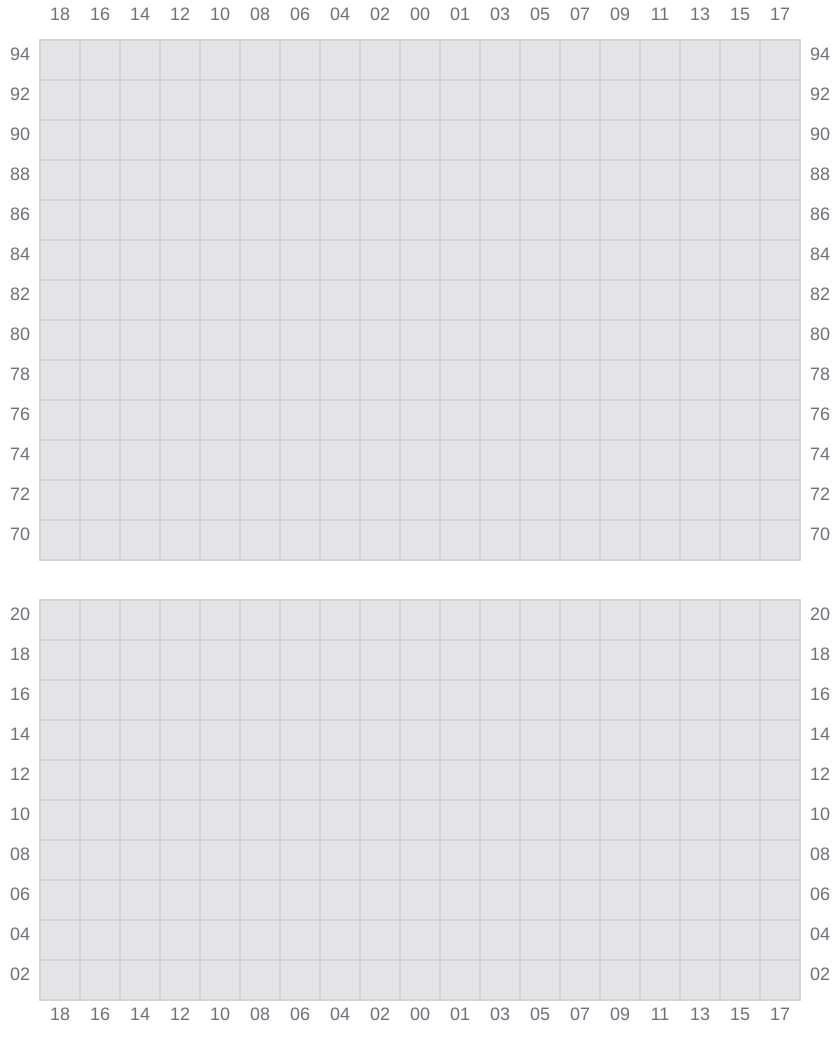

Bay 077 view and slots of MSC SHREYA B
