MSC SHRISTI
9293442 | D5YT3 | 9293442 by ********* Last update: Wed May 01 2024
General Info
Ship Name:MSC SHRISTI
IMO Code:9293442
Call Sign:D5YT3
Line Operator:9293442
Class Name for Sister Ships:VENICE BRIDGE
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,881
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

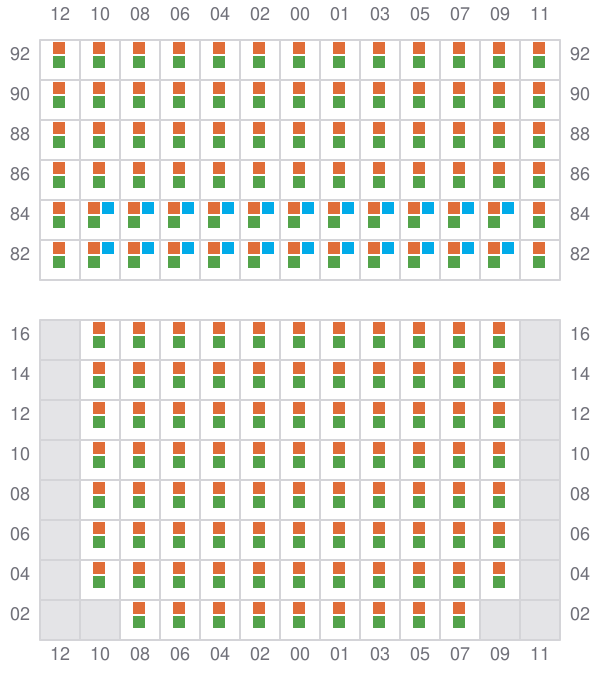

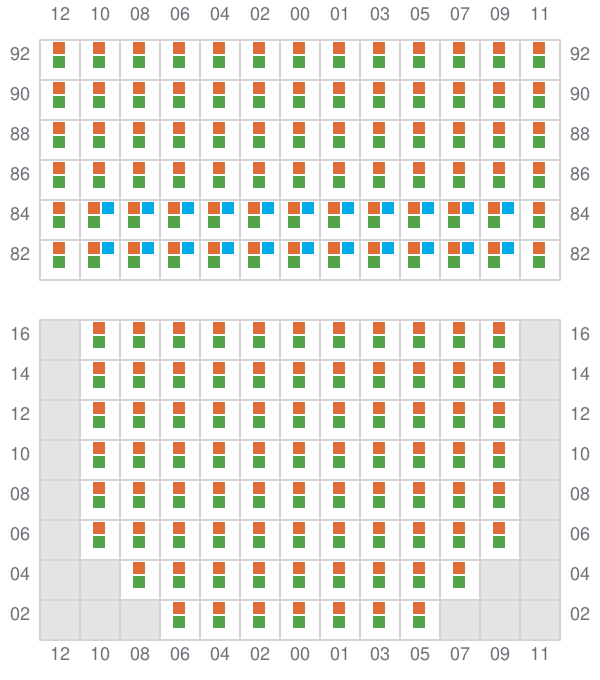

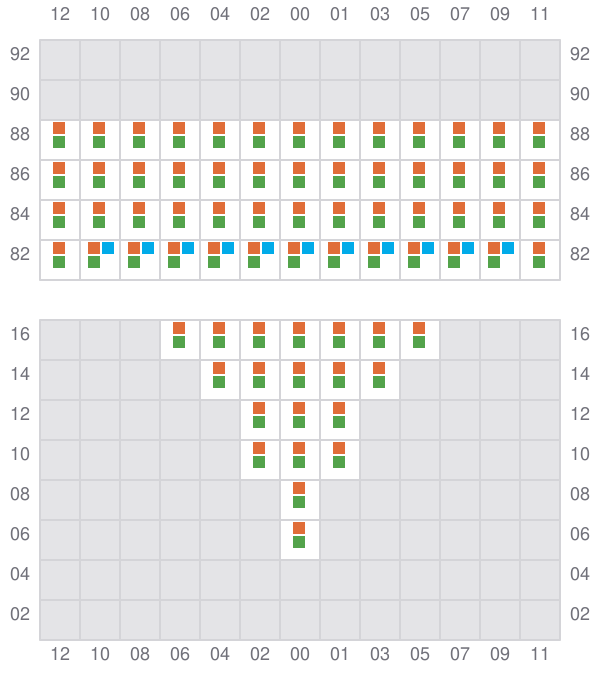

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

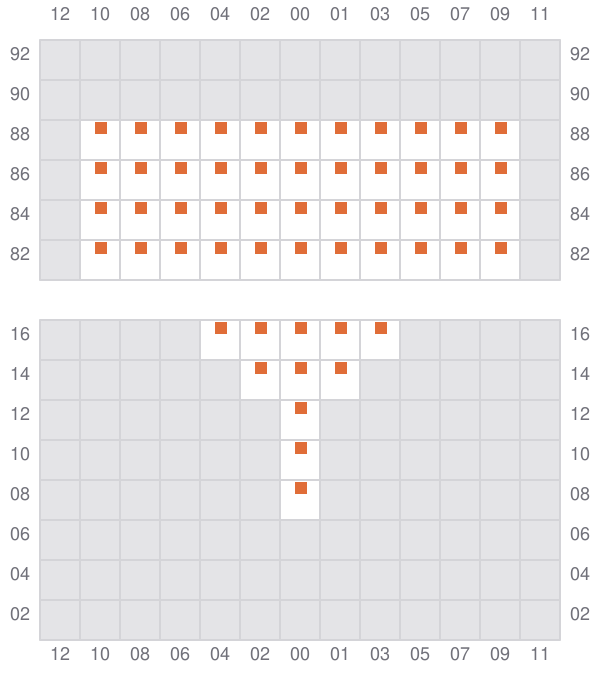

001
003 (004)
- →
005
- ←
007 (008)
- →
009
- → / ←

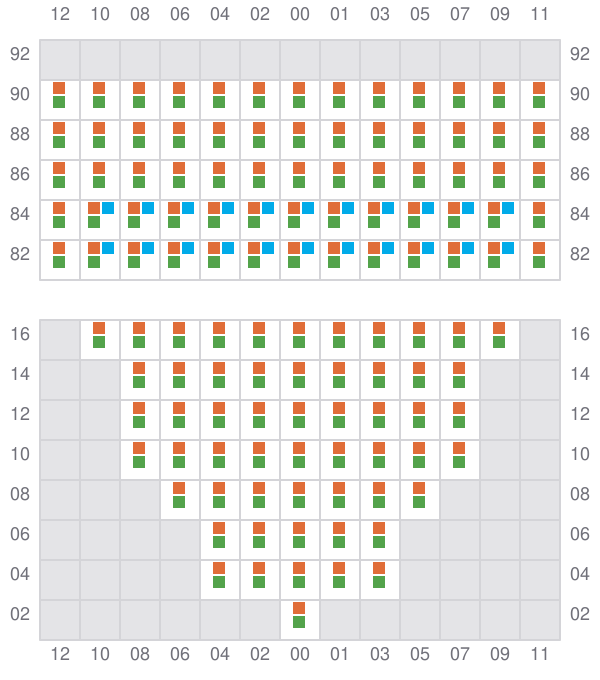

011 (012)
- →

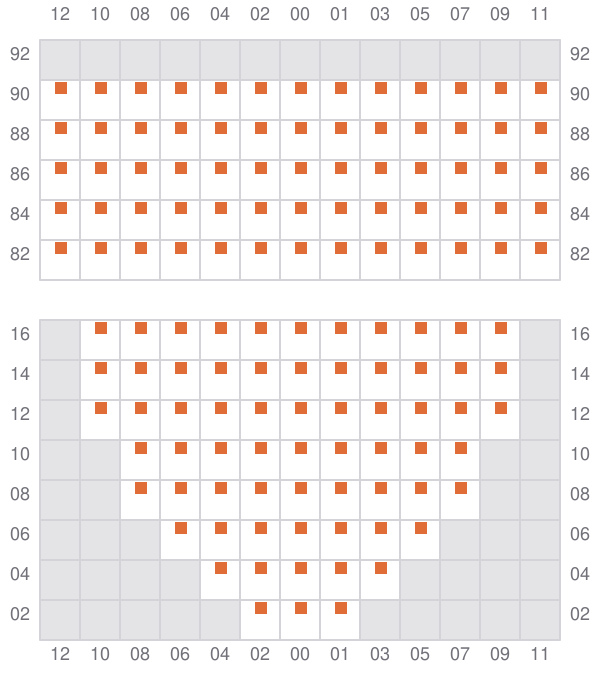

013
- ←
015 (016)
- →

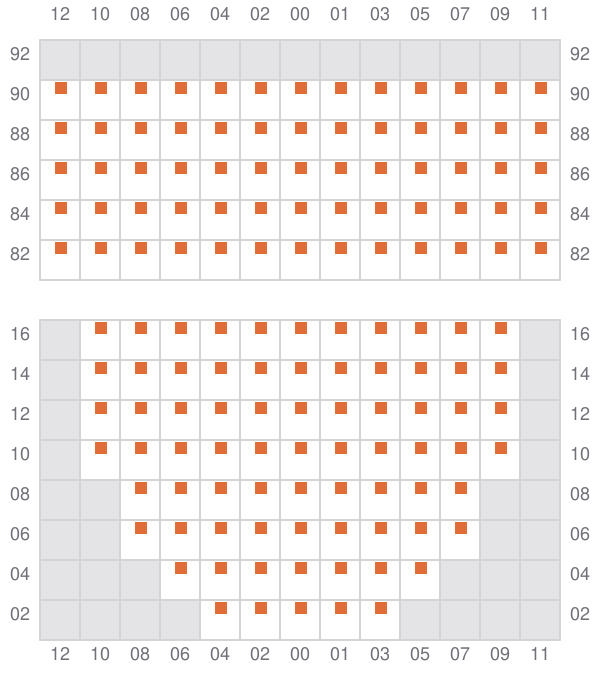

017
- ←
019 (020)
- →
021
- ←
023 (024)
- →

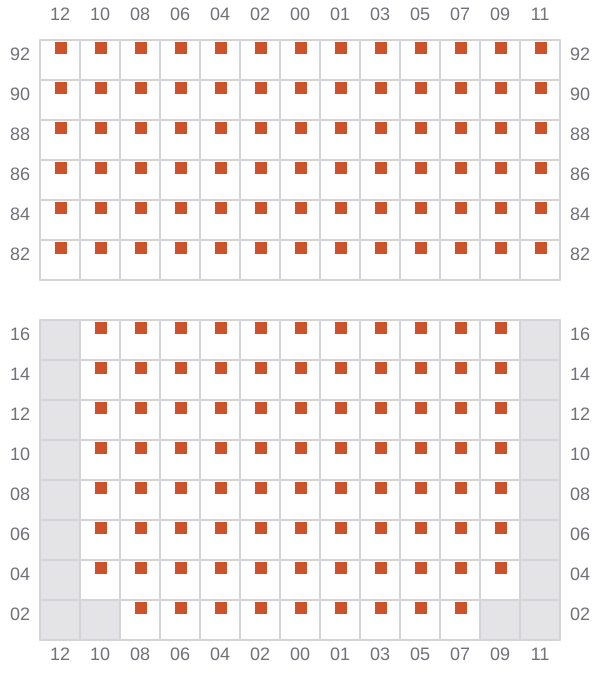

025
- → / ←
027 (028)
- →

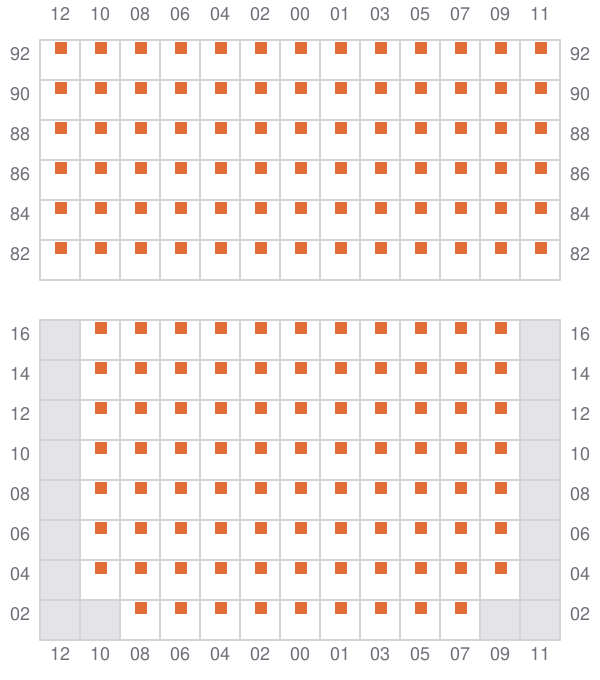

029
- ←
031 (032)
- →
033
- ←
035 (036)
- →
037
- ←
039 (040)
- →
041
- ←
043 (044)
- →
045
- ←
047 (048)
- →
049
- ←
051 (052)
- →
053
- ←
055 (056)
- →
057
- ←
059 (060)
- →
061
- ←
063 (064)
- →

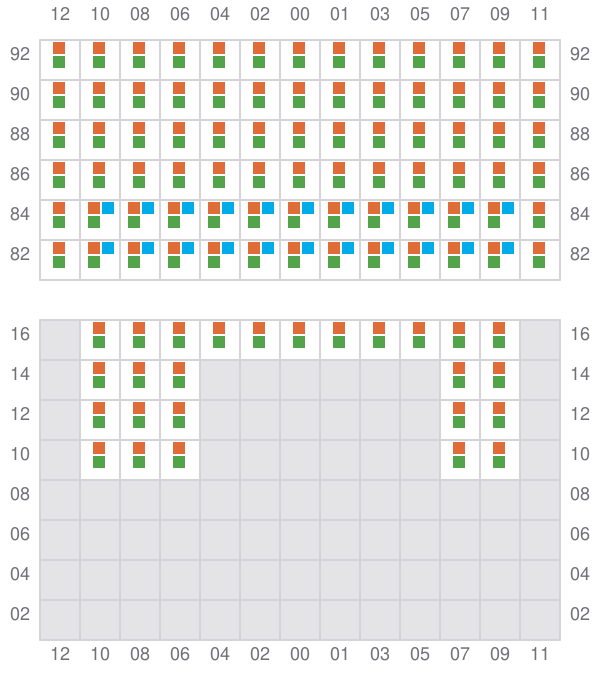

065
- ←
067 (068)
- → / ?
