MSC SILVANA VII
9309459 | 5BRU6 | 9309459 by ******************** Last update: Mon Jul 07 2025

General Info

Ship Name:MSC SILVANA VII
IMO Code:9309459
Call Sign:5BRU6
Line Operator:9309459
Class Name for Sister Ships:MSSI
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):318.26
LOA (Length Overall):331.99
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:MSC SILVANA

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,411

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

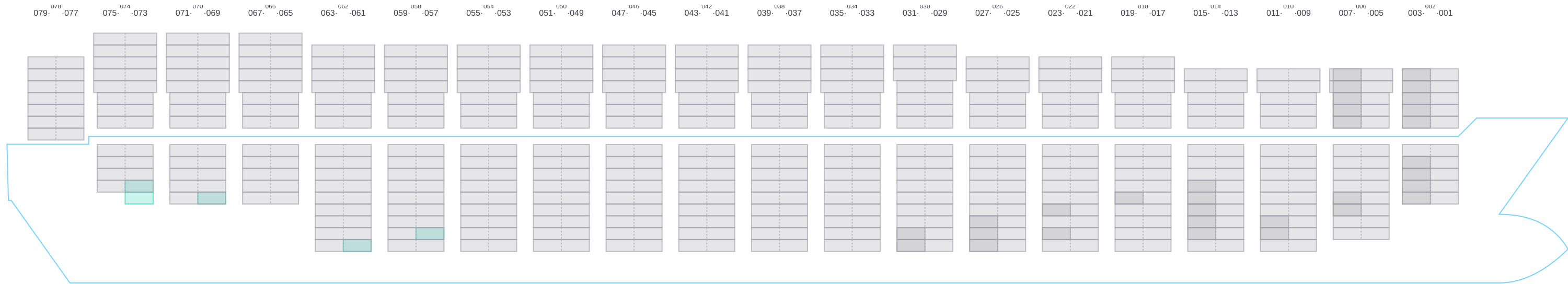

Side view of MSC SILVANA VII

Hatch-Covers View

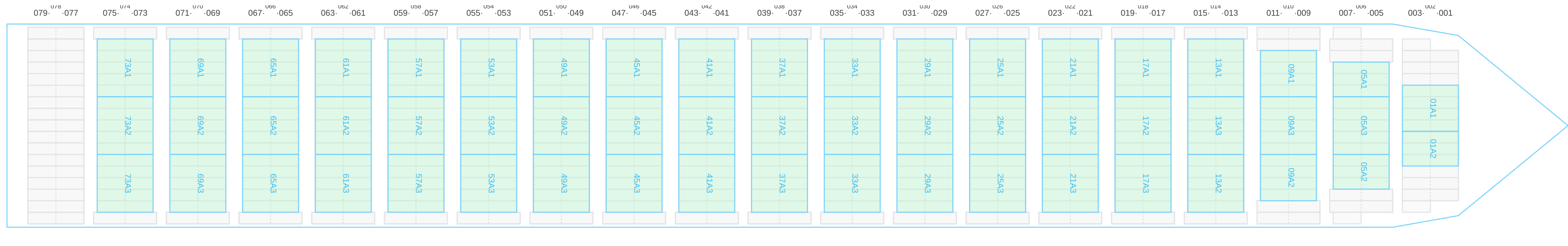

Deck view of MSC SILVANA VII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →

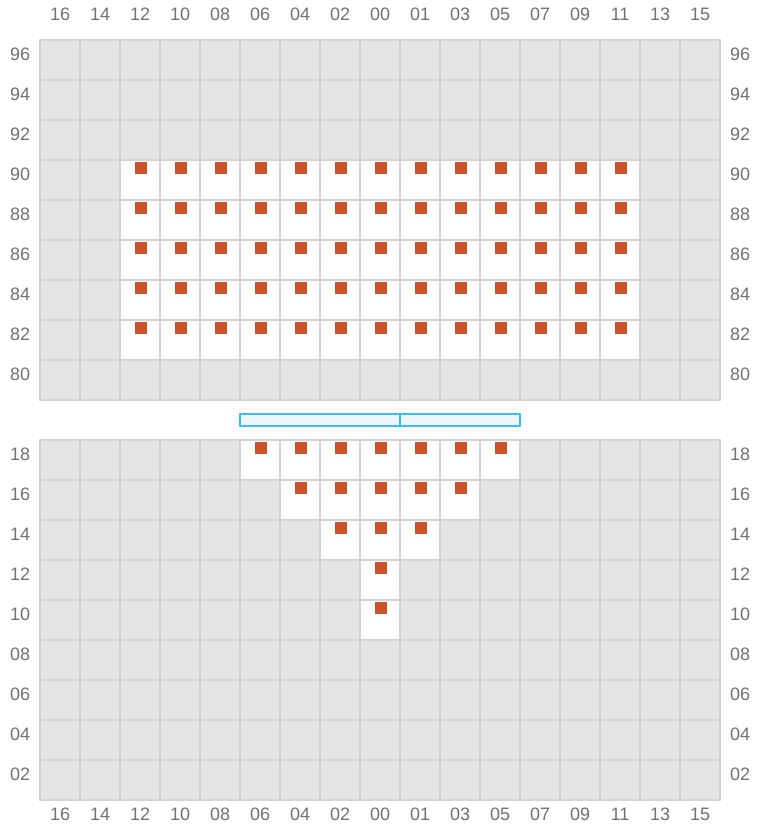

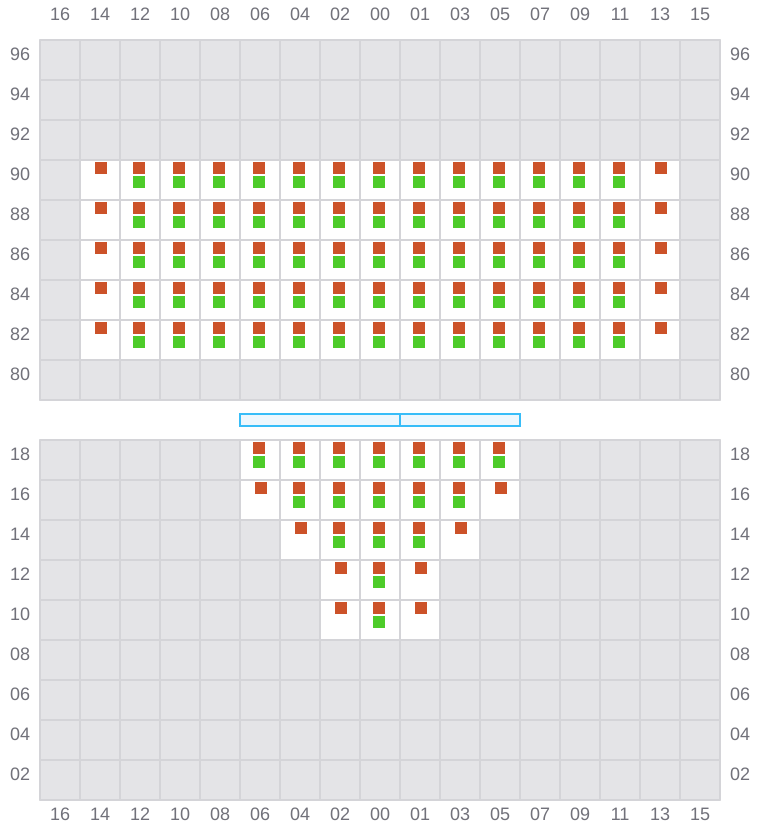

Bay 001 view and slots of MSC SILVANA VII

003 (002)

  • ←
Bay 003 view and slots of MSC SILVANA VII

005

  • →

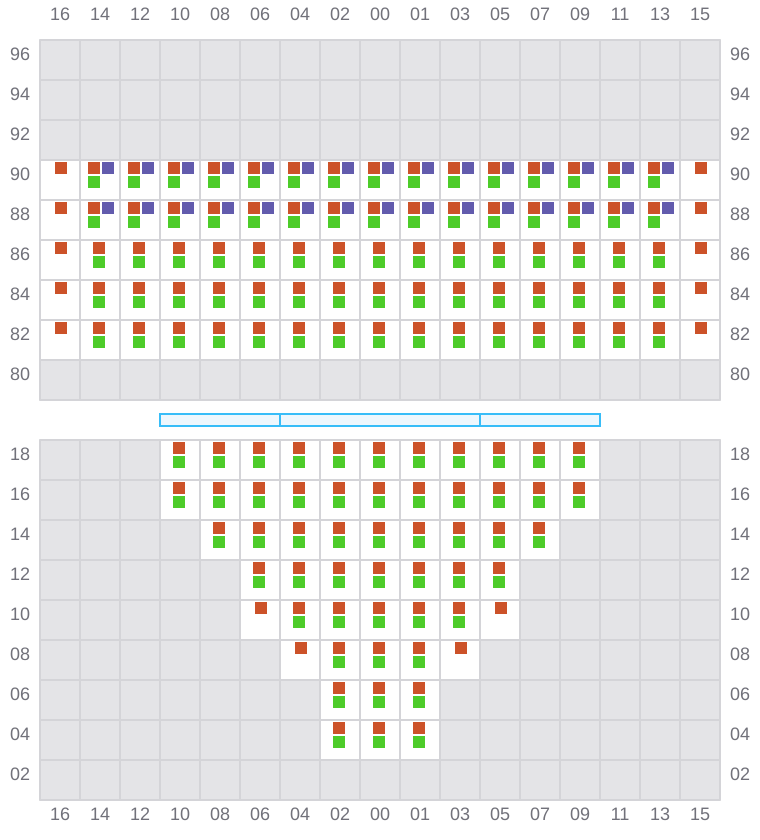

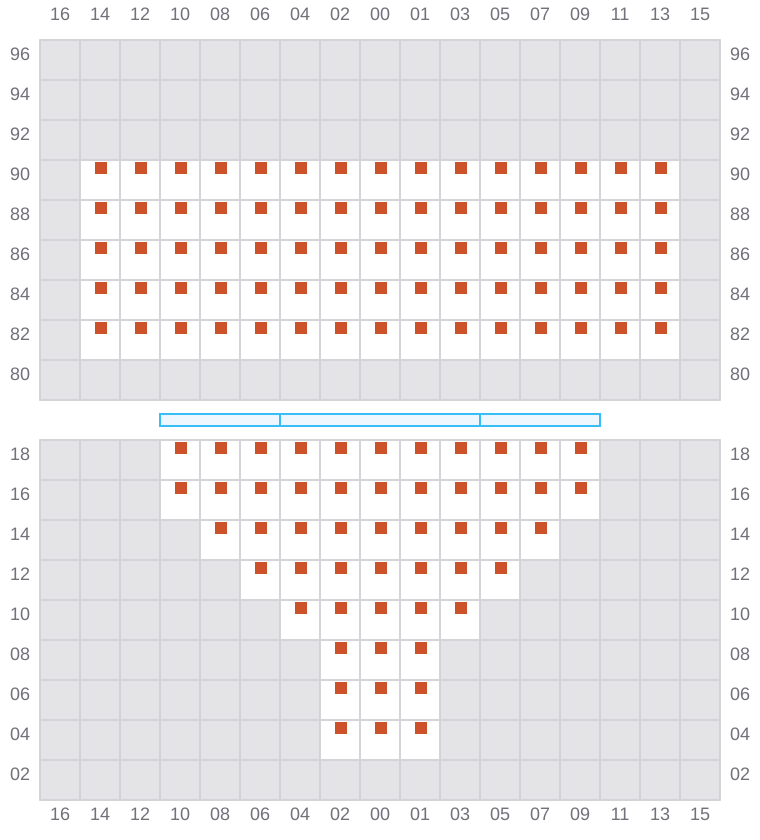

Bay 005 view and slots of MSC SILVANA VII

007 (006)

  • ←
Bay 007 view and slots of MSC SILVANA VII

009

  • →

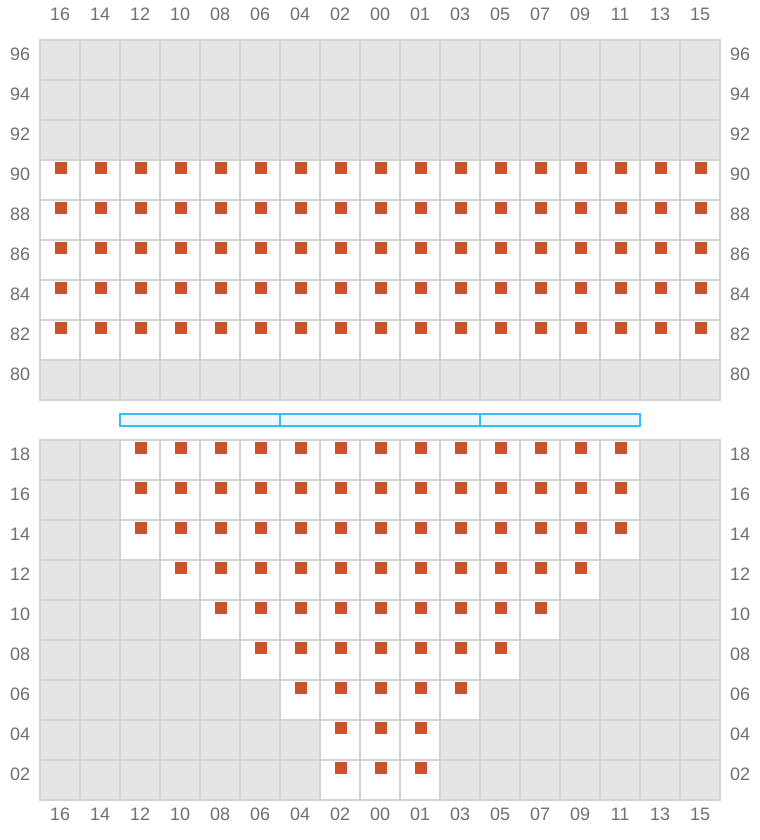

Bay 009 view and slots of MSC SILVANA VII

011 (010)

  • ←
Bay 011 view and slots of MSC SILVANA VII

013

  • →

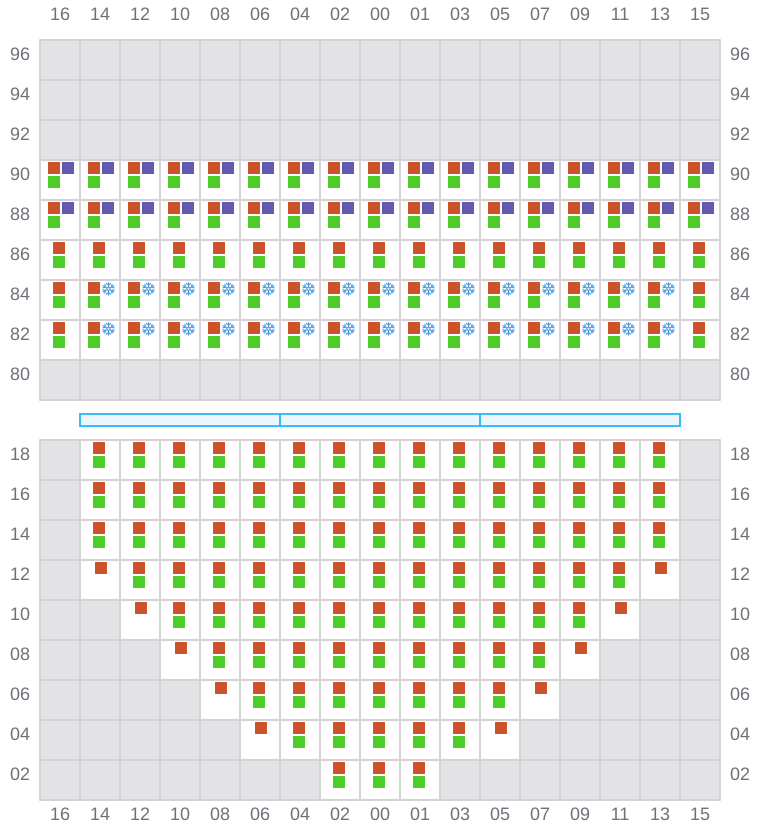

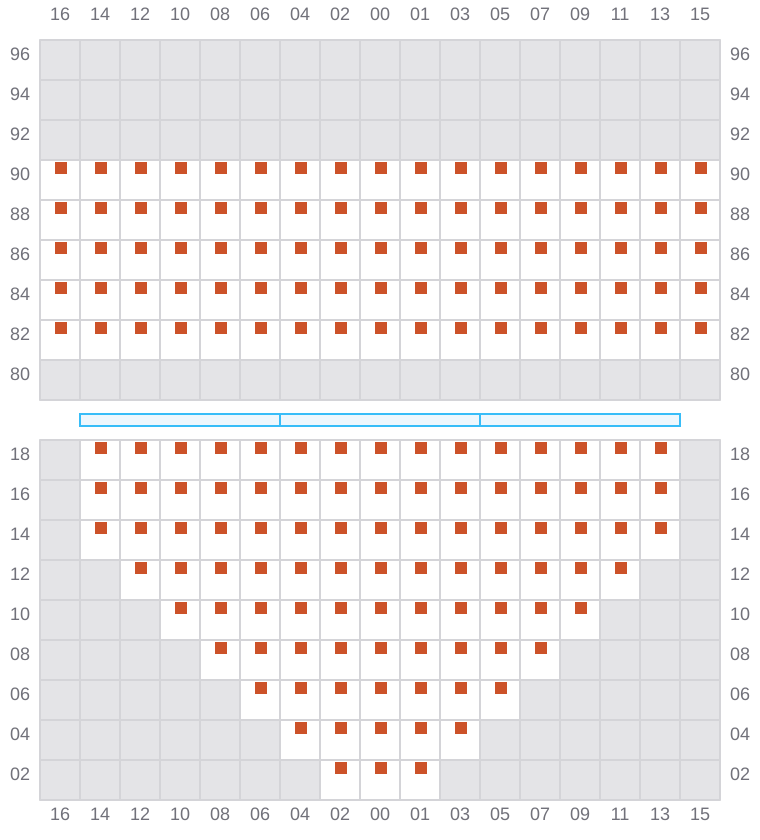

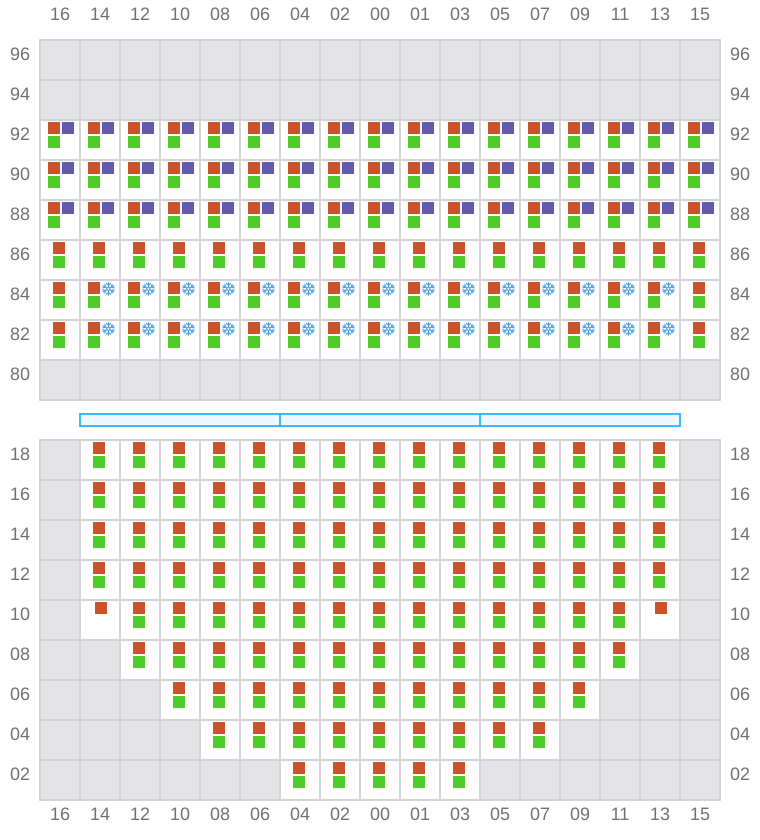

Bay 013 view and slots of MSC SILVANA VII

015 (014)

  • ←

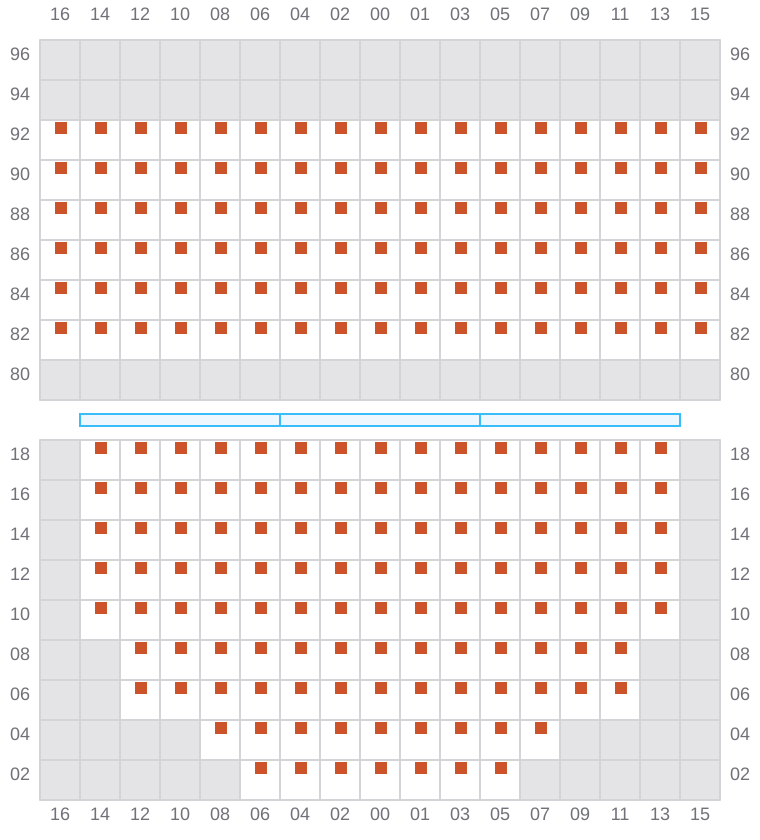

Bay 015 view and slots of MSC SILVANA VII

017

  • →

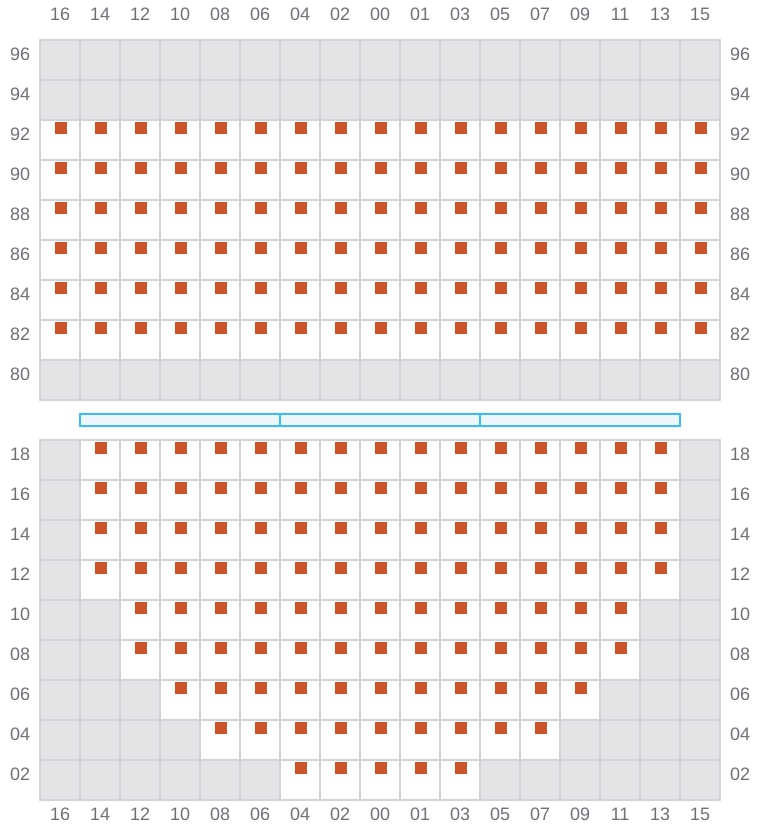

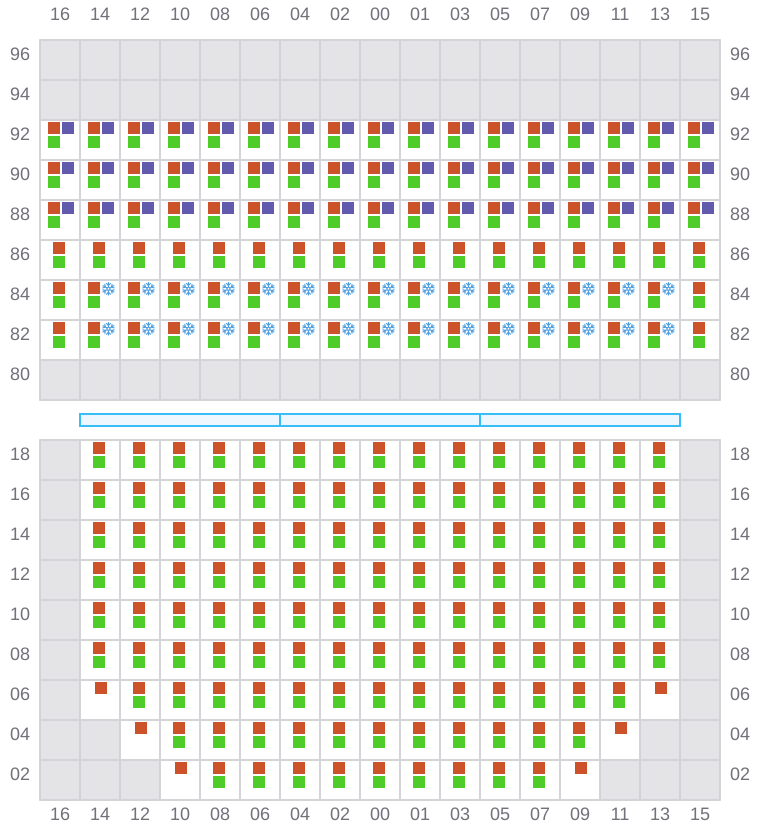

Bay 017 view and slots of MSC SILVANA VII

019 (018)

  • ←
Bay 019 view and slots of MSC SILVANA VII

021

  • →

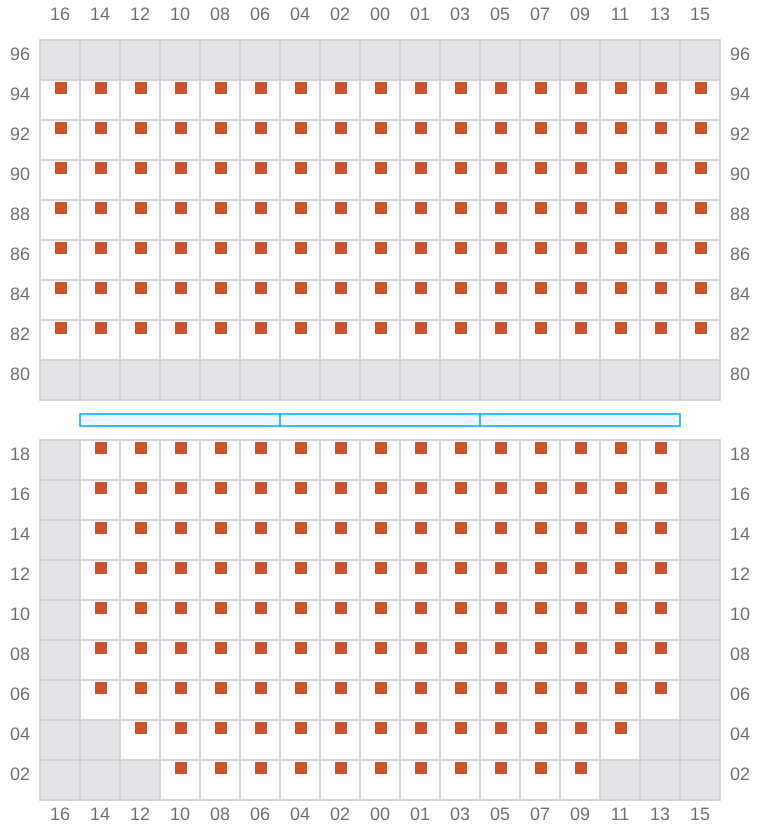

Bay 021 view and slots of MSC SILVANA VII

023 (022)

  • ←

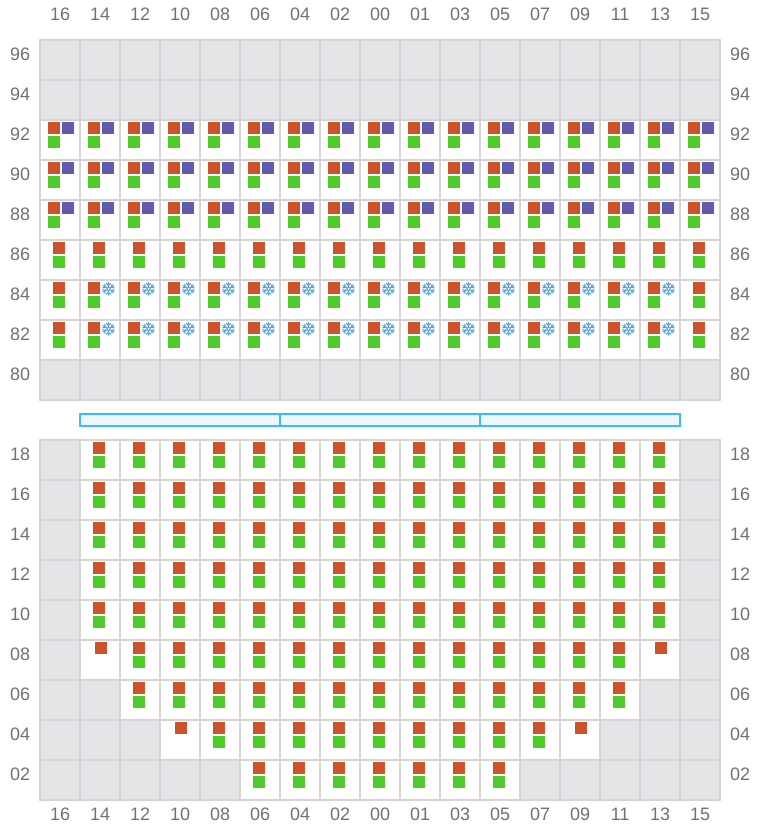

Bay 023 view and slots of MSC SILVANA VII

025

  • →

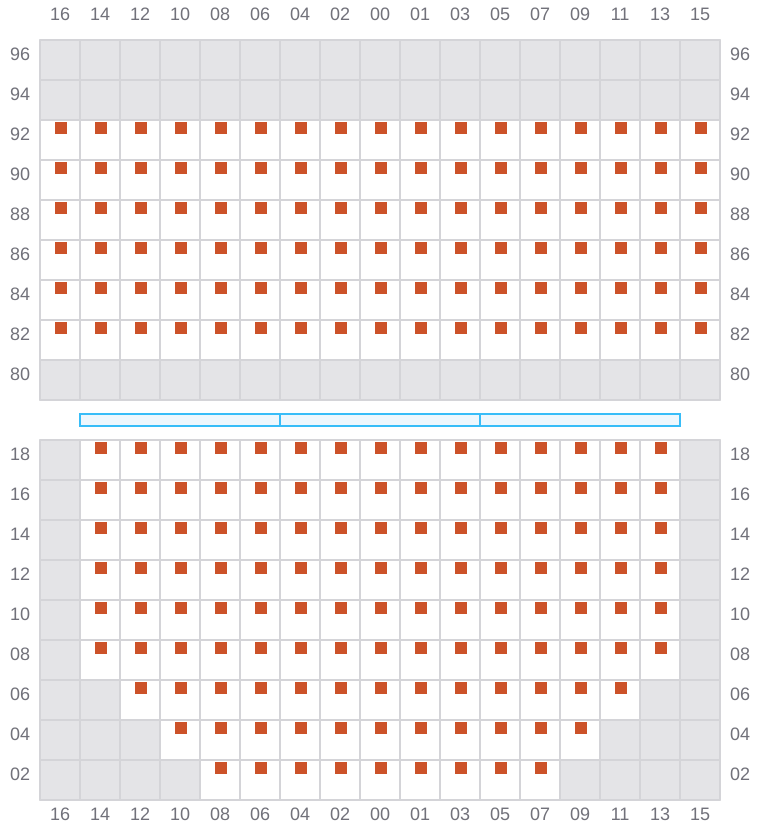

Bay 025 view and slots of MSC SILVANA VII

027 (026)

  • ←
Bay 027 view and slots of MSC SILVANA VII

029

  • →
Bay 029 view and slots of MSC SILVANA VII

031 (030)

  • ←

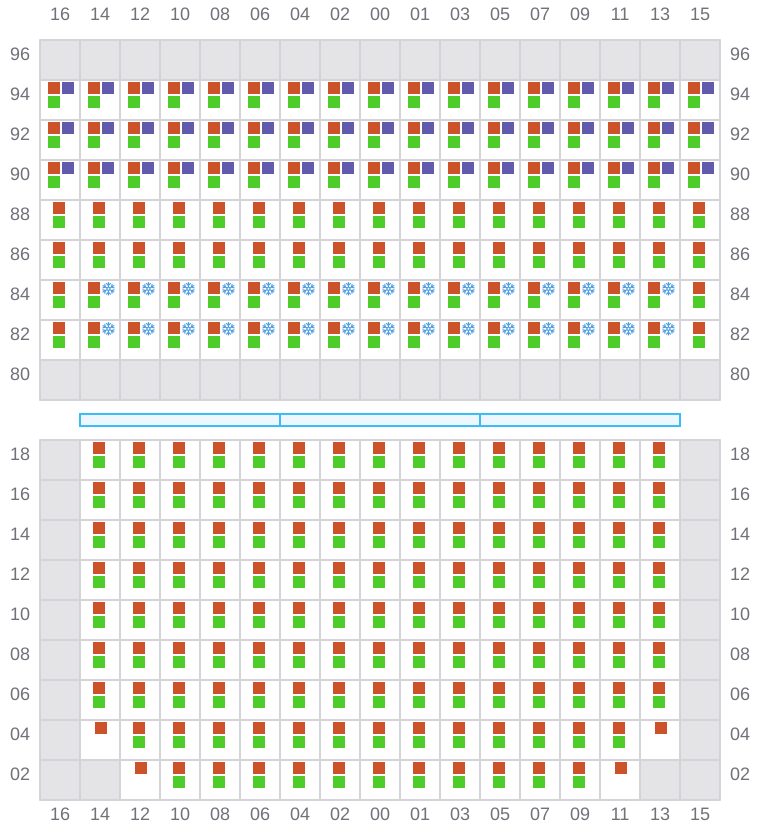

Bay 031 view and slots of MSC SILVANA VII

033

  • →
Bay 033 view and slots of MSC SILVANA VII

035 (034)

  • ←

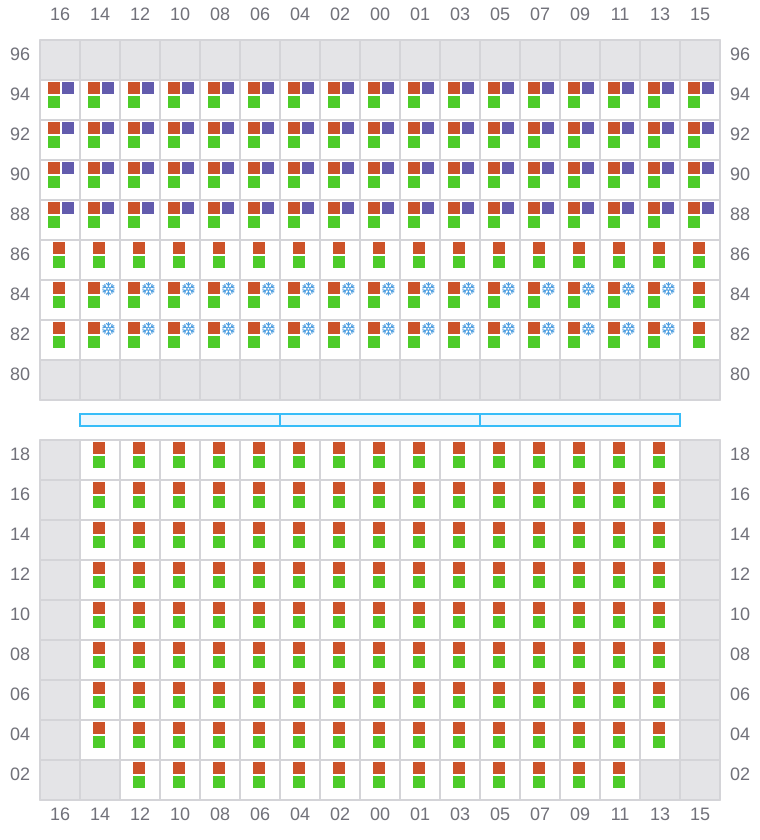

Bay 035 view and slots of MSC SILVANA VII

037

  • →
Bay 037 view and slots of MSC SILVANA VII

039 (038)

  • ←
Bay 039 view and slots of MSC SILVANA VII

041

  • →
Bay 041 view and slots of MSC SILVANA VII

043 (042)

  • ←
Bay 043 view and slots of MSC SILVANA VII

045

  • →

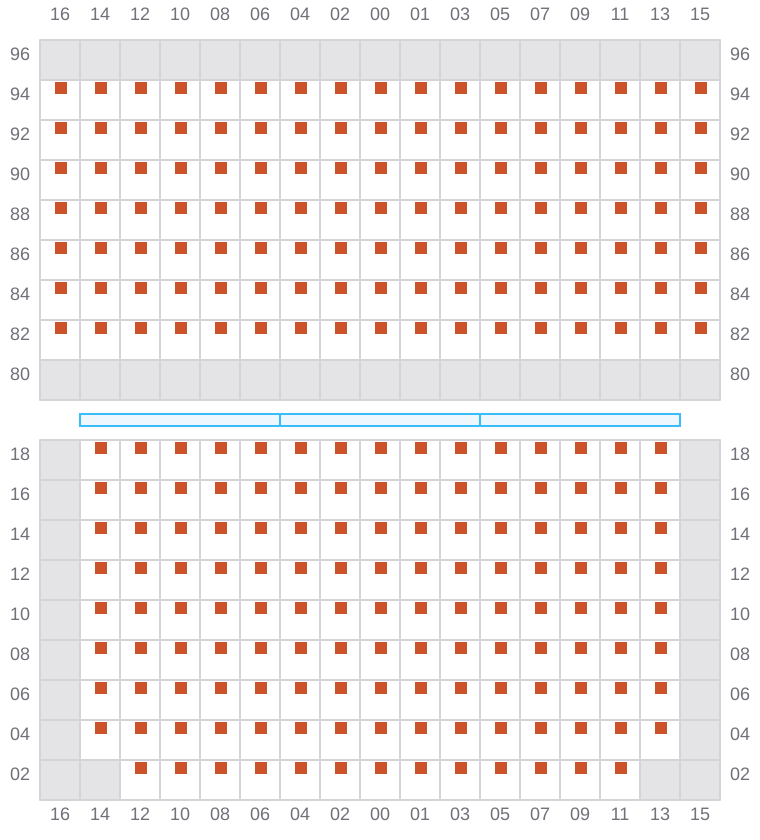

Bay 045 view and slots of MSC SILVANA VII

047 (046)

  • ←
Bay 047 view and slots of MSC SILVANA VII

049

  • →
Bay 049 view and slots of MSC SILVANA VII

051 (050)

  • ←

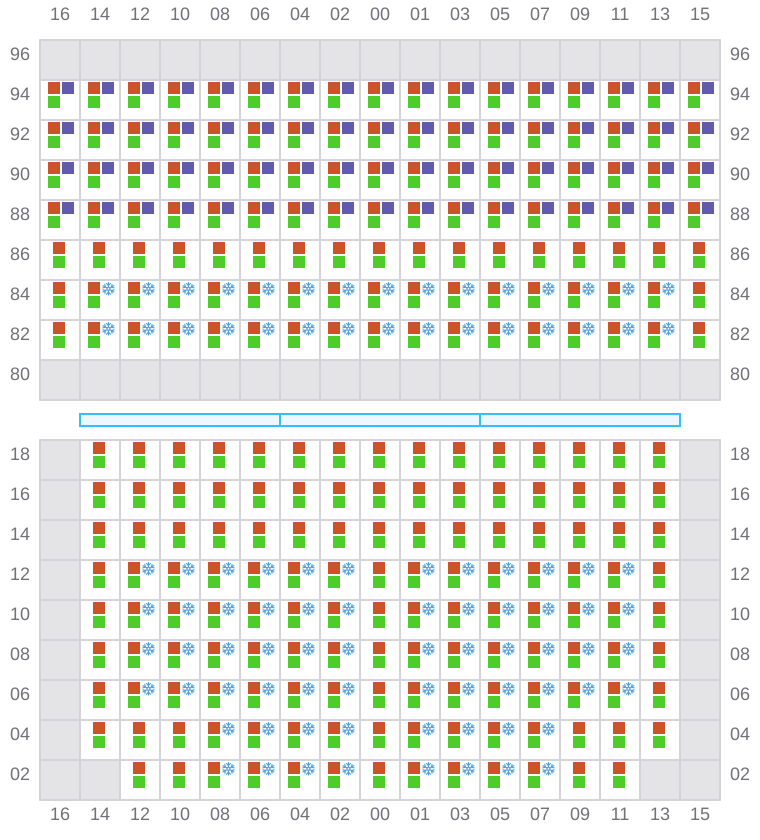

Bay 051 view and slots of MSC SILVANA VII

053

  • →
Bay 053 view and slots of MSC SILVANA VII

055 (054)

  • ←

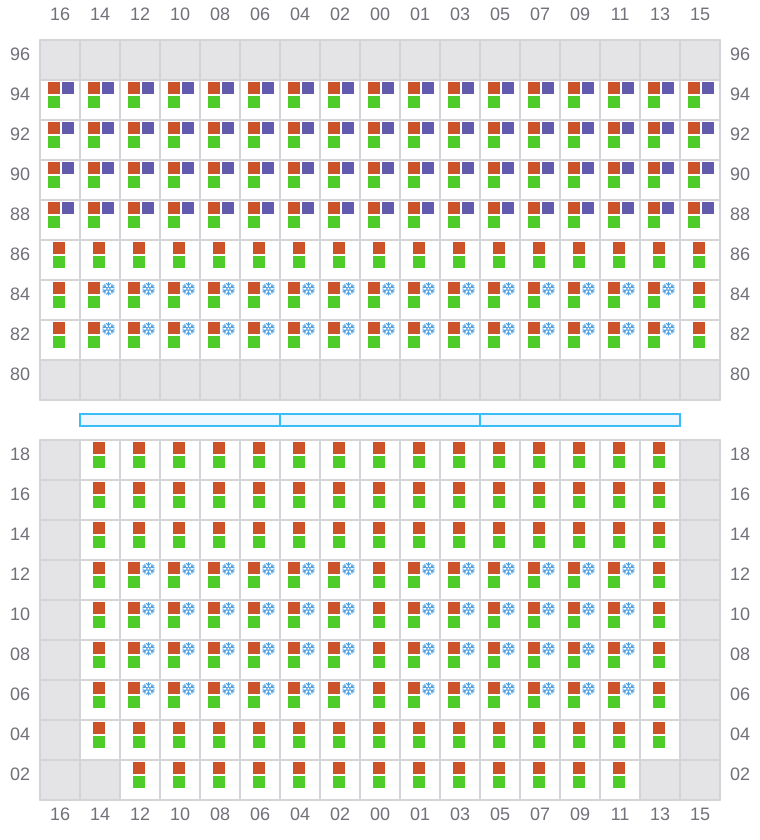

Bay 055 view and slots of MSC SILVANA VII

057

  • →

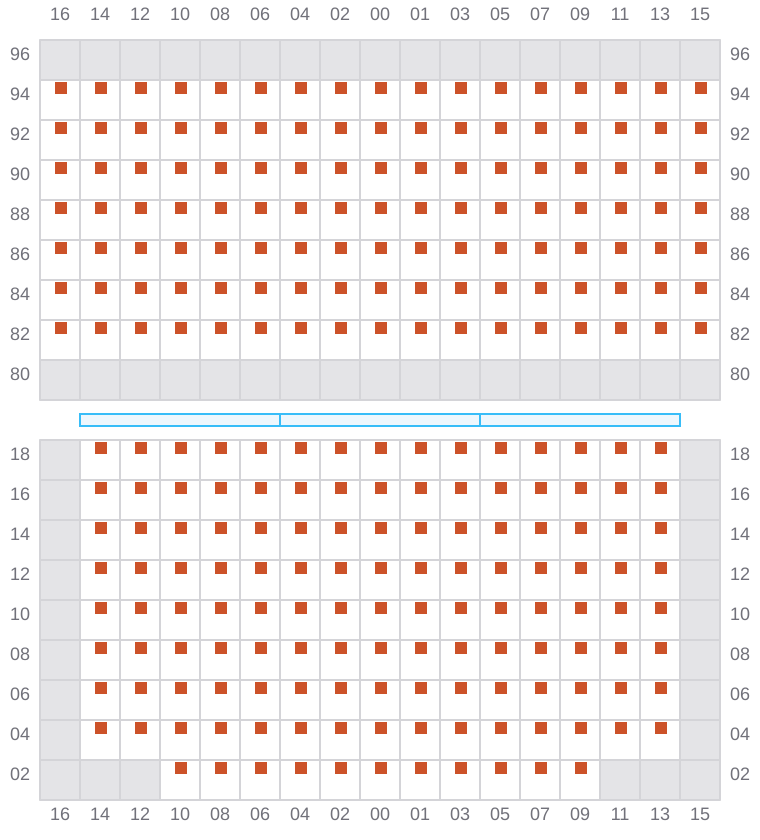

Bay 057 view and slots of MSC SILVANA VII

059 (058)

  • ←
Bay 059 view and slots of MSC SILVANA VII

061

  • →

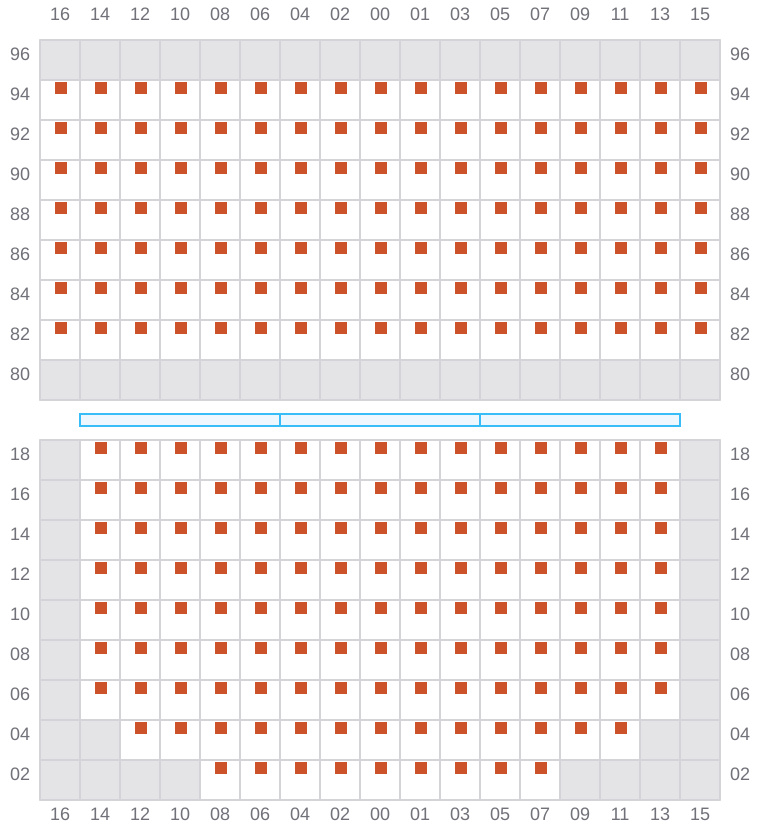

Bay 061 view and slots of MSC SILVANA VII

063 (062)

  • ←
Bay 063 view and slots of MSC SILVANA VII

065

  • →

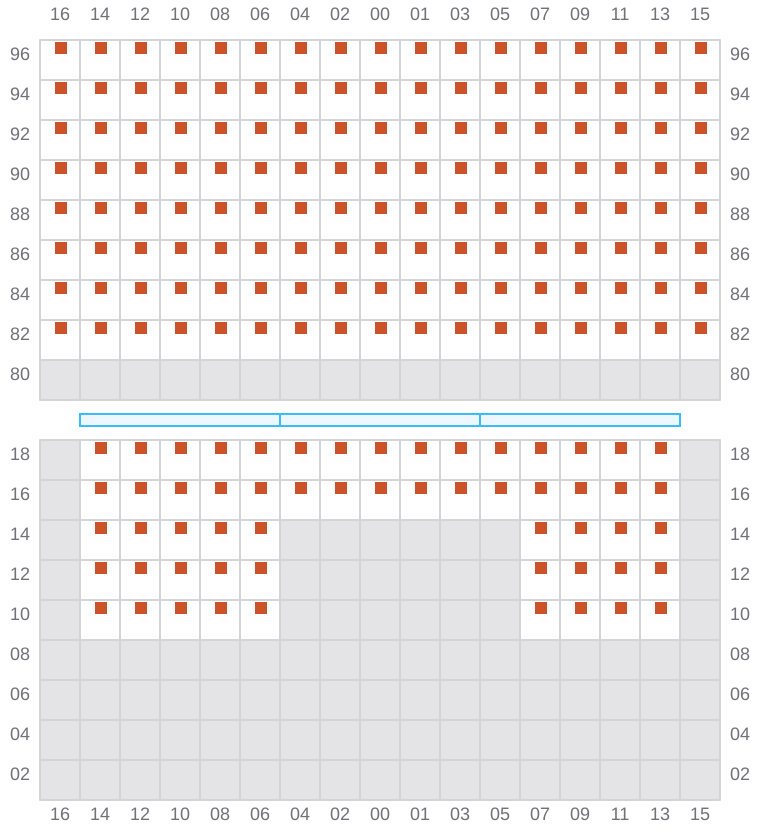

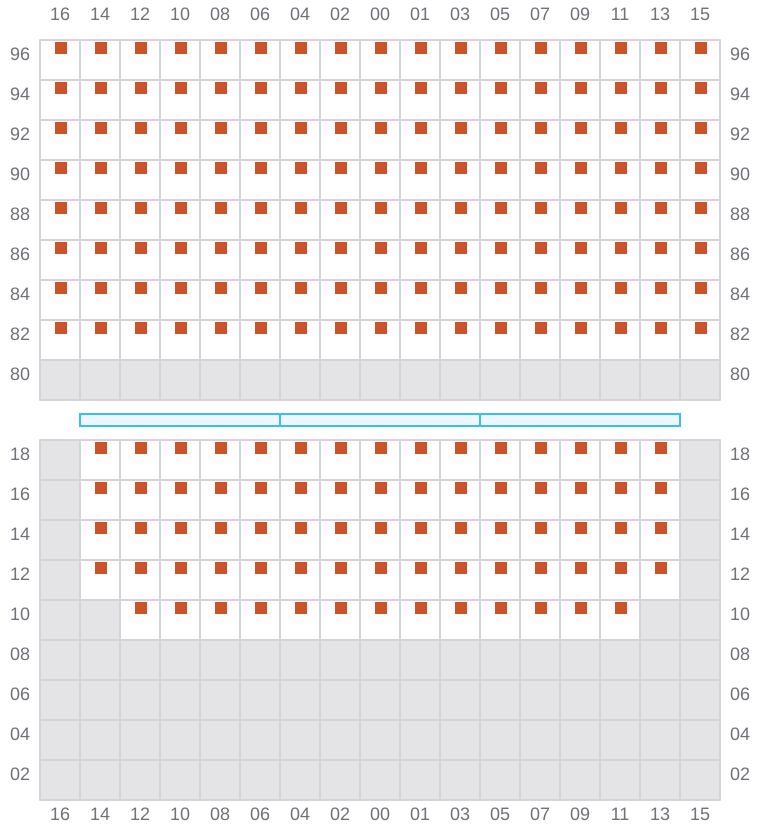

Bay 065 view and slots of MSC SILVANA VII

067 (066)

  • ←

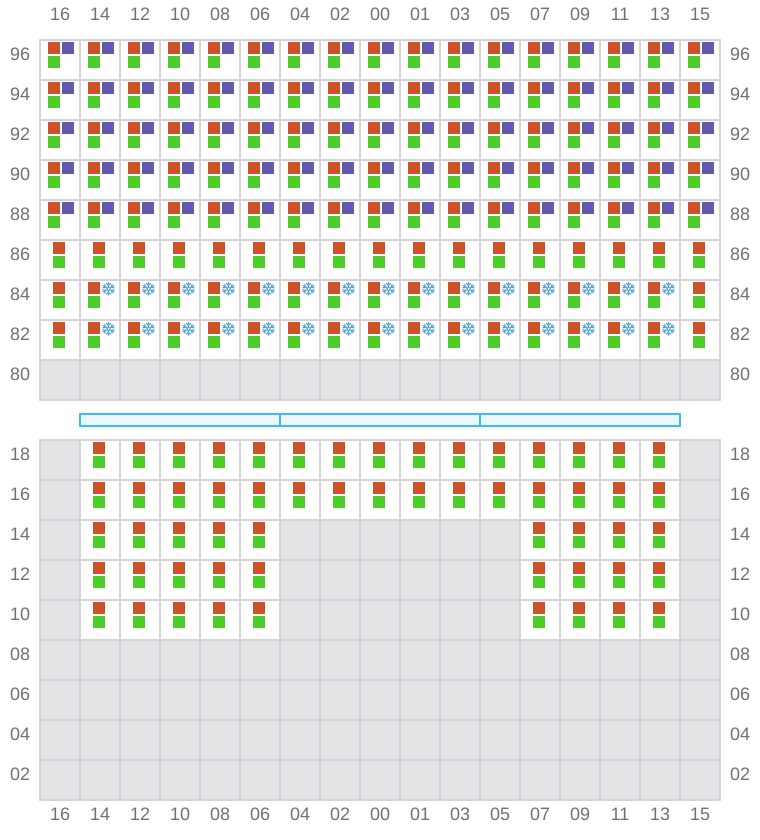

Bay 067 view and slots of MSC SILVANA VII

069

  • →
Bay 069 view and slots of MSC SILVANA VII

071 (070)

  • ←

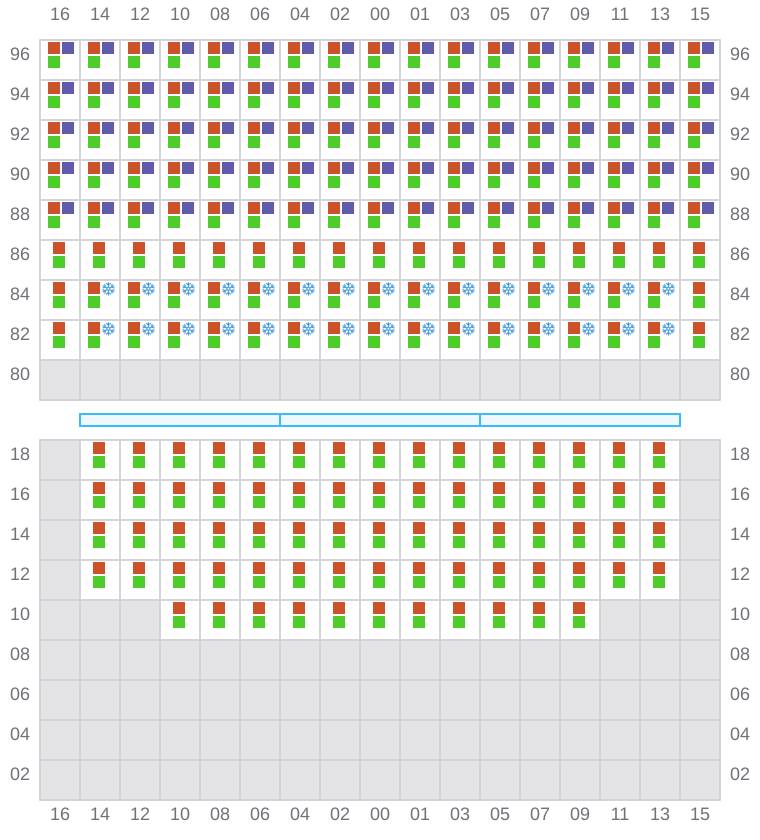

Bay 071 view and slots of MSC SILVANA VII

073

  • →

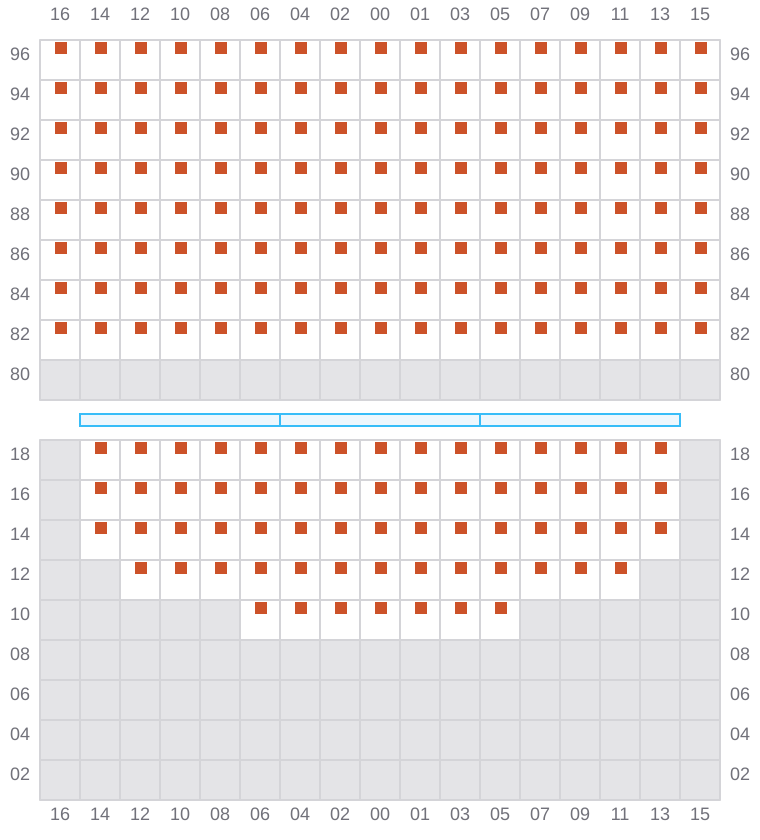

Bay 073 view and slots of MSC SILVANA VII

075 (074)

  • ←
Bay 075 view and slots of MSC SILVANA VII

077

  • →

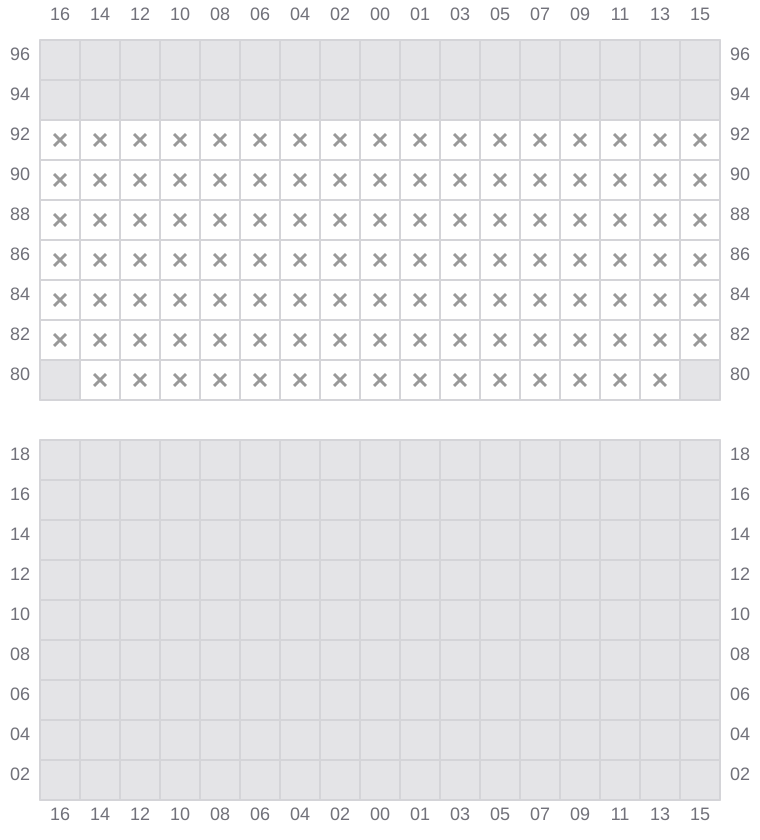

Bay 077 view and slots of MSC SILVANA VII

079 (078)

  • ←

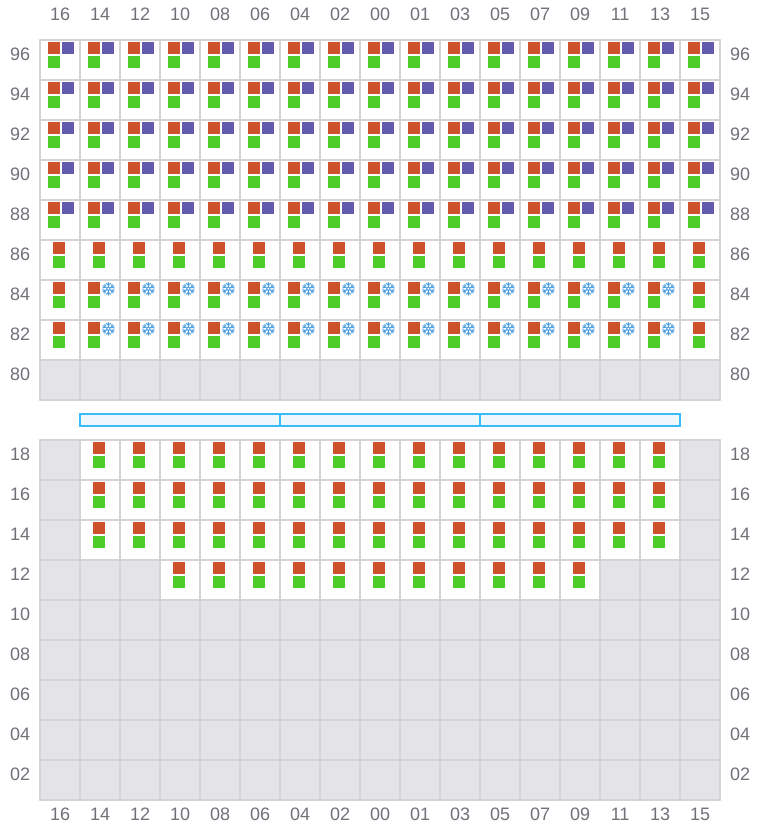

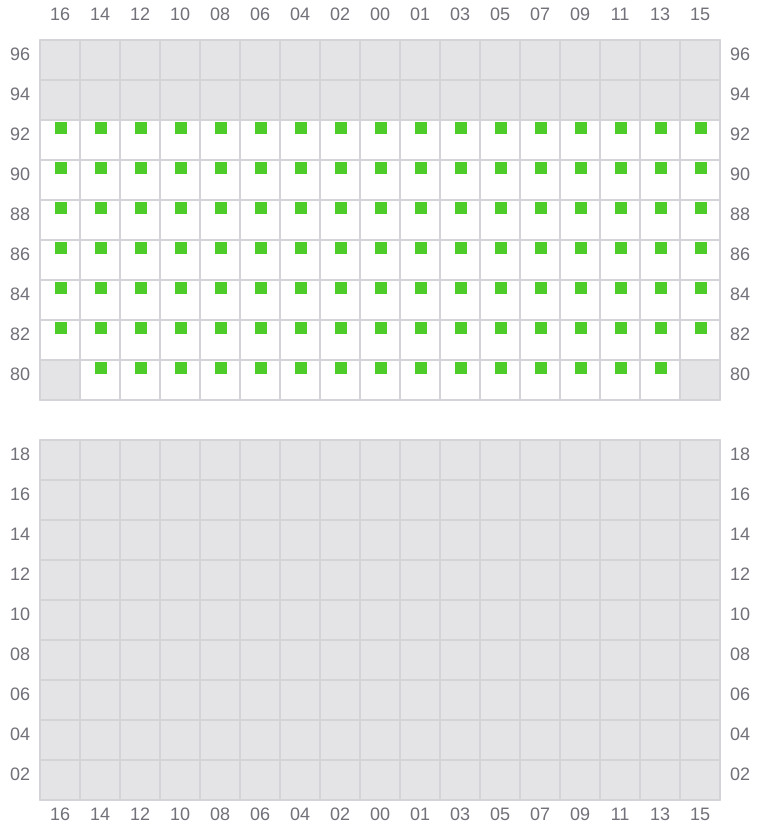

Bay 079 view and slots of MSC SILVANA VII
