MSC SILVANA
9309459 | 3EEI3 | MSC by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:MSC SILVANA
IMO Code:9309459
Call Sign:3EEI3
Line Operator:MSC
Class Name for Sister Ships:SIL
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,411
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

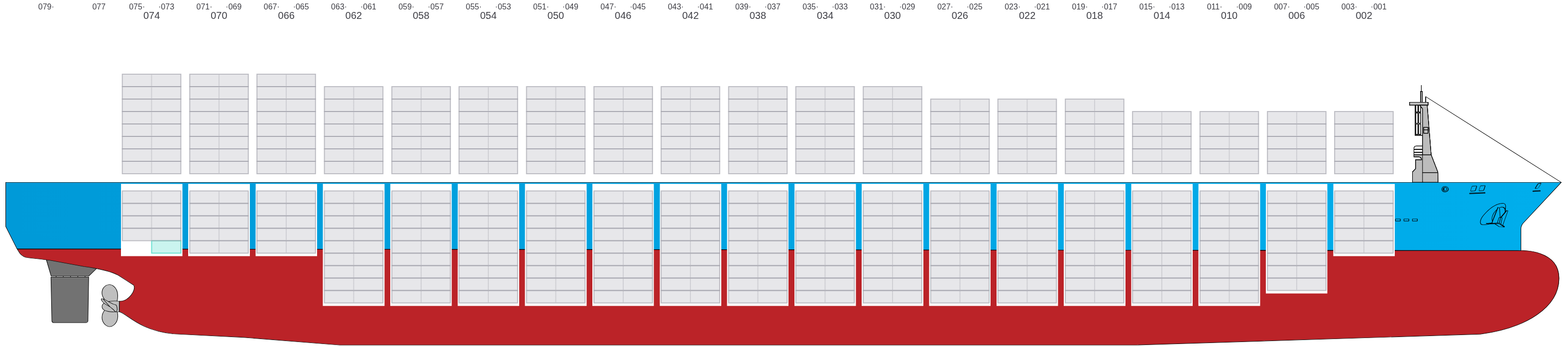

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

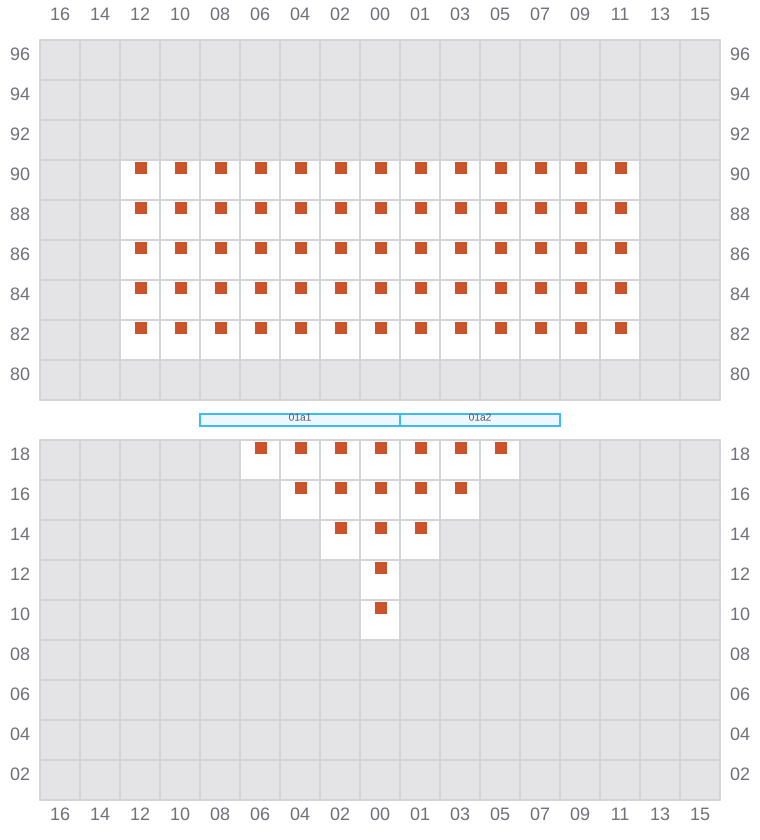

001
- →

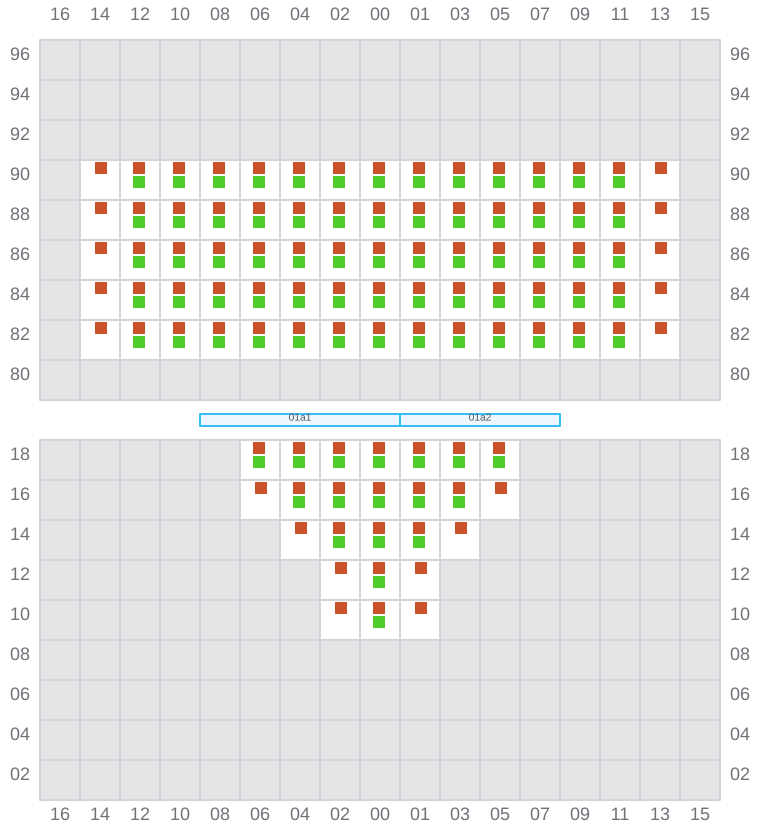

003 (002)
- ←

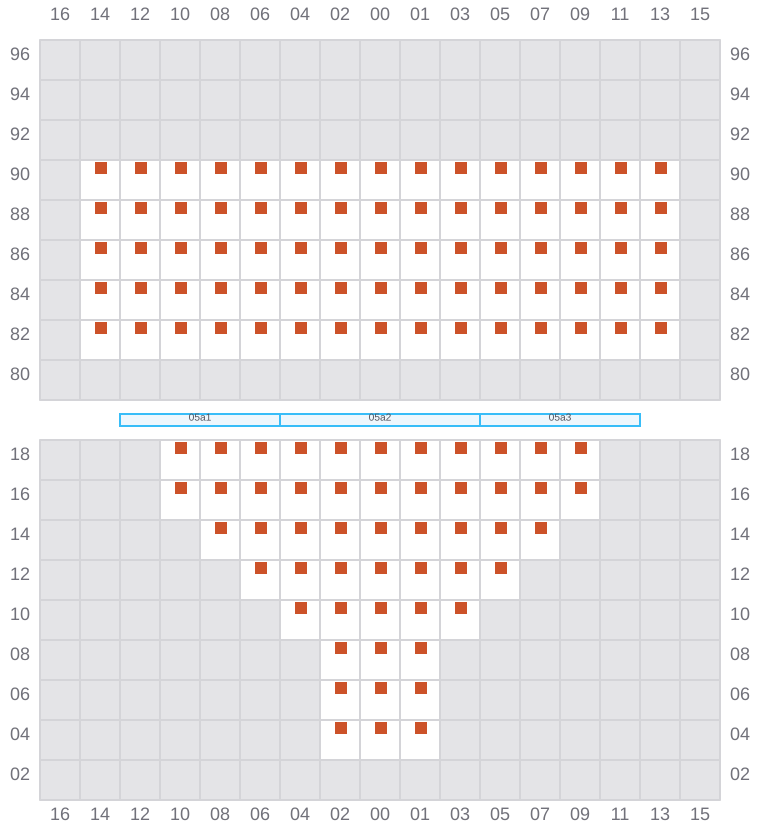

005
- →
007 (006)
- ←

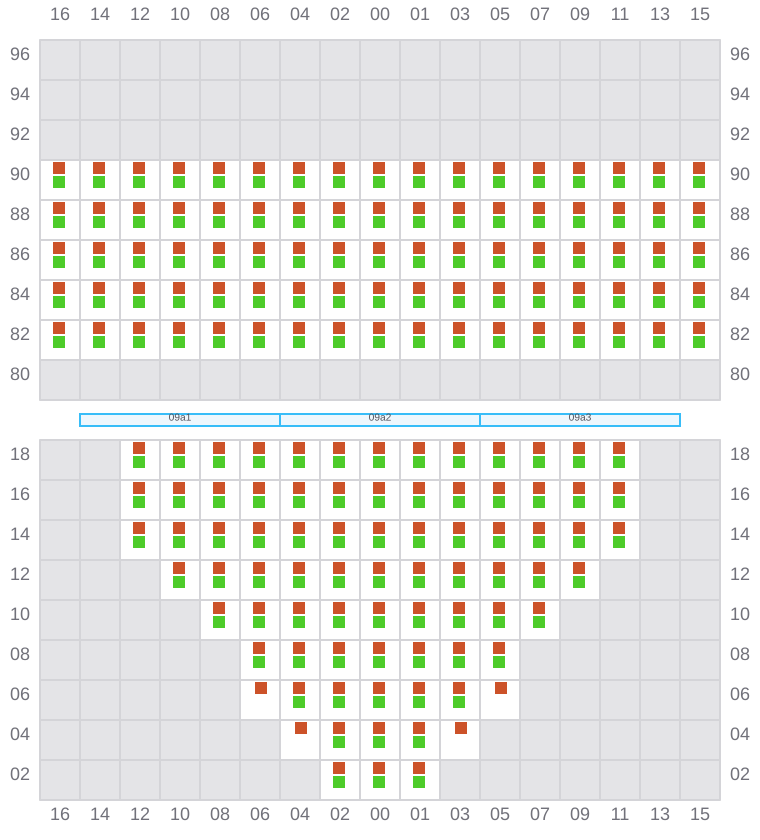

009
- →
011 (010)
- ←

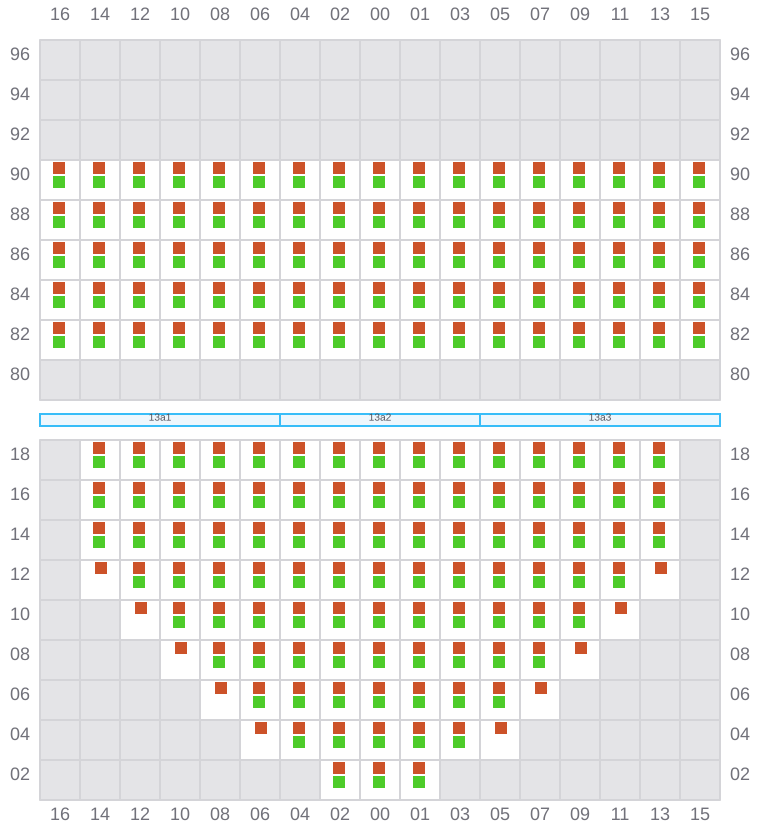

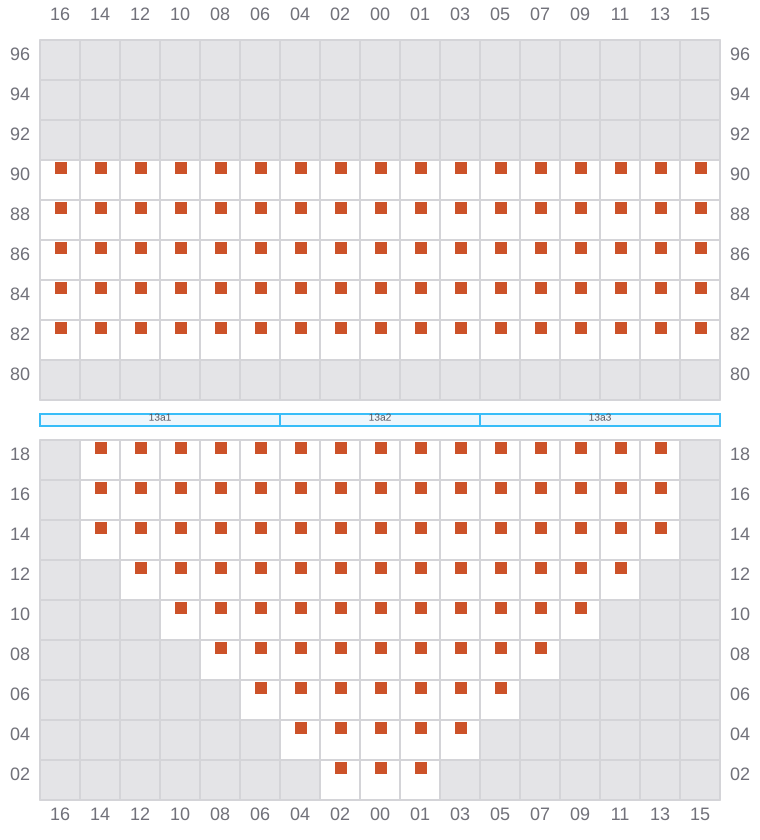

013
- →
015 (014)
- ←

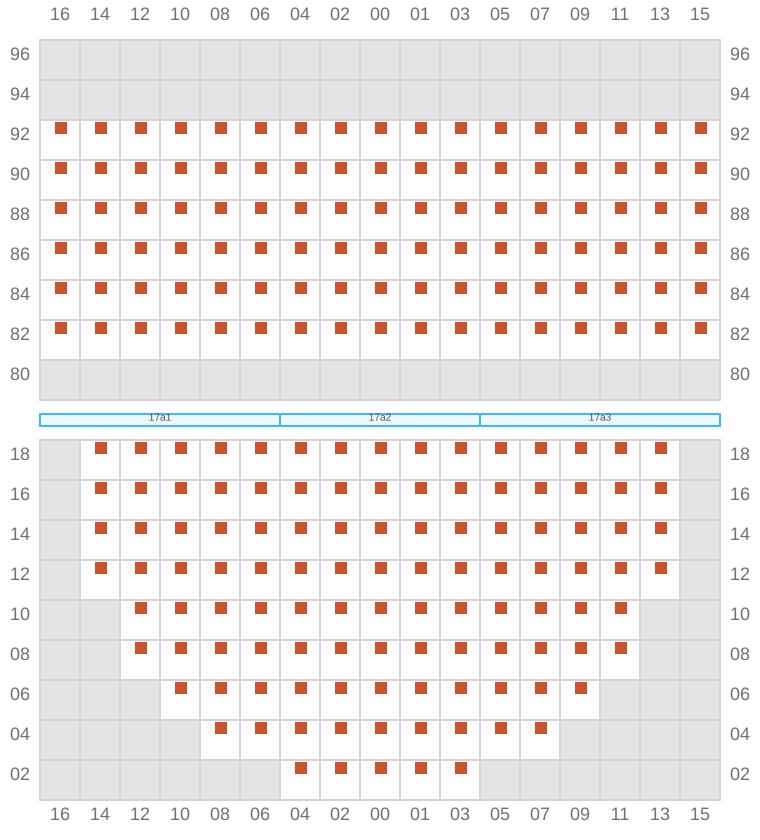

017
- →
019 (018)
- ←

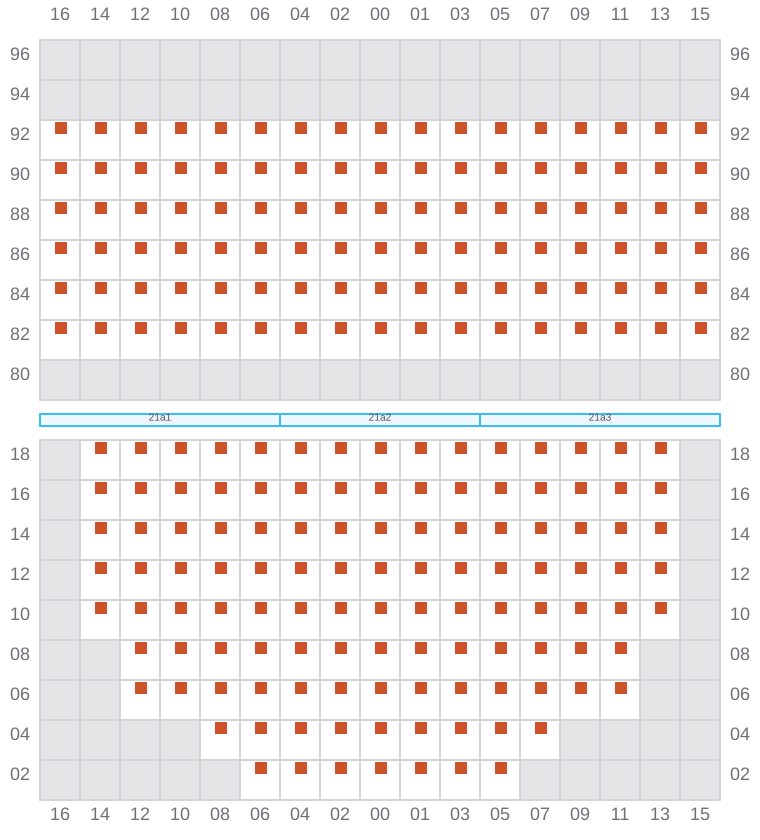

021
- →

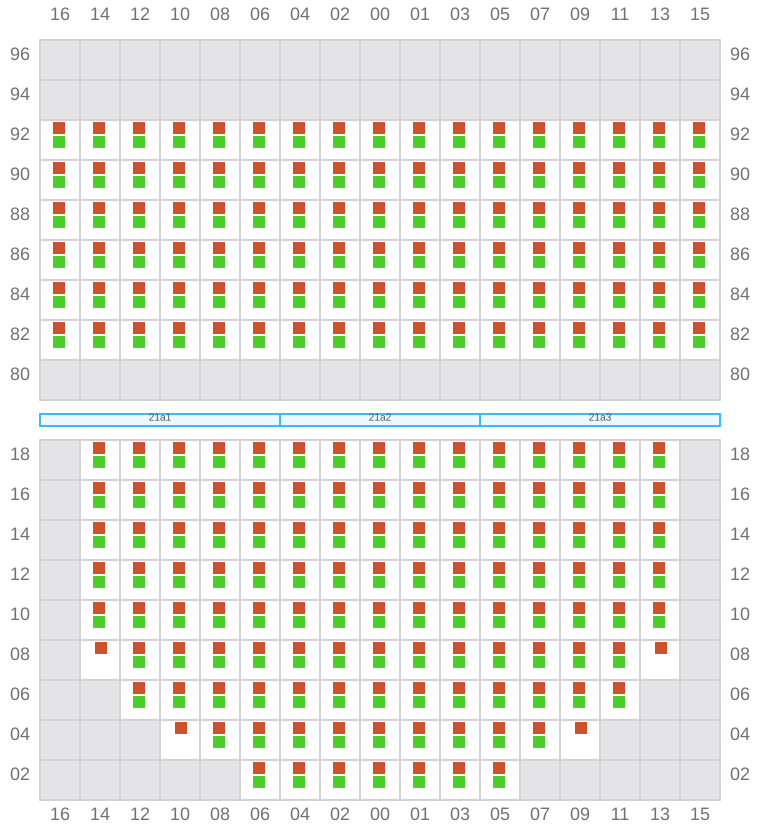

023 (022)
- ←

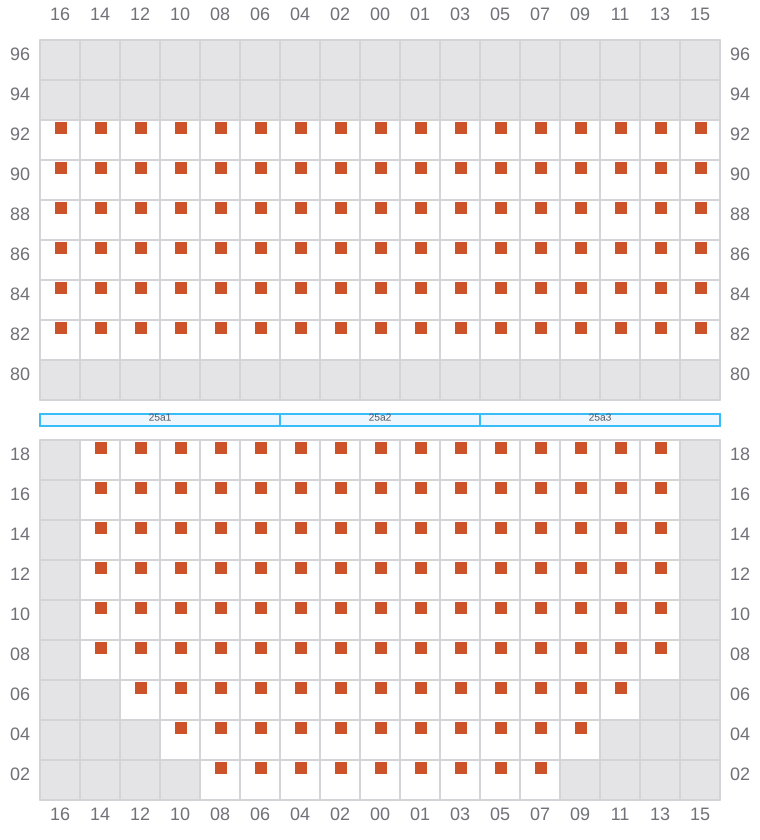

025
- →
027 (026)
- ←

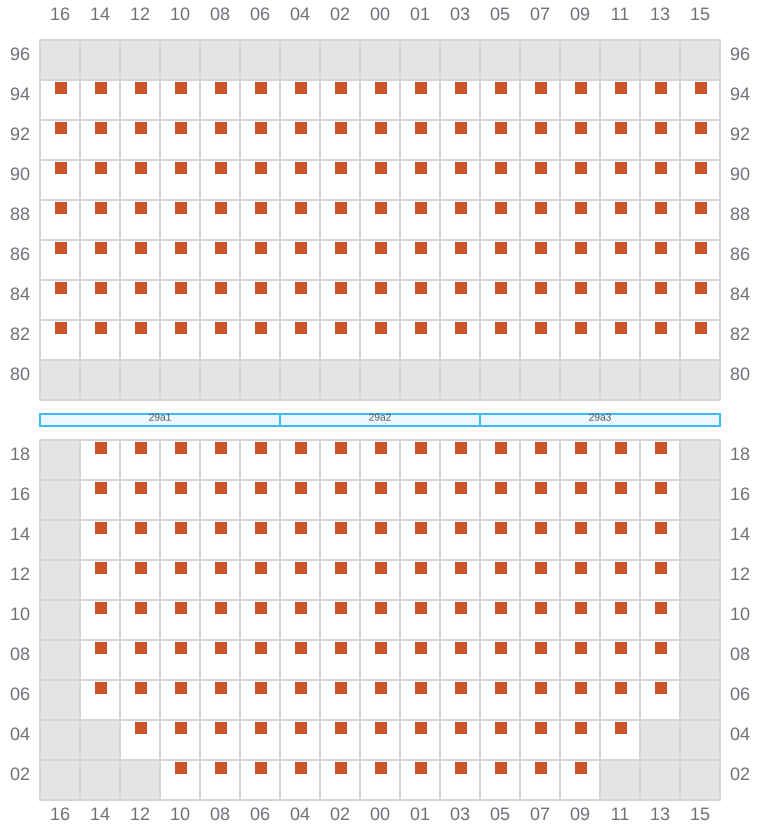

029
- →

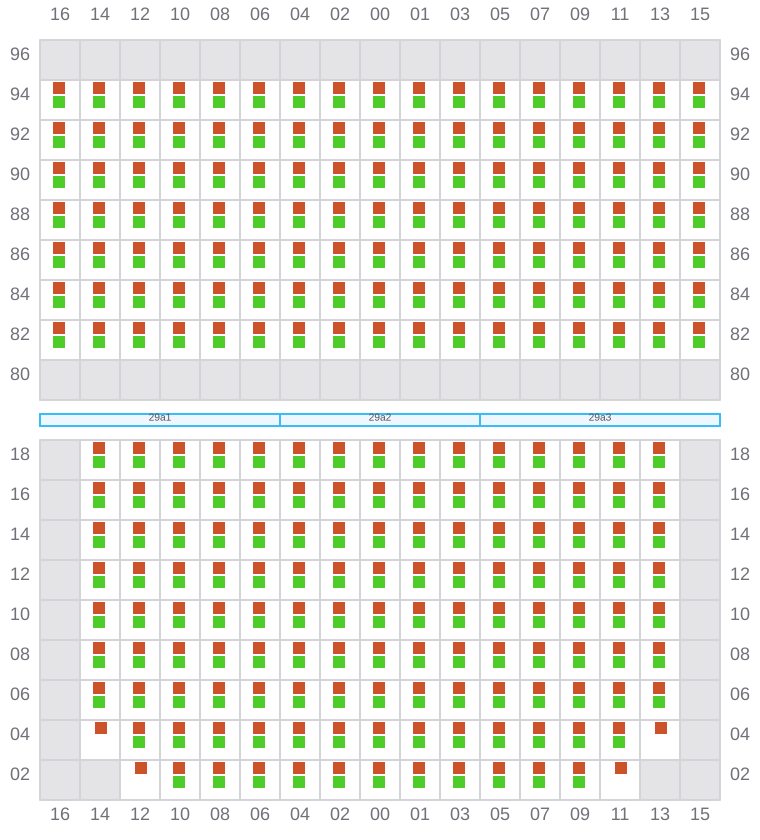

031 (030)
- ←

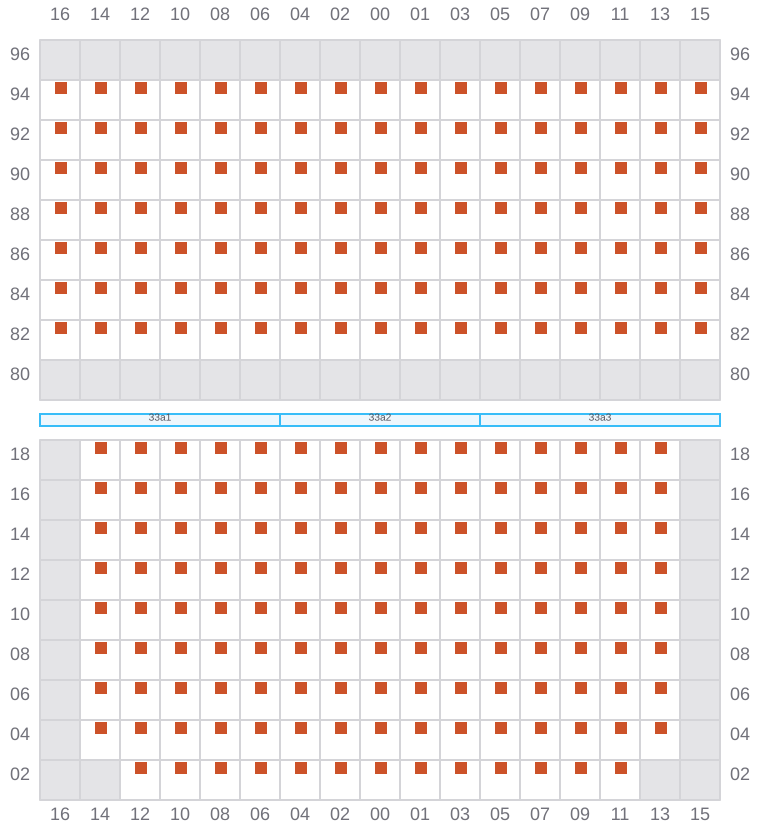

033
- →
035 (034)
- ←

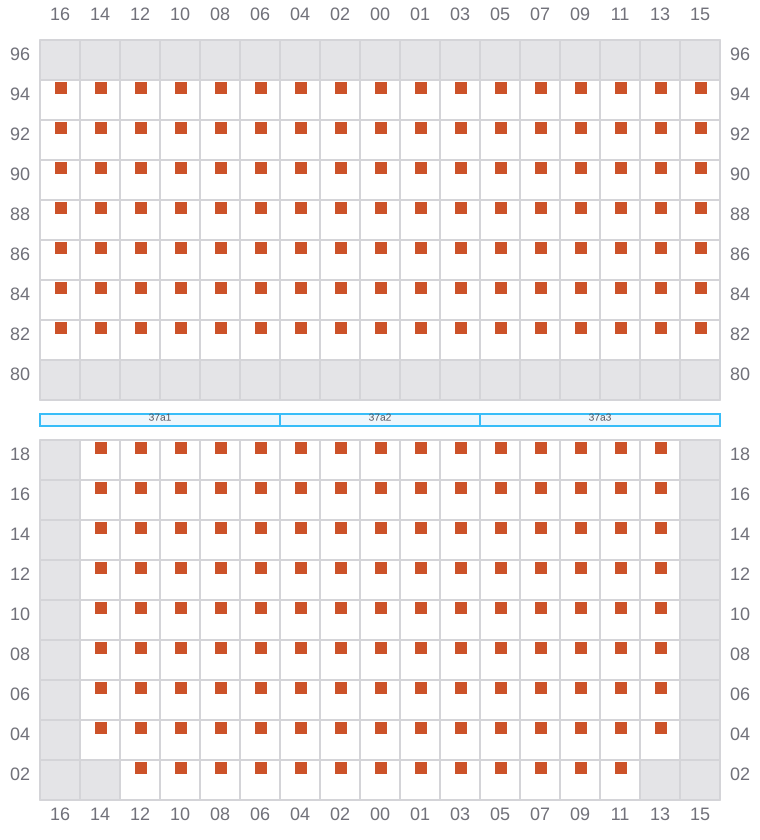

037
- →

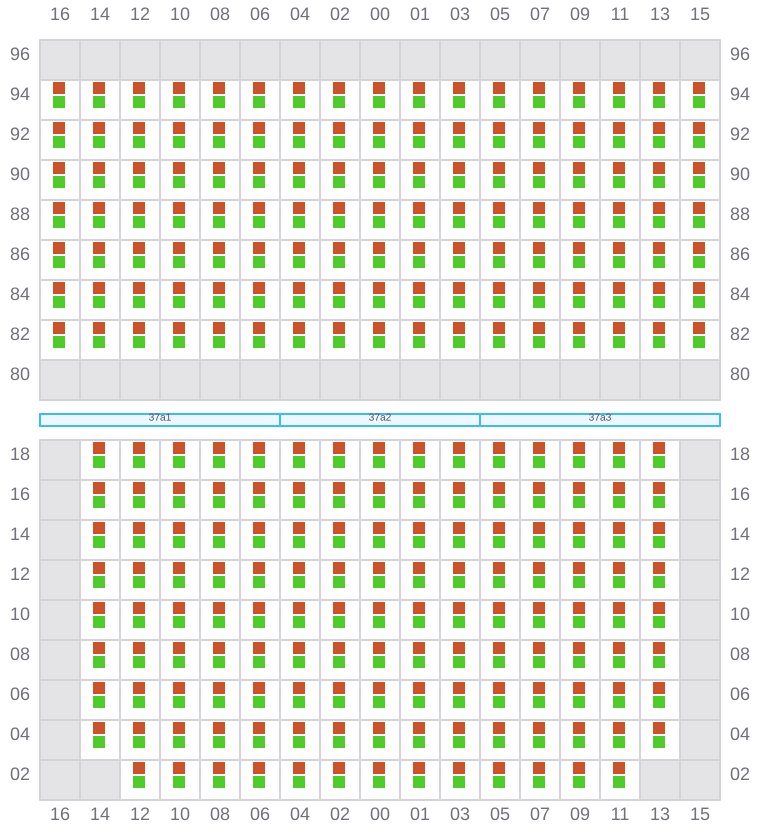

039 (038)
- ←

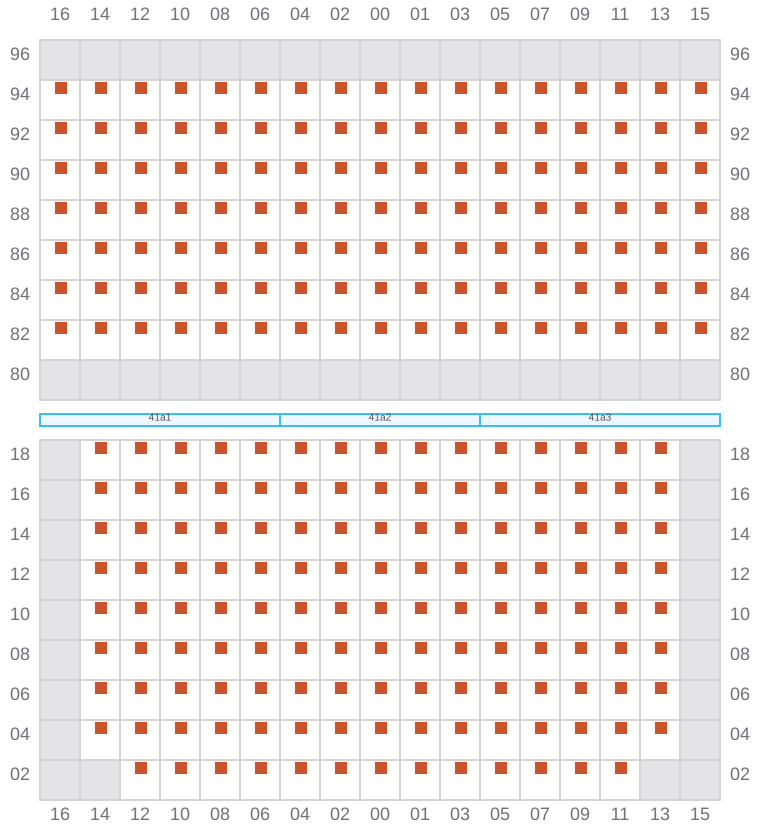

041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →

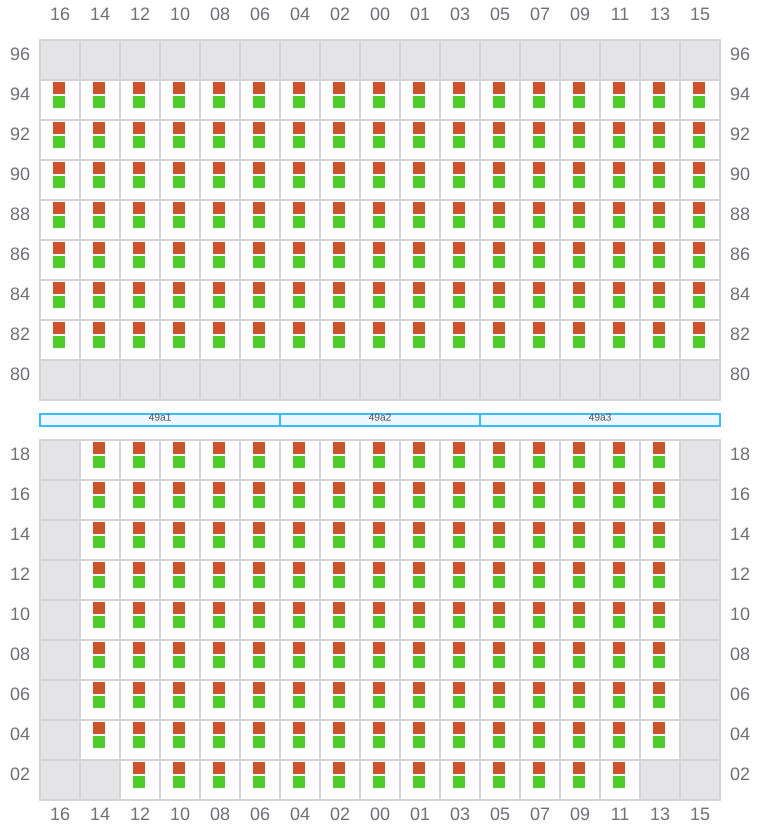

051 (050)
- ←
053
- →
055 (054)
- ←

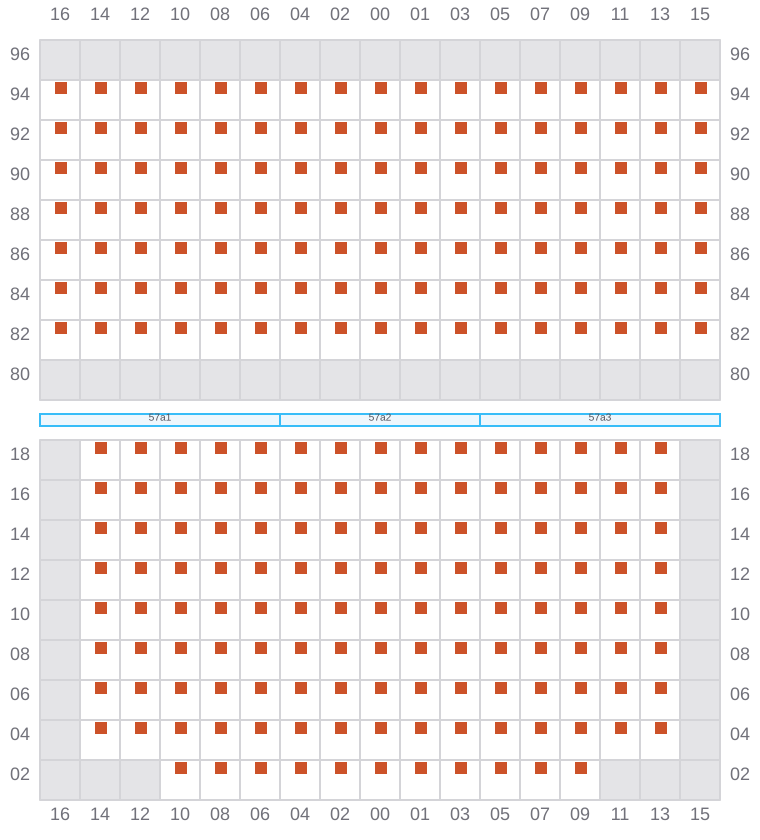

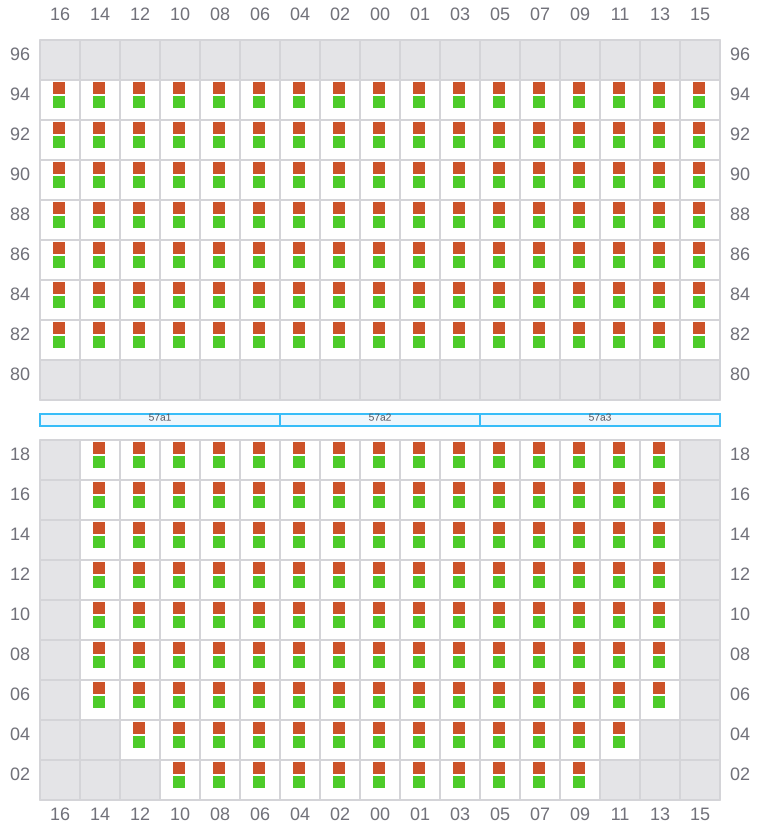

057
- →
059 (058)
- ←

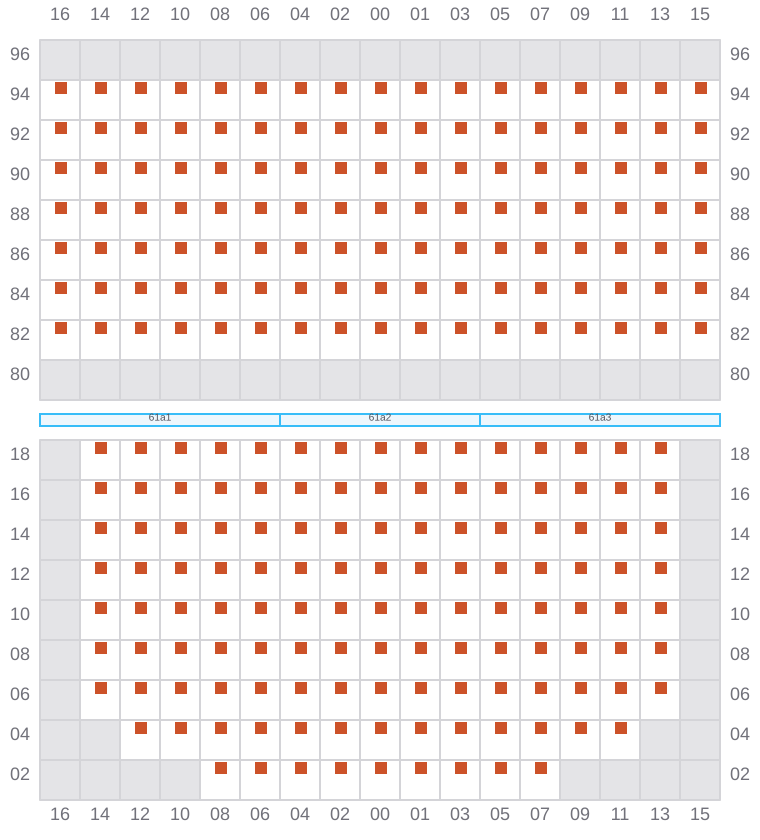

061
- →

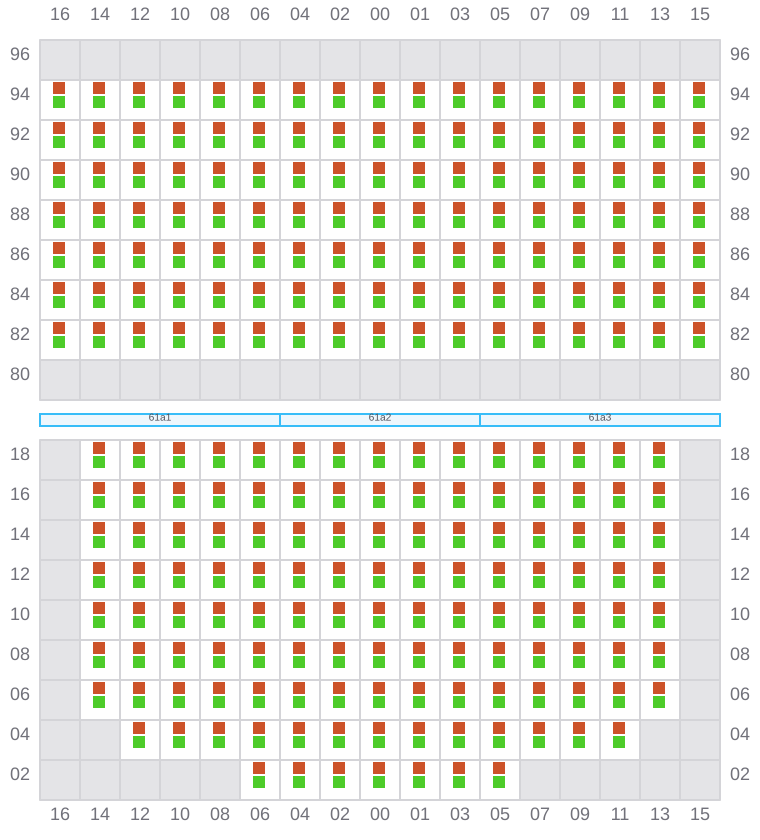

063 (062)
- ←

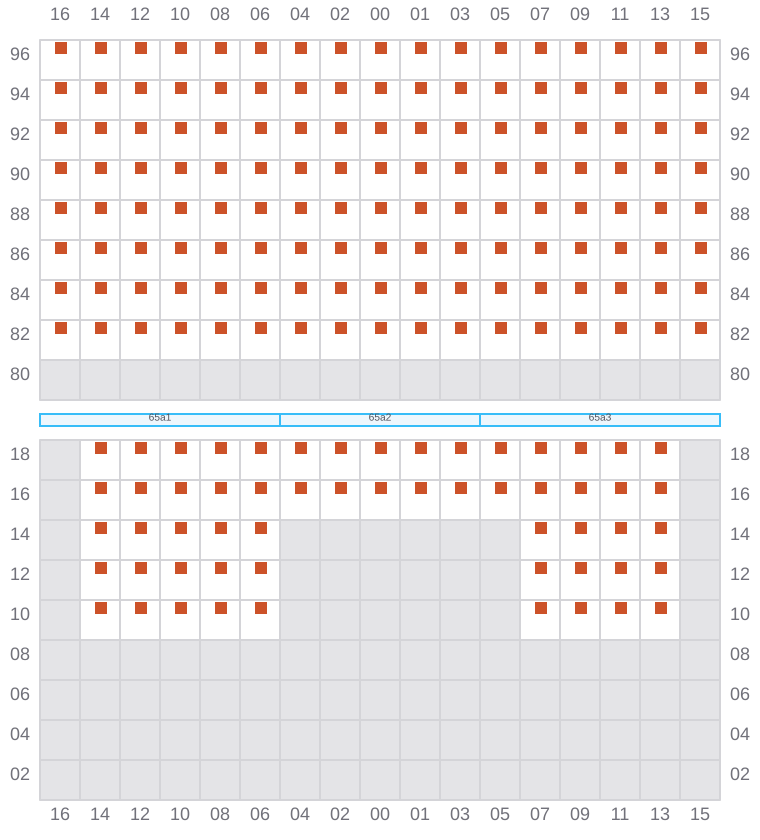

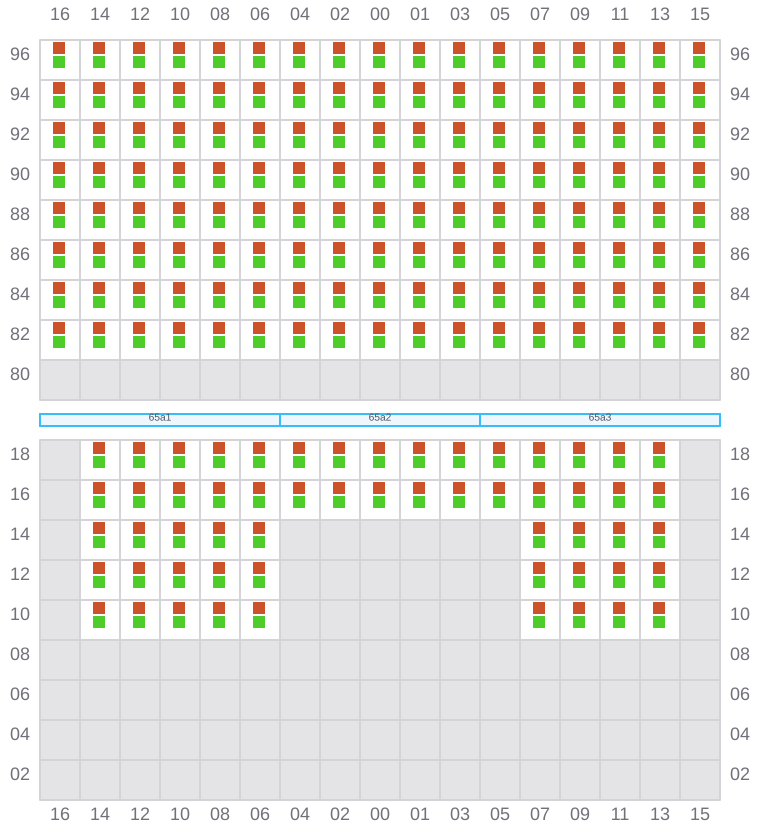

065
- →
067 (066)
- ←
069
- →

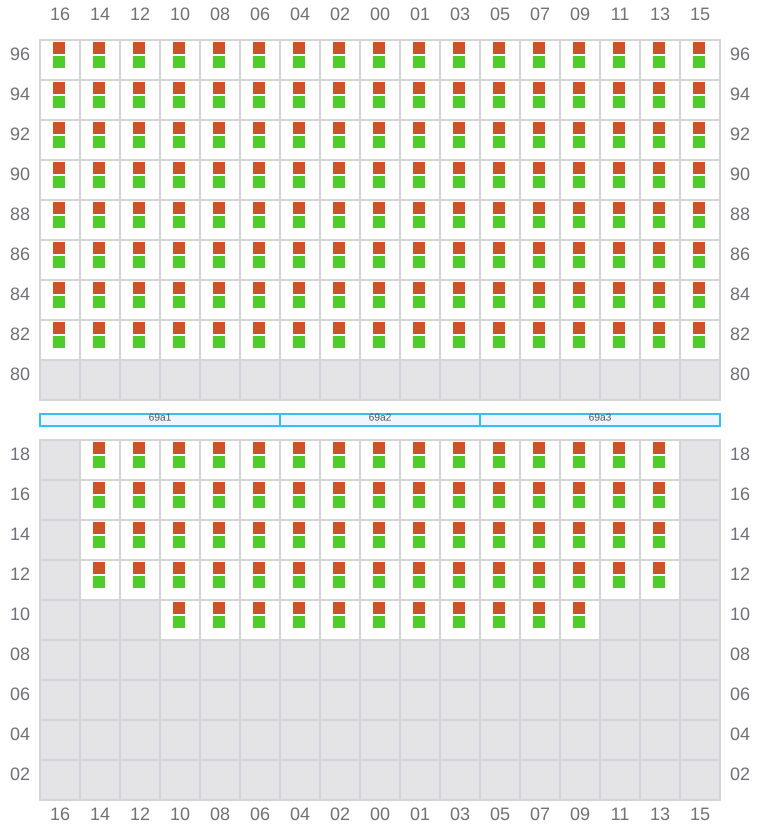

071 (070)
- ←

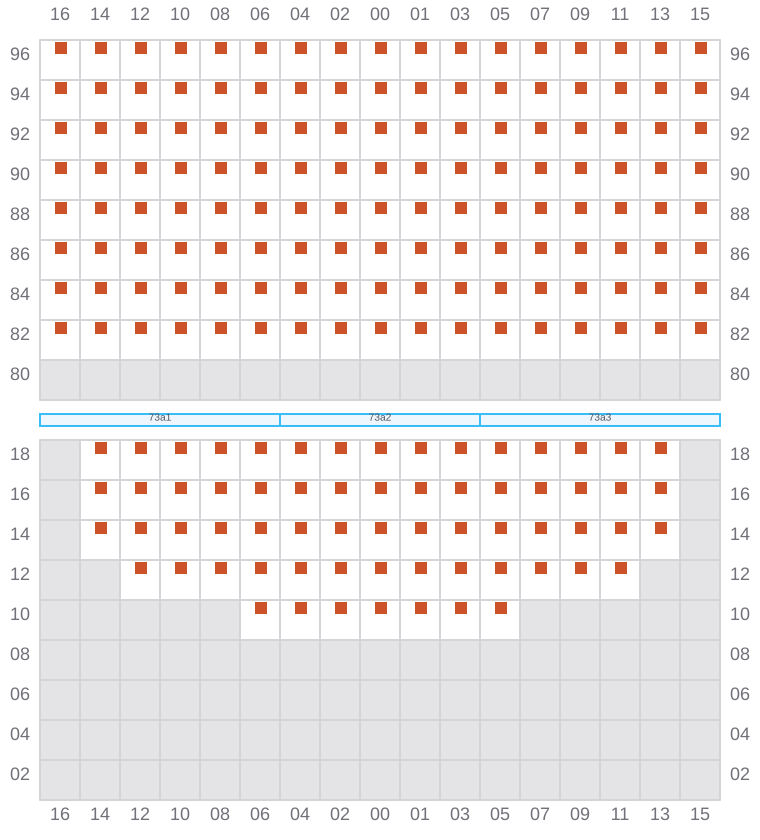

073
- →
075 (074)
- ←
077

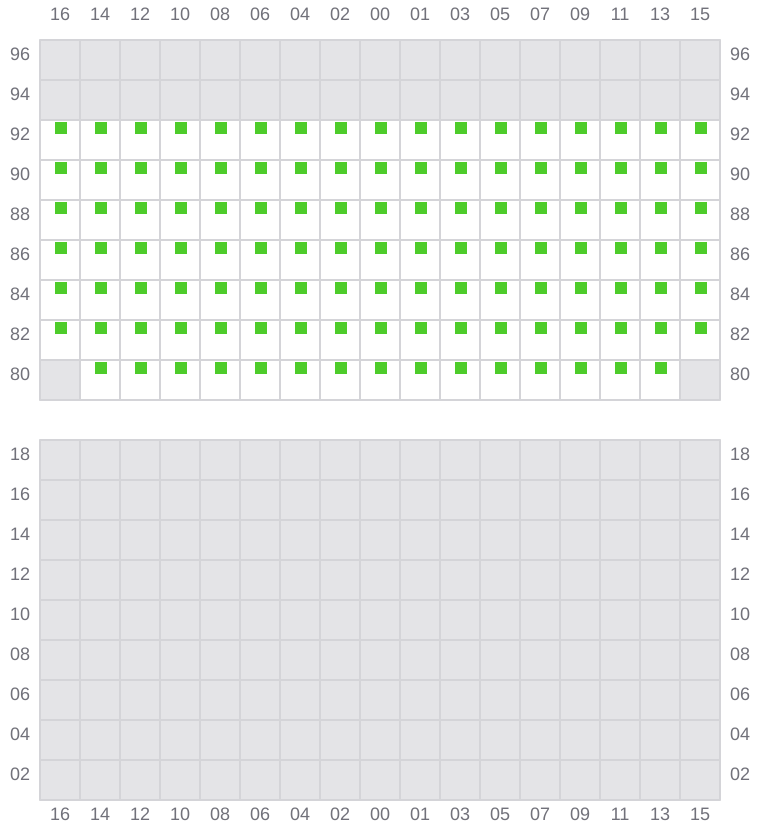

079 (078)
- ← / ?
