MSC SINDY
9336048 | 3EKJ3 | MSC by ************************** Last update: Wed Jun 21 2023
General Info
Ship Name:MSC SINDY
IMO Code:9336048
Call Sign:3EKJ3
Line Operator:MSC
Class Name for Sister Ships:SDY
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,182
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

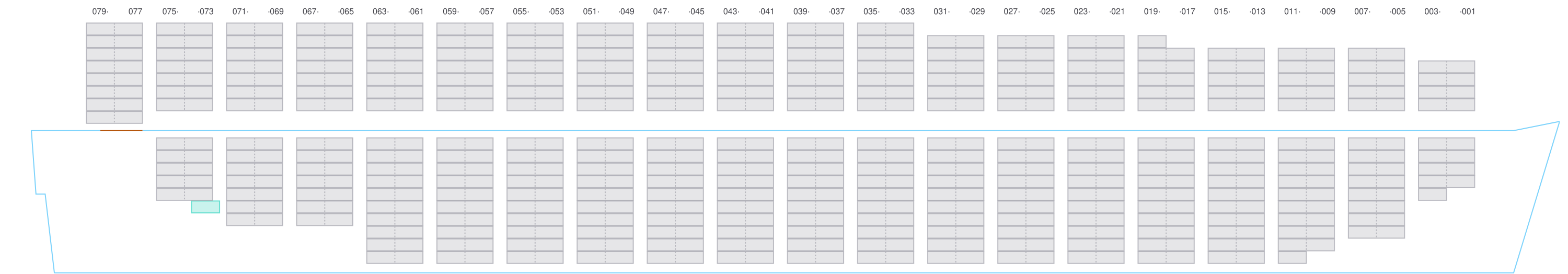

Side View

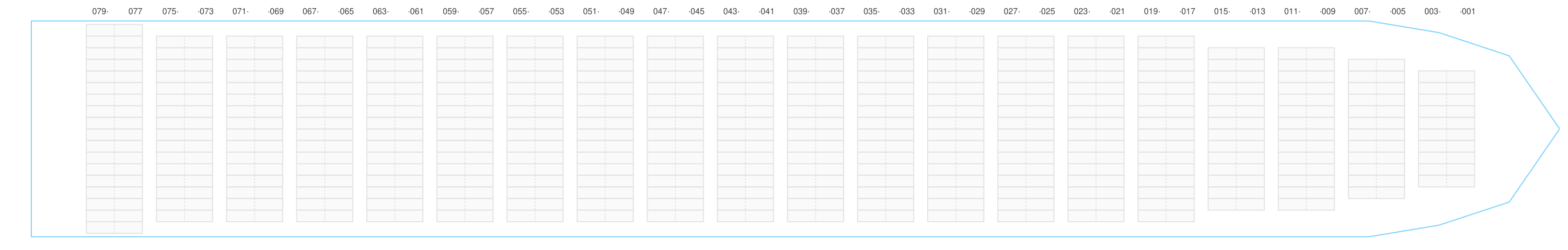

Hatch-Covers View

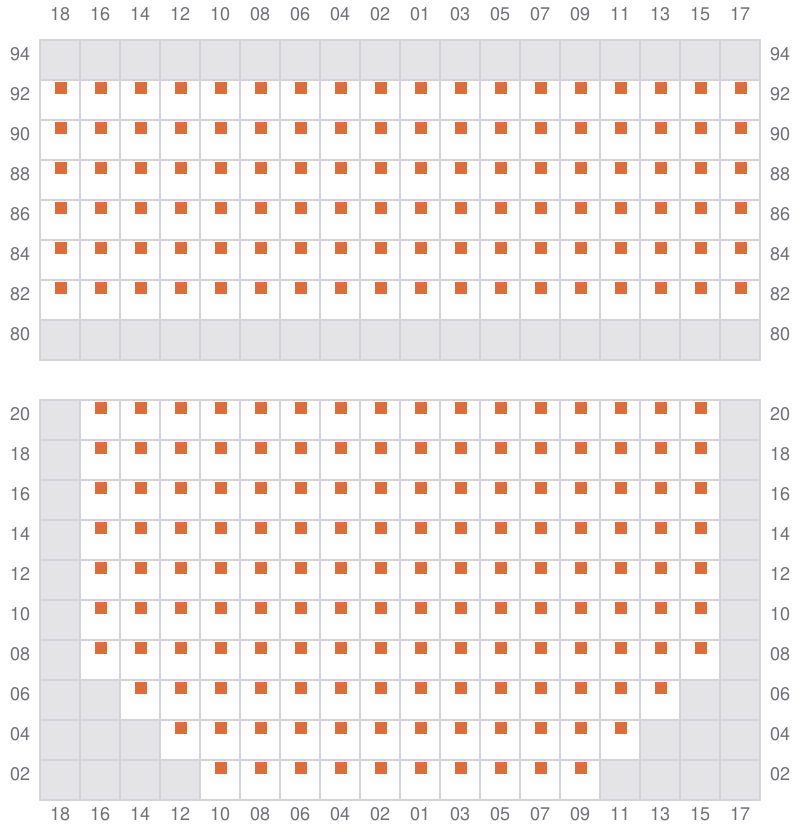

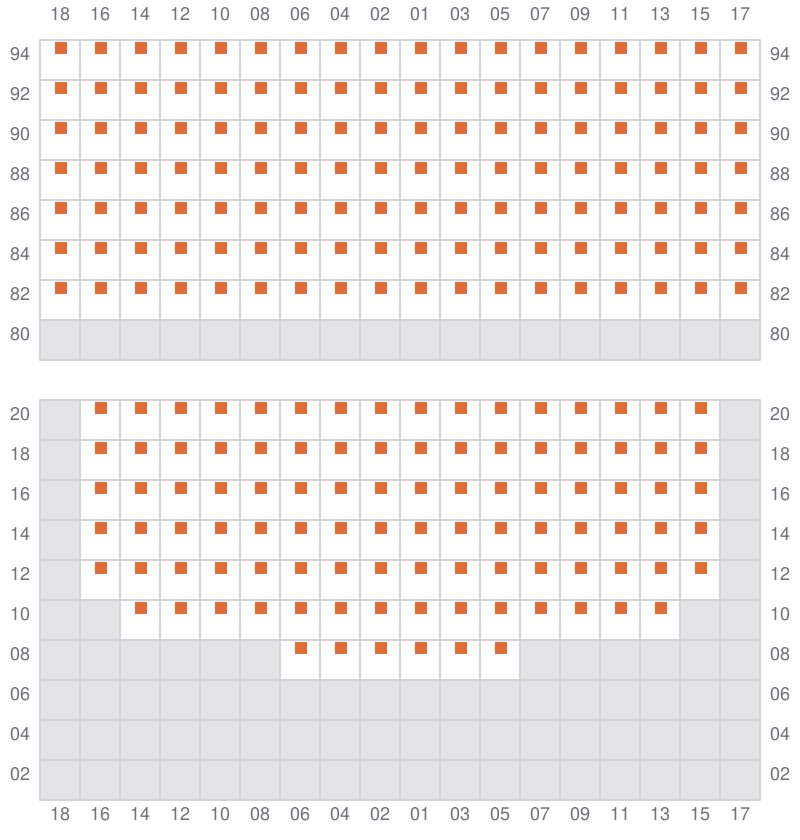

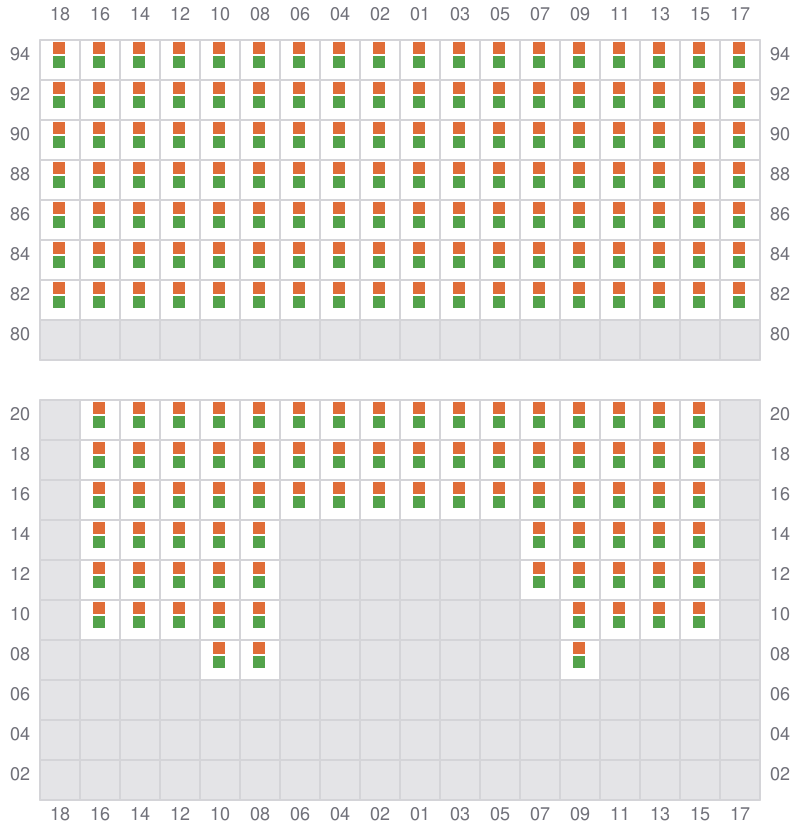

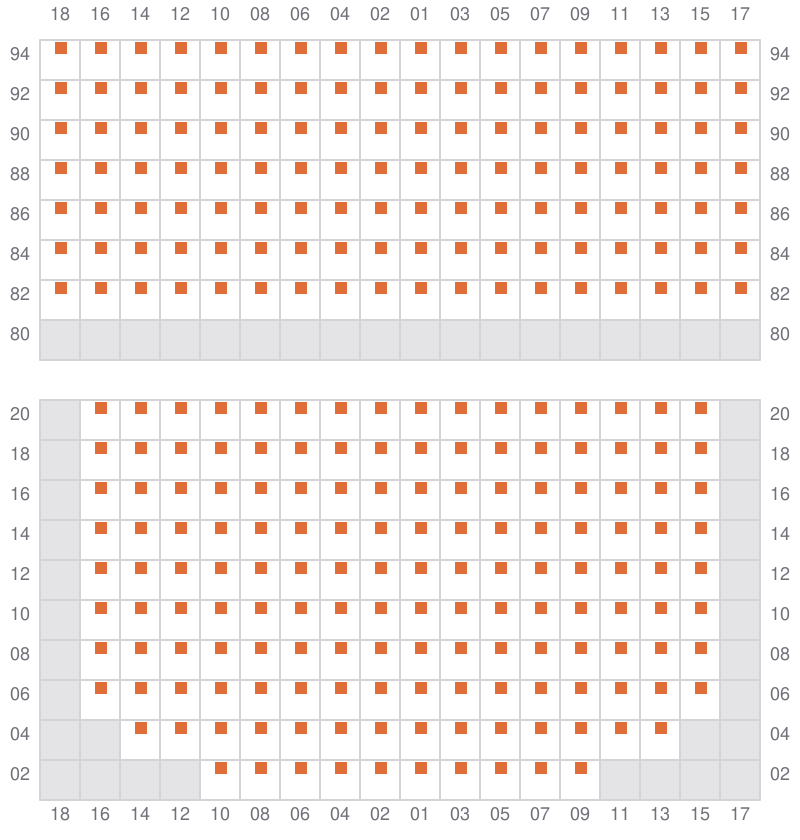

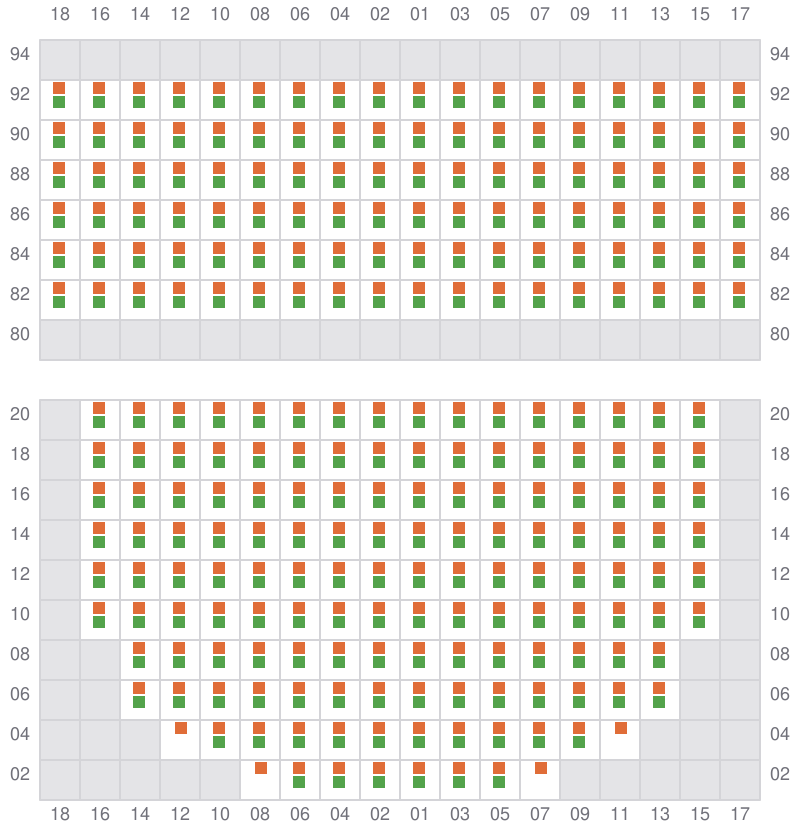

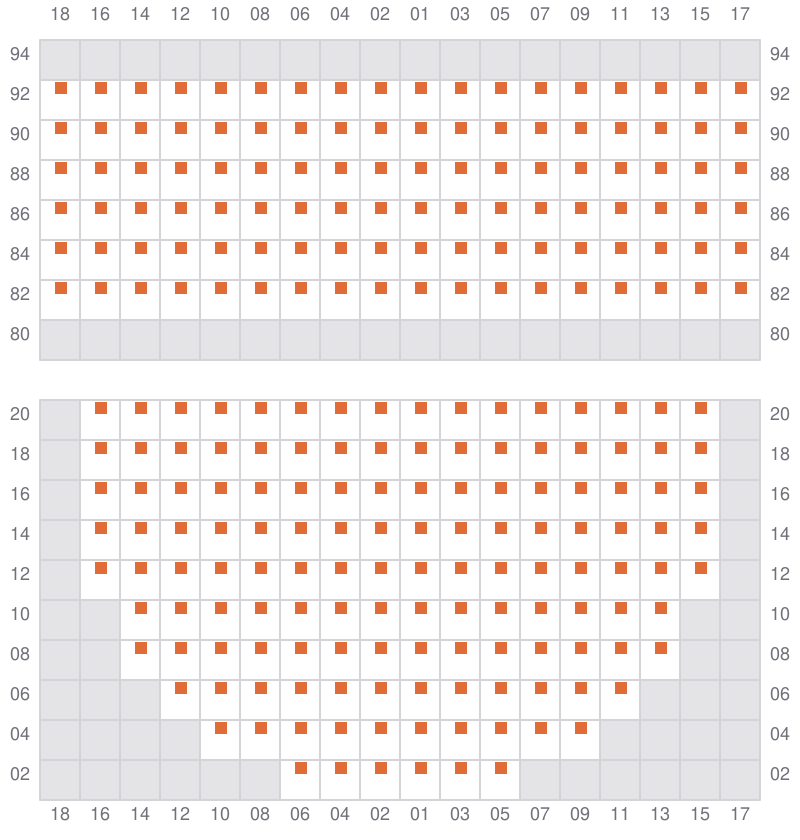

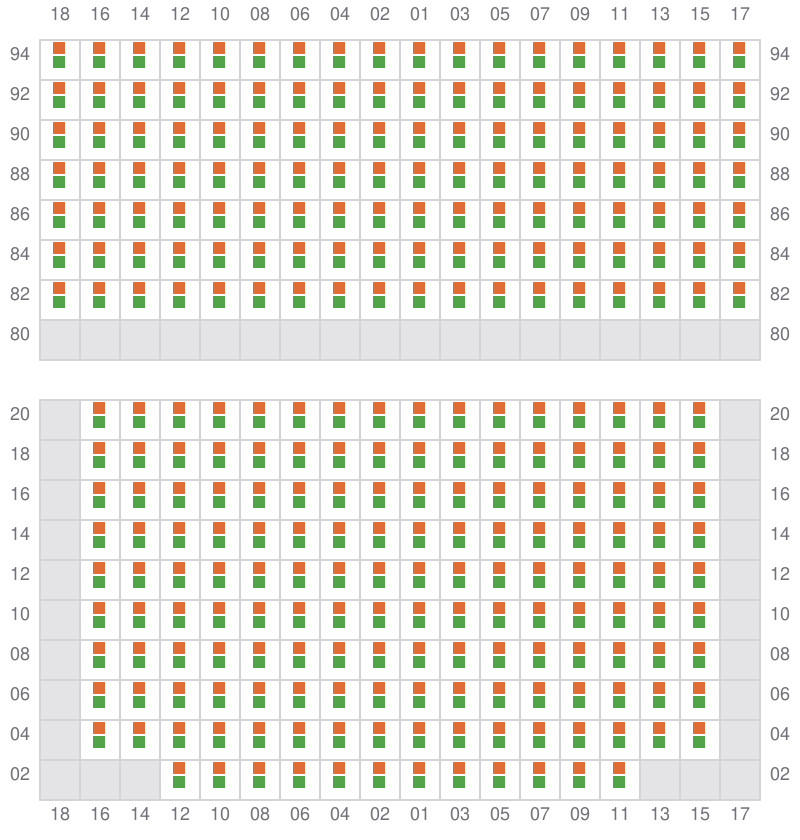

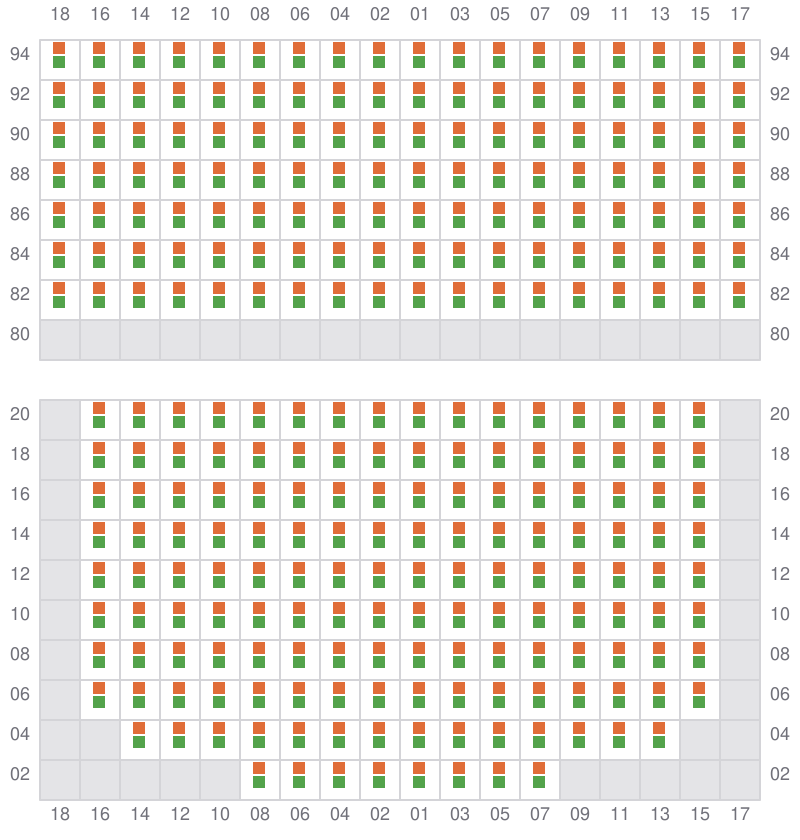

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

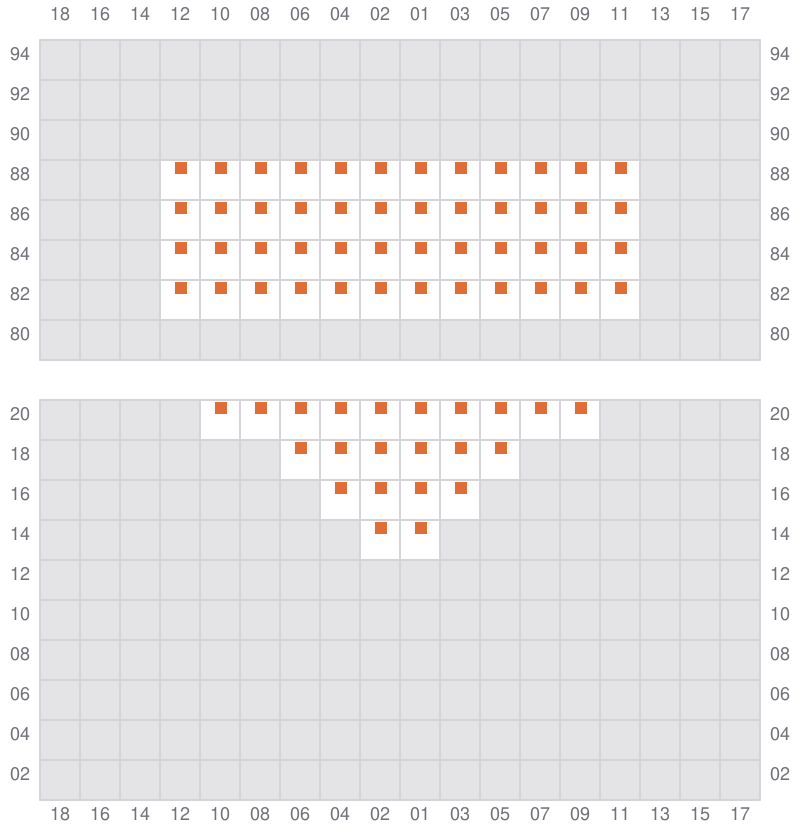

001
- →
003 (002)
- ←
005
- →
007 (006)
- ←

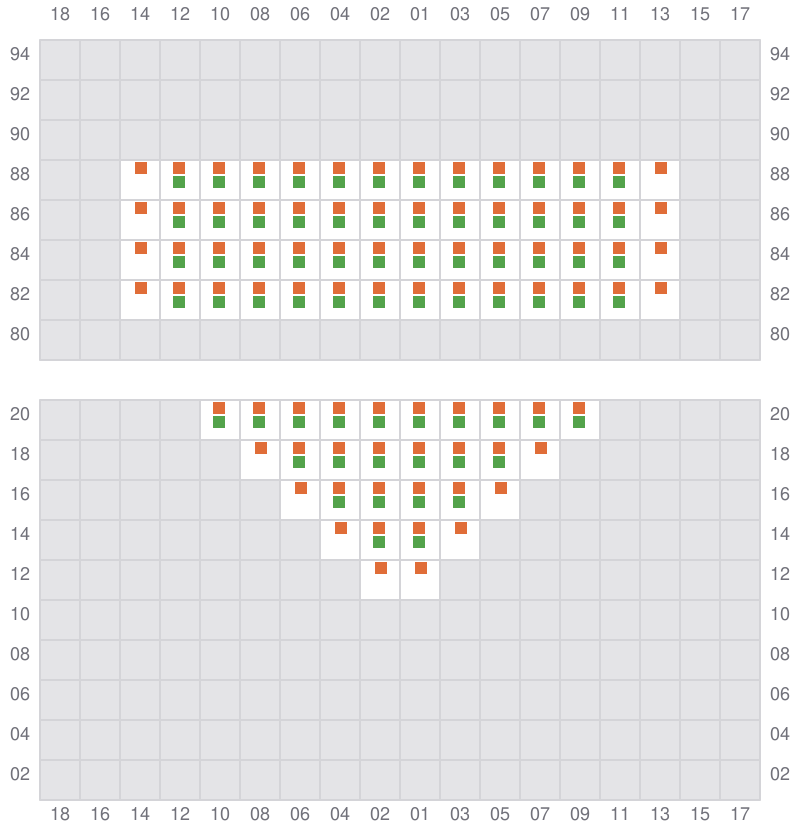

009
- →

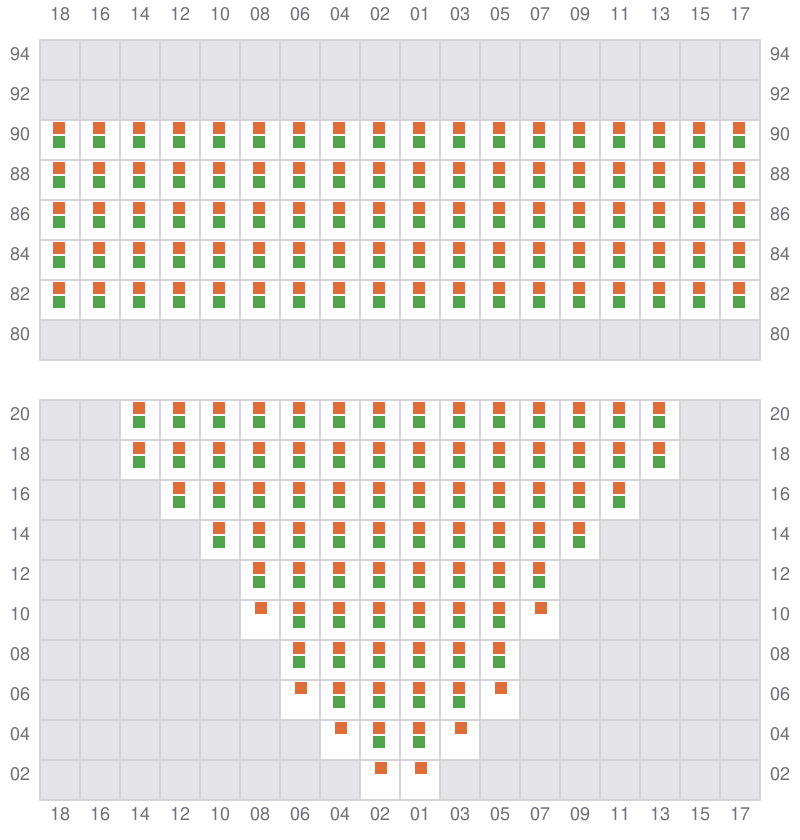

011 (010)
- ←

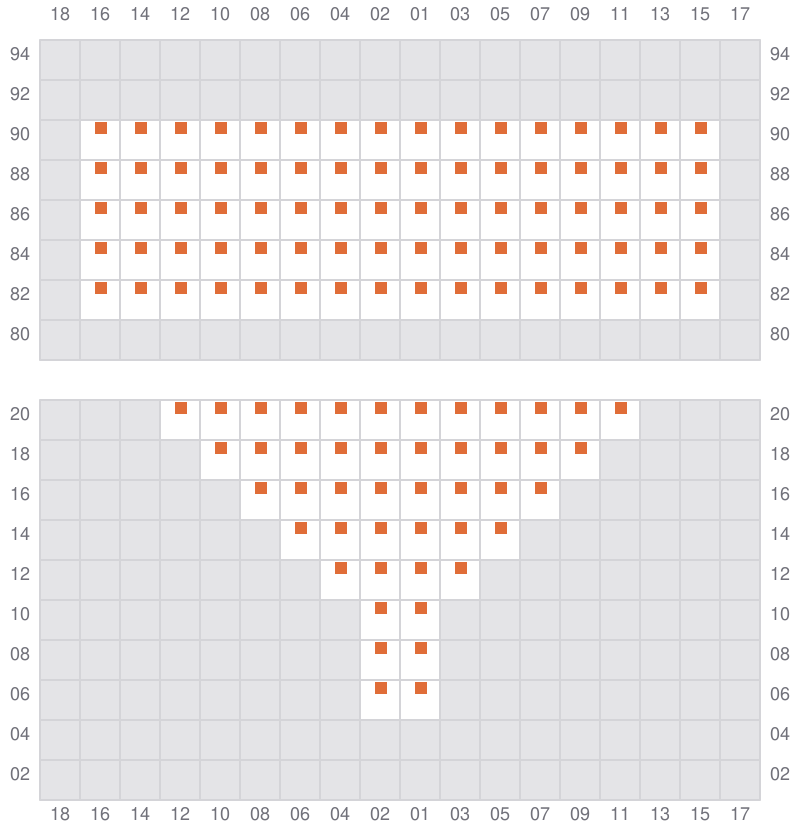

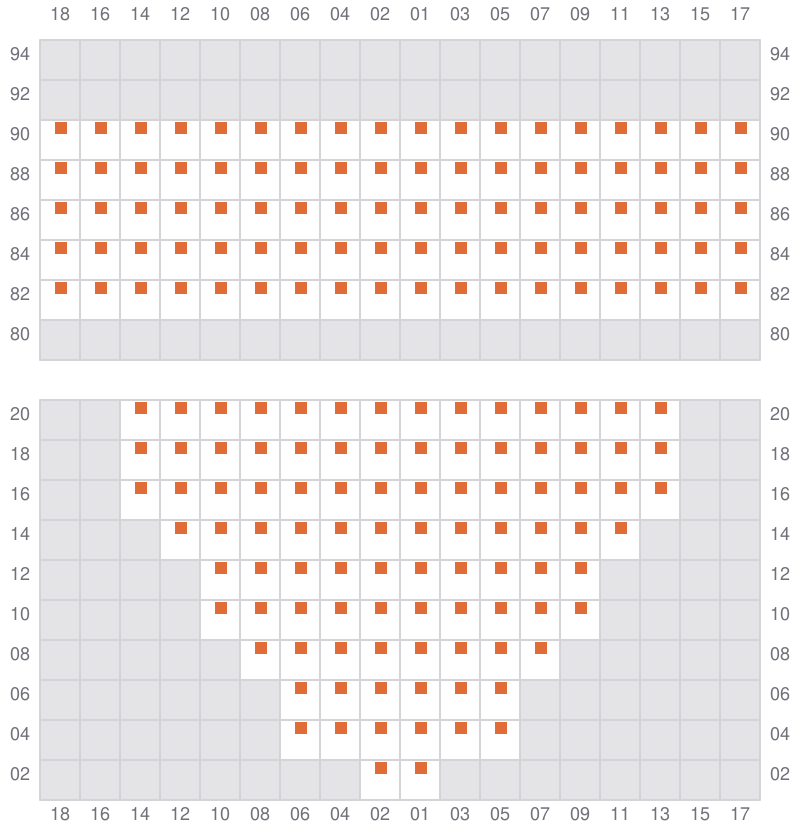

013
- →

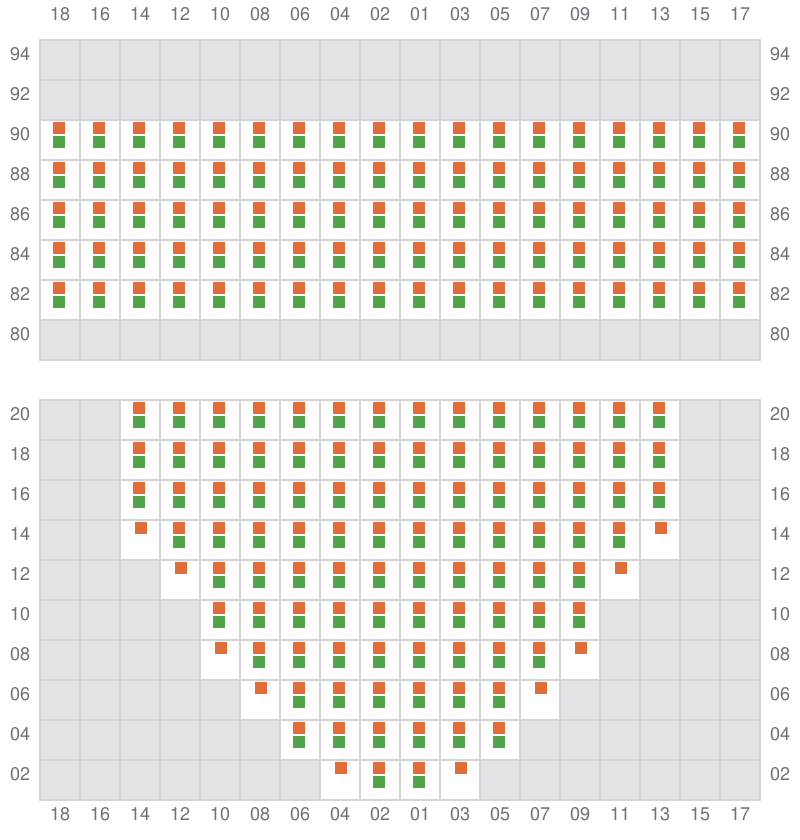

015 (014)
- ←

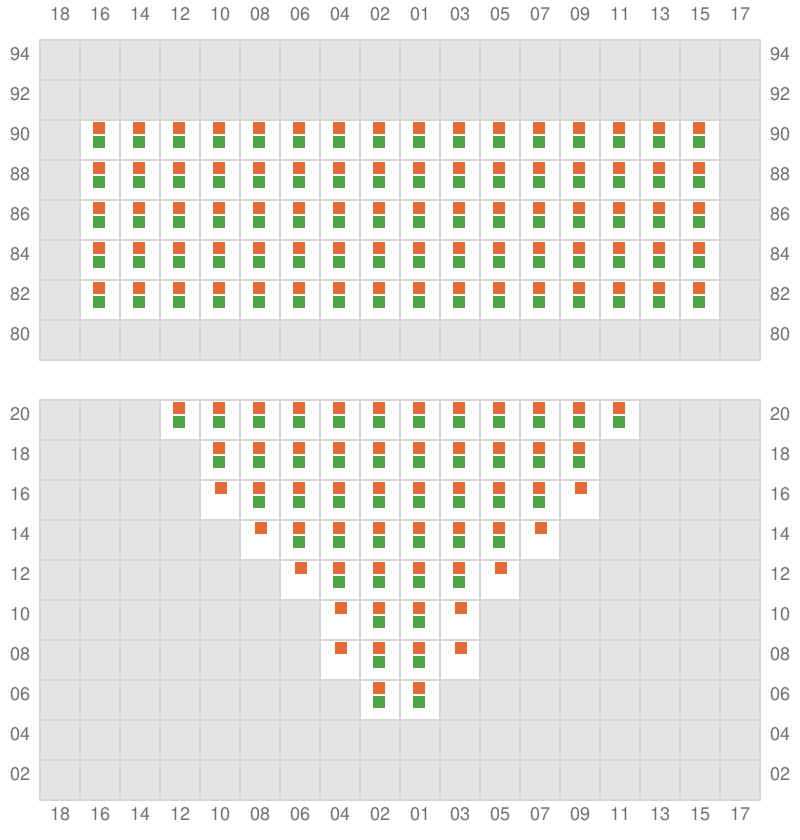

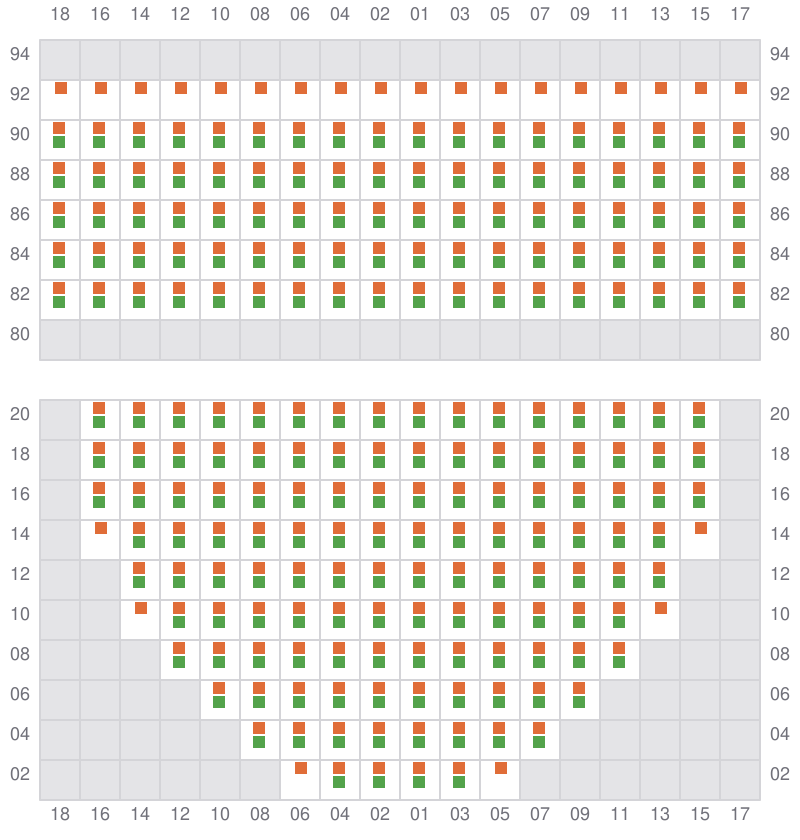

017
- →
019 (018)
- ←

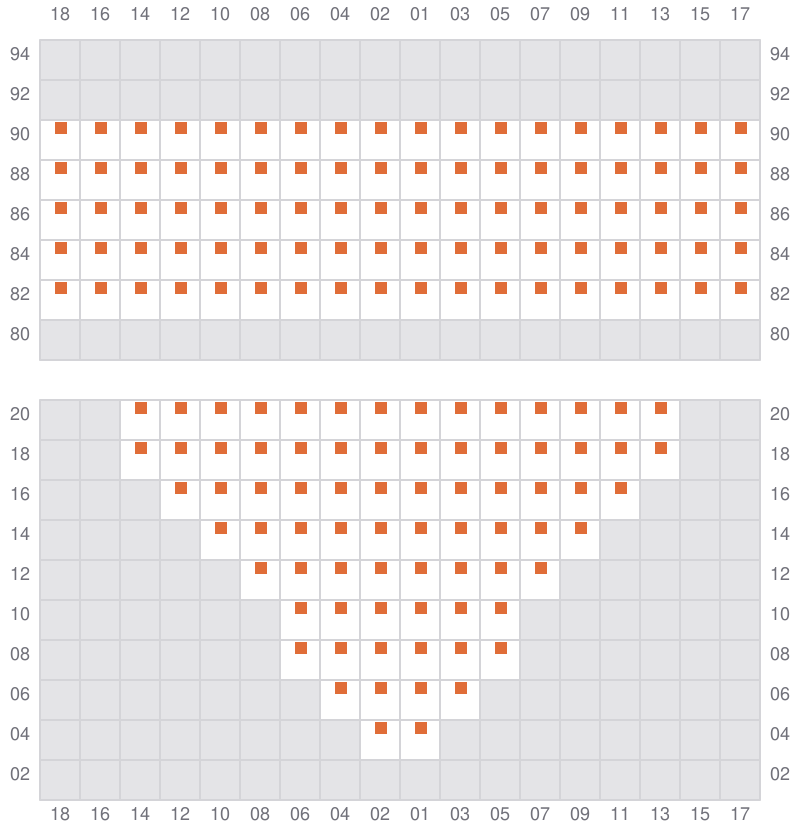

021
- →
023 (022)
- ←
025
- →
027 (026)
- ←

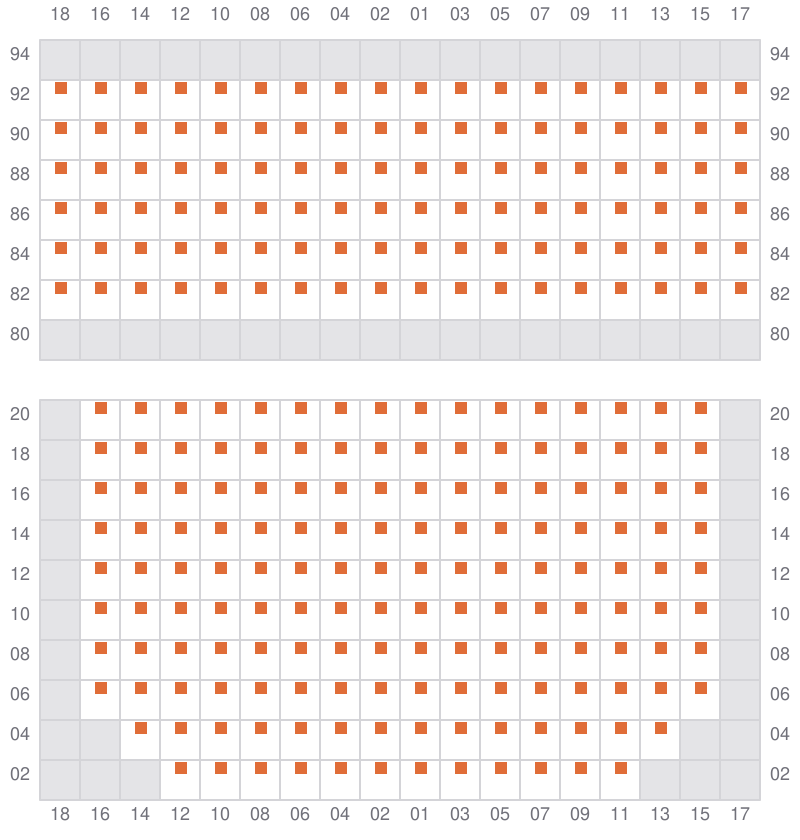

029
- →
031 (030)
- ←
033
- →
035 (034)
- ←

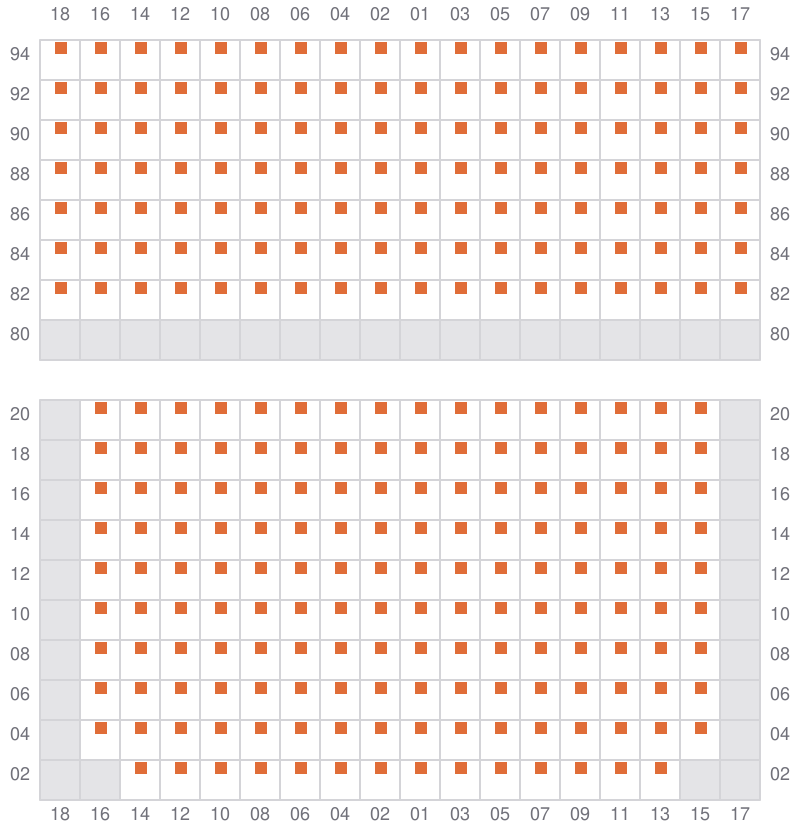

037
- →

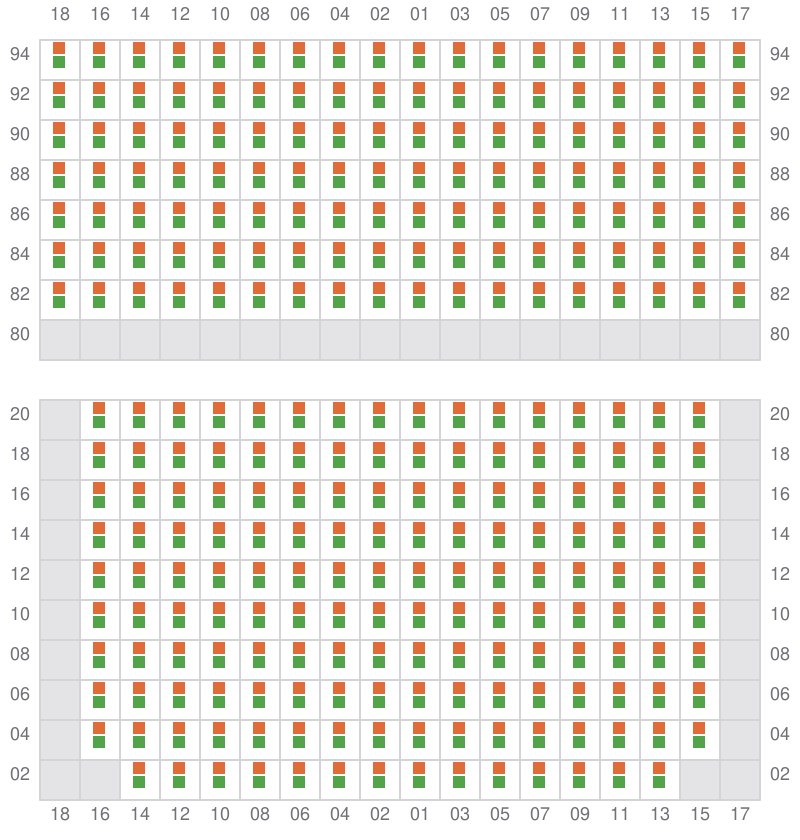

039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←

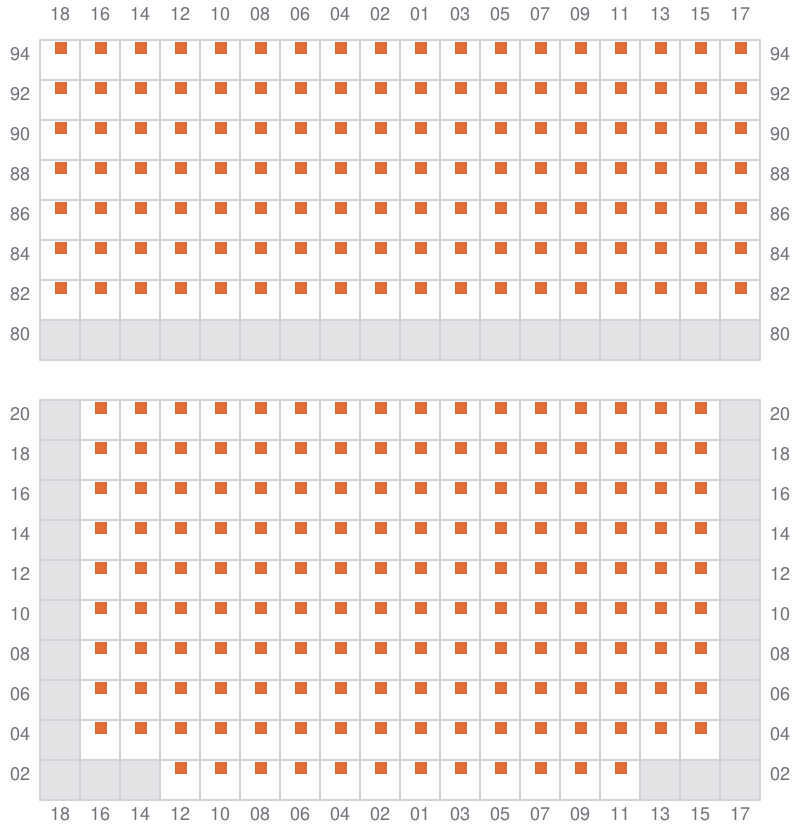

053
- →
055 (054)
- ←
057
- →
059 (058)
- ←

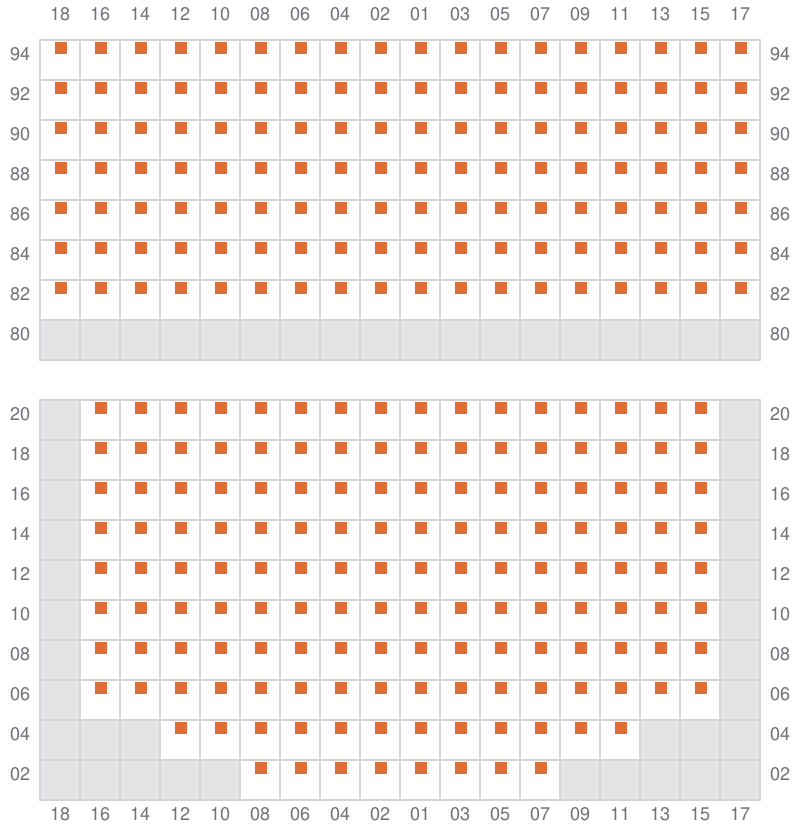

061
- →

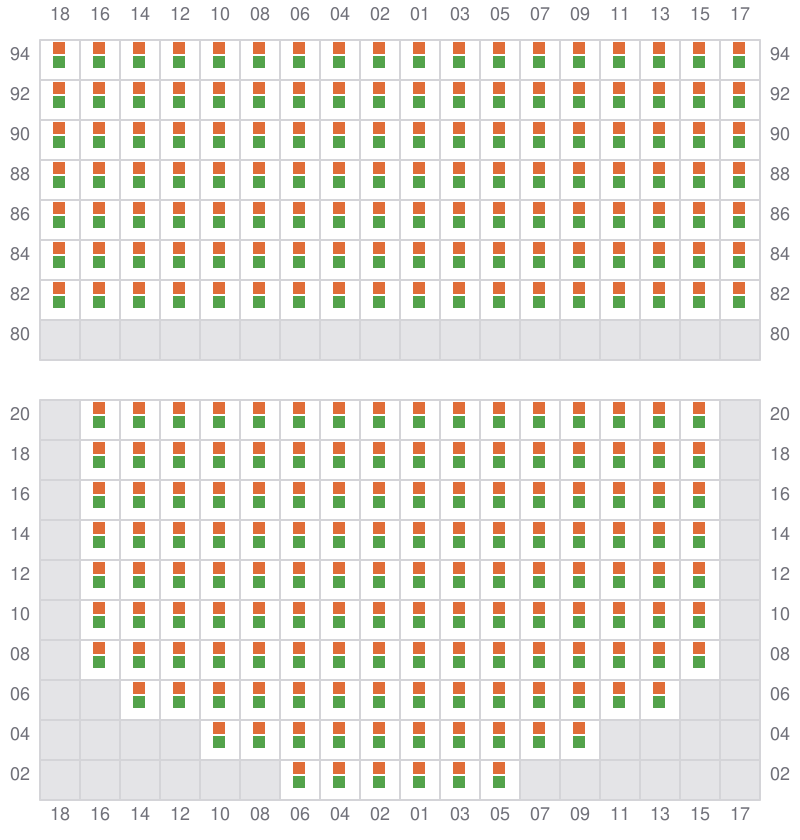

063 (062)
- ←

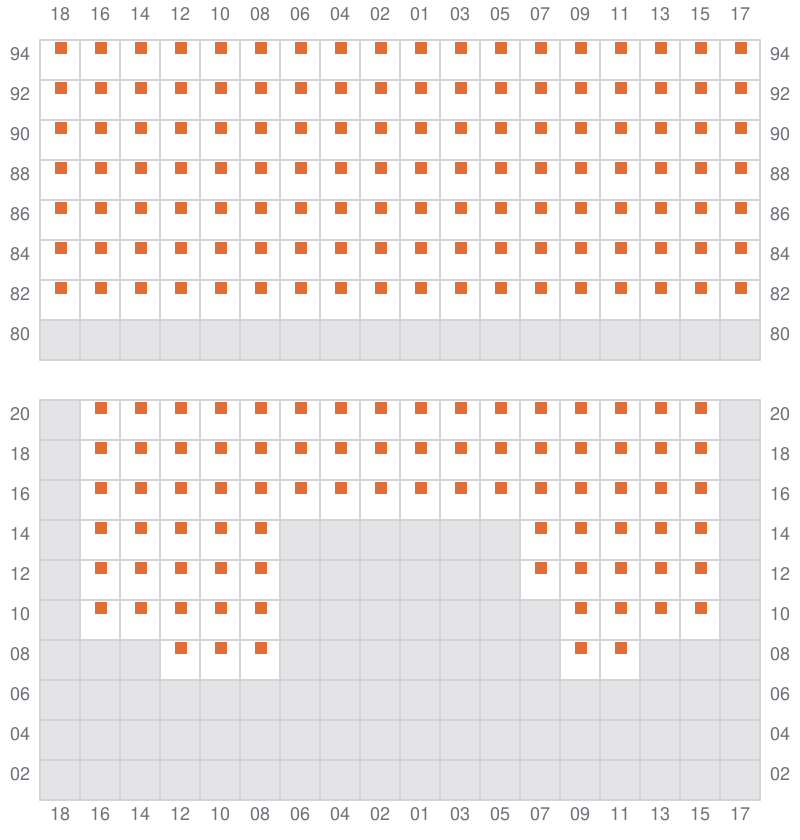

065
- →
067 (066)
- ←

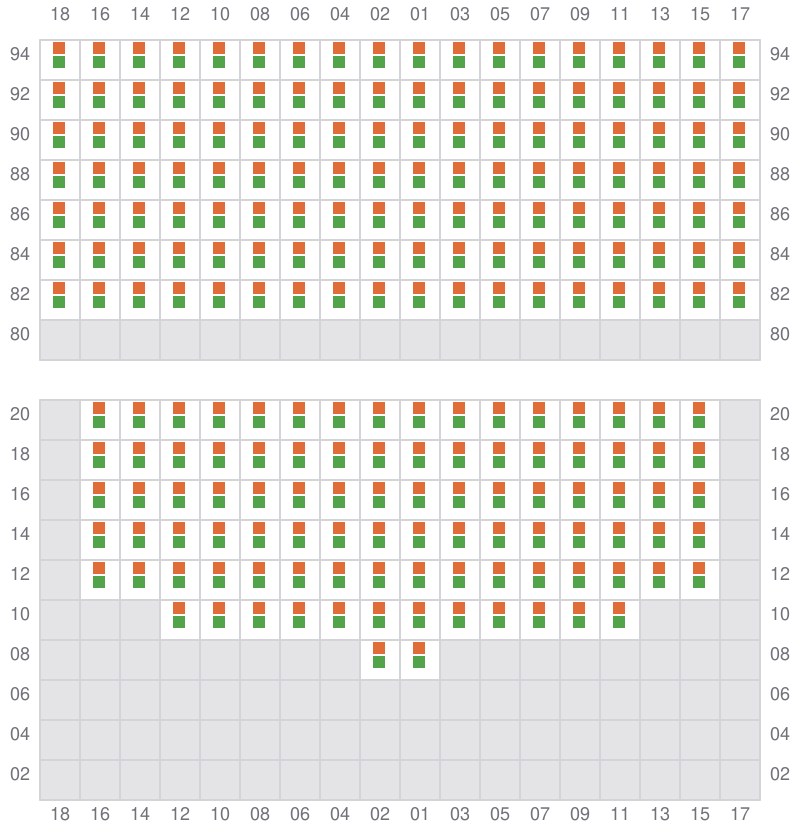

069
- →
071 (070)
- ←

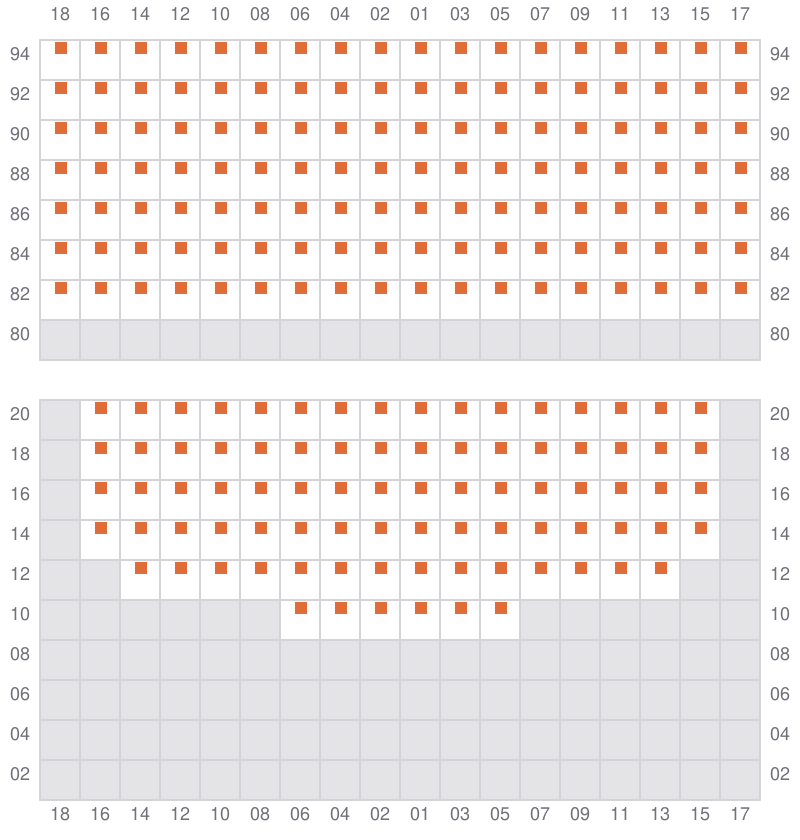

073
- →

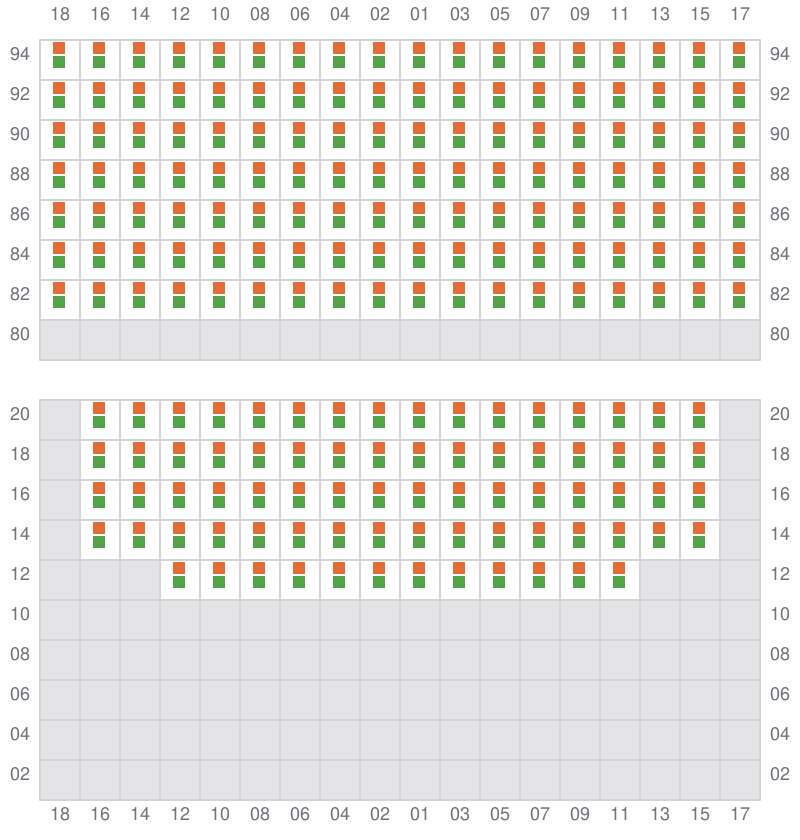

075 (074)
- ←

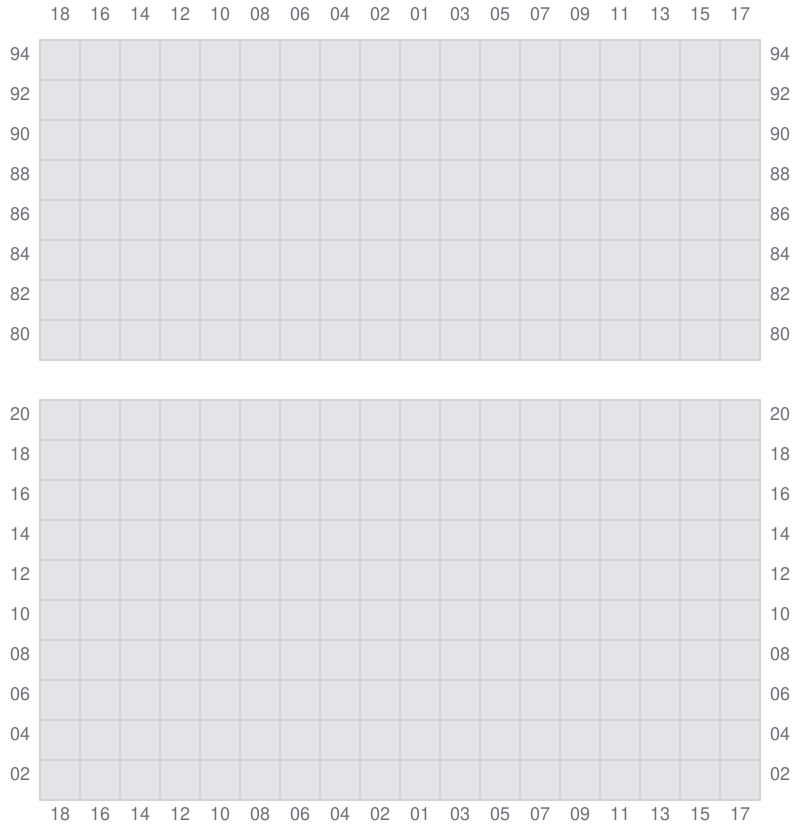

077

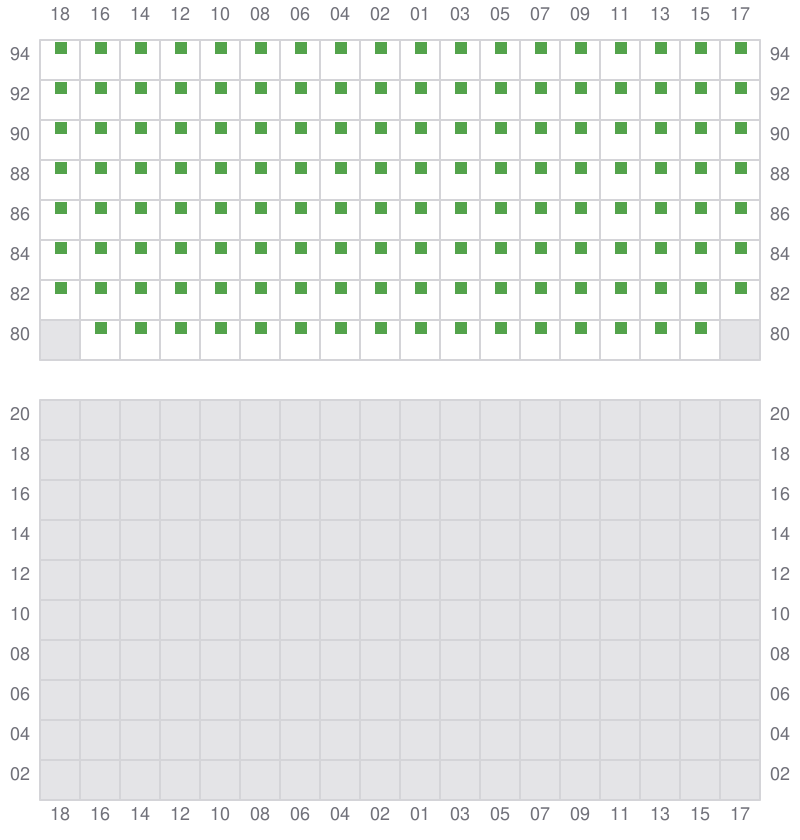

079 (078)
- ← / ?
