MSC SINES R
9210098 | A8RQ8 | 9210098 by ********* Last update: Thu Mar 14 2024

General Info

Ship Name:MSC SINES R

IMO Code:9210098

Call Sign:A8RQ8

Line Operator:9210098

Class Name for Sister Ships:82D

Year Built:2001

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:055

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:3,430

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of MSC SINES R

Hatch-Covers View

Deck view of MSC SINES R

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

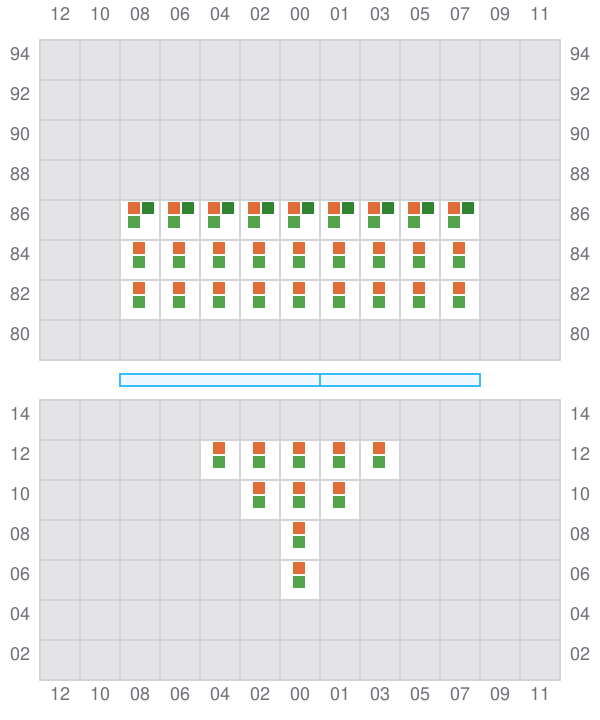

Bay 001 view and slots of MSC SINES R

003

←
^→ / _?

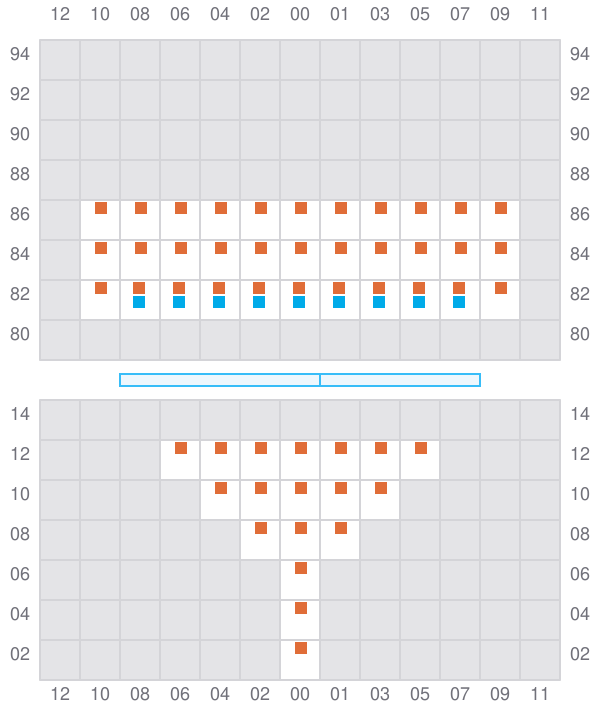

Bay 003 view and slots of MSC SINES R

005 (006)

→
^← / _?

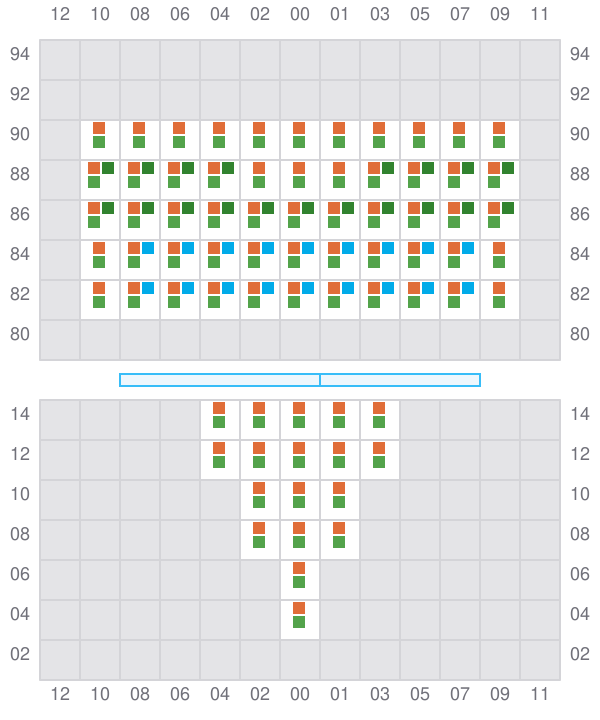

Bay 005 view and slots of MSC SINES R

007

←
^→ / _?

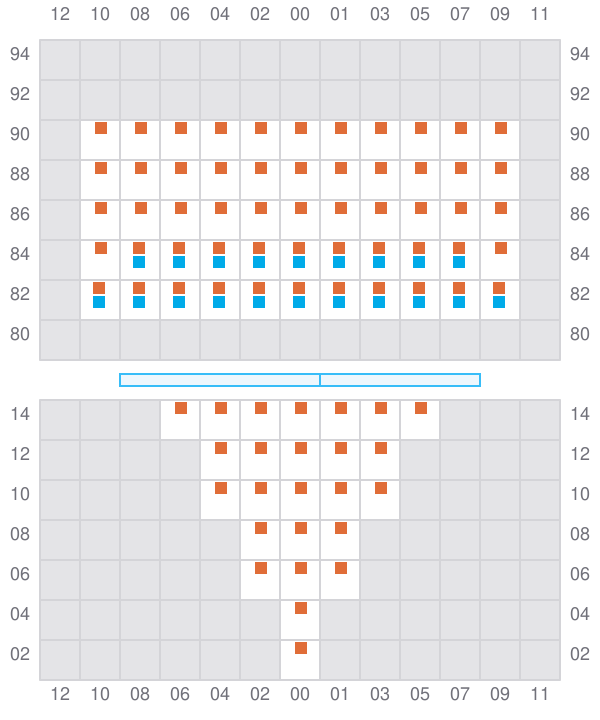

Bay 007 view and slots of MSC SINES R

009 (010)

→
^← / _?

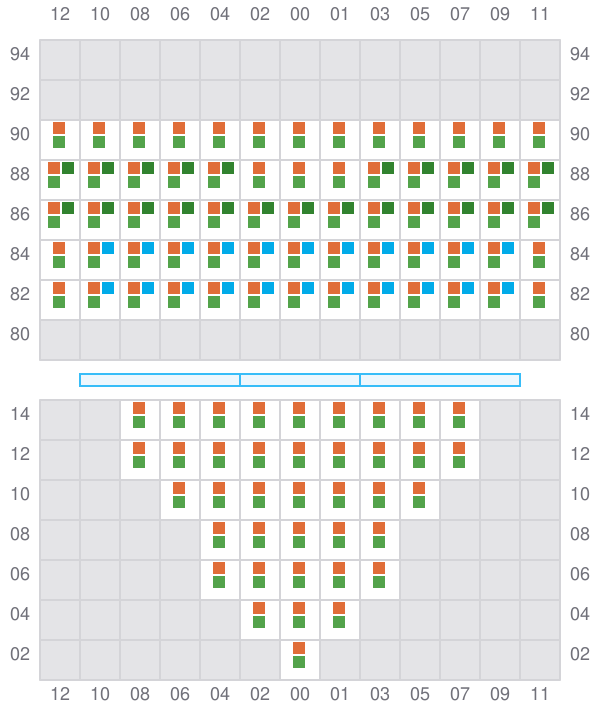

Bay 009 view and slots of MSC SINES R

011

←
^→ / _?

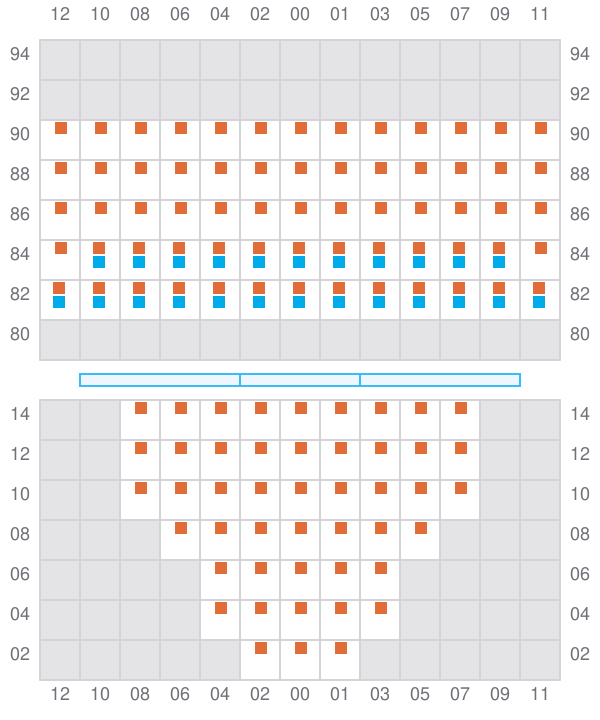

Bay 011 view and slots of MSC SINES R

013 (014)

→
^← / _?

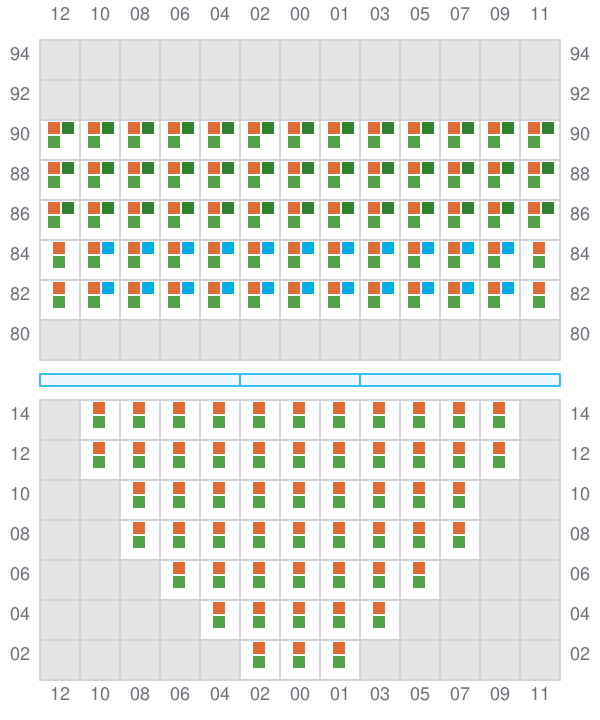

Bay 013 view and slots of MSC SINES R

015

←
^→ / _?

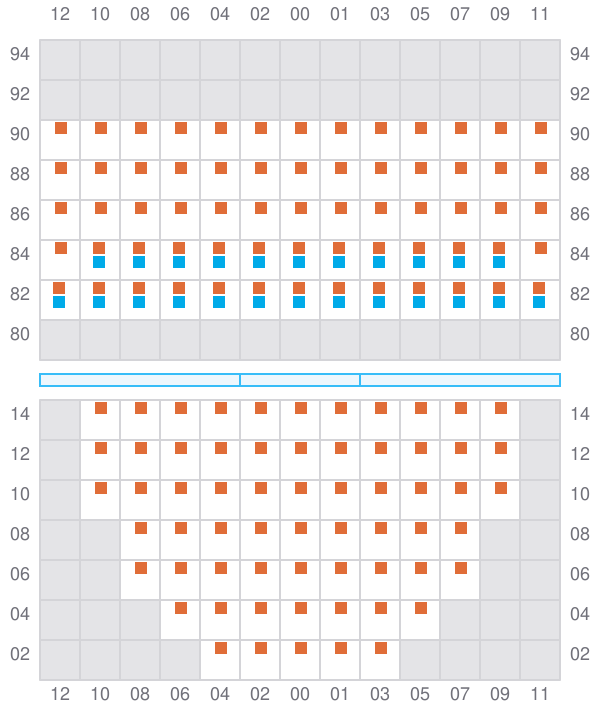

Bay 015 view and slots of MSC SINES R

017 (018)

→
^← / _?

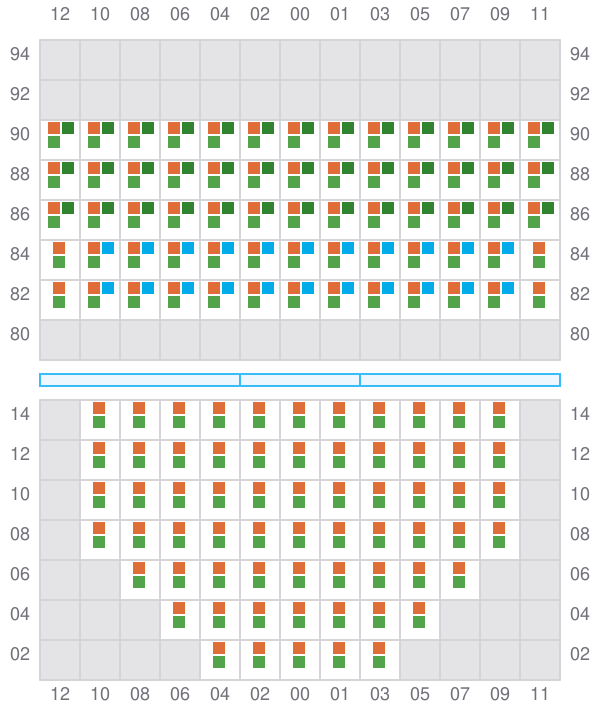

Bay 017 view and slots of MSC SINES R

019

←
→

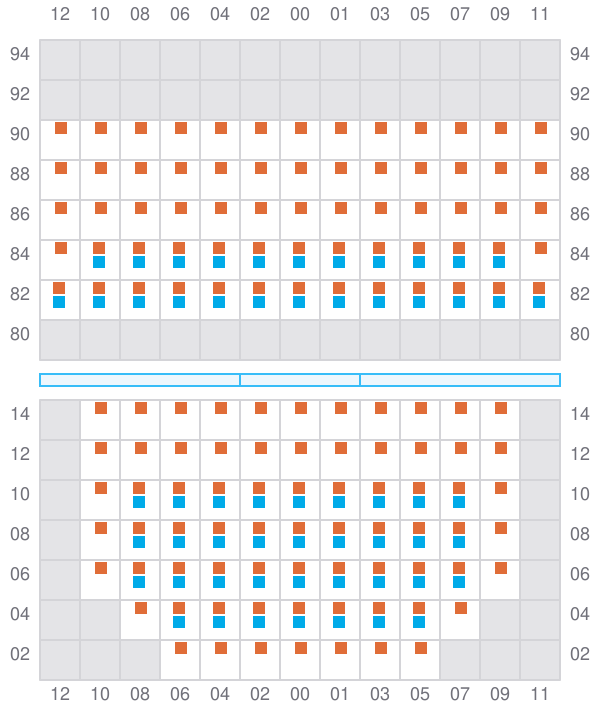

Bay 019 view and slots of MSC SINES R

021 (022)

→
←

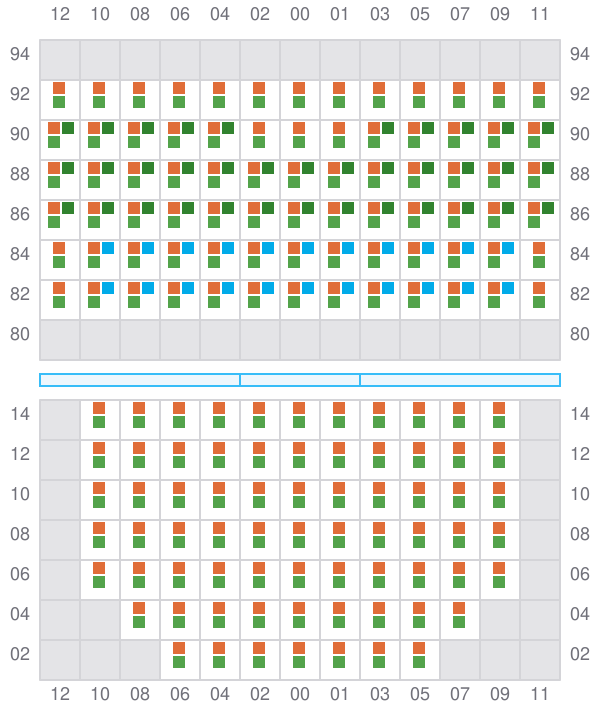

Bay 021 view and slots of MSC SINES R

023

←
→

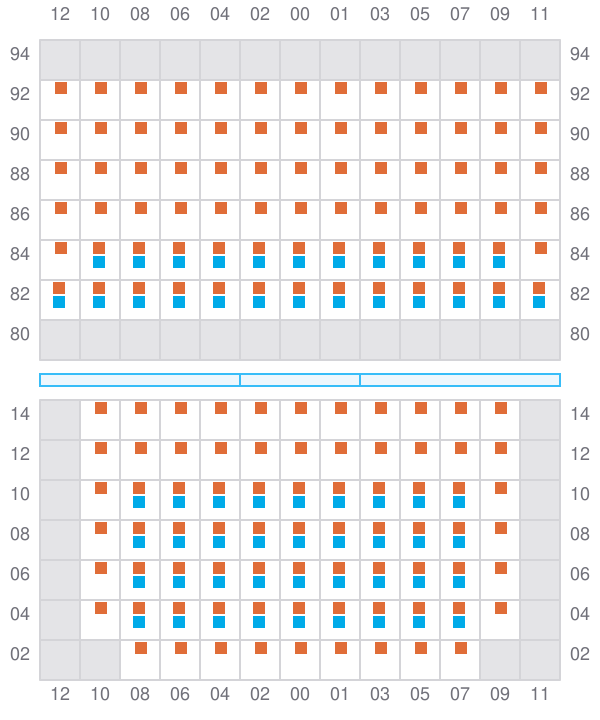

Bay 023 view and slots of MSC SINES R

025 (026)

→
←

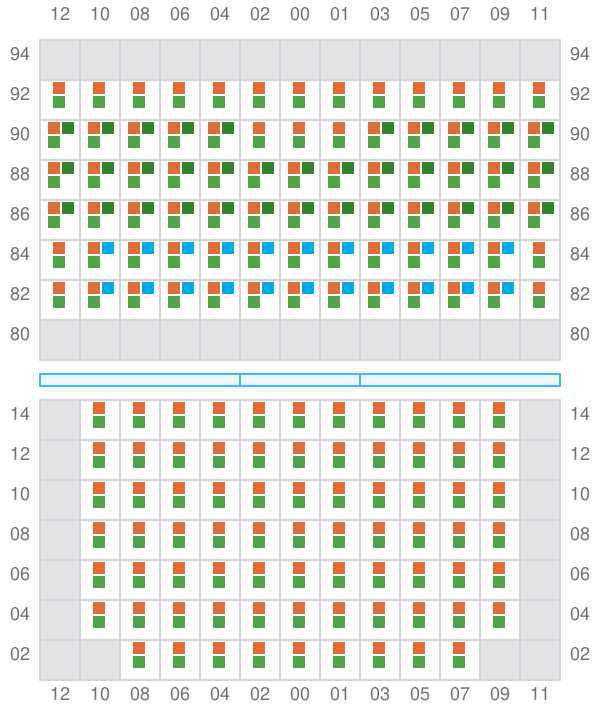

Bay 025 view and slots of MSC SINES R

027

←
→

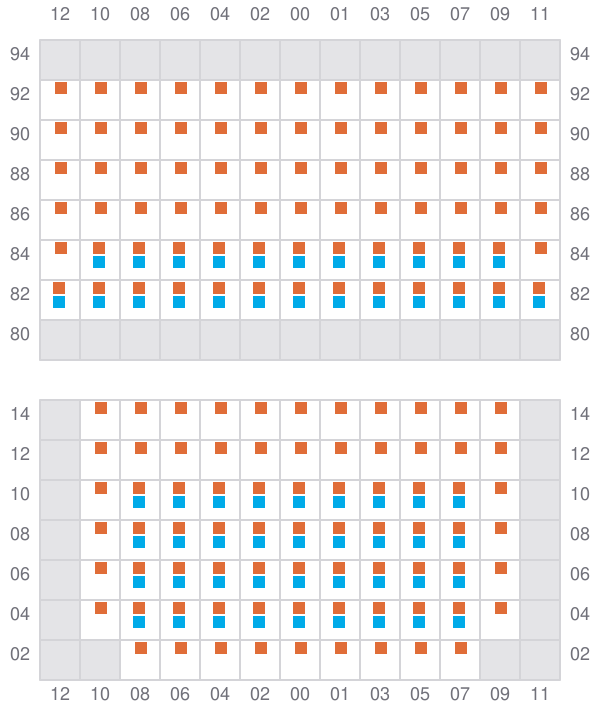

Bay 027 view and slots of MSC SINES R

029 (030)

→
^← / _?

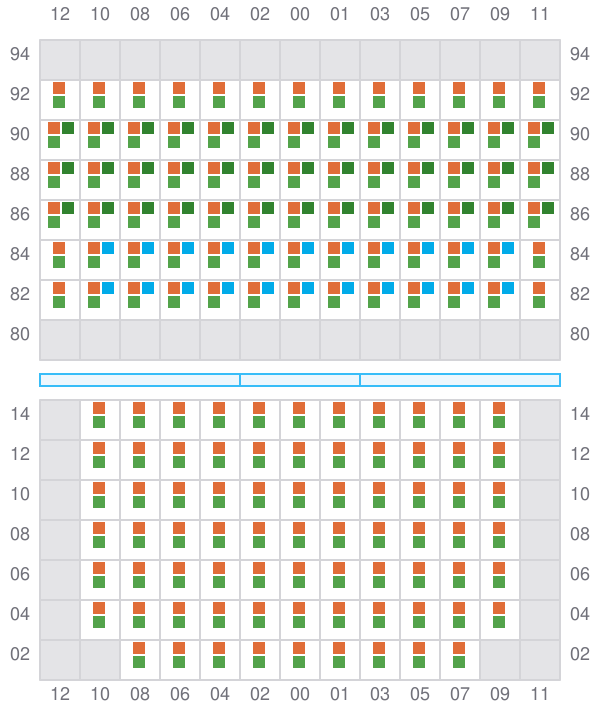

Bay 029 view and slots of MSC SINES R

031

←
→

Bay 031 view and slots of MSC SINES R

033 (034)

→
^← / _?

Bay 033 view and slots of MSC SINES R

035

←
→

Bay 035 view and slots of MSC SINES R

037 (038)

→
←

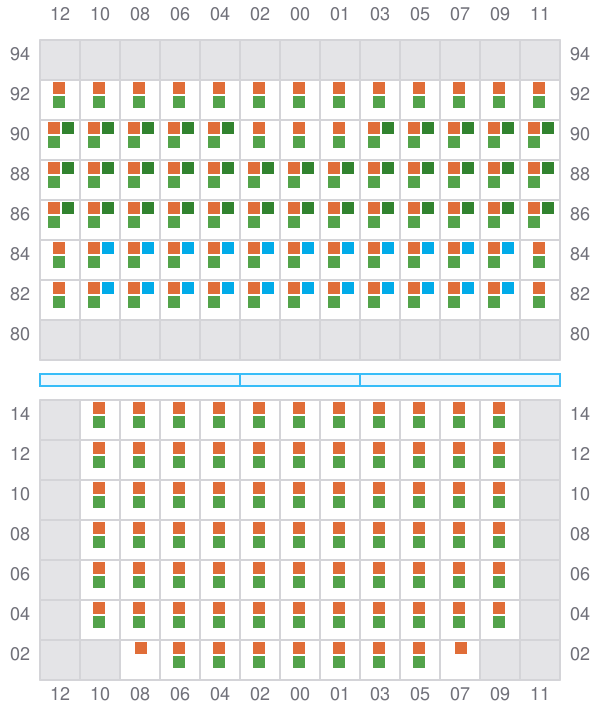

Bay 037 view and slots of MSC SINES R

039

←
→

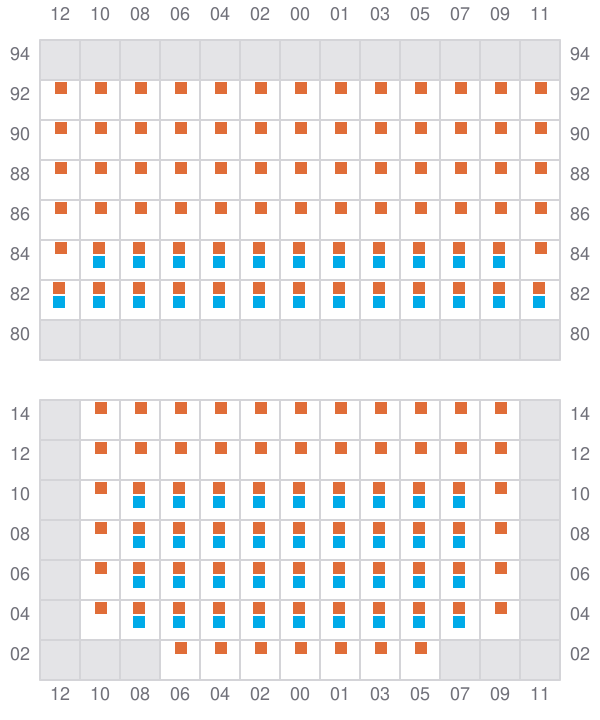

Bay 039 view and slots of MSC SINES R

041 (042)

→
←

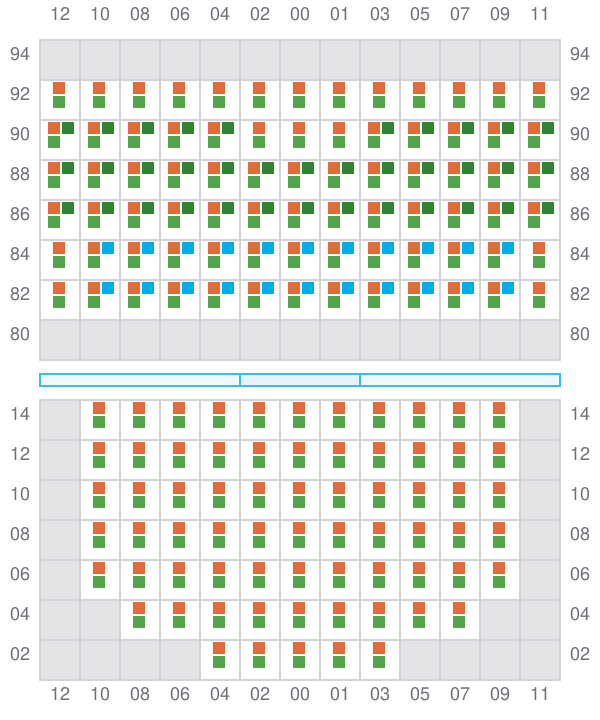

Bay 041 view and slots of MSC SINES R

043

←
→

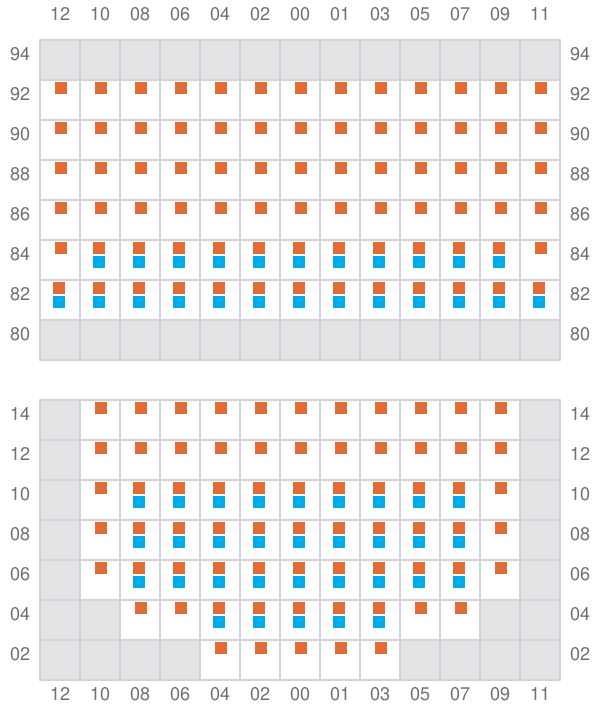

Bay 043 view and slots of MSC SINES R

045 (046)

→
^← / _?

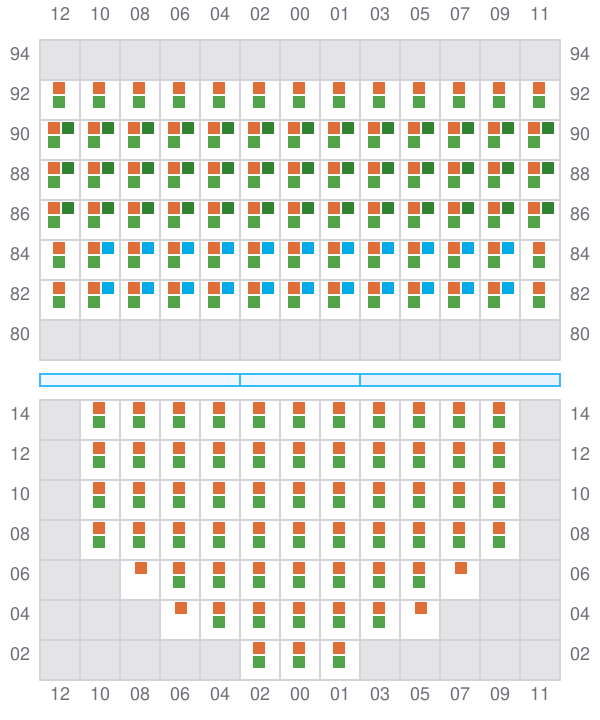

Bay 045 view and slots of MSC SINES R

047

←
→

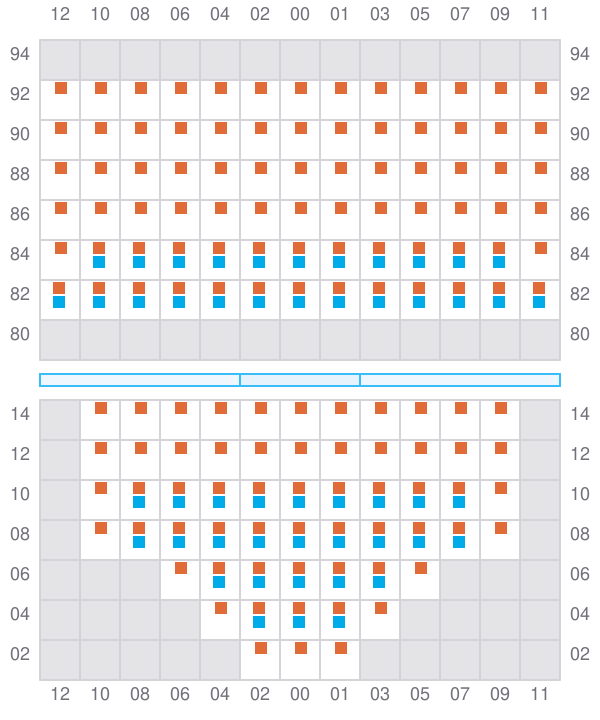

Bay 047 view and slots of MSC SINES R

049 (050)

^→ / _?
^← / _?

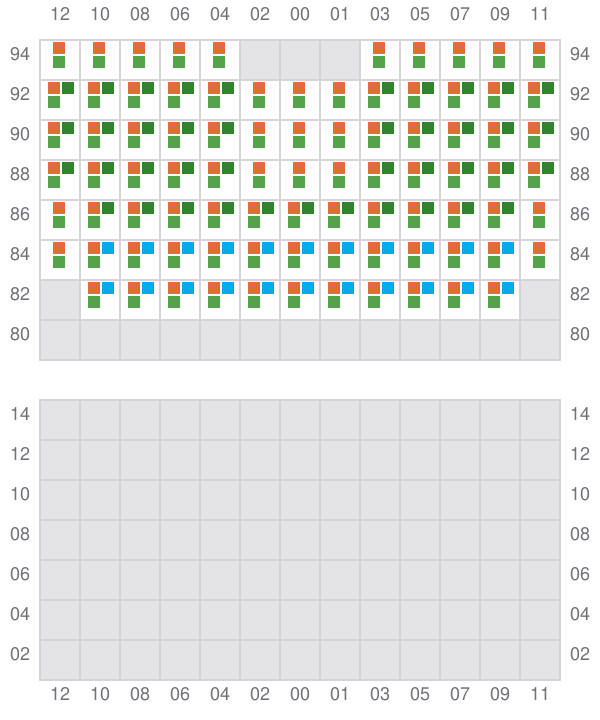

Bay 049 view and slots of MSC SINES R

051

^← / _?
^→ / _?

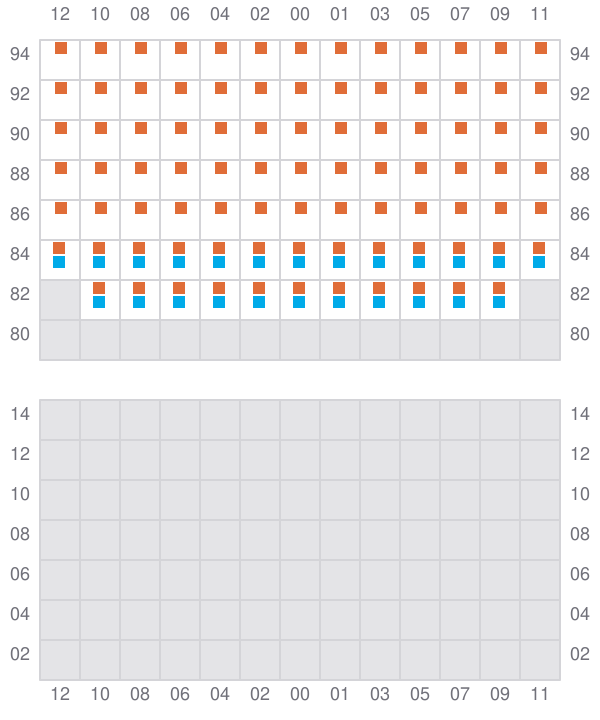

Bay 051 view and slots of MSC SINES R

053 (054)

^→ / _?
^← / _?

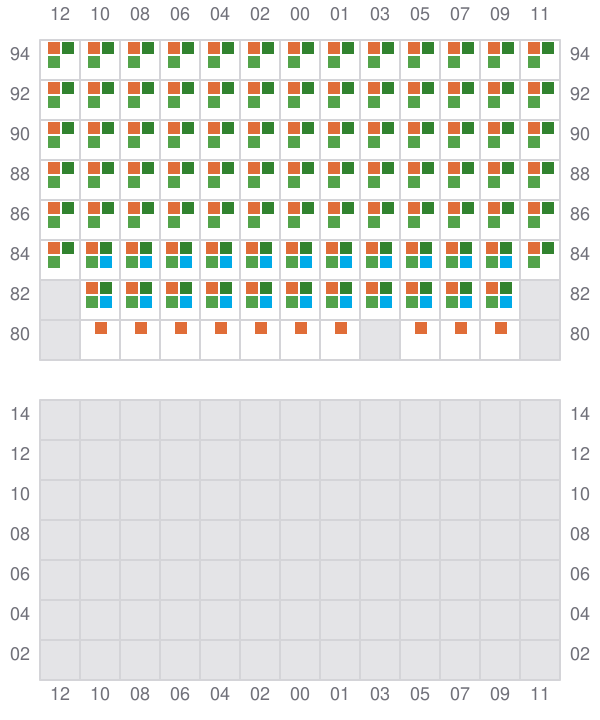

Bay 053 view and slots of MSC SINES R

055

^← / _?

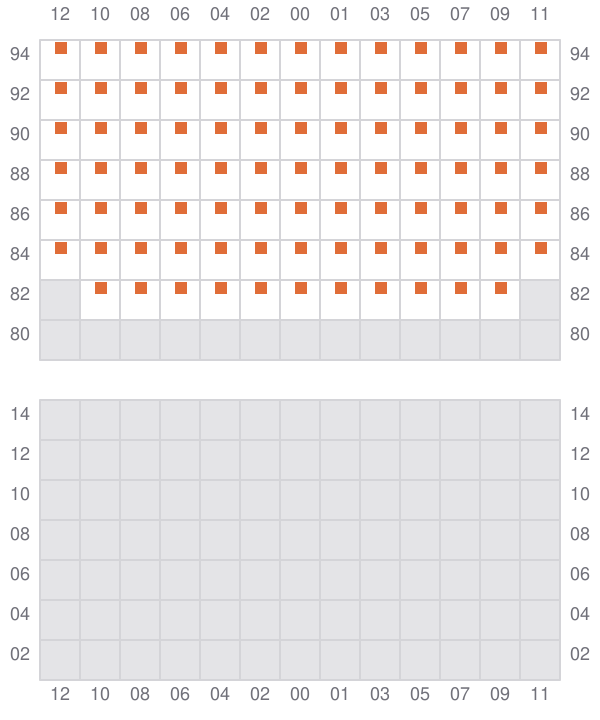

Bay 055 view and slots of MSC SINES R
