MSC SIXIN
9839301 | HP2652 | MSC by *********************** Last update: Wed Feb 12 2025

General Info

Ship Name:MSC SIXIN
IMO Code:9839301
Call Sign:HP2652
Line Operator:MSC
Class Name for Sister Ships:MSSX
Year Built:2019
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):383.13
LOA (Length Overall):399.82
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:24
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:70
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:23,656

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

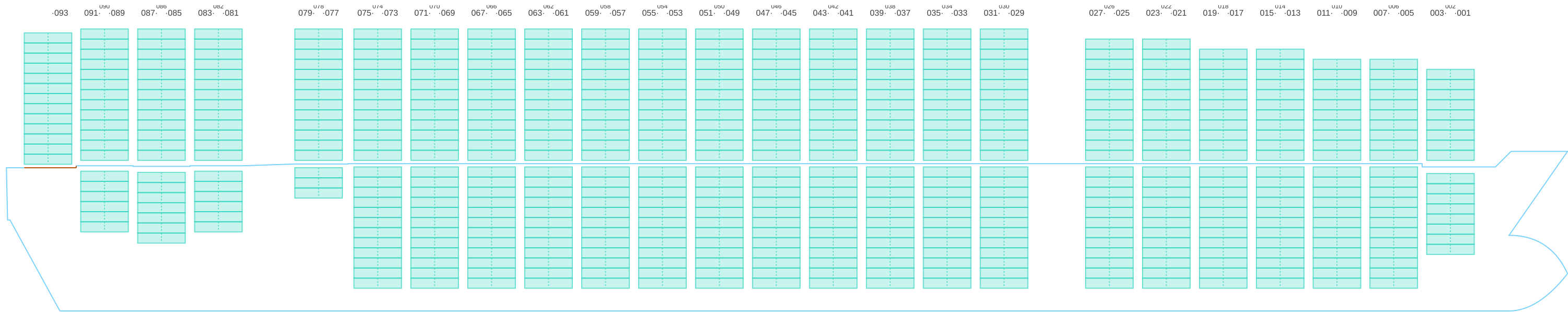

Side View

Side view of MSC SIXIN

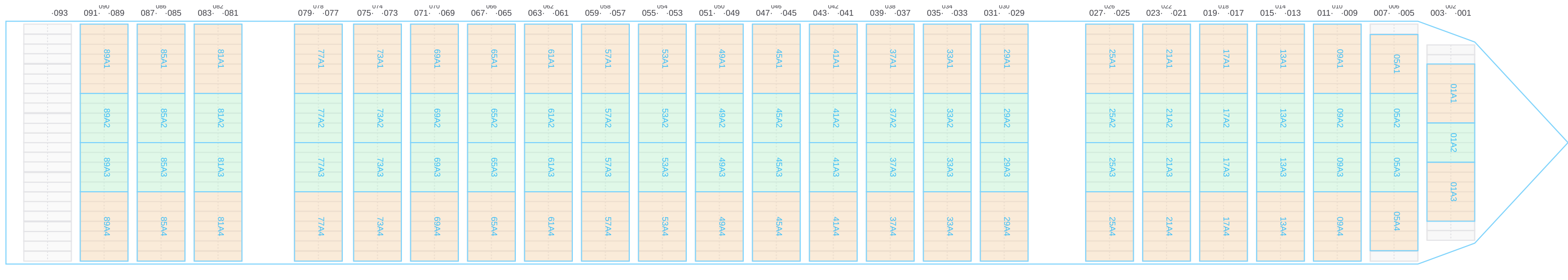

Hatch-Covers View

Deck view of MSC SIXIN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • →

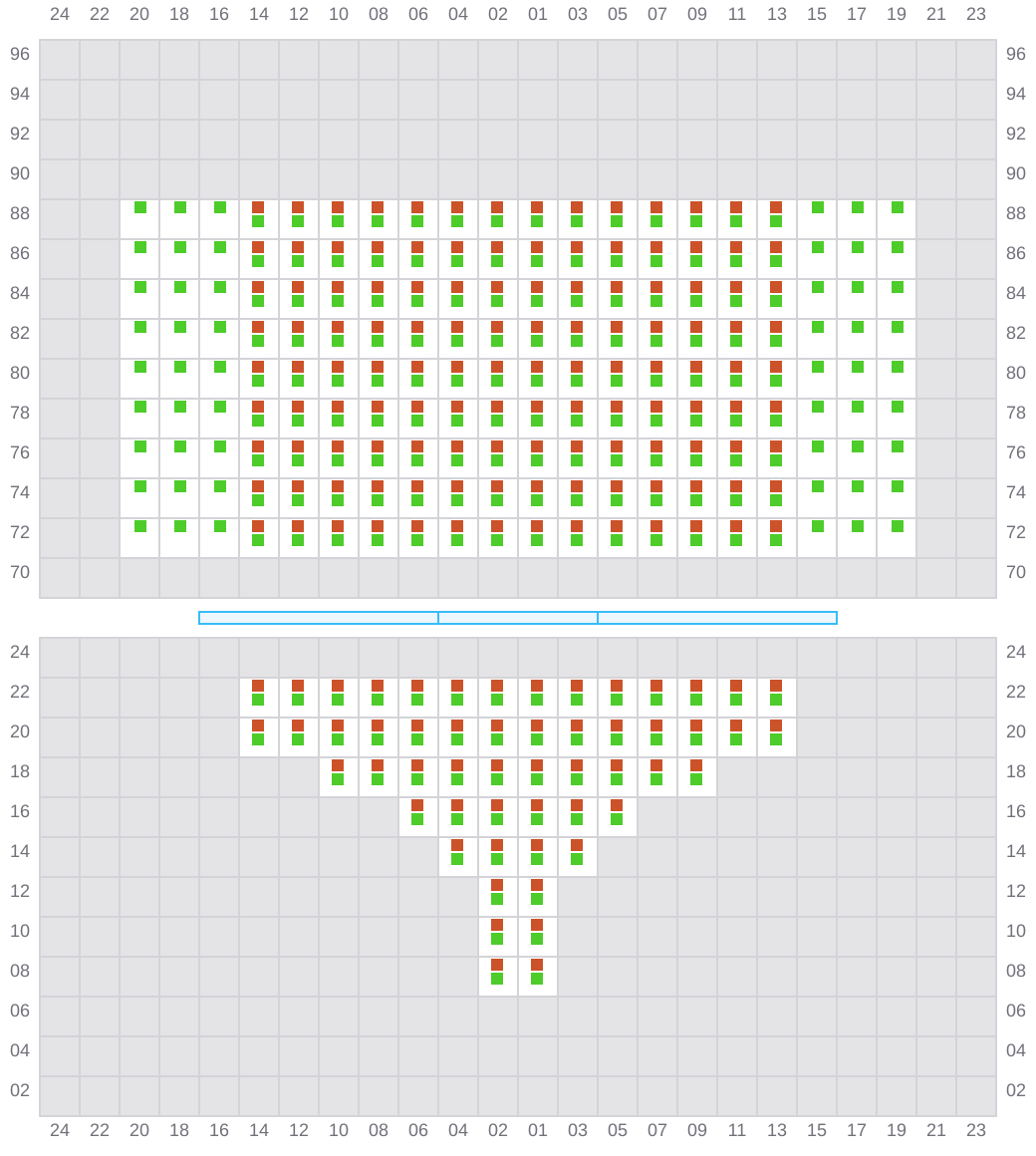

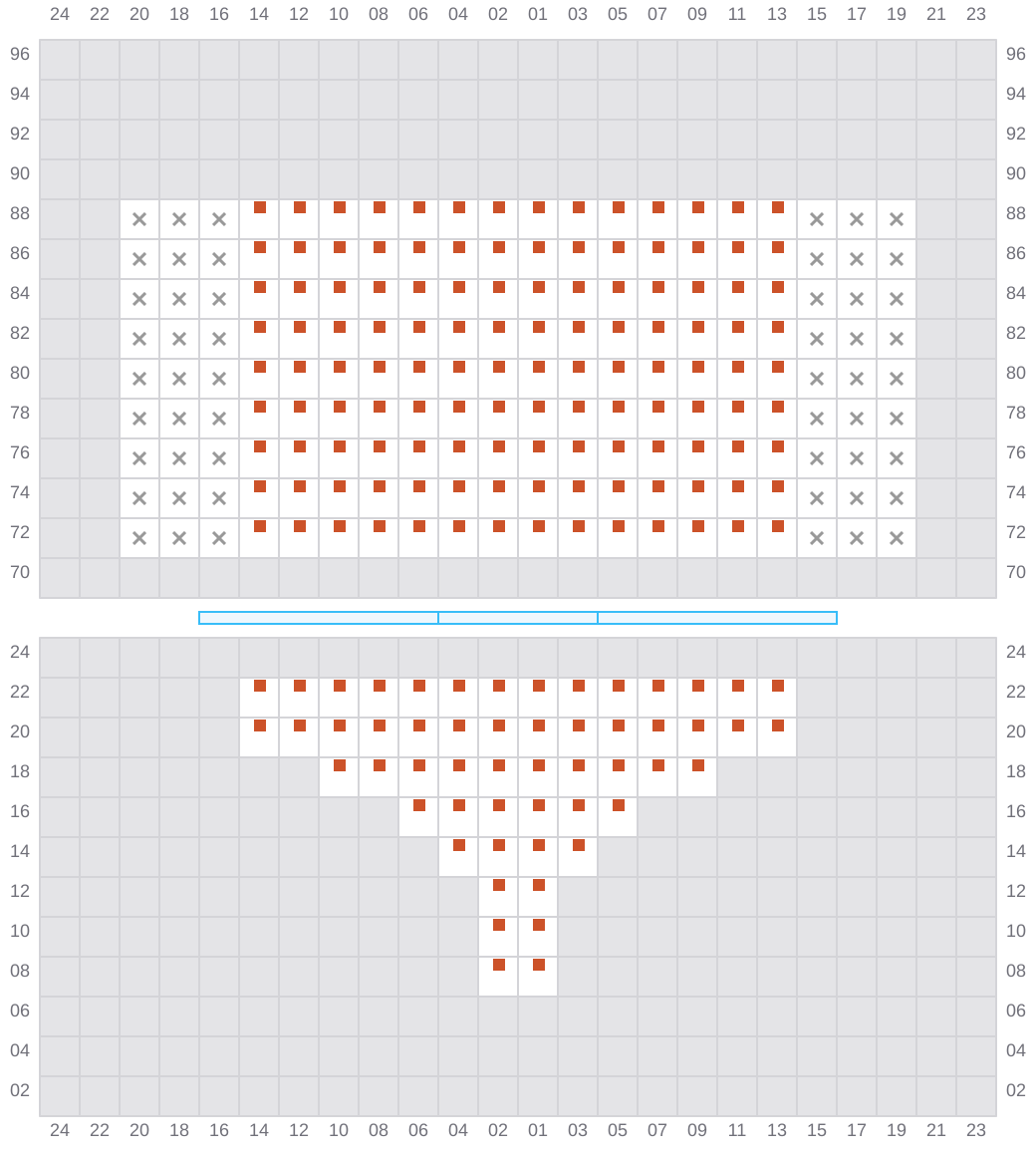

Bay 001 view and slots of MSC SIXIN

003

  • ←
  • →
Bay 003 view and slots of MSC SIXIN

005 (006)

  • →
  • →

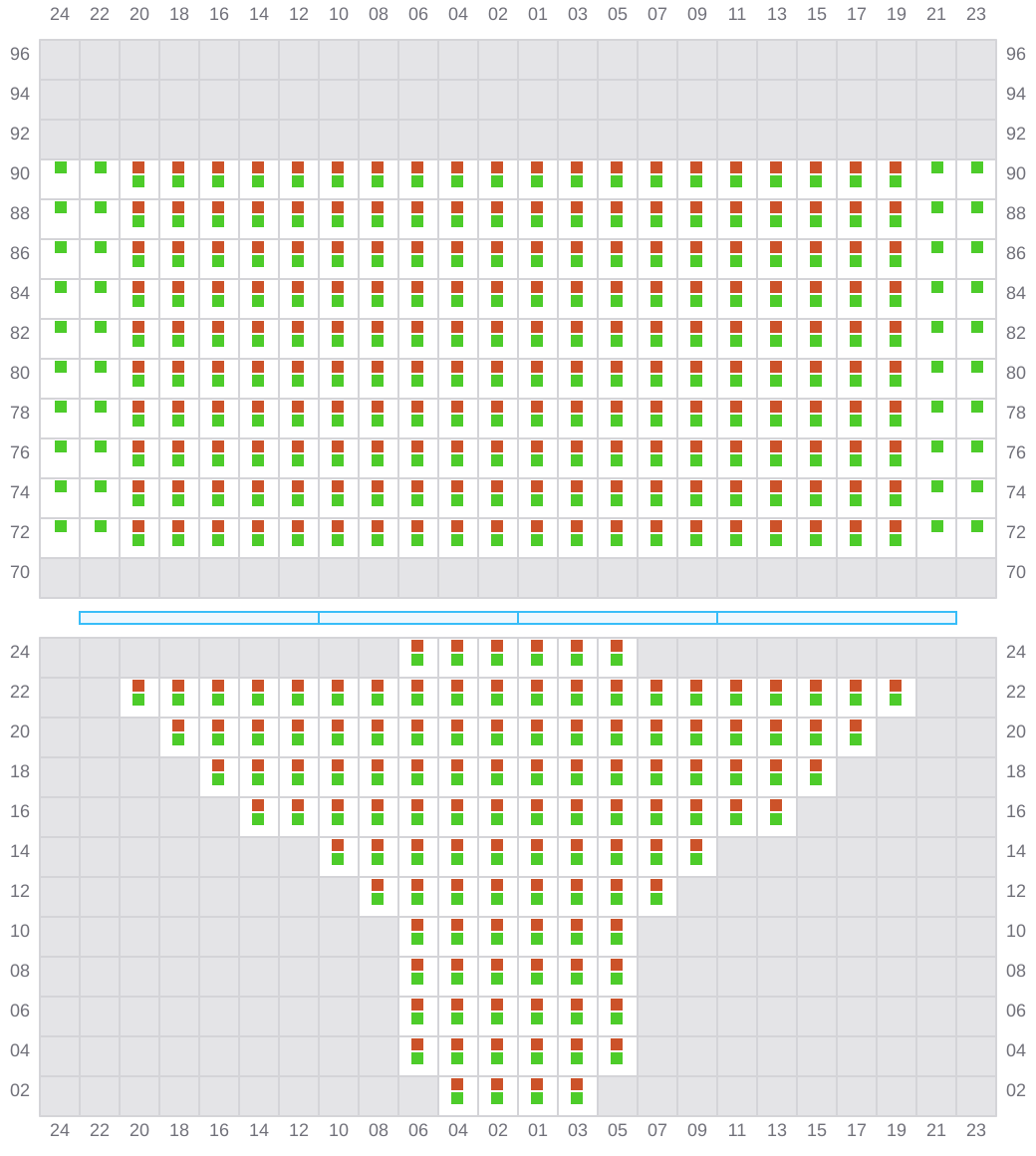

Bay 005 view and slots of MSC SIXIN

007

  • ←
  • →

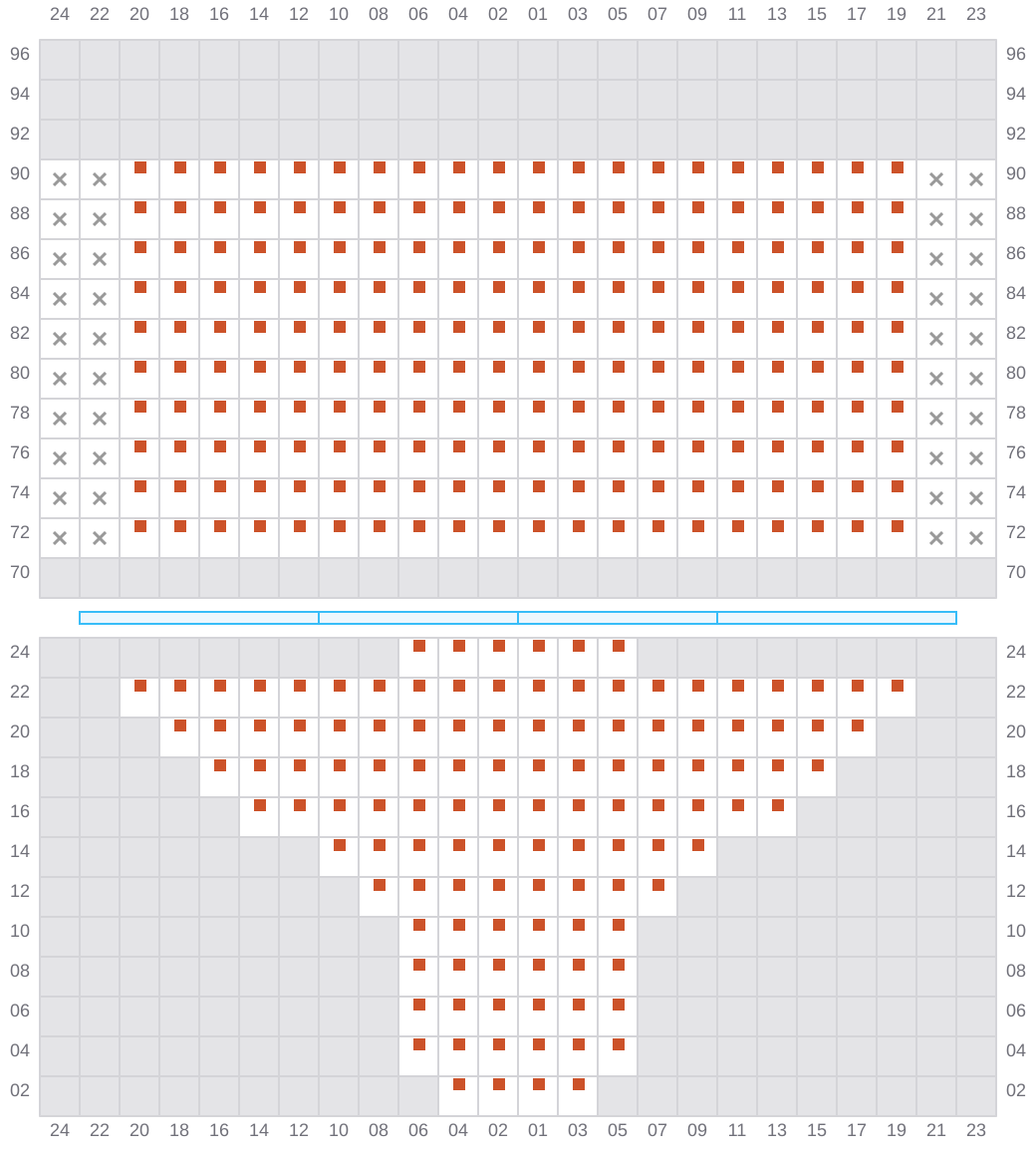

Bay 007 view and slots of MSC SIXIN

009 (010)

  • →
  • →

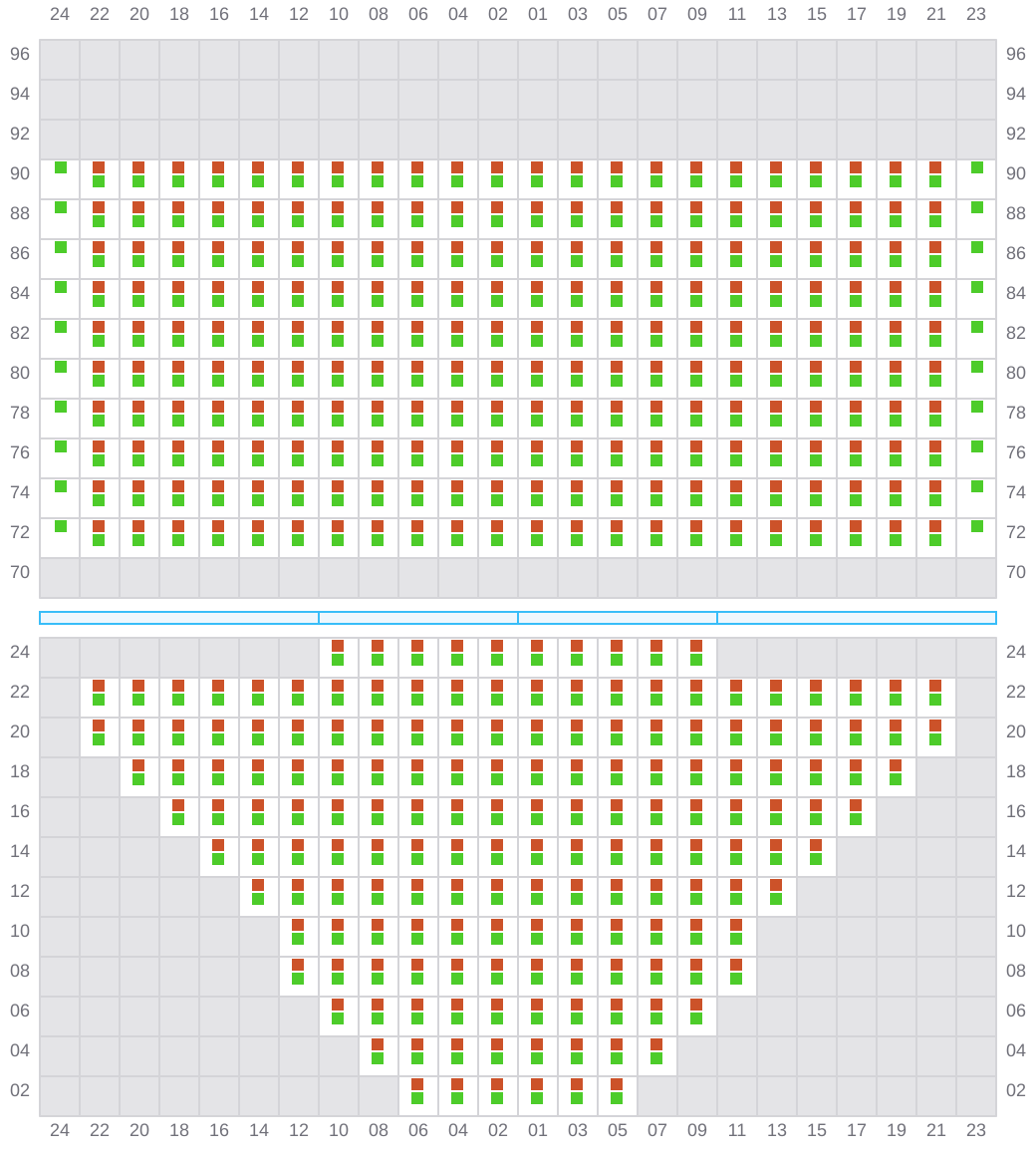

Bay 009 view and slots of MSC SIXIN

011

  • ←
  • → / ?
  • →

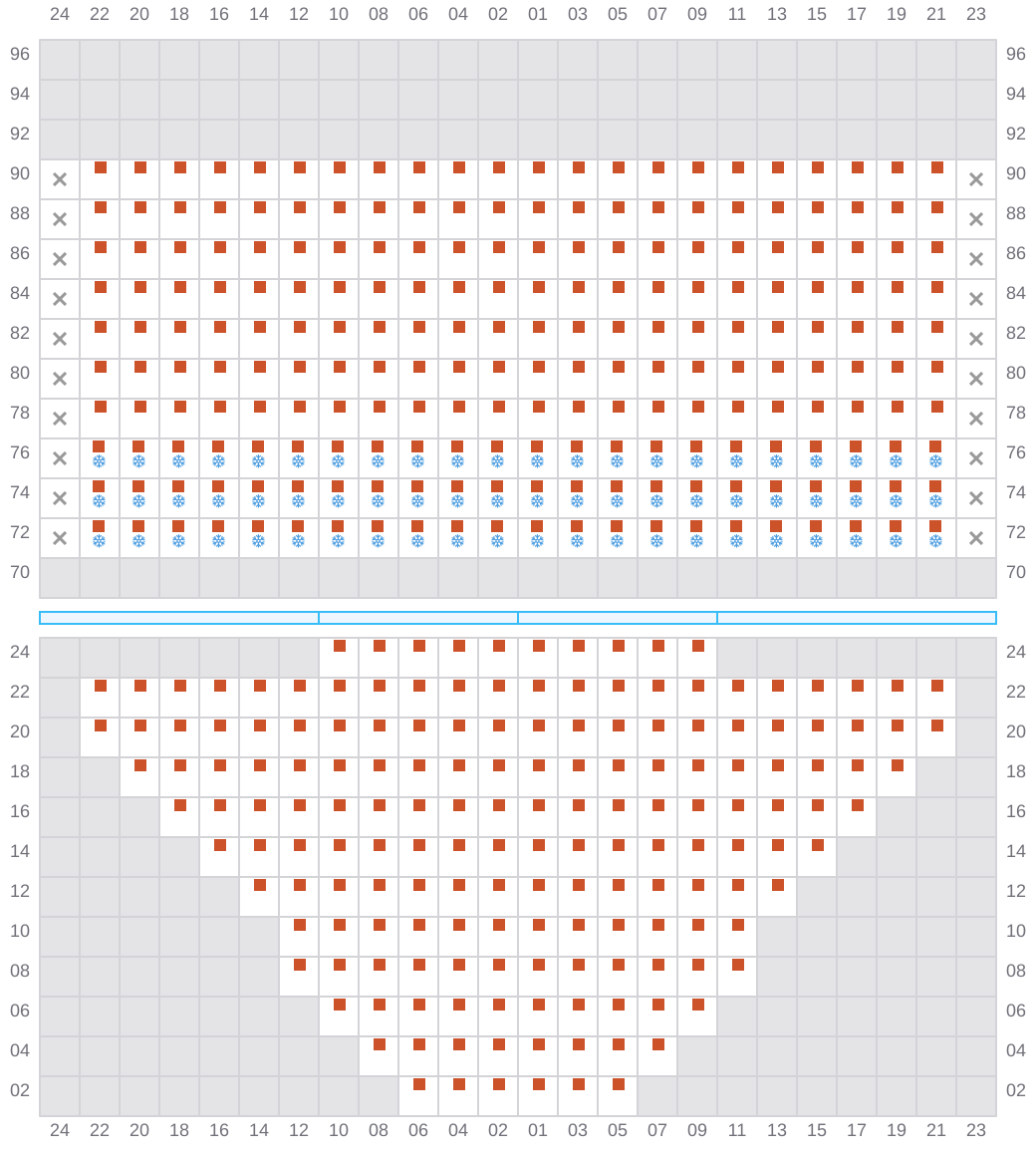

Bay 011 view and slots of MSC SIXIN

013 (014)

  • →
  • →

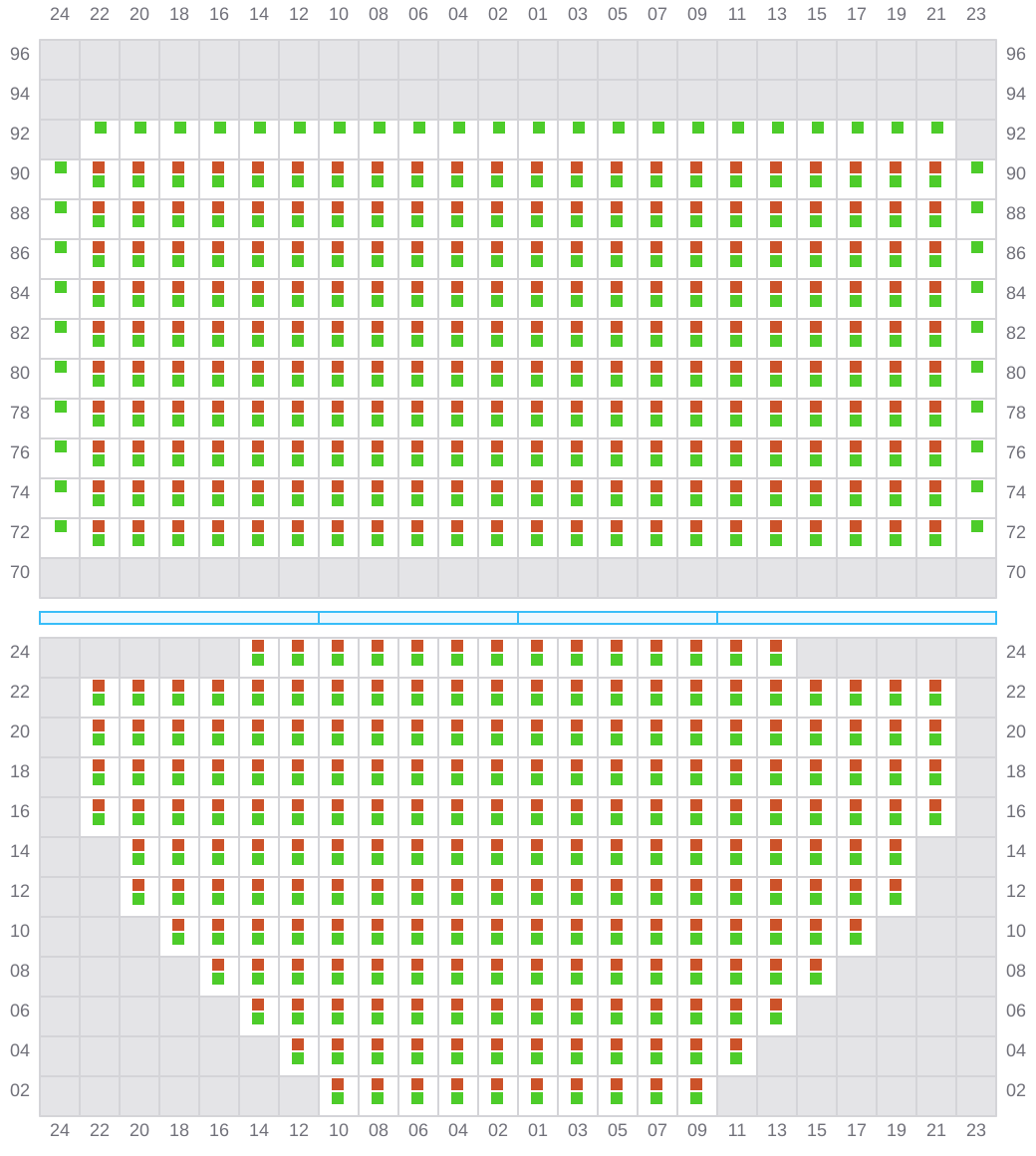

Bay 013 view and slots of MSC SIXIN

015

  • ←
  • → / ?
  • →

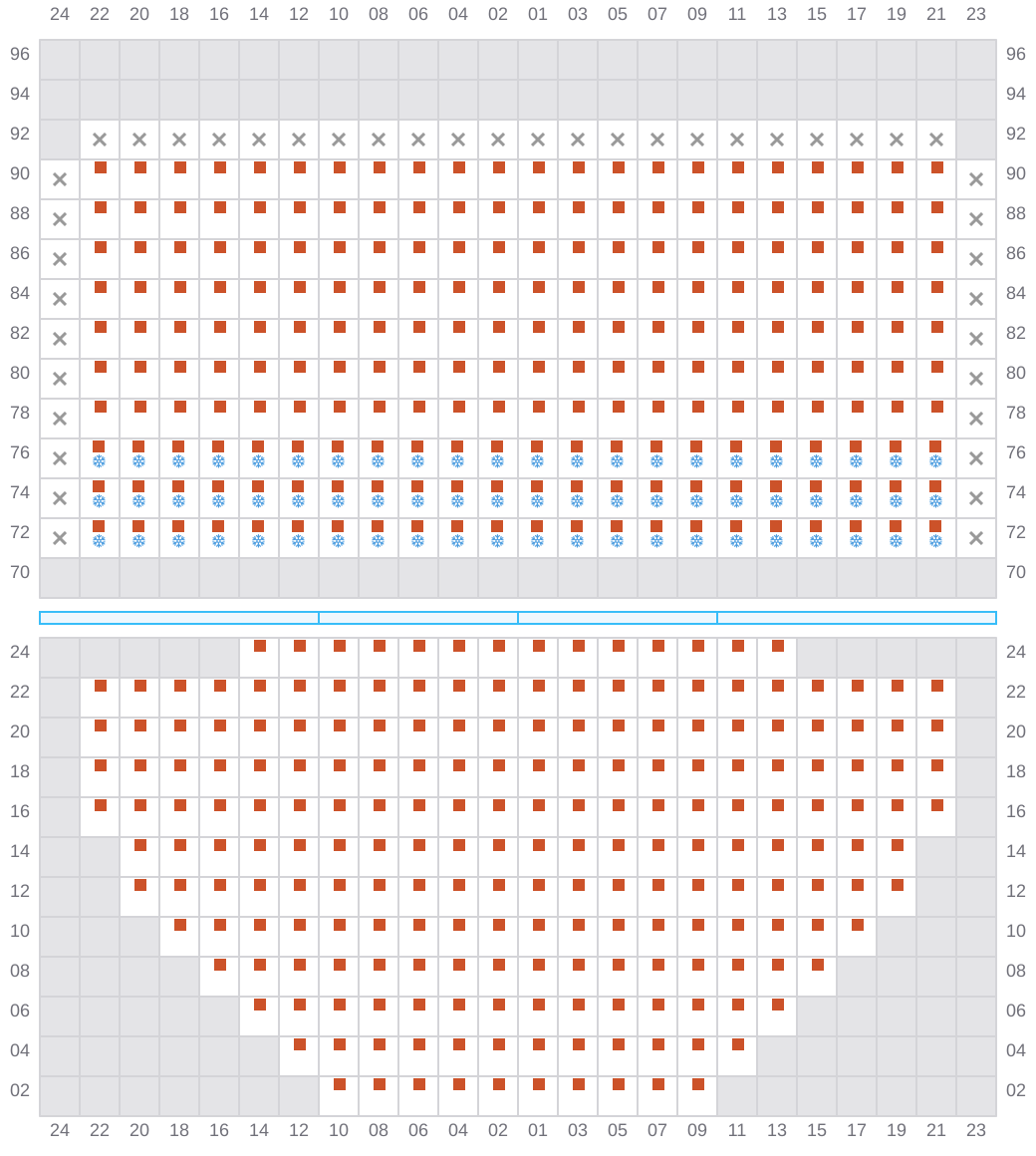

Bay 015 view and slots of MSC SIXIN

017 (018)

  • →
  • →

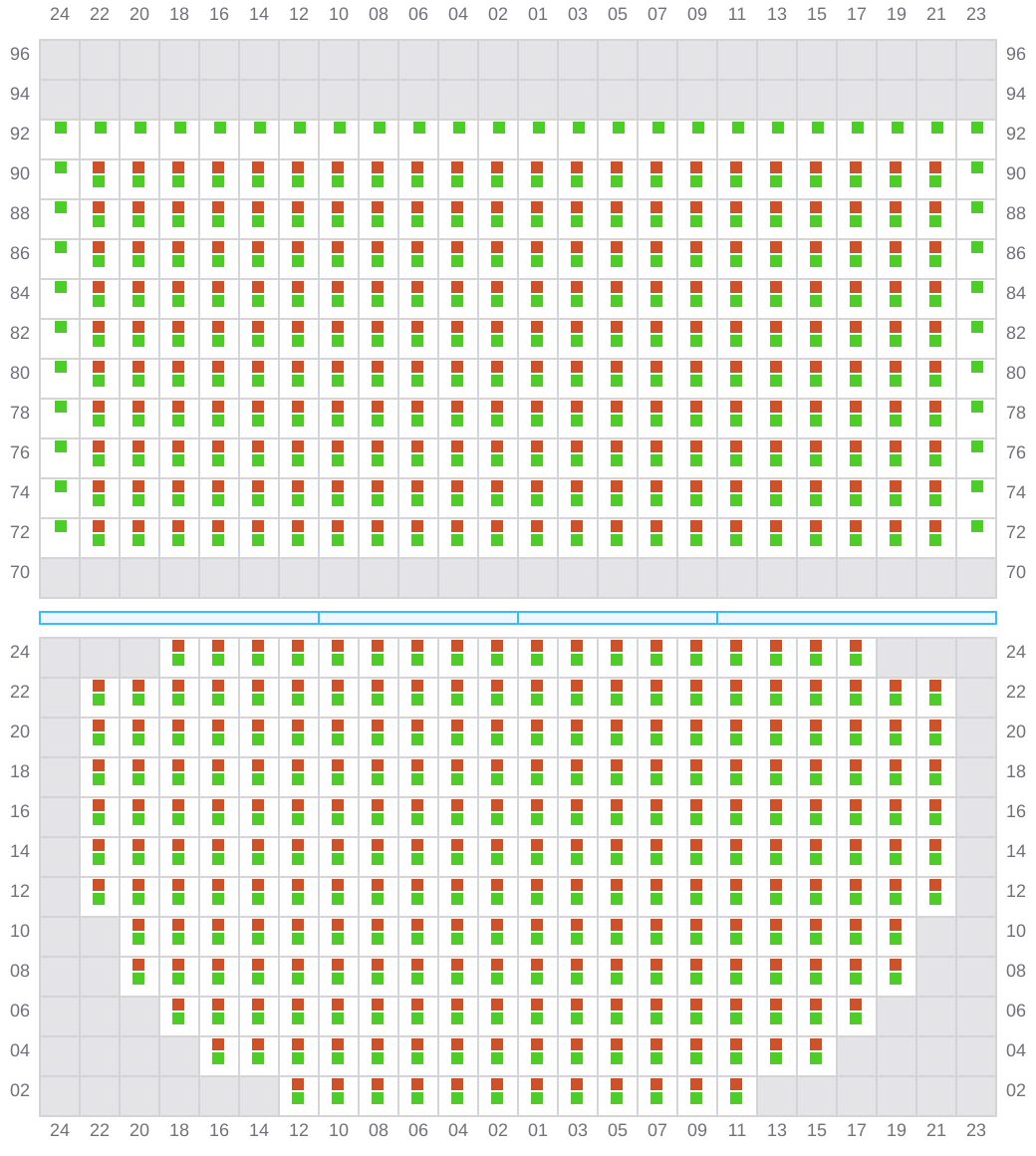

Bay 017 view and slots of MSC SIXIN

019

  • ←
  • → / ?
  • →

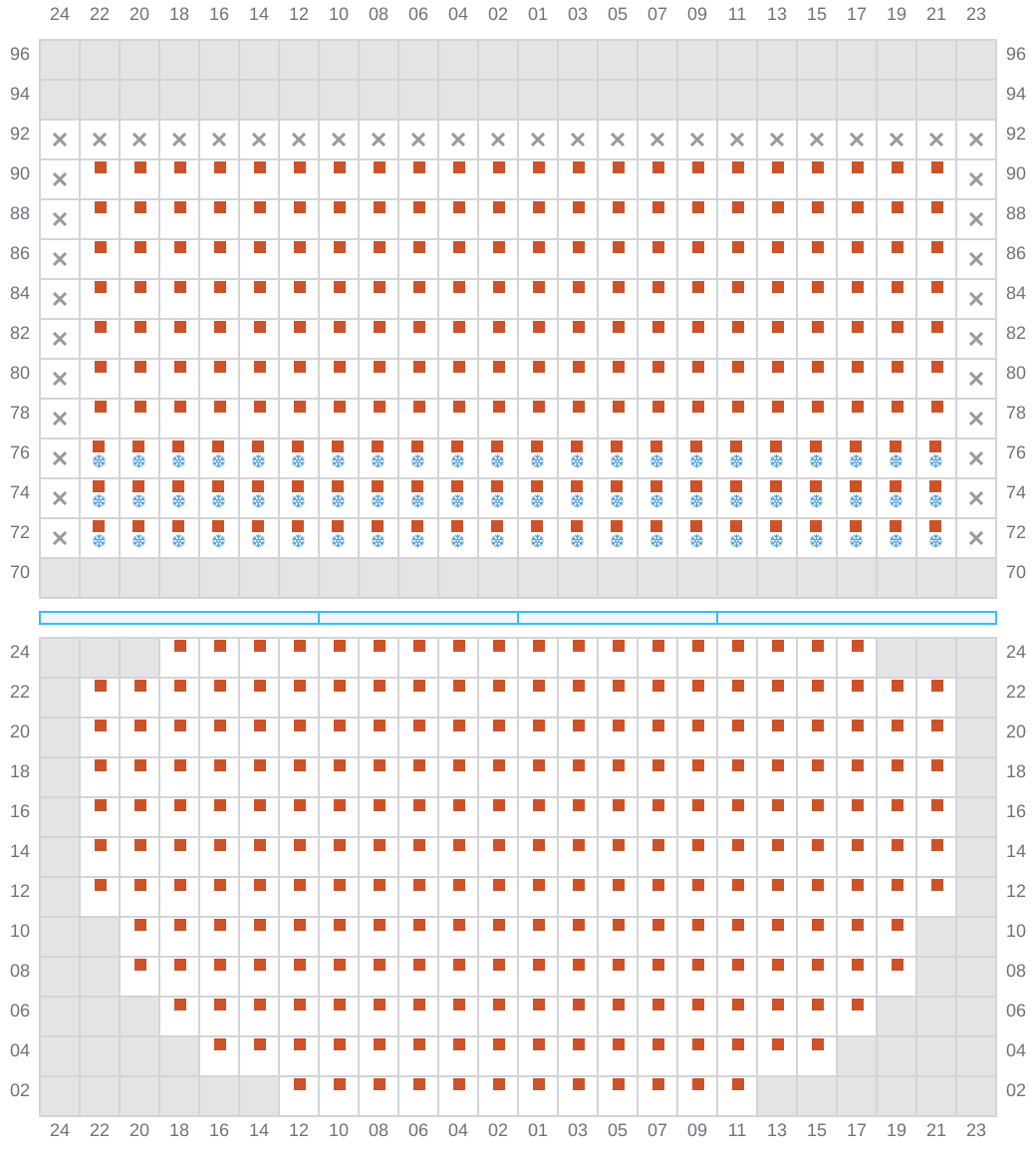

Bay 019 view and slots of MSC SIXIN

021 (022)

  • →
  • →

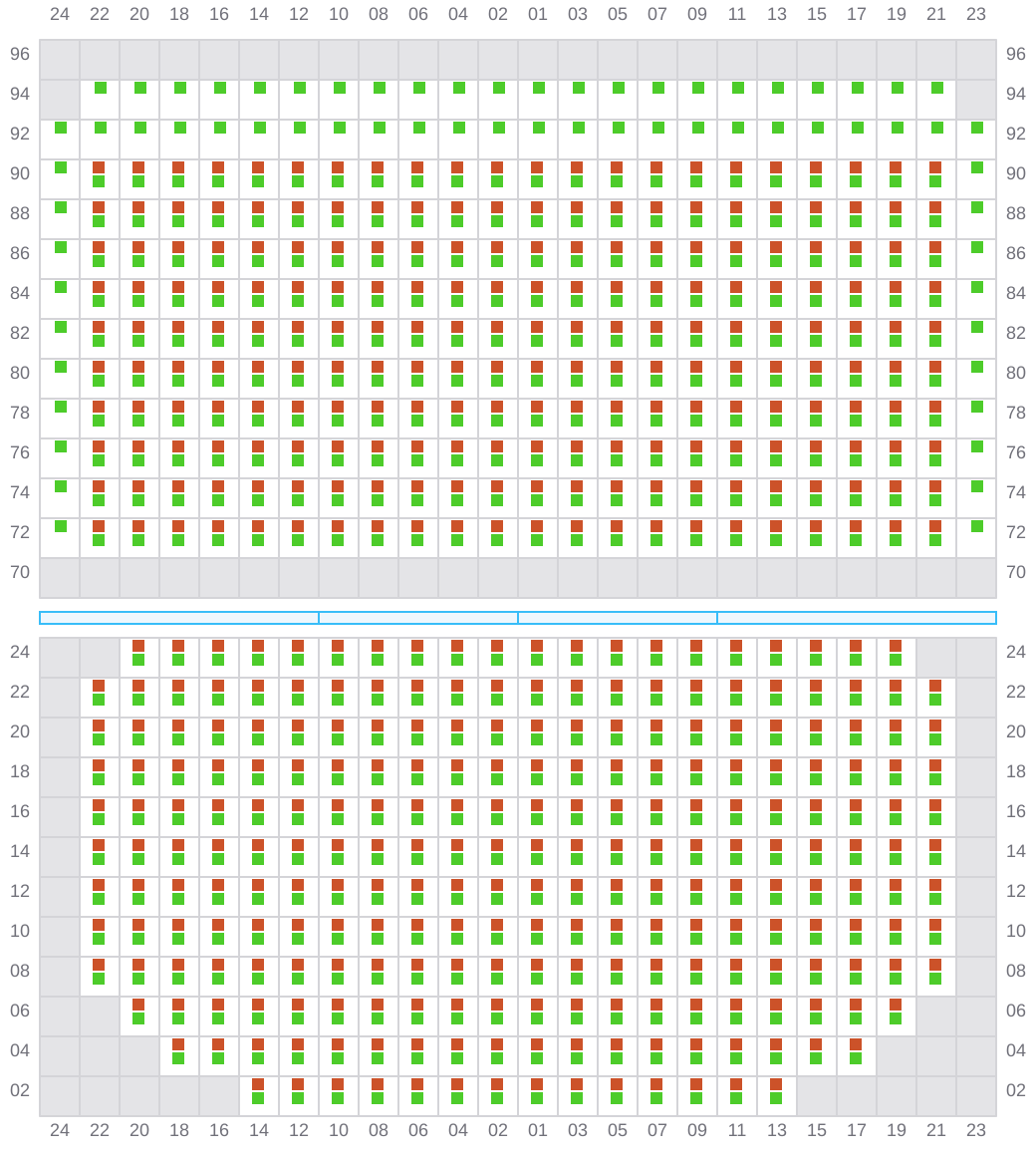

Bay 021 view and slots of MSC SIXIN

023

  • ←
  • →
  • →

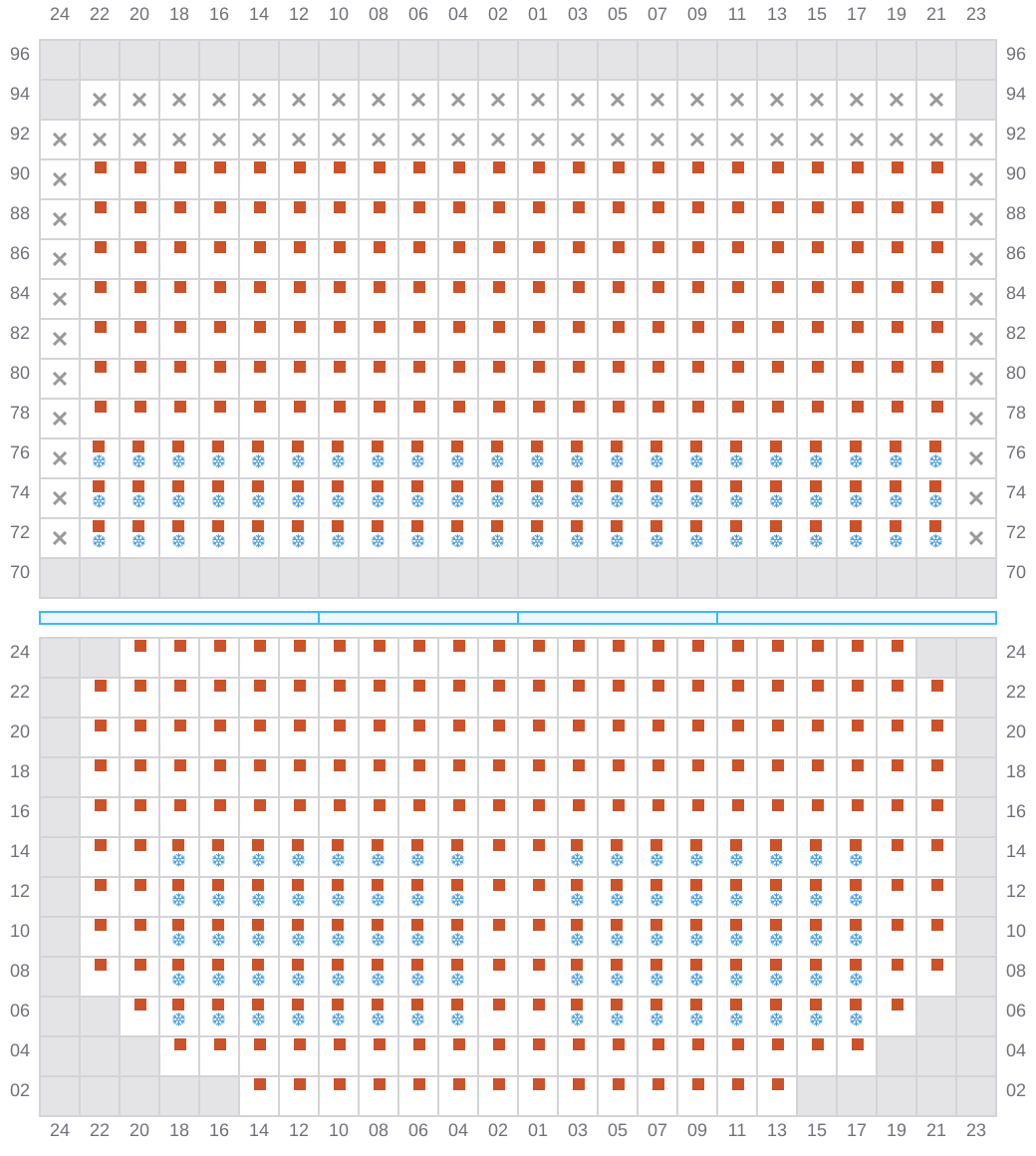

Bay 023 view and slots of MSC SIXIN

025 (026)

  • →
  • →
Bay 025 view and slots of MSC SIXIN

027

  • ←
  • →

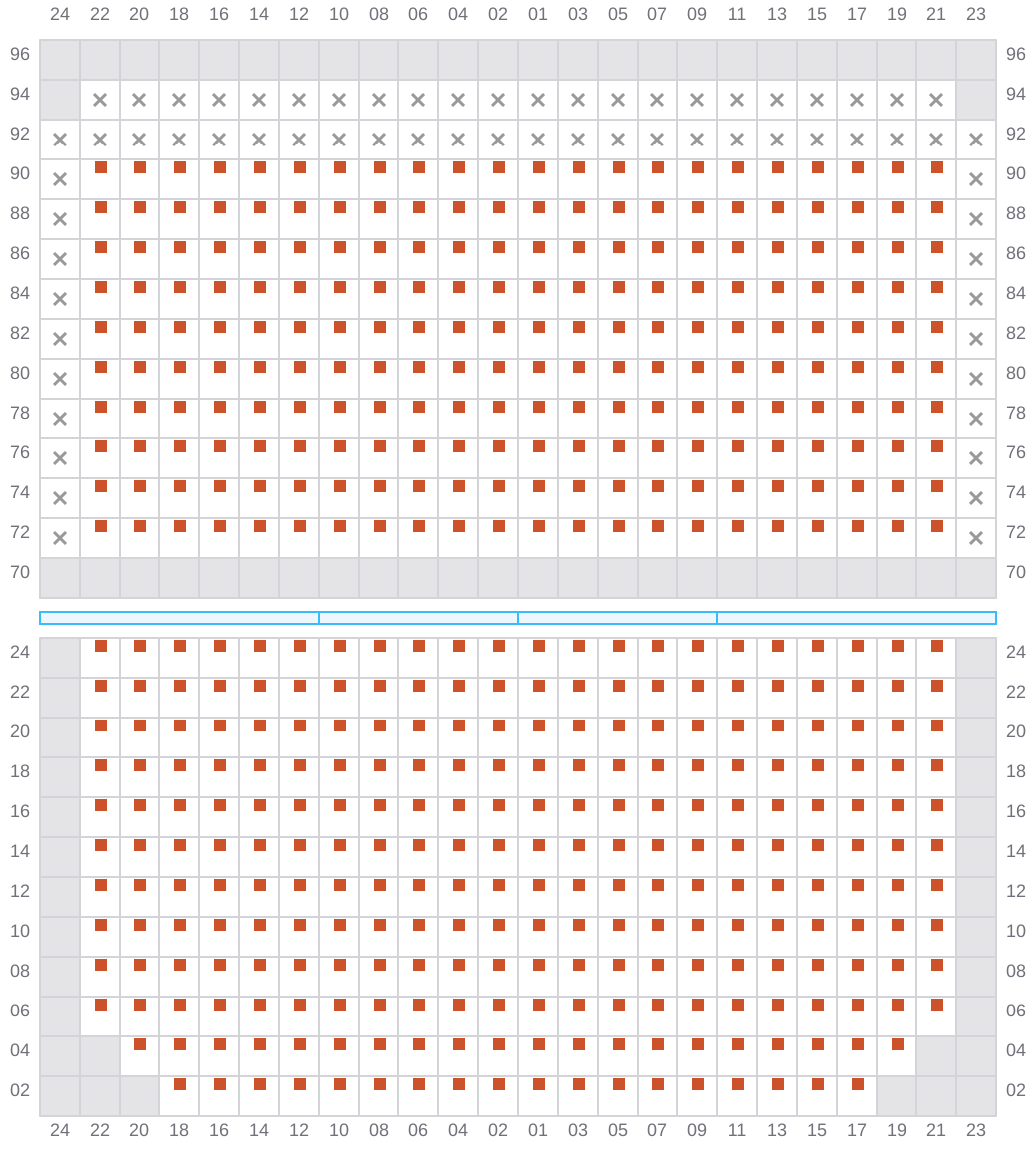

Bay 027 view and slots of MSC SIXIN

029 (030)

  • →
  • →
Bay 029 view and slots of MSC SIXIN

031

  • ←
  • →
  • →

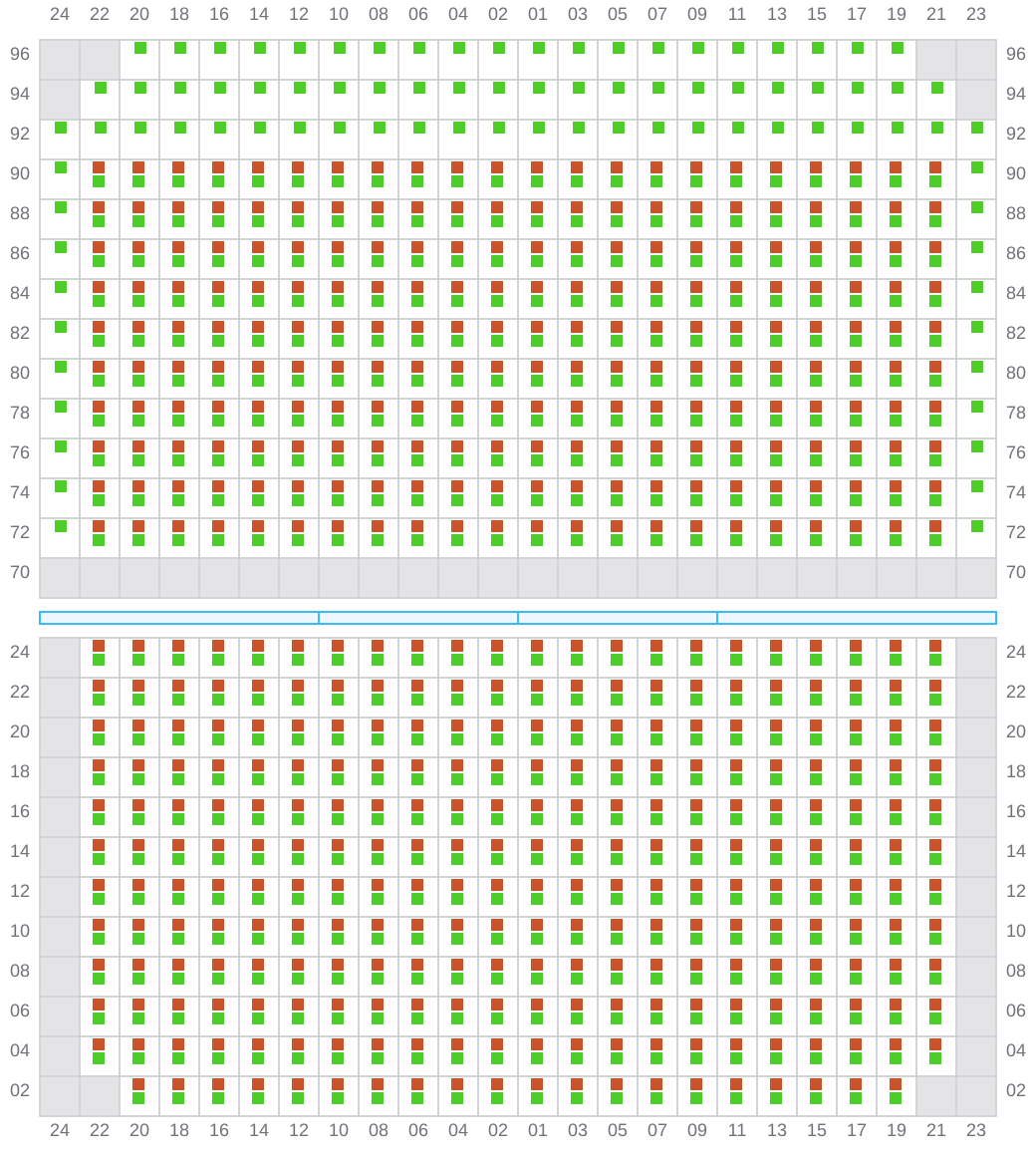

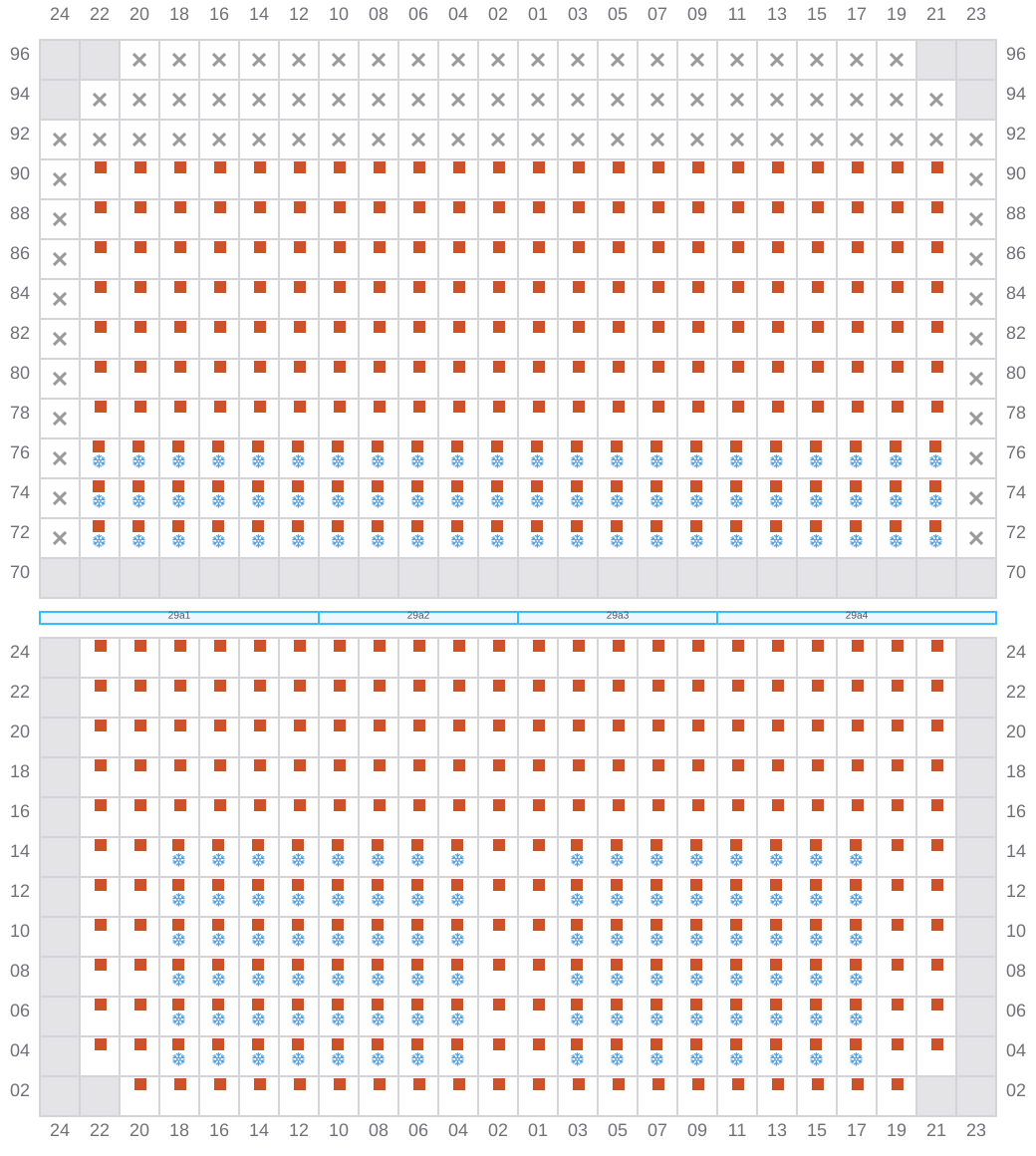

Bay 031 view and slots of MSC SIXIN

033 (034)

  • →
  • →
Bay 033 view and slots of MSC SIXIN

035

  • ←
  • →
  • →

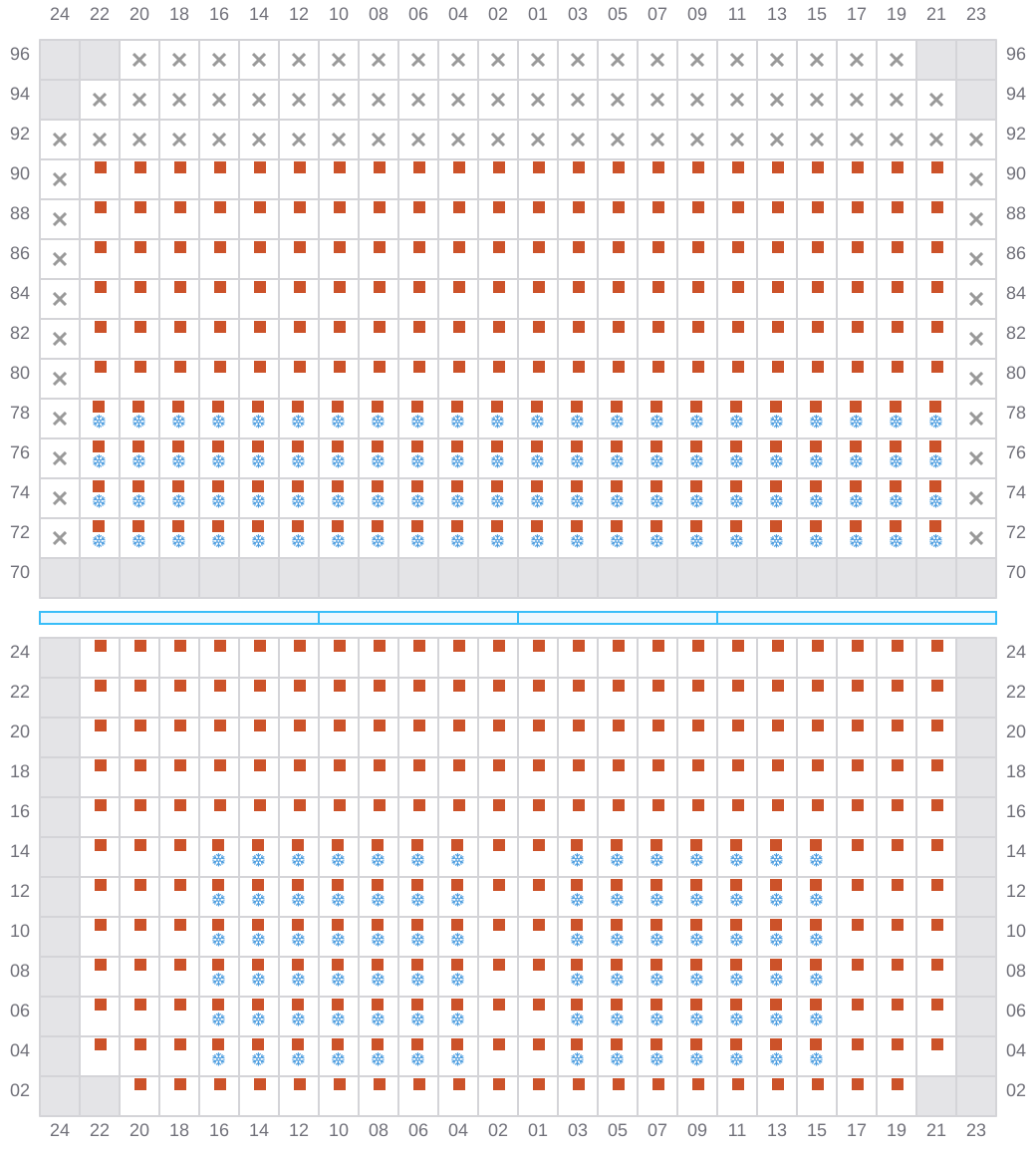

Bay 035 view and slots of MSC SIXIN

037 (038)

  • →
  • →
Bay 037 view and slots of MSC SIXIN

039

  • ←
  • → / ?
  • →

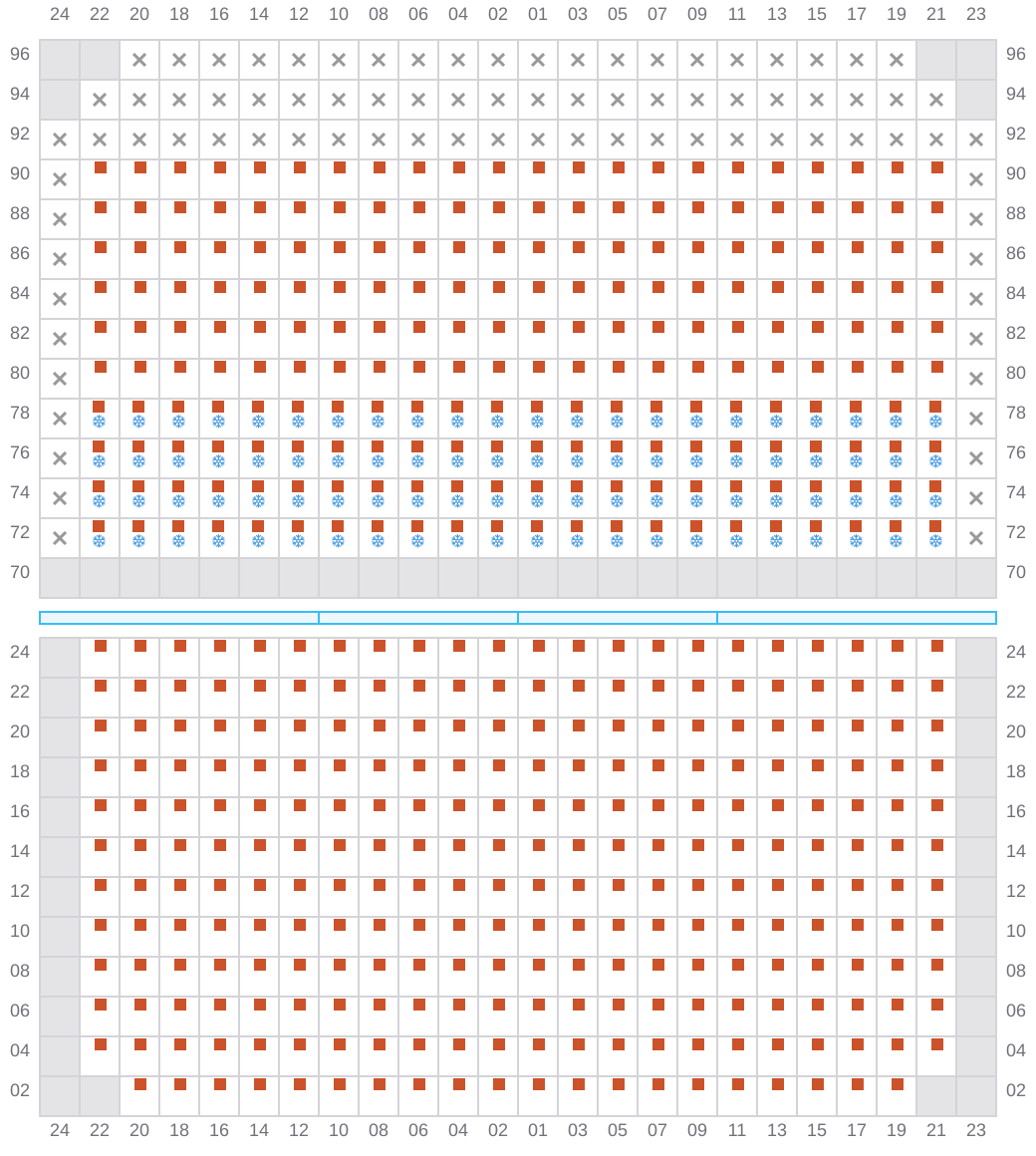

Bay 039 view and slots of MSC SIXIN

041 (042)

  • →
  • →
Bay 041 view and slots of MSC SIXIN

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of MSC SIXIN

045 (046)

  • →
  • →
Bay 045 view and slots of MSC SIXIN

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of MSC SIXIN

049 (050)

  • →
  • →
Bay 049 view and slots of MSC SIXIN

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of MSC SIXIN

053 (054)

  • →
  • →
Bay 053 view and slots of MSC SIXIN

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of MSC SIXIN

057 (058)

  • →
  • →
Bay 057 view and slots of MSC SIXIN

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of MSC SIXIN

061 (062)

  • →
  • →
Bay 061 view and slots of MSC SIXIN

063

  • ←
  • →
  • →

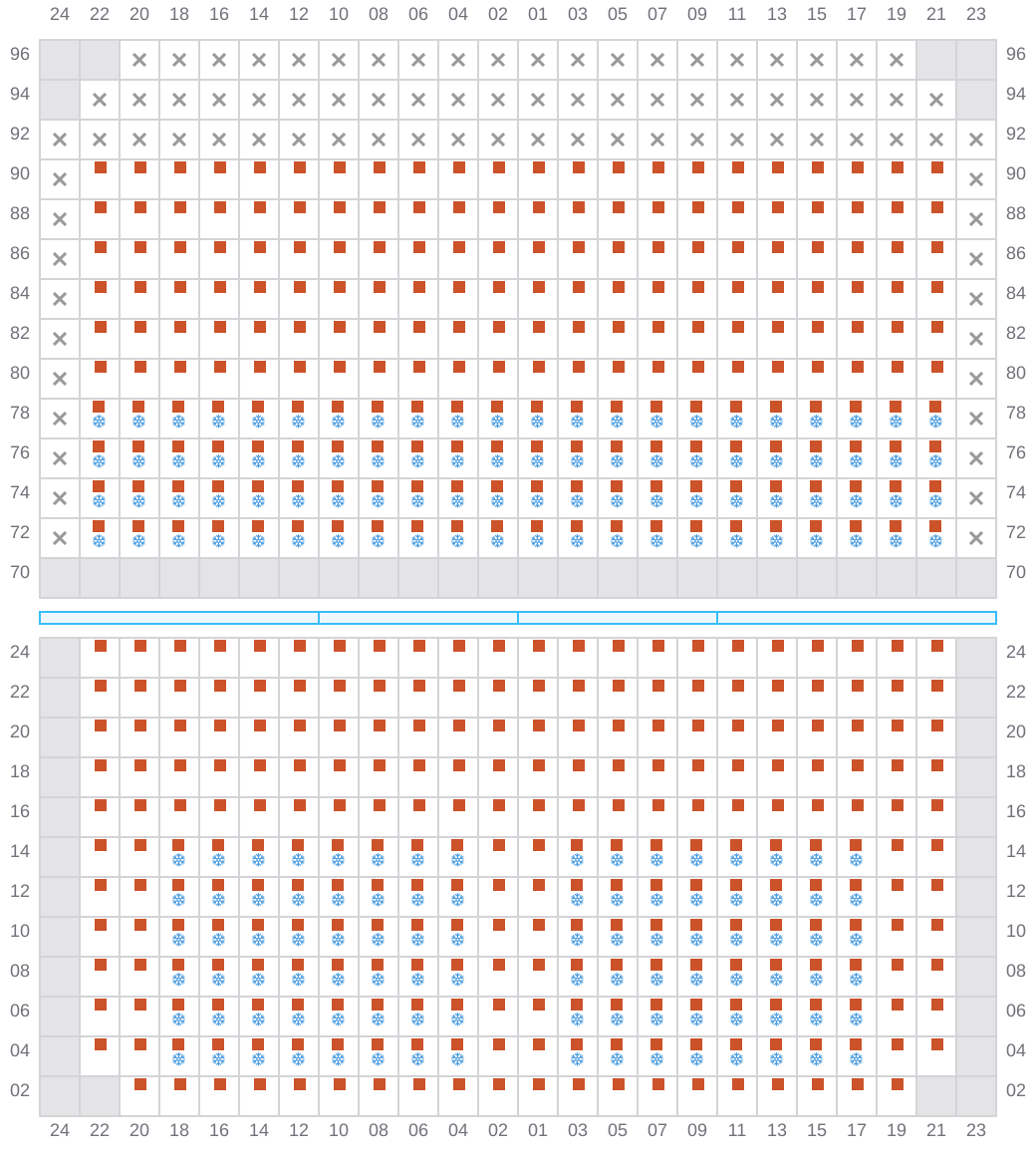

Bay 063 view and slots of MSC SIXIN

065 (066)

  • →
  • →
Bay 065 view and slots of MSC SIXIN

067

  • ←
  • →
  • →
Bay 067 view and slots of MSC SIXIN

069 (070)

  • →
  • →
Bay 069 view and slots of MSC SIXIN

071

  • ←
  • →
  • →

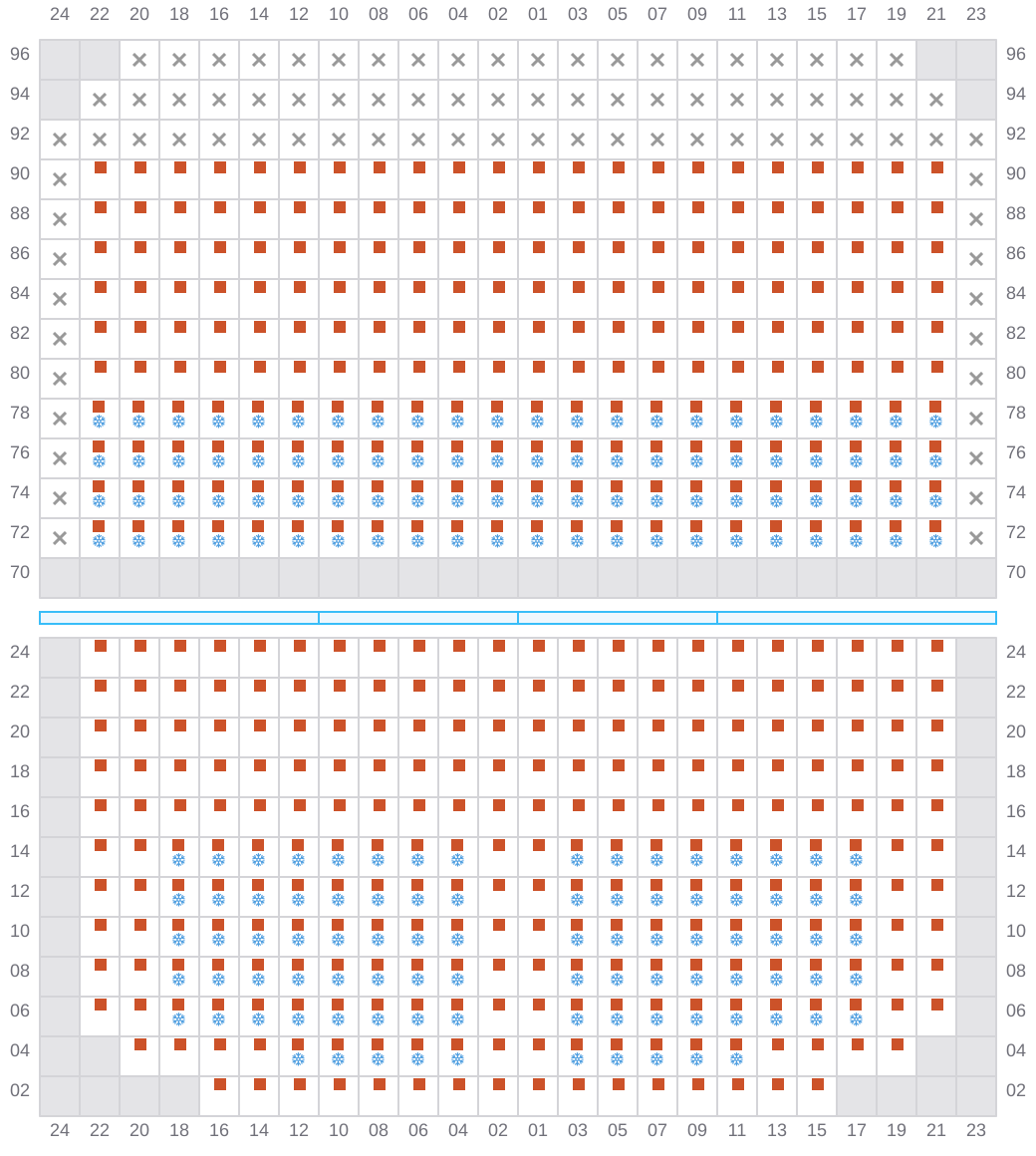

Bay 071 view and slots of MSC SIXIN

073 (074)

  • →
  • →

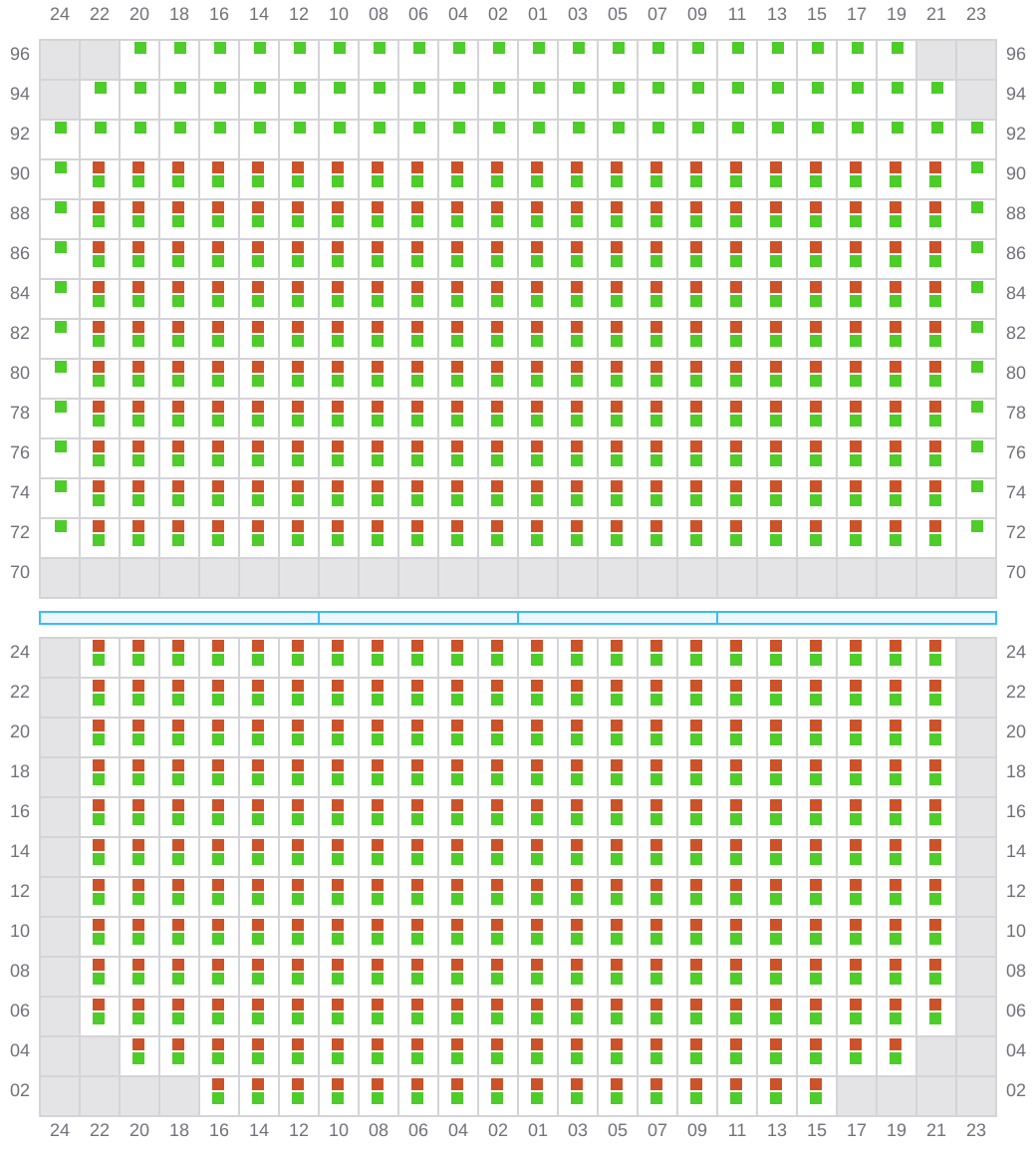

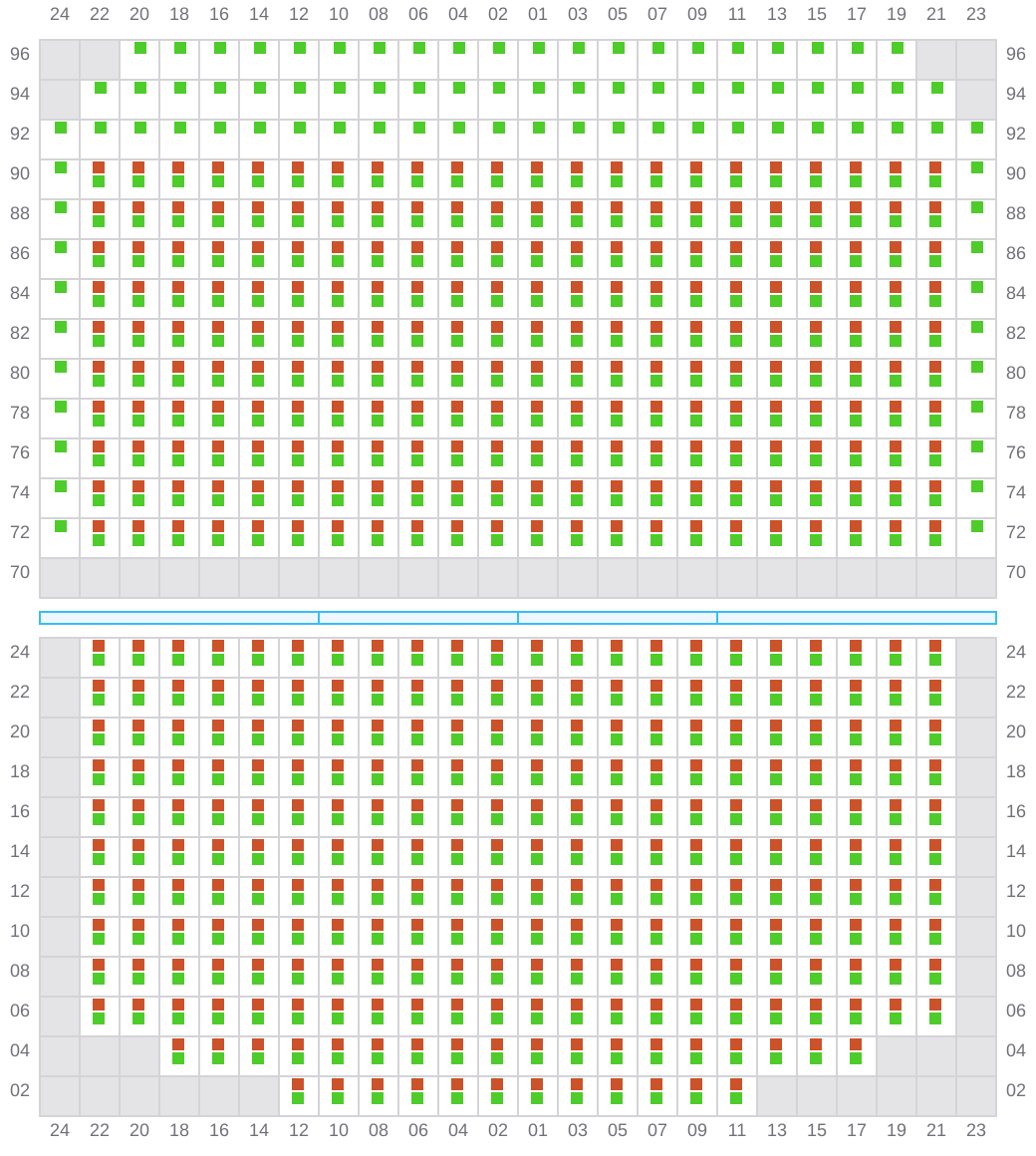

Bay 073 view and slots of MSC SIXIN

075

  • ←
  • → / ?
  • →

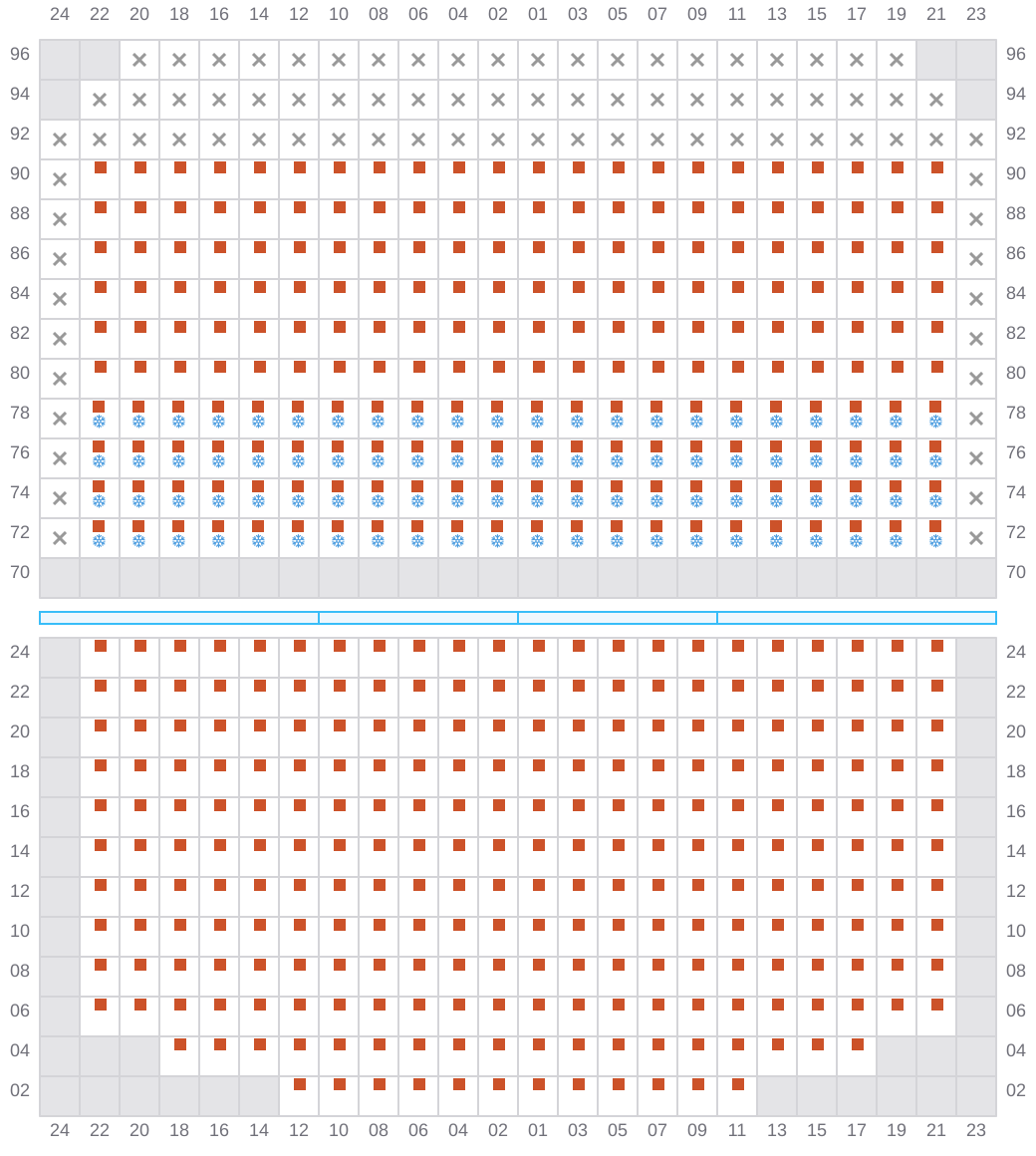

Bay 075 view and slots of MSC SIXIN

077 (078)

  • →
  • →

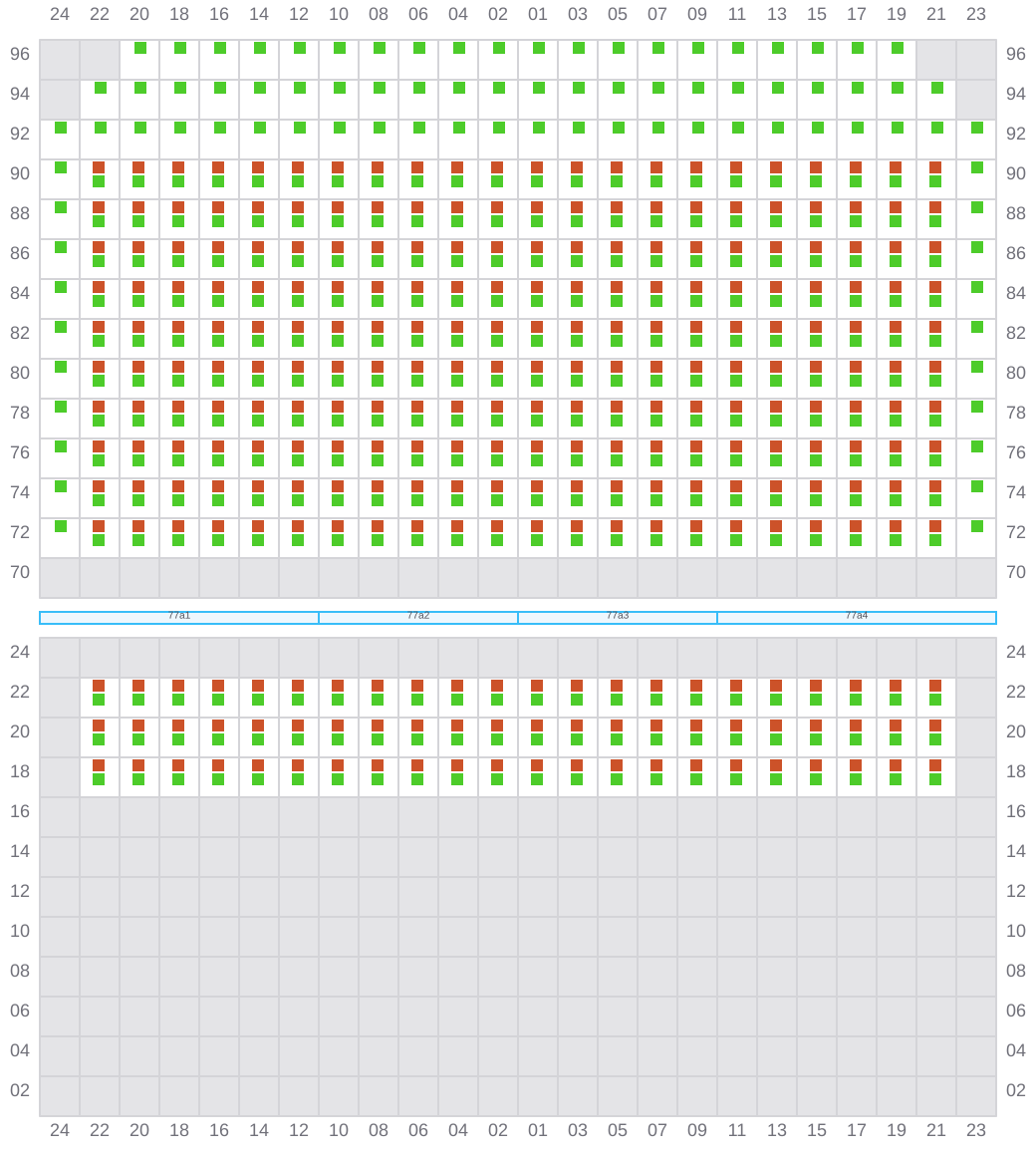

Bay 077 view and slots of MSC SIXIN

079

  • ←
  • →

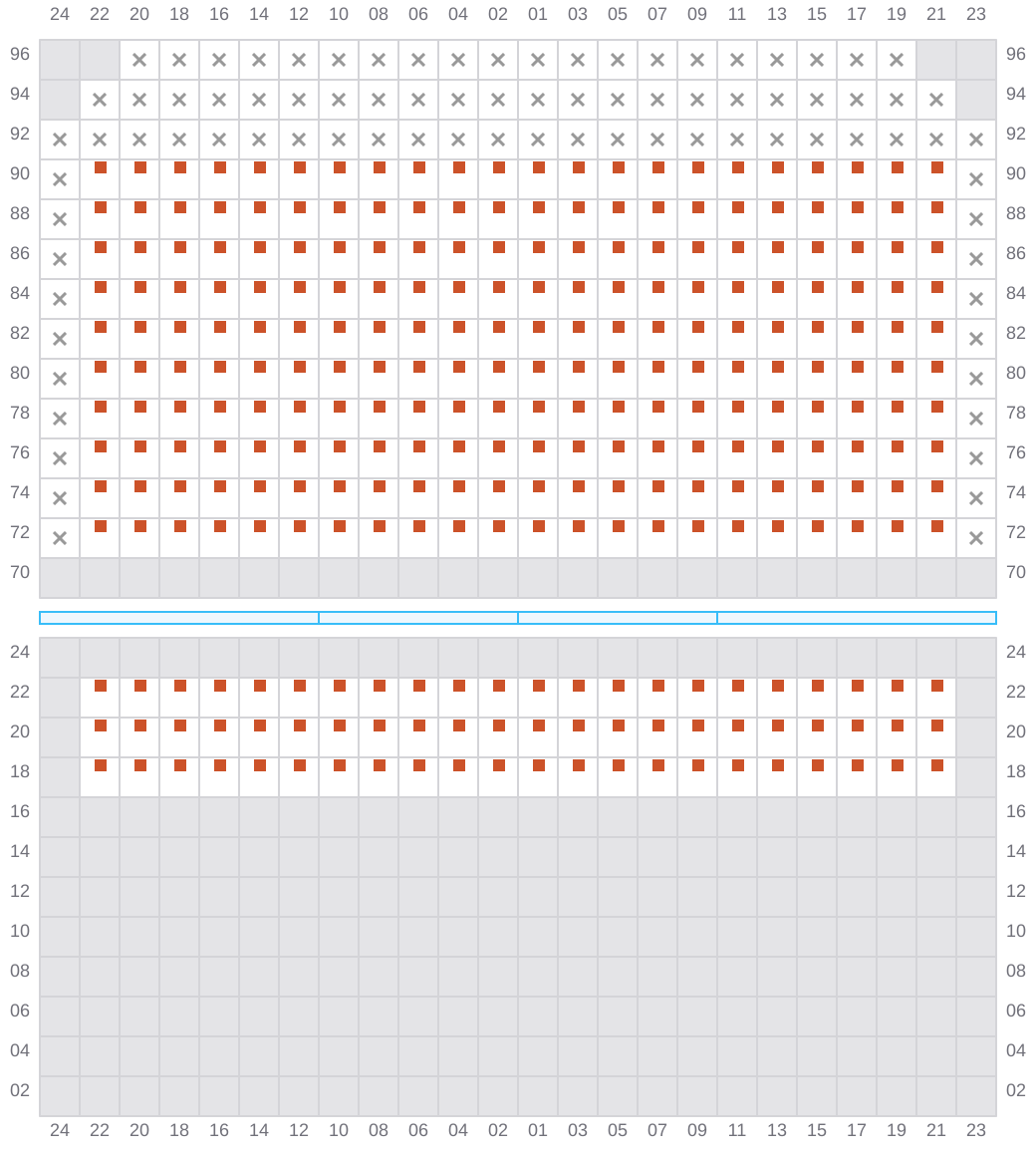

Bay 079 view and slots of MSC SIXIN

081 (082)

  • →
  • →

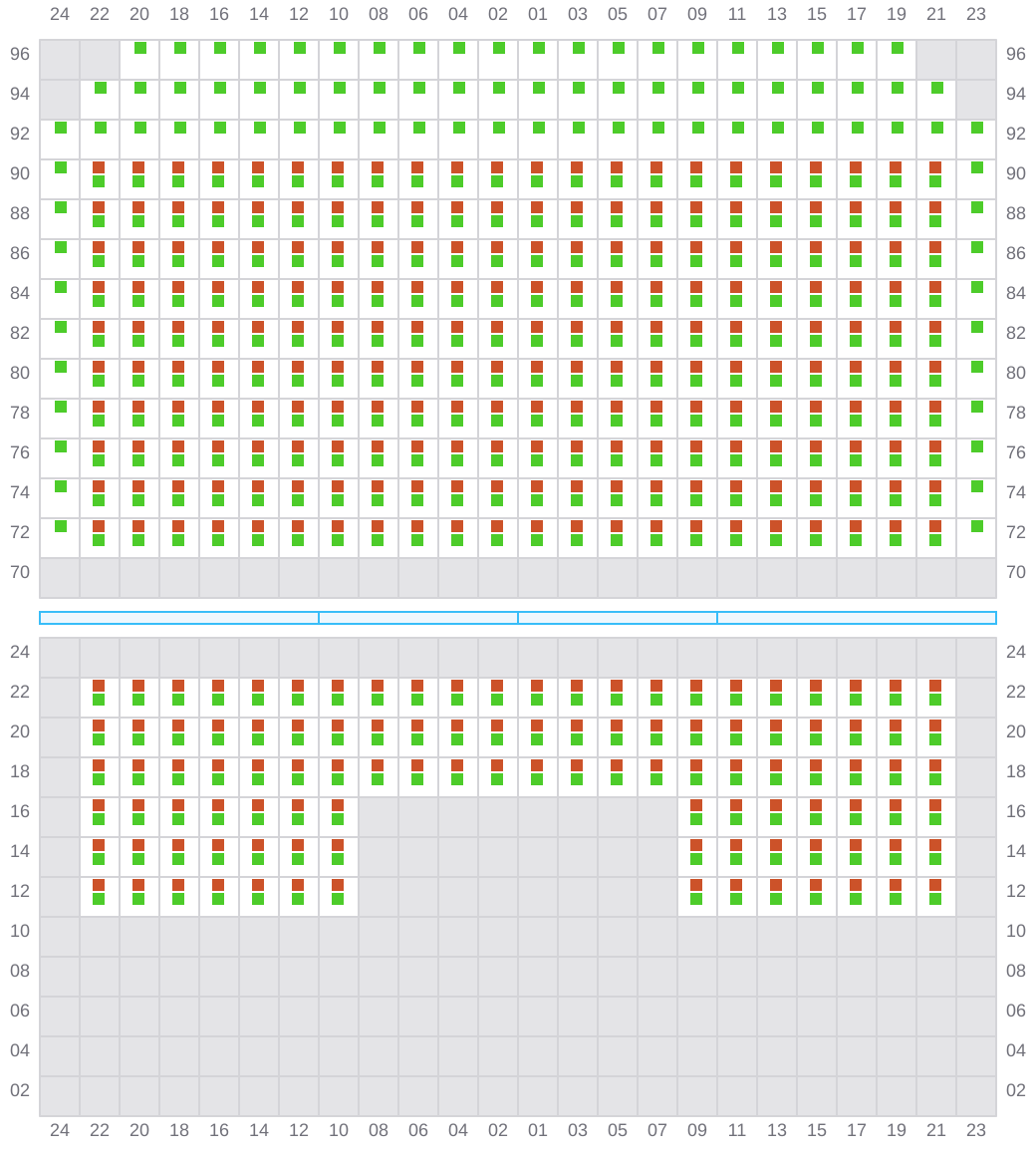

Bay 081 view and slots of MSC SIXIN

083

  • ←
  • → / ?
  • →

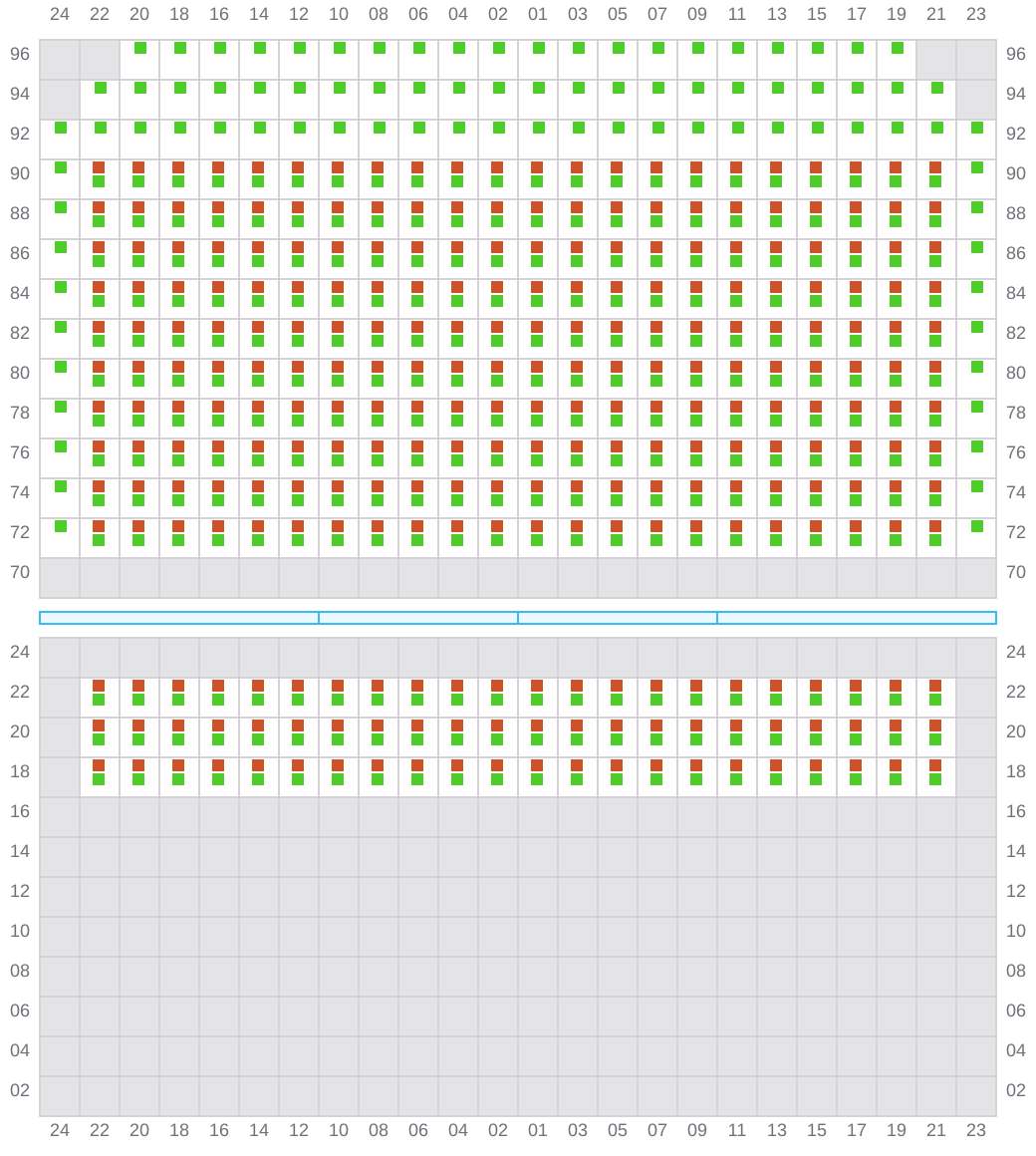

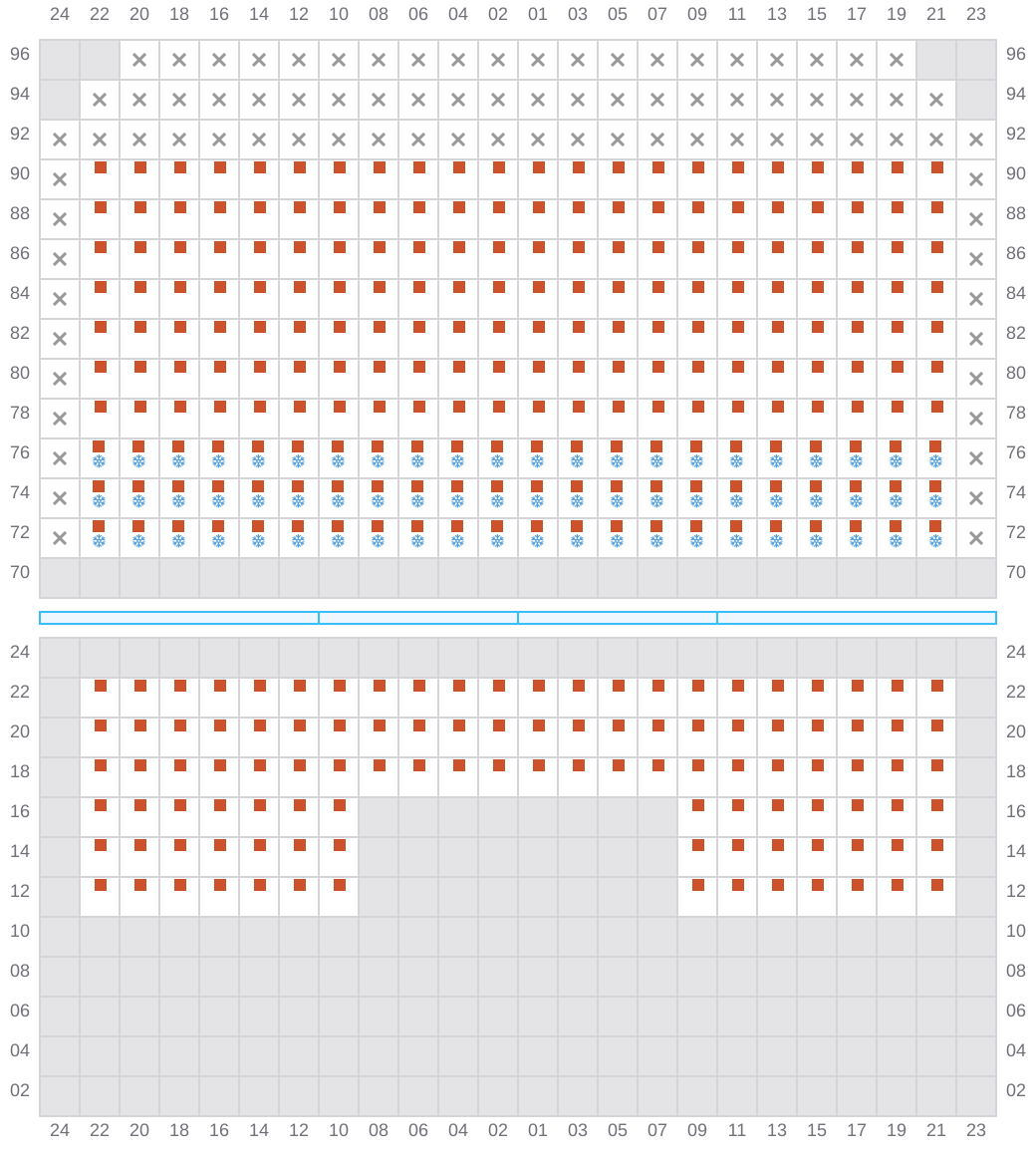

Bay 083 view and slots of MSC SIXIN

085 (086)

  • →
  • →
Bay 085 view and slots of MSC SIXIN

087

  • ←
  • → / ?
  • →

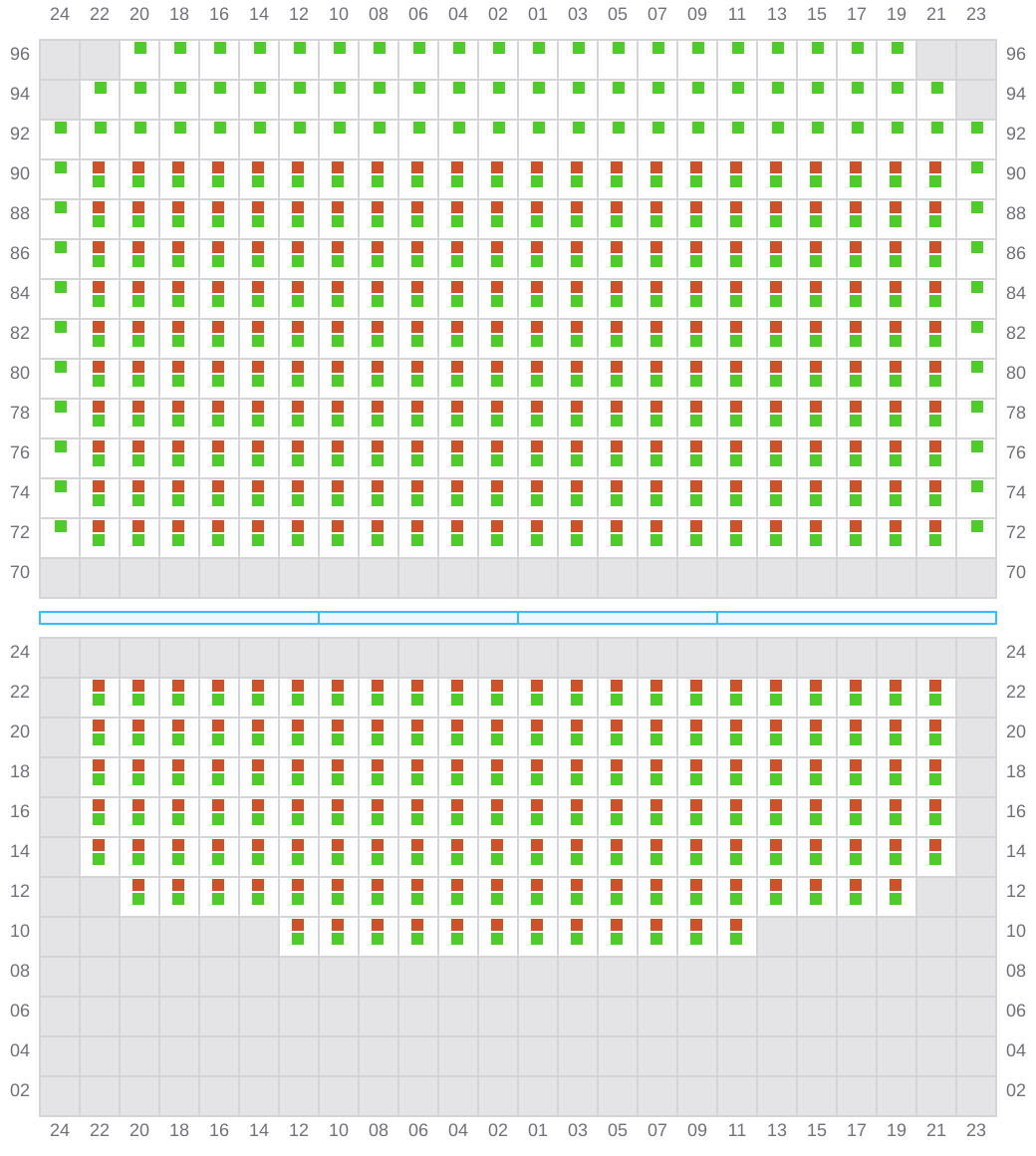

Bay 087 view and slots of MSC SIXIN

089 (090)

  • →
  • →
Bay 089 view and slots of MSC SIXIN

091

  • ←
  • → / ?
  • →

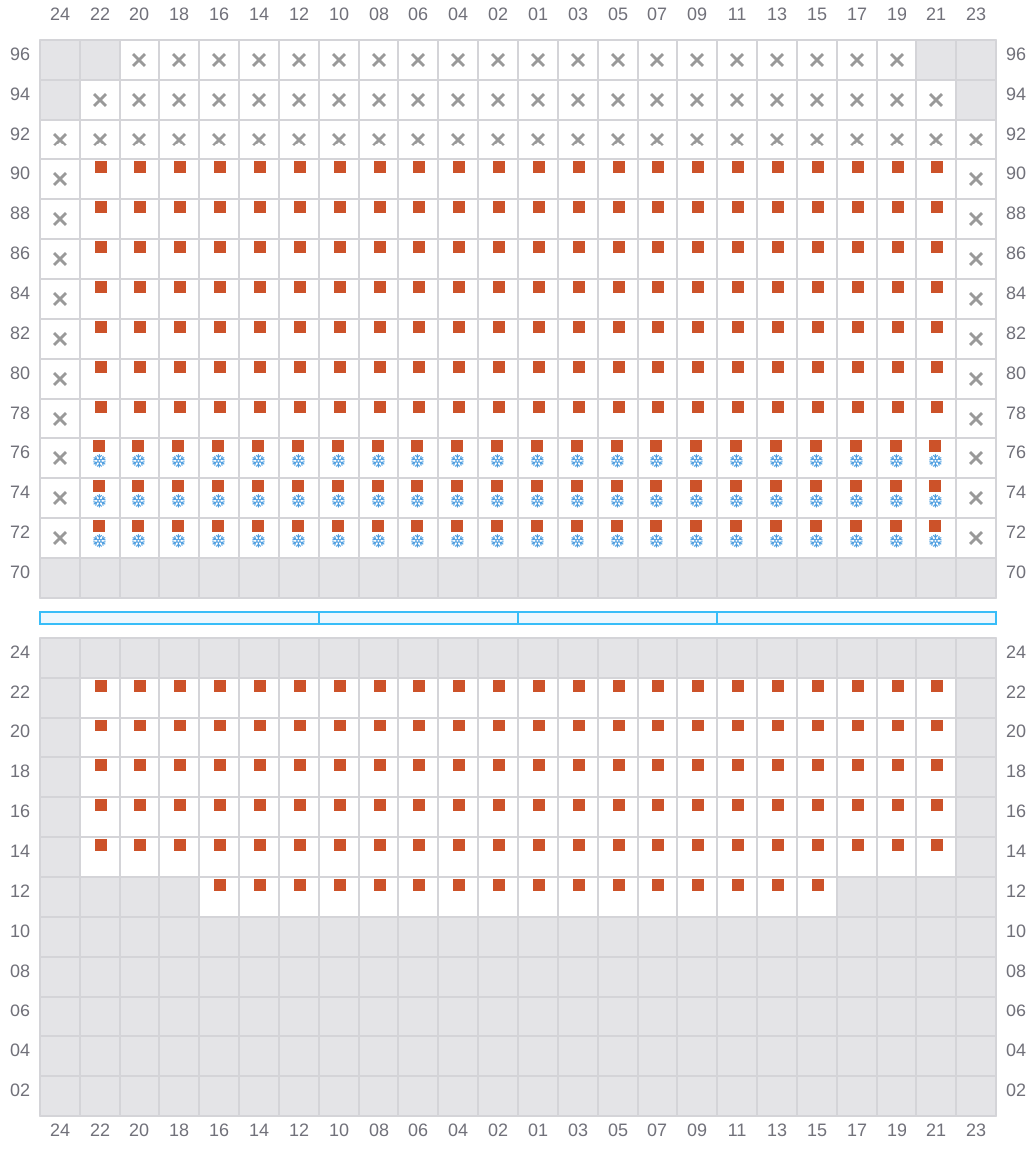

Bay 091 view and slots of MSC SIXIN

093 (094)

  • → / ?
  • → / ?

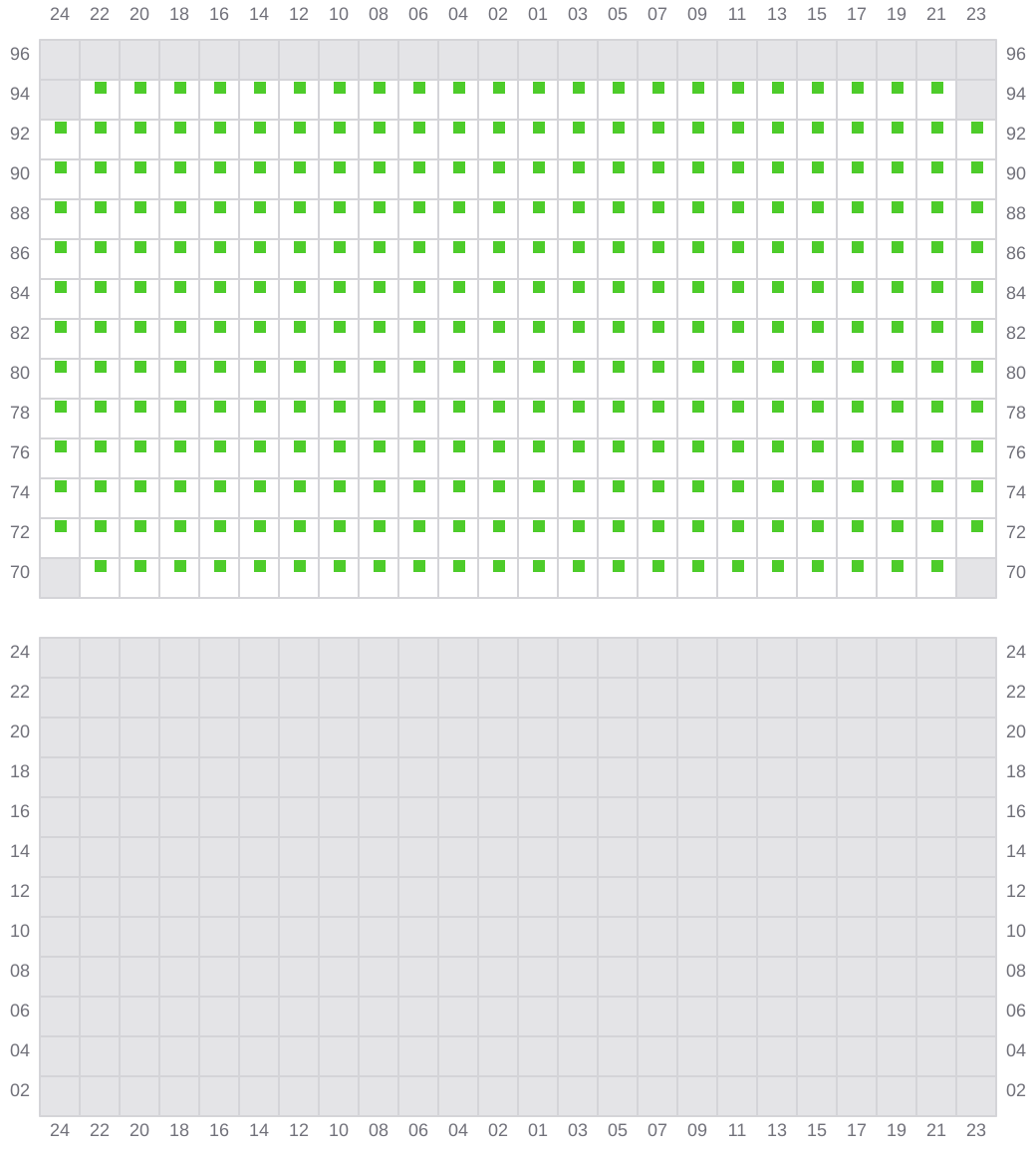

Bay 093 view and slots of MSC SIXIN
