MSC SIYA B
9793947 | CQEW3 | MSC by ************************** Last update: Wed Oct 18 2023

General Info

Ship Name:MSC SIYA B
IMO Code:9793947
Call Sign:CQEW3
Line Operator:MSC
Class Name for Sister Ships:MSY
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):300.00
LOA (Length Overall):330.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:079
Max ISO Row:19
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:11,988

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC SIYA B

Hatch-Covers View

Deck view of MSC SIYA B

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

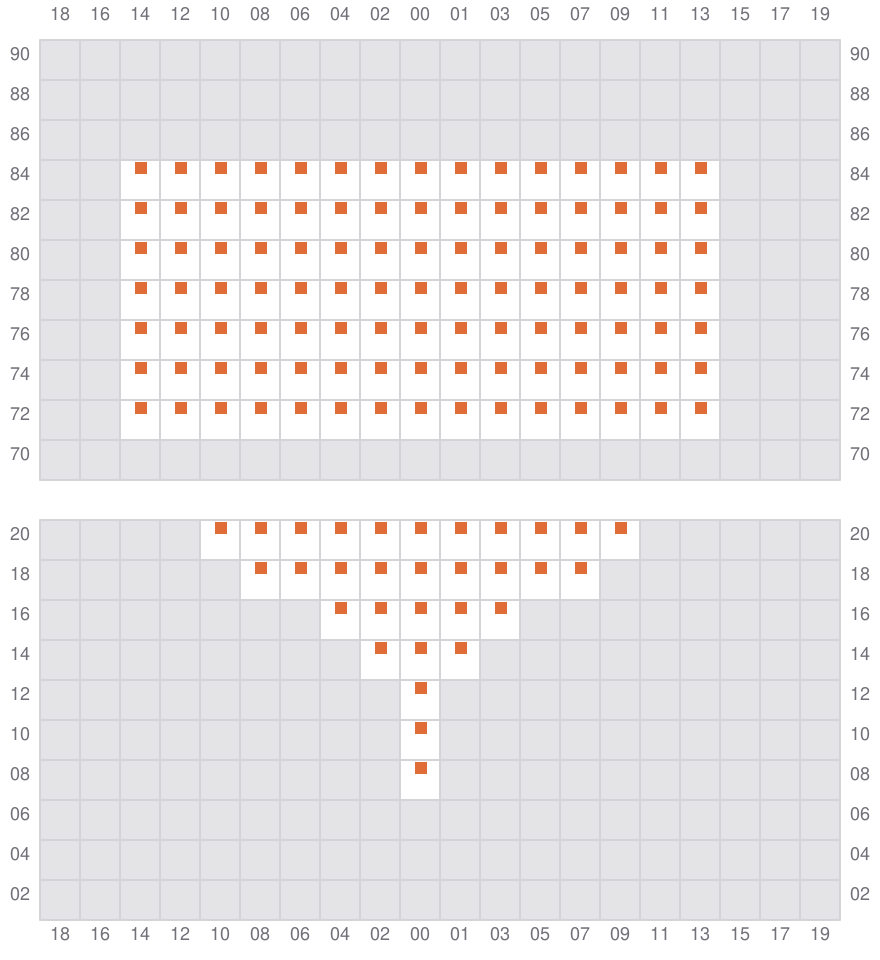

Bay 001 view and slots of MSC SIYA B

003 (002)

  • ←
  • ✓

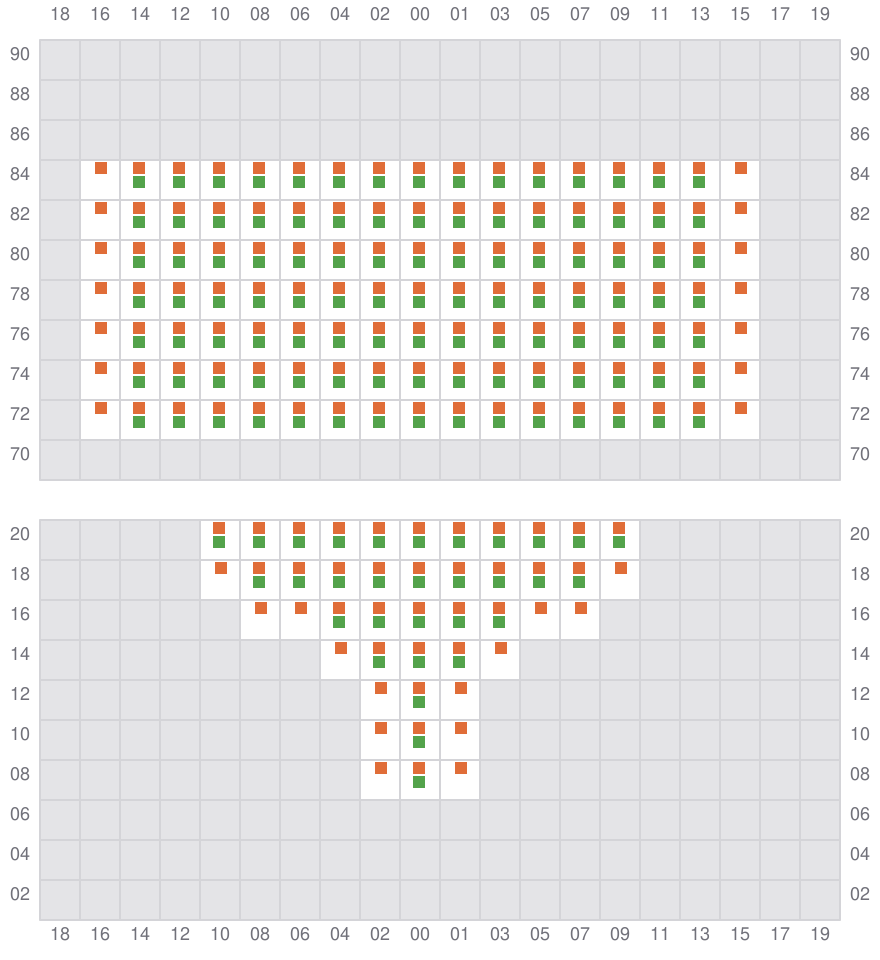

Bay 003 view and slots of MSC SIYA B

005

  • →
  • ✓

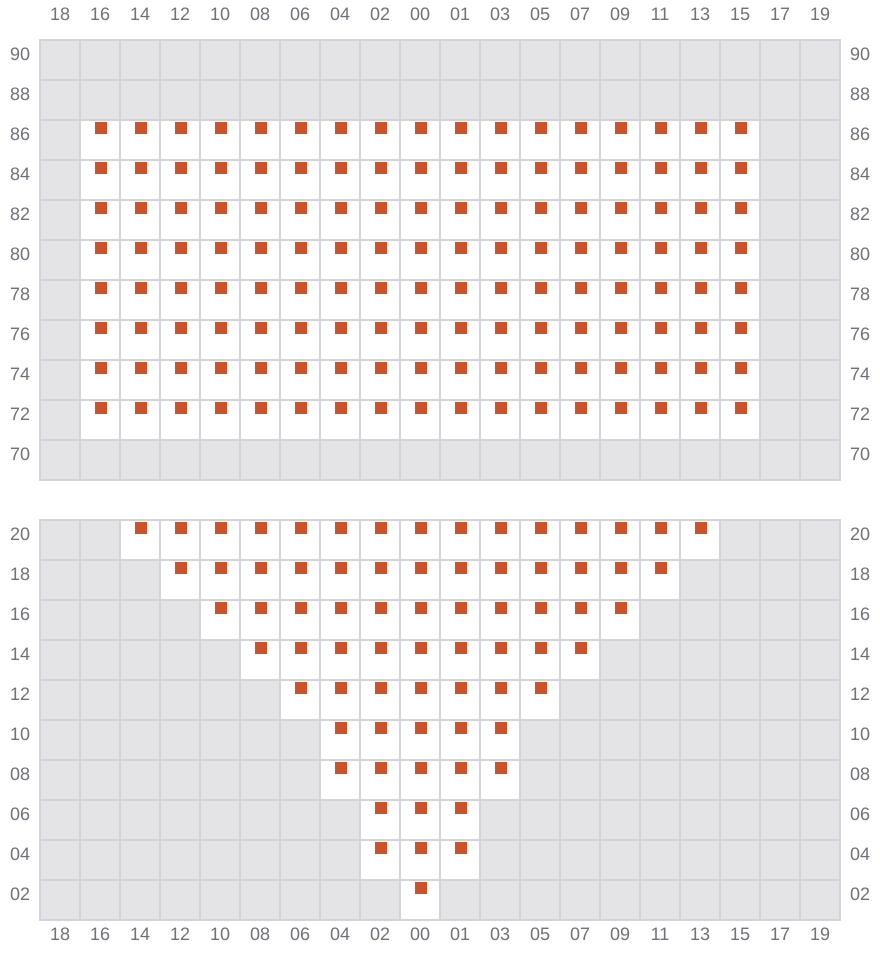

Bay 005 view and slots of MSC SIYA B

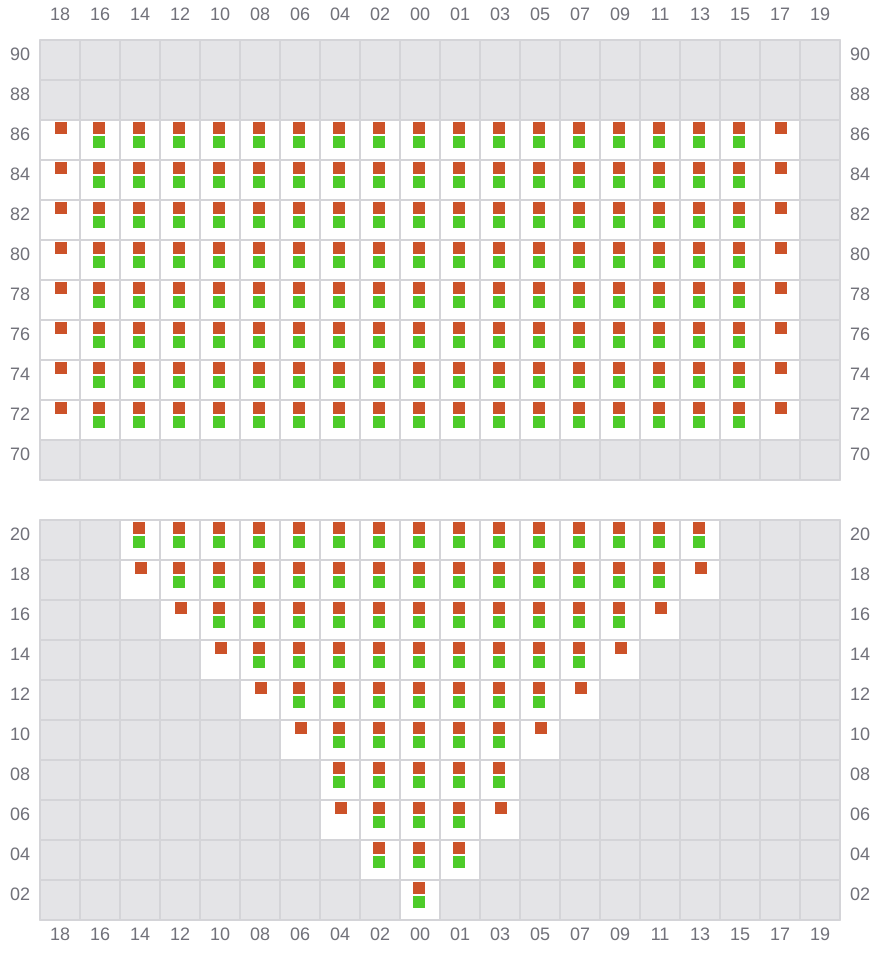

007 (006)

  • ←
  • ✓
Bay 007 view and slots of MSC SIYA B

009

  • →
  • ✓

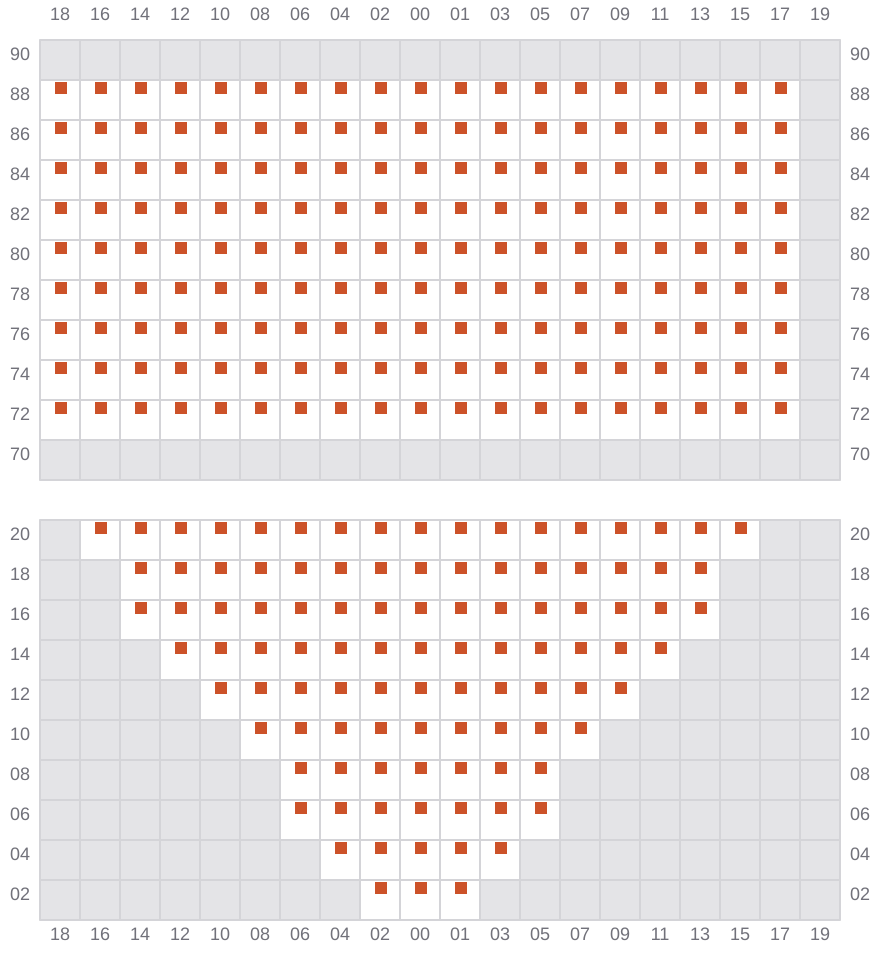

Bay 009 view and slots of MSC SIYA B

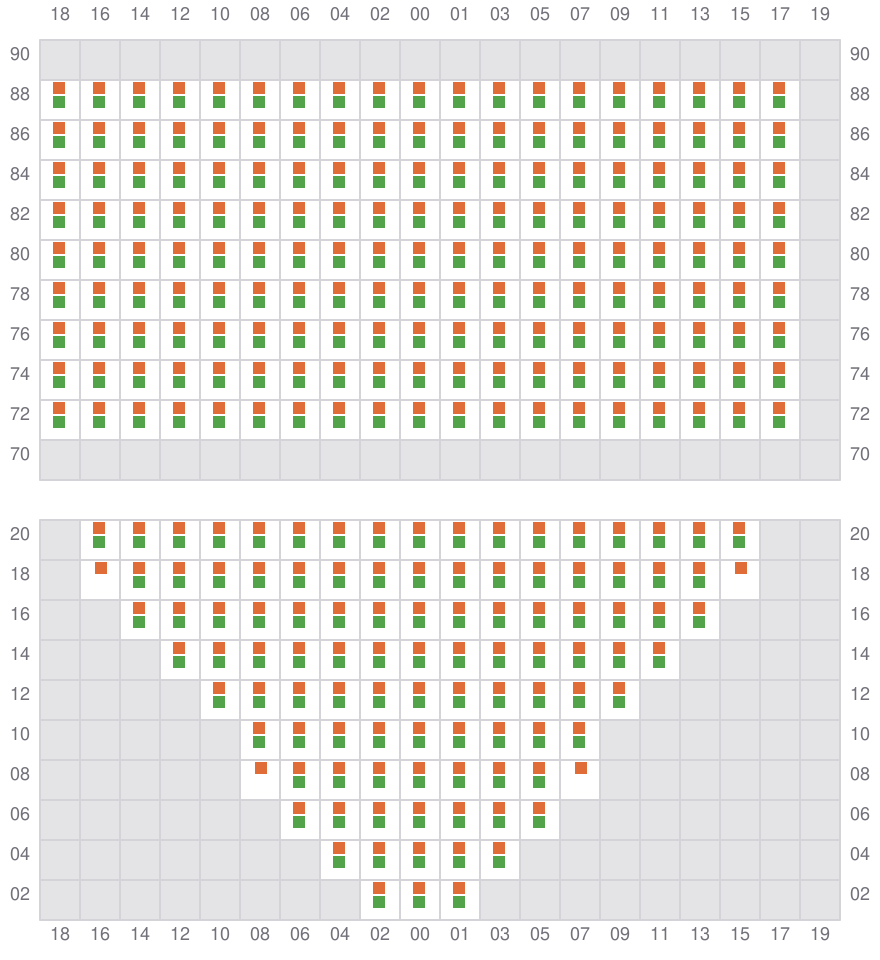

011 (010)

  • ←
  • ✓
Bay 011 view and slots of MSC SIYA B

013

  • →
  • ✓

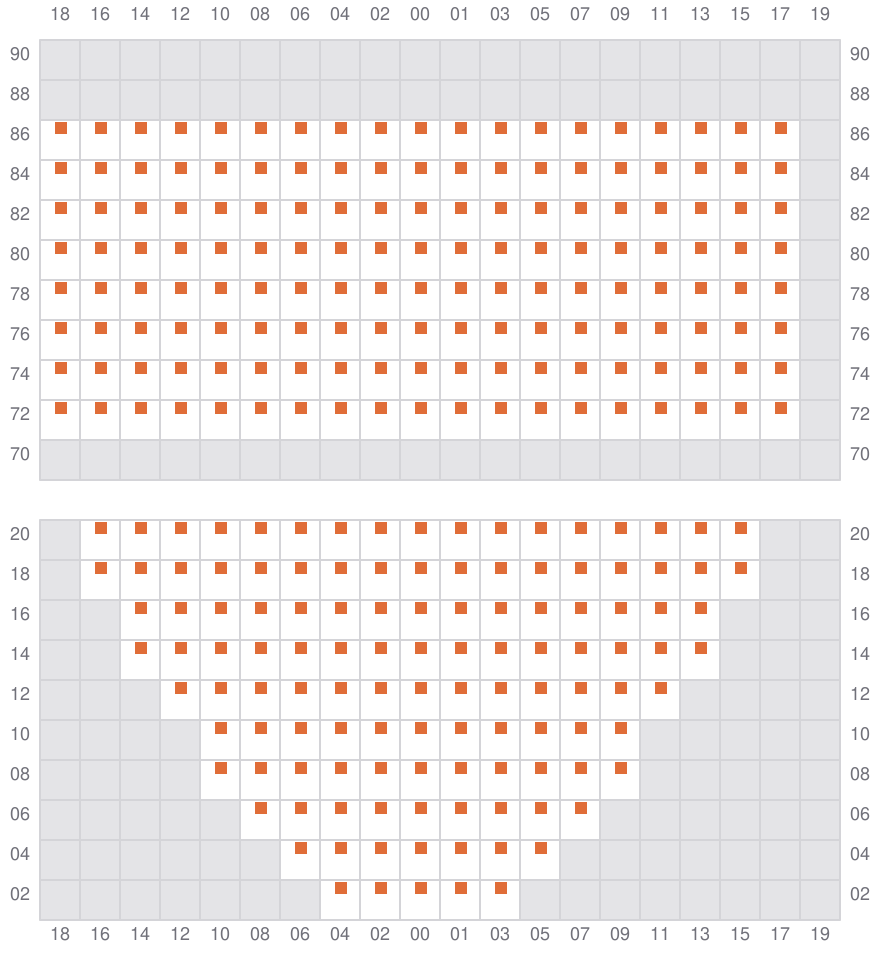

Bay 013 view and slots of MSC SIYA B

015 (014)

  • ←
  • ✓

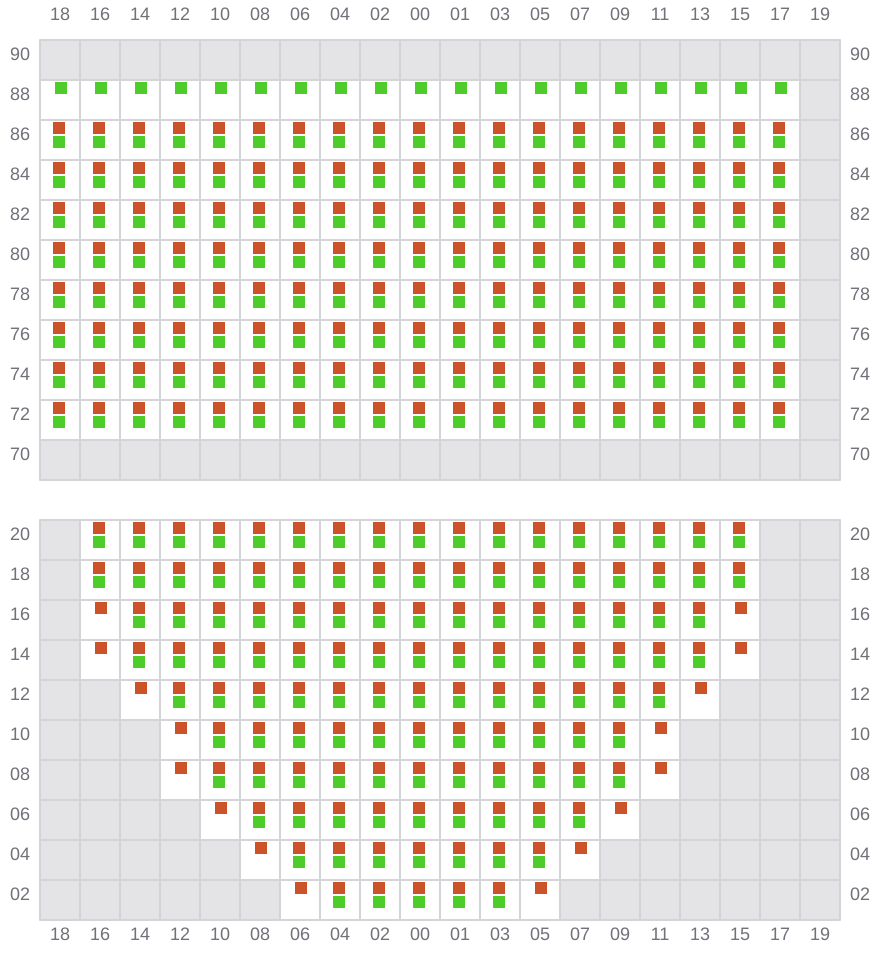

Bay 015 view and slots of MSC SIYA B

017

  • →
  • ✓

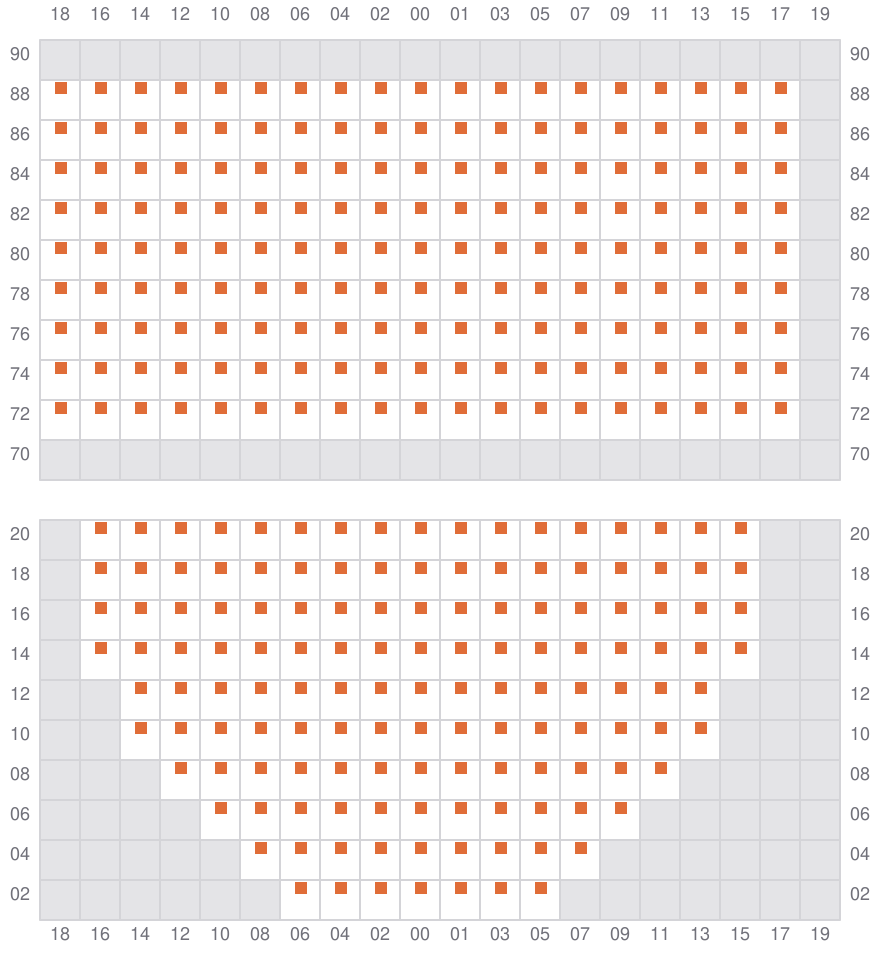

Bay 017 view and slots of MSC SIYA B

019 (018)

  • ←
  • ✓

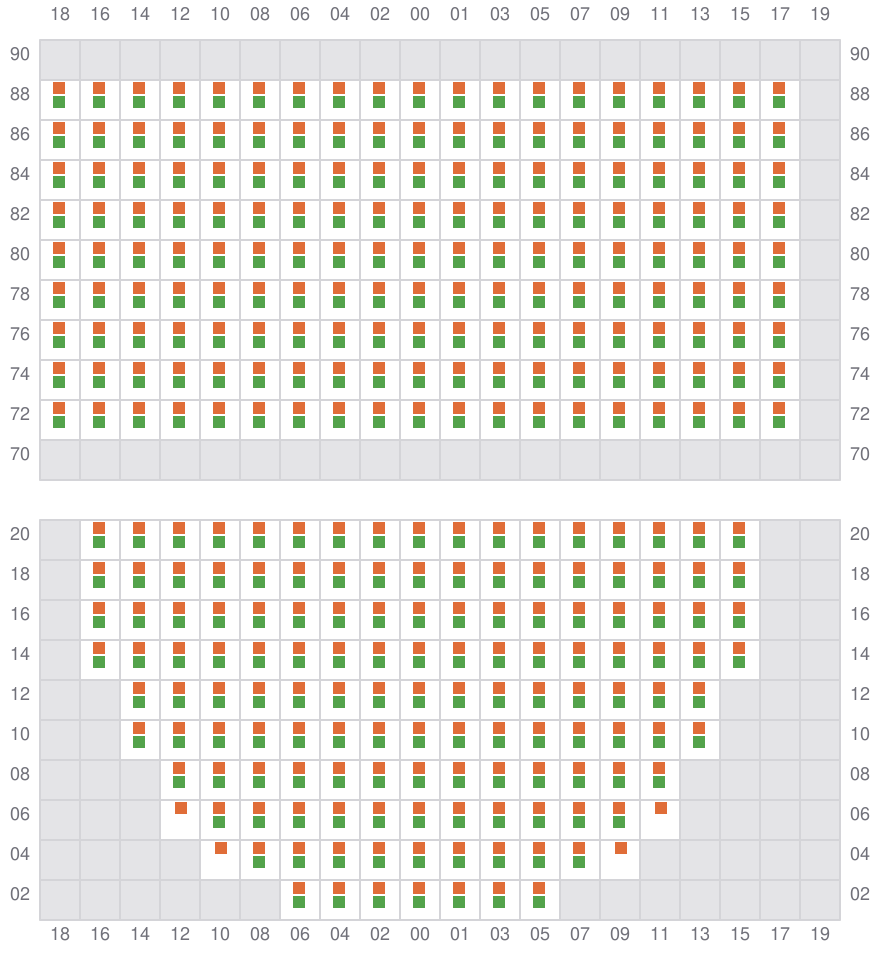

Bay 019 view and slots of MSC SIYA B

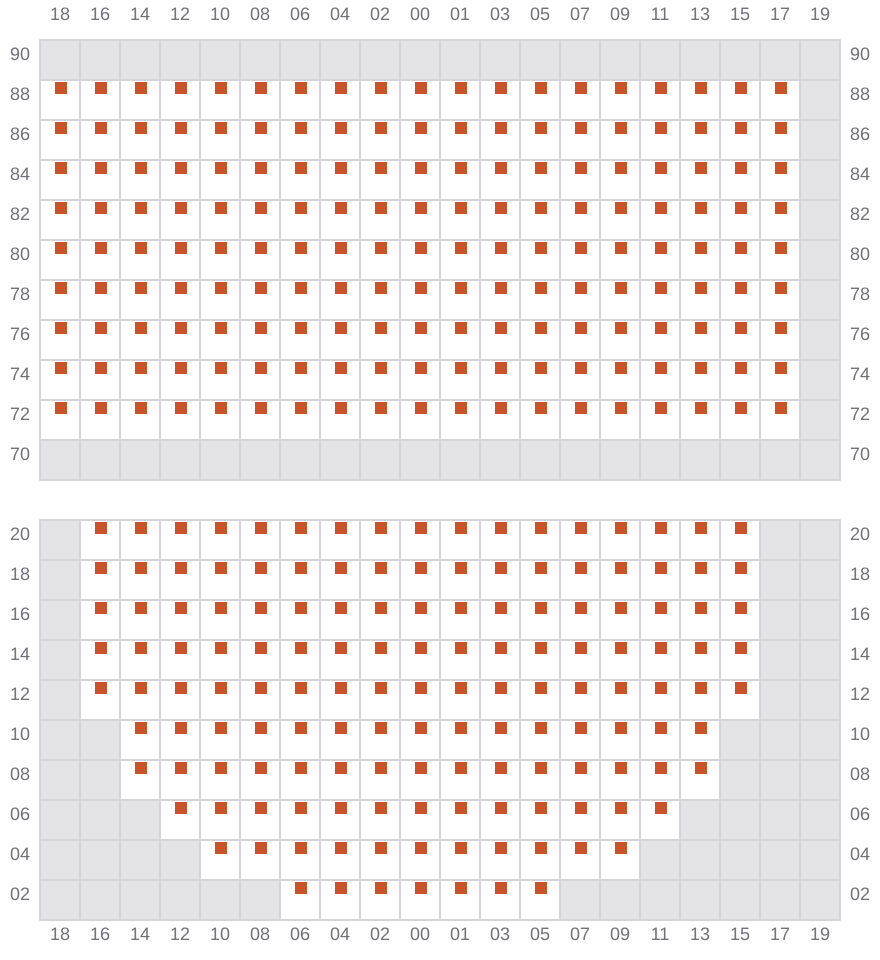

021

  • →
  • ✓
Bay 021 view and slots of MSC SIYA B

023 (022)

  • ←
  • ✓

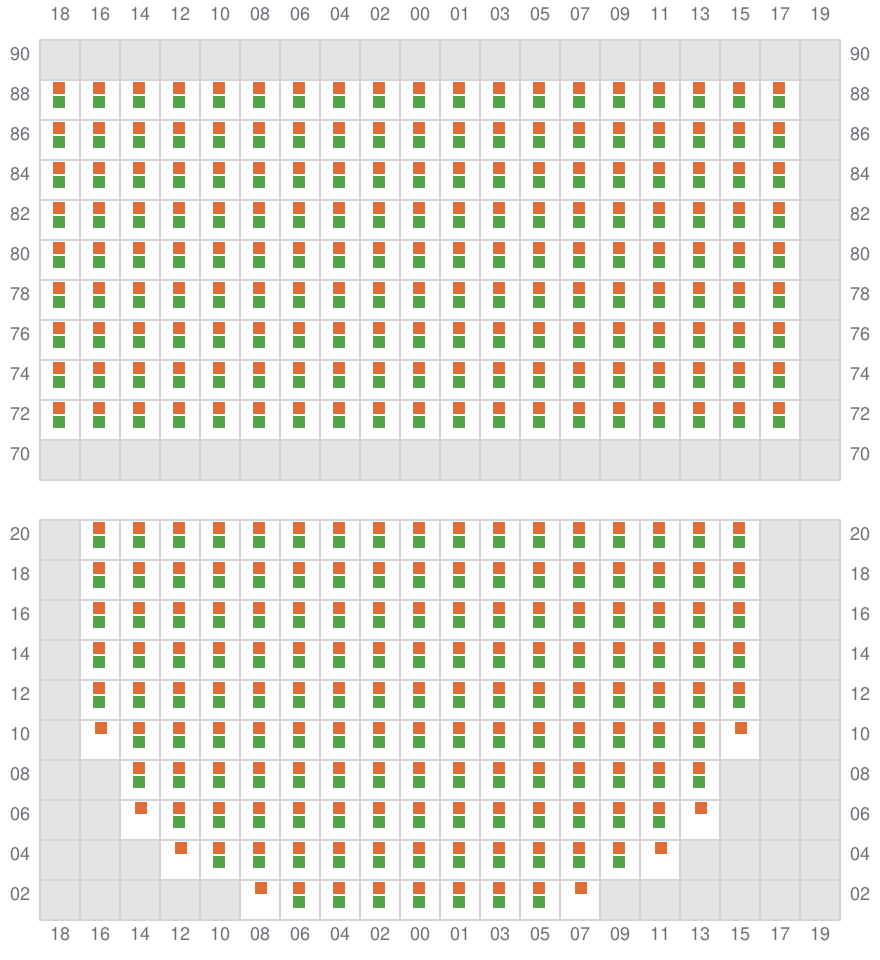

Bay 023 view and slots of MSC SIYA B

025

  • →
  • ✓
Bay 025 view and slots of MSC SIYA B

027 (026)

  • ←
  • ✓
Bay 027 view and slots of MSC SIYA B

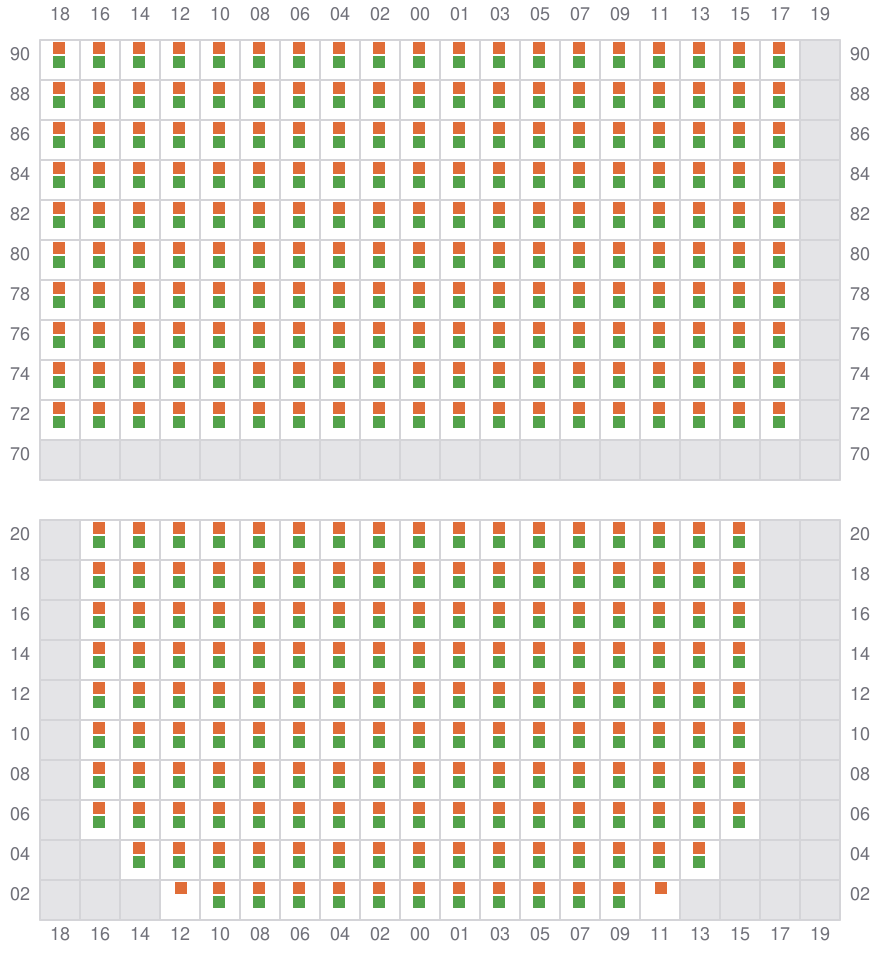

029

  • →
  • ✓
Bay 029 view and slots of MSC SIYA B

031 (030)

  • ←
  • ✓

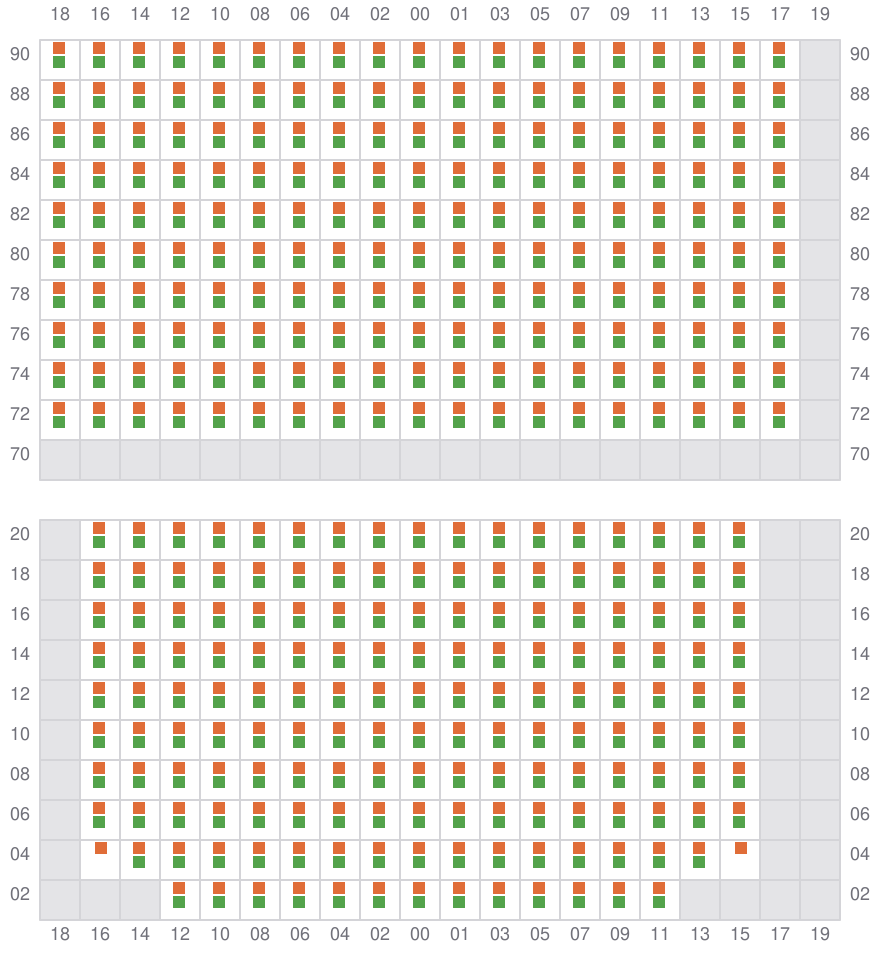

Bay 031 view and slots of MSC SIYA B

033

  • →
  • ✓
Bay 033 view and slots of MSC SIYA B

035 (034)

  • ←
  • ✓
Bay 035 view and slots of MSC SIYA B

037

  • →
  • ✓
Bay 037 view and slots of MSC SIYA B

039 (038)

  • ←
  • ✓
Bay 039 view and slots of MSC SIYA B

041

  • →
  • ✓
Bay 041 view and slots of MSC SIYA B

043 (042)

  • ←
  • ✓
Bay 043 view and slots of MSC SIYA B

045

  • →
  • ✓
Bay 045 view and slots of MSC SIYA B

047 (046)

  • ←
  • ✓

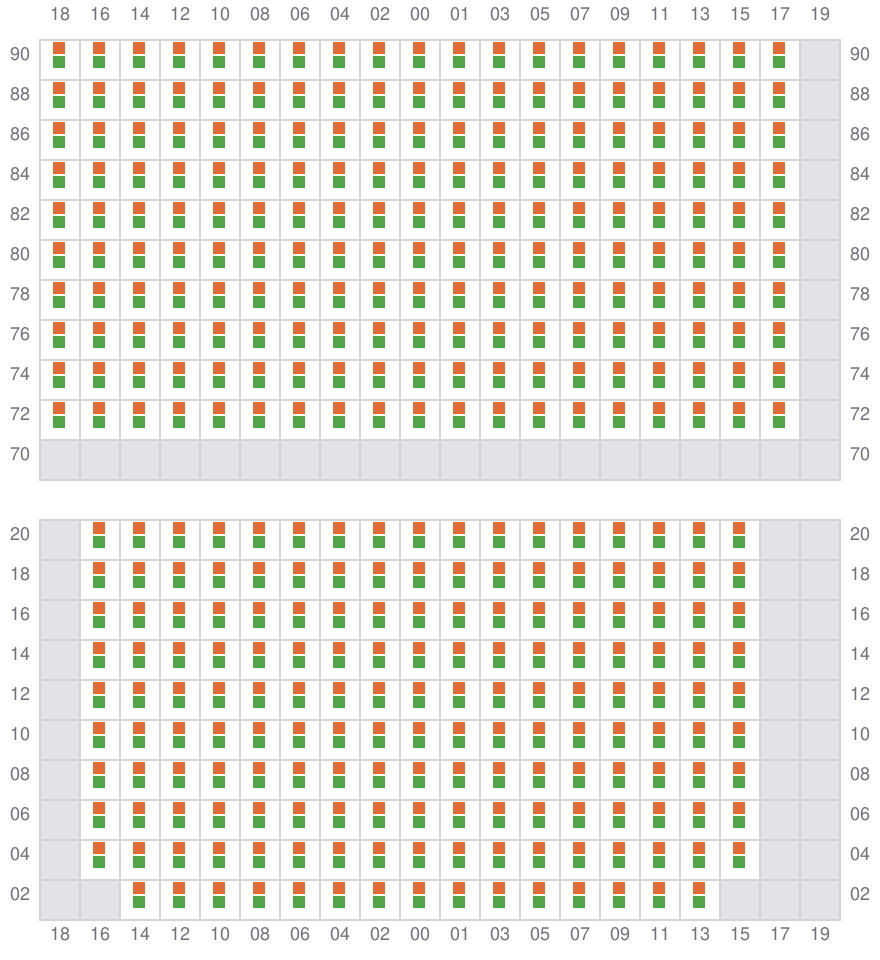

Bay 047 view and slots of MSC SIYA B

049

  • →
  • ✓
Bay 049 view and slots of MSC SIYA B

051 (050)

  • ←
  • ✓

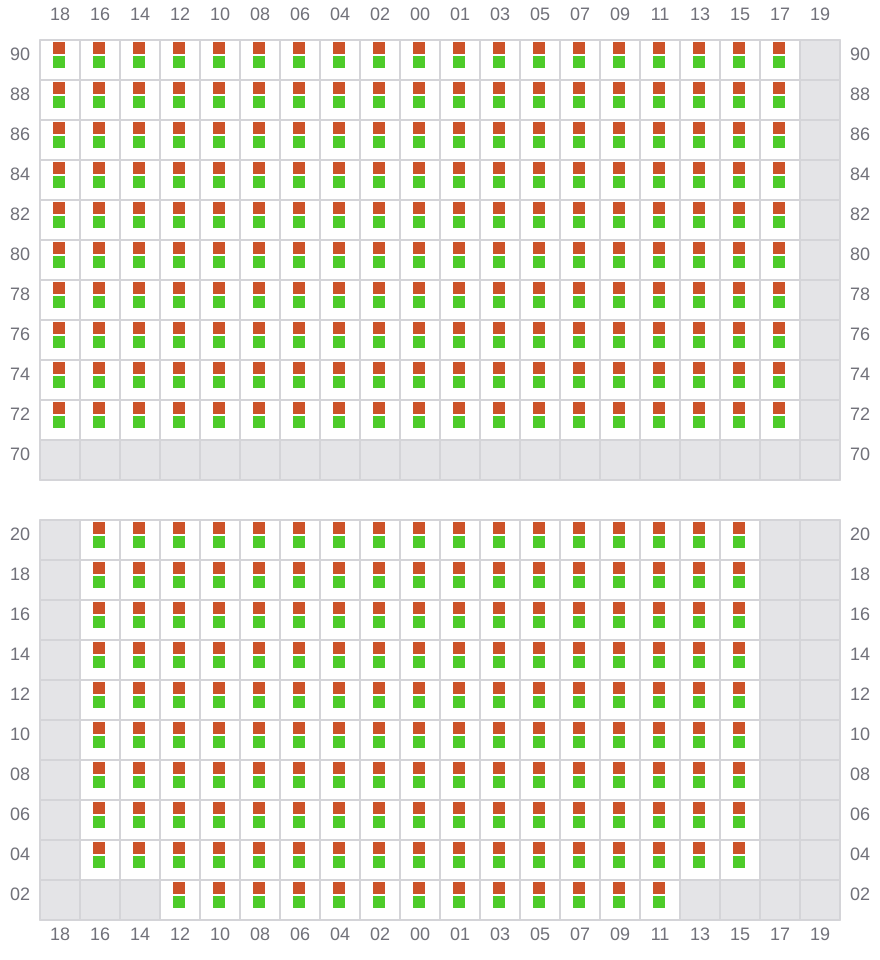

Bay 051 view and slots of MSC SIYA B

053

  • →
  • ✓

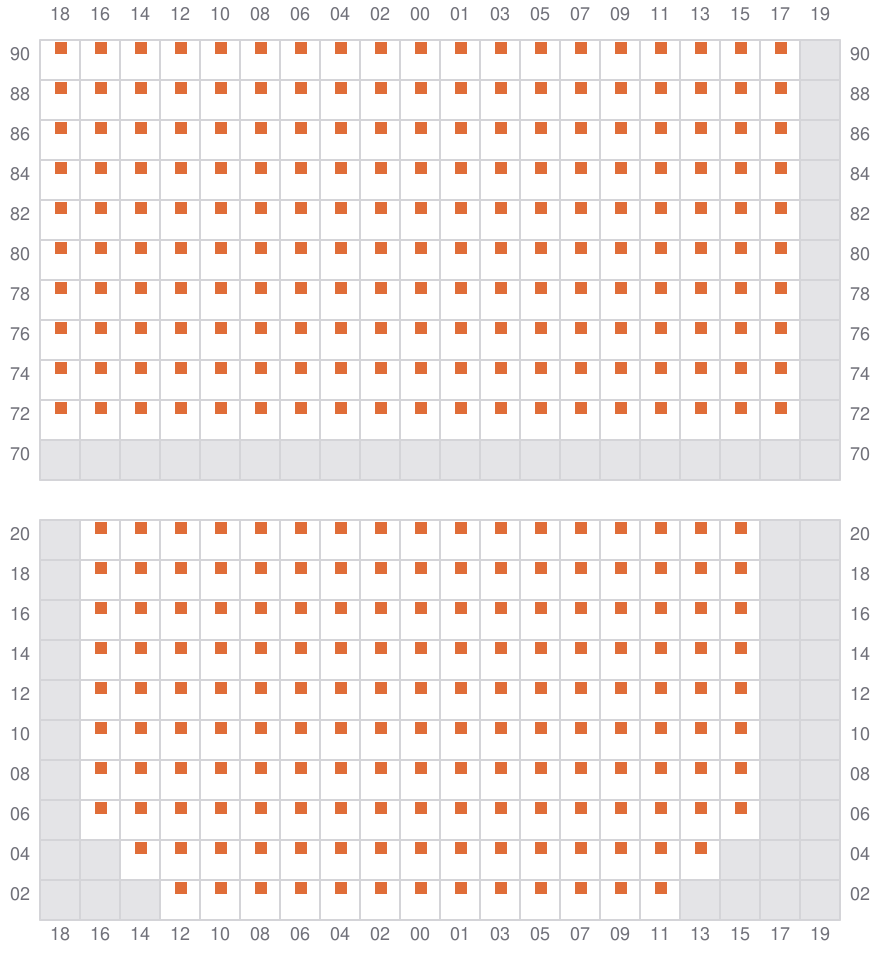

Bay 053 view and slots of MSC SIYA B

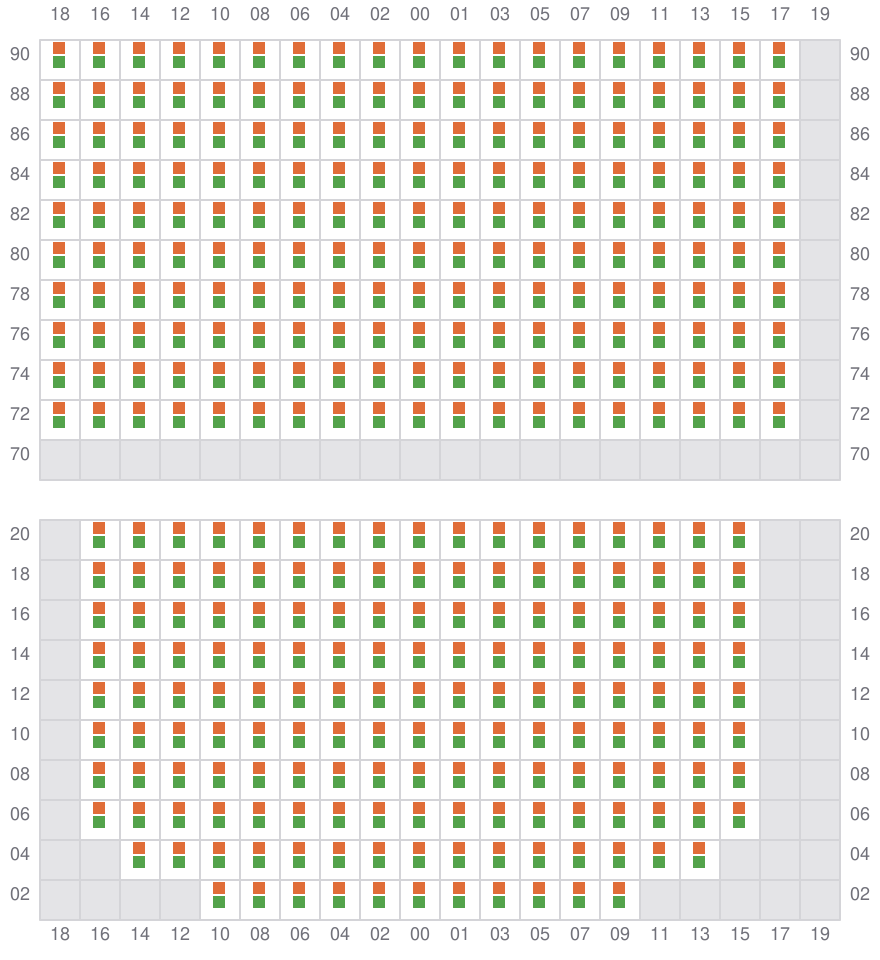

055 (054)

  • ←
  • ✓
Bay 055 view and slots of MSC SIYA B

057

  • →
  • ✓

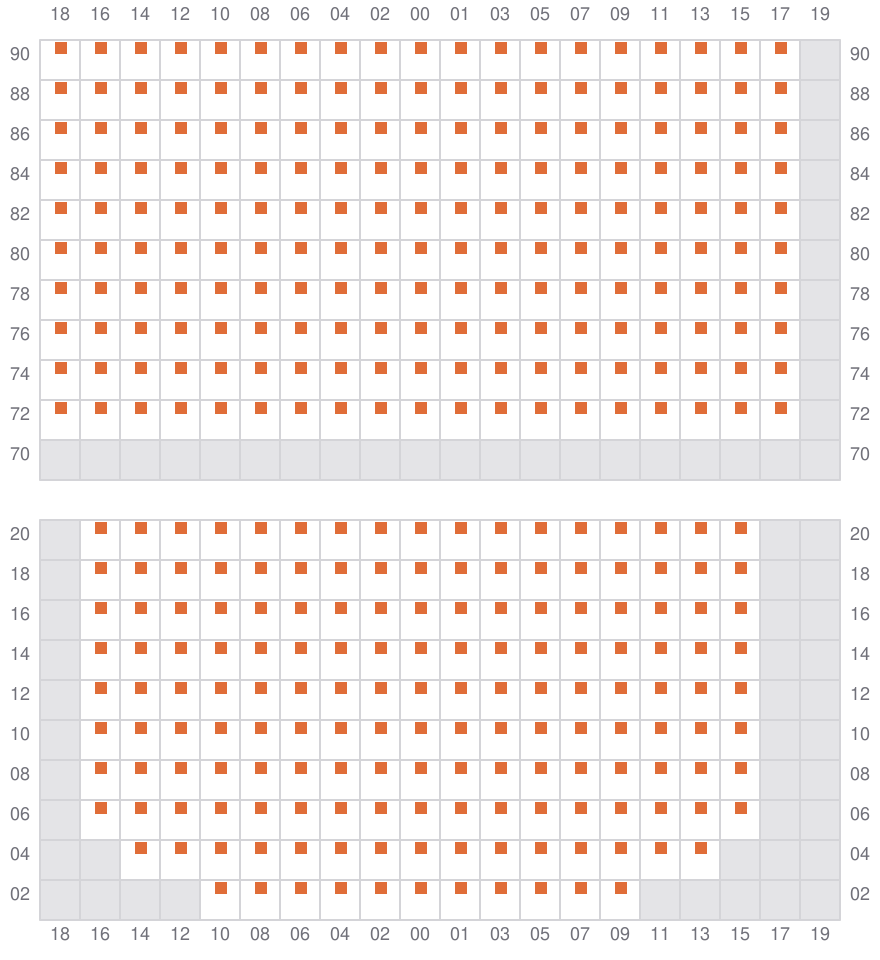

Bay 057 view and slots of MSC SIYA B

059 (058)

  • ←
  • ✓

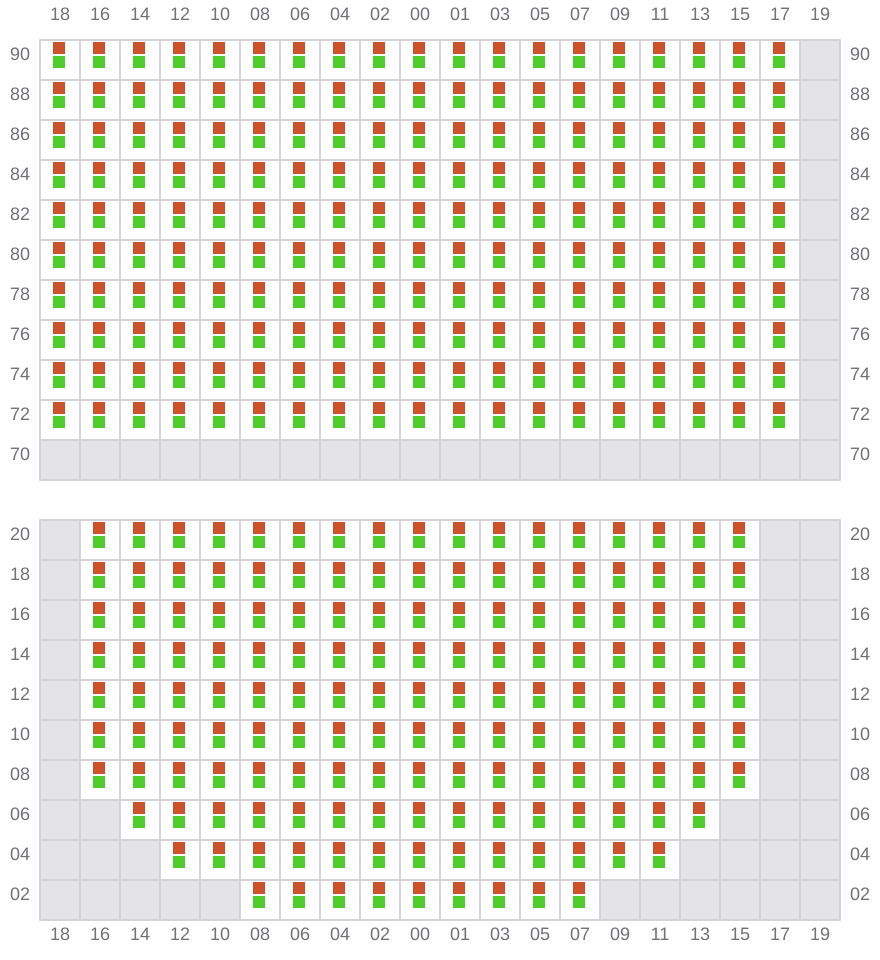

Bay 059 view and slots of MSC SIYA B

061

  • →
  • ? / ?
  • ? / ?
  • ✓
Bay 061 view and slots of MSC SIYA B

063 (062)

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 063 view and slots of MSC SIYA B

065

  • →
  • ✓

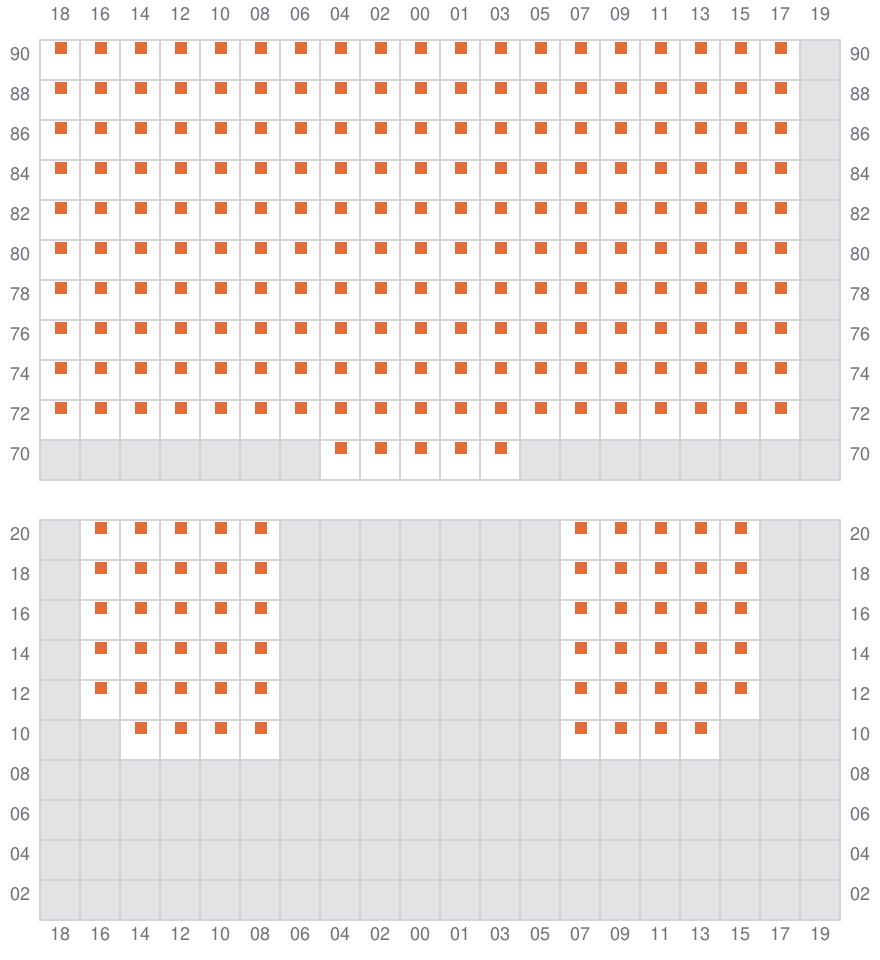

Bay 065 view and slots of MSC SIYA B

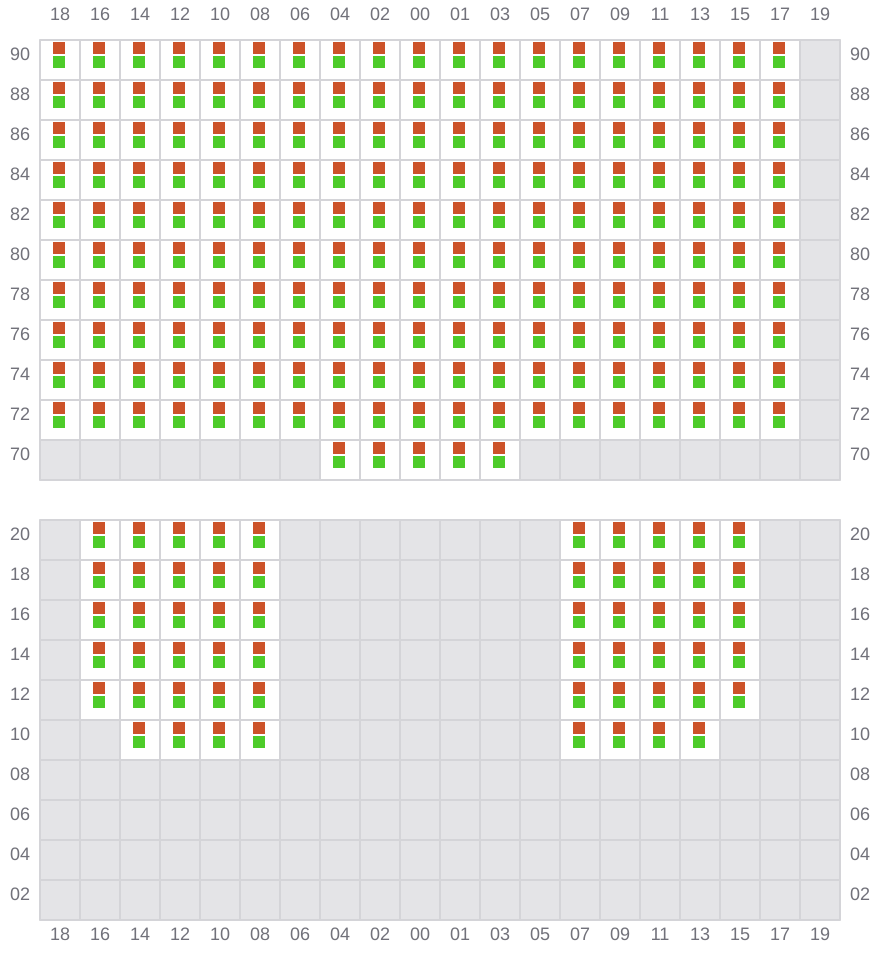

067 (066)

  • ←
  • ✓
Bay 067 view and slots of MSC SIYA B

069

  • →
  • ✓

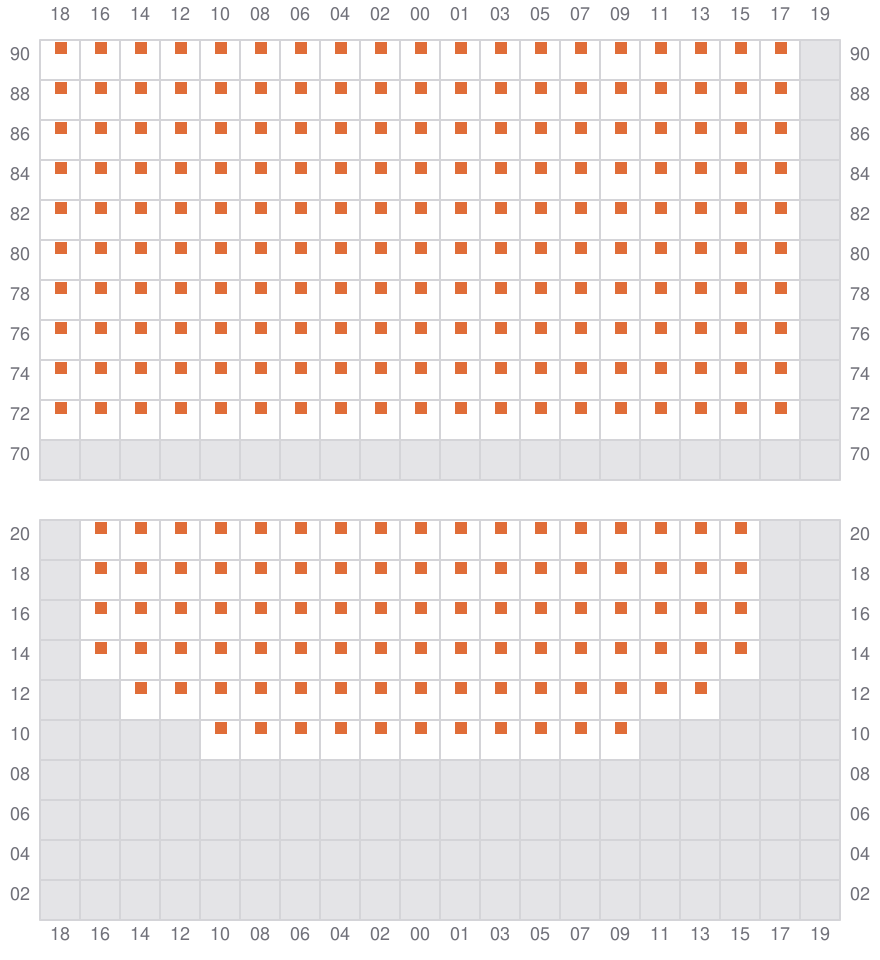

Bay 069 view and slots of MSC SIYA B

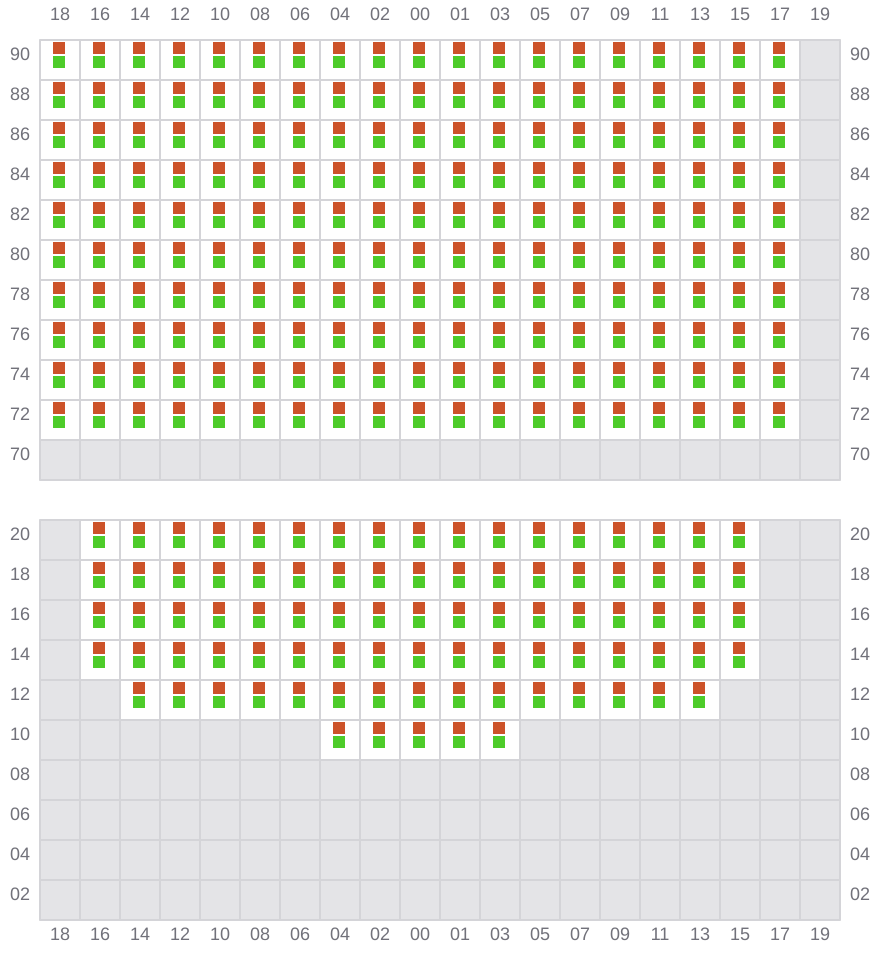

071 (070)

  • ←
  • ✓
Bay 071 view and slots of MSC SIYA B

073

  • →
  • ✓

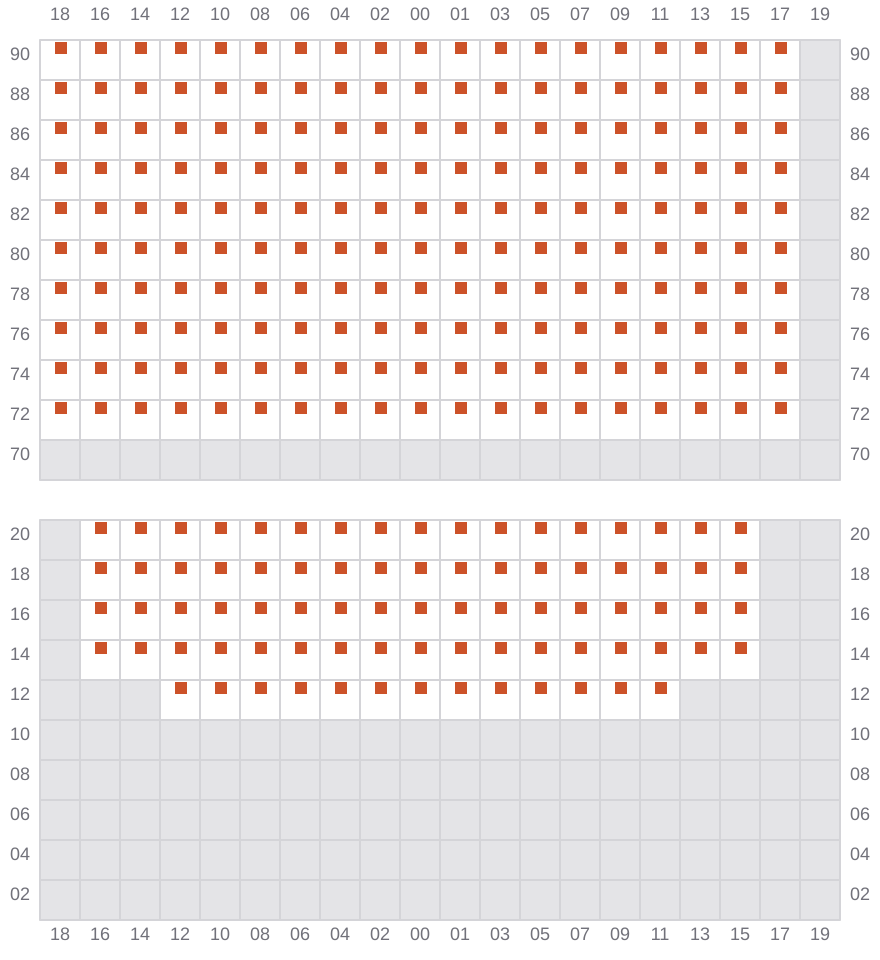

Bay 073 view and slots of MSC SIYA B

075 (074)

  • ←
  • ✓
Bay 075 view and slots of MSC SIYA B

077

  • →
  • ? / ?
  • ? / ?
  • ✓

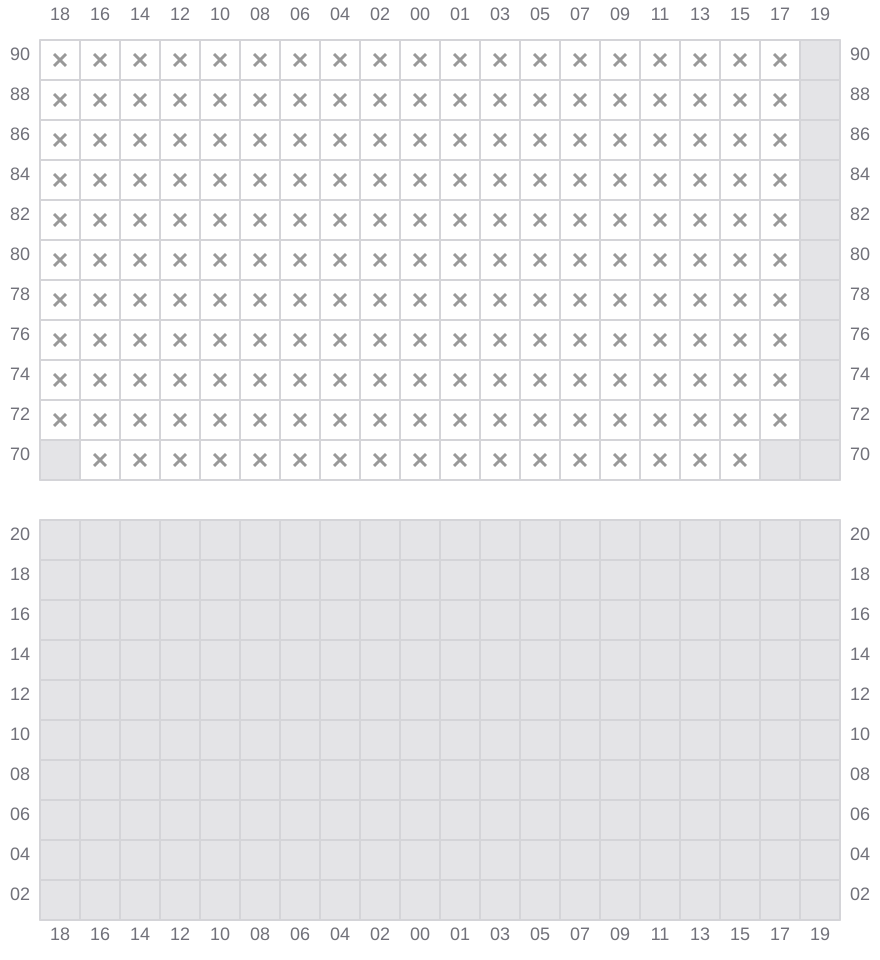

Bay 077 view and slots of MSC SIYA B

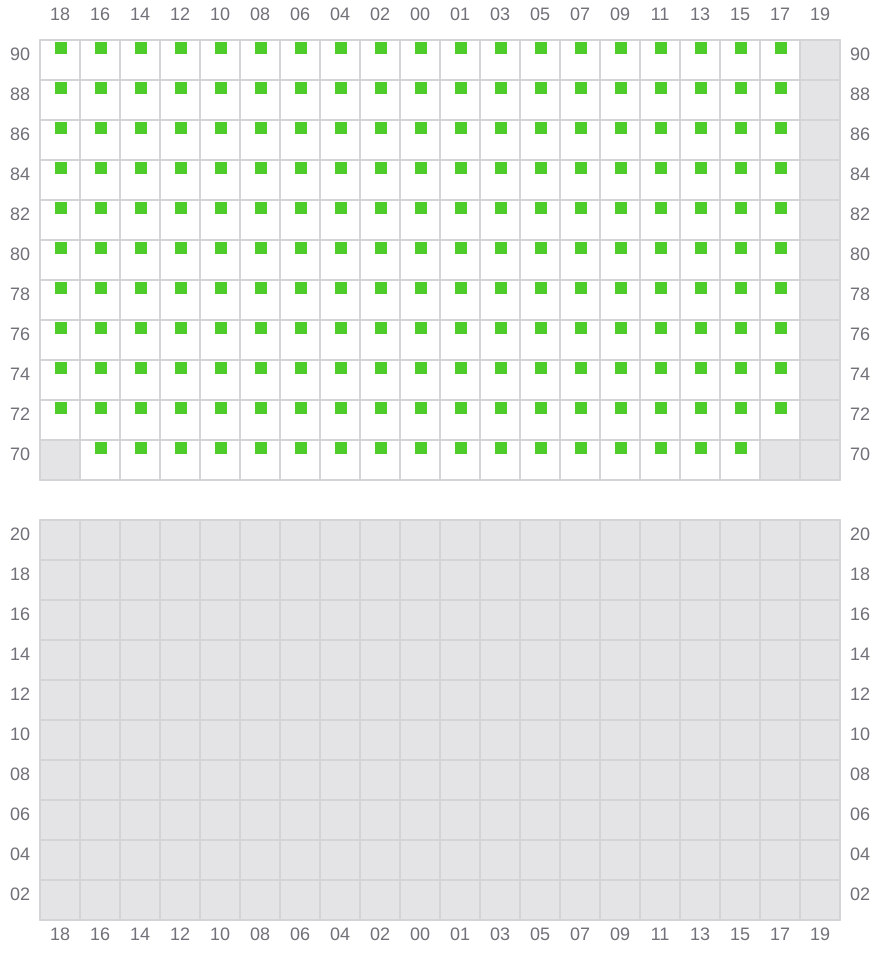

079 (078)

  • ←
  • ? / ?
  • ? / ?
  • ✓

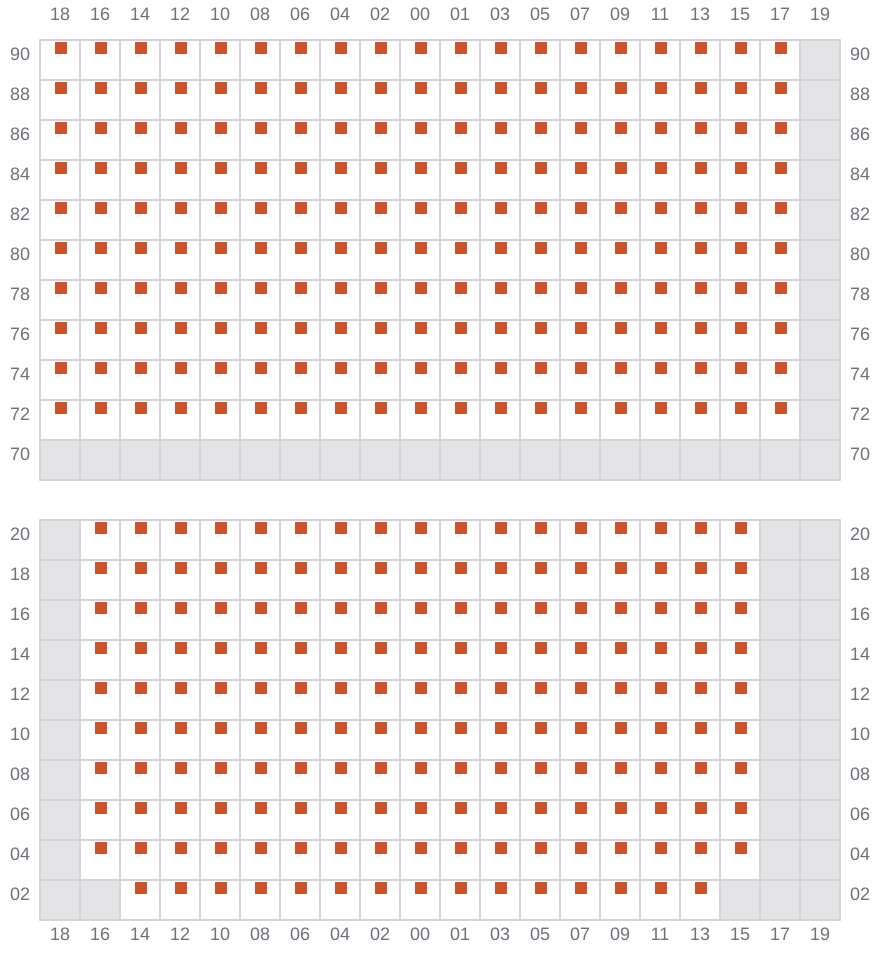

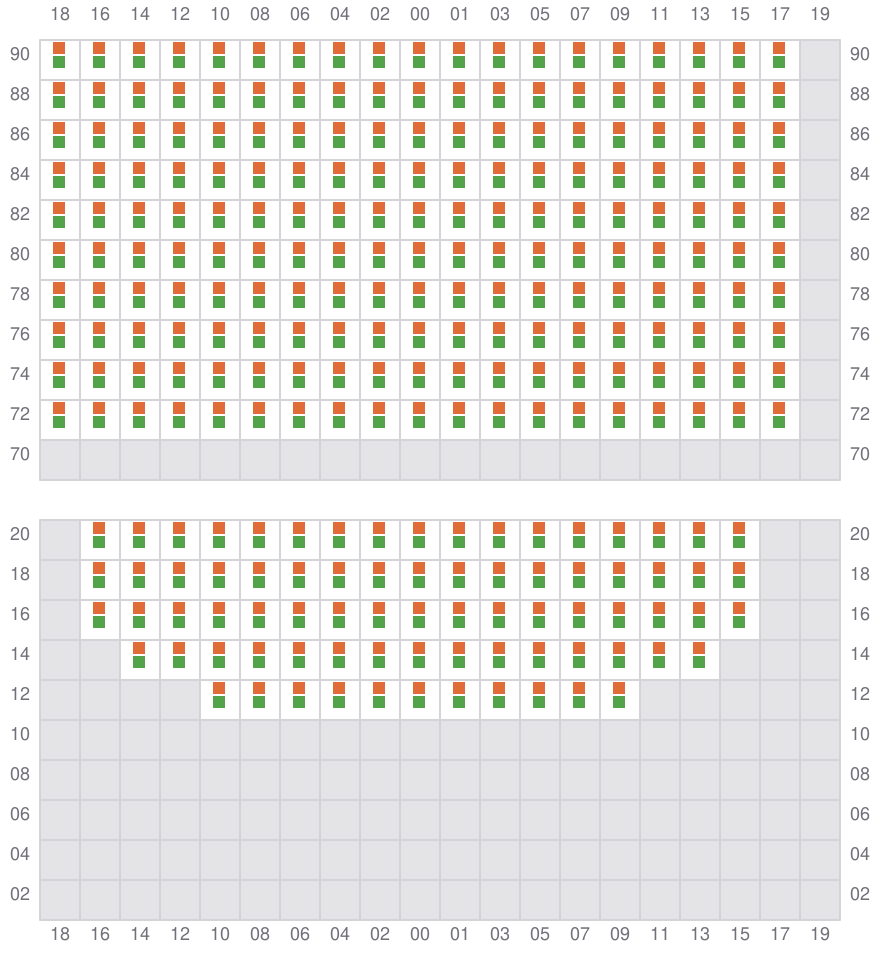

Bay 079 view and slots of MSC SIYA B
