MSC SKY II
9162277 | A8IQ2 | EIS by ************************** Last update: Sat Jul 01 2023

General Info

Ship Name:MSC SKY II

IMO Code:9162277

Call Sign:A8IQ2

Line Operator:EIS

Class Name for Sister Ships:FEL

Year Built:1999

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As (old names):-

Size Summary

ISO Bays:041

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:2,132

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of MSC SKY II

Hatch-Covers View

Deck view of MSC SKY II

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

Bay 001 view and slots of MSC SKY II

003 (002)

←

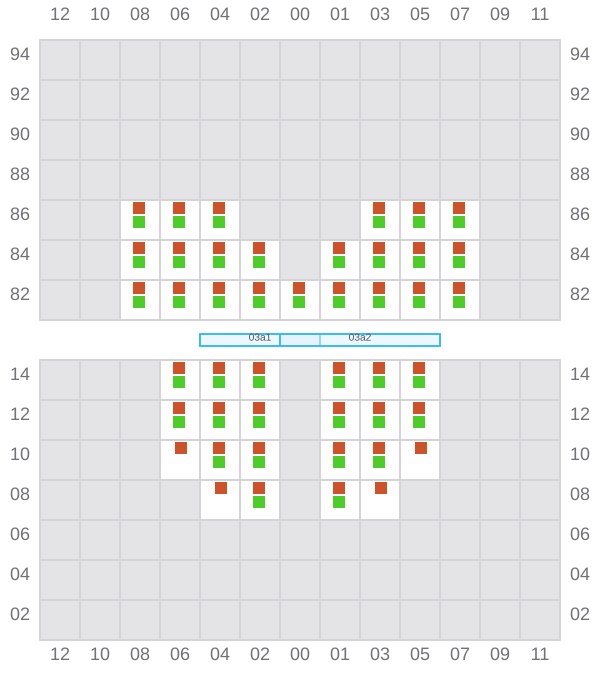

Bay 003 view and slots of MSC SKY II

005

→

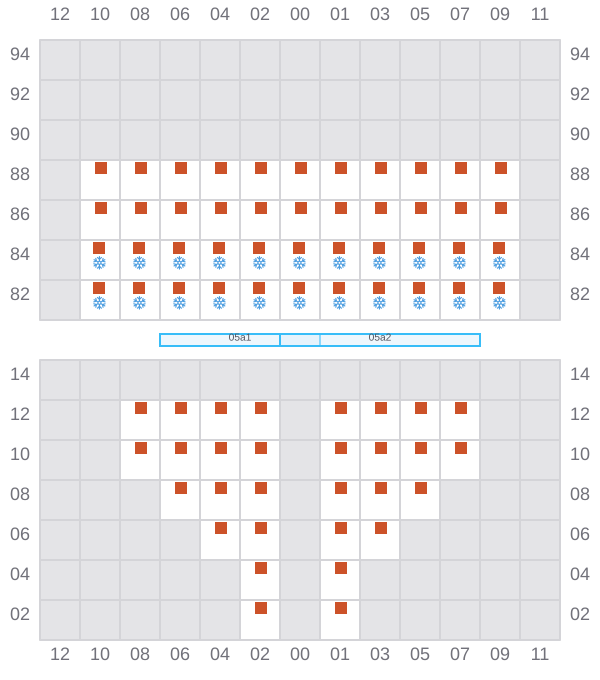

Bay 005 view and slots of MSC SKY II

007 (006)

←

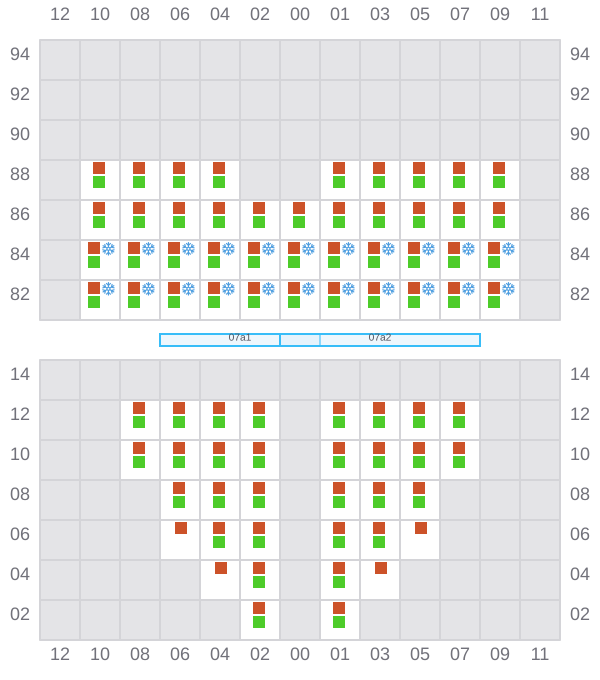

Bay 007 view and slots of MSC SKY II

009

→

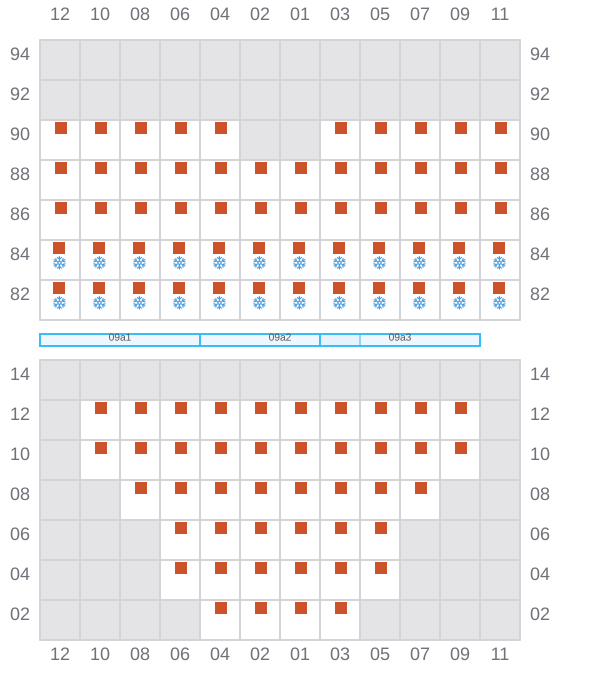

Bay 009 view and slots of MSC SKY II

011 (010)

←

Bay 011 view and slots of MSC SKY II

013

→

Bay 013 view and slots of MSC SKY II

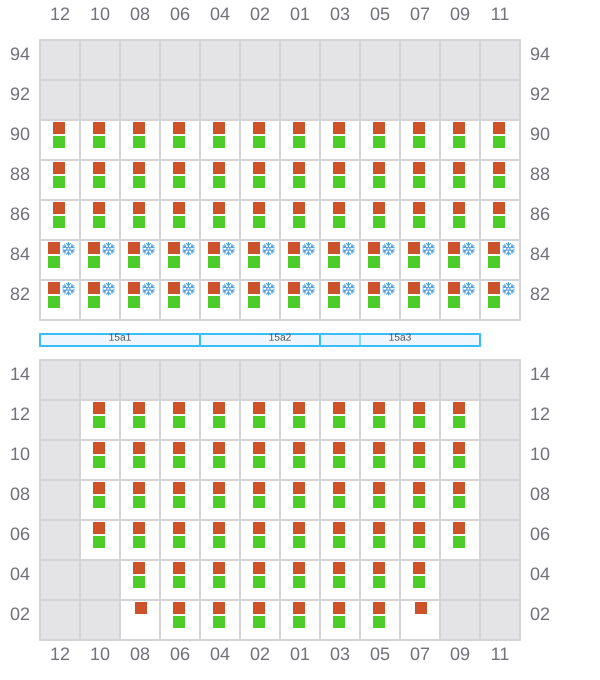

015 (014)

←

Bay 015 view and slots of MSC SKY II

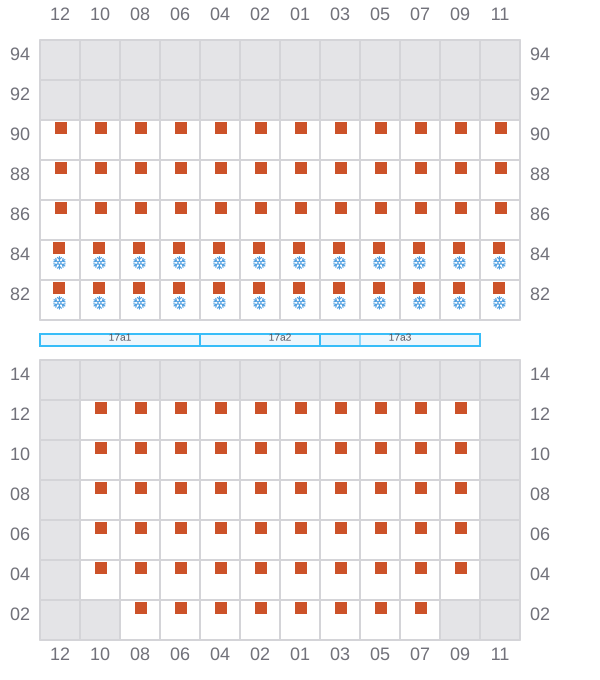

017

→

Bay 017 view and slots of MSC SKY II

019 (018)

←

Bay 019 view and slots of MSC SKY II

021

→

Bay 021 view and slots of MSC SKY II

023 (022)

←

Bay 023 view and slots of MSC SKY II

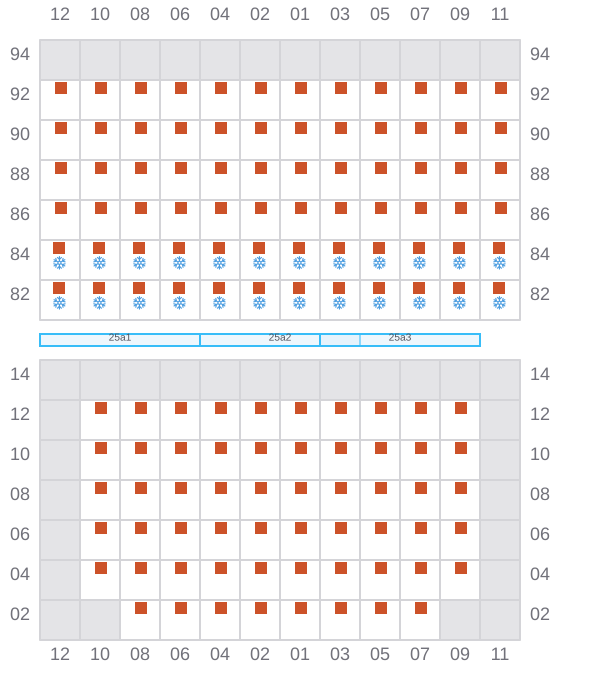

025

→

Bay 025 view and slots of MSC SKY II

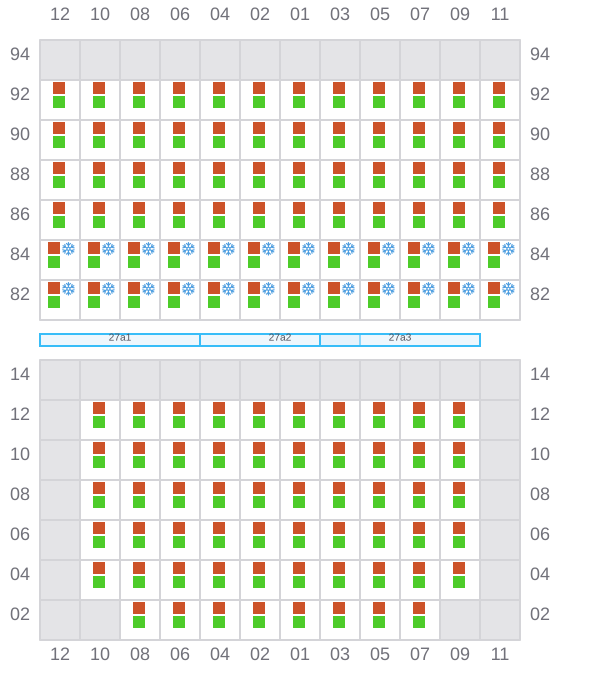

027 (026)

←

Bay 027 view and slots of MSC SKY II

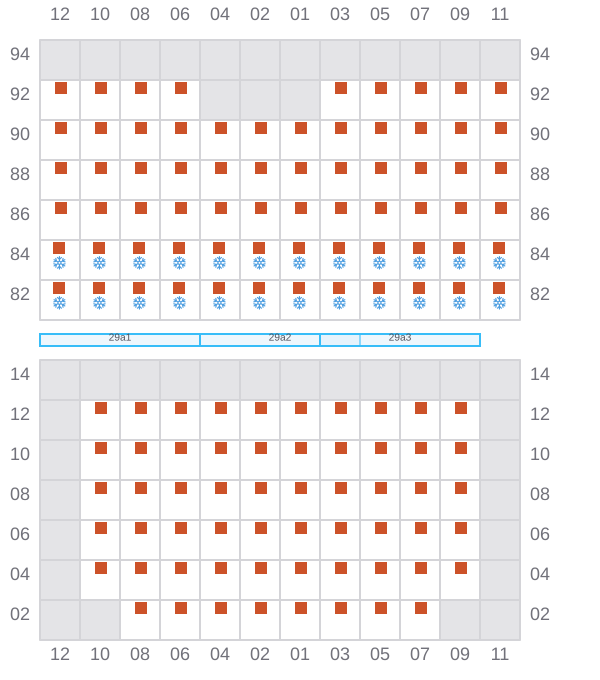

029

→

Bay 029 view and slots of MSC SKY II

031 (030)

←

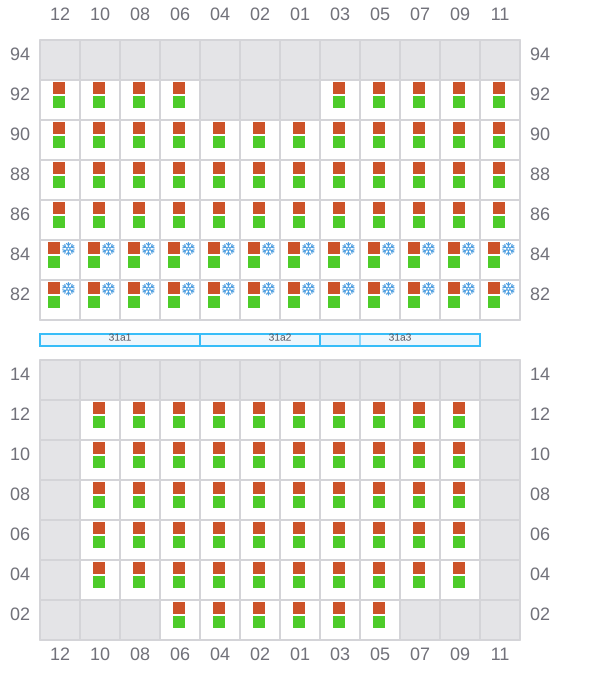

Bay 031 view and slots of MSC SKY II

033

→

Bay 033 view and slots of MSC SKY II

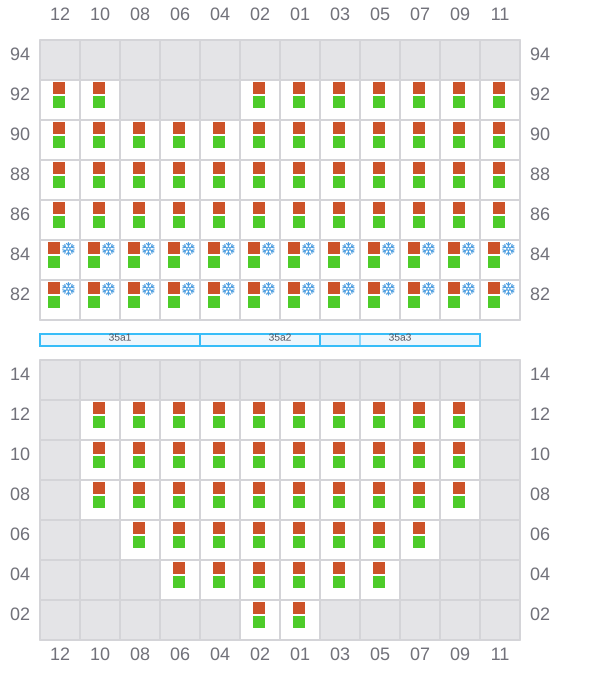

035 (034)

←

Bay 035 view and slots of MSC SKY II

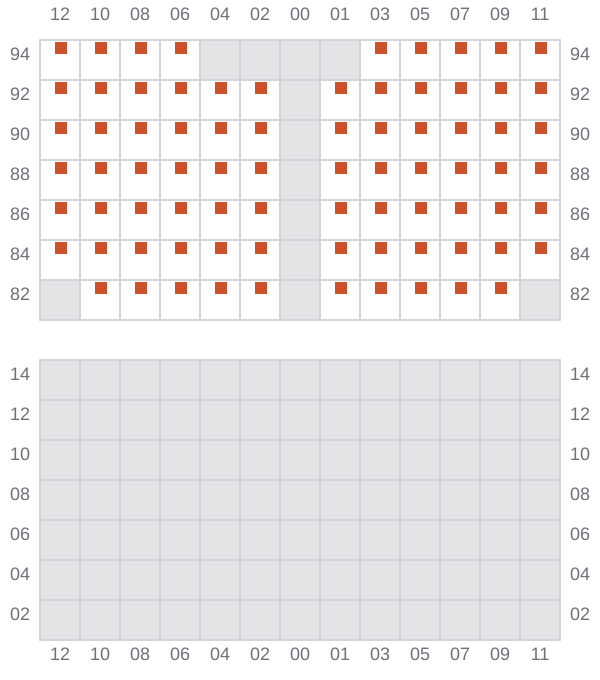

037

^→ / _?

Bay 037 view and slots of MSC SKY II

039 (038)

^← / _?

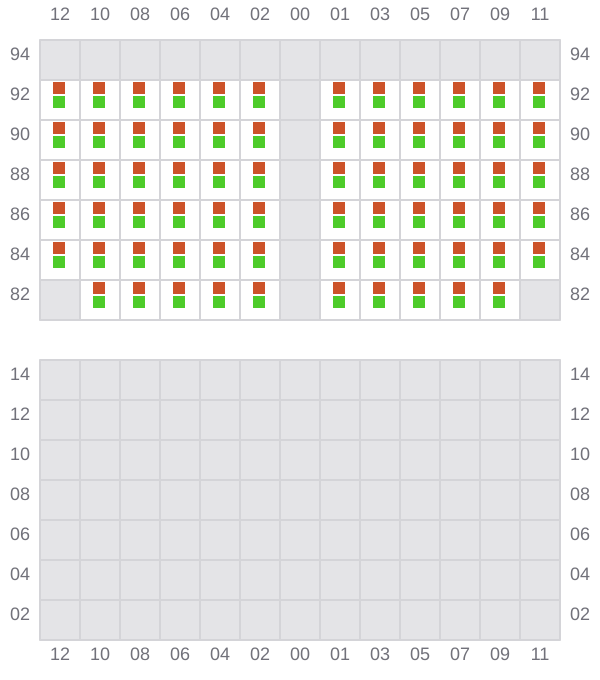

Bay 039 view and slots of MSC SKY II

041

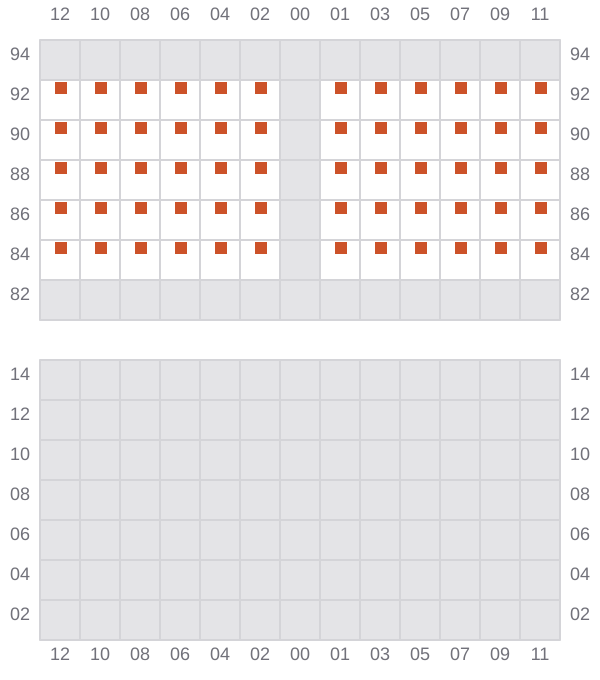

Bay 041 view and slots of MSC SKY II
