MSC SKY II
9162277 | A8IQ2 | 9162277 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:MSC SKY II
IMO Code:9162277
Call Sign:A8IQ2
Line Operator:9162277
Class Name for Sister Ships:75W
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,196
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

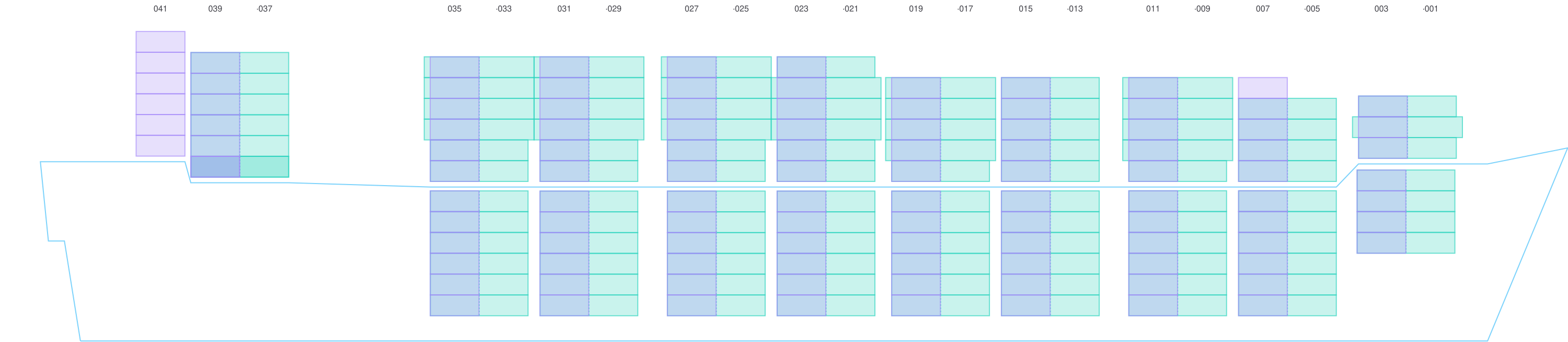

Side View
Hatch-Covers View

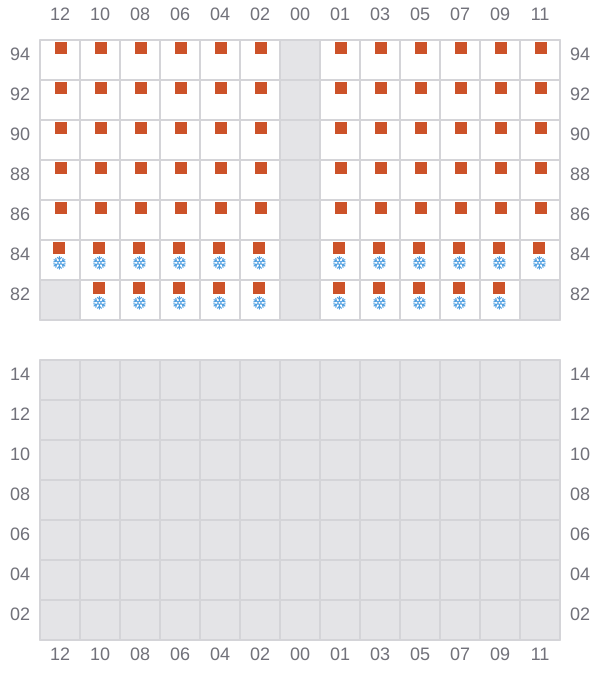

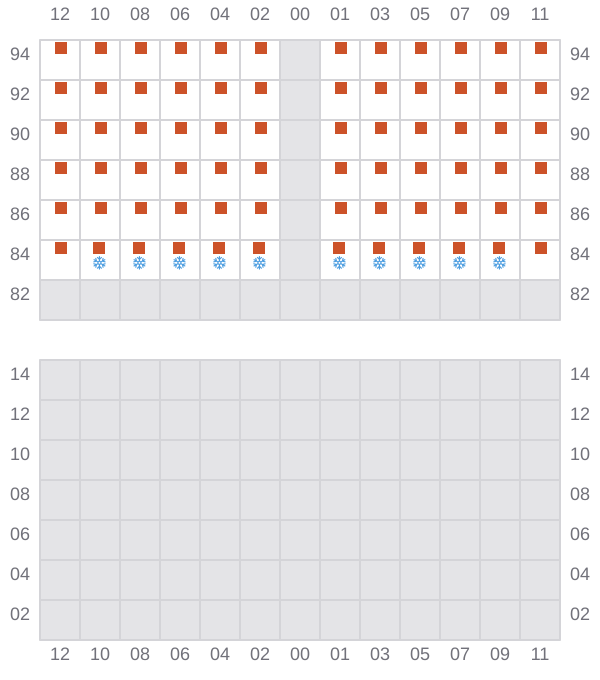

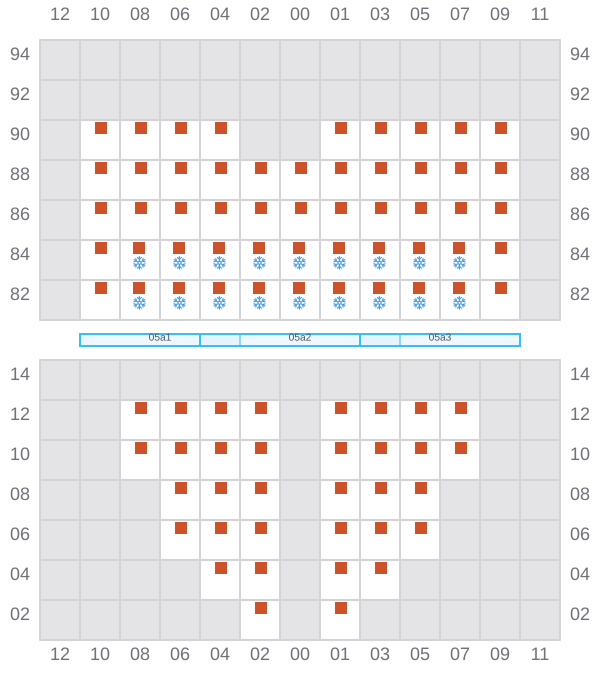

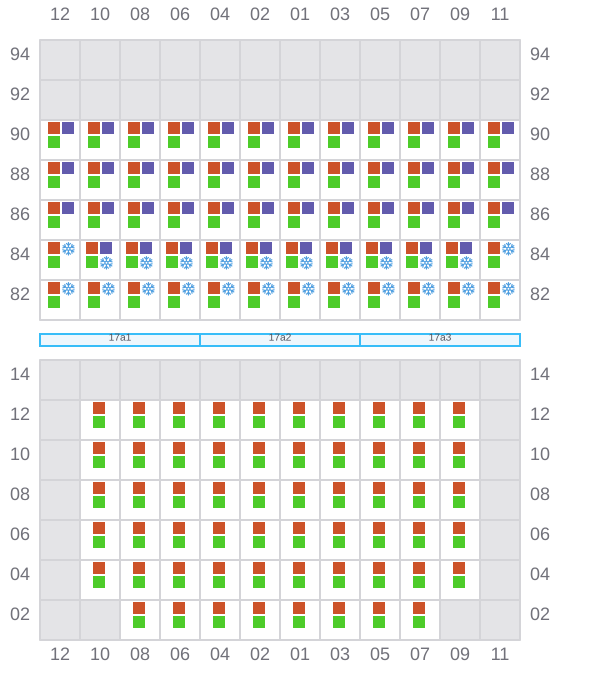

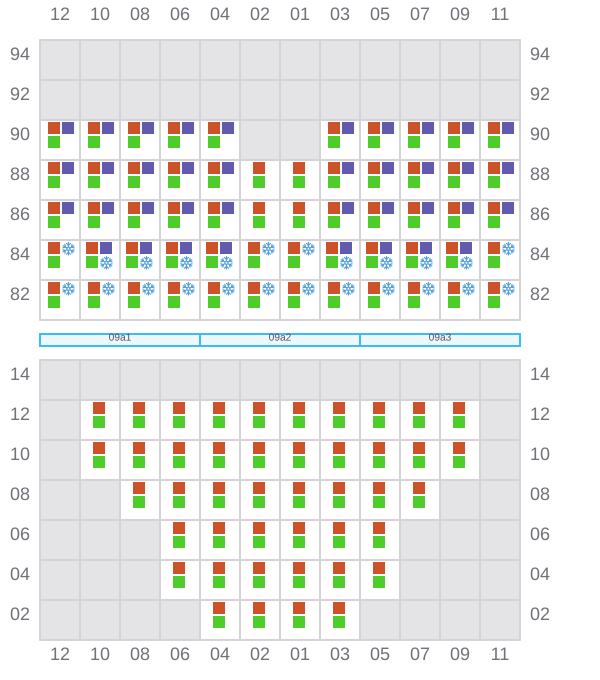

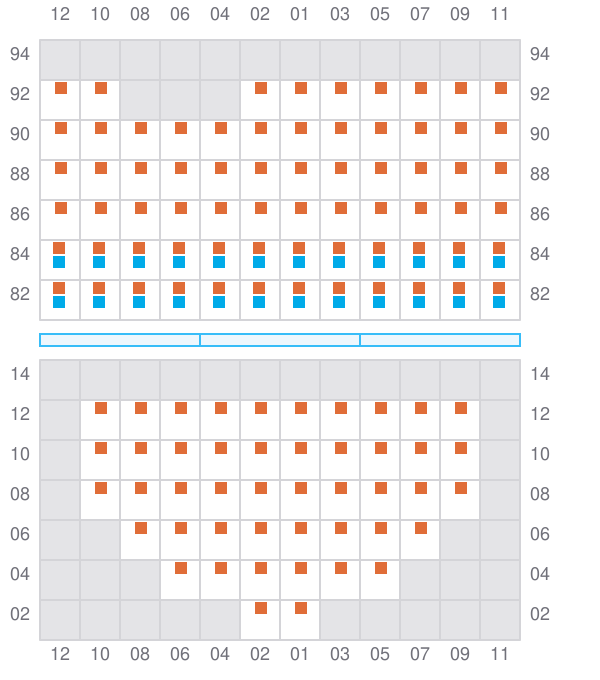

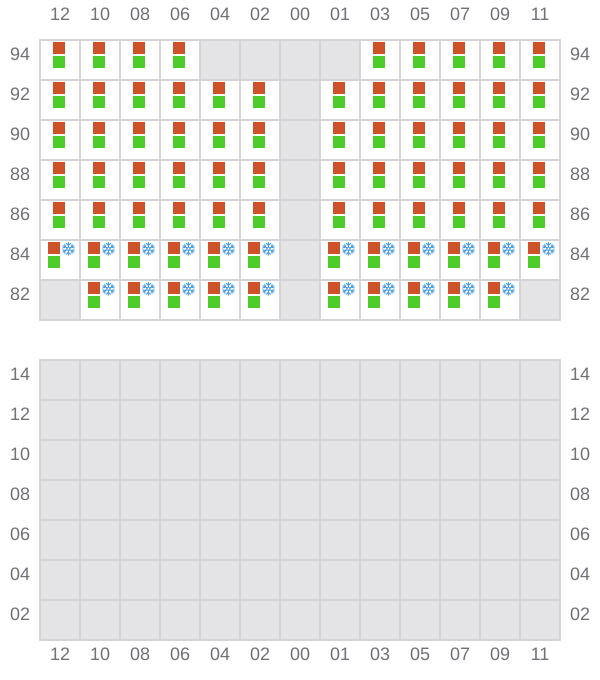

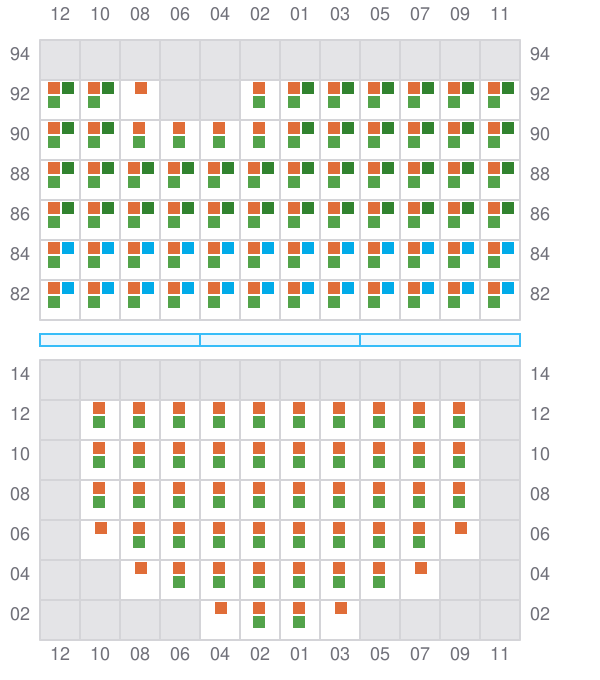

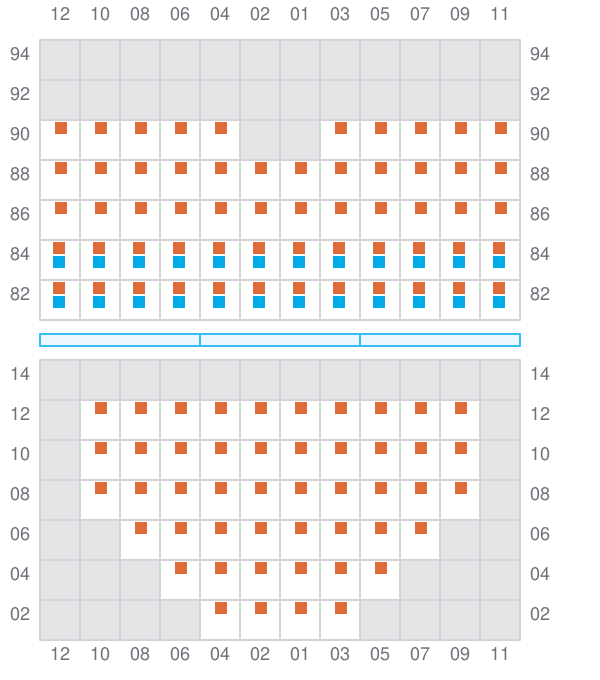

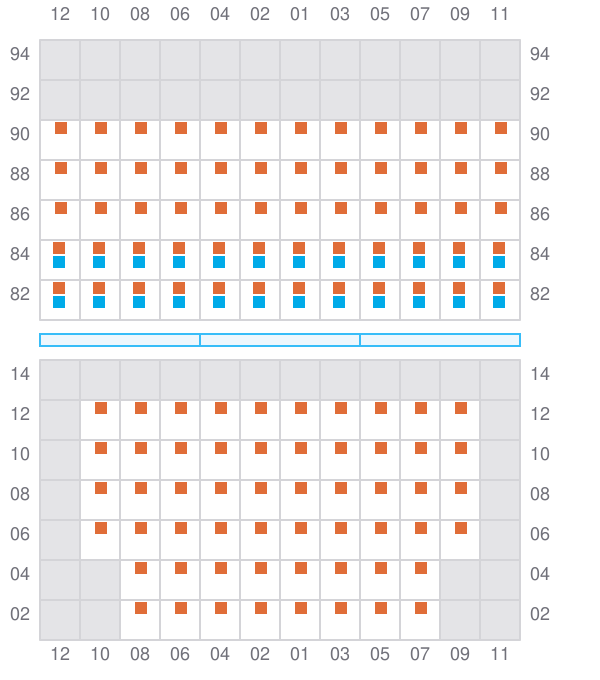

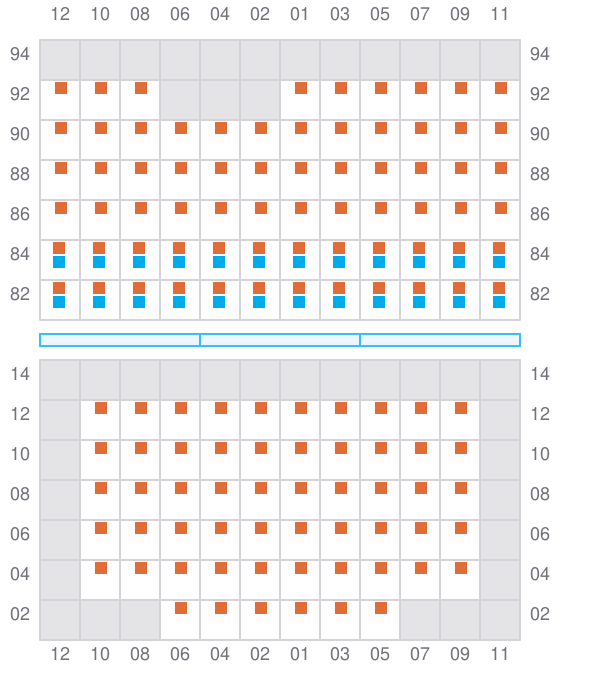

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
005 (006)
- →
007
- → / ?
009 (010)
- →
011
- → / ?
013 (014)
- →
015
- → / ?
017 (018)
- →
019
- → / ?
021 (022)
- →
023
- → / ?
025 (026)
- →
027
- → / ?
029 (030)
- →
031
- → / ?
033 (034)
- →
035
- → / ?
037 (038)
- → / ?
- ← / ?
039
- → / ?
041
- ← / ?
