MSC SONIA
9404663 | 3EUP7 | MSC by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:MSC SONIA
IMO Code:9404663
Call Sign:3EUP7
Line Operator:MSC
Class Name for Sister Ships:SON
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:2,580
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

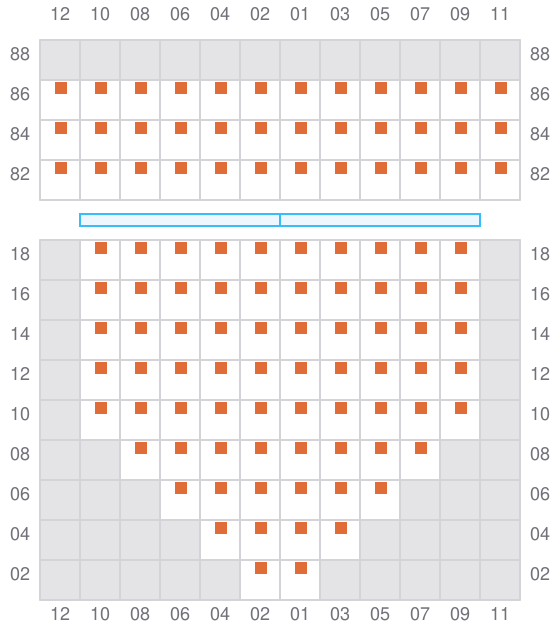

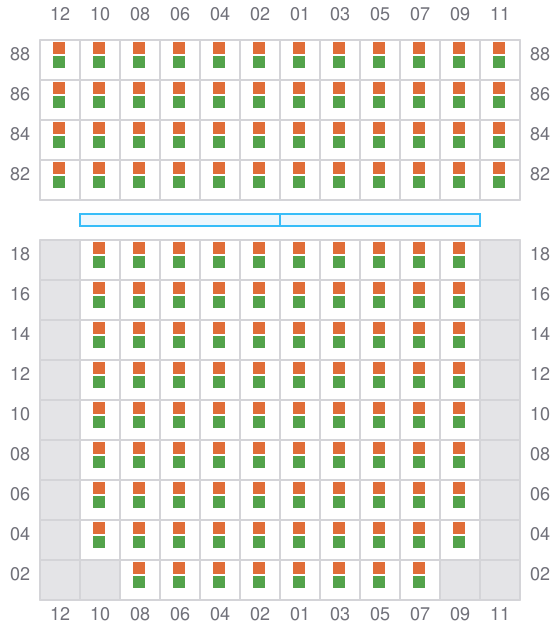

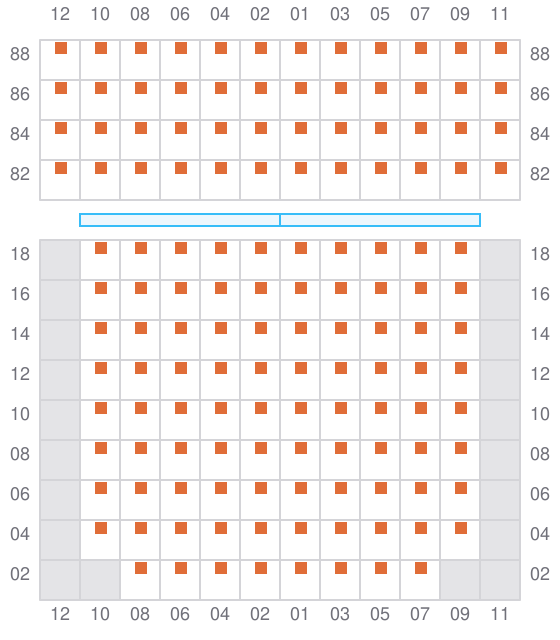

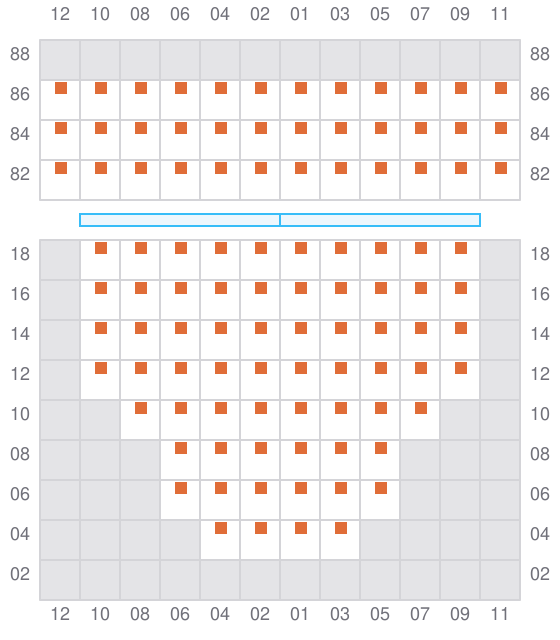

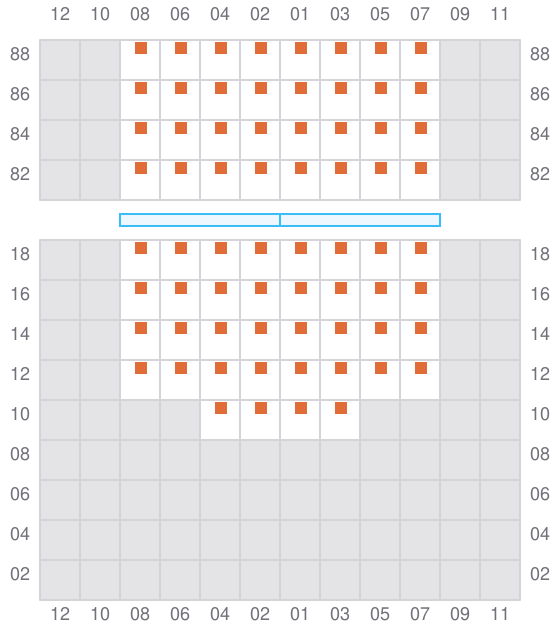

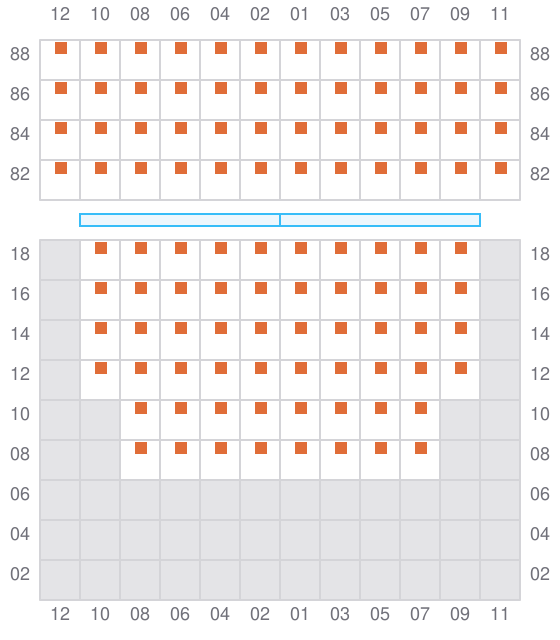

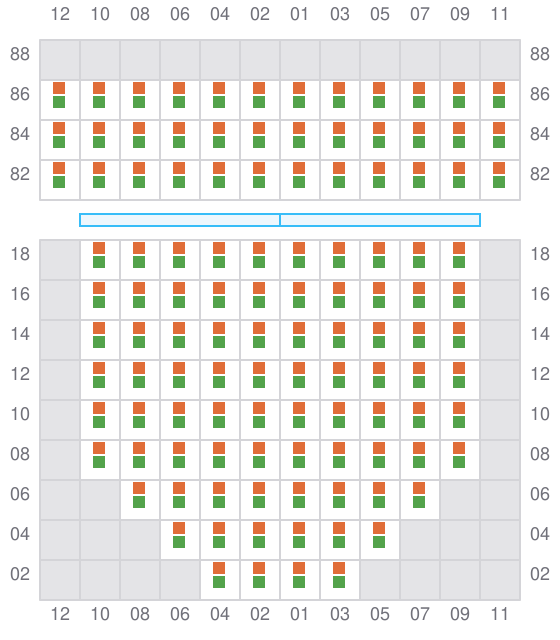

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- ? / →

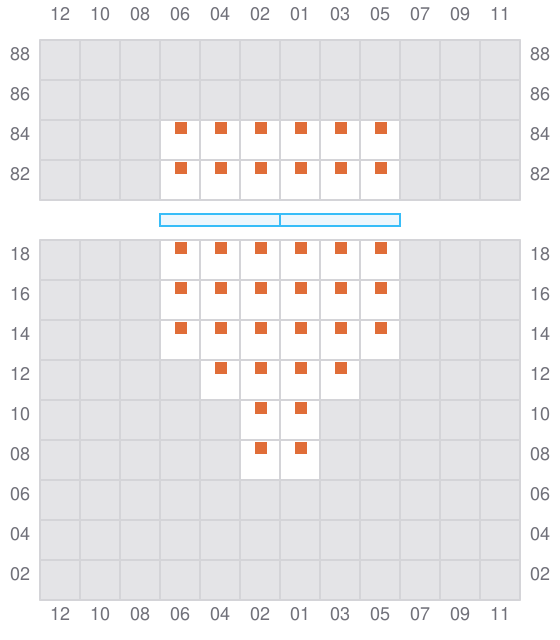

003
- →

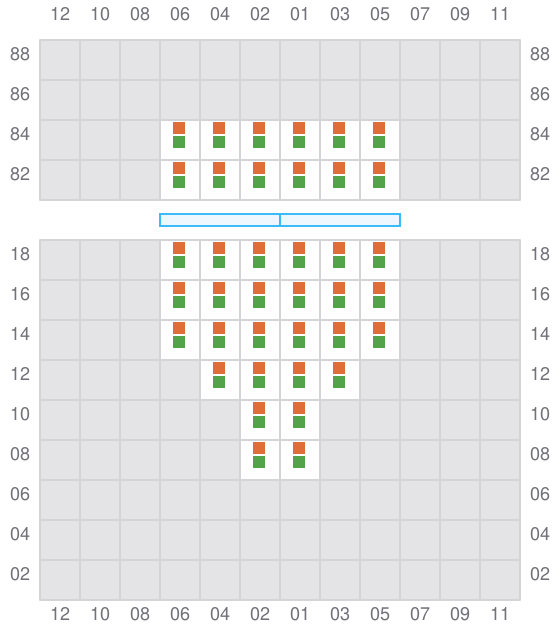

005 (004)
- ←

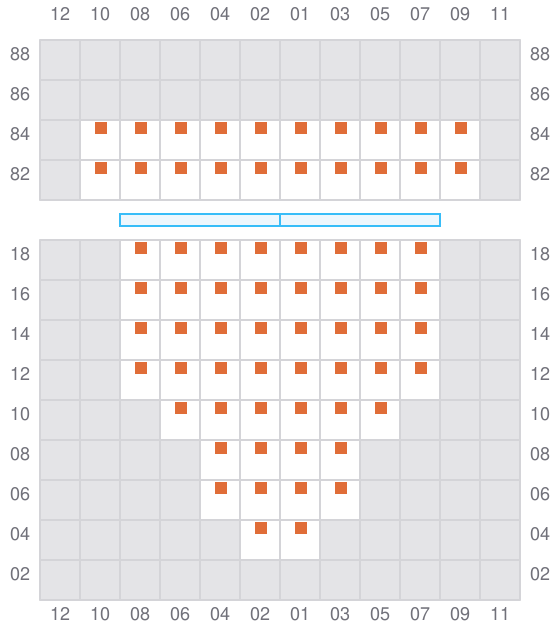

007
- →

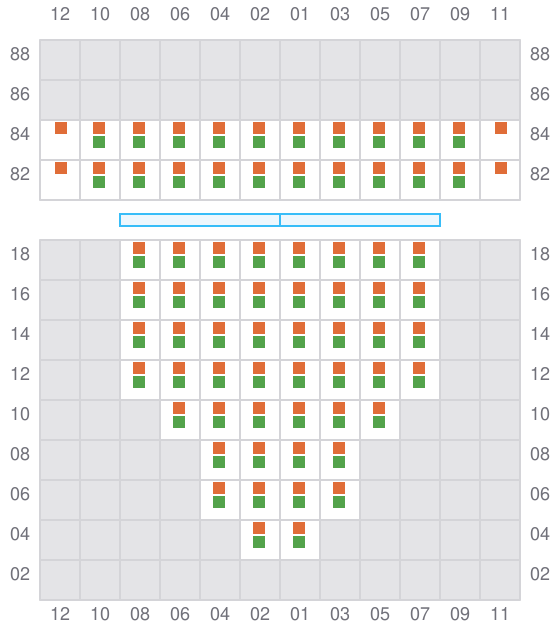

009 (008)
- ←
011
- →
013 (012)
- ←
015
- →
017 (016)
- ←

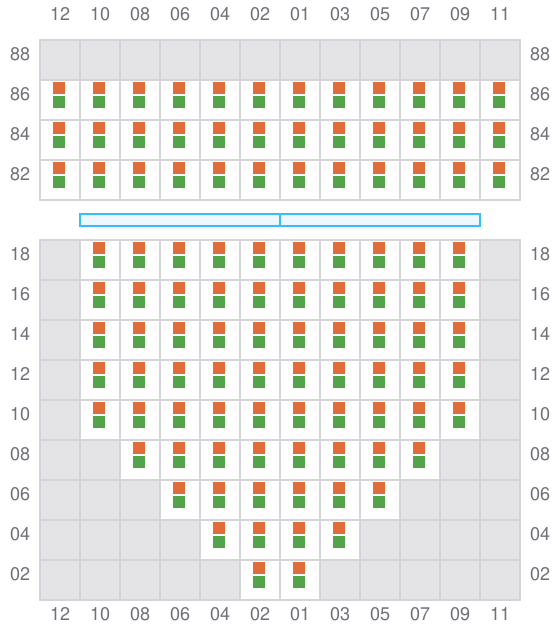

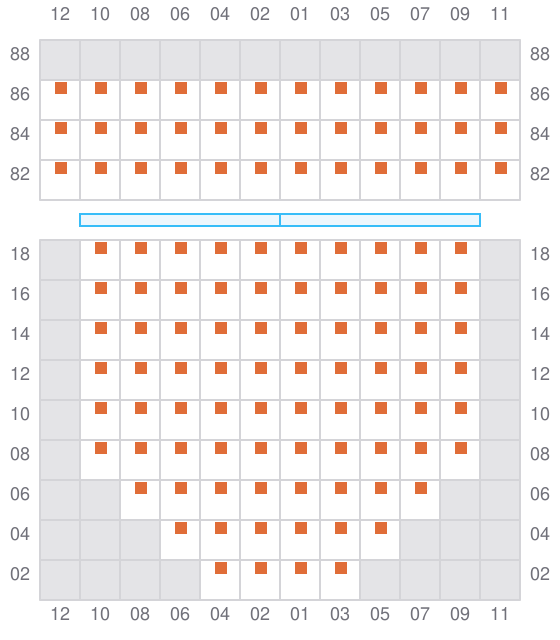

019
- →
021 (020)
- ←

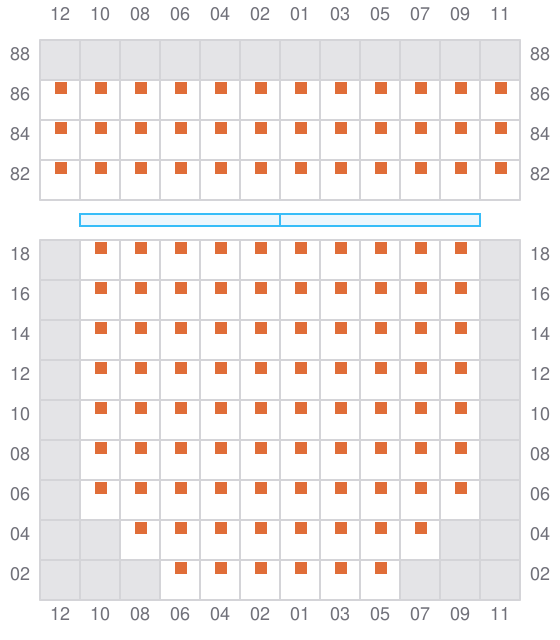

023
- →

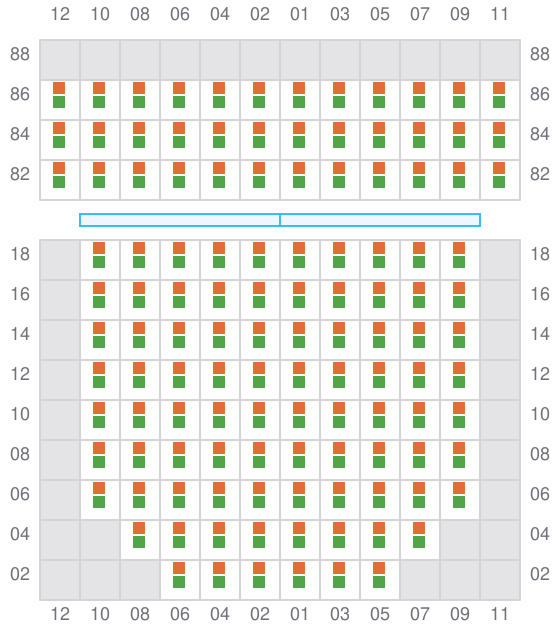

025 (024)
- ←
027
- →
029 (028)
- ←
031
- → / ←
033 (032)
- ←
035
- →
037 (036)
- ←
039
- →

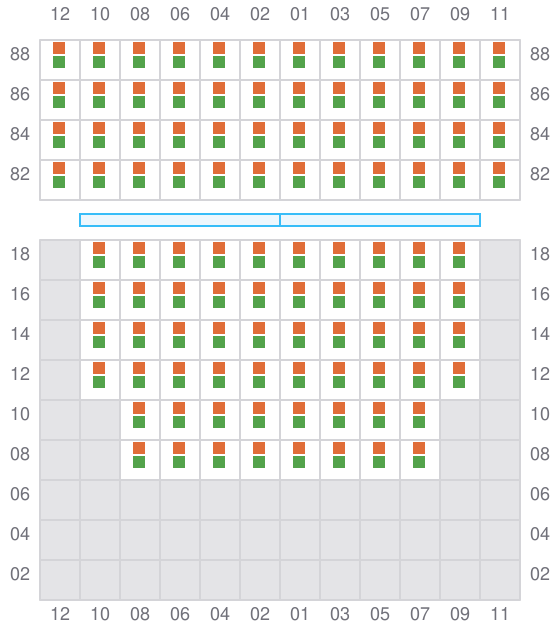

041 (040)
- ←
043
- →
045 (044)
- ←
047
- →

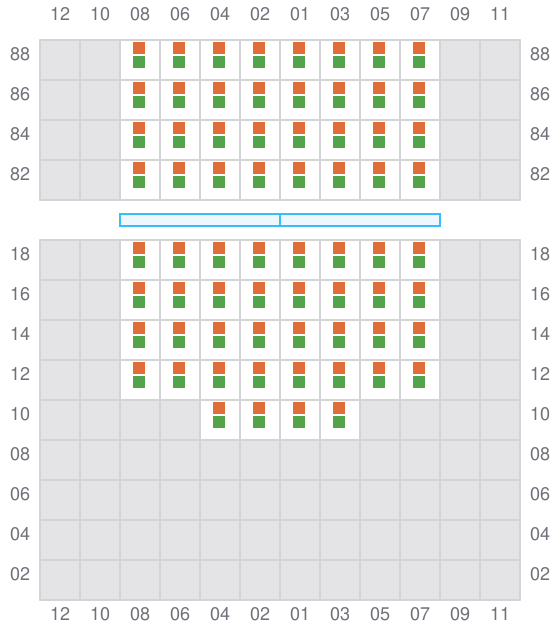

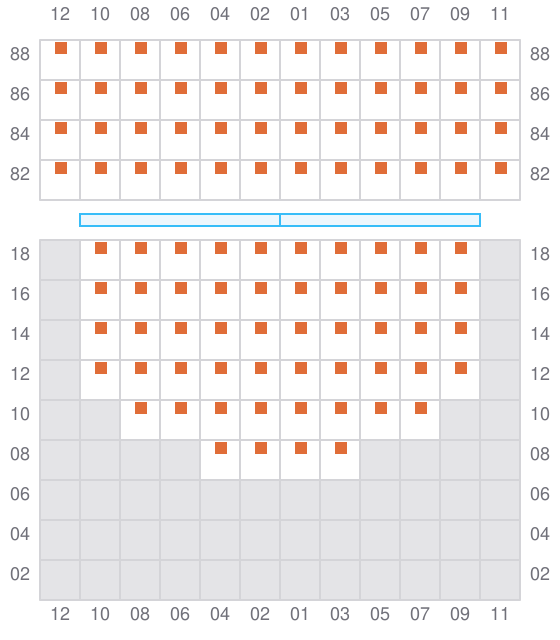

049 (048)
- ←
