MSC SORAYA
9372494 | 3ESD8 | MSC by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:MSC SORAYA
IMO Code:9372494
Call Sign:3ESD8
Line Operator:MSC
Class Name for Sister Ships:SOR
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,754
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

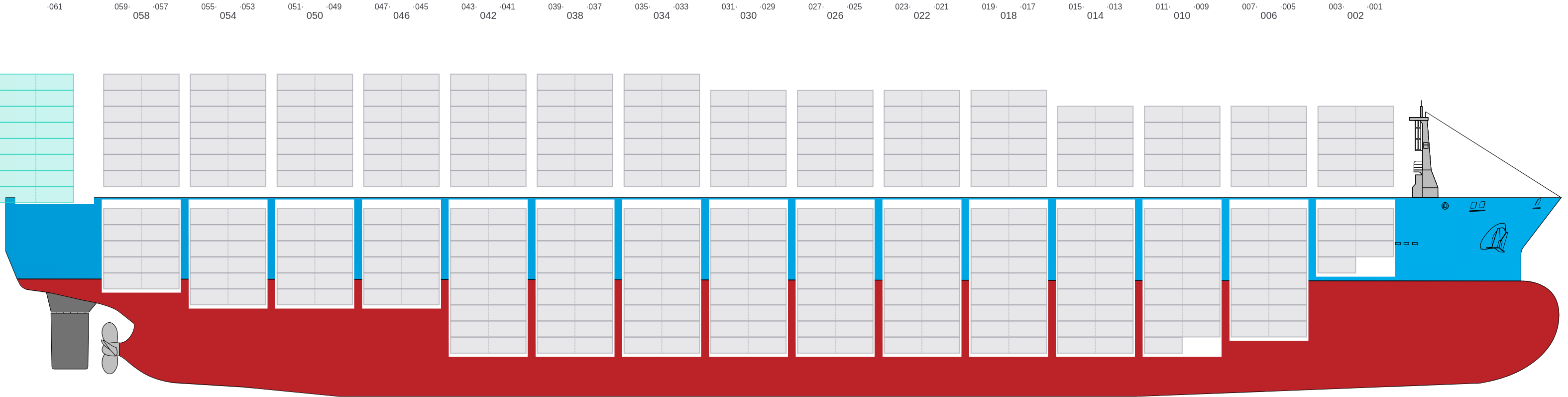

Side View
![Side view of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-sideView.png?v=1687459481822)

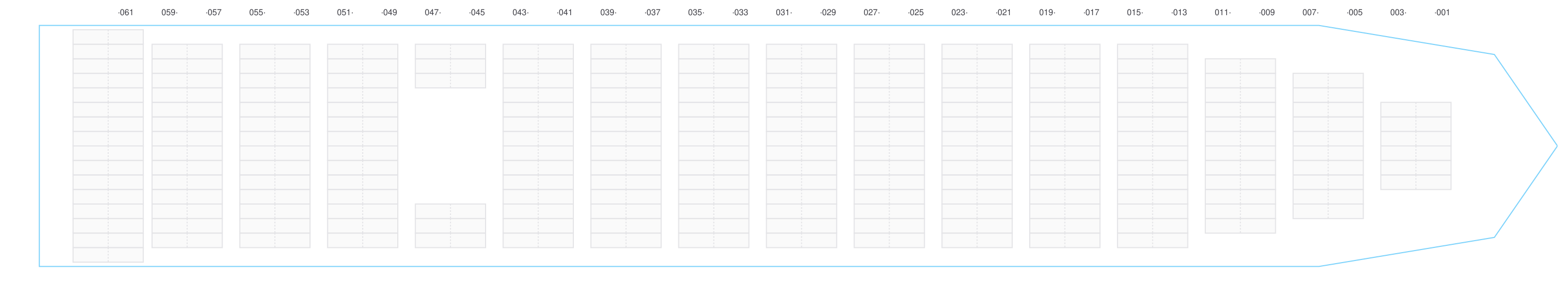

Hatch-Covers View
![Deck view of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-deckView.png?v=1687459481822)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

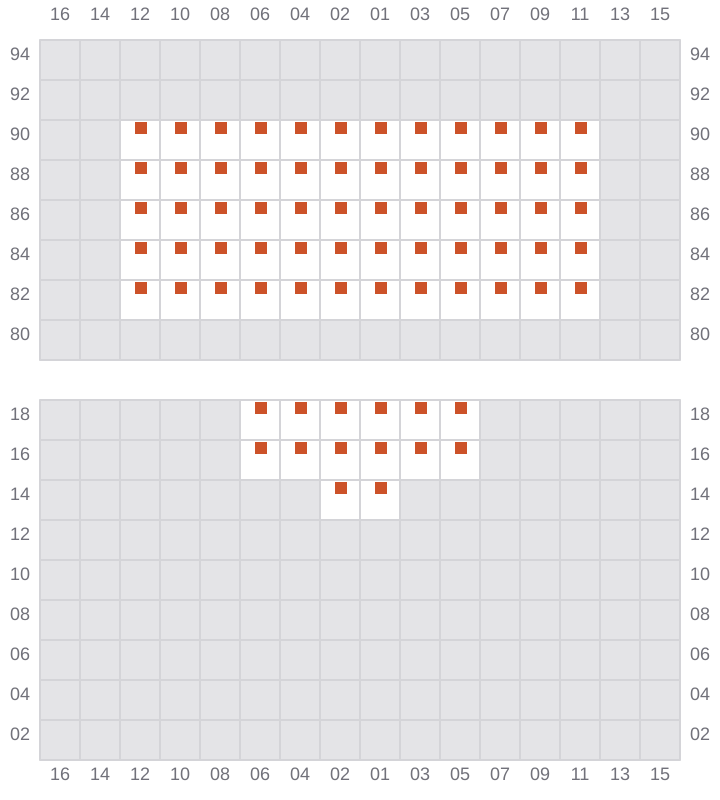

001
- →
![Bay 001 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b001.png?v=1687459481822)

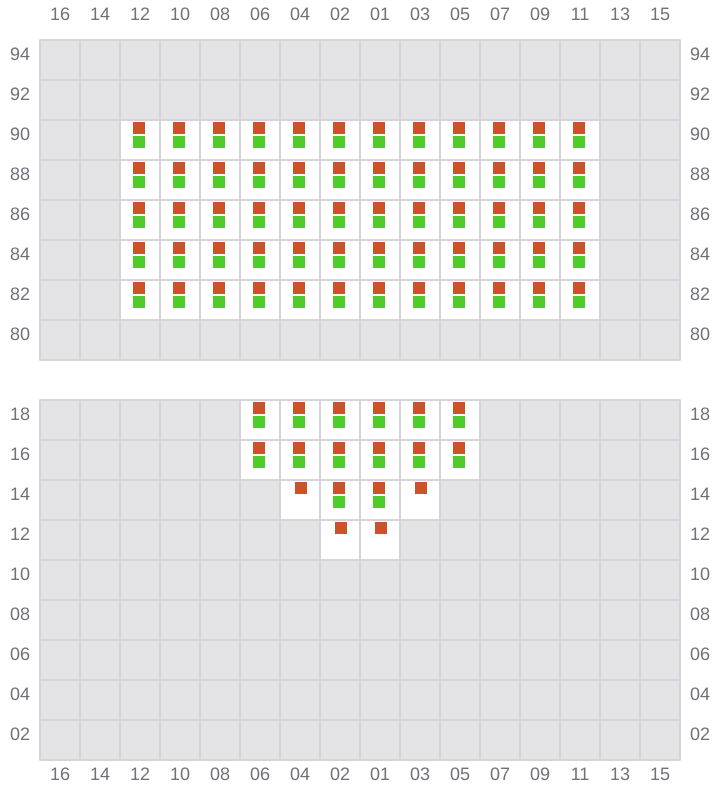

003 (002)
- ←
![Bay 003 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b003.png?v=1687459481822)

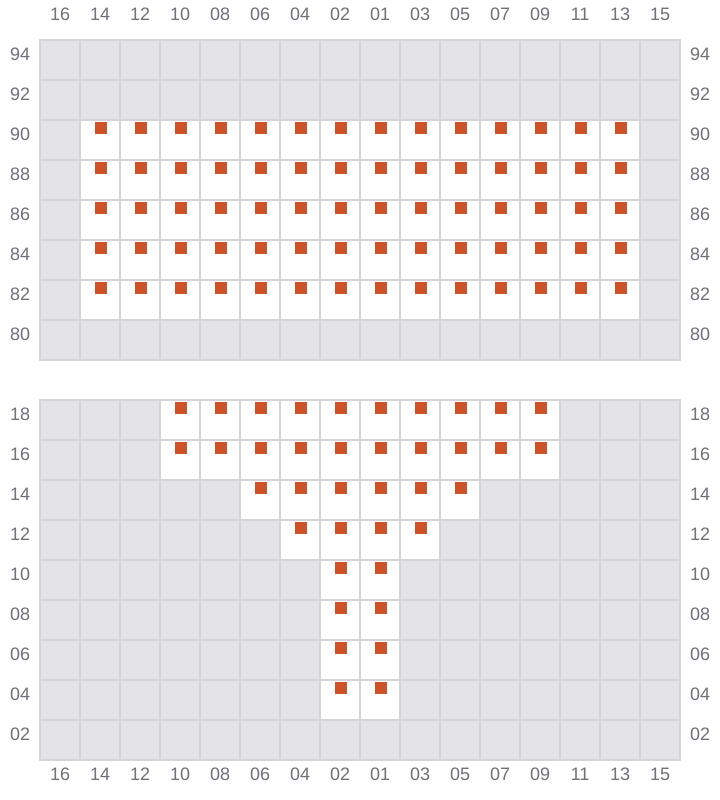

005
- →
![Bay 005 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b005.png?v=1687459481822)

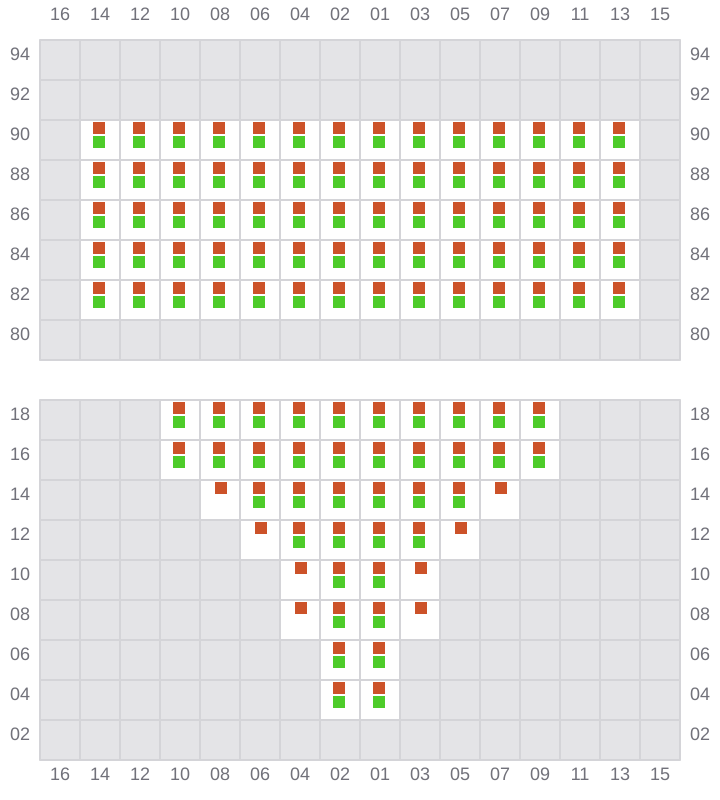

007 (006)
- ←
![Bay 007 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b007.png?v=1687459481822)

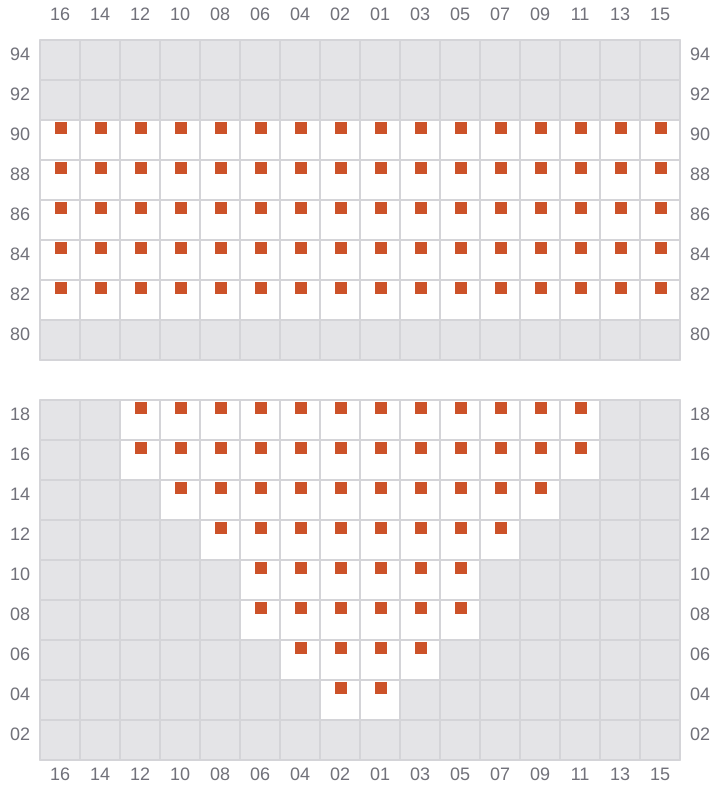

009
- →
![Bay 009 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b009.png?v=1687459481822)

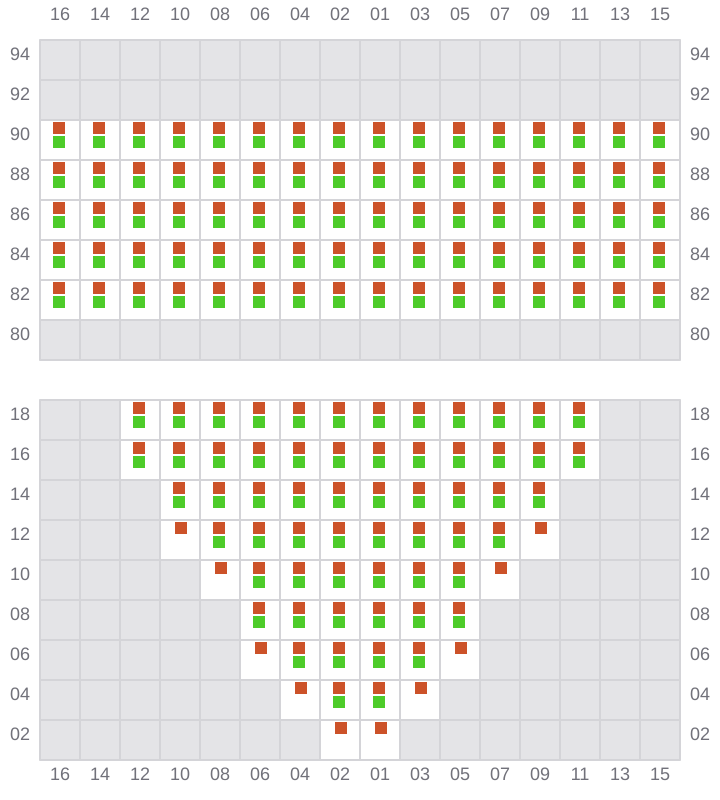

011 (010)
- ←
![Bay 011 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b011.png?v=1687459481822)

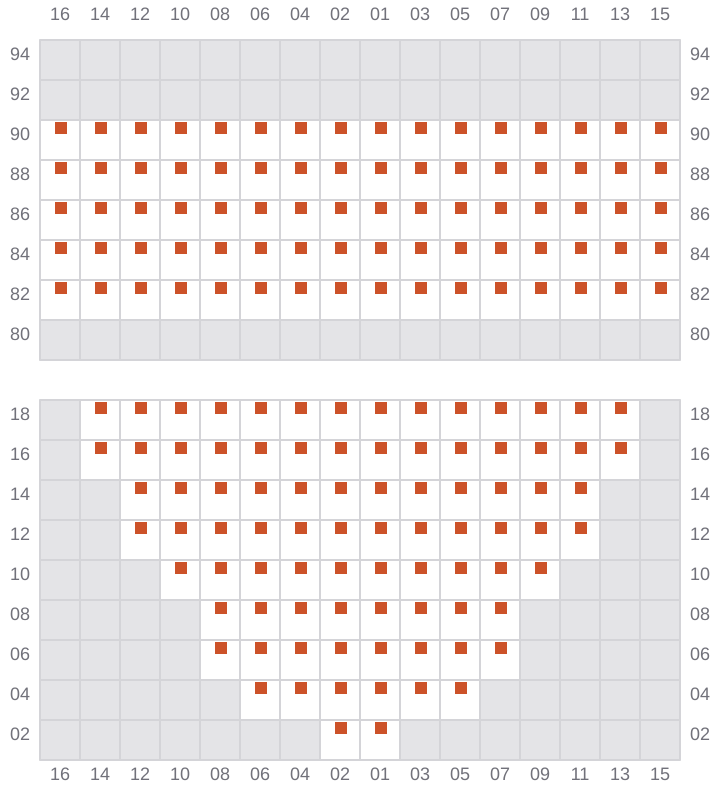

013
- →
![Bay 013 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b013.png?v=1687459481822)

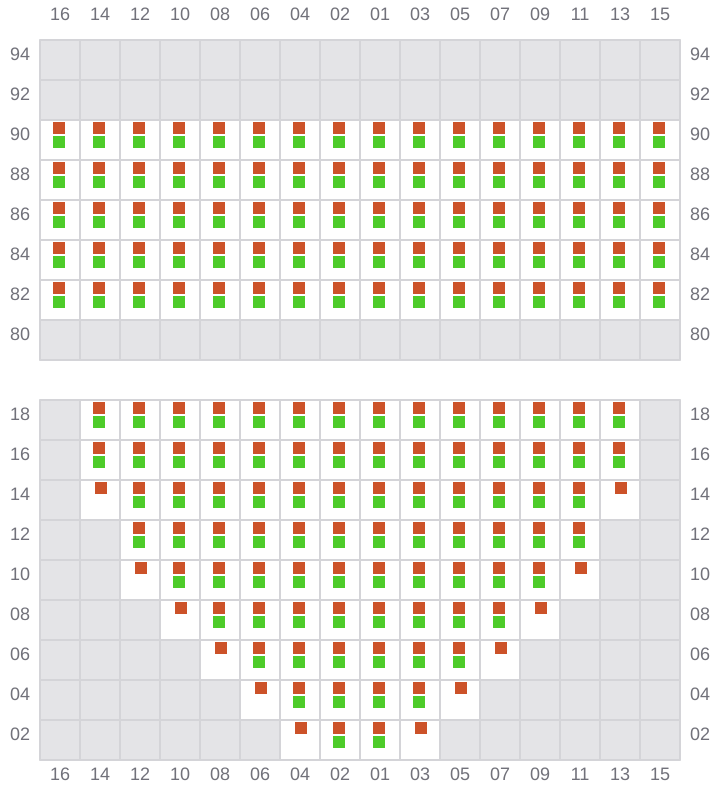

015 (014)
- ←
![Bay 015 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b015.png?v=1687459481822)

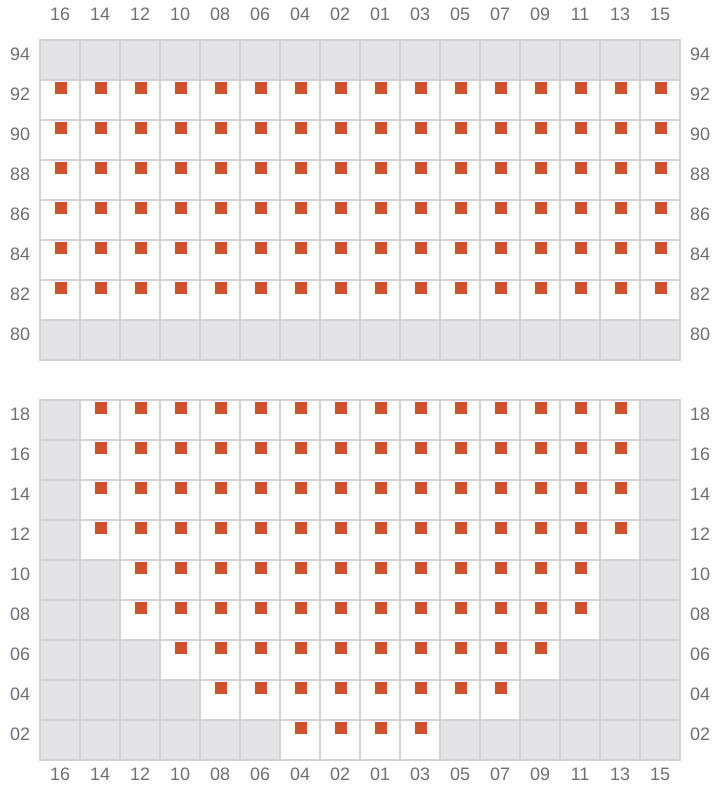

017
- →
![Bay 017 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b017.png?v=1687459481822)

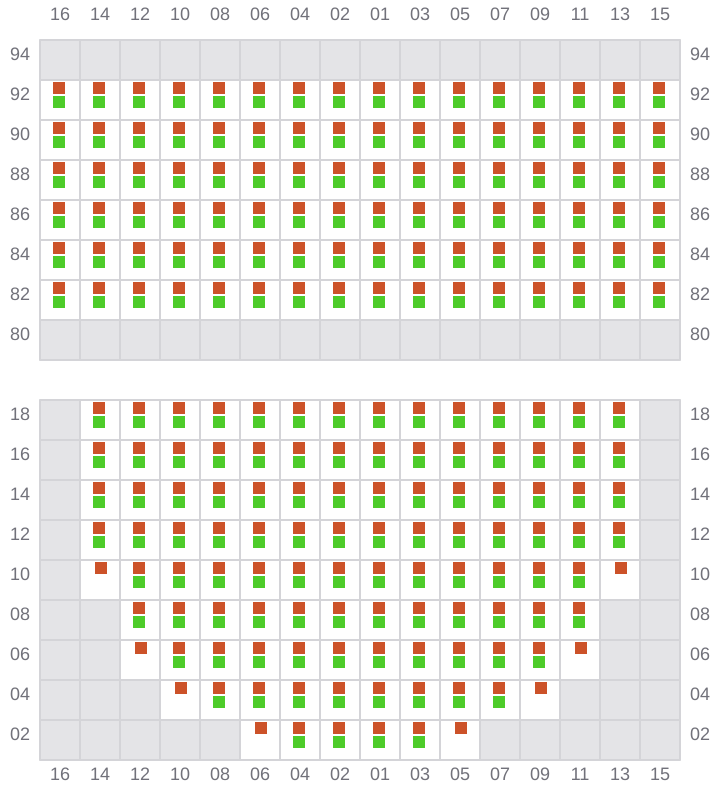

019 (018)
- ←
![Bay 019 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b019.png?v=1687459481822)

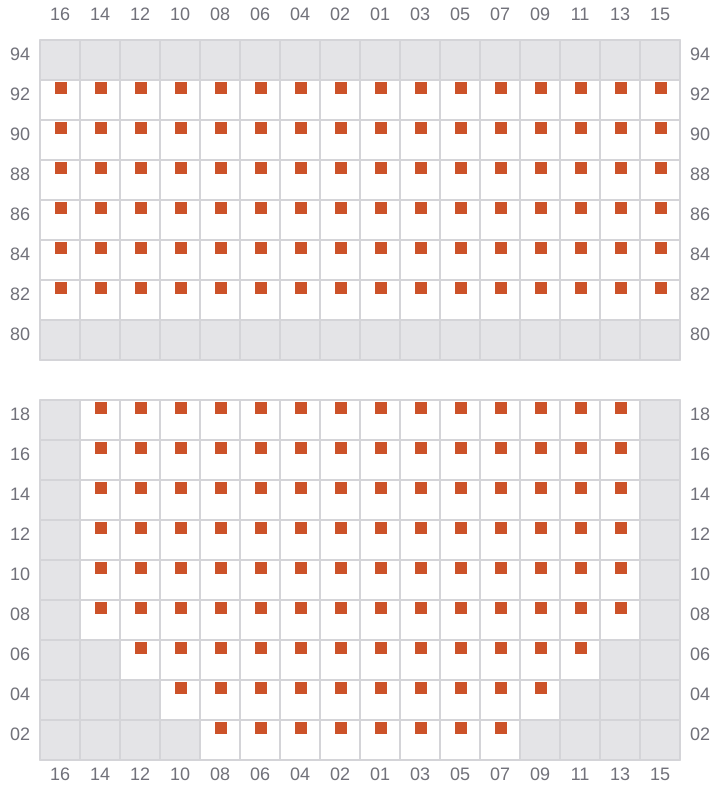

021
- →
![Bay 021 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b021.png?v=1687459481822)

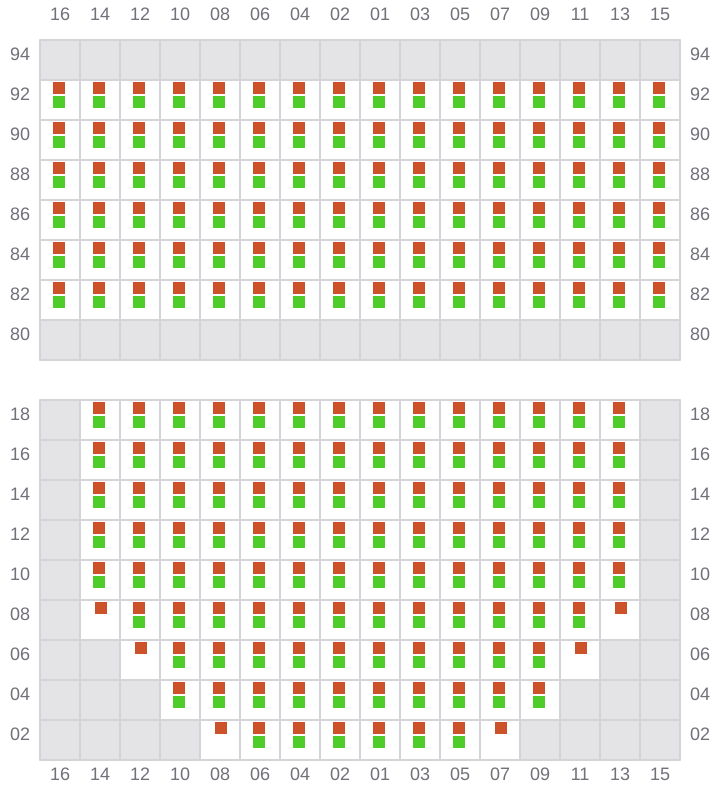

023 (022)
- ←
![Bay 023 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b023.png?v=1687459481822)

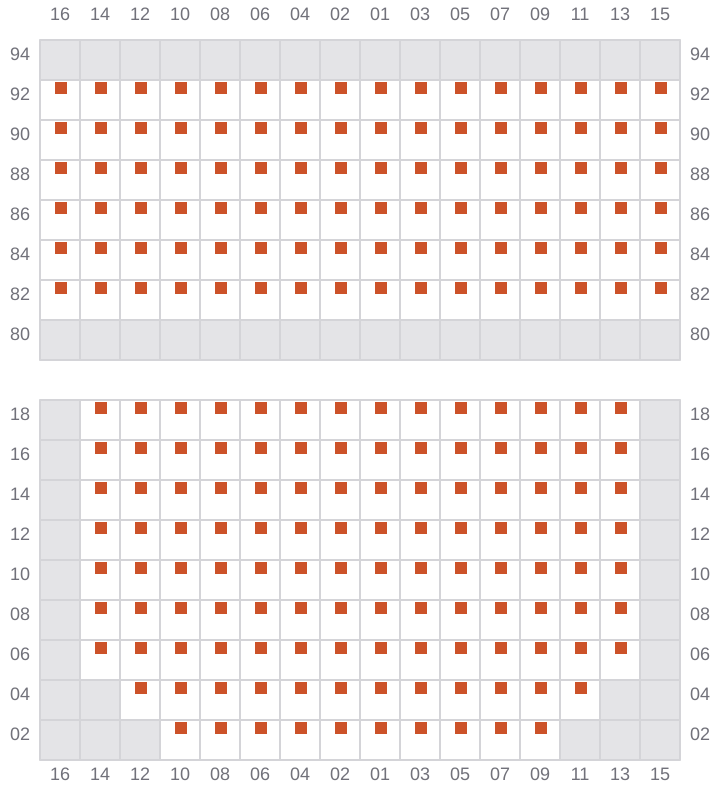

025
- →
![Bay 025 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b025.png?v=1687459481822)

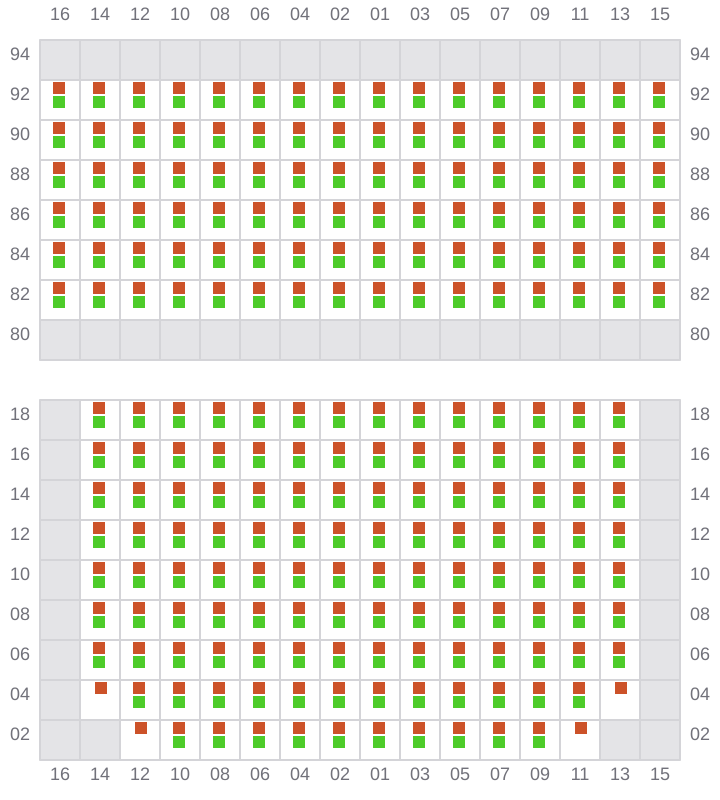

027 (026)
- ←
![Bay 027 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b027.png?v=1687459481822)

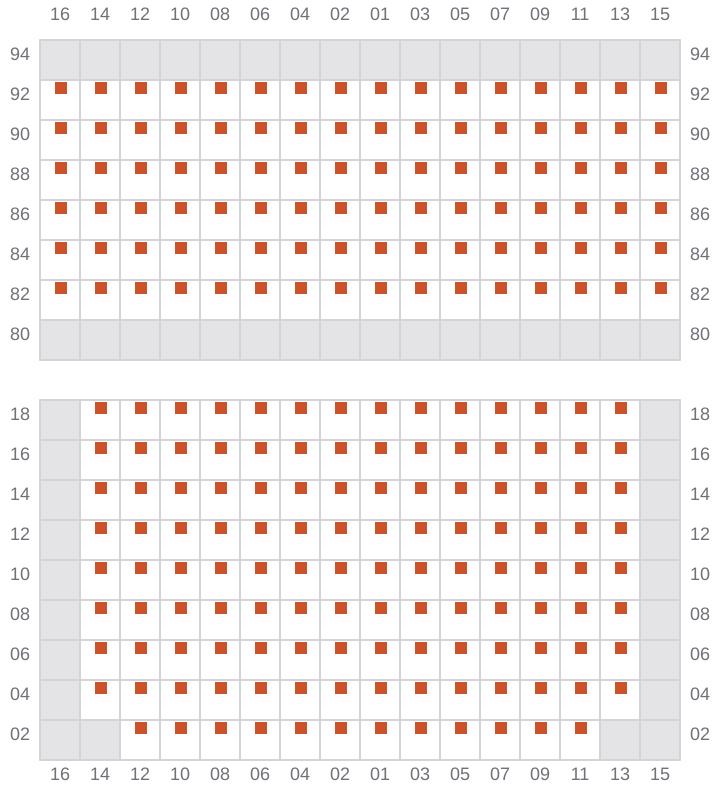

029
- →
![Bay 029 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b029.png?v=1687459481822)

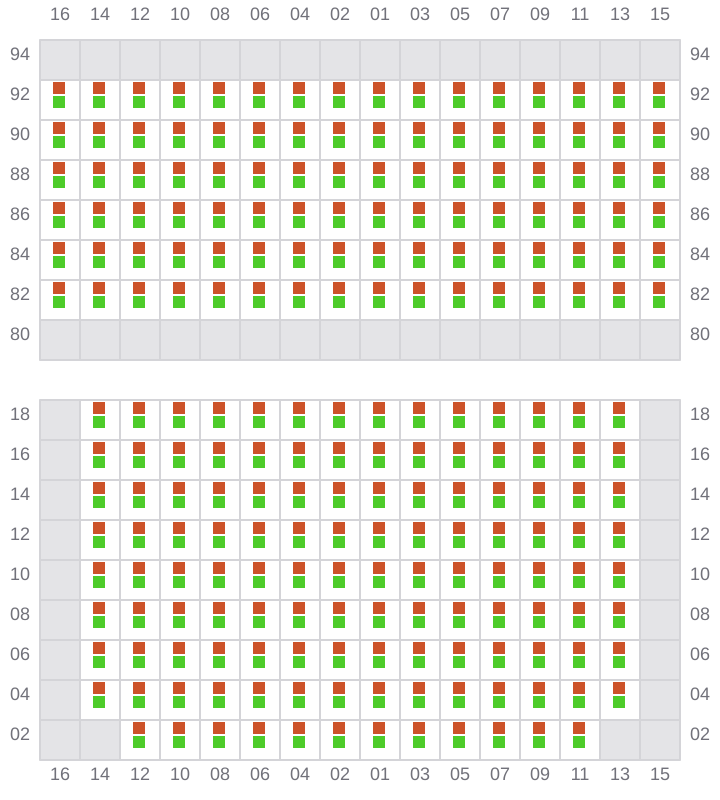

031 (030)
- ←
![Bay 031 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b031.png?v=1687459481822)
033
- →
![Bay 033 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b033.png?v=1687459481822)

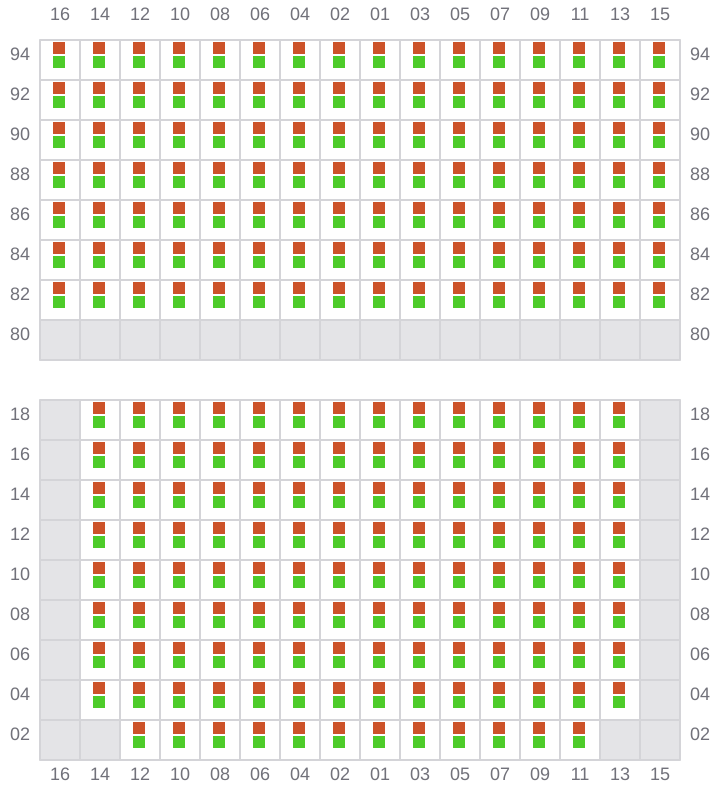

035 (034)
- ←
![Bay 035 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b035.png?v=1687459481822)

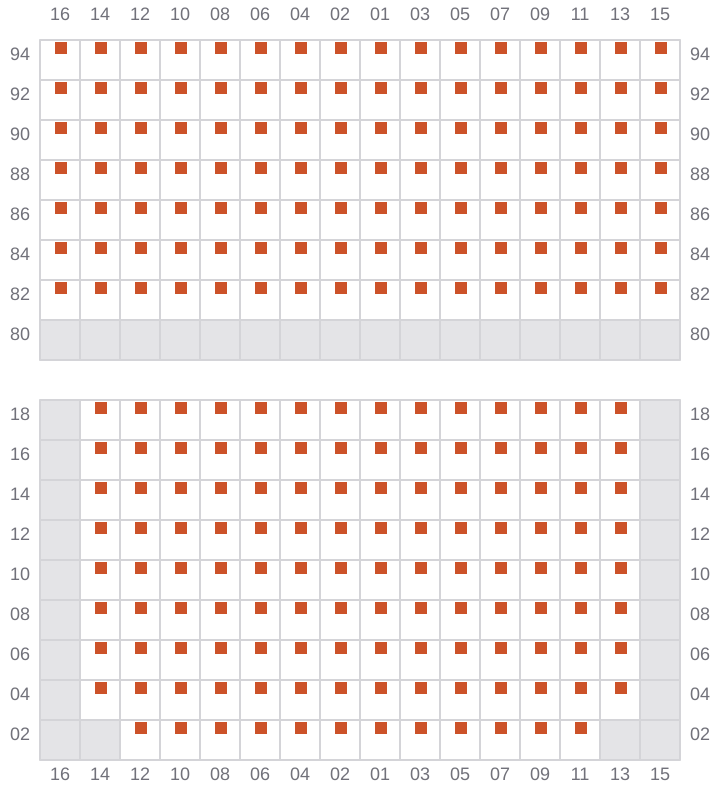

037
- →
![Bay 037 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b037.png?v=1687459481822)
039 (038)
- ←
![Bay 039 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b039.png?v=1687459481822)

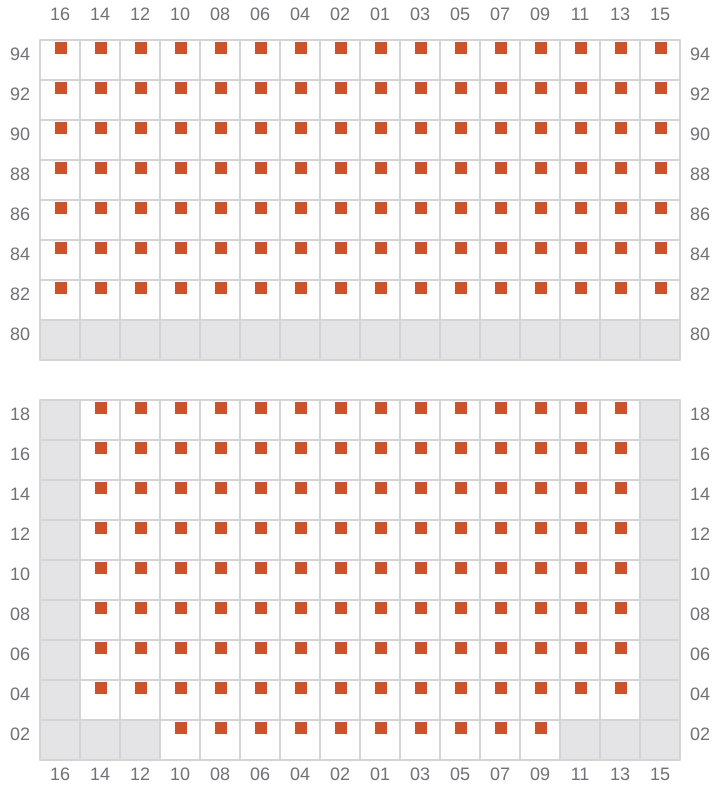

041
- →
![Bay 041 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b041.png?v=1687459481822)

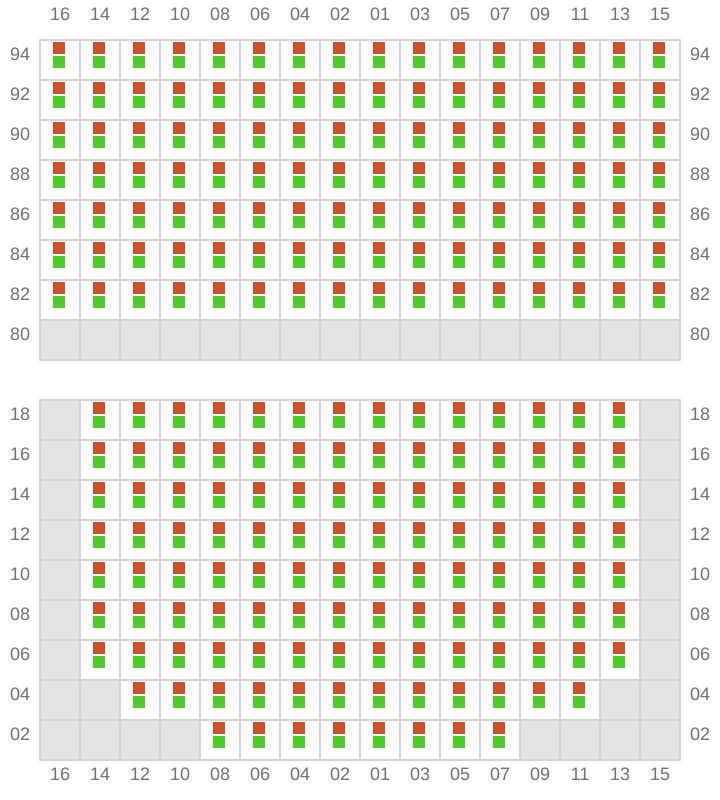

043 (042)
- ←
![Bay 043 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b043.png?v=1687459481822)

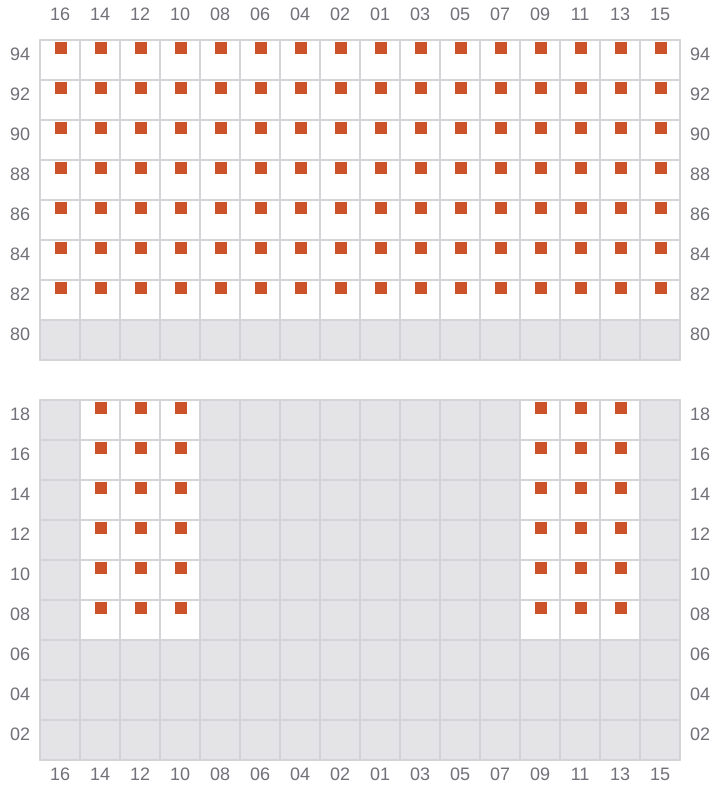

045
- →
![Bay 045 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b045.png?v=1687459481822)

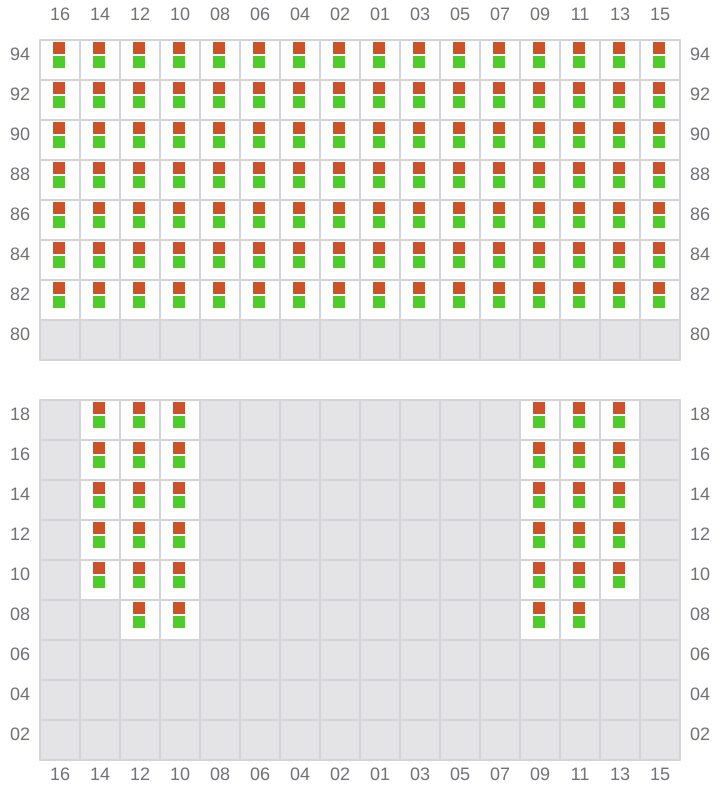

047 (046)
- ←
![Bay 047 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b047.png?v=1687459481822)

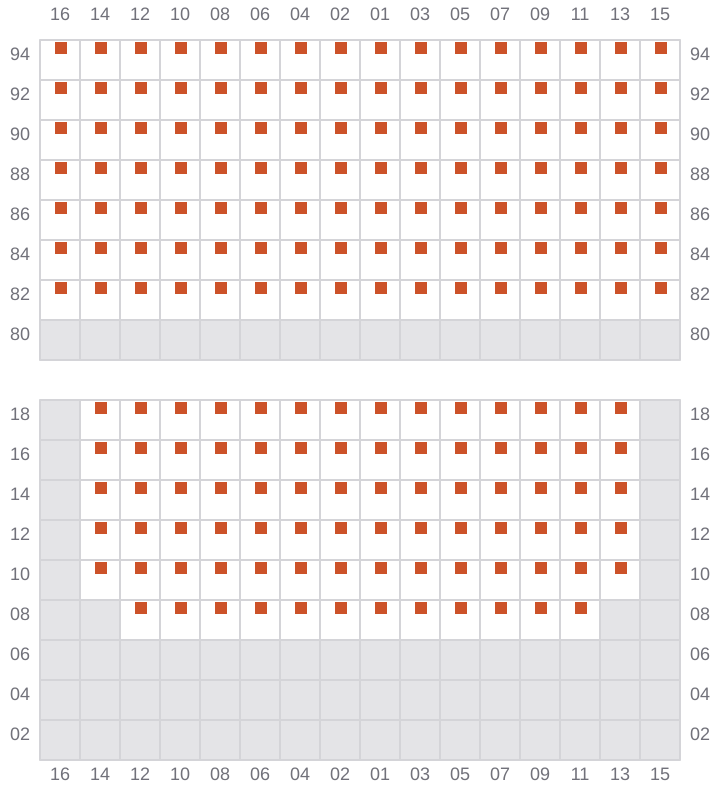

049
- →
![Bay 049 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b049.png?v=1687459481822)
051 (050)
- ←
![Bay 051 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b051.png?v=1687459481822)

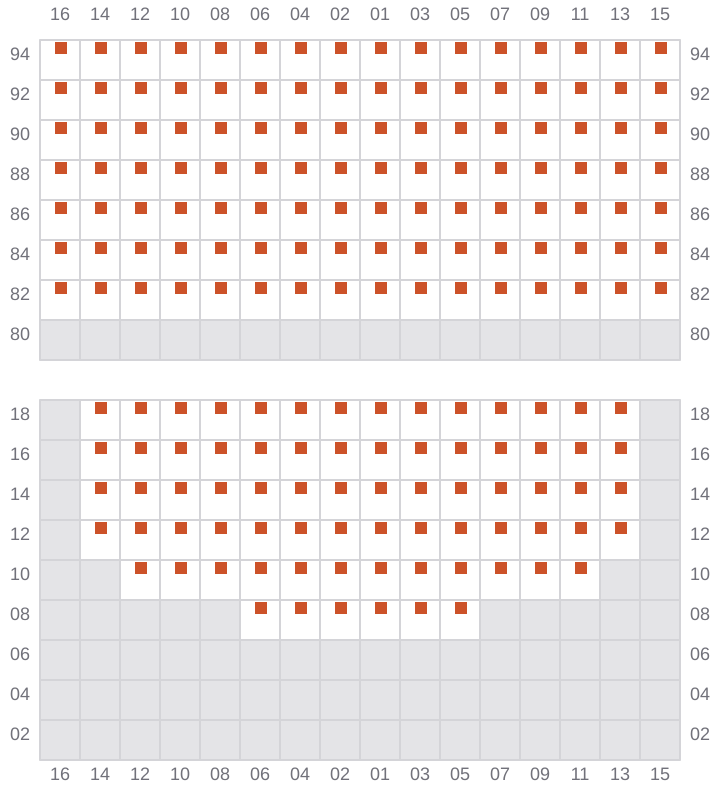

053
- →
![Bay 053 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b053.png?v=1687459481822)

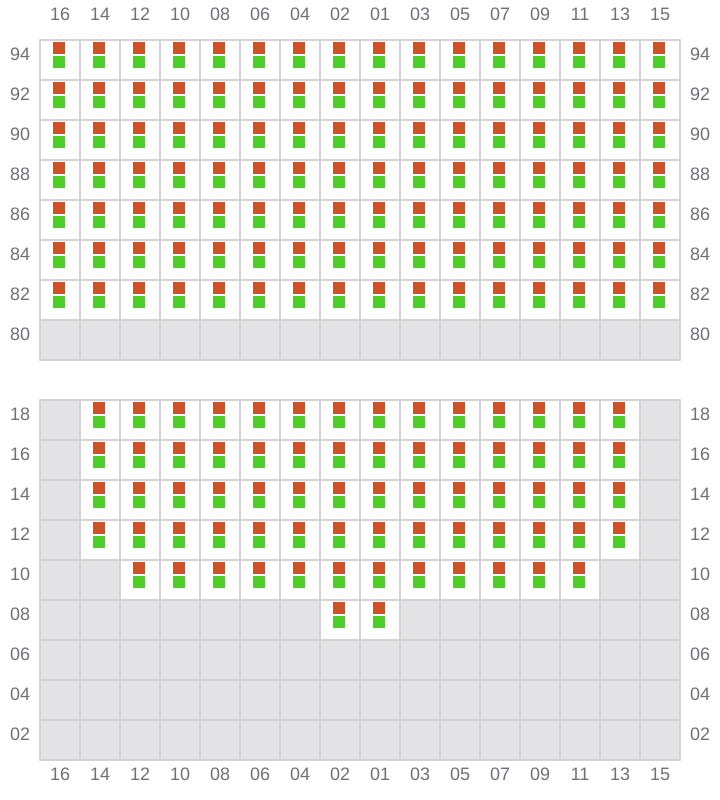

055 (054)
- ←
![Bay 055 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b055.png?v=1687459481822)

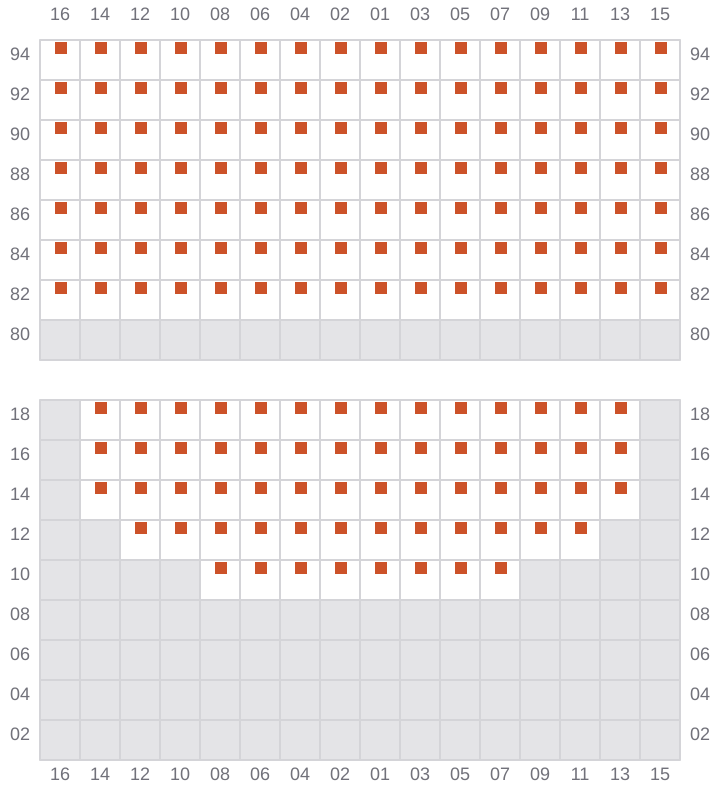

057
- →
![Bay 057 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b057.png?v=1687459481822)

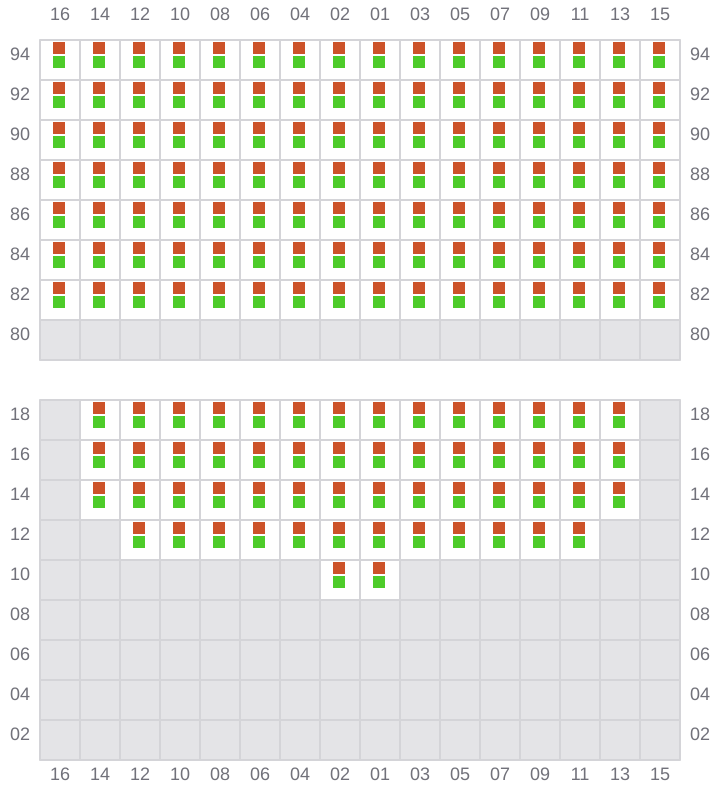

059 (058)
- ←
![Bay 059 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b059.png?v=1687459481822)

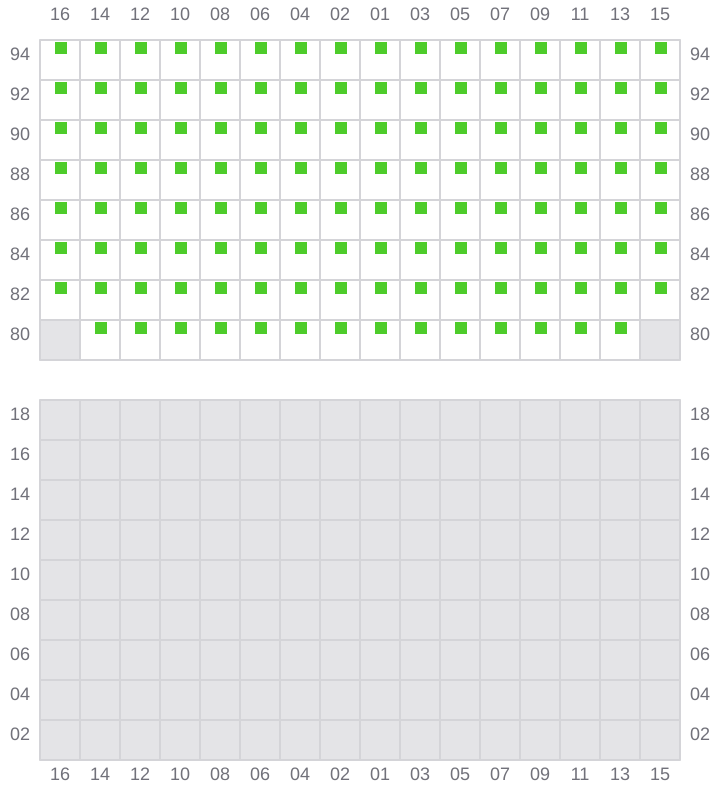

061 (062)
- → / ?
![Bay 061 view and slots of MSC SORAYA](/vessel-images/a162f99d-5bd3-46da-8c6c-7cc002aa9d2a-b061.png?v=1687459481822)
